Natural Language Query Processing in Multimedia Ontologies

Filiz Alaca Aygul

, Nihan Kesim Cicekli

and Ilyas Cicekli

Turkish Scientific and Technological Research Council (TUBITAK), Ankara, Turkey

Department of Computer Engineering, METU, Ankara, Turkey

Department of Computer Engineering, Hacettepe University, Ankara, Turkey

Keywords: Natural Language Querying, Spatio-temporal Querying, MPEG-7 Ontology, SPARQL.

Abstract: In this paper a natural language query interface is developed for semantic and spatio-temporal querying of

MPEG-7 based domain ontologies. The underlying ontology is created by attaching domain ontologies to

the core Rhizomik MPEG-7 ontology. The user can pose concept, complex concept, spatial, temporal,

object trajectory and directional trajectory queries. Furthermore, the system handles the negative meaning in

the user query. When the user enters a natural language query, it is parsed with the link parser. According to

query type, the objects, attributes, spatial relation, temporal relation, trajectory relation, time filter and time

information are extracted from the parser output by using predefined information extraction rules. After the

information extraction, SPARQL queries are generated, and executed against the ontology by using an RDF

API. The results are used to calculate spatial, temporal, and trajectory relations between objects. The results

satisfying the required relations are displayed in a tabular format and the user can navigate through the

multimedia content.

1 INTRODUCTION

Due to the increasing diversity and volume of

multimedia data, the problem of storing and

querying the semantic content of such data has

attracted the attention of a considerable amount of

research work (Donderler et al., 2003); (Koprulu et

al., 2004); (Ren et al., 2009). MPEG-7 standard is

proposed in order to standardize the description of

semantic contents of multimedia data. Since it is

implemented by XML-Schemas, it does not have a

reasoning capability. Also, its XML based

architecture prevents interoperability between

multimedia management systems. In order to

overcome these difficulties of MPEG-7 standard,

four MPEG-7 based multimedia ontologies,

represented in OWL, have been developed (Troncy

et al., 2007).

In order to query the contents of ontologies or

knowledge bases, there are some formal query

languages such as SPARQL (Prud’hommeaux and

Seaborne, 2008) and SeRQL (Broeskstra and

Kampman, 2003). Since these languages have a

quite complex syntax and require a good

understanding of both the underlying schema and the

language syntax, they are not preferred by the casual

end users. Five different methods have been

proposed to ease the query construction over

ontologies: keyword-based, graph-based, form-

based, view-based, and natural language based.

Users are mostly familiar with keyword-based

querying due to the popularity of search engines like

Google. SPARK (Zhou et al., 2007), Q2Semantic

(Wang et al., 2008), SemSearch (Lei et al., 2006),

and GuNQ (Bhatia et al., 2006) construct queries

using keyword-based methods. The common

problem with these methods is that they produce lots

of results and it is hard to choose the most relevant

result. In the graph-based methods (Russell et al.,

2008); (Borsje and Embregts, 2006), the user

constructs the SPARQL query by drawing an RDF

graph. This approach is not feasible for end users

either, because the user should be familiar with the

SPARQL syntax and the RDF Schema. Form-based

query interfaces are easy to use for end users. The

form displays the ontology entities in a user friendly

manner and the details of the underlying ontology

are hidden from the user. The query is being

generated while the user fills the form. This

approach is suitable for only small-scale ontologies

because a form should be created for each query

type. In view-based interfaces (Athanasis et al.,

Alaca Aygul F., Kesim Cicekli N. and Cicekli I..

Natural Language Query Processing in Multimedia Ontologies.

DOI: 10.5220/0004134900660075

In Proceedings of the International Conference on Knowledge Engineering and Ontology Development (KEOD-2012), pages 66-75

ISBN: 978-989-8565-30-3

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

2004); (Catarci et al., 2004); (Jarrar and Dikaiakos,

2008), the user can browse an ontology and select

the subjects, the properties and the objects to

generate the query. It can be a little tricky and time-

consuming for non-experienced users. The most

sophisticated method for querying semantic data is

natural language based querying (Erozel et al.,

2008); (Kara et al., 2010); (Kaufmann et al., 2007);

(Tablan et al., 2008).

In this paper, a natural language interface is

presented for querying ontologies which contain

multimedia data. The underlying ontology is created

by attaching domain ontologies to the core Rhizomik

MPEG-7 ontology (García and Celma, 2005). The

ontology is used to represent the semantic content of

a video file. For each object in the ontology, the

frame intervals during which the object is seen in the

video, and the minimum bounding rectangles which

specify the position of the objects are annotated. By

using the natural language interface, the user can

pose concept, complex concept (objects connected to

each other with an “AND” or “OR” connector),

spatial, temporal, object trajectory and directional

trajectory queries. The contributions of this paper

can be summarized as follows:

 The main contribution of this paper is a natural

language (English) query interface for concept,

spatio-temporal and trajectory queries over the

MPEG-7 based domain ontologies.

 The proposed solution is a generic solution in

which any domain ontology can be queried with this

system.

 MPEG-7 based domain ontologies are used in

this study, as a result we benefit from the reasoning

mechanism and handle the semantic interoperability

problem. The user can pose queries to the system

without struggling with the complex syntax of

formal ontology query languages.

 The details of the underlying ontology are hidden

from the user, which provides some level of

abstraction.

 The semantic objects can be queried with their

attributes.

 Complex concept querying is also provided. 

The rest of the paper is organized as follows. Section

2 introduces the system architecture and Section 3

presents the supported query types together with

their internal representations. Section 4 discusses the

mapping of queries to SPARQL queries. Section 5

presents query processing by discussing the

execution of each query type. Section 6 concludes

the paper with some remarks.

2 SYSTEM ARCHITECTURE

In this paper, a natural language querying interface

is presented for querying multimedia domain

ontologies which are attached to the core Rhizomik

MPEG-7 Ontology. The system accepts natural

language input from the user, parses it with the link

parser, generates the SPARQL query according to

the query type, and finally executes the query

against the ontology. The query results are processed

to calculate spatial, temporal and trajectory

relationships according to the type of the query. The

system architecture is presented in Figure 1.

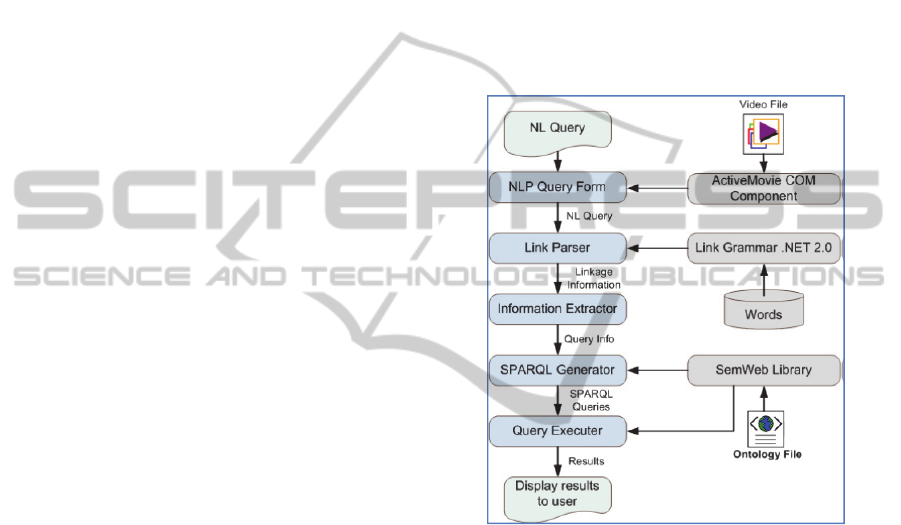

Figure 1: System architecture for querying multimedia

domain ontologies.

NLP Query Form is the main user interface of

the application. It allows the user to select ontology

and a video. The user enters the natural language

query by using this form. The results of the executed

query are displayed in a tabular format. By double

clicking on a result, the user can view the video

fragment that corresponds to the selected result.

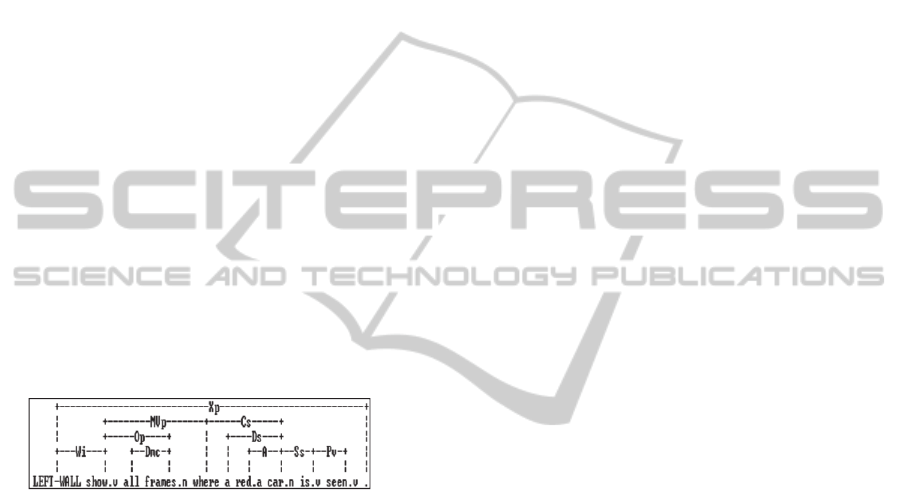

Link Parser module is used to parse the natural

language input in order to produce the linkage

information of the input query.

Information Extractor module uses the output of

the link parser to construct an internal representation

of the query from its linkage information. According

to the query type, it extracts objects, attributes,

spatial relation, temporal relation, trajectory relation,

and time information from the query.

SPARQL Generator module is responsible for

creating the SPARQL queries from the internal

NaturalLanguageQueryProcessinginMultimediaOntologies

representation of the query by using SemWeb library

(Tauberer, 2010). When the ontology file is chosen

from the NLP Query Form user interface, it loads

the data from the ontology into the system. For

further use, it extracts the attributes in the ontology

which have restricted data values. It constitutes a

class list whose elements are the classes in the

ontology. An object property list and a data type

property list are also populated from the entries in

the ontology. While generating the SPARQL

queries, it checks if the query information exists in

the ontology by using the extracted information.

Query Executer module is used to execute the

generated SPARQL queries. It uses SemWeb library

(Tauberer, 2010) and executes the queries against

the ontology. Query results are processed according

to the query type for calculating spatial, temporal,

and trajectory relations. Finally, the results are

displayed in the NLP Query Form.

3 SUPPORTED QUERY TYPES

In the presented system, the user can query videos

which are annotated using domain ontologies

attached to the MPEG-7 ontology. The system

supports five types of queries: Concept, Complex

Concept, Spatial, Temporal, and Trajectory. Each of

the supported query types in the system has an

internal representation. When the natural language

input is parsed, its output is mapped to an internal

representation.

Concept Query: This query type is used in order to

retrieve frames containing objects of interest.

Moreover, objects can be queried by specifying one

or more attributes. In addition, negative meaning in

the NL input is also captured. Thus, users can view

the time intervals where the specified object does

not appear in the video. Some example concept

queries are given below:

Show all frames where a female is seen.

Return all frames where John Locke is seen.

Return scenes where a male is not seen.

The internal representation of a concept query is as

follows:

ConceptQuery:

Concept (ObjectName, AttributeList);

QueryStartTime; QueryEndTime;

IsNegationQuery; VideoDuration

Concept is composed of ObjectName and

AttributeList. ObjectName is the name of the object

in the query such as “dog”, “car” and “John Locke”.

AttributeList contains the attributes of the object if

stated in the query sentence. The fields

QueryStartTime and QueryEndTime are used to

retrieve the concepts in the specified time interval. If

QueryStartTime and QueryEndTime are not shown

in the representation, then the query is not restricted

to a specific time interval, rather the whole video is

considered as the scope of the query.

IsNegationQuery is a boolean flag, which is set to

true if negative meaning exists in the NL input.

VideoDuration is the total duration of the video. It is

used to calculate the time intervals when the query is

a negation concept query.

Complex Concept Query: Users can select more

than one object that are connected with an “AND” or

“OR” connector by using the complex concept

query. Thus, a complex concept query can be

thought as a collection of concept queries, along

with a connector. When handling the “AND”

connector in the query, the intersection of the results

for each concept query is found. If “OR” connector

is given in the NL query, the result is the union of

the results for each concept query. The negative

meaning is also captured in the complex concept

query. Examples of the complex concept query are

given below:

Retrieve all frames where Jack and Kate appear.

Show all frames where a male or a female is seen.

Return frames where Jack and Kate are not seen

The internal representation of a complex concept

query is as follows:

ComplexConceptQuery:

ListofConcepts; Connector;

QueryStartTime; QueryEndTime

IsNegationQuery; VideoDuration

ListofConcepts contains more than one concept and

Connector can be “AND” or “OR”.

Spatial Query: Spatial queries are used to query the

positions of objects relative to each other. A spatial

relation exists between two objects that appear in the

same frame interval. There are four positional

relations supported in the system: Left, Right, Above

and Below. An example of a spatial query is as

follows:

Return all objects that are on the left of the red car.

The internal representation of a spatial query is:

SpatialQuery:

FirstConcept(ObjectName,AttributeList);

SecondConcept(ObjectName,AttributeList);

SpatialRelation;

QueryStartTime; QueryEndTime

KEOD2012-InternationalConferenceonKnowledgeEngineeringandOntologyDevelopment

In spatial queries, the spatial relation between two

objects is queried. Therefore, there are two Concepts

and one SpatialRelation in the representation. Each

concept has an object name and can have any

number of attributes. SpatialRelation can be Left,

Right, Above or Below.

Temporal Query: Temporal queries are used to

query the relative appearances of objects in a time

sequence. There are two temporal relations

supported in the system: Before and After. Allen’s

interval algebra (Allen, 1983) is used to define the

semantics of these two temporal relations. For

example, Before relation holds between objects X

and Y, if the end time of object X is earlier than the

start time of object Y. Some examples of temporal

queries are as follows:

Show all frames where John appears after the car.

Return frames where a female appears at least 1

minute before a male.

The internal representation of this type of query is:

TemporalQuery:

FirstConcept(ObjectName,AttributeList);

SecondConcept(ObjectName,AttributeList);

TemporalRelation;

QueryStartTime; QueryEndTime;

TFilter(FType,FAmount,Start,End,FInMin)

In temporal queries, the temporal relation between

two objects is queried. Therefore, there are two

Concepts and a TemporalRelation that can be Before

or After. TFilter is a time filter to restrict the

TemporalRelation and five types of the time filter

are supported:

EXACT, LEAST, MOST, INTERVAL

and STANDARD. When FType is one of EXACT,

LEAST and MOST, then FAmount is used to define

the time restriction amount for the time filter, and

Start and End fields are not used. When the FType is

INTERVAL, then Start and End are used to define

the time interval without using FAmount. When

FType is

STANDARD, FAmount, Start and End

fields are not used. FInMin specifies whether the

filter is in minutes or in seconds.

Trajectory Query: Trajectory queries are used to

query the paths of objects of interest. There are two

types of trajectory queries: Object trajectory and

Directional trajectory. In object trajectory, the paths

of the objects are queried. In directional trajectory,

the objects that go to the specified direction are

searched. The following are some examples of

trajectory queries:

Return the path of the dog.

Return all players who go to the east.

The internal representation of a trajectory query is:

TrajectoryQuery:

TrajectoryType;

Concept(ObjectName,AttributeList);

Direction;

QueryStartTime; QueryEndTime

TrajectoryType defines the type of the trajectory and

Direction can be one of East, West, North, South,

Northeast, Northwest, Southeast, and Southwest.

4 MAPPING QUERY TO SPARQL

QUERY

The backbone of the system is to correctly map a

query given in natural language to a SPARQL query.

The given query is parsed using LinkParser and the

linkage information for the words of the query is

returned as the parser output. In order to create the

internal representation of the query, predefined

information extraction rules are applied to the parser

output. In order to get data from the ontology,

SPARQL queries are generated from the extracted

representation of the query. This section explains

how to parse the natural language query and how to

extract internal representations from parser outputs.

The mapping of the extracted representations of

queries to SPARQL queries is also presented.

4.1 Parsing Natural Language Queries

and Extracting Query

Representations

LinkParser is a light syntactic parser for English,

which builds relations between pairs of words in a

sentence (Sleator and Temperly, 1993). It constructs

the syntactic structure of a given sentence by

assigning links to word pairs. LinkParser uses a link

grammar which has a dictionary which consists of a

set of words and linking requirements for each word.

For example, a determiner, such as a, an, the,

requires a D connector to its right. A verb requires an

S connector to its left. Here, D and S are link types,

and a word can be the left or right connector of a

link type. A linkage is the set of links for a valid

sentence in the language.

We investigate specific portions in the sentence,

such as objects, attributes, spatial relation, temporal

relation, trajectory relation, and time information. In

order to find these groups of words, the proper link

or link sequences are selected.

The aim of parsing the natural language query is

to extract the information being queried. In order to

achieve this, hand-crafted extraction rules are

NaturalLanguageQueryProcessinginMultimediaOntologies

defined according to the link information. Link types

and link orders are used to define a rule. An example

rule which is used to find the query type and its

object is given below:

i. Search for Cs link.

ii. If one of Ss, Sp, Spx links follows the Cs link,

and a Pv link follows one of these links, then query

is a concept query and the object is the right word of

the Cs link.

When a natural language query is entered, the type

of the query is found first by using rules. One or

more rules are defined for each query type. Then,

according to the query type, the corresponding rules

are used to map the input to the internal

representations defined for objects, attributes, spatial

relation, temporal relation, trajectory relation, and

time information. The output of the link parser is

searched for the links used in the rule. If all links in

the rule appear in the output of the parser with the

same order, and the output satisfies the constraints

defined in the rule, then the pattern is found. By

using the mapping information in the rule, the query

is mapped to the internal representation. Let us

explain the extraction process with an example. The

link parser output of the natural language query

“Show all frames where a red car is seen

”

is:

For this input, the query type is found by using

the rule given above. Since Cs link is followed by

an Ss link, and a Pv link follows the Ss link, the

query type is found as concept query. The object is

the right word of the Cs link, so it is “car”. It is seen

that, the noun “car” is a right connector of the link A.

The A link is a connector between pre-noun

adjectives and nouns. When the A link appears in the

output, it means that the left word of A link is an

attribute of the object. As a result, “red” is extracted

as the attribute of the “car”. Any number of

adjectives can be used before a noun and each of

them are connected to the noun with A link. The

internal representation of this query is.

ConceptQuery:

Concept: ObjectName = car

AttributeList = {red}

4.2 Mapping Query Representation to

SPARQL Query

In order to be able to execute the query on a given

ontology, the natural language input should be

mapped to a SPARQL query. After the internal

representation is extracted from the given sentence,

the internal representation is converted to SPARQL

query. The SPARQLGenerator module is

responsible for constructing SPARQL queries from

internal representations. Each concept in internal

representations is retrieved from the ontology. For

example, in TemporalQuery, there are two concepts,

and a SPARQL query is constructed for each

concept. Concept is a class that has an object name,

and an attribute list.

There are several important issues when creating

queries for concepts. First, an entity with the given

object name must exist in the ontology in order to

generate a SPARQL query. Otherwise, no SPARQL

query is generated. The queries are constructed

differently according to the type of the entity in the

ontology. If the type of the entity is a class, then a

triple should be added to the query which specifies

that the type of the object is the given class. For

example, if “human” is the concept to be queried

and it is defined as class in the ontology, then, the

following triple indicates that the type of the

variable “?object” is “human” class.

?object <http://www.w3.org/1999/02/22-rdf-syntax-ns#type>

<http://www.sw-app.org/family#human>.

If the type of the entity is an instance, no need to

add the triple above. The instance name itself is used

instead of the variable “?object”. The query is

produced for the instance only. So, the information

about one instance exists in the result set. Whereas,

the result set of queries for class type includes

information about all instances of that class.

Mapping Attributes to SPARQL: The attributes are

mapped to SPARQL queries by using one of the

following three approaches.

First Approach: If the attribute name is specified in

the query text as in the sentence

“Find the intervals

where a car with red color is seen”, the first

approach is used. The attribute name “color” and its

attribute value “red” are mentioned in the query. So,

we store both the attribute name and the value,

separated with a dash, in the attribute list. If the

“color” attribute and the “car” object are found in

the ontology, and the domain of the “color” attribute

is the “car” class, then following SPARQL text is

generated for the attribute.

KEOD2012-InternationalConferenceonKnowledgeEngineeringandOntologyDevelopment

?object <http://www.w3.org/1999/02/22-rdf-syntax-ns#type>

<http://www.sw-app.org/family\#car>.

?object<http://www.sw-app.org/family#color>

"red"^^<http://www.w3.org/2001/XMLSchema\#string>.

If the “color” attribute and the “car” object are found

in the ontology, and the domain of “color” attribute

is one of the parent classes of the “car” class,

additional SPARQL text is generated for the

attribute. To illustrate, in the following code

segment, the “car” class is a subclass of the

“vehicle” class and the domain of the “color”

attribute is the “vehicle” class. Thus, the SPARQL

text below is used for the attribute.

<rdfs:Class rdf:about="http://www.sw-app.org/family#car">

<rdfs:subClassOf

rdf:resource="http://www.sw-app.org/family#vehicle"/>

</rdfs:Class>

<owl:DatatypeProperty

rdf:about="http://www.sw-app.org/family#color">

<rdfs:domain

rdf:resource="http://www.sw-app.org/family#vehicle"/>

<rdfs:range rdf:resource=

"http://www.w3.org/2001/XMLSchema#string"/>

</owl:DatatypeProperty>

Second Approach: The attribute name is not given in

the query text; rather the attribute value is extracted

from the sentence, and this attribute value is in the

restricted list of an attribute in the ontology. For

instance, assume that the given query is “Show all

frames where a red car appears”. Here, only the

attribute value “red” is given in the sentence. In

other words, we do not know the attribute name

whose value is specified to be “red”. Therefore, the

ontology must be searched to see if there is an

attribute which includes the value “red” in its data

range values. The data range values of an attribute

are specified in the ontology under the

<owl:DataRange> property. If such an attribute is

found, then the domain of the attribute is extracted.

If the domain matches with the class “car” (or one of

its super-classes), a SPARQL text is generated for

the attribute.

Third Approach: The third approach is used when

the objects are described as triples in the ontology. A

triple is composed of a subject, a predicate, and an

object. An example triple is given below:

<color rdf:datatype=

"http://www.w3.org/2001/XMLSchema#string">red

</color> </car>

If neither the attribute name nor data range values

are specified in the ontology, but the objects are

described with triples, then the triples are searched

to construct the SPARQL query. We explain the

third approach with the same example query “Find

all intervals where a red car is seen”. Again, the

attribute name is not given in the query but an

attribute value is extracted from the sentence. This

attribute value is searched in the triples in the

ontology. The attribute value “red” and the object

“car” are given in the sentence. Whenever an object

value matching “red” is found, the predicate of the

triple is used to find the domain of the attribute. In

the example, the predicate is “color”, so we will

investigate the domains of “color”. If the domain of

the “color” attribute is the “car” class or one of the

super-classes of the “car” class, then the predicate

value is used as the attribute name and the SPARQL

text is constructed for the attribute.

Mapping Time Information to SPARQL: If the start

and end times are given in the sentence, they will be

used to filter the results. The entities in the ontology

have SpatioTemporalLocator property, and it has

MediaIncrDuration and MediaRelIncrTimePoint

properties, which indicate the start time and duration

of the SpatioTemporalLocator property. By using

the start time and the duration of the entities, it

should be figured out which entities’ time interval

overlaps with the given time interval. The example

below shows how the time information is mapped to

the SPARQL query. The start and end variables are

start and end times that are extracted from the NL

input.

FILTER

((<http://www.w3.org/2001/XMLSchema#double>

(?startTime) +

<http://www.w3.org/2001/XMLSchema#double>

(?duration)) >= start &&

<http://www.w3.org/2001/XMLSchema#double>

(?startTime) <= end).

5 QUERY PROCESSING

In the proposed system, a user friendly GUI is

designed so that the user can enter NL input and can

view the query results from the GUI. The query

processing procedure includes creating SPARQL

queries from the NL input, executing the SPARQL

queries, and managing the query results.

The execution process changes depending on the

query type. For example, if the query type is

Concept or Trajectory, then only one SPARQL

query is executed. If the type of the query is

Temporal, two SPARQL queries are executed, and

their results along with the Temporal-RelationType

are used to identify which results satisfy the

temporal relationship. Then, the satisfying results

and the temporal relation are added to the query

result set.

NaturalLanguageQueryProcessinginMultimediaOntologies

5.1 Execution of Concept Query

The generated SPARQL query for a concept query is

executed against the ontology by using SemWeb

library. If no negative meaning is found in the query,

the results of the query execution are directly

displayed to the user. For instance, in Table 1, the

execution results of the query sentence “Show all

frames where a male is seen” are shown. The table

illustrates the males that appear in the video and the

time intervals in which they appear.

Table 1: The execution results of the concept query “Show

all frames where a male is seen”.

Jack 6.5 8.6

Jack 8.6 16.7

Hurley 14.0 39.5

Jin 39.5 48.7

Jin 48.2 57.3

Boone 72.5 74.7

Sawyer 78.0 86.4

Table 2: The inverse of the execution results of the

concept query in Table 1.

Male 0.0 6.5

Male 57.3 72.5

Male 74.7 78.0

Male 86.4 128.6

If negative meaning is captured in the NL input,

the inverse of the results of query execution must be

found. To illustrate, if the input is “Show all frames

where a male is not seen”, then the same SPARQL

query will be generated. Hence, the results of query

execution will be same as Table 1. However, since

negative meaning exists in the input, the inverse of

Table 1 is calculated as illustrated in Table 2.

5.2 Execution of Complex Concept

Query

The complex concept query type includes more than

one object that are connected with an “AND” or

“OR” connector. Also, these objects can be

described with attributes. For complex concept

query type, the user input is mapped to the

ComplexConceptQuery internal representation. A

complex concept query can be thought as a

collection of concept queries, along with a connector

parameter. As a result, a SPARQL query is

generated for each concept query and each SPARQL

query is executed against the ontology individually.

If the connector is an “AND” connector, the

intersection of the execution results of concept

queries is found. To find the intersection of two

result sets, each interval in the first result set is

compared with every interval in the second result

set. If a time interval overlaps with another time

interval, then the overlapping interval is found and

added to the intersection result. The overlapping

interval of two intervals is the common interval

region of those intervals.

If the connector is an “OR” connector, the result

is the union of the execution results of concept

queries. To find the union of two result sets, each

interval in the first result set is compared with every

interval in the second result set. If a time interval

overlaps with another time interval, then the union

of two intervals is found and added to the union

result.

If negative meaning exists in a complex concept

query, it will be handled separately in each of the

concept queries. Then, the union or the intersection

of the results of the concept queries will be found

depending on the connector type.

5.3 Execution of Spatial Query

There are two concepts and a spatial relation in

spatial queries. A SPARQL query is generated for

each concept. As a result, two SPARQL queries are

executed against the ontology. The results of the two

SPARQL queries are joined to see which result

couple satisfies the spatial relation. The first

condition to satisfy the spatial relation is the result

couple that must have an overlapping time interval.

If this condition holds, then the spatial relation

between two objects is calculated as explained later

in this section. The result set contains the objects

satisfying the spatial relation, the spatial relation

itself, start and end times of overlapping intervals

satisfying the spatial relation.

In order to find the spatial relation between two

objects, the center points of the rectangles covering

the objects are used. For instance, let A and B are

two objects, and they are represented with their

center points A(x1,y1) and B(x2,y2).

The left and right relation between two objects is

determined by using the center values in the x-axis.

The above and below relation between two objects is

determined by using the center values in the y-axis.

IF x1 < x2 THEN A LEFT B

ELSE IF x2 < x1 THEN A RIGHT B

IF y1 < y2 THEN A BELOW B

ELSE IF y2 < y1 THEN A ABOVE B

The calculations of spatial relationships are

KEOD2012-InternationalConferenceonKnowledgeEngineeringandOntologyDevelopment

simplified for the purposes of this paper. Actually

we need to deal with spatial relationships that

change over time.

5.4 Execution of Temporal Query

There are two concepts, a temporal relation and a

temporal time filter in temporal queries. A SPARQL

query is generated for each concept. As a result, two

SPARQL queries are executed against the ontology.

The results of the two SPARQL queries are joined to

see which result couple satisfies the temporal

relation and the time filter. The result set contains

the objects satisfying the temporal relation, the first

object’s start and end times, and the second object’s

start and end times.

Temporal relations between two objects are

calculated according to the appearance order of

objects. During calculation, Allen’s interval algebra

(Allen, 1983) is used. For instance, let A and B are

two objects. According to the Allen’s algebra,

Before relation holds between objects A and B, if the

end time of object A is earlier than the start time of

object B. After relation is inverse of Before.

In order to include a time filter in computing the

temporal relations, for each interval in the first result

set, we calculate a time interval according to the

filter information and the time interval of the result.

For each object in the first result set, every object of

the second result set is examined whether the second

object time interval overlaps with the calculated

interval. If these two intervals overlap, it means that

the two results satisfy the temporal relation with the

specified time filter values.

5.5 Execution of Trajectory Query

A SPARQL query is generated for the queried

concept and it is executed against the ontology. If

the trajectory type is object, then the paths of the

objects in the result set are calculated and displayed

to the user. If the trajectory type is directional, the

motion paths of the objects in the result set are

calculated and the results that satisfy the trajectory

direction are shown to the user.

When the query results are retrieved from the

ontology, an object frame list is formed. The list

consists of <object name, spatial location list> pairs.

If the user queries an ontological class, then more

than one object can be returned belonging to this

class. The list of spatial location holds the time

intervals and the regions that the object is seen. For

each object in the object frame list, its route is

calculated by using the spatial location list. In order

to be able to calculate the trajectories of objects, the

following conditions must be satisfied:

i. The successive time intervals should be adjacent.

If Ii and Ij be two successive time intervals, these

intervals are adjacent if the end time of Ij is one

more than the start time of Ii.

ii. The successive object regions should be

neighbor. Let R1 and R2 are two rectangles of the

regions in time intervals. R2 is a neighbor of R1, if

R1 intersects with R2 or R1 touches R2.

If the two conditions are satisfied, then the trajectory

direction is calculated by finding the angle between

the x-axis and the line that goes through the center

points of the two rectangles. This angle can have

values from - to .

5.6 Evaluation

While developing the natural language query

interface, we aim to provide a simple and easy to use

query interface for end users and save the users from

the burden of complex form-based interfaces. The

supported query types are designed to give the user

flexibility of stating queries by different sentence

structures.

To handle concept queries, the extraction rules

are defined to cover the wh-questions, subordinate

clauses and relative clauses. The user can query an

ontological class, an instance of a class, or a class

with an attribute. The rules that are designed to

capture the negative meanings in queries search

links which connects the word “not” to the

preceding auxiliaries and modals. Since we only

handle the sentences having the word “not” in its

word sequence to capture meanings, in order to

broaden the scope, new rules should be defined. For

example, if we want to handle the inputs including

negative meaning such as “Show all frames where

no man is seen”, new rules must be defined

depending on the link names and orders related with

the word “no”.

In order to handle complex concept query, the

rules that are defined for handling concept query are

used. In addition to these rules, the rules are used to

find the type of the query and links related with

connectors. In order to handle spatial query type, a

set of rules are defined and the number of rules is

affected by the number of spatial relations. We also

defined rules to handle temporal queries so that the

objects and the temporal relation can be found.

There are also a set of rules to extract the time filter

information. The rules are also designed to extract

trajectory query information. As a result, we have

approximately 50 rules in the system to understand

NaturalLanguageQueryProcessinginMultimediaOntologies

the user queries. These rules seem to be sufficient to

make semantic, spatio-temporal and trajectory

queries. However, if more rules are added, the

querying capability of the system will be enhanced.

The reason why we chose the link parser to parse

the user queries is that it can tolerate the errors in the

NL input to some extent. The link parser does not

require full understanding of the given sentence;

rather it assigns the syntactic structure to the portion

it understands. This feature of the link parser makes

our system more flexible, i.e. the system can accept

ill-formed NL queries too.

Our system is domain-independent. Using the

NL interface, users can query any videos such as TV

series, documentary videos, or personal videos as

long as they are annotated beforehand. Although the

vocabulary is not limited, the expressiveness of the

system is restricted by the rule set.

For now, the videos are manually annotated. As a

result, the system is not scalable for a realistic

application at this point. However, if the video

annotation is done automatically, the proposed

framework can be used effectively. This study is

conducted as a part of a research project. In the

scope of the project, an annotation module is

currently being developed for automatic face

detection and recognition. When our system is

integrated with the annotation module, faces will be

automatically annotated and semantically queried in

natural language.

6 CONCLUSIONS

In this paper we propose a natural language interface

for semantic and spatio-temporal querying of

multimedia based ontologies. The system offers a

user-friendly solution to the semantic content

retrieval from ontologies. Users do not need to know

the data schema of the ontology nor deal with the

complex syntax of formal query languages. They

can pose queries to any domain ontologies as long as

the ontologies are MPEG-7 based. Furthermore, the

use of MPEG-7 based domain ontologies enables the

reasoning mechanism.

By using the NL interface, the user can pose

concept, complex concept, spatial, temporal, object

trajectory and directional trajectory queries.

Furthermore, the system handles the negative

meaning in the user input. When the user enters an

NL input, it is parsed with the link parser. Specific

portions in the sentence, such as objects, attributes,

spatial relation, temporal relation, trajectory relation,

and time information, are being investigated

according to the query type. They are extracted from

the parser output by using predefined rules. After the

information extraction, SPARQL queries are

generated.

In order to generate a SPARQL query, an entity

with the given object name must exist in the

ontology. The queries are constructed differently

according to the type of the entity (class or instance)

in the ontology. The object attributes given in the

query text make queries more precise, so we have

focused attribute handling. For this purpose, three

different approaches are developed to map the

attributes to SPARQL. The generated queries are

executed against the ontology by using SemWeb

library which is an RDF API. Afterwards, the query

results are used to calculate spatial, temporal, and

trajectory relationships according to the query type.

As a future extension, event queries can be added

to the system. Thus, the user can query not only

objects but also events such as running, reading a

book, and driving a car. Moreover, we are planning

to handle compound queries, sentences connected

with an “AND” or “OR” connector, since they can

be more expressive and beneficial in semantic and

spatio-temporal querying of multimedia data.

The spatial and temporal relations that are

provided in this study are limited. If more spatial

relations such as near, far, inside, touch and disjoint

and temporal relations such as during, overlap,

meets, and between are added to the system, the

usability of NL query interface will be increased. In

this paper, the spatial, temporal, and trajectory

relations between the objects are calculated after the

results are retrieved from the ontology. In the future,

it can also be done with ontology rules or extension

functions. For example, the spatial relation “left” or

the temporal relation “before” can be defined with

rules or extension functions, and the objects

satisfying the relations will be retrieved from the

ontology. As a result, performance of two

approaches can be compared.

ACKNOWLEDGEMENTS

This work is partially supported by The Scientific

and Technical Council of Turkey Grant ‘‘TUBITAK

EEEAG-107E234”.

REFERENCES

Allen, J. F., (1983). Maintaining knowledge about

KEOD2012-InternationalConferenceonKnowledgeEngineeringandOntologyDevelopment

temporal intervals. Communications of the ACM.

21(11): 832-843.

Athanasis, N., V. Christophides, and D., Kotzinos, (2004).

Generating on the fly queries for the semantic web:

The ICS-FORTH graphical RQL interface (GRQL),

The Semantic Web – ISWC 2004, Lecture Notes in

Computer Science, Volume 3298/2004, pp. 486-501.

Bhatia, N., Gaharwar, P., Patnaik, P., and Sanyal, S.,

(2006). GuNQ–A Semantic web engine with a

keyword based query approach. In Proceedings of

AAAI, Fall Symposium on Semantic Web for

Collaborative Knowledge Acquisition, Arlington, VA,

USA.

Borsje J., and Embregts, H., (2006). Graphical query

composition and natural language processing in an

RDF visualization interface, Erasmus School of

Economics and Business Economics, Vol. Bachelor.

Erasmus University, Rotterdam, 2006.

Broeskstra, J., and Kampman, A., (2003). SeRQL: A

second generation RDF query language. In

Proceedings of SWAD-Europe Workshop on Semantic

Web Storage and Retrieval, pp. 13–14.

Catarci, T., Dongilli, P., Di Mascio, T., Franconi, E.,

Santucci, G., and Tessaris, S., (2004) An ontology

based visual tool for query formulation support. In

Proceedings of 16th European Conference on

Artificial Intelligence (ECAI), Valencia, Spain, pp.

308.

Donderler, M. E., Saykol, E., Ulusoy, O., and Gudukbay,

U., (2003). BilVideo: A video database management

system. IEEE MultiMedia, 10(1), 66–70.

Erozel, G., Cicekli, N. K., and Cicekli, I., (2008). Natural

language querying for video databases. Information

Sciences, 178(12):2534–2552.

García, R. and Celma, O., (2005). Semantic Integration

and Retrieval of Multimedia Metadata. In Proceedings

of the Knowledge Markup and Semantic Annotation

Workshop, Semannot'05.

Jarrar, M., and Dikaiakos, M. D., (2008). MashQL: a

query-by-diagram topping SPARQL. In Proceedings

of ONISW, Napa Valley, California, USA.

Kara, S., Sabuncu, O., Akpınar, S., Alan, O., Cicekli, N.

K., and Alpaslan, F. N., (2010). An ontology-based

retrieval system using semantic indexing. In

Proceedings of the 1st Intl. Workshop on Data

Engineering meets the Semantic Web, in conjunction

with ICDE 2010, Long Beach CA, USA.

Kaufmann, E., Bernstein, A., and Fischer, L., (2007).

NLP-Reduce: A “naive” but domain independent

natural language interface for querying ontologies. In

Proceedings of the 4th European conference on The

Semantic Web (ESWC).

Koprulu, M., Cicekli, N. K., and Yazici, A., (2004).

Spatio-temporal querying in video databases,

Information Sciences, 160(1-4):131–152.

Lei, Y., Uren, V. and Motta, E., (2006). Semsearch: A

search engine for the semantic web. In Proceedings of

the 5th International Conference on Knowledge

Engineering and Managing Knowledge in a World of

Networks, Lecture Notes in Computer Science,

4248:238.

Prud’hommeaux, E., and Seaborne, A., (2008). SPARQL

query language for RDF. W3C recommendation,

http://www.w3.org/TR/rdf-sparql-query/.

Ren, W., Singh, S., Singh, M., and Zhu, Y. S., (2009).

State-of-the-art on spatio-temporal information-based

video retrieval. Pattern Recognition, 42(2):267–282.

Russell, A., Smart, P. R., Braines, D., and Shadbolt, N. R.,

(2008). NITELIGHT: A graphical tool for semantic

query construction. In Proceedings of Semantic Web

User Interaction Workshop (SWUI 2008), Florence,

Italy, 2008.

Sleator, D., and Temperly, D., (1993). Parsing English

with a Link Grammar. In Proceedings of the Third

International Workshop on Parsing Technologies.

Tablan, V., Damljanovic, D., and Bontcheva, K., (2008).

A natural language query interface to structured

information. In Proceedings of the 5th European

Semantic Web Conference (ESWC 2008).

Tauberer, J., (2010). Semantic Web/RDF Library for

C#/.NET. Retrieved February 18, 2011, from

http://razor.occams.info/code/semweb/

Troncy, R., Celma O., Little S., Garcia R., and Tsinaraki

C., (2007). MPEG-7 based multimedia ontologies:

Interoperability support or interoperability issue. In

Proceedings of the 1st International Workshop on

Multimedia Annotation and Retrieval (MAReSO).

Wang, H., Zhang, K., Liu, Q., Tran, T., and Yu, Y.,

(2008). Q2semantic: A lightweight keyword interface

to semantic search. In Proceedings of the 5th

International Semantic Web Conference (ESWC’08),

Lecture Notes in Computer Science, 5021:584.

Zhou, Q., Wang, C., Xiong, M., Wang, H., and Yu, Y.,

(2007). Spark, Adapting keyword query to semantic

search. In Proceedings of the 6th International and

2nd Asian Semantic Web Conference (ISWC2007 +

ASWC2007), Lecture Notes in Computer Science,

4825:694.

NaturalLanguageQueryProcessinginMultimediaOntologies
