Improving Event Correlation for Non-process Aware Information

Systems

Ricardo Pérez-Castillo

, Barbara Weber

, Ignacio García-Rodríguez

and Mario Piattini

Instituto de Tecnologías y Sistemas de Información (ITSI), University of Castilla-La Mancha,

Paseo de la Universidad 4, 13071, Ciudad Real, Spain

University of Innsbruck, Technikerstraße 21a, 6020, Innsbruck, Austria

Keywords: Enterprise Modelling, Business Process, Event Correlation, Legacy Information Systems.

Abstract: Business process mining is a solution to discover business processes. These techniques take event logs

recorded by process-aware information systems. Unfortunately, there are many traditional systems without

mechanisms for events collection. Techniques for collecting events (which represent the execution of

business activities) from non-process-aware systems were proposed to enable the application of process

mining to traditional systems. Since business processes supported by traditional systems are implicit,

correlating events into their execution instances constitutes a challenge. This paper adapts a previous

correlation algorithm and incorporates it into a technique for obtaining event logs from traditional systems.

This technique instruments source code to collect events with some additional information. The algorithm is

applied to the events dataset to discover the best correlation conditions. Event logs are built using such

conditions. The technique is validated with case study, which demonstrates its suitability to discover the

correlation set and obtain well-formed event logs.

1 INTRODUCTION

Current companies must continuously evolve to

maintain their competitiveness levels. Keeping this

in mind, process modelling is essential for

companies to be able to understand, manage and

adapt their business processes (Weske, 2007).

Despite this important fact, a vast amount of

companies do not model their business processes.

When these companies decide in favor of business

process modelling, they have two main options: (i)

modelling from scratch by business experts, which is

time-consuming and error-prone; (ii) using business

process mining techniques to discover business

processes from system execution information (van

der Aalst and Weijters, 2005). The focus of this

paper is on the second option since it takes into

account the business knowledge embedded in

enterprise information systems.

Business process mining techniques allow for

extracting information from process execution logs –

known as event logs (van der Aalst and Weijters,

2005). Event logs contain information about the start

and completion of activities and the resources

executed by the processes (Castellanos, Medeiros et

al., 2009). These events logs are often recorded by

process-aware information systems (PAIS) (e.g.,

Enterprise Resource Planning (ERP) or Customer

Relationship Management (CRM) systems). The

process-aware nature of PAIS facilitates direct

events recording during process execution.

However, not all information systems are process-

aware. In fact, there is a vast amount of enterprise

information systems which are non-process-aware

(termed as traditional systems in this paper) though

they could also benefit from the application of

process mining techniques.

Previous works made a particular effort for the

registration of event logs from traditional systems.

Firstly, main challenges involved in the collection of

event logs from traditional systems were identified

(Pérez-Castillo et al., 2010). Secondly, a particular

technique to obtain event logs from traditional

systems was also developed (Pérez-Castillo et al.,

2011). This technique first injects statements into the

source code to instrument it. The instrumented

system is then able to record some events, which are

finally analysed and organized in an event log. This

technique has already been applied to real-life

traditional systems with promising results (Pérez-

Pérez-Castillo R., Weber B., García-Rodríguez I. and Piattini M..

Improving Event Correlation for Non-process Aware Information Systems.

DOI: 10.5220/0003983100330042

In Proceedings of the 7th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE-2012), pages 33-42

ISBN: 978-989-8565-13-6

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

Castillo et al., 2011); (Pérez-Castillo et al., 2011).

However, the accuracy of the previous technique is

limited, since events were correlated in different

process instances by using some simple heuristics.

In fact, event correlation is a key challenge, i.e.,

each event must be assigned to the correct instance,

since it is possible to have various instances of the

business process running at the same time. This

paper therefore addresses the weaknesses on the

previous technique by providing an enhanced

technique, which adapts and applies an existing

event correlation algorithm (Motahari-Nezhad et al.,

2011).

The new technique relies on human interaction to

firstly identify some candidate correlation attributes.

The candidate attribute values are then recorded with

each event by means of an instrumented version

from a traditional system. After that, event

correlation algorithms proposed in a related work

(Motahari-Nezhad et al., 2011) are adapted and

applied to this intermediate information to discover

the sub-set of correlation attributes and conditions.

The correlation set is finally used to obtain accurate

process instances in the final event log. For a

smoother introduction into industry, this technique

has been developed by using database-stored

intermediate information as well as a set of

algorithms implemented as stored procedures. Since

the technique is tool-supported, a case study

involving a real-life traditional system has been

conducted to demonstrate the feasibility of the

proposal. The empirical validation results show the

technique is able to obtain the set of correlation

attributes allowing appropriate event logs in a

moderate time.

The paper is organized as follows: Section 2

summarizes related work; Section 3 presents in

detail the proposed technique; Section 4 conducts a

case study with an author management system; and

Section 5 discusses conclusions and future work.

2 RELATED WORK

Event correlation is an issue of growing importance

in the process mining field due to the increasing

heterogeneity and distribution of enterprise

information systems. In addition, there are various

ways in which process events could be correlated. In

fact, many times event correlation is subjective and

most proposals employ correlation heuristics

(McGarry, 2005). Most techniques assess some

indicators and check if they are under or above a

heuristic threshold to discard non-promising

correlation attributes. For example, (Burattin and

Vigo, 2011) propose an approach consisting of the

introduction of a set of extra fields, decorating each

single activity log. These attributes are used to carry

the information on the process instance. Algorithms

are designed using relation algebra notions, to

extract the most promising case IDs from the extra

fields. Other techniques proposals, as in (Rozsnyai et

al., 2011), are based in the use of algorithms to

discover correlation rules by using assessments of

statistic indicators (e.g., variance of attribute values)

from datasets. Similarly, (Ferreira and Gillblad,

2009) propose a probabilistic approach to ﬁnd the

case ID in unlabeled event logs.

(Motahari-Nezhad et al., 2011) propose a set of

algorithms to discover the most appropriate

correlation attributes and conditions (e.g.,

conjunctive and disjunctive conditions grouping two

or more correlation attributes) from the available

attributes of web services interaction logs.

This paper presents an improvement of a

previous technique to retrieving event logs from

traditional systems (Pérez-Castillo et al., 2011), by

adapting and applying the algorithm to discover the

correlation set provided by (Motahari-Nezhad et al.,

2011). While this algorithm is applied to web

services logs, the current approach adapts the

algorithm to be applied in traditional information

systems for obtaining event logs. The feasibility of

this approach is empirically validated by means of a

case study.

Moreover, there are proposals addressing the

distribution of heterogeneous event logs. For

example, (Hammoud, 2009) presents a decentralized

event correlation architecture. In addition, Myers et

al. (Myers et al., 2010) apply generic distributed

techniques in conjunction with existing log

monitoring methodologies to get additional insights

about event correlation. Decentralized event

correlation approaches remain however outside of

the scope of this paper.

3 EVENT CORRELATION

Event correlation deals with the definition of

relationships between two or more events so to point

out events belonging to a same business process

execution (i.e., process instance). Event correlation

is very important in traditional information systems,

since the definitions of the executed business

processes are not explicitly identified (Pérez-Castillo

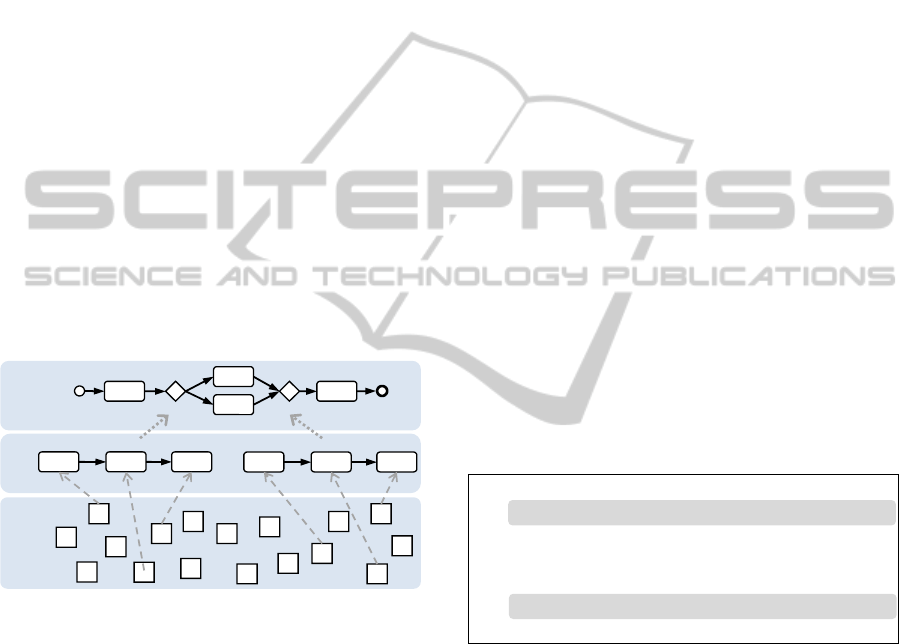

et al., 2010). Figure 1 shows an overview of the

event correlation challenge. Each business process

ENASE2012-7thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering

can be executed several times. Each execution is

known as process instance. Events collected during

system execution must be correlated into the correct

instance.

This paper presents a technique to obtain event

logs from traditional systems, paying special

attention to the event correlation improvement

regarding previous work. The technique consists of

three stages. Firstly, the technique records events

from the execution of traditional systems. During

this stage the technique allows experts to identify

candidate correlation attributes, whose runtime

values will then be collected together with each

event. As a result, events and their respective

attributes are then stored in a database in an

intermediate format (cf. Section 3.1). Secondly, the

algorithm proposed by (Motahari-Nezhad et al.,

2011) is adapted and applied with the event datasets

so to discover the most appropriate set of attributes

and conditions for the events correlation (cf. Section

3.2). Finally, the third stage applies an algorithm

based on the correlation set in order to correlate each

event with its corresponding process instance (cf.

Section 3.3). As a result, a standard-format event log

is obtained from the source traditional system.

Figure 1: Event correlation overview.

3.1 Event Collection

The event collection stage is in charge of the suitable

generation and storage of events throughout system

execution. Since traditional information systems do

not have any in-built mechanism to record events

about executed business processes, this stage

instruments information systems to record events.

The instrumentation is semi-automated by a parser

that syntactically analyzes the source code and

injects statements in particular places of the code to

record events during system execution.

This work follows the ‘a callable unit / a

business activity’ approach proposed by Zou et al.

(Zou and Hung, 2006). Callable units are the generic

elements (e.g., Java methods, C or COBOL

procedures, etc.) in which the parser injects

statements to record an event corresponding to the

execution of a business activity. Despite this fact,

not all the executions of callable units have to be

recorded as events. Some callable units such as fine-

grained or technical callable units do not correspond

to events and must be discarded. The injection in the

exact place is consequently supported by some

information provided by experts. Such experts (i)

delimit business processes with the start and end

callable units of each process; (ii) establish the

boundaries of non-technical source code to be

instrumented; and finally, (iii) they identify those

code elements that can be treated as candidate

correlation attributes.

This stage is supported by an improved version

of the tool presented in (Pérez-Castillo et al., 2011),

which supports the identification and addition of

candidate correlation attributes. Selection of

candidate correlation attributes is a key task, since

an incomplete list of candidate attributes may lead to

a non-suitable correlation. This stage provides

experts with all the possible selectable attributes.

These attributes are every parameter appearing in

callable units as well as the output and fine-grained

callable units that are invoked within those callable

units, which are considered to be collected as events.

The information about candidate correlation

attributes is injected together with a statement

enabling event collection.

Figure 2: Example of code instrumentation.

Figure 2 provides an example of the results

obtained after instrumenting a Java method of the

system under study (cf. Section 4). The two tracing

statements (see highlighted statements) are injected

at the beginning and at the end of the body of the

method. Those candidate correlation attributes that

are present in a method (e.g., a parameter or

variable) are automatically injected in the tracing

statements, i.e., the respective variables are in the set

of parameters of the invocation to the method

‘writeDBEvent’ (see Figure 2). However, not all

correlation attributes defined by experts are present

in all methods (e.g., due to the absence of a

particular variable). In this case, the respective

EVENTS

PROCESS

INSTANCE

PROCESS

A D

A D C

A DB

public class SocioFacadeDelegate

{

[...]

public static void saveAuthor(AuthorVO author) throws InternalErrorException {

writeDBEvent("SocioFacadeDelegate.saveAuthor", "Author Management", "", "start",

false, false, -1, false, 2, 8, "", "" + author.getId(), "" + author.isHistorico(),

"" + author.getNumeroSocio(), "", "" + author.getCotas());

try {

SaveAuthorAction action = new SaveAuthorAction(author);

PlainActionProcessor.process(getPrivateDataSource(), action);

} catch (InternalErrorException e) {

throw e;

} catch (Exception e) {

throw new InternalErrorException(e);

}

writeDBEvent("SocioFacadeDelegate.saveAuthor", "Author Management", "", "complete",

false, true, -1, false, 2, 8, "", "" + author.getId(), "" + author.isHistorico(),

"" + author.getNumeroSocio(), "", "" + author.getCotas());

}

[...]

}

ImprovingEventCorrelationforNon-processAwareInformationSystems

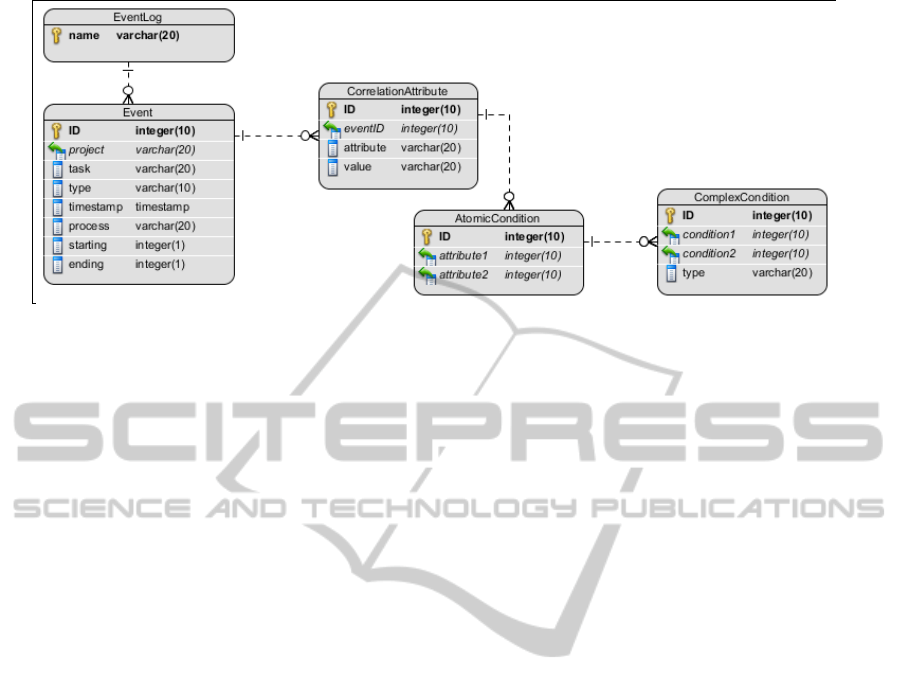

Figure 3: Database schema for event and attributes.

parameter of the method ‘writeDBEvent’ (i.e., the

tracing statement) is an empty string (“ ”). As a

result, during execution of this method, the runtime

value (or an empty value) will be recorded together

with the name of the attribute and the event (the

name of the method representing the business

activity).

The instrumented system is then normally

executed and -when an injected statement is

reached- it records events together with the value of

all the candidate correlation attributes available in

that callable unit. Unlike other similar techniques, it

does not build an event log on the fly during system

execution (Pérez-Castillo et al., 2011); Pérez-

Castillo et al., 2011). Instead, this technique stores

all the information about events and their candidate

correlation attributes in a database. A relational

database context facilitates the implementation of

faster algorithms to discover the correlation set from

large datasets (cf. Section 3.2).

Figure 3 shows the database schema used to

represent the intermediate event information. The

EventLogs table is used to represent different logs

obtained from different source systems. The Events

table contains all the different events collected,

including the executed task, type (start or complete),

originator, execution timestamp, two columns to

indicate if the executed task is the initial or final task

of a process, as well as the process name.

CorrelationAttributes is a table related to Events and

contains the runtime values of candidate correlation

attributes.

Candidate correlation attributes are combined by

means of correlation conditions which are then used

to correlate events. We differentiate two kinds of

correlation conditions: atomic and complex

conditions. Firstly, atomic conditions represent key-

based conditions which compare two correlation

attributes. For example, condition1:attribute1

=attribute2 signifies that two events will be

correlated if the value of attribute1 of the first event

is equal to the value of attribute2 of the second

event under evaluation. These conditions are stored

in the AtomicConditions table (see Figure 3).

Secondly, complex conditions evaluate two different

conditions at the same time that are combined by a

logic operator, e.g., conjunction (AND) or

disjunction (OR) (Motahari-Nezhad et al., 2011). For

example, condition3: condition1 AND condition2

evaluated for two events signifies that both

condition1 and condition2 must be met for the

couple of events at the same time. Table Complex-

Conditions represents this information in the

database schema (see Figure 3).

3.2 Discovering Correlation Attributes

After collection of events and candidate correlation

attributes, an adaptation of the algorithm described

in (Motahari-Nezhad et al., 2011) is applied to

discover the most appropriate correlation set. This

set consists of a set of atomic conditions (i.e., equal

comparisons between couples of attributes) as well

as a set of complex conditions (i.e., conjunctive

comparisons between couples of atomic conditions).

The technique does not consider disjunctive

conditions since these conditions are only needed for

heterogeneous systems to detect synonyms of some

correlation attributes.

The algorithm (see Figure 4) first considers all

the possible combinations of attributes involved in

atomic conditions (lines 1-3), and it then prunes the

non-interesting conditions (i.e., less promising

conditions) using the three following heuristics.

Heuristic 1. When attributes of atomic conditions

are the same, the distinct ratio must be above alpha

or distinct to one (line 4). Distinct Ratio (Eq. 1)

ENASE2012-7thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering

indicates the cardinality of an attribute in the dataset

regarding its total number of non-null values. When

it is under alpha or one it signifies that the attribute

contains a global unique value and the atomic

condition with this attribute can therefore be pruned.

Alpha (Eq. 3) is the threshold to detect global unique

values and it indicates how much values vary

regarding the size of the dataset.

Heuristic 2. If the atomic condition is formed by

two different attributes it is pruned when the shared

ratio is above the alpha threshold (line 5). In a

similar way the previous heuristic, Shared Ratio (Eq.

2) represents the number of distinct shared values

regarding their non-null values for both attributes.

Input: Attributes; Events

Output: AC: the set of atomic conditions; CC: the set of conjunctive

conditions

1: for a ∈Attributes ˄ b ∈Attributes do

2: AC← “a = b”

3: end for

4: AC←AC – { c | c.attribute1 = c.attribute2 and

( DistinctRatio (c.attribute1) < α or DistinctRatio (c.attribute1) = 1 ) }

5: AC←AC – { c | c.attribute1 ≠ c.attribute2 and

SharedRatio (c.attribute1, c.attribute2) <α }

6: AC←AC – { c | PIRatio (c.attribute1, c.attribute2) < α or

PIRatio (c.attribute1, c.attribute2) >β }

7: N

←AC; N

← { }

8: k ← 1

9: for c1 ∈ N

k-1

and c2 ∈ N

k-1

10: N

← “c1 ˄ c2”

11: end for

12: while N

≠ { } do

13: N

←N

– { c | ConjNumberPI ( N

.condition1, N

.condition2 ) ≤

NumberPI( N

.condition1.attribute1, N

.condition1.attribute2 ) or

ConjNumberPI( N

.condition1, N

.condition2 ) ≤

NumberPI( N

.condition2.attribute1, N

.condition2.attribute2 ) }

14: N

←N

– { c | ConjPIRatio ( N

.condition1, N

.condition2 )<α or

ConjPIRatio( N

.condition1, N

.condition2 ) > β }

15: CC←CC ∪ N

16: for c1 ∈ N

and c2 ∈ N

17: N

k+1

← “c1 ˄ c2”

18: end for

19: k ← k+1

20: end while

Figure 4: Algorithm to discover the correlation set.

Heuristic 3. Atomic conditions are pruned when the

process instance ratio (PIRatio) is under alpha or

above beta (line 6). This heuristic checks that the

partitioning of the future log does not only have one

or two big instances, or many short instances.

PIRatio (Eq. 5) is measured as the number of

process instances (NumberPI) divided into non-null

values for both attributes. In turn, NumberPI (Eq. 6)

is heuristically assessed as the distinct attribute

values for all the different couples of events

(executed in a row) containing both attributes. This

is the first difference, since the previous algorithm

first calculates a set of correlated event pairs, and

then it computes a recursive closure over that set

(Motahari-Nezhad et al., 2011). In contrast, our

algorithm estimates NumberPI by considering the

number of possible pairs of correlated events. This

change has been made taking into account that the

recursive closure evaluation is time-consuming (the

complexity of graph closure algorithms in literature

is often O(2

) since they check each pair of nodes

for the remaining of pairs). On the contrary, the

expected results using this proposal can be

considered as heuristic approximation with a lower

computational cost (i.e., O(n) since this technique

only evaluates the list of event pairs). This is the first

difference regarding the algorithm proposed by

Motahari-Nezhad et al. (Motahari-Nezhad et al.,

2011).



(





)

(



)

(



,



)

(1)









,





(



,



)







(





)

,









(2)

=





(



)



(3)

 [0.25,1]

(4)









,





|







,





(



,



)

(5)









,







∶∃,





.1 = 







.2 = 



˄ = .1.

=



.2. ˄ . > 



.}

(6)









,





|







,





(



.



,



.



,



.



,



.



)

(7)









,





=

(





.



,



.



)

∩ (



.



,



.



)

(8)

Moreover, beta (Eq. 4) which can be established

between 0.25 and 1 is used as another threshold to

evaluate the average length of the outgoing

instances. For instance, a beta value of 0.5 (as is

usually used) signifies that conditions leading to

process instances with length above or equal to the

half of the total events would be discarded.

After atomic conditions are filtered out, the

algorithm (see Figure 4) builds all the possible

conjunctive conditions based on the combination of

outgoing atomic conditions (lines 7-11). These

conditions are then pruned by applying two

heuristics (lines 13-14). After that, new conjunctive

conditions by combining the remaining previous

conditions are iteratively evaluated (lines 15-19).

The first heuristic (line 13) applied to filter out

conjunctive conditions is based on the monotonicity

of the number of process instances. This is the

second difference with regard to (Motahari-Nezhad

et al., 2011), since this algorithm considers the

number of process instances (but not the length of

instances) to evaluate the monotonicity heuristic.

This heuristic is based on the idea that the number of

process instances for a conjunctive condition is

ImprovingEventCorrelationforNon-processAwareInformationSystems

always higher than the number for their simpler

conditions in isolation. Conjunctive conditions that

do not increase the number of process instances are

therefore pruned, since they are subsumed in their

atomic conditions. The number of process instances

obtained though conjunctive conditions

(ConjNumberPI) (Eq. 8) is based on (Eq. 6), which

is defined for simple conditions, and is measured by

intersecting both component conditions of the

conjunctive one.

Input: Events; AC: the set of atomic conditions; CC: the set of conjunctive

conditions

Output: Log: the final event log

1: process; instance

2: for e1 ∈ Events ˄e2 ∈ Events ˄ e1.proces = e2.process

˄ e1.timestamp ≤ e2.timestamp do

3: if e1.starting=true ˄ ∀n ∈Log.processes.name, process.name=n then

4: process.name ← e1.process

5: end if

6: for ac ∈AC ˄cc ∈CCdo

7: if ∃i, e1.attributes[ i ].name = ac.attribute1 ˄

∃i’, e2.attributes[ i’ ].name = ac.attribute2 ˄

e1.attributes[ i ].value = e2.attributes[ i’ ].value ˄

∃j, e1.attributes[ j ].name = cc.condition1.attribute1 ˄

∃j’, e2.attributes[ j’ ].name = cc.condition1.attribute2 ˄

e1.attributes[ j ].value = e2.attributes[ j’ ].value ˄

∃k, e1.attributes[ k ].name = cc.condition2.attribute1 ˄

∃k’, e2.attributes[ k’ ].name = cc.condition2.attribute2 ˄

e1.attributes[ k ].value = e2.attributes[ k’ ].value then

8: instance.id ←e1.attributes[ i ].value + e2.attributes[ i’ ].value +

e1.attributes[ j ].value + e2.attributes[ j’ ].value +

e1.attributes[ k ].value + e2.attributes[ k’ ].value

9: instance.events←instance.events∪ {e1, e2}

10: process.instances←process.instances∪ {instance}

11: end if

12: end for

13: Log.processes←Log.processes∪ (Fluxicon Process Laboratories)

14: end for

Figure 5: Algorithm to discover process instances.

The algorithm also applies the same heuristic

about the partitioning of the log to the conjunctive

conditions (line 14). Thereby, the ratio of process

instances is also evaluated for conjunctive

conditions (ConjPIRatio) (Eq. 7). When

ConjPIRatio is under alpha or above beta threshold

the conjunctive condition is discarded.

In conclusion, the proposed algorithm adapts the

algorithms provided by (Motahari-Nezhad et al.,

2011) thus adjusting to traditional systems. There

are two main changes as seen above in this section:

(i) the way in which the expected number of process

instances is calculated for each condition; and (ii)

the monotonicity heuristic which only takes into

account the length of the estimated process

instances.

3.3 Discovering Process Instances

The last stage, after obtaining the correlation set,

attempts to discover process instances using the

correlation set in order to build the final event log,

which will be written following the MXML (Mining

XML) format (Van der Aalst et al., 2009). MXML is

a notation based on XML and is the most common

format used by most process mining tools.

Figure 5 shows the algorithm to correlate all the

events of the intermediate dataset in its own process

instance within the event log. The algorithm

explores all the candidate events pairs, i.e., those

pairs that belong to the same process and which

were executed in a row (line 2). When an event was

recorded as the start point of a process, the target

process takes this name (lines 3-5). For each

candidate event pair, all the atomic and conjunctive

conditions of the correlation set are evaluated (line

7). If the event pair meets all the conditions, then it

is a correlated event pair and these events are then

put into the respective process instance, and in turn,

the instance is added to the process (lines 9-10).

Process instances are previously identified by means

of the specific values of the events’ attributes

involved in the correlation set (line 8). Each process

found during the event pair exploration, together

with all the discovered process instances, is finally

added to the event log (line 13).

Business process can be subsequently discovered

from the MXML event logs by applying different

well-known techniques and algorithms developed

from the business process mining field.

4 CASE STUDY

This section presents a case study conducted with a

real-life information system. The whole set of

artefacts involved in the study are online available in

(Pérez-Castillo, 2012).

The object of the study is the proposed technique

and the purpose of the study is to demonstrate the

feasibility of the technique in terms of accuracy. The

main research question therefore is:

MQ. - Can the technique obtain correlation sets for

generating event logs from a traditional system

which could on their turn be used to discover

the business processes supported by the

system?

Additionally, the study evaluates two secondary

research questions:

AQ1. - How well does this technique perform

compared to the previously developed

technique?

ENASE2012-7thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering

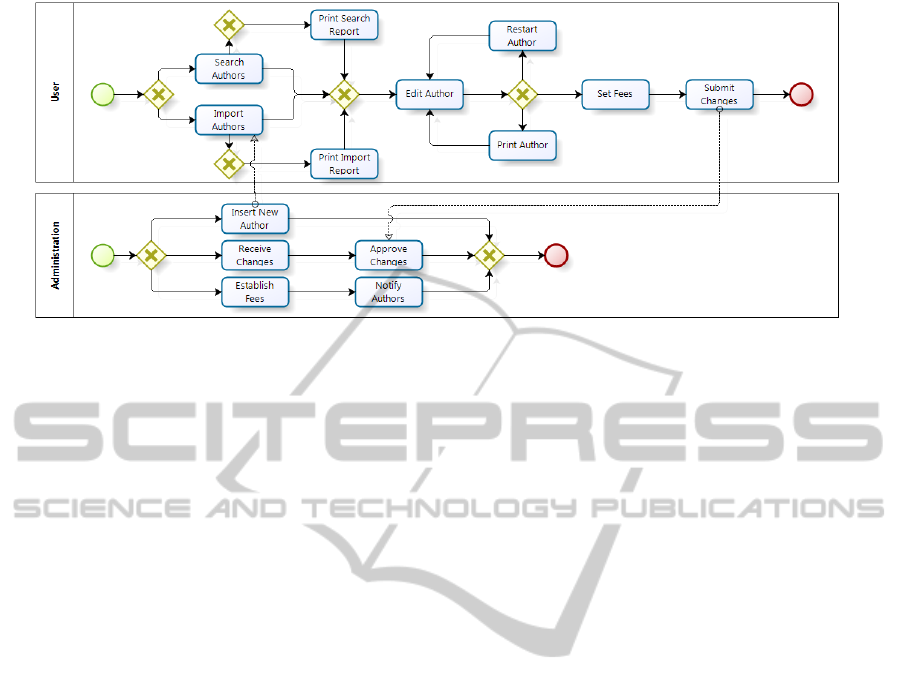

Figure 6: Reference business process model of the AELG-members system.

AQ2. - How much time does the technique require

to discover correlation sets regarding the size

of datasets?

AQ1 evaluates the gain of this new approach over

the previous one employing an isolated source code

object as correlation set. For the evaluation of this

secondary question, the result of this study is

compared with the result obtained in a previous

study that validated the previous approach using the

same traditional information system (Pérez-Castillo,

Weber et al., 2011). AQ2 assesses the time spent on

discovering correlations sets in order to know if the

technique is scalable to a large dataset.

In order to answer the main research question,

the study follows a qualitative research approach by

comparing a reference model and the obtained one.

The study first considers the business process model

previously provided by business experts (the

reference model). Secondly, the study obtains an

event log (using the discovered correlation set) and

compares the business processes instances collected

in the log together with the reference business

process model. The comparison between models

evaluates the degree of conformance of the obtained

model regarding the reference one, which is done by

scoring the number of business activities in common

with the reference business process model.

4.1 Case under Study

The traditional (non-process-aware) information

system under study was AELG-members, which

supports the administration of an organization of

Spanish writers. From a technological point of view,

AELG-members is a Java standalone application

with an architecture that follows the traditional

structure on three layers: (i) the domain layer

supporting all the business entities and controllers;

(ii) the presentation layer dealing with the user

interfaces; and (iii) the persistency layer handling

data access. The total size of the legacy system is

23.5 KLOC (thousands of lines of source code).

Figure 6 shows the business process supported

by the system under study, which is considered as

the reference business process model. The main

business activities carried out by the writers’

organization, including author registration,

importing author information from different sources,

cancellation of memberships, author information

management and payment of fees.

4.2 Execution

For the execution of the case study, all the stages of

the proposed technique were semi-automated by

different tools. The steps carried out during the study

execution were the following:

1. The AELG-members system was instrumented

through the Event Traces Injector tool (Pérez-

Castillo, 2012) which was modified to support the

addition of candidate correlation attributes by

experts. Six attributes were selected to be collected

together with events (see Table 1). Some attributes

regarding the identification of author were first

selected due to the business processes focuses on

this entity. Other attributes related to fees were also

selected since experts expect process instances end

when annual fees of an author are paid.

2. The instrumented version of AELG-members

was normally executed in the same production

environment. The execution consisted of storing

events and candidate correlation attributes in a SQL

Server 2005 database until significant datasets to

conduct the study were collected. Three different

sizes of dataset (above 2000, 7000 and 15000

ImprovingEventCorrelationforNon-processAwareInformationSystems

events) were considered to test different

configurations.

3. The algorithm for discovering the correlation set

(Figure 4) was then applied to the datasets. Unlike in

previous stages, this algorithm was implemented by

means of a set of stored procedures using PL/SQL

which executes a set of queries from datasets. Since

the beta threshold (Eq. 4) can be chosen by business

experts (Motahari-Nezhad et al., 2011), the

algorithm was applied with four different values:

0.25, 0.5, 0.75 and 1. The four different correlation

sets obtained for each configuration are shown in

Table 2. An event log was obtained for each

different correlation set by means of the algorithm

presented in Figure 5, which was also implemented

through PL/SQL procedures.

4. The four event logs were finally analyzed and

compared with the reference model. For this

purpose, the ProM tool (Van der Aalst et al., 2009)

was used to discover the respective business process

models for each log. The study particularly used the

genetic mining algorithm of ProM since it is the

most accurate one (Medeiros et al., 2007). Finally,

the conformance of each business process model

with the reference model was analyzed according to

the aforementioned qualitative research approach

(cf. Section 4.1).

Table 1: Candidate correlation attributes selected.

Attribute ID Java Class Output Method

1 FeeVO getIdAuthor

2 AuthorVO getId

3 AuthorVO isHistoric

4 AuthorVO getMemberNumber

5 PublicAuthorVO getId

6 AuthorVO getFees

Table 2: Correlation sets and time obtained in each case.

Events

Correlation

Attributes

β=0.25 β=0.5 β=0.75 β=1

Correlation

Sets

2432 10412

A C C C

7608 33278 A C C C

15305 74136 B C D D

Time (s)

2432 10412 12 15 16 15

7608 33278 41 56 55 55

15305 74136 113 150 151 147

Table 3: Correlation sets (numbers 1 to 5 refer to attribute

ID of Table 1; letters o to s refer to atomic conditions).

Atomic

Conditions

A o : 1=1 p : 2=2 q : 4=4 r : 6=6

B o : 1=1 p : 2=2 q : 4=4 r : 6=6

C o : 1=1 p : 2=2 q : 4=4 r : 6=6 s : 5=5

D o : 1=1 p : 2=2 q : 4=4 r : 6=6 s : 5=5

Complex

Conditions

A o ˄ q p ˄ q

B o ˄ q p ˄ q r ˄ q r ˄ p

C o ˄ q p ˄ q r ˄ q r ˄ p

D o ˄ q p ˄ q r ˄ q r ˄ p o ˄ s

4.3 Analysis and Interpretation

Table 2 and Table 3 summarize the results obtained

after cases study execution, showing the correlation

sets (A, B, C and D) obtained for each combination

of dataset (2432, 7608 and 15305 events) and beta

value (0.25, 0.5, 0.75 and 1). Table 2 also shows the

time spent on discovering each correlation set as

well as the particular atomic and conjunctive

conditions of each set.

After obtaining the corresponding event log and

discovering the respective business process for the

AELG-Members system, it was perceived that the

most accurate correlation set was ‘A’. The set ‘A’

leads to the business process with the highest

conformance degree (93%). This means the business

process discovered using set ‘A’ had the highest

number of business activities in common with the

reference business process model (13 from the 14

tasks).

The same conclusion can be stated by analyzing

the conditions of correlation set ‘A’ (see Table 3).

Set ‘A’ is less restrictive (compared to the other sets)

and contains fewer correlation conditions. Despite

this fact, it contains all the atomic conditions

necessary to evaluate the identity of each writer (i.e.,

getIdAuthor, getId and get MemberNumber).

Additionally, set ‘A’ also contains the atomic

condition to know when a fee is paid (i.e., getFees),

which signifies that a particular process instance

ends for a writer.

Moreover, regarding complex conditions of

correlation set ‘A’, there is a conjunctive condition

linking FeeVo.getIdAuthor together with

AuthorVO.getId, which signifies that the managed

fees must correspond to the same writer of a

particular process instance. Finally, set ‘A’ also

works well because the categorical correlation

attribute AuthorVO.isHistoric was properly

discarded, since these kinds of attributes (e.g.,

Boolean variables) split the datasets into only two

instances.

The remaining correlation sets (B, C and D) are

similar to correlation set ‘A’, since all those sets

contain all correlation conditions of ‘A’. However,

those sets incorporate more conditions, and although

they provide alternative event correlations, they are

more restrictive. This means that some process

instances obtained using ‘A’ could be split in two or

more instances in case sets B, C or D were used as

the correlation set instead of set ‘A’. These sets led

to conformance values between 64% and 86%,

which respectively correspond to 9 and 12 tasks in

common with the 14 tasks of the reference model.

ENASE2012-7thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering

Regarding the evaluation of AQ1, in the previous

case study with the same system (Pérez-Castillo et

al., 2011), the Java class ‘AuthorVO’ was selected as

the classifier to collect correlation information

during the system instrumentation stage. During

system execution, the runtime values of the

AuthorVO objects were used to correlate events. As

a result, all the process instances in the event log

were obtained with all the events regarding each

writer. Unlike the current approach, not all the

different executions of the reference business

process (see Figure 6) for each author were detected.

For example, every time a writer pays the annual

fee, it should be detected as the end of a process

instance. This kind of aggregation works by using

any correlation set obtained with the current

approach. However, as per the previous approach,

not all the events of the same writer could be

grouped into fine-grained process instances, since

the sole information to correlate events was

AuthorVO objects.

The conformance degree in the previous case

study with the same system was 77% (Pérez-Castillo

et al., 2011), while the degree obtained with the

proposed technique is 93% (obtained with set ‘A’).

In fact, the business process obtained with the

previous technique was complex and visually

intricate due to several crossing sequence flows. As

a result, AQ1 can be positively answered.

In order to demonstrate the feasibility of the

proposal, the time spent on discovering correlation

sets was analyzed according to the additional

question AQ2. Outlier beta values such as 1, and

especially 0.25 lead to shorter times (see Table 2).

This is due to the fact that outlier values allow the

algorithm to quickly prune non-promising

correlation sets, saving much time. Anyway, it

should be noted that the time regarding the beta

value is approximately linear. Besides, regarding the

number of events, the time is non-linear. The time is

lower for smaller datasets and higher for larger ones.

It seems the trend of the time follows a quadratic

function. This is due to the fact that every event

must be checked for all the remaining events

according to the proposed algorithm.

In conclusion, the main research question can be

positively answered. This means that the technique

is able to correlate events from traditional system,

and in turn, it produces a gain regarding techniques

previously developed. However, the time spent on

discovering correlation sets is quadratic, and huge

datasets may be time-consuming.

4.4 Evaluation of the Validity

The most important threat is the fact that the code

could be poorly instrumented. The obtained results

clearly depend on the candidate correlation attributes

selected at the beginning of the study. If business

experts select an incomplete or erroneous set of

candidate correlation attributes, the outgoing results

could be quite different. In order to mitigate this

threat we propose repeating the study using an

iterative approach in which experts can select or

remove some candidate correlation attributes

according to the results obtained for each iteration.

This way, the list of candidate correlation attributes

can be iteratively refined.

Moreover, correlation sets do not always have to

be obtained under lower beta values (e.g., 0.25). A

lower beta value often implies a more restrictive

correlation set and vice versa. The beta threshold can

therefore be established by business experts

depending on the constraint degree to be applied to

the particular set of candidate correlation attributes.

This threat can be addressed by repeating the study

with different cases and different beta values.

5 CONCLUSIONS

This paper presents a technique to discover the

correlation set in order to generate event logs from

traditional (non-process aware) information systems.

This challenge is important in traditional systems

since (i) they do not have any in-built mechanism to

record events and (ii) captured events do not have

any reference to the process instance they belong to.

The technique consist of three stages: (i) the

selection of candidate correlation attributes and

injection of statements into the source code to

collect events during system execution; (ii) the

discovery of the correlation set from collected

events; and (iii) the generation of the final event logs

by correlating events using the discovered

correlation conditions.

All the stages of the technique are semi-

automated, making it possible to validate the

proposal by conducting a case study with a real-life

system. The study demonstrates the feasibility of the

technique to discover correlation sets that lead to

well-formed event logs and the gain regarding

previous techniques in terms of accuracy. The main

implication of the results is that this technique

contributes to the application of well-proven

techniques and algorithms from the process mining

field. So far, such business process mining

ImprovingEventCorrelationforNon-processAwareInformationSystems

techniques work with event logs that are often

obtained only from process-aware information

systems.

The work-in-progress focuses on conducting

another case study with a healthcare information

system to obtain strengthened conclusions about

empirical validation. Moreover, concerning the

selection of candidate correlation attributes, a

mechanism to analyse source code and provide

business experts with some insights about the most

appropriate attributes will be developed.

ACKNOWLEDGEMENTS

This work has been supported by the FPU Spanish

Program; by the R+D projects funded by JCCM:

ALTAMIRA (PII2I09-0106-2463), INGENIO

(PAC08-0154-9262) and PRALIN (PAC08-0121-

1374); and MITOS (TC20091098) funded by the

UCLM.

REFERENCES

Burattin, A. and R. Vigo (2011). A framework for Semi-

Automated Process Instance Discovery from

Decorative Attributes. IEEE Symposium on

Computational Intelligence and Data Mining

(CIDM'11) Paris, France: 176-183.

Castellanos, M., K. A. d. Medeiros, J. Mendling, B. Weber

and A. J. M. M. Weitjers (2009). Business Process

Intelligence. Handbook of Research on Business

Process Modeling. J. J. Cardoso and W. M. P. van der

Aalst, Idea Group Inc.: 456-480.

Ferreira, D. and D. Gillblad (2009). Discovering Process

Models from Unlabelled Event Logs. Business Process

Management. U. Dayal, J. Eder, J. Koehler and H.

Reijers, Springer Berlin / Heidelberg. 5701: 143-158.

Fluxicon Process Laboratories (2009). XES 1.0 Standard

Deﬁnitio (Extensible Event Stream). http://www.xes-

standard.org/.

Hammoud, N. (2009). Decentralized Log Event

Correlation Architecture. Proceedings of the

International Conference on Management of Emergent

Digital EcoSystems. France, ACM: 480-482.

McGarry, K. (2005). "A Survey of Interestingness

Measures for Knowledge Discovery." Knowl. Eng.

Rev. 20(1): 39-61.

Medeiros, A. K., A. J. Weijters and W. M. Aalst (2007).

"Genetic Process Mining: An Experimental

Evaluation." Data Min. Knowl. Discov. 14(2): 245-

304.

Motahari-Nezhad, H. R., R. Saint-Paul, F. Casati and B.

Benatallah (2011). "Event Correlation for Process

Discovery From Web Service Interaction Logs." The

VLDB Journal 20(3): 417-444.

Myers, J., M. R. Grimaila and R. F. Mills (2010). Adding

Value to Log Event Correlation Using Distributed

Techniques. Proceedings of the Sixth Annual

Workshop on Cyber Security and Information

Intelligence Research. Oak Ridge, Tennessee, ACM:

1-4.

Pérez-Castillo, R. (2012). "Experiment Results about

Assessing Event Correlation in Non-Process-Aware

Information Systems " Retrieved 09/02/2012, 2012,

from http://alarcos.esi.uclm.es/per/rpdelcastillo/

CorrelationExp.html#correlation.

Pérez-Castillo, R., B. Weber, I. García Rodríguez de

Guzmán and M. Piattini (2010). "Toward Obtaining

Event Logs from Legacy Code." Business Process

Management Workshops (BPI'10) Lecture Notes in

Business Information Processing ((LNBIP 66 - Part

2)): 201–207.

Pérez-Castillo, R., B. Weber, I. García Rodríguez de

Guzmán and M. Piattini (2011). "Generating Event

Logs from Non-Process-Aware Systems Enabling

Business Process Mining." Enterprise Information

System Journal 5(3): 301–335.

Pérez-Castillo, R., B. Weber, I. García Rodríguez de

Guzmán and M. Piattini (2011). "Process Mining

through Dynamic Analysis for Modernizing Legacy

Systems." IET Software Journal 5(3): 304–319.

Rozsnyai, S., A. Slominski and G. T. Lakshmanan (2011).

Discovering Event Correlation Rules for Semi-

Structured Business Processes. Proceedings of the 5th

ACM international conference on Distributed event-

based system. New York, USA, ACM: 75-86.

van der Aalst, W. and A. J. M. M. Weijters (2005).

Process Mining. Process-aware information systems:

bridging people and software through process

technology. M. Dumas, W. van der Aalst and A. Ter

Hofstede, John Wiley & Sons, Inc.: 235-255.

Van der Aalst, W. M. P., B. F. Van Dongenm, C. Günther,

A. Rozinat, H. M. W. Verbeek and A. J. M. M.

Weijters (2009). ProM: The Process Mining Toolkit.

7th International Conference on Business Process

Management (BPM'09) - Demonstration Track. Ulm,

Germany, Springer-Verlag. 489: 1-4.

Weske, M. (2007). Business Process Management:

Concepts, Languages, Architectures. Leipzig,

Germany, Springer-Verlag Berlin Heidelberg.

Zou, Y. and M. Hung (2006). An Approach for Extracting

Workflows from E-Commerce Applications.

Proceedings of the Fourteenth International

Conference on Program Comprehension, IEEE

Computer Society: 127-136.

ENASE2012-7thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering
