IWONTO – SQL BASED MAPPING FROM RELATIONAL

DATABASES TO ONTOLOGIES

Karsten Tolle and Mario Bachmann

Databases and Information Systems (DBIS), Johann Wolfgang Goethe-University of Frankfurt,

Robert-Mayer-Strasse 10, D-60325 Frankfurt am Main, Germany

Keywords: Ontologies, Data Integration, Mapping.

Abstract: Ontologies are a formal representation of knowledge and semantics. With the emergence of the Semantic

Web in the early 2000s, ontologies were pushed and from a theoretical point of view, many things could be

solved. However, on the applicability level even finding the right tool to extract and load relational data into

an existing ontology is a challenge and performing it remains a time consuming task. Based on various real

case scenarios from the archaeological domain, we tried ontology-based approaches to integrate data. In

those scenarios we had to deal with relational schema violating academic design principles. This

complicated the situation. After an analysis of existing tools, we decided to implement our own tool to

import relational data from different sources into our ontology. This paper will explain our motivation for

implementing our tool called IwOnto and how it works. We decided to base it on SQL, which is known by

our main target audience. Thereby we reached our design goal to avoid the necessity of learning another

query language (e.g. SPARQL).

1 INTRODUCTION

Already since the very beginnings of databases back

in 1970, the problem of integrating data from two or

more databases has existed. The discrepancy can

range from differences in the data model to the

usage of different languages for describing the same

content. Therefore, queries constructed for one

database will not work for other databases, even if

they contain the same logical content, e.g.

archaeological data. Forcing people to use the same

representation form, language and data models is not

realistic.

One promising approach solving this is to move

the problem from the technical to a higher

abstraction level, e.g. by using ontologies. These

create the vocabulary with which concepts and their

relations can be defined and allow domain experts,

as well as computer experts, to concentrate on the

content and not on technical niceties.

We followed this approach and defined an

ontology for our domain of archaeological findings,

mainly coins. As next step we wanted to migrate

existing data from different relational databases into

this ontology in order to be able to export the new

ontology enhanced with information from our

relational data. The resulting ontology including the

instances could then be saved as a file having a

concrete syntax like OWL syntax to allow

interchange with other applications.

We expected to find sufficient free tools that

support this mapping and export process from

relational data into an existing ontology.

Surprisingly, we discovered that it turned out to be

much more difficult to find a sufficient tool that is

up to date and does not overwhelm the user. We

finally decided to implement our own tool called

Integration with Ontologies (IwOnto). One design

goal was to base it on SQL, which is known by our

target users and so avoids the need to learn another

query language such as SPARQL.

In section 2 we will provide a state-of-the-art

overview of existing tools we explored in the

mapping area with their strengths and drawbacks.

Details about IwOnto will be presented in section 3.

This section includes some implementation

background and a description of its features. Special

emphasis is laid on how object properties are

handled. Finally section 4 closes this paper with our

conclusions and our planed future work.

430

Tolle K. and Bachmann M..

IWONTO – SQL BASED MAPPING FROM RELATIONAL DATABASES TO ONTOLOGIES.

DOI: 10.5220/0003934304300433

In Proceedings of the 8th International Conference on Web Information Systems and Technologies (WEBIST-2012), pages 430-433

ISBN: 978-989-8565-08-2

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

2 EXISTING TOOLS FOR

DATABASE-TO-ONTOLOGY

MAPPING

There are powerful commercial tools like

OntoStudio from Ontoprise, or SemanticWorks from

Altova. However, we searched for a free, simple tool

not overshadowed with too many features that could

be used to map our relational data into our existing

ontology. Due to design limitations of our relational

data, an automatic approach was not an option. In

fact, even for a human it was difficult to understand

the underlying relational data without support of a

domain expert.

During our search, we first came across the

Protégé plug-ins DataGenie

and DataMaster

whereby DataMaster also supports Protégé-OWL.

The main problem for both was that they support

only the creation of a new ontology from given

relational data. In the very latest version of

DataGenie only pure bridge tables can be handled

differently. This class of tools, which supports only

the creation of a new ontology, does not fit our

needs. Also the tool DB2OWL (Ghawi and Cullot,

2007) can be counted to this class of tools.

A very promising tool supporting the mapping to

existing ontologies was VisAVis (Konstantinou,

Spantos, Chalas, Solidakis and Mitrou, 2006). It is

also a Protégé plug-in. The mapping and generation

of classes and instances worked well. A less

problematic issue was that VisAVis supports only

the connection to MySQL and PostgreSQL

databases. However, the main difficulty for us was

the lack of support for object properties. The same

seems to be true for RDB2Onto. It is claimed that

the tool “creates empty individuals in ontology from

relational data”.

Some tools we tested where only partially

executable, or even not executable at all. We

invested a lot of time in getting the tool

METAmorphoses (Svihla and Jelinek, 2005)

running. METAmorphoses has a lot of library

dependencies. Even by contacting the authors of the

software we could not fix all problems. On top it has

a promotion timer installed, which means that you

need to wait two minutes before the tool starts.

We also had problems dealing with DERI

Ontology Management Environment (DOME) and

DIP Ontology Management Suite (OMS). A closer

look at the web site of these tools reveals that there

is now little activity involving them. In the DOME

news section the last entry is dated to the middle of

2006.

Other research projects concentrated on defining

a mapping language such as D2R (Bizer, 2003) and

O (Barrasa, Corcho and Gómez-Pérez, 2004). For

O exists the tool ODEMapster implementing it.

ODEMapster is designed as a plug-in for the Neon

toolkit which is based on Eclipse. The Neon toolkit

was generated within the Neon Project – a European

FP 6 project – that was finished in 2011.

ODEMapster is a nice tool and provides an easy to

use graphical way to map between the database and

ontology side. When the mapping is straight forward

this is a great tool, however, when the database

schema – as in our case – is not conform to the

ontology it gets very confusing. Additionally the

mapping for object properties is not very well

assisted by the GUI. When executing the mapping

we often run into an error message reporting

“Unknown error occurred” which did not helped at

all.

D2R is implemented by the D2R Server.

Additionally there is SquirrlRDF. Both of them are

very powerful; however, they therefore do not

transfer well to a simpler scenario as ours. The main

purpose of these two is to enable SPARQL access to

existing relational data. This was beyond our scope

and we aimed to keep the user clear of SPARQL.

The following table provides a quick overview

of the tools we explored together with a small

comment.

Table 1: Overview of tools we explored.

Name Comment

DataGenie supersede by DataMaster

DataMaster

does not support existing

ontologies

DB2OWL

does not support existing

ontologies

VisAVis no support of object properties

RDB2Onto no support of object properties

METAmorphoses

promotion timer and difficulties

with dependencies

DOME outdated; problematic to run

OMS outdated; problematic to run

ODEMapster

good for straight forward

mappings; problems with object

properties

D2R Server

SPARQL oriented; too heavy for

our case

SquirrlRDF

SPARQL oriented; too heavy for

our case

Under the mantle of the W3C we also found a

working group trying to standardize the language for

mapping relational data into RDF and OWL, called

RDB2RDF Working Group. They generated a survey

report – the latest version is from 2009 – providing a

more general overview including approaches that

IWONTO-SQLBASEDMAPPINGFROMRELATIONALDATABASESTOONTOLOGIES

431

were out of our scope.

3 INTEGRATION WITH

ONTOLOGIES (IWONTO)

The mapping tool Integration with Ontologies

(IwOnto) was developed to provide a simple and

useful method to perform information integration

requiring only SQL skills (Bachmann, 2011). The

development was based on the latest OWL API 3 for

handling the ontology side. On the database side it

relies on the JDBC API and is therefore flexible and

not bound to a particular database system.

The ontology world distinguishes between two

kinds of properties: data properties and object

properties. A data property carries concrete data in

the form of a value of a data type such as string,

integer or float. When defining the mapping, the

data properties can be mapped to one or more

attributes of the intermediate table.

Object properties are different. The object

property range is a class. They do not carry data, but

they represent a reference to another object. This

means they are the glue within the network of

objects. This in fact is the most important issue

about ontologies, because it allows us to view

objects from a different viewpoint, and not just in

tables.

In the database world the object properties

correspond to the relations within the entity

relationship model (ER-model). When translating it

into the relational world of tables, we discovered

that this translation is not unique. Two entities that

have a relation can be translated into one, two or

even three tables depending on the cardinalities. If

everything goes well, we should have foreign keys

in order to link the different tables. However,

foreign keys are also used for situations where tables

(objects) got split up into various tables in order to

reduce redundancy – as done in normalization

process. Additionally, the foreign keys are used to

represent hierarchies in the relational world. Even

for a person that can gain some semantics from the

different table and attribute names, it is not easy to

reconstruct the correct ER-model from a given

relational schema.

In our situation it was even worse, because the

existing relational database was not designed by

database experts. It grew over time and was adopted

on the fly to new requirements. Therefore, some

referential integrity was not even defined by foreign

keys and we also had the situation the representation

of different objects was combined into one table.

Therefore, an automatic reverse engineering by

advanced applications would not help much.

Since other applications where based on the

existing schema, a redesign of it was not an option.

For this reason the mapping process of IwOnto is

based on intermediate tables defined by an SQL

statement. This way some of the problems - e.g. the

mix of different entities within one table - could be

handled using the right SQL query.

For the underlying mapping process of IwOnto

the user passes through the classes of the ontology

he wants to export. For each class he defines a

separate SQL statement in order to build an

intermediate table – e.g. in order to combine

relational information that has been splitted up in

order to gain normalization. This table is then the

basis to define the mapping between data and object

properties of a particular ontology-class and relevant

attributes or attribute combinations on the database

side. This also means one can perform pre-

processing and cleanups, or include constraints using

the power of SQL. On top the user can define

functions for the mapping itself that can be used for

conversions between different metrics, e.g. to

convert from feet to meter or vice versa. As shown

in Figure 1 below the compatibility of data types is

checked by IwOnto in order to avoid invalid

mappings.

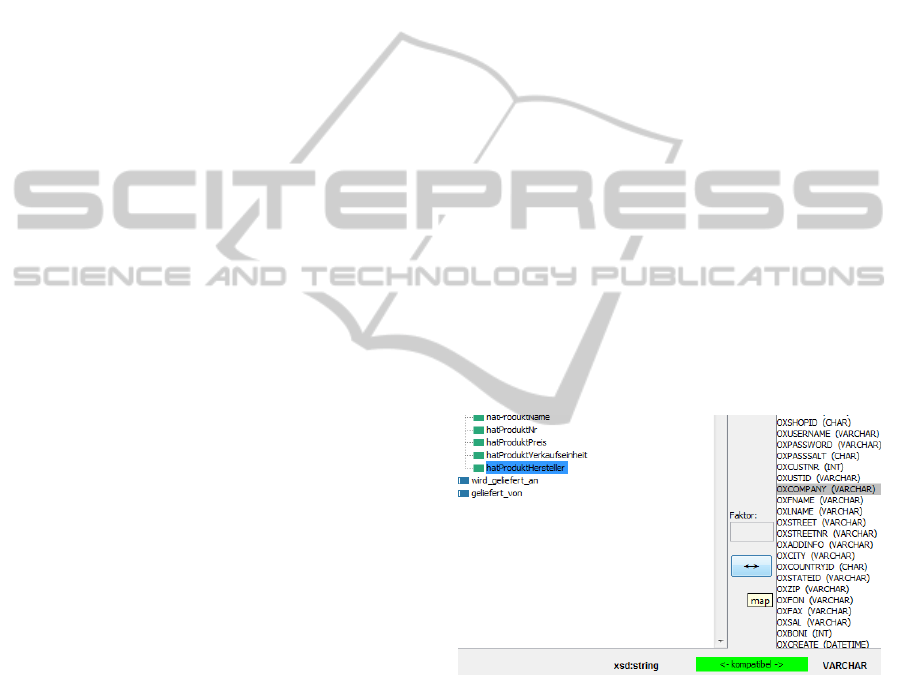

Figure 1: The GUI of IwOnto showing the ontology

properties on the left and the database attributes of the

intermediate SQL table on the right.

The mappings defined between the intermediate

SQL table and the properties of the ontology are

stored and listed in a separate window. Here the user

has the ability to remove mappings selectively for

the related class, or to remove the entire mapping for

it performed to date.

When the mapping is executed for each row of

the SQL table, an instance of the mapped class with

the according attributes for the data properties is

generated.

In order to link two objects with an object

WEBIST2012-8thInternationalConferenceonWebInformationSystemsandTechnologies

432

property these objects must exist in order to be able

to be referenced by object properties. This is not

trivial which is reflected by the fact that various

tools explored and described in the previous section

do not provide this feature at all.

In order to solve this problem our mapping in

IwOnto is split into two phases. In the first phase all

needed objects for an object property should be

generated. Because of possible dependencies this

again is not trivial. If class A has an object property

which range is class B, this implies a dependency of

class A on class B. When building the dependency

graph there can be chains and circles in it. To handle

circles at least one link must be broken by removing

one object property in the circle. This results in the

loss of information that should be included in a later

stage.

In the second phase the generated objects can be

used. This is also not as easy as it might sound. One

needs to identify the generated objects of the first

phase clearly and without ambiguity based on the

information provided by the intermediate table of the

second phase. We currently have different

approaches we implemented and tested to do so: a)

based on the name of the object that needs to match

the mapped attribute value, b) by a special data

property as identifier for it, or c) a more fussy

solution scanning all data properties in order to find

a match. Currently we favour the first approach

based on the name of the object because it is the

most secure approach and this way we do not

generate an IwOnto specific solution. However,

none of these approaches is perfect, and we are also

investigating additional and more flexible ways, e.g.

based on constraints, to map from the attribute

values of the intermediate table to objects already

generated.

4 CONCLUSIONS AND FUTURE

WORK

Existing mapping and export tools for migrating

relational data to an existing ontology did not match

our needs. We therefore implemented IwOnto. There

are two main differences compared to existing tools

a) it is based only on SQL and does not enforce

users to adapt additional languages like SPARQL

and b) the ability to move some of the mapping

problems into intermediate SQL statements rather

into the mapping itself, helps the user to split his

problems into manageable portions.

It is already possible to handle object properties

with IwOnto, which was problematic with many

other existing tools. However, generating the

according objects in case of longer chains is a time

consuming task and does not fit our idea of an easy

to use tool. Solving this in a sufficient and user

friendly way is currently our main challenge.

The second main focus we have is the good

usability of IwOnto. In the latest implementation we

therefore improved the way how SQL statements

can be entered. Now a statement can be tested and

the user can see immediately the result of his

statement in order to be sure he generated the correct

intermediate table.

Currently we use IwOnto in the domain of

archaeology and the size of relational databases we

need to handle at the moment consists of just a few

hundred findings. Therefore, performance issues are

not our main focus. However, IwOnto is not bound

to this domain and once we solved our current

issues, we will have a closer look on performance. A

first prototype of IwOnto is available under GPL 3.0

at SourceForge.

ACKNOWLEDGEMENTS

The authors would like to thank Steffen Försch,

Marco Bender and Alexander Rezun for their

contributions to IwOnto.

REFERENCES

Bachmann, M. (2011). Informationsintegration mit

Ontologien am Beispiel von archäologischen Daten,

Diploma Thesis at Goethe University Frankfurt am

Main.

Barrasa, J., Corcho, Ó and, Gómez-Pérez, A. (2004). R2O,

an extensible and semantically based database-to-

ontology mapping language. In: Proceedings of the

Second Workshop on Semantic Web and Databases,

Springer-Verlag, Berlin, Germany, pp. 1069-1070.

ISBN 978-3-540-24576-6.

Bizer, C. (2003). D2R MAP - A Database to RDF

Mapping Language. The Twelfth International World

Wide Web Conference, Budapest, Hungary.

Ghawi, R. and Cullot, N. (2007). Database-to-Ontology

Mapping Generation for Semantic Interoperability, 3rd

International Workshop on Database Interoperability

(InterDB 2007), held in conjunction with VLDB 2007,

Vienna, Austria.

Konstantinou, N., Spantos, D-E., Chalas, M., Solidakis E.

and Mitrou, N. (2006). VisAVis: An Approach to an

Intermediate Layer between Ontologies and Relational

Database Contents. International Workshop on Web

Information Systems Modeling (WISM 2006),

Luxembourg.

Svihla, M. and Jelinek, I. (2005). The Database to RDF

Mapping Module for an Easy Semantic Extending of

Dynamic Web Sites. IADIS International Conference

WWW/Internet, Lisabon, Portugal.

IWONTO-SQLBASEDMAPPINGFROMRELATIONALDATABASESTOONTOLOGIES

433
