FUZZY CONCEPT LATTICE-BASED APPROACH FOR REACTIVE

MOTIFS DISCOVERY

Thanapat Kangkachit and Kitsana Waiyamai

Department of Computer Engineering, Faculty of Engineering, Kasetsart University, Bangkok, Thailand

Keywords:

Complete substitution group, Fuzzy concept lattice, Reactive motifs, Enzyme function classiﬁcation, Binding

and catalytic site, Amino acid sustitution matrix, Biochemical knowledge.

Abstract:

Reactive motifs are short conserved regions discovered from binding and catalytic sites of enzymes sequences.

Thus, reactive motifs provide more biological meaning than statistic-based motifs because they are directly

extracted from where the chemical reaction mechanism occurs. Main problem of discovering reactive motifs

is that only 4.94% enzymes sequences contain sites information. To overcome this problem, we present fuzzy

concept lattice-based (FCL-based) method for discovering more general reactive motifs by incorporating bio-

chemical knowledge. Fuzzy concept lattices are used to represent both binary and multi-value biochemical

knowledge. The fuzzy concept lattice Join operator is applied to determine complete substitution groups that

obtains more general reactive motifs. Experiments are conducted among diﬀerent methods of determining

complete substitution groups: FCL-based, concecpt lattice-based (CL-based) and similarity-based method.

Experimental results show that FCL-based method signiﬁcantly outperforms other methods in term of cov-

erage value and F-measure with SVM learning algorithm. Therefore, fuzzy concept lattice provides more

eﬃcient computational support for complete substitution groups operation than that of other existing methods.

1 INTRODUCTION

Reactive motifs are short conserved regions discov-

ered from binding and catalytic sites of enzymes

sequences. Compared with statistic-based motifs

(Sander and Schneider, 1991; Eidhammer et al., 1999;

Huang and Brutlag, 2001; Bennett et al., 2003), en-

zyme function classiﬁcation model using reactive mo-

tifs gives the better accuracy with explanation in

terms of reactive motifs combination. Compared with

expert-based motifs i.e. PROSITE (Bairoch, 1993),

the performance of classiﬁcation model using reactive

motifs is more eﬃcient in term of accuracy due to a

small number of occurrences in protein sequences of

those expert-based motifs. Main problem in discover-

ing reactive motifs is the lack of binding and catalytic

sites information, only 4.94% of enzymes sequences

contain binding and catalytic sites information in the

UNiProtKB/Swiss-Prot Version 9.2 (Bairoch and Ap-

weiler, 2000). (Waiyamai et al., 2008) have pro-

posed a concept lattice-based reactive motifs discov-

ery method called CL-based. They introduced the

concept of mutation control determine a complete

amino acid substitution group for each position in the

sequences, such that the substitution group contains

all possible amino acids that can be substituted. Con-

cept lattice operators have been deﬁned to support

mutation control operations. The proposed technique

yields good results (70 % accuracy of enzyme func-

tion classiﬁcation) and can overcome problems such

as lack of information about binding and catalytic

sites. However, only binary-value context is sup-

ported, conversion method is needed to support both

binary and multi-value knowledge. Moreover, the oc-

currences of reactive motifs need to be improved to

obtain better accuracy of enzyme function classiﬁca-

tion model.

This paper presents FCL-based approach for reac-

tive motifs discovery. Main objective is to further in-

crease the occurrences of reactive motifs in enzymes

sequences dataset and to improve their quality by in-

corporating various types of biochemical knowledge.

Both binary and multi-value biochemical knowledge

is formally constructed in a unique structure fuzzy

concept lattice that overcomes the problem of infor-

mation loss while converting multi-value knowledge

into binary-value context. Fuzzy concept lattices are

then used to determine complete substitution groups

in reactive motifs. As result, more general reactive

motifs are generated. We also show that FCL-based

approach provides eﬃcient computational support for

complete substitution groups determination in reac-

326

Kangkachit T. and Waiyamai K..

FUZZY CONCEPT LATTICE-BASED APPROACH FOR REACTIVE MOTIFS DISCOVERY.

DOI: 10.5220/0003787503260330

In Proceedings of the International Conference on Bioinformatics Models, Methods and Algorithms (BIOINFORMATICS-2012), pages 326-330

ISBN: 978-989-8425-90-4

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

tive motifs discovery. The quality of FCL-based re-

active motifs can be expressed through the high per-

formance of enzyme function classiﬁcation model us-

ing them as features to learning algorithm i.e. C4.5

(Quinlan, 1993) and SVM (Boser et al., 1992; Cris-

tianini and Shawe-Taylor, 2010).

The experiments are conducted among diﬀerent

complete substitution groups determination methods:

FCL-based, CL-based and similarity-based methods.

The performance of reactive motifs is measured using

the coverage value (occurrences of motifs in enzyme

sequences dataset) and F-measure with SVM and

C4.5. The experimental results show that FCL-based

method gives better performance than other methods

in terms of coverage value, F-measure, Precision and

Recall. In the following, we describe the process of

reactive motifs discovery using fuzzy-concept lattice.

Experimental results and conclusion are presented in

section 3 and section 4 consequently.

2 FUZZY CONCEPT

LATTICE-BASED APPROACH

FOR REACTIVE MOTIFS

DISCOVERY

In this section, the overall process of reactive motifs

discovery is presented. It is composed of three steps:

data preparation and block scan ﬁltering, complete

substitution groups determination, and reactive site

group deﬁnition as the same framework as introduced

in (Waiyamai et al., 2008).

2.1 Data Preparation and Block Scan

Filtering

In this step, we collect enzyme sequences dataset

(Bairoch, 1993; Apweiler et al., 2004), covers 22,637

sequences of 237 functions, while only 4.94% of en-

zyme sequences contain binding or catalytic sites.

By considering sites position as center, enzyme sub-

sequences having 15 amino acids length; initial sites

patterns are extracted. This is based on the 21-atoms

average substrate size in BRENDA database (Schom-

burg et al., 2004) which corresponds to 7 amino acids

(3 atoms per 1 amino acid) on each side of the sites

position.

To solve the problem of lack information at bind-

ing and catalytic sites, the generalization is performed

at each position of the initial sites patterns using a

block scan ﬁltering. Then, a scan operation is per-

formed to retrieve all the sub-sequences having the

same site description to generate sequences blocks.

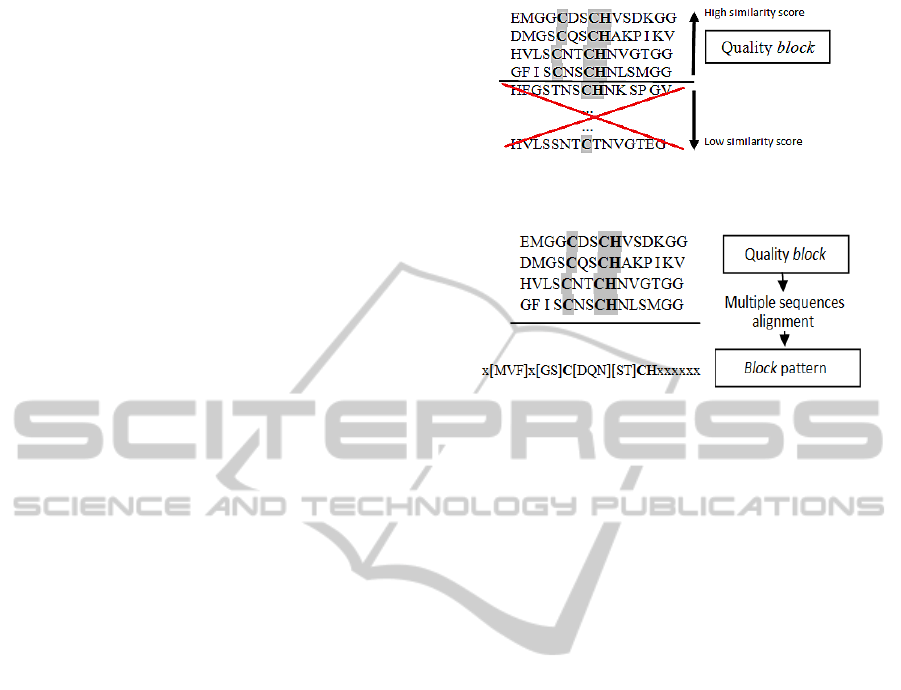

Figure 1: Enzyme sub-sequence ﬁltering to obtain high

quality block.

Figure 2: A block pattern obtained from the MSA operation

on a quality block.

Sequences are ranked according to amino-acid sim-

ilarity scores using BLOSUM62 table (Henikoﬀ and

Henikoﬀ, 1992). In Figure 1, to obtain high quality

block, each sub-sequence in the block must has at

least 3 positions presenting the same type of amino

acids as proposed in (Smith et al., 1990) for the high

quality motifs.

To discard some positions that may not involve in

protein functional mechanism, a multiple sequences

alignment (MSA (Ramu et al., 2003)) is performed

to all sub-sequences in each high quality block. Fi-

nally, a block pattern is extracted as a represen-

tative block in the form of regular expression e.g.

x[FMV]x[GS]C[DQN][ST]CHxxxxx, where x be

any amino acid, [ ] be a set of possible amino acids at

a given position, called substitution group, as shown

in Figure 2.

Due to the lack sites information, there will pos-

sibly be other amino acids in some substitution group

positions of a block pattern. Thus, determining com-

plete substitution groups to generate more general and

high quality reactive motifs from a set of block pat-

terns is required.

2.2 Complete Substitution Groups

Determination

In the following, we explain how the complete sub-

stitution groups are determined using FCL-based

method. First, both binary and multi-value biochem-

ical knowledge from various sources can be formally

constructed in a unique fuzzy concept lattice struc-

ture (Yahia and Jaoua, 2001; S., 2003; Elloumi et al.,

2004). The values in each properties of biochemi-

FUZZY CONCEPT LATTICE-BASED APPROACH FOR REACTIVE MOTIFS DISCOVERY

327

cal knowledge are normalized to [0,1] and then for-

mulated as an amino acid properties context to con-

struct fuzzy concept lattice. Due to the fact that bio-

chemical knowledge can contain a large number of

amino acid properties, FCL-based uses (Nakai et al.,

1988) approach to select proper properties. A hierar-

chical cluster analysis is used to investigate the rela-

tionships among amino acid properties (circles with

index) and represent them using a minimum spanning

tree as shown in Figure 3(a). Figure 3(b) shows the

selection of properties in largest cluster (region with

dots) to be input to the amino acid properties context.

Once constructed from the amino acid properties con-

text, the fuzzy concept lattice structure is able to ex-

press a hierarchy of concepts which represent amino-

acid substitution groups sharing the common proper-

ties. Then, complete substitution groups operations

can be deﬁned based on the fuzzy concept lattice Join

operator. More details of fuzzy concept lattice can be

found in (Yahia and Jaoua, 2001; S., 2003; Elloumi

et al., 2004).

Here, we show how FCL-based method works

to determine complete substitution groups. In Fig-

ure 2, the substitution group [FMV] at 2

position

of a block pattern is used as an example. Accord-

ing to amino acid properties context in Table 3(b),

the common properties of this group can be deter-

mined by the minimum value of all properties i.e.

(#383

0.52

, #96

0.60

, #159

0.15

, . . . , #27

). Then, a set of

amino acids {F,M,V,I,L} is extracted as a complete

substitution group with respect to their common prop-

erties of this substitution group. Finally, we obtain

pattern x[FMVIL]x[GS]C[DQN][ST]CHxxxxx as a

set of complete reactive motifs.

2.3 Reactive Sites Groups Generation

Enzymes can have diﬀerent catalytic and binding

structures to ﬁt and function the same substrate. Thus,

complete reactive motifs can be grouped together

according to their sites description as speciﬁed in

UNiProtKB/Swiss-Prot database. As result, 291 re-

active sites groups which correspond to the reactive

motifs groups are generated and used as input features

to build the enzyme functions classiﬁcation model.

3 EXPERIMENTAL RESULTS

In the following, the results of diﬀerent types of re-

active motifs: FCL-based, baseline (without use of

background knowledge), CL-based, similarity-based,

are compared using a dataset containing 22,637 pro-

tein sequences with 237 enzyme functions collected

from UNiProtKB/Swiss-Prot Version 9.2. The dif-

ferent types of reactive motifs are explained in Sec-

tion 3.1. The performance comparison is conducted

in terms of the reactive motif generalization and the

prediction model accuracy.

3.1 Diﬀerent Types of Reactive Motifs

Here, implementation details of the diﬀerent types of

reactive motifs are given.

• Baseline method discovers reactive motifs with-

out use of biochemical knowledge. The propose

of this method is to compare how eﬃcient the

other methods gain in using proper background

knowledge.

• CL-based method integrates binary-value bio-

chemical knowledge via a concept lattice, and per-

forms mutation control operations to determine

complete substitution groups to generate reactive

motifs. More details of CL-based can be found in

(Waiyamai et al., 2008).

• CL-based* method extends CL-based method by

performing a multiple sequence alignment oper-

ation on quality blocks (refer to step 2.1) before

determining complete substitution groups.

• Similarity-based method uses amino acid substi-

tution matrices instead of biochemical properties

knowledge. For each substitution group, the min-

imum similarity score obtained by any pairs of

amino acids in such group is computed. The other

amino acids are determined as complete substitu-

tion group if the similarity scores between them

and any amino acid in the substitution group are

higher than or equal to minimum similarity score.

For example, the minimum similarity score of

substitution group [MFV] is -1 derived from sim-

ilarity score between F and V using BLOSUM62.

Then, we can extract [MFVHILWYARCQKST]

as a complete substitution group.

3.2 Evaluation of Reactive Motifs

Discovery Methods

The performance of reactive motifs is evaluated in

terms of their occurrences in enzymes sequences

dataset through coverage value and the quality of pre-

diction model using them as input features measured

by using F-Measure, Precision and Recall. Table1

comparesperformance of the diﬀerent methods for re-

active motifs discovery.

In term of coverage value, FCL-Based and

similarity-based methods produce signiﬁcantly higher

value compared to no use of knowledge. It means that

BIOINFORMATICS 2012 - International Conference on Bioinformatics Models, Methods and Algorithms

328

(a) (b)

Figure 3: AAIndex: physicochemical properties (a) Representation of 3 clusters (region with dots) using minimum spanning

tree (b) Amino acid-properties context derived from the largest cluster in (a).

Table 1: Coverage value, F-measure, recall and precision comparison among diﬀerent types of reactive motifs.

F-Measure

Recall

Precision

Reactive motifs types Coverage(%) SVM C4.5 SVM C4.5 SVM C4.5

Similarity-based method

- BLOSUM62 94.55 0.699 0.662 0.709 0.672 0.745 0.675

- BLOSUM80 93.80 0.691 0.666 0.700 0.675 0.742 0.686

- PAM30 95.43 0.705 0.661 0.683 0.677 0.720 0.687

- PAM70 94.33 0.689 0.654 0.698 0.664 0.735 0.668

- PAM250 94.35 0.699 0.667 0.708 0.676 0.743 0.684

Mutation control-based methods

- FCL-Based

98.02 0.746 0.635 0.751 0.646 0.766 0.646

- CL-Based* 91.81 0.672 0.660 0.684 0.676 0.722 0.691

- CL-Based 64.84 0.590 0.586 0.549 0.545 0.615 0.609

Baseline method 91.91 0.662 0.660 0.675 0.670 0.713 0.684

Using integrated biochemical knowledge

Recall = TP / (TP + FN)

Precision = TP / (TP + FP)

F-Measure = 2*Precision*Recall / (Precision + Recall);

both methods eﬃciently utilize biochemical knowl-

edge in order to produce more general reactive motifs.

Moreover, FCL-based method provide best computa-

tional support for generating general reactive motifs

due to its highest coverage value.

In term of prediction model accuracy, FCL-based

method gives highest precision, recall and F-measure

with SVM. It means that FCL-based method also pro-

duces highest true positive(TP) value but lowest false

positive(FP) and false negative(FN) values. In con-

trast, the other methods aim to produce high precision

but low recall that aﬀected F-Measure i.e. high FP and

FN values. However, there is no signiﬁcantly diﬀer-

ent of all measures obtained by FCL-based method

and other methods with C4.5.

In summary, with highest coverage, F-Measure,

precision and recall values, FCL-based method pro-

vides more general reactive motifs while retains accu-

racy of the prediction model by reducing the eﬀect of

FP and FN values.

4 CONCLUSIONS AND

DISCUSSION

Main problem of discovering reactive motifs is that

only 4.94% enzymes sequences contain sites infor-

mation. To overcome this problem, we present fuzzy

concept lattice-based (FCL-based) method for discov-

ering more general reactive motifs by incorporating

biochemical knowledge. Fuzzy concept lattices are

used for both representing binary and multi-value bio-

chemical knowledge, and determining complete sub-

FUZZY CONCEPT LATTICE-BASED APPROACH FOR REACTIVE MOTIFS DISCOVERY

329

stitution groups that produces more general reactive

motifs. Used as input features of SVM, generated

FCL-based reactive motifs provide highest coverage,

F-measure, precision and recall values without aﬀect-

ing the FP and FN values in the prediction model.

Rule-based learning methods can be investigated

to provide meaningful and understandable informa-

tion to biologists. Among rule-based methods, asso-

ciative classiﬁcation technique (Liu et al., 1998; Li

et al., 2001; Belohlvek et al., 2007) is recognized to

be more accurate over traditional classiﬁcation tech-

niques i.e. C4.5 for very large number of classes to

predicted. In the future work, we will increase both

accuracy and explanatory ability of the protein func-

tion classiﬁcation model using reactive motifs as in-

put features to an associative classiﬁcation.

ACKNOWLEDGEMENTS

The authors gratefully acknowledge the Thailand Re-

search Fund (TRF) and Kasetsart University for ﬁnan-

cial support through the Royal Golden Jubilee Ph.D.

scholarship program (1.0.KU/49/A.1).

REFERENCES

Apweiler, R., Bairoch, A., Wu, C. H., Barker, W. C.,

Boeckmann, B., Ferro, S., Gasteiger, E., Huang,

H., Lopez, R., Magrane, M., Martin, M. J., Natale,

D. A., O’Donovan, C., Redaschi, N., and Yeh, L.-

S. L. (2004). Uniprot: the universal protein knowl-

edgebase. Nucleic Acids Research, 32(Database-

Issue):115–119.

Bairoch, A. (1993). The prosite dictionary of sites and pat-

terns in proteins, its current status. Nucleic Acids Re-

search, 21(13):3097–3103.

Bairoch, A. and Apweiler, R. (2000). The swiss-prot protein

sequence database and its supplement trembl in 2000.

Nucleic Acids Res, 27:49–54.

Belohlvek, R., Baets, B. D., Outrata, J., and Vychodil, V.

(2007). Inducing decision trees via concept lattices.

In CLA, volume 331 of CEUR Workshop Proceedings.

CEUR-WS.org.

Bennett, S. P., Lu, L., and Brutlag, D. L. (2003). 3matrix

and 3motif: a protein structure visualization system

for conserved sequence motifs. Nucleic Acids Re-

search, 31(13):3328–3332.

Boser, B. E., Guyon, I., and Vapnik, V. (1992). A training

algorithm for optimal margin classiﬁers. In COLT,

pages 144–152.

Cristianini, N. and Shawe-Taylor, J. (2010). An Introduction

to Support Vector Machines and Other Kernel-based

Learning Methods. Cambridge University Press.

Eidhammer, I., Jonassen, I., and Taylor, W. R. (1999).

Structure comparison and structure patterns. JOUR-

NAL OF COMPUTATIONAL BIOLOGY, 7:685–716.

Elloumi, S., Youssef, C. B., and Yahia, S. B. (2004). The

fuzzy classiﬁer by concept localization in a lattice of

concepts. In Proceedings of the CLA 2004 Interna-

tional Workshop on Concept Lattices and their Appli-

cations (CLA).

Henikoﬀ, S. and Henikoﬀ, J. G. (1992). Amino acid sub-

stitution matrices from protein blocks. Proceedings

of the National Academy of Sciences, 89(22):10915–

10919.

Huang, J. Y. and Brutlag, D. L. (2001). The emotif database.

Nucleic Acids Research, 29(1):202–204.

Li, W., Han, J., and Pei, J. (2001). Cmar: Accurate and eﬃ-

cient classiﬁcation based on multiple class-association

rules. In Proceedings of the 2001 IEEE International

Conference on Data Mining (ICDM), pages 369–376.

Liu, B., Hsu, W., and Ma, Y. (1998). Integrating classi-

ﬁcation and association rule mining. In Knowledge

Discovery and Data Mining, pages 80–86.

Nakai, K., Kidera, A., and Kanehisa, M. (1988). Cluster

analysis of amino acid indices for prediction of protein

structure and function. Protein Eng, 2(2):93–100.

Quinlan, J. R. (1993). C4.5: programs for machine learn-

ing. Morgan Kaufmann Publishers Inc., San Fran-

cisco, CA, USA.

Ramu, C., Sugawara, H., Koike, T., Lopez, R., Gibson, T. J.,

Higgins, D. G., and Thompson, J. D. (2003). Multi-

ple sequence alignment with the clustal series of pro-

grams. Nucleic Acids Research, 31(13):3497–3500.

S., K. (2003). Cluster based eﬃcient generation of fuzzy

concepts. In Neural Network World, pages 521–530.

Sander, C. and Schneider, R. (1991). Database of

homology-derived protein structures and the structural

meaning of sequence alignment. Proteins: Structure,

Function, and Genetics, 9(1):56–68.

Schomburg, I., Chang, A., Ebeling, C., Gremse, M., Heldt,

C., Huhn, G., and Schomburg, D. (2004). BRENDA,

the enzyme database: updates and major new de-

velopments. Nucleic acids research, 32(Database

issue):D431–433.

Smith, O., T., A. M., and S., C. (1990). Finding se-

quence motifs in groups of functionally related pro-

teins. Proceedings of the National Academy of Sci-

ences, 87(2):826–830.

Waiyamai, K., Liewlom, P., Kangkachit, T., and Rakthan-

manon, T. (2008). Concept lattice-based mutation

control for reactive motifs discovery. In PAKDD,

pages 767–776.

Yahia, S. B. and Jaoua, A. (2001). Discovering knowledge

from fuzzy concept lattice, pages 167–190. Physica-

Verlag GmbH, Heidelberg, Germany, Germany.

BIOINFORMATICS 2012 - International Conference on Bioinformatics Models, Methods and Algorithms

330
