Towards the Internet of Things: An Introduction

to RFID Technology

Miguel L. Pardal and Jos

e Alves Marques

Department of Computer Science and Engineering, Instituto Superior T

ecnico

Technical University of Lisbon, Av. Rovisco Pais 1, 1049-001 Lisboa, Portugal

Abstract. Radio frequency identiﬁcation (RFID) is an automatic identiﬁcation

technology making its way to supply chains in Retail, Pharmaceutical, and other

industries.

RFID extends the reach of supply chain information systems in such a way that it

will soon be possible and economically feasible to tag valuable physical objects

and then to track and trace them, enabling many novel and useful applications.

This paper provides an introduction to RFID for practitioners with a computer

science background.

1 Introduction

Radio frequency identiﬁcation (RFID) [1] is a technology that can be used to tag phy-

sical goods, allowing them to be detected and identiﬁed automatically. The captured

data can be used by information systems to keep their internal data representations

more accurate and up-to-date, thereby improving their business function.

RFID is already being used in industries such as [2]: Warehousing; Maintenance;

Pharmaceuticals; Medical Devices; Agriculture; Food; Retailing; Defense.

The basic functionality of an RFID system is asset management. The fundamental

use cases are: identiﬁcation, alerting, monitoring, authentication. The improved asset

visibility can help prevent losses due to spoiling of perishables, theft, and counterfeiting.

If all the beneﬁts of RFID are to materialize, the technology must ﬁrst be properly

understood. In the following sections, this paper describes the working principles of

RFID with references for further study.

2 RFID Technology

2.1 Readers and Transponders

RFID communication occurs between readers and transponders (tags). First the reader

sends commands, then the tag responds. Figure 1 shows an example of a RFID reader

with 2 antennas. Figure 2 shows a tag.

L. Pardal M. and Alves Marques J.

Towards the Internet of Things: An Introduction to RFID Technology.

DOI: 10.5220/0003026100300039

In Proceedings of the 4th International Workshop on RFID Technology - Concepts, Applications, Challenges (ICEIS 2010), page

ISBN: 978-989-8425-11-9

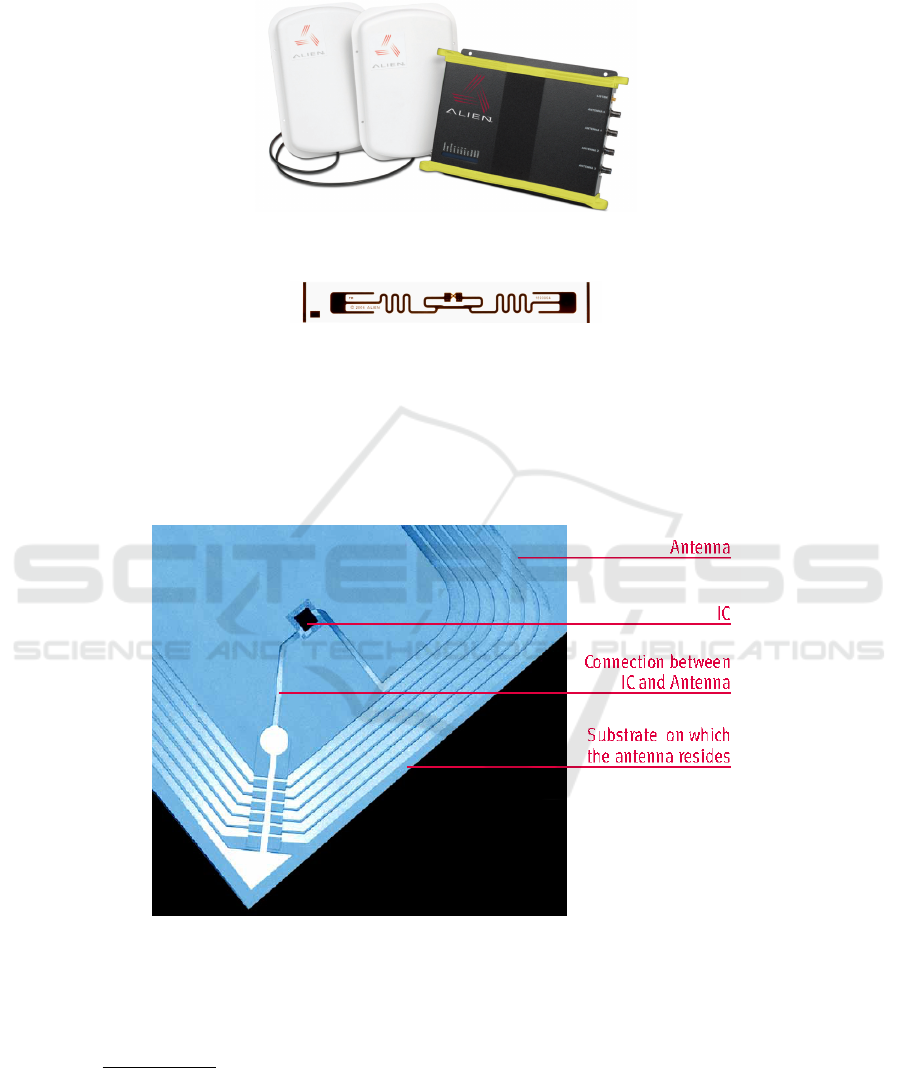

Fig. 1. RFID Antennas and Reader (image courtesy of Alien Technologies).

Fig. 2. UHF RFID Tag (image courtesy of Alien Technologies).

2.2 Tag Components

A tag is composed by: Integrated circuit (IC); Antenna; Connection between the IC

and the antenna; Substrate on which the antenna resides. Figure 3 shows the different

components for a tag manufactured by Rafsec

Fig. 3. Tag components (image courtesy of Rafsec OY) [3].

A tag can be protected to endure rough environments that other identiﬁcation tech-

nologies, like bar codes [4], can not.

http://www.upmraﬂatac.com/

2.3 Tag Categories

There are 3 categories of tags:

– Passive or battery-less - use only power provided by the RFID reader’s signal;

– Semi-passive or battery-assisted - use a battery to boost response signal;

– Active or battery-powered - have more power available that allows for additional

range, processing capabilities, and autonomy.

Tags with a battery can also use it to operate even when no reader is providing

power, for example, to collect temperature or other sensor readings.

2.4 Tag Manufacturing Process

A tag is manufactured in the following steps:

1. Manufacture of the IC;

2. Manufacture of the antenna (the conductive element is shaped to a speciﬁc conﬁgura-

tion);

3. Assembly of the IC to the antenna:

4. Conversion to package: the antenna with the IC is attached, ﬁrst to substrate, and

then to a package.

The conversion process transforms raw inlay tags into usable form factors such

as [5]: printable, metal mount, durable, and battery-assisted.

2.5 Tag Cost

Cost is decisive for the adoption of RFID. The tag is one of the fundamental cost com-

ponents in a RFID system.

There are many different characteristics that impact tag cost [5]: raw inlay, con-

verted labels, specialty labels, specialty adhesives, encapsulation metal, mount design,

user memory, battery, and data pre-encoding. These characteristics can drive tag costs

ranging from less than USD 0.1 to USD 10. Tag cost is expected to continue falling in

the near future [5].

2.6 Operating Principles

The crucial difference of RFID when compared to other radio technologies, like WLAN

and Bluetooth

, is that the transponder relies on the reader for its power. RFID can

work on two distinct principles: “inductive coupling in the electromagnetic near-ﬁeld

with load modulation at LF/HF” or “wave coupling in the electromagnetic far-ﬁeld with

backscatter at UHF/MW”.

Wireless Local Area Network. IEEE standard 802.11.

IEEE standard 802.15.1.

Near-Field and Far-Field. The near-ﬁeld is an energy storage ﬁeld, where energy is

preserved, moving from capacitor to the circuit. The far-ﬁeld is an energy propagation

ﬁeld, where the electromagnetic waves would propagate forever, were it not for the

absorption losses.

Inductive Coupling and Wave Coupling. Inductive coupling works on a electrical

transformer principle. The transponder talks back to the reader using load modulation

i.e. by interfering with the whole system energy. Inductive coupling is good for short

read ranges, and has a greater ability to penetrate objects and to operate in metallic

environments. The most common frequencies are in the ranges LF (Low Frequency -

30 to 300 kHz) to HF (High Frequency - 3 to 30 MHz).

Inductive coupling is only practical in the near-ﬁeld. For the far-ﬁeld, the magnetic

ﬁeld is replaced by the electromagnetic ﬁeld.

Wave coupling works on a radar principle. The transponder talks back to the reader

using interference. Wave coupling allows much greater reading ranges (up to 100 me-

ters), even though the readings are more erratic because of destructive wave interfer-

ence. The most common frequencies are in the ranges UHF (Ultra-High Frequency -

300 to 3 000 MHz) and MW (Microwaves - 2.5 to 5.8 GHz).

2.7 Collision Avoidance

When a reader transmits, it broadcasts energy, and it activates all transponders in range.

The response data is sent by all at the same time, causing signal collisions.

Transponders do not hear the signals from other transponders, they can only listen

to the reader’s signal.

The reader must be able to prevent collisions. More information on anti-collision

protocols (deterministic and stochastic) can be found in section 7.2 of Finkenzeller [1].

2.8 Spectrum Regulations

RFID uses Industrial, Scientiﬁc, and Medical (ISM) radio bands [1]. Radio communi-

cation services operating within these bands must accept harmful interference, which

may be caused by other applications. The available ISM frequencies are different in

Europe, Americas, and Asia. The choice of RFID readers and tags has to take these

differences into account.

There is a trade-off in tag manufacturing due to these regional differences [5]: tags

designed for use in a particular geography will typically outperform a global tag, be-

cause tags either have a high performance at a narrow frequency band or lower perfor-

mance in a wider frequency range.

3 RFID Software

RFID systems can cross geographic regions and trust boundaries. In small, closed sys-

tems everything can be controlled by the same organization and rules can be dictated

centrally. In large, open systems there are multiple authorities, but the system still needs

rules to function properly. For this reason, standards play a central role in RFID soft-

ware.

3.1 Standards

GS1 Identiﬁers. GS1

is the standards organization that oversees bar code use in the

world. It deﬁnes a set of identiﬁers that are widely used and very useful for business

applications. Two of the most important GS1 identiﬁers are the GTIN and the GLN.

A GTIN (Global Trade Item Number) is used to identify any item upon which there

is a need to retrieve predeﬁned information and that may be priced or ordered or in-

voiced at any point in a supply chain.

A GLN (Global Location Number) is used for location: physical, functional or legal

entities requiring a permanent identiﬁcation, such as a company, department, or ware-

house.

These identiﬁers can be extended with serial numbers to create unique identiﬁers

for individual products and locations. The serialized identiﬁers are called SGTIN and

SGLN, respectively.

EPC Standards. EPCglobal Inc.

is a subsidiary of GS1. It deﬁnes speciﬁcations and

provides services based on the Electronic Product Code (EPC), a globally unique serial

identiﬁer for RFID tags. The speciﬁcations encompass hardware, software, and data.

The EPCglobal Architecture Framework [6] is a collection of interrelated standards,

represented in ﬁgure 4, for the exchange of data and physical objects between compa-

nies.

The Application Level Events (ALE) [7] speciﬁes a software interface through

which client applications may access ﬁltered, consolidated, real-time EPC data from

multiple reader sources. The data is processed using low-complexity rules (e.g. wild-

cards). The ALE interface also allows applications to read and write RFID tags, inter-

acting with one or more RFID reader devices.

The EPC Information Services (EPCIS) [8] speciﬁcation is concerned with record-

ing business events. EPCIS is responsible for capturing data coming from ALE, adding

business context to it, and creating events that are made available for querying or sub-

scription.

The Object Naming Service (ONS) [9] extends DNS [10] to resolve EPC codes. It

receives a product code and returns the network location of data and services about that

product, provided by the company that issued the EPC code.

3.2 Software

Floerkemeier [11] presents a thorough list of RFID software requirements and con-

straints, based on the results of ﬁeld-tests conducted for the implementation of Fosstrak

http://www.gs1.org/

http://www.epcglobalinc.org/

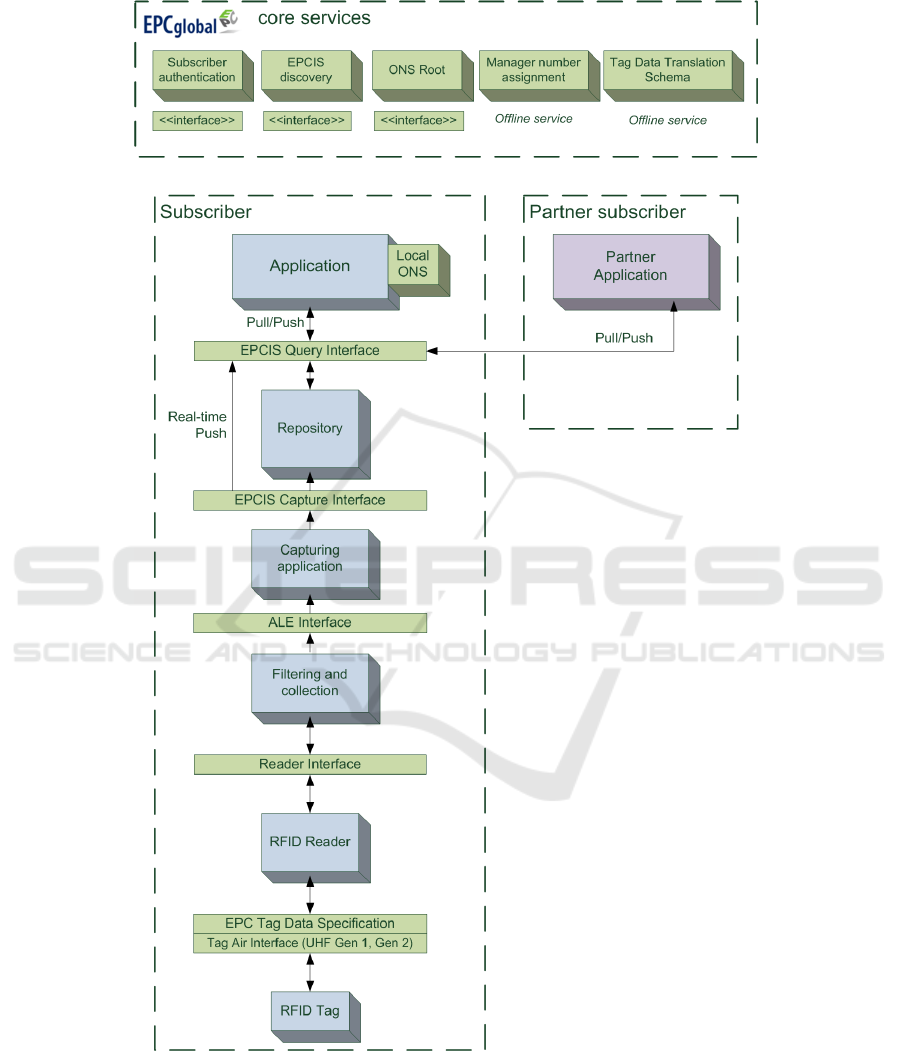

Fig. 4. Overview of the EPC Architecture Framework.

(Free and Open Source Software for track and trace)

, the ﬁrst open-source implementa-

tion of the EPC framework software. The most important requirements and constraints

are summarized next.

Requirements:

– Data dissemination - information captured by a reader is of interest to multiple

applications inside and outside the company. There is a need to support asynchro-

nous and synchronous messaging because different applications require different

latencies;

– Data aggregation - data may be: time-aggregated - e.g. items detected in the last

minute, appearing/disappearing items; space-aggregated - e.g. items detected by

multiple readers at same location; count-aggregated - e.g. product type totals;

– Data ﬁltering - data may be ﬁltered into subsets based on tag identity, tag memory,

reader antenna, reader identiﬁer, etc;

Constraints:

– Reliability - false negative reads can be caused by interference or absorption by

objects. False positives reads can happen when tags are detected outside the typical

range of a reader;

– Heterogeneous readers - reading devices with diverse computing and networking

capabilities;

– Reader collisions - requires coordination to avoid collisions without missing tags;

– Limited communication - the bandwidth available per channel limits the data rate

between readers and tags.

4 Security in RFID

4.1 Threats

Garﬁnkel [12] presents a taxonomy of RFID threats:

– Threats to company data security: espionage of supply chain ﬂows, denial-of-service

via radio jamming, access to competitor’s marketing data, widening of trust perime-

ter;

– Threats to personal privacy: association of a person with a tag (single tag or a

set/constellation of tags), exposure of preferences (by carried objects), location

tracking, action detection (by object transactions).

Attack Model. Typical computer and network security attack models [13] can be sig-

niﬁcantly relaxed to accurately reﬂect real-world threats and real-world tag capabilities.

For example, RFID attackers do not have access to a tag at all times, but only for lim-

ited time (in the order of minutes and seconds). This makes some brute-force attacks

impractical and allows for simpler security mechanisms to be effective.

http://www.fosstrak.org/

4.2 Authentication and Privacy

Juels [13] identiﬁed two major RFID security concerns: authentication and privacy.

RFID authentication issues are caused by well-behaving readers harvesting infor-

mation from misbehaving tags. The security goal is to make sure that the tag is authen-

tic. This goal can be achieved with: password, or yoking (recording tag evidence tracks

in a trusted third party). However, tag cloning is hard to prevent because all tags are

sensible to reverse-engineering procedures, like timing attacks, and power analysis.

RFID privacy concerns are caused by misbehaving readers harvesting information

from well-behaving tags. The security goal is to prevent tag data from being read by

someone not authorized to do so. This goal can be achieved through: physical pro-

tection (shielded containers or jamming devices), tag killing (to prevent further use),

tag sleeping (to suspend use temporarily), or tag renaming (one tag can have a set of

aliases).

Advanced Tags. Advanced tags can perform limited symmetric-key cryptographic

operations, but have a signiﬁcantly higher cost. For these tags, challenge-response

mechanisms are feasible and can be used both for privacy and for authentication pur-

poses.

The big challenge of this approach is the key management, and the computational

cost of key search.

There is on-going research on probabilist algorithms to introduce intentional noise

in tag to reader communications, to force attackers to spend considerable time in close

proximity to target. This is an example of how to leverage the weakened attack model

mentioned earlier.

4.3 Infrastructure Security

Fabian [14] makes the point that even if RFID tag security mechanisms are in place,

there are many attacks possible on the EPC information infrastructure. Attackers can

intercept unprotected ONS, EPCIS, and Discovery service queries. The query contents

expose data about product and raw material ﬂows, and other sensitive business infor-

mation.

The main privacy enhancing strategy is creating anonymous mixes i.e. obfuscat-

ing the source of queries by bundling together many queries from diverse clients. This

makes extracting inside information much more difﬁcult, but not impossible.

5 Conclusions

RFID technology is at a mature stage of development, with increasing adoption in many

industries. However, RFID is not a single technology but a suite of technologies. The

choice of the “right” tags and readers must be made considering the end-application’s

requirements and working environment.

There is a trade-off between tag cost, range and functionality. Current technology

allows the choice of 2 of these 3 features [3] [15].

Many improvements have been achieved in the manufacturing of tags and soon cost

will no longer be a signiﬁcant obstacle for most RFID deployments. Passive tags are

the least expensive to manufacture and are the best suited for supply chains and other

large volume applications.

The most relevant back-end software and standards are described in the EPC frame-

work. However, there is still a need for RFID system design practices that capture busi-

ness requirements and then translate them into artifacts implemented across all levels

of the system: tag, reader, middleware, and applications.

The physical locations have a signiﬁcant impact on the system design choices. One

of the key points is the need for reader coordination because of limited channels and

bandwidth. This need is not obvious for practitioners with a computer science back-

ground, but it collapses the “all readers read all tags at all times” mindset.

Security is a critical requirement for most applications. Both user concerns and legal

regulations have to be taken into account. All existing solutions have trade-offs between

tag cost and key management costs, so a careful analysis is required for each end-

application to choose a suitable security scheme.

5.1 Looking Ahead: The Internet of things

RFID makes it possible to extend the fundamental abstraction of the World Wide Web

- “everything is a resource, and any resource can link to other resources” - to the

physical world: a tagged object can become the anchor or target of an hyperlink.

Eventually every interesting physical object in the world will be connected to the

network, opening up the possibility for an Internet of Things (IoT). Fleisch [16] identi-

ﬁes the key traits of the IoT, that will set it apart from the current Internet:

1. It will be machine-centric rather than user-centric;

2. It will connect low-end and low energy consumption devices;

3. It will have trillions (10

) rather then billions (10

) of network nodes;

4. The communication with the low-end devices will be restricted to narrow band-

width;

5. It will require a lightweight global standard protocol for identiﬁcation and address-

ing.

Much research is still needed to make the IoT a reality, but RFID technology will

surely be a part of it.

Acknowledgements

The authors acknowledge Prof. Sanjay Sarma, Dr. Christian Floerkemeier, and Rahul

Bhattacharyya for their invaluable input for this paper.

The authors also thank Prof. Lu

ıs E. T. Rodrigues.

Miguel L. Pardal is supported by a PhD fellowship from the Portuguese Foundation

for Science and Technology FCT (SFRH/BD/45289/2008).

References

1. K. Finkenzeller, RFID Handbook: Fundamentals and Applications in Contactless Smart

Cards and Identiﬁcation, 2nd ed. John Wiley & Sons, Ltd, 2003.

2. E. W. Schuster, S. J. Allen, and D. L. Brock, Global RFID: The value of the

EPCglobal network for supply chain management. Springer, 2007. [Online]. Available:

http://www.amazon.com/Global-RFID-EPCglobal-Network-Management/dp/3540356541

3. S. Sarma, “Towards the 5 cent tag,” MIT Auto-ID Center, Tech. Rep., 11 2001.

4. D. Hunt, A. Puglia, and M. Puglia, RFID: A Guide to Radio Frequency Identiﬁcation. Wiley,

2007.

5. “RFID tag pricing guide,” ODIN Technologies, Tech. Rep., 05 2009.

6. K. Traub, F. Armenio, H. Barthel, L. Burstein, P. Dietrich, J. Duker, J. Garrett,

B. Hogan, O. Ryaboy, S. Sarma, J. Schmidt, K. Suen, and J. Williams, The

EPCglobal Architecture Framework 1.2, GS1 Std., 09 2007. [Online]. Available:

http://www.epcglobalinc.org/standards/architecture/

7. EPCglobal, Application Level Events (ALE) Speciﬁcation 1.1, GS1 Std., 02 2008. [Online].

Available: http://www.epcglobalinc.org/standards/ale

8. ——, EPC Information Services (EPCIS) 1.0.1 Speciﬁcation, GS1 Std., 09 2007. [Online].

Available: http://www.epcglobalinc.org/standards/epcis

9. ——, Object Name Service (ONS) 1.0.1, GS1 Std., 05 2008. [Online]. Available:

http://www.epcglobalinc.org/standards/ons

10. P. Albitz and C. Liu, DNS and BIND, 5th ed. O’Reilly Media, Inc., May 2006. [Online].

Available: http://proquest.safaribooksonline.com/0596100574

11. C. Floerkemeier, C. Roduner, and M. Lampe, “RFID application development with the

Accada middleware platform,” IEEE Systems Journal, Special Issue on RFID Technology,

12 2007. [Online]. Available: http://www.fosstrak.org/publ/FosstrakIEEESystems.pdf

12. S. L. Garﬁnkel, A. Juels, and R. Pappu, “RFID privacy: An overview of problems and pro-

posed solutions,” IEEE Security and Privacy, vol. 3, pp. 34–43, 2005.

13. A. Juels, “RFID security and privacy: a research survey,” IEEE Journal on Selected Areas in

Communications, vol. 24, no. 2, pp. 381–394, 02 2006.

14. B. Fabian, O. Gunther, and S. Spiekermann, “Security analysis of the object

name service,” in 3rd International Workshop on Security, Privacy and Trust in

Pervasive and Ubiquitous Computing (SECPerU), 07 2005. [Online]. Available:

http://lasecwww.epﬂ.ch/ gavoine/download/papers/FabianGS-2005-sptpuc.pdf

15. G. Swamy and S. Sarma, “Manufacturing cost simulations for low cost RFID systems,” MIT

Auto-ID Center, Tech. Rep., 2003.

16. E. Fleisch, “What is the Internet of Things? an economic perspective,” ETH Zurich / Univer-

sity of St. Gallen Auto-ID Labs, Tech. Rep., 01 2010.
