EFFECTIVE ANALYSIS OF FLEXIBLE COLLABORATION

PROCESSES BY WAY OF ABSTRACTION AND MINING

TECHNIQUES

Alfredo Cuzzocrea

, Francesco Folino

and Luigi Pontieri

ICAR-CNR and University of Calabria, Calabria, Italy

ICAR-CNR, Rende, Italy

Keywords: Knowledge Representation and Management, Complex Information Systems, Process Mining.

Abstract: A knowledge-based framework for supporting and analyzing loosely-structured collaborative processes

(LSCPs) is presented in this paper. The framework takes advantages from a number of knowledge

representation, management and processing capabilities, including recent process mining techniques. In

order to support the enactment, analysis and optimization of LSCPs in an Internet-worked virtual scenario,

we illustrate a flexible integration architecture, coupled with a knowledge representation and discovery

environment, and enhanced by ontology-based knowledge processing capabilities. In particular, an

approach for restructuring logs of LSCPs is proposed, which allows to effectively analyze LSCPs at varying

abstraction levels with process mining techniques (originally devised to analyze well-specified and well-

structured workflow processes). The capabilities of the proposed framework were experimentally tested on

several application contexts. Interesting results that concern the experimental analysis of collaborative

manufacturing processes across a distributed CAD platform are shown.

1 INTRODUCTION

Emerging work models are taking the form of

networks of nimble, often self-organizing and cross-

organizational, teams performing loosely-structured

processes. A clear evidence of this trend is given by

recent virtual workspaces (O. Anya et al., 2007;

Experts Group, Next Generation Collaborative

Working Environments 2005-2010, 2004), which

put emphasis on the novel notion of collaborative e-

work environments. Complexity and dynamicity that

characterize such collaborative work scenarios pose

new research challenging that are not addressed by

traditional Workflow Management Systems (WfMS).

This because traditional WfMS assume a rigid

structure of the work model in order to control and

monitor Business Processes (BP), with the aim of

optimizing work distribution and resources

allocation and usage. From a pertinent computer

science perspective, this means that processes and

tasks are rigorously modeled and represented

according to fixed structured (yet hierarchical)

models.

Looking at technological details, several

Enterprise Application Integration (EAI) solutions

(Hohpe & Bobby, 2003) can be exploited to build a

flexible collaborative environment where existing

systems and software components are re-used in

order to provide a large spectrum of functionalities,

such as content management, communication (e.g.,

e-mails, chats, forums), user management (e.g., user

profiling, group management), inventorying of

available technical resources, project management,

and so forth.

Clearly, in order to achieve a full interoperability

between components even at a semantic level,

beyond to a pragmatic level, and to provide both

workers and decision makers with a unified and

high-level view over the underling organizational

structure, collaborative processes and IT

infrastructure, the need for a suitable representation

and sharing model of information and knowledge is

mandatory. In addition to the adaptation of

conventional Knowledge Management (KM)

solutions and strategies, some recent works (e.g., (O.

Anya et al., 2007; Biuk-Aghai et al., 1999)) have

pointed out the opportunity of extracting novel and

useful knowledge from work models and schemes,

157

Cuzzocrea A., Folino F. and Pontieri L. (2010).

EFFECTIVE ANALYSIS OF FLEXIBLE COLLABORATION PROCESSES BY WAY OF ABSTRACTION AND MINING TECHNIQUES.

In Proceedings of the 12th International Conference on Enterprise Information Systems - Artiﬁcial Intelligence and Decision Support Systems, pages

157-167

DOI: 10.5220/0003020501570167

 SciTePress

possibly by means of consolidated Knowledge

Discovery (KD) techniques. Among the latter class

of techniques, historical log data gathered during

the execution of collaborative processes are

exploited to discover new process models by means

of Process Mining (PM) techniques (van der Aalst,

2003). This approach can well help understanding

and analyzing collaborative work schemes actually

performed by the target collaborative processes, as

well as in determining and optimizing future work

via possibly supporting the (re-)design of explicit

and reusable process models.

Despite this, traditional process mining

approaches are tailored to analyze logs of business

processes executed by WfMS, which enforce strict

behavioral rules along the enactment phase. As a

consequence, these approaches are likely to yield

knotty (i.e., “spaghetti-like” (Gunther & van der

Aalst, 2007)) process models when applied to the

collaborative processes arising in collaborative work

scenarios outlined above. A major reason of this

critical drawback of process mining techniques is

represented by the incapability of traditional

approaches to view event logs at some suitable

application-independent and abstracted level. To the

best of our knowledge, the latter research issue was

only partially taken into account in very recent

process mining literature (e.g., (Greco et al., 2008;

Gunther & van der Aalst, 2007; Pedrinaci &

Domingue, 2007)).

Starting from these considerations, in this paper

we address the problem of supporting and analyzing

the enactment of loosely-structured collaborative

processes (LSCPs) by means of innovative

knowledge representation, management and

discovery tools. Particularly, in our research, LSCPs

are viewed as collaborative processes enacted in an

Internet-worked virtual enterprise that are not

necessarily provided with a fully-specified model

ruling execution and assignment of process tasks.

All considering, this turns out to the definition of a

knowledge-based framework for processing LSCPs

in collaborative e-work environments, which should

be considered as the prominent contribution of our

research. It should be noted that, apart from

addressing an important context of processes mining

research that lacks from actual literature, our

proposed framework naturally captures fundamental

models and instances of next-generation business

organizations, which more and more act in a virtual,

collaborative and loosely-structured manner. More

precisely, on the basis of some core ideas traced in

(Basta et al., 2008), the following major

contributions are provided in this paper.

• We devise a knowledge-based framework for

supporting LSCPs by means of a flexible and

lightweight message-oriented architecture,

where a variety of systems and services can be

easily integrated to support different kinds of

collaborative tasks; here, a number of ontology-

based capabilities are provided to represent and

query organizational information and knowledge,

while a separate Data Warehouse (DW) stores an

integrated view of both relevant information

along with the history of performed tasks.

• In order to effectively apply process mining

techniques to LSPCs, we outline a semantic-

aware method for dynamically restructuring log

data in a process-oriented way, which takes full

advantages from the available background

knowledge shaped by the main knowledge-based

framework for LSCPs introduced in this

research.

The whole approach relies on the use of an ontology-

based framework for representing event logs and

associated concepts (e.g., organization structure,

application domains, IT infrastructures, and high-

level process models), which offers a semantic

substrate for integrating different kinds of data and

applications coming from heterogeneous

environments.

The remainder of the paper is organized as

follows. In Sect. 2, we first introduce some

preliminary concepts on state-of-the-art process

mining techniques, while evidencing critical

limitations that make these techniques ineffective for

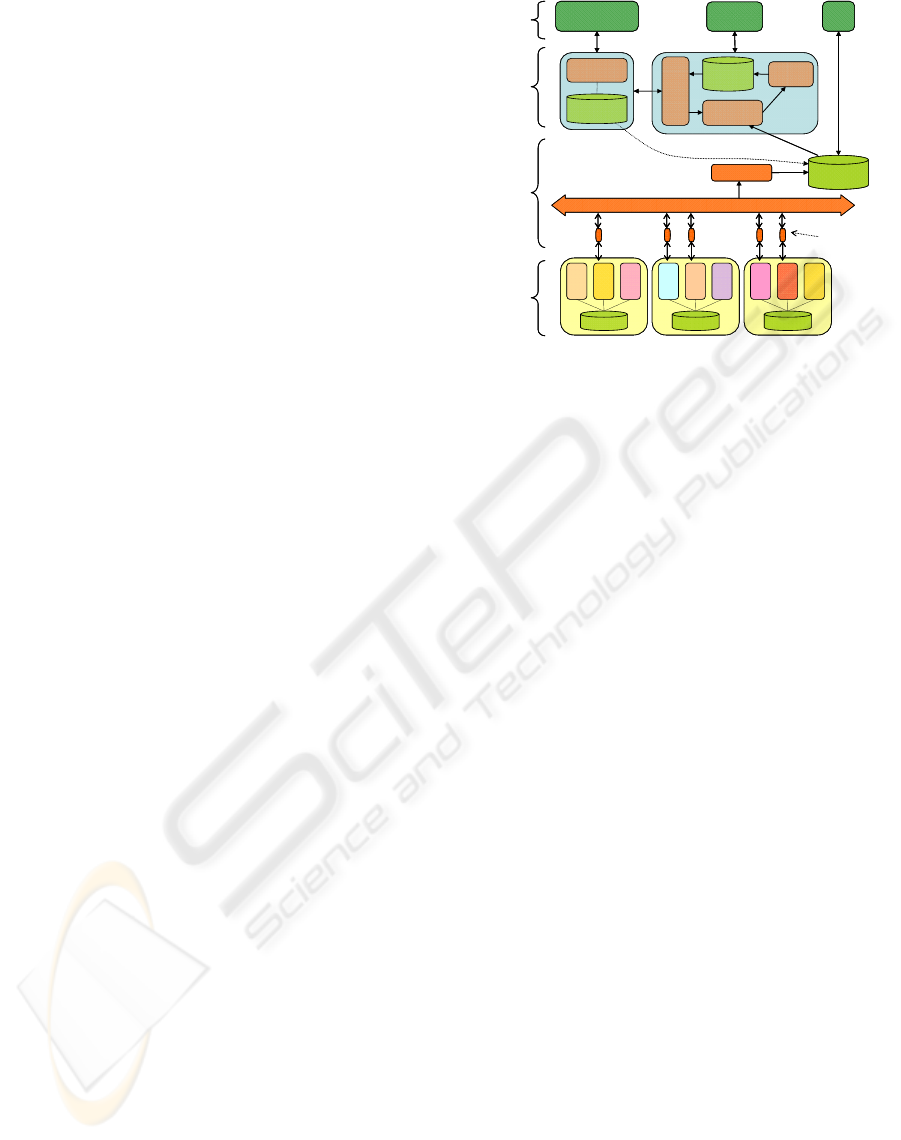

analyzing LSCPs. Sect. 3 focuses the attention on

the reference architecture implementing the

proposed knowledge-based framework for

supporting and analyzing LSCPs, by also putting

emphasis on integration issues that naturally arise in

collaborative e-work environments. After

introducing the ontology-based framework for

modeling event logs and associated organizational

concepts/entities, Sect. 4 illustrates the semantic-

aware method for process-oriented restructuring of

logs, which allows us to straightforwardly apply

process mining techniques to LSPCs. In Sect. 5, we

discuss some experimentation conducted against a

real-life application scenario involving the

enactment of LSCPs within a distributed and

decentralized collaborative CAD platform. Finally,

in Sect. 6 we draw out concluding remarks deriving

from our research, along with future research

directions in the field of process mining techniques

over non-traditionally-modeled business processes.

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

158

2 A CRITICAL OVERVIEW OF

PROCESS MINING

APPROACHES

Process Mining Techniques. Process mining refers

to the problem of automatically extracting novel

knowledge about the behavior of a given process,

based on event data gathered in the course of its past

enactments, and stored in suitable logs. Notably,

such an ex-post analysis of process executions

makes these techniques quite different from other

business process analysis approaches, which mainly

focus the attention on performance monitoring and

reporting issues (e.g., (zur Muehlen, 2001; Jeng &

Schiefer, 2003; McGregor & Schiefer, 2003)).

Several process mining techniques have been

defined in literature during past research campaigns.

Each technique is indeed tailored to extract different

types of (mining) models via capturing different

aspects of the underlying process, such as the flow

of work/data (e.g., (Folino et al., 2008; Greco et al.,

2006; Greco et al., 2008)), or social relationships

(e.g., (van der Aalst et al., 2005)).

Traditional process mining techniques mainly

address the issue of discovering a graph-based

workflow model (the so-called process-mining

control-flow perspective), which describes both

process activities and routing constraints that

coordinate their execution. In order to describe

complex processes in a more precise and modular

way, the approach proposed in (Greco et al., 2006;

Greco et al., 2008) exploits a hierarchical clustering

procedure for recognizing different behavioral

classes of process instances, and modeling them

through separated workflow schemas. In particular,

these schemas are restructured in (Greco et al.,

2008) into a taxonomical form, which represents the

process behavior at different abstraction levels. The

resulting model is a tree of workflow schemas, where

leaves stand for concrete usage scenarios, and any

other internal node provides a unified and

generalized representation for the sub-tree rooted in

that node.

More recent process mining proposals try to take

into account other (useful) information available in

real-life logs rather than considering the mere

execution of process tasks (e.g., activity executors,

parameter values, and performance data) only. As a

meaningful case, the approach introduced in (van

der Aalst et al., 2005) supports the analysis of

process logs according to an “organizational”

perspective, in that it extracts different kinds of

social networks modeling users’ interaction. It is

worth noticing that approach in (Greco et al., 2006;

Greco et al., 2008) has been extended in (Folino et

al., 2008) by means of the amenity of supporting the

discovery of a decision-tree model relating the

discovered behavioral classes with other data

registered in the log. On the whole, the new research

contribution in (Folino et al., 2008) allows us to

achieve a more powerful and richer process behavior

discovery model with respect to the one introduced

in (Greco et al., 2006; Greco et al., 2008). Notably,

the predictive capability of such a model ((Folino et

al., 2008)) can effectively support different kinds of

decisional tasks, which may involve both the design

and the enactment of collaborative business

processes.

Typical Representation of Log Data and Its

Inefficacy for LSCPs Settings. Independently of

their specific goals and approaches, the great

majority of classical process mining techniques

founds on quite a rigid and workflow-oriented

conceptualization of process logs, like that

underlying the log format

MXML, an XML dialect

used in the process mining framework ProM

(Dongen et al., 2005). Due to the success of ProM,

MXML is indeed widely diffused in the process

mining community. A typical MXML document

contains an arbitrary number of Process elements,

each of them collecting a series of

ProcessInstance elements. A ProcessInstance

element consists of a number of log events

(AuditTrailEntry elements), which are mandatorily

associated with a process task

(WorkflowModelElement element) and a running

state (EventType element), which describes the

execution state of the task (e.g., scheduling,

completion, suspension). Optional elements

contained in an AuditTrailEntry element represent

its occurrence time (Timestamp element), and the

resource (e.g., person or software component) that

has triggered it (Originator element). Finally, an

arbitrary number of Data elements allow to

associate both events and process instances with

further information, in the form of attribute-value

pairs.

Two critical assumptions made in the MXML

model risk to undermine the effectiveness of process

mining techniques in analyzing LSCPs considered in

our research. First, according to the model MXML,

each event log must explicitly refer to a well-

specified and well-structured workflow process, and

to some high-level tasks within this workflow.

Contrary to this, LSCPs can spontaneously arise

without a well-specified neither well-structured

model, via composing elementary, general-purpose

EFFECTIVE ANALYSIS OF FLEXIBLE COLLABORATION PROCESSES BY WAY OF ABSTRACTION AND

MINING TECHNIQUES

159

functions. The alternative solution of regarding these

functions as high-level process activities may yield

very intricate (i.e., “spaghetti-like” (Gunther & van

der Aalst, 2007)) process models that are finally

useless to analysis purposes.

Second, the model MXML does not encode any

semantic information on the different types of

entities that event logs may link to (e.g., human

resources, software tools, data parameters), but

simply models them by means of (elementary)

labels. Beside preventing a semantic, high-level

analysis of collaborative processes, and, more

prominently, LSCPs, the drawback above may lead

to a poor integration effect in a decentralized and

multi-organization e-work scenario, thus inducting

in several inconsistencies and redundancies of

information representation.

Our knowledge-based framework and our

approach to restructuring logs in a process-oriented

way, described in Sect. 4, are just meant to

overcome the limitations sketched above, and to

allow for defining a mapping between basic log

events and MXML elements in a flexible way, by

possibly exploiting available high-level background

knowledge to analyze the execution of LSCPs at

some proper abstraction levels.

3 A REFERENCE

ARCHITECTURE FOR

MANAGING, TRACING AND

ANALYZING LSCPS

Fig. 1 depicts the logical architecture of a

comprehensive toolkit able of providing users of

loosely-structured work environments with high

level knowledge management functionalities, which

can well enhance the enactment and the analysis of

collaboration processes. The architecture is devised

to fit Internet-worked scenarios where a variety of

operational systems (making available different

heterogeneous services) can be used by workers,

possibly belonging to different organizations and

located in different places.

In particular, the proposed architecture is

hierarchically organized in four main layers,: (i)

Operational Systems (OS), (ii) Data & Application

Integration (D&AI), (iii) Knowledge Management &

Discovery (KM&D); (iv) Decision & Work Support

(D&WS). Principles, structures and functionalities

of these layers are detailed next.

Operational systems are located in the OS layer of

the architecture. Each operational system may

repository

funct io nal

component

funct io nal

component

funct io nal

component

repository

functional

component

functional

component

functional

component

repository

functional

component

funct io nal

component

funct io nal

component

Enterprise Service Bus

Enterprise

Data Loader

Enterprise

Data Warehouse

Knowledge

Manager

Ontological

Process

Mining

Discovered

Process

Models

Knowledge

Browsing

& Querying

Process

Discovery

Operational

Systems

Data &

Application

Integration

Knowledge

Management

& Discovery

Decision

& Work

Support

Semantic-driven

restructuring

Ontology

Gateway

EO-centered

EAI snippet

OLAP

Semantical annotation

repository

funct io nal

component

funct io nal

component

funct io nal

component

repository

funct io nal

component

funct io nal

component

funct io nal

component

repository

functional

component

functional

component

functional

component

repository

functional

component

functional

component

functional

component

repository

functional

component

funct io nal

component

funct io nal

component

repository

functional

component

funct io nal

component

funct io nal

component

Enterprise Service Bus

Enterprise

Data Loader

Enterprise

Data Warehouse

Knowledge

Manager

Ontological

Knowledge

Manager

Ontological

Process

Mining

Discovered

Process

Models

Knowledge

Browsing

& Querying

Process

Discovery

Operational

Systems

Data &

Application

Integration

Knowledge

Management

& Discovery

Decision

& Work

Support

Semantic-driven

restructuring

Ontology

Gateway

EO-centered

EAI snippet

OLAP

Semantical annotation

Figure 1: Reference architecture for supporting and

analyzing LSCPs.

operate independently of the others, and keeps its

own data repository, by also processing data stored

in such a repository via a large variety of services,

modeled according to a functional-oriented

approach that is typical of Data Warehousing

paradigms. In order to have these systems work

congruously, and to prevent information

inconsistency and redundancy, a flexible integration

strategy is adopted. The latter is the main task of the

D&AI layer of the architecture, which we describe

in the following.

At the D&AI layer, operational systems, services

and their associated data are conceptually integrated

on the basis of a shared conceptualization of typical

organizational and information resources, named as

Enterprise Knowledge Model (EKM), which is

presented and discussed in detail in Sect. 4. Notably,

the execution of every operation affecting some

entities in the EKM is modeled and regarded in

terms of a so-called Enterprise Event (EE).

Basically, the integration approach we propose is

inspired to models and paradigms developed in the

context of well-known event-based and service-

based infrastructures (e.g., (Papazoglou &

Georgakapoulos, 2003; Papazoglou & van den

Heuvel, 2007)), like Data and Knowledge Grids

(Cannataro & Talia, 2003), enriched by a prominent

knowledge-oriented flavor. EEs play a key role in

our proposed knowledge-based framework for

LSCPs, as it will be made clearer later on.

In more details, the D&AI layer is based on a set

of lightweight integration components, named EAI

snippets, which communicate with the remaining

components of the D&AI layer (including

themselves) and operational systems of the OS layer

throughout the so-called Enterprise Service Bus

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

160

(ESB). ESB essentially acts as a backbone providing

high-level and reliable message-exchange services,

and transparently handles mediation of endpoint

heterogeneities and physical details during

component communication. Every time an EE is

produced by some functional component located in

the OS layer, the associated EAI snippet reactively

sends a message throughout the ESB. The message

encodes ad-hoc information, including the kind of

event occurred, the person or system that has

originated the event itself, the work context (e.g., the

actual project) of the event. Throughout the ESB, the

message is forwarded to any other EAI snippet that

subscribed that kind of EE. In turn, the latter EAI

snippet will consequently update its data repository

at the OS layer.

In addition to providing support for the

coordination of operational systems and data

integration tasks, in our proposed knowledge-based

framework EEs are also treated and traced as basic

units of work for the ex-post analysis of LSCPs,

being this analysis based on process mining and

OnLine Analytical Processing (OLAP) techniques.

The latter mining functionalities are supported by

the Process Discovery (PD) module, located at the

D&WS layer, and the OLAP module, still located at

the D&WS layer of the architecture, respectively.

Furthermore, D&WS layer also supports advanced

knowledge browsing, visualization, analysis, and

querying services, which are definitely able of

enabling effective decision making and collaborative

work tasks based on data and knowledge stored and

elaborated in the D&AI and KM&D layers of the

architecture. The latter functionalities are fulfilled by

the Knowledge Browsing and Querying (KB&Q)

module, located at the D&WS layer.

In our proposed knowledge-based framework for

LSCPs, data and knowledge are thus distributed

across the D&AI and KM&D layers of the

architecture, in order to augment the synergy among

all the components of the framework. More

specifically, for what regards data, the Enterprise

Data Warehouse (EDW), located at the D&AI layer,

contains snapshots of relevant enterprise data and

historical EE logs, which are represented in an

integrated and consolidated way according to the

EKM. In order to populate the EDW, the Enterprise

Data Loader (EDL) module, still located at the

D&AI layer, continuously elaborates all messages

exchanged throughout the ESB with the goal of

extracting data and storing them in the underlying

warehouse. To this end, canonical Extraction-

Transformation-Loading (ETL) primitives can be

advocated.

For what instead regards knowledge, the

Knowledge Manager (KM) module, located at the

KM&D layer, is in charge of maintaining a series of

interrelated ontologies (which are modeled

according to the ontology-based framework we

describe in Sect. 4) within an appropriate

Ontological Knowledge Base (OKB), still located at

the KM&D layer. Beside constituting a semantic

background that turns to be very useful for data

integration purposes, ontologies stored in the OKB

also enable a meaningful semantic annotation of

data stored in the EDW, while also nicely supporting

a semantic-aware access to them. More precisely,

the system allows to introduce meaningfully

interrelated ontologies for the EEs occurring in the

target (virtual) organization, which also capture

organizational concepts/entities associated with the

EEs themselves. Several studies have already

evidenced that collaborative processes clearly

benefit from the introduction of knowledge

management approaches and strategies. This

because the latter can effectively and successfully

support the management of knowledge that is

created, stored, shared and delivered along the

execution of collaborative processes. Therefore,

making use of a suitable ontology-based framework

within the knowledge-based framework we propose

(particularly, at the KM&D layer) is completely

reasonable, while it embeds several points of

research innovation. From a technical point of view,

the proposed reference architecture relies on the

ontology-based modeling framework presented in

(Gualtieri & Ruffolo, 2005), which both provides a

semantic infrastructure for the management of

organizational knowledge and supports

interoperability among existing operational systems.

The availability of semantical information is

fully-exploited by the Semantic-driven Restructuring

(SdR) module, located at the KM&D layer, which

supports selection and manipulation of basic EEs in

order to dynamically restructure them prior to the

application of process mining algorithms executed

by the Process Mining (PM) module of the KM&D

layer. As mentioned in Sect. 1, this strategy is meant

with the aim of straightforwardly applying process

mining techniques over EEs, while taking

advantages from the available background

knowledge. The latter restructuring approach is

illustrated in detail in Sect. 4. On the other hand,

novel pieces of knowledge, possibly captured in

models and patterns extracted by the PM module

and stored in the Discovered Process Models (DPM)

repository of the KM&D layer, can be further

integrated in the actual OKB by means of the

EFFECTIVE ANALYSIS OF FLEXIBLE COLLABORATION PROCESSES BY WAY OF ABSTRACTION AND

MINING TECHNIQUES

161

creation/modification of ontologies about

organizational structures and collaborative

processes. In our architecture, the latter functionality

is fulfilled by the Ontology Gateway (OG) module,

located at the KM&D layer.

As a final remark concerning ontology-based

knowledge representation and management aspects

incorporated by our proposed knowledge-based

framework for LSCPs, here we highlight that the

architecture above might clearly be enhanced by

means of additional capabilities focused to construct

and maintain ontologies in a distributed and

collaborative manner, like recent research results

(Kozaki et al., 2007; Pinto et al., 2004) suggest.

However, this issue is outside the scope of this

paper, and thus left as future work.

4 ONTOLOGY-BASED

REPRESENTATION AND

RESTRUCTURING OF EE

LOGS

Representation of EEs and of Associated Entities.

As mentioned in Sect. 1 and Sect. 3, our ontology-

enhanced EKM relies on the modeling framework in

(Gualtieri & Ruffolo, 2005). By the way, other

approaches could have been adopted as well, such

as, for instance, the ontological framework presented

in (Pedrinaci & Domingue, 2007), which leverages

on Semantic Web technologies to represent event

logs, process mining tasks, and various kinds of

associated information, and indeed represents a valid

yet reliable alternative to the proposal in (Gualtieri

& Ruffolo, 2005).

Briefly, the framework (Gualtieri & Ruffolo,

2005) hinges on two modeling levels: (i) the Core

Organizational Knowledge Entity (COKE) ontology,

where the EKM is expressed in terms of the so-

called core organizational knowledge entities; (ii) a

top-level ontology for representing more general

organizational knowledge of the target organization,

which consists of a structured collection of concepts

that can be used to annotate COKE elements. In our

context, the central COKE entity corresponds to

EEs, which are distinguished in three functional sub-

classes: (i) TaskRun, which pertains the execution of

project activities/tasks; (ii) HumanManagement,

which concerns to managerial functions; (iii)

ContentManagement, which is primarily focused on

the manipulation of information. Other COKE

entities an EE can be related to include: the software

component (Tool) originating the EE and/or the

person (Agent) that performed it, which can be

suitably in two different sub-ontologies: the Human

Resource (HR) ontology and the Technical Resource

(TR) ontology, respectively. Furthermore, an EE can

also be associated to a series of parameters modeled

as instances of the Knowledge Object (KO)

ontology, and, most importantly, to instances of the

Business Process (BP) ontology.

BP ontology allows us to characterize the work

context of the event (i.e., the context within which

the event has been performed). While Process and

Task are well-known concepts in traditional WfMS,

thus they do not deserve additional details, the entity

Project plays a key role in our proposed knowledge-

based framework for supporting and analyzing

LSCPs. In fact, in loosely-structured collaborative e-

work scenarios, this entity turns to be extremely

useful for monitoring and analysis purposes. This

because, in these scenarios a project can be intended

as a bunch of tasks that can be not a-priori

completely-specified and well-structured, each of

these tasks being possibly associated to specific

(project) goals and (project) constraints, as well as to

a series of human, computational and information

resources. Different types of association may link

projects and processes. At one end, a project could

be carried out according to some well-defined

workflow models (which could be used by other

(similar) projects as well). At the other end, a project

could be accomplished with no explicit process

models at all, but rather it could be only based on

completely-spontaneous or tacit cooperation

schemes (like it happens in collaborative e-work

scenarios). In our knowledge-based framework for

LSCPs, BP ontology allows to capture these

particularities of business processes in loosely-

structured collaborative e-work scenarios, thus

overcoming limitations of traditional business

process models.

Notably, all of the organizational entities

mentioned above can be semantically annotated with

concepts coming from some suitable domain

ontology, possibly organized according to

taxonomical or partonomical structures, which can

be well exploited for abstraction purposes.

Process-Oriented Restructuring of EE logs. In

order to effectively apply process mining techniques

to LSCPs, our proposed knowledge-based

framework incorporates a semantic-aware approach

that allows us to dynamically restructure basic EE

logs in a process-oriented way, while effectively

exploiting the available background knowledge. The

final goal of the proposed restructuring approach

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

162

consists in finally producing a workflow-oriented

process log from actual EE logs, such that this

process log can be easily represented via the model

MXML (see Sect. 2). To this end, the following

three logically-distinct steps are introduced by our

EE restructuring approach:

(a) Select a subset of suitable EEs.

(b) Arrange the selected EEs in meaningful

process instances.

workflow nodes.

In step (a), the analyst is allowed to choose a

suitable subset of EEs among those stored in the

EDW, by possibly specifying selection conditions on

properties of these events, such as the execution date

or the kind of event, as well as on properties of other

entities associated with these events, such as tools,

actors and projects.

The goal of step (b) consists in partitioning the

previously-selected EE set into a number of

sequences, each of which will be regarded as a

distinct process instance. It should be noted that, in a

conventional process mining context, each event log

already specifies which process instance it refers to.

Conversely, in our loosely-structured collaborative

e-work scenario such information is not available

whenever process activities are not performed

following a well-specified and well-structured

workflow model. Despite this intrinsic characteristic

of loosely-structured collaborative e-work scenarios,

in a suitable ex-post analysis session of conventional

business processes the analyst could be still

interested in re-organizing (well-specified) EEs into

workflows different from the actual one modeling

the execution of the target process.

For instance, the latter re-organization could be

achieved by grouping EEs into separate process

instances. In this respect, good grouping alternative

could be the following ones: (i) grouping by project

within which EEs have been originated; (ii)

grouping by knowledge object on which EEs have

been performed. In more detail, the first case

explores the application scenario in which multiple

projects are carried out by the (virtual) collaborative

organization, thus each project is indeed seen as a

distinct project instance originating EEs. This

approach, named as Project-Centric Enterprise

Event Restructuring (PCEER), can be exploited to

extract a global process model that describes work

patterns characterizing all the available project

instances, or a class of them. The second EE

grouping alternative, named as Knowledge-Object-

Centric Enterprise Event Restructuring (KOCEER),

can be instead exploited to analyze the typical life-

cycle of a specific class of knowledge objects, such

that deliverables, documents, and so forth. Clearly,

many other EE grouping options exist. For instance,

one can define each process instance in such a way

as to assemble all events originated by a single actor

on a certain suitable time basis (e.g., all the

operations performed by code developers during

each week), in order to eventually capture their

modus operandi.

Step (c) is devoted to determine the mapping

from low-level EEs to the logical tasks

(WorkflowModelElement elements in the MXML

format) constituting the process. It is easy to

understand how step (c) plays a critical role within

the knowledge-based framework for LSCPs we

propose. In fact, the phase associated to step (c)

finally determines which abstraction level will be

used for analyzing the execution of LSCPs. In

particular, in the most detailed case, all the

information content conveyed in each EE is mapped

to a single WorkflowModelElement node that

corresponds to the execution of a certain event,

performed by a certain actor, throughout a certain

tool, over a certain set of knowledge objects, and so

forth. Since such an approach is likely to yield rather

cumbersome and sparse models, which would turn

to be useless for analysis purposes, some less-

detailed representations of EEs should be achieved.

This allows us to capture the execution of the

process in a more concise and meaningful way. To

this aim, the analyst can decide to focus only on

some dimensions of analysis associated to EEs (e.g.,

the tool employed), in an OLAP-like manner, while

possibly exploiting suitable concept taxonomies to

represent EEs themselves in a more abstract way.

5 CASE STUDY AND

EXPERIMENTAL

ASSESSMENT:

COLLABORATIVE WORK

ACROSS A CAD PLATFORM

In order to explore the potentialities of our approach

to the restructuring and mining of EE logs, in this

Section we illustrate its application to a real-life

collaboration scenario, which has been addressed in

the context of the research project “TOCAI.it”. The

target scenario concerns the collaborative

development of artifacts within a real-life

manufacturing enterprise, by way of a distributed

CAD platform. All the experimental results

described next have been carried out on a collection

EFFECTIVE ANALYSIS OF FLEXIBLE COLLABORATION PROCESSES BY WAY OF ABSTRACTION AND

MINING TECHNIQUES

163

of logs gathered by the CAD system during a two-

month period, which regard the development of

5,675 artifacts.

As a preliminary step, the application of process

discovery techniques to these data requires some

proper recognition of what pieces of EE log data

represent the process and its tasks. In this respect,

different perspectives according to which EE logs

are restructured can be advocated. In our

experimental analysis, we have considered the

following restructuring perspectives:

• Operation-Centric Perspective: Here, we focus

on the application of CAD operations on the

artifacts developed throughout the CAD

platform. In order to support such a kind of

analysis, the original EE log data have been

restructured into an MXML log, named OPN-

RAW, where each process instance corresponds

to a distinct artifact, and each event trace is

labeled with the name of the CAD operation

applied to the artifact. A variant of this approach,

named OPN-CAT, has been also defined via

replacing CAD operation names with higher-

level operation categories, based on a given ad-

hoc taxonomy. The lowest level concepts in the

taxonomy are shown in Table 1, along with their

associated instances.

• User-Centric Perspective: In this case, the focus

of the analysis in on the ways workers co-operate

across the development of CAD artifacts. In this

regard, we have introduced a novel process log,

named USR-RAW, where each CAD artifact still

corresponds to a distinct process instance, while

each EE log is labeled with the ID of the user

that originated the event itself. Again, a more

abstract variant of this approach, named USR-

ROLE, has been defined via replacing user IDs

with three high-level functional roles, still taken

from a given taxonomy (which is omitted for

space reasons): general users (category: User),

administrators (category: SysAdmin), and

checkers (category: View).

In our experimental analysis and evaluation, we

model the knowledge discovered from EE logs in

terms of (collaborative) work models implemented

by means of workflows, so that the main emphasis is

on stressing the workflow discovery capabilities of

our proposed framework. To this end, restructured

EE logs above have been analyzed by means of

several process mining techniques, and a cross-

validation has been conducted. For the sake of

conciseness, we next focus only on the application

of the algorithm DWS Miner (Greco et al., 2006),

which runs as a plug-in available in ProM. DWS

Miner combines a classical workflow discovery tool,

namely HeuristicMiner, with an innovative process

clustering approach (Greco et al., 2006).

As demonstrated in (Greco et al., 2006), DWS Miner

is particularly suitable to discovery workflow

schemas in the context of LSCPs, mainly thanks to

the capabilities of its embedded clustering tool in

recognizing different behavioral classes among

processes. At the end, the latter amenity allows a

critical improvement of the mining-from-logs

capabilities of DWS Miner (Greco et al., 2006) to be

achieved.

Table 1: Excerpt of the taxonomy of CAD operations: leaf

concepts and associated instances.

Operation

Category

Operation Instance

Construction Creation::WorkInProgress

Modify CF2T::TechAend, F2T::TechAend,

Modify::UnderModify

Test K2AVP::AV Pruefung, M2AVP::AV

Pruefung, T2AVP::AV Pruefung

CVS Auschecken, Auschecken annullieren,

Einchecken, Get, Importieren, Lokale

Kopie

Release AVP2F::Freigabe, CK2F::Freigabe,

CT2F::Freigabe, K2F::Freigabe,

M2F::Freigabe,RecoverModify::Released,

T2F::Freigabe, Wip2F::Freigabe

Delete CancelModify::Cancelled

Build-Up AVP2K::Konstruktion,

Wip2K::Konstruktion

Model-

Definition

AVP2M::Musterbau, K2M::Musterbau,

Wip2M::Musterbau

Null Series Wip2N::Nullserie

Effectiveness of the Clustering Phase. The first

study we have conducted concerns the study of the

effectiveness of the clustering phase embedded in

DWS Miner, based on which different behavioral

classes among processes are discovered (and

clustered), with respect to the four different

restructuring perspectives of EE logs considered in

our analysis. In order to carefully assess the

capability of discovered (respectively, clustered)

workflow models in adequately capturing behaviors

recorded in the underlying EE logs, some

conformance metrics are necessary. To this end, we

adopt the idea of resorting the following measures

introduced in (Rozinat & van der Aalst, 2008) (all

these measure range over the continuous interval

[0:1]):

• Fitness: a sort of completeness measure which

evaluates the compliance of EE log traces w.r.t. a

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

164

given workflow model. Roughly speaking, this

measure considers the number of mismatches

that occur when performing a non-blocking

replay of all EE log traces through the model.

The more are the mismatches the lower is the

measure. In a sense, fitness quantifies the ability

of the workflow model to parse all the traces

from the EE logs.

• Advanced Behavioral Appropriateness (BehAppr

for short): a precision measure able to express

the amount of workflow model flexibilities, such

as alternative or parallel behaviors, that has not

been exploited to produce real executions

registered in the EE logs.

• Advanced Structural Appropriateness (StrAppr

for short): a measure which assesses the

capability of a workflow model in describing EE

logs in a maximally-concise way.

Table 2 summarizes some experimental results.

Here, for each restructuring perspective, we report

the number of clusters found, and the associated

conformance scores. At a first glance, we note that,

surprisingly, high effectiveness results have been

achieved, and, particularly, workflow models

collectively attain a maximal score under the metric

StrAppr. Also, from table 2 it should be noted that a

noticeable gain is achieved over all the performance

metrics when moving from detailed logs (i.e., OPN-

RAW and USR-RAW) to their corresponding abstract

views (i.e., OPN-CAT and USR-ROLE). Yet being

such a result tightly linked to the particular

application scenario considered in our experiential

assessment, it gives us a hint of the benefits deriving

from synergistically combining process mining

techniques and abstraction-oriented restructuring

methods that leverage on background knowledge,

possibly encoded in suitable domain ontologies.

Table 2: Clustering results and associated conformance

scores for different EE log restructuring perspectives.

Restructured

Log

Clusters Fitness BehAppr StrAppr

OPN-RAW 4 0.6585 0.9164 1.0000

OPN-CAT 4 0.8013 0.9975 1.0000

USR-RAW 4 0.6712 0.7974 0.9200

USR-ROLE 2 0.8033 1.0000 1.0000

Effectiveness of the Workflow Discovery Phase.

In a different experimental session, we have focused

the attention on the specific workflow discovery

capabilities of our framework, based on the

preliminary behavior-aware clustering phase. In

particular, as suggested by our previous analysis on

the effectiveness of the clustering phase, in this

second analysis we focus the attention on the

(restructured) logs OPN-CAT and USR-ROLE,

respectively, as the latter expose the better

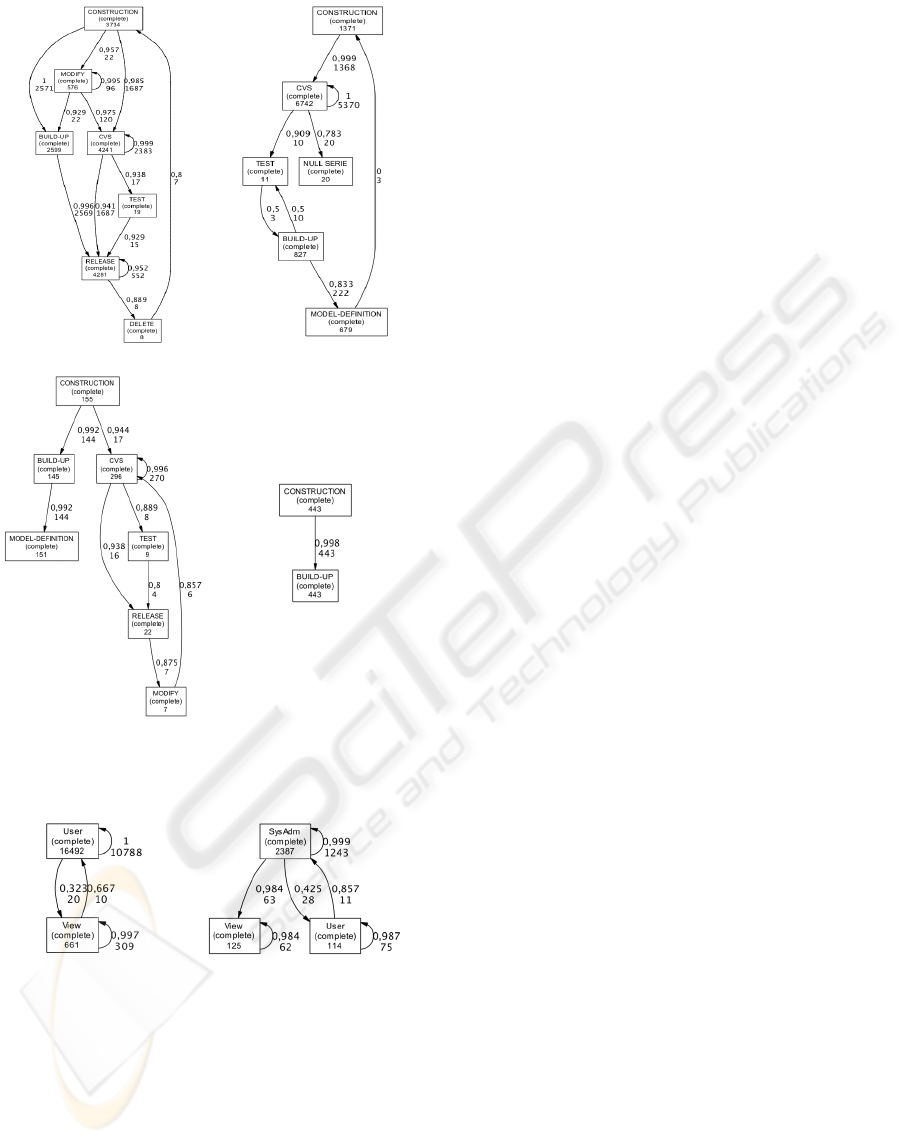

conformance scores (see Table 2). Fig. 2 show four

workflow schemas discovered from the operation-

centric log OPN-CAT. Discovered workflow

schemas meaningfully allow us to get some insights

on the typical life-cycle of artifacts developed across

the target CAD platform. As a matter of fact, these

workflows reveal that different work models have

been followed during the development of artifacts,

with respect to sequences of CAD operations applied

to those artifacts (see table 1). For instance,

activities DELETE and MODIFY only appear in the

execution instances modeled by the workflow shown

in Fig. 2(a). Similarly, workflow in Fig. 2(b)

distinguishes itself for the presence of the activity

NULLSERIE, while the one in Fig. 2(c) is the only

containing the activity MODEL-DEFINITION. In

addition to this, workflow in Fig. 2(c) reveals that

the activity MODIFY is always executed after the

activity RELEASE, differently from the case of

workflow in Fig. 2(a). Finally, a very simple

workflow schema is the one depicted in Fig. 2(d),

which yet covers a significant number of process

instances. In fact, this somewhat-unexpected work

model corresponds to a number of enactments of the

manufacturing process, which have not been carried

out completely.

As described in beginning of this Section, the aim of

the user-centric restructuring perspective is to

analyze the cooperative schemes followed by

workers across the execution of CAD-based

manufacturing operations. Fig. 3 shows the two

distinct usage scenarios (respectively, workflow

schemas) discovered from the user-centric log USR-

ROLE for two distinct cases represented by the

majority of manufacturing cases (Fig. 3(a)) and the

remaining cases (Fig. 3(b)). Despite the simplicity of

these models, which mainly descends from the fact

that only three distinct user roles appear in the log

USR-ROLE, it is still possible to appreciate the

capability of clearly identifying two well-distinct

role-based (collaborative) work models, yet

discovering interesting knowledge. For instance,

from Fig. 3(a), it should be noted that, in the great

majority of manufacturing cases, no intervention of

users with administration role SysAdmin has been

required. On the other hand, workflow schema in

Fig. 3(b) shows that, in the remaining cases where

some administrators have been involved, no direct

interaction between checkers (View) and general

users (User) have occurred.

EFFECTIVE ANALYSIS OF FLEXIBLE COLLABORATION PROCESSES BY WAY OF ABSTRACTION AND

MINING TECHNIQUES

165

(a) (b)

Figure 2: Operation-centric work models discovered from

the restructured log OPN-CAT.

(a) (b)

Figure 3: User-centric work models discovered from the

restructured log USR-ROLE.

6 CONCLUSIONS AND FUTURE

WORK

In this paper, we have described a knowledge-based

framework for supporting and analyzing LSCPs, and

the meaningful construction of extensible and

distributed cooperative systems. Our proposed

framework fully exploits advanced capabilities for

representing, managing and discovering

organizational and process knowledge.

A prominent feature of the proposed framework

is represented by the definition of an interactive

restructuring method for flexibly applying process

mining techniques to LSCPs. The framework has

been tested against some real-life applications,

investigated by a research project concerning the

exploitation of advanced knowledge management

models and methodologies in inter-organizational

collaborative environments. In particular, a

comprehensive experimental assessment of the

proposed process mining analysis approach over

LSCPs has been conducted for a case study

represented by the collaborative development of

artifacts within a real-life manufacturing enterprise,

by way of a distributed CAD platform. Obtained

experimental results have clearly demonstrated the

effectiveness of the approach in providing analysts

and workers with insightful views over the execution

of processes, and in supporting the consolidation of

knowledge across the whole collaborative e-work

environment.

As future work, we are investigating on

extending our proposed approach with mechanisms

supporting a collaborative and distributed

construction of ontologies.

REFERENCES

W. M. P. van der Aalst, H.A. Reijers, and M. Song, 2005.

Discovering Social Networks from Event Logs.

Computer Supported Cooperative Work, 14(6): 549—

593.

W. M. P. van der Aalst, B.F. van Dongen, J. Herbst et al.,

2003. Workflow Mining: A Survey of Issues and

Approaches. Data & Knowledge Engineering, 47(2):

237—267.

O. Anya, H. Tawfik, and A. Nagar, 2007. A Conceptual

Design of an Adaptive and Collaborative E-Work

Environment. In Proc. of 1

Asia Intl Conf on

Modeling & Simulation, pp. 148—154.

R. P. Biuk-Aghai, and I.T. Hawryszkiewycz, 1999.

Analysis of Virtual Workspaces. In Proc. of 1999 Intl

Symp on Database Applications in Non-Traditional

Environments, pp. 325—332.

B. F. van Dongen, A.K.A. de Medeiros, H.M.W. Verbeek

et al., 2005. The ProM Framework: A New Era in

Process Mining Tool Support. In Proc. of 26th Intl

Conf on Applications and Theory of Petri Nets, pp.

444—454.

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

166

Experts Group, 2004. Next Generation Collaborative

Working Environments 2005-2010, EUROPEAN

COMMISSION Information Society Directorate-

General, Report of the Experts Group on Collaboration

@ Work, Brussels.

F. Folino, G. Greco, A. Guzzo, and L. Pontieri, 2008.

Discovering Multi-Perspective Process Models. In

Proc. of the 10th Intl Conf on Enterprise Information

Systems, pp. 12—16.

G. Greco, A. Guzzo, and L. Pontieri, 2008. Mining

Taxonomies of Process Models. Data & Knowledge

Engineering, 67 (1): 74—102.

G. Greco, A. Guzzo, L. Pontieri, and D. Saccà, 2006.

Discovering Expressive Process Models by Clustering

Log Traces. IEEE Transactions on Knowledge and

Data Engineering, 18(8): 1010—1027.

S. Basta, F. Folino, A. Gualtieri, M.-A. Mastratisi, and L.

Pontieri, 2008. A Knowledge-Based Framework for

Supporting and Analysing Loosely Structured

Collaborative Processes. In Proc. of the 12

East

European Conf on Advances in Databases and

Information Systems, pp. 140—145.

M. Cannataro, and D. Talia, 2003. The Knowledge Grid:

An Architecture for Distributed Knowledge

Discovery. Communications of the ACM; 46(1): 89—

93.

A. Gualtieri, and M. Ruffolo, 2005. An Ontology-Based

Framework for Representing Organizational

Knowledge. In Proc. of 5th Intl Conference on

Knowledge Management.

C. W. Gunther, and W.M.P. van der Aalst, 2007. Finding

Structure in Unstructured Processes: The Case for

Process Mining. In Proc. of 7th Intl Conf on

Application of Concurrency to System Design, pp. 3—

12.

G. Hohpe, and W. Bobby, 2003. Enterprise Integration

Patterns: Designing, Building, and Deploying

Messaging Solutions. Addison-Wesley Longman

Publishing Co.

M. zur Muehlen, 2001. Process-Driven Management

Information Systems - Combining Data Warehouses

and Workflow Technology. In Proc. of the 4th Intl

Conf on Electronic Commerce Research, pp. 550—

566.

J. J. Jeng, and J. Schiefer, 2003. An Agent-Based

Architecture for Analyzing Business Processes of

Real-Time Enterprises, In Proc. of the 7th Intl

Enterprise Distributed Object Computing Conf, pp.

86—97.

K. Kozaki, E. Sunagawa, Y. Kitamura, and R. Mizoguchi,

2007. Distributed and Collaborative Construction of

Ontologies Using Hozo. In Proc. of the 2007

Workshop on Social and Collaborative Construction

of Structured Knowledge.

C. McGregor, and J. Schiefer, 2003. A Framework for

Analyzing and Measuring Business Performance with

Web Services. In Proc. of 2003 IEEE Intl Conf on E-

Commerce, p. 405.

C. Pedrinaci, and J. Domingue, 2007. Towards an

Ontology for Process Monitoring and Mining. In Proc.

of the 2007 Workshop on Semantic Business Process

and Product Lifecycle Management, pp. 76—87.

H. Pinto, C. Tempich, and Y. Sure, 2004. DILIGENT:

Towards a Fine-Grained Methodology for Distributed,

Loosely-controlled and evolvInG Engingeering of

oNTologies. In Proc. of the 16

European Conference

on Artificial Intelligence, pp. 393—397.

M. P. Papazoglou, and G. Georgakapoulos, 2003. Service-

Oriented Computing. Communications of the ACM,

46(10): 24—28.

M. P. Papazoglou, and W.-J. van den Heuvel, 2007.

Service-Oriented Architectures: Approaches,

Technologies and Research Issues. VLDB Journal,

16(3): 389—415.

A. Rozinat, and W.M.P. van der Aalst, 2008.

Conformance Checking of Processes based on

Monitoring Real Behavior. Information Systems,

33(1): 64—95.

EFFECTIVE ANALYSIS OF FLEXIBLE COLLABORATION PROCESSES BY WAY OF ABSTRACTION AND

MINING TECHNIQUES

167
