AUTOMATIC GENERATION OF DATA MERGING PROGRAM

CODES

Hyeonsook Kim, Samia Oussena, Ying Zhang

Model Driven Research Centre, Thames Valley University, Saint Mary’s Road, London, U.K.

Tony Clark

Department of Computing, Middlesex University, London, U.K.

Keywords: Data Merging Meta-model, Data Integration, Model Driven Engineering, Model Driven Data Integration,

Automatic Model Transformation, Automatic Program Code Generation.

Abstract: Data merging is an essential part of ETL (Extract-Transform-Load) processes to build a data warehouse

system. To avoid rewheeling merging techniques, we propose a Data Merging Meta-model (DMM) and its

transformation into executable program codes in the manner of model driven engineering. DMM allows

defining relationships of different model entities and their merging types in conceptual level and our

formalized transformation described using ATL (ATLAS Transformation Language) enables automatic

generation of PL/SQL packages to execute data merging in commercial ETL tools. With this approach data

warehouse engineers can be relieved from burden of repetitive complex script coding and pain of

maintaining consistency of design and implementation.

1 INTRODUCTION

A Data Warehouse (DW) is a collection of

integrated subject-oriented data bases designated to

support the decision making process (Kimball et al,

2002). Building a DW involves processes that

combine data with various formats and present a

unified view of the data, as well as extract data from

different sources and cleanse inappropriate data. DW

has become very popular choice for many enterprise

systems such as business intelligence and more of

enterprise systems data needed to be added to the

data warehouse. To support the growing demands of

DW development, ETL (Extract-Transform-Load)

processes have supported a systematic framework

for the extraction of the data from heterogeneous

data sources, and its transformation; cleansing,

converting, and loading them into the data

warehouse. According to (March et al, 2007), ETL

processes are not only important for design and

maintenance of DW but also key factors for the

success of DW projects. In this context, various

approaches have been proposed in order to improve

the ETL engineering.

Applying Model Driven Engineering (MDE) to

ETL processes is one of the attractive approaches.

The approach reduces the complexity of ETL design

by decoupling data and meta-data and improves

communication between domain experts and

developers by using graphical model design. It also

increases productivity due to the reduced amount of

handcrafted coding and of rework for maintenance.

This is achieved by defining an abstracted model

first and transforming it into program codes. Thus,

ETL working codes can be derived and maintained

from well defined ETL models which are described

in abstracted level and gradually mapped into

concrete level.

A number of these MDE approaches have been

proposed either as a UML extension or as their own

graphical notation for conceptual ETL data mapping

design (Mora1 et al, 2004), (March et al, 2007). A

meta-model for process has also been proposed to

apply MDE to workflow and scheduling in DW

(Bohm et al, 2008). Muñoz et al have proposed not

just a design model but a whole conceptual data

integration framework (Muñoz et al, 2009).

However most of these works address the whole

ETL process and do not consider the problems

179

Kim H., Oussena S., zhang Y. and Clark T. (2010).

AUTOMATIC GENERATION OF DATA MERGING PROGRAM CODES.

In Proceedings of the 5th International Conference on Software and Data Technologies, pages 179-186

DOI: 10.5220/0003008301790186

 SciTePress

which need to be addressed in each DW building

phase. Furthermore, they have rarely demonstrated

how to integrate industrial standards in their

approaches. The details of previous research works

are described in section 6.

In this paper, we mainly focus on model driven

data merging approach to address problems in data

merging domain. Based on a real case study of a

DW development project, we propose a data

merging system to generate executable merging

codes from conceptual design. A Data Merging

Meta-model (DMM) was proposed for design of

merging models at conceptual level. Common

Warehouse Meta-model (CWM), an industrial

standard for data warehouse modeling, was also

used for design of merging models at physical level

(CWM, 2008). The proposed system provides

transformation of DMM into CWM. By using the

standard, it allows not to be bound to a particular

tool but allows the use of any DW development

environment. Through this system, data warehouse

engineers can develop a unified data schema by

creating abstractions that help them program in

terms of their design intent rather than the

underlying computing environment. The executable

data merging codes can be obtained from CWM

merging models since ETL tool vendors provide

code generation from CWM.

The rest of this paper is structured as follows.

Section 2 presents model driven data warehousing

providing both the general approach and ours. The

proposed data integration framework and merging

meta-model were described in the section as well.

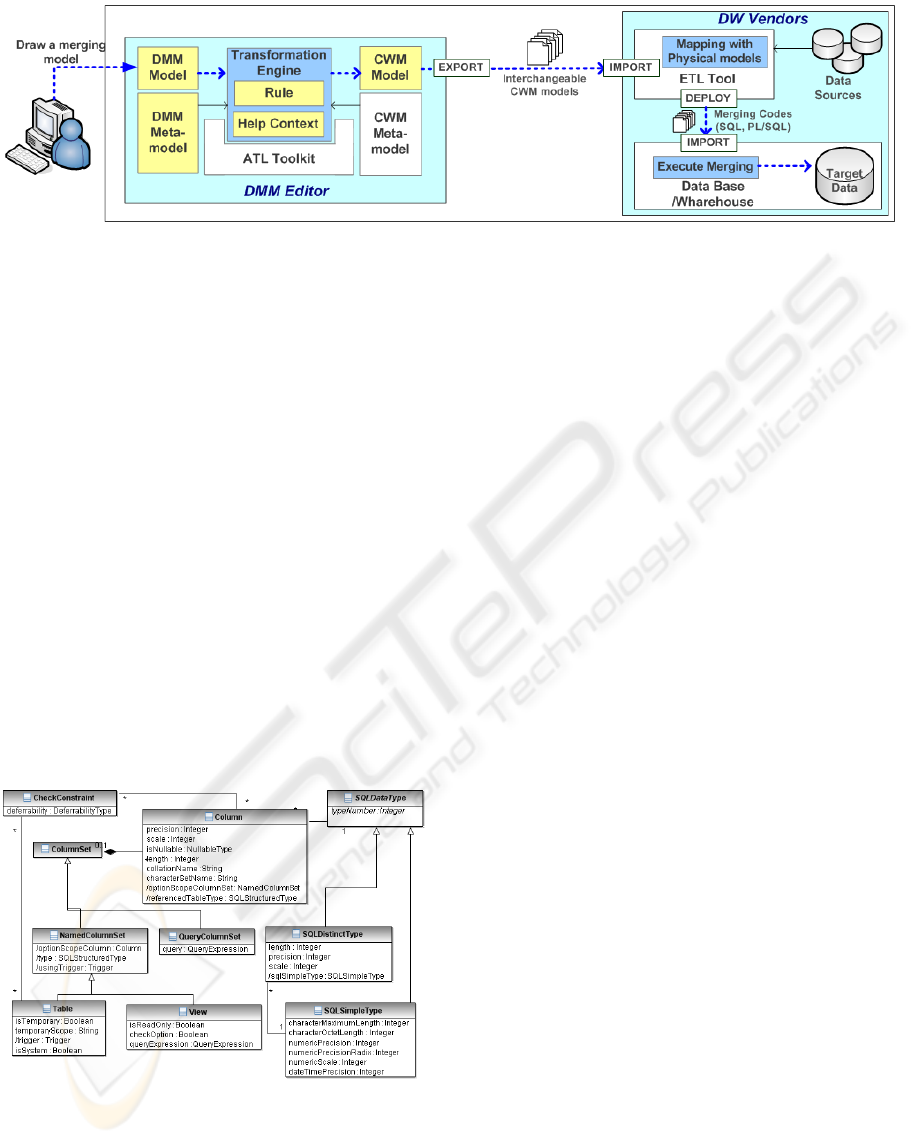

Section 3 shows our implementation works

illustrating the system architecture, target meta-

model; CWM and transformation rules. A case study

to which we applied the proposed model driven

approach is introduced in Section 4. Finally related

works are given in section 5 and conclusions in

section 6.

2 MODEL DRIVEN DATA

INTEGRATION

The whole data warehousing processes can be

divided into four phases; (1) analyzing and

understanding data in the different data sources, (2)

preparing and collecting data into staging area;

usually one physical platform, (3) combining data

through data cleansing, merging, and transformation,

which covers most ETL processes, (4) and finally,

customizing data into different presentation

according to application purposes (Rahm et al,

2000). Through each data process, data sources are

gradually reformatted and moved into target

schemas. The processes can be easily executed and

maintained by controlling data from models within a

model driven approach.

In this section, we introduce general model

driven approach with two representative methods

and discuss our own approach which is implemented

utilising the general approach.

2.1 General Model Driven Approach

Model Driven Engineering (MDE) is a software

engineering methodology uses models as primary

artefacts that drive the whole development process

through model transformations. Over the years

model based development has gained rapidly

increasing popularity across various engineering

disciplines. The representative two approaches are

presented in this section.

2.1.1 Model Driven Architecture

Model Driven Architecture (MDA) is the first

initiative of MDE which uses UML as modeling

language and OCL (Object Constraint Language)

and QVT (Query/View/Transformation) as model

transformation language (OCL, 2008), (Kleppe et al,

2003). It is launched by the Object Management

Group (OMG) in 2001 and mainly focuses on

forward engineering like producing code from

abstract and human-elaborated modeling diagrams

separating design from architecture.

MDA uses the Platform Independent Model

(PIM) which represents a conceptual design to

realize the functional requirements. PIM is translated

into one or more Platform Specific Models (PSMs)

that computer can run. Accordingly, model

transformations which support conversion between

PIM and PSM are particularly important for the

realization of MDA.

Most software development IDEs support MDA

by providing UML modeling and code generation

from the UML models but there are many critics that

UML is too generic to describe domain specific

problems. Another direction is to develop domain

specific languages designed to solve common model

transformation tasks. Indeed, this approach has been

widely taken recently by the research community

and software industry. As a result, a number of

model transformation languages have been proposed

(Marcos et al, 2006), (Greenfield, 2004).

ICSOFT 2010 - 5th International Conference on Software and Data Technologies

180

2.1.2 Eclipse Modeling Framework

Eclipse is one of the most popular IDEs. It provides

convenient pluggable architecture. It also provides a

meta-meta-model called ecore and its own modeling

framework for MDE (Dave et al, 2008). This

framework generates the model development

environment automatically. Developers can design

their own models and transform them into target

models once a specific domain model is designed as

a meta-model based on ecore.

In addition to this, there are several open source

plug-ins that facilitate model driven development

based on Eclipse modeling framework with various

functionality. For example, ATLAS Model Weaver

(AMW) extends eclipse modeling framework for

model to model conversion Macros, 2006). It

enables to combine different models together and

generate new one by establishing relationships

between models using their weaving meta-model.

For model transformation, it also provides a

transformation language, called ATL, correspondent

to QVT (Query/View/Transformation ) of OMG

(Allilaire et al, 2006).

2.2 Our Approach

We applied MDA to the whole data integration

processes by designing PIM models in each DW

development phase. PIM models then transformed

into PSM models and real codes. Since existing ETL

tools do not provide PIM modeling for data merging,

we proposed a data merging PIM meta-model which

allows conceptual design and model transformation

into existing ETL standard. The ATLAS

transformation language and toolkit have been used

for the implementation of the transformation.

2.2.1 Data Integration Framework

It is well known that conceptual models (PIM)

provide not only guidance how to integrate actual

data but automated generation of real code which is

ready for execution according to MDA viewpoints.

In this context, transformations between PIMs and

PSMs, and between PSMs and real codes are

necessary for each modeling phase of DW. For data

integration, it is also required to define and use

different models for each data integration phase;

data source model, extraction model, merging model

and customized model.

In general, modeling starts from the highest

abstraction layer and goes down to concrete codes

layer. However, most Data Source PIMs and PSMs

can be derived from real data sources through

reverse transformation since existing data sources

have their own schema or structure by which PSM is

drafted. Extraction PIMs are usually designed on the

basis of Data Source PIMs analysis and transformed

into PSMs and program codes in turn later. Merging

PIMs are commonly designed after building data

cleansing strategy and then transformed into PSMs

and merging execution codes. Based on unified data

model, Customized PIMs are also built in order to

present data in different way.

2.2.2 Data Merging

In this paper, we concentrate on model driven data

merging. Data merging in data warehousing includes

combining and moving data into target schema as

well as creation of new data schema in order to

provide a unified view. In terms of MDE, data

schemas and data combing rules can be model

entities which describe attributes of each data entity

and relationships of the entities. In particular, a data

merging model has to depict how to move data from

existing source data entities into new target data

entities. Since a data entity is a set of data attributes,

not only relationships between data entities but also

relationships between data attributes should be

addressed for data merging.

Data merging modeling starts from investigating

overlapped data from each data source. Once

corresponding pairs of duplicated data are identified,

a number of design issues lead to concerns including

whether preserve the duplicated data or how to keep

data consistency between indirect references as well

as direct ones. However, once decision of how to

merge the data is made, the actual merging can be

simple repetitive routines in abstraction. The

abstractions can be represented as three patterns;

Join, Union, and Association. Join keeps all data

from one leading data source and copies data

excluding duplicated parts with the leading one from

the other data sources. Union combines all data from

each data sources without discarding any data.

Association updates only relationship constraints

between data sources and target. They are described

as DMType model element in the proposed

conceptual data merging model.

2.2.3 Proposed Data Merging Meta-model

We propose a Data Merging Meta-model (DMM) to

support data merging design in the early stage of

DW development. It describes merging models at

conceptual level based on UML and rule description.

A model includes model elements from different

data sources and their relationships. These

AUTOMATIC GENERATION OF DATA MERGING PROGRAM CODES

181

relationships of meta-data realize data mappings that

describe how to move each source data to target one.

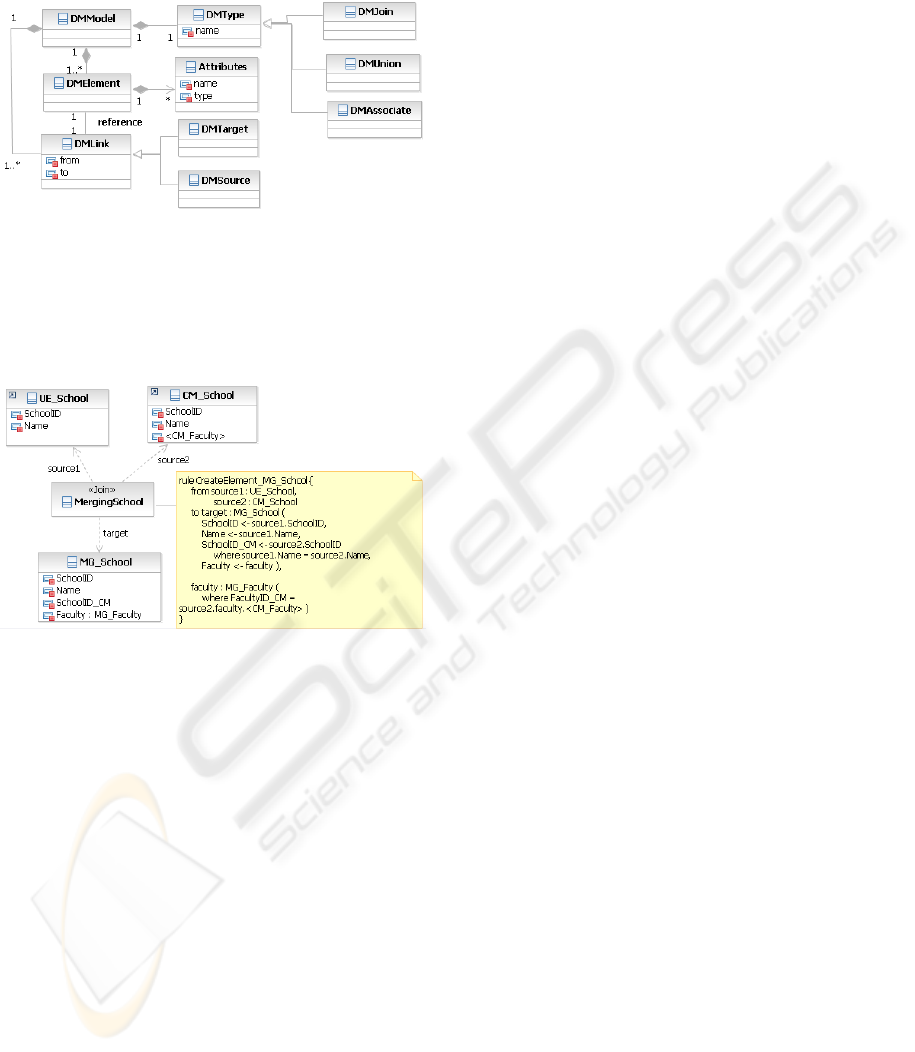

Figure 1 describes our DMM.

Figure 1: Data Merging Meta-model.

The root element of the model, DMModel, is

composed of several elements; DMType,

DMElement, and DMLink. The full description of

each element is provided in (Kim et al, 2009).

Figure 2: An Example of Data Merging PIM.

Using this model, data merging in DW can be

designed abstractly. As an example, a simple data

merging between two meta-data is presented in

Figure 2. In this example, two school model

elements from a student record management system

and a course marketing system respectively are

shown. They have exactly same data structure but

they are differentiated by the reference to faculty

object named CM_Faculty. It means that not only

data itself but also the other things such as the object

reference and data constraints have to be considered

when the two elements are merged. We merged

them using DMJoin defining UE_School as a

leading data source and describing detailed attribute

mapping as a rule shown below. This rule can be

expressed with graphic notation such as arrow in

more advanced graphic editor.

The ruleCreateElment_MG_School describes

how to map the attributes of source elements;

UE_School and CM_School, to the target element;

MG_School. The rule has a set of {sources, targets}

and targets has a set of {target element name, a set

of attributes mapping}. An attribute mapping is

expressed with arrow directing from a source

attribute to a target attribute. In this example,

DMJoin moves only overlapped data sets of

CM_School. If the merging type is DMUnion, it

would move the first source element into a target

element on the ‘insert’ basis and the others on the

‘update and insert’ basis. All data from UE_School

inserted into MG_School then CM_School data

updated School_ID attribute of existing data set only

if the same Name attribute data is found in existing

data. As <CM_Faculty> is an object reference, not

only data value but also an object constraint has to

be changed. The reference object is change from

CM_Faculty to MG_Faculty in this example.

3 IMPLEMENTATION

In our approach, data merging process is launched

by designing a conceptual merging model in DMM.

This model is then automatically converted into a

CWM model by executing the implemented

transformation engine. After then, the executable

merging program is finally created through

importing the generated CWM model into an ETL

tool. In this section, we discussed the

implementation detail including system architecture,

CWM specification and transformation rules.

3.1 System Architecture

We implemented a data merging system including

the transformation engine based on ATL toolkit and

the engine exports generated CWM models as file

format. All processes and architecture are illustrated

in Figure 3.

The DMM Editor takes DMM model as input

and generates CWM model. For this, both DMM

meta-model and CWM meta-model were interpreted

and deployed as ecore format. Based on these ecore

models, transformation rules have been

implemented. Rule component of Transformation

Engine container consists of rules for mapping of

DMM into CWM while Help Context component

comprises functions and utilities for type checking,

condition management and etc. Details of

transformation rules are presented in Section 3.3.2.

DMM Editor exports the CWM model according

to interchangeable CWM model specification which

DW vendors can import. The imported model

contains both skeletons and logics inside to execute

ICSOFT 2010 - 5th International Conference on Software and Data Technologies

182

Figure 3: Data Merging System Architecture.

data merging but is not bound with actual schemas

of data sources. Therefore the additional work to

bind it with physical data schemas and make

synchronization between them is necessary. After

that, the merging code are generated, deployed an

executed into target platform.

3.2 Common Warehouse Meta-model

CWM is a specification describing objects and

relationships in the context of data warehousing.

Since data warehouses pull in data from many

different digital sources, CWM includes a

comprehensive set of data models for data structures

such as relational databases, flat files, and XML.

OMG announces MOF bridges the gap between

dissimilar meta-models by providing a common

basis for meta-models. Consequently, the models

described by DMM can be interchanged with the

models conform to CWM since both are MOF-

conformant.

Figure 4: Part of Common Warehouse Meta-model.

CWM was designed in line with aim of providing

interchange of all warehouse meta-data that

describes all warehouse data element including data

sources, transformations and data targets, and all

warehouse processing element including scheduling,

status reporting and history recording. Thus the

meta-model specification of CWM cover all

warehousing area, from the foundation of data types

and type mapping, to management of warehouse

process and operation. Among the whole meta-

model, we have only referenced the parts related to

data merging. For example, Figure 4 shows

relational meta-model of CWM to describe data

sources and data targets. It presents the attributes of

tables, columns and data types, and the relationships

between them (CWM, 2008).

3.3 Model Transformation

MDE can be completed through constant model

transformations from abstract level to concrete one.

As mentioned in Section 2.1, there are several MDE

initiatives that suggest their own meta-model and

transformation language. (Frédéric et al, 2006)

summarizes the main characteristics of

representative transformation languages; QVT and

ATL, comparing their technology and functionality

in architectural view to help software developers

compare and select the most suitable languages and

tools for a particular problem. The reasons we

settled upon ATLAS architecture are; abundant data,

steady maintenance, and support of transformation

development toolkit, although QVT is considered as

an industrial standard in MDA. This section presents

ATL and transformation of DMM into CWM using

ATL.

3.3.1 ATLAS Transformation Language

ATL provides both the language for description of

model transformations and the toolkit for execution

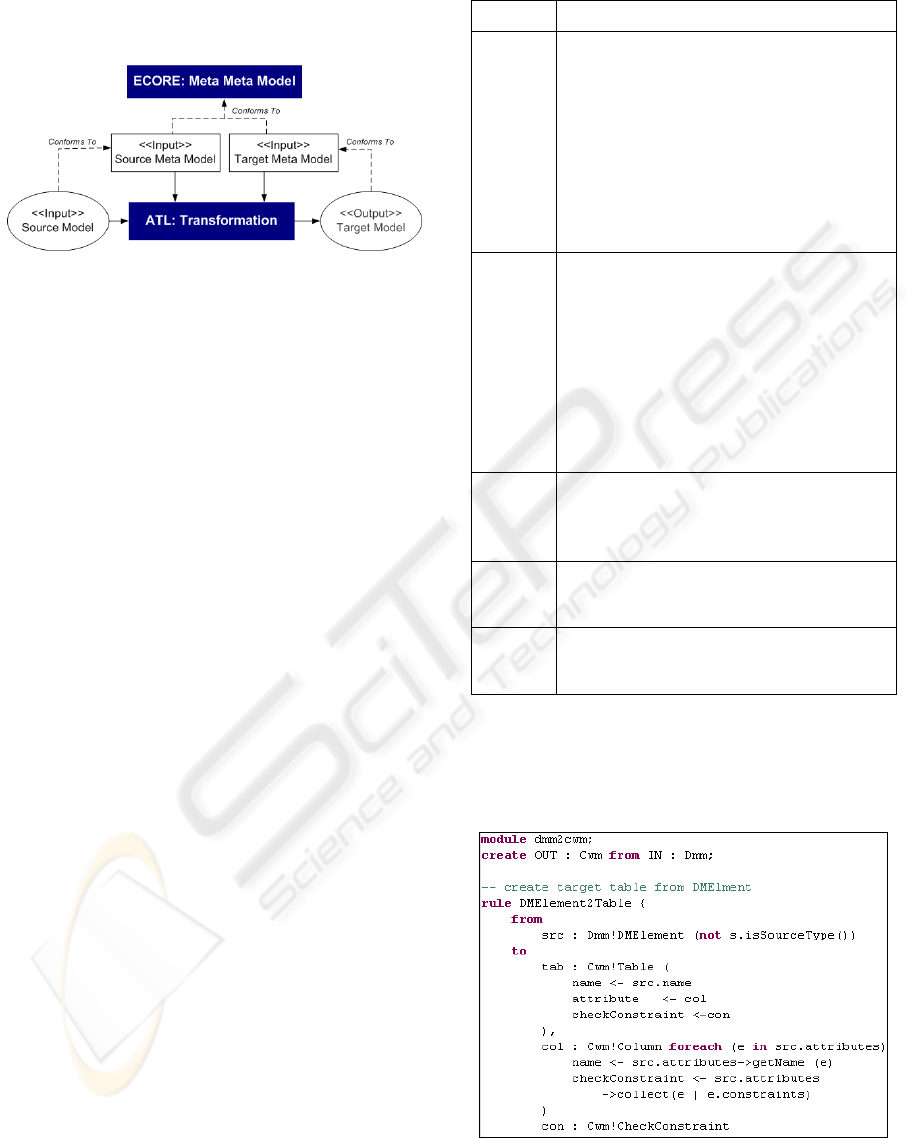

of the model transformations. The architecture for

ATL toolkit is shown in Figure 5. It was developed

on the top of Eclipse platform aiming to offer ways

to produce a set of target models from a set of source

models. Source meta-model and target meta-model

should be defined first subsequently target instance

AUTOMATIC GENERATION OF DATA MERGING PROGRAM CODES

183

model is generated from input source model by

ATL. The transformation rule between source model

and target should be written in ATL language.

Figure 5: ATLAS Toolkit Architecture.

ATL language is used to create an ATL module that

describes and executes transformation in the toolkit.

Besides its header, an ATL module is composed of a

set of ATL rules. Each rule defines the way of

transforming an input element into a target element.

A rule is composed of an InPattern and OutPattern.

The InPattern declares a typed variable which

corresponds to the rule input element. During the

execution of the ATL transformation, this variable

will correspond to the source element currently

being matched. The OutPattern declares a typed

variable which corresponds to the rule output

element. The OutPattern also specifies a set of

Binding elements. A Binding describes how a given

feature (an attribute or a reference) of the target

element is initialized. This initialization must be

specified as an OCL expression (Allilaire et al,

2006).

3.3.2 DMM2CWM Transformation

Converting DMM into CWM means that

DMElements are mapped to a relational data

element. For example, source DMElement references

existing data table while a target DMElement creates

new data schema. The full description of

transformation rule is listed in Table 1.

To automate this model transformation, we

implemented a transformation module using ATL.

At first we created both of input and output ecore

models from DMM and CWM in UML. These ecore

models are recognized as meta-model of input and

output respectively, for the transformation. Then the

transformation rules in Table 1 were implemented in

ATL language as partly shown in Figure 6.

DMElement is converted into Table element,

DMType to Transforamtion element, and An

Assocation to Link element, for example.

Table 1: Transformation Rule.

DM Transformation Rule

DMEle

ment

-If DMElement is connected with

DMSource link, generate a reference to an

existing table.

- If DMElement is connected with

DMTarget link: create new table schema

including primary key and foreign key

constraints.

-If an attribute of DMElement is not a

primitive type, change table constraints on

foreign key to reference a proper element.

DMUni

-Create data mappings as much as the

number of DMSource links.

-According to the mapping order in rule

script, each data mapping from a source to a

target is transformed into each attribute

connection between source and target

elements in turn.

- If attributes of source and target are not

same type, insert data type change function

before mapping data.

DMJoin

-Create a data mapping using joiner entity

to merge source elements

-From rule script, joining condition and

mapping sequence are determined.

DMAsso

ciation

-Change target table schema

-Update target table schema to reference a

source table with foreign key constraint.

DMLSo

urce/D

MTarget

- No correspondent transformation. Just

indicate whether a linked DMElement is a

source element or a target one.

Once an input merging model is designed, the

correspondent output model is generated

automatically by executing the transformation in

ATL runtime toolkit.

Figure 6: DMM to CWM Transformation.

ICSOFT 2010 - 5th International Conference on Software and Data Technologies

184

4 A CASE STUDY

We have applied the model driven data integration

approach to a data warehouse development project

in Thames Valley University. Different data sources

from current university systems (such as the library

system, student administration, or e-learning) have

been integrated into data warehouse system to

provide a unified data view for personalised student

academic intervention system based on data mining.

In the project, we have collected 3 years institutional

historical data to build a DW and to predict

individual student performance and dropout as well

as the suitability of the course or module for student

intervention. The details of the case study were

introduced in (Kim et al, 2009).

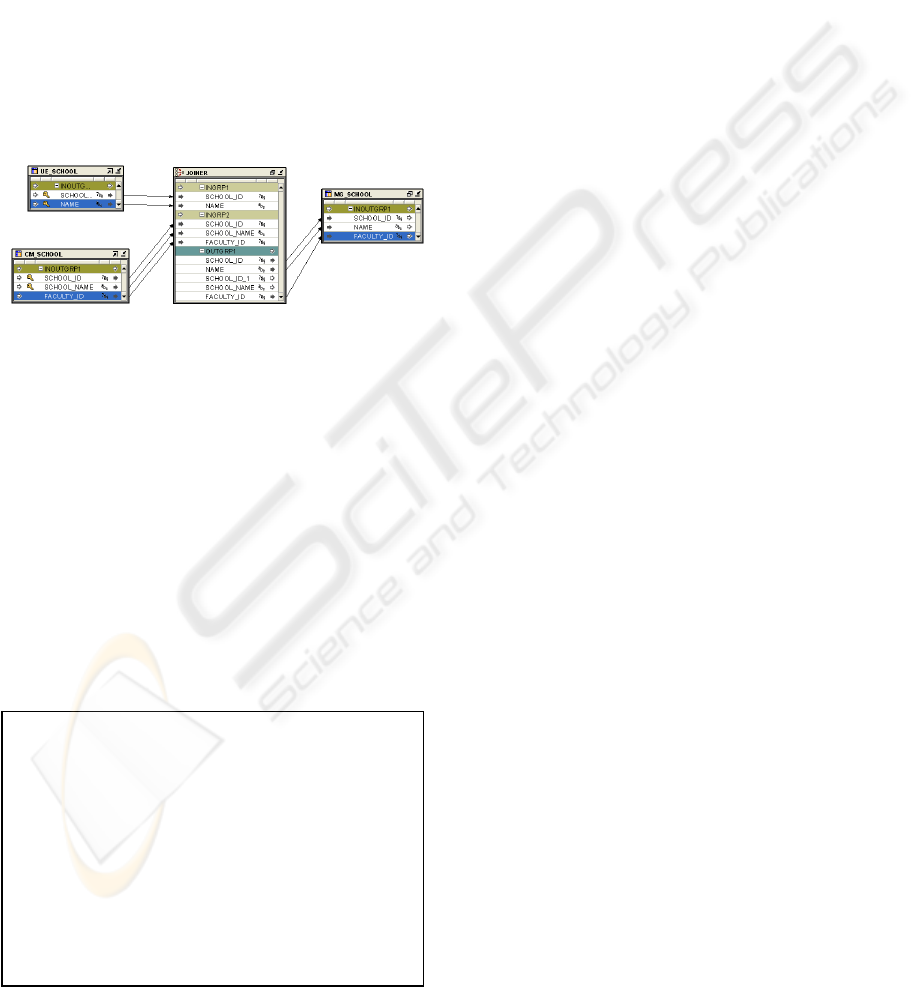

Figure 7: An Example of Data Merging PSM.

Based on the case study, we designed our DMM

meta-model, and applied the model and its model

transformation to the case study experimentally. In

this section, we demonstrate our data merging

approach throughout the example of merging two

school data entities in Figure 2. The model in Figure

3 was entered into DMMtoCWM transformation

engine and then the output CWM model was

generated by the engine. The converted CWM is

shown in Figure 7. According to the

ruleCreateElment_MG_Faculty, UE_School element

and CM_School are mapped to MG_School.

DMJoin is mapped into Joiner operation as well. The

platform we used is Oracle Warehouse Builder.

Figure 8: An Example Merging Code.

Once PSM is imported into ETL tool, each model

has to be bound with actual data table manually.

Through this process the actual data type is

determined and additional conditions and logics can

be added. Then executable codes are derived from

the PSM. The following script in Figure 8 shows a

part of PL/SQL packages which is generated from

Oracle Warehouse Builder.

5 RELATED WORKS

Several researches have been proposed to overcome

the challenges in designing of data integration in the

context of MDE. In this section, we present a brief

discussion about some relevant approaches.

In (March et al, 2007), MD2A (Multi

Dimensional Model Driven Architecture) is

suggested as an approach for applying the MDA

framework to one of the stages of the DW

development: multidimensional (MD) modeling.

The authors defined MD PIM, MD PSM and

necessary transformations. Although the suggested

framework and models covers formalized MDDI,

the designed models do not properly address data

merging.

For conceptual modeling of data mapping,

(Vassiliadis et al, 2002) suggests an ETL mapping

model with their own graphic notation. on the other

hand, (Mora1, Vassiliadis, and Trujillo, 2004)

extends UML to model inter-attribute mapping at the

attribute level. A conceptual model can be identified

with a PIM in the context of MDA since it describes

the necessary aspects of the application

independently of the platform on which it will be

implemented and executed (Kleppe et al, 2003).

Although both of works presents the mapping

between data source and target in different levels of

granularity, they do not cover linking to PSM which

is usually transformed from PIM.

(Muñoz et al, 2009) proposes the model-driven

generation and optimization of integration tasks

using a process-based approach. The approach

models data integration process in high abstraction

level in order to raise portability and lower

maintenance effort. Although it provides modeling

whole integration process rapidly, it does not

consider details of each integration process

modeling such as data mapping.

Furthermore, several automated data merging

approaches are also researched in order to reduce

human intervention for data merging through

extraction of combined meta-data from source data

or source meta-data in (Konigs, 2005) and (Embley

….INSERT

INTO

"MG_SCHOOL"

("SCHOOL_ID","NAME","FACULTY_ID")

(SELECT

"UE_SCHOOL"."SCHOOL_ID""SCHOOL_ID",

"UE_SCHOOL"."NAME""NAME",

"CM_SCHOOL"."FACULTY_ID""FACULTY_ID"

FROM

"UE_SCHOOL""UE_SCHOOL",

"CM_SCHOOL""CM_SCHOOL"

WHERE

("UE_SCHOOL"."NAME"=

CM SCHOOL

SCHOOL NAME

)

……

AUTOMATIC GENERATION OF DATA MERGING PROGRAM CODES

185

et al, 2004). Particularly, (Fabro et al, 2008) and

(Marcos et al, 2006) describes semi-automated

model transformation using matching

transformations and weaving models which can be

applied on generation of merging model as well.

6 CONCLUSIONS

In this paper, we have presented a data merging

system that aims to provide consistency between

design and implementation, and automatic codes

generation by creating abstract models in early stage

of project and generating physical models and

executable codes from the abstracts. Through model

transformation into CWM, the proposed conceptual

modeling does not end up in isolation from

commercial systems, instead, it shows a possibility

to be extended and integrated with existing industrial

standard. The proposed meta-model and merging

system was evaluated through a case study in

Thames Valley University and a graphic modeling

tool is under the work to improve user interface by

converting rule scripts into graphic notations.

With this approach, data warehouse engineers

can easily focus on data merging design being

separated from concerns of physical environments,

then integrate the design into ETL tool considering

physical infrastructure at this stage. Executable

program codes then can be derived from ETL tool

finally. In this way, ETL design can be supported

and well maintained systematically in model driven

framework promising the success of DW

development project.

REFERENCES

Allilaire, F., Bzivin, J., Jouault, F., and Kurtev, I., 2006.

ATL: Eclipse Support for Model Transformation. In

Proceeding of the Eclipse Technology eXchange

Workshop (eTX) at ECOOP.

Bezivin, J., 2005. Model-based Technology Integration

with the Technical Space Concept, In Metainformatics

symposium 2005.

Bohm, M., Habich, D., Lehner, W., and Wloka, U., 2008.

Model driven development of complex and data

intensive integration processes, MBSDI 2008, CCIS 8,

pp.31-42

CWM, 2008. Common Warehouse Metamodel, Object

Management Group. http://www.omg.org/technology/

documents/modeling_spec_catalog.htm

Dave Steinberg, Frank Budinsky, Marcelo Paternostro, Ed

Merks, 2008. Eclipse Modeling Framework. Addison-

Wesley Professional

Embley, D.W., Xu, L., and Ding, Y., 2004. Automatic

Direct and Indirect Schema Mapping: Experiences

and Lessons Learned, SIGMOD Record, Vol. 33, No.

Fabro, D.D.M. and Valduriez, P., 2008. Towards the

efficient development of model transformations using

model weaving and matching transformations,

Conference of Software and Systems Modeling.

Frédéric Jouault and Ivan Kurtev, 2006. On the

Architectural Alignment of ATL and QVT

Greenfield, J., 2004. Software factories: Assembling

applications with patterns, models, frameworks and

tools. In GPCE, page 488.

Kim, H., Zhang, Y., Oussena, S., and Clark, T., 2009. A

Case Study on Model Driven Data Integration for

Data Centric Software Development, In Proceedings

of ACM First International Workshop on Data-

intensive Software Management and Mining.

Kimball, R. and Ross, M., 2002. The Data Warehouse

Toolkit, John Wiley & Sons. 2nd edition.

Kleppe, A., Warmer, J. and Bast,W., 2003. MDA

Explained. The Model Driven Architecture: Practice

and Promise. Addison-Wesley, Reading.

Konigs, A. 2005. Model Transformation with Triple

Graph Grammars. Model Transformations in Practice

Satellite Workshop of MODELS 2005. Montego Bay,

Jamaica.

Marcos, D.D.F., Jean B. and Patrick V., 2006. Weaving

Models with the Eclipse AMW plugin, Eclipse

Modeling Symposium.

MOF, 2008. Meta Object Facility, Object Management

Group. http://www.omg.org/mof.

Mora1, L.S., Vassiliadis, P., and Trujillo, J., 2004. Data

Mapping Diagrams for Data Warehouse Design with

UML, volume 3288 of Lecture Notes in Computer

Science, pp 191-204.

Muñoz, L., Mazón, J., and Trujillo, J., 2009. Automatic

generation of ETL processes from conceptual models.

In Proceeding of the ACM Twelfth international

Workshop on Data Warehousing and OLAP.

OCL, 2008. Object Constraint Language. Object

Management Group. http://www.omg.org/technology/

documents/formal/ocl.htm.

Rahm, E., and Do, H. H., 2000. Data Cleaning: Problems

and Current Approaches, Journal of IEEE Data

Engineering Bulletin, volume 23.

March, S. and Hevner, A., 2007. Integrated decision

support systems: A data warehousing perspective.

Decision Support Systems, 43(3):1031-1043.

Vassiliadis, P., Simitsis, A,. and Skiadopoulos, S., 2002.

Conceptual Modeling for ETL Process, ACM Fifth

International Workshop on Data Warehousing and

OLAP 2002.

ICSOFT 2010 - 5th International Conference on Software and Data Technologies

186
