AUTOMATING AUTHORIZATION PROPAGATION PROCESS

IN PERSONAL HEALTH RECORDS

Vassiliki Koufi, Flora Malamateniou and George Vassilacopoulos

Department of Digital Systems, University of Piraeus, 80, Karaoli & Dimitriou Str., Piraeus 18534, Greece

Keywords: Personal health records, Information availability, Access control, Emergency, Authorization propagation.

Abstract: Traditionally patient records are generated, maintained and controlled by the individual health care

providers where the patient has received care. This results in fragmented bits of data stored in diverse

information systems which, in many cases, are not interoperable. Hence, a complete picture of a person’s

healthcare record cannot be obtained when and where needed. A solution to this problem can be provided

by personal health records (PHR), that is electronic health records (EHR) whose architectures are based on

the fundamental assumptions that the complete records are centrally stored and that each patient retains

authority over access to any portion of his/her record. This paper deals with a particular security issue

arising in PHRs which is concerned with the process of granting (revoking) authorization to (from)

healthcare professionals without the patient’s involvement. This security issue is particularly important in

managing emergency cases. To deal with this problem, authorization propagation process is automated by

means of context-aware technology, which is used to regulate user access to data via a fine-grained access

control mechanism.

1 INTRODUCTION

Throughout their lives individuals receive care in

different parts of the health care system. This results

in patient health data being scattered around

disparate and geographically dispersed information

systems hosted by different healthcare providers

(Koufi and Vassilacopoulos, 2008;Tang, Ash, Bates,

Overhage and Sands, 2006). The lack of

interoperability among these systems impedes

optimal care as it leads to unavailability of important

information regarding patient health status when this

is mostly needed (e.g. in case of an emergency).

Recently there has been a remarkable upsurge in

activity surrounding the adoption of Personal Health

Record (PHR) systems for patients (Tang, Ash,

Bates, Overhage and Sands, 2006). A PHR is a

consumer-centric approach to making

comprehensive electronic medical records (EHRs)

available at any point of care while fully protecting

patient privacy (Lauer, 2009). Unlike traditional

EHRs which are based on the 'fetch and show'

model, PHRs’ architectures are based on the

fundamental assumptions that the complete records

are held on a central repository and that each patient

retains authority over access to any portion of

his/her record (Lauer, 2009; Wiljer, Urowitz, Apatu,

DeLenardo, Eysenbach, Harth, Pai, Leonard, 2008).

Thus an entire class of interoperability is eliminated

since the system of storing and retrieving essential

patient data is no longer fragmented. Hence, quality

and safety of patient care is enhanced by providing

patients and health professionals with relevant and

timely information while ensuring protection and

confidentiality of personal data.

Providing patients with access to their electronic

health records offers great promise to improve

patient health and satisfaction with their care, as well

as to improve professional and organizational

approaches to health care (Wiljer, Urowitz, Apatu,

DeLenardo, Eysenbach, Harth, Pai and Leonard,

2008). Although many benefits have been identified,

there are many questions about best practices for the

implementation of PHR systems (Wiljer, Urowitz,

Apatu, DeLenardo, Eysenbach, Harth, Pai and

Leonard, 2008). A number of these questions are

related to security issues arising in PHR systems.

As any other EHR system, PHR systems require

stringent privacy protections to prevent unauthorized

access or use (Yasnoff, 2008; Comini, Mazzu and

Scalvini, 2008; Win, Susilo and Mu, 2006). Most

PHR platforms currently deployed (e.g. Microsoft

Kouﬁ V., Malamateniou F. and Vassilacopoulos G. (2010).

AUTOMATING AUTHORIZATION PROPAGATION PROCESS IN PERSONAL HEALTH RECORDS.

In Proceedings of the Third International Conference on Health Informatics, pages 82-89

DOI: 10.5220/0002747200820089

 SciTePress

HealthVault, ICW LifeSensor) meet these

requirements by assigning the patient with the

responsibility of granting access to information

comprising his/her health record while access to

important information (e.g. blood type, allergies etc)

is provided to medical staff in case of an emergency

by means of an emergency data set. Although this

information is valuable while providing first aid to

the patient, a more comprehensive view of the

his/her health data is required by the medical staff

upon arrival to the emergency department of a

hospital.

This paper deals with the particular security

issue arising in PHR systems which is concerned

with the process of granting (revoking) authorization

to (from) healthcare professionals without the

patient’s involvement. This security issue is

particularly important in managing emergency cases.

To deal with this problem, authorization propagation

process is automated by means of context-aware

technology, which is used to regulate user access to

data via a fine-grained access control mechanism.

The latter is a role-based, context-aware access

control mechanism that incorporates the advantages

of broad, role-based permission assignment and

administration across object types, as in role-based

access control (RBAC) (National Institute of

Standards and Technology, 2009), and yet provides

the flexibility for automatically adjusting access

permissions on a patient’s PHR on the occurrence of

unpredictable events (e.g. emergency case).

2 RELATED WORK

During the last few years, there has been a growing

interest in the utilization of PHR systems as both

patients and healthcare organizations realized that

their use may entail a number of benefits, such as

better access to information, increased patient

satisfaction and continuity of care (Tang, Ash,

Bates, Overhage and Sands, 2006; Wiljer, Urowitz,

Apatu, DeLenardo, Eysenbach, Harth, Pai, Leonard,

2008). However, certain barriers to the integration of

PHR systems to the clinical practice have been

identified, most of them related to security issues

(Tang, Ash, Bates, Overhage and Sands, 2006;

Wiljer, Urowitz, Apatu, DeLenardo, Eysenbach,

Harth, Pai, Leonard, 2008). In recognition of these

barriers, a number of mechanisms have been

developed in an attempt to address several issues

mostly regarding access control over the health data

comprising a PHR (Røstad and Nytrø, 2008; Win,

Susilo and Mu, 2006; Comini, Mazzu and Scalvini,

2008.). Some of them are concerned with the

provision of access to important healthcare

information in case of an emergency.

In Case of Emergency Personal Health Record

(icePHR) (Metavante, 2009) and My Personal

Health Record (myPHR) (My Personal Health

Record, 2009) are applications which, among others,

ensure that life saving information is available when

most needed (i.e. in case of an emergency). To this

end, they provide patients with the ability to upload

important health information and then print their

own emergency card with information on how to

access their own unique, secure web page with this

emergency information. However, they don’t

provide mechanisms for ensuring instant availability

of a complete copy of a patient’s record to the

medical staff treating him/her without the patient’s

involvement.

The system architecture proposed in this paper

utilizes agent technology in an attempt to automate

authorization propagation process in cases that a

patient in incapable of being involved in this

process. To this end, a context-aware access control

mechanism has been developed which is triggered

when appropriate in order to derive and grant the set

of authorizations needed for the treatment of a

patient.

3 MOTIVATING SCENARIO

The basic motivation for this research stems from

our involvement in a recent project concerned with

designing and implementing a PHR system for the

provision of data access at any point of care while

fully protecting privacy. This involves providing

access to the appropriate people, based on patient

wishes, but also granting access to the patient’s data

in cases where his/her involvement in the

authorization propagation process is not feasible.

The stringent security needs of the system, where

sensitive patient information is used, motivated this

work and provided some of the background

supportive information for developing the prototype

presented in this paper.

Suppose a healthcare delivery situation that takes

place within a health district where an individual is

transferred to a hospital’s emergency department

(ED). Upon arrival to the ED, the individual is

registered as an emergency patient and undergoes a

brief triage in order for the nature and severity of

his/her illness to be determined. If his/her illness or

injury is considered to be serious he/she is seen by a

physician more rapidly than the patients with less

AUTOMATING AUTHORIZATION PROPAGATION PROCESS IN PERSONAL HEALTH RECORDS

severe symptoms or injuries. After initial assessment

and treatment, the patients is either admitted to the

hospital (e.g. to a clinical department or the

Intensive Care Unit - ICU), stabilized and

transferred to another hospital for various reasons, or

discharged (Wikipedia, 2009).

Typically, a health district consists of one district

general hospital (DGH) and a number of peripheral

hospitals and health centers.

As many emergency department visits are

unplanned and urgent, there is a need to ensure that

information regarding the longitudinal patient health

condition (e.g., problems, allergies, medications,

diagnoses, recent procedures, recent laboratory tests)

is conveyed to ED physicians automatically upon

registration of a patient to an ED. Thus,

inefficiencies in care, in the form of redundant



Figure 1: Patient Flow.

testing, care delays, and less-effective treatments

prescribed are eliminated and quality of care is

enhanced.

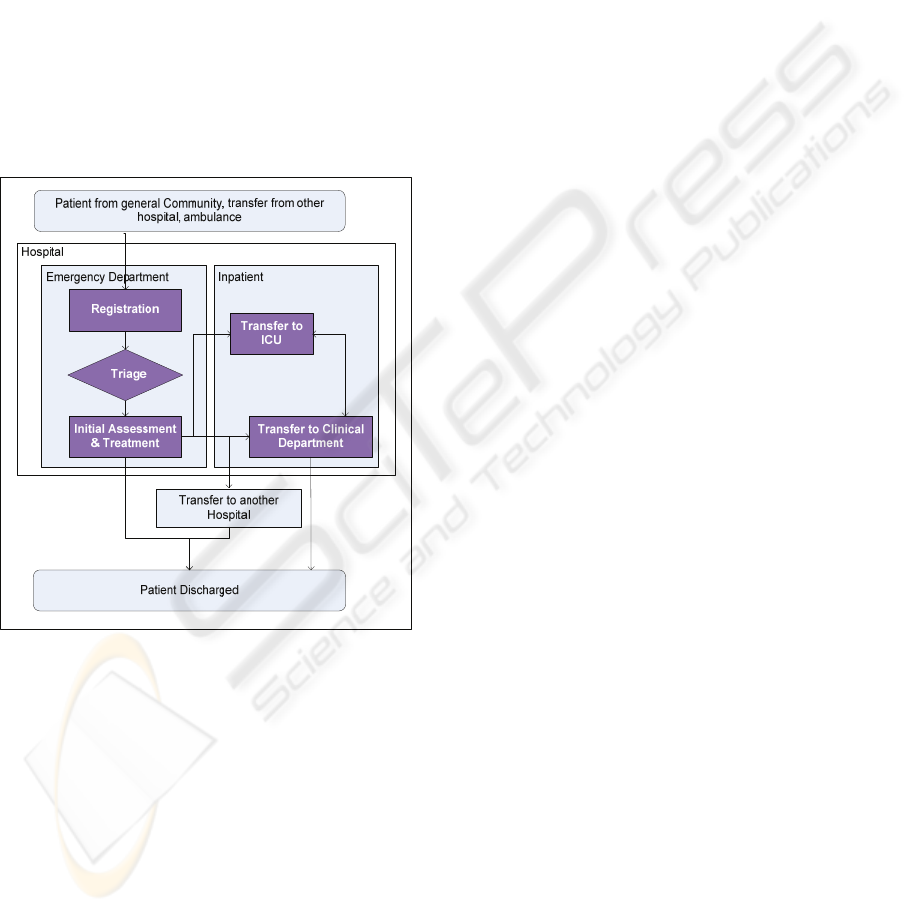

Figure 1 shows an indicative high-level view of

the patient flow from the time he arrives at a

hospital’s emergency department to the time he is

discharged. Some of the roles participating in the

patient’s treatment are physician, nurse, physician

assistant (PA), nurse practitioner with specialized

training in emergency medicine and in house

Paramedics and other support staff.

From an authorization perspective, the following

two requirements are of interest here.

 Data access - A role holder should be allowed to

exercise a dynamically determined set of

permissions on certain data objects only. For

example, a patient’s personal physician, if

authorized by the patient himself, is allowed to

read certain parts of his/her medical record and to

update it.

 Permission propagation - Some role holders

should receive additional permissions on certain

data objects in order to effectively treat the patient

but these permissions should be revoked upon

patient discharge. For example, for forming an

appropriate plan of care, an ED physician should

receive the permission to read the complete record

of a patient but he/she should not be allowed to

retain this permission after the patient has been

discharged.

The above requirements suggest that certain data

access permissions of the medical staff participating

in a patient’s treatment may change without the

patient’s intervention depending on the context (e.g.

in the case that an individual is registered as an

emergency patient). Moreover, contextual

information, such as time and location of attempted

access, can influence authorization decisions on

certain data objects comprising a patient’s PHR.

This enables a more flexible and precise access

control policy specification that satisfies the least

privilege principle by incorporating the advantages

of having broad, role-based permissions across data

object types, like RBAC, yet enhanced with the

ability to simultaneously support the following

features: (a) predicate-based access control, limiting

user access to specific data objects, and (b) a

permission propagation function to specific role

holders in certain circumstances.

4 SYSTEM ARCHITECTURE

The prototype system described here facilitates

access to comprehensive patient information which

is stored in a central repository. In this environment,

a robust security framework is in place in order to

ensure that health information follow patients

throughout their care in a secure manner and that

comprehensive information is made available to

appropriate people when this is mostly needed (e.g.

in case of an emergency) without the patient’s

involvement. Figure 2 shows a high-level system

architecture, which is described by a three-tier

model, comprising of the terminal station used by

the medical staff at the department where the patient

is being treated (e.g. ED, ICU etc), the PHR

HEALTHINF 2010 - International Conference on Health Informatics



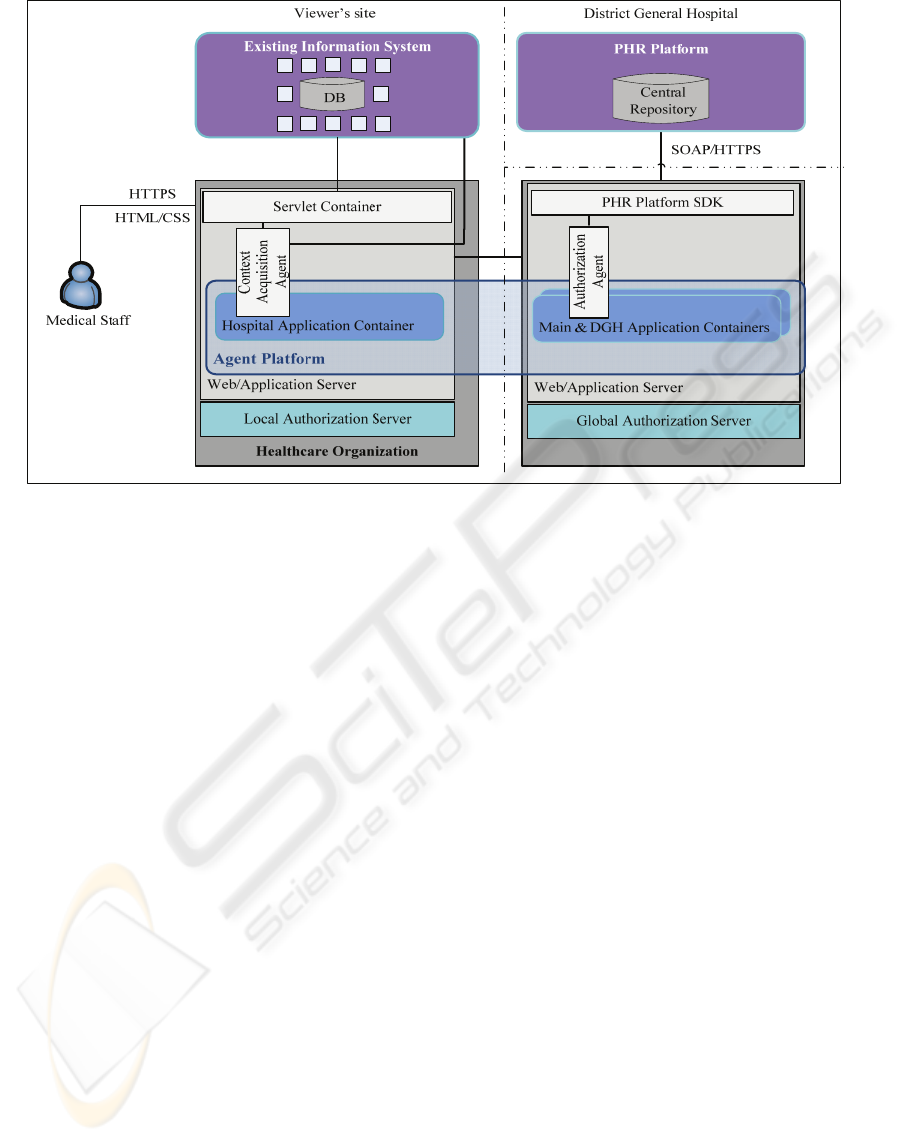

Figure 2: System Architecture.

platform and the application accessing the PHR

platform.

The first tier is the terminal station used by the

medical staff treating the patient (e.g. physician,

nurse etc.). The terminal contains an HTTP(S)-based

client, which is the terminal’s web browser and

provides user interaction with the system.

The second tier of the system architecture is the

platform used for the implementation of the PHR

system. This supports both patients in actively

managing their own health and the medical staff

(e.g. physicians) by ensuring the quick and secure

availability of a patient’s health data such as

diagnosis, therapy and prescription data. In such a

PHR system access authorization is exclusively

granted by the owner (patient) of the record or by a

“gatekeeper” he/she assigns (e.g. a relative) (ICW

eHealth Framework, 2009). Different read and write

permissions can be granted to and be withdrawn

from the various users at any time through a terminal

station.

The third tier is the application which is

distributed among several hosts residing at the DGH

and the other healthcare institutions. The

infrastructure of this tier consists of the following

components:

 PHR Platform SDK: It is used for the simple

integration of our application into the PHR

infrastructure. It provides an Application

Programming Interface (API) which can be

accessed from JSP/Servlet pages.

 Agent Platform: It is the software used for the

implementation of the agents which realize the

automation of the authorization propagation

process in order to support healthcare

professionals and frontline staff at the point of

care by ensuring instant availability of the

complete copy of a patient’s medical record.

 Servlet Container: It provides a servlet

container that hosts and manages the servlets

delivering the system functionality. Essentially

these servlets provide a web-based front end to

the PHR system.

 Web/Application Server: It provides the hosting

environment to the aforementioned components.

All web transactions are executed under the

Secure Socket Layer (SSL) via HTTPS. In addition,

security in communication among the agents of the

agent platform is ensured by setting up a secure,

confidential and mutually authenticated, connection

amongst containers of the agent platform by

leveraging TLS/SSL support provided by Java (Java

Agent Development Framework, 2008).

5 SECURITY ARCHITECTURE

The movement towards PHR systems has created

new challenges for the sharing of health information

in a private and secure manner. In particular, when

situations occur where access to medical

AUTOMATING AUTHORIZATION PROPAGATION PROCESS IN PERSONAL HEALTH RECORDS



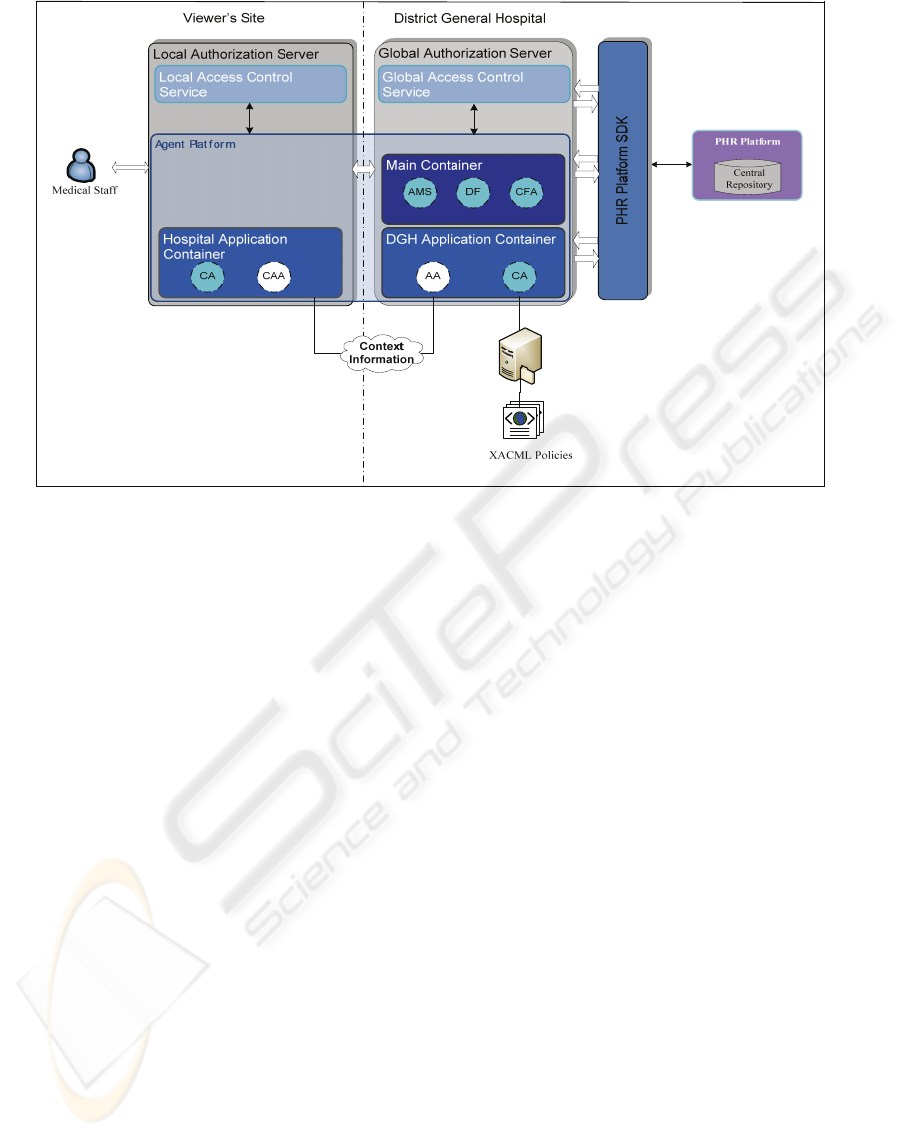

Figure 3: Security Architecture.

information is required but patients cannot grant

permissions to the medical staff needing the

information for treating them, effort should be put in

the development and enforcement of a mechanism

that automates the authorization propagation process

while ensuring privacy and security against

unauthorized access to the data.

The number, type and sophistication of tools that

protect information in PHR environments are

growing at an ever-increasing rate and provide the

opportunity to offer health privacy protections

beyond those in the paper environment. In many

cases, the utilization of role-based access controls is

considered as an effective means of limiting access

to a patient’s information to only those individuals

who need it for the patient’s treatment.

In our prototype system, a dynamic access

control mechanism is incorporated which is based on

the role-based access control (RBAC) paradigm and

is context-aware. As illustrated in Figure 3, this is

described by a two-tier model consisted of a global

access control service, residing on a server at the

DGH site, and one local access control service,

residing at the viewer’s site (i.e. any healthcare

organization within the health district). Both services

have been implemented using the Java

Authentication and Authorization Service (JAAS)

(Java Authentication and Authorization Service,

2008) and use a number of agents for context

management.

The access control mechanism developed is

middleware-based and its role is twofold. In

particular, it is employed to:

- Grant/revoke authorizations of given subjects to

(from) given objects by taking into account the

current context (e.g. upon registration of an

individual as an emergency patient). In order

for these authorizations to be determined a set

of access control policies are used by means of

which role-to-permission assignments are

specified.

- Mediate between subjects (healthcare

professionals) and objects (data objects) and

decide whether access of a given subject to a

given object should be permitted or denied

according to the context holding at the time of

the attempted access (e.g. when the physician

of the ED requests access to a patient’s PHR).

In our prototype, users authenticate themselves

by using X.509 certificates.

5.1 Access Control Policies

In our prototype system, the mapping of roles to the

relevant permissions is performed by means of

access control policies expressed by using the Core

and Hierarchical RBAC profile of eXtensible Access

Control Markup Language (XACML) (Organization

for the Advancement of Structured Information

Standards, 2008). These policies are expressed in the

HEALTHINF 2010 - International Conference on Health Informatics

Figure 5: Sample Access Control Policy for Physician.

form of roles, role hierarchies, privileges and

constraints.

Due to the strict security requirements on

medical data comprising a PHR, the specification of

access control policies not for the entire record but

for its components (i.e. data objects) is of utmost

importance. Since the record is organized as a

hierarchy, when specifying policies on it the

hierarchical resource profile of XACML

(Organization for the Advancement of Structured

Information Standards, 2008) can be used for the

representation of these components. This profile

specifies how XACML provides access control for

resources that are organized as a hierarchy, such as

file systems, XML documents and databases.

According to this profile, non-XML data can be

represented by a URI of the following form:

where:

 <scheme> identifies the namespace of the URI

and can be either a protocol (e.g. “ftp”, “http”,

“https”) or a file system resource declared as

“file”.

 <authority> is typically defined by an Internet-

based server or a scheme-specific registry of

naming authorities, such as DNS, and

 <pathname> is of the form <root name>{/<node

name>}. The sequence of <root name> and

<node name> values should correspond to the

components in a hierarchical resource.



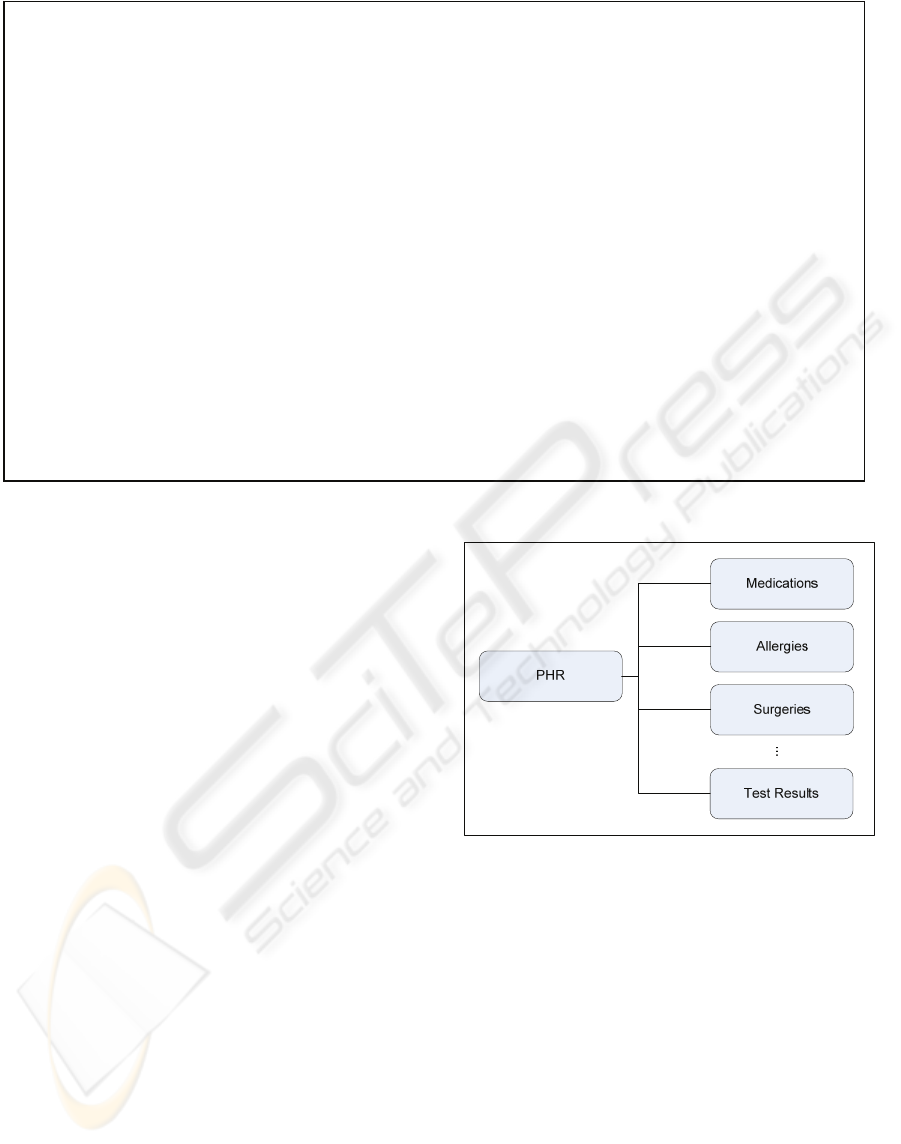

Figure 4: PHR Data Model.

Suppose that the data structure of a PHR is the

one illustrated in Figure 4. Then the data object

“Allergies” would be represented as follows:

“https://localhost:8443/PHR/Allergies”

The policies related to the permissions on data

objects a healthcare professional should acquire

while treating patient reside on a server at the DGH

site. An excerpt of an access control policy for role

“physician” is shown in Figure 5. This is a relatively

simple policy that states that an ED physician is

authorized to access the complete medical record of

each patient he treats. This is specified within the tag

<Resource> by means of the predicate “all” while

the predicate “all” within the tag <Action> means

that the physician has all kinds of permissions on the

<AttributeValue DataType="&xml;string">all

</AttributeValue>

...

</ResourceMatch>

</Resource>

...

...

</ActionMatch>

</Action>

<EnvironmentAttributeDesignator AttributeId="urn:oasis:names:tc:xacml:2.0:environment:terminal"

DataType="&xml;string"/>

<AttributeValue DataType="&xml;string">inPremises</AttributeValue>

</Apply>

Condition>

AUTOMATING AUTHORIZATION PROPAGATION PROCESS IN PERSONAL HEALTH RECORDS

patient’s medical record. Permissions on data

objects are dynamically adapted by the constraints

imposed by the current context. These are declared

within the tag <Condition> and for the role

“physician” is whether he/she is requesting patient

information using a terminal within the hospital

premises.

5.2 Context Information Management

In our prototype system, the management of context

information influencing authorization decisions is

performed by a Context Manager. Both the context

information model and the Context Manager are

described below.

5.2.1 Context Information Model

In our prototype system, the contextual information

influencing authorization decisions is determined by

a pre-defined set of attributes related to:

 the user (e.g. user certificate, user/patient

relationship) and

 the environment (e.g. client location and time of

attempted access)

 the healthcare provider (e.g. physicians on duty)

For example, the permissions of an ED physician

accessing the system via a terminal, are adapted

depending on his/her identity (included in his

electronic Health Card) as well as the location of the

terminal and time of attempted access.

5.2.2 Context Manager

Context information is collected by a Context

Manager which has been implemented as a multi-

agent system. Thus, the Context Manager consists of

two kinds of agents, developed in JADE (Java Agent

Development Framework, 2008):

 Context Acquisition Agent (CAA): It is hosted

on a server at the site of the healthcare

organization where the ED belongs and is

responsible for the acquisition of the contextual

information required for granting authorizations

and taking authorization decisions regarding

access on the data objects comprising a patient’s

PHR.

 Authorization Agent (AA): It is hosted on a

server at the DGH and is responsible for

automatically granting (revoking) authorization

to (from) healthcare professionals without the

patient’s involvement. Moreover, it is

responsible for managing access to patients’

PHRs.

6 IMPLEMENTATION ISSUES

To illustrate the functionality of the proposed

architecture, a prototype system has been developed

which is based on the case scenario of Section 3.

The prototype implementation of the proposed

system and the security services incorporated in it

has been developed in a laboratory environment. In

our implementation Apache/Tomcat is used as

Web/Application Server while agents are developed

using JADE (Java Agent Development Framework,

2008). The databases used by the existing

information systems are developed using MySQL.

The PHR system is implemented using the ICW

Lifesensor Personal Health Record which can store

the owner’s complete medical information in one

convenient and secure location (ICW eHealth

Framework, 2009). The patient as owner of the

record authorizes health team members or care

providers to access their record and assigns specific

read and write privileges (ICW eHealth Framework,

2009). ICW Java SDK is used for the integration of

Lifesensor PHR to our application.

Upon arrival to the ED of a hospital, an

individual is registered as an emergency patient and

the authorization propagation process is triggered in

order for the required authorizations to be

determined and granted to the medical staff treating

him. To this end, the local access control service is

invoked which, in conjunction with the local

Context Acquisition Agent (CAA), is accessing the

local database(s) in order to retrieve the list of the

medical staff being on duty at the time. The pieces

of information retrieved include starting and ending

time of each person’s shift. As soon as the

information is retrieved, it is communicated to the

global access control service which, in conjunction

with the Authorization Agent (AA), is determining

the corresponding access rights for each person on

the list according to a number of XACML policies.

The latter are already defined and stored on a server

at the DGH site. Finally, the deducted authorizations

for each member of the medical staff are granted to

him/her by means of the ICW SDK’s

HealthRecordManager which essentially represents

the access to a given personal health record.

After the authorizations have been granted, the

nurses and physicians of the ED authenticate

themselves in order to gain access to this patient’s

full medical record by using their credentials (X.509

certificate stored in his electronic Health Card -

eHC). Each access request is handled by the

corresponding local access control service which is

using CAA to acquire the context holding at the time

HEALTHINF 2010 - International Conference on Health Informatics

of the attempted access and forwards the request to

the global access control service which in

cooperation with the AA decides whether access

should be granted or denied to the requesting party.

If the requesting party has the required privileges a

connection to the corresponding PHR is established

and the corresponding part of the patient’s record is

provided to him/her.

After reviewing the patient’s medical record, the

ED physician forms the appropriate care plan for the

patient under treatment.

7 CONCLUDING REMARKS

Personal health records can address healthcare

information needs as they can provide each person

with a complete copy of his medical record. Thus,

PHRs constitute a valuable tool for supporting the

continuity of care and consequently the quality,

access and efficiency of health care delivery. As

PHR systems grow in popularity, it is important that

they be managed and maintained responsibly

without hindering accessibility to important

information in cases that it is mostly needed (e.g.

emergency cases). Hence, apart from the security

and privacy controls which are common to any

electronic health record system, in PHR systems a

suitable mechanism should be in place that will

automate the authorization propagation process

without the patients’ involvement. The prototype

system presented in this paper deals with this

security issue. In particular, a mechanism is

presented whereby the process of granting

(revoking) authorization to (from) healthcare

professionals on patients’ PHR is performed without

the patient’s involvement. To this end, context-

aware technology is used. Thus, both clinical and

administrative patient data are becoming

immediately available to people who need it via

accessible, secure and highly usable PHRs, fact that

constitutes an enabling factor of the patient-centred

shared care.

A number of issues related to the implementation

of systems like the one proposed in this paper

suggest directions for future work. The most

important concern the means used for patient

authentication as well as the way medical staff is

granted access to medical data in cases where patient

registration is performed after the patient has

received treatment, as is often the case in EDs.

REFERENCES

Koufi, V., Vassilacopoulos, G., 2008. HDGPortal: A Grid

Portal Application for Pervasive Access to Process-

Based Healthcare Systems, In PervasiveHealth’08,

2nd International Conference in Pervasive Computing

Technologies in Healthcare

Tang, P. C., Ash, J. S., Bates, D. W., Overhage, J. M.,

Sands, D. Z., 2006. Personal health records:

definitions, benefits, and strategies for overcoming

barriers to adoption. Journal of the American Medical

Informatics Association : JAMIA (2006) 13(2): 121-

126.

Wiljer, D., Urowitz, S., Apatu, E., DeLenardo, C.,

Eysenbach, G., Harth, T., Pai, H., Leonard, K. J.,

2008. Patient accessible electronic health records:

exploring recommendations for successful

implementation strategies. Journal of medical Internet

research, 10(4).

Lauer, G., 2009 Health Record Banks Gaining Traction in

Regional Projects,

http://www.ihealthbeat.org/features/2009/health-

record-banks-gaining-traction-in-regional-

projects.aspx

Yasnoff, W. A., 2008. Electronic Records are Key to

Health-care Reform, BusinessWeek.

Win, K. T., Susilo, W., Mu, Y., 2006. Personal Health

Record Systems and Their Security Protection, Journal

of Medical Systems (2006) 30: 309-315.

Comini, L., Mazzu, M., Scalvini, S., 2008. Security

aspects in electronic personal health record: data

access and preservation, Digital Prevention Europe,

Briefing Paper.

Røstad, L., Nytrø, Ø, 2008. Personalized Access Control

for a Personally Controlled Health Record, In

CSAW’08, 2nd ACM Workshop on Computer

Security Architectures

My Personal Health Record (MyPHR), http://myphr.ca/

National Institute of Standards and Technology (NIST),

2009. Role Based Access Control (RBAC) and Role

Based Security, http://csrc.nist.gov/groups/SNS/rbac/

Java Agent Development Framework,

http://jade.tilab.com/

Organization for the Advancement of Structured

Information Standards (OASIS), 2008. Core and

Hierarchical Role Based Access Control (RBAC)

Profile of XACML v2.0, http://docs.oasis-

open.org/xacml/2.0/access_control-xacml-2.0-rbac-

profile1-spec-os.pdf

Java Authentication and Authorization Service,

http://java.sun.com/javase/6/docs/technotes/guides/sec

urity/jaas/JAASRefGuide.html

ICW eHealth Framework, Lifesensor, 2009. http://idn.icw-

global.com/solutions/lifesensor/lifesensor.html

Wikipedia, 2009. Emergency Department,

http://en.wikipedia.org/wiki/Emergency_department

Metavante, In Case of Emergency Personal Health

Record, https://www.icephr.com/

AUTOMATING AUTHORIZATION PROPAGATION PROCESS IN PERSONAL HEALTH RECORDS
