Service Composition Based on Functional and

Non-Functional Descriptions in SCA

Djamel Bela¨ıd, Hamid Mukhtar and Alain Ozanne

Institute TELECOM, TELECOM & Management SudParis

9, rue Charles Fourier, 91011 Evry Cedex, France

Abstract. Service Oriented Computing (SOC) has gained maturity and there

have been various speciﬁcations and frameworks for realization of SOC. One

such speciﬁcation is the Service Component Architecture (SCA), which deﬁnes

applications as assembly of heterogeneous components. However, such assembly

is deﬁned once and remains static for ﬁxed components throughout the applica-

tion life-cycle.

To address this problem, we propose an approach for dynamic selection of com-

ponents inSCA, based on functional semantic matching and non-functional strate-

gic matching using policy descriptions in SCA. The architecture of our initial

system is also discussed.

1 Introduction

In order to provide their services to a large variety of clients, enterprises often manage

various contracts with other service providers. One problem faced by such enterprises is

the emergence of new competing service providers, with better, cost-effective solutions.

Thus, it would be natural that enterprises change partnerships in pursuit of better ones.

However, in reality, it is much more different than that.

When inter-enterprise applications are developed on top of the existing Informa-

tion System, they are created for particular service providers. This results in two major

problems. First, if a change of any of the service provider is required, a whole new

application needs to developed. Second, if only a part of the functionality of the ap-

plication is required to be reused, again a new application needs to be deployed. Such

problems arise due to the fact that most of the time, the description of service provider

is hard-coded in the application logic instead of the service description itself. Thus,

we can rightly call such applications as service-provider-dependentrather than service-

dependent.

To overcome such difﬁculties, Service-Oriented Computing (SOC) has emerged re-

cently. SOC is the computing paradigm that utilizes services as fundamental elements

for developing applications/solutions. Services are self-describing, platform-agnostic

computational elements that support rapid, low-cost composition of distributed appli-

cations [8]. Service providers procure the service implementations and descriptions,

and provide related technical and business support.

However, even after arrival of SOC based approaches, the aforementioned problems

have not been solved completely. The applications have started to become modularized

Belaïd D., Mukhtar H. and Ozanne A. (2009).

Service Composition Based on Functional and Non-Functional Descriptions in SCA.

In Proceedings of the Joint Workshop on Advanced Technologies and Techniques for Enterprise Information Systems, pages 52-61

DOI: 10.5220/0002201900520061

 SciTePress

in terms of services, but the deﬁnition of services is still dependent on their imple-

mentation. One particular approach for realizing SOC based applications, the Service

Component Architecture (SCA) avoids such obstacle by separating the service deﬁni-

tion from its implementation. However, as we will explore in this paper, SCA is also

limited by the fact that applications deﬁned using SCA are static. Once deﬁned, services

and their implementation remain intact afterwards. But in an ideal situation, should a

service provider changes, the new implementation is to be reused with minimum of

effort.

1.1 A Motivating Example

Consider a ﬁctitious travel agency based in Paris. The agency provides services such

as ﬂight, hotel and car booking as well as arranging for excursions in a speciﬁc des-

tination city. To offer its services, the agency relies on a number of other specialized

service providers in France. In order to keep up with so many service providers, the IT

personnel at the agency have set up an application that combines the various services

from different service providers but that hides this complexity to the travel agent using

the software. The selection of a service provider for a particular service, according to

criteria such as availability etc, is managed automatically by the application.

Now assume that our agency wants to open a new branch in Madrid. In order to

provide their services for various destinations in Spain, the travel agency settles up new

agreements with local service providers, which are registered into the system. However,

for certain destinations no service provider offers excursion activities. Thanks to the

development approach used by IT personnel of the agency, if the application ﬁnds that

a service provider is unreachable, it tries to ﬁnd an alternative service provider. If it

does not ﬁnd any service provider for some service, it continues offering the rest of the

services.

As the reader can observe, the above example requires several points: ﬁrst, the ap-

plication, whose composition deﬁned in terms of services, should be deployable at dif-

ferent locations with different service providers. Second, an application designer should

be able to make its application work in a kind of degraded mode if some of the service

providers required for its full fonctionalities can not be found. Both of these points form

the basis of our approach for service composition used in this paper.

The rest of this paper has been organized as follwing. In Sect. 2 we describe the

Service Component Architecture (SCA) upon which we build the rest of the paper.

Sect. 3 discusses the notion of abstract and concrete composition and how it can be

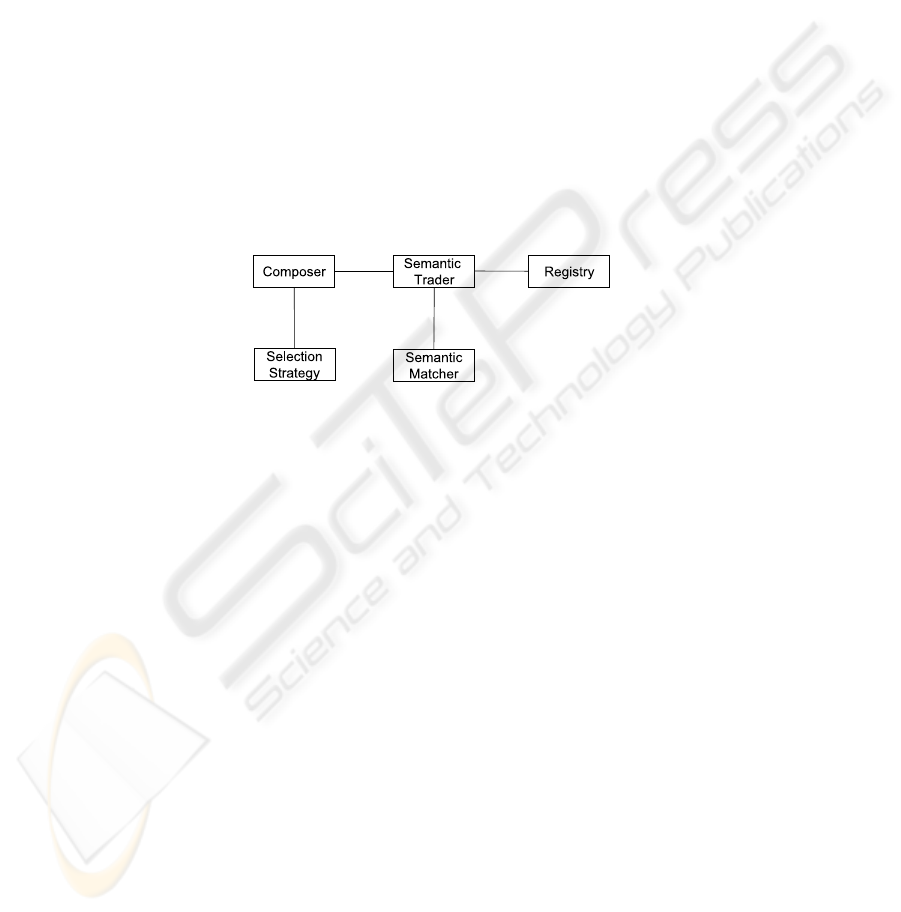

applied to SCA. Sect. 4 describes the architecture of our system. Sect. 5 provides and

overview of related work and Sect. 6 concludes this paper.

2 Service Component Architecture

Service Component Architecture (SCA) [7] provides a programming model for build-

ing applications and systems basedon a Service Oriented Architecture (SOA). The main

idea behind SCA is to be able to build distributed applications, which are independent

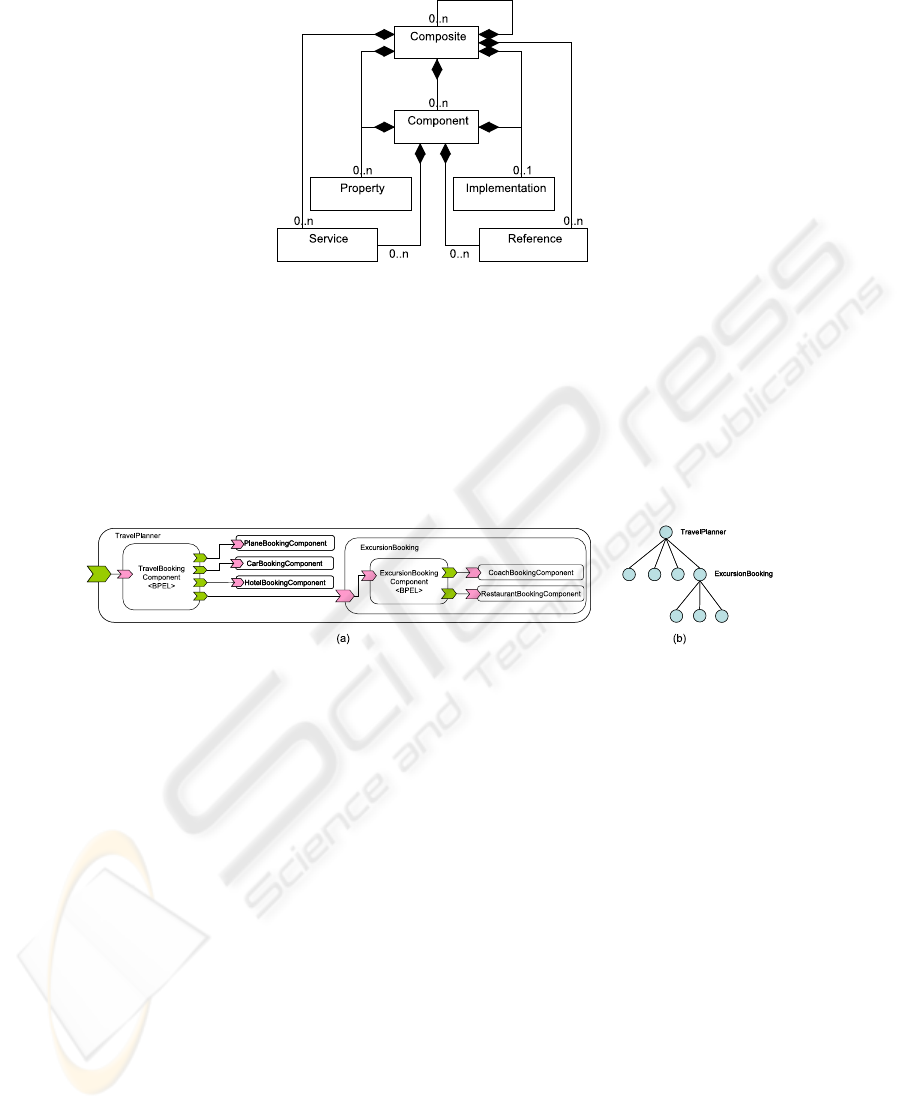

Fig.1. A basic view of SCA meta model.

of implementation technology and protocol. SCA extends and complements prior ap-

proaches to implementing services, and builds on open standards such as Web services.

The basic unit of deployment of an SCA application is composite. A composite is an

assembly of heterogeneous components, which implement particular business function-

ality. These components offer their functionalities through service-oriented interfaces

and may require functions offered by other components, also through service-oriented

interfaces.

Fig.2. The TravelPlannerapplication (a) SCA representation (b) representation as composite tree.

SCA components can be implemented in Java, C++, COBOL, Web Services or as

BPEL processes. Independent of whatever technology is used, every component relies

on a common set of abstractions including services, references, properties, and bind-

ings. A service describes what a component provides, i.e. its external interface. A ref-

erence speciﬁes what a component needs from the other components or applications of

the outside world. Services and references are matched and connected using wires or

bindings. A component also deﬁnes one or more properties, potentially holding its con-

ﬁguration. Fig. 1 shows the various SCA elements and their relationships in the SCA

meta-model. As shown, the SCA deﬁnition of a composite is recursive, i.e., a composite

can contain another composite and so on.

SCA allows dependency injection by relieving the developer from writing the code

to ﬁnd the required references and do the appropriate binding [3]. The bindings are

taken care of by the SCA runtime and can be speciﬁed at the time of deployment. The

bindings specify how services and references communicate with each other. Each bind-

ing, separating how a component communicates from what it does, lets the components

business logic be largely divorced from the details of communication.

Since SCA already has the notion of services and components and since it allows

dynamic binding of services to components, it is an ideal candidate for realization of

our proposed approach and, hence, in the rest of the paper we will explain our approach

using the SCA artifacts.

2.1 SCA Example Application

First, we show how we can represent our example application in SCA. This has been

done in ﬁg. 2(a). The application is described in the composite named TravelPlanner,

which offers a single service to the user that is provided by the TravelBooking com-

ponent. However, the TravelBooking component itself uses services provided by other

components namely PlaneBookingCompnent, CarBookingComponent and Hotel-

BookingComponent as well service provided by the ExcusionBooking composite.

Finally, the ExcursionBooking composite is also composed of one component namely

ExcursionBookingComponent. Note how the services provided by one component

are used as references by another component. For example, the ExcursionBooking-

Component references are connected to the services provided by the CoachBooking-

Component and the RestaurantBookingComponent components.

The TravelPlanner application describes all the services required by the travel

agent for a successful trip planning of a client. As mentioned previously,the selection of

components implementing these services is made dynamically based on the availability

of service provider. However, since the procedure for booking a travel or an excursion

is known, such a procedure is already provided in the description of the TravelPlanner

composite. Let us assume that this process has been described in BPEL. Our goal is,

thus, to ﬁnd the components that match the references required by the TravelBooking-

Component and ExcursionBookingComponent.

3 Abstract and Concrete Composition

We say that a composition is abstract when its description lacks some of the informa-

tion that deﬁnes the composition implementation. Such a composition describes the

services participating in the composition, but does not tell about how the services are

implemented.

When this concept is applied to SCA, we say that an application described in SCA

is abstract if its description does not contain complete implementation deﬁnition. How-

ever, since an SCA composite is deﬁned recursively, we need to distinguish between

various levels of abstraction depending on whether all or part of a composite is abstract.

This notion can be better explained by using the composition trees.

3.1 SCA Applications as Composition Trees

The implementation of an SCA composite may be provided by one or more compo-

nents. However, these components may themselves be deﬁned in terms of other com-

ponents and so on. This property can be explained easily by a tree structure, where the

We assume the availability of the technical resources required for instantiating and running

such a composition, and hence do not treat such aspects.

root is the application itself (i.e., the outermost composite) and its children represent

the composites and components enclosed by it. With this tree structure, we observe that

the inner nodes of the tree represent the composites and the leaves represent the com-

ponents. The components, i.e., the leaves of the tree may be found at any level below

the root depending on the application composition structure.

Figure 2(b) shows the tree representationof the example SCA application of ﬁg. 2(a).

Note that while a composite knows about its contents enclosed by it, it does not have

any information about the contents of the composites enclosed by it. For example, in

ﬁg. 2(b), the root node (at level 0) knows if its children (at level 1) have known imple-

mentations or not, but it does not have this information about the nodes at level 2. To

know them, we need to query the composite at level 1.

Bearing such a tree structure in mind, we distinguish between various levels of

abstraction for an SCA application:

1) If any of the subcomponents of a composite have no deﬁned implementation, then

the composite is shallow abstract, e.g., the composite ExcursionBooking at level

1 of the tree in ﬁg. 2(b) is shallow abstract.

2) By recursive deﬁnition, if any of the composite enclosed by the root composite

is shallow abstract, the composite is called deep abstract. For example, the Trav-

elPlanner composite is deep abstract because it encloses the ExcursionBooking

composite, which is shallow abstract.

3) If all the subcomponents of a composite have known implementations, then the

composite is shallow concrete.

4) By recursive deﬁnition, if any of the composites enclosed by the root composite is

shallow concrete, the root composite is deep concrete.

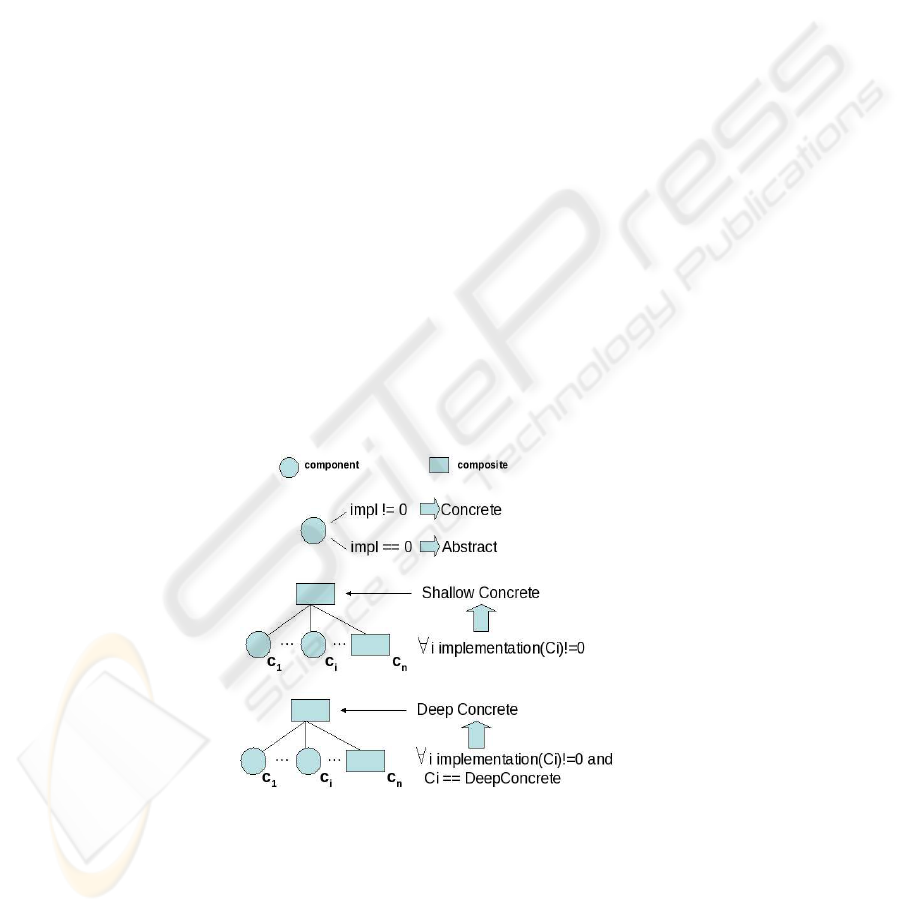

Figure 3 shows these various levels of abstraction diagrammatically.

Fig.3. The different levels of abstraction for SCA applications.

Our aim is to build a concrete composition tree, which is semantically equivalent to

a given (shallow or concrete) abstract tree. Its fundamental principle is to replace the

abstract components of a composition tree by semantically equivalent concrete ones.

We assume that a number of concrete components are available in some repository,

which is accessible to us and we need to make a selection out of them.

However, the SCA speciﬁcations [7] do not specify any mechanism for matching of

services and their implementations (components). Thus, we propose an architecture for

matching of services to components.

4 The System Architecture

Figure 4 describes the architecture of our proposed system. The Composer is the main

entity, which initiates the composition process by accepting the abstract application as

input. It uses services of the Semantic Trader for matching of abstract and concrete

components. The Semantic Trader depends on the services provided by the Registry for

requesting components and uses the services of Semantic Trader for matching services

and components. The Composer uses the Selection Strategy entity for deciding which

strategy to use based on the current policy employed by the system administrator. The

role of these entities is discussed in the following sub-sections.

Fig.4. The System Architecture.

4.1 Transformation of Tree

The Composer transforms the input abstract application into an equivalent concrete one.

The transformation process consists of three intermediate stages:

1) First, the Composer transforms the application into a composition tree structure as

described previously. From the composition tree, the Composer selects a sub-tree

that only keeps branches of which leaves are abstract components. In other words,

if some components have well-deﬁned implementations, they are not considered

for processing.

2) While walking down the abstract tree, for each component node, we look in the

repository for a concrete component, which is semantically equivalent to the ab-

stract one and replace the description of the latter by the former.

3) During the second stage, we may ﬁnd more than one component or no matching

componentsat all for an abstract service. The Composer uses a strategy for deciding

on what to do in such a case.

4.2 Semantic Matching

To be able to reason about the functional properties of SCA artifacts, we use semantic

matching, as described in the second stage of the transformation process.

SA-SCA:Semantic Annotations for SCA We propose Semantic Annotations for

SCA (SA-SCA), which suggests how to add semantic annotations to various SCA ar-

tifacts like composite, services, components, interfaces, and properties. This extension

is similar to the concept of annotations in SAWSDL [1] and is in accordance with the

SCA extensibility mechanism [7]. Our proposed SA-SCA deﬁnes a new namespace

called sasca and adds an extension attribute called modelReference so that relationships

between SCA artifacts and concepts in another semantic model are handled. This choice

is motivated by the fact that applications developers can use any ontology language to

annotate services rather than be bound to one particular approach. The listing below

shows the description of our TravelPlanner composite:

<service name="TravelPlannerService"

promote="TravelBookingComponent/

TravelBookingService"/>

<implementation.bpel

process="TravelBoooking.bpel"/>

</component>

<component name="PlaneBookingComponent"

modelReference=

"booking.owl#PlaneBooking">

<service name="PlaneBookingService"

modelReference=

"booking.owl#PlaneBooking"/>

</component>

</composite>

4.3 Selection Strategy

The selection of a concrete component can be ﬁltered out by using a particular strategy

employed by the administrator based on the organizational policies. For example, one

policy might be the selection of the service provider based on seasonal variations as

described in the example scenario, but other strategies could also be used. For example,

when there are many concrete components, the choice of one concrete component over

the other may be inﬂuenced by the QoS factors such as price, response time, reputation,

etc. Such strategies can be deﬁned along with SCA application description by using the

SCA Policy Framework [6].

Partial Composition. It is possible that while walking the abstract tree, we do not ﬁnd

all the components. Instead of resulting in a failed composition, the component selec-

tion policy may specify to ignore such concrete components and build a composition

tree with only the available components. For example, a transaction policy may require

inter-component dependency and, hence, if any of such components is missing, the

transaction will not be executable. In such a case, it is important to ﬁnd all the relevant

components and if they are not found, the policy may require to require abandoning the

dependent components and continuing with components for the rest of services in the

composition. The description and enforcement of such policies is dependent on partic-

ular use case and we do not consider them in this paper, but provide an overview in

Sect. 5.

It is then important to notice that we provide the possibility for both a shallow and

a deep transformation of the composite. In the ﬁrst case, the composite description is

brought to a shallow concrete state, while in the second case a deep concrete tree is cre-

ated. Considering the TravelPlanner composite, its shallow transformation will replace

the CarBookingComponent, HotelBookingComponent, and PlaneBookingCom-

ponent components with concrete ones, and its deep transformation will, in addition to

these, replace the CoachBookingComponent and RestaurantBookingComponent

components. This possibility is interesting in the case of a distributed composition. A

Composer can process a shallow transformation on a composite located on its hosting

computer, and delegate the transformation of the distant subcomposites to their colo-

cated Composers.

We are currently implementing our proposed architecture as part of the French Na-

tional project ANR-SCOrWare.

5 Related Work

The idea of describing application as an abstract composition of services which are

resolved into service components dynamically, has been treated previously. In CO-

COA [2], the objective is to ﬁnd concrete components for abstract services deﬁned in a

user task. Their solution builds on semantic Web services (OWL-S) and offers ﬂexibility

by enabling semantic matching of interfaces and ad hoc reconstruction of the user tasks

conversation from services conversations. Furthermore, COCOA allows meeting QoS

requirements of user tasks. For this purpose, they have created COCOA-L, an exten-

sion of OWL-S, that allows the speciﬁcation of both local and global QoS requirements

of user tasks. Compared to their approach, our approach also proposes use of seman-

tic matching but instead of using a ﬁxed number of QoS attributes, we propose to use

the SCA policy Framework for specifying organization-level policies. Our approach is

more ﬂexible because the service developers and the deployers have full control over

deﬁning the appropriate policy for component selection.

The subject of semantic service description has also been treated by various research

works. Semantic Annotations for WSDL (SAWSDL) [1] deﬁnes how to add semantic

annotations to various parts of a WSDL [10] document such as input and output mes-

sage structures, interfaces and operations. For this purpose, SAWSDL deﬁnes a new

http://www.scorware.org/

speciﬁc namespace sawsdl and adds an extension attribute, named modelReference, to

specify the association between WSDL components and concepts in some semantic

model. The matching between a concept and WSDL element is done by using a match-

ing algorithm. One such matching algorithm is proposed in [4]. Following the example

of WSDL extension, we have extended SCA to be able to carry out semantic matching

for different SCA elements including services, components, interfaces, and properties.

Finally, there has been signiﬁcant recent work related to the use of policies in SCA.

One such approach uses the SCA policy framework for abstract and concrete resource

speciﬁcation [5] which is then used for matching abstract services with their concrete

component implementations. However, the approach is based on syntactic matching of

SCA artifacts. This approach, together with ours, can be used as a component selection

strategy as described in Sect. 4.3. Similarly, in [9] the authors deﬁne patterns and roles

for applying abstract policies in SCA to their concrete implementations. With an exam-

ple application they show how their approach can be applied for transactional policies.

6 Conclusions & Future Work

We have presented an approach for dynamic composition of applications whose compo-

sition is described in terms of the services provided by the application; however, these

services are resolved into component implementations at the time of execution of the

application. The service implementations might be distributed and provided by differ-

ent service providers whose selection is inﬂuenced by the policies used by the system

administrator. The selection of a particular implementation is made on the basis of a

matching algorithm.

The applications are described in SCA. Currently, we consider only applications

whose composition in terms of services is deﬁned statically. For the future work, we

are looking forward to having such applications created automatically in the pervasive

environments in terms of the services available in the environment. We also intend to

consider the user’s preferences apart from the organizational policies when looking for

candidate service providers.

References

1. Akkiraju, R. and Sapkota, B., 2006. Semantic annotations for WSDL. Technical report,

W3C. (cf. http://www.w3.org/TR/sawsdl-guide/).

2. Ben Mokhtar, S., Georgantas, N., and Issarny, V., 2007. COCOA: Conversation-based ser-

vice composition in pervasive computing environments with qos support. J. Syst. Softw.,

80(12):1941–1955.

3. Chappel, D., 2007. Introducing sca. White paper. Available online:http://www.osoa.org.

4. M’Bareck, N. O. A. and Tata, S., 2007. How to consider requester’s preferences to enhance

web service discovery? In Internet and Web Applications and Services, 2007. ICIW ’07.

Second International Conference on, pages 59–59.

5. Mukhtar, H., Bela¨ıd, D., and Bernard, G., 2008. A policy-based approach for resource speci-

ﬁcation in small devices. In UBICOMM 08: The Second International Conference on Mobile

Ubiquitous Computing, Systems, Services and Technologies. IEEE.

6. Open SOA Collaboration, 2007a. SCA Policy Framework v1.00 speciﬁcations.

http://www.osoa.org/.

7. Open SOA Collaboration, 2007b. Service Component Architecture (SCA): SCA Assembly

Model v1.00 speciﬁcations. http://www.osoa.org/.

8. Papazoglou, M. P., 2003. Service-oriented computing: concepts, characteristics and direc-

tions. In Web Information Systems Engineering, 2003. WISE 2003. Proceedings of the Fourth

International Conference on, pages 3–12.

9. Satoh, F., Mukhi, N. K., Nakamura, Y., and Hirose, S., 2008. Pattern-based Policy Conﬁg-

uration for SOA Applications. In Services Computing, 2008. SCC ’08. IEEE International

Conference on, volume 1, pages 13–20.

10. Web Services Description Language. WSDL 2.0 Home Page, 2006.

http://www.w3.org/TR/wsdl20/.
