MARKUP AND VALIDATION AGENTS IN VIJJANA

A Pragmatic Model for Collaborative, Self-organizing, Domain Centric

Knowledge Networks

1,2

S. Devalapalli, R. Reddy, L. Wang and S. Reddy

SIPLab, Department of Computer Science & Electrical Engineering, West Virginia University

Morgantown, WV 26506, U.S.A.

Keywords: Vijjana, Knowledge Network, Semantic Web, Markup, Firefox Browser Extensions.

Abstract: In this paper we describe the Markup and Validation agents in Vijjana, a model for transforming a

collection of URLs (Uniform Resource Locators) into a useful knowledge network which reveals the

semantic connections between these disparate knowledge units. The markup process is similar to, but much

more involved than the traditional book-marking. All the relevant metadata corresponding to a particular

Uniform Resource locator is generated and passed on to the organizing agent, which adds this URL to the

database. Validation agent checks and ensures the database is consistent and has valid entries.

This work is supported in part by an endowment from the Bell Atlantic Foundation.

The authors thank all the members of SIPlab for their valuable contributions. The authors are also grateful to Dr. Asesh Das, Dr. Srini

Kankanahalli, Sentil Seliah and Ravi Raman for their valuable feedback on earlier drafts of this paper.

1 INTRODUCTION

The World Wide Web is the most comprehensive

source of information available to almost anyone

who has a computer. More often than not,

information seekers find what they are looking for

on the web. The most popular search engines

available today give to the users not just the

information requested but additional links and

resources to related topics. But the base assumption

of all these technologies is “the user knows what he

wants.” There is a difference between knowing what

you want precisely and having only a vague idea of

what you are interested in. A computer science

student might start out broadly with operating

systems and have the following traversal storage

systems Æ memory allocations Æ multitasking Æ

multitasking in embedded systems Æ operating

systems in embedding systems and end up reading

about VxWorks or similar real time operating

systems.

To achieve the precise awareness process,

Vijjana System provides a series of agents to fulfill

the tasks. Very often, a seemingly unguided but a

well organized browsing strategy would immensely

benefit anybody One of the objectives of Vijjana is

to never have an unproductive browsing session.

Though this might seem ambiguous, it’s easy to see

that it can be achieved to an extent.

With the idea of a system like Vijjana mentioned

above, conceiving such an application is a two step

process – build the library i.e., build a database with

data on domains that the system is being built for

and browse the system i.e., view/walk through the

system in the method described above. In this paper,

we will introduce one rudimental but essential part,

Vijjana Markup and Validation agent, which simply

in a way fits into both categories by applying several

recently popular techniques like KEA algorithm to

ensure information correctness and also cooperate

with other Vijjana agents to achieve high accuracy.

Since building the database is a continuous

process, the support for the same is provided as a

feature that is referred to as the Markup agent. The

purpose of the markup agent is to allow a user to

add anything of interest to the database. The markup

agent adds this resource to the database and invokes

the Organizing Agent which ensures that the

resource added will sit at a place that is most

appropriate. The markup agent identifies the domain

of the document/resource (JAN) being added by

generating the key phrases and other meta-data for

the contents of the JAN. The purpose of the

263

Devalapalli S., Reddy R., Wang L. and Reddy S.

MARKUP AND VALIDATION AGENTS IN VIJJANA - A Pragmatic Model for Collaborative, Self-organizing, Domain Centric Knowledge Networks.

DOI: 10.5220/0001825802630269

In Proceedings of the Fifth International Conference on Web Information Systems and Technologies (WEBIST 2009), page

ISBN: 978-989-8111-81-4

validation agent is to remove any dead links i.e.,

JANs that don’t exist anymore and ensure that the

database is in a consistent and complete state.

This paper is organized into six parts. A

background introduction is given in Section 2 to

illustrate our motivation for developing the Vijjana

system. Section 3 briefly introduces the framework

of our system. From it we can tell the essence of

Markup and Validation agent which crosses two

agents and play an important role in maintaining

information consistence. Detailed agent work

process and principle can be found in Section 4. The

first part in this section explains a popular key

phrases algorithm and its application in Vijjana. And

followed is the whole work process. Section 5 gives

out A concise conclusion and some future works.

2 MOTIVATION

AND RELATED WORK

The main difficulty of using the Web as a

knowledge source lies in the fact that the Web is

nothing more than a list of hyper-linked pages where

the links have no associated semantics. Research on

semantic webs is aimed at mitigating this difficulty.

Tiwana et al. (2001) and Knoblock et al. (1997)

discuss a uniform way to represent web resources

and suggest models for automatic integration. Work

at IBM on the SHER project (Dolby et al., 2007;

Fokoue et al., 2007) focuses on simplifying

ontologies and scalable semantic retrieval through

summarization and refinement. There has been also

considerable research in the Artificial Intelligence

community on formalizing knowledge

representation (Sowa, 2000; Minsky, 1968; Sowa

and Majumdar, 2003) which is being adopted by the

researchers in the semantic web community

(http://www.semanticweb.org). All of these efforts

rely in one form or other on the ability to discover

semantic links automatically by analyzing the

contents of web pages, which poses considerable

difficulties due to the ad hoc nature of web pages.

While automatically converting the current web into

a fully linked semantic web may be a solution, such

an outcome is unlikely in the near future.

Meanwhile a number of organizations such as

del.icio.us (http://del.icio.us), Webbrain.com

(http://webbrain.com), digg.com (http://digg.com)

are busy creating what are called social networking

sites where a person searching the web may come

across an interesting link that is then “marked” with

a set of tags (keywords) which are stored in the site

owner’s server. A recent start-up company –

RadialNetworks has developed a system called

Twain (http://twain.com), which claims to create a

semantic network automatically. While this may be

an advantage for casual social networking it will be

unsuitable for enterprise-wide knowledge networks

as there are well-established relationships between

document types specific to that organization or

domain which cannot be derived automatically.

The information created via these sites may be

kept private, or it may be combined with similar lists

created by other people – thus the name social

network. In due course these lists may grow

enormously needing the employment of a search

engine bringing us back to the original problem -

how to cope with a large number of links that cannot

be visualized in their semantic context. Current

social bookmarking sites do not have any semantic

linking of web pages. For a knowledge network to

be useful for a large community of users working in

a well-defined domain (e.g. Computer Science

Teaching), the semantic web should be buildable co-

operatively using a predefined taxonomy and link

semantics.

With this motivation, we propose a model we

call Vijjana (a Sanskrit word that represents

collective knowledge created through classification

and analysis) which can help in organizing

individually discovered web pages drawn from a

narrowly bounded domain into a knowledge

network. This can be visualized as a hyper tree

(http://InXight.com), or a radial graph

(http://iv.slis.indiana.edu/sw/), thus making the

semantic relations visible. The visibility of semantic

relationships is the key to comprehending what is

actually inside the knowledge network. It can be

perused and also searched by anybody who wants to

“discover” knowledge in that domain. Let us

consider a simple example where two professors

Smith and Bradley among others can contribute

useful links to web pages (we call them Jans which

has roughly the same meaning as the word knol

popularized by Google to represent units of

knowledge) such as syllabi, homework problems,

etc. to an evolving Computer Science specific

knowledge network, say Vijjana-CS. These Jans are

then classified and interlinked using a pre-defined

taxonomy and relational semantics. This Vijjana-CS

will grow organically as contributions continue. We

can also define a number of agents associated with

this model, which can keep the knowledge network

complete and consistent by removing missing Jans

and associated links. In addition, we can create a

WEBIST 2009 - 5th International Conference on Web Information Systems and Technologies

264

mechanism to maintain usefulness ratings of

individual Jans as determined by the users or by

using a heuristic based on the number of semantic

links and “hits” on the web page.

Now, let us re-visit, Professor Smith and his

problem of defining a new course. If Vijjana-CS

described above were available, he will simply visit

the associated website where he can fully visualize

all the textbooks liked to associated syllabi which

are further linked to associated lecture notes and

homework problems, etc. Furthermore, Professor

Smith can quickly notice the brightly glowing nodes

(representing most useful Jans as designated by

users or by a heuristic based rating agent) and

synthesize his course quickly and effectively. Later

he may return to Vijjana-CS to contribute his ratings

or other Jans he may have created. Thus grows the

Vijjana-CS’s content and its user/contributor

community - collaboratively and by self-organizing.

We should also hasten to add that the semantic

network created using the Vijjana model could

tolerate incomplete links, as we do not apply any

formal methods for retrieval of information, but

depend on visualization and perusal to guide our

discovery of information we need.

3 THE VIJJANA MODEL

We define the Vijjana model as:

Vijjana-X = { J, T, R, dA, oA, cA, vA, sA, rA}

where

X = the domain name

J= the collection of Jans in the Vijjana-X

T = the Taxonomy used for classification of Jans

R= the domain specific relations

dA = the discovery agent which find relevant Jans

oA = the organizing agent which interlinks the Jans

based on R

cA = the consistency/completeness agent

vA = the visualization agent

sA = the search agent

rA = the rating agent

The markup agent is a sub-agent of the discovery

agent. Similarly, the validation agent is a sub-agent

of the consistency/completeness agent. We now

examine the underlying concepts followed by the

markup process and the validation process.

4 MARKUP AND VALIDATION

AGENT

4.1 KEA Algorithm

Key phrases summarize documents. The gist of large

documents can be conveniently and coherently

described using a set of key phrases that reflect the

document’s contents. They save a lot of reader’s

time also. The importance of assigning keywords to

documents becomes even more pronounced in a

digital library or information retrieval systems. Most

of the documents available in electronic form today

contain a list of keywords that describe them.

However, there exist many that don’t. Manually

going through them and assigning keywords to each

document can be quite a task. It would need several

hundred man-hours and people with some

knowledge of the subject matter which, considering

the use of a computer program to do the task instead

is a futile exercise.

The KEA (Witten et al., 1999) algorithm

addresses this very need of extracting/assigning

keywords to documents. Of course, even at its best

KEA might not be able to extract the very same

keywords that the author of the document might

assign. It still offers a satisfactory solution to the

problem of text summarization.

Extraction of key phrases using KEA involves

two stages:

1. Training (building a key phrase extraction

model): before KEA can extract any key

phrases, it must be trained on a set of

documents. These documents need to have key

phrases assigned to them. KEA builds a model

based on these documents.

2. Extracting the keywords: Once a model is built,

KEA uses the model to extract key phrases for

any new document. Because key phrase

extraction is based on this model, it is best to

have domain-centric models i.e., training

documents need to be related (belong to the

same domain/subject) and the documents on

which KEA is used with this model must also

belong to the same domain for best results.

4.1.1 The Process

Witten et al. (1999) describe the following steps

involved in extracting key phrases using KEA

starting with cleaning the input document:

1. Cleaning: The document input must be

MARKUP AND VALIDATION AGENTS IN VIJJANA - A Pragmatic Model for Collaborative, Self-organizing, Domain

Centric Knowledge Networks

265

cleaned first. All punctuation marks, stop

words, hyphenations must be removed.

2. Identify the candidate phrases: There is a

maximum length set for candidate phrases (5

in Vijjana). All possible subsequences are

examined to get a list of candidate phrases.

3. Case folding and stemming: Stemming refers

to the process of removing suffixes like –ed, -

es, -ation, etc. This eliminates redundant

considerations of variations of the same

phrase.

4. Feature calculation: KEA uses two feature

values to compute the probability of a

candidate phrase being a key phrase for the

document. These are TF×IDF score and the

first occurrence.

TF×IDF score is a measure of a phrase’s

frequency in the document compared to its

frequency in general use. General use here

refers to the use of that phrase in the training

corpus.

The TF×IDF score for a phrase P is computed

as:

TF×IDF =

Pdf

Dsize

DPfreq )(

log

)(

),(

−× (1)

Where freq(P,D) is the number of times P

occurs in D. size(D) is the number of words in

D df(P) is the number of documents

containing P in the training set

N is the size of the training set

First occurrence is the fraction of the document

that has to be read before the phrase’s first

appearance. It is the ratio of the number of words

that precede the phrase’s first occurrence to the total

number of words in the document.

With the TF×IDF (t) score and the the first

occurrence (d) values, KEA computes the

probability of a candidate being a key phrase as

follows:

P[yes] =

TF×IDF

[t | yes] P

distance

[d | yes] (2)

P[no] =

TF×IDF

[t | no] P

distance

[d | no] (3)

p =

][][

][

noPyesP

yesP

(4)

where Y is the number of positive instances in the

training files and N is the number of negative

instances i.e., candidate phrases that are not key

phrases.

Once the probabilities for all candidate phrases

are computed using this method, KEA sorts them

and returns the requested number of key phrases.

4.1.2 KEA in Vijjana

An implementation of KEA can be found at

(http://www.nzdl.org/Kea/). This implementation

has been modified to fit into Vijjana’s requirements.

The initial version of Vijjana is targeted at people

interested in Computer Science. The Vijjana

database would contain the JANs that are specific to

Computer Science. Keeping this in mind, the

training documents were chosen from various areas

of Computer Science specifically from areas such as

Algorithms, Database Theory, Operating Systems

and Pervasive Computing technologies.

A set of 24 documents with author assigned key

phrases, covering all the basics of the above

mentioned areas was input to KEA.

Since KEA does not always generate key phrases

that a reader might expect to associate with the

document, Vijjana Markup Agent provides a way to

add/remove key phrases.

4.2 Firefox Browser Extensions

Firefox allows application developers to write their

own extensions. Extensions, as the name implies

extend the functionality of the browser. The

extension used in Vijjana is a Toolbar that allows a

user to perform operations like Mark-up, Validate

JANs, navigate to the Vijjana homepage etc.

Combining these two ideas, Vijjana implements

the Markup agent and Validation agents as firefox

extensions. On installing the Vijjana extension, a set

of toolbar buttons, a menu and a context menu will

be installed into the firefox browser. A view of the

browser after installing Vijjana extension is shown

in Figure 1.

Figure 1: Firefox extension.

WEBIST 2009 - 5th International Conference on Web Information Systems and Technologies

266

4.3 Vijjana Markup Agent

Markup is the process where the user marks up a

page/resource of interest to be a new JAN

containing feathers like key phrases generated by

KEA, and moves it into his/her own collection

which is informally called “user space”. When a

JAN is moved to the user’s space, it must be placed

in its proper corresponding classification of its

taxonomy. This is taken care by theVijjana

Organizing Agent(VOA) which applies some

pattern recognition techniques on key phrases to

classify it correctly.

The markup process flow is as shown in Figure

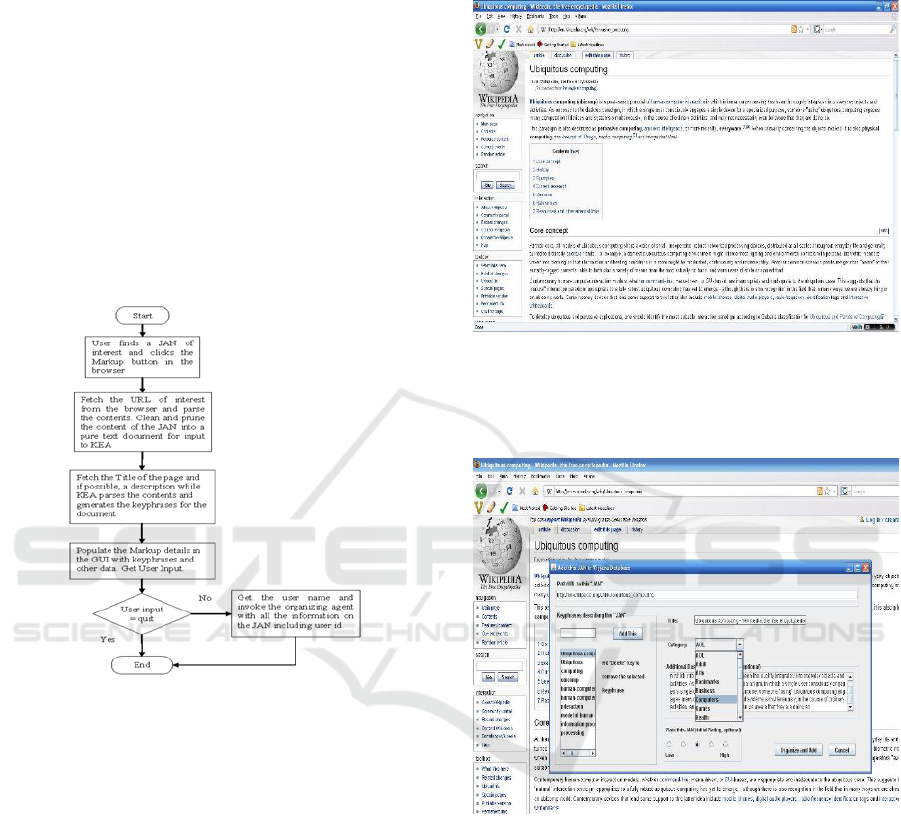

Figure 2: Markup Process Flow.

The Markup process is illustrated in the

following series of screenshots. A JAN/URL

corresponding to an article on “Ubiquitous

Computing” at www.wikipedia.org is illustrated.

The user first needs to open the URL in the browser

as shown in figure 3.

The next step is to markup this page. This is

accomplished by clicking the Markup button in the

Vijjana Toolbar, which would trick the JAN creation

process. The webpage content will flow into KEA

algorithm to generate Key phrases which can be

further altered by user. As shown in the Figure 4, the

Markup GUI provides the user more options to

enrich this JAN, such as adding some semantic

features, such as title, descriptions. A default rating

of 1 out of 5 is given to the JAN, which also can be

altered before adding the JAN. Appropriate

predefined categories for the JAN are provided to

user to select. As mentioned above, VOA is in

charge of providing or preserving these categories.

Figure 3: Marking-up a Jan.

The following screenshot (figure 4) illustrates

this:

Figure 4: Adding/Deleting Keywords.

To add this JAN to the database, the user clicks

on “Organize and Add” button. This invokes VOA

to work. The Organizing Agent will then depending

on the key phrases add this JAN to its appropriate

location in the database. That is all is needed on

behalf of the user to add a JAN in his database.

4.4 Vijjana Validation Agent

Validation refers to the process of ensuring that the

database is in a consistent state. The next part of this

report deals with validation of a user’s JANs. The

JANs might be relocated or dead over a period of

MARKUP AND VALIDATION AGENTS IN VIJJANA - A Pragmatic Model for Collaborative, Self-organizing, Domain

Centric Knowledge Networks

267

time. At any time the database must reflect the most

recent status of the JANs. The next button in the

Vijjana toolbar is the Validate JANs button The

purpose of this button is to ensure that there is no

dead links (JANs) in the Vijjana database. In case of

such links being present, they need to be removed

from the database. It is essentially a cleansing

process where the database is cleaned of any

inconsistencies.

The most natural way of implementing this

feature is to fetch the URLs pertaining to a particular

user and validate them one after the other. A major

hurdle in doing this is that a user might have too

many JANs in his database which would cause the

system to run out of memory or take a considerable

amount of time to perform the validations. While

running out of memory can be corrected by fetching

subsets of rows and performing validations on those

rows. The size of subset in this implementation has

been set to 10000 rows which works fine. However,

the problem of time consumption cannot be avoided.

The time taken to validate all the JANs is

proportional to the number of JANs in a user’s

space. So a user must be at least informed of this

before the validation can begin. Only when a user

confirms, the validation will begin. The following

flowchart (Figure 5) illustrates the validation

process:

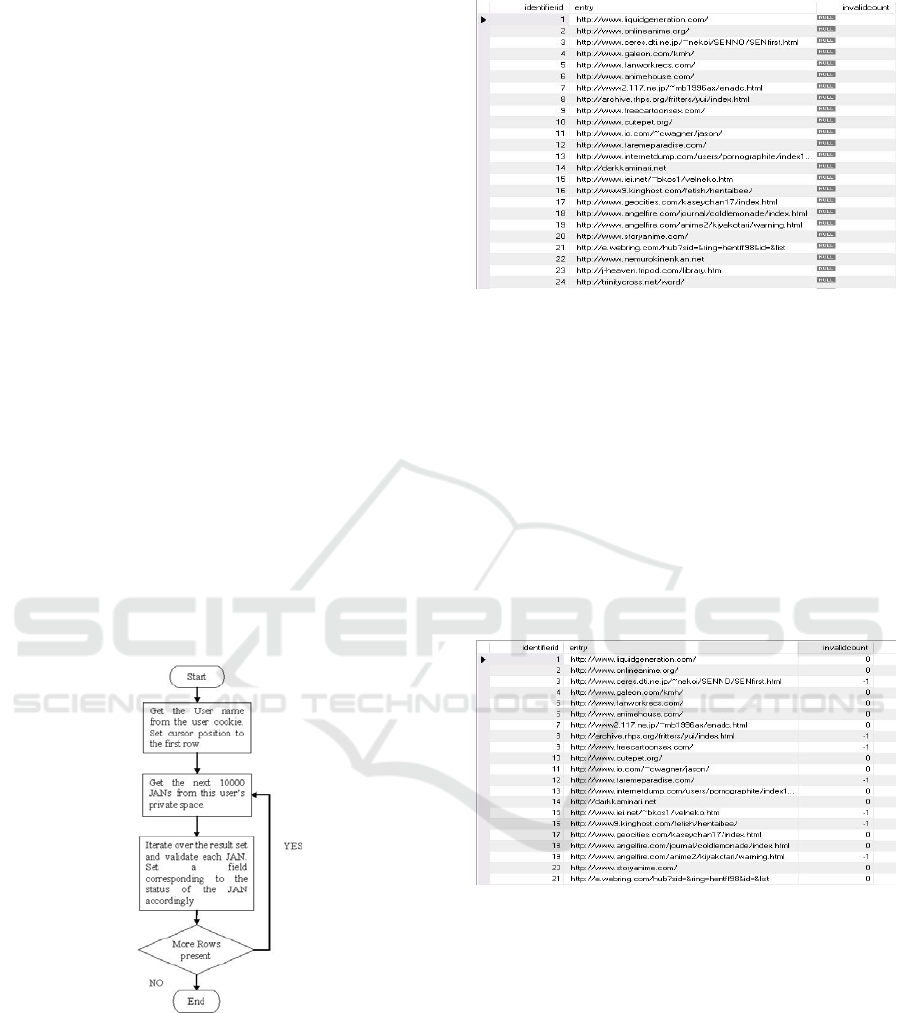

Figure 5: Validation of a Jan.

The following screenshots illustrate the

Validation agent in action. If validate has not been

performed at all, the valid/invalid state of a JAN is

not defined. The column in the database

corresponding to this state is termed “InvalidCount”.

So all those JANs that have not been validated will

have the invalidcount column set to null as shown

below:

Figure 6: Before Validation.

To validate the JANs in a user’s space, the user

clicks the validate button on the toolbar. A

confirmation is required before the validation can

begin. The validation process begins and the user is

notified when the validation is complete. The next

screenshot shows the validation complete

confirmation. During the process of validation, it

might seem that the browser isn’t responding. So

validation is best performed overnight as the last

task in the day.

The state of the database after the validation

process completes looks like

Figure 7: After Validation.

An invalid count of 0 represents that the link is

valid and a value of -1 represents otherwise. The

reason we don’t delete the JAN from the database if

its invalid is that sometimes, the server may be down

temporarily for maintenance in which case, validate

would assume that the JAN is dead.

5 CONCLUSIONS & FUTURE

WORKS

In this paper we have proposed a way to “Markup”

URLs which involves extracting metadata of the

WEBIST 2009 - 5th International Conference on Web Information Systems and Technologies

268

URL like the key phrases describing the contents of

the URL, the title, a rating and a description of the

URL. We have also implemented a validation agent

that validates the database (of URLs) and marks the

entries as valid/invalid. These agents are currently

provided as firefox browser extensions which a user

with privileges can install and use.

Although Vijjana Markup and Validation agents

already work well in our current system, from above

we can say that it still needs some improvements..

Accurate selection of key phrases is an important

factor in determining the information correctness.

Current KEA algorithm largely depends on domain-

specific training data which might not be available

before the markup. This calls for a new key

algorithm which only marginally relies on domain

information. Due to this requirement, we designed a

new algorithm called VKE which is currently being

evaluated. It combines the syntax heuristic and

statistical method together to achieve high accuracy.

Also the comparatively large amount of validating

time consumed by the validation agent puts

considerable demands on the server. To solve this,

we are trying to apply some synchronization

techniques which divide a large server computing

work into many small client tasks, and distribute

them along the network.

REFERENCES

Tiwana, Amrit and Ramesh, Balasubramanian (2001)

Integrating Knowledge on the Web, IEEE Internet

Computing, pp 32-39.

C. Knoblock, S. Minton, J. Ambite, N. Ashish, P. Modi, I.

Muslea, A. Philpot, and S. Tejada (1997) Modeling

Web Sources for Information Integration, Proceedings

of the 1997 AAAI Conference.

J. Dolby, A. Fokoue, A. Kalyanpur, A. Kershenbaum, E.

Schonberg , K. Srinivas and L. Mia (2007) Scalable

semantic Retrieval Through Summarization and

Refinement, Proceedings of AAAI.

Fokoue, A. Kershen baum, L. Mia, E. Schonberg, K.

Srinivas (2007) Cutting Ontologies to Size, Lecture

Notes in Computer Science, ISBN 978-3-540-49029-

6, pp 343-356.

Sowa, John F. (2000) Knowledge Representation: Logical,

Philosophical, and Computational Foundations,

Brooks/Cole Publishing Co., Pacific Grove, CA.

Minsky, Marvin, ed. (1968) Semantic Information

Processing, MIT Press, Cambridge, MA.

Sowa, John F., & Arun K. Majumdar (2003) Analogical

reasoning, in A. de Moor, W. Lex, & B. Ganter, eds.,

Conceptual Structures for Knowledge Creation and

Communication, LNAI 2746, Springer-Verlag, Berlin,

pp. 16-36.

http://www.semanticweb.org/

http://del.icio.us

http://webbrain.com

http://digg.com

http://twain.com

http://InXight.com

http://iv.slis.indiana.edu/sw/ - This website has a lot of

information on displaying information as a radial

graph.

http://www.rssprotocol.com/ - This website has a lot of

information about the RSS protocol.

KEA: Practical Automatic Key phrase extraction - Witten

I.H., Paynter G.W., Frank E., Gutwin C. and Nevill-

Manning C.G. (1999): Proc. DL '99, pp. 254-256.

The KEA project - http://www.nzdl.org/Kea/

Mozilla Developer Center - Building an extension,

http://developer.mozilla.org/.

Vijjana - A Pragmatic model for Collaborative, Self-

Organizing, Domain Centric Knowledge Networks,

Reddy, Dr. Ramana. Morgantown: IKE 2008.

MARKUP AND VALIDATION AGENTS IN VIJJANA - A Pragmatic Model for Collaborative, Self-organizing, Domain

Centric Knowledge Networks

269
