WEB BROWSER TRANSACTIONALITY

Mark Wallis, David Paul, Frans Henskens and Michael Hannaford

Distributed Computing Research Group

School of Electrical Engineering and Computer Science

University of Newcastle, Callaghan, NSW, Australia

Keywords:

Web Browser, Transaction Management.

Abstract:

As the complexity of web applications increases new challenges are faced in relation to data integrity and sys-

tem scalability. Traditional client/server fat applications allow for a high level of transactionality between the

client and server, due largely to transactional protocols and tight coupling between components. Transactional

functionality within web applications is historically limited to within the web server hosting the application.

The scope of the traditional transaction in this context does not extend outside of the web server and its attached

services. This paper proposes that web applications can achieve increased system integrity by extending the

scope of the transaction to encompass tasks performed by the web browser. An additional layer is introduced

to the standard HTTP protocol to facilitate the new functionality, and a simulator is presented as the basis for

further research.

1 INTRODUCTION

In Web 1.0 systems, the web browser’s role is that of

a thin-client (O’Reilly, 2005). As the web evolved

to Web 2.0 (McCormack, 2002) and beyond, the role

of the web browser has become increasingly compli-

cated; for example, it is now quite common to ﬁnd

application code executing within the web browser

(Flanagan, 2002). This increased complexity has al-

lowed engineers to add active content functionality to

the web platform. Client-side web application code

can dynamically update interfaces with information

without having to rely on the classic request/response

round trip as was utilised in Web 1.0. This application

code can interact with the web browser environment

and also with web application components, supported

by technology such as AJAX (Garrett, 2005). The

tight coupling of the code which executes within the

web server and web browser leads to a risk of data

corruption due to inherent instability of the commu-

nication link between the server and browser. Tradi-

tionally, the way to deal with such issues was to im-

plement concepts such as transactionality (Gray and

Reuter, 1993).

‘Transactions’ in this sense relate to bracketing

tasks performed by the web application and any

utilised services to form atomic units. To date, the fo-

cus has been placed on tasks being performed on the

server side with the client-side tasks being neglected.

The HTTP protocol used to connect the server and

client sides of the web application does not have in-

herent transaction support. In contrast, fat applica-

tions that execute in other distributed models, such as

CORBA-based systems (Object Management Group,

2004), have transaction support built into their core

design.

This paper describes the investigation of exten-

sions to the web paradigm that allow code executing

within client browsers to be involved in transactions

deﬁned by the web application code at the server side.

These enhanced web applications are built around

a component-based software architecture where the

web server is able to push code out to the web browser

for execution. These two pieces of independently exe-

cuting code essentially give a base architecture where

application components within the web server com-

municate with application components within the web

browser.

An extension to the HTTP protocol is presented,

along with the design of various software components

Wallis M., Paul D., Henskens F. and Hannaford M.

WEB BROWSER TRANSACTIONALITY.

DOI: 10.5220/0001824300930100

In Proceedings of the Fifth International Conference on Web Information Systems and Technologies (WEBIST 2009), page

ISBN: 978-989-8111-81-4

required to fulﬁl end-to-end transactionality. Current

models for transactions concentrate on server side

functionality. This research essentially duplicates the

same behaviour to the client side of the system and

will eventually allow complete transaction manage-

ment to occur within the web browser. This will allow

tasks to be bracketed into atomic actions across mul-

tiple disparate web applications and web services.

Section 2 of this paper introduces a speciﬁc prob-

lem in the context of web application design. Section

3 then draws parallels between the issues found on

the client side of the web application to those iden-

tiﬁed in previous research with placing web services

in transactions. A high level design is detailed and

reviewed in section 4 before a worked example is pre-

sented in section 5. As a proof-of-concept, a proto-

type and simulation package has been developed and

various results have been collected. These are pre-

sented in sections 6, 7 and 8.

2 PROBLEM DESCRIPTION

A classic example of the problem addressed by this

paper can be seen in web applications that aggregate

multiple web services. Take, for instance, a web ap-

plication that can book the various components of a

holiday for the user. Such a web application imple-

ments multiple stages. The ﬁrst stage books the ﬂights

using an aggregated web service contract with vari-

ous airlines. The second stage allows the user to book

their accommodation and a third stage allows them to

book a hire car. Such applications provide the beneﬁt

of a ‘one-stop-shop’ and save the user from having to

separately locate and initiate interaction with multiple

web applications to book the various elements of their

holiday. These aggregator applications are typically

available only to commercial entities such as travel

agents, and not to the general public. Their use in-

volves user interaction at the various workﬂow stages,

for example, to allow selection of service provider,

level of service and service options. These aggrega-

tor systems create what is essentially a single transac-

tion made up of various atomic actions that are imple-

mented either directly by the aggregator application

or through the aggregator application by contracted

web services.

Various issues can arise from including user inter-

action in the transaction. For instance, the user may

reserve a seat on a ﬂight but then fail to complete

the transaction, essentially leaving some resources

locked. These resources remain locked for a pe-

riod of time speciﬁed by the agreed commit timeout

value. Such issues are exacerbated by high levels of

concurrent user activity involving the component ser-

vices. For example, the user who leaves an incom-

plete workﬂow may have reserved the last seat on

an otherwise fully-booked ﬂight. During the commit

timeout period, on the basis of the seat’s unavailabil-

ity, other travellers may have booked their ﬂight with

a competitor to the detriment of the provider with the

reserved seat.

Systems implementing transactions that include

user involvement tend to operate with a hard time

limit on the overall interaction. This ensures that re-

sources are not locked indeﬁnitely. A hard time-limit

of, say, 20 minutes may leave resources locked for far

longer than required, especially if the user has left the

session only a few minutes into the interaction and

does not plan on returning.

This research addresses issues such as these by

providing an additional level of interaction between

the web browsers and web server. This interaction in-

volves the web browser itself in the management of

the transaction.

3 WEB APPLICATION

TRANSACTIONALITY

One of the main problems with transactions in the

web environment is that the web is inherently unre-

liable. Servers or clients can be shut down or network

connections broken at any stage and, because each

web system is autonomous, no other party can control

what happens when the system comes back online. In

order to overcome this problem, standards which re-

move some of the autonomy of the hosts have been

deﬁned. These standards specify what should happen

in the event of a communication breakdown, so all

parties can agree on the expected state of the overall

system even when some messages fail. For example,

standards such as WS-Coordination (Cabrera et al.,

2005) and WS-Transaction (Cox et al., 2004) require

participants in a transaction to pass the decision of

whether to perform an action to a transaction coordi-

nator, and to guarantee that they will adhere to that

decision.

Currently, having the user close a web browser

(or tab) while performing a task such as ﬁlling in a

multi-page form at best leaves the task in an incom-

plete state, and at worst completes the task with in-

complete data. If the client’s browser was involved in

the management of a transaction that ensured that all

form data was completed then, when the user closed

the browser, the browser would inform the web ap-

plication to roll back the transaction. Of course, if

an unexpected event such as a network disconnection

WEBIST 2009 - 5th International Conference on Web Information Systems and Technologies

or power outage occurred, the browser would not get

a chance to send such a message. However, the fact

that the client’s browser was included as a participant

in the transaction management would mean that, after

a speciﬁed time-out period, the transaction would roll

back so it would appear as if the client never started

the task.

Allowing the client’s web browser to participate in

the management of a transaction has the roll-on effect

of also involving the users themselves. Interactions

between the client and the web browser are inherently

unreliable and unpredictable and these problems need

to be addressed within the system design. Tradition-

ally, components in a component-based system are

able to rely on the middleware to provide a level of

guaranteed message deliverly. On the web, there is

no such guarantee and, as such, additional measures

need to be put in place to ensure end-to-end stability.

Additionally, if future support is built into the

browser, it will be possible to allow a client to leave a

task before completion and later rejoin the transaction

from the point where they left. This would be espe-

cially useful for the unexpected client disconnections

as, when the network link was re-established or sys-

tem rebooted, the client’s browser could restart and

rejoin the transaction. While it would be possible to

perform a similar action for simple tasks using tech-

nologies such as cookies (Kristol, 2001), the server

would see this as a new connection rather than the

continuation of an old workﬂow.

While transactions existing over multiple HTTP

request/responses are not a new concept, the deﬁni-

tion of a component to manage these transactions at

the client side allows for greater end-to-end stability

of the system. Various other implementations that use

technologies such as Java Applets to heartbeat back

to the web application rely on these applets being able

to execute a “dying breath” function call to inform the

web application that the browser has closed.

4 THE TRANSACTION LAYER

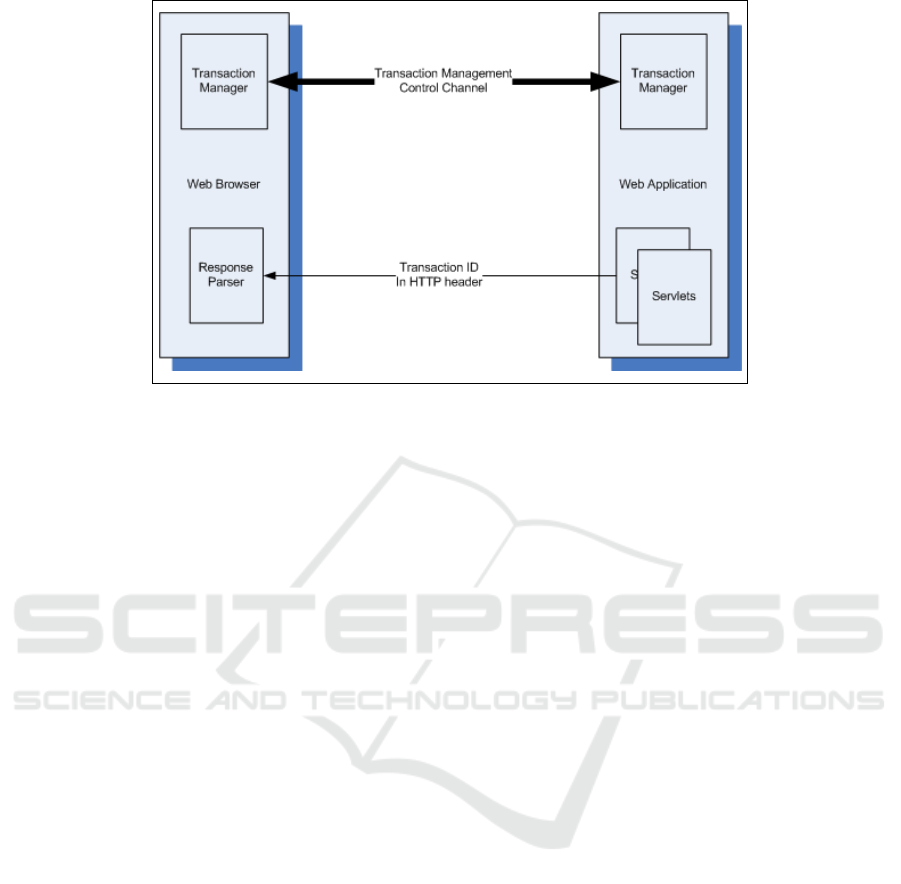

Figure 1 shows a new system design that supports

browser-based transactional support. To involve the

web browser in a transaction there must exist a chan-

nel between the browser and application which can

be used for management of the transaction. Initially,

when the web application creates a new transaction

that involves the web browser, it must notify the web

browser of the transaction ID. The standard way for

a web application to provide such meta-information

to the browser is through the use of a HTTP header

name/value pair. As such, a new HTTP header named

“WebTransactionID” has been deﬁned. This transac-

tion ID value is additional to any session ID value

that the application may already share with the web

browser. This allows multiple transactions to be pro-

cessed within a single user session. When the web

browser receives this header it passes the value to

a browser component responsible for transactional

management within the web browser environment.

This object is called the Web Browser Transaction

Manager (WBTM).

The WBTM is a component within the web

browser environment, similar to components that

manage tasks such as HTML rendering and cookie

storage. The WBTM’s role is to manage the tasks

performed by the web browser while within a transac-

tion. Its primary responsibility is to report back to the

web application if the transaction needs to be rolled

back. To report this, an out-of-band (OOB) connec-

tion is established between the web browser and the

web application upon creation of a new transaction.

The OOB connection is used by the browser to exe-

cute a web service to request a roll back of the trans-

action. All information passed between the WBTM

and the web application is tagged with the WebTrans-

actionID provided during the initial HTTP response.

This channel is used if the user decides to close the

web browser window while the transaction is still ac-

tive. A heartbeat occurs over this connection to al-

low the web application to time-out a disconnected

web browser. This communication has to occur out-

of-band as there is no guarantee that there will be

a HTTP request/response pair between the browser

and web application at regular enough intervals to

not introduce additional delays in the web application

knowing the state of the various transactions it is man-

aging.

The ﬁnal commit of a successful transaction oc-

curs within the web server at which the transaction

originated. Once the web application has declared the

transaction complete, the ﬁnal HTTP response is used

to inform the WBTM that the transaction is complete.

The WBTM then disconnects the OOB connection if

no other transactions exist for that web application.

If multiple transactions are being performed, for ex-

ample, in separate web browser tabs, then the OOB

channel stays open until all transactions have either

been completed or rolled back. Only a single OOB

channel is required per web application for each web

browser instance.

When an OOB channel closure occurs the web ap-

plication has the choice to either roll back the trans-

action or keep it alive for a pre-determined time pe-

riod. Keeping the transaction alive would allow the

user to rejoin the transaction by having the WBTM

WEB BROWSER TRANSACTIONALITY

Figure 1: Proposed System Design.

re-establish the OOB connection. This would be use-

ful for instances where the OOB channel breakdown

was caused by network segmentation.

The capabilities of the WBTM component can be

extended past the realm of sub-management of trans-

actions owned by single web applications to complete

management of transactions that involve multiple web

applications. Previous research has presented this

concept in the realm of a Super Browser (Henskens,

2007) implementation.

5 WORKED EXAMPLE

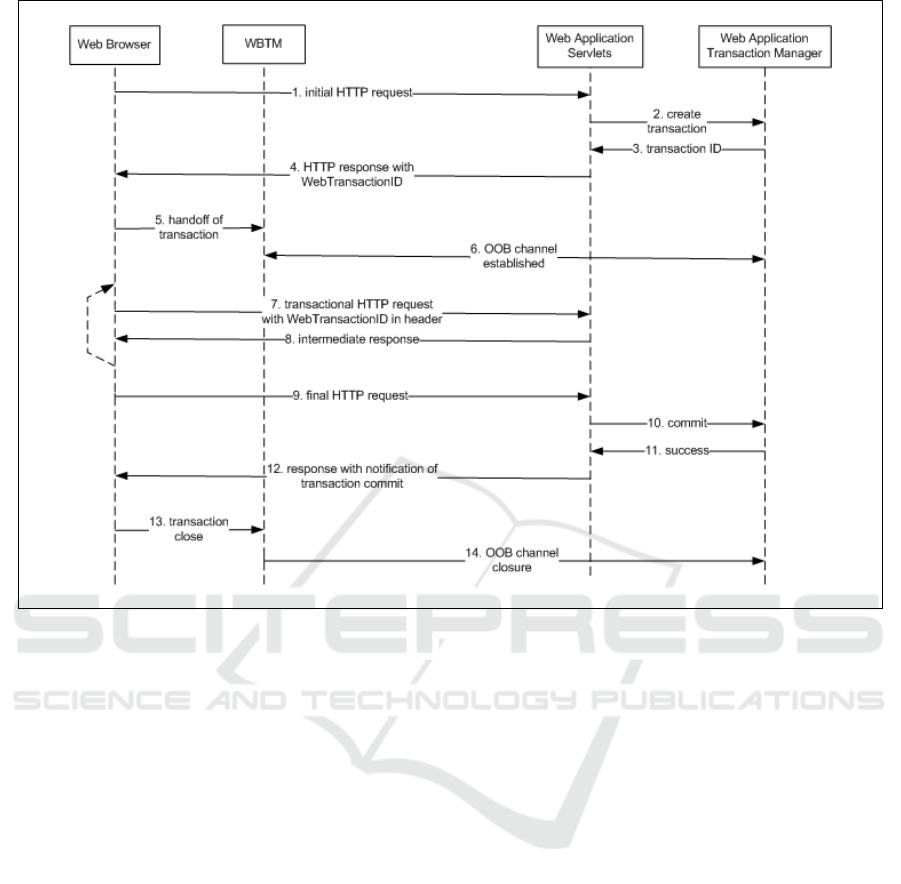

The sequence diagram shown in Figure 2 gives an ex-

ample in which multiple HTTP requests occur and

the transaction is successfully committed. The Web-

TransactionID is provided in the initial HTTP re-

sponse as an HTTP header and is then passed with

each subsequent HTTP request/response belonging to

that transaction. Once the transaction is committed

the HTTP header in the ﬁnal response is appended

with a ﬂag that identiﬁes the transaction as complete.

This allows the WBTM to free any resources being

used to manage the transaction, such as the OOB

channel.

In a situation where the user closes the web

browser in the middle of the transaction, the WBTM

receives a notiﬁcation from the web browser envi-

ronment informing it that the browser page has been

closed. It then uses the OOB channel to notify the

transaction manager within the web application so it

can then roll back the transaction.

Analysis of existing client/server interactions have

identiﬁed the risks associated with extending a trans-

action over multiple HTTP request/response calls.

These risks include:

1. The user closing their browsing tab during the

transaction.

2. The user closing their browser during the transac-

tion.

3. The user losing network connectivity to the server

during the transaction.

4. The user’s machine crashing during the transac-

tion.

While various techniques exist to mitigate some

of these risks, the proposed system allows a cen-

tralised method for addressing all four issues. If

the user closes the browser tab mid-transaction then

the WBTM is made aware of the fact by monitor-

ing events within the web browser. It then uses the

OOB connection to roll back the transaction. A de-

constructor in the WBTM caters for the user closing

the web browser completely during a transaction. The

WBTM is then able to notify any web applications

that currently have active transactions that they need

to be rolled back. If the user loses network connectiv-

ity with the web application server during a transac-

tion then the heartbeat running over the OOB connec-

tion will expire and the web application waits until

a time-out before rolling back the transaction. The

same occurs if the user’s machine crashes and the

OOB connection is not cleanly terminated.

WEBIST 2009 - 5th International Conference on Web Information Systems and Technologies

Figure 2: Worked Example Sequence Diagram.

6 PROTOTYPE

A prototype has been developed to demonstrate in-

volvement of web browsers in transaction manage-

ment. Based upon Java (Gosling et al., 2005) and the

Tomcat (Apache Software Foundation, 2008a) servlet

engine, the development of the prototype consisted of

two main tasks: enhancements to the web server, and

enhancements to the web browser.

The software enhancements at the web server in-

volve an additional layer in the web servlet engine that

allows the web developer to implement a ‘transac-

tional servlet’. The prototype implements this trans-

actional support using an additional servlet class in-

heritance layer in the Tomcat web application server.

The additional layer takes care of processing the web

developer’s request to begin and commit a transac-

tion, as well as the required protocol enhancements

to pass the transaction ID to the web browser using

HTTP headers as described in section 4. Addition-

ally, a new web service is deﬁned and exposed from

the web server. This service manages the OOB con-

nection for each client transaction. The prototype

uses the AXIS SOAP (Apache Software Foundation,

2008b) library to implement a basic web service that

supports two commands - heartbeat() and rollback().

The web browser component of the prototype was

implemented as a software extension to the Firefox

(Mozilla, 2008) web browser. This extension has

three major functions:

1. Monitor all HTTP responses and identify any

transaction-related HTTP headers.

2. Implement the transaction manager within the

web browser.

3. Manage the OOB communication channel be-

tween the web browser and web application.

The purpose of the prototype is to experiment

with and ﬁne tune the various methods and associ-

ated event bindings required by the proposed system

enhancements. The following messages were identi-

ﬁed and fed into a custom developed simulation pack-

age to gather the comparative performance metrics

described in section 7.

• Message 1: The begin transaction message from

server to browser.

• Message 2: The heartbeat message from browser

to server.

WEB BROWSER TRANSACTIONALITY

• Message 3: The complete transaction message

from server to browser.

• Message 4: The rollback transaction message

from server to browser.

• Message 5: The rollback transaction message

from browser to server.

Additionally, the following new system events

were identiﬁed:

• Event 1: Server-generated web browser heartbeat

timeout.

• Event 2: Server-generated transaction commit

timeout.

7 SIMULATION

Using the messages and events identiﬁed during the

prototyping stage a simulation program was devel-

oped to collect metrics on the of the new browser-

based transaction support. The simulation program is

a combination of custom web server components and

Grinder (Grinder Open Source Project, 2008). The

Grinder software package was used to simulate the

behaviour of the web browser sessions of multiple

users. The web server hosted two servlets for simula-

tion, an application servlet and the OOB web service.

The Grinder software package was conﬁgured with

various user proﬁles and simulated user activity by

sending pre-deﬁned HTTP requests to the web server

servlets, based on the web browser activity deﬁned in

section 6. Every second the web server collected sta-

tistical information on how many resources had been

locked by the simulated web browsers.

Since the analysis in this paper is concerned with

the contention of locked resources, it sufﬁces to re-

strict requests in this prototype to a single type of

resource rather than the heterogeneous resources re-

quired for a holiday booking application. In effect,

this places all resources in a single pool instead of

having a separate pool for each of the different re-

source types. The system behaves identically with a

single pool as it would with multiple pools, though the

differences between the various resource types have

been abstracted over.

A random set of user behaviours was deﬁned over

a time period of 10 minutes. The random behaviours

were generated according to the distribution:

• 80% completed the transaction within 60-180 sec-

onds

• 10% exited the transaction ungracefully after 10-

100 seconds of activity

• 10% timed out from the transaction after 10-100

seconds of activity

A feature of the simulator is that identical user be-

haviour data can be used for each scenario: the sys-

tem ﬂow without web browser transaction support and

the ﬂow where the system implemented the transac-

tion support enhancements. In the absence of trans-

actional support a commit timeout of 5 minutes was

used. For the other scenario, a heartbeat interval of 30

seconds was used. Statistical resource usage informa-

tion was then analysed to deﬁne trends and investigate

the effect of the new browser-based support for trans-

actions.

8 RESULTS

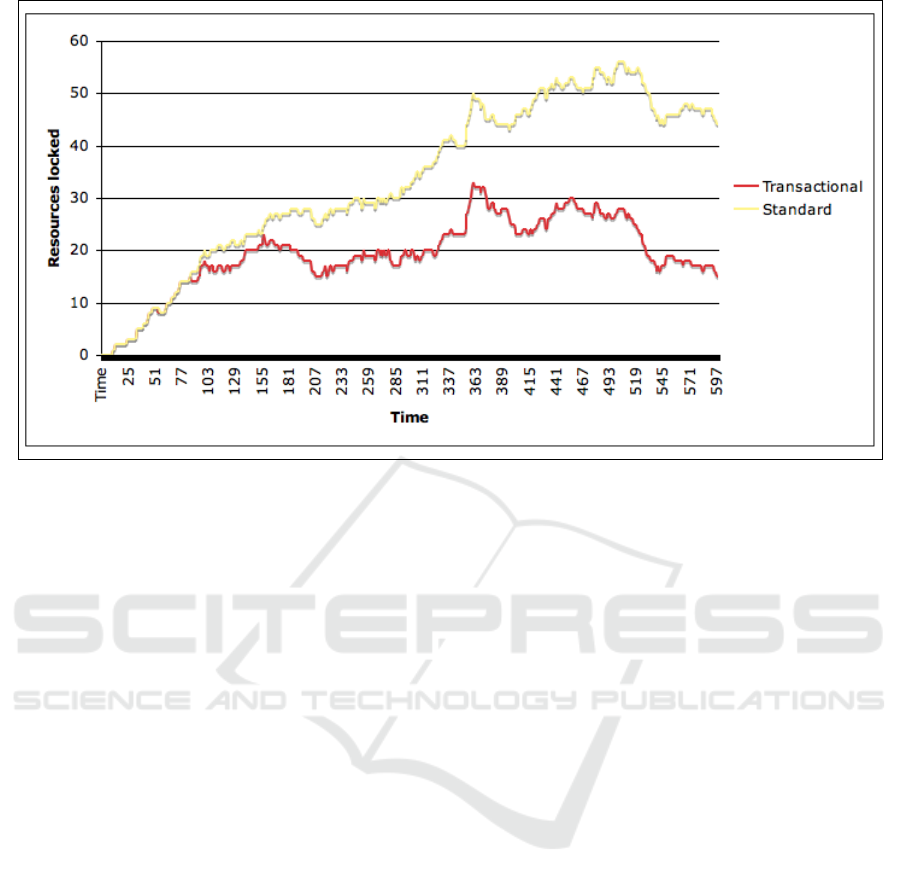

The ﬁrst analysis involved the level of resource

locking that occurred at the web server. Figure 3

depicts the difference in the number of resources

locked in a system system and a system that sup-

ports the browser-based transaction extensions. This

shows that the level of resource locking is decreased

when using the new browser-based transaction sys-

tem, which leads to greater availability of the server’s

resources. Thus, the experiment demonstrates the

beneﬁt of involving the web browser in the manage-

ment of transactions.

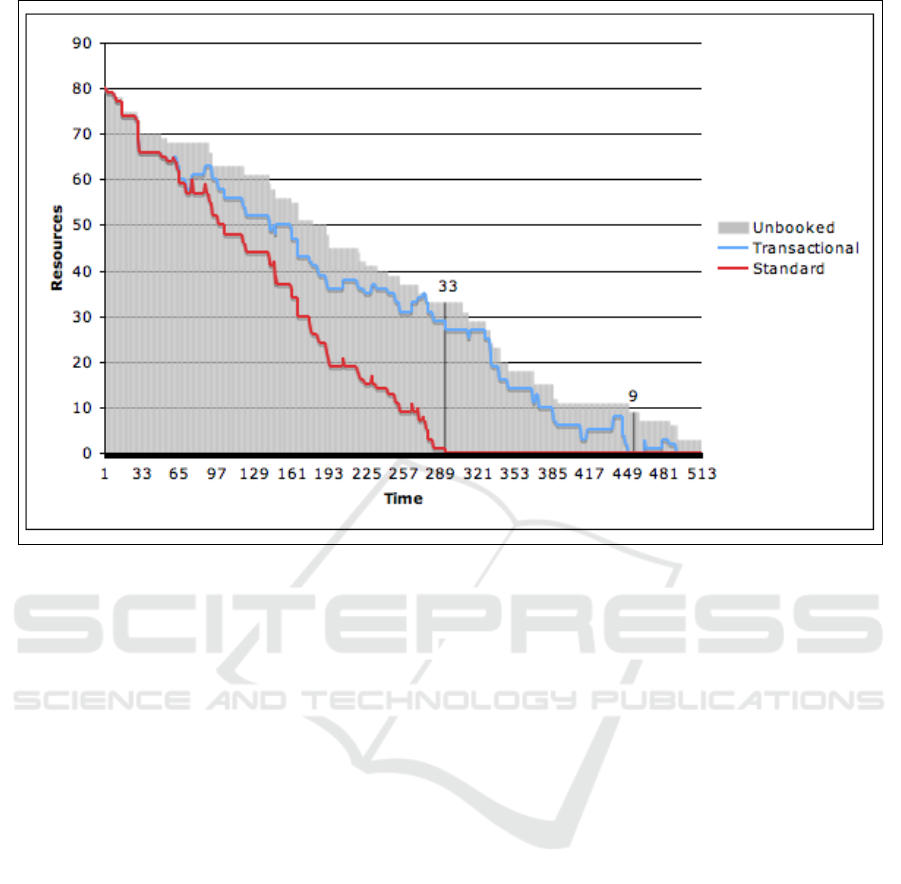

The simulation results were also analysed from

the the point of view of user perception of resource

availability. Figure 4 depicts the users’ perception

of resource availability with the standard system ver-

sus the browser-based transactional model. Users in

this simulation were attempting to obtain between 1

and 4 resources from a pool of 80 available resources.

If resources were not available then the client’s re-

quest failed. Clients, once rejected, sought the re-

source elsewhere. Figure 4 also depicts the number

of un-booked resources (as opposed to reserved re-

sources) over time. It was found that, for the standard

model, clients believed there were no more resources

available at time 289, when in fact there were 33 re-

sources reserved but not yet ﬁrmly booked. These

un-booked resources did not become available until

well after the users had left. Under the browser based

transactional model this value was reduced to 9 un-

booked resources at time 449. In addition, with the

browser-based transactional model, those 9 resources

were then fully booked within the next 64 seconds

giving full resource utilisation due to the fast rollback

times the new model provides. These results show

a 41% increase in the number of resources booked

and demonstrates improved system utility from the

viewpoint of both resource providers, who dispense

WEBIST 2009 - 5th International Conference on Web Information Systems and Technologies

Figure 3: Resources locked with and without transaction support.

a higher percentage of product, and resource con-

sumers, for whom more of the product is ultimately

available.

9 CONCLUSIONS

This paper presents research extending management

of distributed transactions to include participation of

web browsers. This extension provides greater end-

to-end stability through reliance of software com-

ponents executing both within the web application

server and the web browser. This concept is ex-

tendable to systems that use tools similar to the

‘Super Browsers’ (Henskens, 2007), which incorpo-

rates extended runtime environments for more com-

plex code execution within the web browser. The

increased power of the runtime environment within

super browsers opens up possibilities of complex

code executing at the client side in a completely

autonomous manner. The technology presented in

this paper supports a different approach to the way

in which web transactions are treated by the over-

all system. This is realised by viewing the system

as a component-based architecture with various sys-

tem components distributed across the web server and

web browser.

It is expected that browser involvement will lead

to efﬁcient dynamic user interaction with transac-

tions. This will be particularly useful, for example,

when a user wishes to aggregate services from multi-

ple service providers in a way that is inherently trans-

actional.

The system presented in this paper allows a web

application to push transaction management code to a

web browser, where it executes independently in the

web browser’s runtime environment. The additional

responsibility placed on the web browser represents

a move towards an increasingly peer-to-peer-based

Web architecture, where the role of client and server

are blurred. The challenges of moving to a peer-to-

peer design are well established (Subramanian and

Goodman, 2005) and must be addressed, especially

in relation to connectivity between peers (Wallis et al.,

2007).

The example demonstrates one situation in which

browser-based transaction management provides en-

hanced system functionality. Ongoing research is

investigating novel technologies such as dynamic,

client deﬁned, transactions involving autonomous

web services (Paul et al., 2008). These technologies,

which previously required the existence of dedicated

middleware such as a CORBA ORB, are made possi-

ble by the underlying research presented in this paper.

The future research will open up new possibilities

and address issues such as how to inform users that

previously unavailable resources

WEB BROWSER TRANSACTIONALITY

Figure 4: Users competing for unique resources.

REFERENCES

Apache Software Foundation, Apache tomcat.

http://tomcat.apache.org.

Apache Software Foundation, Web services - axis.

http://ws.apache.org/axis/.

Cabrera, L. F., Copeland, G., Feingold, M., Freund, R. W.,

Freund, T., Johnson, J., Joyce, S., Kaler, C., Klein,

J., Langworthy, D., Little, M., Nadalin, A., New-

comer, E., Orchard, D., Robinson, I., Shewchuk, J.,

and Storey, T. (2005). Web Services Coordination

(WS-Coordination). Technical report, Arjuna Tech-

nologies Ltd., BEA Systems Inc, Hitachi Ltd., IBM

Corporation, IONA Technologies, Microsoft Corpo-

ration.

Cox, W., Cabrera, L. F., Copeland, G., Freund, T., Klein,

J., Storey, T., and Thatte, S. (2004). Web Services

Transaction (WS-Transaction). Technical report, BEA

Systems Inc, International Business Machines Corpo-

ration, Microsoft Corporation.

Flanagan, D. (2002). Javascript: the deﬁnitive guide.

O’Reilly.

Garrett, J. J. (2005). Ajax: A new approach to web applica-

tions. Adaptive Path 2005.

Gosling, J., Joy, B., Steele, G., and Bracha, G. (2005). Java

(TM) Language Speciﬁcation. Addison Wesley, 3rd

edition.

Gray, J. and Reuter, A. (1993). Transaction processing :

concepts and techniques. Morgan Kaufmann Publish-

ers, San Mateo, Calif.

Grinder Open Source Project, The grinder.

http://grinder.sourceforge.net/.

Henskens, F. (2007). Web service transaction management.

International Conference on Software and Data Tech-

nologies (ICSOFT).

Kristol, D. (2001). HTTP Cookies: Standards, Privacy, and

Politics. ACM Transactions on Internet Technology,

1(2):151–198.

McCormack, D. (2002). Web 2.0: The Resurgence of the

Internet and E-Commerce. Aspatore Books.

Mozilla, Mozilla ﬁrefox. http://www.mozilla.com/en-

US/ﬁrefox/.

Object Management Group (2004). Common Object Re-

quest Broker Architecture: Core Speciﬁcation.

O’Reilly, T. (2005). What is web 2.0. O’Reilly Net.

Paul, D., Wallis, M., Henskens, F., and Hannaford, M.

(2008). Transaction support for interactive web appli-

cations. In 4th International Conference on Web In-

formation Systems and Technologies (WEBIST-2008),

volume 4th of WEBIST. INSTICC.

Subramanian, R. and Goodman, B. D. (2005). Peer-to-Peer

Computing: The Evolution of a Disruptive Technol-

ogy. IGI Publishing.

Wallis, M., Henskens, F., and Hannaford, M. (2007). A sys-

tem for robust peer-to-peer communication with dy-

namic protocol selection. The 8th International Con-

ference on Parallel and Distributed Computing, Ap-

plications and Technologies (PDCAT).

WEBIST 2009 - 5th International Conference on Web Information Systems and Technologies

100
