EMPIRICAL ASSESSMENT OF EXECUTION TRACE

SEGMENTATION IN REVERSE-ENGINEERING

Philippe Dugerdil and Sebastien Jossi

Department of Information Systems, HEG-University of Applied Sciences, 7 rte de Drize, 1227 Geneva, Switzerland

Keywords: Reverse-engineering, dynamic analysis, software architecture, empirical study.

Abstract: Reverse-engineering methods using dynamic techniques rests on the post-mortem analysis of the execution

trace of the programs. However, one key problem is to cope with the amount of data to process. In fact, such

a file could contain hundreds of thousands of events. To cope with this data volume, we recently developed

a trace segmentation technique. This lets us compute the correlation between classes and identify cluster of

closely correlated classes. However, no systematic study of the quality of the clusters has been conducted so

far. In this paper we present a quantitative study of the performance of our technique with respect to the

chosen parameters of the method. We then highlight the need for a benchmark and present the framework

for the study. Then we discuss the matching metrics and present the results we obtained on the analysis of

two very large execution traces. Finally we define a clustering quality metrics to identify the parameters

providing the best results.

1 INTRODUCTION

During the last decade, software reengineering has

been proposed as a viable solution to software

ageing problem (legacy software). According to

(Biggerstaff, 1994) the first step to reengineering,

reverse-engineering, is “the process under which an

existing software system is analyzed to identify its

components and the relation between them and to

create representation of the system at different

conceptual levels”. Moreover, according to (Bergey,

1999), reengineering initiatives that do not target the

architectural level are more likely to fail.

Consequently, many reengineering initiatives begin

by reverse architecting the legacy software. The

trouble is that, usually, the source code does not

contain many clues on the high level components of

the system (Kazman, 2002). However, it is known

that to “understand” a large software system, which

is a critical task in reengineering, the structural

aspects of the software system i.e. its architecture

are more important than any single algorithmic

component (Tilley, 1996). Besides, we know that

there is not a unique view of software architecture,

there are many (Clements, 2002), each targeting a

particular purpose. In this work, we aim at

reconstructing the functional architecture of the

system i.e. the structure of components and their

relationships that implement the high level business

function of the software. Our technique rests on the

post mortem dynamic analysis of the legacy

software i.e. the analysis of the execution trace file

after the software has been executed. Moreover, to

be able to correlate the recovered components to the

business function of the software, the latter is

executed by following the recovered use-case

performed by the actual users of the system. The

technique to generate an execution trace file from a

legacy software system has been presented

elsewhere (Dugerdil, 2006). One key problem in

post-mortem dynamic analysis is to cope with the

amount of data to process. In fact, the execution

trace file can contain hundreds of thousands of

events, if not millions. To cope with this data

volume, we recently developed a trace segmentation

technique (Dugerdil, 2007b) that provided

encouraging results. So far, the parameters of this

technique have been set somewhat arbitrarily. In

fact, we did not know what parameter would provide

optimal results. In this paper we present a

quantitative study of the performance of our

segmentation technique according to the parameters

chosen. To be able to assess the quality of the result

we used a benchmark: a recent and well architected

Java system whose functional components

Dugerdil P. and Jossi S. (2008).

EMPIRICAL ASSESSMENT OF EXECUTION TRACE SEGMENTATION IN REVERSE-ENGINEERING.

In Proceedings of the Third International Conference on Software and Data Technologies - SE/GSDCA/MUSE, pages 20-27

DOI: 10.5220/0001877200200027

 SciTePress

correspond closely to its package structure. Then, we

measure the match of the recovered components

with the package structure. The closer the match, the

better the result. In section 2 we briefly present our

segmentation and component identification

technique. Then, in section 3 we present the

evaluation framework and the metrics we used to

evaluate the quality of the results. In section 4 we

present the empirical results in several

configurations of the parameters. These experiments

are discussed in section 5. In section 6, we define the

Clustering Quality metric to assess the performance

of our clustering technique with respect to the

chosen parameters. The related work is presented in

section 7. Section 8 concludes the paper by

presenting our future work.

2 SEGMENTATION

The execution trace files in all but trivial programs

are generally very large. In one of our experiments,

we got a file with more than 7.10

events (procedure

calls). Although many authors try to cope with the

quantity of information to process by compressing

the trace using more or less sophisticated techniques

(Hamou-Ladj, 2002), we have developed another

technique: trace segmentation (Dugerdil, 2007b).

First, the trace is split into contiguous segment of

equal size. Then we observe the class occurrence in

each segment and compute a correlation factor

between the classes: if classes are simultaneously

present or absent in the same segments, then they are

considered as highly correlated. The highly

correlated classes will be considered as forming

functional clusters or components. In this context, a

functional component is a set of classes working

closely together to implement some useful business

function. Let us define the number of segments in

the trace as Ns and the binary occurrence vector V

for a given class C as a vector whose size is Ns and

whose i

component indicates the presence (1) or

absence (0) of the class in the i

segment. Then, the

correlation between any two classes C

, C

is given

by (Dugerdil, 2007b):

(, )

[] []

correlation C C

Vi V i

⊕

∑

Where V1.V2 is the usual dot product for vectors

and V

[i]⊕V

[i] is the boolean OR operator between

the corresponding components of both vectors.

Two classes are considered strongly correlated if

their correlation is higher or equal to some

predefined threshold T. Using this metric, we cluster

the classes that are mutually strongly correlated.

Each such a cluster will represent a functional

component. The rationale behind this technique is

that functional components should be highly

cohesive and their classes strongly coupled. In this

technique, two parameters must be determined: the

number of segments (Ns) and the correlation

threshold (T). Then, this approach has been applied

to the reverse engineering of an industrial software

(Dugerdil, 2007a). Although the results were

encouraging, since we observed clusters that were

common among several use-cases, we did not

systematically investigate the effect of the choice of

parameters (Ns and T) on the clustering. In these

experiments, we somewhat arbitrarily chose Ns =

twice the number of classes present in the execution

trace and two correlation factors: 60% ≤ T < 80% for

moderately correlated classes and T ≥ 80% for

strongly correlated classes. Since the technique

seems promising, we need to study the effect of the

parameters on the quality of the result. Besides, in

all our experiments, we saw that some classes were

present in most of the segments of the execution

trace. These are similar to the utility classes in the

work of (Hamou-Ladj, 2005): they are classes that

perform some utility work, not specific to any

functional component. Then, we filtered out these

classes before proceeding with the computation of

the clusters. Let us define G = (C,R) a weighted

graph whose set of nodes C is the set of classes

identified in an execution trace and whose edges are

defined by the correlation R between these classes.

The weight of an edge is the strength of the

correlation between the connected nodes. Then our

clustering technique computes the connected

subgraphs of G whose weight is greater or equal to

the chosen threshold T.

Since a given class can be part of several

connected subgraphs, it will also be part of several

clusters. Moreover, our technique will not only

generate clusters whose classes are located in a

single directory but also clusters spanning several

directories. Finally, there will be classes not

associated to any clusters. This is the case when a

class works in isolation i.e. does not collaborate with

any other class to fulfil its responsibilities.

EMPIRICAL ASSESSMENT OF EXECUTION TRACE SEGMENTATION IN REVERSE-ENGINEERING

3 FRAMEWORK AND METRICS

Basically, all clustering techniques try to “discover”

the components of the software under study in order,

for the software engineer, to reconstruct the

architecture of the system. However to evaluate the

quality of the clustering technique we need to define

a benchmark. Then, we decided to apply our

technique on a recently written, well architected

system written in Java. This system holds more than

600 classes. The packages of this system represent

well defined functional components. Therefore, if

our technique is able to discover the functional

components of the system, then there will be a

strong match between the recovered component and

the package structure. In other words, the recovered

cluster would indeed represent functional

components. Then, faced with an unknown legacy

system, we could apply the technique to recover its

functional architecture. Now the problem is to

evaluate the match between the clusters and the

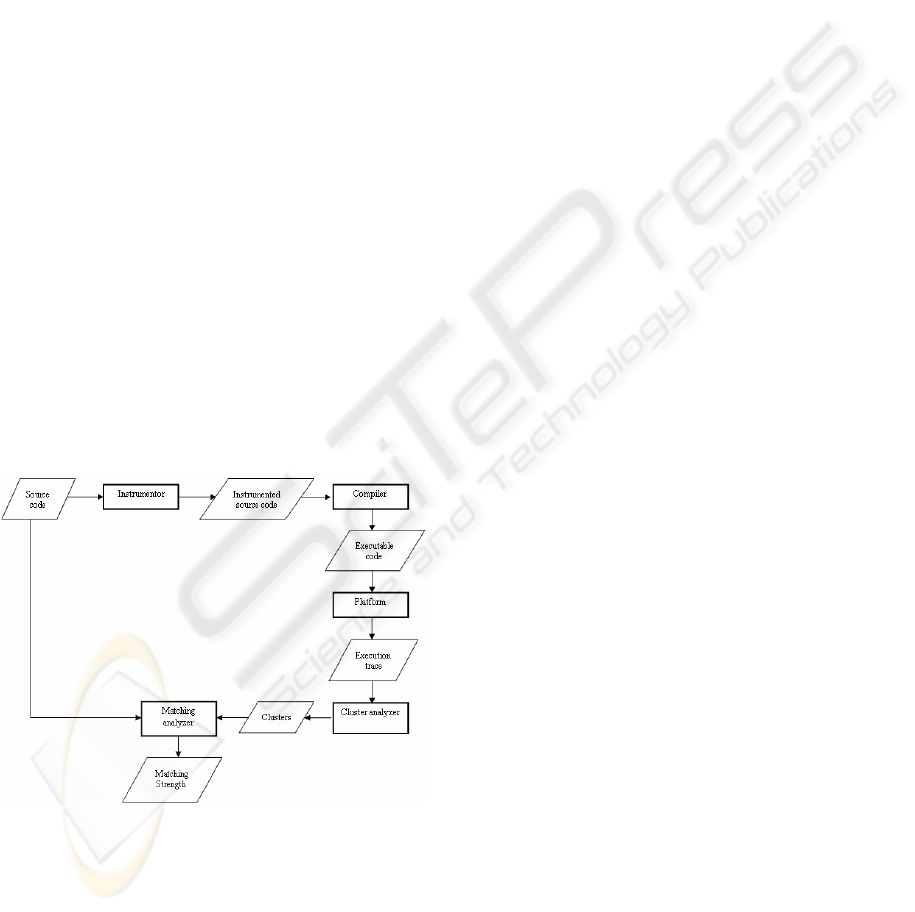

directories. In figure 1 we present the workflow of

the tools we used to perform our experiments.

Starting from the source code, it is first instrumented

to be able to generate the execution trace. The result

is compiled and executed on the target platform.

Then the execution trace file is created. This file is

analyzed to identify the clusters. The set of clusters

is then matched against the packages found in the

source code and the matching strength is computed.

Figure 1: Workflow for the evaluation of the match

As a first approximation, we could have set the

strength of the match as the ratio of the number of

clusters whose classes are all located in the same

package compared to the total number of clusters.

However, this approximation has a strong limitation:

in the case of minimal cluster size (pairs of classes)

even if all the clusters would each be located in a

single directory, they would be far from representing

a good approximation of the original architecture. It

must also be noted that we cannot compute the

match the other way around, starting from the

packages in the source code. In fact, a single

execution of the system is very likely not to involve

all the classes in the system. Therefore the ratio of

packages identified in the clusters compared to all

the packages cannot be a good evaluation of the

match. Another important factor to evaluate the

match is the coverage of the classes in the trace by

the clusters i.e. the ratio of the classes that have been

clusterized compared to the total number of classes

in the trace. Normally the more the coverage the

better, provided that the clusters hold a “significant”

number of classes. In other words, we would not be

happy with a large coverage by “atomic” clusters of

minimal size. All other things being equal, we would

rank higher a clustering where clusters would

contain classes belonging to a single package.

4 EMPIRICAL RESULTS

4.1 Introduction

In our experiment, we chose to set the number of

segments Ns according to the number n of classes in

the trace. In fact, it seems reasonable to claim that

Ns cannot be set independently from n (Dugerdil,

2007b). Then, we performed our clustering

experiments with the following parameters:

Ns = 2*n, 4*n, 8*n, 16*n, 32*n, 64*n

T = 50%, 60%, 70%, 80%, 90%

The resulting clusters are classified by cluster

“type”, where the type represents the number of

packages the contained cluster span. We present the

results as a graph showing the contribution to the

class coverage of each of the cluster category named

after the number of packages spanned. Therefore we

will show the “layer” representing the clusters

whose classes are located in only one package, the

“layer” representing the clusters whose classes are

located in 2 packages and so on. The class coverage

represents the ratio of the classes located in the

clusters over the total number of classes identified in

the trace file. Since a class can simultaneously be

located in several clusters, we present two class

coverage graphs. The first shows the class coverage

taking into account all the duplicates. This is why

the maximum coverage is higher than 100%, This

represents the raw result of our clustering technique.

ICSOFT 2008 - International Conference on Software and Data Technologies

Then, we present the same graph but with all the

duplicates removed using the following technique: if

a class is present in a cluster spanning n packages

then we remove it from the clusters spanning n+k

packages with k= 1,2,3. But class coverage is not

enough. In fact, depending on the segmentation

technique, we could end up with an excellent

coverage due to clusters of minimal size (2 classes).

This would definitely not represent a good recovery

of the original architecture. Therefore, it is important

to know the average size of the clusters and the

standard deviation. Finally, we represent the number

of different packages found in the clusters that span

only one package. In fact, even if each cluster has all

its classes in the same package, it is important to

know if all the classes of all the clusters are in the

same package or if there are many packages

involved.

4.2 Results for the First Trace

The execution trace of the first use-case contains

more than 7*10

events (method calls). The number

of classes in the trace n = 158.

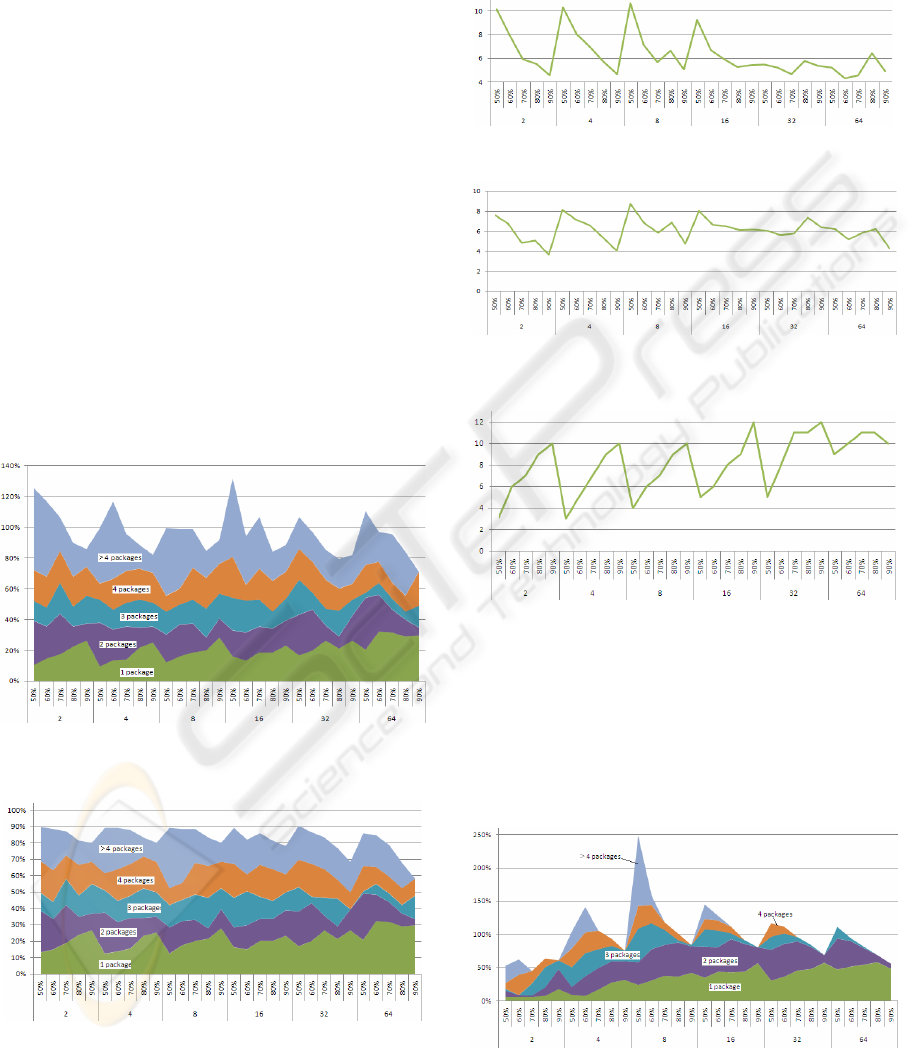

Figure 2: Class coverage by cluster type with duplicates

classes.

Figure 3: Class coverage by all clusters types without

duplicate classes.

The labels on the horizontal axis of all the

figures represent the number of segments (Ns) and

the correlation threshold (T). Since the number of

segments is a multiple of the number of classes in

the trace, we only display the multiplier (2, 4, 8, 16,

32, 64).

Figure 4: Average number of classes per cluster.

Figure 5: Std deviation of the number of classes per

cluster.

Figure 6: Number of different packages in the case of

clusters located in one package only.

4.3 Results for the Second Trace

The execution trace of the second use-case contains

more than 5.10

events, therefore about 10 times less

events than in the first trace. In this second case, the

number of classes in the trace n = 138.

Figure 7: Class coverage by all clusters types with

duplicate classes.

EMPIRICAL ASSESSMENT OF EXECUTION TRACE SEGMENTATION IN REVERSE-ENGINEERING

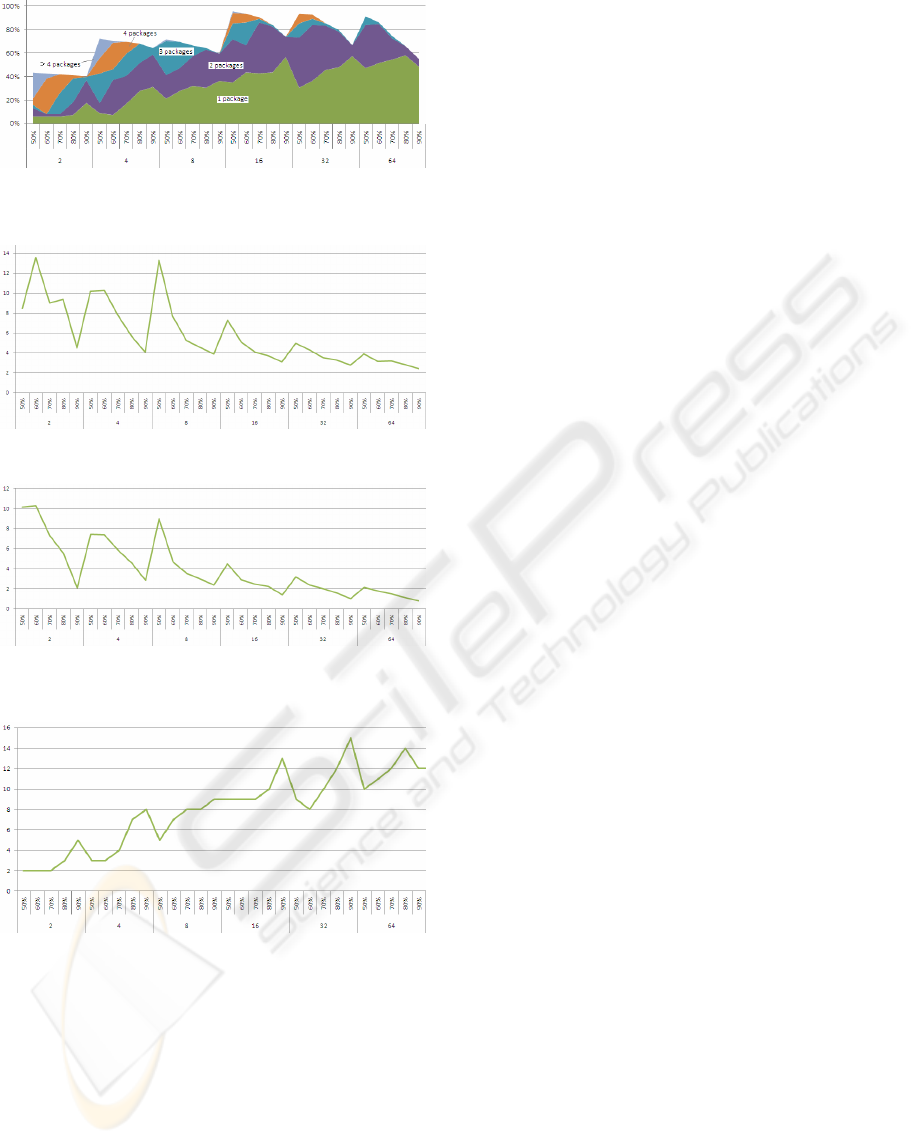

Figure 8: Class coverage by all clusters types without

duplicate classes.

Figure 9: Average number of classes per cluster.

Figure 10: Std deviation of the number of classes per

cluster.

Figure 11: Number of different packages in the case of

clusters located in one package only.

5 DISCUSSION

The first finding is that the duplicate classes in

clusters vary highly among the use-cases. While in

the largest execution trace, we have at most 30%

duplicates, we obtained 150% in the second case.

However, after having removed these duplicates the

interesting fact is that, if one puts aside the

segmentation with a number of segments Ns = 2*n,

we get a high level of class coverage in both

experiments, between 70 and 90 %. But the

important difference between both situations is the

change in coverage ratio with respect to Ns. In the

first case, this ratio is almost insensitive to Ns while

in the second case it changes much with Ns. We may

think that because in the first experiment there are

10 times more events in each segment than in the

second experiment, the correlation between the

classes would be very different in both experiments.

In fact, since the computation of the correlation is

based on the presence or absence of a class in a

segment, we could expect that the larger the size of a

segment the higher the correlation. If this was true,

we should observe much larger clusters in the first

experiment than in the second. But this is not the

case. The cluster size with respect to the number of

segments stays remarkably similar in both

experiments: starting at about 10 to 12 classes on

average per cluster with Ns = 2*n, it stabilizes at

about 3-4 classes in both cases. Although the std

deviation is somewhat different, this result in

encouraging since it tends to suggest that our

technique is robust with respect to the trace size.

Moreover, the variation of the number of classes per

cluster with respect to the correlation threshold T for

each value of Ns shows a striking symmetry in both

experiments. While the number of classes varies a

lot for Ns < 16*n, it stabilizes rapidly with Ns ≥

16*n. Besides, the variation of the average number

of classes per clusters with respect to the correlation

threshold T for a given value of Ns is in accordance

to our expectation: the higher T, the less the number

of correlated classes and the lower the cluster size.

We also observe that, for a given value of Ns, the

higher T the higher the coverage of classes by the

cluster spanning only one package. Again, this is

also in accordance to our expectations: if the system

is well designed then the coupling among classes

(that we measure with our correlation metrics) must

be higher within a given package than among

packages. Therefore, by increasing T, we de-couple

the loosely coupled classes among packages (fig 12).

This phenomenon can be observed for each value of

Ns, but it is much more salient in the low values of

Ns. A key difference in the results of both

experiments, however, is the coverage by the

clusters located in a single package (the lowest

“layer” in the figures 3 and 8): in the largest trace,

the coverage is quite regular whatever Ns (between

15% and 30%) but in the second it goes from 10% to

60%). This suggest that the higher Ns the less the

span of the clusters among several packages. This

again is a good result of our method since it reveals

ICSOFT 2008 - International Conference on Software and Data Technologies

the high cohesion and loose coupling feature of the

benchmark system.

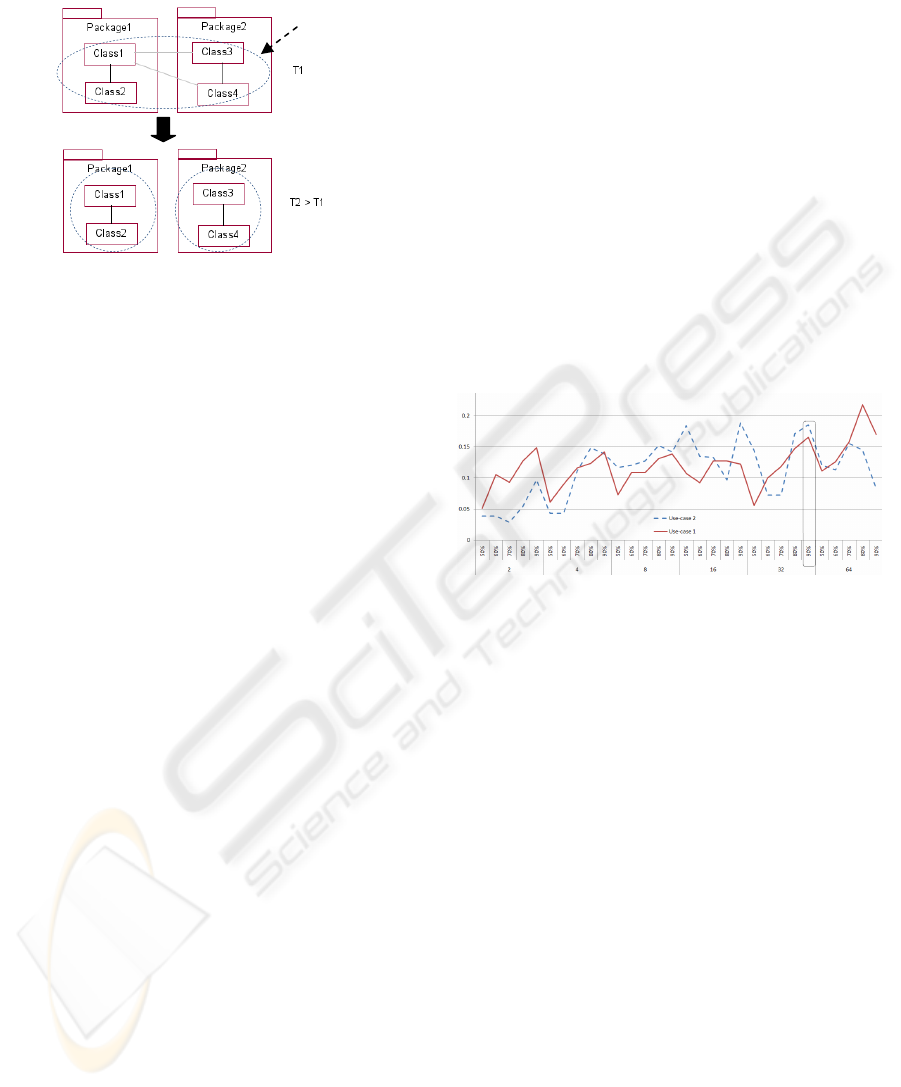

Figure 12: De-coupling loosely coupled classes.

Finally, in both experiments we observed a

decrease in the class coverage for Ns > 64*n (not

shown in the figures). This can be easily explained:

the higher Ns the less the computed value of the

correlation between classes therefore the less the

number of clusters.

As a first result of this study, we observed that

the cohesion/coupling nature of a system could be

assessed using our technique. A system whose

packages or modules represent functional

components should therefore exhibit the following

behaviour, when analyzed :

• For 2*n ≤ Ns ≤ 64*n, the ratio of the class

coverage by the clusters located in a single

component should, for each Ns, increase with

• For 50% ≤ T ≤ 90%, the ratio of the class

coverage by the clusters located in a single

component should, for each T, increase with

Ns.

These rules are obviously independent of the

duplicate classes, since we focus on the cluster

located in a single component. Finally, these

experiments did not allow us to find a definite

criterion to set Ns and T for the identification of the

functional components of a legacy system.

6 SEGMENTATION METRICS

Now, we must define a quality metrics to identify

the best segmentation parameters (Ns and T) to use.

First, the metric should highlight the component

discrimination of the segmentation. Then we must

focus on the clusters located each in a single

package (lowest “layer” in figures 2, 3, 7, 8). The

metrics should get its highest value when the

identified clusters are the same as the components

(packages). This is given by the ratio of the number

of different packages over the number of clusters.

The maximum is reached when the number of

clusters are the same as the number of packages (it

could obviously never be bigger). Therefore this

ratio is in the range [0..1]. But this is not enough: the

metrics should also include the class coverage: the

more the classes included in the identified

components the better. Then we define the clustering

quality CQ metric by:

CQ=(Nb of packages/Nb of clusters)*class coverage

Where the number of packages and the number of

clusters concern the clusters whose classes are

located in a single package. The result of this

metrics for each combination of parameters is

displayed in figure 13.

Figure 13: Clustering quality metrics.

When we reverse-engineer a software system, we

must choose a unique value of T for the analysis of

all its execution traces, since this sets the internal

cohesion of the clusters (components). If we used

different values of T then the recovered components

would not all have the same internal cohesion i.e. the

same level of “quality”. Therefore, we must look for

the parameters that provide optimum results taking

all the execution trace of the system into account. In

the experiment presented in this paper we observe

that for both use-cases considered together the

optimum result is found at Ns = 32*n and T = 90%

(see figure 13).

7 RELATED WORK

In the literature, many techniques have been

proposed to recover the structure of a system by

splitting it into components. They range from

document indexing techniques (Marcus, 2004),

slicing (Verbaere, 2003) to the more recent “concept

analysis” technique (Siff, 1999) or even mixed

techniques (Harman, 2002)(Tonella, 2003). All these

cluster

EMPIRICAL ASSESSMENT OF EXECUTION TRACE SEGMENTATION IN REVERSE-ENGINEERING

techniques are static i.e. they try to partition the set

of source code statements and program elements into

subsets that will hopefully help to rebuild the

architecture of the system. Then, the key problem is

to choose the relevant set of criteria (or similarity

metrics (Wiggerts, 1997) with which the “natural”

boundaries of components can be found. In the

reverse-engineering literature, the similarity metrics

range from the interconnection strength of Rigi

(Müller, 1993) to the sophisticated information-

theory based measurement of Andritsos and Tzerpos

(Andritsos, 2003)(Andritsos, 2005), the information

retrieval technique such as Latent Semantic Indexing

(Marcus, 2004) or the kind of variables accessed in

formal concept analysis (Siff, 1999)(Tonella, 2001).

Then, based on such a similarity metric, an

algorithm decides what element should be part of the

same cluster (Mitchell, 2003). In dynamic analysis

(Zaidman, 2005) proposed a slicing technique to

cope with the size of the execution trace. The main

idea is to cluster the classes using metrics similar to

the ones used in Webmining projects (the HITS

algorithm used to reference pages in the web). In

another work, Zaidman and Demeyer proposed to

manage the volume of the trace by searching for

common global frequency patterns (Zaidman, 2004).

In fact, they analyzed consecutive samples of the

trace to identify recurring patterns of events having

the same global frequencies. In other words they

search locally for events with similar global

frequency. It is then quite different from our

approach that analyzes class distribution throughout

the trace. In their work, Xiao and Tzerpos compared

several clustering algorithms based on dynamic

dependencies. In particular they focused on the

clustering based on the global frequency of calls

between classes (Xiao, 2005). This approach does

not discriminate between situations where the calls

happen in different locations in the trace. This is to

be contrasted with our approach that analyzes where

the calls happen in the trace. Very few authors have

worked on sampling techniques for trace analysis.

One pioneering work is the one of Chan et al. (Chan,

2003) to visualize long sequence of low-level Java

execution traces in the AVID system (including

memory event and call stack events). But their

approach is quite different from ours. It selectively

picks information from the source (the call stack for

example) to limit the quantity of information to

process. Although the literature is abundant in

clustering and architecture recovery techniques, we

have had a hard time finding any research work

whose results would actually be benchmarked

against some reference clustering, to the notable

exception of Mitchell (Mitchell, 2003) who uses

static techniques. Our approach seems original also

to this respect.

8 CONCLUSIONS

This paper focuses on the systematic assessment of

our dynamic analysis technique for component

identification in reverse engineering. After having

shortly presented the method, we set the framework

for the experiment. In particular, the key feature of

such an assessment is the definition of a benchmark.

Then, we used a well designed system whose

packages truly represent the functional components

of the system. Therefore, the results of our dynamic

analysis method can be compared to the package

structure of the software under study. The closer the

recovered components to the latter structure, the

more efficient the analysis technique. We observed

that our dynamic analysis technique exhibited highly

desirable behaviour like a good sensitivity to the

cohesion / coupling feature of the software under

study. We suggested that our dynamic analysis could

be used to assess the quality of the system studied

(on the cohesion / coupling axis). Next we defined a

Clustering Quality metric (CQ) to compute the

optimal values for Ns and T. We found that Ns =

32*n and T = 90% give the optimal results for both

use-cases in the experiment presented in this paper.

Although these results need further experimentation,

they show that our technique represents an effective

way to identify functional components in legacy

software. Finally, it is worth mentioning that our

statistical approach to dynamic analysis is able to

cope with very large data volume (~10

events). As

further work, we will extend this study to systems

written in different languages to see if it is robust

across programming languages.

ACKNOWLEDGEMENTS

This work has been done with the support of HESSO

Grant N° 15989 from the Swiss Confederation,

which is gratefully acknowledged. The author would

also like to thank the computing center (CTI) of the

state of Geneva for their support.

ICSOFT 2008 - International Conference on Software and Data Technologies

REFERENCES

Andritsos P., Tzerpos V., 2003 - Software Clustering

based on Information Loss Minimization. Proc. IEEE

Working Conference on Reverse engineering.

Andritsos P., Tzerpos V., 2005 - Information Theoretic

Software Clustering. IEEE Trans. on Software

Engineering 31(2).

Bass L., Clements P., Kazman R.,2003 – Software

Architecture in Practice, 2nd edition. Addison-Wesley

Inc..

Bergey J., Smith D., Tilley S., Weiderman N., Woods S.,

1999 - Why Reengineering Projects Fail. Software

Engineering Institute, Tech Report CMU/SEI-99-TR-

010.

Biggerstaff T. J., Mitbander B.G., Webster D.E., 1994.

Program Understanding and the Concept Assignment

Problem. Communications of the ACM, CACM 37(5).

Chan A., Holmes R., Murphy G.C., Ying A.T.T. , 2003 -

Scaling an Object-oriented System Execution

Visualizer through Sampling. Proc. of the 11th IEEE

International Workshop on Program Comprehension

(ICPC'03),.

Paul Clements, Felix Bachmann, Len Bass, David Garlan,

James Ivers, Reed Little, Robert Nord, Judith Stafford,

2002 - Documenting Software Architectures: Views

and Beyond. Addison-Wesley Professional.

Dugerdil Ph. – 2006 - A Reengineering Process Based on

the Unified Process. Proc. IEEE Int Conf. on software

Maintenance (ICSM’06).

Dugerdil Ph., Jossi S., 2007a- Role based clustering of

software modules: an industrial experiment. Proc.

ICSOFT 2007, Barcelona.

Dugerdil Ph., 2007b - Using trace sampling techniques to

identify dynamic clusters of classes. Proc. of the IBM

CAS Software and Systems Engineering Symposium

(CASCON).

Hamou-Lhadj A., Lethbridge T.C, 2002 – Compression

Techniques to Simplify the Analysis of Large

Execution Traces. Proc. of the IEEE Workshop on

Program Comprehension (IWPC),

Hamou-Lhadj A., Braun E., Amyot D., Lethbridge T. ,

2005 – Recovering Behavioral Design Model from

Execution Traces. Proc. of the European Conference

on Software Maintenance and Reengineering

(CSMR’05).

Harman M., Gold N., Hierons R., Binkeley D., 2002 –

Code Extraction Algorithms which Unify Slicing and

Concept Assignment. Proc IEEE Working Conference

on Reverse Engineering (WCRE’02).

Kazman R., O’Brien L., Verhoef C., 2002 - Architecture

Reconstruction Guidelines, 3rd edition. Software

Engineering Institute, Tech. Report CMU/SEI-2002-

TR-034.

Mitchell B.S., 2003 - A Heuristic Search Approach to

Solving the Software Clustering Problem. Proc IEEE

Conf on Software Maintenance.

Marcus A., 2004 – Semantic Driven Program Analysis.

Proc IEEE Int. Conference on Software Maintenance

(ICSM’04).

Müller H.A., Orgun M.A., Tilley S., Uhl J.S, 1993. - A

Reverse Engineering Approach To Subsystem

Structure Identification. Software Maintenance:

Research and Practice 5(4), John Wiley & Sons.

Siff M., Reps T. . 1999 – Identifying Modules via Concept

Analysis. IEEE Trans. On Software Engineering

25(6).

Tonella P., 2001 - Concept Analysis for Module

Restructuring. IEEE Trans. On Software Engineering,

27(4),

Tonella P., 2003 - Using a Concept Lattice of

Decomposition Slices for Program Understanding and

Impact Analysis. IEEE Trans. On Software

Engineering. 29(6),

Tilley S.R., Santanu P., Smith D.B. - Toward a

Framework for Program Understanding. Proc. IEEE

Int. Workshop on Program Comprehension, 1996

Verbaere M. , 2003 – Program Slicing for Refactoring.

MS Thesis, Oxford University.

Wiggerts T.A., 1997 - Using Clustering Algorithms in

Legacy Systems Remodularization. Proc IEEE

Working Conference on Reverse Engineering (WCRE

'97),

Xiao C., Tzerpos, V., 2005 – Software Clustering basd on

Dynamic Dependencies. Proc. of the IEEE European

Conference on Software Maintenance and

Reengineering (CSMR’2005).

Zaidman A., Demeyer S., 2004 – Managing trace data

volume through a heuristical clustering process based

on event execution frequency. Proc. of the IEEE

European Conference on Software Maintenance and

Reengineering (CSMR’2004).

Zaidman A., Calders T., Demeyer S. Paredaens J., 2005 –

Applying Webmining Techniques to Execution Traces

to Support the Program Comprehension Process. Proc.

of the IEEE European Conference on Software

Maintenance and Reengineering (CSMR’2005).

EMPIRICAL ASSESSMENT OF EXECUTION TRACE SEGMENTATION IN REVERSE-ENGINEERING
