Active Database System Realized by a Petri Net

Approach

Lorena Chavarr

ıa-B

aez and Xiaoou Li

Computer Science Department, CINVESTAV-IPN

Av. IPN 2508, Col. Zacatenco, C.P. 07360, Mexico

Abstract. An active database system executes actions automatically in response

to events that are taking place either inside or outside the database. Developing

an active database system, especially an active rule base, is not an easy task be-

cause some (unnoticed) errors may be introduced during its construction. In this

paper, we present a Petri net-based approach to integrate active rules into tra-

ditional database system. We implemented our approach as a software system

called ECAPNSim which not only has veriﬁcation and simulation functionality

but also allows us to develop multi-platform applications, i.e., a unique active rule

base can work independently of the DBMS.

1 Introduction

An active database system (ADBS) is able to react automatically to meaningful events

that are taking place inside or outside the database system. This reactive behavior is

achieved by combining active rules into the traditional database system. Developing an

active rule base, which is the core of an ADBS, requires considerably effort because

of some of the following aspects: ﬁrst, the knowledge represented by active rules into

the computer-based system may have structural errors such as redundancy, inconsis-

tency, incompleteness and circularity due to various communication problems between

the expert and the active rule base designer. Second, the functionality of a rule base

may be difﬁcult to understand due to active rules are ﬁred dynamically based on the

previous ﬂow of events. Finally, the tools associated with an active rule system may be

minimal, with little support for browsing, monitoring, or debugging active rules. These

points reﬂect a need for design rule analysis techniques and tools for debugging and

explanation [1]. In our previous work we developed a Petri net-based approach, called

Conditional Colored Petri Net (CCPN), for modeling and simulating active rules and

their behavior. We implemented our approach as a software system, named ECA rule

Petri net simulator (ECAPNSim) which turns a passive database into an active one [2].

ECAPNSim is introduced as a layer on top of the conventional database system, so it

can establish communication with different database management systems (DBMS).

Such integration allows us to develop multi-platforms applications, and makes it pos-

sible that an active rule base works independently of the DBMS. However, rule base

veriﬁcation, which is very important to guarantee that an active database works without

errors, was not considered in the development of ECAPNSim.

Chavarría-Báez L. and Li X. (2008).

Active Database System Realized by a Petri Net Approach.

In Proceedings of the 6th International Workshop on Modelling, Simulation, Veriﬁcation and Validation of Enterprise Information Systems, pages

150-159

DOI: 10.5220/0001730501500159

 SciTePress

In this paper we focus on the integration of an error-free active rule base into a

conventional database system using CCPN approach. First, we model the active rule

base as a CCPN. Second, we detect structural errors by analyzing the structure of the

Petri net. Taking into account the list of errors, the rule designer may perform suitable

actions to correct them. Third, through the token ﬂow in the CCPN, the active rule base

behavior is simulated or performed. Thus, we can not only foresee but also ascertain the

causes that trigger a rule. This work assures that a correct active rule base is integrated

into a database system, in consequence, the obtained active system performs properly.

The remainder of the paper is organized as follows: Section 2 introduces active

database system, knowledge and execution models are reviewed through a small exam-

ple. Section 3 deﬁnes structure errors that an active rule base may have, as well as a Petri

net-based method is proposed to detect them. Our software system ECAPNSim is pre-

sented in Section 4. A case study is used to demonstrate the ECAPNSim functionality.

Section 5 shows related works. Finally, conclusion is drawn in Section 6.

2 Active Database System

An active database management system integrates event-based rule processing with tra-

ditional database functionality. Generally, its reactive behavior is achieved through def-

inition of Event-Condition-Action (ECA) rules as part of the database. When an event

happens the rule is triggered, then if the condition evaluation is true, the action is ex-

ecuted [1]. Generally, an active rule takes the following form: ON event IF condition

THEN action.

An event is something that occurs at a point in time. The condition examines the

context in which the event has taken place. The action describes the task to be carried

out by the rule if the condition is fulﬁlled once an event has taken place. In the following

there are some active rules based on the relation schema account(num, name, bal-

ance, rate)which contains registers about bank’s accounts. Rules in the active rule base

automatically enforce some of the bank’s policies for managing customers’ accounts.

Example 1. Bank’s policies for managing customers’ accounts.

Rule 1. When an new account is registered, if that account has a balance less than

500 and an interest rate greater than 0%, then that account’s interest rate is lowered to

0%.

Rule 2. When an account’s interest rate is modiﬁed, if an account has a balance less

than 500 and an interest rate greater than 0%, then that account’s interest rate is lowered

to 0%.

Rule 3. When an account’s balance is modiﬁed, if that account has an interest rate

greater than 1% but less than 3%, then that account’s interest rate is raised to 2%.

Rule 4. When an account’s balance is modiﬁed, if that account has an interest rate

greater than 1% but less than 3%, then that account is deleted.

Above policies can be represented as active rules as follows:

Rule 1. ON insert account IF insert.balance ¡ 500 and insert.rate ¿ 0

THEN update account set rate = 0 where balance ¡ 500 and rate ¿ 0

151

Rule 2. ON update account.rate IF update.balance ¡ 500 and update.rate ¿ 0

THEN update account set rate = 0 where balance ¡ 500 and rate ¿ 0

Rule 3. ON update account.balance IF update.rate ¿ 1 and update.rate ¡ 3 THEN

update account set rate = 2 where rate ¿ 1 and rate ¡ 3

Rule 4. ON update account.balance IF update.rate ¿ 1 and update.rate ¡ 3 THEN

delete from account where rate ¿ 1 and rate ¡ 3

Suppose the event update account.balance has been detected (signaling phase),

so Rule 3 and Rule 4 are triggered (triggering phase). Then, conditions of Rule 3 and

Rule 4 must be evaluated to determine if their corresponding actions can be executed

(evaluation phase). Let’s assume the condition update.rate ¿ 1 and update.rate ¡ 3 is

true, rule execution is scheduled (scheduling phase). For simplicity, rule execution will

be done by following the order of rules in the list. Therefore, Rule 3’s action will be

executed ﬁrst, only then Rule 4’s action will be executed (execution phase). After Rule

3’s action execution, the event update account.rate is signaled, so Rule 2 is triggered

(immediate coupling mode) and execution process is repeated until there is no rule

eligible to trigger. On the other hand, when Rule 4’s action is executed, rule processing

ﬁnishes since there is no rule such that is triggered by the event delete from account.

3 Rule Base Development

Developing an active rule base involves transferring expertise from the human expert

through the active rule base designer into the computer. During this process many er-

rors, which have to be detected to ensure a proper perfomance of the system, may arise

because of communications problems between the expert(s) and the rule designer. Veri-

ﬁcation concerns the correctness and appropriateness of the structure of a rule base, and

must be an essential part of the whole system development. In our previous works [2] -

[5], we have tackled active rule base veriﬁcation issues.

Structural errors include redundancy, inconsistency, incompleteness and circularity.

We refer the event and condition parts as premise of an ECA rule, and denote an ECA

rule as R

, C

, A

) where E

, C

and A

are the event, condition and action of rule

, respectively. Here we take Redundancy error as an example to show our veriﬁcation

process.

Redundancy is characterized by redundant and subsumed rules. Given a rule i and

a rule j which take the same action, if rule i has a more restrictive premise than rule j,

then rule i is a subsumed rule because whenever it succeeds, rule j must also succeed.

Deﬁnition 1. (Subsumed Rules.) A rule R

, C

, A

) is subsumed by a rule R

, C

, A

) if the following conditions are met:

(1) E

⊆ E

(2) C

⊆ C

(3) A

⊆ A

When in Deﬁnition 1, E

= E

, C

= C

and A

= A

the two rules are absolutely

identical, so they are redundant rules.

Sometimes, rules are not subsumed (or redundant) completely, i.e., only some of

its elements (event, condition, action) are subsumed (or redundant). We identify those

rules as partially subsumed (redundant) rules since they can also cause redundancy.

152

Deﬁnition 2. (Partially subsumed Rules.) A rule R

, C

, A

) is partially subsumed

by a rule R

, C

, A

) if only two of its elements are subsumed by those of R

Rules R

and R

are event - condition subsumed rules, if the following conditions

are fulﬁlled.

(1) E

⊆ E

(2) C

⊆ C

(3) A

6= A

Similarly, we can deﬁne event - action subsumed rules and condition - action sub-

sumed rules.

In Example 1, Rule 1 and Rule 2 are partially redundant condition - action rules

because they evaluate the same condition and perform the same action.

Redundancy doesn’t cause a bad performance to the rule base; however, problems

arise when one of the redundant rules is changed or removed but the rest don’t because

their behavior still will be presented in the rule base.

In order to detect structural errors in the rule base, we developed a veriﬁcation

process which consists of three phases: rule normalization, rule modeling, and rule

veriﬁcation which we describe in the following.

3.1 Rule Normalization

This step translates the original active rule base into a set of atomic rules. An atomic rule

is that whose event and condition are a conjunction of one or more primitive events and

conditional clauses, respectively, and its action is only one instruction. We consider the

event algebra described in [1]; however, we have restricted our analysis - with no loss

of generality - to disjunction and conjunction operators since the rest of the operators

have the same structure, for example, if events in conjunction operator are ordered then

we have the sequence operator.

A rule R

, C

, A

) can always be divided into several atomic rules by the fol-

lowing steps:

Step 1. If Ri(E

, C

, A

) is atomic, its OK. If not go to Step 2.

Step 2. Transform each element of Ri(Ei, Ci, Ai) into disjunction form, by using

rules from the boolean algebra, so that each element consists of one or more disjuncts

each one of them is a conjunction of one or more instructions. If the transformed rule

has no disjunctions in its elements, then it is an atomic rule according to the deﬁnition.

Otherwise, go to the next step.

Step 3. Divide Ri(E

, C

, A

) into a set of atomic rules whose premises and actions

are the obtained disjuncts in Step 2.

Active rule base of Example 1 doesn’t need to be normalized since each rule is

atomic.

3.2 Rule Base Modeling

An active rule base as well as its interaction can be represented by several models.

However, some of them are not suitable to perform active rule base veriﬁcation because

they represent the rules very general. The Conditional Colored Petri Net (CCPN) model

153

[2], which is an extension of Colored Petri Nets, represents each element of an active

rule and it provides a way to represent composite events as well as to consider condition

evaluation. Since this model is an extension of Petri nets it has a sound basis to analyze

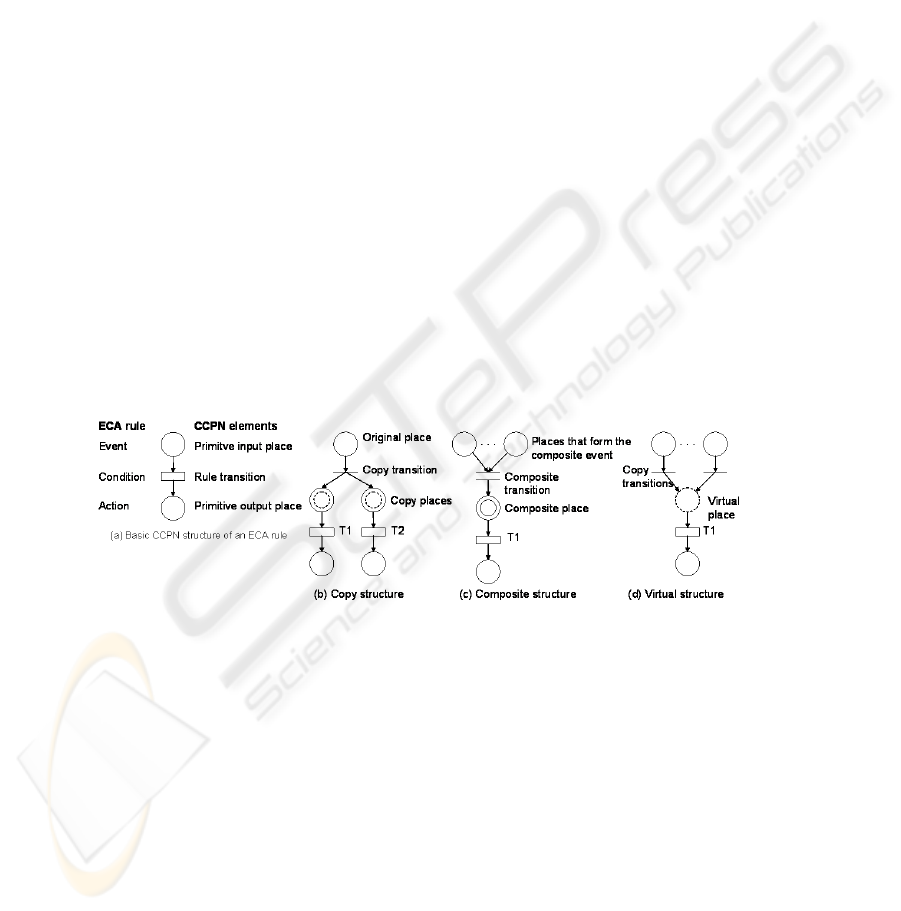

active rules behavior. An active rule is mapped to a CCPN structure as follows: the rule

is mapped to a transition where condition is attached, event and action parts are mapped

to input and output places of a transition, respectively. Matching between events and

input places has the following characteristics:

– Primitive places, P

prim

, represent primitive events;

– Composite places, P

comp

, represent composite events;

– Copy places, P

copy

, are used when one event triggers two or more rules. An event

can be shared by two or more rules, but in PN theory, one token needs to be dupli-

cated for sharing. A copy place takes the same information as its original one;

– Virtual, P

v irt

, places are used for accumulating different events that trigger the

same rule. For example, when the event part of a rule is the composite event OR.

All places in the CCPN are identiﬁed by P . P = P

prim

∪ P

comp

∪ P

copy

∪ P

v irt

Rules and transitions are related in the following form:

– Rule transitions, T

rule

, represent rules;

– Composite transitions, T

comp

, represent composite event generation;

– Copy transitions, T

copy

, duplicate one event for each triggered rule.

All the transitions in CCPN are represented by T. T = T

rule

∪ T

comp

∪ T

copy

Fig. 1. CCPN structures of ECA rules. (a) Basic CCPN structure of an ECA rule (b) Copy struc-

ture (c) Composite structure (d) Virtual structure.

Figure 1 shows the basic structures to which an ECA rule can be mapped. In its

most basic form, event, condition and action of a rule matches with a primitive in-

put place, a rule transition and a primitive output place, respectively, as shown in Fig-

ure 1(a).If an event triggers two or more rules it has to be duplicated by means the

copy structure depicted in Figure 1(b). Composite events formation is considered in

CCPN using the composite structure drawn in Figure 1(c). Composite transition’s in-

put places represent all the events needed to form a composite event while its output

place correspond to the whole composite event. Finally, we use the virtual structure to

model the composite event OR as standing for in Figure 1(d). Virtual place acts as an

154

“event store”, i.e., when a rule is triggered by several events that place accumulates

them and each one of them can be used to trigger the rule. The CCPN model of a set

of ECA rules is formed by connecting those places that are output and input places

at the same time, i.e., those places that represent both the action of one rule and the

event of another rule. Figure 2 shows the CCPN model of rules of Example 1 in our

ECAPNSim interface. Events/actions: insert account, update account.rate, update

account.balance, and delete account, deﬁned in active rules of Example 1, are rep-

resented by the primitive places E0, E1, E2, and E5, respectively. Places labeled as E3

and E4 are copy places, so, they contain the same information as place E0. Each rule

in Example 1 is represented by a rule typed transition in the CCPN, so that, transition

T1 represents Rule 1, transition T2 stands for Rule 2, and so on. Also each rule typed

transition is attached with the condition of its corresponding rule. Since transition T0 is

a copy typed transition it doesn’t represent any rule; however, it allows us to trigger two

rules at the same time. Condition of transition T0 is always true.

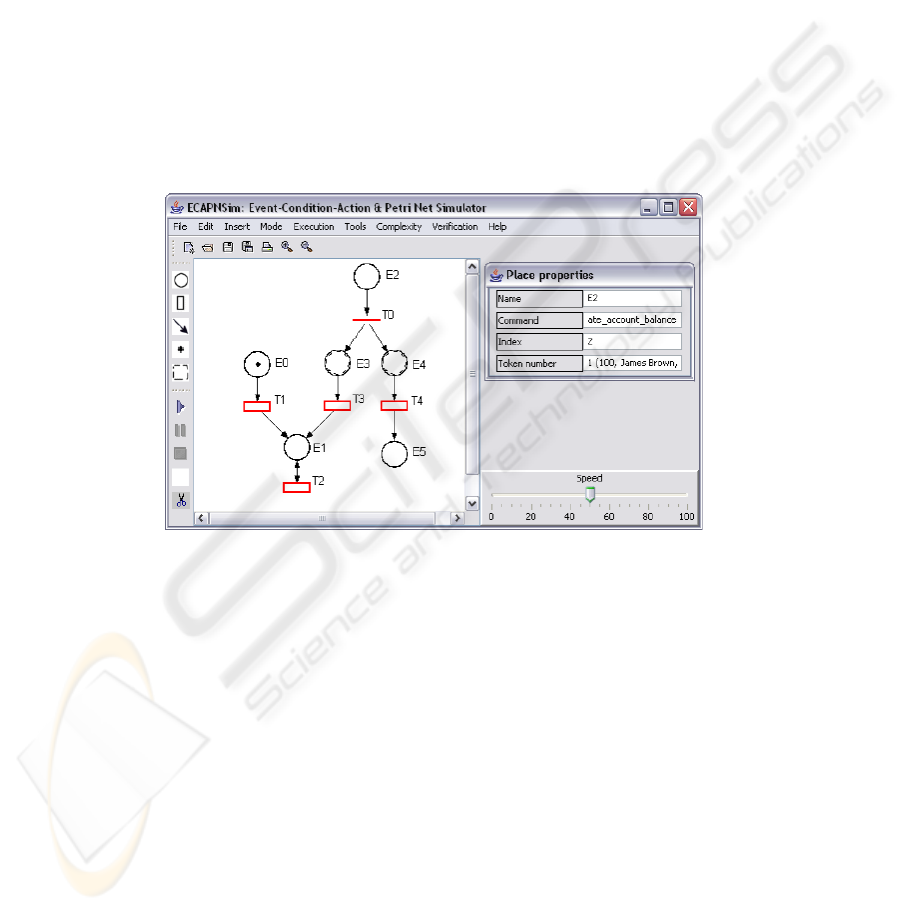

Fig. 2. CCPN with token “insert account(100, James Brown, 300, 0.5)” in place E0.

In CCPN transition ﬁring is deﬁned by two steps: ﬁrst, verify if a transition is en-

abled; second, verify if it can ﬁre according to the condition evaluation result. If a

transition is enabled and the condition evaluation is true, then that transitions ﬁres.

3.3 Rule Veriﬁcation

Structural errors considered in this paper have special patterns which allow us to iden-

tify them. Through the analysis of some abnormal structures we conclude that the rules

which may have errors exhibit the following characteristics (either one of them or both):

1. Rules with the Same Action. Those transitions that have primitive output places

with more than one input arc may cause errors because they represent rules with

actions executed by more than one rule

155

2. Rules with Common Events. Those transitions that have primitive places which

are duplicated through a copy type transition since they represent rules with events

that trigger more than one rule.

During CCPN construction relevant information is generated, we can retrieve it

using the following methods:

– getInputPlaces(T). It returns the input primitive places of a transition T. For exam-

ple, getInputPlaces(T3) = {E2}. getInputPlaces(T) is different from

•

T since each

one of them gives us the primitive and all input places of transition T, respectively.

– cond(T). It returns the conditional clauses stored in the rule typed transition T. For

example, cond(T4) = {update.rate ¿1, update.rate ¡ 3}.

By using the CCPN model and the information obtained with above methods, we

developed a set of error detection properties. Here we show our property to detect re-

dundancy.

Property 1. Redundancy. Let t

and t

, 1 ≤ i, j ≤ m, i 6= j; be two transitions

which represent the Rule i and Rule j of RB, respectively, which execute the same

action and whose conditions have, at least, a common conditional clause. We say that

Rule j is subsumed by Rule i if t

and t

satisfy the following conditions:

a). getInputP laces (t

) ⊆ getInputP laces (t

) ;

b). cond(t

) ⊆ cond(t

);

c). t

•

= t

•

Errors detected in the rule base of Example 1 are the following: (1) Rule 1 and Rule

2, as well as Rule 3 and Rule 4, are partially redundant condition - action rules. (2) Rule

3 and Rule 4 are conﬂicting rules since their actions contradicts each other under the

same premise. (3) Rule 2 is a circular rule. (4) Rule 2 is an unreachable rule. (5) Rule 4

is a dead-end rule. With the complete list of errors, rule designer must perform suitable

actions to correct each error.

4 Integrating Rule Base and Database System

ECA Petri Nets Simulator (ECAPNSim)was originally developed for modeling and

simulating ECA rule base behavior in active database system [2]. ECAPNSim inte-

grates reactive behavior to traditional databases without special ECA rule syntax and

semantics development. Figure 3 shows the buildtime architecture of ECAPNSim. The

Rule editor module of ECAPNSim takes an active rule base written in a text ﬁle and

generates automatically its corresponding CCPN model (ECA-CCPN converter model).

In order to assure an error-free active rule base we add a new module “Rule Veri-

ﬁer” into ECAPNSim, see Figure 3, so that errors such as redundancy, inconsistency,

incompleteness and circularity, can be detected automatically. Rule Veriﬁer uses the

structure of the obtained CCPN model as well as information generated during CCPN

construction to check a rule base according to our veriﬁcation approach. For example,

in Figure 2 transitions T1 and T2 are detected partially redundant condition - action

156

rules by Rule Veriﬁer since both of them evaluate the same condition and execute the

same action (conditions b) and c) of above Property 1). ECAPNSim produces a report

of all the anomalies detected, then notify the rule base designer and suggest him do

appropriated corrections.

Using ECAPNSim rule behavior can also be simulated. Suppose a token with in-

formation: insert account(100, James Brown, 300, 0.5) in place E0 of the CCPN of

Figure 2, which means that the customer James Brown has a new bank account which

is identiﬁed with the number 100, with a balance and rate of $300 and 0.5%, respec-

tively. Then transition ﬁring steps are veriﬁed. 1) First, since there is a token in place

E0, transition T1 is enabled. 2) Second, since transition T1 is attached with the con-

dition insert.balance ¡ 500 and insert.rate ¿ 3 and the new account’s balance and rate

are less than 500 and greater than 0, respectively, condition evaluation is true. So, the

token is removed from place E0 and deposited in place E1. The token generated from

this transition ﬁring consists of the information: (100, James Brown, 300, 0) because it

corresponds to the action of transition T1. In this moment transition T2 is enabled since

there is a token in place E1. However, condition evaluation is false since transition T2

is attached with condition update.balance ¡ 500 and update.rate ¿ 0 but the updated

balance’s value is 0. So, the token is taken away from the CCPN and the rule base pro-

cessing ﬁnishes. As you can see, even though a cycle was detected during veriﬁcation

phase, at runtime that cycle never happens.

5 Related Work

Rule base veriﬁcation has been widely investigated particularly with respect to produc-

tion rules [7], [10] - [12]. Earlier work in this area focussed on comparing in pairs the

rules of the rule base, trying to discover certain relationships between their premises and

conclusions. Recent techniques use graphical representations, such as directed graphs

or Petri nets, of the rule base to detect the different structural errors [11], [12]. Petri

nets based approaches model the rule base using a Petri net and the veriﬁcation is per-

formed through reachability analysis of paths in the graph. However, those approaches

depend on the initial mark of the net to detect errors, therefore, some errors may be not

detected. In this sense, our work can detect all the errors described in this paper since

we focus on the structure of the net and information regarding rules.

Very few work can be found on active rule base veriﬁcation. References [9] and

[8] tackled this topic by verifying the rule properties, such as triggerability, join appli-

cability, rule coverage, rule cascading, and postcondition satisfaction of an active rule

base, which are mainly focused on checking semantic correctness of active rules. Our

approach can work together with their approaches to check both semantic correctness

and structural errors.

Unlike approaches such as Starburst [6], EXACT [1], and SAMOS [1], we verify

and simulate an active rule base in the same platform ECAPNSim. Through ECAPNSim

an active rule base can work with different DBMSs.

157

6 Conclusions

Rule Veriﬁer tool development makes it possible that active rules integrated into a tra-

ditional database are error free. Comparing with other existing active database systems,

our approach has the following advantages:

(1) Formal Petri nets analysis tools can be used to detect structural errors.

(2) ECAPNSim makes rule base veriﬁcation and simulation in the same platform.

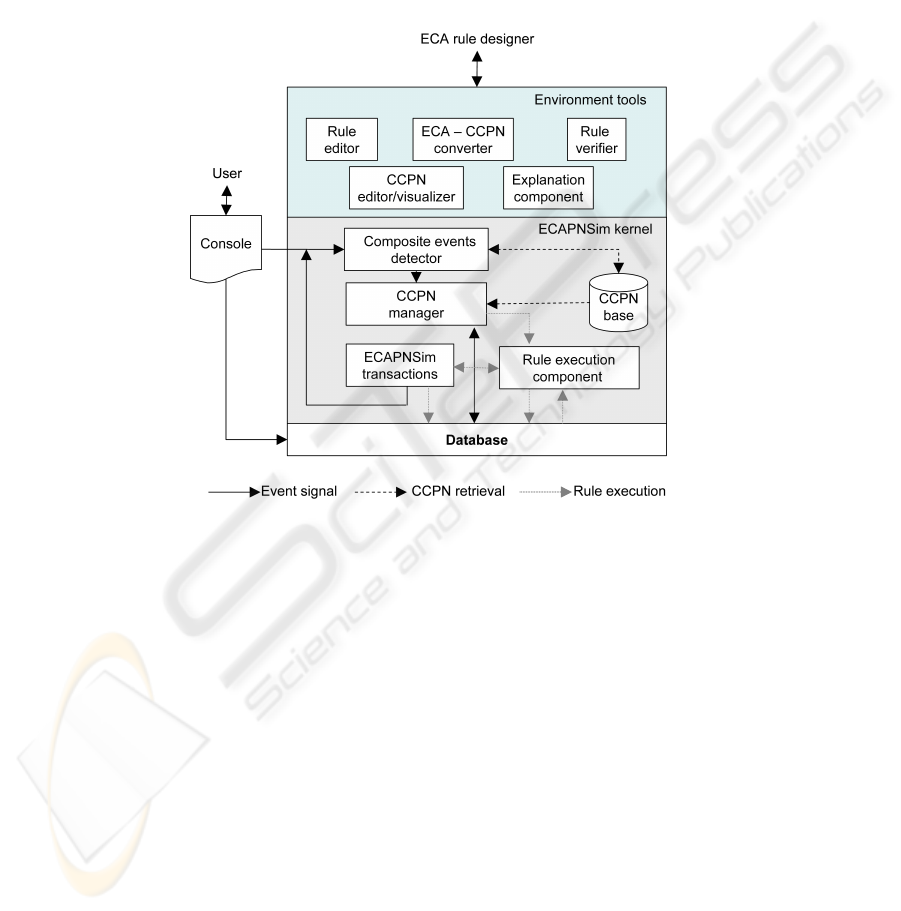

Fig. 3. ECAPNSim buildtime architecture.

References

1. Paton, N. , D

ıaz, O.: Active Database Systems. ACM Computing Surveys, Vol. 31. No. 1.

(1999) 62-103

2. Li, X., Medina-Mar

ın, J., Chapa, S.: Applying Petri nets on active database systems. IEEE

Trans. on System, Man, and Cybernetics, Part C: Applications and Reviews, Vol. 37, No. 4.

(2007) 482-493

3. Chavarr

ıa-B

aez, L., Li, X.: Knowledge Veriﬁcation of Active Rule-Based Systems. In D.S.

Huang, K. Li, and G.W. Irwin (Eds.): ICIC2006: Intelligent Control and Automation. Lec-

ture Notes in Control and Information Sciences, Vol. 344 Springer-Verlag, Berlin Heidelberg

(2006) 676-687

4. Chavarr

ıa Baez, L., Li, X.: Static Veriﬁcation of Active Rule-Based System, In 10th IASTED

Intl. Conf. on SoftwareEngineering and Applications. Dallas, Texas, USA, (2006) 514-084.

158

5. Chavarr

ıa-B

aez, L., Li, X.: Veriﬁcation of ECA Rule Base via Conditional Colored Petri

Nets, In IEEE Intl. Conf. on Systems, Man, and Cybernetics. Montreal, Canada. (2007) 7-10

6. Widom, J., The Starburst Rule System. In: J. Widom (ed.): Active Database Systems Triggers

and Rules For Advanced Database Processing. Morgan Kaufmann Publishers, San Francisco,

California (1996)

7. He, X., Chu, W., Yang, H., A New Approach to Verify Rule-Based Systems Using Petri Nets,

Inf. and Soft. Tech., vol. 45, no. 10, pp. 663-670, 2003

8. Augusto, J. C., and Nugent, C., A New Architecture for Smart Homes Based on ADB and

Temporal Reasoning, In Toward a Human Friendly Assistive Environment (Proc. of 2nd Intl.

Conf. on Smart homes and health Telematic, ICOST2004), Assistive Technology Research

Series, Vol. 14, pp. 106-113, IOS Press, Singapore, Sept. 15-17, 2004.

9. Fraternali, P., Teniente, E., Urp

ı, T., Validating Active Rules by Planning, In Proc. of the 3rd

Intl. Workshop on Rules in Database Systems, Springer LNCS Vol. 1312, 1997, pp. 181-196.

10. Yang, S., Fuzzy Rule Base Systems Veriﬁcation Using High-Level Petri Nets, IEEE Trans.

on Knowledge and Data Engineering, vol. 15, no. 2, 2003, 457-473.

11. Wu, C. and Lee, S., A Token-Flow Paradigm for Veriﬁcation of Rule-Based Expert Systems,

IEEE Trans. on Systems, Man and Cybernetics- Part B: Cybernetics, vol. 30, no. 4, 2000,

616-624

12. M. Ramaswamy, S. Sarkar, and Y.S. Chen, ”Using Directed Hypergraphs to Verify Rule-

Based Expert Systems”, IEEE Trans. on Knowl. and Data Eng., vol. 9, no. 2, 1997, pp.

221-237

159
