A SOFTWARE AGENT FOR CONTENT BASED

RECOMMENDATIONS FOR THE WWW

Gulden Uchyigit

University of Brighton, Brighton, U.K.

Keywords: Recommender systems, web browsing, user modelling.

Abstract: The evolution of the WWW has led to an explosion of information and consequentially a significant

increase on usage. This avalanche effect has resulted in such uncertain environment in which we find it

difficult to clarify what we want, or to find what we need. In this paper we introduce RecSys which aims to

confront the problem by developing a software agent which intelligently learns users interests, and hence

makes recommendations of resources on WWW based on the user’s profile. The system employs multiple

TFIDF vectors to represent various domains of user’s interests. It continuously and progressively learns

users profile from both implicit and explicit feedback. This is achieved by extraction and refinement of

featured keywords within the learning examples. Several heuristics were also adapted to improve the overall

performance of the system.

1 INTRODUCTION

The evolution of the WWW has led us an explosion

of information and consequentially a significant

increase in usage. This avalanche effect has resulted

in such an uncertain environment in which we find it

difficult to clarify what we want, or to find what we

need. What’s more, the information sources have

high noise, i.e contains irrelevant content to a

particular user’s interest, hence one could never

predict what he/she gets is exactly what he/she

expected. There is therefore a need to find a way to

improve such a situation, so that a user can always,

to some extent, be able to guarantee that the next

recommendation is the one which is right for

him/her.

Recent research shows that there has been a great

deal of work on how artificial intelligence can help

solve this problem. Depending on the different

focuses of interest, these ideas exist in a great

variety of forms, these include personalised search

engines and intelligent recommender systems. The

latter can be further divided into different categories,

namely collaborative recommender systems,

content-based recommender systems, and a hybrid

recommender systems. In this paper we focus on the

area of content-based recommender systems. In

particular we present a software agent system which

is able to provide the user recommendations whilst

the user is browsing the WWW.

2 BACKGROUND

Content-based recommendations and collaborative

based recommendations are two most popular

paradigms in recommending items. The former

extracts information from the documents that have

already been evaluated by the user in order to obtain

new related items, while the latter recommends

items to the user based on the evaluation by users

within a similar category. With content-based

recommendation systems recommendations are

made for a single user based solely on a profile set

up by analysing the content of documents as the user

has rated in the past. Table 1 shows a comparison of

different content-based systems. The main

disadvantage of these types of systems is that they

over specialise to a certain area and only recommend

items which the user has seen in the past.

Collaborative based systems recommend items to its

user’s by basing its recommendations on how other

user’s have rated similar items. One of the main

disadvantages of these systems is the so called early

rater problem, where new items can not be

178

Uchyigit G. (2008).

A SOFTWARE AGENT FOR CONTENT BASED RECOMMENDATIONS FOR THE WWW.

In Proceedings of the Tenth International Conference on Enterprise Information Systems - SAIC, pages 178-183

DOI: 10.5220/0001720501780183

 SciTePress

recommended if they have not been previously rated

by other users.

Profiles are important part to represent user

interests. There are several methods which can be

used to represent the user profiles. One well known

method is the vector space model. Vector space

representation (Baeza-Yates and Ribeiro-Neto,

1999) method has been successfully employed in

several content-based systems (Chen and Sycara,

1998), (Mladenic, 1996), (Lang, 1995), (Moukas,

1996), (Liberman, 1995), (Armstrong et al., 1995)).

Each element of the vector is composed of a

word/concept and an associated weight. A well

known technique for determining weights is a

technique known as TF-IDF. In this approach

documents are converted into a vector space by

representing them as a set of scores.

Consider a collection of documents C:

This term document matrix contains a set of

documents D

1..n

each contains a set of words t

1..n

Each entry in the matrix, w

, corresponds to the

associated document d. Terms which appear in lots

of different documents are less indicative of the

topic of the document, these are the so called stop-

words and are words such as “the”, “and” etc. The

TF-IDF factor assigns weights to words depending

on their relevance to the identification of the topic.

The TF-IDF is evaluated using the formula below:

)(

ijiijij

tfidftfw ==

where, tf

is the term frequency across the entire

corpus, it is normalised value of f

, frequency of

term i in document j. N is the total number of

documents with in the collection C. idf

is the inverse

of df

document frequency of term T

. This definition

implies that a term occurring frequently in a single

document is given high weight.

Content based recommender systems can make

recommendations using direct comparison between

the user’s profile and candidate items. Hence it is

worth discussing some data matching techniques

here. Typical techniques include standard keyword

matching, nearest neighbours, classification and

cosine similarity.

Cosine similarity is the normalized form of

inner product, which can be used as measure of

similarity between two TF-IDF vectors:

ijjj

wwqdqdsim

∑

=•=

),(

Here d

is the vector representation of document D

and q is a vector to be compared.

User feedback is an important factor with respect to

recommender systems. As the user continues to use

the system and provide feedback the system

improves in the recommendations it provides.

Feedback can be provided explicitly by the user

providing direct ratings to the items recommended

by the system. It can also take the form of implicit

feedback by the system observing the browsing

behaviour of the user and making an assumption as

to which items the user is interested in. The

advantage of explicit feedback is that the feedback

comes directly from the user and is therefore

considered to be more accurate. With implicit

feedback there is a degree of uncertainty that the

feedback is not very accurate. The advantage of

implicit feedback is that the reduced burden on the

user to rate every single item the user has rated. Of

course a system can combine both forms of feedback

to have hybrid feedback.

Table 1: Comparison of different content-based systems.

Agent Goal Profile

Rep.

Prof.

Match

Feedback

PWW

(Armstrong

et al.,

1995)

Web

brows.

Prob.

Feat.

Vect

NB Implicit

SIFT

(Lang,

1995)

News

filt.

Bool.

Feat.

Vect

Cos.

Sim.

Explicit

WebMate

(Chen and

Sycara,

1998)

Web

brows.

Prob.

Feat.

Vect.

NB Explicit

Letizia

(Liberman,

1995)

Web

brows.

Prob.

Feat.

Vect.

Cos.

Sim

Explicit

Lira

(Balabanov

ic1998)

Web

brows.

Prob.

Feat.

Vect.

Cos.

Sim

Explicit

Syskill

Webert

Web

brows.

Prob.

Feat.

Vect.

NB Explicit

3 SYSTEM OVERVIEW

The implemented system consists of four main

components the User Interface, the

A SOFTWARE AGENT FOR CONTENT BASED RECOMMENDATIONS FOR THE WWW

179

Recommendation Manager, and the Learning

Manager (See Figure 1).

On start of the application, the top level GUI

component a HTTP Proxy starts which constantly

listens to a user defined port on a local host. The

learning manager initialises to supervise the learning

process. The recommender manager is initialised to

make recommendations based on the learning

managers outcome.

Whenever a positive example is identified, Http

session hands over the relevant information to a

session analyser, in which positive learning example

is constructed, and hence the example will be thrown

into the system’s example pool.

The learning manager constantly checks the

status of the example pool. It picks up any example

from the pool one by one. On receiving of a positive

learning example, the learning manager extracts the

features of the example, learns it and hence generates a

new profile record, which will be then used to update

user’s main profile. Meanwhile the recommendation

manager extracts the information from user’s main

profile and hence makes recommendations, which will

then be shown on the GUI.

Profile Representation. Among a variety of

representation techniques, Vector space model was

chosen due to its simplicity and efficiency in

representing multiple text documents. The user’s

profile is represented as multiple feature vectors.

Each feature vector, corresponds to a single domain

of interests, consists of a set of objects in the form of

(keyword(stemmed), keyword(original), weight)

Learning. The user’s profiles are progressively

learned and updated from both implicit feedback and

explicit feedback. The system collects implicit

feedback from user’s browsing activities. Such

information, typically is in the form of a web page

which is then extracted and stored as a positive

learning example and these examples will hence be

thrown into the system’s example pool, waiting for

Learning managers collection.

Upon receiving of every single learning

example, the learning manager will perform the

following tasks:

Text Processing. Text processing is used to

extract features from and example. In particular it

will:

1. Fetch pure text content of the current page

2. Fetch pure text content of the pages linked

by current page’s referrer page.

3. Process text obtained in step 1 by :

a. Pre-process text

b. Remove stop words

c. Stem the words

d. Assign weights to words using

TFIDF

4. Repeat procedures stated in step 3, for

every single page obtained in step 2.

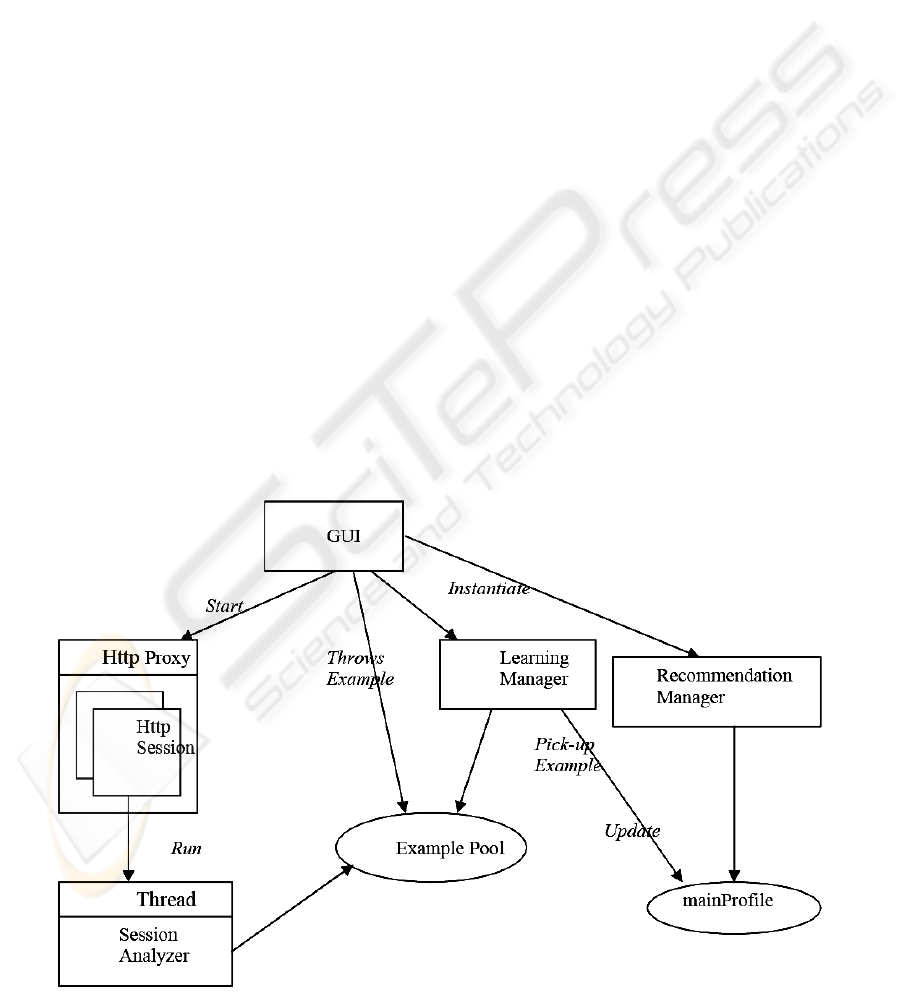

Figure 1: Overview of system Architecture.

ICEIS 2008 - International Conference on Enterprise Information Systems

180

Profile Updating. User profiles are incrementally

updated from the contents of the pages which the

user has seen and found interesting.

Explicit Feedback. The system collects explicit

feedback on the user’s opinion, for the web pages

that have been already recommended to them. Such

information, again typically in the form of a web

page will be extracted and stored as positive rating

example and these examples will be also be placed

in the example pool until retrieved by the learning

manager.

HTTP is the main protocol of the WWW. In essence,

it defines a set of rules describing how data should

be formatted and exchanged between servers and

browsers. Being an intermediate between the http

server and the client side, it is the system’s

responsibility to recognize the different types of

HTTP request the client may send, as well as the

various HTTP responses that may be returned by the

server. In essence, in order to generate a positive

learning example. The system is versatile enough to

cope with a wide variety of HTTP headers. It is able

to parse the HTTP headers sent between the client

and server and extract the relevant information such

as url’s of the pages of interest and extract the

contents of the page which the url is pointing to.

Graphical User Interface. The GUI plays an

important role in displaying recommended pages to

the user. The user interface is split into two parts:

The headline panel and the abstraction panel (see

Figure 2).

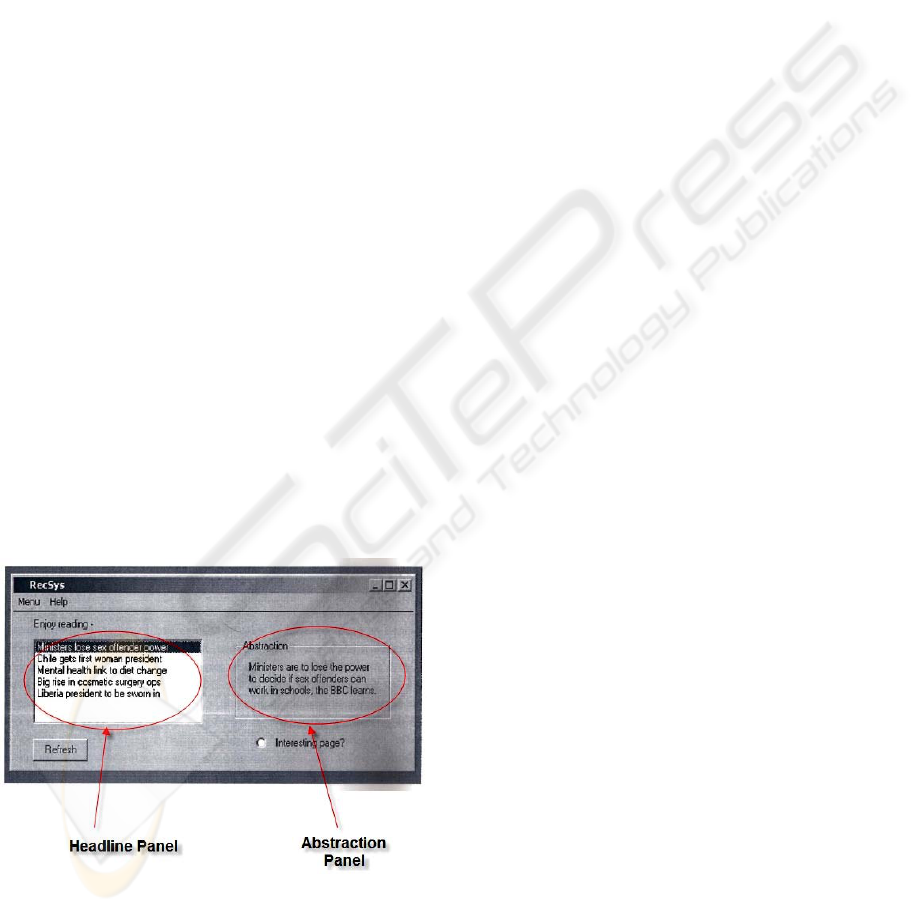

Figure 2: The User Interface.

The headline panel is the component related

directly to the underlying behaviour of the system,

displaying the recommendations made by the

recommending part. The titles of the pages are

displayed in the headline panel. To promote

interactivity, each recommended item has to respond

to certain selection events. On double clicking the

page title, the system should start a browser,

displaying the content of the selected page. The

possibility to refresh the page so that up-to-date

recommendations, is possible.

The abstraction panel serves to give more

details of the page recommended by the system and

also allows a user to give explicit feedback, i.e rate

the selected page as interesting, based on the title of

the page, the abstraction of the page or even full

content of the page. It has been designed that on

selection of a recommended item in headline panel,

should also correspondingly display the abstraction

of the selected page. On clicking of the button “an

interesting page?” a window pops up informing the

user that his/her opinion has been taken into

consideration.

Two other tabs at the top left hand corner of the

main page “Menu” and “Help” On clicking Menu

the following options can be selected: Settings, save,

exit.

The following options may be selected from the

settings menu. Profile path allow the user to define

the location of his/her profile is located.

Configuration path, allows the user to define the port

the application should listen to, in performing as a

proxy server. Browser allows the user to choose the

browser they would like to use to browse the

recommendations. Information source, allows the

user to specify the information source of

recommendations.

The Recommendation Process

System recommends web pages upon user’s request,

a simple outline of recommendation process is seen

below:

1. Query user’s profile

2. Pick up a profile record, extract the top N

words form the user’s profile and send these

words to Google.

3. Extract the top M results returned by Google,

put them in a collection of web pages denoted

by as C.

4. Generate a TF-IDF for every single page

within C.

5. Calculate cosine similarity between every

vector gained in step 4 and the profile, return

the top K recommended objects to GUI. K is

chosen based on the priority of current profile

record.

6. Repeat step 2 to 5 for every single profile

record in user’s main profile.

A SOFTWARE AGENT FOR CONTENT BASED RECOMMENDATIONS FOR THE WWW

181

Alternatively, with a user specified information

source, the recommender system:

1. Extract all pages that could be directed

from the information source.

2. Put hem into a collection of web pages,

donated as C.

3. Generate TF-IDF vector for every

single page within C.

4. For every profile record calculate the

cosine similarity between every vector

gained in step 3 and profile record and

return the one that has the biggest

similarity value compared with the

profile.

4 TESTING AND EVALUATION

In this section we discuss our testing strategies for

the essential components of the system, followed by

the evaluation in both qualitative and quantitative

ways.

Usability. Usability evaluation is very subjective

and as such hard to quantify. As part of the

evaluation process, we conducted a questionnaire to

gauge strength and weakness in usability, with

carefully selected questions. The questions must be

quick and easy for a user to complete and also any

bias need to be eliminated in designing of questions.

Based on the considerations above we decided

to incorporate heuristic evaluation methods as part

of our usability evaluations.

Heuristic evaluation is a discount usability

engineering method for quick, cheap and easy

evaluation of a user interface design. It involves

having small set of evaluators examine the interface

and judge its compliance with recognized usability

principles.

Each user was given a short demonstration

following a 15 minute familiarisation session. A

questionnaire was then supplied with the following

questions.

1. Visibility of system status: do you agree that

the system keeps you informed of what’s

going on?

2. Match between system and the real world:

Do you agree that the RecSys speaks the

language familiar to you, rather than system

oriented terms?

3. Consistency and standards: Do you agree

that in accessing RecSys, there is no

confusion between different words,

situations, or actions means the same thing,

all follow platform conventions?

4. Help and documentation: Do you find help

documentation useful?

5. Look and Feel: Do you agree that the

application is visually appealing?

6. Reasonable utilization of the system

resource: Do you agree that you browsing

activities are not affected by RecSys?

The users responded to the questions by

providing a rating for each question between

1(strongly disagree)-5(strongly agree).

In total there were 30 participants which took

part in the experiments. Table below shows the

results of our study.

Question Score(max

25)

1 Visibility of system status 120

2 Match between system and

system and the real world

132

3 Consistency and standards 126

4 Help and documentation 126

5 Look and Feel 90

6 Reasonable utilization of the

system resource

120

Testing of the Domain Classification. The

accuracy of the algorithms were measured by

implementation of a test harness as a replacement

for a graphical user interface, to drive the underlying

components of the system for test purposes. We

allow test cases to be defined in text files for ease of

test case generation. We also format the outputs of

tests to a result file where it can be post-analysed.

We fed a list of paired urls (url1,url2) to the

test harness. The test harness automatically extracts

and creates a profile record based on url1 and inserts

this record into the user’s profile. The test harness

calls the underlying methods that deal with

similarity calculations and profile classification. It

finally outputs a file with statistical results of the

test, in which accuracy is analyzed as well as

Precision and Recall.

In our results we have found that the system gave an

overall accuracy of 80%, with recall 66.67% and

100% precision.

ICEIS 2008 - International Conference on Enterprise Information Systems

182

5 CONCLUSIONS AND FUTURE

WORK

In this paper we presented an implementation of a

software agent, which able to present the user with

content-based recommendations whilst the user is

browsing the WWW. The system uses both implicit

and explicit feedback to learn the user’s profile.

The accuracy of the system was evaluated by

performing usability testing using a set of users. The

learning and classification algorithms were

evaluated by implementing a test harness where

several positive and negative examples were used to

test the system.

In our future work we plan to improve:

• the GUI as suggestions from our user focused

study;

• Resource usage awareness: In the current

implementation, we deploy only one learning

manager to deal with all learning activities. A

more sophisticated implementation might detect

available system resources and autonomously

decide the number of threads it could dispatch.

• Alternative to collect user’s implicit feedback:

Apart from the current heuristics we use, in

making judgement based on http headers it

would be better to come up with more ideas

such as the time spent on a particular pages,

user’s activity such as “add to my favourite” are

all good examples of implicit implications on

user’s interests.

REFERENCES

Chen, L. and Sycara, K. (1998). Webmate: A personal

agent for browsing and searching. In 2nd International

Conference on Autonomous Agents, Minneapolis MN

USA.

Mladenic, D. (1996). Personal WebWatcher: design and

implementation. Technical report, Department for

Intelligent Systems, J. Stefan Institute, Jamova 39,

11000 Ljiubjana, Slovenia.

Lang, K. (1995). Newsweeder: Learning to filter netnews.

In 12th International Conference on Machine

Learning.

Moukas, A. (1996). Amalthaea: Information discovery

and filtering using a multi-agent evolving ecosystem.

In Proc. 1st Intl. Conf. on the Practical Application of

Intelligent Agents and Multi Agent Technology,

London.

Liberman, H. (1995). Letzia: An agent that assists in web

browsing. In Proceedings of the 1995 International

Joint Conference on Artificial Intelligence, Montreal,

Canada.

Armstrong, R., Freitag, D., Joachims, T., and Mitchel, T.

Webwatcher: A learning apprentice for the world wide

web. In AAAI Spring Synopsium on Information

Gathering from Heterogenous, Distributed

Environments. (1995)

Baeza-Yates, R. and Ribeiro-Neto, B. (1999). Modern

Information Retrieval. Adsison Wesley.

Balabanovic, M. (1998). Learning to Surf: Multi-agent

Systems for Adaptive Web Page Recommendation.

PhD thesis, Department of Computer Science,

Stanford University.

Pazzani, M. and Billsus, D. (1997). Learning and revising

user profiles: The identification of interesting web

sites. Machine Learning, 27:313-331.

A SOFTWARE AGENT FOR CONTENT BASED RECOMMENDATIONS FOR THE WWW

183
