THE APPLICABILITY OF BALANCED ESI FOR WEB CACHING

A Proposed Algorithm and a Case of Study

Carlos Guerrero, Carlos Juiz and Ramon Puigjaner

Departamento de Ciencias Matemáticas e Informática, Universitat de les Illes Balears, Ctra Valldemossa km 7.5, 07122

Palma de Mallorca, Illes Balears, Spain

Keywords: Web performance, web cache, ESI (Edge Side Includes).

Abstract: In this paper, we present an algorithm to improve the cases in which the caching of fragments pages (ESI

standard) has a worse performance than expected. A layer between the web cache and the clients has been

developed and has tested over a web application using a fragment and non fragment version of web pages.

Through the results of this case study we demonstrate that the proposed algorithm improve the general

performance of the web application.

1 INTRODUCTION

The way that web servers deliver their contents has

completely changed since the beginning of Internet.

One of the major changes has been the inclusion of

traditional information system applications on the

www as the database ones. Nowadays, dynamic web

applications are used to deliver contents to users.

However, dynamic content creation places

significant strain on traditional Web site

architectures. This is because the same infrastructure

used to generate the content it is also used for

delivering the content. Generating dynamic content

typically incurs: 1) user requests are dispatched to

appropriate software modules that service these

requests, thereby producing network overhead; 2)

these software modules determine which data to

fetch and present, thereby producing process

overhead; 3) the disk I/O management querying the

back-end database produces data overhead, and

finally; 4) the assembled data needs to be formatted

and delivered to the browser, thereby producing

cache overhead. In short, building Web pages on-

the-fly is always computationally very expensive.

Therefore, the dynamic workload is higher than the

workload generated by a static web server, which

usually reads a file from the hard disk and sends it

by the network. This is the reason why content

caching has become an interesting research topic in

web engineering (Cao, 1998).

Unfortunately, there are other more complex

problems appearing in dynamic web caching

(Veliskakis, 2005). For instance, the ratio in which

web pages are changing is normally higher than the

static ones and moreover, these changes are usually

small. These small changes produce the page

invalidation in the cache (miss) and the

corresponding request to the server is sent,

generating the additional respective workload.

Another common case in dynamic server is the huge

amount of information that the web pages are

sharing. This shared information has to be generated

for each page even though it is identical.

Since the minimum caching unit in web servers

is a full document, the problem of regenerating web

pages, in every content change, turns reusing shared

information out almost an impossible task. However,

we may improve the way of the web pages are

cached by reducing the caching units to fragments of

pages. This technique avoids the regeneration of the

whole page. One way to brake down pages into

fragments is given by ESI (Edge Side Includes).

Unfortunately, not always the use of ESI guarantees

the best response times for web pages. In this paper

we present a case study of using ESI to improve web

caching by using a heuristic balancing algorithm.

Thus, in section 2 a brief introduction to ESI

benefits is provided. In section 3 we relate ESI use

for web caching and some of the drawbacks of using

ESI standard are provided. Section 4 is devoted to

present our proposed balancing algorithm and in

197

Guerrero C., Juiz C. and Puigjaner R. (2007).

THE APPLICABILITY OF BALANCED ESI FOR WEB CACHING - A Proposed Algorithm and a Case of Study.

In Proceedings of the Third International Conference on Web Information Systems and Technologies - Internet Technology, pages 197-203

DOI: 10.5220/0001273501970203

 SciTePress

section 5 we present our case study. Conclusions and

future work are presented at the end of the paper.

2 EDGE SIDE INCLUDES (ESI)

ESI is a simple markup language that web

application developers may use to identify content

fragments for web dynamic assembly (ESI, 2006).

ESI also specifies a content invalidation protocol for

transparent content management across ESI-

compliant solutions, such as application servers and

content delivery networks. The ability to assemble

dynamic pages from individual page fragments

means that only non-cacheable or expired fragments

need to be fetched from the origin Web site, thereby

lowering the need to retrieve complete pages and

decreasing the load on the Web site’s content

generation infrastructure.

The use of ESI maximizes its profit in scenarios

where the response times are high in the server, in

the network or in both cases. ESI can be use in the

most layers of the web architecture: in a web cache

proxy in the client side, in an inverse cache proxy in

the server side, or in the edge of the network.

A study about the benefits of ESI is presented in

this paper. The results of a workload over an web

application using ESI cache and standard cache are

explained and analyzed. This analysis reaches to the

conclusion that there are cases in which the use of

ESI does not provide lower response times.

Therefore, we have developed a web balancing

algorithm in order to address web requests either to

an ESI or to a standard cache version of the

requested page. This heuristic selection tries to

minimize the response times from the user point of

view.

3 ESI AND WEB CACHING

Edge Side Includes (ESI) accelerates dynamic Web-

based applications by defining a simple markup

language to describe cacheable and non-cacheable

Web page components that can be aggregated,

assembled and delivered. ESI enables Web pages to

be broken down into fragments of different

cacheability profiles. These fragments are

maintained as separate elements in the application

server’s local cache and/or on the content delivery

network. ESI page fragments are assembled into

HTML pages when requested by end users. This

means that much more dynamically generated

content can be cached, then assembled and delivered

from the edge when requested. Furthermore, page

assembly can be conditional, based on information

provided in HTTP request headers or end-user

cookies.

The basic structure a content provider uses to

create dynamic content in ESI is a template page

containing HTML fragments. The template consists

of common elements such as a logo, navigation bars,

and other "look and feel" elements of the page. The

HTML fragments represent dynamic subsections of

the page. The template is the file associated with the

URL the end user requests. It is marked-up with ESI

language (Figure 2) that tells the cache server or

delivery network to fetch and include the HTML

fragments. The fragments themselves are

HTML/ESI marked-up files containing discrete text

or other objects. Example of an ESI template:

<esi:try>

<esi include

src=”http://www.myserver.com/main.php”>

</esi:try>

</td></td></table>

Figure 1: Example of ESI template code with the source of

a fragment.

3.1 ESI Problems

The technique of breaking down pages into

fragments does not always benefit the web

performance. When a page does not share

information with other pages there is no advantage

of having cached fragments of the document. Thus,

it is necessary to generate all the fragments and to

assemble all them. In these cases the use of ESI

produces an additional overload in comparison with

the traditional way of generating web pages

(Guerrero, 2006).

Moreover, breaking the web page down in a high

number of parts could cause a worse response time

because the main part of the fragments are not

shared with other pages. Then, the changes in that

page only affect to the template or to one fragment.

On the contrary, by breaking the page down in a

small number of parts also could cause a worse

response time that the traditional way to cache

pages. If fragments are too big, it is less probable to

find the same fragment in other pages, and little

changes could invalidate the main part of

documents.

The way in which the document is fragmented

takes a crucial importance from the performance

point of view. But it is not as easy as make the

WEBIST 2007 - International Conference on Web Information Systems and Technologies

198

higher possible number of fragments; it depends in

the grade fragments are sharing information, the

frequency of fragment updates and the workload

needed to generate the fragment. Therefore, a

fragment construction is more convenient as these

three parameters are higher. However, this

knowledge could not be known by the web

developer or web analyst during the software

engineering process. Additionally, these three

parameters are not constant along time. Thus,

fragments have to be dynamically built using the

information gathered in previous web requests.

The work presented in this paper is part of a

research project to build a tool for analyzing these

parameters and fragments of the different pages in

order to obtain the optimal performance in any time.

These fragments would be made using the

information gathered along requests, and would

change dynamically so long as those three

parameters are changing.

4 BALANCED CACHING

4.1 Balanced Caching Algorithm

The first step to achieve the global objective of the

research project is to build a tool that selects

between a fragmented page and the same content of

this page without fragments. This tool uses the

information gathered along different requests to

decide which version of the requested page is going

to be delivered to the user (Alcaraz, 2006).

The proposed algorithm for managing the tool

answers to each request either with a fragmented

version of the page or a non-fragmented one and

gathers their corresponding response times. Both

versions are identified in order to compare their

response times and to select the fastest (Arasu,

2003).

The behaviour of the balanced cache can be

defined by and three states machine diagram (Figure

3). This state machine defines the version of the

page returned for each request. For each page or

identification of the page a different state machine is

associated. The three states of the diagram are: (a)

“Non Fragments State”, the returned page is the non

fragment version of the page; (b) “Fragments State”,

the returned page is the fragment version of the

page; (c) “Transient State”, the returned page is the

version with less number of requests (Gilly, 2007).

Transient

State

Fragments

State

Non

Fragments

State

nRequest > requestLimit

and

averageRT-NF < averageRT-F

now >

timeWindow +

changeTime

nRequest > requestLimit

and

averageRT-NF > averageRT-F

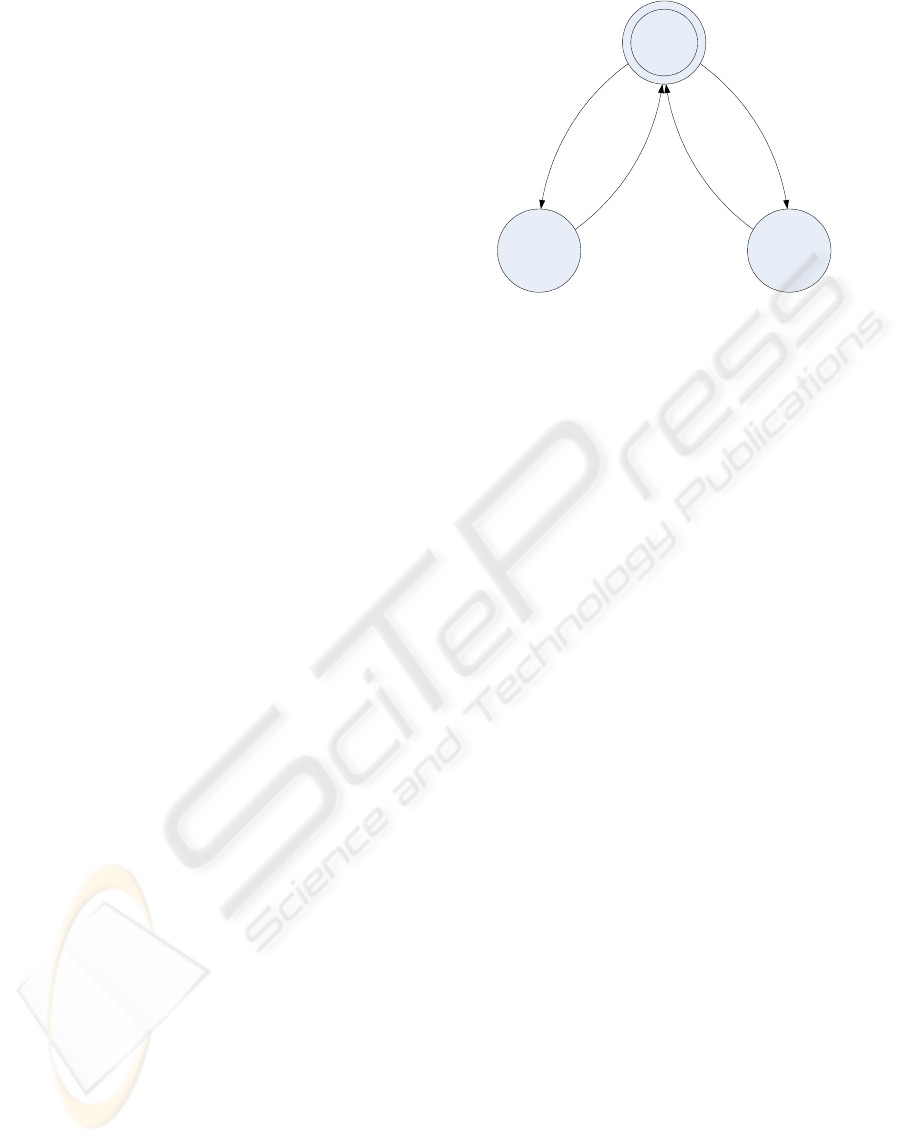

Figure 2: Balanced Caching Algorithm State Machine

Diagram.

The state machine starts at “Transient State” and

request requestLimit pages from both versions

of the page, after the last request analyzes the

average response time and changes the state to the

state of the shorter response time version. After a

period of time (timeWindow) either in the

“Fragments State” or “Non Fragments State”, the

state machine returns to the “Transient State” and

requests requestLimit pages from the version

with less access (nRequest), e.g. if the state before

to the “Transient State” was the “Fragment State”

non fragment versions of the pages would be

requested, and vice versa.

Therefore the tool stores the following data for

every page: the current state, the time of the last

state change (changeTime), the accumulate

response time and the number of requests

(nRequest). These values are used to compute the

average response time for both page versions

(averageRT-NF and averageRT-F). When the

state machine leaves the “Transient state” the tool

initializes all the information gathered for both page

versions.

4.2 Balanced Caching Architecture

Obviously the tool needs the fragment and non

fragment version of the page in the web server. At

this point of the research development, the tool is

not capable break down web pages into fragments

and/or to aggregate fragments. Therefore, the

developer needs to develop both versions of each

page. Our current task is to provide the

aggregation/disaggregation technique and thereby it

will not be necessary to manage fragments by web

developers (Candan, 2001)).

THE APPLICABILITY OF BALANCED ESI FOR WEB CACHING - A Proposed Algorithm and a Case of Study

199

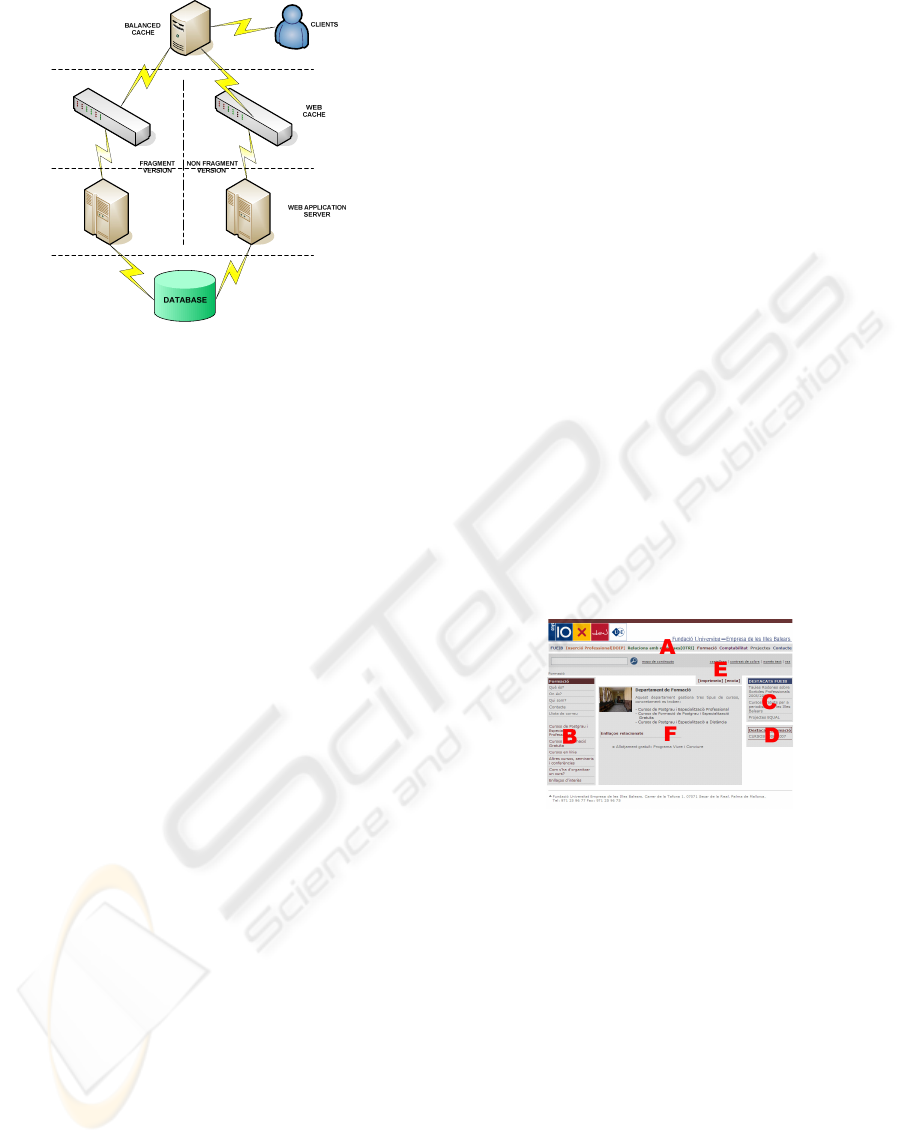

Figure 3: Web architecture diagram with balanced cache

layer.

In order to minimize the development process,

the tool has been built as a separate layer and not

being part of a complete cache tool. Thus, it can be

used with any cache software, providing tool

portability. The balancing tool may be integrated by

placing it between the web cache and the clients that

make requests to the web server (see Figure 4).

5 CASE OF STUDY

A case of study is presented to show the

improvement on average response time achieved

with the balanced caching. The application example

consists on a dynamic web with two versions of each

page (fragmented and non fragmented). The

database, application server, web cache and

balanced cache layers are connected through the

same local area network. The clients are connected

by a wide area network to the server side of the

application.

5.1 Hardware Architecture

The database and the application server share the

same server, “Debian Linux” over a “Pentium II”

400 MHz, 192 MB RAM, 6 GB hard disk connected

by a 100 Mbps Local area network to the web cache

and the balanced cache. “MySQL” 3.23.56 and PHP

4.3.11 are also used. The web cache is “Oracle

Application Server Web Cache 10g” (Oracle, 2006)

running on a “Windows XP Service Pack 2” system

over a “Pentium 4” 1,6 GHz, 1 GB RAM. In order to

simplify the experiments the Balanced Cache and

the Web Cache reside on the same machine. The

client workload is generated by JMeter 2.1.1

benchmark running in similar computer to the cache

server.

The Balanced Cache Algorithm, that uses

sockets libraries to accept requests from the client

side and make the connections to the server site, was

developed in Java 1.4.

Apache JMeter is a Java desktop application

designed to load test functional behaviour and

measure performance (JMeter, 2006). It may be used

to test performance both on static and dynamic

resources. It can be used to simulate a heavy load on

a server, network or object to test its strength or to

analyze overall performance under different load

types. It can be used to make a graphical analysis of

performance or to test your server/script/object

behaviour under heavy concurrent load.

5.2 Web Application

The web application for benchmarking is the official

site of the “Fundació Universitat Empresa de les

Illes Balears FUEIB”. The web application is a

content management system (CMS) developed for

this specific case. The application gives the

possibility to manage pages and put them on the

navigation tree.

Figure 4: Web application fragments.

For every web page, a non fragmented version

and a fragmented version have been built

(Ramaswamy, 2004). In the fragmented version, a

template and six fragments have been defined (see

Figure 5). Three fragments are shared by all the

pages in the site (A, E, C), two fragments are shared

by the pages of the same department (B, D) and only

the template and one fragment (F) are exclusive of

each page.

5.3 Non Fragment and Fragment

Caching Test

Even it is expected that using a fragment caching

(ESI) would have better performance than a non

fragmented caching, the real situation is completely

different (see section 3.1). There are mean response

WEBIST 2007 - International Conference on Web Information Systems and Technologies

200

times for some non-fragmented pages that are

shorter than the corresponding fragmented ones.

Therefore, two workload tests have been done to

check these cases. One of these tests only requests

the non fragmented version of the pages, and the

other test only requests the fragmented version of

the same pages. For both tests the response times

have been gathered using JMeter benchmark to

emulate the user’s requests. The number of different

pages requested in the experiment has been 60

pages, 10 for each different department of the web.

The number of concurrent emulated users has been

100, requesting 100 pages each one, without

thinking time, taking approximately 60 minutes to

execute each workload test.

The results of both workloading tests show that

some pages have best behaviour if the fragmented

version of the page is request (for instance Page I in

Table 1). On the other hand (surprisingly), there are

a considerable number of pages that have a better

response time when the non fragmented version is

requested (for instance Page II in Table 1). Lastly,

there are a no very significant number of pages (less

than 16%) that the response times for each workload

test are practically equal (for instance Page III in

table 1). In Table 1 tree response times examples of

pages of each type are presented.

Table 1: Average response times for fragmented version

and non fragment version of the web application of tree

pages (ms).

Pages

Group

Fragment version

test average

response time (ms)

Non fragment

version test

average response

time (ms)

Page I

2576 4673

Page II

3850 2281

Page III 2740 2734

5.4 Balanced Caching Algorithm Test

The algorithm presented in this paper is based on the

differences shown in the last section. As it was

explained in Section 4.1, the algorithm tries to find

out the version that responds with the best behaviour

(“Transient State”) and when a considerable number

of requests have been compared (requestLimit),

it decides to request only one version of the page

(“Fragments State” or “Non Fragment States”). As

the conditions of the servers, networks and clients

change along the time, this decision has to be

evaluated after some period of time

(timeWindow).

The goal of the Balanced Caching Algorithm is

to achieve the minimum response time between the

request of the non fragmented version and the

fragmented version of the pages. However, the price

to be paid is overhead time to these expected mean

response times. In order to evaluate the overhead of

the algorithm and the benefits of using this

algorithm respect the other two alternatives, a third

workload test has been executed.

The workload test using the Balanced Caching

Algorithm (B.C.A. test) needs to set some

parameters up during the experiment, the number of

request in the “Transient State” (requestLimit)

and the time window to return to the “Transient

State” (timeWindow), respectively. In this case of

study requestLimit=3 and timeWindow=240

seconds are used.

5.4.1 Overhead Analysis

To evaluate the overhead added by the algorithm, we

compare the average response times in this last test

execution with the minimum values of the mean

response times obtained in the two previous tests.

These minimum values are the expected response

time of the algorithm. The subtraction of these

values and the mean response times of the B.C.A.

test correspond to the overhead that the algorithm

adds. In Table 2 we have shown the expected mean

response times and the real ones of three different

pages (the same pages shown in Table 1).

Table 2: Overhead time calculated with the expected

average response time and the measured Balanced

Caching Algorithm test.

Pages

Group

Expected

average

response

time (ms)

B.C.A. test

average

response

time (ms)

Overhead

(ms)

Page I

2576 2936 360

Page II

2281 3069 788

Page III 2734 3229 495

By performing this calculation for each page of

the group of 60, the overhead for each page is

obtained. Thus, the average overhead time

calculated from the test is 662 ms.

The mean responses times of the 60 pages are

between 2000 ms and 4000 ms. Therefore, if the

mean overhead time is 662 ms, it adds a

supplementary latency of 25% on the mean response

times in worst cases. However, the benefits of the

algorithm are considerable. For instance, if we

observe Page I and Page II in Table 1 and Table 2

THE APPLICABILITY OF BALANCED ESI FOR WEB CACHING - A Proposed Algorithm and a Case of Study

201

the mean response times of these two pages for the

Balanced Caching Algorithm Test are quite better

than the worst cases but the expected mean response

time is not much better. In the next section the

general analysis of the 60 pages are made.

5.4.2 Balanced Caching Response Time

Analysis

The main goal of the case of study is to show that

the average response times using the Balanced

Cache are generally better than using fragment/non

fragment cache even though the overhead produced

by the tool.

Table 3: Mean values of the average response times for

pages in “Group A” (ms).

Test Average response time

(ms)

Fragment version test 2866

Non fragment version test 4347

B.C.A. test 3528

Table 4: “Group A” Pages Speedup.

Case Speedup

Worst case (Fragment) 0.81

Best case (Non Fragment) 1.23

In order to simplify the presentation of the

experiments, results from 60 different pages are

grouped in three different cases. As it was explained

in Section 5.3, we distinguish three different cases:

pages that obtain best response times when the

fragmented version is requested (e.g. Page I in Table

1); pages that obtain best response times when the

non fragmented version is request (e.g. Page II in

Table 1); pages that do not present significant

differences between both cases (e.g. Page III in

Table 1). All the pages in the same situation that

Page I are grouped as “Group A” (best response

times with fragmented version of the pages); all the

pages in the same situation that Page II are grouped

as “Group B” (best response times with non

fragmented version of the pages); finally, all the

pages in the same situation that Page III are grouped

as “Group C” (little differences between both

versions). It is necessary to establish a value range to

differences the pages that belongs to “Group C”. For

this analysis we have supposed this range is +/- the

mean overhead time. Therefore, web pages

(fragmented or not) that differ in mean response

times less than overhead, are grouped together in

“Group C”.

First the behaviour of the pages belonging to

“Group A” are analyzed. The three mean response

times of the pages of each group are presented. We

can observe that the Balanced Cache Algorithm

improves the worst case but it has worse response

times that the best case, as we had expected. In

Table 4 the speedup is also shown.

The same analysis is made for pages of “Group

B” in Table 5. In this group the benefits of the

Caching Balanced Algorithm are smaller. The

respective speedups are presented in Table 6.

Table 5: Mean values of the average response times for

pages in “Group B” (ms).

Test Average response time

(ms)

Fragment version test 3589

Non fragment version test 2629

B.C.A. test 3205

Table 6: “Group B” Pages Speedup.

Case Speedup

Worst case (Non Fragment) 0.82

Best case (Fragment) 1.12

Finally, the analysis performed for pages in

“Group C” are presented in Table 7. In this case the

proposed algorithm could not improve any of the

both cases because the differences between the

response times of the fragmented version and non

fragmented version are smaller than the mean

overhead as we can see in Table 8, where the

speedup is presented. Thus, the general speedup of

the algorithm would depend of the percentage of

pages belonging to this group. In this case study the

number of pages are quite small (8.3%, 5 pages of

60).

Table 7: Mean values of the average response times for

pages in “Group C” (ms).

Test Average response time

(ms)

Fragment version test 3131

Non fragment version test 3016

B.C.A. test 3644

Table 8: “Group C” Pages Speedup.

Case Speedup

Worst case (Non Fragment

and Fragment)

0.83

WEBIST 2007 - International Conference on Web Information Systems and Technologies

202

5.4.3 Balanced Caching Response General

Speedup

The global speedup of the Balanced Caching

Algorithm depends on the proportion of pages that

belongs to each group and could be calculated by the

formula 1. If we group the speedups of “Group A”

and “Group B” and consider the same number of

pages in each group we could calculate the

maximum proportion of pages that belong to “Group

C” to have shorter response times using the

Balanced Caching Algorithm. The maximum

percentage of pages that belong to “Group C” to

have a general Speedup above 1 is 42%. This value

is enough higher to suggest that, in most cases, the

use of Balanced Caching Algorithm improve the

scenarios where is used only either fragmented

versions of pages or only non fragmented ones.

enhanced

Speedup

+−

)1(

(1)

GroupC

GroupB

GroupA

Speedup

≤

6 CONCLUSIONS AND FUTURE

WORK

An algorithm to improve the cases in which the

caching of fragments pages (ESI standard) has a

worse behaviour than expected has been presented.

A layer between the web cache and the clients has

been developed and also it has been tested over a

web application with a fragmented and non

fragmented version. The results demonstrate that the

proposed algorithm improves the general

performance of the application.

This algorithm is the only a first step in order to

develop a future tool that brakes down and aggregate

fragments, dynamically. In this way, we shall try to

achieve the optimal division of the pages depending

on their mean response times. This division has to be

done dynamically because the networks, servers and

clients’ status change along the time. Therefore, the

algorithm shall manage the pages using the

performance information of the last requests.

Another future research subject appears with the

need to know what are the conditions that web pages

have to fulfil to be faster o slower using or not

cached fragments.

Next future work will be to improve the

algorithm by reducing the period of time that the

algorithm remains in “Transient State”. When the

algorithm is in this state both versions of the page

are requested, thereby the slower version of the page

is also requested. Thus, we should dynamically

adjust the timeWindow and requestLimit

parameters, along the time, by getting higher

timeWindow and shortening the requestLimit

as long as always resolve the “Transient State” state

change to the same stationary state.

ACKNOWLEDGEMENTS

The authors acknowledge the partial financial

support of this research through the project code

TIN2006-02265 included in the programme

Programas Nacionales del Plan Nacional de

Investigación Científica, Desarrollo e Innovación

Tecnológica from Comisión Interministerial de

Ciencia y Tecnología (Ministerio de Educación y

Ciencia).

REFERENCES

Alcaraz, S., Juiz, C., Gilly, K., Puigjaner, R., 2006. A New

Bucket DiffServ Policy for Web Traffic. Proccedings

of TEMU 2006.

Arasu, A., Garcia-Molina, H., 2003. Extracting structured

data from Web pages. In SIGMOD.

Candan, K., D. Agrawal, D., 2001. View Invalidation for

Dynamic Content Caching in Multi tiered

Architectures. Proceedings of ICDCS-2001.

Cao, P., Zhang, J., Beach, k., 1998. Active Cache:

Caching Dynamic Contents on the Web, Middleware,

England.

Edge Side Incluyes – Estándar Specification.

http://www.esi.org.

Gilly, K., Alcaraz, S., Juiz, C., Puigjaner, R., 2007.

Service differentiation and QoS in a scalable content-

aware load balancing algorithm. Proceedings of the

Annual Simulationn Symposium 2007.

Guerrero, C., Juiz, C., Puigjaner, R., 2006. Estudio de

viabilidad de ESI en aplicaciones Web dinámicas.

Proceedings of IADIS WWW/Internet 2006.

JMeter – User Manual. http://jakarta.apache.org/jmeter/

Oracle Application Server Web Cache 10g – Technical

White Paper Information. http://www.oracle.com/

technology/products/ias/web_cache/

Ramaswamy, L., Iyengar, A., Liu, L., 2004. Automatic

Detection of Fragments in Dynamically Generated

Web Pages. Proceedings of the Thirteenth

International World Wide Web Conference.

Veliskakis, M., Roussos, J., 2005. DOMProxy: Enabling

Dynamic-Content Front-end Web Caching.

Proceedings of the 10th WCW 2005.

THE APPLICABILITY OF BALANCED ESI FOR WEB CACHING - A Proposed Algorithm and a Case of Study

203
