Auctions in mobile multihop ad-hoc

networks following the marketplace

communication pattern

Hannes Frey, Daniel G

orgen, Johannes K. Lehnert, and Peter Sturm

University of Trier

Department of Computer Science

54286 Trier, Germany

Abstract. This paper presents UbiBay, a self-organizing distributed auction

system using a mobile multihop ad-hoc network as its sole communication plat-

form. In order to substantially increase the probability that negotiating peers suc-

cessfully reach an agreement, communication is focused on a static geographic

area, called the marketplace. Users are not constrained to be at the marketplace

physically, but are allowed to utilize other ones mobile devices located at the mar-

ketplace to let a software agent negotiate with others on their behalf. The negoti-

ation protocols of UbiBay as well as a middleware architecture for applications

based on the marketplace metaphor are described in this work.

1 Introduction

Auction systems enable the exchange of goods on the basis of supply and demand. They

are central to any modern economy, e.g. in the form of stock exchanges. With the rise of

the pervasive world-wide web they are also used by millions of internet users in private

homes on a daily basis. The most prominent example of such an auction system is eBay.

Selling and buying goods at these online marketplaces is fairly easy. Offers are placed

by a seller with a starting price and a deadline several days ahead. Interested customers

vie with one another with increasing bids until the deadline is reached. The customer

with the highest bid wins and will buy the offered good. In order to reduce network

trafﬁc and to relieve customers from the need to continuously monitor the auction 24

hours a day, software agents at the marketplace can be instructed to bid up to a given

limit automatically.

Auction systems for private users are a promising application domain for mobile

multihop ad-hoc networks if they are limited to a speciﬁc geographical area, e.g. a

small town, a suburb or the downtown area of a city. In these scenarios, mobile devices

such as smart phones, Pocket PCs and subnotebooks with wireless communication fa-

cilities form an ad-hoc network. Successful communication with a negotiating partner

several hops away is at least challenging or impossible in the end because of the dynam-

ics in such a system and the high probability for transient loss of messages. Therefore,

This work is funded in part by DFG, Schwerpunktprogramm SPP1140 “Basissoftware f

selbstorganisierende Infrastrukturen f

ur vernetzte mobile Systeme”.

Frey H., Görgen D., K. Lehnert J. and Sturm P. (2004).

Auctions in mobile multihop ad-hoc networks following the marketplace communication pattern.

In Proceedings of the 3rd International Workshop on Wireless Information Systems, pages 161-169

DOI: 10.5220/0002667901610169

 SciTePress

self-organization is a prerequisite for any successful solution to mobile multihop ap-

plications. Additionally, these systems should exploit the broadcast facility inherent to

any wireless communication technique. In order to eliminate the imminent broadcast

storm problem [8], various solutions are proposed such as limiting the number of hops

a broadcast might take or narrowing the affected area by means of topological or geo-

graphical information.

A working solution for such applications is based on the marketplace metaphor [3].

A marketplace is a ﬁxed geographical location where information is traded. Market-

places should be located where high device density can be expected. Client requests or

agents acting on behalf of the client travel to the marketplace by infecting promising

nearby devices. This decision to infect another device within communication range is

based primarily on the relative geographical positions of the device actually carrying

the agent, the candidate device, and the marketplace itself. When arriving at the mar-

ketplace, the agent searches for matching peers by periodically announcing the set of

requirements. These infrequent broadcasts are limited to a given perimeter around the

geographical center of the marketplace. Hosting devices are changed if they are going

to leave the marketplace. At a given deadline or if a sufﬁcient number of matching peers

is found, the successful agent will travel back to the coordinates of its homezone to ﬁnd

the initiator’s device. Figure 1 depicts a simple marketplace example. The requirements

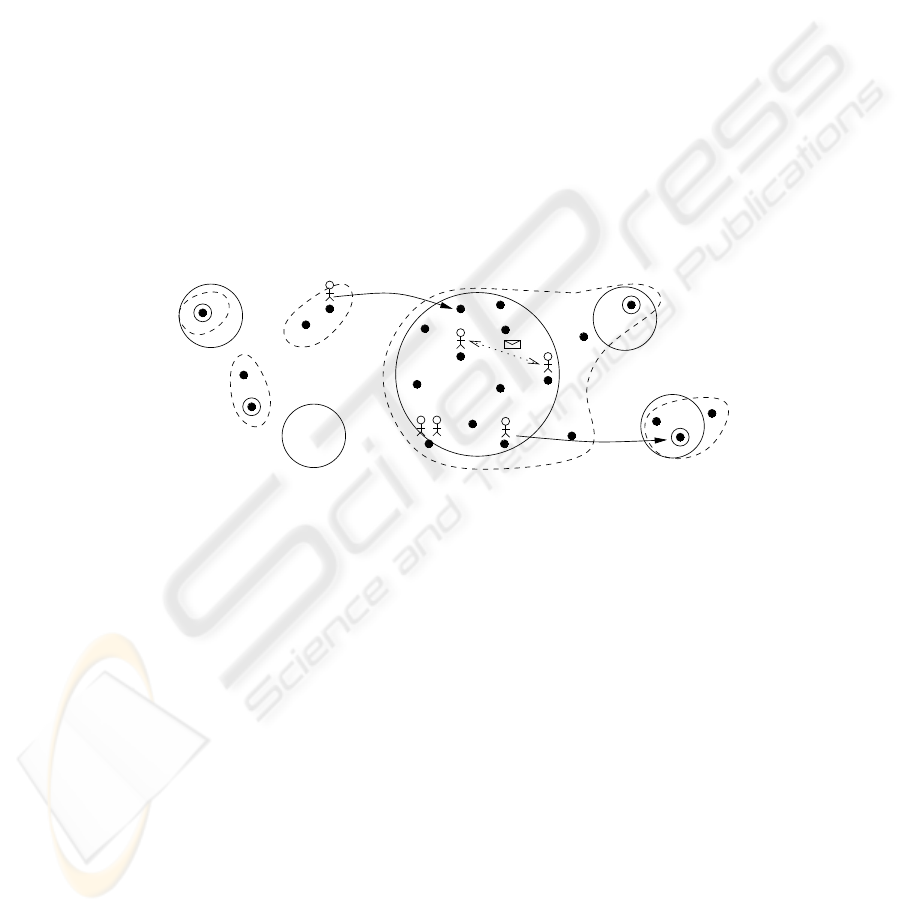

Fig. 1. A simple marketplace example with one marketplace in the middle and four user home-

zones. One agent tries to reach the marketplace, another one tries to reach its homezone. Two

agents are matching peers and communicate with each other. The dashed lines depict the current

network partitions.

of an auction system limited to a given geographical area match the characteristics of a

self-organizing system structure with the marketplace approach as the primary commu-

nication pattern. First of all, since auctions typically last for several days, the induced

latency imposed by communication between network partitions can be tolerated. Ad-

ditionally, information about offered goods and the actual price should be available to

any resident or visitor since these are the potential customers. Thus, the marketplace

communication pattern is a perfect ﬁt for most of the communication requirements in

an auction system.

The task of securing the auction system is subject of ongoing work, but is beyond

the scope of the paper. In particular, possible attacks like willful agent deletion, faked

auctions or message replay will be regarded in future work. However, the auction plat-

162

form is intended for low value goods, thus security is not an important issue at the

moment.

In the following section UbiBay, an auction system for mobile ad-hoc networks us-

ing the marketplace communication pattern is described in detail. Section 3 gives a short

overview of the middleware platform used to implement the presented marketplace-

based UbiBay. In section 4 the implementation of UbiBay using a uniform workbench

is described. Finally, the current and future work is pointed out.

2 UbiBay

The task of UbiBay is to realize a mobile auction system solely based on mobile de-

vices with wireless communication capabilities forming a large scale multihop ad-hoc

network. UbiBay uses the marketplace communication pattern to increase the proba-

bility that auctioneers and bidders ﬁnd each others. Marketplaces are used as regions

were auctions can take place. Auctions are not controlled by the users directly but by

the auction agents acting on behalf of them. Users interested in auctions must retrieve

information on running auctions by sending a discovery agent to the marketplace ﬁrst.

Thereafter they are able to send out a bid agent, to represent their biddings at the mar-

ketplace.

2.1 Auction agent

An auction at a marketplace is represented by an auction agent. It provides all relevant

auction information such as product description, product category, minimum bid and

auction end. It is also responsible for the actual auction process: the handling of bids,

informing about outbidding and ﬁnally informing the winner of the auction. A simpli-

TaggedDuplicatedStart

MoveTo Auctioning FinishAuction MoveBackSuccess

FinishMoveBackNoBid

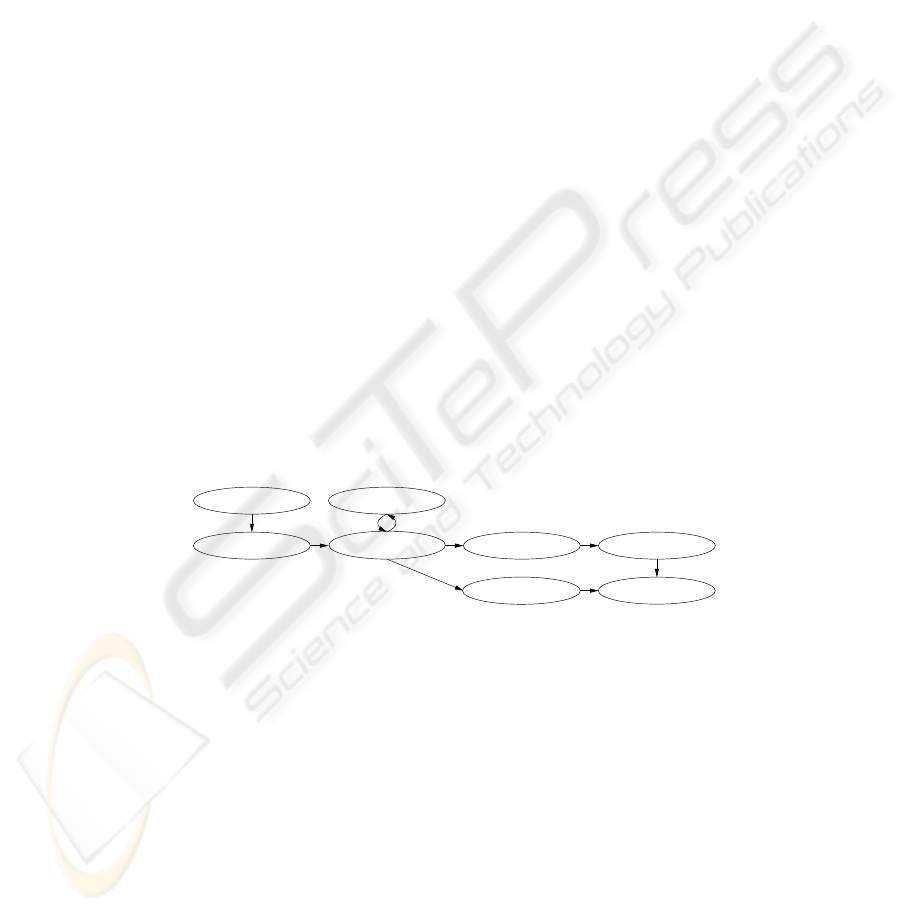

Fig. 2. Lifecycle of an auction agent

ﬁed lifecycle of an auction agent is depicted in ﬁgure 2. The user starts an auction by

creating an auction agent, providing it with all necessary auction information. The agent

searches for an appropriate marketplace with the aid of the marketplace localization ser-

vice, provided by the middleware platform. After reaching the marketplace by using the

agent movement service, the agent changes to the auctioning state. In this state it is able

to answer discovery requests by replying with its auction description information and

to accept bids. Incoming bids with a higher value than the current bid are accepted and

granted, lower or equal bids are refused. At the end of the auction, the auction agent

moves to its homezone and waits for its user. After it has jumped to its user’s device the

agent informs the user about the result of the auction.

163

Since agent duplications are possible (see agent transmission protocol in section 3),

all agents must take care about that. The transmission protocol ensures that the agent is

informed and tagged when a duplication possibly has occured. A tagged auction agent

does not accept bids immediately. After it has entered (or reentered) the marketplace it

must ﬁrst search for other duplicates. When it does not detect any other duplicates at

the marketplace, it is allowed to switch to auctioning state. In the case that it detects

an already active duplicate it deletes itself. When two or more duplicates search at the

same time, one of them is elected by using the highest current device id.

It is possible that no marketplace for the UbiBay application exists. In that case

the newly created auction agent must create a new marketplace. Applicable regions for

marketplaces are provided by the agent platform. The agent chooses one, moves to this

region and propagates this marketplace with aid of the marketplace localization service

described in section 3.

2.2 Discovery agent

Users interested in auctions must ﬁnd out about the currently running auctions. To min-

imize the amount of retrieved auctions and the duration of the discovery procedure,

the user is able to specify the product categories, product speciﬁcation and the auction

related basic conditions like latest or earliest end time or the minimum (current) bid.

The agent collects information about all auctions matching its premises for a given

time by asking all auction agents at the marketplace. After moving back to its homezone

and jumping to its user’s device it transfers all the collected information to the user. The

user is now able to choose auctions to take part in.

Duplications due to message loss must not be considered due to the fact that this

type of agent does not make any agreement with other agents. Nevertheless, duplicate

detection can be used to reduce the amount of agents.

2.3 Bid agent

In order to participate in an auction, the user creates an agent that bids on behalf of

him. He must specify his maximum bid, the height of each bid step the agent is able to

increase the current bid.

The bid agent moves to the marketplace and places bids until one of its bids is

accepted by the auction agent or its maximum bid is reached. If the agent’s maximum

bid is reached, it moves back to its homezone to inform the user that he has currently

lost the auction. Otherwise, it stays at the marketplace and continues bidding if another

agent places a higher bid.

The agent with the highest bid at the end of the auction is informed by the auction

agent. The bid agent replies to this notiﬁcation and leaves the marketplace after a short

waiting time. This waiting time is needed to avoid unresolved message loss at the end

of the auction. Thus, the auction agent is able to repeat the message that informs the

winner until the winner replies.

Duplicated bid agents should not outbid themselves. Bid agents tagged as possibly

duplicated must search for duplicates like the auction agents after entering or reentering

the marketplace.

164

3 Marketplace platform

The UbiBay application uses the marketplace communication pattern to bring offers

and bids together and allow self-organized auctions. Instead of directly implementing

the marketplace pattern in the UbiBay application, a middleware platform for applica-

tions in mobile multihop ad-hoc networks is used. This middleware platform provides

the application with all services needed to use the marketplace pattern.The remainder

of this section will discuss the architecture and services of the middleware used by

UbiBay.

Hardware abstraction: The foundation of the middleware is a hardware abstraction

layer to unify access to basic operating system parts, to positioning, wireless communi-

cation and device discovery.

Agent movement: Agents use the agent movement service to reach speciﬁc places

like marketplaces or homezones. The agent deﬁnes its target and the movement service

ensures that the agent reaches its destination. When the agent arrives at the target, it is

informed by the movement service.

The agent movement service transports the agent to its target by transfering the

agent to other devices repeatedly. Suitable hosts are selected by a position-based greedy

routing algorithm [6]. The actual transfer of the agent to the selected device is handled

by the agent transport protocol. When the agent has reached its destination, the move-

ment system informs the agent and ensures that it stays there until a new target is set.

The way back to the homezone works similarly. The movement service transports

the agent back to its homezone. At the homezone, the owner’s device is searched using

a geographically limited broadcast. When the owner’s device is to far away from its

homezone, it leaves a link to its current position. After the owner’s device is reached,

the agent is informed by the movement service.

Agent transmission protocol: Whenever the agent movement service decides to move

an agent from one device to another, the agent transmission protocol is used. Due to

device mobility and wireless transmission, a reliable communication channel between

two devices cannot be assumed. On the other hand agents should not be lost during

transmission. The agent transmission protocol solves this dilemma by tolerating agent

duplication. The sender keeps a copy of the agent when sending it to another device.

Both copies are marked as possibly duplicated. If all protocol messages are correctly

acknowledged, the sender deletes its copy and the receiver removes the duplicate marker

from its copy. Otherwise, the protocol guarantees that at least one copy of the agent

exists. An agent is always marked when a duplication occurs, while the opposite does

not necessarily hold.

Duplicated agents may cause problems at the marketplace when they make different

agreements. Thus, upon arrival at the marketplace a duplicate elimination procedure is

started for agents marked as potential duplicates

165

Communication at marketplaces: Due to the limited size of the marketplace, com-

munication at marketplaces commonly involves a few hops only. The higher density of

devices at the marketplace makes communication more reliable. All the communication

takes place between agents not devices, since the agents might change devices during

the communication. The middleware provides two kinds of communication at the mar-

ketplace: a marketplace-wide broadcast and a unicast addressing a speciﬁc agent.

The marketplace-wide broadcast is a geographically limited broadcast: messages

are forwarded within the borders of the marketplace only. Therefore the marketplace

broadcast causes no additional network load outside of the marketplace area. The net-

work load inside of the marketplace area is further reduced by using a neighbor knowl-

edge broadcast [11]. This special kind of broadcast uses only a subset of all devices to

distribute a message to every device at the marketplace.

Unicasts addressing speciﬁc agents use topology-based source routing [10]. The

routes commonly result from agents looking for other agents but can be explicitly built

with marketplace-wide discovery broadcasts.

Marketplace localization: The marketplace localization service helps agents to ﬁnd

their corresponding marketplaces. It disseminates information on marketplace positions

and applications running on them over the complete ad-hoc network. In order to avoid

redundant information exchange, devices exchange hash values of their marketplace

information ﬁrst. Only if hash values differ, the real information is exchanged and up-

dated.

Distributed map computation: Marketplaces should be placed in areas where a high

density of mobile devices can be expected. Thus, an agent creating a new marketplace

needs to know about the hotspots of the ad-hoc network, i.e. places with high device

density. This is achieved by the distributed map computation service.

The area covered by the ad-hoc network is divided in small grids. Each device per-

manently updates the number of devices being in the grid where it is located. Addi-

tionally, it periodically broadcasts its current map state to all neighbors and listens for

incoming map states. Incoming map states are averaged with locally existing states.

4 Testing UbiBay in a workbench environment

The design and implementation of UbiBay and the middleware platform follows a three-

tier development principle consisting of simulation, emulation and testing in a real en-

vironment. A Java-based uniform workbench [2] especially designed for implementing

applications for mobile multihop ad-hoc networks, supports this design pattern. Code

reuse is the main advantage of this framework compared to other tools specialized for

only one of the design steps. It turned out to be of high value to implement parts of the

middleware once and test them in simulation, emulation and execution on real devices.

The ﬁrst version of middleware components were put into practice in the simulation

part of the workbench. Repeatability of simulation experiments, fast forwarding, man-

aging of thousands devices, and ﬁnally rich but simple visualization abstractions proved

166

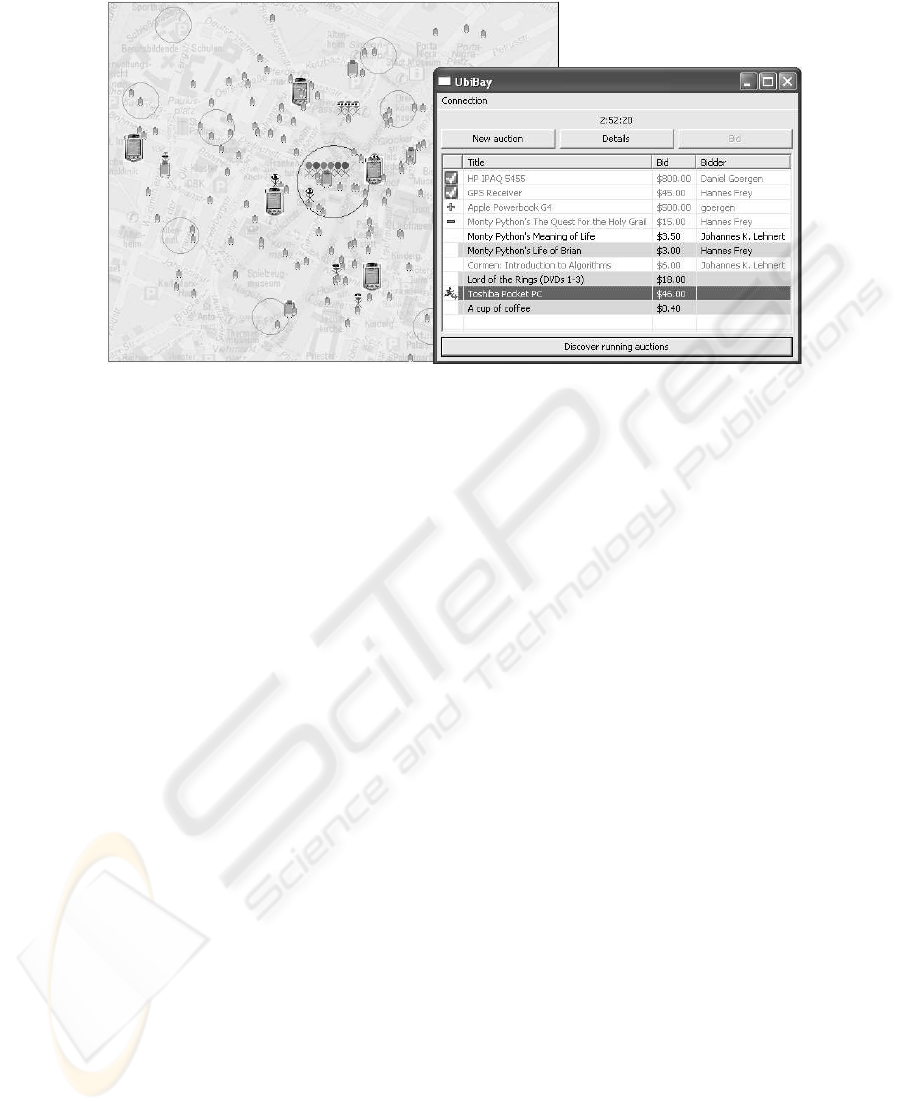

Fig. 3. Ubibay prototype with graphical user interface and visualization of the global simulation

state.

to be of high value for getting a better insight into the concept of marketplaces. During

the design of UbiBay the problem arose when timeouts set by the agent occured dur-

ing the absence from its marketplace. An early implementation used the notiﬁcation

mechanism of the middleware platform, in order to register as a listener for the event of

leaving or reentering its designated geographic region. Thus, processing of timer events

and also incoming messages is done in the context of the current agent state (inside or

outside of the marketplace). It turned out that application complexity can be reduced

signiﬁcantly by providing a mechanism to handle this problem by the platform itself.

Concerning this, the middleware platform defers (or ignores) processing of timer events

and delivering of messages until the agent can be placed back to its marketplace.

Using the emulative environment allows to test UbiBay with real user interaction

on real devices connected to a simulation with a high number of simulated devices.

In particular, the GUI development process beneﬁts of this approach as an intermediate

step before testing the application in the real environment. But also the other application

parts were improved in this development step.

Up to now only a few devices were used to test UbiBay in the real environment as a

proof of concept. Lager ﬁeld trials are scheduled for the nearer future.

The marketplace communication pattern has been tested and evaluated within the

simualtion environment. The evaluation results as turnaround time, agent duplication

rate etc. with simple agreement protocols has been published in [3]. For applications

like UbiBay a much more complex simulated user behavior is needed for simualtive

evaluation. At the moment only simple user behavior is implemented.

167

5 Related work

In general, permanent network partitions are inherent to large scale ad-hoc networks,

which prevents the provision of transparent end to end communication. This shows

the necessity of new communication paradigms like the marketplace-based approach

[3] followed by UbiBay and the underlying middleware platform. Communication

on marketplaces does not suffer from these problems, since marketplaces deﬁne small

subsets of the entire ad-hoc network.

An increasing number of middleware systems is developed speciﬁcally for mo-

bile ad-hoc networks. Lime[9] and L

imbo[1] are based on the idea of tuple-spaces,

which they share between neighbored nodes. But due to the coupling of nodes, these

approaches are not well-suited for highly mobile multihop ad-hoc networks. MESH-

Mdl[4] employs the idea of tuple-spaces as well, but avoids coupling of nodes by using

mobile agents, which communicate with each other using the local tuple-space of the

agent platform. Proem[5] provides a peer-to-peer computing platform for mobile ad-hoc

networks. STEAM[7] limits the delivery of events to geographic regions around the

sender which is similar to the geographically bound communication at marketplaces.

STEAM provides no long distance communication, it is only possible to receive events

over a distance of a few hops.

Adaptations and extensions [10] of classical topology-based routing protocols known

from static networks are coping with the problem of permanent link failures due to de-

vice mobility. However, these routing protocols will only deliver any packet, if at least

sometimes there is a path from source to destination over one or more wireless links.

Related to the communication pattern used by UbiBay, these protocols are applicable

for communication inside a marketplace, since the network topology at a marketplace

tends to be unpartitioned.

Another class of routing protocols is based on position information [6]. Similar to

topology-based routing protocols, the objective are unpartitioned networks. Using po-

sition information is an attractive way to avoid communication overhead caused by

maintaining routing information. In the marketplace communication pattern such pro-

tocols can be used to move agents within a network partition towards their destination.

However, these protocols also assume that there exists a path from source to destination

and have to be extented to protocols using device mobility as an additional message

transport mechanism.

6 Conclusion and further work

This paper presents a working solution for auctions in mobile environments. The mo-

bile auction system UbiBay uses solely mobile devices forming a large scale multihop

ad-hoc network. This is achieved by a communication pattern based on the market-

place metaphor. Marketplace-based communication perfectly ﬁts for non time critical

applications in mobile multihop ad-hoc networks.

UbiBay and all necessary parts of the used middleware platform have been imple-

mented both in a simulation environment and on real hardware. First tests with Pocket-

PCs and notebooks using IEEE802.11b and GPS have been successfully carried out.

168

The presented components of the middleware platform are sufﬁcient for UbiBay.

Besides UbiBay also other applications like electronic ride boards and self-organized

learning platforms are considered as applications using the presented middleware plat-

form. Thus, many other features, like load balancing for marketplaces, are implemented

or planned. Finally, more extensive ﬁeld trials with UbiBay on real hardware are sched-

uled for the near future.

References

1. N. Davies, A. Friday, S. P. Wade, and G. S. Blair. L

imbo: A distributed systems platform

for mobile computing. ACM Mobile Networks and Applications (MONET) - Special Issue

on Protocols and Software Paradigms of Mobile Networks, 3(2):143–156, August 1998.

2. Hannes Frey, Daniel G

orgen, Johannes K. Lehnert, and Peter Sturm. A java-based uniform

workbench for simulating and executing distributed mobile applications. In Proceedings of

FIDJI 2003 International Workshop on scientiﬁc engineering of distributed Java applica-

tions, 2003.

3. D. G

orgen, H. Frey, J.K. Lehnert, and P. Sturm. Marketplaces as communication patterns in

mobile ad-hoc networks. In Kommunikation in Verteilten Systemen (KiVS), 2003.

4. Klaus Herrmann. MESHMdl - A Middleware for Self-Organization in Ad hoc Networks. In

Proceedings of the 1st International Workshop on Mobile Distributed Computing (MDC’03),

May 19 2003.

5. Gerd Kortuem. Proem: a middleware platform for mobile peer-to-peer computing. ACM

SIGMOBILE Mobile Computing and Communications Review, 6(4):62–64, 2002.

6. M. Mauve, J. Widemer, and H. Hartenstein. A survey on position-based routing in mobile

ad-hoc networks. IEEE Network Magazine, 15(6):30–39, 2001.

7. Ren Meier and Vinny Cahill. STEAM: Event-based middleware for wireless ad hoc net-

works. In 22nd International Conference on Distributed Computing Systems Workshops

(ICDCSW ’02), Vienna, Austria, July 2002.

8. S.-Y. Ni, Y.-C. Tseng, Y.-S. Chen, and J.-P. Sheu. The broadcast storm problem in a mobile ad

hoc network. Proc. of the 5th ACM/IEEE Int. Conf. on Mobile Computing and Networking,

pages 151–162, 1999.

9. Gian Pietro Picco, Amy L. Murphy, and Gruia-Catalin Roman. LIME: Linda meets mobility.

In International Conference on Software Engineering, pages 368–377, 1999.

10. Elizabeth M. Royer and Chai-Keong Toh. A review of current routing protocols for ad-hoc

mobile wireless networks. IEEE Personal Communications, pages 46–55, April 1999.

11. B. Williams and T. Camp. Comparison of broadcasting techniques for mobile ad hoc net-

works. In Proceedings of the ACM International Symposium on Mobile Ad Hoc Networking

and Computing (MOBIHOC), pages 194–205, 2002.

169
