Generic Caching Library and Its Use for VTK-based Real-time

Simulation and Visualization Systems

Luk

s Hruda

and Josef Kohout

Department of Computer Science and Engineering, Faculty of Applied Sciences, University of West Bohemia,

Univerzitn

ı 8, Pilsen, Czech Republic

NTIS - New Technologies for the Information Society, Faculty of Applied Sciences, University of West Bohemia,

Univerzitn

ı 8, Pilsen, Czech Republic

Keywords:

Cache, Memoization, VTK, Visualization.

Abstract:

In many visualization applications, physics-based simulations are so time consuming that desired real-time

manipulation with the visual content is not possible. Very often this time consumption can be prevented by

using some kind of caching since many of the processes in these simulations repeat with the same inputs pro-

ducing the same output. Creating a simple caching mechanism for cases where the order of the data repetition

is known in advance is not a very difﬁcult task. But in reality, the data repetition is often unpredictable and in

such cases some more sophisticated caching mechanism has to be used. This paper presents a novel generic

caching library for C++ language that is suitable for such situations. It also presents a wrapper that simpliﬁes

the usage of this library in the applications based on the popular VTK visualization tool. Our experiments

show that the developed library can speed up VTK based visualizations signiﬁcantly with a minimal effort.

1 INTRODUCTION

The VTK (Visualization Toolkit) (Schroeder et al.,

2004) is a very popular tool for visualizing various

types of data and information, usually scientiﬁc. It

is written in C++ and has found its use in many

existing visualization systems like ParaView (Ahrens

et al., 2005), MayaVi (Ramachandran and Varoquaux,

2011), 3D Slicer (Pieper et al., 2004), OsiriX (Rosset

et al., 2004) or MVE-2 (Frank et al., 2006).

The data of today tends to be very complex and its

analysis is usually only possible through visual ana-

lytics. This means that in the background of the visu-

alization system data-acquisition and further process-

ing of this data take place and the result is visualized

for the user who can then interact with the data, ﬁlter

it or change the way it is acquired. This also means

that the visualization has to be updated in an interac-

tive time (at least 15 frames per second). Since so-

phisticated data-acquisition techniques are producing

datasets of continually increasing size, even on a very

powerful computer with parallel processing, this is

usually not possible. It seems obvious that any unnec-

essarily repeated processes or calculations in such vi-

sualization system are very undesirable and prevent-

ing this repetition would in many cases increase the

speed of the visualization rapidly. If such unneces-

sary repetition occurs, some form of caching can be

used to prevent it, at least partially.

Although the VTK has been under development

for many years, its caching possibilities still seem to

be quite limited. This is why, in this paper, we present

a caching library, written in C++ and build on the fea-

tures of C++11, which can be used to prevent unnec-

essary repeating of time consuming processes not just

in VTK but, since the library was written as generi-

cally as possible, in quite any C++ application.

The rest of the paper is organized as follows. Sec-

tion 2 describes the VTK pipeline and its problems

which raise the need for caching. Section 3 shows ex-

isting approaches for caching results of time consum-

ing processes. The proposed strategy and presented

caching library are described in Section 4. The results

achieved using this library are presented in Section 5

and Section 6 concludes the paper.

2 VTK

The VTK is based on the data-ﬂow paradigm. It con-

tains modules that can be connected by the user to

form a pipeline. Each module may have various con-

ﬁguration parameters that deﬁne how the module be-

154

Hruda, L. and Kohout, J.

Generic Caching Library and Its Use for VTK-based Real-time Simulation and Visualization Systems.

DOI: 10.5220/0006714501540164

In Proceedings of the 13th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2018) - Volume 1: GRAPP, pages

154-164

ISBN: 978-989-758-287-5

haves. There are three types of modules in VTK. The

data sources, which are modules that create new data

(by loading it from a ﬁle, generating it, etc.), have

only outputs and no inputs (except for their conﬁgura-

tion parameters). The ﬁlters are modules, which per-

form various processes with a given data, have both

inputs and outputs. The sinks are always in the end of

the pipeline and do the ﬁnal operations with the data

(writing it into a ﬁle, showing it on the screen, etc.).

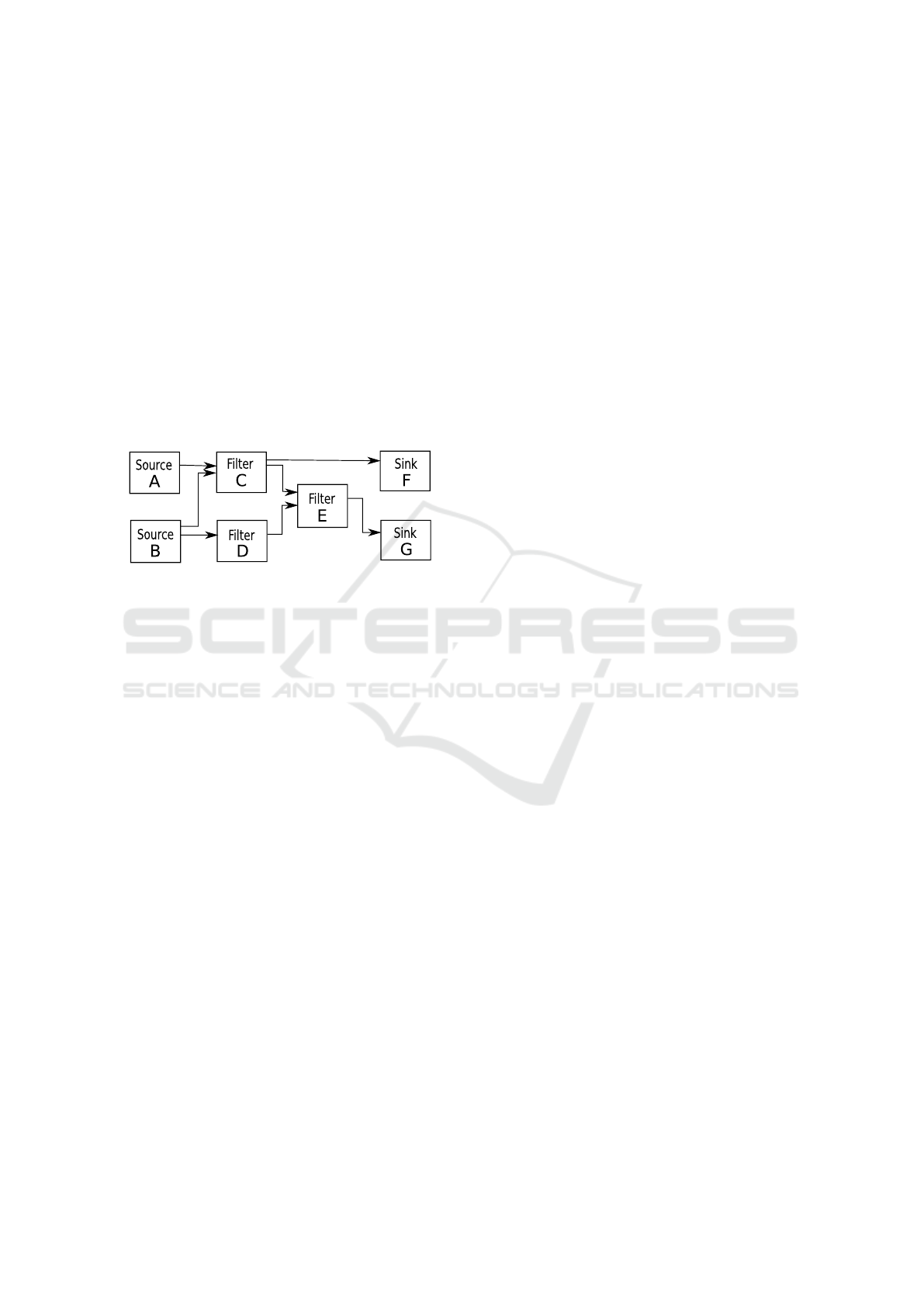

Diagram of a simple VTK pipeline is depicted in

Figure 1. There are two data sources, A and B, three

ﬁlters, C, D and E, and two sinks, F and G. The ar-

rows show the connections between the modules. For

example, ﬁlter C receives two inputs, one from data

source A and one from data source B, and has two out-

puts, one connected to ﬁlter E and the other to sink F.

Figure 1: Example of a VTK pipeline.

2.1 Problem with the Pipeline

The VTK pipeline is demand-driven by default. This

means that every module provides the data on its out-

put only when it is needed on the input of the mod-

ule which it is connected to. Let us again consider

the example from Figure 1. When, for example, sink

F needs to perform the ﬁnal operation with the data

(e.g. render in onto the screen), it sends a request for

the data to ﬁlter C which then sends the request to

sources A and B. Sources A and B create (e.g. read

from given ﬁles) their output data and send it to ﬁl-

ter C which uses the data to create its output which is

then sent to sink F. Sink F now can use the data to

perform the ﬁnal operation (render it).

This is the basic principle of the demand-driven

pipeline. In VTK, the pipeline is actually enriched by

a feature which partially prevents unnecessary repe-

tition of processes performed by the modules in the

pipeline. It uses timestamps to recognize whether

a module’s input or any of its conﬁguration param-

eters have changed. Every module has an attribute,

let MT (modiﬁcation time) denote it, and another at-

tribute, let ET (execution time) denote it. The MT

attribute of a module is set to the current timestamp

every time the module’s input or any of its parame-

ters are changed. The ET attribute of a module is set

to the current timestamp every time the module exe-

cutes the process to create its output. When data is

requested from a module and its ET is greater than

its MT , instead of executing the process to create the

output data (including sending requests for data to the

preceding modules), it provides the data which is still

in the module from the last execution.

Although this mechanism increases the perfor-

mance of the entire visualization signiﬁcantly, espe-

cially, when some of the processes performed by the

modules in the pipeline takes lot of time, in many

cases this is not sufﬁcient. Let us imagine a case

where we have a module which executes its process

for output creation with certain input values and cer-

tain parameter values. After this, one of its parame-

ters is changed to a different value, which updates the

module’s MT attribute, and then the parameter gets

reset to its original value, which updates the module’s

MT attribute again. At this point all the module’s in-

puts and parameters have the same values as they had

at the time the last output creation process was ex-

ecuted. However, as the module’s MT attribute has

been updated since then, when the next request for

the module’s output comes, the process will be exe-

cuted, although the output will be exactly the same as

the last time.

Let us imagine another case where we have a mod-

ule which can only be in two certain conﬁgurations

of its inputs and parameters. Let us call them con f

and con f

. The conﬁguration of the module changes

after every request for its output, so it starts with

con f

, then the request comes and its conﬁguration

is changed to con f

. When another request comes it

gets changed back to con f

and this repeats in a loop.

Obviously each change of the module’s conﬁguration

also updates its MT attribute, so every time the re-

quest comes the output creation process will be exe-

cuted. This creates a lot of unnecessary computation

though it could be quite easily prevented by storing

the two outputs somewhere and reuse them.

Note that these two cases are only simple exam-

ples. In reality the situation is typically more com-

plex. Different inputs and parameter conﬁgurations

can occur in an unpredictable order, whereas many of

them can repeat whilst many others occur only once.

Also the conﬁgurations of the pipeline modules can

be quite complex and can contain ON/OFF switches

that can cause some of the module’s parameters to

be ignored. But even if such ignored parameter gets

changed, it updates the module’s MT attribute despite

the fact that the change has no effect on the module’s

output. These cases are what raises the need for some

more advanced caching mechanism like the one pre-

sented in this paper.

Generic Caching Library and Its Use for VTK-based Real-time Simulation and Visualization Systems

155

3 RELATED WORK

Seemingly there has not been much work done in the

area of caching results of time consuming processes.

But there are at least some existing caching mecha-

nisms worth mentioning.

The Visualization Toolkit itself contains a class

called vtkTemporalDataSetCache

. Instances of

this class allow to store data associated with times-

tamps. When a data for a given timestamp is re-

quested and this timestamp is present in the given in-

stance then the data can be found in the cache and

used directly without the need to recompute or reload

it. This mechanism can be efﬁciently used for caching

animation data since we can precompute the anima-

tion or its part and then store each frame associated

with a timestamp. Afterwards we can access all the

stored frames through their timestamps without re-

computing them. But in general, not all the possible

data are known in advance and cannot all be associ-

ated with timestamps, which makes this mechanism

insufﬁcient in many cases.

A little different approach is the memoization

(Hall and McNamee, 1997). Memoization is an op-

timization technique used to speed up programs by

storing results of function calls associated with given

argument values and returning the stored results when

the same combination of arguments occurs. For ex-

ample the latest (2017) version of Matlab has its own

built in memoize function

. The memoize function

takes a function, let f denote it, as its argument and

returns a function, let mf denote it, which is a mem-

oized version of the original function. The function

mf calls the function f internally and stores its return

value. When the mf function is called again with the

same combination of argument values it returns the

stored value instead of calling the f function again.

In most programming languages, when only in-

put arguments and return value of built-in data types

are considered, the memoization can be quite easily

implemented. When it comes to more complicated

data types like classes and structures, and in some

languages (C++ included) even arrays, the problem

of memoization becomes a lot more complex since

in many languages (again C++ included) there is no

general way to compare two objects and tell whether

or not they are the same. Similarly there is usually

no general way to deﬁne how to copy an object into

the cache or how to copy the resulting object from

the cache to where the user expects it. Also in many

http://www.vtk.org/doc/nightly/html/

classvtkTemporalDataSetCache.html#details

https://www.mathworks.com/help/matlab/ref/

memoize.html

languages the result does not have to be given back

by the return value but it can be passed using the so

called output arguments. An output argument is an

address in the memory, passed to the function by its

argument, into which the called function stores the

result. Output arguments are quite commonly used in

VTK.

For C++ a few recently developed small memo-

ization libraries exist

3 4 5

but they mostly seem to

only support primitive data types and in some cases

the memoized function can even have only one argu-

ment. Also none of these libraries seems to cover out-

put arguments.

The C++ library presented in this paper is based

on the memoization approach and extends it onto a

higher level of genericity covering many of the issues

described above.

4 OUR CACHING LIBRARY

As mentioned before, the caching library we present

is based on the memoization approach and is written

in C++11, which is nowadays standard. We decided

to design the library in C++ because this language is

used in most visualization applications, those based

on VTK included. Variadic templates, introduced in

C++11, which take a variable number of arguments,

were exploited to support memoization of virtually

any function with a minimal overhead associated with

the caching.

The developed library, which is publicly avail-

able to download from https://github.com/kivzcu/

HrdDataCacheSystem, consists of many classes most

important of which are the CachedFunction class

and the CachedFuctionManager class. An instance

of the CachedFunction class represents the caching

object which simulates calls of a given function and

is responsible for storing data into the cache and

for searching data in the cache. An instance of the

CachedFunctionManager class represents the cache

manager which serves as a factory for the caching ob-

jects. Since all caching objects created by the same

cache manager share the same cache, the cache man-

ager also takes care of evicting data from the cache

when its capacity gets exceeded. The relationship be-

tween instances of these classes is shown in Figure 2.

https://github.com/giacomodrago/cppmemo/blob/

master/cppmemo.hpp

https://github.com/jimporter/memo/blob/master/

include/memoizer.hpp

https://github.com/xNephe/MemoizationLibCpp

GRAPP 2018 - International Conference on Computer Graphics Theory and Applications

156

CachedFunctionManager

CachedFunction

CachedFunctionManager

CachedFunction

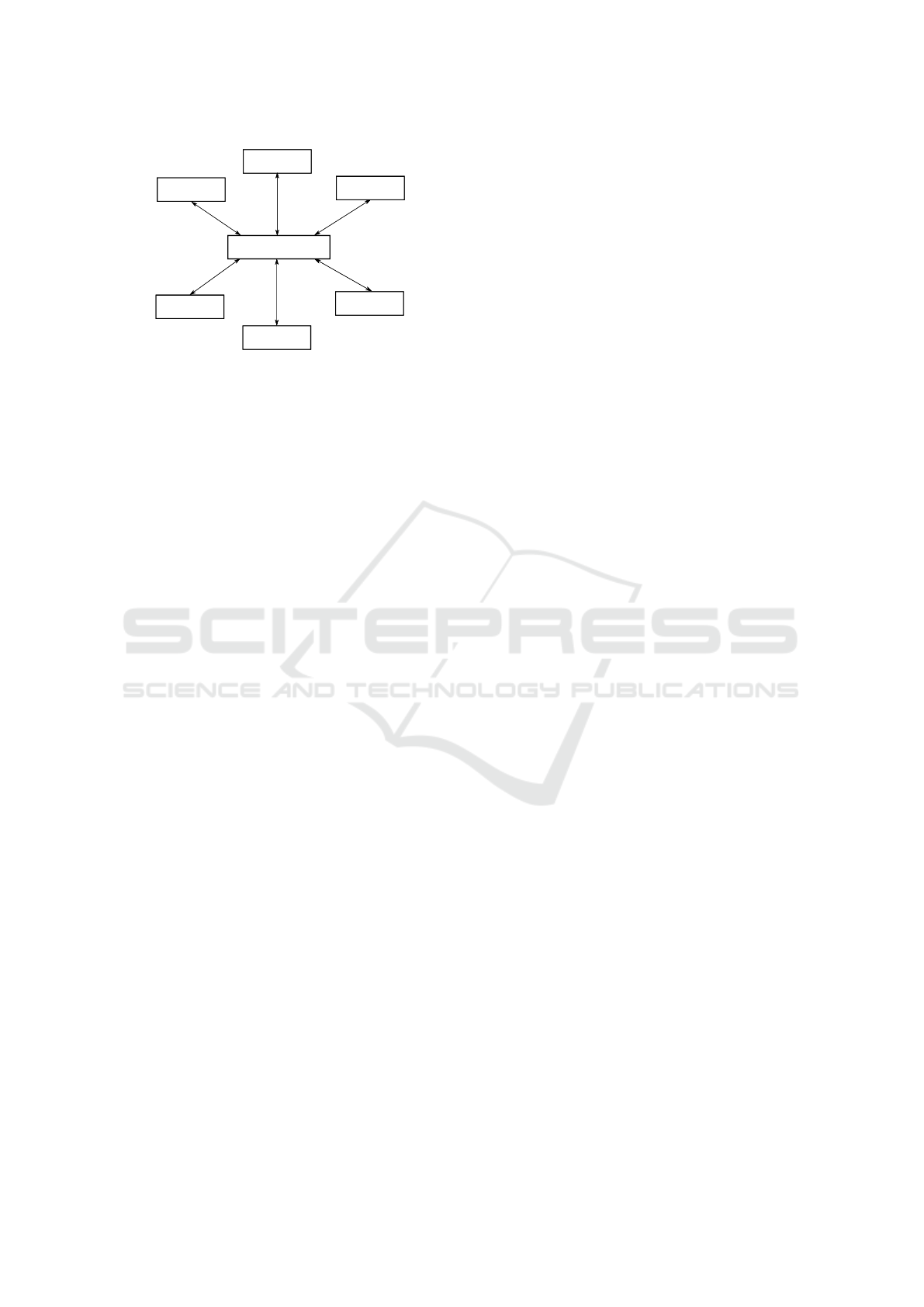

Figure 2: Relationship between instances of the

CachedFunction class and the CachedFunctionManager

class.

For the sake of clarity, we ﬁrst describe our

caching library from the user perspective and only af-

ter that we give the details regarding its design (see

Sections 4.5 and 4.6).

4.1 Creating the Cache Manager

The cache manager can be created simply by decla-

ration or by dynamic creation using the new opera-

tor. The cache manager’s constructor takes one argu-

ment, which is its conﬁguration object that determines

the cache’s capacity and contains information about

the data eviction policy which is used to remove data

from the cache when its capacity gets exceeded (see

Section 4.5). For example, the cache manager can be

created as shown in this snippet:

CacheManagerConfiguration managerConf;

managerConf.setCacheCapacity(100000000);

CachedFunctionManager manager(managerConf);

4.2 Creating the Caching Object

For the sake of simplicity, let us suppose we have a

function performing some time consuming operation

whose declaration is:

double func(int in1, int in2, int* out);

The arguments in1 and in2 are input arguments

of type int. One part of the operation result is passed

to the caller by the output argument out, the other, of

type double, is passed to the caller by the function’s

return value. If we want to cache the results of this

function using our library, we have to create a caching

object using a cache manager. The caching object

creation can be done as shown in this snippet:

CacheConfiguration conf;

...

CachedFunction<double, int, int, int*>* cf =

manager.createCachedFunction(conf, func);

The cf object represents the caching object,

manager is the cache manager which creates the

caching object, func is the previously described func-

tion which performs the time consuming operation

and conf contains the caching object’s conﬁguration

which will be described later. The three dots are

where the conﬁguration setting occurs. The caching

object cf is actually something of a memoized ver-

sion of the function func. It can be noticed that the

CachedFunction is a template class. Speciﬁcally it

is a variadic template which means it has a variable

number of arguments. The ﬁrst argument is the type

of the return value of the function whose results are

supposed to be cached and the other arguments are the

types of the function’s arguments. There is also a spe-

cialization for functions with no return value (void).

4.3 Using the Caching Object

The caching object cf can be used to simulate calls of

the function func. This can be done using the call

method which can be used in the following way:

int result1;

double result2 = cf->call(1547, 325, &result1);

If the call method is called with the given combi-

nation of input arguments (in the considered example,

in1 = 1547 and in2 = 325) for the ﬁrst time, the func-

tion func is called internally and its results (in this ex-

ample, return value and out) are stored into the cache

under the key formed by the input arguments. If the

call method is called with a combination of input ar-

guments that is present in the cache as a key together

with the corresponding result values, the func func-

tion is not called at all, instead the stored results are

used. In this case, after calling the call method, the

variables result1 and result2 contain the results of

the function call. The results should be the same as

when using the following code:

int result1;

double result2 = func(1547, 325, &result1);

For this to work, the func function’s results must de-

pend only on the input arguments, which has to be

ensured by the user of our library.

4.4 Conﬁguring the Caching Object

As already mentioned, when creating the caching ob-

ject, its conﬁguration must be deﬁned ﬁrst using the

CacheConfiguration class. An instance of this class

contains information about all of the cached func-

tion’s arguments and its return value. For each ar-

gument, it deﬁnes whether it is an input or output

argument (or ignored, which can be useful in some

Generic Caching Library and Its Use for VTK-based Real-time Simulation and Visualization Systems

157

cases), and it contains pointers to data manipulation

functions. These are functions that deﬁne how to copy

the argument to the cache, how to compare two in-

stances of the argument, how to copy the stored value

into the argument, etc. Similar functions must be de-

ﬁned for the return value. These functions are usually

up to the user do deﬁne but for the primitive types we

have deﬁned them implicitly.

Setting the information for the ﬁrst argument from

our considered example might look as:

CacheConfiguration conf;

conf.setParamInfo(0, TypedParameterInfo<int>(

ParameterType::InputParam,

param0EqualFunction,

param0InitFunction,

nullptr,

param0DestroyFunction,

param0HashFunction,

param0GetSizeFunction

));

The ﬁrst argument of the setParamInfo method is

the index of the cached function’s argument for which

the information is supposed to be set. The second ar-

gument is an instance of the TypedParameterInfo

class which contains all the information and can be

created using its constructor. The constructor’s ﬁrst

argument states whether the given cached function’s

argument is an input or output argument or ignored.

The other arguments are pointers to the data manipu-

lation functions described above. The nullptr value

in this case corresponds with a function which should

deﬁne how to copy the corresponding stored value

from the cache to the argument but this function is

useless in case of an input argument. Information for

the return value can be conﬁgured similarly.

4.5 Eviction Policy

Given the fact that the cache’s capacity is typically

limited, a behaviour for cases the capacity gets ex-

ceeded must be deﬁned. This behaviour is called

cache eviction policy and deﬁnes how to choose

which data should be removed from the cache in case

new data is up to be stored and there is not enough

space for it. There are many existing eviction policies

like LRU, LFU (B

zoch et al., 2012), LRD (Effelsberg

and Haerder, 1984) or LRFU (Lee et al., 2001) but

all these policies only take reference count or refer-

ence recency of the data into account. In our case,

we need to also consider the data size and its cre-

ation time. For this purpose, an eviction policy was

designed based on the LRD policy and extended by

data size and creation time information. Our policy

uses a priority function to estimate the value of data

in the cache and in case an eviction is needed, the data

with the lowest priority is removed from the cache.

The function we use is given in Equation 1.

= k

·R

+6k

·(1 −

)+k

·(2

log

)

−2) (1)

The priority of data with index i is denoted P

, R

the data’s priority according to the LRD policy, S

is the data’s size mapped to h0; 1i, T

is the data’s

creation time in milliseconds and k

≥ 0, k

≥ 0,

≥ 0 are constant parameters set by the user so that

= 1. The default (and recommended) val-

ues are k

= k

. Details of how this priority

function was derived are beyond the scope of this pa-

per.

Although this policy is the default eviction policy

in our caching library, there is indeed a possibility for

the user to deﬁne his own policy.

4.6 Design Details

The data stored in the cache are contained in data

items. Each data item contains a single unique con-

ﬁguration of input values and a corresponding con-

ﬁguration of output values and is stored in the cache

under a non-unique hash value.

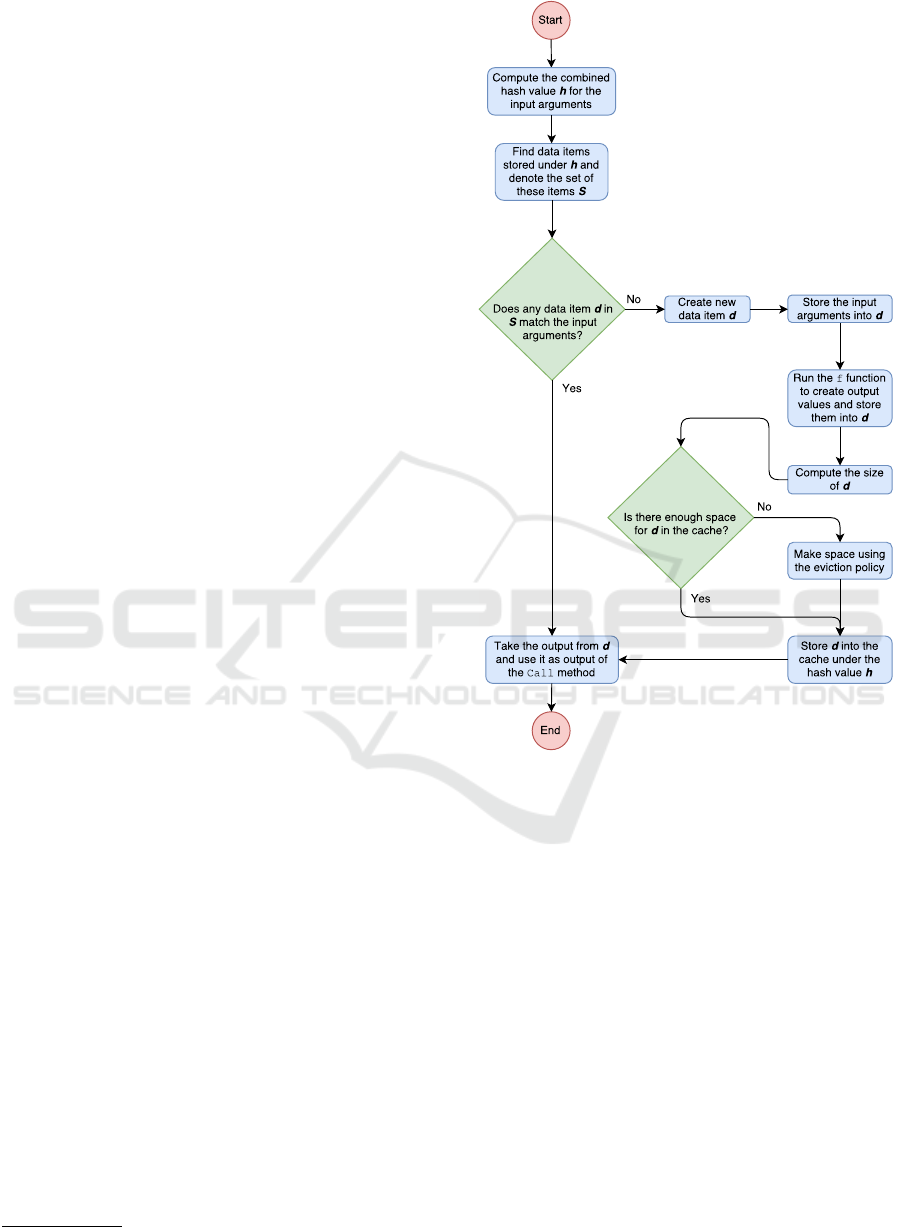

When the Call method is called with given ar-

gument values on an arbitrary caching object, which

simulates calls of a function denoted f, ﬁrst all in-

put arguments are identiﬁed and their hash values are

computed using the user deﬁned hash functions. All

these hashes are combined into a single hash value by

the approach used in the popular boost library

that is

known to provide a decent hash, unless some of the

hashes to combine is indecent. The combination for-

mula of this approach is following:

single_hash = hash1 ˆ (hash2 + 0x9e3779b9

+ (hash1 << 6) + (hash1 >> 2))

After that all the data items stored in the cache

under this hash value are acquired. These data items

are iterated one by one and for each of them, the in-

put arguments, passed to the Call method, are com-

pared with corresponding input values stored in the

given data item using the user deﬁned comparison

functions. If any of these comparisons indicates a

mismatch between the given argument and the corre-

sponding stored input value then the given data item

is rejected. The iteration continues until there are no

more data items to iterate or until a data item is found

for which all the comparisons indicate matching in-

put values, such data item is then labelled a matching

data item.

If the matching data item is found in the cache, the

output values are acquired from it and copied into the

http://www.open-std.org/jtc1/sc22/wg21/docs/papers/

2014/n3876.pdf

GRAPP 2018 - International Conference on Computer Graphics Theory and Applications

158

corresponding output arguments of the Call method

using the user deﬁned copy functions. If one of the

output values is the return value the Call method

terminates by returning it, either directly or using

the user deﬁned return function, depending on the

caching object’s conﬁguration. Otherwise the Call

method terminates by returning nothing (this occurs

when the return type is void).

When no matching data item is found the situa-

tion is a little more complicated. In such case a new

empty data item is created and the Call method’s in-

put arguments are copied into it using the user deﬁned

initialization functions. Afterwards the f function is

called with all the Call method’s arguments to cre-

ate the output values. These output values are copied

into the new data item, again using the user deﬁned

initialization functions. Also the sizes in bytes of all

input and output values stored in the new data item

are computed, using the user deﬁned size computa-

tion functions, and summed together to get the data

item’s size. If there is not enough space in the cache

for the new data item, the eviction policy (see Sec-

tion 4.5) is used to remove some data from it making

the space. Finally the new data item is stored into

the cache under the combined hash value computed

at the beginning. Also, of course, the output values

are copied into the corresponding output arguments

of the Call method and the method terminates by re-

turning the correct return value or nothing in case of

void return type. Figure 3 shows the ﬂowchart of the

Call method which brieﬂy describes the method’s be-

haviour.

In some cases, the performance of our library

strongly depends on the quality of hash functions pro-

vided for the input arguments. If the hash functions

produce the same hashes for different values too of-

ten, it can result in higher number of comparisons

made when searching the cache for the matching data

item. For the primitive and standard data types (such

as std::string) decent hashes can be obtained using

the Standard Template Library’s std::hash

. For

user deﬁned data types, the hash functions must be

deﬁned manually. In the case of arrays or collec-

tions, there is usually no need to use all their items

to compute the hash, in most cases only a few deter-

ministically selected items can be used. The hash of

a more complex object can be computed by combin-

ing hashes of its attributes using the boost library ap-

proach we use for combining the hashes of the input

arguments (as described above).

http://en.cppreference.com/w/cpp/utility/hash

Figure 3: Flowchart of the Call method (created using

https://www.draw.io/).

4.7 Use in VTK

Since the presented library is very generic, there is no

problem using it in the VTK as it is. But to make the

usage in VTK easier for developers, we have created

a wrapper for it, speciﬁcally for VTK7. The wrapper

consists of a few classes but the most important one is

the CachingFilter class. Using this class any VTK

ﬁlter can be made to use our caching library through

inheritance. Filters in VTK7 contain a method named

RequestData which performs the ﬁlter’s operation.

The user who wants to create his own ﬁlter overrides

this method and deﬁnes it as he wishes. The method’s

declaration looks like this:

virtual int RequestData(

vtkInformation* request,

vtkInformationVector** inputVector,

vtkInformationVector* outputVector

);

Generic Caching Library and Its Use for VTK-based Real-time Simulation and Visualization Systems

159

It has two important arguments, inputVector, which

contains all the ﬁlter’s inputs, and outputVector,

which is an output argument into which the ﬁlter’s

output is supposed to be stored. The argument

request in some cases contains some additional in-

formation for the ﬁlter’s operation and in such cases

has to be considered an input argument as well, al-

though in many cases it is unused. The method’s re-

turn value only indicates whether the operation has

ﬁnished successfully. There is one more hidden in-

put argument which is the ﬁlter itself (meaning the

instance of the ﬁlter class on which the RequestData

method is called) since the ﬁlter’s conﬁguration also

has impact on its output.

To create a caching version of an existing ﬁl-

ter new class must be created inheriting from the

CachingFilter class. Creation of such class can be

similar to this example:

class CachingDecimator :

public CachingFilter<CachingDecimator,

vtkDecimatePro>

{ ... };

In this case, we have created a new ﬁlter which will

be a caching version of the vtkDecimatePro

ﬁlter

whose task is to perform a triangle mesh simpliﬁca-

tion. We note that this task is crucial for an interac-

tive visualization of big data sets, multi-resolution hi-

erarchies for efﬁcient geometry processing, and many

other computer graphics applications.

The CachingFilter class internally creates a

caching object which simulates calls of the original

ﬁlter’s RequestData method, in our case the origi-

nal ﬁlter is vtkDecimatePro, therefore it simulates

calls of vtkDecimatePro::RequestData. It also in-

herits from the original ﬁlter (vtkDecimatePro in

our case), therefore it is a valid VTK ﬁlter, and

it overrides the RequestData method to use the

caching object to perform the original ﬁlter’s op-

eration instead of performing it directly. Inherit-

ing from such class gives us the caching version of

the original ﬁlter (vtkDecimatePro), in our case the

CachingDecimator.

For all this to work, the data manipulation func-

tions must be deﬁned, which can be done through

several methods declared in CachingFilter that the

user can override in the inheriting class. For example,

in the case of the CachingDecimator, the compar-

ison function for the input parameter inputVector

can be overridden to look like this:

bool inputEqualsFunction(

vtkInformationVector** a,

vtkInformationVector** b)

http://www.vtk.org/doc/nightly/html/

classvtkDecimatePro.html#details

{

vtkPolyData* inputPoly1 =

vtkPolyData::GetData(a[0]);

vtkPolyData* inputPoly2 =

vtkPolyData::GetData(b[0]);

return CacheUtils::CacheEquals(

inputPoly1, inputPoly2);

}

The static function CacheEquals is a predeﬁned

data manipulation function that compares two in-

stances of the class vtkPolyData. The data manipu-

lation functions for the most used data types in VTK

are predeﬁned in the CacheUtils class so that the de-

velopers do not have to create them on their own.

Actually, for the two most important argu-

ments of the RequestData method, inputVector

and outputVector, the data manipulation func-

tions are already deﬁned in a usable way in the

CachingFilter class so that in most cases the user

does not have to override and redeﬁne them at all. The

data manipulation functions, however, should always

be overridden and redeﬁned for the ﬁlter object, in our

case the CachingDecimator, since the ﬁlter’s output

usually depends on its conﬁguration and it is virtually

impossible to create generic data manipulation func-

tions for ﬁlters. This is due to the fact that C++ lacks

any advanced reﬂection features (such as in, e.g., C#)

and, therefore, it is impossible to identify all the ﬁlter

parameters in runtime.

Nevertheless, even if the runtime parameter iden-

tiﬁcation was possible, it would still be impossi-

ble to detect mutual interdependencies between the

parameters. For example, the vtkDecimatePro

class has a parameter named Splitting, which is

an ON/OFF switch, and also a parameter named

SplitAngle that is completely ignored by the ﬁlter,

when Splitting parameter is set to OFF. The VTK,

by default, does not take such dependencies into ac-

count and, therefore, without our library, just chang-

ing the SplitAngle (and nothing else including the

input data) would lead to a new execution of the ﬁl-

ter’s operation even when the Splitting parameter is

set to OFF creating exactly the same output as when

executed the last time (see also Section 2.1). Us-

ing our caching library such unnecessary executions

can be prevented by deﬁning the ﬁlter’s data manip-

ulation functions correctly, especially the comparison

function which in our case could be overridden and

deﬁned for example like this:

bool filterEqualsFunction(

CachingDecimator* filter1,

CachingDecimator* filter2)

{

if ((filter1->GetSplitting() !=

filter2->GetSplitting()) ||

(filter1->GetSplitting() &&

GRAPP 2018 - International Conference on Computer Graphics Theory and Applications

160

filter1->GetSplitAngle() !=

filter2->GetSplitAngle())

)

return false;

...

return true;

}

For a complex ﬁlter, we also recommend deﬁn-

ing its hash function (filterHashFunction) to in-

clude only the parameters that are most typically

changed. For example, in various simpliﬁcation sce-

narios, only the TargetReduction parameter of the

vtkDecimatePro class is typically being modiﬁed

while all other parameters retain their default val-

ues. Hence, implementing the hash function to re-

turn the hash of the TargetReduction parameter is

an optimal solution to improve the performance of the

caching in a vast majority of cases.

5 RESULTS

The developed library was tested on a computer with

CPU Intel Pentium Processor N3540 (clock rate 2.16

GHz, 4 cores, L1 cache 224 kB, L2 cache 2 MB),

graphics card NVIDIA GeForce 920M and 4GB of

memory with clock rate of 666MHz.

To gather the results presented in this section, two

test cases were created. The ﬁrst test case was created

artiﬁcially, the second test case represents real appli-

cation where our library was used on real data.

In both test cases, the default eviction policy

brieﬂy described in Section 4.5 was used with the pa-

rameters k

, k

set to their default values k

= k

unless stated otherwise.

5.1 Artiﬁcial Case

In this test case, we used the CachingDecimator

class (see Section 4.7) which uses functionality of the

vtkDecimatePro class to simplify triangle meshes of

scaled spheres. The results of the mesh simpliﬁcation

were cached.

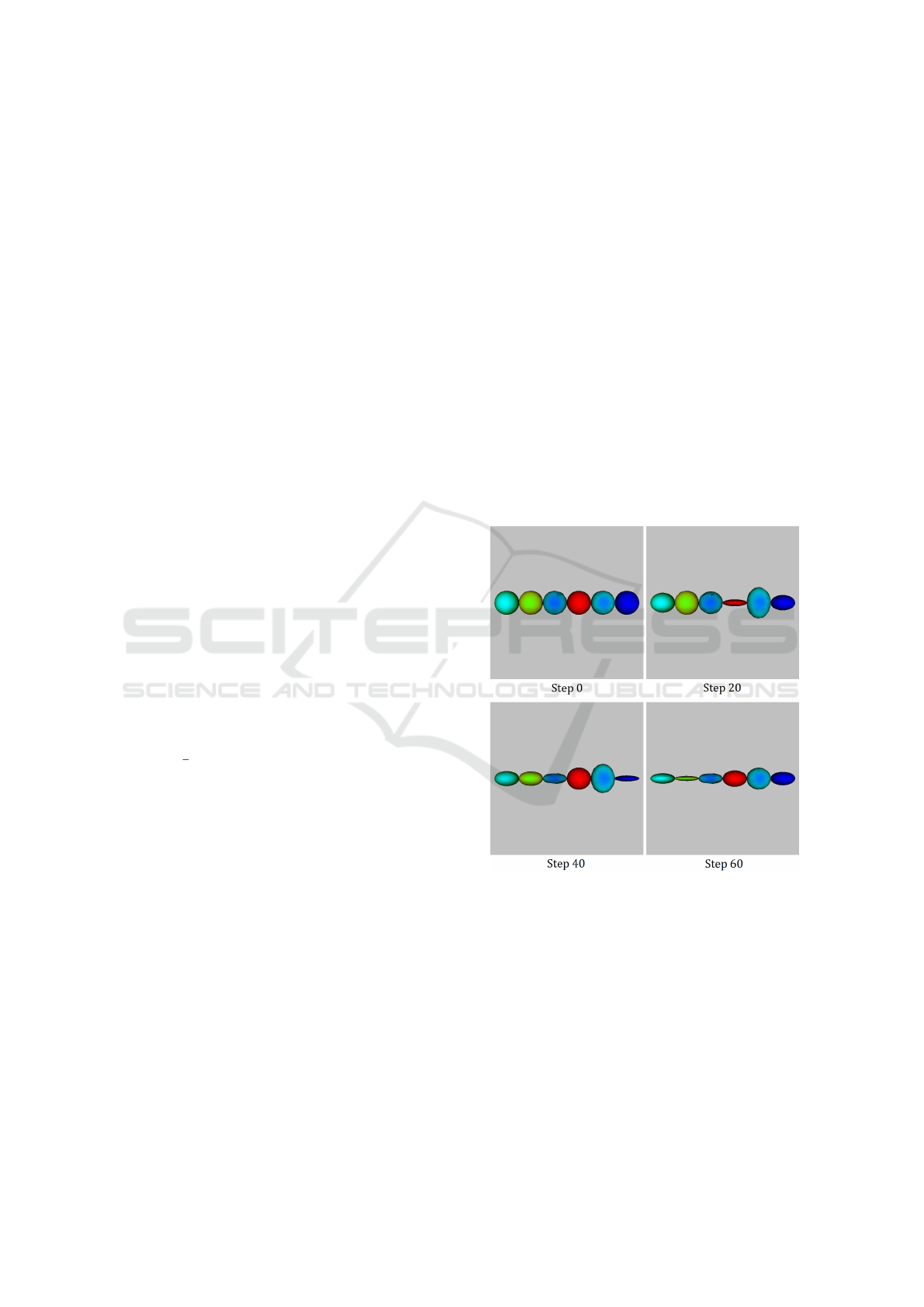

To demonstrate the functionality simple animation

was created containing six spheres represented by tri-

angle meshes, each with different vertex count. The

ﬁrst frame of the animation is just the six spheres

placed next to each other. With every animation step

each sphere’s height (size along the y axis) is increas-

ing linearly using scaling until it gets to a threshold

max

and then it starts to decrease linearly until it gets

to a threshold h

min

. This repeats inﬁnitely and each

sphere’s height changes at different speed.

While the h

min

value is constant (but different for

each sphere), the h

max

value increases a bit whenever

the sphere’s height gets to h

max

until some threshold

max

(different for each sphere) is reached. After that

the h

max

value starts to decrease in the same fashion

until the threshold H

min

is reached. This also repeats

inﬁnitely. As a result, the animation has a very long

repeat period though there is some repetition within a

single period.

Before rendering each sphere at the end of the an-

imation step, the simpliﬁcation of its triangle mesh is

performed to lower its vertex count to approximately

10% of its original vertex count. At the beginning

of each animation step new unsimpliﬁed spheres are

generated. Since the simpliﬁcation is quite time con-

suming, its results are cached using our library. The

input of the cached function is the sphere triangle

mesh after being scaled to the given height and the

output is the simpliﬁed mesh (of a scaled sphere). The

simpliﬁed spheres are rendered at the end of each ani-

mation step. Figure 4 shows the scene at four different

steps of the animation.

Figure 4: Four different animation steps of the artiﬁcial test

case.

The testing itself was done by running the ﬁrst

3 000 steps of the animation (with 6 spheres, this rep-

resents 18 000 simpliﬁcations) and the total time and

the cache hit count were measured. In this test case,

the total of 74.6 MB of different data are generated

and can be stored into the cache. We ran the test with

three different cache capacities, unlimited capacity,

60 MB and 30 MB. The results are shown in Table 1.

It can be seen that the acceleration is quite signif-

icant in all three cases. Better results can be achieved

by changing the eviction policy parameters k

, k

, and

Generic Caching Library and Its Use for VTK-based Real-time Simulation and Visualization Systems

161

Table 1: Results of the artiﬁcial test case.

Cache capacity Time Cache hit count

No cache 1 302 s N/A

Unlimited 125 s 17 587 (97.7 %)

60 MB 167 s 16 886 (93.8 %)

30 MB 745 s 8 854 (49.2 %)

to the values different from defaults. Especially,

if the cache capacity is small, increasing the param-

eter k

, i.e., making the impact of the data time cre-

ation more important, often helps. In the case of the

cache capacity set to 30 MB, the best result, which is

shown in Table 2, was achieved for the conﬁguration

= 0.05, k

= 0, k

= 0.95.

Table 2: Result of the artiﬁcial test case with k

= 0.05,

= 0, k

= 0.95.

Cache capacity Time Cache hit count

30 MB 614 s 8 161 (45.3 %)

It can be seen that, in comparison to the default

conﬁguration, the cache hit count has dropped but the

time has improved (from 745 to 614 s). Given the fact

that 30 MB is only 40.2 % of the total 74.6 MB, the

time 614 s is a very good result since it is not even a

half of the time achieved with no cache (1 302 s).

Despite the fact, we are dealing with an an-

imation in this experiment, its handling using

vtkTemporalDataSetCache concept, which is de-

signed for time-varying data sets, does not bring any

acceleration because the period of the entire anima-

tion is larger than 3 000 steps. In order to achieve

a comparable acceleration, one can implement a ﬁl-

ter that would associate the simpliﬁed sphere with the

timestamp derived from the height of the sphere and

another one that would convert the number of anima-

tion step into the timestamp. However, this seems to

be a quite complex process, and, furthermore, possi-

ble to do only, if the animation is known in the design

time, while replacing vtkDecimatePro by its caching

version, using our caching library, is simple and with-

out any restrictions.

5.2 Real Application

In this test case, our caching library was integrated

into lhpBuilder, a VTK based virtual human simula-

tion and visualization application. One of its features

is muscle ﬁbre wrapping that allows clinical experts to

study subject-speciﬁc skeletal loading in various po-

sitions of the subject movement (e.g., walking, stair

climbing, etc.) using various simulation settings (e.g.,

the requested number of lines of action, impenetra-

bility tolerance, etc.). Typically, the experts visual-

ize the movement step by step until they ﬁnd some-

thing suspicious or interesting, then they tend to re-

peatedly switch between several positions to compare

them while trying to change some of the settings pa-

rameters to get a bit different results and visualize

these results from various viewpoints. As the most

time-consuming part of the whole process, which is

the deformation of 3D models of muscles (for the de-

tails, see, e.g., (Kohout et al., 2013)), takes easily sec-

onds or even tens of seconds per one step, employing

some caching mechanism is desirable.

Obviously, the vtkTemporalDataSetCache con-

cept is well suitable for this case: the position index

serves as a timestamp and, if the settings changes,

the cache is cleared. Even better acceleration can

be achieved with our library due to reusing some of

the deformation results for one position/settings in an-

other. In this case, the inputs of the cached function

are the original muscle model, bones, and the settings

and other deformation parameters, not the position in-

dex.

In our test case, the right hip ﬂexion is performed,

whereas ﬁve muscles of the right leg and pelvic re-

gion are, after their deformation to ﬁt the current posi-

tion, visualized together with the bones – see Figure 5.

During our testing, the positions were chosen to be: 0,

3, 9, 3, 9, 3, 9, 6, 9, 6, 3, 0, 3, 6, 9. For the sake of

simplicity, no other settings were changed. The total

time and cache hit count were measured.

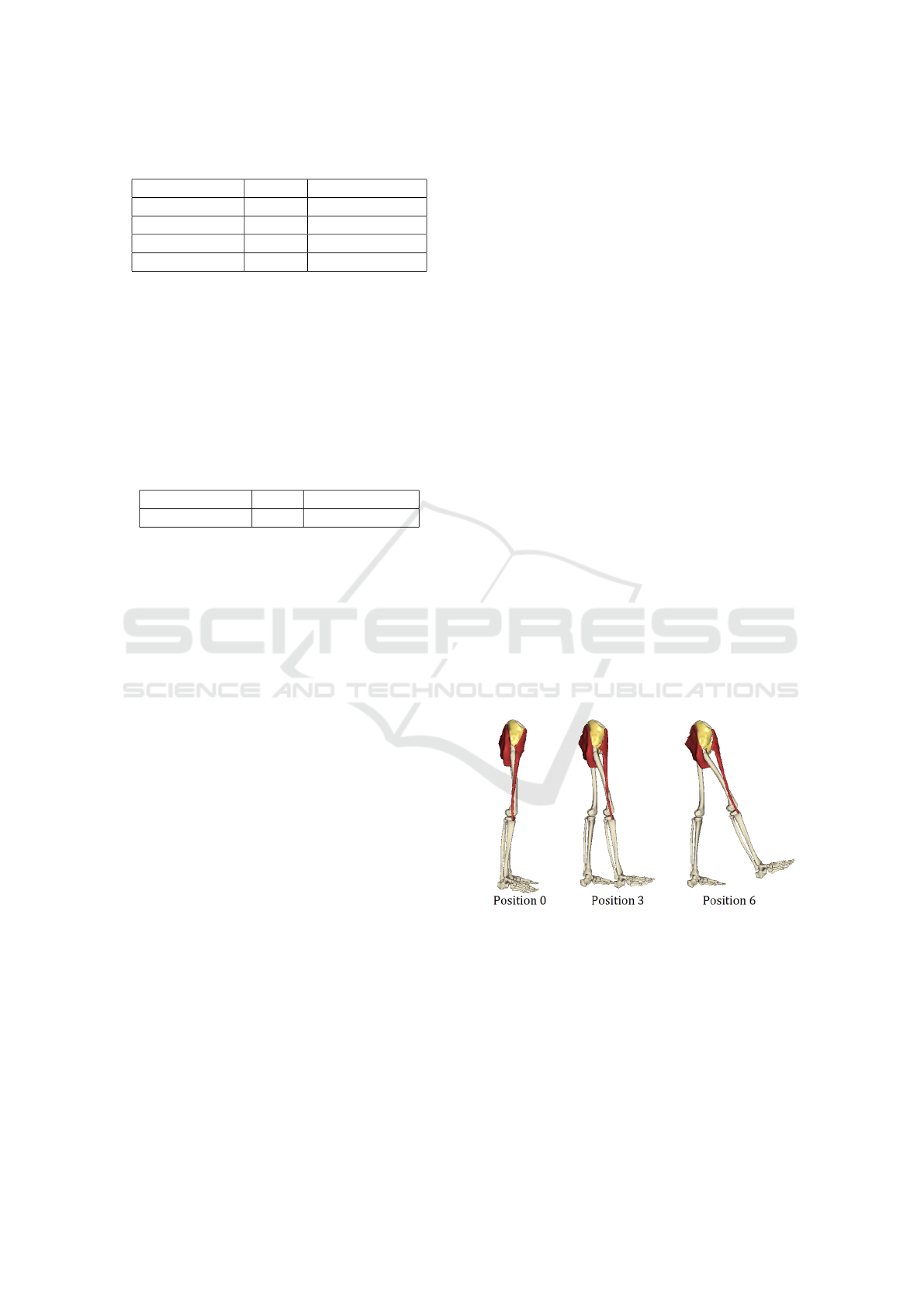

Figure 5: The muscles of the right leg in three different

positions.

During the experiment, the total of 24.8 MB of

different data were successively generated by the

muscle wrapping process that could be stored into the

cache. We ran the test with three different cache ca-

pacities, unlimited capacity, 20 MB and 10 MB. The

results are shown in Table 3.

It can be seen that even in this test case, the ac-

celeration is quite signiﬁcant, especially, if the cache

capacity is large. It should be noted that in this test

GRAPP 2018 - International Conference on Computer Graphics Theory and Applications

162

Table 3: Results of the muscle deformation test case.

Cache capacity Time Cache hit count

No cache 779 s N/A

Unlimited 200 s 55 (73.3%)

20 MB 274 s 45 (60.0%)

10 MB 545 s 13 (17.3%)

case there is not that much data repetition as it was

in the artiﬁcial test case. For a longer sequence of

positions, the results would be naturally even better.

Similarly, with more detailed models of the muscles

or a more complex muscle wrapping algorithm, using

our caching library would be even more beneﬁcial.

In case of the 10 MB capacity, better results can

be ensured by using k

= 0, k

= 0.7, k

= 0.3 as

values of the eviction policy’s parameters. The result

achieved with this conﬁguration is shown in Table 4.

Even though after this change the cache hit rate is only

Table 4: Result of the muscle deformation test case with

= 0, k

= 0.7, k

= 0.3.

Cache capacity Time Cache hit count

10 MB 463 s 18 (24.0%)

24%, more than 40% time is saved in comparison with

the case where no cache is used.

5.3 Performance of the Caching Library

In computer graphics, there are many algorithms that

perform a simpliﬁcation of the input surface mesh in

the ﬁrst step to reduce their time or memory con-

sumption, or to increase robustness of the solvers they

employ (e.g., (Huang et al., 2006)). To investigate

performance of our library, we, therefore, compared

the times needed to simplify a single sphere using

the original vtkDecimatePro class with the times

achieved by CachingDecimator class when the com-

parison function (see Section 4.7), which is used to

determine whether the data is in the cache, returned,

after doing the comparison, false in k% of its calls. In

both cases, only the modiﬁcation time (MT attribute)

of the module producing the input data changed, i.e.,

the input actually remained the same, and the sim-

pliﬁcation was repeated 1000 times. The experiments

ran on a computer with Intel Core i7-4930K CPU (3.4

GHz, 6 cores), 64 GB RAM, Windows 10 64-bit.

Figure 6 shows that the speed-up achieved by the

caching library exhibits an exponential character. It

can be seen that even with a very low cache hit rate,

there is some interesting acceleration in comparison

with the original application that does not use any

data caching. For example, for a mesh of medium

size (ca. 20K triangles), cache hit rate about 1%

is needed to counterbalance the overhead associated

with the library. With larger meshes this threshold is

even lower. Hence, using our caching library can be

recommended in almost all scenarios since extremes

such as 100% cache miss rates are very rare in prac-

tice and even if they occur, the overhead is very small

– it is less than 3.5 milliseconds per call.

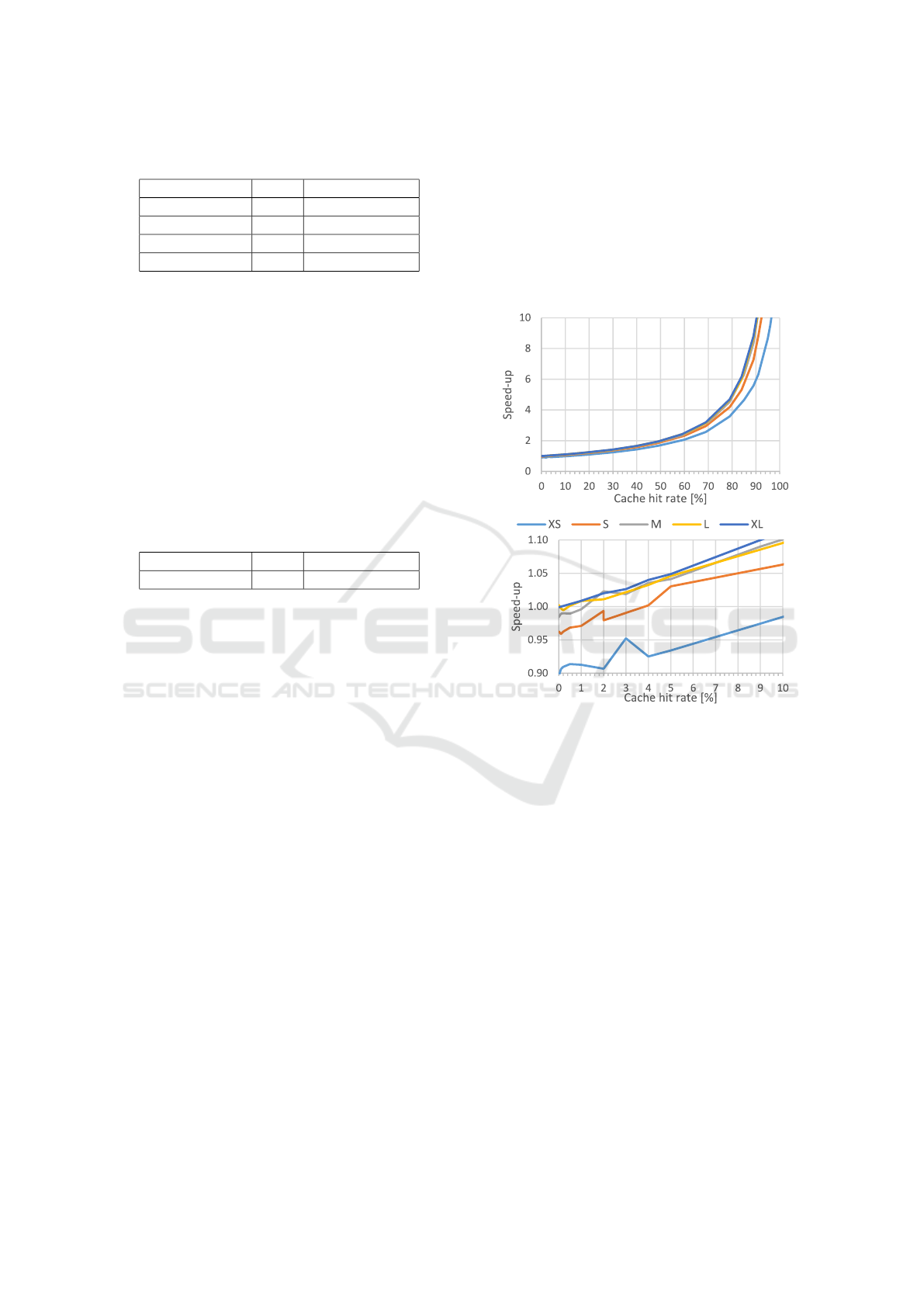

Figure 6: The dependence of the speed-up on the cache hit

count in the experiment with simpliﬁcation of single sphere

of various sizes: XS = 1 680, S = 4 800, M = 19 600, L =

79 200, XL = 498 000 triangles.

6 CONCLUSION

We have presented a caching library, written in

C++11 and based on the memoization approach, that

can be used to speed up applications where some rep-

etition of time consuming processes is occurring. The

library is very generic so it can be used in quite any

C++ application but the original motivation for de-

veloping such library came from the VTK (see Sec-

tion 2) and its problems with unnecessary computa-

tion repetition. To make the usage in VTK7 easier,

a wrapper was created (see Section 4.7) which al-

lows the user to simply create a caching version of

an existing VTK ﬁlter by inheritance and by deﬁning

a few predeclared methods. Due to the fact that the

library was implemented in C++ and exploits vari-

adic templates, its overhead is minimal, which makes

Generic Caching Library and Its Use for VTK-based Real-time Simulation and Visualization Systems

163

it typically useful even in scenarios with a very low

expected cache hit rate. The library was tested on

three visualization applications, all based on the VTK,

and in all these cases our library was able to speed up

the processing signiﬁcantly (see Section 5). Our im-

plementation of the library together with the wrapper

for VTK users is publicly available to download from

https://github.com/kivzcu/HrdDataCacheSystem.

In the future, we would like to simplify the usage

of our library in VTK as much as possible by creat-

ing a software tool that could generate the code of the

inherited class of a caching ﬁlter using the VTK wrap-

per automatically. Using such a tool, the user would

have to write very little code or even none at all in or-

der to use our library in VTK. Furthermore, we would

like to add the possibility to use hard drive to store

the cached data, not just to extend the possible cache

capacity but also for data persistence.

ACKNOWLEDGEMENTS

This work was supported by the project PUNTIS

(LO1506) of the Ministry of Education, Youth and

Sports of the Czech Republic and also by the Uni-

versity speciﬁc research project SGS-2016-013 Ad-

vanced Graphical and Computing Systems.

REFERENCES

Ahrens, J., Geveci, B., and Law, C. (2005). Paraview: An

end-user tool for large data visualization. The Visual-

ization Handbook, 717.

zoch, P., Mat

ejka, L., Pe

cka, L., and

Safa

ık, J.

(2012). Towards caching algorithm applicable to mo-

bile clients. In Computer Science and Information

Systems (FedCSIS), 2012 Federated Conference on,

pages 607–614. IEEE.

Effelsberg, W. and Haerder, T. (1984). Principles of

database buffer management. ACM Transactions on

Database Systems (TODS), 9(4):560–595.

Frank, M., V

sa, L., and Skala, V. (2006). Mve-2 applied in

education process. Proceedings of NET technologies,

pages 39–45.

Hall, M. and McNamee, J. P. (1997). Improving soft-

ware performance with automatic memoization. Johns

Hopkins APL Technical Digest, 18(2):255.

Huang, J., Shi, X., Liu, X., Zhou, K., Wei, L.-Y., Teng,

S.-H., Bao, H., Guo, B., and Shum, H.-Y. (2006).

Subspace gradient domain mesh deformation. ACM

Transactions on Graphics, 25(3):1126–1134.

Kohout, J., Clapworthy, G. J., Zhao, Y., Tao, Y., Gonzalez-

Garcia, G., Dong, F., Wei, H., and Kohoutova, E.

(2013). Patient-speciﬁc ﬁbre-based models of muscle

wrapping. INTERFACE FOCUS, 3(2, SI).

Lee, D., Choi, J., Kim, J.-H., Noh, S. H., Min, S. L., Cho,

Y., and Kim, C. S. (2001). Lrfu: A spectrum of poli-

cies that subsumes the least recently used and least

frequently used policies. IEEE transactions on Com-

puters, 50(12):1352–1361.

Pieper, S., Halle, M., and Kikinis, R. (2004). 3d slicer. In

Biomedical Imaging: Nano to Macro, 2004. IEEE In-

ternational Symposium on, pages 632–635. IEEE.

Ramachandran, P. and Varoquaux, G. (2011). Mayavi: 3d

visualization of scientiﬁc data. Computing in Science

& Engineering, 13(2):40–51.

Rosset, A., Spadola, L., and Ratib, O. (2004). Osirix: an

open-source software for navigating in multidimen-

sional dicom images. Journal of digital imaging,

17(3):205–216.

Schroeder, W. J., Lorensen, B., and Martin, K. (2004). The

visualization toolkit: an object-oriented approach to

3D graphics. Kitware.

GRAPP 2018 - International Conference on Computer Graphics Theory and Applications

164
