Autocorrelation Analysis of Financial Botnet Trafﬁc

Prathiba Nagarajan, Fabio Di Troia, Thomas H. Austin and Mark Stamp

Department of Computer Science, San Jose State University, San Jose, California, U.S.A.

Keywords:

Botnet, Autocorrelation, Periodicity, Citadel, SpyEye, Zeus, Tinba.

Abstract:

A botnet consists of a network of infected computers that can be controlled remotely via a command and

control (C&C) server. Typically, a botnet requires frequent communication between its C&C server and the

infected nodes. Previous approaches to detecting botnets have included various machine learning techniques

based on features extracted from network trafﬁc. In this research, we conduct autocorrelation analysis of

trafﬁc generated by several ﬁnancial botnets, and we show that periodicity in the network traces can be used

to distinguish these botnets from each other.

1 INTRODUCTION

Periodic patterns can often shed light on the characte-

ristics of an underlying process. For example, perio-

dicity of network trafﬁc has been used to analyze net-

work congestion (He et al., 2009). The focus of this

paper is on the analysis of periodicity features extrac-

ted from botnet trafﬁc. Speciﬁcally, we consider fea-

tures related to each of DNS, HTTP, and TCP trafﬁc

collected from several botnets. We perform autocor-

relation analysis on these features and show that over

a sample of four ﬁnancial botnets, these features are

highly distinguishing—to the point that we could cre-

ate a distinct periodicity proﬁle for each of these four

well-known ﬁnancial botnets.

The remainder of this paper is organized as fol-

lows. Section 2 includes background information,

with the emphasis on botnets and their associa-

ted communications strategies and protocols. In

Section 3, we brieﬂy discuss relevant related work.

Section 4 provides details on a variety of experiments

that we have performed and the results that we obtai-

ned. Finally, our conclusions and suggestions for fu-

ture work can be found in Section 5.

2 BACKGROUND

In this section, we discuss various relevant aspects of

botnets. In particular, we focus our attention on botnet

communication, as this is the feature analyzed in the

research discussed in this paper.

2.1 Botnet Basics

Also known as a “zombie army” (Hachem et al.,

2011), botnet-infected nodes are typically controlled

by a command and control (C&C) server, which acts

as the so-called botmaster. The C&C server is used

to send commands to direct the infected nodes to per-

form malicious activities such as distributed denial of

service (DDoS) attacks, collecting sensitive informa-

tion from infected hosts, ﬁnancial theft, and so on.

Botnets are capable of inﬂicting signiﬁcant ﬁnancial

harm (Sood et al., 2016; Bottazzi and Me, 2015).

Botnets utilize a wide variety of techniques to pro-

pagate the bot infection (Bailey et al., 2009). In a ty-

pical scenario, a botnet uses malware as a means to

recruit additional nodes. The nodes that become in-

fected communicate with the C&C server without the

legitimate user’s knowledge. After infection, the bot-

master may send commands to the infected computers

or may poll the bots—or the bots may poll a C&C

server—on a regular basis. The C&C server might

also provide software updates to the infected bots, as

necessary.

C&C servers play a critical role not only in the

spread of botnets, but also in the long-term survival

of botnets (Tiirmaa-Klaar et al., 2013). If a C&C ser-

ver is taken down, or the communication channel is

interrupted, the botnet army is likely to become use-

less for malicious activities.

Botnets can adopt either centralized or distribu-

ted networking models for their activities. Centrali-

zed models can be implemented using hierarchical or

star topologies, with single or multiple server at the

Nagarajan P., Di Troia F., Austin T. and Stamp M.

Autocorrelation Analysis of Financial Botnet Trafﬁc.

DOI: 10.5220/0006685705990606

In Proceedings of the 4th International Conference on Information Systems Security and Privacy (ICISSP 2018), pages 599-606

ISBN: 978-989-758-282-0

core. While there is essentially no communication la-

tency in a centralized model, the downside is that the

server is a single point of failure. Distributed (e.g.,

peer-to-peer) topologies do not suffer from this sin-

gle point of failure issue, but message delivery to the

infected bots is much more challenging.

2.2 Botnet Communication

The IRC and HTTP protocols are popular for botnet

communication. IRC facilitates communication bet-

ween clients in the form of text, where a chat server

acts as an intermediary to transfer messages between

clients. Due to the scalability and ﬂexibility of the

IRC protocol (Butts and Shenoi, 2011), it would seem

to be ideal for a botnet application.

The HTTP protocol is also commonly used by bot-

nets. One advantage of an HTTP botnet is that its

trafﬁc will tend to blend into the vast background of

HTTP trafﬁc. Furthermore, HTTP bots frequently ex-

ploit bugs or compromised websites to communicate

with infected nodes (Hachem et al., 2011).

Regardless of the protocol used, a botmaster can

communicate with his bots in either a push or pull

mode (Hachem et al., 2011). In a push communica-

tion mode, the botmaster sends commands to bots, ty-

pically via broadcast methods. In contrast, for pull

communication, an infected node must contact the

botmaster, which typically involves periodically pol-

ling the botmaster. For botnets, an advantage of

push communication is that it is easier to coordinate

attacks, while an advantage of pull communication

is that it is likely to be considerably stealthier. Of

course, a botnet could employ a combination of both

push and pull communication.

3 RELATED WORK

In (Tyagi et al., 2015), the focus is on detecting pe-

riodicity of related content in a particular ﬂow using

n-gram analysis and deep packet inspection. The aut-

hors cluster ﬂows and compute a similarity score ba-

sed on a distance metric and timing analysis. These

techniques are tested on a synthetic dataset based on

the Zeus botnet, and achieve a 98% detection accu-

racy. While these results are intriguing, the reliance

on simulated data and the small size of the experi-

ments are signiﬁcant limitations of this research.

The authors of the work in (Stevanovic and Pe-

dersen, 2015) and (Beigi et al., 2014) extract more

than 20 network-based features related to DNS, TCP

and UDP trafﬁc and use these features to classify data

from 40 botnets. The authors apply a variety of clas-

siﬁers based on random forests and in the best case

obtain a detection accuracy of 99%.

The research in (Jin et al., 2015) consists of cre-

ating a database of authoritative name server records

(i.e., DNS TXT records) and then using this informa-

tion to differentiate trafﬁc. This research achieves a

“hit rate” of 19% per day. However, this research re-

lies on ﬁxed IP addresses, which may not stay con-

stant over an extended period of time.

A decision tree classiﬁer is applied to byte-based,

duration-based, behavior-based, and packet-based fe-

atures of botnet traces in (Beigi et al., 2014). These

authors achieve detection rates that range from 75%

to 99%.

In (Adamov et al., 2014), the authors conducted

a study of popular botnets, based on the type of ﬁ-

les downloaded, protocols used, and encryption infor-

mation, along with various characteristics of the bot

commands. The focus of this work is on anomalous

botnet trafﬁc. While these results are interesting, the

general applicability of the method is not clear.

Various periodicity characteristics of network fea-

tures in botnets are discussed in (Garcia et al., 2014).

Using Markov chains based on the transport layer pro-

tocol, they achieve an F-measure of 93%.

The work in (Eslahi et al., 2015) uses a variety

of metrics, including range of frequencies, and time

sequencing to determine periodicity in HTTP botnets.

A decision tree is used for classiﬁcation.

4 EXPERIMENTS AND RESULTS

When examining botnet packet captures, we found

network communication in TCP and DNS to be com-

mon across all botnets that we considered. Further-

more, the HTTP protocol under TCP has a special

signiﬁcance, as many botnets use HTTP for commu-

nication (via HTML). Hence, this research focuses on

features extracted from DNS, HTTP, and TCP.

4.1 Feature Selection

The features we consider have been selected while

keeping in mind techniques such as tunneling and

domain generation algorithms (DGA). Note that

DGAs are often used by botnets to generate different

domain names periodically, which can serve to make

it far more difﬁcult to shut down the C&C server. In

addition, botnets frequently use tunneling to piggy-

back data from one protocol on top of another. By

careful use of tunneling techniques, botnets can often

evade ﬁrewall defenses.

The speciﬁc DNS, HTTP, and TCP features we

have selected for analysis are summarized in Table 1.

Note that these features capture a wide variety of cha-

racteristics of each of these protocols.

Table 1: Feature sets.

Protocol Feature Description

DNS

query type type of query

response type type of response

frame length length of data frame

frame delta yime time elapsed

query name SLD name

response TTL response time to live

answer count number of answers

response code response code

response length length of response

length of domain length of SLD

domain digits digits in SLD

bigram query score domain bigram score

HTTP

request method method used

content type type of content

response code status code

content length length of content

URL length length of URLs

cache time time of cache

cache type type of cache

header elements no. header elements

bigram score data bigram score

request interval timings

time since request elapsed time

TCP

keep alive status keep-alive ﬂag

segment length TCP segment length

ﬂags status no. of ﬂags set

iRTT initial estimate RTT

length of connection duration

port port number

4.2 Autocorrelation

There are various methods available to identify perio-

dicity in a time domain signal. For example, the dis-

crete Fourier transform (DFT) maps a time domain

signal into the frequency domain, where periodicity

features are easy to distinguish.

For the research presented in this paper, we rely on

autocorrelation plots for each of the multitude of fea-

tures listed in Table 1. Autocorrelation consists of the

cross-correlation of a signal with itself. Autocorrela-

tion plots enable us to easily determine the presence

of periodic cycles in a signal via a simple visual in-

spection, and we can also determine the dominant pe-

riods in periodic signals.

Figure 1 gives an example of a periodic signal and

the corresponding autocorrelation sequence. From

the autocorrelation plot, we see that we can easily de-

duce the dominant period (or periods) of the under-

lying sequence. Another signiﬁcant beneﬁt to auto-

Figure 1: Autocorrelation of a periodic signal.

correlation analysis is that it works well, even in the

presence of considerable background noise.

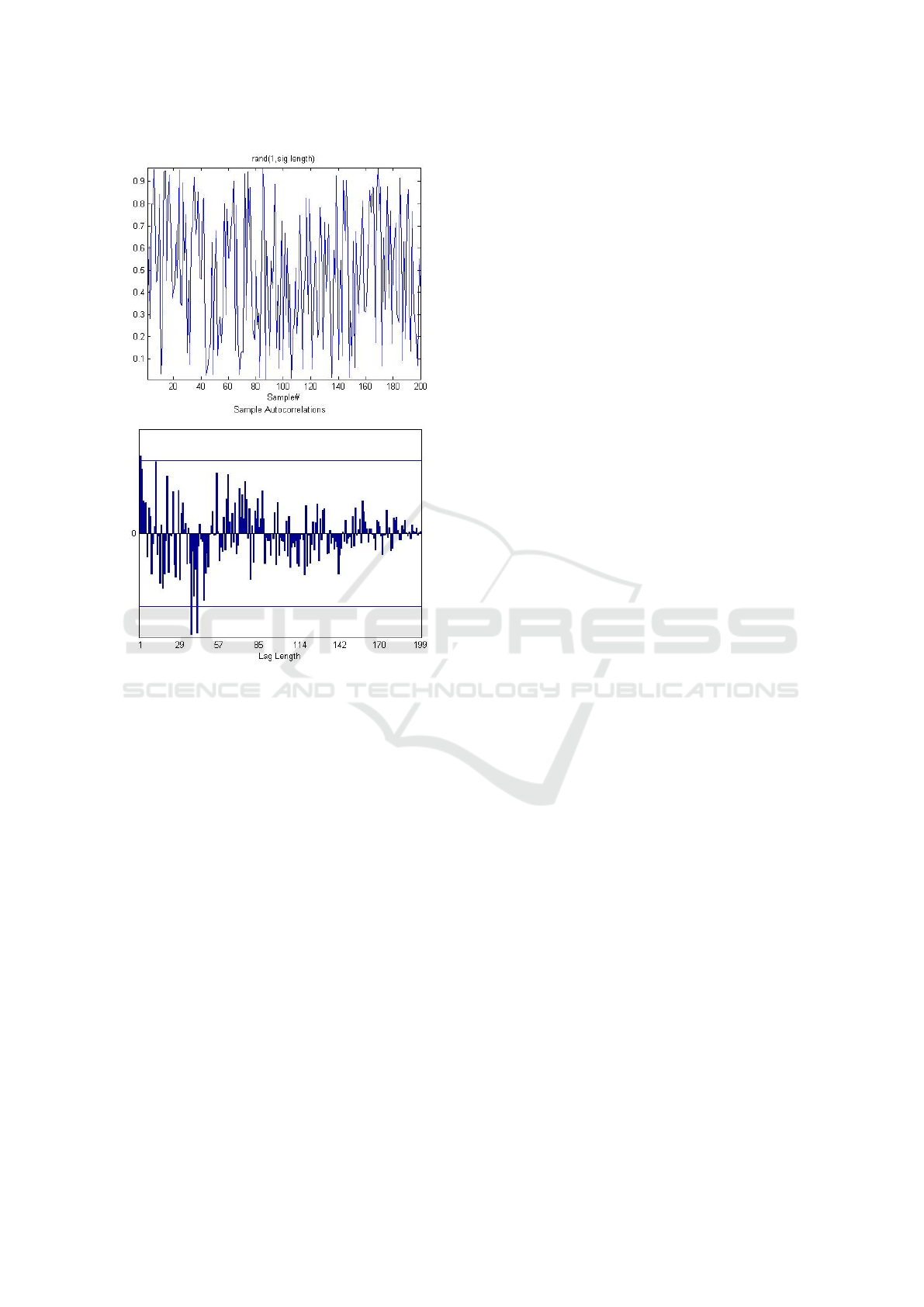

For comparison, we have given an example of an

aperiodic sequence in Figure 2, along with its auto-

correlation plot. In this case, the autocorrelation se-

quence reveals that there is no periodic information

present in the original signal.

4.3 Data

The datasets used in our experiments are all publi-

cly available. The Contagio malware dump (Parkour,

2015) consists of a large number malware samples,

as well as botnet packet captures and binaries. The

Stratosphere IPS dataset (Garcia et al., 2014) is a

sister project of the malware capture facility project

(MCFP), and includes packet capture and binaries of

more than 200 botnet traces. The ISCX dataset (Beigi

et al., 2014) contains 13 traces of botnet packet cap-

tures, and also includes benign data. In this paper,

we report on periodicity experiments involving the ﬁ-

nancial botnet data, as found in the aforementioned

datasets.

Figure 2: Autocorrelation of an aperiodic signal.

Speciﬁcally, the experiments reported here were

performed on the following four ﬁnancial botnets: Ci-

tadel, SpyEye, Zeus, Tinba. These botnets have been

used to steal credentials, enable banking fraud, and

target ﬁnancial institutions, among other malicious

activities. Here, we provide a brief summary of each

of the ﬁnancial botnets considered in this paper.

• Citadel is a sophisticated botnet that is considered

on offshoot of Zeus. This botnet includes a va-

riety of stealth features and can be used to steal

credentials via keystroke logging, screen capture,

and video capture. The Zeus botnet is availa-

ble as a kit that was reported to sell for more

than $3000 in 2012 (Segura, 2012). As of 2013,

Citadel had been implicated in the theft of more

than $500M (BBC News, 2013).

• SpyEye includes such advanced features as key-

stroke logging, encrypted conﬁg ﬁles, an “autho-

rization grabber”, and a “Zeus killing” feature,

which serves to eliminate any possible competi-

tion from the popular Zeus botnet (Coogan, 2010).

In an all-too-rare success for law enforcement, the

developers of SpyEye were caught and recently

sentenced to long prison terms (Ribeiro, 2016).

• Zeus (also known as Zbot, among many other na-

mes) is one one of the oldest and most success-

ful ﬁnancial botnets. As a result of its success,

Zeus has spawned a vast number of variants. The

Zeus botnet is primarily focused on stealing cre-

dentials and it employs a wide variety of means

to do so. Interestingly, some versions of this

botnet include sophisticated hardware-based li-

cense protections to prevent unauthorized redis-

tribution (Stevens and Jackson, 2010).

• Tinba uses fake messages and fake web forms to

try to convince users to divulge their banking cre-

dentials. In spite of being considered one of the

smallest examples of malware ever created, Tinba

includes a signiﬁcant number of resiliency featu-

res designed to make it difﬁcult to defeat. For

example, Tinba uses public key cryptography to

ensure that any updates come from an authorized

botmaster (Bach, 2015).

The collected network trafﬁc from botnet binaries

is in the form of pcap data. Thus, for comparison, we

collected benign (i.e., non-botnet) activity also in the

form of pcap ﬁles. Of course, we also analyzed botnet

and benign traces obtained from the datasets mentio-

ned above. In all cases, protocol dissectors written in

Lua and executed in TShark (tshark, 2017) were used

to extract the relevant features.

4.4 Experimental Results

In this section, we summarize some of our main re-

sults. First, we present autocorrelation results for

background trafﬁc, followed by a similar analysis of

four ﬁnancial botnets. Then we discuss the relevance

of these results to botnet analysis. Note that a large

number of additional autocorrelation results—and re-

lated results—can be found in the report (Nagarajan,

2017).

4.4.1 Background Network Activity

The raw data for the benign features considered here

is primarily from the Stratosphere IPS dataset. Fi-

gure 3 (a) shows the autocorrelation graphs for se-

lected DNS features, while Figures 3 (b) and (c) are

analogous plots for selected HTTP and TCP features,

respectively. Note that these autocorrelation graphs

do not reveal any signiﬁcant periodicity with respect

to any of these features in the background data.

Next, we present autocorrelation plots for trafﬁc

extracted from each of the four ﬁnancial botnets under

consiseration. In all cases, we observe highly periodic

(a) Selected DNS features

(b) Selected HTTP features

Figure 3: Background activity autocorrelation plots.

results for multiple features within one or more of the

types of trafﬁc under consideration.

4.4.2 Financial Botnet Network Activity

In this section, we consider the periodicity of network

trafﬁc generated by a representative sample of ﬁnan-

cial botnets. In each case, we present DNS, HTTP,

and TCP autocorrelation plots, based on selected fea-

tures from those listed in Table 1. We also specify the

dominant period of each periodic feature.

Citadel: For the Citadel botnet, we consider network

traces obtained from the Contagio dataset. All three

of the Citadel autocorrelation plots in Figures 4 show

strong periodicity. The DNS and TCP autocorrelation

in Figures 4 (a) and (c), respectively, provide clear

evidence of a short period of about 11 and (somewhat

less clear) evidence of a longer period of about 350.

The HTTP plot in Figure 4 (b) shows a strong and

unambiguous period of 2. In this latter case, an exa-

mination of the corresponding packets reveals similar

requests and responses (but with different data) being

sent repeatedly.

The periodicity of Citadel trafﬁc is striking. It is

appears that periodicity would likely be a useful fea-

ture for classifying trafﬁc from this particular botnet.

SpyEye: Like Citadel, selected DNS features of Spy-

Eye show periodicity. However, in the case of Spy-

Eye, the DNS periodicity is 2, as can be deduced from

the autocorrelation plot in Figure 5 (a). The HTTP

autocorrelation plots for SpyEye given in Figure 5 (b)

(a) Selected DNS features

(b) Selected HTTP features

Figure 4: Citadel autocorrelation plots.

(a) Selected DNS features

(b) Selected HTTP features

Figure 5: SpyEye autocorrelation plots.

show a weak periodicity of about 23, which is sur-

rounded by fairly signiﬁcant noise. The TCP featu-

res in Figure 5 (c) seem to have a weak periodicity at

around 81 packets, but more data would be needed for

conﬁrmation.

While Citadel shows strong periodicity for se-

lected DNS, HTTP, and TCP features, the results in

Figure 5 show that SpyEye only provides similarly

strong results for its DNS trafﬁc, with only weak pe-

riodicity in its HTTP and TCP trafﬁc. Nevertheless,

the periodicity in the DNS trafﬁc for SpyEye is quite

(a) Selected DNS features

(b) Selected HTTP features

Figure 6: Zeus autocorrelation plots.

different than what we expect to see in background

trafﬁc, as shown in Figure 3. Thus, periodicity analy-

sis also appears to be a strong feature for distinguis-

hing the SpyEye botnet from Citadel.

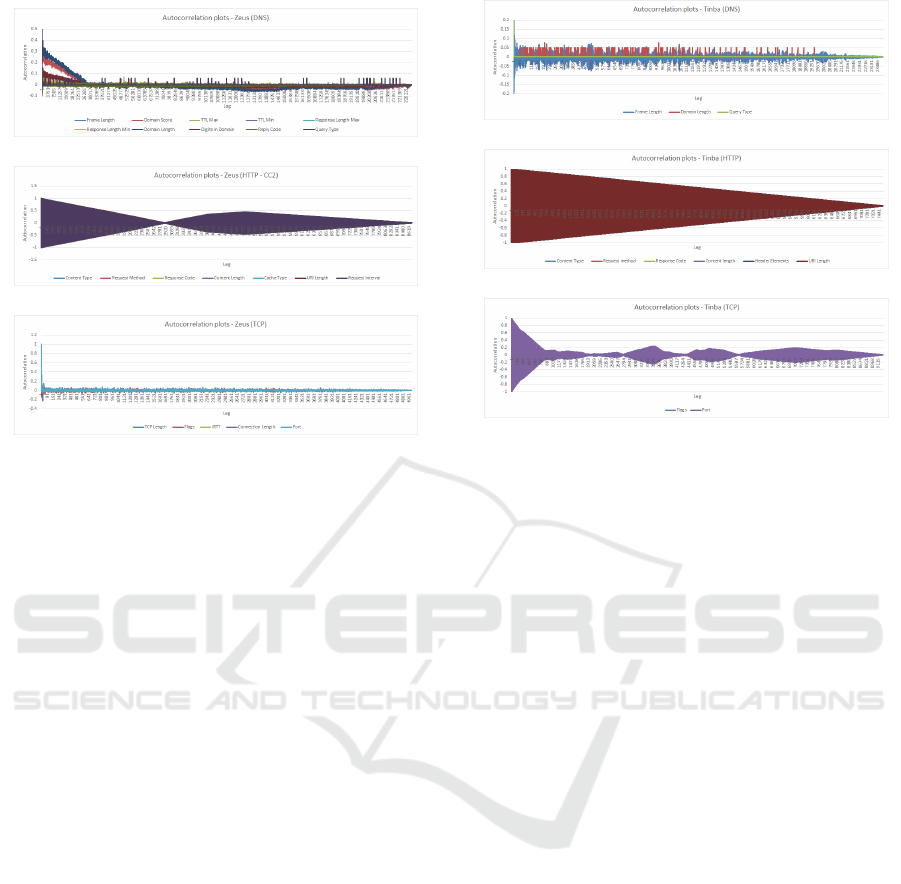

Zeus: The raw Zeus trafﬁc considered here was obtai-

ned from the Stratosphere IPS dataset. As can be

seen from the autocorrelation plots in Figure 6 (b), the

Zeus botnet is highly periodic with respect to selected

HTTP features (with period 2). Based on the plots

in Figure 6 (a) and (c), we do not observe signiﬁcant

periodicity in DNS or TCP features of Zeus.

Analogous to SpyEye, for Zeus we observe strong

periodicity in one type of trafﬁc, but not for the other

two types. But, for SpyEye the strong periodicity was

in the DNS trafﬁc, whereas the strong periodicity in

Zeus is in the HTTP trafﬁc. In any case, strong perio-

dicity in any one type of trafﬁc indicates that we have

a potentially useful feature for distinguishing trafﬁc

generated by this particular botnet.

Tinba: Our analysis of Tinba is based on raw tra-

ces taken from the Stratosphere IPS dataset. From

the autocorrelation results in Figures 7 (b) and (c), we

see that Tinba is highly periodic with respect to all of

the selected HTTP and TCP features. Based on Fi-

gure 7 (a), it appears that there may be a weak (and

long) periodicity in Tinba DNS trafﬁc, but this can-

not be reliably determined without substantially more

data.

While the overall periodicity in Tinba is not as

strong as Citadel, it is stronger than Zeus or SpyEye.

(a) Selected DNS features

(b) Selected HTTP features

Figure 7: Tinba autocorrelation plots.

In fact, the periodicity found in each of the botnets is

distinct, and could serve to distinguish the bots from

each other. We discuss the issue further in the next

section.

4.5 Discussion

Each of the four ﬁnancial botnets analyzed here shows

strong periodicity for multiple features in at least one

of the types of trafﬁc considered (i.e., DNS, HTTP,

and TCP). As a results, we can go beyond the dis-

cussion above to construct a speciﬁc “signature” for

each botnet based on its various periodicity features.

The relevant information for each of the four ﬁnancial

botnets under consideration is summarized in Table 2,

where we have shorthanded various features, e.g., “re-

quest” corresponds to any of the request-related fea-

tures listed in Table 1. Based on the results in Table 2,

it is clear that periodicity analysis provides a ﬁnger-

print for each of the four ﬁnancial botnets considered

in this paper. Signiﬁcantly, these ﬁngerprints are suf-

ﬁcient to distinguish trafﬁc generated by any of these

four botnets from all of the others.

The point here is that we can clearly distinguish

each of these four ﬁnancial botnets from each other

based on a periodicity analysis of a subset of the fe-

atures in Table 1. Furthermore, if we account for the

period lengths, it would appear that we obtain highly

discriminating signatures in each case.

Table 2: Financial botnet trafﬁc-based signatures.

Botnet

Periodic features

DNS HTTP TCP

Citadel domain content

ﬂags

initial RTT

SpyEye

frame

— —TTL

response

Zeus —

content

—

request

response

cache

URL

Tinba —

content

ﬂags

port

request

response

header

URL

5 CONCLUSIONS AND FUTURE

WORK

We considered four ﬁnancial botnets and analyzed the

periodicity of their DNS, HTTP, and TCP trafﬁc, ba-

sed on autocorrelation plots. In each case, we found

strong periodicity features in at least one of these

trafﬁc types, while background trafﬁc did not exhi-

bit any signiﬁcant level of periodicity. Thus, autocor-

relation analysis of botnet trafﬁc would enable us to

distinguish between the network activity of the four

ﬁnancial botnets under consideration. That is, we can

construct highly discriminating signatures for each of

these four ﬁnancial botnets based on periodicity fea-

tures, and their periods.

For future work, we will analyze the effectiveness

of the periodicity-based analysis presented in this pa-

per in a realistic networked environment. In such

a case, there will be a large volume of background

noise, and our goal is to determine how well we can

distinguish botnet trafﬁc (based on periodicity featu-

res) in such a noisy environment. We believe the fea-

tures discussed here will prove strong by themselves

and, of course, we can consider combinations of peri-

odicity features with other aspects of botnet behavior.

This problem seems ideally suited to the application

of machine learning techniques and we plan to apply

a wide variety of such techniques. Hidden Markov

models (HMM) (Stamp, 2004), proﬁle hidden Mar-

kov models (PHMM) (Durbin et al., 1998), support

vector machines (SVM) (Berwick, 2003), and neural

networks (Mukkamala et al., 2002) would appear to

be obvious candidates for application to this particu-

lar problem.

REFERENCES

Adamov, A., Hahanov, V., and Carlsson, A. (2014). Disco-

vering new indicators for botnet trafﬁc detection. In

Proceedings of IEEE East-West Design Test Sympo-

sium (EWDTS 2014), pages 1–5.

Bach, O. (2015). Tinba: Worlds smallest malware has big

bag of nasty tricks. https://securityintelligence.com/

tinba-worlds-smallest-malware-has-big-bag-of-nasty-

tricks/. Accessed 2017-10-15.

Bailey, M., Cooke, E., Jahanian, F., Xu, Y., and Karir, M.

(2009). A survey of botnet technology and defenses.

In 2009 Cybersecurity Applications Technology Con-

ference for Homeland Security, pages 299–304.

BBC News (2013). FBI and Microsoft take down $500m-

theft botnet Citadel. BBC News, http://www.bbc.com/

news/technology-22795074. Accessed 2017-10-15.

Beigi, E. B., Jazi, H. H., Stakhanova, N., and Ghorbani,

A. A. (2014). Towards effective feature selection in

machine learning-based botnet detection approaches.

In 2014 IEEE Conference on Communications and

Network Security, pages 247–255.

Berwick, R. (2003). An idiots guide to support

vector machines (SVMs). http://www.svms.org/

tutorials/Berwick2003.pdf.

Bottazzi, G. and Me, G. (2015). A Survey on Financial Bot-

nets Threat. Springer International Publishing, Cham.

Butts, J. and Shenoi, S. (2011). Critical Infrastructure Pro-

tection V: 5th IFIP WG 11.10 International Confe-

rence on Critical Infrastructure Protection, Revised

Selected Papers. Springer Berlin Heidelberg.

Coogan, P. (2010). SpyEye bot versus Zeus bot. https://

www.symantec.com/connect/blogs/spyeye-bot-

versus-zeus-bot. Accessed 2017-10-15.

Durbin, R., Eddy, S., Krogh, A., and Mitchison, G. (1998).

Biological Sequence Analysis: Probabilistic Models

of Proteins and Nucleic Acids. Cambridge University

Press, Cambridge.

Eslahi, M., Rohmad, M. S., Nilsaz, H., Naseri, M. V., Ta-

hir, N., and Hashim, H. (2015). Periodicity classiﬁ-

cation of http trafﬁc to detect http botnets. In 2015

IEEE Symposium on Computer Applications & Indus-

trial Electronics (ISCAIE), pages 1–5.

Garcia, S., Grill, M., Stiborek, J., and Zunino, A. (2014).

An empirical comparison of botnet detection methods.

Computers & Security, 45:100–123.

Hachem, N., Mustapha, Y. B., Granadillo, G. G., and Debar,

H. (2011). Botnets: Lifecycle and taxonomy. In 2011

Conference on Network and Information Systems Se-

curity, pages 1–8.

He, X., Papadopoulos, C., Heidemann, J., Mitra, U., and

Riaz, U. (2009). Remote detection of bottleneck links

using spectral and statistical methods. Computer Net-

works, 53(3):279–298.

Jin, Y., Ichise, H., and Iida, K. (2015). Design of detecting

botnet communication by monitoring direct outbound

dns queries. In 2015 IEEE 2nd International Confe-

rence on Cyber Security and Cloud Computing, pages

37–41.

Mukkamala, S., Janoski, G., and Sung, A. (2002). Intru-

sion detection using neural networks and support vec-

tor machines. In Proceedings of the 2002 Internatio-

nal Joint Conference on Neural Networks, volume 2

of IJCNN’02, pages 1702–1707. IEEE.

Nagarajan, P. (2017). Analysis of periodicity in botnets.

Master’s Project, Department of Computer Science,

San Jose State University. http://scholarworks.

sjsu.edu/etd projects/544/.

Parkour, M. (2015). Collection of pcap ﬁles from malware.

Contagio Malware Dump. Accessed 2016-11-20.

Ribeiro, J. (2016). SpyEye botnet kit developer sentenced to

long jail term. PCWorld, https://www.pcworld.com/

article/3059557/spyeye-botnet-kit-developer-

sentenced-to-long-jail-term.html. Accessed 2017-10-

15.

Segura, J. (2012). Citadel: A cyber-criminals ulti-

mate weapon? https://blog.malwarebytes.com/threat-

analysis/2012/11/ citadel-a-cyber-criminals-ultimate-

weapon/. Accessed 2017-10-15.

Sood, A. K., Zeadally, S., and Enbody, R. J. (2016). An

empirical study of http-based ﬁnancial botnets. IEEE

Transactions on Dependable and Secure Computing,

13(2):236–251.

Stamp, M. (2004). A revealing introduction to hid-

den Markov models. https://www.cs.sjsu.edu/

∼stamp/RUA/HMM.pdf.

Stevanovic, M. and Pedersen, J. M. (2015). An analysis

of network trafﬁc classiﬁcation for botnet detection.

In 2015 International Conference on Cyber Situatio-

nal Awareness, Data Analytics and Assessment (Cy-

berSA), pages 1–8.

Stevens, K. and Jackson, D. (2010). ZeuS banking trojan

report. https://www.secureworks.com/research/zeus.

Accessed 2017-10-15.

Tiirmaa-Klaar, H., Gassen, J., Gerhards-Padilla, E., and

Martini, P. (2013). Botnets. SpringerBriefs in Cy-

bersecurity. Springer London.

tshark (2017). tshark — the Wireshark network ana-

lyzer. https://www.wireshark.org/docs/man-pages/

tshark.html. Accessed 2017-10-15.

Tyagi, R., Paul, T., Manoj, B. S., and Thanudas, B. (2015).

A novel http botnet trafﬁc detection method. In 2015

Annual IEEE India Conference (INDICON), pages 1–
