Implementation of UML Subsets and Unions for MDE

Francesco Bedini, Ralph Maschotta, Alexander Wichmann and Armin Zimmermann

Software and Systems Engineering Group, Technische Universit

at Ilmenau, Ilmenau, Germany

Keywords:

Subset, Union, UML, Ecore, C

, Variadic Template.

Abstract:

This paper shows and discusses the realization of advanced data structures used in the UML speciﬁcation

(namely subsets, unions, and subset-unions) for a C

execution engine. Those data structures have been real-

ized thanks to the use of variadic templates, which were ﬁrst introduced in C

11. Thanks to those templates

which allow to take as parameters a non-ﬁxed number of elements in an elegant manner, it has been possible to

automatically generate from the Ecore and UML ecore models type-safe data structures which avoid elements

being duplicated or the generation of additional lists during run-time. A performance analysis is presented to

show how our implementation behaves compared to the other possible approaches.

1 INTRODUCTION

To describe a complex structure such as that of the

UML metamodel, advanced abstract data structures

are required. The Object Modeling Group (OMG)

makes a massive use of subsets and unions to describe

the inheritance of attributes between classes.

Those annotations allow to easily and quickly de-

ﬁne in a model collections of unique elements, thanks

to the intrinsic properties of a set. The association end

properties hugely simplify the life of a modeler, as he

or she does not need to make sure whether inherited

elements are already present in a collection more than

once, for example when related subsets reference at

the end the same union.

On the other hand, the realization is not straight-

forward and requires a careful analysis or a compro-

mise between wasting memory and speed to comply

with the UML deﬁnition of subsets and unions.

This paper proposes the realization of such com-

plex data structure by using recently introduced

constructs such as variadic templates (Gregor and

arvi, 2007) and tuples.

In this paper, we extend our Execution Engine al-

ready described in (J

ager et al., 2016; Bedini et al.,

2017) by deﬁning and implementing a set of data

structures instead of using collecting operations to

create the requested sets on the ﬂy. Our approach

minimizes the full duplication of elements in differ-

ent lists and is entirely type-safe, as each item stored

in our collection preserves its type. Thanks to its ro-

bust recursive implementation, elements which are in-

serted in a subset are assured to be inserted in all the

corresponding unions and subsets.

As an implementation of the often used UML sub-

sets and unions is, of course, not natively supported

by any programming language or library, an imple-

mentation is necessary.

The rest of this paper is structured as follows. Sec-

tion 2 describes the state of the art, Section 3 describes

the proposed method, whereas Section 4 describes re-

alization details. In Section 5, a validation example is

shown, while Section 6 shows a performance bench-

mark evaluating the time and memory required for

different test cases. Finally, Section 7 summarizes the

paper and proposes improvements as future works.

2 STATE OF THE ART

The UML speciﬁcation makes a signiﬁcant use of ab-

stract data structures to model class attributes which

are derived from related classes. Those relations

include associations, inheritances, aggregations, and

compositions.

Those dependencies are explicitly indicated on

the association ends with properties enclosed in curly

brackets such as {subsets <end>} or {union}, as it

can be seen in Fig. 1. The parameter <end> is the

name of the referred union which will contain the el-

ements stored in this and other subsets.

The few existing implementations of the UML

metamodel, in particular, the one included in the

IDE Eclipse, show us different implementation ap-

464

Bedini, F., Maschotta, R., Wichmann, A. and Zimmermann, A.

A C++ Implementation of UML Subsets and Unions for MDE.

DOI: 10.5220/0006606404640471

In Proceedings of the 6th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2018), pages 464-471

ISBN: 978-989-758-283-7

/ ownedElement : Element

/ owner : Element

Element

/ memberNamespace : Namespace

NamedElement

/ ownedMember : NamedElement

/ member : NamedElement

/ importedMember : PackageableElement

Namespace

namespace : Namespace

PackageableElement

namespace

/ importedMember

{subsets memberNamespace}

{subsets member}

/ owner

/ ownedElement

0..1

0..*

{union}

/ namespace

/ ownedMember

0..1

{subsets memberNamespace,

union}

{subsets ownedElement, union}

/ memberNamespace

/ member

{union}

Figure 1: UML class diagram of a portion of the UML

metamodel showing the dependencies between four classes

as an example.

proaches, which as it will be shown are not efﬁcient

nor dynamic, either for their execution time or be-

cause of wasted storage due to the duplication of ele-

ments or the management of additional caches.

For example, a Java version is already imple-

mented in the Eclipse EMF. Subsets cannot be

changed after their creation, and are lazily created

and cached once. This implementation limits the

tool’s capability of supporting real-time changes to

the model, without the need of destroying and cre-

ating the list every time.

Fig. 1 shows an UML class diagram representing

a small extract of the UML metamodel. It shows the

relationship between four UML classes. From this

diagram, the following subsets (S) and unions (U) can

be inferred:

Element::ownedElement (U) composed by Name-

space::ownedMember (S)

Namespace::member (U) composed by Name-

space::importedMember (S)

NamedElement::memberNamespace (U)

composed by NamedElement::namespace (U)

and NamedElement::memberNamespace (S)

Although this example might seem trivial, in real-

ity, a union could be made of plenty of subsets, even

from very different levels of the inheritance hierarchy.

As the UML speciﬁcation action do not strictly

formalize what a subset is in the Meta-Object Facility

(MOF) infrastructure (Alanen and Porres, 2008), for

this paper, we use the following deﬁnition:

Subsets: are unordered collections of unique ele-

ments, sub-setting one or more unions.

Unions: every element which is referenced by at

least one subset, is a union, and it contains all the ele-

ments contained by its subsets, at most once.

The possibility to implement those kinds of as-

sociation properties consists of two possible ap-

proaches. The ﬁrst one consists of storing the at-

tributes once in the base class containing the union

and then using methods in the lower elements which

are subsets referencing that element to walk through

the inheritance tree and collect the corresponding ele-

ments in a new container. Possibly this container may

be cached for faster subsequent retrievals.

The second one would consist of duplicating the

elements or a reference to those items in every class,

making the insertion operation more demanding but

speeding up the get operation as the lists are already

built and available at the right place. In both cases,

those data structures need to be able of storing ele-

ments of different types.

There are different possibilities to store elements

of various kinds inside a collection in C

. The most

basic and dangerous one would be to store the object

pointers in a collection of void pointer types (void*).

This technique can lead to undeﬁned behaviors as the

compiler would not throw any exception when the

pointer is statically cast to a wrong type.

A second use would be to use the “any” li-

brary included in the well known open source

portable Boost library set (Dawes et al., 1998).

Using this library, it would be possible to de-

ﬁne a collection of type boost::any, which is a

proper value type. To use the value or pointer

stored in it, it is necessary to retrieve it using

the method boost::any cast<Type>(element) :

Type (Karlsson, 2005). The advantage of using Boost

rather than void pointers lays in the fact that the cast

would throw an exception if the types are not consis-

tent, preventing the standard C

undeﬁned behavior.

Another possibility, which is the one which has

been chosen for our realization, is introduced in the

following section.

3 METHOD

The evolution of C

allows a more elegant and

type-safe way of realizing this kind of components,

which is by using variadic templates and the con-

cept of tuples, both introduced in the C++11 spec-

iﬁcation (ISO/IEC., 2011). Variadic templates are

function templates which contain at least a parameter

A C++ Implementation of UML Subsets and Unions for MDE

465

-set : T

Set

Union

tuple : Union

Subset

SubsetUnion

...U

tuple

1..*

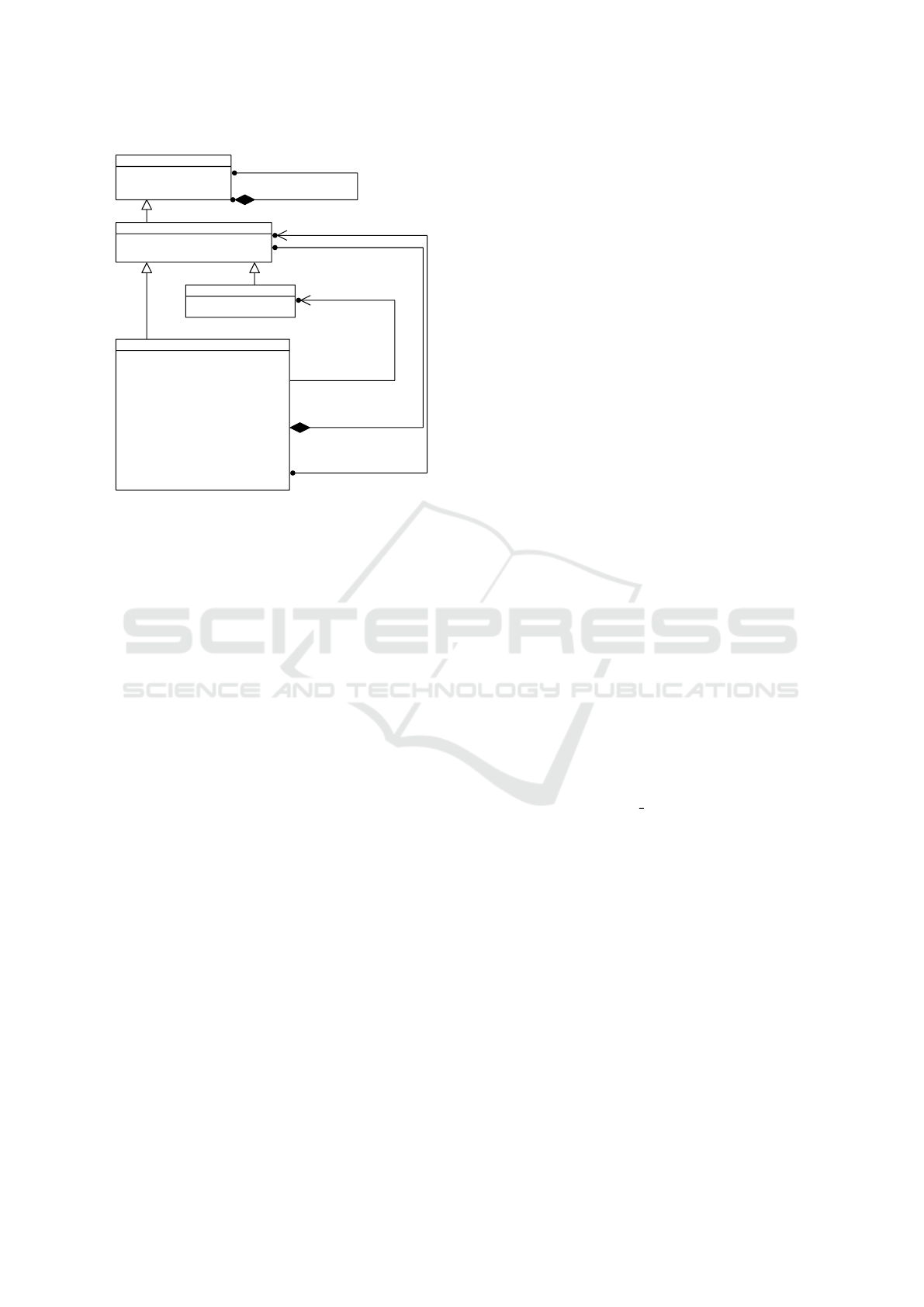

Figure 2: UML class diagram of the proposed containers.

pack, which is a template parameter that accepts zero

or more template arguments (Gregor, 2006). An ellip-

sis following a parameter name deﬁnes it as a param-

eter pack. Tuples are data structures which allow to

collect items of different type and access them based

on their deﬁned order.

The order of the elements inside the template con-

sists of taking the current collection type as the ﬁrst

parameter, and then the related unions’ types. The or-

der is assured to be consistent in the whole generated

model as the Acceleo code generator takes care of

deﬁning it in a query, which always returns the same

output given the same input parameters.

Fig. 2 shows the structure of our realization of the

containers proposed in this paper. Our base data type

is a Set, containing an attribute set (here meant as

a C

set) of type T, which is the template type. We

make use of the C

templates, which are shown in

angle brackets and separated by commas.

Each Subset then has its type and its set of ele-

ments, of type T, plus one or more unions, of type U.

Each Union contains, in turn, a set, of type U.

There are associations which are at the same time

both a subset and a union. For those cases, the class

SubsetUnion should be used. It takes the same tem-

plate parameters as a Subset but moreover can be ref-

erenced by other subsets, too.

To deﬁne the data structures in the metamodel,

the following changes have been performed. The

EReference elements contained in the UML Ecore

metamodel need to be annotated with a deﬁned anno-

tation “union” or “subset” to be interpreted as such

by our C

generator. The subset annotation must,

of course, include the referenced union, as the UML

speciﬁcation does with the <end> attribute inside the

association ends.

With those annotations, the code generator iden-

tiﬁes the unions and subsets. Their types are then

derived from the model, and for each of them an at-

tribute of type Union, Subset or SubsetUnion is cre-

ated in the relevant classes. Moreover, getter methods

are generated for settable references. Those methods,

simply return a shared pointer to the class’ reference

which consists of a ready-to-use list.

4 REALIZATION

All our data structures allow adding, removing and

ﬁnding elements contained in them. We use shared

pointers to simplify the memory management.

The Listing 1 shows how the insertion of one ele-

ment in a subset works. As we are using the C

Sets

as data structures, it is not needed to check that the

inserted elements are unique. In case the element al-

ready exists in the collection, the element will not be

added again (Musser et al., 2009).

virtual void a dd ( sh ar ed_ pt r <T > el )

{

Set <T >:: add ( el );

call _ a d d E l _ wit h _ t u p l e ( el , _tu pl e ,

inde x _ s e q uen c e _ f o r

< s ha red _p t r < Union < U > > .. . >( )) ;

}

void call _ a d d E l _wit h _ t u p l e (

sh are d_ ptr <T > el ,

const tuple < s h a red _ p tr

< Union < U > >.. . >& tuple ,

in d ex_ s eq u enc e < Is ... >) {

add E l R e cur s i v e ( el ,

get <Is >( t upl e ) . ..) ;

}

template<class Fir st U , class .. . Re stU >

void a d d E l Rec u r s i ve ( s har ed _pt r <T > el ,

sh are d_ ptr < Union < F irstU > > obj ,

sh are d_ ptr < Union < RestU > > . .. rest ) {

add E l R e cur s i v e ( el , re st .. . );

obj -> add ( el );

}

template<class Fir st U , class .. . Re stU >

void a d d E l Rec u r s i ve ( s har ed _pt r <T > el ,

sh are d_ ptr < Union < F irstU > > ob j ) {

obj -> add ( el );

}

Listing 1: add element method of a subset. All operations

are private, except add, which is the public interface.

For brevity, namespaces in listings are omitted

throughout this paper. The insertion of an element in

a subset works as follows: the element is ﬁrst inserted

into the subset’s own set, and then is recursively in-

MODELSWARD 2018 - 6th International Conference on Model-Driven Engineering and Software Development

466

serted in all the unions with the help of the auxiliary

methods call addEl with tuple which calls, in turn,

the addElRecursive methods. There are two addEl-

Recursive methods, as one is called with a variadic

template that is at every iteration shrunk of one ele-

ment, and one is called for a single item, namely the

last union.

Our implementation moreover supports the inser-

tion of multiple elements at once through an iterator

or the inclusion of an entire Subset. The deletion of

an item is realized in the same recursive manner.

5 EXAMPLE

Fig. 3 shows the C

realization of a connection be-

tween the example UML metamodel shown in Fig. 1

and the deﬁned Subsets and Unions of Fig. 2. The re-

sulting created objects and connections are shown in

the object diagram in Fig. 4. This corresponds to the

instructions shown in listing 2.

sh are d_ ptr < C o ns tra in t > pe =

um lFa ct ory - >

c reat e C o n s t r a i nt_i n _ C o n t e x t ( pac kag e );

sh are d_ ptr < Class > n1 =

um lFa ct ory - >

crea t e C l a s s _in_ P a c k a g e ( pa c kag e );

sh are d_ ptr < Class > n2 =

um lFa ct ory - >

crea t e C l a s s _ in_N a m e s p a c e ( n1 );

n1 - > g etI m p o r t edM e m b e r () - > add ( pe );

Listing 2: Initialization code for the exposed example.

As PackageableElement is an abstract class, the

subclass Constraint has been used instead.

The umlFactory allows to easily create elements

and assign their container and set the back reference

on their container consistently. First we create two

Namespaces n1, n2, and the constraint pe, and then

we import pe into n1.

The constraint pe has been created on purpose

inside the package instead of inside the namespace

to show that it will be included when the Members

and ImportedMembers get retrieved, but not when the

OwnedElements are requested.

We run this code and print out the elements re-

trieved by different operations executed on the in-

stance n1:

n1 - > g etO w n e d Ele m e n t ( 1 e lem e nt )

- n2

n1 - > get O w n e dMe m b e r ( 1 e lem e nt )

- n2

n1 - > ge t M emb e r (2 e lem e nts )

- n2

- pe

n1 - > g etI m p o r t edM e m b e r (1 e le m ent )

- pe

which is coherent with what was deﬁned in Fig. 1.

5.1 Subsets and Unions applied to the

Ecore Metamodel

Although subsets and unions are deﬁned and used in

the UML speciﬁcation, we have additionally applied

them to the Ecore metamodel to generate the getter

and setter operation automatically from the model,

which allowed us to remove the corresponding opera-

tion deﬁnition from the Ecore model. This change re-

duces the size of the Ecore metamodel and simpliﬁes

its maintainability in the future (Kleppe et al., 2003).

Once all the subsets and union have been denoted

as such in the metamodel, our generator has been able

to automatically produce compilable code correctly

representing all the containment relationship between

all elements.

Fig. 5 shows an extract of the Ecore meta-

model. EReferences and EAttributes are both

EStructuralFeatures, which can be retrieved from

a EClass by calling the method getEStructural-

Features. This method must return all the

EAttributes and all the EReferences which are

owned by the EClass.

Our code generator generates the getter operations

shown in Listing 3, which simply returns the associ-

ated attribute of the same type.

sh are d_ ptr < Union < E S tru c t ur a l Fea t ure > >

getE S t r u c t u ralF e a t u r e s ( );

sh are d_ ptr < S ubset < E At tri bu t e ,

ESt r uct u r al F e atu r e >> g etE A t t rib u t e s ();

sh are d_ ptr < S ubset < E Re fer en c e ,

ESt r uct u r al F e atu r e >> g etE R e f ere n c e s ();

Listing 3: Automatically generated Subsets and Unions get-

ter source code.

It is important to notice that each getter method

automatically returns the correct type, without any ad-

ditional cast needed to use the retrieved elements.

6 PERFORMANCE EVALUATION

This section shows the results of the measurements

performed on 3 different implementations, two of

which in C

and one in Java. The ﬁrst one is depicted

as “SubsetUnion” in all following plots, and it is the

one described throughout this paper. The second and

A C++ Implementation of UML Subsets and Unions for MDE

467

-set : T

Set

Union

tuple : Union

Subset

SubsetUnion

Union <U->Element>

Element

NamedElement

Namespace

SubsetUnion

<T->NamedElement,

U_0->Element,

U_1->NamedElement>

Union

<U->NamedElement>

PackageableElement

Subset

<T->PackageableElement,

U->NamedElement>

...U

/ importedMember

/ memberNamespace

/ member

/ namespace

/ ownedMember

0..1

/ owner

/ ownedElement

0..1

0..*

tuple

1..*

namespace

<<bind>>

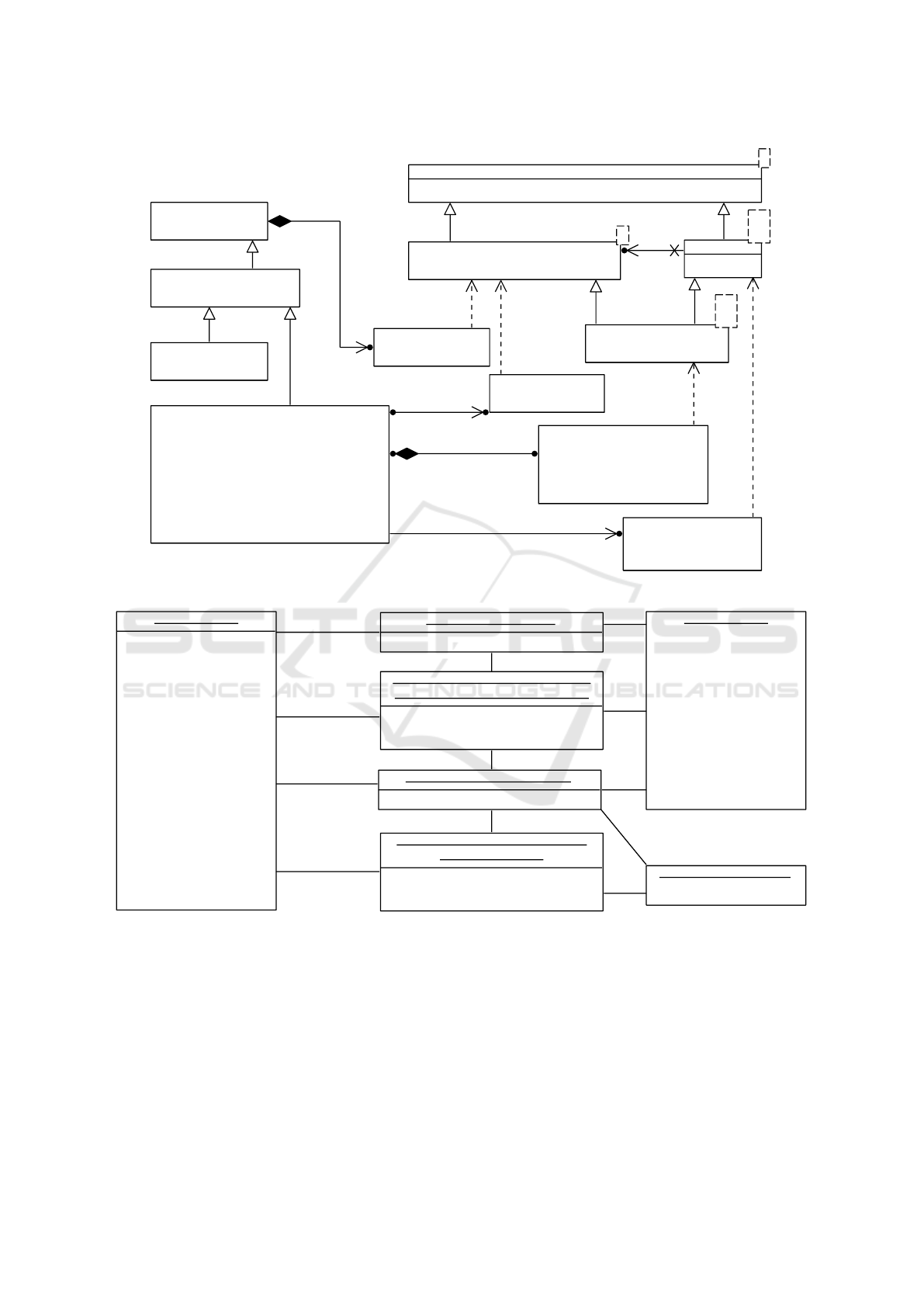

Figure 3: UML class diagram of the C

realization of the data structures, using the template T and the variadic templates U.

ownedElement = u0

member = u1

ownedMember = su

importedMember = s

n1 : Namespace

n2 : Namespace

tuple = u0, u1

set = n2

su : SubsetUnion <T->NamedElement,

U_0->Element, U_1->NamedElement>

set = n2, pe

u1 : Union <U->NamedElement>

set = n2

u0 : Union <U->Element>

pe : PackageableElement

tuple = u1

set = pe

s : Subset <T->PackageableElement,

U->NamedElement>

tuple

importedMember

set

tuple

ownedElement

set

tuple

member

set

ownedMember

Figure 4: UML object diagram representing the objects created in the example and their relationship.

third implementation have the same behavior, but they

are realized in C

(called “Manual”) and in “Java”.

Those two versions store their elements in the sub-

sets only, and when a Union is requested, a list gets

generated by going through the entire class hierarchy.

This realization mimics the implementation that can

be found in the Ecore realization in Eclipse.

For all the computations, a 10-level subset hierar-

chy has been used, as depicted in Fig. 6.

As the C

version is currently not realized in a

parallel manner, for keeping the comparison fair all

tests have been executed on a 3,20GHz single-core

64bit machine with 16GB of RAM, as otherwise, Java

would take automatically advantages of multi-core

parallel execution.

MODELSWARD 2018 - 6th International Conference on Model-Driven Engineering and Software Development

468

EClass

EClassifier

{abstract}

EAttribute

EReference

EStructuralFeature

{abstract}

ETypedElement

{abstract}

/ eReferences

0..*

{subsets eStructuralFeatures}

/ eAttributes

0..*

{subsets eStructuralFeatures}

eStructuralFeatures

0..*

{union}

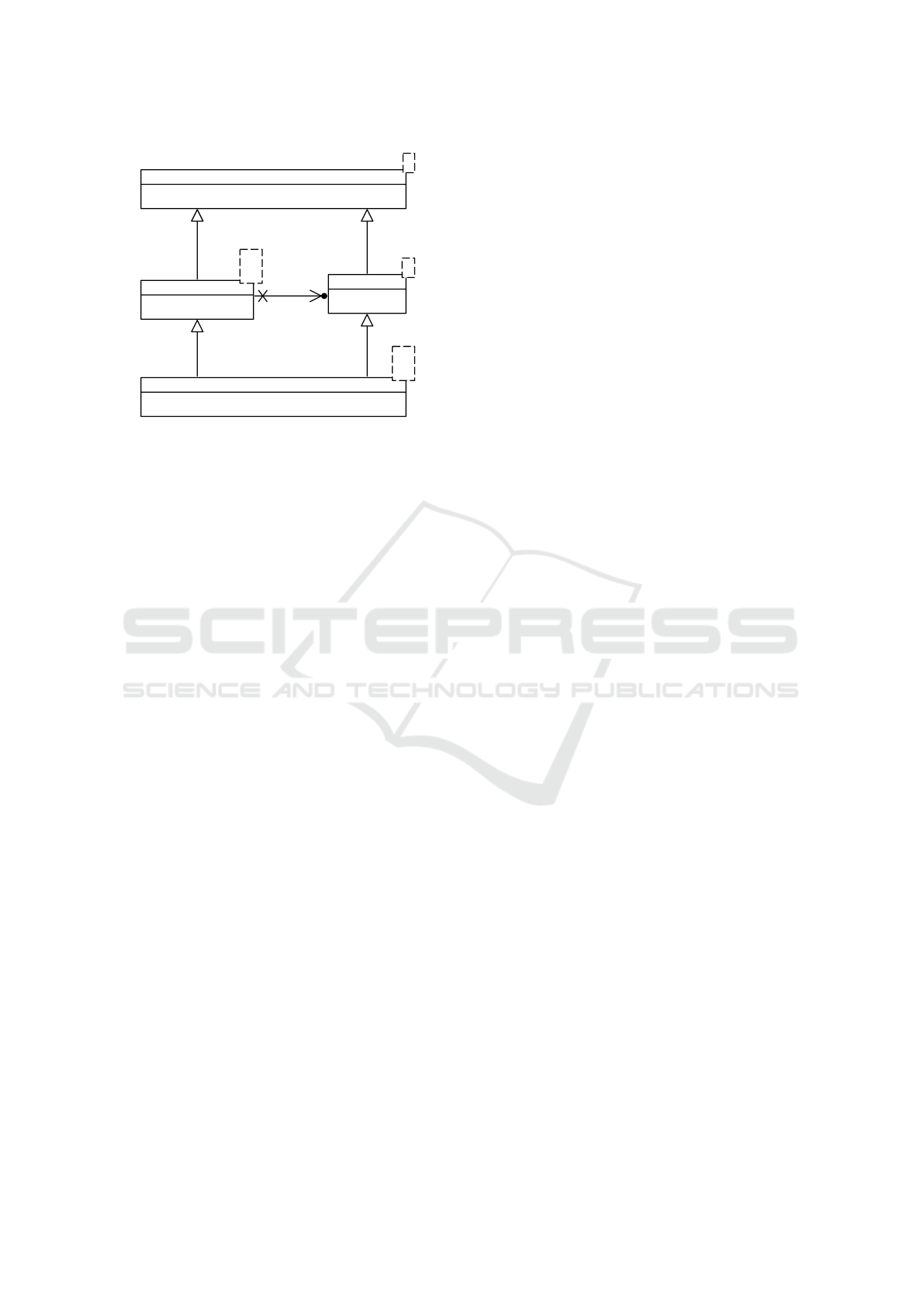

Figure 5: UML class diagram of a small portion of the

Ecore metamodel, showing a union and two subsets.

6.1 Memory Occupation

Table 1 and the corresponding plot in Fig. 7 show the

memory occupied during the creation of the ten levels

of subsets and the fetching of all those levels in the

three different implementations.

It can be seen that the amount of memory occu-

pied is always linear to the number of elements and

that the Java implementation is the one requiring the

highest amount of memory.

The difference between the SubsetUnion and

Manual implementation shows how much memory is

used by inserting a pointer to an element in all the

unions pointed by all the subsets.

6.2 Execution Time

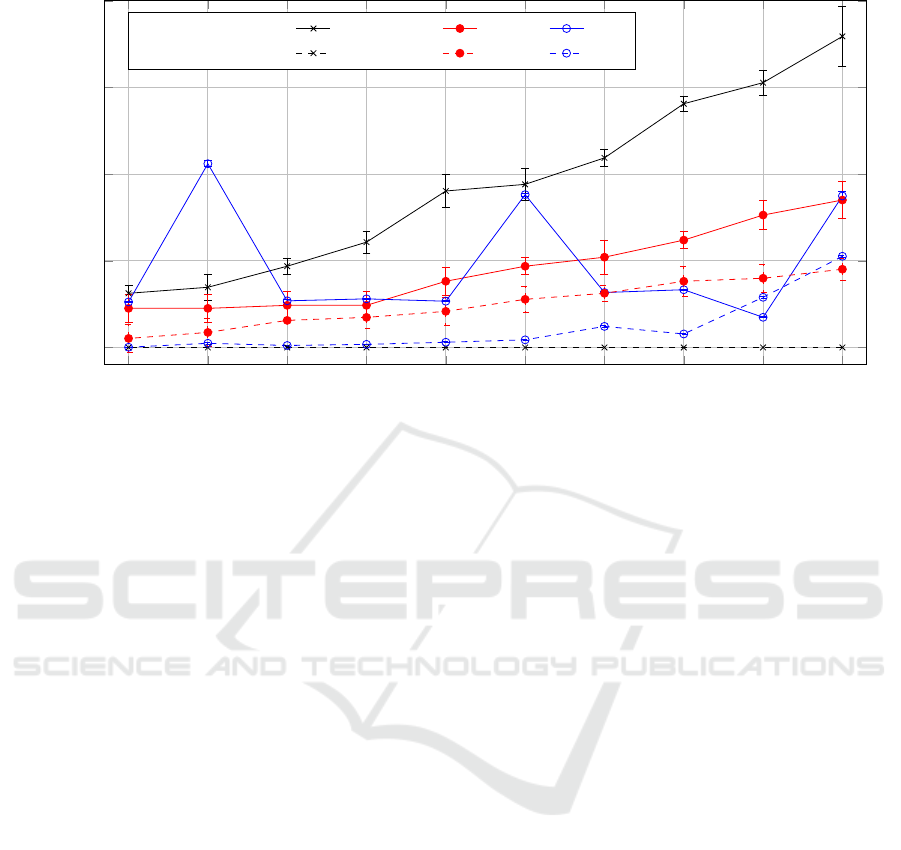

The plot shown in Fig. 8 shows the time needed to

create 10

elements (solid lines) and the time required

to retrieve the unions from each subset level (dashed

lines) starting from 10 and proceeding up to level 1.

At the end of the creation process, the union will con-

tain 10

elements, as there are ten layers.

All the data shown in this section has been ob-

tained by averaging the execution time of 11 runs, af-

ter taking out the longest and shortest execution time.

Container

Element

Container_Level1

Element_Level1

Container_LevelN

Element_LevelN

subset_LevelN

/ subset_Level1

/ union

{union}

{subsets subset_LevelN-1}

{subsets union, union}

...

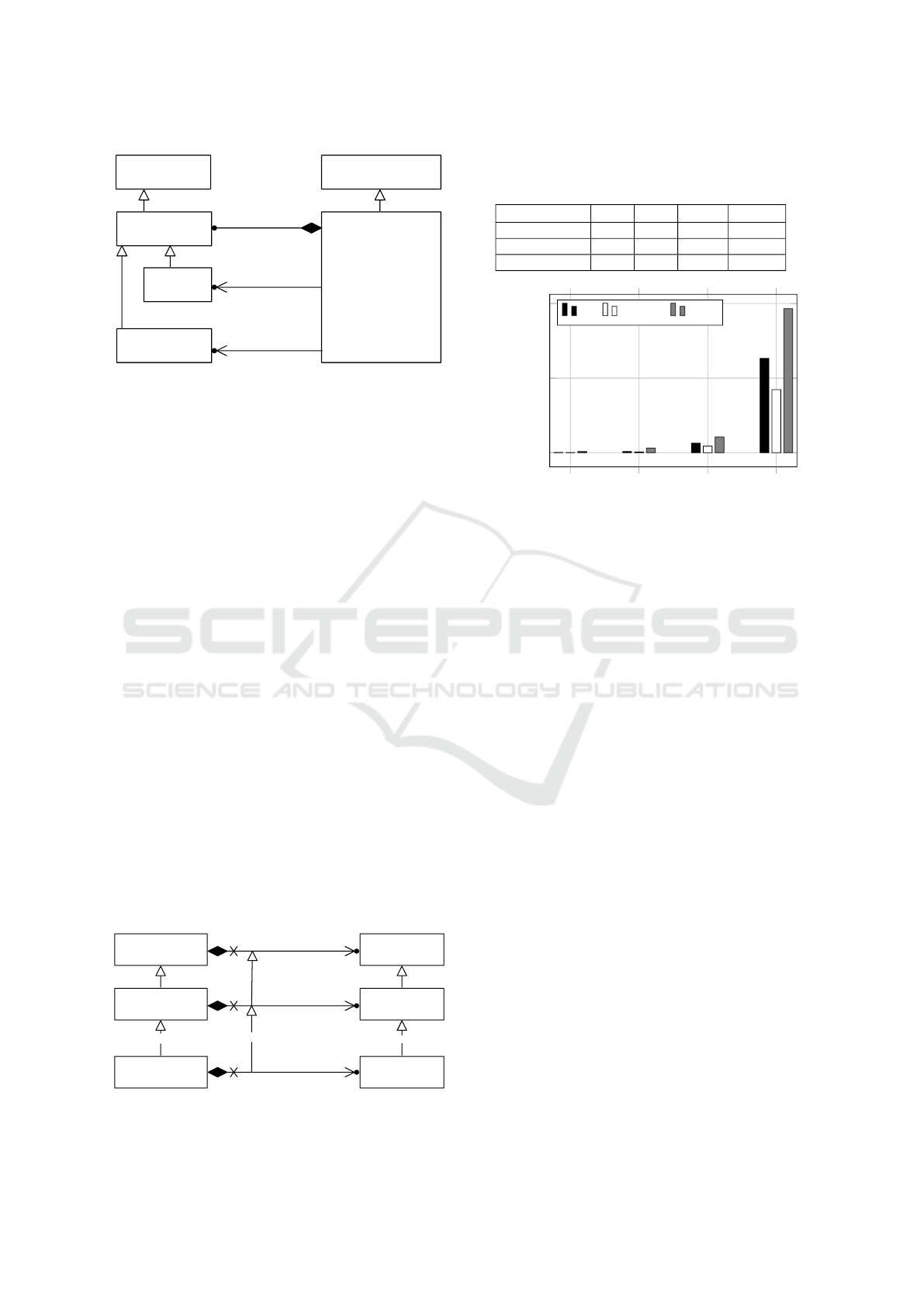

Figure 6: UML Class diagram showing the structure used

for the benchmarks.

Table 1: Comparison between the occupied memory at the

end of the benchmarks executions. The numbers on the ﬁrst

row show how many elements per layer are present.

Elements 10

SubsetUnion 2.1 13.5 127.1 1263.6

Manual 2.0 10.1 86.6 845.0

Java 13.5 61.9 211.1 1929.7

1000 10000 100000 1000000

1,000

2,000

Elements per subset level

Occupied RAM (MB)

SU Manual

Java

Figure 7: Comparison between the occupied memory at the

end of the benchmarks executions.

The standard deviations are shown in the form of error

bars, too.

As expected, inserting an element in the lower lev-

els of the hierarchy requires more time for the Subset-

Union implementation, as they have to be inserted

into the referenced unions too.

Although the benchmarks have been executed on

a single core machine, the results obtained from the

Java test do not seem to show any correlation between

the subset level and the required time. Those reg-

ular peaks seem to suggest that the virtual machine

might be occupied performing other operations, like

the garbage collection checking the status of the allo-

cated memory.

The results show that the construction of the union

upon the creation time is more efﬁcient when the re-

trieval operation of the union at the different level

happens more than once.

The UML implementation contained in Eclipse

tackles this problem by using a cache, which pre-

vents the creation of the lists as long as the cache re-

mains valid. This approach limits the ability to make

changes to the model during run-time.

As the creation of the new lists would be exe-

cuted at run-time and are demanding as they possi-

bly require extra memory allocation and correctness

checks, our type-safe implementation is a promising

performance improvement, in particular in the cases

where the get operations are frequent, as they have,

in our case, a minimal complexity, consisting in just

returning a pointer to the requested collection.

A C++ Implementation of UML Subsets and Unions for MDE

469

1 2 3 4

5 6

7 8 9 10

0.5

1.5

·10

Subset levels

Time (µs)

create():

SubsetUnion Manual

Java

getSubsetUnion():

SubsetUnion Manual

Java

Figure 8: Execution time for the creation (solid lines) and the retrieval (dashed lines) of 10

elements on each subset level.

7 CONCLUSION

Thanks to the implementation of the Subset, Union

and SubsetUnion data structures in C

with mean of

variadic templates, it has been possible to obtain an

efﬁcient, clear, and concise way to deﬁne them. This

implementation technique avoids the on the ﬂy con-

struction of other lists and makes dynamic casting to

the correct element type unnecessary.

From some preliminary tests, it could be seen that

adding elements to the C

standard library’s sets is

much slower than vectors when the number of items

increases, as the uniqueness check has to be carried

out upon every insertion.

As the generator has an overall view of the com-

plete model or metamodel that is going to be gener-

ated, it is in the condition of assuring that elements

which belong to classes with multiple inheritances get

inserted only once.

In this way, some additional run-time checks can

be saved, and the more efﬁcient vectors can be used

instead of sets without breaking any uniqueness con-

straint. Then two add methods can be offered, one

which checks the uniqueness constraint, that should

be used for run-time changes, and one that does not

proofs uniqueness that can be used, for example, dur-

ing the model instantiation.

ACKNOWLEDGEMENTS

This work has been supported by the Federal Ministry

of Economic Affairs and Energy of Germany under

grant FKZ:20K1306D.

The source code for the C

code generator, the

execution engine, the data structures introduced in

this paper and the ecore models can be found at the

MDE4CPP project page (Systems and Software En-

gineering Group, 2016) under the MIT license.

REFERENCES

Alanen, M. and Porres, I. (2008). A metamodeling language

supporting subset and union properties. Software &

Systems Modeling, 7(1):103–124.

Bedini, F., Maschotta, R., Wichmann, A., J

ager, S., and

Zimmermann, A. (2017). A model-driven C++-fUML

execution engine. In 5th Int. Conf. on Model-Driven

Engineering and Software Development (MODEL-

SWARD 2017).

Dawes, B., Abrahams, D., and Rivera, R. (1998). Boost.org.

online. Retrieved from http://www.boost.org/.

Gregor, D. (2006). A brief introduction to variadic tem-

plates.

Gregor, D. and J

arvi, J. (2007). Variadic templates for C++.

In Proceedings of the 2007 ACM Symposium on Ap-

plied Computing, SAC ’07, pages 1101–1108, New

York, NY, USA. ACM.

ISO/IEC. (2011). ISO international standard ISO/IEC

MODELSWARD 2018 - 6th International Conference on Model-Driven Engineering and Software Development

470

14882:2011(e) programming language C++. Re-

trieved from https://isocpp.org/std/the-standard.

ager, S., Maschotta, R., Jungebloud, T., Wichmann, A.,

and Zimmermann, A. (2016). An EMF-like UML

Generator for C++. 4th Int. Conf. on Model-Driven

Engineering and Software Development (MODEL-

SWARD 2016).

Karlsson, B. (2005). Beyond the C++ standard library: an

introduction to boost. Pearson Education.

Kleppe, A. G., Warmer, J. B., and Bast, W. (2003). MDA ex-

plained: the model driven architecture: practice and

promise. Addison-Wesley Professional.

Musser, D. R., Derge, G. J., and Saini, A. (2009). STL tu-

torial and reference guide: C++ programming with

the standard template library. Addison-Wesley Pro-

fessional.

Systems and Software Engineering Group (2016). Model

Driven Engineering for C++ (MDE4CPP), see

http://sse.tu-ilmenau.de/mde4cpp.

A C++ Implementation of UML Subsets and Unions for MDE

471
