Identifying Needs for a Holistic Modelling Approach to Privacy

Aspects in Enterprise Software Systems

Sascha Alpers, Roman Pilipchuk, Andreas Oberweis and Ralf Reussner

FZI Forschungszentrum Informatik, Haid- und Neustraße 10-14, 76131 Karlsruhe, Germany

Keywords: Business Architecture, Software Architecture, Modelling, Privacy.

Abstract: Modelling is a common method for both Business Architecture Management and for Software Architecture

Management. In general, there is a gap in the model continuity between business models and software models.

Especially when modelling compliance driven requirements like privacy traceability is important for

compliance checks and helps to build the models in an efficient way. In this paper, approaches for modelling

privacy from business and software engineering perspective are examined. A key finding is that there is

currently no comprehensive modelling approach covering the needed aspects and perspectives.

1 INTRODUCTION

Many companies, especially large companies, model

their organisational processes and software systems.

The reason is to improve them, identify and reduce

flaws and save costs by implementing correct

workflows. However, business and software system

experts typically use different modelling languages.

There exist many languages for modelling business

processes. BPMN, a semi-formal notation, is the most

prominent one. Petri nets provide a formalised view

on processes. Transformations exist which establish

mappings between BPMN and Petri nets. In the

following, we focus primarily on Petri net (Reisig,

2013) models and consider BPMN only marginally.

The state-of-the-art modelling language for software

systems is UML (OMG, 2017). As neither business

process modelling languages nor UML have elements

capable for modelling privacy, extension mechanisms

exist for introducing additional symbols to model

various aspects of privacy. Additionally, security is

relevant because privacy is related to some security

goals like confidentiality or integrity. Both security

and privacy are becoming increasingly important for

example, due to the upcoming General Data

Protection Regulation (GDPR) (European Union,

2017). An example of organisations that are affected

by the GDPR are those that build upon platform-

based business models. The business case of such

organisation is hosting digital platforms to connect

producers and consumers in specific sectors, such as

mobility and energy. Monetary turnover is produced

through either access fees, transaction fees, premium

services or targeted advertisement. To realise such a

business idea, a close and flawless collaboration

between the business level and information

technology (IT) is needed because IT implements the

technical foundation (the digital platform), which is

at the heart of the overall business idea. On this

platform, various stakeholders will operate and

conduct their business. Whether it is customer to

customer, business to customer or business to

business, the privacy of individuals, organisations

and especially of sensible data is critical on digital

platforms. Therefore, the need for a current and

comprehensive modelling approach to privacy

between business processes and software models is

critical.

Although, there are many approaches to extend

business process modelling notations and UML to

cover security and other aspects, there is no common

and generally accepted approach for modelling

privacy. A broad variety of approaches exists for

introducing additional symbols to model privacy

directly or indirectly through security elements;

however, the extent to which privacy can be modelled

by every proposal varies. Additionally, modelling

approaches are missing, which support

transformations from business process models to

software design to keep business process models like

Petri nets and software models like UML consistent

with each other. Due to these reasons, we analysed

the capabilities of existing architecture oriented

Alpers, S., Pilipchuk, R., Oberweis, A. and Reussner, R.

Identifying Needs for a Holistic Modelling Approach to Privacy Aspects in Enterprise Software Systems.

DOI: 10.5220/0006606200740082

In Proceedings of the 4th International Conference on Information Systems Security and Privacy (ICISSP 2018), pages 74-82

ISBN: 978-989-758-282-0

Table 1: Overview of Architecture oriented approaches.

No.

Paper

Diag. Type

Ext. Through

To Model

Engineering Privacy for Big Data Apps with the Unified Modelling

Language

Use Case

Super container

Privacy specifications

Towards a UML Profile for Privacy-Aware Applications

Various

UML profile

Privacy policies

UMLsec: Extending UML for Secure Systems Development (+2)

Various

UML profile

Security requirements / primitives /

management and threat scenarios

Supporting Confidentiality in UML: A Profile for the Decentralised

Label Model

Class

UML profile

Decentralized label model

Towards the Engineering of Security of Information Systems

(ESIS): UML and the IS Confidentiality

Sequence

UML profile

Access control and information

flow control

A UML Profile for Requirements Analysis of Dependable Software

Class

UML profile

Problem frames (e.g.,

confidentiality, integrity)

Extending UML for Designing Secure Data Warehouses (+2)

Class

UML profile

Security classes and separation of

duty

Weaving Security Aspects into UML 2.0 Design Models

Class and

Sequence

UML profile

Security requirements and aspect-

oriented solutions

CMP: A UML Context Modelling Profile for Mobile Distributed

Systems

Class

UML profile

Privacy restrictions

and business process oriented modelling approaches

to model privacy aspects. We analysed, how privacy

can be modelled and tried to understand the

possibility and need for a comprehensive modelling

language in the field of privacy to cover business

processes and software systems. We selected these

approaches according to their abilities to model

privacy aspects directly or indirectly through security

aspects. The selected approaches were analysed and

compared with each other to identify their similarities

and differences. This was done to understand the need

for a comprehensive model of privacy aspects and to

explore how it could be realised beginning from a

business process model and then leading to a software

architecture model. For this, we categorised the

approaches and identified two criteria, namely

"security mechanisms" and "different views".

"Security mechanisms" describe, by which elements

and mechanisms the approach supports privacy

modelling. The second criteria, "different views",

groups approaches according to the view of the

stakeholder for whom the approach is intended. Our

results show that only a few approaches actually

introduce elements to model privacy principles.

Section 2 presents the business process-based

approaches. Software architecture based approaches

are presented in Section 3. Section 4 discusses

similarities and differences between both approaches.

The paper ends with some concluding remarks in

Section 5.

2 ARCHITECTURE ORIENTED

APPROACHES

This chapter introduces the architecture oriented

approaches for modelling privacy. The first section

introduces the de facto standard modelling language

in the field of software engineering and the second

section introduces the architecture-based approaches

in the context of privacy and confidentiality.

2.1 Modelling Language

The de facto standard for modelling architecture in

software engineering is the Unified Modelling

Language (short: UML). UML is a general-purpose

modelling language that is standardised by the Object

Management Group (short: OMG). It comprises 14

diagrams divided into two major diagram types:

structure diagrams and behaviour diagrams (OMG,

2017). While structure diagrams represent the static

structure of a system, behaviour diagrams represent

its dynamic part. The use case diagram visualises

functional requirements, as well as actors and their

relationships, while the sequence diagram shows the

chronological flow of messages between objects. In

the class diagram classes, associations, methods, and

attributes are described. A detailed explanation can be

found in the UML specification (OMG, 2017).

2.2 Analysis of Architecture Oriented

Approaches

This section surveys the architecture-based

approaches. Table 1 summarises all papers, the UML

diagram types which they extend, whether they

extend through UML profile or not, and what the

extension allows to be modelled.

(Jutla et al., 2013) propose an extension to the

UML use case diagram for representing privacy

specifications like pseudonymization, anonymiza-

tion, and consent in an easily understandable way (see

Table 1 No. 1). The extension is not based on the

UML profile extension mechanism. Instead, a

Identifying Needs for a Holistic Modelling Approach to Privacy Aspects in Enterprise Software Systems

Microsoft Visio extension ribbon is created that offers

the needed elements. All possible privacy require-

ments and specifications can be expressed due to the

usage of free text fields. The extension works by

introducing a ‘super container’ in-between actors and

use cases of a use case diagram. Privacy control

classes and obligations are stated inside the super

container. This extension allows modelling of all

kinds of privacy principles but also other security

principles like confidentiality.

(Basso et al., 2015) introduced a UML profile,

which is capable of expressing different privacy

concepts through privacy policies incorporated in

various UML diagrams (see Table 1 No. 2). Privacy

policies are composed by one or more statements,

which describe the rules specified in the privacy

policy. Besides that, they specify the purpose for data

collection, management, and prerequisites that need

to be met. Private data and actions performed on it

can be expressed through stereotypes, for example, to

whom private data is allowed to be disclosed, the

period, and how it will be used. Several other

stereotypes describe how the data is provided and

managed, either by a user or by a system. In both

cases, the UML profile allows the design of privacy-

aware applications through modelling the

application’s privacy policy and keeping track of the

elements responsible for enforcing them. It allows not

only modelling of access control on private data but

also of privacy principles like consent, data security,

and purpose limitation.

(Jürjens, 2002) proposed a UML profile, called

UMLsec, for expressing security-relevant

information within various UML diagrams (see Table

1 No. 3). This should allow persons which are not

experts in security to express their security needs

easily. UMLsec enables software engineers to express

basic security requirements including security

concepts, security primitives, security management

and threat scenarios. This allows modelling

confidentiality of information and information flows.

Furthermore, it is possible to check whether the

constraints associated with the stereotypes are

fulfilled by a given specification and, by this, indicate

possible vulnerabilities (Jürjens, 2005).

(Heldal et al., 2004) present a UML profile

incorporating the decentralized label model into the

UML class diagrams to model confidentiality at

design time (see Table 1 No. 4). The so-called UMLs

profile allows the specification of confidential

information flow in a fine-grained manner. Different

stereotypes defining owners and users are used to

annotate classes, attributes, operations, parameters,

errors, and return types. These labels are used to

decide whether the information flow is permitted or

not. Declassification of information is realised with

the authorityConstraint, which models the weakening

of the confidentiality of information coming from

higher confidential sources. This is necessary for

operations processing confidential data but providing

less confidential results. The approach is presented

for class diagrams, but it is extendable to other

diagram types like interaction, use case, and activity

diagrams.

The work of Goudalo et al. (Goudalo and Seret,

2008) elaborates on modelling security aspects of

information systems (see Table 1 No. 5). The

proposed UML profile is an example of how to

properly encapsulate security knowledge during

design time. This is shown in the context of

confidentiality. Confidentiality of information and

information flow can be modelled in sequence

diagrams by defining stereotypes modelling

confidentiality levels of resources, subjects, and

subsystems. In summary, the UML profile enables

software engineers to model confidentiality in various

manners.

The work of Hatebur et al. (Hatebur and Heisel,

2010) builds upon a UML profile for expressing

problem frames in UML class diagrams (see Table 1

No. 6). Problem frames are patterns used to define

problem classes by their contexts and characteristics.

This UML profile is extended to express

dependability requirements. In the context of

security, the traditional goals of confidentiality,

availability, and integrity can be expressed. They are

modelled as stereotypes, including specifications like

the data to be secured, the attacker, and the

stakeholder of data. This allows the expression of

arbitrary confidentiality requirements via the use of

problem frames. The authors mention the main

advantage of their approach, namely the ability to

express dependability requirements without the

anticipation of a solution. This clearly separates the

problem space from the solution space. In addition, it

is easy to visually distinguish between different

security requirement classes.

The approach of (Fernandez-Medina et al., 2004),

called SECDW, allows modelling confidentiality

aspects in UML class diagrams (see Table 1 No. 7).

SECDW is an extension intended for the domain of

Data Warehouses. The approach introduces a UML

profile that allows the specification of security classes

for information and users. By using tuples composed

of security classifications, sets of user compartments

(classification of users in department like structures),

and user roles, it is possible to specify constraints

about which users are allowed to read certain

ICISSP 2018 - 4th International Conference on Information Systems Security and Privacy

information. The extension proposed by Triki et al.

(Triki et al., 2010) (SECDQ+) introduces the ability

to model leaks of confidential information, e.g.,

health information or company turnover, that are due

to access to combinations of data that would impose

no information leakage if isolated. This problem is

known as conflict of interest (Triki et al., 2010).

(Mouheb et al., 2009) propose a UML profile

capable of both capturing security requirements and

specifying security solutions (see Table 1 No. 8). This

is done by waving security aspects into UML class

and sequence diagrams in an aspect-oriented

modelling manner. This approach allows the

separation of security concerns from software

functionalities. Security experts can specify security

solutions as aspects in the UML model and model

their points (where they are implemented) in UML

sequence diagrams and, by this, provide an easily

understandable solution for non-security experts.

(Simons, 2007) presents a UML profile to model

privacy restrictions in UML class diagrams (see Table

1 No. 9). The profile was developed for the context of

mobile distributed systems, but it can be used in other

contexts as well. The main idea is to bind access

rights to context information. This is done by

formulating privacy restrictions on context

information. These restrictions consist of the source

and validity of the context information and the access

rights in the form of confidentiality levels. In

Simons’s UML profile, constraints are used to

validate the model. This is done by imposing

restrictions on the defined stereotypes to enforce the

correct use of the profile.

3 BUSINESS PROCESS

ORIENTED APPROACHES

Privacy is not an end in itself. Privacy and security

are business requirements, and, therefore, privacy as

well as security requirements in future will be

included in enterprise modelling more often. This can

be achieved in different ways:

▪ Via models of privacy and security aspects

using normal enterprise modelling languages,

▪ in the form of annotations,

▪ or with the help of more-or-less formalised

privacy/security notation add-ons for existing

modelling languages.

For business processes as one component of

enterprise modelling, we analysed ‘Petri Nets’ and

‘Business Process Model and Notation (BPMN)’.

Therefore, we performed systematic literature

reviews using the method described by Kitchenham

and Charters (2007). Two students executed the

reviews in their master’s theses. Gholam Hassan

Sahabi focused on information security when using

Petri Nets (a modelling language with mathematical

foundation), and Daniel Tewolde focused on

information security when using Business Process

Model and Notation (BPMN). To obtain comparable

results, we used the same methodology, and the

reviews were conducted for the same publication

period. The theses’ supervisors were used as experts

to score random parts of the publications. The scores

were compared to the scores that the students had

assigned to the paper, and the variances were

analysed and discussed.

3.1 Analysis of Petri Net-based

Approaches

There are plenty of approaches using Petri Nets for

modelling information security aspects, particularly

information confidentiality. They can be used to

model privacy requirements as well, but special

privacy model extensions are not common today. The

problem is also that some of the approaches only

focus on the technical level, which generally means

that they are discussing problems like algorithms,

protocols or technical architecture using Petri nets for

visualisation but omit the business process

perspective.

Huang and Kirchner have introduced a formal

method to verify whether the compositions of sub-

policies fulfil the required general policies of a

company (Huang and Kirchner, 2013). They used

coloured Petri Nets and Petri Net-based properties

like completeness, termination, consistency and

confluence. One use case is the verification as to

whether a set of policies fulfils a general policy like

GDPR. Therefore, the requirements of the GDPR

must be transformed into a model.

(Mixia et al., 2005) extended Object Petri Nets by

using modules to define security services like the de-

/en-cryption of data. This could be interesting for data

protection because encrypted data must not be

protected itself as long as the key is strong and kept

secret. (Akbarzadeh and Azgomi, 2010) defined a

framework for the assessment of security protocols.

They used coloured stochastic activity nets and

implemented probabilistic model checking. In

addition, (Bouroulet et al., 2008) analysed security

protocols and a Petri Net extension called S-net,

which is designed such that the terms of the Security

Protocol Language (Crazzolara and Winskel, 2001)

Identifying Needs for a Holistic Modelling Approach to Privacy Aspects in Enterprise Software Systems

can be used. Other Petri Net based approaches aim at

building models for special concepts. For example,

(Zhang et al., 2006) modelled the Chinese Wall

policy with coloured Petri Nets; afterwards, they used

a coverability graph to analyse the guarantees of the

Chinese Wall policy. (Henry et al., 2010) used

coupled Petri Nets for the risk analysis of computer

networks. Sun et al. published a ‘Verification

Mechanism for Secured Message Processing in

Business Collaboration’ (Sun et al., 2009). They used

the role-based access control (RBAC) mechanism

and hierarchical coloured Petri Nets to detect

conflicts in message access within collaboration

process instances with the role-based policy. A

similar approach from (Lai et al., 2008) focussed on

the confidentiality of information exchanges between

organisations and therefore has special places in

coloured activity nets for incoming and outgoing

information. Chinese Wall and interorganizational

information exchange are also relevant for privacy

protection questions. As shown, many approaches use

Petri Nets for modelling security aspects but focus on

a technical level or only cover one single aspect.

Therefore, these approaches are not suitable for

business process experts to model their security

requirements and discuss them with technical experts.

In addition, some approaches use Petri Nets for

modelling or analysing security aspects of business

processes. Accorsi and Wonnemann developed

InDico (Accorsi and Wonnemann, 2011), an

information-flow analysis method for labelling Petri

Net-based business process models. InDico focusses

on ‘information propagation throughout the systems

(end-to-end) rather than mere data access (point to

point)’ (Accorsi and Wonnemann, 2011). Accorsi et

al. (Accorsi et al., 2015) published an extension of

InDico for analysing information-flow effects during

process execution. They used security levels (here

called ‘levels of confidentiality’) but reduced them to

two, and analysed structural interferences between

them. It is impossible to express different levels of

confidentiality for the same place in one business

process scheme, e.g., different information, or more

than two levels of confidentiality for the whole

business process scheme. Li et al. (Li et al., 2009)

described a coloured Petri Net extension for detecting

confidentiality problems in information flow models.

They use security levels and add the concrete security

level as attributes of the tokens. Li et al. did not focus

on resources handling the information. Knorr (Knorr,

2001), who also used security levels, presented a

method to verify multilevel security policies in

workflow models, but he modelled control and

information flow as different arcs in his workflow

Petri Nets. Atluri and Huang (Atluri and Huang,

1996), who have also used Petri Nets, presented a

multilevel security approach with security levels for

places and tokens. They later extended their approach

with more concepts like separation of duty and role-

based access using a coloured, timed Petri Net (Atluri

and Huang, 2000). They did not consider resources or

the possibility of reducing the security level of a

token, e.g., when information is truncated.

The high number of approaches for modelling

security aspects using (high-level) Petri Nets shows

that the integration and processing of confidential

information in Petri Net-based business process

models is currently a major challenge. This is one

reason why we think, Petri Nets fit well for privacy

questions as well. Other reasons in favour of Petri

Nets are their mathematical foundation and the

availability of a broad range of analysis methods.

Especially for analysis functionality, formal Petri

Nets are necessary.

3.2 Analysis of BPMN-based

Approaches

Extensions of the Business Process Model and

Notation for modelling security requirements exist

for all of the three classic security objectives:

confidentiality, integrity, and availability. Leitner et

al. (Leitner et al., 2013) have published a systematic

literature review on ‘Security Aspects in the Business

Process Model and Notation’. Therefore, we do not

provide a detailed overview here. In summary, some

publications use BPMN for security questions

without new extensions. In (Meland and Gjaere,

2012), Meland and Gjaere argue that in most cases

there is no need for new BPMN extensions. Several

other approaches extend the BPMN notation, e.g.,

with new symbols to create a faster overview about

security issues for the model users (Wolter and

Meinel, 2010). Focussing on privacy as part of

security, (Mülle et al., 2011) used BPMN for

introducing privacy in business process models while

Labda et al. (Labda et al., 2013) extended BPMN to

model privacy aware BPMN. They focussed not only

on modelling privacy aspects but also proposed a

methodology for transferring them into the

implementation.

4 COMPARING APPROACHES

We identified two criteria in which the architecture

oriented and business process oriented approaches

can be compared.

ICISSP 2018 - 4th International Conference on Information Systems Security and Privacy

Security Mechanisms: this criterion describes

how and through which security and privacy

mechanisms privacy can be expressed by the

particular approach. We identified two

characteristics:

▪ Information flow and access control: this

characteristic establishes privacy by

introducing concepts that restrict the

information flow or the access to information,

functions or system parts by imposing rights.

These approaches introduce concepts of

confidentiality in various ways and to different

degrees. The introduced concepts are used

either directly or can be used to express privacy

in a certain way. Examples are Chinese Wall

policy and confidentiality levels. The following

approaches contribute to this characteristic

[(Jürjens, 2002), (Heldal et al., 2004), (Goudalo

and Seret, 2008), (Simsons, 2007), (Fernandez-

Medina et al., 2004), (Zhang et al., 2006), (Sun,

et al., 2009), (Lai et al., 2008), (Accorsi and

Wonnemann, 2011), (Accorsi et al., 2015), (Li

et al., 2009), (Knorr, 2001), (Atluri and Huang,

2000), (Mülle et al., 2011)].

▪ General structures: approaches with these

characteristics use abstract structures to

express either several or a particular security

and privacy principle. For example, problem

frames used in (Hatebur and Heisel, 2010) give

the ability to express a problem and, through

this, express an actual security principle.

Another example, common in the security area,

is policies. We identified the following

approaches contributing to this characteristic:

[(Jutla et al., 2013), (Basso et al., 2015),

(Hatebur and Heisel, 2010), (Mouheb et al.,

2009), (Huang and Kirchner, 2013), (Mixia et

al., 2005), (Akbarzadeh and Azgomi, 2010),

(Bouroulet et al., 2008), (Henry et al., 2010),

(Atluri and Huang, 2000)].

Each approach is assigned to one characteristic.

The approaches we reviewed focus either on

confidentiality to express privacy or on introducing

various other structures through which privacy can be

expressed. The first are grouped under the

characteristic ‘information flow and access control’

and the latter ones under the characteristic ‘general

structures’. We determined that nearly half of the

reviewed architecture oriented and business process

oriented approaches contribute to the first

characteristic. They all introduce elements to model

confidentiality. Some of them use confidentiality

mechanisms to establish privacy in a certain way

[(Fernandez-Medina et al., 2004), (Zhang et al.,

2006), (Sun et al., 2009), (Lai et al., 2008), (Accorsi

and Wonnemann, 2011), (Accorsi et al., 2015), (Li et

al., 2009), (Knorr, 2001)]. The others only introduce

modelling elements for confidentiality and not

directly for the purpose of privacy [(Jürjens, 2002),

(Heldal et al., 2004), (Goudalo and Seret, 2008),

(Simsons, 2007), (Mülle et al., 2011)]. The other half

of the reviewed approaches utilises various other

mechanisms to model privacy. [(Julta et al., 2013)]

introduce new structures like super containers and

problem frames to express privacy. Some others use

policies [(Basso et al., 2015), (Huang and Kirchner,

2013)].

Different views: this criterion describes the view

of the model for which the approach is developed. As

there are various stakeholders with different concerns

to express, different views arise that can be

specialised for the specific needs of a stakeholder.

Typical examples from the field of security are the

attacker view and security specialist view. While the

attacker view introduces model elements showing

how the attacker could intrude into the system, the

security specialist view would highlight the security

measures in place.

The criterion ‘different views’ divides the

approaches according to their use by stakeholders.

Common views are:

• Attacker view: models the attacker with the

attacks, threats, and vulnerabilities of a

system, or analyses the given model for flaws

in the information flow [(Jürjens, 2002),

(Akbarzadeh and Azgomi, 2010), (Bouroulet

et al., 2008), (Henry et al., 2010), (Accorsi and

Wonnemann, 2011), (Accorsi et al., 2015), (Li

et al., 2009), (Atluri and Huang, 2000)].

• Requirements & Implementation view:

introduces elements to express requirements

pertaining to security and privacy aspects and

elements, which model security and privacy

solutions [(Julta et al., 2013), (Basso et al.,

2015), (Heldal et al., 2004), (Goudalo and

Seret, 2008), (Hatebur and Heisel, 2010),

(Simsons, 2007), (Mouheb et al., 2009),

(Fernandez-Medina et al., 2004), (Mixia et al.,

2005), (Zhang et al., 2006), (Sun et al., 2009),

(Lai et al., 2008), (Atluri and Huang, 1996),

(Atluri and Huang, 2000), (Mülle et al.,

2011)].

• Verification view: allows users to check

whether a model fulfils certain requirements

by checking them against the model. This is

realised, for example, with constraints, which

are checked for correct implementation or the

Identifying Needs for a Holistic Modelling Approach to Privacy Aspects in Enterprise Software Systems

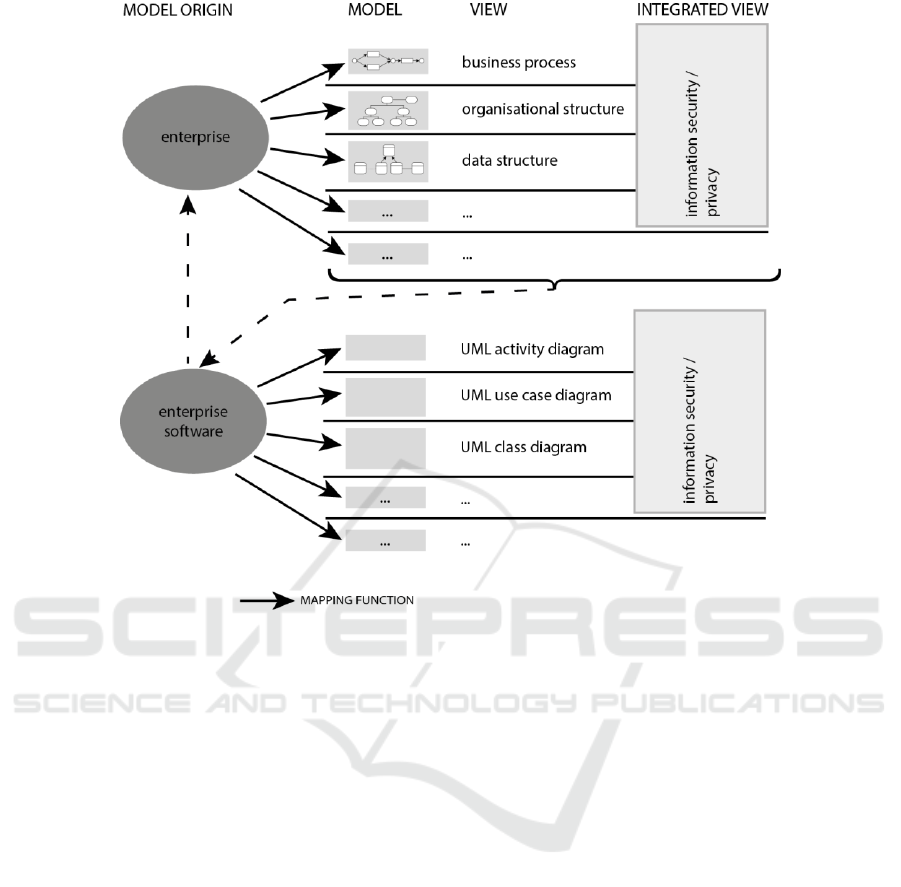

Figure 1: Holistic modelling approach.

verification of policies [(Basso et al., 2015),

(Jürjens, 2002), (Heldal et al., 2004),

(Fernandez-Medina et al., 2004), (Huang and

Kirchner, 2013), (Zhang, Hong and Liao,

2006), (Accorsi et al., 2015), (Li et al., 2009),

(Knorr, 2001), (Atluri and Huang, 1996)].

In the architecture oriented approaches, the

‘attacker view’ is realised by introducing an attacker

and his capabilities. We found only one approach of

this type (Jürjens, 2002). The business process

oriented side identifies flaws in the information flow

and, thus, privacy breaches. The ‘requirements &

implementation view’ is represented in both

approaches. Here, elements are introduced to express

security and privacy requirements or solutions. The

difference between the approaches is in the degree of

abstraction. While the business process oriented

approaches typically are on a less technical and more

abstract level, the architecture-based approaches

introduce both a non-expert view and sometimes a

more technical, expert view. In both architecture

oriented approaches and business process oriented

approaches, we identified the intention of verifying

whether the implementation or model is correct with

respect to certain requirements. This is the

‘verification view’. While architecture oriented

approaches verify the correctness of modelled

solutions, business process oriented approaches try to

identify and verify security policies against a given

model. In general, we recognised that in the reviewed

approaches, the architecture-based approaches tended

to model requirements or design solutions more often

as well as verify whether the model fulfils them,

while the business process-based approaches

focussed more on the identification of flaws and the

verification of policies.

In summary, only a few approaches we reviewed

introduced elements to model actual privacy

principles [(Julta et al., 2013), (Basso et al., 2015),

(Atluri and Huang, 2000)]. Most of them introduce

privacy more by way of establishing confidentiality

and the restriction of access to information.

5 CONCLUSIONS

As we have shown, there are some approaches for

systematically modelling security and/or privacy

protection aspects of organisations in a specific view.

However, no comprehensive approach integrates all

ICISSP 2018 - 4th International Conference on Information Systems Security and Privacy

aspects such as process, structure organization, and

data. Such approaches must be developed further. For

the enterprise that is shown in the upper part of

Figure 1, the enterprise software is shown in the

lower section of the figure 1. As illustrated in

figure 1, integrated views are combining different

other views of an organisation and enrich them by the

additional integration of privacy aspects.

Important links are represented by the dotted

lines. Requirements of the enterprise models must be

transferred into the software models to be

implemented later. This is especially true for

organisations in which the main business idea

depends on the realisation of a privacy-sensitive

complex IT infrastructure as well as those that are

either building digital platforms or working on the

automation of business processes. We therefore

suggest an automated model transformation from

enterprise to software modelling. Continuous

modelling is a prerequisite for the traceability of the

requirements. Therefore, it must be possible to

transfer business requirements modelled in Petri Nets

to software requirements modelled in UML. The

other edge shows the link between the enterprise

software and the enterprise.

We are focusing on integrating privacy into

enterprise software by looking at the privacy within

underlying business processes and the architecture of

Enterprise Software. Additionally, it is possible to use

either software or frameworks for privacy

management. Some examples are the Privacy

Management Platform (Stach and Mitschang, 2014),

the AVARE project, which is for the privacy and self-

protection of citizens (Alpers et al., 2017), and the

Context-Aware Privacy Protection System (Pingley

et al., 2009).

ACKNOWLEDGEMENTS

This work has been partially financed by the Baden-

Württemberg Stiftung GmbH within the project

‘AVARE’.

This research was also partially sponsored by the

German Ministry for Research and Economics

(BMBF) as a part of the ‘Forschungscampus

Initiative‘, specifically ‘Forschungscampus

Mobility2Grid‘, under the grant number 03SF0522A.

REFERENCES

Accorsi, R.; Wonnemann, C.; 2011: InDico: Information

flow analysis of business processes for confidentiality

requirements. In Security and Trust Management,

Springer, pp. 194–209.

Accorsi, R.; Lehmann, A.; Lohmann, N.; 2015: Information

leak detection in business process models: Theory,

application, and tool support. In Inf. Syst., vol. 47, pp.

244–257.

Akbarzadeh, M.; Azgomi, M. A.; 2010: A framework for

probabilistic model checking of security protocols

using coloured stochastic activity networks and

PDETool. In 5th International Symposium on

Telecommunications (IST), pp. 210–215.

Alpers, S.; Pieper, M.; Wagner, M.; 2017: Herausforderun-

gen bei der Entwicklung von Anwendungen zum

Selbstdatenschutz. In Informatik 2017, pp. 1061-1072.

Atluri, V.; Huang, W.-K.; 1996: An extended Petri net

model for supporting workflows in a multilevel secure

environment. In Database Security Tenth International

Conference on Database Security, Como, Italy, pp.

240–258.

Atluri, V.; Huang, W.-K.; 2000: A Petri net based safety

analysis of workflow authorization models. In J.

Comput. Secur., vol. 8, no. 2, 3, pp. 209–240.

Basso, T.; Montecchi, L.; Moraes, R.; Jino, M.; Bondavalli,

A.; 2015: Towards a UML Profile for Privacy-Aware

Applications. In IEEE International Conference on

Computer and Information Technology, pp. 371-378.

Bouroulet, R.; Devillers, R.; Klaudel, H.; Pelz, E.;

Pommereau, F.; 2008: Modeling and analysis of

security protocols using role based specifications and

Petri nets. In Applications and Theory of Petri Nets, K.

M. van Hee and R. Valk, Eds. Springer Berlin

Heidelberg, pp. 72–91.

Crazzolara, F.; Winskel, G.; 2001: Events in security proto-

cols. In Proceedings of the 8th ACM conference on

Computer and Communications Security, pp. 96–105.

European Union; 2017: General Data Protection

Regulation, http://eur-lex.europa.eu/legal-content /EN/

TXT/PDF/?uri=CELEX:32016R0679&from=EN, last

accessed 24.10.2017.

Fernandez-Medina, F.; Trujillo, J.; Villaroel, R.; Piattini,

M.; 2004: Extending UML for Designing Secure Data

Warehouses. In Conceptual Modeling - ER 2004: 23rd

International Conference on Conceptual Modeling, pp.

217-230.

Goudalo, W.; Seret, D.; 2008: Toward the Engineering of

Security of Information Systems (ESIS): UML and the

IS Confidentiality. In: 2

International Conference on

Emerging Security Information, Systems and

Technologies, pp. 248-256.

Hatebur, D.; Heisel, A.: A UML Profile for Requirements

Analysis of Dependable Software. In Computer Safety,

Reliability, and Security: 29

International

Conference, SAFECOMP 2010, pp. 317-331.

Henry, M. H.; Layer, R. M.; Zaret, D. R.; 2010: Coupled

Petri nets for computer network risk analysis. In Int. J.

Crit. Infrastruct. Prot., vol. 3, no. 2, pp. 67–75.

Huang, H.; Kirchner, H.; 2013: Secure interoperation

design in multi-domains environments based on

colored Petri nets. In Inf. Sci., vol. 221, pp. 591–606.

Jürjens, J.; 2002: UMLsec: Extending UML for Secure

Identifying Needs for a Holistic Modelling Approach to Privacy Aspects in Enterprise Software Systems

Systems Development. In Proceedings of the 5th

International Conference on The Unified Modeling

Language (UML ‘02), pp. 412-425.

Jürjens, J.; 2005: Model-Based Security Engineering with

UML. In Foundations of Security Analysis and Design

III: FOSAD 2004/2005 Tutorial Lectures, pp. 42-77.

Jutla, D. N.; Bodorik, P.; Ali, S.; 2013: Engineering Privacy

for Big Data Apps with the Unified Modeling

Language. In IEEE International Congress on Big

Data, pp. 38-45.

Kitchenham, B.; Charters, S.; 2007: Guidelines for

performing Systematic Literature Reviews in Software

Engineering. EBSE Technical Report, https://www.

elsevier.com/__data/promis_misc/525444systematicre

viewsguide.pdf, last accessed 24.10.2017.

Knorr, K.; 2001: Multilevel security and information flow

in Petri net workflows. In Proceedings of the 9th

International Conference on Telecommunication

Systems, pp. 613–615.

Labda, W.; Mehandjiev, N.; Sampaio, P.; 2013: Privacy-

aware business processes modeling notation (prvbpmn)

in the context of distributed mobile applications. In

Trends in Mobile Web Information Systems. Springer,

pp. 120-134.

Lai, H.; Hong, J.; Jeng, W.; 2008: Model E-contract update

by coloured activity net. In IEEE Asia-Pacific Services

Computing Conference. APSCC ’08, 2008, pp. 488–

493.

Leitner, M.; Miller, M.; Rinderle-Ma, S.; 2013: An

Analysis and evaluation of security aspects. In The

Business Process Model and Aotation, pp. 262–267.

Li, W.; Wu, R.; Huang, H.; 2009: Colored Petri nets based

modeling of information flow security; In Second

International Workshop on Knowledge Discovery and

Data Mining, pp. 681–684.

Meland; P. H.; Gjaere, E. A.; 2012: Representing Threats.

In BPMN 2.0, pp. 542–550.

Mixia, L.; Qiuyu, Z.; Dongmei, Y.; Hong, Z.; 2005: Formal

security model research based on Petri-net. In IEEE

International Conference on Granular Computing, vol.

2, pp. 575–578.

Mouheb, D.; Talhi, C.; Lima, V.; Debbabo, M.; Lang, L.;

Pourzandi, M.; 2009: Weaving Security Aspects into

UML 2.0 Design Models. In Proceedings of the 13

Workshop on Aspect-oriented Modeling, pp. 7 – 12.

Mülle, J,; Stackelberg, S. v.; Böhm, K.; 2011: Modelling

and transforming security constraints in privacy-aware

business processes. In 2011 IEEE International

Conference on Service-Oriented Computing and

Applications (SOCA), pp. 1–4.

OMG; 2013: Business Process Model and Notation

(BPMN) v2.0.2, http://www.omg.org/spec/BPMN

/2.0.2/ PDF, last accessed 24.10.2017.

OMG; 2017: Unified Modeling Language v2.5,

http://www.omg.org/spec/UML/2.5/PDF, last accessed

24.10.2017.

Pingley, A.; Yu, W.; Zhang, N.; Fu, X.; Zhao, W.; 2009:

CAP: A Context-Aware Privacy Protection System for

Location-Based Services. In 29th IEEE International

Conference on Distributed Computing Systems, pp. 49-

57.

Heldal, R.; Schlager, S.; Bende, J.; 2004: Supporting

Confidentiality in UML: A Profile for the Decentralized

Label Model. In Proceeding Workshop on Critical

Systems Development with UML, pp. 56-70.

Reisig, W.; 2013: Understanding Petri Nets: Modeling

Techniques, Analysis Methods, Case Studies, Springer,

New York.

Simons, C.; 2007: CMP: A UML Context Modeling Profile

for Mobile Distributed Systems. In 40

Annual Hawaii

International Conference on System Sciences, pp. 289-

299.

Stach, C.; Mitschang, B.; 2014: Design and Implementation

of the Privacy Management Platform. In Proceedings

of the 2014 IEEE 15

International Conference on

Mobile Data Management, pp. 69-72.

Sun, H.; Yang, J.; Wang, X.; Zhang, Y.; 2009: A

verification mechanism for secured message processing

in business collaboration. In Advances in Data and Web

Management, Springer, pp. 480–491.

Triki, S.; Ben-Abdallah, H.; Feki, J., Harbi, N.; 2010:

Modeling Conflict of interest in the Design of Secure

Data Warehouses. In KEOD 2010 - International

Conference on Knowledge Engineering and Ontology

Development, pp. 445-500.

Wolter, C.; Meinel, C.; 2010: An approach to capture

authorisation requirements. In Business Processes.

Requir. Eng., vol. 15, no. 4, pp. 359–373.

Zhang, Z.-L.; Hong, F.; Liao, J.-G.; 2006: Modeling

Chinese Wall Policy Using Colored Petri Nets. In The

Sixth IEEE International Conference on Computer and

Information Technology, pp. 162–162.

ICISSP 2018 - 4th International Conference on Information Systems Security and Privacy
