Retroﬁtting Type-safe Interfaces into Template-based Code Generators

Kai Adam, Arvid Butting, Oliver Kautz, Jerome Pfeiffer, Bernhard Rumpe and Andreas Wortmann

Software Engineering, RWTH Aachen University, Aachen, Germany

Keywords:

Model-driven Development, Template-based Code Generation.

Abstract:

Model-driven development leverages transformations to produce general-purpose programming language ar-

tifacts. Model-to-text (M2T) transformations facilitate ad-hoc transformation development by requiring less

preparation than model-to-model transformations. Employing template engines is common for M2T trans-

formations. However, the M2T transformation artifacts (templates) rarely provide interfaces to support their

black-box integration. Instead, composing templates requires in-depth expertise of their internals to iden-

tify and pass the required arguments. This complicates their reuse, and, hence, code generator development.

Where switching to more expressive template engines is not feasible, conceiving templates as models can

alleviate these challenges. We present a method to retroﬁt type-safe signatures into templates, generate typed

interfaces from these, and show how this can be utilized to compose independently developed templates for

more efﬁcient code generator engineering.

1 INTRODUCTION

Model-driven development (France and Rumpe,

2007) lifts abstract models to primary development

artifacts. These are better suited to automated analy-

sis and transformation. For the transformation of mo-

dels, two paradigms have emerged: model-to-model

(M2M) and model-to-text (M2T). The former em-

ploy transformation languages, such as ATL (Jouault

et al., 2006), to translate models of a source language

into models of a target language, which requires ha-

ving a formalization of the target language at hand.

The latter translate models of a source language into

arbitrary textual artifacts. Usually, such M2T code

generators read models of the source language and

either use string concatenation or templates to pro-

duce general-purpose programming language (GPL)

artifacts. Templates encode transformations in text

resembling the target GPL augmented with static and

dynamic template language constructs such as condi-

tionals or loops. Parametrized template calls assign

the passed arguments to the templates’ variable ele-

ments (e.g., variables). In case the parameters ex-

pected by templates are not made explicit – such as

with FreeMarker (Forsythe, 2013) or Velocity (Har-

rop, 2004) – developers have to understand the in-

ternals of the templates to be (re)used and identify

their parameters manually. This requires cumbersome

white-box template inspection. Where switching to a

code generator employing a template engine suppor-

ting type-safe template integration is not possible due

to legacy constraints, retroﬁtting it into existing gene-

rators can facilitate their development.

We present a concept to retroﬁt type-safe template

integration into template-based code generators. To

this end, we conceive templates as models, integrate

signatures non-invasively, and generate GPL interfa-

ces that enable type-safe template calls. As most tem-

plate engines support using GPL APIs, the latter es-

pecially enables type-safe template integration from

other templates and facilitates reuse of templates by

enabling their type-safe black-box integration. The

contribution of this paper, hence, is:

• A concept for retroﬁtting type-safe template inte-

gration into existing code generators.

• The application of this concept using the Free-

Marker template engine.

• A case study on enhancing the code generators

of the MontiArcAutomaton architecture modeling

infrastructure.

In the following, Section 2 describes prelimina-

ries, before Section 3 motivates the beneﬁts of type-

safe template integration. Afterwards, Section 4 in-

troduces our concept and Section 5 its implementa-

tion. Subsequently, Section 6 describes the case study.

Section 7 discusses related work and Section 8 de-

bates observations. Ultimately, Section 9 concludes.

Adam, K., Butting, A., Kautz, O., Pfeiffer, J., Rumpe, B. and Wortmann, A.

Retroﬁtting Type-safe Interfaces into Template-based Code Generators.

DOI: 10.5220/0006605001790190

In Proceedings of the 6th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2018), pages 179-190

ISBN: 978-989-758-283-7

179

2 PRELIMINARIES

We demonstrate our concept using the FreeMarker

template engine. Therefore, we enrich templates

with signatures, parse these templates with the Mon-

tiCore language workbench, and produce Java clas-

ses wrapping the templates according to their signatu-

res. MontiArcAutomaton is used as a running exam-

ple throughout the paper to demonstrate the beneﬁts

of retroﬁtting type-safe template integration into ex-

isting code generators. This section introduces Free-

Marker, MontiCore, and MontiArcAutomaton.

2.1 FreeMarker

The FreeMarker template engine (Forsythe, 2013)

supports features typical to template languages, such

as static text, comments, variables, control structures,

various built-in operations, and template calls. Pas-

sing arguments to templates is implicit with FreeMar-

ker: the invoked template inherits all variables from

the invoking template. This lack of explicit parame-

ters prevents template developers from identifying the

template’s contract, consisting of the parameters re-

quired to perform as desired, the returned values (if

any), and side effects (e.g., deﬁning new variables).

Consequently, errors in parametrization (missing ar-

guments, wrong types) and issues caused by side ef-

fects that introduce dependencies (such as setting va-

riables expected by other templates) are detected at

template run time earliest.

2.2 MontiCore

MontiCore (Haber et al., 2015) is a workbench for ef-

ﬁcient modeling language development. It employs

EBNF-like, context-free grammars (CFGs) for inte-

grated deﬁnition of concrete and abstract syntax. To

validate constraints not expressible with CFGs, Mon-

tiCore features a compositional context condition fra-

mework (Völkel, 2011), where context conditions are

well-formedness rules reiﬁed in Java. From a lan-

guage’s CFG, MontiCore generates the corresponding

abstract syntax classes and an infrastructure to parse

textual models into abstract syntax tree (AST) instan-

ces. The AST instances store the content of models,

free from concrete syntax. For code generation, Mon-

tiCore also features a template-based code generation

framework based on FreeMarker to translate AST in-

stances into arbitrary target representations. Moreo-

ver, MontiCore supports compositional language in-

tegration (Clark et al., 2015) via inheritance, embed-

ding, and aggregation (Haber et al., 2015).

component PathEvaluator[int min] {

port in int dist,

port out boolean pathBlocked;

behavior automaton {

states f, b;

initial f;

f -> f [dist >= min] / pathBlocked = false;

f -> b [dist < min] / pathBlocked = true;

b -> b [dist < min] / pathBlocked = true;

b -> f [dist >= min] / pathBlocked = false;

}

embedded automaton language

directed ports to

the environment

MAA

Figure 1: Atomic component embedding an automaton mo-

del of another stand-alone language.

2.3 MontiArcAutomaton

MontiArcAutomaton (Ringert et al., 2015) is an ar-

chitecture modeling infrastructure realized with Mon-

tiCore. It comprises a component & connector archi-

tecture description language (ADL) (Medvidovic and

Taylor, 2000) and several code generators translating

models into various GPL realizations (Ringert et al.,

2014). Its ADL leverages MontiCore’s language em-

bedding features to integrate modeling languages into

components that describe their behavior.

MontiArcAutomaton distinguishes component ty-

pes (denoted components) and component instan-

ces (denoted subcomponents), which are the units of

computation and deﬁne interfaces of typed, directed

ports. Composed components yield conﬁgurations of

subcomponents that exchange messages via connec-

tors between their interfaces. Atomic components

instead embed a behavior description of a suitable

modeling language. A corresponding model of an

atomic component is depicted in Figure 1. The com-

ponent of name PathEvaluator is used to determine

whether there are obstacles in front of a mobile robot.

To this end yields the conﬁguration parameter min as

a threshold (l. 1) and an interface of two ports (ll. 2-

3). Its behavior is governed by an automaton model

(ll. 6-11), which is embedded from another modeling

language.

MontiArcAutomaton employs the parsers and

AST classes generated by MontiCore from its CFG to

translate textual architecture models into AST instan-

ces. It uses MontiCore’s template-based code gene-

ration framework to translate the ASTs into GPL ar-

tifacts. To support embedding different behavior lan-

guages into MontiArcAutomaton components, being

able to efﬁciently combine their code generators is

obligatory. Consequently, understanding the contract

of their templates is crucial.

MODELSWARD 2018 - 6th International Conference on Model-Driven Engineering and Software Development

180

3 EXAMPLE

Consider developing a code generator translating

MontiArcAutomaton component models to executa-

ble Java artifacts using FreeMarker. With different

component behavior languages available, this also re-

quires integration of their respective code generators.

Obviously, development begins with implementing a

template for transforming each component model to

Java. An excerpt of the template responsible for pro-

ducing a class from the component model is depicted

in Figure 2.

public class ${ast.name} {

list ast.ports as port>

<#include "cd/Attribute.ftl">

</#list>

list ast.subcomponents as sc>

private ${sc.type.name} ${sc.name}(${sc.params});

</#

list>

public void compute() {

<#if ast.behavior.isAutomaton>

<#include "automaton/Main.ftl">

else>

<#list ast.subcomponents as sc>

this.${sc.name}.compute()

</#list>

</#if>

}

// Additional transformation parts

}

access to

model under

transformation

FreeMarker

constructs

template

composition

Figure 2: Excerpt of a template transforming component

models to Java. To this end, it includes the template Attri-

bute (l. 3) for the creation of Java attributes.

This template produces a class of the same name

as the component model (referencing to the model un-

der transformation as ast, l. 1). Afterwards, it itera-

tes of each port and produces a Java attribute by reu-

sing the template Attribute from a generator transla-

ting class diagrams to Java (ll. 2-4). To this effect,

the developer has to specify path and parameters of

that template. As the latter are not part of the tem-

plate call, she has to investigate the included template

and identify which of its variable parts are expected as

parameters. This may entail following the chain of in-

cluded templates to identify all expected parameters.

After creating members for each subcomponent (ll. 5-

7), it produces a method that is invoked whenever the

component should compute its behavior (ll. 9-17). In

this method, the template distinguishes between em-

bedded automata (l. 11) and composed components

(ll. 13-15). In case of an embedded automaton, a cor-

responding template from the respective generator is

included. This, again, requires comprehending its in-

ternals to pass the correct arguments. For composed

components, their compute() method is called.

The included template Attribute is depicted

in Figure 3. It does not explicate, which of its vari-

ables parts are expected as parameters (here type and

private ${type.qualifiedName} ${instanceName};

public ${type.getFullName()} get${instanceName}() {

return ${instanceName};

}

Figure 3: Template creating attributes of a Java class.

name) other than by not deﬁning these. Consequently,

it also does not explicate their expected types. Whet-

her type is actually a type-related object with various

properties or just the type’s name is not elaborated.

To successfully include this template, the developer

hence must understand its internals.

Consequently, the template integration depicted in

Figure 2 will fail at run time as executing the Attribute

template without type and name yields errors. Instead

of switching to another, type-safe, template engine –

which entails redeveloping all existing code genera-

tors – the developer desires to make template calls in

to already employed engine type-safe and to report

related errors as soon as possible. This raises the fol-

lowing challenges:

RQ1 The parameters expected by a template are ex-

plicit and statically typed.

RQ2 The side effects of template integration, such as

deﬁning new variables relevant to other templates,

are made explicit.

RQ3 The compatibility of template arguments can be

checked at design time.

RQ4 The resulting concept enables reusing existing

templates without modiﬁcations.

The next section presents a concept that addres-

ses these requirements via explicit template signatu-

res and enables a more efﬁcient reuse of templates.

4 TYPE-SAFE TEMPLATE

INTEGRATION

This section presents a notion of template signatures

and the process of translating these into a GPL code

generator API able to invoke templates in a stable,

black-box fashion while supporting reuse of existing

templates. To this end, ﬁrst the desired properties of

template signatures are be deﬁned and reiﬁed in the

template language. Afterwards, these signatures are

translated into GPL classes usable as strongly-typed

template interfaces. Finally, this is retroﬁtted into ex-

isting code generators. The concept’s activities are

depicted in Figure 4, which is explained in the re-

mainder of this section.

Retroﬁtting Type-safe Interfaces into Template-based Code Generators

181

Det. well-

formedness

rules

Determine

signature

properties

Identify

reification

requirements

Create

stand-alone

language

Reify

template

language

[no]

template language

already reified?

Add well-

formedness

rules

Implement

interface

generation

[needs

rules]

[does not require rules]

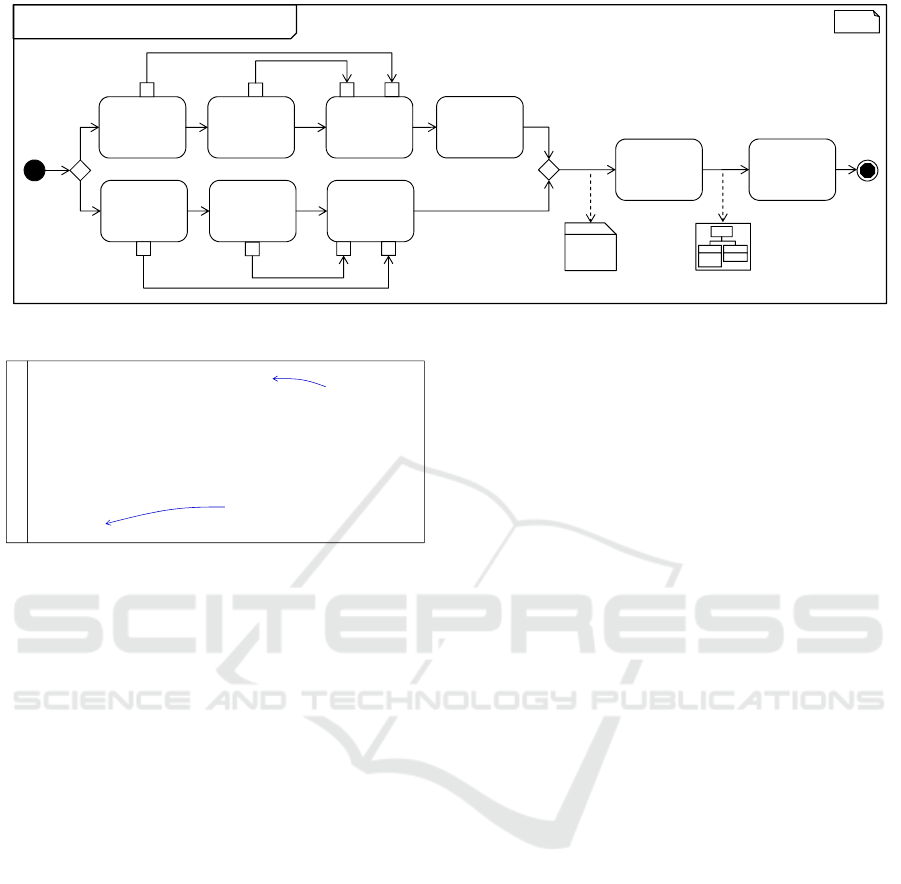

act Retrofit Template Engine

Extend with

in-place

elements

[no]

[yes]

separate

artifacts?

Ensure

backwards

compat.

Figure 4: Retroﬁtting a template engine.

4.1 Deﬁning Template Signatures

A template signature deﬁnes the contract of a tem-

plate as typed inputs and outputs. A typed signature

includes an ordered list of typed arguments and, op-

tionally, an ordered list of typed return value para-

meters. With this, template signatures are similar to

method signatures in common imperative or object-

oriented GPLs: The unambiguous fully qualiﬁed met-

hod name of a method signature is analogous to the

fully qualiﬁed name of the template that deﬁnes the

signature. The typed and named method parameters

of a method signature correspond to the typed and na-

med parameters deﬁned by a template signature. The

return type of a method signature is the similar to a

template signature’s return values. Multiple return va-

lues in a template signature can be bundled, e.g., to a

complex return type that comprises all return types as

members.

A template signature’s arguments deﬁne all inputs

required by the template (RQ1). Except for local va-

riables, only these arguments may be used inside the

template. The effect of a template call therefore only

depends on the passed input arguments. Explicitly de-

ﬁning a template’s return value parameters enables

explicating the side effects of its execution (RQ2).

This, for instance, can be new variables calculated for

future use. We propose supporting multiple return va-

lues to facilitate returning multiple side effects.

4.2 Reifying Template Signatures

Retroﬁtting type-safe template signatures into exis-

ting template engines requires means to associate

these signatures with the corresponding templates.

This requires integrating signatures into the template

language of choice. A key challenge in extending

templates with signatures is that the template en-

gine still must be able to process extended templa-

tes, hence there are three integration options: (1) crea-

ting a dedicated modeling language for out-place sto-

red signatures similar to the header ﬁles in C/C++;

(2) reifying the template language with the language

workbench of choice; or, if this already exists, (3) ex-

tend the reiﬁed template language with signatures

using the extension mechanism of the selected lan-

guage workbench. As the former increases complex-

ity in maintaining and evolving the two separate arti-

facts (templates and their signature models), we pro-

pose to integrate signature information into the tem-

plate language. For this, its grammar (or metamo-

del and syntactic mapping) must be available. Where

a grammar exists, rebuilding a template parser using

grammar-based language workbenches, such as Mon-

tiCore (Krahn et al., 2010), Neverlang (Vacchi and

Cazzola, 2015), Spoofax (Wachsmuth et al., 2014),

or Xtext (Eysholdt and Behrens, 2010), is straight-

forward. Where the template language already was

reiﬁed, changes to it might break existing tools (such

as template analyses). Hence, in the latter two cases,

integration also requires to ensure backwards com-

patibility of the templates. This, for instance, can

be achieved by eliminating the signature informa-

tion through a pre-processing model transformation

prior to executing the templates. Afterwards, well-

formedness rules need to be identiﬁed. This includes

the uniqueness of template parameters, the availabi-

lity of their types, etc. and can implemented using

the realizing language workbenches’ facilities. This

can have the form of Java context conditions (Monti-

Core), OCL rules (Xtext), or a speciﬁc meta-language

(Spoofax). After realizing and integrating these rules,

templates can be parsed and their well-formedness

can be checked. Ultimately, a generator translating

templates into template interface classes is developed.

4.3 Generating Template Interfaces

The process of generating template interface classes

from signatures retroﬁtted into the template language

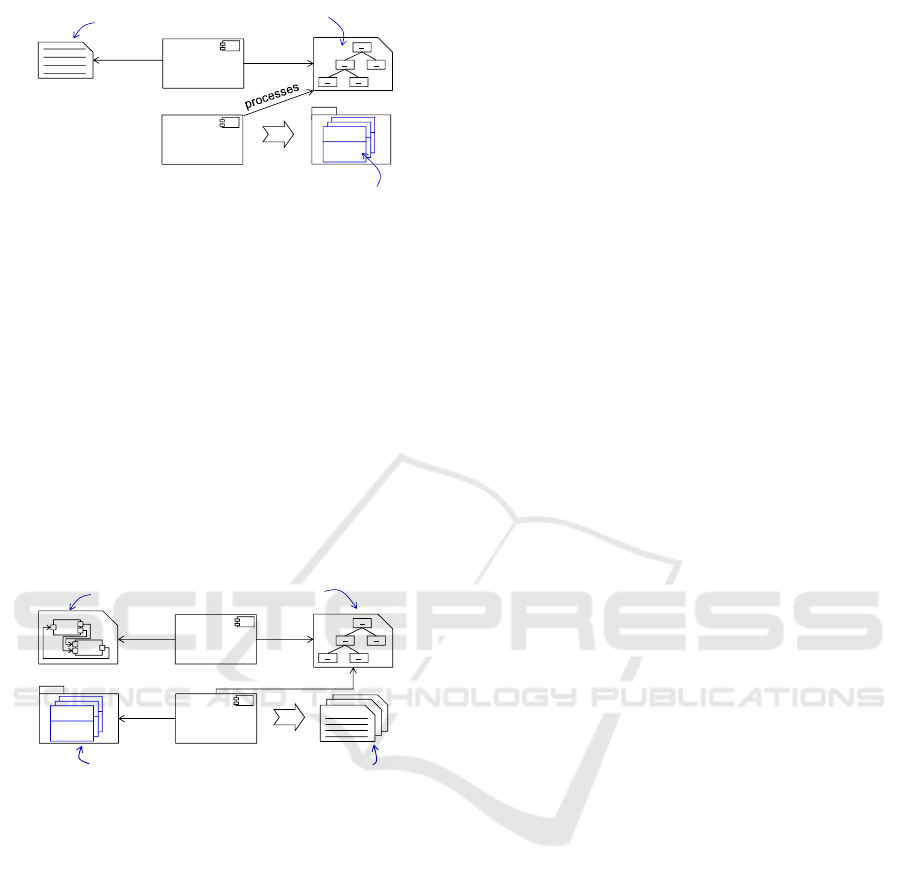

of choice is depicted in Figure 5: From a template

augmented with signature, a corresponding parser

(produced by the language workbench of choice) pro-

duces an instance of its abstract syntax (its AST). In

case as stand-alone template signature language was

created, the parser processes these models. Other-

wise, it processes the templates. During this, context

conditions check the validity of the templates with re-

MODELSWARD 2018 - 6th International Conference on Model-Driven Engineering and Software Development

182

Template

Parser

_:_

_:__:_

AST of template

template with signature

reads

generates

generated template interface and return types

Interface

Generator

creates

Figure 5: Generating template interfaces.

spect to the parameters. This includes checking that

the name of each parameter and return types is unique

and that the templates does not reference inexistent

variables or parameters (RQ3). A template interface

generator speciﬁc to the signature language (which

can be the template language) and the GPL of tem-

plate engine’s API produces a GPL class representing

the template’s interface. This class yields methods to

invoke the template with parameters and return ty-

pes as deﬁned by its signature. The generator used

for producing the template interface can be different

from the template engine to be wrapped. Hence, this

also supports cross-engine code generation for tem-

plate engines supporting the same GPL.

output

artifacts

M2T

Generator

Model

Parser

_:_

_:__:_

reads creates

AST of modelinput model

generates

calls

processes

generated template

interface and return types

Figure 6: Using the generated interfaces.

This signature facilitates reusing provided templa-

tes via the generated interface classes as illustrated

in Figure 6. Similarly, an input model of the lan-

guage to process is translated into its AST represen-

tation. This representation is used by a M2T genera-

tor speciﬁc to the target language that now can rely

on the generated template API to invoke templates in

a type-safe fashion to produce the output artifacts as

required. Assuming that the wrapped templates’ en-

gine supports leveraging GPL code (e.g., for perfor-

ming complex calculations during code generation),

the generated template interfaces enables to use the

same pattern for invoking templates from within ot-

her templates as well as from within GPL code arti-

facts. Not enforcing to use the generated GPL interfa-

ces supports reusing templates employing the legacy

template integration method (RQ4) where necessary,

i.e., its integration does not break existing code ge-

nerators. Ultimately, the generated template interface

class wraps a template and liberates template users

from in-depth knowledge about its internal structure.

5 TYPE-SAFE TEMPLATE

INTEGRATION FOR

FREEMARKER

We present an implementation of our concept using

FreeMarker, which leverages a MontiCore realization

of the FreeMarker language that is extended with tem-

plate signatures. Based on these, we produce template

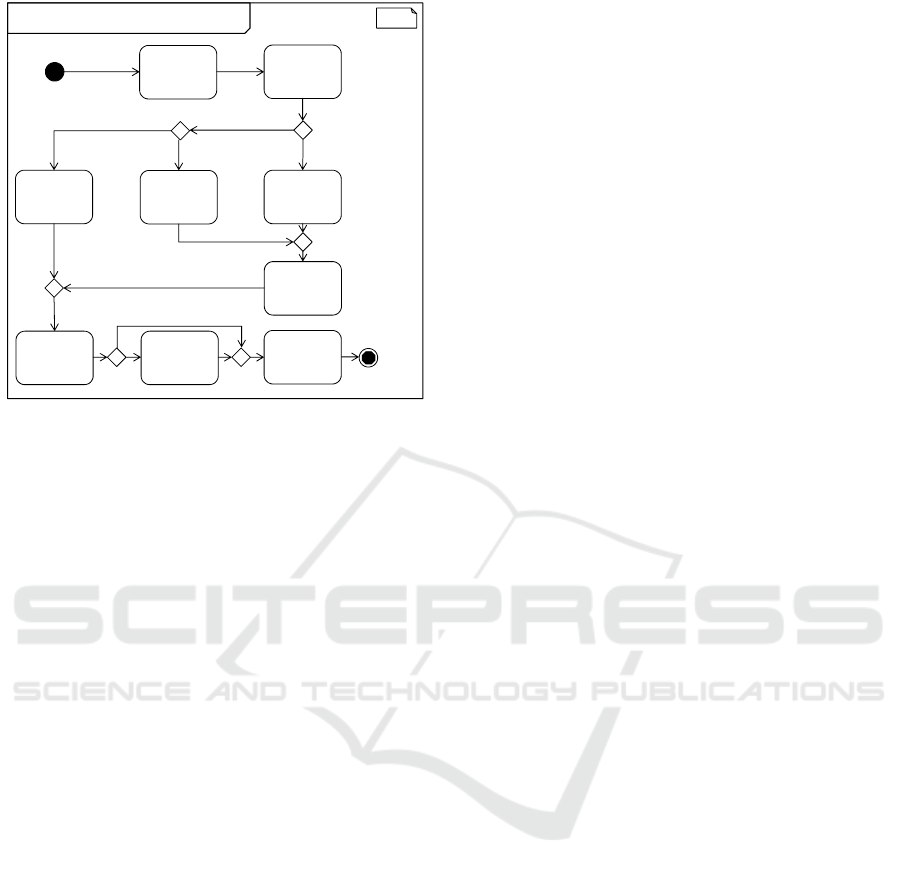

interfaces as explained above. The overall activities

required to either develop new templates for type-safe

interfaces or to retroﬁt existing templates are illustra-

ted in Figure 7.

First, the generator developer has to decide whet-

her she wants to create a new template from scratch

or retroﬁt an existing template. For the former, she

needs to determine the template’s parameters and side

effects. The side effects are translated into return va-

lues from which a template-speciﬁc return data type is

generated. She speciﬁes both in the template’s signa-

ture and adds its body, which is performing the M2T

transformation. In case the developer needs to retroﬁt

an existing template, she has to comprehend the tem-

plate under development to identify the parameters it

expects and the side effects it causes (such as assig-

ning values to other variables used by other templa-

tes). She speciﬁes the side effects as return values and

adjusts the template accordingly. After creating or re-

troﬁtting a template, it is parsed and its GPL interface

class is generated. Additionally, in case the template

deﬁnes not only required arguments but also provi-

ded return values, a result data structure capable of

storing these is generated as well. The template inter-

face class yields a single generate(..) method that

takes the parameters speciﬁed in the template as input,

starts template processing using the FreeMarker API,

and returns an instance of the result data structure.

5.1 Integrating Template Signatures

Our concept relies on explicating the parameters and

side effects of templates. To this effect, we reify the

FreeMarker template language as a MontiCore lan-

guage and extend it with template signature elements.

We developed a MontiCore grammar for the FreeMar-

ker template language and augmented it with optional

template signatures. From this, MontiCore automati-

cally generates a parser and abstract syntax classes

for instances of the language. Our implementation

Retroﬁtting Type-safe Interfaces into Template-based Code Generators

183

Identify

template

parameters

Add

template

signature

Identify

template

side effects

Define

template

parameters

Create

template w.

signature

Parse and

check

template

Add

template

body

Generate

GPL

interface

Define

template

side effects

parameters

template

template AST

results

[retrofit]

[create]

act Create Template Interface

Figure 7: Overview of the generation process with statically typed template interfaces.

requires String name, Type type

provides String instanceName

private ${type.qualifiedName} ${instanceName};

public ${type.getFullName()} get${instanceName}() {

return ${instanceName};

}

${results.setInstanceName(instanceName)}

template

signature

stores side effect instanceName

in results data structure

Figure 8: Template generating an attribute implementation.

Its signature deﬁnes parameters and return values.

executes this parser and checks for each parsed tem-

plate whether its signature deﬁnition is correct (i.e.,

no redundant names, referenced types exist, etc.) and

valid in the template context (i.e., no missing parame-

ters). It also prevents multiple signature deﬁnitions in

a template. If the template can be parsed and the con-

text condition checks pass, the implementation conti-

nues with generating the template interfaces.

Regarding the data types of parameters and return

types, we exploit that FreeMarker features a Java API

and assume that the types are either built-in or han-

dcrafted Java types and that they are referenced via

their fully qualiﬁed names. Template developers de-

ﬁne a template’s signature directly at the beginning of

the template. The signature comprises a list of typed

and named parameters (RQ1) and, optionally, a list of

typed and named return values (RQ2). As signatures

are optional, this guarantees backward compatibility

(RQ4) by construction. After parsing the template,

this information is made explicit in the template AST.

Figure 8 depicts an improvement of the

Attribute template of Figure 3: the template’s

new signature deﬁnes that it requires two parameters

(l. 1) and provides a single return value (l. 2). The

deﬁnition of parameters begins with the keyword

requires and is followed by a list of input parame-

ters consisting of the parameters’ types and names.

Similarly, the deﬁnition of returned values starts

with the keyword provides and is followed by a list

of typed and named return values. Both, required

and provided parameters are optional. However, for

generating a template interface class, at least required

parameters (l. 1) must be provided. The subsequent

list of provided return values (l. 2) is optional for this

as well. In the template body, parameters are accessi-

ble by their names (e.g., l. 4). A structure generated

from the template’s return values is accessible as

results from within the template and can be used

for explicating side effects (l. 11). Its methods and

attributes are derived from the templates provided

parameters. The interfaces generated for templates

(a more detailed description is given in Section 5.2)

enables passing arguments in a type-safe fashion and

are usable from inside the template as well. Invoking

the generate() method of an interface derived from

a template yields an instance of its return value type

that stores the text and all return values produced

during template execution.

5.2 Generating Template Interfaces

The template interface generator implementation uses

MontiCore’s code generation framework, which itself

employs FreeMarker. It takes an AST of a parsed tem-

plate as input and produces a Java API (template in-

terface) for template integration. The generated API

enables type-safe template integration with respect to

the arguments passed to a template and the return va-

lues produced as side effect during template execu-

tion. This ensures invoking templates in a type-safe

fashion and, hence, facilitates their integration, and

ultimately their reuse. For each retroﬁtted FreeMar-

ker template the generator produces the following two

artifacts:

1. A class of the template’s name serving as the

interface for type-safe template integration (cf.

JAttribute of Figure 9),

MODELSWARD 2018 - 6th International Conference on Model-Driven Engineering and Software Development

184

2. A class wrapping the return values of the tem-

plate’s signature to capture its side effects (cf. the

Java class JAttributeResults of Figure 9).

Generating and using these classes relies on ot-

her non-generated classes part of the run-time envi-

ronment of our implementation. The quintessential

types of our run-time environment are the Java inter-

face IResult (bottom-left of Figure 9) and the Java

class GeneratorEngine.

IResult. One feature all generated template in-

terfaces have in common is that invoking their

generate() method produce the text resulting from

applying the wrapped template to the passed argu-

ments. Consequently, all implementations of return

value types must implement this interface, which spe-

ciﬁed that the return value type at least features the

methods setText(String) and getText().

Generator Engine. Each template interface uses

the class GeneratorEngine (cf. Figure 9) as facade

to the Java API of FreeMarker). The class provides a

default generator setup, which enables to use the tem-

plate interface without in-depth generator engine con-

ﬁguration knowledge. To this effect, it wraps all re-

levant generator conﬁguration parameters. Neverthe-

less, in situations in which a generator conﬁguration

might be indispensable (e.g., generator integration),

the generator developer is able to modify the default

conﬁguration parameters by a smart generation gap.

The GeneratorEngine class features a process met-

hod invoking the FreeMarker API to trigger type-safe

template execution. The following focuses on the ge-

neration steps.

Based on the run-time environment types we pro-

duce two classes per template: return value type and

its interface.

Return Value Type Generation. Our approach

permits deﬁning multiple return values in template

signatures and aims at generating a high-level Java

API in form of template interfaces. However, Java,

for instance, only allows deﬁning single method re-

turn types. Thus, to enable returning multiple re-

turn values in response to a template interface inte-

gration, for each template, the interface generator pro-

duces a class containing a ﬁeld for storing the gene-

rated text and a ﬁeld for each of the template’s re-

turn values. Thus, an instance of the class returned

after template integration contains the text generated

by the template and the return values produced during

template execution as side effects. For instance, the

class ComponentResults is generated from the tem-

plate Component that is illustrated in the top right part

Component

ComponentResults generate(String compName,

List<ASTPort> ports)

generate(Path filePath, String compName,

List<ASTPort> ports)

String text

String className

ComponentResults

String text

JAttributeResults

generated from parameters

generated from return values

JAttribute

JAttributeResults generate(ASTType type,

String name)

generate(Path filePath, ASTType type,

String name)

requires ASTType type,

String name

JAttribute.ftl

requires String compName,

List<ASTPort> ports

provides String className

Component.ftl

String getText()

«interface»

IResult

wraps FreeMarker API

GeneratorEngine

process(Path templatePath, Map<String,Object>)

run-time

environment

generated artifacts

templates

Figure 9: Different cases of template signatures and derived

template interfaces.

of Figure 9. For each return value of the template’s

signature, the class yields a member of the same type

and name as well as corresponding getters and setters.

In case a template does not deﬁne any return va-

lues, the generated class only contains a ﬁeld for

storing the generated text (cf. template JAttribute

in Figure 9). Each generated class wrapping return

values implements the interface IResult that pro-

vides the method getText() for retrieving the text

produced during template execution. This facilitates

generator integration via ordered GPL template calls

and further processing of the generated text, as well

as template integration via inline-template calls.

Template Interface Class Generation. For each

template that contains a signature, the generator pro-

duces a class with the same fully qualiﬁed name as

the template. This provides a static generate() met-

hod for template integration (Figure 9). For instance,

the classes Component and JAttribute are genera-

ted of the respective same named templates. Each ge-

nerated class is associated to the GeneratorEngine

class, which is used by the generated method to wrap

FreeMarker’s Java API. For each of the template’s pa-

rameters, the generate() method signature has a pa-

rameter of the same type and name. The order of the

method’s parameters is the same order as deﬁned by

the parameter list in the template signature. This fa-

cilitates type-safe template integration as inaccurate

template interface method integration are detectable

at design time (RQ3). The return type of the ﬁrst

generated method is given by the Java type genera-

ted from the template’s return values. Besides the

generate() method described above, the generator

produces another generate() method that takes a

Retroﬁtting Type-safe Interfaces into Template-based Code Generators

185

public ComponentResults generate(

String compName, List<ASTPort> ports) {

ComponentResults results = new ComponentResults();

HashMap<String, Object> params =

new HashMap<>();

params.put("compName", compName);

params.put("ports", ports);

params.put("results", results");

String artifactAsString =

this.generatorEngine

.process(templatePath, params);

results.setText(artifactAsString);

return results;

}

Figure 10: Derived generate() method of the Component

interface that returns an instance of ComponentResults.

ﬁle path as additional parameter. This method wri-

tes the text resulting from internally calling the ﬁrst

generate() method into a ﬁle located at the speci-

ﬁed ﬁle path. While the ﬁrst generate() method is

mainly used for template and generator integration,

the second generate() method is used for genera-

ting ﬁles.

The implementation of the ﬁrst generate() met-

hod of the Component class is presented in detail in

Figure 10. First, an object for wrapping the text re-

sulting from template execution and the return va-

lues produced by side effects is instantiated (l. 4).

Then, the attributes passed to the method are added

to a HashMap instance params (ll. 6-8). As the return

value wrapping object is added as additional explicit

template execution parameter (l. 9), manipulating its

content during template execution is possible. The

map is passed to a (not type-safe) process method

call on the GeneratorEngine (ll. 11-12), which ta-

kes care of removing template signatures from tem-

plates for backwards compatibility to the FreeMarker

engine. Afterwards, the result from calling the tem-

plate engine’s API is stored in the designated ﬁeld of

the return value wrapping instance (l. 14), before the

method returns it (l. 15). The generated method is in-

vocable within templates and directly in Java artifacts.

The process method of the class GeneratorEn-

gine expects as argument a map that assigns attribute

names to Object instances. The instance assigned

to an attribute name represents the attribute’s value.

As the Java type Object is a super type of any ot-

her Java type, no ﬁne grained assurances (except for

the assurances made by type Object) are given by

the arguments. Thus, the process() method of the

GeneratorEngine class (as well as the FreeMarker

API) is not type safe as arbitrary Java type instances

may be passed to it. However, as this method is invo-

ked by a method generated from the template’s signa-

ture, its type-safe use is entailed by construction.

templates

generated

artifacts

handcrafted

artifacts

run-time

environment

requires String compName,

List<ASTPort> ports

provides String className

Component.ftl

requires ASTType type,

String name

JAttribute.ftl

Component

ComponentResults generate(String compName,

List<ASTPort> ports)

generate(Path filePath, String compName,

List<ASTPort> ports)

JAttribute

JAttributeResults generate(ASTType type,

String name)

generate(Path filePath, ASTType type,

String name)

ComponentMain

void generate(Path path,

ASTComponent node)

«Interface»

IGenerator

void generate(Path path, T node)

T extends ASTNode

comprises ordered

template calls

standardized

interface for

generator

composition

extension of

ASTNode

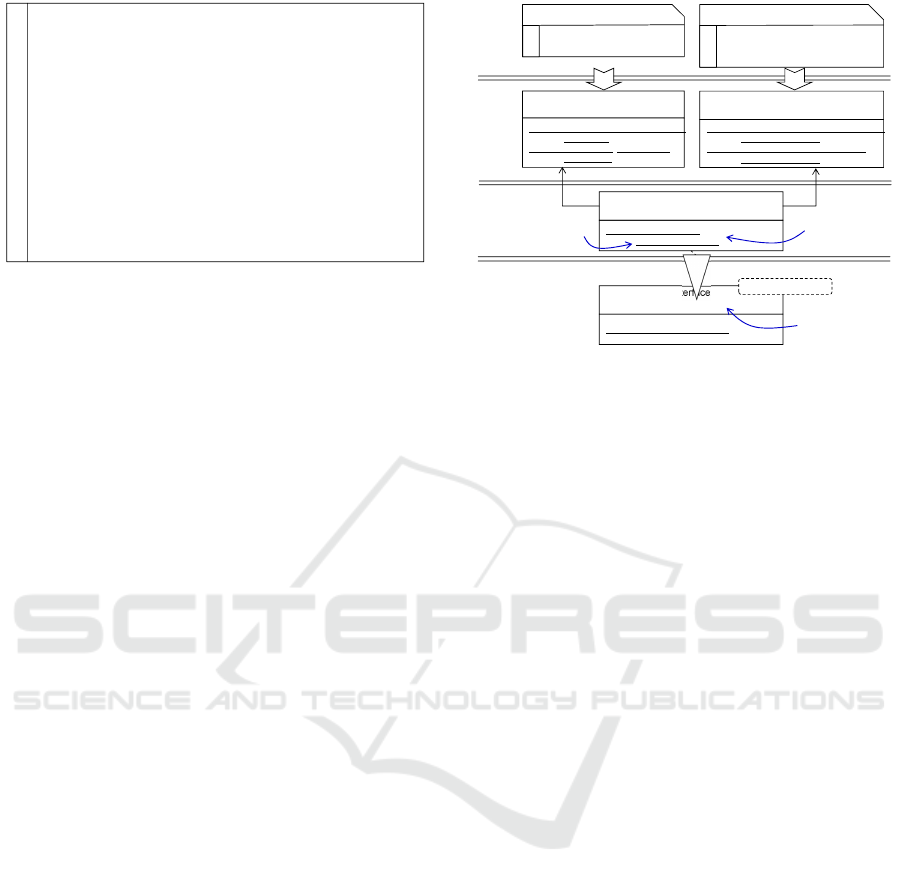

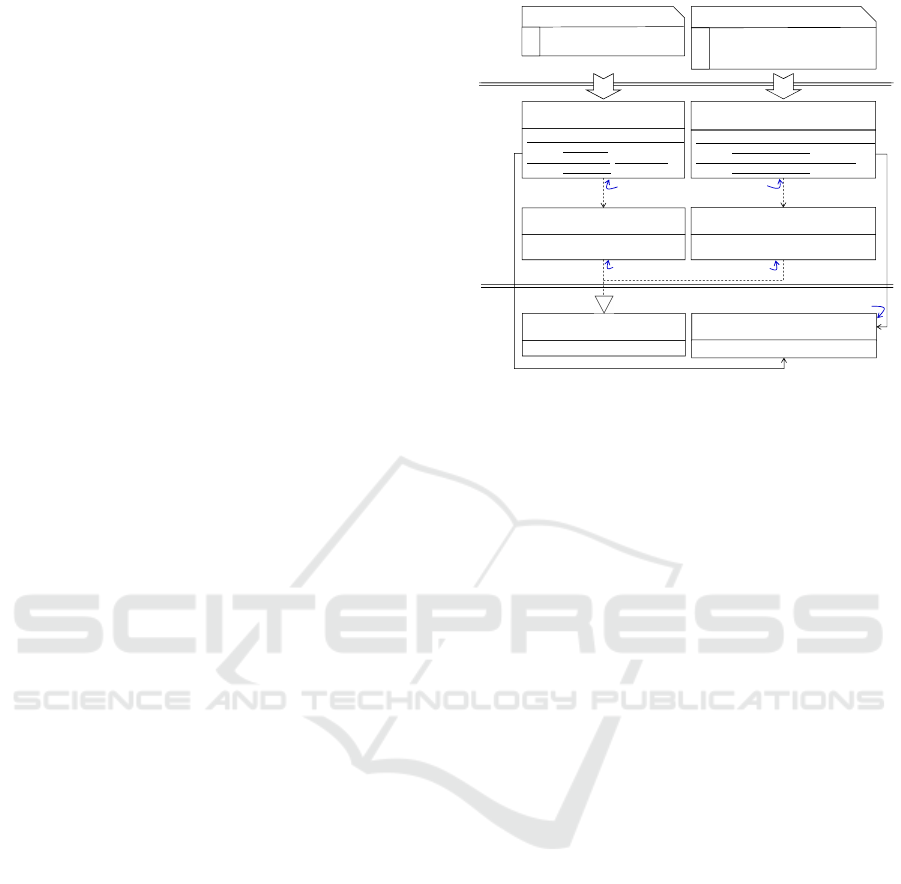

Figure 11: An overview of the artifacts generated and used

for generator integration.

5.3 Using Type-safe Template Calls

Our approach guides generator developers to an easier

and less error-prone development of template-based

code generators by using generated template interfa-

ces. Hence, an in-depth knowledge about the genera-

tor engine is not required.

Using Template Interfaces. Generator developers

can either use the default or a custom generator en-

gine conﬁguration by a smart generation gap. In addi-

tion, the generate() methods of the template interfa-

ces are statically typed. Consequently, faulty parame-

trization of template integration is recognized by the

Java compiler at implementation time. For instance, if

the generator developer invokes the attribute template

(cf. Figure 8) via its template interface (i.e., its method

generate(ports)), the Java compiler recognizes in-

correct parameters and causes an error. Furthermore,

our approach generates an interface speciﬁc Result

class that wraps the templates content and additional

side effects as members.

It provides setters to assign values to the result pa-

rameters within the template for further processing.

For instance, the Attribute template uses the set-

ter method of this speciﬁc wrapper instance to as-

sign the instance name of the artifact to the result

instanceName (cf. l. 6 in Figure 8). Hence, the gene-

rator developer can access the result after M2T trans-

formation and use it for further processing steps, such

as generator and template integration.

Template Integration for Generators. Figure 11

illustrates the overview of the generated and used ar-

tifacts for generator integration. The IGenerator in-

terface is part of our run-time environment and provi-

MODELSWARD 2018 - 6th International Conference on Model-Driven Engineering and Software Development

186

des a generate() method with parameters path and

node. While the ﬁrst parameter path enables the ge-

nerator developer to set the ﬁle path, the second pa-

rameter node is a generic extension of the ASTNode,

which must be speciﬁed in the generator implementa-

tion. In contrast to the generated template interfaces,

generator integration requires a handcrafted generator

implementation that implements the IGenerator in-

terface. They enable template orchestration, such as

manifesting template integration orders for various in-

terfaces, employing transformations of template inte-

gration resulting return values, and passing those va-

lues into consequent template invocations.

For instance, the ComponentMain generator im-

plements the IGenerator interface and enables the

generator developer to employ this generator on in-

stances of the ASTComponent type. An invocation

of the generate method reuses the generated inter-

faces JAttribute and Component and hands spe-

ciﬁc ASTComponent substructures, such as a list of

ASTPort instances, to the corresponding template in-

terfaces. Ultimately, this enables reusing and com-

posing template interfaces, as well as composing ge-

nerators with a standardized generator interface. The

next section presents a case study that introduces an

application of generator integration using MontiArc-

Automaton.

6 CASE STUDY

This section presents the integration of our type-safe

template integration mechanism into the MontiArc-

Automaton code generation framework. The aim of

the integration is to facilitate integration of the Monti-

ArcAutomaton structure code generator (responsi-

ble for translating ports, connectors, message pas-

sing, etc.) with the code generators responsible for

translating models of embedded behavior languages.

Prior to applying our retroﬁtting concept, the reusing

FreeMarker-based code generators required invoking

the templates responsible for translating embedded

behavior models directly. This raised the aforemen-

tioned problems of having to comprehend template

internals to pass the correct number and type of ar-

guments expected by the respective templates.

The code generators of MontiArcAutomaton com-

prise 55 FreeMarker templates and 41 Java classes

that are responsible for organizing template calls and

calculations of template arguments outgoing from

the passed component models. In our case study,

the component structure generator employs two be-

havior implementation generators to generate beha-

vior of components: one translates embedded Ja-

Automata

Trans

Val

List

Reqs Expr

MAA Generator

Comp

Behavior

Conn

Sub

Comp

Main

black-box

template

integration

Port

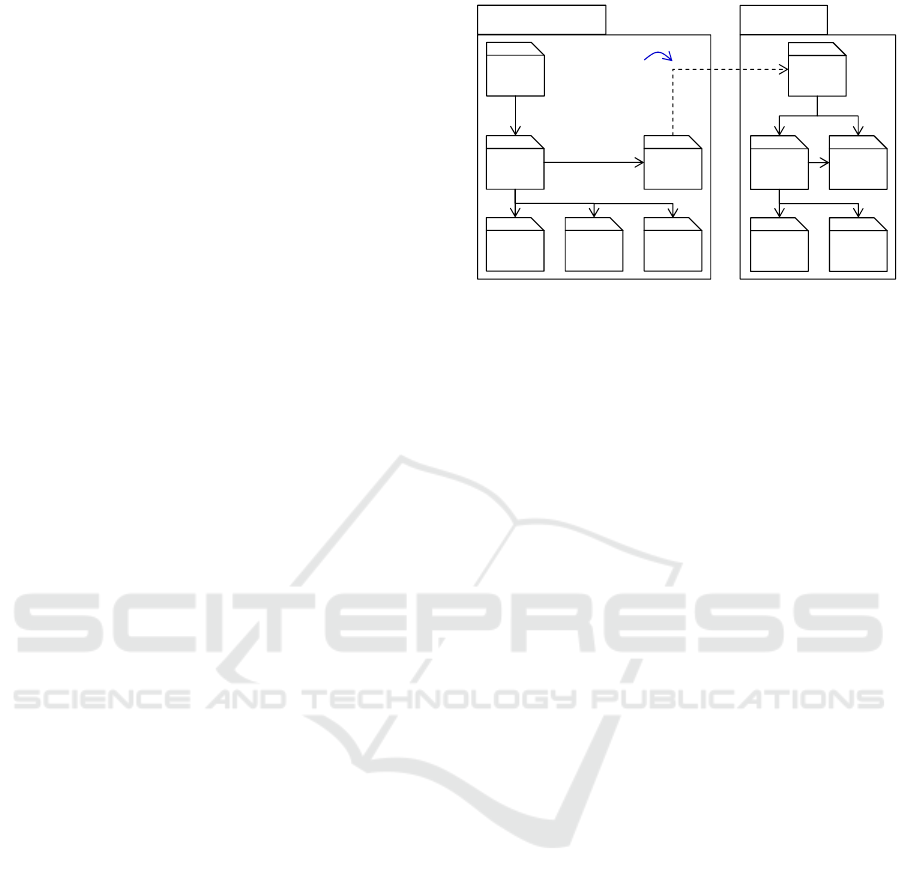

Figure 12: Behavior generator integration realization.

va/P (Schindler, 2012) programs, the other embedded

I/O automata. Additionally, we reuse parts of a ge-

nerator translating UML/P (Rumpe, 2016) class di-

agrams to Java. The quintessential templates of the

MontiArcAutomaton structure generator and the I/O

automaton generator are depicted in Figure 12. Each

generator features a main template that deﬁnes its

conﬁguration (e.g., assigning variables) and invokes

other templates.

The MontiArcAutomaton component structure

generator comprises a Component template that

invokes templates transforming ports, connectors,

subcomponents, and embedded behavior models. The

latter invokes the main template of the integrated be-

havior generators. As neither the main template, nor

the templates it invokes explicate the required para-

meters, the developer of the Behavior template must

comprehend the internals of each template of the I/O

automaton behavior generator. Similarly, the Port

template of MontiArcAutomaton’s structure genera-

tor uses the Member template of the class diagram ge-

nerator, which entails the same challenges.

Each template of the MontiArcAutomaton code

generation framework, the two behavior code gene-

rators, and the class diagram generator is post-hoc

equipped with a signature. With this, all necessary

template parameters are explicitly visible in the tem-

plate’s signatures. Therefore, our implementation ge-

nerates a statically typed interface for the template

calls, which facilitates the reuse of templates of ot-

her code generators. For example, the Java genera-

tor of MontiArcAutomaton generates private mem-

bers with getters and setters for ports in generated

component implementations. Similar to Java attribu-

tes, ports have a type and name.

With the generated template interfaces in place,

reusing templates of the class diagram generator to

produce class members from ports (passed as type and

name) is straightforward and prevents producing re-

dundant template code.

Retroﬁtting Type-safe Interfaces into Template-based Code Generators

187

requires: ASTComponent comp

provides: String className, String behaviorKind

public class ${comp.name} {

${results.setClassName(comp.name + "Impl")}

if comp.isAtomic>

results.setBehaviorKind(comp.behavior.kind)}

</#if>

<#list comp.ports as p>

${JAttribute.generate(p.type,p.name).getText()}

</#list>

}

type-safe template integration

through generated interface class

Figure 13: Component template that returns the kind of the

embedded behavior description if the component is atomic.

The correctness of the arguments passed to

the templates is checked at design time, as the

generate() methods of the template interface are

statically typed with the type of the signatures’ pa-

rameters. Furthermore, some of the MontiArc-

Automaton templates additionally deﬁne results in

their signatures. The results are used to perform post-

generation steps that are closely related to or depend

on the generated code. In MontiArcAutomaton, for

instance, this is leveraged to realize generator inte-

gration of the MAAGenerator and the generators of

employed behavior languages. The template, which

generates a component implementation, returns the

kind of the embedded behavior language (cf. l. 3 in

Figure 13). MontiArcAutomaton then decides, which

behavior generators should be called.

Black-box integration of generators relieves gene-

rator developers from knowledge about template in-

ternals and thus facilitates template reuse, which ulti-

mately decreases the time required to implement code

generators. As this use case example demonstrates,

our concept supports to apply extension mechanisms

from software language engineering to realize com-

positional, extensible code generators.

7 RELATED WORK

To the best of our knowledge, our concept to retroﬁt

type-safe template integration into existing template

engines is unique. The results in can achieve, howe-

ver, are comparable to type-safety in existing template

engines. This section discusses these relations and ag-

gregates the results in Table 1, where the last column

depicts the features of applying our template inter-

face generation concept to FreeMarker as presented

in Section 5.

Acceleo (WWWa, 2017) provides a M2T trans-

formation language that supports developing transfor-

mations as plain text ﬁles containing transformation

commands as well as target language text. Its tem-

plates yield a signature containing at least the abstract

syntax concept being transformed. It supports an op-

tional third parameter enabling to pass a list of argu-

ments (of the same type). Hence, it supports type-

safe template calls with the limitation of passing ar-

guments of the same type or their most common base

type only. It does, however, not support specifying

the templates’ return types.

The shortcomings of FreeMarker (Forsythe, 2013)

are already discussed in Section 2.1. The Epsilon Ge-

neration Language (EGL) (Rose et al., 2008), Velo-

city (Harrop, 2004), and XPand (Klatt, 2007) are tem-

plate engines similar to it. All support developing

transformations as plain text ﬁles containing code

generation commands between target language frag-

ments. Velocity and XPand also rely on inheriting lo-

cal variables to called, signature-less templates. EGL

templates can be called from a template coordination

DSL that can pass maps of arguments to the tem-

plate. As the called template’s required parameters

are not made explicit, this does not allow for static

type-safety checking.

The template engines Jamon (WWWb, 2017) and

Twirl (Saxena, 2015) both support explicit signatu-

res of template parameters and the generation of GPL

template interfaces. Hence, both support statically ty-

ped template calls. Neither supports specifying the

templates’ return types, which complicates explica-

ting the side effects of template integration.

Templates of the Java Emitter Templates

(JET) (WWWc, 2017) feature a signature that

consists of the qualiﬁed name of the Java class to

be generated and a list of loosely typed parameters

(Java Objects). While facilitating tracing between

model (parts) and GPL artifacts, it does not support

type-safe template integrations.

Xtend (Bettini, 2016) is a programming language

extending Java with templating features that facili-

tate string concatenation. Using directives and con-

trol structures embedded into the template parts of a

Xtend method supports producing the target language

text using the methods’ signature for the embedded

template. While this returning complex structure to

capture the side effects of template execution, the

Xtend methods are not generated, hence they either

require handcrafting the speciﬁc return types or rely

on passing loosely typed structures (such as sets of

Java’s objects).

We captured the features of these template engi-

nes with respect to the capabilities of our retroﬁtting

concept in Table 1. Fully conﬁgurable typed template

parameters are supported by only half of the template

engines and template return types are supported only

by Xtend. However, none of the inspected template

engines supports type-safe and complete speciﬁcation

MODELSWARD 2018 - 6th International Conference on Model-Driven Engineering and Software Development

188

Table 1: Features of template engines compared to the results of applying our concept to FreeMarker (last column).

Feature Acceleo EGL FreeMarker Jamon Twirl JET Velocity XPand Xtend Retroﬁt

Typed template

parameters

(X) × × X X X × × X X

Template return

types

× × × × × × × × X X

Side effect speci-

ﬁcation by con-

struction

× × × × × × × × × X

Statically typed

template calls

× × × X X × × × X X

GPL template in-

terfaces

× × × X X X × × X X

of side effects by construction as proposed through

generating result data structures from provided tem-

plate parameters. While this can be emulated with

Xtend by developing these data structures manually,

for each template method, this requires greater effort

and is more error-prone. However, where typed tem-

plate parameters are supported, this usually employs

GPL template interfaces that allow for statically ty-

ped template calls. Overall, this suggests that many

existing template engines could beneﬁt from retroﬁt-

ting type-safe template integration into their langua-

ges and infrastructures.

8 DISCUSSION

Our approach to retroﬁt type-safe template integration

into template engines exploits conceiving templates

as models. It rests on making the parameters expected

by templates explicit and deriving a strongly typed

GPL API from these. Hence, each template’s parame-

ters are easily accessible and errors in their parame-

trization are detected by the compiler GPL at design

time. This reduces the need to analyze the internals of

the template to be (re-)used.

Although our concept reiﬁes template signatures

on GPL level and we strongly recommend to use the

generated API even from within templates, we do not

eliminate unsafe operations from the template engine.

Considering, for instance, FreeMarker again, it is still

possible to call templates using its built-in include()

method and inheriting variables to the called template.

Eliminating this could be achieved easily by enfor-

cing a context condition prohibiting the related tem-

plate language elements, but would break backward

compatibility with existing templates.

Similar to M2M transformations, our approach

supports to optionally specify return types of templa-

tes, e.g., in terms of the abstract syntax classes pro-

duced by the respective template. This supports to

combine it with M2M transformations by interleaving

these with template calls and ultimately enables de-

velopers to choose the most suitable transformation

paradigm as appropriate.

9 CONCLUSION

We presented a concept to support the development of

template-based code generators by enabling a type-

safe template integration that ultimately facilitates

template reuse and hence code generator develop-

ment. This concept relies on considering templa-

tes as models and reifying their template languages

in a machine-processable fashion. Based on this,

template interfaces are generated that support static

checking of template argument compatibility, making

side effects of template execution explicit, and ena-

bling using the same template integration mechanism

from GPL artifacts and from within other templates.

We also illustrated the beneﬁts of this concept using

its FreeMarker-based MontiCore realization for im-

proving code generators of the MontiArcAutomaton

architecture modeling infrastructure. Despite strong

requirements (especially reifying the employed tem-

plate language), we believe that formalizing the inter-

faces of code generators can greatly facilitate their de-

velopment and, ultimately, adoption of model-driven

development.

REFERENCES

Bettini, L. (2016). Implementing domain-speciﬁc languages

with Xtext and Xtend. Packt Publishing Ltd.

Clark, T., den Brand, M., Combemale, B., and Rumpe, B.

(2015). Conceptual Model of the Globalization for

Domain-Speciﬁc Languages. In Globalizing Domain-

Speciﬁc Languages, pages 7–20. Springer.

Eysholdt, M. and Behrens, H. (2010). Xtext: implement

your language faster than the quick and dirty way.

Retroﬁtting Type-safe Interfaces into Template-based Code Generators

189

In Proceedings of the ACM international conference

companion on Object oriented programming systems

languages and applications companion, SPLASH

’10, pages 307–309, New York, NY, USA. ACM.

Forsythe, C. (2013). Instant FreeMarker Starter. Packt Pu-

blishing.

France, R. and Rumpe, B. (2007). Model-driven Develop-

ment of Complex Software: A Research Roadmap.

Future of Software Engineering (FOSE ’07), (2):37–

54.

Haber, A., Look, M., Mir Seyed Nazari, P., Navarro Perez,

A., Rumpe, B., Völkel, S., and Wortmann, A. (2015).

Composition of Heterogeneous Modeling Languages.

In Model-Driven Engineering and Software Develop-

ment, volume 580 of Communications in Computer

and Information Science, pages 45–66. Springer.

Harrop, R. (2004). Introducing Velocity, pages 1–8. Apress,

Berkeley, CA.

Jouault, F., Allilaire, F., Bézivin, J., Kurtev, I., and Val-

duriez, P. (2006). ATL: a QVT-like transformation

language. In Companion to the 21st ACM SIGPLAN

symposium on Object-oriented programming systems,

languages, and applications, pages 719–720. ACM.

Klatt, B. (2007). Xpand: A Closer Look at the model2text

Transformation Language.

Krahn, H., Rumpe, B., and Völkel, S. (2010). Monti-

Core: a Framework for Compositional Development

of Domain Speciﬁc Languages. International Jour-

nal on Software Tools for Technology Transfer (STTT),

12(5):353–372.

Medvidovic, N. and Taylor, R. (2000). A Classiﬁcation

and Comparison Framework for Software Architec-

ture Description Languages. IEEE Transactions on

Software Engineering.

Ringert, J. O., Roth, A., Rumpe, B., and Wortmann, A.

(2014). Code Generator Composition for Model-

Driven Engineering of Robotics Component & Con-

nector Systems. In Model-Driven Robot Software En-

gineering Workshop (MORSE’14), volume 1319 of

CEUR Workshop Proceedings, pages 66 – 77.

Ringert, J. O., Roth, A., Rumpe, B., and Wortmann, A.

(2015). Language and Code Generator Composition

for Model-Driven Engineering of Robotics Compo-

nent & Connector Systems. Journal of Software En-

gineering for Robotics (JOSER), 6(1):33–57.

Rose, L. M., Paige, R. F., Kolovos, D. S., and Polack,

F. A. (2008). The epsilon generation language. In

European Conference on Model Driven Architecture-

Foundations and Applications, pages 1–16. Springer.

Rumpe, B. (2016). Modeling with UML: Language, Con-

cepts, Methods. Springer International.

Saxena, S. (2015). Mastering Play Framework for Scala.

Packt Publishing Ltd.

Schindler, M. (2012). Eine Werkzeuginfrastruktur zur

agilen Entwicklung mit der UML/P. Aachener

Informatik-Berichte, Software Engineering, Band 11.

Shaker Verlag.

Vacchi, E. and Cazzola, W. (2015). Neverlang: A fra-

mework for feature-oriented language development.

Computer Languages, Systems & Structures, 43:1–40.

Völkel, S. (2011). Kompositionale Entwicklung domänen-

speziﬁscher Sprachen. Aachener Informatik-Berichte,

Software Engineering, Band 9. Shaker Verlag.

Wachsmuth, G. H., Konat, G. D. P., and Visser, E. (2014).

Language Design with the Spoofax Language Work-

bench. IEEE Software, 31(5):35–43.

WWWa (2017). Acceleo 3.1.0 user documentation. Acces-

sed: 2017-06-08.

WWWb (2017). Jamon Java Template Engine - Jamon web-

site http://www.jamon.org/. Accessed: 2017-05-03.

WWWc (2017). Java Ermitter Templates - JET Project web-

site https://eclipse.org/modeling/ m2t/?project=jet.

Accessed: 2017-05-12.

MODELSWARD 2018 - 6th International Conference on Model-Driven Engineering and Software Development

190
