Clone Detection for Ecore Metamodels using N-grams

Onder Babur

Eindhoven University of Technology, 5600 MB, Eindhoven, The Netherlands

Keywords:

Model-driven Engineering, Model Clone Detection, R, Vector Space Model, Clustering.

Abstract:

Increasing model-driven engineering use leads to an abundance of models and metamodels in academic and

industrial practice. A key technique for the management and maintenance of those artefacts is model clone

detection, where highly similar (meta-)models and (meta-)model fragments are mined from a possibly large

amount of data. In this paper we extend the SAMOS framework (Statistical Analysis of MOdelS) to clone

detection on Ecore metamodels, using the framework’s n-gram feature extraction, vector space model and

clustering capabilities. We perform a case analysis on Ecore metamodels obtained by applying an exhaustive

set of single mutations to assess the precision/sensitivity of our technique with respect to various types of

mutations. Using mutation analysis, we also brieﬂy evaluate MACH, a comparable UML clone detection tool.

1 INTRODUCTION

Model-driven engineering (MDE) promotes the use of

models (and metamodels to which they conform) as

central artefacts in the software development process.

While this is recommended for the sake of ease of de-

velopment and maintenance of software artefacts (no-

tably source code), increasing MDE adoption leads to

an abundance of models in use

. Some examples of

this include the academic efforts to gather models in

repositories, or simply large-scale MDE practices in

the industry (Babur et al., 2017). This leads to a chal-

lenge in the management and maintenance of those

artefacts. One of those challenges is the identiﬁcation

of model clones, which can be deﬁned in the most

general sense as duplicate or highly similar models

and model fragments. To draw a parallel, code clones

have attracted the attention of the source code analysis

community, who had to deal with the maintenance of

large amounts of artefacts (source code) for a longer

time than the MDE community. There is a signiﬁcant

volume of research on code clones, elaborating the

drawbacks of having clones (e.g. major source of de-

fects, higher maintenance cost, less reusability, etc.),

while providing techniques and public tools for their

detection (Roy et al., 2009).

Model clone detection, on the other hand, is a rela-

tively newer topic. Many researchers have drawn par-

allels from code clones, and claimed that a lot of the

In this context, we refer to metamodels and models

shortly as models, as metamodels are models too.

issues there can be directly translated into the world

of models. While the problem domain is indeed eas-

ily relatable, the solution proves to be a challenge.

To mention two of the arguments there, source code

clone detection usually works on linear text or ab-

stract syntax tree of the code while models are general

graphs (Deissenboeck et al., 2010); and many other

aspects are inherently different for models, such as

tool-speciﬁc representations, internal identiﬁers and

abstract vs. concrete syntaxes (St

orrle, 2013).

There are several approaches for model clone de-

tection in the literature (Deissenboeck et al., 2010),

yet we are particularly interested in ones with a pub-

licly available tool to be reused in our studies. A

good portion of such tools are either limited to, tai-

lored for, or evaluated on MATLAB/Simulink mod-

els, and built on top of a backend originally intended

for code clone detection. Notable examples are Con-

QAT/CloneDetective (Deissenboeck et al., 2008); and

Simone/NiCaD (Alalﬁ et al., 2012). Another interest-

ing approach for Simulink models is ModelCD based

on graph comparison (Pham et al., 2009), but the tool

is not publicly available. Last but not least, St

orrle

presents an approach and an accompanying avail-

able tool, MQ

lone

, for UML models (St

orrle, 2015).

There, the author elaborately describes and classiﬁes

UML model clones; noting the differences compared

to code clones and Simulink model clones. Further-

more, the author reports for MQ

lone

a much higher

performance and scalability compared to ConQAT

and ModelCD. Another recent account of relatively

Babur, Ö.

Clone Detection for Ecore Metamodels using N-grams.

DOI: 10.5220/0006604604110419

In Proceedings of the 6th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2018), pages 411-419

ISBN: 978-989-758-283-7

411

low scalability of those tools can be found in the liter-

ature (Str

uber et al., 2016). MQ

lone

is integrated into

the publicly available tool suite MACH

, though in

a very limited manner - with almost no control over

the rich set of algorithms and settings developed by

orrle. Other approaches, though of relatively less

importance for the scope of this paper, involve clone

detection and/or model matching for UML sequence

diagrams (Liu et al., 2006) and business process mod-

els (Dijkman et al., 2011).

In pursuit of detecting clones in large repositories

of Ecore metamodels and large evolving industrial

domain-speciﬁc language (DSL) ecosystems based

on Eclipse Modelling Framework (EMF), we have

investigated the feasibility of existing tools for our

purpose with three major requirements: (1) concep-

tual and technological applicability to Ecore meta-

model clones; (2) sensitivity to all possible meta-

model changes, in other words accuracy; and (3) scal-

ability for large datasets. As a starting point, we have

turned to MACH as a promising candidate. While

scoring very high with respect to the ﬁrst and third

requirement (as metamodels are similar to UML class

diagrams), it has underperformed in terms of the sec-

ond one as we will show in Section 5.

We have eventually taken an orthogonal approach

by extending and applying the SAMOS framework

(Statistical Analysis of MOdelS), a novel tool de-

veloped for large-scale analysis of models (Babur,

2016). We wish to exploit the underlying capabil-

ities of the framework - incorporating information

retrieval-based fragmentation, natural language pro-

cessing and statistical algorithms - for model clone

detection. In this paper, we describe how we have

extended and tailored SAMOS for metamodel clone

detection. To mine metamodel clones, we have used

the n-gram feature extraction facility of the frame-

work, integrating additional scoping capability and

extended distance measures and a density based clus-

tering algorithm. We have evaluated our technique

using the mutation analysis approach (Stephan et al.,

2013) based on single mutations, where we performed

a case analysis to assess the sensitivity of our tech-

nique for each case. We ﬁnally draw conclusions on

the applicability of SAMOS to metamodel clone de-

tection and suggest potential future work in terms of

our technique and its further evaluation.

http://www2.compute.dtu.dk/ hsto/tools/mach.html

2 BACKGROUND: STATISTICAL

ANALYSIS OF MODELS

We outline here the underlying concepts of

SAMOS (Babur, 2016) and (Babur et al., 2016)

inspired by information retrieval (IR) and machine

learning (ML) domains. IR deals with effectively

indexing, analyzing and searching various forms

of content including natural language text docu-

ments (Manning et al., 2008). As a ﬁrst step for

document retrieval in general, documents are col-

lected and indexed via some unit of representation.

Index construction can be implemented using vector

space model (VSM) with the following major com-

ponents: (1) a vector representation of occurrence of

the vocabulary in a document, named term frequency,

(2) zones (e.g. ’author’ or ’title’), (3) weighting

schemes such as inverse document frequency (idf),

and zone weights, (4) Natural Language Processing

(NLP) techniques for handling compound terms,

detecting synonyms and semantically related words.

The VSM allows transforming each document into

an n-dimensional vector, thus resulting in an m × n

matrix for m documents. Over the VSM, document

similarity can be deﬁned as the distance (e.g. eu-

clidean or cosine) between vectors. These can be

used for identifying similar groups of documents in

the vector space via an unsupervised ML technique

called clustering (Manning et al., 2008).

SAMOS applies this workﬂow to models: starting

with a metamodel-driven extraction of features. Fea-

tures can be, for instance, singleton names of model

elements (very similar to the vocabulary of docu-

ments) or n-gram fragments (Manning and Sch

utze,

1999) of the underlying graph structure. N-grams

originate from computational linguistics and repre-

sent linear encoding of (text) structure. An exam-

ple in our context, an example n-gram for a UML

class diagram would be for n = 2 a Class containing

a Property (Babur and Cleophas, 2017). Via compar-

ison schemes (e.g. whether to check types), weight-

ing schemes (e.g. Class weight higher than Property)

and NLP (stemming/lemmatisation, typo and syn-

onym checking, etc. ), it computes a VSM. Applying

various distance measures suitable to the problem at

hand, SAMOS applies different clustering algorithms

(via the R statistical software) and can output auto-

matically derived cluster labels or diagrams for visu-

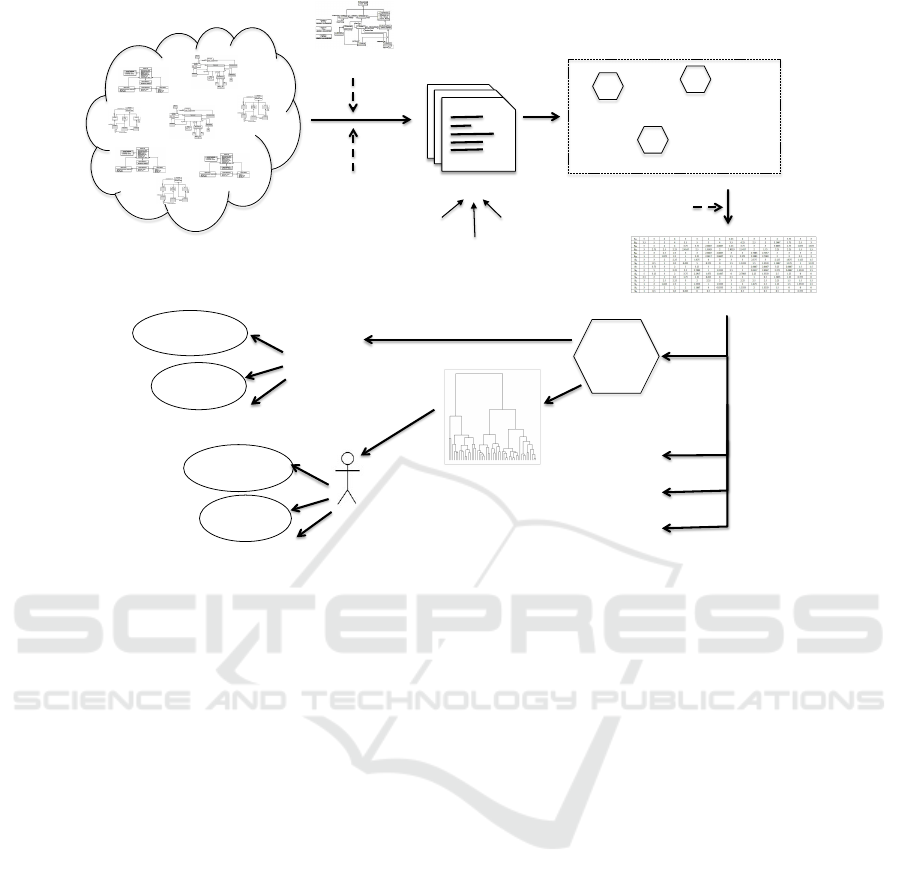

alisation and manual inspection/exploration. Figure 1

roughly illustrates the workﬂow, with key steps of the

workﬂow and several application areas including do-

main analysis and clone detection.

MODELSWARD 2018 - 6th International Conference on Model-Driven Engineering and Software Development

412

Set$of$models$

Metamodel$

Features$

NLP$

Tokeniza8on$

$Matching$scheme$

Weigh8ng$scheme$

VSM$

Distance$

calcula8on$

Clustering$

Dendrogram$

Automated$extrac8on$

Inferred$

clusters$

Extrac8on$$

scheme$

Filtering$

Synonym$

detec8on$

…$

Data$selec8on,$

ﬁltering$

Clone$

detec8on$

…$

Classiﬁca8on$

Analysis$

…$

Repository$

management$

Domain$

analysis$

…$

NJgrams$

Metrics$

…$

Manual$

inspec8on$

Figure 1: Overview of SAMOS workﬂow.

3 METAMODEL CLONES

Metamodel clones might exist due to a wide range

of reasons including copy-paste or clone-and-own

approaches for development (Deissenboeck et al.,

2010), or lack of abstraction mechanisms in meta-

models (Sutii et al., 2017). In our research, we are

interested in ﬁnding similar (fragments of) metamod-

els, with several problems at hand. A non-exhaustive

list is as follows:

• Clone detection in DSL ecosystems for quality as-

surance/refactoring,

• Empirical studies on DSL evolution and compari-

son of DSLs from related domains,

• Clone detection in metamodel reposito-

ries/datasets for repository management and

data preprocessing,

• Plagiarism detection in the assignments of our

metamodelling course.

While metamodel clones have not been speciﬁ-

cally studied in the literature, they possess a certain

parallelism to UML domain models, class diagrams

in particular. Hence our conceptualisation of meta-

model clones is mostly adopted from (St

orrle, 2015).

orrle presents a series of arguments involving sev-

eral characteristics of models such as secondary no-

tation, internal identiﬁers, and most importantly em-

phasises that names of model elements are essential

parts of models. We agree with all of the arguments

in the context of EMF metamodel clones, and the

contrast with the common model clone classiﬁcation

scheme for Simulink models. For Simulink mod-

els, the classiﬁcation includes Type-I clones for ex-

act clones, Type-II for renamed clones with consis-

tently changed identiﬁers, Type-III near-miss clones

with small changes in model elements (Alalﬁ et al.,

2012). A notable change is that St

orrle’s classiﬁcation

rules out Type-II clones due to the indispensability of

element names. Our clone classiﬁcation is the fol-

lowing, adding a few NLP-related items to St

orrle’s

classiﬁcation and omitting Type-D (for the scope of

this paper):

• Type-A. duplicate model fragments except sec-

ondary notation (layout, formatting), internal

identiﬁers.

– Plus any cosmetic change in the names (lower-

/uppercase, snake-/camelcase, etc. )

• Type-B. duplicate model fragments with small

percentage of changes to names, types, attributes,

few additions/removals of parts.

– Plus potentially many syntactic/semantic

changes in the names such as typos, synonyms.

• Type-C. duplicate with substantial percentage of

changes/additions/removals of names, types, at-

tributes and parts.

Clone Detection for Ecore Metamodels using N-grams

413

4 EXTENDING SAMOS FOR

CLONE DETECTION

We have extended various features of SAMOS, in or-

der to apply it to metamodel clone detection. In this

section, we elaborate the extensions, compartmen-

talised as key steps of the workﬂow.

Scoping. While originally the framework handles

whole models and extracts all the model elements

contained, we introduce the notion of scoping to de-

ﬁne the granularity of independent data elements. For

Ecore metamodels, we deﬁne three scopes: whole

model, EPackage and EClass. The scope guides the

extraction by mapping a model into one (e.g. whole

model) or more data points (e.g. per EPackage con-

tained). Given a ﬁxed scope, we adopt the approach

in (St

orrle, 2015) and cover all the model elements

under transitive containment closure of that starting

model element. Note that scoping does not affect the

features (i.e. columns) in the vector space, but only

the data points (i.e. rows).

Extracting Model Element Information. The

main unit of information extracted by SAMOS has

previously been the so called type-name pair, which

essentially maps to a vertex in the underlying graph

of the model. Such a pair encodes the domain

type (eType) information (e.g. EClass) and the name

(e.g. Book) of a model element. For proper clone

detection, we need to cover all the information in

a model element, including attributes (e.g. whether

an EClass is abstract), cardinalities (e.g. of ERefer-

ences), and so on. We also need to explicitly capture

the edges (e.g. containment) to include for compari-

son. Therefore, we have extended the original feature

hierarchy in SAMOS with (1) AttributedNode, which

holds all the information of a vertex including domain

type, name, type, attributes, etc. as key-value pairs;

and (2) SimpleType, which holds only type informa-

tion - e.g. the edge type of containment in this work.

There are several implementation details to men-

tion further about the extraction:

• Our current implementation covers the full Ecore

meta-metamodel for extraction, except EAnnota-

tions, EFactories and generic types.

• Observing that most attributes in Ecore metamod-

els are used with default values, we only encode

non-default values in our AttributedNodes to re-

duce the data size and speed up the comparison.

• Another change from (Babur et al., 2016) is

that we push the type information (e.g. what

EDataType is assigned to an EAttribute) into the

AttributedNode, rather than representing it as a

separate vertex connected to the original vertex.

This is done so that the framework avoids match-

ing irrelevant features just because of matching

types, e.g. all EAttributes with the type String.

EPackage(

BIBTEX(

EPackage(

BIBTEX(

EClass(

LocatedElement(

EA7ribute(

loca<on(

EClass(

Bibtex(

EReference(

entries(

EClass(

Entry(

EA7ribute(

key(

EPackage(

Types(

EDataType(

Integer(

contains(

typeof(

supertype(

typeof(

EDataType(

EString(

typeof(

EDataType(

EInteger(

Figure 2: A simpliﬁed graph representation for a model.

To exemplify, see the graph in Figure 2, where

the vertices are simpliﬁed to domain type and name

information with the rest of the attributes being hid-

den. Several example AttributedNode features to be

extracted in our approach would be:

• v

= {name : LocatedElement, type :

EClass, abstract : true},

• v

= {name : location, type : EAttribute, eType :

EString, lowerBound : 1},

• v

= {name : Bibtex, type : EClass},

• v

= {name : entries, type : ERe f erence, eType :

Entry, unique : true, . . .},

• v

= {name : Entry, type : EClass, abstract :

true}.

Encoding Structure in N-grams. Referring

to (Babur and Cleophas, 2017) we have basically two

options for representing structure as features. We

can either (1) ignore the model structure completely,

using vertices as is, i.e. the unigram setting; or (2)

encode structure in linear chunks, i.e. the n-gram

(with n > 1) setting. In terms of the conceptual

feature hierarchy, one can think of unigrams as

corresponding to SimpleFeatures, while n-grams

are aggregate features with multiple SimpleFeatures

contained. Based on the underlying graph for a

model, we can describe n-grams as n consecutively

connected vertices. In contrast with (Babur and

Cleophas, 2017), we also incorporate the edges in the

n-grams as SimpleTypes. Some bigrams (n = 2) from

Figure 2 would be:

MODELSWARD 2018 - 6th International Conference on Model-Driven Engineering and Software Development

414

• b

= (v

, contains, v

• b

= (v

, hasSupertype, v

N-gram Comparison. As n-grams consist of Sim-

pleFeature vertices, we ﬁrst deﬁne the extended ver-

tex comparison to account for attributes with the fol-

lowing multiplicative vertex similarity formula:

vSim(n

, n

) = nameSim(n

, n

)∗typeSim(n

, n

)∗

eTypeSim(n

, n

) ∗ attrSim(n

, n

) (1)

where nameSim is the NLP-based similarity be-

tween the names, typeSim and eTypeSim between the

domain types and eTypes of the AttributedNodes, and

for attributes other than name, type and eType, at-

tribute similarity being:

attrSim(n

, n

) = 1 −

# unmatched attributes

total # attr. for types

(2)

The framework allows relaxing those categories

(e.g. inserting a reducing multiplier of 0.5 for

non-matching types). N-gram comparison is the

semi-relaxed formula (Babur and Cleophas, 2017)),

i.e. given n-grams p

and p

with 2n − 1 elements (n

vertices and n −1 edges), the n-gram similarity is:

nSim(p

, p

) = ctxMult(p

, p

) ∗

2n−1

∑

i=1

vSim(v

, v

)

(3)

ctxMult(P

, P

) =

1 + |nonzero vSim matches|

1 + (2n − 1)

(4)

Weighting. SAMOS supports type-based and idf

weighting for features. While the latter is to be inves-

tigated further in the future (e.g. for ordering of clones

in a clone report), we exploit type-based weight-

ing to reduce the representative importance of cer-

tain features. Features with more important types are

given higher weights; for instance, matching EClasses

should be favored against e.g. matching EParameters.

Distance Measurement. Originally SAMOS

adopted a regular VSM approach: a choice of a

distance measure (e.g. cosine and Manhattan) and

calculation of the distance over the whole VSM.

We have identiﬁed several shortcomings in the

context of clone detection, and extended the distance

measurement.

• Manhattan distance is an absolute measure and

cosine is normalised but size-agnostic. Therefore

we cannot use them directly for clone detection.

There are several measures in the literature (im-

plemented in R) that fulﬁl the requirements of

normalisation and size-sensitivity, such as Bray-

Curtis and canberra (Deza and Deza, 2009).

• VSM assumes orthogonality of the features, and

takes all columns into account for distance calcu-

lation. This is violated in our case where our fea-

tures are often (partly) similar to many other fea-

tures and hence not orthogonal. For clone detec-

tion, we limit the distance calculation to the union

of originally contained features by the two enti-

ties, rather than all the features in the dataset.

For the reasons above, we have integrated a

masked variant of Bray-Curtis distance (Equation 5)

into SAMOS, extending the default distance func-

tion in the R package vegan. Given an N dimen-

sional vector space, data points (e.g. model, EClass,

etc. depending on the scope) of P consisting of fea-

tures P

, . .. ,P

and Q consisting of Q

, . .. ,Q

, p and

q the corresponding vectors on the full vector space

for P and Q, the masked bray-curtis distance is over

the vector subspace P ∪Q (size ≤ m + n) as:

bray(P, Q) =

∑

P∪Q

− q

∑

P∪Q

+ q

)

, (5)

Clustering. As the ﬁnal step of the SAMOS work-

ﬂow, we wish to apply clustering on top of the cal-

culated distances to obtain the clone clusters. This in

turn can be boiled down to ﬁnding non-singleton (size

≥ 2) and sizeable (size ≥ n) groups of data points

that are similar (distance ≤ t); with n and t thresholds

depending on the application case. While SAMOS

originally supports k-means and hierarchical cluster-

ing, we have opted for Density-Based Spatial Cluster-

ing of Applications with Noise (dbscan) (Ester et al.,

1996). The algorithm (implemented in R package db-

scan) uses two parameters, minimum Points (i.e. n)

and ε distance (i.e. t) to compute density-reachable

regions as clusters, with non-reachable regions being

labelled as noise. While technical details are beyond

the scope of this paper, dbscan possesses some prop-

erties that we desire for clone detection. dbscan:

• can detect clusters in various (non-convex, non-

spherical) shapes,

• can natively detect noise, i.e. non-clones,

• is suitable and efﬁcient for large datasets.

5 MUTATION ANALYSIS

We have adopted a conceptual framework for validat-

ing our approach (Stephan and Cordy, 2014). The

Clone Detection for Ecore Metamodels using N-grams

415

framework suggests using mutation analysis to evalu-

ate model clone detection techniques. In this section,

we detail our assumptions, case design and goals. We

ﬁrst introduce a brief evaluation of MACH using the

mutations (for UML class diagrams) and report its

shortcomings. Finally we present the results of our

techniques on the mutated dataset and discuss the po-

tential strengths and weaknesses.

Case Design. First we make the simplifying as-

sumption (for the scope of this paper) that we are in-

terested in EClass clones in Ecore metamodels. In-

specting the Ecore meta-metamodel, we identiﬁed 36

mutations that we believe to represent possible and

noteworthy atomic/small changes in an EClass. They

contain addition, removal and changing of model ele-

ments, renaming and ﬁnally reorder, move and swap

operations. Using a medium-sized base EClass con-

sisting of 1 super type, 5 EAttributes, 2 ERefer-

ences and 1 EOperation in turn with 1 EParameter

and 1 EException, we used the mutation framework,

WODEL (G

omez-Abajo et al., 2016), where possible

to automatically inject those mutations into the base

metamodel. WODEL contains a DSL for specifying

the mutations and the mutation workﬂow in a very

convenient and maintainable way.

The mutations are mostly trivial operations of

adding, removing, etc. We added three speciﬁc mu-

tations involving element names: cosmetic renaming

(such as lower vs. upper case, camel vs. snake case),

adding a typo, and replacing with a synonym. We

further added two regular and two corner cases of

move and swap operations (last rows of Table 1) in

order to demonstrate the approximate nature of infor-

mation representation in our technique. The regular

case for move involves simply moving a model ele-

ment elsewhere. In contrast, the corner case for move

involve moving a model element A contained in B

into a distinct container B’, with the condition that

vsim(B, B

) = 1 (same vertex similarities) - a change

easily detectable using graph isomorphism but possi-

bly not by approximate techniques such as ours. Swap

mutations are designed in a similar manner.

Last but not the least, we manually replicated all

the mutations on a comparable UML class diagram in

order to evaluate MACH.

Brief Evaluation of MACH. St

orrle has developed

a variety of algorithms with different settings in the

lone

clone detector. However they are not entirely

available, being integrated in a rather limited way

into the MACH toolset. So we proceeded to analyse

the output of MACH. We fed MACH all the mutated

cases and observed what it calculated as their pairwise

difference with respect to the base model. We noted

down the (changes in the) absolute similarity values

and identiﬁed several shortcomings of the tool. In our

tests MACH seemed to:

• ignore types (e.g. of properties, parameters), mod-

iﬁers, modiﬁers (e.g. ﬁnal Class), cardinalities,

exceptions,

• not handle Class renaming properly; i.e. not

recognise the two classes as clones,

• not recognise changing of Class super type,

• not recognise all move/swaps,

• not consistently handle typos and cosmetic

changes in the element names; i.e. treat them as

complete renaming,

• not support semantic relatedness of words,

e.g. synonymy.

Goals. Ideally, we wish to obtain zero distance for

mutations leading to Type A clones (G1), and positive

distance for mutations leading to higher level clones

(G2). For the latter, we also wish to have the distance

reasonably small (e.g < 0.05 as a breaking point to-

wards Type C) given that all the mutations in this sec-

tion are atomic/small (G3), and match an intuitive as-

sessment of distance, e.g. changing just a EParameter

is less signiﬁcant than changing an EAttribute (G4).

A ﬁnal desirable property is that bigger changes lead

to higher distances than their smaller counterparts,

e.g. distance for introducing a typo in the name is

smaller than complete renaming; or changing the type

smaller than removing the element altogether (G5).

Evaluation and Discussion of SAMOS. We have

in turn applied our clone detection technique and re-

port here the distance measure between each case and

the base metamodel. We have used different feature

schemes (unigrams and bigrams) using Bray-Curtis

distance the optional scheme (raw/weighted). Table 1

gives a representative subset of the results.

In general, the results look promising, though not

without certain errors and weaknesses for particular

settings - most prominent errors are bolded in the ta-

ble. G1 is not violated by any technique in the two

cases with cosmetic changes and reordering. G2 is

violated in a number of cases. Unigrams (not unex-

pectedly, as they ignore structural context) evaluate

quite some mutations with zero distance. Furthermore

move/swap mutations are mostly undetected by our

technique. G3 is not uniformly satisﬁed but the re-

sults are generally acceptable given a relaxed thresh-

old range of 0.05−0.10. While relatively large values

for mutations involving EOperations don’t matter too

much, considering that removing it is in fact removing

all its content as well (e.g. EParameters). Arguably

MODELSWARD 2018 - 6th International Conference on Model-Driven Engineering and Software Development

416

Table 1: Distances to the base model for each mutant (rows) and different setting (columns).

Mutation applied Unigram Bigram

bray raw bray wght bray raw bray wght

addEClassSupertype 0.000 0.000 0.043 0.045

addEClassEAttribute 0.047 0.048 0.050 0.052

addEClassEOperation 0.089 0.039 0.062 0.056

. . .

changeEClassNameRandom 0.098 0.201 0.743 0.778

changeEClassSupertype 0.000 0.000 0.014 0.012

changeEAttributeNameRandom 0.098 0.100 0.010 0.010

changeEAttributeType 0.072 0.073 0.005 0.005

changeEAttributeAttribute 0.013 0.013 0.001 0.001

changeEOperationNameRandom 0.107 0.066 0.045 0.022

. . .

removeEClassSuperType 0.000 0.000 0.050 0.049

removeEClassEAttribute 0.051 0.053 0.055 0.058

removeEClassEOperation 0.119 0.047 0.097 0.075

. . .

changeEAttributeNameCosmetic 0.000 0.000 0.000 0.000

changeEAttributeNameTypo 0.004 0.005 0.001 0.001

changeEAttributeNameSynonym 0.002 0.002 0.001 0.001

reorder element 0.000 0.000 0.000 0.000

move element 0.000 0.000 0.032 0.033

swap element 0.000 0.000 0.000 0.000

move into similar container 0.000 0.000 0.000 0.000

swap with similar container 0.000 0.000 0.000 0.000

the biggest issue, as bolded in the table, is with bi-

grams for renaming an EClass: due to the nature of

feature extraction (i.e. bigrams), vertices with high

number of outgoing edges (e.g. EClasses typically

having many types of elements) are over-represented

in the vector space. They are present in many fea-

tures, hence any change leads to a larger distance in

the vector space. G4 in turn is partly improved by ap-

plying weighted distances for each technique. Indeed,

ﬁne-tuning of the weighting (possibly with more ad-

vanced schemes) would further improve G3 (partly)

and G4; nevertheless we ﬁnd the results satisfactory

given the scope of this work. Finally, G5 is relatively

well achieved overall.

6 DISCUSSION

In this section we discuss several aspects of our ap-

proach and the techniques we developed.

Underlying Framework. We have built our clone

detection technique on top of SAMOS, exploiting its

capabilities such as NLP and statistical algorithms for

free. The framework has allowed us easily extend it,

e.g. in terms of extraction of new features, addition of

new distance measures. This is one of the strengths of

our approach, also considering recent developments

within SAMOS such as support for distributed com-

puting and more sophisticated NLP. Using R as the

back-end enables us to further experiment with ad-

vanced statistical and data mining techniques. More-

over, SAMOS is in principle generic, as it can be ap-

plied to any graph-based model with a corresponding

feature extraction implementation.

Accuracy. We have evaluated our technique with

mutation analysis in order to assess the accuracy in

terms of correctly yielding the expected distance be-

tween the mutated and base model. As given in Ta-

ble 1, our technique with the different settings leads

to varying degrees of accuracy; we believe to have

achieved a good overall accuracy using bigrams. Note

that some of the issues with the sensitivity can be

remedied with more optimised or advanced weight-

ing schemes for each setting. Qualitative case anal-

ysis based on mutations further allows us to pinpoint

the weaknesses of our approach and improve it where

applicable.

Other Practical Aspects. Several aspects other

than accuracy are reported in the literature as im-

Clone Detection for Ecore Metamodels using N-grams

417

portant for applying model clone detection in prac-

tice (Deissenboeck et al., 2010; Stephan and Cordy,

2014). In this work, we have ﬁxed scoping of EClass,

thus do not run into the nested clones problem.

This would be somewhat important for e.g. EPackage

scope, but even more so for other types of models.

Other aspects including clone ranking, reporting and

inspection, visualisation are also left as future work.

Threats to Validity. A threat to validity due to the

preliminary nature of this study is the limited evalu-

ation on a synthetic dataset using a single mutation

analysis approach. Further evaluation using chains

of mutations which lead to Type C clones, and even-

tually using a real dataset is needed. It is at this

phase not clear to us what the frequency of the various

changes (i.e. mutations) is in reality, which directly

contributes to the overall accuracy of our approach

(cf. the weakness of bigrams for certain mutations).

An evaluation on a real dataset, combined with addi-

tional comparative evaluation of existing model clone

detectors would be necessary to properly assess the

precision and more importantly our relative recall.

7 CONCLUSION AND FUTURE

WORK

In this paper we present a novel model clone detec-

tion approach based on SAMOS using information

retrieval and machine learning techniques. We have

extended SAMOS with additional scoping, compari-

son schemes, customised distance measures and clus-

tering algorithms in the context of metamodel clone

detection. We have evaluated our approach using mu-

tation analysis and identiﬁed the strengths and weak-

nesses of our approach in a case-based manner.

As future work, we plan to further extend SAMOS

with additional features (e.g. n-grams with n > 2 and

subtrees), customised, improved weighting schemes,

distance measures and statistical algorithms. Another

next step is to extend state-of-the-art model clone

detectors such as Simone, ConQAT and MQ

lone

for

metamodel clone detection for evaluating those tools

separately and comparatively with our approach for

precision and relative recall.

REFERENCES

Alalﬁ, M. H., Cordy, J. R., Dean, T. R., Stephan, M., and

Stevenson, A. (2012). Models are code too: Near-

miss clone detection for simulink models. In Software

Maintenance (ICSM), 2012 28th IEEE Int. Conf. on,

pages 295–304. IEEE.

Babur,

O. (2016). Statistical analysis of large sets of mod-

els. In 31th IEEE/ACM Int. Conf. on Automated Soft-

ware Engineering, pages 888–891.

Babur,

O. and Cleophas, L. (2017). Using n-grams for the

automated clustering of structural models. In 43rd

Int. Conf. on Current Trends in Theory and Practice

of Computer Science, pages 510–524.

Babur,

O., Cleophas, L., and van den Brand, M. (2016). Hi-

erarchical clustering of metamodels for comparative

analysis and visualization. In Proc. of the 12th Eu-

ropean Conf. on Modelling Foundations and Applica-

tions, 2016, pages 3–18.

Babur,

O., Cleophas, L., van den Brand, M., Tekinerdogan,

B., and Aksit, M. (2017). Models, more models and

then a lot more. In Grand Challenges in Modeling, to

appear.

Deissenboeck, F., Hummel, B., Juergens, E., Pfaehler, M.,

and Schaetz, B. (2010). Model clone detection in prac-

tice. In Proc. of the 4th Int. Workshop on Software

Clones, pages 57–64. ACM.

Deissenboeck, F., Hummel, B., J

urgens, E., Sch

atz, B.,

Wagner, S., Girard, J.-F., and Teuchert, S. (2008).

Clone detection in automotive model-based devel-

opment. In Software Engineering, 2008. ICSE’08.

ACM/IEEE 30th Int. Conf. on, pages 603–612. IEEE.

Deza, M. M. and Deza, E. (2009). Encyclopedia of Dis-

tances. Springer.

Dijkman, R., Dumas, M., van Dongen, B., K

arik, R.,

and Mendling, J. (2011). Similarity of business pro-

cess models: Metrics and evaluation. Inf. Systems,

36(2):498–516.

Ester, M., Kriegel, H.-P., Sander, J., and Xu, X. (1996).

A density-based algorithm for discovering clusters a

density-based algorithm for discovering clusters in

large spatial databases with noise. In Proc. of the

Second Int. Conf. on Knowledge Discovery and Data

Mining, KDD’96, pages 226–231. AAAI Press.

omez-Abajo, P., Guerra, E., and de Lara, J. (2016). Wodel:

a domain-speciﬁc language for model mutation. In

Proceedings of the 31st Annual ACM Symposium on

Applied Computing, pages 1968–1973. ACM.

Liu, H., Ma, Z., Zhang, L., and Shao, W. (2006). Detect-

ing duplications in sequence diagrams based on sufﬁx

trees. In Software Engineering Conf., 2006. APSEC

2006. 13th Asia Paciﬁc, pages 269–276. IEEE.

Manning, C. D., Raghavan, P., Sch

utze, H., et al. (2008).

Introduction to information retrieval, volume 1. Cam-

bridge University Press.

Manning, C. D. and Sch

utze, H. (1999). Foundations of

Statistical Natural Language Processing. MIT Press.

Pham, N. H., Nguyen, H. A., Nguyen, T. T., Al-Kofahi,

J. M., and Nguyen, T. N. (2009). Complete and ac-

curate clone detection in graph-based models. In Pro-

ceedings of the 31st Int. Conf. on Software Engineer-

ing, pages 276–286. IEEE Computer Society.

Roy, C. K., Cordy, J. R., and Koschke, R. (2009). Compari-

son and evaluation of code clone detection techniques

MODELSWARD 2018 - 6th International Conference on Model-Driven Engineering and Software Development

418

and tools: A qualitative approach. Science of Com-

puter Programming, 74(7):470 – 495.

Stephan, M., Alaﬁ, M. H., Stevenson, A., and Cordy, J. R.

(2013). Using mutation analysis for a model-clone

detector comparison framework. In Int. Conf. on Soft-

ware Engineering, pages 1261–1264. IEEE.

Stephan, M. and Cordy, J. R. (2014). Model clone detector

evaluation using mutation analysis. In ICSME, pages

633–638.

orrle, H. (2013). Towards clone detection in uml domain

models. Software & Systems Modeling, 12(2):307–

329.

orrle, H. (2015). Effective and efﬁcient model clone de-

tection. In Software, Services, and Systems, pages

440–457. Springer.

Str

uber, D., Pl

oger, J., and Acret¸oaie, V. (2016). Clone

detection for graph-based model transformation lan-

guages. In Int. Conf. on Theory and Practice of Model

Transformations, pages 191–206. Springer.

Sutii, A. M., van den Brand, M., and Verhoeff, T. (2017).

Exploration of modularity and reusability of domain-

speciﬁc languages: an expression DSL in metamod.

Computer Languages, Systems & Structures.

Clone Detection for Ecore Metamodels using N-grams

419
