ToMMI

A Software Library for Multiplatform Tangible Mobile Interaction

Francesco Strada and Andrea Bottino

Department of Control and Computer Engeneering, Politecnico di Torino, Torino, Italy

Keywords:

Tangible Interaction, Capacitive Displays, Passive Tokens, Multiplatform Mobile Computing.

Abstract:

In this paper we present ToMMI (TOkens for Multiplatform tangible Mobile Interaction), a software library

capable of supporting both tangible and multi-touch interaction on mobile devices. ToMMI exploits 3D printed

tokens that can be recognized and tracked on devices equipped with commercial capacitive displays. Results

shows that the computational core of ToMMI is lightweight and can extract token information in less than

a millisecond. Furthermore, the library has an intuitive interface, which facilitates its use, and it is based

on a portable framework that guarantees the deployment of any application based on it on a plethora of dif-

ferent smartphones and tablets. We also report that ToMMI code is available, open source, for the research

community.

1 INTRODUCTION

The introduction of multi-touch surfaces has rapidly

changed the way we access technology and digital in-

formation. Nowadays, we use touch to interact with

our smartphones, laptops, ATMs and smart TV sets.

Multi-touch interfaces (MTIs) are simple and intu-

itive to use, since they provide a direct and more nat-

ural interaction with on-screen contents. Another in-

teresting approach is that of Tangible User Interfaces

(TUIs), which enable interacting with digital informa-

tion through the manipulation of physical objects of

the real world (Ishii, 2008).

The integration of these two approaches offers a

seamless information representation and interaction

that spans both digital and physical worlds and has the

potential to improve the user experience, to enhance

learning and discovery activities in educational con-

texts and even to promote collaboration, information

sharing and the rise of social experiences (Yu et al.,

2011). These opportunities have been investigated

in several works, mainly exploiting interactive table-

tops. In order to support the implementation process

on these devices, several tools and SDKs have been

developed and shared with the research community

(Jord

a et al., 2007; Reactivision, 2016; CCV, 2016).

Given the large diffusion of low-cost consumer mo-

bile devices, commercial MTI-TUI applications for

these platforms are starting to be available as well

(AppMATes, 2016; Tiggly, 2016). However, as op-

posed to interactive tabletops, there is actually a lack

of tools supporting the development in the mobile

area. In order to contribute to the problem, this paper

describes ToMMI (TOkens for Multiplatform tangible

Mobile Interaction), a robust and low-cost solution

that facilitate the implementation and multi-platform

deployment of MTI-TUI mobile applications.

As we introduced, the problem of using tangibles

has been initially tackled in the area of tabletop com-

puting, where tangibles are usually tracked by means

of computer vision algorithms that analyze images of

a camera placed underneath the interaction surface.

To simplify information extraction, tangibles are nor-

mally equipped with ﬁducial markers (Jord

a et al.,

2007).

With mobile devices, the computer vision ap-

proach is clearly unsuitable. However, since these

devices are equipped with capacitive screens, one

straightforward approach is developing tags capable

of emulating ﬁnger touches. This can be done ei-

ther using different conductive materials (passive to-

kens) or circuits (active tokens). Passive tokens are

usually characterized by a pattern of touch points on

their base that allow encoding data like ID, position

and orientation (Kratz et al., 2011; Chan et al., 2012).

Passive tokens can be easily and cheaply manufac-

tured but they require human contact to be sensed. On

the contrary, the fact that active markers are based on

different electronic circuits allows them to be sensed

without direct user touch but, at the same time, makes

them more expensive and technologically complex

(Yu et al., 2010; Yu et al., 2011). Moreover, they

100

Strada F. and Bottino A.

ToMMI - A Software Library for Multiplatform Tangible Mobile Interaction.

DOI: 10.5220/0006141401000107

In Proceedings of the 12th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2017), pages 100-107

ISBN: 978-989-758-229-5

often have a greater dimension compared to passive

markers (Voelker et al., 2013), thus occluding larger

parts of the display.

As an alternative, approaches based on magnetic

sensing have been proposed (Liang et al., 2014a;

Liang et al., 2014b; Patten and Ishii, 2007). These

tangibles are characterized by a case containing sev-

eral magnets, whose position is sensed by a Hall sen-

sor grid attached on the back of the display. Hence, a

clear disadvantage of this technology is that it requires

external hardware to track the tokens.

The approach we propose with ToMMI is based

on two elements: (i) the design of custom capaci-

tive passive markers, and (ii) the development of a

lightweight software library for identifying and track-

ing them. Similar to other works, our tokens are

characterized by unique patterns of conductive touch

points that encode position, orientation and ID. In

particular, the token design is the result of a com-

promise between two conﬂicting constraints. First,

since usual tablets screen require the smallest token

to avoid screen occlusion, we tried to minimize their

size while guaranteeing a reliable extraction of the

required information. Second, since most capaci-

tive screens guarantee a limited number of detectable

touches, we pointed at minimizing the number of con-

tact points per token while maximizing the number of

unique IDs. This last requirement is also vital to allow

an effective integration of MTI and TUI techniques.

The rest of the paper is organized as follows. In

Section 2, we will detail the characteristics of the

ToMMI tangibles and, in Section 3, of the software

library used to manage the MTI and TUI interaction.

Finally, in Section 4 we will discuss some real imple-

mentations based on ToMMI and, then, we draw the

conclusions.

2 TOKEN DESIGN

We start describing the design of the ToMMI tangi-

bles. As we commented in the Introduction, we fol-

lowed an approach similar to previous works. Our

tangibles are capacitive passive tokens capable of

conveying the following information:

• an identiﬁer, allowing to discriminate between

different tokens;

• the position in screen space of the token;

• the token orientation.

This information is encoded into speciﬁc patterns of

touch points. The following questions were driving

the design of the tokens. First, given that the pat-

tern of touch points of the token should encode the

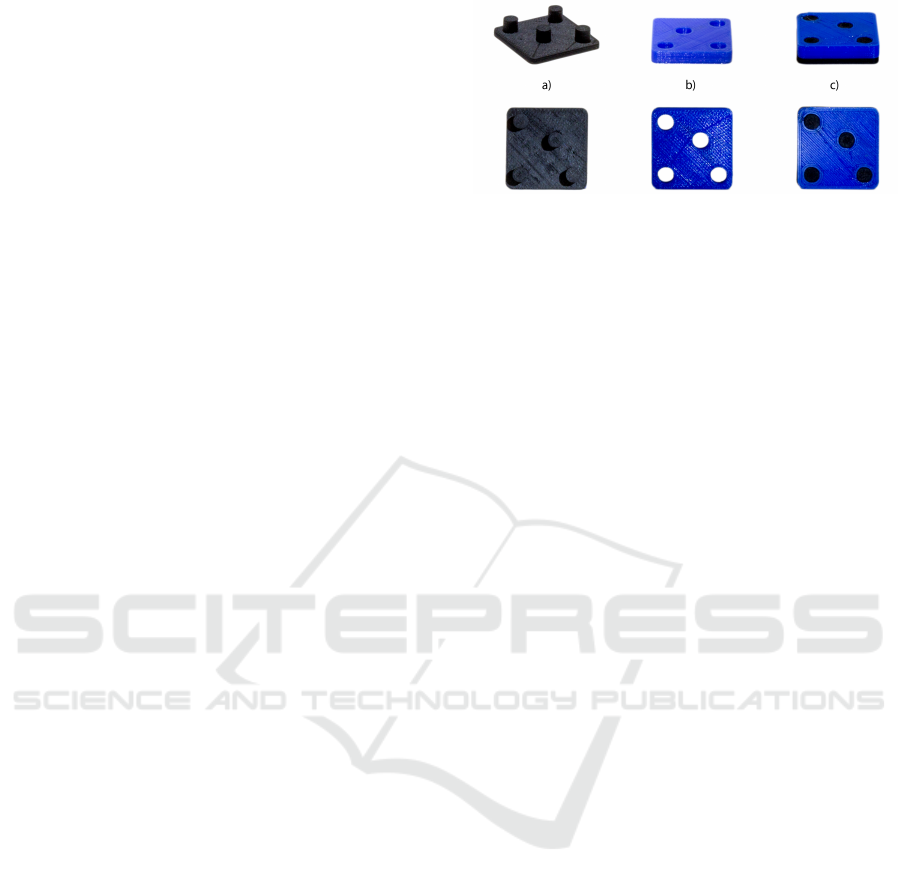

Figure 1: The capacitive tangible (c) consists in a set of

contact points (a) enclosed in a PLA shield (b).

required information in a robust and reliable man-

ner, which can be an appropriate layout that guaran-

tees these characteristics? Then, since current mobile

devices limit the number of simultaneous touches to

(around) ten, which is the minimal number of touch

points that (possibly) enables the contemporary use of

multiple tangibles placed on screen and (mandatorily)

leaves some touches available for MTI interaction?

Before detailing the design choices taken to an-

swer these questions, for the sake of clarity, we inform

the reader that in the following the tangibles will be

also referred as tokens and their “feet” (i.e. their con-

tact points) as markers.

2.1 Prototyping the Tangibles

For the construction of the tangibles we took advan-

tage of the recent availability of conductive graphene

ﬁlaments on 3D printers (GrapheneLab, 2016), which

were used to create the contact points, attached to a

common base and enclosed in a plastic PLA shield

(Figure 1).

The ﬁrst analysis was related to deﬁne the mini-

mum marker size that allows its recognition on dif-

ferent devices and the minimal distance between two

markers that guarantees to recognize them as separate

touches. These tests were conducted on devices from

different manufacturers, with different characteristics

(i.e., both smartphones and tablets) and running dif-

ferent operative systems (iOS and Android).

As for the marker size, we printed several cylin-

ders with a varying diameter in the range [3,10] mm

with a step of 1 mm. As a result, we found a marker of

6 mm diameter can be reliably detected on all devices.

In order to identify the minimal distance between

two markers, having ﬁxed their size to 6 mm, we cre-

ated several tokens with two markers, varying their

center to center distances in the range [8,15] mm with

again a step of 1 mm. Our experiments showed that

a distance of 12 mm (i.e., a 6 mm boundary distance

between the markers) is sufﬁcient to reliably tell two

markers apart on all test devices.

ToMMI - A Software Library for Multiplatform Tangible Mobile Interaction

101

2.2 Marker Types and Token Layout

The solution we propose to address the design re-

quirements introduced at the beginning of Section 2

is using four markers per token.

Three of them (the reference markers) deﬁne an

orthogonal Cartesian reference system capable of pro-

viding position and orientation information. The co-

ordinates of these markers into the token reference

frame are, respectively, (0,0), (d,0) and (0,d), where

d is related to the physical size of the token.

The fourth one, the data marker, deﬁnes the tan-

gible ID through its quantized position, on a regular

grid of 4 mm, in the token reference frame (see Fig-

ure 2). However, not all position in this grid are valid.

First, the data marker should not be “too close” to the

reference markers, i.e. it cannot be placed inside a

respect zone of ray 9 mm centered on each reference

marker. Second, the data cannot be “too close” to the

point of coordinates (d,d), since a point in that posi-

tion would make the pattern symmetric and, thus, it

would be impossible to tell reference from data mark-

ers.

As a result, the minimal size that allows for a ro-

bust token identiﬁcation is 30 mm. With this size, the

number of unique IDs that can be represented is 8,

and a larger set of distinct tokens can be obtained in-

creasing the token size (see Figure 2). The following

formulas relate the token size and the number of avail-

able IDs. Given an integer number n, a token with size

30+4n mm guarantees 8+12n+n

different IDs. For

instance, Figure 3 shows examples for n = 0 (8 IDs)

and n = 1 (21 IDs), while for n = 3 the token has size

42 mm and it provides 53 unique conﬁgurations.

As for the token data, the quantized grid coordi-

nates (i, j) of the data marker deﬁne the token ID, the

token position is the local (d/2,d/2) point in screen

coordinates, and the orientation is given by the angle

that the local x axis of the token forms with the global

x axis of the screen space. Finally, since recogniz-

ing a token requires four touch points, a maximum of

two tokens and two ﬁnger touches can be recognized

simultaneously on a standard tablet.

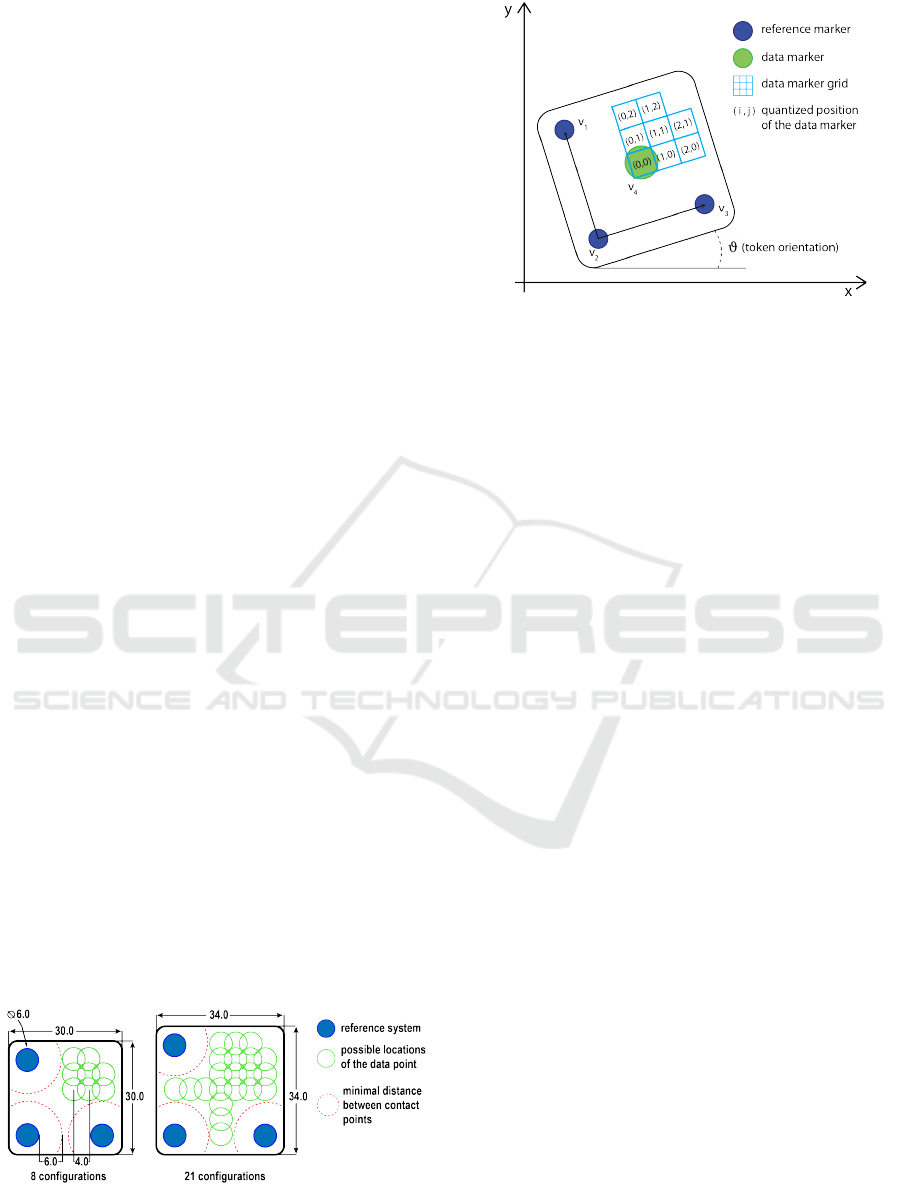

Figure 2: Size of the token elements, and varying number

of unique IDs as a function of the token dimension.

Figure 3: Marker types and properties.

3 EXTRACTING TOKEN AND

TOUCH DATA

The software part of ToMMI is responsible of com-

puting all the interaction information related to the

ﬁngers and tokens placed on screen. The design and

implementation of the library were subjected to the

following constraints:

• guarantee the portability on different mobile de-

vices and operative systems;

• provide a simple and straightforward interface, in

order to facilitate the integration of ToMMI into

the application;

• provide a robust and precise extraction of the in-

formation required;

• minimize the computational load.

In the following subsections we will detail these

points.

3.1 Portability

In order to tackle this issue, we implemented our

framework into Unity 3D, a cross-platform game en-

gine that supports a “write once deploy everywhere”

model. This means that an application based on Unity

can be developed on any device and then deployed,

with minimal effort, into different mobile platforms

(Android, iOS, Windows Phone and Tizen). This is

possible since the game engine scripting language is

built upon Mono (Mono, 2016), an Open Source and

cross-platform porting of the Microsoft .NET frame-

work.

Using Unity for the development of mobile apps

should not be considered a limitation, since this

framework allows the integration of APIs and li-

braries written in native language and, thus, to access

any functionality required by the application.

HUCAPP 2017 - International Conference on Human Computer Interaction Theory and Applications

102

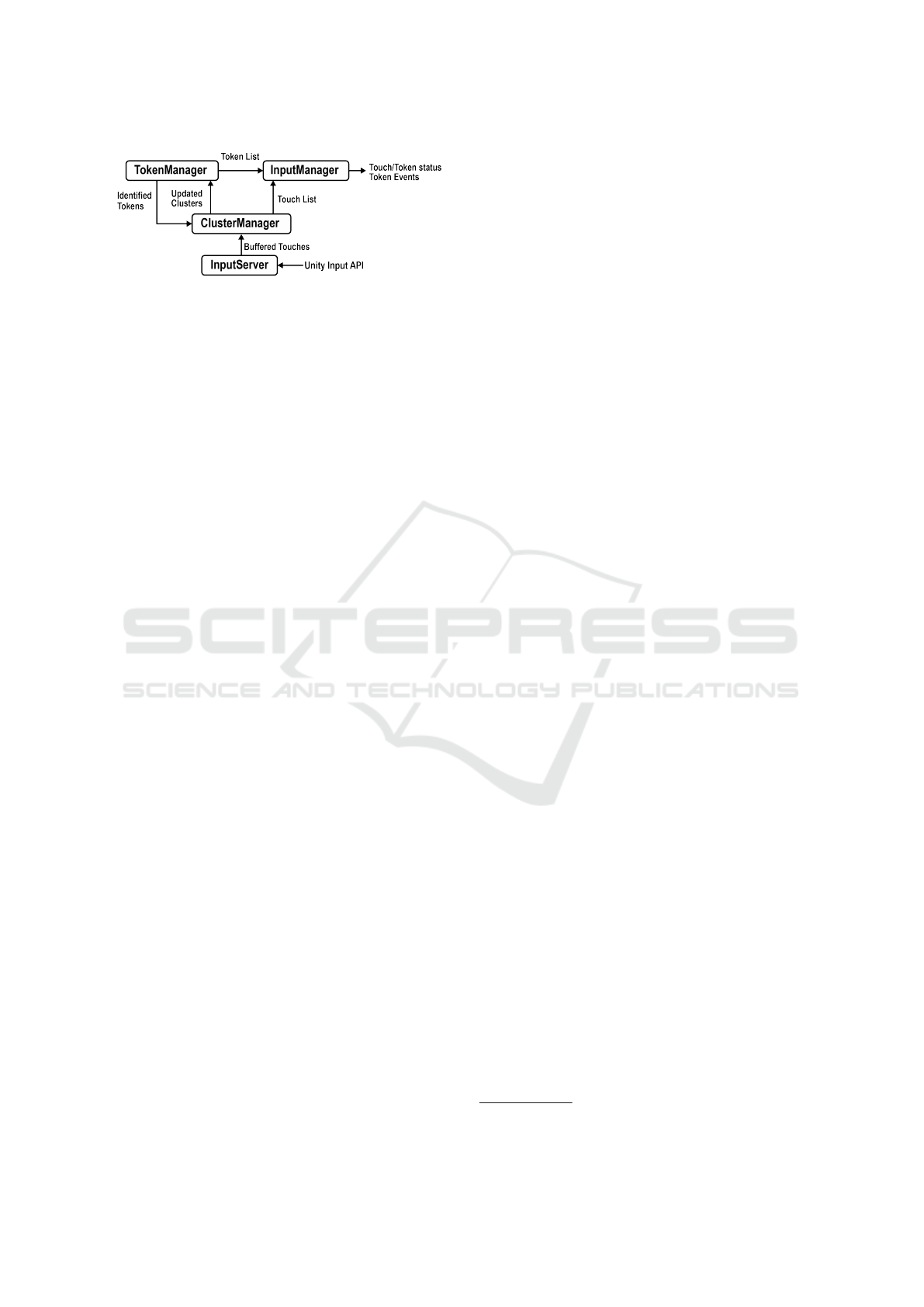

Figure 4: The ToMMI library outline.

3.2 Interface

The interface of ToMMI is pretty simple. The library

overrides the basic Input module of Unity, where the

main logic of the event system is managed, by intro-

ducing an InputManager module whose purpose is to

store both touches and tokens status and eventually

map them into events. Interaction data can then be

accessed in two ways.

A ﬁrst option is to directly refer, at each iteration

of the update loop, to the properties of InputManager,

which provide:

• the status of all touches during the last frame,

which includes position and touch state, i.e. one

of the following: began (a ﬁnger touched the

screen), moved (a ﬁnger moved on the screen),

stationary (a ﬁnger is touching the screen but

hasn’t moved) and ended (a ﬁnger was lifted from

the screen ending a touch);

• the status of all tokens during the last frame, i.e.

an ID and a unique label (which allows using mul-

tiple instances of the same token at the same time),

position, orientation and token state, where the

possible token states are the same as the touch

states.

As a second option, the InputManager module de-

ﬁnes the following three token events for which any

class can deﬁne a handler: (i) OnTokenPlaced, when

a new token is placed on the screen, (ii) OnToken-

Removed, when a token is removed from the screen,

and (iii) OnTokenMoved , when a token is moved or

rotated.

3.3 Implementation Details

The design of the ToMMI library is outlined in Fig-

ure 4. Since one of the main objective was reducing

the computational load, we started by minimizing the

number of messages exchanged between the library

modules.

Then, since we experienced that the data of the

Unity input system might miss some touch ending

which, in turns, can result into an incorrect manage-

ment of the tangible interaction, we introduced an In-

putServer module. Its main purpose is to buffer the

ﬁltered touches in the began, updated and ended states

and notify the upper layer of any change of these data.

The ClusterManager detects and updates touch

clusters according to the information offered by the

InputServer. The TokenManager module identiﬁes

new clusters as valid tokens and refreshes the data of

tokens corresponding to updated cluster. These pieces

of information, together with the list of touches not

assigned to a token, are ﬁnally handled by the Input-

Manager.

Summarizing, the life cycle of a token is the fol-

lowing. When placed on screen, the ClusterManager

create a cluster of its touch point. This cluster is sent

to the TokenManager for identiﬁcation. When the to-

ken touch points are moved, the token position and

orientation are updated. Finally, when one or more

token touch points are marked as ended, the Token-

Manager ﬂags the token as removed and rises the cor-

responding event.

3.3.1 Token Identiﬁcation

In order to be identiﬁed as a valid token, the 4 points

in a cluster must satisfy the following properties: (i)

three of the points [V

], shall deﬁne two orthog-

onal vectors having a common vertex (V

) and length

equal to d, the marker axis length

, and (ii) the fourth

point, V

, shall be included into the oriented bounding

box of the ﬁrst three points.

Clearly, due to noise in the input data, the veriﬁ-

cation of these properties considers a suitable margin

of tolerance. However, this noise affects as well the

accuracy of all token data. While position and orien-

tation errors are less problematic, the noise affecting

the data marker can lead to an incorrect identiﬁcation

of the token ID, which is a severe issue.

Thus, in order to reduce the noise and improve

the precision, we deﬁned the following linear least

square regression problem. Consider the ideal to-

ken orthogonal reference system deﬁned by the points

], where R

is placed in the origin and

||R

− R

|| = ||R

− R

|| = d. In absence of noise,

the two reference systems [R

] and [V

]

are related by the following transformation:

] = M ∗ [R

]

(1)

where:

M =





cos(θ) −sin(θ) x

sin(θ) cos(θ) y

0 0 1





Pixel to metric conversion relies on the device DPI

ToMMI - A Software Library for Multiplatform Tangible Mobile Interaction

103

is a roto-translation matrix deﬁned by a rotation θ and

a translation (x

). Due to noise, M cannot be ob-

tained directly, but it can be computed as the matrix

that minimizes the sum of squared residuals between

the model (R points) and the observation (V points):

min

∑

||M ∗ R

−V

(2)

This problem has the following closed-form solu-

tion. For each pair (V

) of points, equation (1) can

be expanded as:

= cos(θ) ∗ R

− sin(θ) ∗ R

+ x

= sin(θ) ∗ R

+ cos(θ) ∗ R

+ y

and the whole set of equations can be summarized

in matrix form as: A ∗ x = b, where:

A =







−R

1 0

0 1

−R

1 0

0 1

−R

1 0

0 1







,x =







cos(θ)

sin(θ)







,b =













Thus, the resulting solution of the minimization

problem in equation (2) is:

∗

= (A

∗ A)

−1

∗ (A

∗ b) (3)

Once we have x

∗

, we can update the values of

) and, consequently, the marker data (posi-

tion, orientation and its ID, which is obtained by pro-

jecting the data point V

on the regular grid deﬁned

by (V

). The recognized token receives as well

a unique label that, paired with the token ID, allows

different instances of the same token class to be used

at the same time.

3.4 Computational Load

The entire chain of operations described must be exe-

cuted within one frame update and its overhead must

be minimized in order to provide a lag-free experience

to the user.

In order to obtain quantitative results, we per-

formed a series of test where we proﬁled the frame-

work executing both “normal” and challenging opera-

tions, i.e., placing more tokens and ﬁngers at the same

time, adding and removing tokens at increasing fre-

quency, performing rapid ﬁnger and token movements

and so on. Tests were run on both a Nexus9 (2,3 GHz

dual-core) and an iPad3 (1 GHz dual-core). The dif-

ferences between the two devices were minimal if not

null. Thus, for the sake of brevity, in the following we

report only the numbers obtained with the Nexus9.

Results are summarized in Table 1, which reports

the execution time in ms of the various library mod-

ules. As for the ClusterManager, we highlight the fact

that updating a cluster might involve the creation of

novel clusters, a fact that justify its higher computa-

tional time. The last two rows of the table show the

total execution time required for identifying a novel

token placed on screen and for managing a token mo-

tion. Both numbers are lower than a ms, which we

think justify our previous assertion that ToMMI is a

lightweight library.

As ﬁnal comment, we would like to provide an ex-

ample of our code optimization efforts. In our prelim-

inary tests, the most computationally intensive pro-

cess was the solution of the minimization problem

in equation 3, with an average execution time of 0.5

ms. To speed up this computation, we ﬁrst computed

the symbolic expression of the result with Maxima

and eventually factorized its terms to minimize the

number of multiplications required, obtaining a 50x

speedup of the initial solution.

Table 1: Execution times.

Module Operation Time(ms)

InputServer input update check 0.05

ClusterManager cluster creation 0.4

cluster update 0.44

TokenManager token identiﬁcation 0.03

noise reduction 0.01

token properties 0.05

Token Placed execution time 0.53

Token Moved execution time 0.54

4 RESULTS

In order to show in more details the capabilities of

the proposed approach, in the following we describe

the implementation of some applications based on

ToMMI.

4.1 Tic-Tac-Toe

The ﬁrst example is a tangible augmented version of

the classic Tic-tac-toe game. Tic-tac-toe is a pencil-

and-paper game for two players which take turns

marking a 3x3 grid with their own symbol (either a

“X”, cross, or a “O”, naught). The player who ﬁrst

succeeds to place three symbols on a row, column

or diagonal wins the match. If all marks have been

placed without a winner, the game ends with a draw.

HUCAPP 2017 - International Conference on Human Computer Interaction Theory and Applications

104

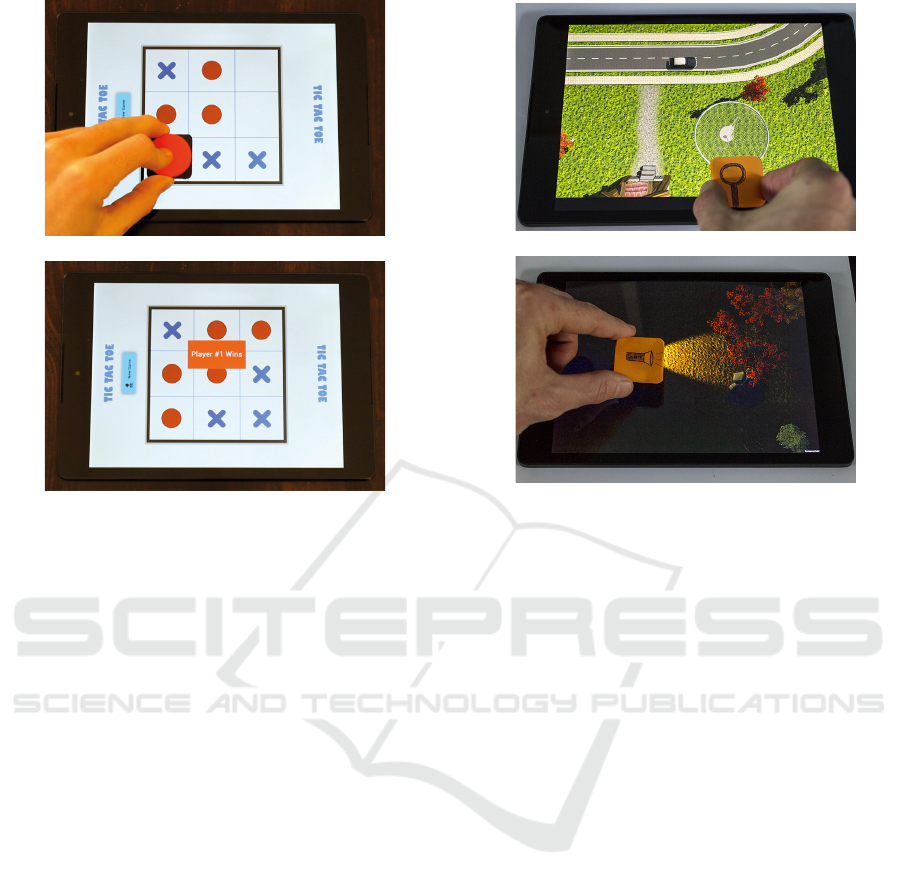

(a) Tangible used as game piece

(b) The Tic-tac-toe interface

Figure 5: Tic-Tac-Toe.

Given the limit of two tangibles at the same time,

players use them as molds to place their mark on the

playing grid (Fig. 5(a)). When the game is ﬁnished,

the players scores are updated and the new game but-

ton is enabled to start a new game (Fig. 5(b)).

4.2 My Way Home

My Way Home (Bottino et al., 2016) is a game based

on interactive storytelling, a form of narrative where

the user is not bounded to a linear progressing story-

line. On the contrary, he can actively inﬂuence the

narrative evolution, either by determining the main

characters actions or by altering the environment in

which the story takes place.

My Way Home is the story of a boy who misses

the bus right after school and needs to ﬁnd a way

back home. On his journey, he will face hurdles to

overcome and meet characters that can help him to

fulﬁll his objective. The story evolves as a series of

scenes. The player can use touches and tangibles to

make choices, to control the main character and to

exploit tools in achieving her/his goals. As an exam-

ple, the story features a scene where an old man asks

the player to help him ﬁnd the car keys he lost in the

front yard and the player can use a tangible-controlled

“magnifying glass” as a helper tool (Fig. 6).

(a) Magnifying glass

(b) Torch

Figure 6: MyWay Home: examples of tangible used as tools

to progress in the story.

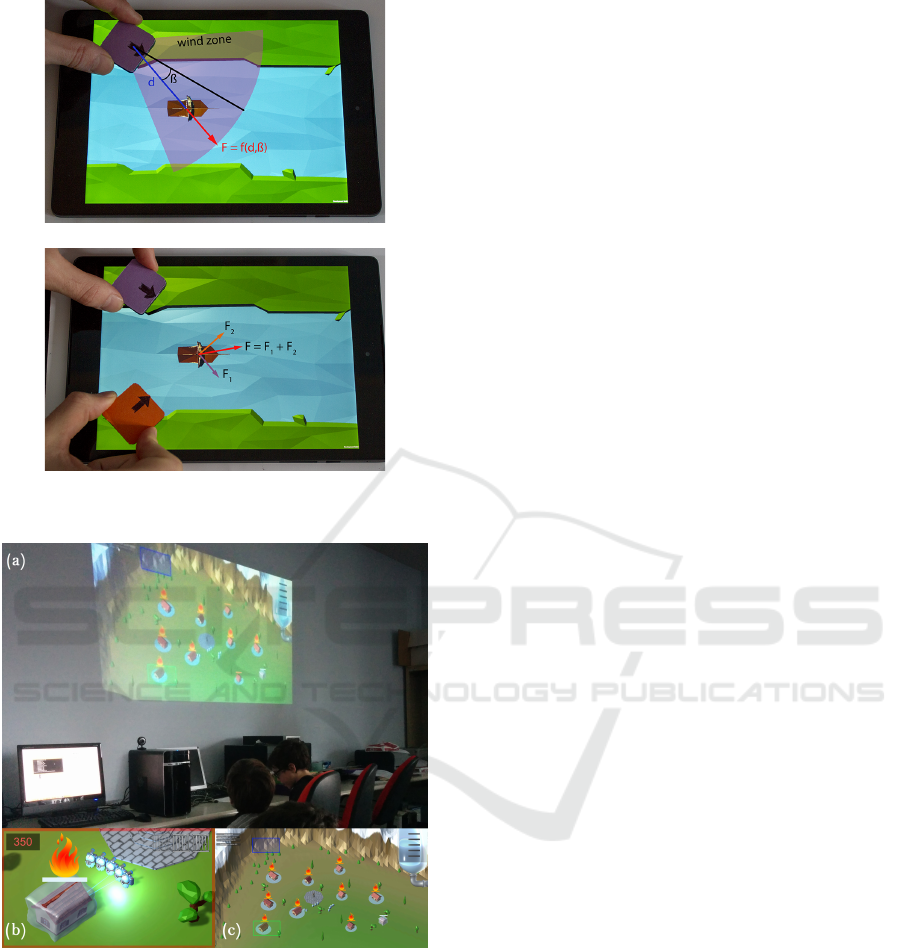

4.3 Colombo

Colombo is an example of a scenario where multiple

tokens can be used simultaneously on the same de-

vice. Colombo is a collaborative game for two play-

ers where the main objective is to navigate a sail-

boat along a river avoiding collisions with its banks.

Each player can contribute to the boat motion with a

blower, represented by a tangible playing piece. Di-

rection and intensity of the wind are related to the

relative position between the tangible and the boat

(Fig. 7(a)). When both player tokens are placed, the

resultant of the two corresponding forces is applied

to the boat (Fig. 7(b)). Thus, the game requires both

communication and coordination between players to

fulﬁll the objectives.

4.4 WaterOn!

WaterOn! (Diniz et al., 2016) is an educational se-

rious game focused on teaching water cycle contents

for 8-10 years old children. The game setting is aimed

at fostering collaboration and discussion among co-

located users. Each player interacts with the game

through a tablet, thus being free to move inside the

physical game environment. The tablet displays a

portion of the whole environment (Fig. 8(b)) and the

game features as well a projected screen (Fig. 8(a))

which shows (i) the overall game scenario, where

ToMMI - A Software Library for Multiplatform Tangible Mobile Interaction

105

(a) Wind force generated by a blower

(b) Multiple blowers

Figure 7: Controlling the boat movements in Colombo.

Figure 8: WaterOn!: (a) an image of the projected scenario;

(b) view on the tablet screen; (c) feedback of player posi-

tions (the coloured boxes) on the main screen.

players are acting as individuals, (ii) the game status,

which is aimed at offering a shared understanding of

what has been achieved and what has to be completed

yet, and (iii) a direct feedback of players’ position

(Fig. 8(c)).

The game is organized into levels, which intro-

duce the various instructional units deﬁned (i.e., pre-

senting the three states of the water and the transi-

tions between them, describing the movement of wa-

ter within the water cycle and so on). Both MTI and

TUI can be used by the players to perform in-game

actions. For example, Fig. 8(b) shows an image of

the Melting level, where the villains have frozen vil-

lage houses and players have to melt them by placing

an “heat” token on the house. Multi-touch interac-

tion can be used for both navigating the environment

and freezing enemies for a short interval by tapping

on them.

Tests with volunteers aged between 8 and 10

showed that all our testers enjoyed the tangibles as in-

teraction tool without reporting neither speciﬁc prob-

lems in using them nor in combining MTI and TUI.

5 CONCLUSIONS

In this paper we have described ToMMI, an ap-

proach for simplifying the implementation and multi-

platform deployment of mobile applications that

exploit both multi-touch and tangible interaction.

ToMMI is based on custom 3D-printed passive ca-

pacitive markers and on a software library capable

of identifying and tracking them. This library is

lightweight, being able to retrieve the required data

(ID, position and orientation) in less than a millisec-

ond. It is also characterized by a simple interface,

which facilitate its integration, and is portable on dif-

ferent mobile platforms and operative systems. We

demonstrated its use through the description of sev-

eral applications based on it.

Despite the advantages of ToMMI, its main draw-

back remains the use of passive markers, which re-

quire direct user contact in order to be sensed. Thus,

as future work, we are planning to investigate the de-

velopment of (possibly simple) active markers.

We ﬁnally underline the fact that ToMMI is an

open source software that can be made available to

interested researchers upon request.

REFERENCES

AppMATes (2016). Appmates, mobile application toys.

http://www.appmatestoys.com. Accessed: 2016-10-

06.

Bottino, A., Martina, A., Strada, F., and Toosi, A. (2016).

Gaine a portable framework for the development

of edutainment applications based on multitouch and

tangible interaction. Entertainment Computing, 16:53

– 65.

CCV (2016). Community core vision. http://github.com/

nuigroup/ccv15. Accessed: 2016-10-06.

Chan, L., M

uller, S., Roudaut, A., and Baudisch, P. (2012).

Capstones and zebrawidgets: Sensing stacks of build-

HUCAPP 2017 - International Conference on Human Computer Interaction Theory and Applications

106

ing blocks, dials and sliders on capacitive touch

screens. In Proceedings of the SIGCHI Conference

on Human Factors in Computing Systems, CHI ’12,

pages 2189–2192, New York, NY, USA. ACM.

Diniz, A. d. S., Strada, F., and Bottino, A. (2016). De-

signing collaborative games for children education on

sustainable development. In 8th International Confer-

ence on Intelligent Technologies for Interactive Enter-

tainment, INTETAIN 2016.

GrapheneLab (2016). Conductive graphene ﬁlament, a con-

ductive 3d printing ﬁlament. http://goo.gl/6ZJjqf. Ac-

cessed: 2016-10-06.

Ishii, H. (2008). The tangible user interface and its evolu-

tion. Commun. ACM, 51(6):32–36.

Jord

a, S., Geiger, G., Alonso, M., and Kaltenbrunner, M.

(2007). The reactable: Exploring the synergy between

live music performance and tabletop tangible inter-

faces. In Proceedings of the 1st International Con-

ference on Tangible and Embedded Interaction, TEI

’07, pages 139–146, New York, NY, USA. ACM.

Kratz, S., Westermann, T., Rohs, M., and Essl, G. (2011).

Capwidgets: Tangile widgets versus multi-touch con-

trols on mobile devices. In CHI ’11 Extended Ab-

stracts on Human Factors in Computing Systems, CHI

EA ’11, pages 1351–1356, New York, NY, USA.

ACM.

Liang, R.-H., Chan, L., Tseng, H.-Y., Kuo, H.-C., Huang,

D.-Y., Yang, D.-N., and Chen, B.-Y. (2014a). Gauss-

bricks: Magnetic building blocks for constructive tan-

gible interactions on portable displays. In CHI ’14

Extended Abstracts on Human Factors in Computing

Systems, CHI EA ’14, pages 587–590, New York, NY,

USA. ACM.

Liang, R.-H., Kuo, H.-C., Chan, L., Yang, D.-N., and Chen,

B.-Y. (2014b). Gaussstones: Shielded magnetic tangi-

bles for multi-token interactions on portable displays.

In Proceedings of the 27th Annual ACM Symposium

on User Interface Software and Technology, UIST

’14, pages 365–372, New York, NY, USA. ACM.

Mono (2016). Mono, cross platform, open source .net

framework. http://www.mono-project.com. Accessed:

2016-10-06.

Patten, J. and Ishii, H. (2007). Mechanical constraints

as computational constraints in tabletop tangible in-

terfaces. In Proceedings of the SIGCHI Conference

on Human Factors in Computing Systems, CHI ’07,

pages 809–818, New York, NY, USA. ACM.

Reactivision (2016). Reactivision, a toolkit for tangible

multi-touch surfaces. http://reactivision.sourceforge.

net. Accessed: 2016-10-06.

Tiggly (2016). Tiggly, interactive toys and ipad learning

apps for childrens. https://www.tiggly.com. Accessed:

2016-10-06.

Voelker, S., Nakajima, K., Thoresen, C., Itoh, Y., Overgard,

K. I., and Borchers, J. (2013). Pucs demo: Detecting

transparent, passive untouched capacitive widgets. In

Proceedings of the 2013 ACM International Confer-

ence on Interactive Tabletops and Surfaces, ITS ’13,

pages 325–328, New York, NY, USA. ACM.

Yu, N.-H., Chan, L.-W., Cheng, L.-P., Chen, M. Y., and

Hung, Y.-P. (2010). Enabling tangible interaction on

capacitive touch panels. In Adjunct Proceedings of

the 23Nd Annual ACM Symposium on User Interface

Software and Technology, UIST ’10, pages 457–458,

New York, NY, USA. ACM.

Yu, N.-H., Chan, L.-W., Lau, S. Y., Tsai, S.-S., Hsiao, I.-

C., Tsai, D.-J., Hsiao, F.-I., Cheng, L.-P., Chen, M.,

Huang, P., and Hung, Y.-P. (2011). Tuic: Enabling tan-

gible interaction on capacitive multi-touch displays.

In Proceedings of the SIGCHI Conference on Human

Factors in Computing Systems, CHI ’11, pages 2995–

3004, New York, NY, USA. ACM.

ToMMI - A Software Library for Multiplatform Tangible Mobile Interaction

107
