Transposition Based Blendshape Direct Manipulation

Ozan Cetinaslan

, John Lewis

and Ver

onica Orvalho

Instituto de Telecomunicac¸

oes & Faculdade de Ci

encias, Universidade do Porto, Porto, Portugal

Victoria University, Wellington, New Zealand

Keywords:

Blendshape, Facial Expression, Deformation, 3D Mesh, Facial Animation.

Abstract:

The blendshape approach is a predominant technique for creating high quality facial animation. Facial poses

are generated by altering the corresponding weight parameters manually for each key-frame by using tradi-

tional slider interfaces. However, authoring a production quality facial animation with this process requires

time-consuming, labor intensive and iterative work the artists. Direct manipulation interfaces address this

problem with a “pin-and-drag” operation inspired by the inverse kinematics approaches. The mathematical

frameworks of the direct manipulation techniques are mostly based on pseudo-inverse of the blendshape ma-

trices which include all target shape’s vertex positions. However, the pseudo-inverse approaches often give

unexpected results during the facial pose editing process because of its unstable behavior. To this end, we

propose the transposition approach to enhance the direct manipulation by reducing unexpected movements

during weight editing. Our approach extracts the deformation directions from the blendshape matrix, and di-

rectly maps the sparse constrained point movements to the extracted directions. Our experiments show that,

instead of psuedo-inverse based formulations, transposition based framework gives more smooth and reliable

facial poses during the weight editing process. The proposed approach improves the ﬁdelity of the generated

facial expressions by keeping the hazardous movements in a minimum level. It is robust, efﬁcient, easy to

implement and operate on any blendshape model.

1 INTRODUCTION

Computer generated characters have recently become

ubiquitous in movies, cartoons, advertisements and

computer games. With the advances of technology

and computer graphics techniques, it is currently pos-

sible to create lifelike characters. During the pro-

cess of creating character animation, facial animation

plays a key role to carry emotions and personality

to the spectators. Especially, the increasing demand

of the entertainment industry for high quality results

drives the researchers to investigate new techniques

to automate the animation workﬂow for realistic 3D

characters. Despite the extensive use of 3D facial

animation, the evolution in animation packages and

workﬂows have been rather slow, because the adap-

tation of advanced methods to the current animation

pipelines requires a long time period. As a result, cre-

ating high-quality facial animation is still a labor in-

tensive and time-consuming process.

Blendshape is a widely adopted technique for

high-quality facial rigging (Lewis et al., 2014). The

blendshape model forms a speciﬁc facial expression

as a sum of linear combination of target faces. These

target faces are obtained either by a skilled artist man-

ually sculpts from a neutral facial mesh, or by scan-

ning a human face with various expressions. Most

commercial animation and modeling software pack-

ages support blendshape models with their weight

editing interfaces. These interfaces, nevertheless, al-

low the animators to perform the pose editing process

only on external modules, where each pose is repre-

sented by a slider. However, creating facial anima-

tion using blendshapes requires a signiﬁcant effort in

production environment for realistic models that may

consist of 100 or more target shapes.

Direct manipulation methods address the difﬁ-

culty of the pose editing process by offering a mathe-

matical framework with a practical pin-and-drag op-

eration (Lewis and Anjyo, 2010). The user simply

selects arbitrary points on the surface of the 3D fa-

cial model, and freely drags them until the desired

facial pose is obtained for each animation frame. Be-

neath the direct manipulation interface, the mathemat-

ical framework solves an inverse problem of weight

determination for the arbitrary selected point move-

ments. However, solving the inverse problem is gen-

erally a challenging task, because of the problem’s

Cetinaslan O., Lewis J. and Orvalho V.

Transposition Based Blendshape Direct Manipulation.

DOI: 10.5220/0006131901050115

In Proceedings of the 12th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2017), pages 105-115

ISBN: 978-989-758-224-0

105

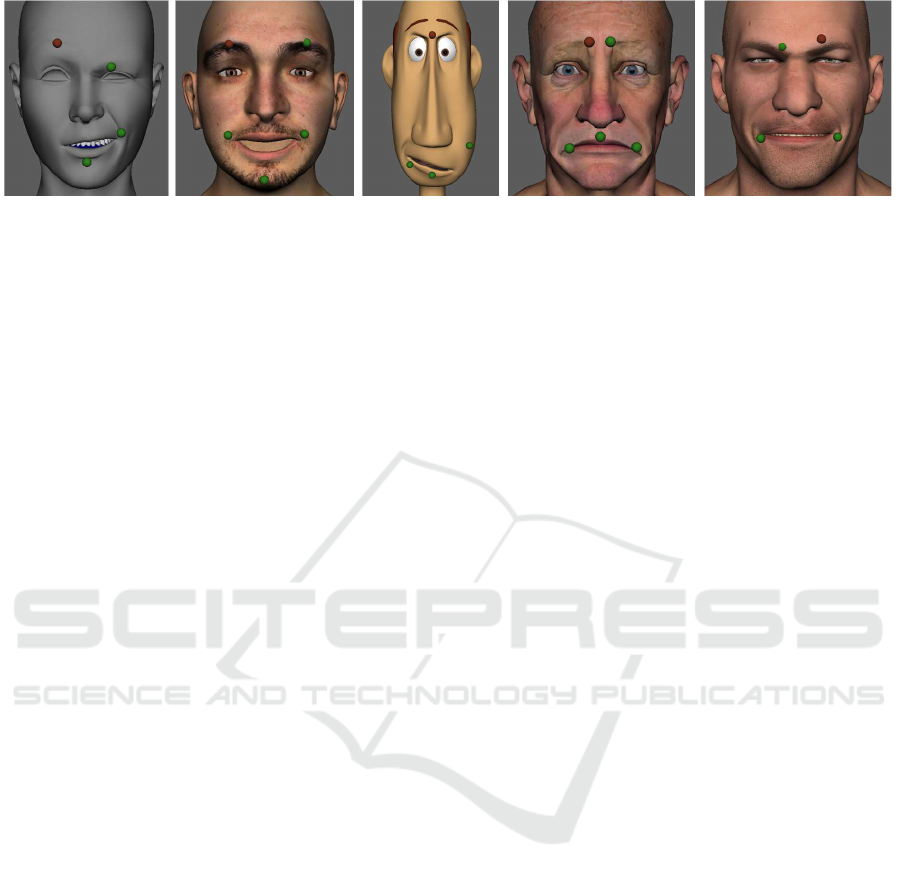

Figure 1: Face posing with our novel transposition based blendshape direct manipulation method. Unlike the pseudo-inverse

based techniques, our method generates the facial poses without any artifact or unexpected movements. Our method provides

the artistic editing with a simple, efﬁcient and easy-to-implement mathematical framework which is inspired by Jacobian

Transpose method.

excessive under-constrained behavior. Besides, in-

verse kinematics algorithms perform similar to direct

manipulation, nevertheless constraints and number of

unknowns are notably less than the direct manipula-

tion approaches. For example, human arm movement

can be expressed roughly 7 degrees of freedom for

the joint angles (Tolani and Badler, 1996), but in a

production quality blendshape model, the number of

unknown for weights can exceed 100.

A discrete function has to be deﬁned to satisfy all

constraints to solve the inverse problem for direct ma-

nipulation. According to blendshape direct manipula-

tion (Lewis and Anjyo, 2010), moved points deter-

mine the resultant face as a simple linear combination

of predeﬁned target shapes,

m ≈ Bw (1)

where m is the vector of resulting vertex positions

that are already moved, w is the corresponding weight

vector and B is the blendshape matrix which includes

vertex coordinates of all target shapes at its columns.

The solution of Equation (1) shows that there is an ob-

vious pseudo-inverse relationship between the blend-

shape weights and manipulated points. The general

pseudo-inverse approach gives the best possible ap-

proximated solution to w by minimizing the moved

point to its correspondent target shapes (min

kBw −

). However, pseudo-inverse based mathematical

frameworks are known with their unstable and unin-

tuitive results. Altering an arbitrary side of the face

model causes unexpected little changes in the remain-

ing parts of the model. The reason for this insta-

bility is the fact that pseudo-inverse tends to assign

many non-zero values to its columns which cause un-

intended moved point projections for the irrelevant

weights.

To prevent these unexpected movements during

weight editing, we introduce a new direct manipula-

tion algorithm. Our approach is inspired from the Ja-

cobian Transpose method (Welman, 1993) and pro-

vides the direct projection of the moved points onto

B which avoids the instability of the pseudo-inverse

approach. During the drag operation, employing the

transpose of B instead of its pseudo-inverse allows

the user to manipulate desired part of the face with-

out any little alterations in the remaining parts of the

3D model (see Figure 1). In terms of computing

the weight updates directly using the transpose of B,

we analyzed the deformation (vertex displacements)

directions to prove that our transposition based di-

rect manipulation is a modiﬁed version of the classic

pseudo-inverse approach. By considering each col-

umn of B is a deformation vector for the base neu-

tral pose, we extract the deformation directions from

the columns of B by using Gram-Schmidt process

and store these columns as a new orthonormal ma-

trix, which shares the same deformation directions

as B. After applying the pseudo-inverse algorithm to

the new matrix, the resultant mathematical framework

has appeared similar to the proposed transposition

based framework with an additional step-size matrix.

In our experiments, we compare the proposed ap-

proach with two different pseudo-inverse based al-

gorithms for blendshape weight updates. The ﬁrst

version is the classic pseudo-inverse method, and

the other is the commonly used pseudo-inverse with

Tikhonov regularization (Lewis and Anjyo, 2010).

Against both methods, our approach produces more

intuitive and reliable posing results. Further, we

discuss the advantages and disadvantages of both

approaches and present a hybrid approximation by

combining only the powerful sides of pseudo-inverse

based approach and our transposition based approach.

Finally, the resulting approach is simple to imple-

ment, efﬁcient (based on solving only linear systems),

and can be adapted easily to the existing blendshape

deformation frameworks.

GRAPP 2017 - International Conference on Computer Graphics Theory and Applications

106

2 RELATED WORK

Blendshape is a commonly used rigging technique

to create realistic facial animation for over many

years, (Orvalho et al., 2012). Performance capture or

keyframe animation techniques have been employed

for obtaining blendshape animation. After its practi-

cal usage in industry, (Pighin et al., 1998) explored

blendshapes as a research topic. They offered a set

of techniques which allows to create the textured tar-

get shapes rapidly from pictures of a human face with

a painterly interface to blend the parts of the morph

targets. After this prior research, blendshape was in-

tegrated nicely to other ﬁelds of facial animation such

as modeling (Pighin et al., 1998), facial performance

capture (Joshi et al., 2003), facial animation retarget-

ing (Deng et al., 2006), and facial rigging (Li et al.,

2010).

Several techniques exist for character animation

and facial deformation based on Inverse Kinemat-

ics approach. Some signiﬁcant techniques include

pose-space deformation (Lewis et al., 2000), shape

by example (Sloan et al., 2001), style-based inverse

kinematics (Grochow et al., 2004), mesh-based in-

verse kinematics (Sumner et al., 2005), differential

inverse kinematics (Lewis and Dragosavac, 2010),

and partial differential equations based animation

(Gonz

alez Castro et al., 2010). Besides, robotics re-

search often employs inverse kinematics approaches

such as (Nakamura and Hanafusa, 1986), (Nakamura

et al., 1987), (Chan and Lawrence, 1988).

Direct manipulation methods allow to create de-

formations by directly selecting and moving points

on the surface of the 3D models. This type of ap-

proach has been common in inverse kinematics meth-

ods for character animation, and recently got popu-

lar for facial animation. Blendshape direct manipu-

lation methods solve an inverse problem to ﬁnd the

beneath weights that are most appropriate for the de-

sired movement. (Joshi et al., 2003) proposed an au-

tomatic segmentation for localized blendshapes with

a direct manipulation technique. (Zhang et al., 2004)

offered a method that obtains the target shapes from

a high quality stereoscopic data on a template mesh,

and provides direct editing by using adaptive local ra-

dial basis blends.

For the ﬁrst time, (Lewis and Anjyo, 2010) solved

the problem of direct manipulation for blendshape

models. They developed a novel solution by formu-

lating direct manipulation as a soft constrained in-

verse problem of ﬁnding the underlying weights for

the selected point movements. The solution includes

Tikhonov regularization parameter (Tikhonov and Ar-

senin, 1977) for the optimum results during interac-

tive editing. (Seo et al., 2011) improved the regu-

larization term of the inverse problem, and offered a

new matrix compression scheme for complex mod-

els based on hierarchically semi-separable representa-

tions with an interactive GPU-based animation. (Tena

et al., 2011) proposed to control more local modiﬁ-

cation by dividing the PCA based facial models into

independently trained regions which share the bound-

aries with each other. This method allows the user

to directly interact with the model using the pin-and-

drag operation. (Anjyo et al., 2012) presented an al-

gorithm, which provides rapid and better edits that

learned from the previous animation.

Recently, (Neumann et al., 2013) introduced

sparse localized deformation method, which decom-

poses the global deformations to localized compo-

nents from the performance capture data using a vari-

ant of sparse PCA. (Holden et al., 2015) developed

a real-time solution to the inverse problem of rig

function, which enables mapping of the animation

data from character rig to the skeleton of the char-

acter. That method can be applicable to whole char-

acter animation as well as bone based facial anima-

tion. (Cetinaslan et al., 2015) proposed an approach

to locate the manipulators onto the facial model in-

tuitively by using a sketch-based interface, and apply

the drag operation after the sketching procedure. (Yu

and Liu, 2014) proposed a method to reproduce the

facial poses based on blendshape regression, which

uses an optimization procedure to improve the quality

of the facial expressions. We refer to (Lewis et al.,

2014) as a comprehensive report about practical and

theoretical aspects of blendshape facial models.

In the proposed approach, we have taken advan-

tage of the listed prior work. However, pseudo-

inverse solutions dominated the ﬁnal mathematical

frameworks of the prior works. In contrast to the pre-

vious research, we provide a transposition based so-

lution to direct manipulation for more robust and in-

tuitive results.

3 METHOD

In this section, we ﬁrst explain the algebraic perspec-

tive of blendshape models and their pseudo-inverse

relation. After, we describe the details of the proposed

transposition based direct manipulation.

3.1 Blendshape Direct Manipulation

and Pseudo-inverses

Blendshape model can be deﬁned as a linear vector

sum of predeﬁned target shapes as illustrated in Equa-

Transposition Based Blendshape Direct Manipulation

107

tion 2:

f =

∑

(2)

where f is the produced ﬁnal face in a vector form

which includes all vector positions of the mesh in the

order of xyzxyz..., b

are the blendshape targets in a

vector form, and w

are the corresponding weights.

Equation 2 can also be denoted as f = Bw. However,

one particular target shape, which is the neutral face,

can be considered different than the other shapes. Be-

cause, all other targets are the offsets from the neutral

target shape ( f

). Therefore, it is added to Equation

2, ( f = Bw + f

). This new formulation is called delta

form of blendshape model, and provides many zero

or almost zero entries to each target vector. Current

commercial modeling and animation software pack-

ages most often use the delta form for blendshape ap-

plications.

According to direct manipulation scheme, the ma-

nipulators (or pins) are located on the surface of the

model by selecting some arbitrary vertices. After

moving these pins on the surface of the face, math-

ematically the resultant face can be explained as f =

m+ f

, where m denotes for the moved pins. The delta

form and the new face form with moved pins direct us

to Equation 1.

By using the aforementioned mathematical

model, the weight updates can be simply approxi-

mated as in Equation 3:

w = B

m (3)

where B

denotes for the pseudo inverse of B, (B

also deﬁned as (B

−1

). However, in some cases

the inverse operation in Equation 3 may fail because

of the singularity of B

B. In these cases, blendshape

matrix may not provide a full rank.

(Lewis and Anjyo, 2010) addressed this problem

with the Tikhonov regularization term to update the

weights with the most optimal ﬁt to the point move-

ments. Another advantage of applying regularization

term is keeping the equilibrium of the system by ﬁt-

ting the new weight values according to the desired

pose during point movements. Equation 4 shows the

weight update from (Lewis and Anjyo, 2010) after ap-

plying regularization to the system deﬁned in Equa-

tion 3

w = (B

B + αI)

−1

m + αw

) (4)

where α is the regularization term which is deﬁned by

user, and w

are the previous weights. α term is added

to the diagonals of B

B matrix, and forces the system

to obtain the most close weight values with the corre-

sponding pin drags. In general, α is chosen as a small

value, such as 0.001 or 0.0001, therefore it can not

dominate B

B matrix with a signiﬁcant change. After

setting the α term to such a small number, the term

αw

of Equation 4 has an almost zero effect to deter-

mine the ﬁnal weights. If α is selected as zero, Equa-

tion 4 transforms to the classic pseudo-inverse form,

which is shown in Equation 3. While dragging the

constraint points on the surface of the model, Equa-

tion 3 or 4 constantly updates the weight values for

each coordinate unit.

3.2 Transposition Approach

Direct manipulation formulation is based on pseudo-

inverse of B with or without regulation term. How-

ever, pseudo-inverse approaches have a well-known

instability problem, by which unexpected and unintu-

itive movements can be observed during the pin-and-

drag operation. For example, while the user drags a

pin in the mouth region of the face, eye brows may

move slightly. The problem can be understood intu-

itively as follows: Denote the rows of Equation 2 cor-

responding to the moved pin as m =

Bw. Expanding

B with an SVD, we have m = USV

w. We see that

the largest entries of S are those that (when rotated

by U) are most effective for reaching the moved pin

m. But in forming the corresponding pseudo-inverse

(Equation 3), w = V S

m, the singular values are

inverted, so the directions that are least effective in

reaching m are scaled by the largest values. In prac-

tice this means that distant blendshape targets that

have little effect on a particular pinned point will tend

to move more than is desirable.

Inspired from the Jacobian transpose approach

of differential inverse kinematics (Lewis and

Dragosavac, 2010), we reformulate the blendshape

direct manipulation in a more stable and efﬁcient

perspective. The inverse kinematics problem is

explained as min

kp − f (q)|

which was solved by

(Zhao and Badler, 1994) with a general nonlinear

programming. According to their approach, nonlin-

ear f () turns into a linear function about the current

position with an update equation:

˙p = J ˙q (5)

where ˙p is the vector from the point on the inverse

kinematics handle to the target point, J is the Jacobian

of f (). Equation 5 has to be solved for the parameter

update ˙q with the most optimal approximation. The

resultant system is nothing but ˙q = J

˙p. The problem

in Equations 1 and 5 nicely ﬁts to each other. How-

ever, Welman (Welman, 1993) offers the Jacobian

Transpose algorithm for differential inverse kinemat-

ics to avoid the unstable behavior of pseudo-inverse

approach. According to this algorithm, the parameter

GRAPP 2017 - International Conference on Computer Graphics Theory and Applications

108

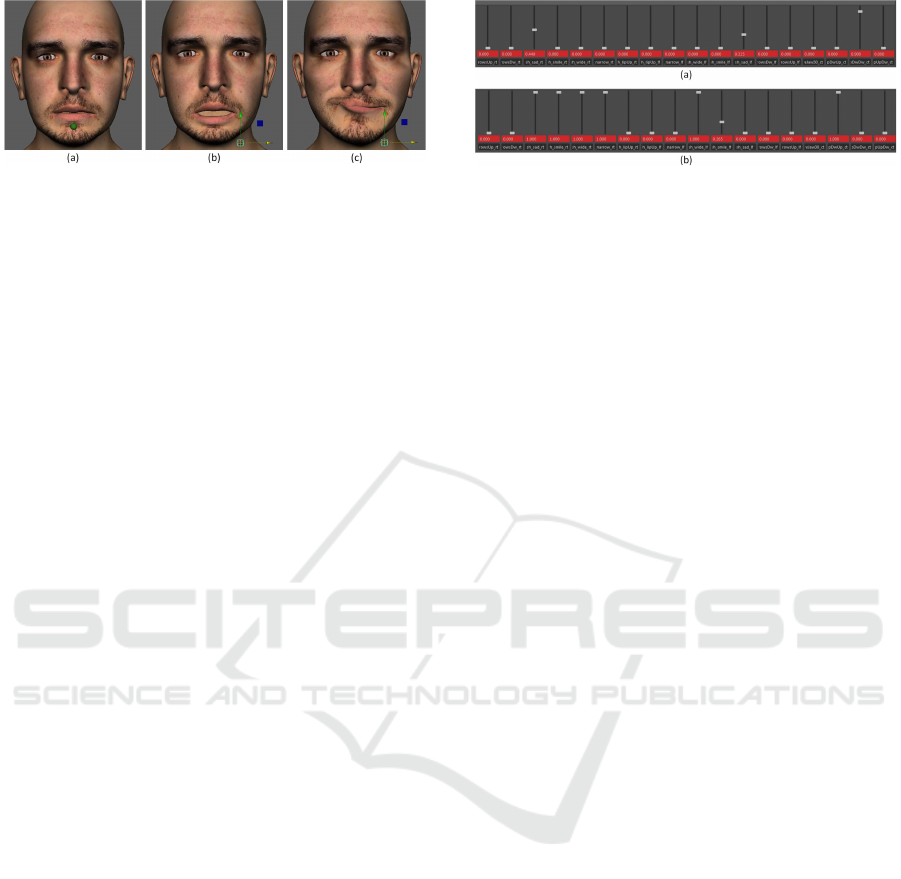

Figure 2: (a) Neutral pose of the model with the located pin.

(b) Pin moved down and right by using our Transposition

Approach. (c) Pin moved to the same position as (b) by

using the Pseudo-Inverse Approach.

update is deﬁned as ˙q = J

˙p instead of ˙q = J

˙p. In

our transposition approach, we adapt Jacobian Trans-

pose algorithm to the blendshape direct manipulation

in an elegant way to reduce the global deformation

impact to a minimal level. Therefore, the weight up-

dates are deﬁned as:

w = B

m (6)

The transition from pseudo-inverse based weight

updates to our transposition based approach is given

in Appendix section. From an intuitive perspective,

Equation 6 provides a direct projection of the point

movements onto the B. Therefore, point displace-

ments directly determine the exact deformation with

the correcting rows of B

. This type of approach pre-

vents the unexpected and unintuitive deformation ef-

fects on the facial model during the artistic pose edit-

ing. We accomplish this by appending the constrained

points to m, and corresponding rows to B. Thereby,

each pinned points adds three columns to B

and rows

to m. For example, while n arbitrary number of pins

are located on the 3D facial model with k blendshape

targets, the system described in Equation 6 can be rep-

resented in the matrix form in Equation 7:



















x y z ··· z

··· b













3nz







(7)

It should be noted that in Equation 7, B

is k × 3n

matrix that consists of the coordinates of blendshape

targets over the selected vertex, and w vector includes

all weight values to form the resultant face. It is clear

that each weight value is computed as the inner prod-

uct of the relevant B vector and the constraint points

vector (w

= b

· m). Therefore, this statement reveals

that each pin displacement is only projected on its

Figure 3: The screen-shots of the slider interface according

to the pin movements that is shown in Figure 2. (a) is for

our Transposition Approach. (b) is for the Pseudo-Inverse

Approach.

corresponding blendshape targets, and this behavior

keeps the system stable, intuitive and prevents the un-

expected movements.

Strictly speaking Equation 6 gives the same an-

swer as Equation 3 in the case where the problem

is linear and Equation 6 is iterated to convergence.

However, in interactive use, the pin m is constantly

moving, and Equation 6 is not iterated to convergence.

In this case the Jacobian transpose approach natu-

rally moves each weight in proportion to the amount

that the corresponding blendshape target is useful in

reaching the goal, and there is no need to rigidly

threshold the singular values to separate what direc-

tions are part of the nullspace.

3.3 Pseudo-inverse with Transposition

Approach

The pseudo-inverse and the proposed transpose ap-

proaches have their own complementary advantages

and disadvantages. Therefore, it would be desirable to

combine them for obtaining a smooth and promising

hybrid approach. The instability problem of pseudo-

inverse approaches is already mentioned in the pre-

vious section. However, this negativity can be used

as an advantage during the pose editing. Because in

some particular cases, the movement of target shapes

naturally requires the movement of other shapes. For

example, the speciﬁc movement of inner eyebrow for

the “anger expression” is only possible with the slight

movement of the mouth. During pose editing, this

type of coupling may seem unexpected but not neces-

sarily unrealistic. Besides, in rare cases, the gross pin

movements may overshoot the pose with the trans-

position approach. By taking these possibilities into

account, we deﬁne a simple parametric representation

for the weight updates that is shown in Equation 8:

w = (γB

+ (1 − γ)B

)m (8)

where γ is an arbitrary scalar which keeps the balance

of the system. The value of γ would vary between

[0,1] where error stays in a minimal state. Unfortu-

nately, in this context there is no exact deﬁnition of

Transposition Based Blendshape Direct Manipulation

109

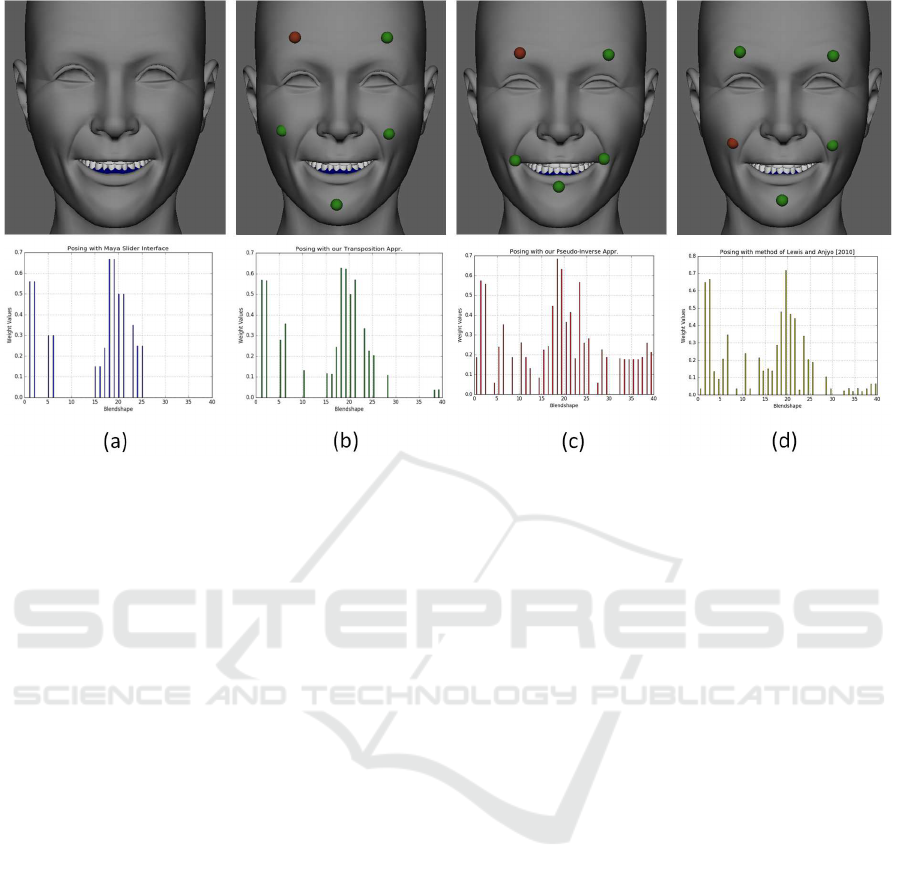

Figure 4: Blendshape direct manipulation comparison example on a model with 40 blendshape targets. (a) is the target

pose which was created using Maya’s slider interface. An experienced user tried to generate the closest pose to (a) by using

our transposition approach in (b), classic pseudo-inverse approach in (c) and the method of (Lewis and Anjyo, 2010) in (d).

Below, the weight values are reported for each above corresponded pose. Our transposition based approach clearly gives the

most close approximation to the target pose.

error, since pseudo-inverse part of Equation 8 already

produces a slight error. However, this error can be

considered as the unexpected movements of the face

that are within the tolerable limits. The further details

of Equation 8, and the γ value will be discussed in the

next section.

4 EXPERIMENTAL RESULTS

AND ANALYSIS

Our approach and its interface have been imple-

mented as a plugin for Maya 2016 using Python.

Numpy package has been used for matrix calcula-

tions. We demonstrate the comparison of our trans-

position approach with the other existing techniques

on the various blendshape facial models. All direct

manipulation techniques including our transposition

approach respond in real time, and rapidly produce

the interactive visual feedback to the user. Our main

motivation has been keeping the user away from the

technical aspects of the method during the implemen-

tation. For that reason except the mouse, the interface

does not include any control components. All the tests

were performed on 4-core Intel Core i7-2600 3.4 GHz

machine with 8 GB of RAM and an nVidia GTX 570

GPU.

Comparison to Pseudo-inverse based

Approaches

Despite the instability problem of pseudo-inverse

based approaches, over the years they have dominated

the research on direct manipulation. However, our ex-

periments show that our transposition approach de-

forms the desired area of the face with a more smooth

blending. Besides, the unexpected movements are al-

most completely eliminated. Figure 2 visually com-

pares our approach with the pseudo-inverse technique

under the single pin editing scenario. The model

consists of 18 blendshape targets, and the same pin

movements produce thoroughly different facial poses.

The slider interface of Figure 2 is shown in Figure 3.

The pseudo-inverse approach clearly updates the least

corresponding weights more than it should be, and

the resultant pose stays far away from the expected

pose. On the other hand, our transposition approach

directly maps the displacement of the pin movement

onto the corresponding blendshape targets. The resul-

tant pose is in the direction of the expectations. Be-

sides, it should be noted that both approaches operate

in the deformation space deﬁned by the preconﬁgured

blendshape targets. Therefore, it is not possible to ex-

press poses beyond the limits of what blendshapes al-

low to the user.

Further, we created an experimental pose (Figure

GRAPP 2017 - International Conference on Computer Graphics Theory and Applications

110

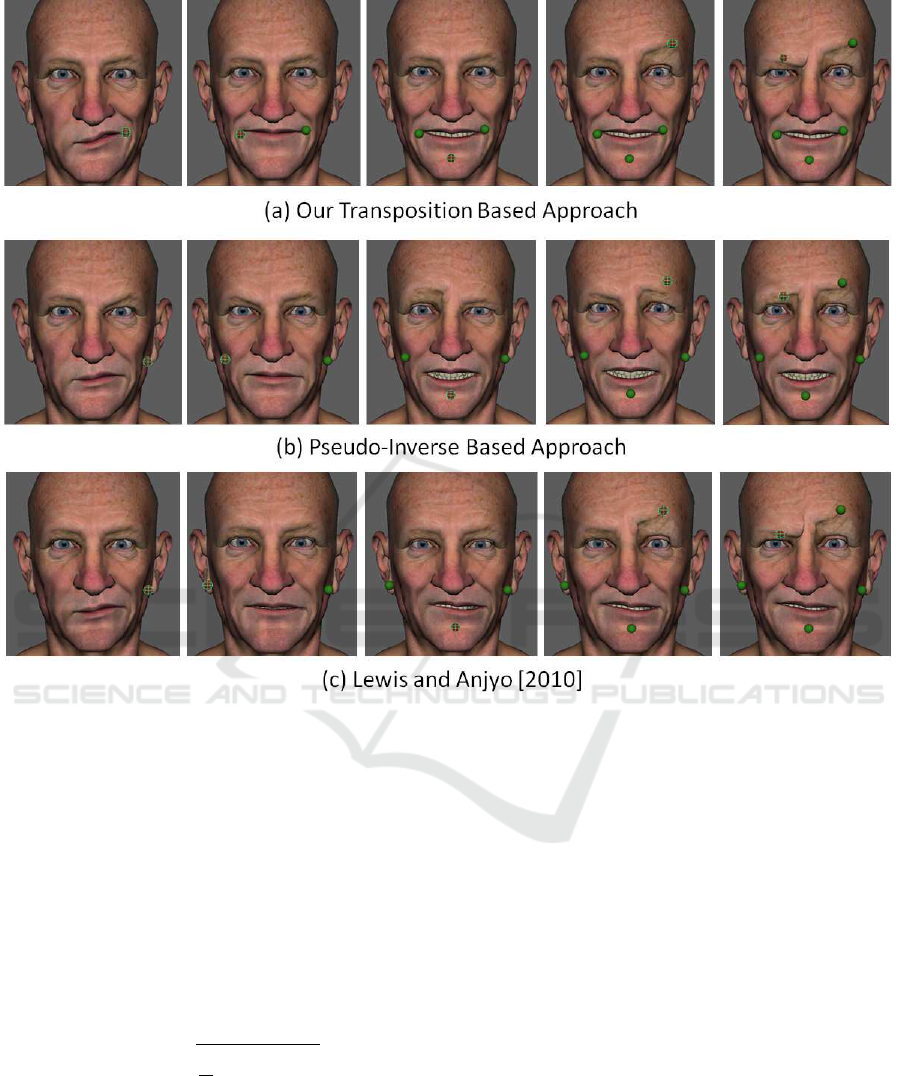

Figure 5: Comparison of our proposed approach with other pseudo-inverse based techniques on a production quality blend-

shape model with more than 100 target shapes. Our transposition based approach in (a) generates visually plausible and

desired results with same pin drag direction. The other methods (in b and c) produce unintuitive results with many unexpected

global deformations.

4a) for an experienced user, and asked brieﬂy produce

the same pose using our transposition based approach,

pseudo-inverse based approach and the method of

(Lewis and Anjyo, 2010). The test model consists

of 40 blendshape targets and we measured each tar-

get shape value as shown in Figure 4 below. The most

correct pose was intuitively obtained by our transposi-

tion approach. However, all three approaches produce

errors, which are reported using the root mean square

deviation per weight:

RMS

∑

i=1

− ¯w

(9)

where N is the number of target shapes, w

is the

weight value of the i

target shape, and ¯w

is the cor-

responding weight value of the i

target shape of the

experimental pose (Figure 4a). The error values for

each target shape is compared in Figure 6. According

to the error analysis, the pseudo-inverse approach and

the method of (Lewis and Anjyo, 2010) produce sev-

eral irrelevant weight values during the pose genera-

tion. Besides, both approaches generate error values

on the relevant weights which cause unintuitive end

results. On the other hand, our transposition based ap-

proach produce very few error values, which mostly

occur on the relevant weight values. This difference

is due to the precise mouse movements, and is almost

not observable on the model. Figure 6 demonstrates

these error differences in scatter and line graph styles.

We compare all three approaches for posing with a

production quality model (number of blendshapes >

100) in Figure 5, which is a more realistic scenario for

the artists to create facial expressions during the an-

imation process. We observe that method of (Lewis

and Anjyo, 2010) (Figure 5c) produces visually more

plausible poses than the classic pseudo-inverse ap-

proach (Figure 5b), nevertheless they both produce

unexpected movements on the regions that are other

Transposition Based Blendshape Direct Manipulation

111

Table 1: Summary of the processed datasets. The face model order follows the order in Figure 1 (from left to right). For

example, Face 1 is the left most model, Face 3 is the cartoon model in the middle, Face 5 is the right most model. From left to

right, columns show in order, the model used, number of vertices, number of edges, number of faces, number of blendshape

targets, T

is average timing for pin generation, T

edit

is exact timing for pose editing. All computation times are in seconds.

Model #Vertex #Edge #Face #Targets T

edit

Face 1 6720 19984 13264 40 0.15 0.0099

Face 2 9562 28416 18848 18 0.03 0.0099

Face 3 11926 35576 23648 36 0.13 0.0099

Face 4 5692 11282 5584 127 1.75 0.015

Face 5 5792 11625 5834 136 1.46 0.019

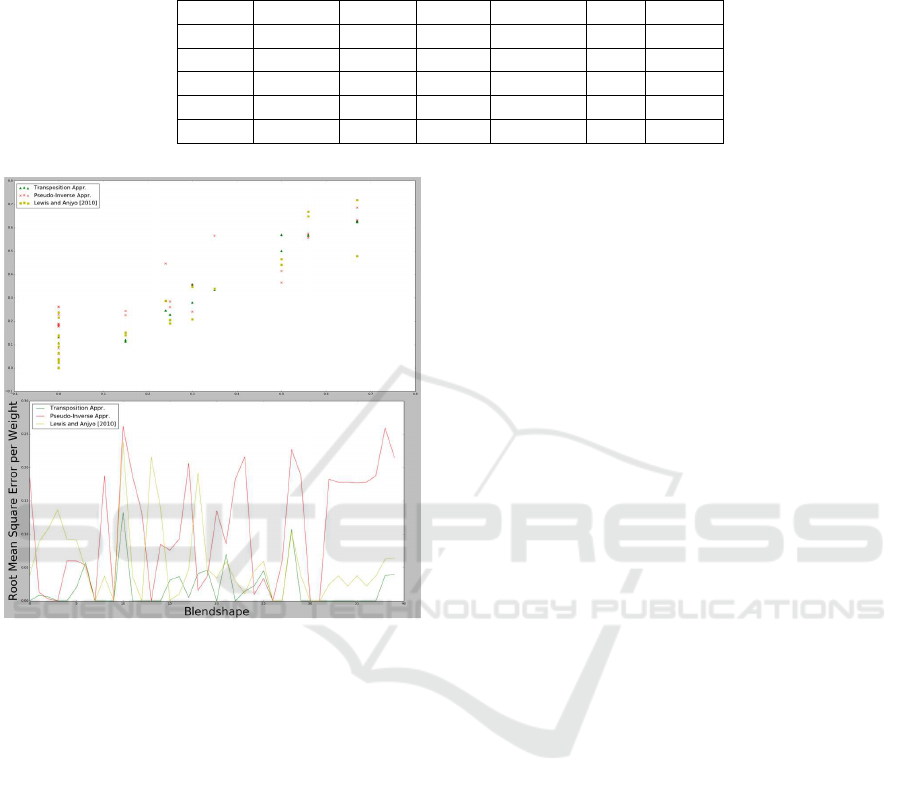

Figure 6: The error analysis of the weight deviation from

Figure 4. The error values are calculated by using Equa-

tion 9. The scatter plot of error values are presented in the

top graph, and the comparison of error values are shown in

the bottom graph. Our transposition approach produces the

minimum error during the pose generation.

than the desired deformation region of the face. Our

transposition based approach (Figure 5a) provides al-

most fully local deformation which allows the artists

to edit only the desired manipulation area without any

visible global deformation impact. It should be noted

that in Figure 5, all sub-ﬁgures are intended to pro-

duce the same pose with the same number of pins.

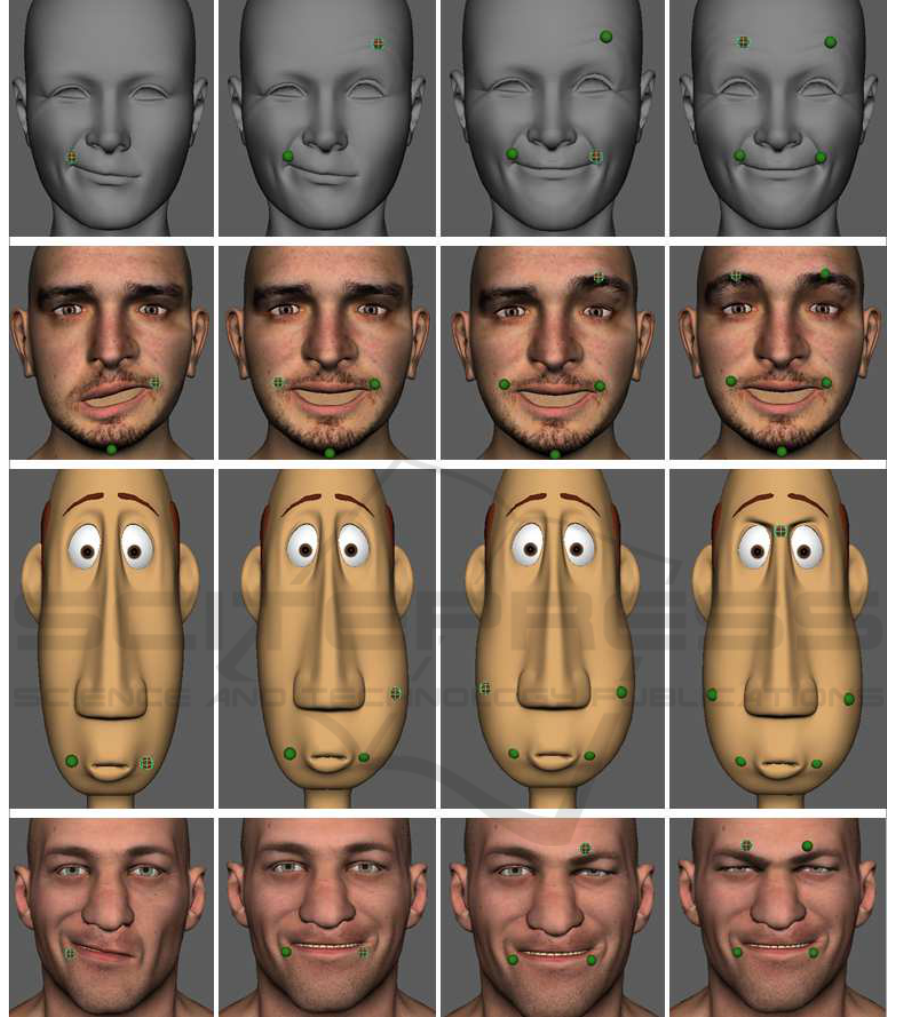

Figure 8 illustrates the application of our transpo-

sition based approach on different facial models. Ta-

ble 1 summarizes the processed data, model details,

and computation timings for the proposed approach.

Parametrization of the Hybrid Approach

Assigning a ﬁxed parameter value to γ value in Equa-

tion 8 can be considered as the most straightforward

approach. In that case, it would be most likely to

choose a small heuristic value (such as 0.1) and al-

low the transposition approach to dominate Equation

8. Instead, we apply the singular value decomposi-

tion to B

where B

= V SU

and choose the smallest

singular value σ

for γ. The singular values smoothly

approach to zero when the number of pins increase.

On the other hand, since B

= V S

, the singular

values of pseudo-inverses grow toward inﬁnity.

As the user applies few number of pins to the

model (such as 1 or 2), the pseudo-inverse side of

Equation 8 will be intrinsically effective. Besides,

by intuition few number of pins denotes that the user

does not fully constrain the model, and execute only

a simple weight update. Another possibility can be an

unstable pose needed for a particular case. Neverthe-

less, the general practice is based on applying the high

number of pins to the model (such as 5 to 15), and

controlling all of them without any artifact. In these

cases, our transposition approach dominates Equation

8, and provides smooth results. Figure 7 demonstrates

an example case to the usage of Equation 8. Some

poses are necessary for irregular expressions, and it

is possible to create with 1 or 2 pins that can be seen

in the ﬁrst and second columns of Figure 7. In these

cases, pseudo-inverse approach can be considered to

generate the desired irregular pose. However, when

the number of pins increase on the model, transposi-

tion based approach dominates Equation 8 (last col-

umn of Figure 7).

Limitations. Our transposition approach works

without any limitation. However, there exists one lim-

itation in our hybrid approach which comes from the

fact that the γ value in Equation 8 is computed ac-

cording to the located number of pins on the model.

Therefore, it is ideal to locate the desired number of

pins on the model before applying the posing opera-

tion.

GRAPP 2017 - International Conference on Computer Graphics Theory and Applications

112

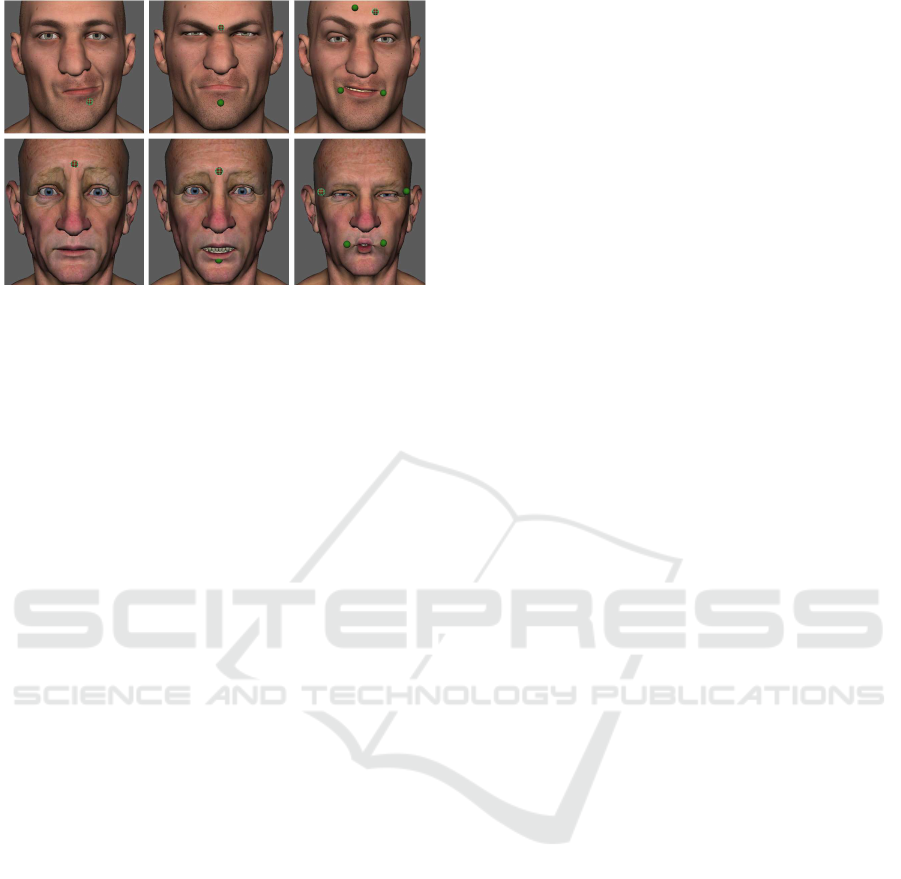

Figure 7: While the transposition approach generally pro-

duces good results, in certain cases the hybrid approach

from Equation 8 is superior. The parametrization in Equa-

tion 8 is calculated according to singular values of SVD.

When the user locates few number of pins on the model,

SVD produces a high value for the gamma parameter and

pseudo-inverse side of Equation 8 dominates. On the other

hand, with high number of pins on the model, SVD pro-

duces a very small number and transposition part of Equa-

tion 8 dominates.

5 CONCLUSIONS

In this paper, we develop a practical transposition

based blendshape direct manipulation for 3D facial

animation. Our approach has focused on the precise

projection of the pin displacements onto the corre-

sponding deformation vectors. Unlike the previous

pseudo-inverse based methods, our approach provides

a direct control of the deformation space by purely

sticking its dimensions. This behavior reduces the un-

expected movements during the artistic editing, and

almost completely reduces the deformation inﬂuence

area to the local geometry where the pins are located.

While the artifacts of the pseudo-inverse approach

can be reduced with regularizers, our new approach

is more stable intrinsically. The difference between

the two approaches is particularly noticeable while

dragging the mouse, and when the matrix B

in (3)

has a large nullspace. In addition, we offer a hybrid

approach, which incorporates our proposed transpo-

sition approach with the pseudo-inverse solution. In

the results, we demonstrate how our approach pro-

vides intuitive and stable artistic edits on blendshape

models almost without any artifacts. Our approach is

an original, simple, and powerful direction that can

be easily adapted to the existing direct manipulation

frameworks.

Hybrid combination of transposition and pseudo-

inverse approaches, as offered by our method, is

a promising direction that we would like to pur-

sue in the future. Applying an arbitrary number

of pins within the blendshape deformation space

is parametrized by employing the smallest singular

value in our current form. We plan to extend this

approach to formulate a balanced form that reduces

the differences between pseudo-inverse and transpo-

sition in the ﬁnal result. Another promising research

direction is to explore a step-size formulation for the

proposed transposition approach to prevent possible

overshooting during the gross pin movements.

ACKNOWLEDGEMENTS

This article is a result of the project NanoS-

TIMA, NORTE-01-0145-FEDER-000016, sup-

ported by Norte Portugal Regional Operational

Programme (NORTE 2020), through Portugal

2020 and the European Regional Development

Fund. This work also had the collaboration

of the Fundac¸

ao para a Ci

encia e Tecnolo-

gia/FCT (SFRH/BD/82477/2011), POPH/FSE

program and Instituto de Telecomunicac¸

oes

(UID/EEA/50008/2013). We thank Faceware

Technologies, Jason Baskin, Xenxo Alvarez and

Hiroki Itokazu for the models.

REFERENCES

Anjyo, K., Todo, H., and Lewis, J. P. (2012). A practical

approach to direct manipulation blendshapes. Journal

of Graphics Tools, 16(3):160–176.

Cetinaslan, O., Orvalho, V., and Lewis, J. (2015). Sketch-

based controllers for blendshape facial animation. In

Eurographics 2015 - Short Papers.

Chan, S. K. and Lawrence, P. D. (1988). General inverse

kinematics with the error damped pseudoinverse. In

Robotics and Automation, 1988. Proceedings., IEEE

International Conference on, pages 834–839 vol.2.

Cheney, W. and Kincaid, D. (2009). Linear algebra: The-

ory and applications. Jones and Barlett Publishers,

Sudbury, Massachusetts.

Deng, Z., Chiang, P.-Y., Fox, P., and Neumann, U. (2006).

Animating blendshape faces by cross-mapping mo-

tion capture data. In Proceedings of the 2006 Sym-

posium on Interactive 3D Graphics and Games, I3D

’06, pages 43–48, New York, NY, USA. ACM.

Gonz

alez Castro, G., Athanasopoulos, M., and Ugail, H.

(2010). Cyclic animation using partial differential

equations. The Visual Computer, 26(5):325–338.

Grochow, K., Martin, S. L., Hertzmann, A., and Popovi

c, Z.

(2004). Style-based inverse kinematics. ACM Trans.

Graph., 23(3):522–531.

Holden, D., Saito, J., and Komura, T. (2015). Learning an

inverse rig mapping for character animation. In Pro-

Transposition Based Blendshape Direct Manipulation

113

ceedings of the 14th ACM SIGGRAPH / Eurographics

Symposium on Computer Animation.

Joshi, P., Tien, W. C., Desbrun, M., and Pighin, F. (2003).

Learning controls for blend shape based realistic fa-

cial animation. In Proceedings of the 2003 ACM SIG-

GRAPH/Eurographics Symposium on Computer Ani-

mation, SCA ’03, pages 187–192.

Lewis, J. P. and Anjyo, K. (2010). Direct manipulation

blendshapes. IEEE Comput. Graph. Appl., 30(4):42–

50.

Lewis, J. P., Anjyo, K., Rhee, T., Zhang, M., Pighin, F., and

Deng, Z. (2014). Practice and theory of blendshape

facial models. In Eurographics STAR, pages 199–218.

Lewis, J. P., Cordner, M., and Fong, N. (2000). Pose space

deformation: A uniﬁed approach to shape interpola-

tion and skeleton-driven deformation. In Proceedings

of the 27th Annual Conference on Computer Graphics

and Interactive Techniques, SIGGRAPH ’00, pages

165–172, New York, NY, USA. ACM Press/Addison-

Wesley Publishing Co.

Lewis, J. P. and Dragosavac, N. (2010). Stable and efﬁcient

differential inverse kinematics. In ACM SIGGRAPH

ASIA 2010 Sketches, SA ’10, pages 1–2.

Li, H., Weise, T., and Pauly, M. (2010). Example-based

facial rigging. ACM Trans. Graph., 29(4):1–6.

Nakamura, Y. and Hanafusa, H. (1986). Inverse kinematic

solutions with singularity robustness for robot manip-

ulator control. Journal of Dynamic Systems, Measure-

ment and Control, 108:163–171.

Nakamura, Y., Hanafusa, H., and Yoshikawa, T. (1987).

Task-priority based redundancy control of robot ma-

nipulators. Int. J. Rob. Res., 6(2):3–15.

Neumann, T., Varanasi, K., Wenger, S., Wacker, M., Mag-

nor, M., and Theobalt, C. (2013). Sparse local-

ized deformation components. ACM Trans. Graph.,

32(6):179:1–179:10.

Orvalho, V., Bastos, P., Parke, F., Oliveira, B., and X., A.

(2012). A facial rigging survey. In in Proc. of the

33rd Annual Conference of the European Association

for Computer Graphics - Eurographics, pages 10–32.

Pighin, F., Hecker, J., Lischinski, D., Szeliski, R., and

Salesin, D. H. (1998). Synthesizing realistic facial

expressions from photographs. In Proc. 25th Annual

Conference on Computer Graphics and Interactive

Techniques, SIGGRAPH ’98, pages 75–84.

Seo, J., Irving, G., Lewis, J. P., and Noh, J. (2011). Com-

pression and direct manipulation of complex blend-

shape models. In Proceedings of the 2011 SIGGRAPH

Asia Conference, SA ’11, pages 164:1–164:10.

Sloan, P.-P. J., Rose, III, C. F., and Cohen, M. F. (2001).

Shape by example. In Proceedings of the 2001 Sym-

posium on Interactive 3D Graphics, I3D ’01, pages

135–143, New York, NY, USA. ACM.

Sumner, R. W., Zwicker, M., Gotsman, C., and Popovi

c, J.

(2005). Mesh-based inverse kinematics. ACM Trans.

Graph., 24(3):488–495.

Tena, J. R., De la Torre, F., and Matthews, I. (2011). In-

teractive region-based linear 3d face models. In ACM

SIGGRAPH 2011 Papers, pages 76:1–76:10.

Tikhonov, A. and Arsenin, V. (1977). Solutions of ill-posed

problems. Wiley, New York.

Tolani, D. and Badler, N. (1996). Real-time inverse kine-

matics of the human arm. Presence, 5(4):393–401.

Welman, C. (1993). Inverse kinematics and geometric con-

straints for articulated ﬁgure animation. Master The-

sis, Simon Fraser University.

Yu, H. and Liu, H. (2014). Regression-based facial ex-

pression optimization. IEEE Transactions on Human-

Machine Systems, 44(3):386–394.

Zhang, L., Snavely, N., Curless, B., and Seitz, S. M. (2004).

Spacetime faces: High resolution capture for model-

ing and animation. ACM Trans. Graph., 23(3):548–

558.

Zhao, J. and Badler, N. I. (1994). Inverse kinematics posi-

tioning using nonlinear programming for highly artic-

ulated ﬁgures. ACM Trans. Graph., 13(4):313–336.

APPENDIX: Transition from

Pseudo-inverse to Transposition

The transposition algorithm can be motivated by ex-

pressing the pseudoinverse in terms of an orthonor-

malized basis. We orthonormalize the B

matrix,

and extract the deformation directions from the blend-

shape matrix, because both share the same vector

spans. Therefore, we apply the Gram-Schmidt pro-

cess (Cheney and Kincaid, 2009), and store the ex-

tracted orthonormal matrix in Q. After, we substitute

the new Q matrix instead of B

in Equation 3 with a

scaling step-size matrix R for the point movements.

The new pseudoinverse equation becomes:

w = (QQ

)

−1

Q(Rm) (10)

In Equation 10, Q is an orthonormal matrix.

Thereby, QQ

becomes an identity matrix. The new

update function turns into w = Q(Rm). According to

Jacobian Transpose suggestion, weight update can be

represented as w = B

m. To minimize the scaling

step-size of the point movements we apply the fol-

lowing minimization:

min

− QRk

(11)

The solution of Equation 11 shows us R = Q

Alternatively, least square process can be replaced

with a simple qr factorization. Then, R is substituted

to Equation 10 and the ﬁnal weight update function

becomes:

w = B

m (12)

Reviewing these steps, we see that when the basis

is orthogonal, the pseudoinverse can be reduced to the

transposition approach. In turn, the bad behavior of

the pseudoinverse can be understood in terms of the

lack of orthogonality of the basis.

GRAPP 2017 - International Conference on Computer Graphics Theory and Applications

114

Figure 8: Sequential posing using our transposition based blendshape direct manipulation approach. Our approach can

be applicable to all blendshape models without any pre-conﬁguration, and it takes less than 3 minutes to create the ﬁnal

expression from the neutral pose. The details of the models are reported in Table 1.

Transposition Based Blendshape Direct Manipulation

115
