MERLIN COLLABORATION HANDBOOK

Challenges and Solutions in Global Collaborative Product Development

Päivi Parviainen, Juho Eskeli, Tanja Kynkäänniemi and Maarit Tihinen

VTT Technical Research Centre of Finland, Kaitoväylä 1, Oulu, Finland

Keywords: Collaborative development, global software development practices.

Abstract: Global, collaborative and distributed development is increasingly common in software development.

However, the traditional product and software development technologies do not support this way of working

well, e.g., time and cultural differences cause new requirements for these technologies. In this paper, we

introduce a public web-based handbook, collecting the challenges encountered in global collaborative

development by the companies, and also a large number of solutions that help in tackling these challenges.

The handbook was implemented using an ontology editor and generating HTML pages. In the final phase of

the development the handbook was validated by several external testers, with main feedback being that the

handbook was found useful, but more practical solutions would be welcome. Handbook was also updated

based on the feedback.

1 INTRODUCTION

In the perspective of growing size and complexity of

embedded systems, companies are not able to

develop all the required functionality by themselves.

As a result, suppliers specialize in specific

functionality or specific skills which they can sell to

others. This is clearly visible in the growing

numbers of the outsourcing constructions in the past

years. For example, a survey (VA Software, 2005)

found that 74% of the participated companies had

more than one development location. 48% had four

or more locations and 26 % had more than 20

locations. Furthermore, a major survey carried out

by the Software & Information Industry Association

(in January 2007) indicates that companies are

increasing their global development efforts: 57% of

the survey participants have significantly increased

offshore work in the past 18 months and many plan

to add still more in the next 18 months. Growth

strategy was cited as an important or critical driver

for 84% of respondents, while increasing speed to

market and productivity were the next most

important drivers. Collaborative engineering of

embedded systems has become a fact of life, and

currently there is no way back anymore; companies

have already outsourced large parts of their

developments to other companies, resulting in no

longer having the related skills available in their

own organisations. Instead, the companies need to

manage a complex situation of many partners, sub-

contractors, suppliers, software platforms and so on.

Practice has shown that the traditional single

company development technologies do not support

collaborative product development well. For

example, another survey shows that 80% of

companies are unsatisfied with their overall

collaborative development efforts. Survey

respondents expressed as main problems the poor

foundation for collaboration and poor management

of partner relationships. These problems are often

caused by, e.g., time difference and geographical

distribution that cause new requirements to the ways

of working and tools. Also, understanding each other

is not straightforward due to different backgrounds,

e.g., different terminologies, cultures etc. but needs

to be supported by technologies.

There are some experience reports about

challenges companies have faced in collaboration,

for example, Philips (Kommeren et al., 2007),

Siemens (Bass and Paulish, 2004), Motorola (Battin

et al., 2001), Alcatel (Ebert and Neve, 2001), and

Lucent Technologies (Herbsled et al., 2003). Also

several books that are discussing the problematics in

collaboration and solutions to address them have

been published (Karolak, 1998), (Carmel, 2005),

(Sahay et al., 2004), (Carmel and Tija, 2005),

(Damian, 2007). There are also conferences and

339

Parviainen P., Eskeli J., Kynkäänniemi T. and Tihinen M. (2008).

MERLIN COLLABORATION HANDBOOK - Challenges and Solutions in Global Collaborative Product Development.

In Proceedings of the Third International Conference on Software and Data Technologies, pages 339-346

DOI: 10.5220/0001874803390346

 SciTePress

workshops such as ICGSE (International Conference

on Global Software Engineering) dedicated to global

software engineering. However, these sources cover

only some viewpoints of collaborative software

development and until now no comprehensive

collection of challenges and solutions for product

development in collaboration could be found. Still,

all these sources have been used as input for the

Merlin Collaboration Handbook.

In this paper collaboration means that two or

more entities work together to create mutual value.

These entities can be companies, departments or

even teams and they can combine in any one of

several different business relationships and for very

different periods of time. Importantly, the entities

are physically in different locations, i.e., the

development is distributed.

This paper is organized as follows: first, in

chapter 2 we discuss the process of writing the

handbook. Next we present the contents of the

handbook in general level, including the structure

and technical implementation of the handbook in

chapter 3. In chapter 4 we discuss the validation of

the handbook and end the paper with some

conclusions and thoughts for further work.

2 MERLIN HANDBOOK

DEVELOPMENT

The purpose of the handbook - defined in co-

operation with the Merlin project consortium - is to

support operational collaborative development, i.e.,

help companies to take care of all critical aspects

during various phases of the collaborative project. In

practice this would be done by collecting, listing and

structuring these critical aspects as well as ways to

address them, called solutions into a handbook.

Furthermore, in order to make the handbook usable,

ways to access parts of the contents based on user’s

interests should be made easy.

The building of the handbook started by defining

it’s structure; an initial framework for the structure

of the handbook was derived from literature. CMMI

(CMMI, 2006) was used as the basic structure due to

its wide acceptance in software world and challenges

reported by others grouped according to the CMMI

structure. Based on the initial framework an

industrial inventory was carried out, including

interviewing the industrial partners of the Merlin

project. These interviews lead to many refinements

to the framework, especially in the details, although

several of the challenges encountered by the

interviewed companies were also mentioned in

literature. We have discussed these differences in

(Hyysalo et al., 2006), main being that the

approaches represented by literature, on one hand,

and industrial practitioners, on the other, towards

problems related to collaborative work are different.

The industry emphasizes technical aspects and

detailed problems concerning engineering practices,

while the literature focuses on solutions for more

general issues like communication and team

building. We found plenty of solutions for

management and support practices in the literature

but only few solutions for engineering practices.

Thus, in order to provide more content to the

handbook, collection of best practices from Merlin

industrial partners was also done via focused

interviews on selected topics. Results of these

focused interviews were then included as solutions

and experiences related to them in the handbook.

Finally, also the research and development work

done during the Merlin project was added to the

handbook as solutions.

In order to support usability, e.g., the different

views, and due to very large amount of content, the

handbook was not implemented as a physical book,

but a structured documentation solution was used to

support readability. Implementation is discussed in

more detail in section 3.3.

In practice, the handbook was developed in bi-

monthly workshops with the Merlin consortium to

refine implementation and contents of the handbook

based on prototypes. The workshops had also

representatives with experience on such repositories

and usability, for example. Also, in the last phase of

the project, the Handbook was validated by 16

external testers (this is discussed more in section 4).

3 HANDBOOK CONTENTS

This section describes the contents of the handbook

in general level. The complete handbook is available

in the internet (http://www.merlinhandbook.org).

3.1 Structure

The handbook structure is presented in the following

Figure 1.The handbook structure is formed using

topics; three main topics, namely management,

engineering and support practices and 21 subtopics,

such as collaboration management, requirements

definition, testing, configuration management, and

co-operative work.

ICSOFT 2008 - International Conference on Software and Data Technologies

340

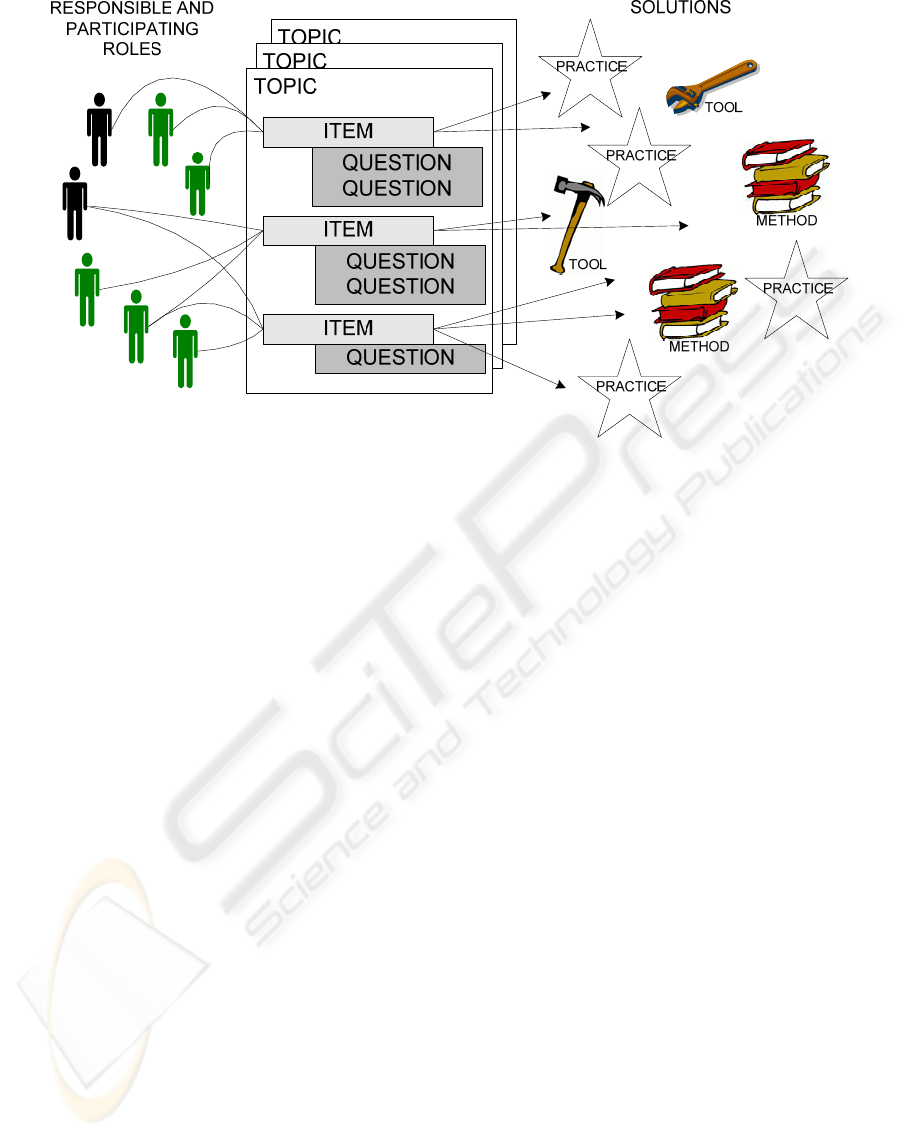

Figure 1: Merlin collaboration handbook structure.

Each subtopic has number of important items,

altogether about 80 of them, such as product

roadmapping, conditions for collaboration, practices

for resolution of conflicting requirements, sharing of

test cases, unified CM practices, cultural differences,

etc.

Items are then still refined to questions, that

further detail the item. For example, “Are supplier

agreements and long-term framework agreements

used as input for roadmapping?” is a question under

“product roadmapping” item. The challenges faced

by industry are especially visible in the items and

questions of the handbook; they were first gathered

in the industrial inventory and critically refined

during the handbook development. The topics are

mainly general, following CMMI structure to a large

degree and the collaboration specific issues are

visible in the item, question and solution level; we

included only items, that are either specific for

collaborative development or as in most cases are

more difficult and complex to manage in

collaborative situation.

In addition to topics, items and questions, also

roles are defined. There are both responsible role

and main participating roles defined for each item.

The roles include all common product development

roles, for example, senior manager, project manager,

chief architect, etc. By roles, a checklist of

questions the role is responsible for can be retrieved

from the handbook. For example, Table 1 shows the

checklist for the role Quality manager.

For each item also solutions are included in the

handbook. Solutions are methods, techniques, tools,

and practices that help in taking care of important

items and they are classified according to their level

of validation:

• Academic case, meaning that the

solution is proposed in literature, often

with academic case studies. These types

of solutions were included also to

provide ideas for items that were not so

well covered with industrially proven

solutions.

• Industrial case, meaning that the

solution is proposed in literature or

developed in Merlin with industrial case

studies.

• Legislation or standards.

Each solution has also a standard description

including ID, name, summary, description, evidence

of suitability (level of validation), type of solution,

collaboration dimensions, and references to further

information.

3.2 Example of Contents

An example of contents of the handbook is

requirements engineering. In the handbook

requirement engineering is divided to two topics,

requirements development and requirements

management. Requirements development has eight

important items and requirement management has

three important items defined in the handbook.

MERLIN COLLABORATION HANDBOOK - Challenges and Solutions in Global Collaborative Product Development

341

Table 1: Quality manager’s checklist.

A. Management practices

Are relationships between common quality management process and partners own quality practices defined? Responsible

Does the contracting process take into account all involved parties or stakeholders and do they have the required power of

authority or signing?

Participates

Are suppliers or customers co-operation capability analysed beforehand? Participates

Are the partners processes and quality management system of enough maturity? Participates

B. Engineering practices

Are the costs for non-quality taken into account while releasing the product. Have the costs for non-quality of the various

suppliers been estimated?

Participates

Are performed tests and test results communication practices between partners defined and followed? Participates

Are practices for incorporating feedback from customers to requirements development process defined and working? Participates

Have the results of acceptance testing been taken adequately into account? Participates

C. Support practices

Is common process across sites or partners as thin as possible and forced as little as possible? Responsible

Is the in-house review process defined and followed by each partner? Responsible

Are best practices recoded and used between partners? Responsible

Are common practices for quality assurance defined? Responsible

Is shared process improvement work defined and agreed upon in long term relationships? Responsible

Are common templates defined and used where applicable? Participates

Is the effectiveness of collaboration evaluated for example as part of end-of-project evaluations? Participates

An example of important item for requirements

development is “Clear prioritization rules and

practices / trade-off of the requirements”. This item

has five solutions in the handbook that help taking

care of priorisation. These solutions are methods that

base on giving values to different requirements

(pairwise comparisons, e.g. AHP), negotiation

approaches that base on the idea that the priority is

determined by reaching agreement between the

different stakeholders and dedicated requirements

priorisation methods and techniques specifically

supporting collaboration.

Another example of topic is collaboration

management. For this topic nine important items

have been defined, including for example,

“establishing / evaluating conditions for

collaboration” and “clear agreements with

suppliers”. The latter has four solutions, e.g.,

guidelines for acceptance criteria definition and

creating a contract.

3.3 Technical Implementation

Handbook data is stored and managed using Protégé.

In general, Protégé is an open platform tool for

ontology modelling and knowledge acquisition

framework (Protégé Web Pages). It offers a way to

manage the cross-references in a mass of textual

data in a RDF/OWL format (RDF Pages). There are

predefined ontologies available on the web, which

can be imported into Protégé and can then be used as

a basis for other ontologies.

To develop the Handbook with Protégé, a data

model of the Handbook was created. This was done

by studying the structure of the Handbook

(practices, topics, etc.), their relationships and the

requirements for categorizing scopes. According to

this study, the data model was designed. A decision

was made to use the owl: Tool -ontology as a basis

for the Handbook ontology. The Tool -ontology was

chosen because it’s content and link structure closely

resembled that of the handbook. The Tool -ontology

was then modified to reflect the Handbook data

model. When the structure was finalised, the

instances, that is, the content of the Handbook with

their relationship information, was inserted into the

ontology.

In order to be able to represent the Handbook

data in web format, conversion from OWL/RDF

format into something more suitable for our

purposes was needed. This was done by using

Protégé’s possibility to extend its functionality via

plugins. A special purpose plugin was written which

exports the OWL/RDF information into easily

usable XML format. In the new format the data is

structured as a tree, that is, on top there is a practice

with its attributes, a practice has items with their

own attributes and so on.

The next challenge was how to represent the

information to users via web interface. Major

requirement specified for the HTML Handbook was

to have a possibility to scope the content according

to user specifications in order to offer different

views into the contents.

Scoped view into handbook was achieved by

defining scoping parameters which can be used to

bring out the different views. When entering the

handbook, the user is first presented with a form in

ICSOFT 2008 - International Conference on Software and Data Technologies

342

Prótége XML

converter plugin

Handbook in

OWL/RDF format

Protégé conversion

terminal

Generated HTML

pages

XML data file

Handbook server

Scoping servlet

Client

Figure 2: Merlin Handbook data flow.

which he/she can tick suitable parameters to trigger

the scoping process. Consequently, the same

parameters are inserted in the Handbook ontology as

attributes. These attributes make it possible to scope

the content by using the XML data file generated by

the Protégé converter and the Java servlets which

ultimately render the selected content for the user.

The following Figure 2 illustrates how handbook

operates.

This approach makes the handbook content

management simple; after the updated content has

been defined in Protégé, it is only necessary to run

the converter plugin and to deploy the new XML file

to handbook web pages. This solution also

guarantees that all the web pages have uniform

layout.

From the usability point of view the scoping

alone was not enough for navigating the handbook

data. Therefore the handbook offers a search

mechanism for its users by the means of Apache

Lucene search-engine. Lucene offers many powerful

features, most notable being the offline indexing

support. Initially several other search engines were

tested, but these were deemed too slow, mainly

because they lacked the offline indexing feature and

instead relied on to dynamical crawling. Because

Lucene is available as open source it could be easily

modifed to support the special features of handbook,

namely the scoping.

The handbook was developed iteratively; bi-

monthly workshops were arranged where the

development versions of the handbook were

presented to project members. Most of the feedback

received from these sessions were improvements to

the user interface (UI) and general usability, but also

the scoping mechanism was defined in the

workshops. These workshops were found to be

especially important for the developers so they could

see they were on the right track and could receive

further guidance when needed. Also, they provided

the project members continuous updates to current

situation and opportunities to influence the

Handbook.

4 HANDBOOK VALIDATION

During the project, the handbook was validated in

two different ways in addition to the workshops that

gave continuous feedback for the development.

Firstly, 16 external testers used the handbook and

provided feedback and secondly the handbook was

used in an industrial case to support improving

subcontracting efficiency in a company. Both of

these are discussed in this chapter.

4.1 External Testers

In the final phase of the Merlin project, the

handbook was tried out by external testers. These

testers were found by asking the Merlin industrial

partners to find persons in their organizations that

have not been involved in the Merlin project but

who are knowledgeable in the topic, i.e.,

collaborative product development. Another source

for these external testers was the public seminars,

where the handbook prototypes were presented and

volunteers for testing asked for. The users were

typically project managers that had experience in

collaborative projects and altogether 16 external

users were granted access to the handbook during

development.

During the validation, the external users were

asked to think of a typical problem they would have

MERLIN COLLABORATION HANDBOOK - Challenges and Solutions in Global Collaborative Product Development

343

in collaborative product development and try to find

answers and help from the handbook to address this

topic. No further instructions on using the handbook

were given at first. Also, the feedback was to be

given in free format including the chosen problem

and the findings and other comments.

Feedback from the external users related mainly

to the usability or the content of the handbook.

Based on the testers’ experiences, the handbook

looked nice and worked fine. Also, one of the testers

noted that handbook had very clear page lay-out.

However, some handbook mechanisms needed

explanations or guidelines for use. For instance

scope selection page was not self-explanatory (e.g.,

what was meant by item, type of source, agreement

base, etc.). Also, bookmark mechanism was not

explained, thus it was not clear where the bookmarks

were accessible.

The comments to the content of the handbook,

related to new solutions that should be added to

handbook. As one of the testers reported, on many

problem area’s underlying documentation was not

yet given. Thus, it was suggested that following

information should be added to the handbook:

reporting practices, multi-site peer reviews, selecting

configuration management tools, interactive process

model based on best practices, and data on

measurements. Also, one of the testers reported that

the handbook included too little information on

measurements, metrics, reporting and follow-up in

both management and project management. It was

also requested that the handbook should answer to

following questions: what are readiness assessments

or checklists for collaboration, and why to work

collaboratively?

Furthermore, according to one of the testers, the

overall information in the handbook tended to be

quite theoretical. Hence, for practitioners, practical

or implementation examples were missing, meaning

that findings remained abstract and theoretical.

Some guidelines were provided in the handbook, but

it could not be found how to do that in practice. It

was also pointed out by another tester that the usage

of proven practices was a good idea, since a larger

number of examples would bring additional value to

the handbook.

It was also pointed out by one of the tester’s that

references to Google and Scholar Google sites

should be improved, e.g., to include the key words

of the specific publication in the URL, so that the

users wouldn’t have to retype the words themselves.

It was also noticed that common terminology for the

handbook should be provided in order to avoid

inconsistency of the terms used in the handbook.

Based on these comments by external testers,

handbook usability and content has been improved.

Now, the handbook is faster and easier to use. For

instance, help texts and terminology have been

added to the handbook in order to facilitate the use.

Also, information is much easier to find, then before

the users comments, since scoping and search

operations have been added to the handbook. With

the scoping operation, the content of the handbook

can be shown based on user’s needs and situations

and with the search operation specific topics, items

or solutions can be easily found from the handbook.

Also, based on the external testers’ comments and

wishes, the content of the handbook has been

improved, for instance, new solutions have been

created. User experiences also affected to the

content of the solutions, e.g., what attributes (i.e.

geographical distance, cultural differences, time

difference, etc.) are taken into account in the

solutions. Also, solutions’ references have been

updated. Furthermore, at the end of Merlin project,

all results from the project have been written in

solution format, so that the content of the handbook

would be more extensive and to include more

experience-based solutions than before, as the users

requested.

4.2 Industrial Case

The Merlin Handbook was used to first analyse and

then to improve the subcontracting practices of a

company participating in the Merlin project. The

aim of the case was specifically to improve

controllability and efficiency of the subcontracting.

The Handbook structure of items and questions was

used as interview framework to find out the

strengths and weaknesses of the current practices.

This resulted in several improvement areas for the

current practices but also to some additions to the

Handbook items, as some challenges identified were

not yet included in the Handbook. Then the

handbook was used to find solutions to the

improvement areas. Several solutions were found

and were then applied to the company’s needs.

The Handbook helped especially in gaining

confidence to change as the solutions and

experiences presented in the handbook supported the

company’s own ideas. Use of handbook helped also

in minimizing risks, as the handbook could help in

providing proven guidelines that can then be applied

to own situation. Also, instead of having to reinvent

the wheel the knowledge gained by larger network

of people could be utilized. That saved time, due to

ICSOFT 2008 - International Conference on Software and Data Technologies

344

avoiding using effort on basic issues and being able

to focus on adapting proven solutions to own needs.

As a result, due to the improved, more effective

practices, the number of the subcontracted personnel

could be significantly increased, meaning that more

work can now be subcontracted, freeing the

company’s own personnel to other tasks.

5 CONCLUSIONS AND

FURTHER WORK

In this paper we have introduced a public web-based

handbook, collecting the challenges encountered in

global collaborative development by the companies,

and also a large number of solutions that help in

tackling these challenges. The handbook was

implemented using an ontology editor and

generating HTML pages. In the final phase of the

development the handbook was validated by several

external testers, with main feedback being that the

handbook was found useful, but more practical

solutions would be welcome. Handbook was also

updated based on the feedback. The Handbook was

also found useful in improving a company’s

subcontracting practices, especially as it provided

confidence to change.

The handbook is a collection of both literature

and industrial experience. Especially the structure of

the handbook, the topics, items and questions are

based on challenges faced by industry. We have then

made a collection of available solutions to these

challenges and provided sources for further

information. Many of the solutions are based on

industrial experience, however, this is always

situation dependent and it is up to the user to

consider the usefulness of the solution to his/her

situation. Also, the topic and different usage

situations to be covered by the handbook is very

large. Thus, we realize we could not cover

everything during this three year project. However,

based on the feedback from the users of the

handbook so far, we can say that the handbook is

helpful for a company working in collaboration with

others; it can at least give ideas and triggers to

consider while doing the work, and even provide

complete, validated solutions to tackle the faced

challenges.

In order to further advance the handbook, we

have included an opportunity in the handbook to add

new solutions by the users. However, these new

solutions will first be reviewed by the Merlin project

partners before they are accepted to the handbook.

We also welcome other feedback. The handbook is

publicly available from http://www.merlinhandbook.

org.

ACKNOWLEDGEMENTS

The work described in this paper has been carried

out in the Merlin

ITEA

project in co-operation

with the whole consortium. The authors would like

to thank the Merlin project members for the active

participation in the handbook development.

REFERENCES

VA Software, 2005, Application Development and Open

Source Process Trends: Survey Analysis and Findings,

white paper, January 2005, available from:

http://www.vasoftware.com/gateway/pollresults.php

Kommeren, R., Parviainen, P.: Philips experiences in

global distributed software development. Empirical

Software Engineering Journal. Vol. 12, No. 6 -- 647-

660 (2007)

Bass, M., Paulish, D.: Global software development

process research at Siemens. In: The 3rd international

workshop on global software development, May 24,

2004, In proceedings of ICSE 2004, International

Conference on Software engineering, Edinburgh,

Scotland, May (2004)

Battin, R.D., Crocker, R., Kreidler, J., Subramanian, K.:

Leveraging Resources in Global Software

Development. IEEE Software, March/April 2001, pp

70–77 (2001)

Ebert, C,, De Neve, P. : Surviving global software

development, IEEE Software, March/April 2001, pp

62–69 (2001)

Herbsleb, J.D., Mockus, A., Finholt, T.A., Grinter, R.E.

An empirical study of global software development:

distance and speed. In the Proceedings of 23rd

International Conference on Software Engineering,

IEEE, Toronto, 2001.Also in. IEEE Trans Softw Eng

29(6):481–494, June 2003 (2001, 2003)

Karolak, D.W.: Global Software Development: Managing

Virtual Teams and Environments, Wiley-IEEE

Computer Society Pr; 1st edition (December 27, 1998)

Carmel, E.: Global Software Teams: Collaborating Across

Borders and Time Zones, Prentice Hall (December

1998)

Sahay, S., Nicholson, B., Krishna, S.: Global IT

Outsourcing: Software Development across Borders,

Cambridge University Press (January 12, 2004)

http://www.merlinproject.org

http://www.itea-office.org

MERLIN COLLABORATION HANDBOOK - Challenges and Solutions in Global Collaborative Product Development

345

Carmel, E., Tjia, P.: Offshoring Information Technology:

Sourcing and Outsourcing to a Global Workforce,

Cambridge University Press (June 13, 2005)

D. Damian. Stakeholders in Global Requirements

Engineering: Lessons learned from practice. IEEE

Software, Mar/Apr 2007.

CMMI for development, version 1.2., Technical Report

CMU/SEI-2006-TR-008. (2006)

Hyysalo, J., Parviainen, P. and Tihinen, M.: Collaborative

Embedded Systems Development: Survey of State of

the Practice. Proceedings of 13th Annual IEEE

International Symposium and Workshop on

Engineering of Computer Based Systems (ECBS

2006). pp. 130–138. (2006)

Protégé web pages: http://protege.stanford.edu/

RDF pages: RDF/XML Syntax Specification

http://www.w3.org/TR/rdf-syntax-grammar/.

ICSOFT 2008 - International Conference on Software and Data Technologies

346
