Software Enhancement Effort Estimation using Stacking Ensemble

Model within the Scrum Projects: A Proposed Web Interface

Zaineb Sakhrawi

1 a

, Asma Sellami

2 b

and Nadia Bouassida

2 c

University of Sfax, Faculty of Economics and Management of Sfax, Sfax, Tunisia

University of Sfax, Higher Institute of Computer Science and Multimedia, Sfax, Tunisia

Keywords:

Software Enhancement Effort Estimation, Functional Change, Functional Size, COSMIC FSM Method,

Scrum, Stacking Ensemble Model, Web Application.

Abstract:

The frequent changes in software projects may have an impact on the accuracy of the Software Enhance-

ment Effort Estimation (SEEE) and hinder management of the software project. According to a survey on

agile software estimation, the most common cost driver among effort estimation models is software size. In-

deed, previous research works proved the effectiveness of the COSMIC Functional Size Measurement (FSM)

method for efﬁciently measuring software functional size. It has been also observed that COSMIC sizing is

an efﬁcient standardized method for measuring not only software size but also the functional size of an en-

hancement that may occur during the scrum enhancement project. Intending to increase the SEEE accuracy

the purpose of this paper is twofold. Firstly, it attempts to construct a stacking ensemble model. Secondly,

it intends to develop a localhost web application to automate the SEEE process. The constructed stacking

ensemble model takes the functional Size of an enhancement or a functional change, denoted as FS(FC), as

a primary independent variable. The stacking ensemble model combines three Machine Learning (ML) tech-

niques: Decision Tree Regression, Linear Support Vector Regression, and Random Forest Regression. Results

show that the use of the FS(FC) as an input to SEEE using the stacking ensemble model provides signiﬁcantly

better results in terms of MAE (Mean Absolute Error) = 0.206, Mean Square Error (MSE) = 0.406, and Root

Mean Square Error (RMSE) = 0.595.

1 INTRODUCTION

Effort estimation is one of the key activities sup-

porting software project planning and management

(Abran, 2015). However, the frequent changes

throughout the software project may inﬂuence the ac-

curacy of the effort estimates and hinder the project’s

success (Usman et al., 2018). Even when using the

agile approach, time constraints and a lack of quan-

titative evidence frequently result in overestimations

or underestimates, as well as faulty plans (Trzeciak,

2021). The agile software development life cycle

(SLC) lacks a speciﬁcally planned mechanism for

maintenance (Rehman et al., 2018). Software Mainte-

nance is the ﬁeld of Software Engineering which have

been ignored over the last period. It has not received

the same degree of attention that the other phases have

https://orcid.org/0000-0003-1052-3502

https://orcid.org/0000-0002-6739-5508

https://orcid.org/0000-0003-0434-2465

(Bourque and Fairley, 2014). Software maintenance

activity has been classiﬁed into two categories: cor-

rection and enhancement (ISO/IEC, 2006). We will

concentrate on the enhancement category in our re-

search. Enhancement is deﬁned as ”a change made to

an existing software product to meet a new require-

ment” (ISO/IEC, 2006).

Agile approach like Scrum embraces changes

(Rehman et al., 2018). When managing Scrum soft-

ware projects, providing an accurate estimation of an

enhancement effort when requirements are likely to

change is critical (Arora et al., 2020). There are nu-

merous estimation techniques available, including ex-

pert opinion, Planning Poker (PP), and a few others

(Vyas et al., 2018). According to a survey of ﬁve stud-

ies on basic estimation techniques (Vyas et al., 2018),

the PP technique is the most commonly used in scrum

projects. The basis of the PP is practitioners’, which

are expressed in the form of Story Points. In practice,

it is used to estimate the effort required to complete

software requirements or User Stories (US).

Sakhrawi, Z., Sellami, A. and Bouassida, N.

Software Enhancement Effort Estimation using Stacking Ensemble Model within the Scrum Projects: A Proposed Web Interface.

DOI: 10.5220/0011321000003266

In Proceedings of the 17th International Conference on Software Technologies (ICSOFT 2022), pages 91-100

ISBN: 978-989-758-588-3; ISSN: 2184-2833

The US is a short description of intent presenting user

request (Desharnais et al., 2011). Besides PP, sev-

eral international standards provide well-documented

methods for measuring or approximating the US func-

tional size, such as the COSMIC FSM method. There

is a growing body of work on the use of the COS-

MIC function points (Ungan et al., 2014) for estima-

tion and performance measurement of software de-

velopment projects which can be adapted for predict-

ing agile Software Enhancement effort too (Sakhrawi

et al., 2021c). Rather than the increasing use of the

COSMIC FSM method, our other motivation for this

research study stems from the fact that existing sin-

gle ML techniques used for SEEE have several lim-

itations (Wang et al., 2021) while other innovative

models, such as the ensemble model, have yet to be

adopted in the industry for estimating software effort.

Indeed, recent research publication (Sakhrawi et al.,

2021a) has investigated the use of ensemble learn-

ing for improving SEEE for traditional projects (i.e.,

using waterfall methodology) compared to individual

models.

In accordance with the ﬁndings obtained in (Sakhrawi

et al., 2021a), our research paper’s goal is to improve

the accuracy of SEEE for scrum projects by building a

stacking ensemble model using the FS (FC) as an in-

dependent variable. Our constructed stacking ensem-

ble model combines three different ML techniques:

Decision Tree Regression, Linear Support Vector Re-

gression, and Random Forest Regression (DTRegr,

LinearSVR, and RFR). The selected three ML tech-

niques are recently used for SEEE and proved as ac-

curate models for SEEE in both traditional and scrum

contexts (Sakhrawi et al., 2021c). Estimation results

using the stacking ensemble model are compared to

those using the three ML techniques (DTRegr, Lin-

earSVR, and RFR) separately. Although the stacking

ensemble model produces signiﬁcant results, using it

manually is time-consuming. Of course, manual solu-

tions are not practical. For this reason, we propose de-

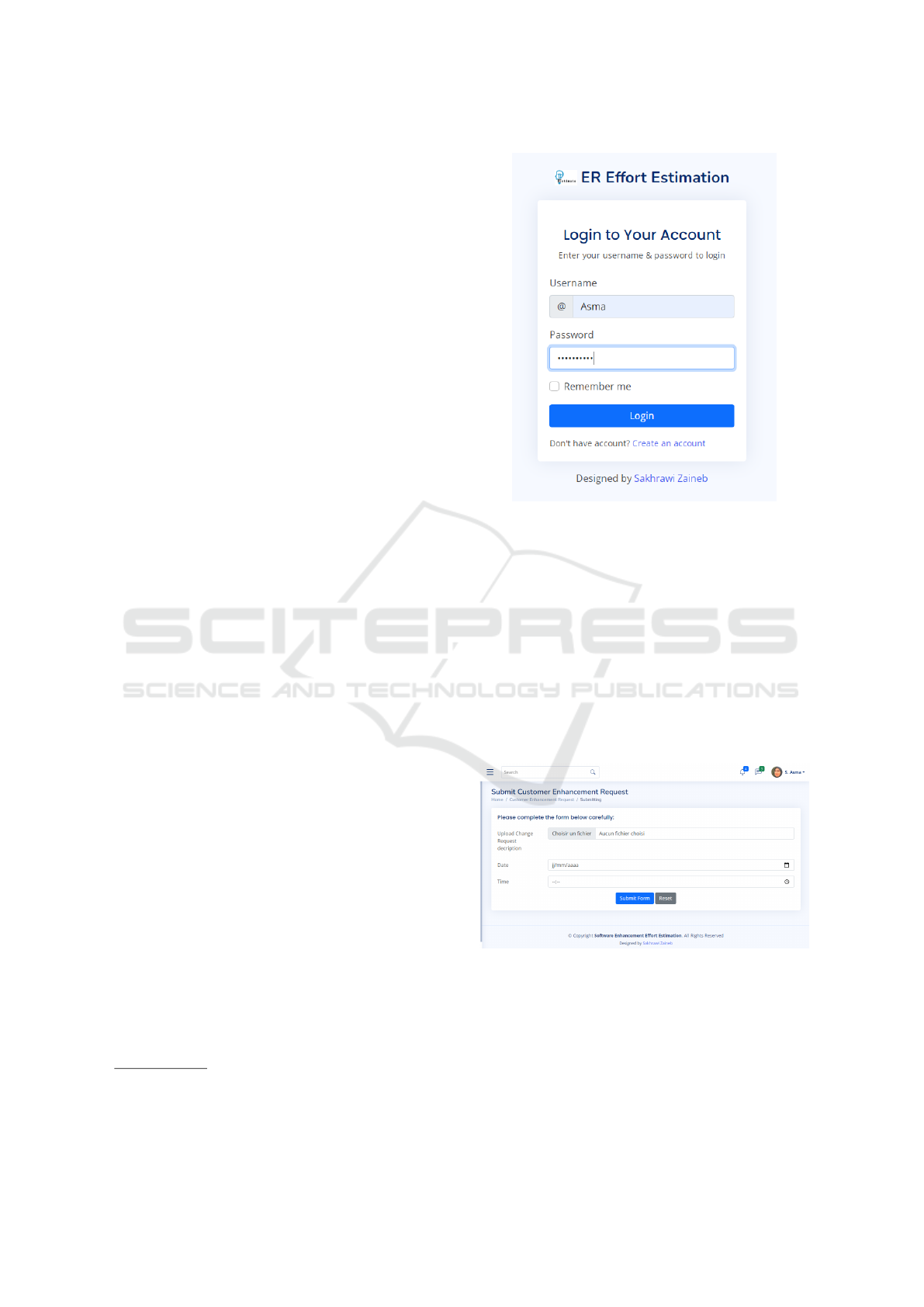

veloping a local web application called ”ERWebApp”

to automate the SEEE process.

The rest of this paper is organized as follows. Section

2 provides an overview of the key concepts that will

be used. Section 3 discusses the related work. Sec-

tion 4 provides a detailed description of our research

work process. Section 5 discusses the experimental

results. In section 6, we present the evaluation per-

formed throughout the threats to validity. Finally, in

section 7, we summarizes the presented work and out-

lines some of its possible extensions.

2 BACKGROUND

This section describes an overview of the COSMIC

FSM method, the PP technique, and the stacking en-

semble model.

2.1 COSMIC

The Common Software Measurement International

Consortium (COSMIC) is an FSM method proposed

in 1999 to overcome some limitations of FPA (Mar-

tino et al., 2020). COSMIC is used for measuring

software functionality. The method is designed to

be independent of any implementation decisions em-

bedded in the operational artifacts of the software to

be measured. The process for measuring the COS-

MIC functional requirement size is composed of three

phases: Measurement strategy phase, mapping phase,

and Measurement phase (Berardi et al., 2011). Using

COSMIC FSM a functional process is composed of

a set of functional sub-processes that may be either a

data movement or a data manipulation. There are four

types of data movements: Entry (E), eXit (X), Read

(R), and Write (W).

• An Entry moves a data group into a functional

process from a functional user.

• An eXit moves a data group out of a functional

process to a functional user.

• A Write moves a data group from a functional

process to persistent storage.

• A Read moves a data group from persistent stor-

age to a functional process.

A data group is a set of attributes that describes one

object of interest. The COSMIC measurement unit

is one data movement of one data group indicated as

one CFP (COSMIC Function Point). The size of a

functional process is determined by the sum of the

data movements it includes. The functional size of

a functional process (noted by FS (FP)) is given by

Equation 1 (Berardi et al., 2011).

FS(FP) =

∑

FS(Entries) +

∑

FS(eXits)+

∑

FS(Reads)+

∑

FS(W rites)

(1)

The size of a change (an enhancement) presenting a

functional process is the sum of its data movements

that have been added, deleted, and modiﬁed. The soft-

ware functional size after the change is the sum of the

sizes of all the added data movements minus the size

of all the removed data movements.

ICSOFT 2022 - 17th International Conference on Software Technologies

2.2 Overview of Planning Poker

The Planning Poker technique was initially proposed

by Grenning (Grenning, 2002) and popularized by

Cohn (Haugen, 2006) where agile software effort is

predicted in terms of units of work referred to as

‘story points’ quantifying the implemented US (Vyas

et al., 2018). The US is a requirement presented in

a speciﬁc way to highlight the type of user as well

as the goal or functionality that the user needs to per-

form in order to obtain some beneﬁts (Haugen, 2006).

The main objective of PP was to build more effec-

tive prediction sessions and to get more implications

from the whole industry project team (Haugen, 2006).

Even though the PP is the most widely used technique

to estimate software development effort, it was criti-

cized in the same way as expert judgment. In addition,

it does not provide direct information on the software

size to be delivered.

2.3 Stacking Ensemble Model

The stacking model is invented by Wolpert (Wolpert,

1992). It is recently used for estimating software ef-

fort (Sampath Kumar and Venkatesan, 2021)(Priya

et al., 2021). The stacking model combines lower-

level ML techniques for achieving more accurate esti-

mation. The constructed linear estimation model con-

sists of two learning levels (Kraipeerapun and Amorn-

samankul, 2015). The ﬁrst learning level is called

Level-0, where models are trained and tested in inde-

pendent cross-validation examples from the original

input data. Then, the output of Level-0 and the origi-

nal input data is used as input for level-1, called gen-

eralized (i.e the meta-model). Level-1 is constructed

using the original input data and the output of level-

0 generalizers (Kraipeerapun and Amornsamankul,

2015).

3 RELATED WORK

Recently, research studies have reported that the

COSMIC FSM method has been successfully used

in agile software projects (Sakhrawi et al., 2021c).

The use of the COSMIC FSM method increases the

quality of the documentation in agile projects (Ungan

et al., 2014). Compared to the scrum story points,

the estimation model built using the COSMIC FSM

method provides more accurate results for estimat-

ing development effort (Ungan et al., 2014)(Sakhrawi

et al., 2021c). Hence, the use of software func-

tional size in COSMIC Functional Points (CFP) units

as independent variables to build an effort estima-

tion model give more accurate results than the use

of Story Points as independent variables (Sakhrawi

et al., 2021c).

More recently, the use of the ensemble model,

combining more than one single ML technique,

has achieved attention in the software engineering

research (Sampath Kumar and Venkatesan, 2021;

Sakhrawi et al., 2021a). In addition, a systematic

review conducted by (Idri et al., 2016) has con-

ﬁrmed that the ensemble methods outperformed their

constituents (single models). In the same context,

(Sakhrawi et al., 2021a) proposed a stacking ensem-

ble model that has revealed promising capabilities in

improving the accuracy over single models for tradi-

tional SEEE. Regarding a systematic mapping study

on the use of ML techniques for SEEE (Sakhrawi

et al., 2021b), this is the ﬁrst study to our knowl-

edge that investigates the use of the ensemble method

in software maintenance (enhancement) effort estima-

tion within the scrum context.

4 RESEARCH PROCESS

Figure 1 presents our proposed research work pro-

cess. We compare the SEEE accuracy of the selected

ML techniques when used (trained and tested) sep-

arately with the SEEE accuracy of the constructed

stacking ensemble model. The stacking ensemble

model is then integrated into a local web application

(ERWebApp) to help estimators (e.g., development

team) make SEEE automatically.

4.1 Data Collection Data

In this section, we will use real projects developed

using the scrum framework and derived from indus-

try (Sakhrawi et al., 2021c). The chosen dataset is

an example of Software Enhancement in which the

functional speciﬁcations are considered an enhance-

ment. Because our work focused on enhancement, we

use the following ﬁlters to eliminate trivial projects:

Actual Development Time (man-days), full life cy-

cle effort for a project exceeding 80 man-hours, and

”Stats” other than ”implement” were excluded. When

assessing the performance of an estimation model, the

choice of a suitable one is based on the quality of its

inputs, data sets, and, most importantly, the use of

international standards (Abran, 2015). Indeed, since

the FS (FC) gives accurate results (Sakhrawi et al.,

2021c), we propose to measure the FS of all US in

the dataset. Then, we add the new measurements to

the existing dataset attributes. The enhancement FS in

the dataset (that is expressed in the form of US) was

Software Enhancement Effort Estimation using Stacking Ensemble Model within the Scrum Projects: A Proposed Web Interface

1. Data Collection 2. Creating Estimation Models

3. Evaluating Estimation

Models

.csv

Prediction results with

single models

Prediction results with

stacking ensemble model

Identification of the

accurate prediction model

(i) Industrial dataset (Scrum

software Projects)

(ii) Effort calculated using

Planning Poker (Story Points)

(ii) Enhancement size

(COSMIC Function Point)

(i) DTRreg, LinearSVR, and

RFR models with the use of

COSMIC sizing

(ii) Training data (70%) and

testing data (30%)

(i) Stacking Ensemble model

with the use of COSMIC sizing

(ii) Training data (70%) and

testing data (30%)

(i) Performance assessment

(MAE,MSE and RMSE)

(ii) Comparison of performance

assessment between single and

stacking models

4. Automatically Estimating

Enhancement Effort through a

Web Application

Automatically make

SEEE

(i) Submit ER

(ii)Generate FS(CR)

Figure 1: Research Work Process.

measured using the COSMIC method. The COSMIC

FSM process includes three phases (Berardi et al.,

2011): the measurement strategy, the mapping of con-

cepts, and the measurement of the identiﬁed concepts.

Measurement Strategy Phase. The Measurement

Strategy phase deﬁnes what will be measured (the

purpose of measurement). And therefore, the scope

to be measured is determined. The strategy phase is

important to ensure that we measure what is required

to be measured. The following are the main parame-

ters that must be identiﬁed during this phase:

• The purpose: Estimating Effort for implementing

an enhancement (i.e., a Functional Change).

• Overall scope: Generating the Functional Change

(FC) size and estimating the associated enhance-

ment effort.

• Functional users: are human users in this case.

• Layer: An industrial dataset (eight sprints).

• Level of granularity: one level of granularity

Mapping of Concepts. An Enhancement within

scrum context is presented by US. A US exhibits a

high-level requirement description. There is no gen-

eral standard US representation (Sellami et al., 2018).

The level of granularity for sizing requirements (or

enhancements) in the form of a US must be that of the

COSMIC functional processes (Berardi et al., 2011).

For that reason, the mapping of a US to a COSMIC

Functional Process necessitates distinguish the iden-

tiﬁcation of following concepts:

As an <Actor>: represents the user of

the US referred to as the functional user

in COSMIC.

I want to <Goal>: represents the

enhancement request referred to as US

or a Functional Process (FP) in

COSMIC.

so that <value or expected beneﬁt>

Regarding Table 1, the level of granularity for sizing

an enhancement in the form of a US must be that

of the COSMIC FP (Berardi et al., 2011). FC are

mainly classiﬁed into three types: add (new require-

ments to be created), delete (existing requirements to

be deleted), and modify (existing requirements to be

modiﬁed) (Sakhrawi et al., 2019).

Measurement Phase. In the Measurement phase,

the COSMIC Functional Process (FP) consists of a

set of functional sub-processes. The FP size is the

number of data movements (DM) it includes and the

software size is the sum of the sizes of all its FPs.

According to (Berardi et al., 2011), the DM can be

identiﬁed based on some common word cases (such

as create, select, delete, add, share, display, etc.)

(Sakhrawi et al., 2019). Using the identiﬁed DM

types that are repeatedly executed by the user can fa-

cilitate the measurement process. Table 2 explained

the ability of the COSMIC FSM method on detailing

the Functional change process (from process to sub-

process), which exposes more iterations and therefore

more data movements.

4.2 Constructing Estimation Models

We have constructed two estimation models presented

in Figure 1. The ﬁrst model constructs three ML

techniques (DTRegr, LinearSVR, and RFR) for SEEE

separately. The second model constructs a stack-

ing ensemble model (that combines the three se-

lected ML techniques. For the models set of ex-

periments, we use the classic approach with a sim-

ple 70%(training)-30% (validation/test) split. Exper-

ICSOFT 2022 - 17th International Conference on Software Technologies

Table 1: Example: mapping of US with COSMIC FC.

User Story description COSMIC Functional Change de-

scription

As an

. . . (actor)

I can . . . (Goal) Effort in Story

Points

Change Type (add,

delete, or modify)

descrip-

tion

1 Organization

User

Add a custom evidence type

to an assessment criterion

(because the standard evi-

dence types are not appro-

priate for me)

4 ADD() Add

Custom

Evi-

dence

Type

Table 2: Sizing an enhancement “Add Custom Evidence Type” in CFP units.

FP De-

scription

Functional

User

Description of Sub-

Data Group Object of interest DM

type

CFP

Add

Custom

Evidence

Type

Organisation

User

Request to view a

speciﬁc widget

Custom Evidence

type

Custom Evidence

type

Entry 1

Add a “custom” ev-

idence type against

a speciﬁc attainment

criterion

Custom Evidence

Type

Custom Evidence

type

Organisation

User

Add a custom evi-

dence type and give

him a name (free

form text)

Custom Evidence

Type

Custom Evidence

type

Entry 1

Verify changes Custom Evidence

Type

Custom Evidence

type

Save changes Custom Evidence

Type

Custom Evidence

Type

Write 1

The custom evidence

type is saved

Custom Evidence

Type

Custom Evidence

type

eXit 1

The custom evidence

type is saved

Custom Evidence

Type

Custom Evidence

type

eXit 1

Total 6

iments were performed using the Google Colabo-

ratory

python programming. The most recent in-

ventory tool is Google Colaboratory, also known

as Google Colab. It makes GPUs available to re-

searchers who lack resources or cannot afford one.

4.3 Evaluating Estimation Models

To evaluate the accuracy of the estimation models,

we used three widely used evaluation metrics (Idri

et al., 2015): the mean absolute error (MAE), the

mean square error (MSE), and the root mean square

error (RMSE).

https://colab.research.google.com/notebooks/intro.

ipynbrecent=true

4.3.1 LinearSVR Algorithm Performance

Assessment versus DTRegr, and RFR

Models

Regarding Table 3, error metrics (such as MAE,

MSE and RMSE) reveal quite values using linearSVR

(MAE=0.240 ; MSEs= 0.923 ; RMSE=0.646).

Table 3: Estimation analysis using MAE, MSE and RMSE.

Method/ pa-

rameters

MAE MSE RMSE

LinearSVR 0.240 0.923 0.646

DTRegr 0.5 1.0 1.0

RFR 0.952 1.479 1.216

Software Enhancement Effort Estimation using Stacking Ensemble Model within the Scrum Projects: A Proposed Web Interface

4.3.2 Stacking Ensemble Model

When constructing a stacking ensemble model, it

is critical to select which ML techniques will be

used as ”estimators”. The meta-model provided via

the “ﬁnal estimator” argument (DTRegr) is trained

to combine the estimation of the selected ML tech-

niques provided via the ”estimators” argument (Lin-

earSVR, RFR). Each model is trained on the con-

structed dataset using the FS(FC) as a primary in-

dependent variable. Then, the outputs of ”estima-

tors” are fed into the ”ﬁnal estimator” which com-

bines each estimator model with a weight and delivers

the ﬁnal estimation.

Selecting Estimators and ﬁnal estimator. The

main parameters of the stacking ensemble regres-

sion model are deﬁned in scikit-learn

as follows:

StackingRegressor(estimators, ﬁnal estimator=None,

*) explained in Table 4. Thus, we try to identify which

Table 4: Stacking ensemble regression model parameters’.

Parameters Description

estimators Base estimators which will

be stacked together.

ﬁnal estimator An estimator which will be

used to combine the base es-

timators

technique from the three ML techniques can be used

as ”ﬁnal estimator” and which ones should be used as

”estimators”. Table 5 illustrates the estimation analy-

sis results using MAE, MSE, and RMSE. Error met-

rics reveal quite values when the DTRegr algorithm

is used as the ﬁnal estimator (MAE=0.206 ; MSE=

0.406; RMSE=0.595). Figure 2 shows the ML ”esti-

mators” and the average of their estimations.

Table 5: Estimation analysis using MAE, RMSE.

estimators ﬁnal

esti-

mator

MAE MSE RMSE

LinearSVR

and RFR

DTRreg 0.206 0.406 0.595

LinearSVR

and DTR-

reg

RFR 0.788 0.922 0.960

DTRreg

and RFR

Linear

SVR

0.761 1.250 1.118

https://scikit-learn.org/stable/modules/classes.htmlmo

dule-sklearn.ensemble

Figure 2: ML ”estimators” and the average of their estima-

tions.

Make SEEE. Constructing SEEE, each ML regres-

sion technique is trained on the selected dataset. The

outputs of ”estimators” are therefore fed into the ”ﬁ-

nal estimator” which combines each regression es-

timator model with a weight and delivers the ﬁnal

estimation. To evaluate the overall performance of

the constructed estimation model, we selected the

r2 score evaluation metric

. Figure 3 depicts the

r2 score results, with the best possible score of 1.0.

The results show that the stacking ensemble model

outperforms the other three ML techniques. The

rr2 score is 0.789.

Figure 3: ML techniques Performance Assessment.

4.4 A Proposed Web Interface for SEEE

Regarding experimental results, we found that us-

ing the stacking ensemble model is the most accu-

rate model. However, using this model manually is

time-consuming. Of course, manual solutions are not

practical. For this reason, we propose to develop an

ERWebApp to rapidly and automatically make SEEE.

The ERWebApp is designed to ﬁrst generate the en-

https://scikit-learn.org/stable/modules/generated/

sklearn.metrics.r2 score

ICSOFT 2022 - 17th International Conference on Software Technologies

hancement functional size and then estimate its corre-

sponding effort.

The ERWebApp is developed using Bootstrap

, Anvil

Platform

, and Python

. Python is used in the back-

end to create the estimation model that maps the in-

put and output data based on the stacking ensemble

model, while Anvil’s Platform and Bootstrap are used

in the frontend to display content. In order to transfer

content between web applications and the estimation

model, the use of the Anvil platform appeared to be

beneﬁcial. It is used to help in the visualization of

the estimation model by creating and hosting the esti-

mation web page, which is entirely written in Python

using predictable and minimal resources (CPU, mem-

ory, threads). The ERWebApp is styled using Boot-

strap. It is hosted on the user’s computer’s localhost

and can be accessed using web browsers from any op-

erating system.

4.4.1 ERWebApp Users

The ERWebApp is designed to meet the needs of the

three Scrum roles: product owner, scrum master, and

development team members. It will enable estimators

to express the ER in the form of US in the natural

language. Then, the functional size of the US will

be generated in terms of CFP units. The estimator

then receives the estimated effort based on ontology

and ML techniques. This implies that the three scrum

roles would be able to perform the following actions

in the web interface:

1. The Scrum Master: is responsible for the revised

planning and deciding on the execution of the ER.

2. The Product Owner: Submit the ER description.

3. The Development Team: reformulate the ER in

three steps: (1) specify a formal description of the

ER, (2) generate the functional size of the ER in

CFP units, and (3) estimate the effort required to

implement the ER.

The principal parts of the ERWebApp are described

throughout three pages of interfaces: a projects

overview (for scrum master), a submit ER form (for

product owner), and regulate ER form (for the de-

velopment team). Focusing on making the ERWe-

bApp easier to use, we created three sessions for the

three scrum roles. Indeed, we created three login ses-

sions/proﬁles for the three roles. Figure 4 depicts an

example of the product owner’s login session page.

https://getbootstrap.com/

https://anvil.works/open-source

https://www.python.org/

Figure 4: Login page of product owner.

4.4.2 Product Owner Interface: Submit

Enhancement Request

When a new enhancement occurs in an existing

project, the product owner must submit the enhance-

ment description. As shown in Figure 5, the develop-

ment team is responsible for implementing enhance-

ment. After the ER has been approved, a detailed de-

scription can be created (in other words, going from

an informal to a formal ER description). The Prod-

uct Owner can express and submit an enhancement

request in natural language using this interface page.

Figure 5: Submit enhancement request.

4.4.3 Development Team Interface

We concentrated on the development team session be-

cause that is the team in charge of managing and im-

plementing the enhancement. The development team

will provide the COSMIC sizing of an enhancement

as well as an estimate of the corresponding effort.

Software Enhancement Effort Estimation using Stacking Ensemble Model within the Scrum Projects: A Proposed Web Interface

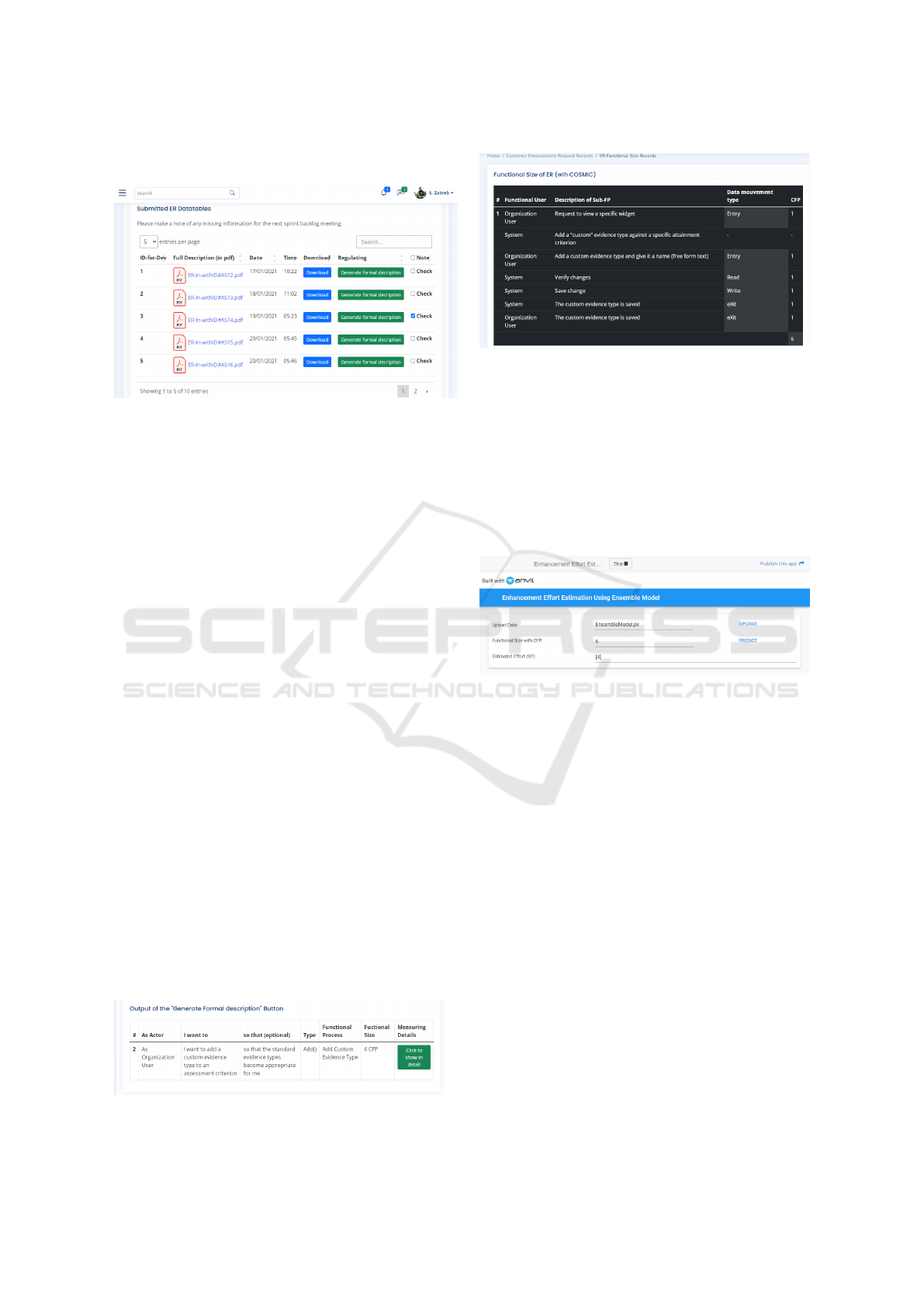

Figure 6 depicts the output via the user interface.

Figure 6: Development team interface.

Enhancement Request Details. The web interface

page of the development team includes the enhance-

ment details. Figure 6 contains two buttons: the blue

button downloads the enhancement description vali-

dated by the product owner, and the green button gen-

erates a formal explanation of a speciﬁc enhancement

request. Figure 7 shows a full formal description of a

selected ER. The functional size of the speciﬁed ER is

also represented in terms of CFP units. A button was

created to demonstrate how the functional size of an

enhancement, denoted as FS (FC), can be found and

used to estimate the effort required to complete this

enhancement. When the button ”click to reveal in de-

tail” in Figure 7 is selected, the details of FS (FC) are

generated as shown in Figure 8 (details of functional

size measurement are provided in Measurement phase

paragraph in section 4.1.

Estimating Enhancement Request Effort. As

shown in Figure 9 using the Anvil platform, we cre-

ated a web page for SEEE. Through the Anvil plat-

form, we can share a private link to the web page.

Then, in the Bootstrap template, we included this link

to be used by the development team. The Anvil plat-

form is also used to connect the model built-in Google

Collab to the input variable, which is the functional

size of the enhancement request.

The SEEE web page interface includes two sessions:

the train session constructed on the backend with the

Goggle Collab and the estimation session designed

Figure 7: Enhancement request details.

Figure 8: Regulate enhancement request page.

for the development team with the Anvil platform. As

shown in Figure 9, the development team needs to se-

lect the model to estimate the effort of the enhance-

ment request. The stacking ensemble model-based

SEEE must be uploaded by the developer. In addi-

tion, the development team must provide the func-

tional size (approximated) of enhancement (FC) as in-

put in CFP. As a result, our ERWebApp can estimate

the Software Enhancement effort.

Figure 9: Estimating enhancement request effort.

5 DISCUSSION AND

COMPARISON

Recall that our proposed research process goal is to

investigate (i) the importance of using the enhance-

ment FS as a primary independent variable and (ii)

the use of the stacking ensemble model for improv-

ing the accuracy of SEEE within the scrum context.

We ﬁrstly conducted three selected ML techniques

(DTRegr, LinearSVR, and RFR) separately. Exper-

imental results show that LinearSVR is the most ef-

fective model. This is supported by the results, which

show a minimum MAE of 0.240. To ensure the above

results, we have investigated the idea of using a stack-

ing ensemble model by combining the three ML tech-

niques (DTRegr, LinearSVR, and RFR). Experimen-

tal results are compared with the three ML techniques

when constructed separately. The effectiveness of the

stacking ensemble model can be seen in the results

(see Figure 2 and Figure 3). This is supported by

the results with the minimum MAE of 0.206, MSE

ICSOFT 2022 - 17th International Conference on Software Technologies

of 0.406 and RMSE of 0.595, and a good r2 score of

0.789.

6 THREATS TO VALIDITY

The validity of this research results is pertinent to in-

ternal validity and external validity.

• Internal threats to validity are related to the size

of the data set where the number of instances in

the data set must be more signiﬁcant. This work

is limited to the numerical attributes of the Soft-

ware Enhancement datasets for scrum projects,

although many historical scrum project datasets

contain categorical attributes.

• External threats to validity are proportional to the

degree to which the study’s ﬁndings can be ap-

plied to other projects. We only used one private

scrum dataset. However, we believe that our pro-

posed research study can be applied to a variety of

project datasets.

7 CONCLUSION

In this study, we investigated the problem of accu-

rate estimation of effort for software scrum enhance-

ment projects. Three single ML techniques and stack-

ing models were implemented and empirically tested.

Based on the fact that COSMIC sizing is a power-

ful FSM method, it was used as an input feature for

predicting enhancement effort, the enhancement FS

is used as an independent variable. The following are

the results of the experiments:

• LinearSVR is more accurate with small MAEs=

0.240, MSE= 0.923, and RMSE= 0.646 compared

to DTRreg and RFR.

• The stacking ensemble model is more accurate

with MAE of 0.206, MSE of 0.406 and RMSE

of 0.595, and a good r2 score of 0.789 compared

to the selected single ML techniques SEEE accu-

racy.

Then, we conclude our research work process by

building a localhost ERWebApp. The web applica-

tion’s goal is to evolve into a company that can esti-

mate the effort of a new enhancement request from FS

in a scrum context. We did not place a high value on

the roles of scrum master and product owner because

the estimation process is handled by the development

team. However, it will be improved in the future.

REFERENCES

Abran, A. (2015). Software project estimation: the fun-

damentals for providing high quality information to

decision makers. John Wiley & Sons.

Arora, M., Verma, S., Chopra, S., et al. (2020). A system-

atic literature review of machine learning estimation

approaches in scrum projects. Cognitive Informatics

and Soft Computing, pages 573–586.

Berardi, E., Buglione, L., Cuadrado-Collego, J., Deshar-

nais, J.-M., Gencel, C., Lesterhuis, A., Santillo, L.,

Symons, C., and Trudel, S. (2011). Guideline for the

use of cosmic fsm to manage agile projects. Common

Software Measurement International Consortium.

Bourque, P. and Fairley, R. E. (2014). Guide to the software

engineering-body of knowledge. Online in Internet:

URL: http://www. swebok. org [Stand: 12.01. 2005].

Desharnais, J.-M., Buglione, L., and Kocat

urk, B. (2011).

Using the cosmic method to estimate agile user sto-

ries. In Proceedings of the 12th international con-

ference on product focused software development and

process improvement, pages 68–73.

Grenning, J. (2002). Planning poker or how to avoid

analysis paralysis while release planning. Hawthorn

Woods: Renaissance Software Consulting, 3:22–23.

Haugen, N. C. (2006). An empirical study of using plan-

ning poker for user story estimation. In AGILE 2006

(AGILE’06), pages 9–pp. IEEE.

Idri, A., azzahra Amazal, F., and Abran, A. (2015).

Analogy-based software development effort estima-

tion: A systematic mapping and review. Information

and Software Technology, 58:206–230.

Idri, A., Hosni, M., and Abran, A. (2016). Systematic liter-

ature review of ensemble effort estimation. Journal of

Systems and Software, 118:151–175.

ISO/IEC (2006). International standard—iso/iec 14764 ieee

std 14764-2006 software engineering; software life

cycle processes &; maintenance.

Kraipeerapun, P. and Amornsamankul, S. (2015). Us-

ing stacked generalization and complementary neu-

ral networks to predict parkinson’s disease. In 2015

11th International Conference on Natural Computa-

tion (ICNC), pages 1290–1294. IEEE.

Martino, S., Ferrucci, F., Gravino, C., and Sarro, F. (2020).

Assessing the effectiveness of approximate functional

sizing approaches for effort estimation. Information

and Software Technology, 123:106308.

Priya, A. V., Varadarajan, V., et al. (2021). Estimating soft-

ware development efforts using a random forest-based

stacked ensemble approach. Electronics, 10(10):1195.

Rehman, F., Maqbool, B., Riaz, M. Q., Qamar, U., and Ab-

bas, M. (2018). Scrum software maintenance model:

Efﬁcient software maintenance in agile methodology.

In 2018 21st Saudi computer society national com-

puter conference (NCC), pages 1–5. IEEE.

Sakhrawi, Z., Sellami, A., and Bouassida, N. (2019).

Requirements change requests classiﬁcation: an

ontology-based approach. In International Confer-

ence on Intelligent Systems Design and Applications,

pages 487–496. Springer.

Software Enhancement Effort Estimation using Stacking Ensemble Model within the Scrum Projects: A Proposed Web Interface

Sakhrawi, Z., Sellami, A., and Bouassida, N. (2021a). Soft-

ware enhancement effort estimation using correlation-

based feature selection and stacking ensemble

method. Cluster Computing, pages 1–14.

Sakhrawi, Z., Sellami, A., and Bouassida, N. (2021b). Soft-

ware enhancement effort prediction using machine-

learning techniques: A systematic mapping study. SN

Computer Science, 2(6):1–15.

Sakhrawi, Z., Sellami, A., and Bouassida, N. (2021c). Sup-

port vector regression for enhancement effort predic-

tion of scrum projects from cosmic functional size. In-

novations in Systems and Software Engineering, pages

1–17.

Sampath Kumar, P. and Venkatesan, R. (2021). Improv-

ing accuracy of software estimation using stacking

ensemble method. In Advances in Machine Learn-

ing and Computational Intelligence, pages 219–227.

Springer.

Sellami, A., Haoues, M., Borchani, N., and Bouassida,

N. (2018). Towards an assessment tool for control-

ling functional changes in scrum process. In IWSM-

Mensura, pages 34–47.

Trzeciak, M. (2021). Sustainable risk management in it en-

terprises. Risks, 9(7):135.

Ungan, E., Cizmeli, N., and Demir

ors, O. (2014). Com-

parison of functional size based estimation and story

points, based on effort estimation effectiveness in

scrum projects. In 2014 40th EUROMICRO Confer-

ence on Software Engineering and Advanced Applica-

tions, pages 77–80. IEEE.

Usman, M., Britto, R., Damm, L.-O., and B

orstler, J.

(2018). Effort estimation in large-scale software de-

velopment: An industrial case study. Information and

Software technology, 99:21–40.

Vyas, M., Bohra, A., Lamba, C., and Vyas, A. (2018). A re-

view on software cost and effort estimation techniques

for agile development process. International Journal

of Recent Research Aspects, 5(1):1–5.

Wang, L., Zhu, Z., Sassoubre, L., Yu, G., Liao, C., Hu,

Q., and Wang, Y. (2021). Improving the robustness

of beach water quality modeling using an ensemble

machine learning approach. Science of The Total En-

vironment, 765:142760.

Wolpert, D. H. (1992). Stacked generalization. Neural net-

works, 5(2):241–259.

ICSOFT 2022 - 17th International Conference on Software Technologies

100
