Tackling Model Drifts in Industrial Model-driven Software Product

Lines by Means of a Graph Database

Christof Tinnes

, Uwe Hohenstein

, Wolfgang R

ossler

and Andreas Biesdorf

T SSP ADM, Siemens AG, Otto-Hahn-Ring 6, 81730 Munich, Germany

SMO RS EN CCIP AR, Siemens AG, Siemenspromenade 4, 91058 Erlangen, Germany

Keywords:

Model-driven Approach, MagicDraw, Graph Database, Neo4j.

Abstract:

This paper reports on our experience of using a graph database to efﬁciently compare very large models in an

industrial model-driven engineering project. The need for a comparison results from the fact that architectural

models are reused. They conform to a common domain-speciﬁc language but diverge as they belong to different

products managed in separate branches of a repository in the sense of a clone-and-own approach. In the

presented industry project, huge models are developed and reside in the commercial tool MAGICDRAW. In

fact, unlike many other tools, MAGICDRAW turned out to be capable to handle those huge models in industrial

environments. In this context, there is a strong necessity to detect and judge relevant differences between

models in different branches in order to avoid a model drift and loosing reuse opportunities across the products.

Indeed, MAGICDRAW has a built-in difference tool, which however exposes an excessive number of differences,

only a fraction of which are really relevant for certain tasks. We show that the capabilities of the graph database

NEO4J can be leveraged to reduce the differences to relevant ones. The expressiveness of NEO4J turned out to

be sufﬁcient, just as the performance did.

1 INTRODUCTION

As software and systems are becoming increasingly

complex, methodologies, paradigms, and general reuse

concepts (Krueger, 1993) have been developed to han-

dle the increasing complexity. One applied approach

is Model-Driven Engineering (MDE) (Rodrigues Da

Silva, 2015), which uses higher-level models to ab-

stract from concrete software. Models describe and

document software at a higher abstraction level and

are also used to generate documentation in certain for-

mats and (parts of the) source code. Another reuse

concept is Software Product Line Engineering (SPLE).

The idea of SPLE is to manage a family of products

and reuse artifacts across different products of the fam-

ily (Pohl et al., 2005). The artifacts can be source code,

but other artifacts such as models can also be subject to

reuse in the software product line (Batoryayer, 2004).

In this paper, we report on challenges in a real

industrial project within our company. The project

has set up a model-driven product line in the railway

domain in which huge architectural models, described

in a SysML-like domain-speciﬁc language (DSL), are

the primary artifact. About 200 engineers use the

tool MAGICDRAW (No-Magic-Inc., 2021) to specify

architectural models in a graphical manner. Figure 1

shows one of several hundreds of modeling artefacts.

Since the product line has been organically grown,

starting with one product and adding product by prod-

uct over time, no platform approach with built-in vari-

ability support has been applied. Further reasons are

that not all potential products are known in advance,

the number of variants is expected to stay small, and

the development teams are organized product-wise,

not feature-wise. Consequently, the overhead for es-

tablishing and using a platform will not pay off (Pohl

et al., 2005). Instead, a managed cloning approach

(Dubinsky et al., 2013; Rubin et al., 2013) is followed:

The common baseline of all products constitutes the

main branch in a software versioning system, and prod-

ucts are kept in speciﬁc branches, initially copying the

common baseline for reuse. This means that product

branches are evolving independently of the baseline

over time; changes to common parts are merged into

the baseline or from the baseline to speciﬁc products

from time to time. However, the independent evolu-

tion of models – often performed by different people

– leads to a divergence of the common parts in the

product branches. In particular, we noticed that certain

important activities such as quality assurance, change

146

Tinnes, C., Hohenstein, U., Rössler, W. and Biesdorf, A.

Tackling Model Drifts in Industrial Model-driven Software Product Lines by Means of a Graph Database.

DOI: 10.5220/0011319800003269

In Proceedings of the 11th International Conference on Data Science, Technology and Applications (DATA 2022), pages 146-157

ISBN: 978-989-758-583-8; ISSN: 2184-285X

Figure 1: An SysML architectural model artefact in MAGICDRAW(names are obfuscated for reasons of secrecy).

propagation, domain analysis and reuse are negatively

affected by causing high efforts and costs.This observa-

tion conforms to experiences in the literature (Kr

uger

and Berger, 2020; Rubin et al., 2012; Dubinsky et al.,

2013). Due to the high complexity and size of the ar-

chitectural models, an increasingly large manual effort

is currently required for maintaining reuse of the base-

line. One root cause for the efforts is the MAGICDRAW

difference tool showing a large number of differences,

especially (too) many ﬁne-grained differences. Being

not handled properly, there is a risk that the efforts

even exceed the advantages of reusing commonalities.

To tackle the problem, we use the graph database

NEO4J to support an analysis of large model differ-

ences. We ﬁnd that, without any further sophisticated

tooling, such a lightweight approach can answer many

important questions about model differences and pro-

vides a good starting point for further analysis. Partic-

ularly, we are enabled to detect and reduce the huge

number of model differences.

Section 2 introduces the real-world industrial case

study that we conducted, illustrating the problem of

comparing large SysML architectural models due to

a cloning approach. The preferred solution relies on

the graph database NEO4J. Section 3 brieﬂy intro-

duces NEO4J and presents the approach in more detail,

whereupon Section 4 presents a few queries sufﬁcient

for comparing models. The approach is evaluated in

Section 5 by discussing the results that we achieved.

Furthermore, we prove the feasibility of the approach

by applying it to the modeling data in this project. As

a result, the approach turned out to ease the detection

of critical model differences and to support central

software product-line engineering activities. Section

6 compares our work with existing approaches before

Sections 7 concludes the paper with some future ideas.

Tackling Model Drifts in Industrial Model-driven Software Product Lines by Means of a Graph Database

147

2 PROBLEM STATEMENT AND

CASE STUDY

The problem we are tackling in this paper occurred

in a concrete industrial project in our company us-

ing SysML in MAGICDRAW. The company builds

trains, covering small commuter rail to high-speed

trains. Trains consist of a lot of software components

that implement common functionality such as heating,

ventilation, and air conditioning, but also highly safety-

relevant features such as the drive control system. A

couple of years ago, the software engineering team

decided to follow a model-driven engineering (MDE)

methodology. Since the code bases have become very

large and complex, an MDE approach has been set up

to generate parts of the software components’ source

code from speciﬁed SysML models. Moreover, the

documentation of the train software, which is required

by ofﬁcial authorities, could be generated. Indeed, the

train domain is highly regulated and the software is

subject to qualiﬁcation and certiﬁcation requirements

such as IEC61508 (IEC, 2010). It is thus necessary

to maintain requirements traceability and exhaustive

documentation. Furthermore, traceability between re-

quirements and software components becomes easily

manageable; the language SCL itself used for coding

the software does not have object-oriented reuse con-

cepts such as inheritance. The MDE approach also

enables generating parts of the source code and thus

reusing source code components.

About 200 engineers are developing and maintain-

ing the architectural train models. The tool MAG-

ICDRAW is used as the overall modelling environ-

ment, since other alternative tools such as ECLIPSE

PAPYRUS did not provide the usability necessary for

such a large industrial application or failed to scale

to the size of the architecture models. To handle the

complexity and to keep MAGICDRAW responsive, the

model for the entire train software is divided into more

than 100 submodels, each covering a particular aspect

of functionality, such as the drive and break control.

Having many software components to be reused

across different train types leads to a software product

line in a MAGICDRAW-proprietary repository, where

each train type is kept in a different branch (clone-

and-own (Rubin et al., 2013; Dubinsky et al., 2013)).

The main line covers the common platform with those

parts that are independent of a particular train type.

The platform evolves in an extractive software product

line adoption path (Apel et al., 2013) by (manually)

identifying and regularly merging common features

into the platform for reuse; changes to common parts

in the platform model are propagated to the train types

that use the modiﬁed parts.

The clone-and-own approach is reasonable in

the project compared to a platform-based approach

(Kr

uger and Berger, 2020; Dubinsky et al., 2013; Ru-

bin et al., 2013), since it provides more ﬂexibility in

developing new products. Furthermore, an indepen-

dence of products avoids unintended side effects (Du-

binsky et al., 2013; Kr

uger and Berger, 2020). Other

approaches such as feature traces (Fischer et al., 2016;

Kehrer et al., 2021) and accompanying tools turned out

to be insufﬁciently mature for industrial environments

unfortunately.

However, a drawback is that important tasks such

as change propagation, domain analysis, and quality as-

surance have become time-consuming. For instance, a

thorough quality assurance of safety-relevant changes

is indispensable to decrease the risk of failing software

qualiﬁcation which in turn would lead to delays in the

time-to-market. All those tasks involve the analysis of

all the differences between two derivations or between

the platform model and a derivation, for example, to

check for certain violations, other quality issues, and

to identify reuse opportunities during domain analysis.

It is thus important to identify a drift in the models,

to ﬁnd causes for the drift, and to take appropriate

countermeasures. This is currently a manual and very

time-consuming check.

MAGICDRAW indeed has a built-in visual “diff”

functionality but exposes about 34,000 differences for

just one single of 100 submodels. Despite being dis-

played in diagrams, some differences are not immedi-

ately graphically visible. One has to click on a graphi-

cal icon and dive into the textual speciﬁcation to detect

differences at a deeper level. This is far too much

to get manually checked and requires more than six

days. In particular, it is hard to check whether a de-

viation is critical or not; this is some tacit knowledge

of the engineer who performs the check. For example,

some graphical differences are not important like a box

being moved in a diagram. Moreover, a diff in MAG-

ICDRAW consumes an excessive amount of RAM due

to the size of models and takes a long time in compu-

tation (30 minutes for one submodel). This all turned

a manual check be time-consuming and error-prone as

well, with a strong negative impact.

The consequences of overseeing a critical devia-

tion are manifold. There is a risk of failing a software

qualiﬁcation by ofﬁcial authorities. Hence, the prod-

uct delivery could be delayed, presumably leading to

multi-million Euro penalties. Moreover, every missed

critical change can lead to inconsistencies between the

common platform and other derived platforms, known

as a model/architecture drift or unintentional diver-

gence (Schmorleiz and L

ammel, 2014; Kehrer et al.,

2021). This can be a risk for the entire reuse approach.

DATA 2022 - 11th International Conference on Data Science, Technology and Applications

148

Table 1: Requirements.

All deviations must be detected. However, the overwhelming amount of existing differences – which MAG-

ICDRAW exposes – should be reduced to semantic differences, i.e., those that are relevant for the engineers.

For example, if an interface has been added to a component, then this fact is sufﬁcient instead of displaying

everything that belongs to that interface (what should be considered as a mere consequence).

The comparison results must be easily comprehensible, e.g., in a tabular manner with all relevant information

such as ID, component name etc.

R3 The approach should be easy to handle without deeper understanding of the mechanism.

The approach should offer ﬂexibility to scope the investigation, e.g., detecting a typo in an element’s name is

important, but should be excludable for further analysis. Similarly, tacit knowledge should be addable.

For developing checks, an interactive analysis by means of ad-hoc checks must be possible to try them out. A

graphical user interface is reasonable for investigating the model data in depth and diving into details.

Consequently, any disallowed – and potentially unde-

tected – deviation could cause severe problems which

let become an automated check important.

This work focuses on quality assurance tasks. Here,

an engineer analyzes the differences between different

trainset types or between the common platform and a

trainset type in this task in order to identify disallowed

deviations. Table 1 summarizes the requirements we

collected from engineers to achieve a feasible approach

for better supporting the analysis of differences.

3 NEO4J APPROACH

Since MAGICDRAW’s visual diff tool exposes an

overwhelming amount of ﬁne-grained differences, we

searched for alternatives to return only relevant modiﬁ-

cations and making the check easier and more straight-

forward.

3.1 Generic Extraction Step

To this end, we implemented a proprietary extractor

that extracts elements using MAGICDRAW’s OpenAPI

interface. OpenAPI gives access to the DSL and model

elements in a programmatic manner, e.g., for Java.

Our extraction follows a generic approach that is

independent of a particular DSL. We derive all the

important model parts: The containment hierarchy,

which directly corresponds to the containment views in

MAGICDRAW, the

typeOf

relationship between DSL

elements, attributes of elements such as documenta-

tion or arbitrary properties, and connectors between

elements.

The derived structure follows a generic data model

that reﬂects the extracted parts. A type

MDBaseElement

contains the general speciﬁcation with the MAGIC-

DRAW-internal ID, name, level (in the hierarchy),

DSL type or stereotype (for example,

Package

S7ProxyPort

). If an element is a type of another

MDBaseElement

, a

typeId

refers to the ID of that ele-

ment.

childElements

contains an array of child nodes,

embedded in the same manner, to reﬂect the contain-

ment tree. MDBaseElement possesses several subtypes:

• MDElement represents an element of the DSL;

• MDConnection

stores a connection between

MDElements;

• MDDiagram denotes a graphical diagram;

• MDPresentationElement

is a graphical component

within a diagram.

Listing 1 shows an excerpt of one element being

exported in JSON format.

{ " e l e m e n t I m plTy p e " : " MD E l e m e n t " ,

" id " : " a 5 60 2 9 4 _ 1 4 9 8 1 4 4 25 8 2 8 4 _ 39 3 6 0 8 _ 1 5 7 6 7 " ,

" n a me " : " M a i n t e n a n c e o p erator " ,

" dsl T y p e " : " Acto r " ,

" le v e l " : 2 ,

" ty p e I d " : null ,

" belongsTo ": null , // if g r a p h i cal

" d o c u m e n t a t i o n ": " O p e rator of m a i n t e n a n c e

,→ f a c i l i t i e s " ,

" properties " : [ ... ] ,

" c o n n e c t i o n s " : [ {

" e l e m e n t I m p l Type " : " MD Connectio n " ,

" direction ": " S o u r c e T oTar g e t " ,

" id " : " a 5 60 2 9 4 _ 1 4 9 8 1 4 4 25 9 7 5 3 _ 26 1 4 7 6 _ 1 5 8 1 4 " ,

" dsl T y p e " : " G e n e r aliz a t i o n " ,

" le v e l " : 3 ,

" sourc e I d " :

,→ " a 5 6 0 2 9 4 _ 14 9 8 1 4 4 25 8 2 8 4 _ 3 9 3 6 0 8 _1 5 7 6 7 " ,

" targe t I d " :

,→ " _ a 5 6 0 2 9 4 _1 4 9 8 1 4 4 2 5 8 3 0 0_ 3 1 7 3 0 4_ 1 5 7 7 0 "

...

} ],

" c h i l d E l e m e n t s ":

[ { " e l e m e n t I mpl T y p e " : " M D E l e m e n t " ,

... sa me s t r u c t u r e fo r c hil d . ..

}, . ..

]

}

Listing 1: JSON excerpt of derived information.

There is a clear separation between the DSL ele-

ments and their graphical representations in diagrams

or tables, keeping the link between elements and

their use in graphical representations by means of a

Tackling Model Drifts in Industrial Model-driven Software Product Lines by Means of a Graph Database

149

belongsTo

relationship. A

MDDiagram

possesses x/y

coordinates, width, height, and a reference to the

MDElement

it represents. Indeed, an

MDElement

might

possess several graphical representations in different

diagrams.

MDBaseElement

might possess

connections

which have a

direction

, a certain

dslType

, a

sourceId

(which is the node itself) and a

targetId

referring to

the related element due to technical UML reasons.

Further properties of

MDElement

’s are kept as key/-

value pairs with a type MDProperty.

Since the data model is independent of a concrete

DSL (although DSL names are available as values

dslType

), the data extraction is applicable for any

DSL.

To compare two models, these models must be

processed as described before.

3.2 Transfer to Neo4j

To gain more ﬂexibility in analyzing the models, the

JSON outcome is transferred into the graph database

NEO4J.

The NEO4J data model consists of nodes and re-

lationships. Nodes possess properties and are mainly

used to represent entities. A relationship connects two

nodes and is guaranteed to have a valid source and

target node. Relationships are the key feature of graph

databases as they allow for ﬁnding related data. A

traversal is a typical way to query a graph, navigating

from a node to related nodes by following relation-

ships. Despite having a direction, relationships are

traversable in either direction. Both nodes and rela-

tionships may have properties. Properties are named

values where the name (or key) is a string. A label in

NEO4J can assign types to nodes and relationships; all

nodes with the same label belong to the same logical

set. A node may be labelled with any number of labels,

even none. NEO4J queries can work with these sets,

making queries easier to understand and more efﬁcient

to execute.

The mapping of the generic data model to NEO4J is

as follows. All

MDBaseElement

s are mapped to nodes,

obtaining two labels according to the class in the

generic model (e.g.,

MDElement

MDDiagram

) and

the DSL type (e.g.,

S7ProxyPort

MDProperty

’s are

stored as nodes with a label

Property

, referring to

their

MDBaseElement

by means of a relationship. The

speciﬁc types of references (containment, connections,

typeOf

etc.) are also reﬂected by relationships. Ref-

erences, which have been stored by IDs in JSON, are

resolved by explicit relationships between elements.

To distinguish two models, a root node of type

MDProject

is introduced for each loaded model: Each

node uniquely refers to its model root by means of a

belongsTo relationship.

An important property is that MAGICDRAW iden-

tiﬁers are not changing when taking the platform and

deriving a derivate. Thus, identical elements in two

imported models, have the same unique MAGICDRAW

ID; we call them pendants. The query in Listing 2

sets up another relationship

refersTo

between those

pendants based upon IDs:

MATCH

( np ) -[: belong s T o ] - >( rp : M D P r o ject { id : " P l a tform " } ) ,

( na ) -[: belong s T o ] - >( ra : M D P r o ject { id : " P r o jectA " } )

WHERE np . id = na . id

CREATE ( np ) -[: re f e r s T o ] - >( na )

Listing 2: CQL query let refer all elements in Platform to

elements in ProjectA.

The query is formulated in NEO4J’s Cypher query

language (CQL) in a declarative manner.

MATCH

iden-

tiﬁes nodes and relationships.

(...)

represents a

node and

-[...]-

a relationship between two nodes;

those relationships might ask for a certain direction

-[]->

. Labels can be placed behind a colon. Hence,

(np)

represents a node of any type (as the label is

left out), whereas

(rp:MDProject)

is a node with la-

bel, i.e., of type

MDProject

(np)

must be related

to a

MDProject

node

(rp:MDProject)

via a relation-

ship of type

belongsTo

(rp)

has to satisfy the condi-

tion

{id:"Platform"}

. Similarly,

(na)

must belong to

“ProjectA” (i.e.,

(ra)

CREATE

establishes a relation-

ship of type

refersTo

between both if they possess the

same ID (np.id=na.id).

4 COMPARISON QUERIES

Having the data in NEO4J enables us to query

for both the generic and the DSL elements with

CQL. Hence, calculating the difference between

two models can be performed by a collection

of CQL queries. Figure 2 gives an example

for a visual query result in NEO4J comparing

a node (

ID=a560294 1506950258974 794259 327249,

name=’ATP Fahrtrichtung’

) in two projects, “Plat-

form” and “ProjectA”. The different types of rela-

tionships become visible: the newly created

refersTo

and

belongsTo

as well as

childOf

(reﬂecting the

containment hierarchy),

hasType

hasProperty

, and

connection

. Colors indicate labels. Selecting a par-

ticular node, its name and labels become visible (e.g.,

key and value of a green Property node).

Please note the more readable representation of

connections. There is a direct relationship between

two nodes, and the direction (e.g.,

source to target)

DATA 2022 - 11th International Conference on Data Science, Technology and Applications

150

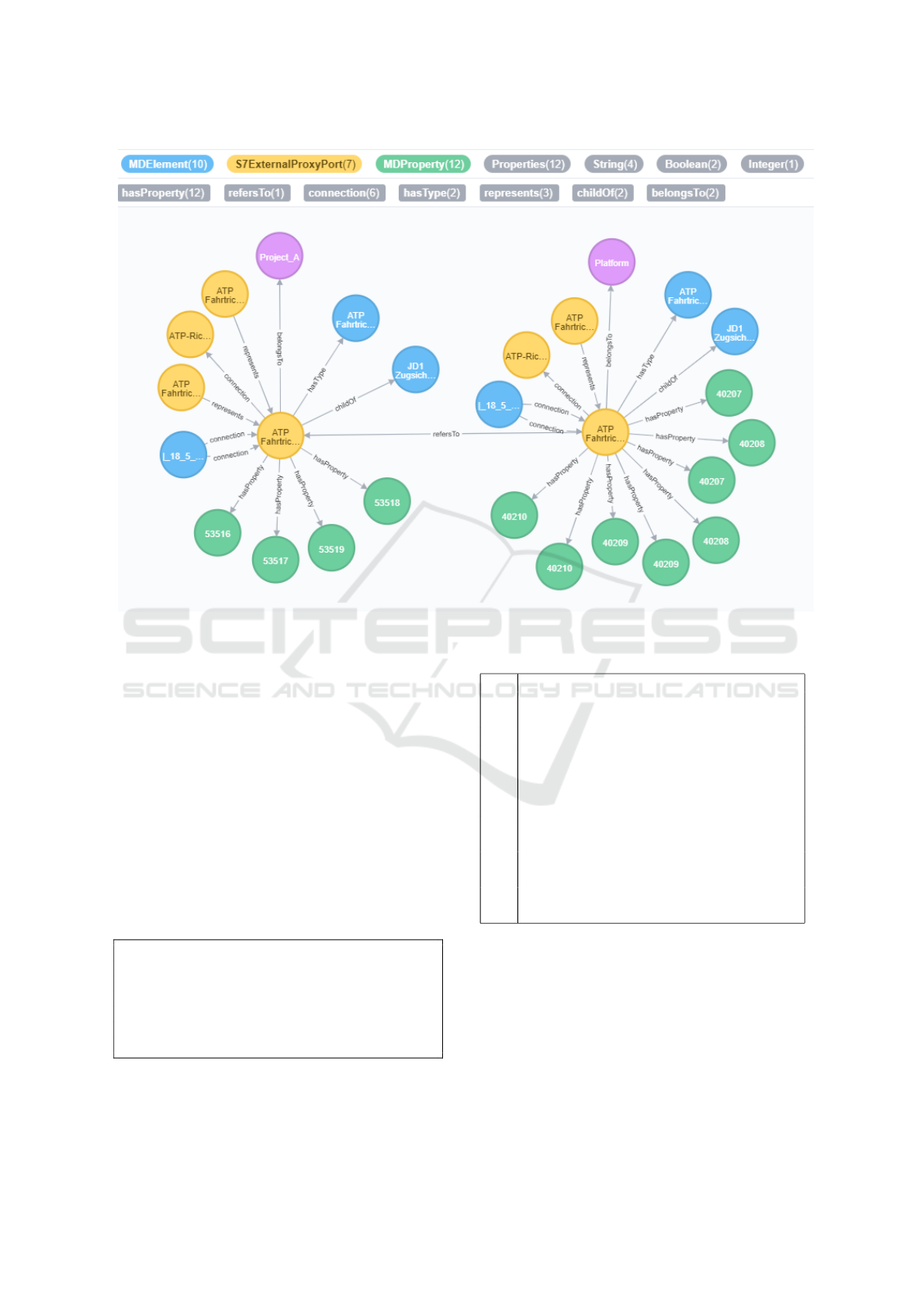

Figure 2: Two nodes to be compared and their relationships.

dslType

, and

MDConnection ID

are attached to the re-

lationship.

The main goal of this paper is now to ﬁnd a bet-

ter way to determine the real, i.e., “semantic”, dif-

ferences (which should be much less than MAGIC-

DRAW’s 34,000). Thereby, we want to evaluate the

power of NEO4J’s CQL for comparing huge models

wrt. expressiveness and performance and to determine

the number of required queries. To this end, we want

to investigate whether we are able to implement some

generic, i.e., DSL agnostic, checks that are sufﬁcient

to cover all the deviations.

As a ﬁrst result, it turned out that the queries listed

in Table 2 are sufﬁcient to detect all the relevant differ-

ences. In the following, we discuss the corresponding

CQL queries.

MATCH

( np ) -[: belong s T o ] - >( rp : M D P r o ject { id : " P l a tform " } ) ,

( na ) -[: belong s T o ] - >( ra : M D P r o ject { id : " P r o jectA " } ) ,

( np ) -[: ref e r s T o ] - >( n a )

WHERE np . id = na . id AND np . n ame < > n a . n a me

AND NOT ' Prop e rtie s ' IN la b els ( np )

RETURN np . id , np . n ame as Na me 1 , na . nam e as Name 2

Listing 3: Different names for pendants (Query 1).

The query for Q1 in Listing 3 searches for nodes

(na)

and

(np)

of any label that belong to the projects to

Table 2: Comparison Queries.

Q1 Which pendants have different names?

Which pendants have additional or missing

sons?

Which pendants have different parent nodes?

Which pendants possess different MAGIC-

DRAW properties (wrt.

hasProperty

)? Car-

dinalities are speciﬁed here, which affect the

generated software.

Which pendants possess a different docu-

mentation (i.e., doc(umentation))?

Which pendants refer to different types, i.e.,

labels?

Which pendants have different connected

elements (via connection)?

be compared (via the

belongsTo

relationship), where

both nodes should possess the same ID, but differ-

ent names; the

refersTo

relationship is redundant to

the condition

np.id=na.id

, but useful to visualize this

relationship. Nodes of label

Properties

are explic-

itly excluded since handled in Q4. Figure 3 shows

the resulting table, displaying the name differences in

columns

Name1

and

Name2

, quite often some typos. In

addition to ID and names, the labels (especially the

DSL types) can also be issued in the

RETURN

clause.

Tackling Model Drifts in Industrial Model-driven Software Product Lines by Means of a Graph Database

151

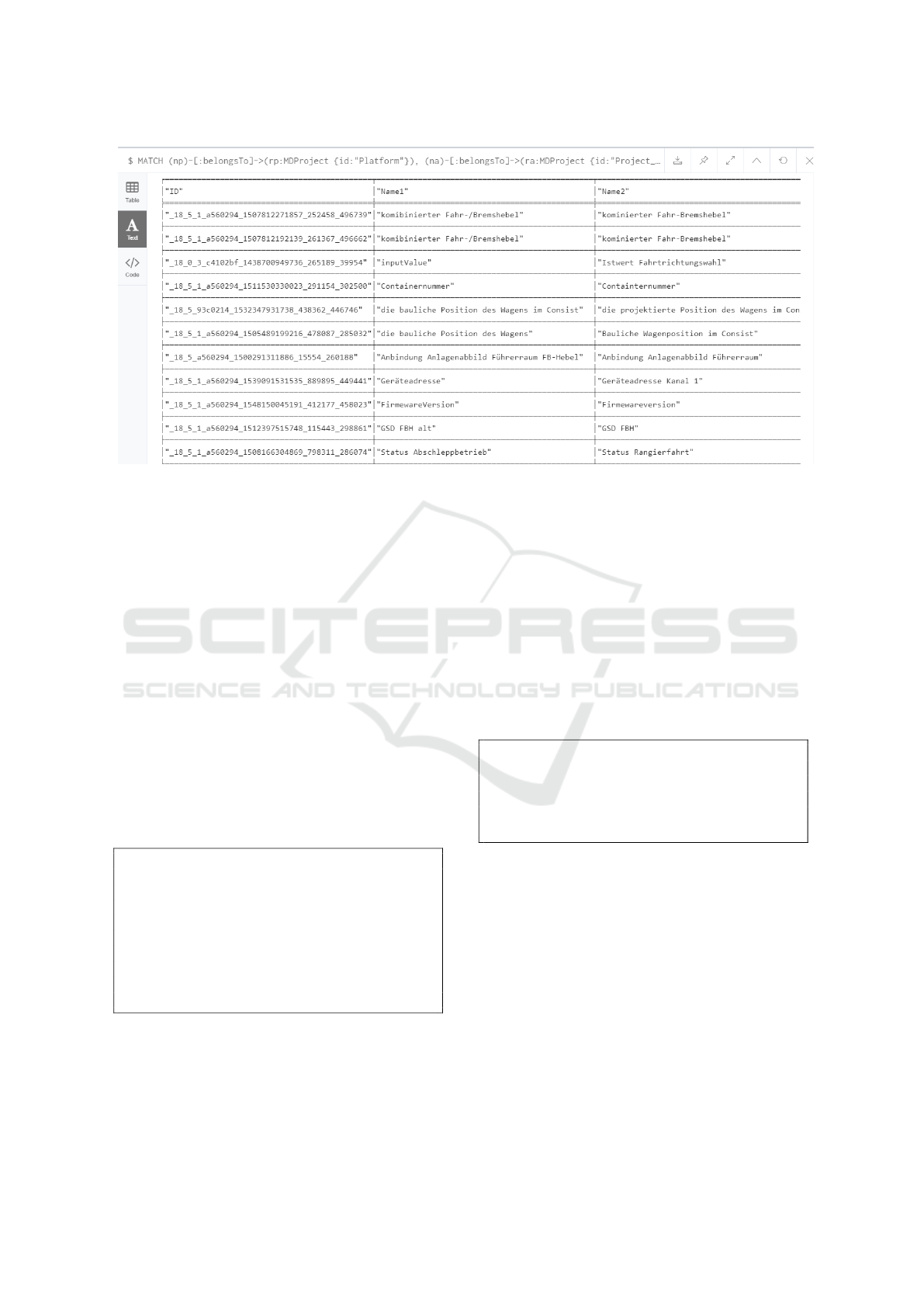

Figure 3: Displaying different names.

Especially labels make the decision easier to check

whether the deviation is allowed or not. Hence, it

is quite easy to tell critical components apart from

non-critical ones. Furthermore, non-critical compo-

nents can be excluded from the result by adding further

ﬁlters, e.g., on labels. Anyway, it is also possible to

obtain a graphical result (similar to Figure 2) by return-

ing nodes and relationships as

np, na, rel

instead of

properties.

As indicated, MAGICDRAW’s diff tool leads to an

excessive number of differences. Determining only the

“semantic” differences is in fact one major problem to

tackle. For example, if an element has been added,

we are not interested in all sub-elements of that ele-

ment, but the added element itself is sufﬁcient to know.

Moreover, a single new element often leads to several

modiﬁcations to keep internal associations consistent.

Listing 4 determines those nodes. Missing sons are

handled analogously.

MATCH

( sa ) -[: belong s T o ] - >( ra : M D P r o ject { id : " P r o jectA " } ) ,

( sa ) -[: ch i l d O f ] - >( f a ) ,

( fp ) -[: belong s T o ] - >( rp : M D P r o ject { id : " P l a tform " } )

WHERE fa . id = fp . id AND NOT () -[: re f e r s T o ] - >( s a )

AND ' M DEl e m ent ' IN la b e ls ( s a )

RETURN DISTINCT sa . i d AS id , sa . n a me AS name ,

fa . id AS fid , fa . n ame AS fna me ,

fa . le v e l AS fle ve l , l abe l s ( sa ) AS son lab e ls ,

la b e l s ( fa ) AS f l a b e l s

Listing 4: Newly added sons in ProjectA (Query 2).

Son

(sa)

must belong to ”ProjectA” and be child

of a father

(fa)

. There must be a pendant

(fp)

that

refersTo (fa)

in ”Platform” with the same ID. The

WHERE

condition states that there must not exist any

pendant for son

(sa)

. Moreover, graphical represen-

tations are excluded by a condition

’MDElement’ IN

labels(sa)

RETURN

yields for each missing node its

ID and name, the father’s ID, name, and level, and the

labels of son and father. The number of results can

easily be reduced by adding additional ﬁlters incremen-

tally. For instance, differences at levels

8 might

be too detailed and could be excluded by adding a

subcondition “

and sa.level<8

”. Anyway, the tabular

result view allows for quickly checking the deviations.

Query Q3 in Listing 5 has a similar structure:

(np)

and

(na)

are the “identical” nodes (

np.id=na.id

), and

(fp) and (fa) their fathers, resp.

MATCH

( np ) -[: belong s T o ] - >( rp : M D P r o ject { id : " P l a tform " } ) ,

( na ) -[: belong s T o ] - >( ra : M D P r o ject { id : " P r o jectA " } ) ,

( np ) -[: ch i l d O f ] - >( f p ) ,( na ) -[: c h ildOf ] - >( fa )

WHERE np . id = n a . id AND fp . id <> fa . id

RETURN np . id , np . le ve l , na . l e vel

Listing 5: Identical nodes with different parents (Query 3).

Determining pendants with different properties is

more complex and challenged us and NEO4J. How-

ever, we could beneﬁt from the fact that queries can

be cascaded in CQL. Query Q4 in Listing 6 starts with

nodes

for “Platform” and determines the proper-

ties

prp

of each node, thereby restricting the nodes to

MDElement

s. From the result, we select (

WITH

) the prop-

erty

prp

, the node ID, and the set of attached labels for

successive subqueries. Having ordered the properties

by key, i.e., obtaining an ordered list, another

WITH

clause converts property keys and values into a collec-

tion (

collect

). Next, the nodes

of ”ProjectA” and

their properties

pra

are handled analogously, thereby

referring to

id1

. The corresponding

MATCH

OPTIONAL

DATA 2022 - 11th International Conference on Data Science, Technology and Applications

152

in order to handle empty sets properly. Finally, the

sorted list of keys and values are compared.

MATCH

( np ) -[: belong s T o ] - >( rp : M D P r o ject { id : " P l a tform " } ) ,

( np ) -[: hasPro p e r t y ] - >( pr p )

WHERE " MD E l e m e n t " IN la bels ( np )

WITH prp , np . id AS id1 , la b e ls ( n p ) as la b el

ORDER BY prp . ke y

WITH id1 , label , c ollec t ( p rp . key ) AS k ey s1 ,

co l l e c t ( prp . v alu e ) AS va lues1

OPTIONAL MATCH

( na ) -[: belong s T o ] - >( ra : M D P r o ject { id : " P r o jectA " } ) ,

( na ) -[: hasPro p e r t y ] - >( pr a )

WHERE na . id = id 1

WITH id1 , label , keys1 , val ues 1 , pr

ORDER BY pra . ke y

WITH id1 , label , keys1 , val ues 1 ,

co l l e c t ( pra . ke y ) AS keys2 ,

co l l e c t ( pra . v alu e ) AS va lues2

WHERE ke ys1 <> ke ys2 OR va l ues1 <> val u e s 2

RETURN DISTINCT id1 , l ab el , k ey s1 , v a lu e s1 ,

keys2 , va l u e s2

Listing 6: Check for pendants with different properties

(Query 4).

Listing 7 handles Query Q5. The documentation is

stored as a node property

doc

, similar to

and

name

The query checks for different

doc

values (

np.doc <>

na.doc

) or having a documentation only at one side

(e.g., EXISTS(np.doc) AND NOT EXISTS(na.doc)).

MATCH

( np ) -[: belong s T o ] - >( rp : M D P r o ject { id : " P l a tform " } ) ,

( na ) -[: belong s T o ] - >( ra : M D P r o ject { id : " P r o jectA " } ) ,

( np ) -[r : r e f e rsTo ] - >( na )

WHERE np . id = n a . id

AND ( np . do c <> na . do c

OR ( EX I S TS ( n p . d oc ) AND NOT EXIS T S ( na . do c ) )

OR ( EX I S TS ( n a . d oc ) AND NOT EXIS T S ( np . do c ) ) )

RETURN np . id , na . doc , np . d oc

Listing 7: Check for pendants with different documentation

(Query 5 ).

Query Q6 is split into three different subqueries: a

node has a type but the pendant has none (Q6a), a node

has no type but the pendant does (Q6b), and both have

a type, but different ones (Q6c). From a syntactical

point of view, this could be expressed in a single query

as well, however, performance then suffers drastically.

MATCH -- Q 6a ( Q 6b analogously )

( np ) -[: belong s T o ] - >( rp : M D P r o ject { id : " P l a tform " } ) ,

( na ) -[: belong s T o ] - >( ra : M D P r o ject { id : " P r o jectA " } ) ,

( np ) -[ ht : h a s T y pe ] - >( tp ) ,( np ) -[ r : r e f e rsTo ] - >( na )

WHERE np . id = na . id AND NOT (n a ) -[: h a sType ] - >()

RETURN np , na , tp , ht ,r

Listing 8: Check for pendants with different types (Query

6a/b).

MATCH -- Q 6c

( np ) -[: belong s T o ] - >( rp : M D P r o ject { id : " P l a tform " } ) ,

( na ) -[: belong s T o ] - >( ra : M D P r o ject { id : " P r o jectA " } ) ,

( np ) -[ h tp : h a s T y p e ] - >( tp ) ,

( na ) -[ h ta : h a s T y p e ] - >( ta ) ,

( np ) -[r : r e f e rsTo ] - >( na )

WHERE np . id = na . id AND tp . id <> ta . id

RETURN DISTINCT np . id , na . id , tp . id , ta . id

Listing 9: Check for pendants with different types (Query

6c).

Query Q7 is handled similarly by three subqueries,

but not shown here.

So far, this a quite general consideration of dif-

ferences, which already reduces the number of differ-

ences to semantic ones heavily. However, as already

mentioned, some deviations are allowed in certain con-

texts. To handle this aspect, special conditions can be

added to better reﬂect the analyzer’s knowledge. For

example, some model elements are marked as sealed,

which means they must not be changed neither in their

external interfaces nor their internals. Hence, the fol-

lowing query returns all those elements with such a

property valued “true” with all their sons

recursively

thanks to ’*’ behind

childOf

. The result can then be

checked for any differences.

MATCH

( np ) -[: belong s T o ] - >( rp : M D P r o ject { id : " P l a tform " } ) ,

( np ) -[h : h a s P r o p e r t y ] - >( p ) ,

(s ) -[ c : c h ildOf *] - >( np )

WHERE p . k ey =' sea le d ' AND p. v a l ue = " tru e "

RETURN np . id , s . id

Listing 10: Further scoping (sealed components).

5 EVALUATION

We start our evaluation with judging the expressiveness

and performance of NEO4J. It turns out that NEO4J’s

CQL is a very powerful query mechanism. We were

able to express all the necessary checks (as listed in

Table 2) and could not detect any limitations in com-

putation. We were surprised that even very elaborated

checks, e.g., Listing 6, can be speciﬁed due the pos-

sibility to cascade queries, although it took us some

time to ﬁnd a solution. Moreover, performance is ab-

solutely acceptable. Indeed, we applied query tuning

sometimes. For instance, an explicit comparison of

IDs in addition to the equivalent

belongsTo

relation-

ship speeds up queries. And in Q6 (9), we calculated

the nodes having a type in one project but none in the

other, and to compare differences only for those nodes

with a type in several queries.

Tackling Model Drifts in Industrial Model-driven Software Product Lines by Means of a Graph Database

153

In summary, the NEO4J-based approach brought

up several advantages wrt. the requirements in Table

: Concerning the overall approach, we checked

the output of our NEO4J-based analysis carefully with

a domain expert who usually controls the differences

in a manual manner. First, everything we detected

by means of CQL queries was correct. Even more,

several critical problems, which were not recognized

during the manual check could be discovered, e.g.,

typos in names (cf. Figure 3). The other way round,

all real differences seemed to be detected within our

analysis. Honestly, we did not check all the violations,

but picked up a large number of relevant deviations.

It is possible to reduce the model diff to seven

CQL queries – achieving much less, now semantic

differences. The results of all the checks are summa-

rized in Table 3. For example, moving a subtree to

another parent node leads to 11763 node differences

in MAGICDRAW compared to 60 violations (cf. query

Q3).

Indeed, the total number of nodes is less than the

sum of detected incidents in Table 3 since the query

results contain overlaps in nodes: Some nodes have,

e.g., additional children, but also further properties

and/or connections. Anyway, the numbers expose the

number of violations in each check while the number

of distinct nodes is less relevant.

: A tabular text representation of query results

(cf. Figure 3) helps a lot to browse through and to

judge the ﬁndings. It turned out to be useful to return

the labels and the level, too. Then it becomes easier

to decide whether a certain difference is critical or

not, e.g., because it occurs at a deeper level or is not a

critical component. This means that an experienced en-

gineer is able to quickly further reduce the occurrences,

e.g., by adding

NOT ’MDDiagram’ IN labels(n)

to ex-

clude graphical representations. Similarly, an ad-hoc

investigation and more advanced scoping (e.g., restrict-

ing the scope to

SoftwareComponentInstances

only)

by asking for speciﬁc labels can be easily added with-

out recompilation.

: With executing only seven predeﬁned queries,

many of the analysis tasks could be simpliﬁed. Be-

cause of the graphical and tabular representation, re-

sults can be understood without deeper understanding

of graph databases, the querying language, or meta-

model speciﬁc aspects.

: As shown in Section 4, there is enough ﬂexibil-

ity to scope the search and to adjust queries according

to tacit engineers’ knowledge, e.g., Listing 10. For ex-

ample, there exists some slight kind of feature model in

the DSL, however, without any dedicated tool support.

Thus, a speciﬁc feature allows for new sons (for that

Table 3: Comparison Numbers.

Name Occurences

Q1 different names 744 nodes

Q2 additional sons 947 parents

missing sons 980 parents

Q3 nodes with different parents 60 nodes

Q4 no properties in one project 53 nodes

different properties 3840 nodes

Q5 different documentation 91 occ’s

Q6 pendant has no type 12 nodes

pendant has additional type 112 nodes

different types 38 nodes

Q7 no connections at one side 717 occ’s

different connections 345 occ’s

feature) while having removed some others that are

actually replaced by the feature. Those more complex

conditions can be formulated in CQL as well.

: There are huge time savings compared to an

implementation based upon comparing JSON data

in a programming language, especially in the testing

phase when queries are developed incrementally.

Queries can be adjusted and run immediately without

any program/compile/check cycle. Moreover, the

visualization helps to understand query results

and the DSL “implementation”: Diving into DSL

internals is possible by checking an element (given

by an ID) and all its surroundings, e.g.,

MATCH

(n {id:" 18 5 1 a560294 1558807659 964294"}),

(n)-[r]-(x) RETURN n,x,r

which, in fact, returns the

result in Figure 2. It becomes immediately visible

that the “Platform” node possesses more properties

(

hasProperty

). This is especially useful to check the

correctness of CQL queries.

6 RELATED WORK

Models are ﬁrst-class artifacts in MDE, and as such

subject to permanent changes. Several studies in the

literature support and manage the evolution of models

by means of collaborative work on models, versioning

of models, or quality assurance of models (Khalil and

Dingel, 2013; Arendt and Taentzer, 2013; Paige et al.,

2016; Kehrer, 2015; Van Der Straeten et al., 2009).

The importance of quality assurance in model evolu-

tion or MDE in general has often been discussed. For

example, (Krogstie et al., 2006) and (Mohagheghi and

Dehlen, 2008) suggest generic quality frameworks for

MDE, while(Arendt and Taentzer, 2013) tackle model

smell detection and resolution. Another approach by

(Giraldo et al., 2014) integrates the metaphor of techni-

cal debt into MDE. All the proposed solutions are built

on top of the Eclipse Modeling Framework (EMF) and

work on the level of models and not on model differ-

ences. Our approach is thought to handle large model

DATA 2022 - 11th International Conference on Data Science, Technology and Applications

154

differences and support engineers in understanding

large model differences.

While model evolution focuses on the differences

in the temporal dimension, other work also handles

the product dimension in a product line, especially the

industrial challenges of variability management. For

instance, (Chen and Babar, 2010) present a survey that

discusses organizational challenges, complexity and vi-

sualizing complex variability, extraction of variability

from technical artifacts, evolution of variability itself,

variability modeling and documentation, design deci-

sion management, and knowledge management and

other tool support. (Berger et al., 2020) explicitly men-

tion MDE as a challenge for variability management

and the lack of SPLE concepts in many domain spe-

ciﬁc languages. Some work attempts to unify version

and variability management by proposing variation

control systems. A classiﬁcation of variation control

systems is given by (Linsbauer et al., 2017).

Another approach to support the comparison of

two derivations is to condense the model differences.

Another approach (Tinnes et al., 2021) aggregates mul-

tiple ﬁne-grained differences in larger patterns based

on semantic lifting (Kehrer et al., 2011) and model

transformation mining (Tinnes et al., 2021). This al-

lows ﬁltering model differences for speciﬁc change pat-

terns, too. Our approach is more ﬂexible. Queries can

easily be adjusted or new queries can be formulated

to answer speciﬁc questions, whereas in the approach

(Tinnes et al., 2021) new change patterns have to be

deﬁned. Furthermore, our approach is independent of

the tooling stack.

Closely related to our approach, several query lan-

guages for models have been introduced in the past two

decades, mainly for the Eclipse Modeling Framework

and UML-based tools such as the Object Constraint

Language (OCL) (OCL, 2014). The EMF ecosystem

brought up many model query languages and tools

such as EMF Query (EMF, ), FunnyQT (Horn, 2013),

and Emf-IncQuery (Bergmann et al., 2011).Unfortu-

nately, there is no formal comparison of the power

and expressiveness of those query languages. Some

deﬁcits, mostly for OCL, could not be detected for

NEO4J.

In general, the NEO4J approach does not depend

on other frameworks like EMF and is therefore easy to

employ. Furthermore, queries are easy to understand

and can ﬂexibly be adjusted due to the graph-based

syntax. Additionally, NEO4J is an industry proven tool

and scalable to large amounts of modeling data.

Concerning the use of NEO4J, several papers ex-

ist focusing on performance, especially compared to

relational databases. Most NEO4J comparisons use

artiﬁcial test scenarios, for instance, (Vicknair et al.,

2010) who experiments with different artiﬁcial data

sets of 1,000, 5,000, 10,000 and 100,000 nodes with

payload attributes.

Other comparisons use data sets coming from

real applications. (Khan et al., 2017) compare Or-

acle 11g and the Neo4j graph databases 5 (3.0.3

community edition) using a proprietary Medical Di-

agnostic System. The data set comprises of about

28,000 patients, 625,721 patient visits, 869,666 pa-

tient IssueMed records, to mention the main tables.

Five count queries join two or three tables. Their re-

sult show that Neo4j performs much better when the

data set size increases. While Oracle performs queries

in a few seconds (depending on the query), Neo4j

requires about 0.3 sec.

(Joishi and Sureka, 2015) use some process-mining

algorithms for their comparison of MySQL and Neo4j

: Similar-Task (ﬁnding similarity between actors based

on the intersection of activities) and Sub-Contract

(causal dependencies between actors in carrying out

a business process). MySQL is 32 times faster than

Neo4j for the similarity calculation. Concerning sub-

contracts, Neo4j attains a performance boost of a mag-

nitude of 7x over MySQL.

But due to our knowledge, no research has been

applied in the context of comparing huge architectural

models thereby judging the capabilities and beneﬁts

of NEO4J.

7 CONCLUSION

In this paper, we introduced an industrial case study

where the tool MAGICDRAW is used in a model-driven

engineering manner. System architectures of a product

family are modeled using an extended SysML DSL to

support reuse of architecture models. In this context,

one major issue arises: To effectively compare two

large MAGICDRAW models. Indeed, MAGICDRAW

has tool support to display differences, however, the

result consists of ten-thousands of differences which

are hardly to comprehend. To handle this issue, we pre-

sented a ﬂexible approach based on the NEO4J graph

database. More precisely, comparisons are formulated

and detected by means of CQL queries.

As a major result, the number of differences

could be drastically reduced to “semantic” differ-

ences, which better aggregate differences in the sense

that adding a new element does not display all sub-

elements. We also achieve ﬂexibility to let engi-

neers scope the context in order to further reduce

the differences by tacit knowledge. The power of

NEO4J queries turned out to be sufﬁcient, even com-

plex queries could be formulated. The overall perfor-

Tackling Model Drifts in Industrial Model-driven Software Product Lines by Means of a Graph Database

155

mance is acceptable although some tuning was par-

tially required.

The approach can be generalized to other tools,

too, due to a central data model. In case of other tools

than MAGICDRAW, a different type of analyzer is

required to feed the data model. For instance, it should

be no problem to apply the approach to EMF-based

modelling tools. Similarly, other graph databases can

be applied by implementing a different transfer from

the data model. Whether the query functionality and

performance is sufﬁcient certainly depends on the tool.

Our future work intends to improve the current

pipeline. The steps to derive the content of MAGIC-

DRAW models, to transfer the data to NEO4J, where

validation is performed, can be reduced to one step.

Moreover, the pipeline should be invokable within

MAGICDRAW. In this context, we also have to tackle

the only remaining performance issue: Without any

further improvement, the import steps take a few hours,

while the validation itself – query evaluation – is pretty

fast.

REFERENCES

Eclipse modeling framework (emf) model query.

https://www.eclipse.org/emf-query/. Last access:

April 4, 2022.

Apel, S., Batory, D., K

astner, C., and Saake, G. (2013).

Feature-Oriented Software Product Lines - Concepts

and Implementation. Springer.

Arendt, T. and Taentzer, G. (2013). A tool environment

for quality assurance based on the Eclipse Modeling

Framework. In ASE, pages 141–184. IEEE/ACM.

Batoryayer, A. (2004). Scaling step-wise reﬁnement. TSE,

30(6):355–371.

Berger, T., Stegh

ofer, J.-P., Ziadi, T., Robin, J., and Martinez,

J. (2020). The state of adoption and the challenges of

systematic variability management in industry. ESE.

Bergmann, G., Ujhelyi, Z., R

ath, I., and Varr

o, D. (2011).

A graph query language for EMF models. In LNCS,

volume 6707 LNCS, pages 167–182.

Chen, L. and Babar, M. (2010). Variability management

in software product lines: An investigation of contem-

porary industrial challenges. In LNCS, volume 6287

LNCS, pages 166–180.

Dubinsky, Y., Rubin, J., Berger, T., Duszynski, S., Becker,

M., and Czarnecki, K. (2013). An exploratory study of

cloning in industrial software product lines. In CSMR,

pages 25–34. IEEE.

Fischer, S., Linsbauer, L., Lopez-Herrejon, R., and Egyed,

A. (2016). A vision for enhancing clone-and-own with

systematic reuse for developing software variants. Lec-

ture Notes in Informatics (LNI), Proceedings - Series

of the Gesellschaft fur Informatik (GI), P252:95–96.

Giraldo, F., Espa

na, S., Pineda, M., Giraldo, W., and Pastor,

O. (2014). Integrating technical debt into MDE. CEUR

Workshop Proceedings, 1164:145–152.

Horn, T. (2013). Model querying with funnyqt. In Duddy,

K. and Kappel, G., editors, Theory and Practice of

Model Transformations, pages 56–57, Berlin, Heidel-

berg. Springer.

IEC (2010). 61508: Functional safety of electrical/elec-

tronic/programmable electronic safety-related systems.

Technical report, IEC.

Joishi, J. and Sureka, A. (2015). Graph or relational

databases: A speed comparison for process mining

algorithm. Proc. of 19th International Database Engi-

neering &; Applications Symposium, Yokohama.

Kehrer, T. (2015). Calculation and Propagation of Model

Changes based on User-Level Edit Operations: A Foun-

dation for Version and Variant Management in Model-

Driven Engineering. PhD thesis, University of Siegen.

Kehrer, T., Kelter, U., and Taentzer, G. (2011). A rule-based

approach to the semantic lifting of model differences

in the context of model versioning. In ASE, pages

163–172. ACM/IEEE.

Kehrer, T., Th

um, T., Schultheiß, A., and Bittner, P. (2021).

Bridging the gap between clone-and-own and software

product lines. In ICSE, pages 21–25. IEEE/ACM.

Khalil, A. and Dingel, J. (2013). Supporting the evolution of

UML models in model driven software development:

a survey. School of Computing, Queen’s University,

Ontario.

Khan, W., Ahmed, E., and Shahzad, W. (2017). Predictive

performance comparison analysis of relational & nosql

graph databases. Int. Journal of Advanced Computer

Science and Applications 8(5), January 2017.

Krogstie, J., Sindre, G., and Jørgensen, H. (2006). Process

models representing knowledge for action: A revised

quality framework. European Journal of Information

Systems, 15(1):91–102.

Krueger, C. (1993). Software Reuse. ObjectWorld Confer-

ence.

uger, J. and Berger, T. (2020). An empirical analysis of

the costs of clone-and platform-oriented software reuse.

In ESEC/FSE, pages 432–444.

Linsbauer, L., Berger, T., and Gr

unbacher, P. (2017). A clas-

siﬁcation of variation control systems. ACM SIGPLAN

Notices, 52(12):49–62.

Mohagheghi, P. and Dehlen, V. (2008). Developing a quality

framework for model-driven engineering. In LNCS,

volume 5002 LNCS, pages 275–286.

No-Magic-Inc. (2021). MagicDraw website.

https://www.magicdraw.com/. Last access: April 4,

2022.

OCL (2014). Object Constraint Language, Version 2.4. Tech-

nical Report March.

Paige, R., Matragkas, N., and Rose, L. (2016). Evolving

models in Model-Driven Engineering: State-of-the-art

and future challenges. JSS, 111:272–280.

DATA 2022 - 11th International Conference on Data Science, Technology and Applications

156

Pohl, K., B

ockle, G., and Linden, F. (2005). Software Prod-

uct Line Engineering: Foundations, Principles, and

Techniques.

Rodrigues Da Silva, A. (2015). Model-driven engineering:

A survey supported by the uniﬁed conceptual model.

Computer Languages, Systems and Structures, 43:139–

155.

Rubin, J., Czarnecki, K., and Chechik, M. (2013). Manag-

ing cloned variants: A framework and experience. In

SPLC, pages 101–110. ACM.

Rubin, J., Kirshin, A., Botterweck, G., and Chechik, M.

(2012). Managing forked product variants. In SPLC,

volume 1, pages 156–160.

Schmorleiz, T. and L

ammel, R. (2014). Similarity man-

agement via history annotation. SATToSE 2014—Pre-

proceedings, page 45.

Tinnes, C., Kehrer, T., Joblin, M., Hohenstein, U., Biesdorf,

A., and Apel, S. (2021). Learning domain-speciﬁc edit

operations from model repositories with fsm. In ASE.

ACM/IEEE.

Van Der Straeten, R., Mens, T., and Van Baelen, S. (2009).

Challenges in model-driven software engineering. In

LNCS, volume 5421, pages 35–47.

Vicknair, C., Macias, M., Nan. X., Zhao, Z., and et al.

(2010). A comparison between a graph and a rela-

tional database: A data provenance view. Proc. of 48th

Annual Southeast Regional Conference, 2010, Oxford,

(USA).

Tackling Model Drifts in Industrial Model-driven Software Product Lines by Means of a Graph Database

157
