A Lightweight Software Product Quality Evaluation Method

Giuseppe Lami and Giorgio Oronzo Spagnolo

System and Software Evaluation Lab, Information Science and Technologies Institute,

National Research Council, Pisa, Italy

Keywords: Software Product Quality, ISO/IEC 25000, Quality Evaluation.

Abstract: In this paper, we describe an evaluation method, called QuESPro (Quality Evaluation of Software Product),

aimed at performing third party evaluation of the suitability for the intended use of software products, by

targeting a trade-off between the mere informal expert judgment and the application of complex and expensive

evaluation methods. The QuESPro is based on the framework provided by the ISO/IEC 25000 series standard

and provides a step-wise process to determine a quantitative evaluation of the relevant quality characteristics

of software products. With the aim of assessing the feasibility of the QuESPro method in terms of feasibility,

identifying its strengths, and identifying improvement opportunities we applied it to an industrial case study.

The results of such a case study are reported in this paper as well.

1 INTRODUCTION

Software is today pervasive and crucial for the

business of companies and organizations as several

vital functions are reliant on software solutions. For

managers the information about the fitness of

software products in use with respect the current and

future business needs is pivotal for strategic decisions

and investments. Often organizations do not have the

capability to gather such an information as the

software product they want to evaluate is developed

by external software houses. For this reason, they

refer to third party, independent, and qualified

organizations to perform evaluations of software

products aimed at understanding the degree of

adherence to their demands and needs of in use

software solutions. In addition, it is worth saying that

the currently available methods to evaluate a software

product in a systematic, quantitative, and sound way

are generally complex, time consuming and

expensive thus, primarily for small and medium

enterprises, that represent a barrier to perform such

activities. To face such a situation the System &

Software Evaluation Lab (SSE) of the Information

Science and Technologies Institute, as a third-party

independent evaluation body with experience in

assessing process and evaluating software products,

defined a methodology to evaluate software products

adopting a systematic and sound approach targeting

cost-effectiveness of the evaluation. Such a

methodology, that is based on the quality model

provided by the ISO/IEC 25010 standard (ISO, 2011),

has been identified with the acronym QuESPro

(Quality Evaluation of Software Product), is

described in this paper. There is a large literature

describing quality evaluations based on or inspired by

the quality model provided by ISO/IEC 25010

(Miguel, 2014), (Ouhbi, 2014). Some of them aim at

defining specific procedures to perform software

quality evaluations (Rodriguez, 2016), (Lee, 2014).

Some other are focused on extending or customizing

the ISO/IEC 25010 quality model to fit specific

contexts (Falco, 2021), (Neri, 2018), (Ortega, 2003),

(Estdale, 2018), (Nakai, 2016).

As the application of those methods is often

complex and expensive, they are hard to be applied

by small-medium enterprises. The QuESPro method

described in this paper aims at responding to the

demands of short-term and cost-effective quality

evaluations of software products that are sounder and

more systematic than the mere expert judgment, but

not highly demanding in terms of costs and time

This paper is structured as follows: in section 2 the

QuESPro methodology is described then, in section

3, the experience of the application of the QuESPro

methodology in an industrial case study is described

and the related results presented. Finally, in section 4,

conclusions and lessons learned are provided.

524

Lami, G. and Spagnolo, G.

A Lightweight Software Product Quality Evaluation Method.

DOI: 10.5220/0011316400003266

In Proceedings of the 17th International Conference on Software Technologies (ICSOFT 2022), pages 524-531

ISBN: 978-989-758-588-3; ISSN: 2184-2833

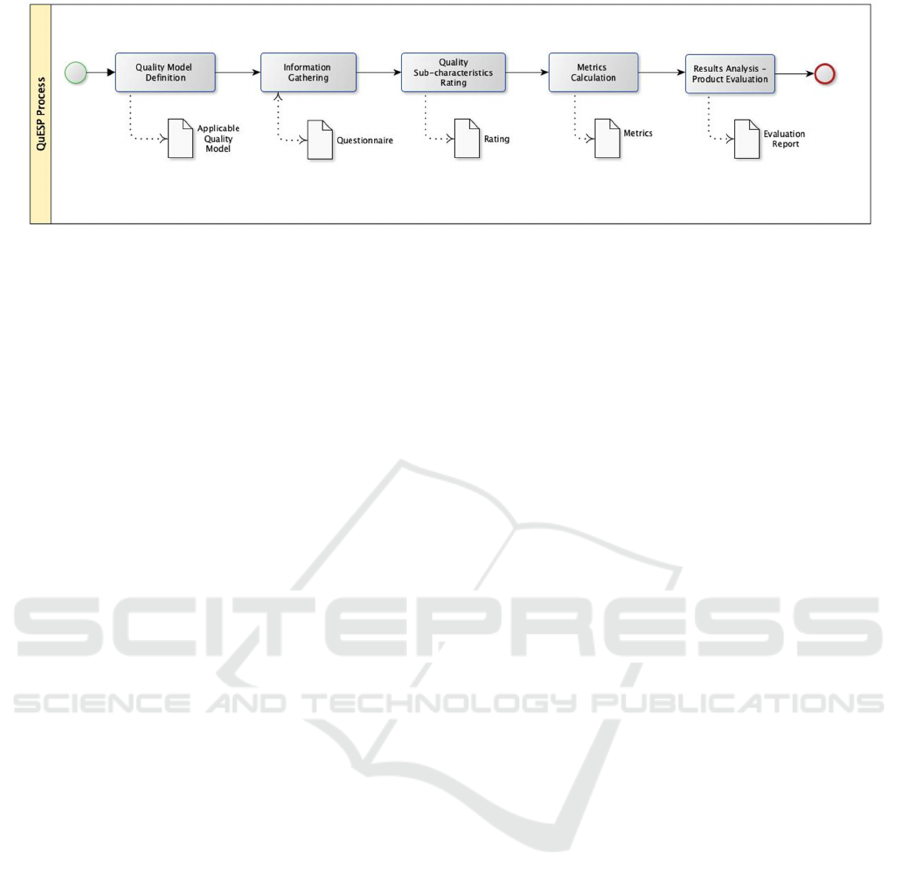

Figure 1: QuESPro process.

2 QUESPRO EVALUATION

METHOD

In this section, we describe the QuESPro method to

perform lightweight software product quality

evaluation. The QuESPro method has been setup at

the SSE to face the demands coming from industry

for third-party evaluation of existing software

products with a reasonable balance between strictness

and cheapness. To be effective and repeatable,

software product quality evaluation method shall rely

on a well-defined evaluation process, which describes

the set of activities and tasks that are carried out when

an evaluation activity is conducted along with the

related outcomes.

The QuESPro method is composed of the

following phases.

1. Quality model definition,

2. Information gathering,

3. Quality sub-characteristics rating,

4. Calculation of metrics,

5. Evaluation results reporting and improvement

areas identification.

Figure 1 describes, by means of a diagram in BPMN

(OGM, 2013), the sequence of the phases of the

QuESPro method, along with the indication of the

outcomes. In the following sub sections, each phase

of the evaluation process is described in more detail.

2.1 Phase 1: Quality Model Definition

A Quality Model is defined as a “set of

characteristics, and of relationships between them,

which provides a framework for specifying quality

requirements and evaluating quality” (ISO, 2011).

The Quality Model is the cornerstone of a product

quality evaluation method.

The quality of a software product is the degree to

which that software product satisfies the stated and

implied needs of its various stakeholders, and thus

provides value. Those stakeholders' needs are

precisely what is represented in the reference quality

model, which categorizes the product quality into

characteristics which, if necessary, are divided into

sub-characteristics.

The starting point for the definition of the Quality

Model used in the QuESPro method is the ISO/IEC

25010 (ISO, 2011) standard that provides a wide-

spectrum, generally accepted, quality model for

software products.

The ISO/IEC 25010 provides a product quality

model composed of eight characteristics (which are

further subdivided into sub-characteristics) that relate

to static properties of software and dynamic

properties of the computer system. The quality

characteristics and the related sub-characteristics of

the ISO/IEC 25010 Product quality model are

provided in Table 1.

For space limits, the definition of the Quality

(sub-)characteristics in Table 1 is not provided in this

paper, to get them refer to (ISO/IEC, 2011). The

Quality Model provided by the ISO/IEC 25010

standard is general as it contains a wide spectrum of

quality characteristics and sub-characteristics.

The relevance of those (sub-) characteristics may

vary according to the specific software product under

evaluation and its context of use. For this reason, it

should be possible to tailor the quality model it to

identify the most relevant (sub-) characteristics and

focus the evaluation only on those. The Quality

Model tailoring allows to reduce the complexity of

the evaluation process as well.

The QuESPro method addresses the Quality

Model tailoring by means of the prioritization of the

quality sub-characteristics of the ISO/IEC 25010

quality model, with the aim of giving higher priority

to the sub-characteristics more relevant for the

product under evaluation.

Relevance is a property related to a quality sub-

characteristic and indicates the degree to which the

A Lightweight Software Product Quality Evaluation Method

525

overall quality and the intended use of the software

product under evaluation depends on the fulfilment of

that quality sub-characteristic.

The prioritization is conducted by using a four-

values scale representing the degree of relevance for

the intended purpose:

3 – highly relevant

2 – moderately relevant

1 – slightly relevant

0 - not relevant

To determine the degree of relevance of the

quality sub-characteristics, the principal aspects

considered are the implemented functionalities, the

product’s context of use, and the stakeholders needs.

Thus, to determine the degree of relevance of each

quality sub-characteristic, the following criteria have

been identified:

• Impact on costs: the severity of problems (or the

costs related to the occurrence of problems) due

to possible lacks in terms of the sub-

characteristic in the current/forecast context of

use. For example: the sub-characteristic

Modifiability is highly relevant in the case the

product is sold to many different customers each

of them needing a customized version of the

product to fit with its specific demands.

• Impact on Stakeholders: The extent to which the

current/forecast stakeholders needs are affected

in the case of lacks in terms of the sub-

characteristic. For example: the sub-

characteristic Operability is highly relevant in the

case a software product targeting users without

experience in using that technology.

• Impact on functionality: The extent to which the

current/forecast implemented functionalities are

affected in the case of lacks in terms of the sub-

characteristic. For example: the sub-

characteristic User Interface Aesthetics is not

relevant in the case of a software product

implementing a kernel function of an OS.

To support and make more systematic the

determination the degree of relevance, an ad hoc

check list reflecting the above criteria has been

developed. The determination of the degree of

relevance shall be based on the understanding of the

actual context of use, stakeholders needs, and product

properties. This phase is intended to be performed

with a strict interaction between evaluators and users

and developers of the software product under

evaluation.

The outcome of this phase is the applicable

Quality Model, derived, starting from the ISO/IEC

25010, by removing those quality sub-characteristics

with a degree of relevance lower than 2.

2.2 Phase 2: Information Gathering

The collection of the necessary information to

perform the rating of the quality sub-characteristics is

based on a specific Questionnaire and on interviews

to key stakeholders.

The Questionnaire is aimed at gathering basic data

regarding the functional and non-functional

characteristics of the software product under

evaluation and the hardware environment used to

execute it. The questionnaire is divided into several

parts each of them composed of specific open

questions targeting the architecture of the software,

the involved software components and the related

interfaces, the quality of the source code, available

user and maintenance documentation, performance

and security measures in place, and working load

capability. At the discretion of the evaluators, the

answers given may be required to be corroborated by

the analysis of technical documentation (as, for

instance, software architectural design, protocol

specification, instrumental measures, …).

The interviews to key stakeholders are aimed at

confirming and completing the information obtained

by means of the questionnaire. The persons to involve

in the interviews are developers and maintainers of

the software product under evaluation (for the aspects

related to the constructive characteristics) and

users/supervisors (for the functional and performance

aspects). It is recommended to conduct the interviews

in combination with live-run show of the software

under evaluation in order to confirm and enforce the

answers with concrete evidences.

The outcomes of this phase are the questionnaire

filled and interviews minutes containing the

important information obtained.

2.3 Phase 3: Rating of Sub-

Characteristics

On the basis of the evidences collected in the

information gathering phase, the quality sub-

characteristics are considered and evaluated in terms

of the extent they are fulfilled by the product under

evaluation. Such an evaluation results in a rating on a

four-values scale called Level of Compliance. The

ratings represent the degree of fulfilment of the

quality sub-characteristic they refer to, and indirectly

they indicate the related level of risk.

ICSOFT 2022 - 17th International Conference on Software Technologies

526

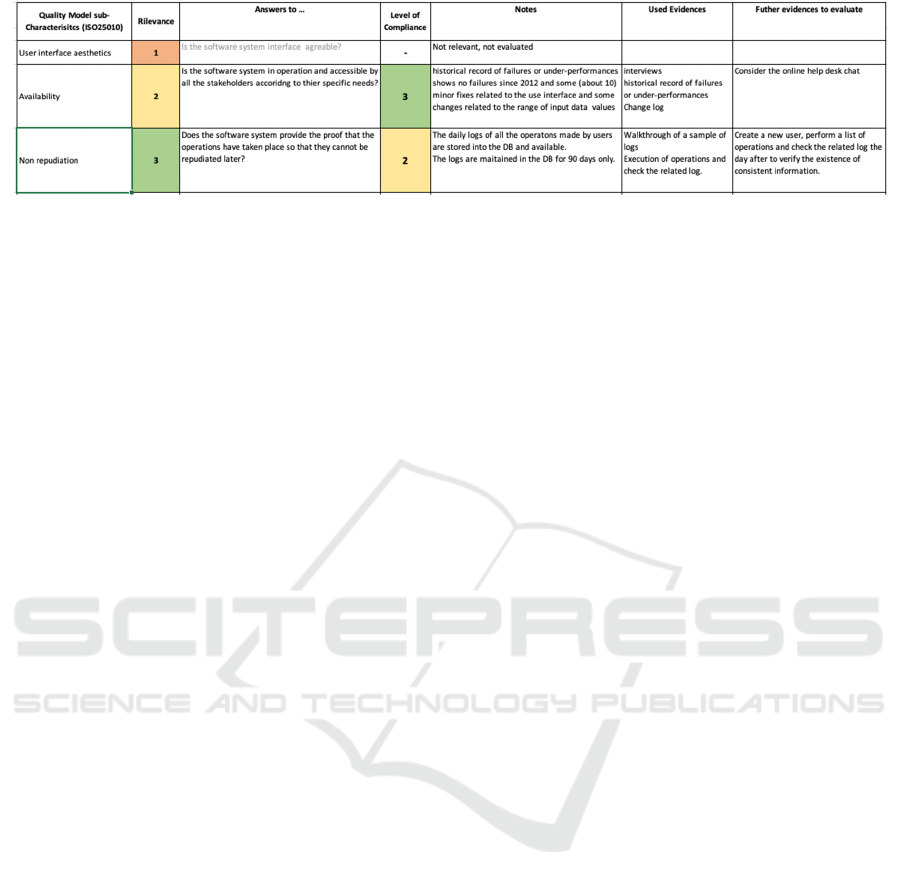

Figure 2: Example excerpt from a rating report.

Level of Compliance rating values are:

3: Good [the quality sub-characteristic is

substantially fulfilled. The risk of occurrence of

problems related to the sub-characteristic is low]

2: Sufficient [the quality sub-characteristic is

largely fulfilled. The risk related to the sub-

characteristic is medium]

1: Insufficient [the quality sub-characteristic is

partially fulfilled. The risk of occurrence of

problems related to the sub-characteristic is

high]

0: No fulfilled [the quality sub-characteristic is not

fulfilled at all]

The outcome of this phase is a rating record, that

contains the rating values accompanied with the

indication of the sources of evidences used for the

rating and some notes aimed at indicating possible

critical issue and for justifying any possible low

ratings (Figure 2. shows an example excerpt from a

rating report). This is done with the purpose of

allowing an ex-post analysis of the rating and thus

enforcing its repeatability.

2.4 Phase 4: Calculation of Adequacy

Metrics

The reference metric for the evaluation of the quality

sub-characteristics is called: Adequacy.

The Adequacy metric is applicable to each quality

sub-characteristic of the quality model. The

calculation of the Adequacy metric relies on the value

assigned to two indicators: Level of Compliance (LC)

and the Degree of Relevance (DR), which are

introduced and discussed in the above sub-sections.

The Adequacy metric provides a measure of the

extent to which the software product under evaluation

exposes technical and functional characteristics that

adequately respond to a quality sub-characteristic.

Adequacy: 𝒇 (LC, DR)

The Adequacy metrics is based on a four-values

ordinal scale. The values of such a scale are N (not

adequate), M (partially adequate), L (largely

adequate), H (fully adequate). The interpretation of

the results of the Adequacy metric calculation self-

explanatory. The Adequacy metric is defined to relate

each other the relevance and the compliance of a

quality sub-characteristic so that the highest values

are obtained in the case of highly relevant and highly

compliant quality sub-characteristic and the lowest

ones are obtained in the case of highly relevant and

low compliant. In Figure 3 the Adequacy metric

calculation rule is described.

2.5 Phase 5: Reporting

The final step of the evaluation process consists of the

release of an Evaluation Report. The Evaluation

Report contains different views of the results

obtained. A view is a way to represent the evaluation

results with the suitable level of detail to target

specific stakeholders.

In particular, the evaluation report shall contain as

a minimum the following views:

• Managers view: it targets the decision makers of

the organization, and it is focused on the risks for

the organization related to the found weaknesses.

• Developers/maintainers view: it targets the

technical staff. This view is focused on the

provision of technical description of the causes

of low ratings and related possible improvement

actions.

Other possible views can be added to target, for

instance, product users or potential customers.

The Evaluation Reports is a combination of metrics

ratings and experts’ judgment. In fact, it is expected

to contain not only the rating associated to the

relevant quality sub-characteristics, but also a part

where the strengths and weaknesses found are

described and possible improvement actions are

identified.

The contents and structure of the Evaluation Report

have been specified though the definition of a specific

document template with the aim of assuring a

A Lightweight Software Product Quality Evaluation Method

527

complete and well-structured provision of evaluation

results.

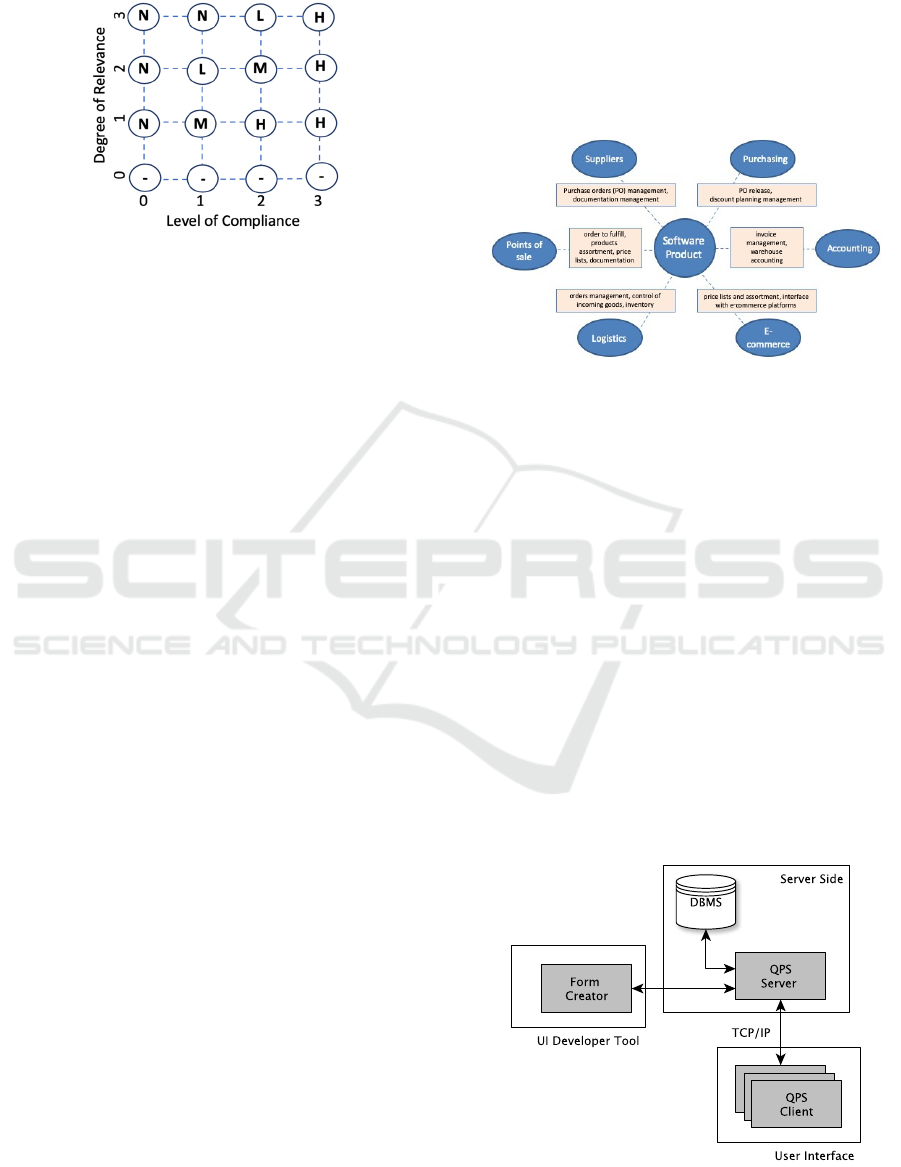

Figure 3: Adequacy metrics rating rules.

3 CASE STUDY

In this section we report the experience of the

application of the QuESPro method in an industrial

case study. The case study performed is complete

enough to represent a sort of empirical validation of

the method in terms of feasibility and fitness-for-use.

The rest of this section describes the organization,

the software product involved in the case study and

the outcomes of its evaluation.

3.1 Context Description

The case study for the application of the QuESPro

method has been conducted in a retail corporation

(the Sponsor of the evaluation) that operates in a

specific geographical area and includes more than

150 points of sale (mainly grocery stores). Every

point of sales shares a unique centralized logistic and

administrative organization and relies on unique

supply chain and services. The commercial strategy

is based on the provision of unique assortments,

products, and services for all points of sale.

3.2 The Software Product under

Evaluation

The software product evaluated is dedicated to the

accounting, purchasing and management of the active

and passive cycle of the warehouse, with integrated

logistics. The software product is developed to satisfy

the need to optimally manage goods and therefore

rotations and warehouse stocks for distribution

companies.

The evaluated software product was first released

more than ten years ago by an external software house

that, so far, took care of its continuous update,

customization, improvement and extension on the

basis of the experience in the field and taking into

account customers’ demands both in terms of speed

and simplicity and of control and security of the large

volumes of information managed. Fast remote

connection systems in IP technology (internet) are

used by the points of sale to obtain information on the

assortments and place orders for goods. The software

product functionalities are shown in Figure 4.

Figure 4: Functionalities of the Software Product.

The architecture of the product is basically

client/server, with the access to a Data Base managed

by a QPS server. The client part allows the access to

the Data Base by the stakeholders (point of sale,

purchasing, accounting, …) through specialized

forms. The product is developed in a Windows

environment. The product’s components are

developed using different programming languages:

Cobol, Visual Basic 6, C/C++ Windows. The data are

stored on a DBMS using MariaDB.

A secure and confidential proprietary protocol,

based on TCP/IP, is used for communication between

the clients and the server.

The creation of new data views and queries is

performed though a specific module (Form Creator),

which uses an interpreted language (proprietary

scripting) to create forms for the interactions with the

Data Base. Figure 5 provides a synthetic

representation of the product architecture.

Figure 5: Architecture of the software product.

ICSOFT 2022 - 17th International Conference on Software Technologies

528

3.3 Evaluation Purpose

The trigger of the case study was the need of the

evaluation Sponsor to understand the extent to which

the software product in use, described above, fulfils

its current and future needs. As the network of

groceries is going to grow in the next months, the

Sponsor was interested in understanding whether the

current one was still responding to the upcoming

situation.

3.4 Application of QuESPro

In the following, the activities performed following

the QuESPro process are briefly described along with

the related outcomes.

Quality Model Definition Phase:This phase of the

evaluation process has been conducted through an

interview meeting with representatives of the sponsor

organization that uses the software product, in order

to understand the context of use, the current and

future users’ needs and the provided functionalities.

The interview meeting took 1 day. As a result of the

Quality Model definition phase, the sub-

characteristics of the reference Quality Model have

been prioritized by Relevance (as shown in Table 1 –

third column).

According to the prioritization determined by means

of the Relevance rating, only the quality sub-

characteristics having the rating greater than 1 have

been maintained in the quality model and have been

evaluated afterwards. Consequently, the quality sub-

characteristics Coexistence, Appropriateness

recognizability, Learnability, Operability, User

interface aesthetics, Accessibility, Reusability,

Testability, and Replaceability have been excluded

from the evaluation scope.

Data Gathering Phase: The data gathering phase has

been conducted by releasing the questionnaire to both

the Sponsor and the software house that developed

the product. Moreover, two interview meetings

involving the software development/maintenance

leader and the representatives of the sponsor have

been undertaken. The duration of each meeting has

been 1 day. The evaluation team was composed of

the authors of this paper. During the interview

meetings with the development leaders the evaluators

took the opportunity to observe the behaviour and the

technical characteristics of the software product by

means of real operational runs.

Rating of Sub-characteristics Phase: The rating of

each sub-characteristic has been made by the

evaluators on the basis of the data gathered

(questionnaire, interviews, meeting notes). The

determination of the rating is basically an expert

judgment with the constraint that each downrating

(lower than lower than 3) is required to be

accompanied by an explicit argumentation and

justification.

Table 1 contains, for each quality sub-

characteristic, the assigned Level of Compliance

rating along with the indication of the evidences used

to determine the rating and possible clarification

notes and the argumentations for the low ratings.

Metrics Calculation Phase: In Table 1 the rating

determined by the calculation of the Adequacy metric

is reported for each relevant quality sub-

characteristics.

The sub-characteristics having an Adequacy

rating equal to H or M are considered sufficiently

achieved by the product evaluated. The others

(Modularity, Analysability, Modifiability) are

considered not sufficiently achieved.

Reporting Phase: The outcomes of the evaluation are

described in the evaluation report issued to the

evaluation sponsor. The results are presented by

addressing each quality characteristic of the applied

quality model. The only quality characteristic

resulting weak is the Maintainability.

The weaknesses found are basically due to two

main factors:

• Lack of documentation describing the

software architecture. Information regarding

the identification of the software elements and

their interfaces and the specification of the

features they implement is largely incomplete.

• Centralization of development and

maintenance. The development and

maintenance (corrective and evolutionary) are

carried out by a single, very expert and skilled

software engineer.

Although he has currently the full control and a

deep knowledge of the product, there is a high risk for

the continuity of system maintenance and future

extensions.

The management view of the report identifies the

risk for the organization. These risks are due to the

availability of the unique developer/maintainer of the

software product. In case of developer unavailability,

the risks are:

• interruption of product functionality in case of

failure;

• degradation of product performance in the

event of changed operating conditions.

A Lightweight Software Product Quality Evaluation Method

529

Table 1: Outcomes of the application of QuESPro.

ISO/IEC25010

quality

characteristic

ISO/IEC 25010

quality

sub-characteristic

Relevance

rating

Level of

compliance

Used Evidences

Adequacy

Rating

Functional

Suitability

Functional

Completeness

3 3

Observation of runtime behaviour;

Interviews

Functional

Correctness

3 3

Observation of runtime behaviour;

Interviews

Functional

Appropriateness

3 3 Interviews

Performance

Efficiency

Time-behavior

3 3 Observation of runtime behaviour;

Resource

utilization

2 3

Observation of runtime behaviour;

Interviews

Capacity

3 3

Interviews; Analysis of to working load

data from previous years

Compatibility

Coexistence

Interoperability

3 3 Interviews; Questionnaire answers

Usability

Appropriateness

recognizability

Learnability

Operability

User error

protection

2 2 Observation of runtime behaviour;

User interface

aesthetics

Accessibility

Reliability

Maturity

3 3 Interviews

Availability

2 2 Interviews

Fault tolerance

3 3 Questionnaire answers

Recoverability

2 3 Interviews

Security

Confidentiality

2 2

Observation of runtime behaviour;

Interviews

Integrity

2 2 Interviews

Non-repudiation

3 3

Run of specific test cases

Accountability

3 3

Run of specific test cases

Authenticity

2 2 Observation of runtime behaviour;

Maintainability

Modularity

3 2

Observation of runtime behaviour;

Interviews

Reusability

Analyzability

3 1 Source code walkthrough; Interviews

Modifiability

3 2

Observation of runtime behaviour;

Source code walkthrough; Interviews

Testability

Portability

Adaptability

2 2 Interviews

Installability

2 3 Interviews

Replaceability

ICSOFT 2022 - 17th International Conference on Software Technologies

530

Moreover, the risk of maintenance costs likely to

move out of control due to the programmer's high

bargaining power has been identified.

The Developers/maintainers view of the report

contains the detailed description of the technical

weaknesses found (e.g. the need of defining and

applying a coding policy in order to make the code

easier to be analyzed).

4 CONCLUSIONS

Since the early 80s, the software engineering

community addressed the definition of schemes to

characterize the quality of software and to evaluate it

in a systematic and, possibly, quantitative manner. As

a consequence, several techniques and methods have

been defined for the evaluation of software products.

Nevertheless, the application of them is often

complex and expensive, thus not suitable for contexts

where fast results are required, and limited resources

are available. Often for such contexts the only way to

evaluate software product quality is through informal

expert judgement.

As a trade-off between expert judgment and complex

evaluation techniques, we defined a lightweight

method (called QuESPro) able to combine limited

cost of application, and systematic and evidence-

based evaluation of software products. In this paper,

we described in detail the QuESPro method and we

reported the outcomes of its application in an

industrial case study. The QuESPro method is based

on the quality model provided by the reference

standard for software quality evaluation (the ISO/IEC

25010) and it is structured as a sequence of steps.

The outcomes of the case study showed that QuESPro

not only the feasibility of the method but they

highlighted several strengths:

• identification of precise improvement / risky

areas;

• provision of quantitative measures suitable for

possible benchmarking;

• possibility of tailoring/tuning according to the

actual context of use and user needs,

• evaluation driven by a defined process,

• deployment of the method documented

enough to be analysed and repeated,

• possibility to provide different detailed views

of results for different roles of the

organization.

The major improvement area identified is related to

the lack of an automatic tool supporting and driving

the application of the method. For this reason, we

started the development of a specific tool to be used

in the deployment of the QuESPro method.

REFERENCES

ISO/IEC 25010. (2011). Software Engineering: Software

Product Quality Requirements and Evaluation

(SQuaRE) Quality Model and guide. International

Organization for Standardization, Geneva, Switzerland.

Miguel, J. P., Mauricio, D., & Rodríguez, G. (2014). A

review of software quality models for the evaluation of

software products. arXiv preprint arXiv:1412.2977.

Rodríguez, M., Oviedo, J. R., & Piattini, M. (2016).

Evaluation of Software Product Functional Suitability:

A Case Study. Software Quality Professional, 18(3)

Lee, M. C. (2014). Software quality factors and software

quality metrics to enhance software quality assurance.

British Journal of Applied Science & Technology,

4(21), 3069-3095.

Falco, M., & Robiolo, G. (2021). Product Quality

Evaluation Method (PQEM): A Comprehensive

Approach for the Software Product Life Cycle. In 7th

International Conference on Software Engineering

(SOFT).

Neri, H. R., & Travassos, G. H. (2018). Measuresoftgram:

a future vision of software product quality. In

Proceedings of the 12th ACM/IEEE International

Symposium on Empirical Software Engineering and

Measurement (pp. 1-4).

Ortega, M., Pérez, M., & Rojas, T. (2003). Construction of

a systemic quality model for evaluating a software

product. Software Quality Journal, 11(3), 219-242.

Estdale, J., & Georgiadou, E. (2018). Applying the ISO/IEC

25010 quality models to software product. In European

Conference on Software Process Improvement (pp.

492-503). Springer, Cham.

OMG (2013). Business Process Model and Notation.

https://www.omg.org/spec/BPMN/2.0.2/PDF

Ouhbi, S., Idri, A., Aleman, J. L. F., & Toval, A. (2014).

Evaluating software product quality: A systematic

mapping study. In 2014 Joint Conference of the

International Workshop on Software Measurement and

the International Conference on Software Process and

Product Measurement (pp. 141-151). IEEE.

Nakai, H., Tsuda, N., Honda, K., Washizaki, H., &

Fukazawa, Y. (2016). A SQuaRE-based software

quality evaluation framework and its case study. In

2016 IEEE Region 10 Conference (TENCON) (pp.

3704-3707). IEEE.

A Lightweight Software Product Quality Evaluation Method

531
