Hybrid Time Distributed CNN-transformer for Speech Emotion

Recognition

Anwer Slimi

1,2 a

, Henri Nicolas

and Mounir Zrigui

Univ. Bordeaux, CNRS, Bordeaux INP, LaBRI, UMR 5800, F-33400 Talence, France

University of Monastir, RLANTIS Laboratory LR 18ES15, Monastir, Tunisia

Keywords: Deep Networks, Speech Emotion Recognition, Time Distributed Layers, Transformers.

Abstract: Due to the success of transformers in recent years, a growing number of researchers are using them in a variety

of disciplines. Due to the attention mechanism, this revolutionary architecture was able to overcome some of

the limitations associated with classic deep learning models. Nonetheless, despite their profitable structures,

transformers have drawbacks. We introduce a novel hybrid architecture for Speech Emotion Recognition

(SER) systems in this article that combines the benefits of transformers and other deep learning models.

1 INTRODUCTION

Communication, which may be defined as the center

of our daily existence, is one of the things that binds

human beings together. It is not only a means of

transmitting words; rather, it is a method of delivering

a large amount of information. This process may be

initiated in a variety of ways, including speech, which

is often considered as the quickest and most natural

mode of communication (Kanth and Saraswathi,

2014). Emotions provide significance to interpersonal

relationships, aid in our understanding of one another,

and play a fundamental part in all social phenomena,

which is why they must be thoroughly explored.

Human-computer interaction has made significant

strides in recent years to satisfy users' demands and

responsibilities. From this vantage point, it would be

ideal if computers could automatically recognize

human emotions, therefore facilitating

communication on both sides. The primary

architecture of an emotion recognition system (Fig. 1)

is to analyze an audio file to extract a collection of

features, and then to detect emotions using a

classifier. Thus, developing a resilient system with a

high degree of accuracy requires two critical

components: the most appropriate approach for

feature extraction and the most performant

https://orcid.org/0000-0003-0558-2321

https://orcid.org/0000-0003-2179-4965

https://orcid.org/0000-0002-4199-8925

classification algorithm. Numerous feature extraction

algorithms have been used for emotion classification

in recent years, including the Gray-Level Co-

Occurrence Matrix (Lima and Sajin, 2007), the

Geneva Minimalistic Acoustic Parameter Set (Latif et

al., 2018), the Mel-scaled spectrogram, the

Chromagram, the Spectral contrast feature, and the

Tonnetz representation (Issa et al., 2020). Thus,

developing the optimal feature extraction method

continues to be a significant challenge, since Feature

Extraction tries to minimize the number of features in

a dataset by generating new ones from existing ones

(and then discarding the original features). These

newly condensed features should then be capable of

summarizing the majority of the information included

in the original set of features. While the feature set is

critical and determines whether or not we extract all

relevant information for the emotion recognition task,

the classification algorithm itself has a significant

impact on the final result, as the primary reason for

the model's low or high accuracy and poor or high

prediction rate is the model's choice and

configuration. With the advent of Deep Learning

models, computer scientists are increasingly turning

to Neural Networks (such as CNNs, LSTMs, and so

on) to solve problems across a range of fields, owing

to the fact that deep learning models outperform

conventional machine learning approaches

602

Slimi, A., Nicolas, H. and Zrigui, M.

Hybrid Time Distributed CNN-transformer for Speech Emotion Recognition.

DOI: 10.5220/0011314900003266

In Proceedings of the 17th International Conference on Software Technologies (ICSOFT 2022), pages 602-611

ISBN: 978-989-758-588-3; ISSN: 2184-2833

(Najafabadi et al., 2015). Transformers have taken

over the world of NLP in recent years. The

Transformer architecture makes extensive use of

Attention to significantly improve the performance of

deep learning translation models. It was introduced in

(Vaswani et al., 2017) and was rapidly adopted as the

standard design for the majority of text data

applications. Transformers were created to address

the difficulty of sequence transduction, also known as

neural machine translation. That is, any task that

converts an input sequence to an output sequence is

included. This includes voice recognition and text-to-

speech conversions, among other things. Along with

transformers, Vison Transformers have been

proposed for image classification.

Despite their usefulness, transformers have

considerable drawbacks, that we will discuss in

section 3.2.

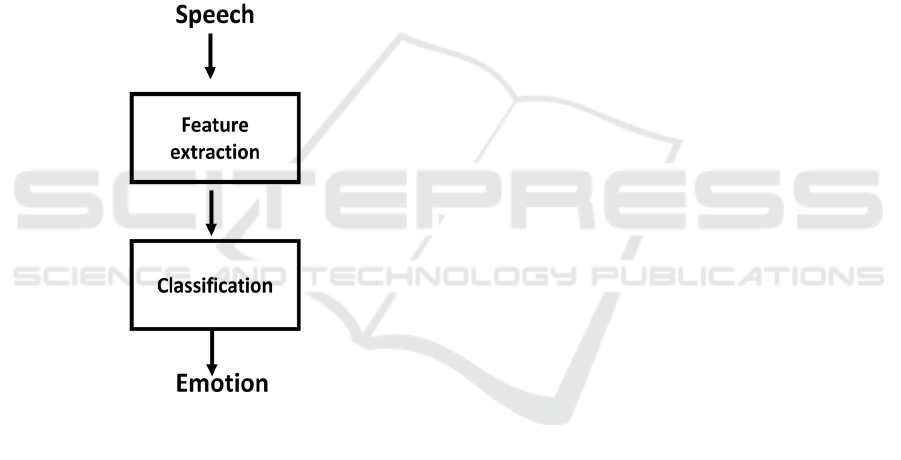

Figure 1: The general scheme of SER system.

The term "hybrid models" refers to the combination

of different models to process a single input. They

have recently shown excellent performance in the

SER domain (Slimi et al., 2022) as well as in many

other domains (Mahmoud and Zrigui, 2021; Ons et

al., 2021; Bellagha and Mounir, 2020). In this paper,

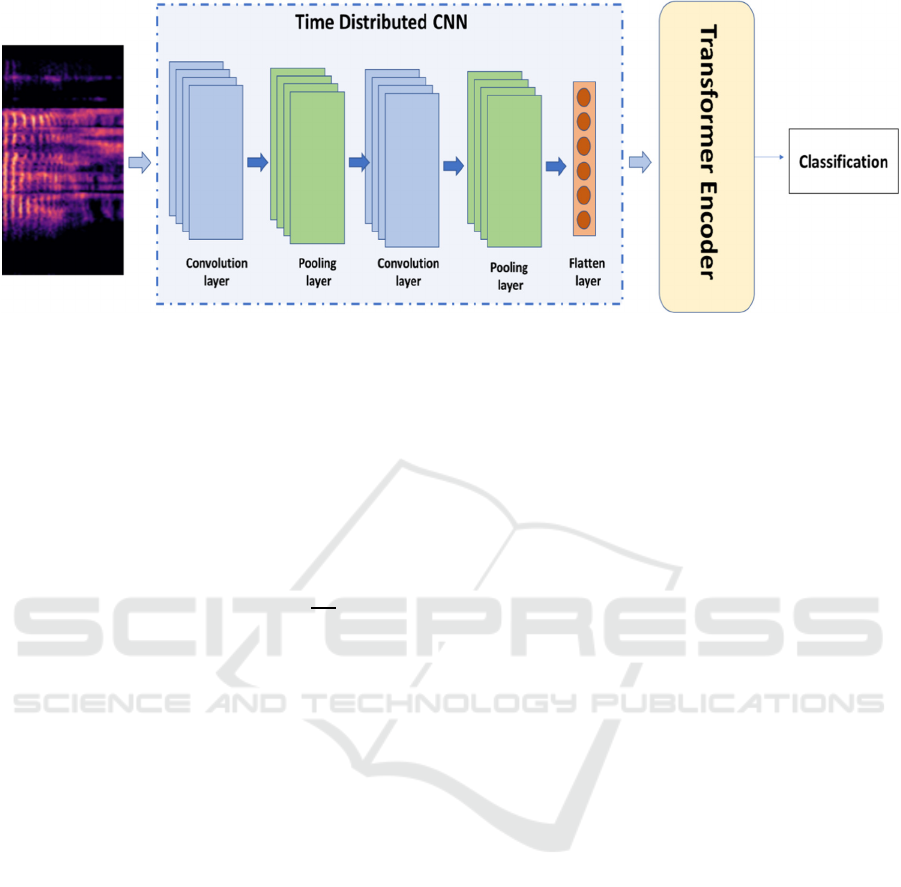

we propose a novel hybrid Speech Emotion

Recognition system based on Time-Distributed

CNNs and Transformers (Fig. 5.)

2 STATE OF THE ART

The approach of Lima M. and Sajin S. (2007) consist

of generating the spectrogram of the speech then

transform it to a GLCM (Gray-Level Co-Occurrence

Matrix). The GLCM is a widely used technique in the

domain of texture analysis. It employed basically to

perform feature extraction. And in simple words, the

GLCM is 2-dimensional vector that contains some

derived information from the spectrogram. In their

paper, this technique is used to extract texture features

(standard deviation, energy, mean, and entropy). The

Gray-Level Co-Occurrence Matrix is fed to an SVM

(support vector machine) to classify the emotions.

Avots et al. (2019) have created their speech

emotion identification system utilizing a support

vector machine. They employed a sliding window to

extract features, thus each speech is represented with

multiple vectors where each vector has 21 features of

the global signal feature and 13 Mel Frequency

Cepstral Coefficients features of each frame. And to

reach a single result for the complete speech, the

results were amalgamated by majority vote.

Mustaqeem et al. (2020) utilize a k-means

approach to cluster similar frames after splitting an

utterance into numerous frames. One key frame from

each cluster that is closest to the centroid will be

chosen and utilized to build a spectrogram. They

applied the transfer learning approach for

classification by deploying the pre-trained

Resnet101. To recognize emotions, the output of the

Convolution Neural Network (CNN) will be

normalized and sent to a bidirectional Long Short-

Term Memory (LSTM).

The work of Issa et al. (2020) is based on

gathering together 5 different feature sets: MFCCs,

Mel-scaled spectrogram, Chromagram, Spectral

contrast feature and Tonnetz representation. The total

number of features is 193 that were stacked together

and fed to 1-Dimensional CNN.

Slimi et al. (2020) have utilized log-mel

spectrograms as an input for a shallow neural network

to establish that neural networks can function with

limited datasets. Once the spectrograms were formed,

they have shrunk them to be able to input them to the

first layer of the neural network. Although their

model was basic, it delivered excellent results but

under one condition: a person’s records should be

separated into the train and the test sets, otherwise the

model would not be able to generalize.

The purpose of Xia et al. (2020) is to learn salient

parts for speech emotion detection. The model

consists of obtaining hand-crafted low-level

descriptors and separating them into equal

overlapping pieces. Each segment will be submitted

to a Deep Neural Network to forecast the emotion

probabilities. Then an attentive temporal pooling

Hybrid Time Distributed CNN-transformer for Speech Emotion Recognition

603

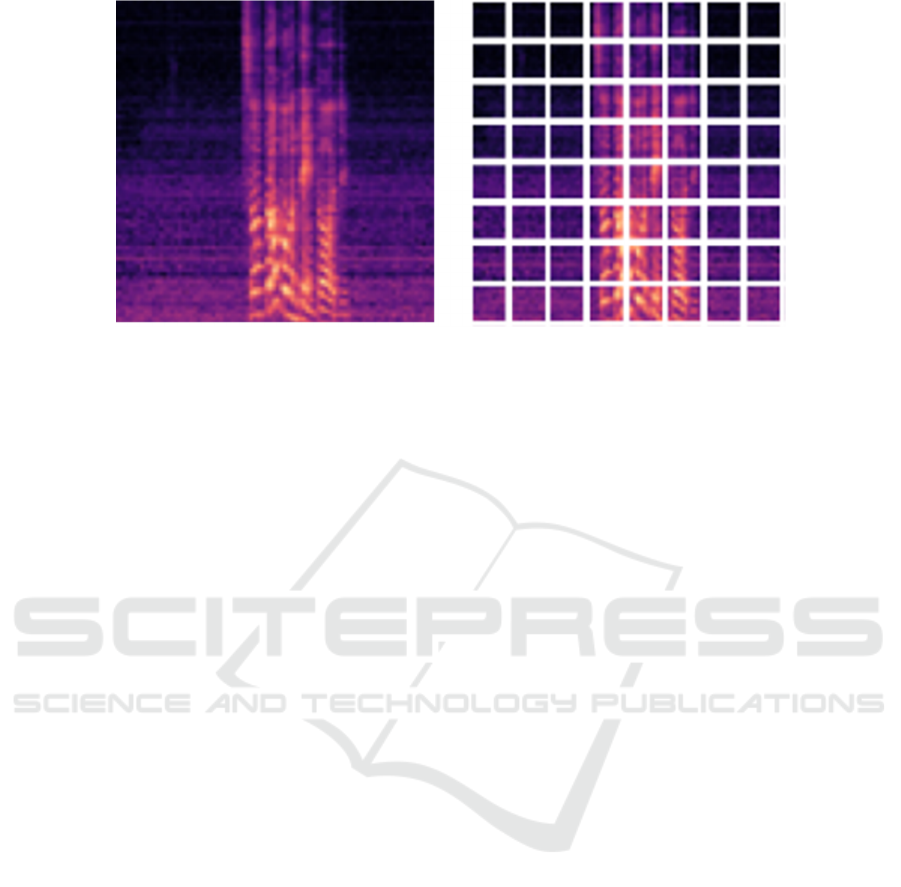

Figure 2: Log-Mel Spectrogram (left) with its corresponding patch (Right).

module made of a Gaussian Mixture Model and an

auxiliary deep Neural Network, is used to learn the

emotional saliency weights of each frame with self-

attention.

In the work of Aouani and Ayed (2020), a vector

of 42 features was derived from each signal. The

employed features include Zero Crossing Rate,

Harmonic to Noise Rate and Teager Energy Operator.

Instead of employing the 42 features, they have opted

to implement an Auto-Encoder to acquire a reduced

data representation and to choose important features.

The output of the auto encoder will be fed to a

Support Vector Machine to identify emotions.

Because of the effectiveness of transformers,

several researchers have utilized them to identify

emotions. Only a few articles, such as (Tarantino et

al., 2019), have used Transformers for speech

emotion identification. Transformers, on the other

hand, are used in multimodal systems where audio is

blended with text, visual, or both.

Chen et al. (2021) employed Wav2vec speech

embeddings in conjunction with Roberta text

embeddings to identify emotions. They presented a

key-sparse Transformer to concentrate on emotion-

related information. In addition, a cascaded cross-

attention block is included, which is specifically built

for multimodal frameworks, to create deep interaction

across multiple modalities. Similarly, Delbrouck et

al. (2020) suggest two architectures that incorporate

linguistic and acoustic inputs and are based on

Transformers and modulation.

To identify emotion, Xie et al. (2021), suggest a

transformer-based cross-modality fusion using the

EmbraceNet architecture. They employed three

models at the same time, each followed by a

transformer block: FaceNet + RNN for image

recognition, GPT for text, and WaveRNN for audio.

The approach of Hajarolasvadi and Demirel

(2019) comprises dividing the speech to small frames

with equal length where each frame is overlapping

50% with the previous chunk. For each frame, they

extracted 88 features and its corresponding

spectrogram in a way that if a speech is divided to n

frames, then it will be represented with n

spectrograms and 88xn matrix. For each speech, a k-

means clustering algorithm is performed on the

feature vector (with k=9) to select k most

discriminant frames. The corresponding

spectrograms of the k selected frames will be stacked

together to build a 3D tensor. So finally, each speech

is represented with 3D tensor which will be fed to a

CNN.

Mupidi and Radfar (2021) have used the Mel-log

Spectrogram as an input for their model. However, as

a classifier they have not used a typical neural

network, instead, they have used quaternion

convolutional neural network (QCNN) as a classifier.

The work of Mustaqeem and Kwon (2020a)

focuses mainly on the pre-processing phase where

they used an adaptive threshold-based algorithm to

remove silence, noises and irrelevant information.

When it comes to their system, they generated the

spectrogram from each signal and fed it to CNN to

perform classification. Their preprocessing phase

helped improve the accuracy by about 8% comparing

to the original dataset

In (Mustaqeem and Kwon, 2020b) different

blocks were used in their SER framework. They have

used a ConvLSTM (combination of CNN and LSTM)

for local feature learning block (LFLB), a Gated

Recurrent Units (GRU) for global features learning

The model of Seo and Kim (2020) consists of

training a model called VACNN (visual attention

convolutional neural network) using a large dataset of

log-mel spectrograms. The VACNN model is

ICSOFT 2022 - 17th International Conference on Software Technologies

604

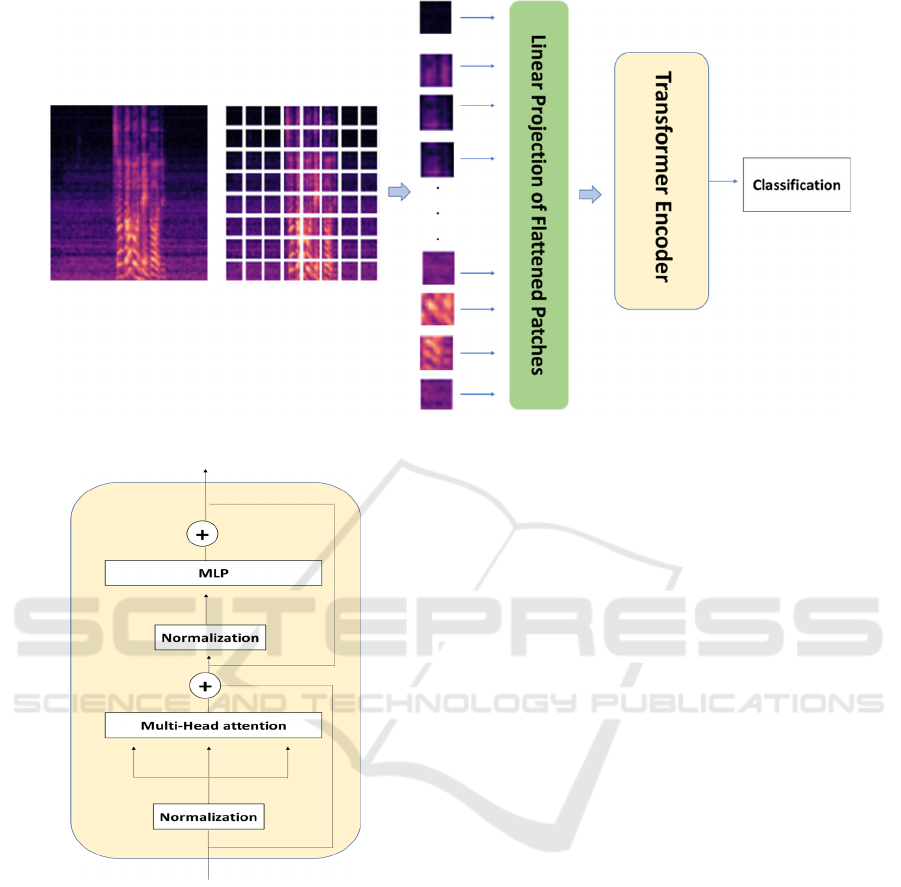

Figure 3: The architecture of a ViT (Vision Transformer).

Figure 4: The architecture of a Transformer Encoder.

composed of convolution blocks along with spatial

and visual attention module. Their goal is to obtain a

model that can be used with smaller datasets. For a

new small dataset, a bag of visual words (BOVW) is

used to extract local features as an attention vector

and a fine-tuned VACNN is used to extract features

from log-mel spectrograms. An element-wise

multiplication is applied on the outputs of the BOVW

and the fine-tuned VACNN followed by an element-

wise sum to sum up features. Finally, a fully-

connected layer followed by a softmax layer is used

to identify emotions.

Pepino et al (2021) have used pre-trained

wav2vec, a framework for extracting representations

from raw audio data. The extracted features, the

eGeMAPS descriptors and the spectrograms are used

as an input for a shallow neural network. Best result

was obtained using the wav2vec features

3 PROPOSED MODEL

The general scheme of an emotion recognition system

consists of processing an audio file to extract a set of

features, then use a classifier to identify emotions.

3.1 Feature Extraction

Speeches are frequently employed in a variety of

disciplines of research, including speech recognition,

emotion identification, gender recognition, music

genre categorization, and so on. Depending on the

job, we may extract various characteristics from the

input signal (Trigui et al., 2015) or display it in a

variety of forms such as phonemes (Terbeh et al.,

2017), transcripts (Labidi et al., 2017), or

spectrograms.

A spectrogram is a depiction of the spectrum of

signal frequencies as they change over time. The

Short Time Fourier Transform (STFT) is used to

create spectrograms. It entails taking tiny frames of

length L of the original signal and performing a

Discrete Fourier Transform (DFT) on each frame

rather than the complete signal. The Mel-scale will be

utilized instead of the hertz since the Log-Mel

Spectrogram has been shown to be effective in

identifying emotions (Yenigalla et al., 2018).

Hybrid Time Distributed CNN-transformer for Speech Emotion Recognition

605

Figure 5: Proposed model.

When it comes to sound pitches, the Mel-scale is a

psychoacoustic scale that may be used to distinguish

between low and high pitches. Its unifying factor is

the Mel. In terms of psychological sense of pitch, it

relates to a subjective approximation of the

psychological experience of pitch of sound (Stevens

and Volkman, 1937). The following formula is used

to convert from the f Hertz to the m Mel frequency

range.

𝑚  2595 𝑙𝑜𝑔





1







(1)

Despite the fact that the resolution of frequencies is

related to both the window size and the sampling rate

of the audio signal, Zhao et al (2019) and P. Yenigalla

et al (2018) used the log Mel-spectrogram with the

same parameters window size= 2048 and overlap=

512 on different sampling rates, whereas Zhao et al

(2019) used the log Mel-spectrogram with the same

parameters window size= 2048 and overlap= 512 on

different sampling Likewise, in our research, we

resampled all of the data to 22050 Hz and then

generated our spectrograms using the identical

settings as those in (Zhao et al., 2019; Yenigalla, et

al., 2018).

3.2 Emotion Recognition

Since the spectrograms are 2D images, a CNN can be

considered the best choice as classifier since CNNs are

usually used to perform a classification task on images.

Most of the work described earlier in the state of the

art, along with a lot of other researches, use several

Convolution layers and Pooling layers stacked

successively, followed by few Fully-Connected layers

and an output layer with a softmax function to predict

the class of the input. As a start, we have considered

using several architectures, such as Inception,

ResNet, VGG-19, etc, as a classification algorithm.

However, although transformers were originally

designed to work with textual data, that hasn't

prevented them from being used in a variety of

Computer Vision tasks, including image processing,

with results comparable to convolutional neural

network (Dosovitskiy et al., 2021; Touvron et al.,

2021). In (Dosovitskiy et al., 2021), authors proposed

a Vision Transformer (ViT), in which every image is

divided into patches (Fig. 2.), with each patch being

passed to the transformer input layer and processed

similarly to a single word embedding.

The usage of a Multi-head Attention mechanism

module that is based on Self-attention is the secret to

the transformers' success. Self-attention, also known

as intra-attention, is an attention mechanism that links

distinct points in a single sequence to calculate a

representation of the same sequence. The Multi-head

Attention technique is used numerous times in

simultaneously. The outputs of the separate attention

are then concatenated and linearly translated into the

expected dimension.

However, despite numerous studies

demonstrating that Vision Transformers outperform

CNNs (Dosovitskiy et al., 2021), Transformers in

general are still less powerful for local-invariant

vision data (Liu et al., 2021) and vision transformers

in particular are vulnerable against adversarial

patches (Jindong et al.,2021). To avoid these

concerns, some papers have proposed using CNN

along with transformers. The use of CNN with

Transformers is not novel. It's been utilized in a lot of

researches. In (Karpov et al.,2020), authors used a

Transformer followed by a CNN. Zhang et al. (2022)

have used a CNN with Transformer in hybrid

approach. Liu et al. (2021) did not used a CNN but

rather some convolution filters before the

Transformer.

ICSOFT 2022 - 17th International Conference on Software Technologies

606

Table 1: Accuracy of the Proposed model (RML dataset).

Work Year Result

Avots et al. (2019)

2019

69.30%

Xia et al. (2020)

2020

73.15%

Aouani. And Ayed (2020)

2020

74.07%

Issa et al. (2020)

2020

77.00%

Ours

2022

83.88%

Ours (with SpecAugment)

2022

84.76%

Table 2: Accuracy of the Proposed model (RML dataset).

Work Year Result

Hajarolasvadi and Demirel (2019) 2020 68.00%

Mustaqeem et al. (2020) 2020 71.61%

Muppidi and Radfar (2021)

2021 77.87%

Mustaqeem and Kwon (2020a) 2020 79.50%

Mustaqeem and Kwon (2020b) 2020 80.00%

Ours

2022 82.72%

Seo and Kim (2020) 2020 83.33%

Pepino et al. (2021)

2021 84.30%

Ours (with SpecAugment) 2022 84.63%

The usage of a Time Distributed CNN with a

conventional transformer rather than a vision

transformer, on the other hand, is novel in this

research.

The transformer accepts one embedding at a time

as input, whereas the Vision Transformer accepts one

patch at a time. The spectrograms however are plots

with special specificity where the vertical axis

presents the frequency and the horizontal axis

presents the time in seconds. Rather of splitting the

spectrogram into patches and feeding them to a

Transformer, we want to inject a chronologically

ordered series of frames (time steps).

Prior to sending the frames to the transformer, we

want to do per-frame convolution operations to

extract key features for training the transformer. If we

apply a convolution operation to each frame, each

frame will have its own convolution flow, and each

result will be treated as a separate input for the

transformer.

However, if we train each convolution flow

independently, we will encounter undesirable

behaviours such as a lengthy and slow training

process because we will need to train several

convolution flows (one for each input frame), each

convolution flow can have several different weights,

resulting in different features detection that are

unrelated, and some convolution flows will be unable

to detect what other convolution flows can. We must

ensure that the complete set of convolution flows can

locate the same features. It is conceivable that certain

convolutional flows discover something else, but this

risk must be minimized.

A solution to this is to employ a Time Distributed

layer, which enables us to apply a layer to each

temporal slice of an input (i.e., perform the same

operation on each timestep) and generate one output

per input.

Hybrid Time Distributed CNN-transformer for Speech Emotion Recognition

607

Figure 6: Example of SpecAugment (Right).

4 RESULTS

Our approach was tested using two datasets: the RML

(Ryerson Multimedia Research Lab) and RAVDESS

(Ryerson Audiovisual Database of Emotional Speech

and Song), two of the most well-known open access

datasets. The RML (Xie and Guan, 2013) dataset

contains 720 audio recordings made by eight

individuals. The dataset was collected in six distinct

languages (English, Italian, Mandarin, Urdu, Punjabi,

and Persian) and included six basic emotions: disgust,

happiness, fear, anger, surprise, and sadness. We

transformed each file to wav format since it is an

audio-visual dataset. The RAVDESS (Livingston and

Russo, 2018) is a dataset in English that was created

by 24 actors (12 male and 12 female). This dataset's

audio-only section has 1440 files. Eight emotions are

detected in this dataset: happy, sad, disgusted, neutral,

calm, angry, surprised, and fearful, although seven

emotions are recognized at high intensity (angry, sad,

happy, calm, disgust, fearful and surprised). Each

dataset is partitioned into 80% train, 10% validation,

and 10% test using stratified sampling to maintain the

proportion of samples per class.

We have trained the different models

simultaneously using the same data. Table 1 and

Table 2 illustrate the comparison of the result

produced by our proposed model (Time Distributed

CNN + Transformer) on the RML and the RAVDESS

datasets respectively, whereas Table 3 and Table 4

illustrate the comparison between different

architectures with the RML and the RAVDESS

datasets respectively.

Table 3: Accuracy of different architectures (RML dataset).

Approach Result

ViT 65.43%

CNN+ViT 76.86%

CNN 79.30%

Time Distributed CNN +

ViT

82.41%

Time Distributed CNN +

Transformer

83.88%

Table 4: Accuracy of different architectures (RAVDESS

dataset).

Approach Result

ViT 62.63%

CNN+ViT 73.51%

CNN 73.59%

Time Distributed CNN +

ViT

82.13%

Time Distributed CNN +

Transformer

82.72%

Table 3 and Table 4 clearly show that the best result

was obtained by using the Time-Distributed CNN

along with the Transformer.

ICSOFT 2022 - 17th International Conference on Software Technologies

608

Table 5: Impact of the data on the system’s accuracy (RML dataset).

CNN ViT Time Distributed

CNN + Transformer

Original dataset

79.30% 65.43% 83.88%

Classic augmentation

techni

ues

80.21% 65.88% 83.94%

SpecAugment

81.11% 57.31% 84.76%

Table 6: Impact of the data on the system’s accuracy (RAVDESS dataset).

CNN ViT Time Distributed

CNN + Transformer

Original dataset

73.59% 62.63% 82.72%

Classic augmentation

techniques

74.20% 65.37% 83.55%

SpecAugment

74.41% 58.12% 84.63%

5 DISCUSSION AND ANALYSIS

As mentioned earlier, a lot of CNN architectures have

been considered such as Inception, ResNet, VGG-19.

We first trained each of the models from scratch but

the results were not auspicious. This can be explained

by the fact that such deep architectures require a huge

amount of data (Slimi et al., 2020). The Transfer

learning technique is one of the solutions that should

be considered when there is no much data to work

with. It has been used in previous SER systems

(Mustaqeem et al., 2020; Roopa et al., 2018) but

failed to attain good results, as in our work. So, finally

we have decided to use less deep CNN and train it

from scratch. After considering different

architectures, best results were obtained using a

model that is composed of three convolutional layers

where each one of them is succeeded by a Max-

pooling layer, followed by two Dense layers and a

softmax activation function to perform classification.

However, the accuracy of various algorithms varies

depending on the quantity of data available (Table 5

and Table 6). This is because, in fact, deep learning

models need a large amount of data to be adequately

trained, otherwise they would not be able to attain

high levels of accuracy.

CNN employs pixel arrays, but a Vision

Transformer divides pictures into visual tokens,

similar to how word embeddings are represented

when using transformers to text. The vision

transformer splits a picture into fixed-size patches,

embeds each one appropriately, and uses positional

embedding as an input to the transformer encoder.

Because there are less inductive biases, Vision

transformer requires a bigger dataset to be pre-trained

on. In that case, such models surpass CNNs in terms

of computing efficiency and accuracy. Although

Vision Transformers are so robust for image

classification, the existing datasets for Speech

Emotion Recognition are relatively small and that can

explain the reason why using a hybrid architecture

composed of a Time Distributed CNN with a simple

transformer, outperforms both the CNN and the

Vision Transformer. While deep networks cannot

perform well in the absence of sufficient training data,

it is possible to increase the effective size of existing

data through the process of data augmentation, which

has led to significant improvements in the

performance of deep networks in many domains.

Traditional augmentation techniques for speech

recognition include deforming the audio waveform

used for training in some way (e.g., by speeding it up

or slowing it down) and adding background noise to

the signal. In practice, this has the effect of making

the dataset appear to be larger because multiple

augmented versions of a single input are fed into the

network over the period of training. It also has the

effect of making the network more robust because it

is forced to learn relevant features during training.

Traditional ways of enhancing auditory input, on the

other hand, incur significant computing costs and, in

Hybrid Time Distributed CNN-transformer for Speech Emotion Recognition

609

certain cases, need the collection of new data. A novel

augmentation approach, SpecAugment, has been

developed by D. S. Park et al. (2019), which applies

an augmentation policy directly to the audio

spectrogram rather than augmenting the input audio

waveform as is normally done. This strategy is

straightforward, computationally inexpensive to

implement, does not need the collection of extra data,

and yielded superior outcomes when compared to

typical data augmentation strategies. SpecAugment

alters the spectrogram by warping it in the time

direction, masking blocks of consecutive frequency

channels, and masking blocks of utterances in the

time direction, among other things. These

augmentations have been designed to assist the

network in remaining resilient in the presence of

time-direction deformations, partial loss of frequency

information, and partial loss of tiny segments of

speech from the input. Both Table 5 and Table 6

clearly demonstrate the influence of the data on the

accuracy of the models. The more the amount of data

we have, the higher the accuracy we get. The

SpecAugment approach, however, has failed with the

ViT, despite its efficacy. This failure may be

explained by the fact that ViTs are vulnerable against

adversarial patches.

6 CONCLUSION

Although transformers have shown to be effective

substitutes for CNNs, there is one significant

restriction that makes their implementation rather

difficult: the need for huge datasets. Indeed, CNNs

can learn even with a tiny quantity of data, owing

mostly to the existence of inductive biases. Thus, one

may argue that transformers are more capable of

learning but also need more data. To maximize the

benefits of both systems, these two architectures,

which are based on completely opposite concepts,

were merged to create something capable of using

both architectures' strengths. And, although the

results were pleasant and surpassed current

approaches, there is still room for improvement.

REFERENCES

Egils Avots, Tomasz Sapinski, Maie Bachmann, Dorota

Kaminska. 2019. Audiovisual emo-tion recognition in

wild. Mach. Vis. Appl. 30(5): 975-985.

Xiaohan Xia, Dongmei Jiang, Hichem Sahli. 2020.

Learning Salient Segments for Speech Emotion

Recognition Using Attentive Temporal Pooling. IEEE

Access 8: 151740-151752 (2020).

Hadhami Aouani, Yassine Ben Ayed. 2020. Speech

Emotion Recognition with deep learn-ing. KES 2020:

251-260.

Dias Issa, M. Fatih Demirci, Adnan Yazici. 2020. Speech

emotion recognition with deep convolutional neural

networks. Biomed. Signal Process. Control. 59:

101894.

Anwer Slimi, Mohamed Hamroun, Mounir Zrigui and,

Henri Nicolas. 2020. Emotion Recognition from

Speech using Spectrograms and Shallow Neural

Networks. The 18th In-ternational Conference on

Advances in Mobile Computing & Multimedia

(MoMM2020), November 30- December 2, 2020,

Chiang Mai, Thailand. ACM, New York, NY, USA, 7

pages. https://doi.org/10.1145/3428690.3429153

Ashish Vaswani, Noam Shazeer, Niki Parmar, Jakob

Uszkoreit, Llion Jones, Aidan N. Gomez, Lukasz

Kaiser, Illia Polosukhin: Attention Is All You Need.

CoRR abs/1706.03762 (2017)

Maryam M Najafabadi, Flavio Villanustre, Taghi

MKhoshgoftaar, Naeem Seliya, Randall Wald and

EdinMuharemagic: Deep learning applications and

challenges in bigdata analytics. Najafabadi et al.

Journal of Big Data (2015) 2:1

Lorenzo Tarantino, Philip N. Garner, Alexandros Lazaridis:

Self-Attention for Speech Emo-tion Recognition.

INTERSPEECH 2019: 2578-2582

Weidong Chen, Xiaofeng Xing, Xiangmin Xu, Jichen

Yang, Jianxin Pang: Key-Sparse Transformer with

Cascaded Cross-Attention Block for Multimodal

Speech Emotion Recog-nition. CoRR abs/2106.11532

(2021)

Jean-Benoit Delbrouck, Noé Tits, Stéphane Dupont:

Modulated Fusion using Transformer for Linguistic-

Acoustic Emotion Recognition. CoRR abs/2010.02057

(2020)

Baijun Xie, Mariia Sidulova, Chung Hyuk Park: Robust

Multimodal Emotion Recognition from Conversation

with Transformer-Based Crossmodality Fusion.

Sensors 21(14): 4913 (2021)

Aymen Trigui, Naim Terbeh, Mohsen Maraoui, Mounir

Zrigui. Statistical Approach for Spontaneous Arabic

Speech Understanding Based on Stochastic Speech

Recognition Mod-ule. Research in Computing Science

117: 143-151

Z. Xie and L. Guan 2013. Multimodal Information Fusion

of Audiovisual Emotion Recogni-tion Using Novel

Information Theoretic Tools. International Journal of

Multimedia Data Engineering and Management, vol. 4,

no. 4, pp. 1-14, 2013

Lima Mathew, Sajin Salim. 2007. Real World Speech

Emotion Recognition from Speech Spectrogram Using

Gray-Level Co-Occurence Matrix. International

Journal of Innovative Research in Computer and

Communication Engineering (An ISO 3297: 2007

Certified Or-ganization)

Siddique Latif, Rajib Rana, Shahzad Younis, Junaid Qadir,

Julien Epps. 2018. Transfer Learning for Improving

ICSOFT 2022 - 17th International Conference on Software Technologies

610

Speech Emotion Classification Accuracy.

INTERSPEECH 2018: 257-261.

Naim Terbeh, Mounir Zrigui. 2017. A Robust Algorithm

for PathologicalSpeech Correction. PACLING 2017:

341-351.

Promod Yenigalla, Abhay Kumar, Suraj Tripathi, Chirag

Singh, Sibsambhu Kar, Jithendra Vepa. 2018. Speech

Emotion Recognition Using Spectrogram & Phoneme

Embedding. INTERSPEECH 2018: 3688-3692

Mustaqeem, Muhammad Sajjad, Soonil Kwon. 2020.

Clustering-Based Speech Emotion Recognition by

Incorporating Learned Features and Deep BiLSTM.

IEEE Access 8: 79861-79875

Nithya Roopa S., Prabhakaran M, Betty.P. 2018. Speech

Emotion Recognition using Deep Learning.

International Journal of Recent Technology and

Engineering (IJRTE) ISSN: 2277-3878, Volume-7

Issue-4S, November 2018.

Mohamed Labidi, Mohsen Maraoui, Mounir Zrigui. 2017.

Unsupervised Method for Im-proving Arabic Speech

Recognition Systems. PACLIC 2017: 161-168

Hugo Touvron, Matthieu Cord, Matthijs Douze, Francisco

Massa, Alexandre Sablayrolles, Hervé Jégou.2021.

Training data-efficient image transformers &

distillation through atten-tion. ICML 2021: 10347-

10357

Anwer Slimi, Henri Nicolas and Mounir Zrigui. 2022.

Detection of Emotion Categories’ Change in Speeches.

In Proceedings of the 14th International Conference on

Agents and Artificial Intelligence - Volume 3, ISBN

978-989-758-547-0, ISSN 2184-433X, pages 597-604.

DOI: 10.5220/0010868100003116 .

Alexey Dosovitskiy, Lucas Beyer, Alexander Kolesnikov,

Dirk Weissenborn, Xiaohua Zhai, Thomas Unterthiner,

Mostafa Dehghani, Matthias Minderer, Georg Heigold,

Sylvain Gelly, Jakob Uszkoreit, Neil Houlsby. 2021.

An Image is Worth 16x16 Words: Transformers for

Image Recognition at Scale. ICLR 2021.

Jindong Gu, Volker Tresp, Yao Qin. 2021. Are Vision

Transformers Robust to Patch Per-turbations? CoRR

abs/2111.10659 (2021)

Pavel Karpov, Guillaume Godin, Igor V. Tetko:. 2020.

Transformer-CNN: Swiss knife for QSAR modeling

and interpretation. J. Cheminformatics 12(1): 17 (2020)

Jiang Zhang, Chen Li, Ganwanming Liu, Min Min, Chong

Wang, Jiyi Li, Yuting Wang, Hongmei Yan, Zhentao

Zuo, Wei Huang, Huafu Chen. 2022. A

CNNtransformer hybrid approach for decoding visual

neural activity into text, Computer Methods and

Programs in Biomedicine, Volume 214, 2022, 106586,

ISSN 0169- 2607, https://doi.org/10.1016/j.cmpb.20

21.106586.

Yun Liu, Guolei Sun, Yu Qiu, Le Zhang, Ajad Chhatkuli,

Luc Van Gool. 2021. Transform-er in Convolutional

Neural Networks. CoRR abs/2106.03180 (2021).

Meddeb Ons., Maraoui M ohsen and Zrigui, Mounir. 2021.

Personalized Smart Learning Recommendation System

for Arabic Users in Smart Campus. International

Journal of Web-Based Learning and Teaching

Technologies (IJWLTT), 16(6), 1-21.

http://doi.org/10.4018/IJWLTT.20211101.oa9

Mustaqeem, Soonil Kwon. 2020a. A CNN-Assisted

Enhanced Audio Signal Processing for Speech Emotion

Recognition. Sensors 20(1): 183

Mustaqeem, Soonil Kwon. 2020b. CLSTM: Deep Feature-

Based Speech Emotion Recognition Using the

Hierarchical ConvLSTM Network. Mathematics 2020,

8, 2133. https://doi.org/10.3390/math8122133

Noushin Hajarolasvadi and Hasan Demirel. 2019. 3D

CNN-Based Speech Emotion Recognition Using K-

Means Clustering and Spectrograms. Entropy 2019, 21,

497.

Bellagha Med Lazhar and Zrigui Mounir. 2020. Speaker

Naming in TV programs Based on Speaker Role

Recognition. 2020 IEEE/ACS 17th International

Conference on Computer Systems and Applications

(AICCSA), 1-8.

Seo Minji, Kim Myungho. 2020. Fusing Visual Attention

CNN and Bag of Visual Words for Cross-Corpus

Speech Emotion Recognition. Sensors 20, no. 19: 5559.

https://doi.org/10.3390/s20195559.

Leonardo Pepino, Pablo Riera, Luciana Ferrer. 2021.

Emotion Recognition from Speech Using Wav2vec 2.0

Embeddings. CoRR abs/2104.03502

Aneesh Muppidi, Martin Radfar. 2021. Speech Emotion

Recognition Using Quaternion Convolutional Neural

Networks. ICASSP 2021: 6309-6313

Mr. N. Ratna Kanth and Dr. S. Saraswathi: A Survey on

Speech Emotion Recognition. Advances in Computer

Science and Information Technology (ACSIT) Print

ISSN: 2393-9907; Online ISSN: 2393-9915; Volume 1,

Number 3; November, 2014 pp. 135-139.

Daniel S. Park, William Chan, Yu Zhang, Chung-Cheng

Chiu, Barret Zoph, Ekin D. Cubuk, Quoc V. Le:

SpecAugment: A Simple Data Augmentation Method

for Automatic Speech Recognition. CoRR

abs/1904.08779 (2019)

S.S. Stevens and J. Volkman: A scale for the Measurement

of the Psychological Magnitude Pitch. J.A.S.A January

1937, Volume 8.

Jianfeng Zhao, Xia Mao, Lijiang Chena: Speech emotion

recognition using deep 1D & 2D CNN LSTM networks.

Biomedical Signal Processing and Control 47 (2019)

312–323.

Livingstone SR, Russo FA. 2018. The Ryerson Audio-

Visual Database of Emotional Speech and Song

(RAVDESS): A dynamic, multimodal set of facial and

vocal expressions in North American English. PLoS

ONE 13(5): e0196391.

Adnen Mahmoud and Mounir Zrigui. 2021. Hybrid

Attention-based Approach for Arabic Paraphrase

Detection, Applied Artificial Intelligence, 35:15, 1271-

1286, DOI: 10.1080/08839514.2021.1975880

Hybrid Time Distributed CNN-transformer for Speech Emotion Recognition

611
