A Repository of Actionable Information on the Internet of Things

Anna Felkner

and Marcin Rytel

NASK - Research and Academic Computer Network, Kolska 12, 01-045 Warsaw, Poland

Keywords:

Internet of Things, IoT, Security, Vulnerability, Vulnerability Database, Exploits.

Abstract:

This paper describes efforts to improve the security of the Internet of Things world. One of the many problems

faced by the users, but also producers or owners of networks or people who deal with cybersecurity in a broad

sense on a daily basis, such as employees of CSIRTs, is the issue of vulnerabilities in devices or software.

Even though the most serious vulnerabilities are more commonly presented in the news, still the vast majority

of them is only known to cybersecurity specialists and not to the users who own the vulnerable devices and

therefore can be in danger. The results of our recent research show that there is still no satisfactory source of

information about vulnerabilities in Internet of Things devices and software. This is why we decided to create

such a repository (variotdbs.pl) where information about vulnerabilities and exploits targeting IoT devices can

be easily found by everyone.

1 INTRODUCTION

Given that Internet of Things (IoT) devices accom-

pany us every day, both in private and professional

life, both at home and in industry, in healthcare and

on the streets, we cannot ignore the issues related to

their security. Fortunately, in recent times, the aware-

ness of users of these devices has been increasing, but

it is still not a completely satisﬁed topic.

In our work, we focused on looking for informa-

tion about exploits and vulnerabilities in the Internet

of Things and noticed that there is no single source

that would present a wide range of information re-

lated to this aspect of security. From our research, we

found that while information is available online, there

has not been a single service offering IoT data to date.

National vulnerability databases contain some IoT en-

tries, but lack mechanisms to distinguish them from

other vulnerabilities. Moreover, information about

a lot of vulnerabilities pertaining to the Internet of

Things world never makes it into these databases, but

can be found scattered across the Internet. We there-

fore decided to create such a source.

To start with, we analysed more than one hundred

unique sources of different types. Structured sources

which contain information not only about IoT but

also, or rather mainly about general IT, such as ven-

dor bulletins, various national vulnerability databases.

https://orcid.org/0000-0003-3813-4840

https://orcid.org/0000-0002-8590-8565

Apart from those, also unstructured sources such as

reports, blogs or individual websites were analysed.

In the paper (Rytel et al., 2020), we presented

an overview summarizing our effort to identify and

evaluate publicly available sources of vulnerability

information, focusing on their usefulness in the IoT

domain. After analysing the sources, the next step

towards providing not only users, but also CSIRTs

(Computer Security Incident Response Team) or net-

work owners, with actionable information on the In-

ternet of Things was to create a database with this in-

formation. In the paper (Janiszewski et al., 2021),

we presented the results of our research aimed at

building such a database, i.e., how to obtain, stan-

dardize, aggregate and correlate vulnerability infor-

mation, as well as how to enrich and select IoT-related

data. We have derived and demonstrated that existing

databases provide very different ranges of informa-

tion and for this reason, there is no single compre-

hensive source of information. Moreover, different

sources present vulnerability information at different

times - some sooner others later, and the differences

in publication dates of the information are signiﬁcant.

Our results show that aggregating information from

different sources can be very beneﬁcial and can po-

tentially increase the value of information for taking

action. We have also shown that introducing some

more advanced concepts like trust management and

AI-based meta-information extraction, can provide a

higher level of information completeness, as well as

Felkner, A. and Rytel, M.

A Repository of Actionable Information on the Internet of Things.

DOI: 10.5220/0011307100003286

In Proceedings of the 19th International Conference on Wireless Networks and Mobile Systems (WINSYS 2022), pages 69-75

ISBN: 978-989-758-592-0; ISSN: 2184-948X

assess the usefulness and reliability of the data.

The rest of the paper is structured as follows. The

second chapter provides an overview of related work.

The third chapter presents the process of creating the

database. The fourth chapter focuses on presenting

the results of our work and the ﬁfth chapter describes

the variotdbs.pl (NASK, 2022) website, where the re-

sults of our work are published and which anyone can

use for their own applications. The sixth chapter fo-

cuses on the summary and presents our ideas for fur-

ther work.

2 RELATED WORKS

IoT security is a major focus of research programs

and plans at many levels, including the ”Input to

the Horizon Europe Programme 2021-2027 Priori-

ties for the deﬁnition of a Strategic Research and In-

novation Agenda in Cybersecurity” (ECSO WG 6 –

SRIA and Cybersecurity Technologies, 2020). Na-

tional strategies are even more focused on the topic

and explicit on this issue. In the document (Felkner

et al., 2021), which presents an analysis on the Euro-

pean and Japanese side, it is shown that the Internet of

Things is one of the most frequently addressed issues

in European national cybersecurity strategies and is

also one of the areas of common interest between the

European Union and Japan, indicating that this issue

is globally relevant.

Having information about IoT devices vulnerabil-

ities is critical from the perspective of device own-

ers, service providers, network owners, and device

producers. Obtaining this information is also critical

from national and sector CSIRTs perspective. Vul-

nerability management is one of the key aspects of

security in both the IT and IoT or IIoT (industrial

IoT) worlds. Risk assessment at different levels can

also be done on the basis of vulnerability manage-

ment, as shown for example in the article (Janiszewski

et al., 2019). The survey of IoT vulnerability data

sources was described in (Rytel et al., 2020), while

in (Janiszewski et al., 2021) you can ﬁnd out how the

process of creating database was performed.

Building such a database is deﬁnitely a non-trivial

task. This can be seen from the few attempts that

have been made to build such databases. One example

was a small-scale attempt to create such a database,

which was undertaken at the University of Central

Florida, but unfortunately this database is not cur-

rently available. Its description can be found here

(Ling et al., 2017), but its dataset was not publicly

available. A second promising approach was the de-

sign of a database of vulnerabilities and attacks on IoT

infrastructure, presented by researchers at the Univer-

sity of New South Wales in Australia (Nerwich et al.,

2020). According to the creators, this database sup-

ported integration with other vulnerability databases

such as the National Vulnerability Database (NVD)

and provided an API to access the data for integra-

tion with other applications. Its goal was to serve as

a knowledge base for IoT application developers and

security researchers. Unfortunately, the database has

not been made public anywhere and the only infor-

mation about it can be found in the above-mentioned

article, which allows us to conclude that the work on

the database is not continued, but was only a Proof of

Concept. This still leaves a gap that those responsible

for the security of IoT devices should ﬁll. Therefore,

this article presents the whole process of creating and

publishing such a database.

This paper is written based on the results ob-

tained during the work performed in the Vulnerabil-

ity and Attack Repository for IoT project (VARIoT,

2022). The objective of the project is to provide ac-

tionable information about Internet of Things devices

that can be processed manually or automatically to

ensure the cybersecurity of these devices. This in-

volves not only creating and presenting a database of

information about exploits and vulnerabilities in the

Internet of Things, but also, among other things, scan-

ning the Internet to identify vulnerable, publicly avail-

able IoT devices. Laboratories have also been built

to test both legitimate and malicious IoT trafﬁc, IoT

artifacts, and IoT anomaly models. Aggregated and

anonymous statistics on infected and vulnerable IoT

devices will also be prepared in the near future. All

these tasks are carried out in collaboration with our

partners, namely Stichting The Shadowserver Foun-

dation Europe, Security Made In Letzebuerg G.I.E.,

Institut Mines-T

ecom and Mondragon Goi Eskola

Politeknikoa Jose Maria Arizmendiarrieta S COOP.

3 DATABASE CREATION

In our work, we only analyse publicly available, free

sources of information, which excludes paid services

such as Vulners vulnerability and exploit aggregator

(Vulners, nd), among others. In addition to the entries

collected from structured sources listed in Table 1, we

also look for recent posts and articles found over the

Internet. For these, the relevant metadata can be ex-

tracted from the raw text. One of the unique features

of the built VARIoT vulnerability database is the cor-

relation and aggregation of vulnerability information

from various publicly available sources.

As mentioned earlier, there are many publicly

WINSYS 2022 - 19th International Conference on Wireless Networks and Mobile Systems

Table 1: Used information sources.

Short Name Full Name Type of db Reference

BID SecutiryFocus Bugtraq Vuln/Expl (BID, nd)

CERT CC Carnegie Mellon Univ. CERT Coordination Center Vuln (CERT, nd)

CNNVD Chinese National Database of Information Security Vuln (CNNVD, nd)

CNVD China National Vulnerability Database Vuln (CNVD, nd)

ExploitDatabase EXPLOIT-DATABASE.NET Expl (ExploitDb, nd)

Exploit-DB Exploit Database by Offensive Security Expl (Exploit-DB, nd)

ICS-CERT CN Chinese ICS-CERT website Vuln (ICS-CERT, nd)

IVD ICS Vulnerability Database Vuln (IVD, nd)

JVNDB Japan Vulnerabilities Notes Database Vuln (JVNDB, nd)

NVD National Vulnerability Database Vuln (NVD, nd)

Packet Storm Packet Storm Security Vuln/Expl (PacketStorm, nd)

Vulmon Vulmon Vulnerability Search Engine Vuln (Vulmon, nd)

VUL-HUB VUL-HUB Information Security Vuln. Portal Vuln (VUL-HUB, nd)

ZDI Zero Day Initiative Vuln (ZDI, nd)

ZSL Zero Science Lab Vuln (ZSL, nd)

available databases containing various information

about vulnerabilities in different types of hardware

and software. Just a few of them are dedicated solely

to Internet of Things or at least point to such vulnera-

bilities in some way, but none of them directly aggre-

gate information from other sources. The vulnerabil-

ity database creation is show in Figure 1.

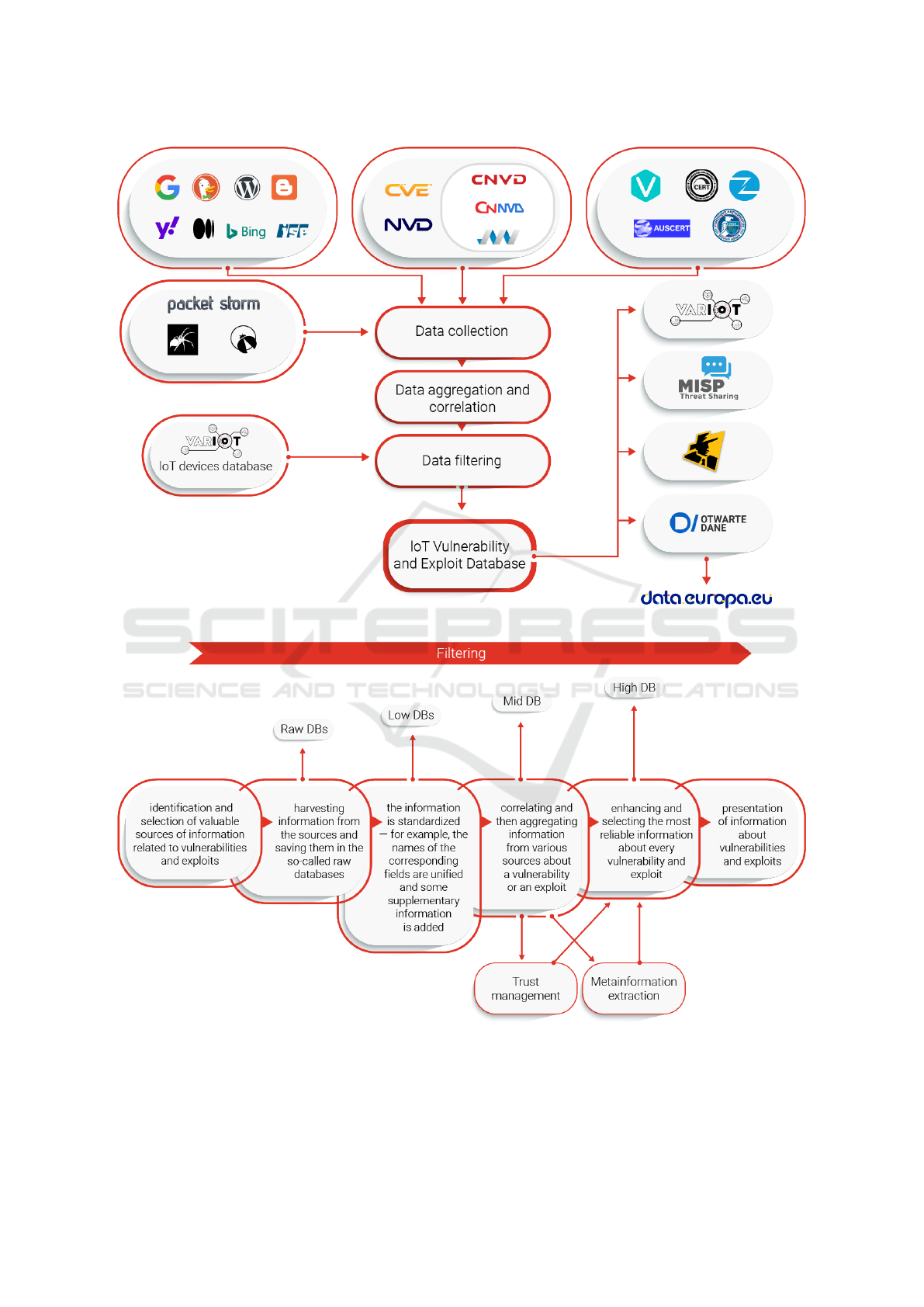

The entire process of creating the database of IoT

vulnerabilities and exploits that we prepared within

the VARIoT project is shown in Figure 2 and can be

brieﬂy described as follows. In the ﬁrst step, iden-

tiﬁcation and selection of valuable sources of infor-

mation related to vulnerabilities and exploits is per-

formed. Many types of sources are of interest, both

structured, such as national vulnerability databases

(from which it is easier to retrieve data) and unstruc-

tured, such as blogs, individual websites (from which

retrieving data is usually more complicated but may

provide information ahead of ofﬁcial databases or

contain completely unique data). In the second step,

we harvest information from the sources and store it

in so-called raw databases. In the third step, the in-

formation is standardized - e.g., the names of rele-

vant ﬁelds are uniﬁed and complementary informa-

tion is added. In this way so-called low databases

are created. In the fourth step, information from vari-

ous sources about a given vulnerability or exploit is

correlated and aggregated. Based on the results of

this process, a medium database is created that con-

tains all the information from every low database, and

each entry in this database corresponds to one vul-

nerability or exploit. Each ﬁeld in the entry contains

information from the corresponding ﬁelds in the low

databases. The ﬁfth step is to enhance and select

the most reliable information about each vulnerabil-

ity and exploit. This process uses two mechanisms:

metainformation extraction and trust management. In

order to enable the extraction of metainformation in

an automatic way, we applied various mechanisms of

artiﬁcial intelligence and natural language processing.

Based on the information contained in the database,

we prepared dictionaries of information about pro-

ducers, models and device types as well as about vul-

nerability types. These dictionaries were used as key-

words for searching in a text and as training data sets

for other methods. The trust evaluation aims to se-

lect the most reliable and informative part of the in-

formation, evaluate the reliability of the information,

and identify IoT-related vulnerabilities and exploits.

It is done based on source reputation, convergence of

information from different sources, aggregation and

classiﬁcation method, and additional searches. The

result of this process is the creation of a high database.

The database created as described above can then be

shared and used by different entities for different pur-

poses. IoT-related information is also carried out by

ﬁltering at different levels using IoT device taxonomy

we have created, an internal IoT device catalogue, a

keyword-based ﬁltering mechanism, etc. Each step

is described in detail in the paper (Janiszewski et al.,

2021).

4 RESULTS

As of this writing, there are 1 151 723 entries in

the low databases, resulting in 207 673 entries in the

medium and high database, of which 24 969 are IoT-

related (as of April 10, 2022). About 80% of all

entries that are in the high database contain data re-

A Repository of Actionable Information on the Internet of Things

Figure 1: Vulnerability database creation.

Figure 2: The process of repository creation.

trieved from more than one information source.

Creating a structured database, publicly available,

with information about known technical vulnerabil-

ities and exploits is extremely beneﬁcial to all stake-

holders: users, producers and network owners, as well

as CSIRTs or other people who work on device and

WINSYS 2022 - 19th International Conference on Wireless Networks and Mobile Systems

software security. We have studied a large cross-

section of different types of sources, and from this we

can conclude that by collecting data from a variety

of sources, we can obtain a more complete and com-

prehensive entry on a given vulnerability or exploit

than from a single source. Because we search many

different types of publicly available sources and our

database correlates and aggregates data from these

sources, this makes each entry rich in information that

can be used to ensure the security of IoT devices, and

reduces the risk of missing some data or delays in ob-

taining information about speciﬁc vulnerabilities.

The number of entries in each database can be

seen in Table 2.

Table 2: Number of entries in databases.

Database Number of entries

BID 100 825

CERT CC 3 555

CNNVD 183 081

CNVD 174 881

ExploitDatabase 98 877

Exploit-DB 44 854

ICS-CERT CN 2 929

IVD 3 449

JVNDB 139 536

NVD 183 022

Packet Storm 154 228

Vulmon 40 305

VUL-HUB 11 466

ZDI 9 905

ZSL 810

As this is a short form paper we only focus on the

most important results. More information and statis-

tics related to the results can be found in the paper

(Janiszewski et al., 2021). The document is from a

year ago but it shows more or less what the relation-

ships between the databases are, statistics, ranges and

more.

5 PUBLICATION OF A

DATABASE OF INFORMATION

ON VULNERABILITIES AND

EXPLOITS

One of the main results of our work is a database con-

taining information about vulnerabilities and exploits

in the Internet of Things found on the Internet. This

database is published at: https://www.variotdbs.pl/.

The main data presented is organized into three

sections:

• Vulnerabilities - here security vulnerabilities af-

fecting IoT devices are shown.

• Exploits - publicly available exploits targeting IoT

devices are shown here.

• News - here you can see an automatically gener-

ated news feed about IoT security crawled using

our custom search engine.

There are also two additional sections on the web-

site:

• API - here is a description of how to easily re-

trieve the data we provide on the website through

the API. This can be done using one of two well

structured ﬁle formats: JSON and JSON-LD.

• Ontology - here is a description of the ontology of

the VARIoT vulnerability database entries.

Vulnerability and exploit databases are built on the

basis of the previously described sources. The news

feed uses many available search engines and creates

an entry based on the information found in this way.

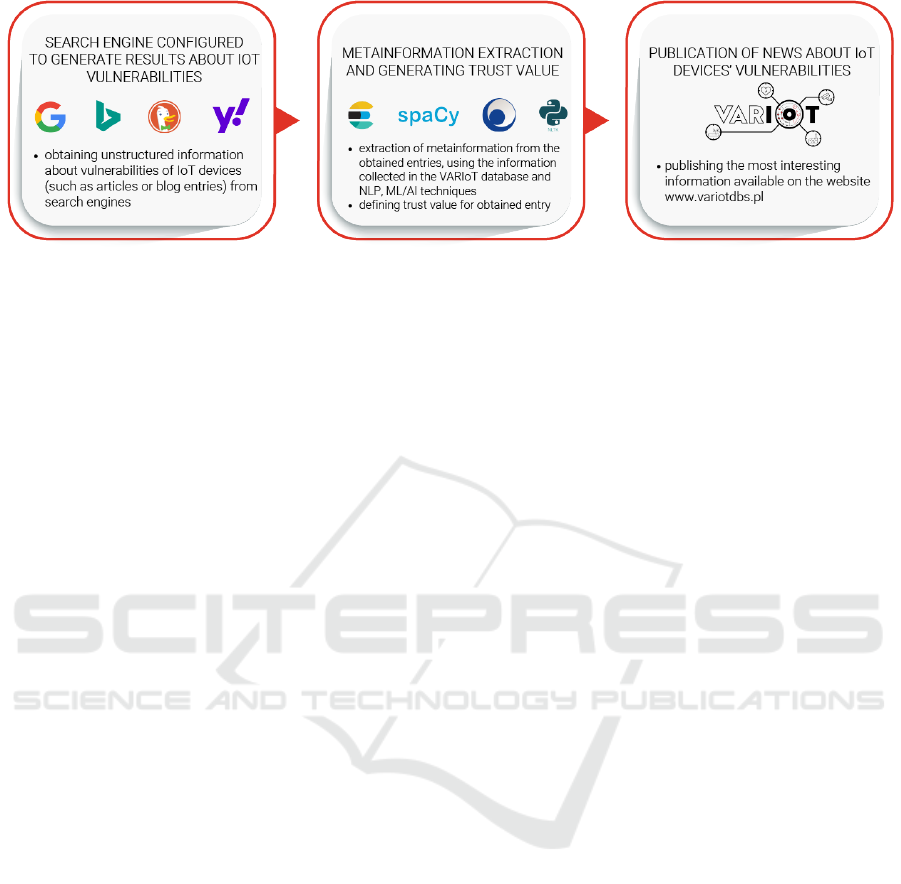

Figure 3 shows a diagram of how the search engine

works. Vulnerability and news feed sections use so-

lutions based on natural language processing (NLP),

machine learning (ML) and artiﬁcial intelligence (AI)

to better tailor the entry and combine data obtained

from multiple sources.

The developed mechanism is able to extract in-

formation from unstructured news sources such as

blogs, reports and articles. Moreover, it calculates the

trust to the selected information to better evaluate its

relevance. In the context of vulnerabilities and ex-

ploits, trust is based on source reliability scores estab-

lished based on our knowledge about these sources,

and in the context of news feeds, trust is based on

information extracted from found entries, i.e. key-

words, manufacturers and product names, vulnera-

bility types, and links to well-known vulnerabilities

databases.

The Vulnerabilities section allows you to view the

latest IoT vulnerabilities and search for them. Vul-

nerability searches are possible using a variety of at-

tributes, whether by vendor, device model, version,

CVE (Common Vulnerabilities and Exposures), vul-

nerability identiﬁer, CWE (Common Weakness Enu-

meration), type, or by a phrase describing the vulner-

ability. Such a search gives many possibilities, as it is

possible to ﬁnd a description of vulnerabilities using

any of the above ﬁelds, e.g. device type, and other

related sources of information about vulnerabilities.

Each entry consists of data on a particular vulnerabil-

ity found from various sources. Each entry includes

sources of information and calculated conﬁdence lev-

els, as well as aggregated links to external sources that

can be consulted for further information.

A Repository of Actionable Information on the Internet of Things

Figure 3: IoT vulnerability search engine.

The Exploit section allows you to view exploits

that may pose a threat to IoT devices. Currently (as

of April 5, 2022), it is in the testing phase, but by the

time this article is published, it will have been reﬁned

and will work in a similar way to the vulnerability

section.

The News section shows different types of infor-

mation related to vulnerabilities in the world of the In-

ternet of Things. The news are collected from various,

mostly unstructured sources such as reports, blogs, in-

formation provided by people who work with vulner-

ability research or in any way related to cybersecu-

rity. The news is retrieved using our scripts to ﬁlter

the search results. Additional information about vul-

nerabilities, attacked products and external identiﬁers

is obtained using NLP and custom ﬁlters from found

news.

6 CONCLUSIONS AND FUTURE

WORKS

One of the most important conclusions from our re-

search is that our vulnerabilities and exploits database

ﬁts well in the gap of the IoT devices security.

The mechanisms implemented in our work and

the information they provided can form the basis for

building different types of services. The database we

created can be used by vulnerability scanners as a

repository of information about IoT vulnerabilities.

This is because the information we collect is in var-

ious aspects richer, broader and more comprehensive

than that currently used by popular vulnerability scan-

ners, especially in the IoT context.

In the future, we are also considering another very

practical service, namely providing for a given prod-

uct name (speciﬁc producer and model) a list of pos-

sible vulnerabilities. This extension seems to be easy

to build and at the same time extremely useful. The

user will be able to enter the name of their device and

will get a list of all known vulnerabilities that affect

it. It seems to be even more useful from the pro-

ducer’s, network owner’s or CSIRT operator’s point

of view. Previously, an inventory of IoT assets would

have been necessary, but this approach can yield much

better results than scanning with vulnerability scan-

ners, which will not necessarily be able to identify the

device well. We see great potential for our solution.

The repository that we prepared will be pub-

licly accessible through the European Data Portal

- data.europa.eu and through national Data Portals

(such as the Polish Open Data Portal (OpenData,

2022)), as well as other sources, such as the Mal-

ware Information Sharing Platform (MISP), which

is widely used by the cybersecurity analyst commu-

nity, or through Shadowserver’s free daily remedia-

tion feeds.

ACKNOWLEDGEMENTS

Scientiﬁc work published as part of an international

project co-ﬁnanced by the Connecting Europe Facil-

ity of the European Union, TENtec n. 28263632 and

by the program of the Minister of Science and Higher

Education entitled ”PMW” in the years 2020–2022;

contract No. 5095/CEF/2020/2.

REFERENCES

BID (n.d.). Secutiryfocus Bugtraq database. https://www.

securityfocus.com/bid Last accessed on 2021-04-12.

CERT (n.d.). Carnegie Mellon University CERT Coordi-

nation Center. https:// www.kb.cert.org/vuls/ Last ac-

cessed on 2022-04-12.

CNNVD (n.d.). Chinese National Vulnerability Database of

Information Security. http://www.cnnvd.org.cn/ Last

accessed on 2022-04-12.

CNVD (n.d.). China National Vulnerability Database.

https://www.cnvd.org.cn/ Last accessed on 2022-04-

12.

WINSYS 2022 - 19th International Conference on Wireless Networks and Mobile Systems

ECSO WG 6 – SRIA and Cybersecurity Tech-

nologies (2020). Input to the horizon eu-

rope programme 2021-2027. priorities for the

deﬁnition of a strategic research and inno-

vation agenda in cybersecurity. https://ecs-

org.eu/documents/publications/5fdc4c5deb6f9.pdf.

Last accessed on 2022-04-12.

Exploit-DB (n.d.). Offensive Security’s Exploit Database

Archive. https://www.exploit-db.com/ Last accessed

on 2022-04-12.

ExploitDb (n.d.). EXPLOIT-DATABASE.NET. https://

www.exploit-database.net/ Last accessed on 2022-04-

12.

Felkner, A., Kadobayashi, Y., Janiszewski, M., Fantin, S.,

Ruiz, J. F., Kozakiewicz, A., and Blanc, G. (2021).

Cybersecurity Research Analysis Report for Europe

and Japan: Cybersecurity and Privacy Dialogue Be-

tween Europe and Japan, volume 75 of Studies in Big

Data. Springer International Publishing, Cham.

ICS-CERT (n.d.). Chinese ICS-CERT website.

https://www.ics-cert.org.cn/portal/index.html Last

accessed on 2022-04-12.

IVD (n.d.). Ics Vulnerability Database. http://ivd.winics

sec.com/ Last accessed on 2022-04-12.

Janiszewski, M., Felkner, A., and Lewandowski, P. (2019).

A Novel Approach to National-level Cyber Risk As-

sessment Based on Vulnerability Management and

Threat Intelligence. Journal of Telecommunications

and Information Technology, 2:5–14.

Janiszewski, M., Felkner, A., Lewandowski, P., Rytel, M.,

and Romanowski, H. (2021). Automatic actionable

information processing and trust management towards

safer internet of things. Sensors, 21(13):4359.

JVNDB (n.d.). Japan Vulnerabilities Notes Database.

https://jvndb.jvn.jp/en/ Last accessed on 2022-04-12.

Ling, Z., Liu, K., Xu, Y., Jin, Y., and Fu, X. (2017).

An end-to-end view of iot security and privacy. In

GLOBECOM 2017 - 2017 IEEE Global Communica-

tions Conference, pages 1–7.

NASK (2022). https://www.variotdbs.pl/, Last accessed on

2022-04-12.

Nerwich, M., Gauravaram, P., Paik, H.-y., and Nepal, S.

(2020). Vulnerability database as a service for iot. In

Batina, L. and Li, G., editors, Applications and Tech-

niques in Information Security, pages 95–107, Singa-

pore. Springer Singapore.

NVD (n.d.). National Vulnerability Database.

https://nvd.nist.gov/vuln/search Last accessed on

2022-04-12.

OpenData (2022). Polish Open Data Portal. https://dane.

gov.pl/en, Last accessed on 2022-04-12.

PacketStorm (n.d.). Packet Storm. https://packetstorm se-

curity.com/ Last accessed on 2022-04-12.

Rytel, M., Felkner, A., and Janiszewski, M. (2020). To-

wards a Safer Internet of Things—A Survey of IoT

Vulnerability Data Sources. Sensors, 20(21):5969.

VARIoT (2019-2022). Vulnerability and Attack Repository

for IoT project. https://www.variot.eu Last accessed

on 2022-04-12.

VUL-HUB (n.d.). Vul-hub Information Security Vulner-

ability Portal. http://www.cve.scap.org.cn/ Last ac-

cessed on 2022-04-12.

Vulmon (n.d.). Vulmon Vulnerability Search Engine.

https://vulmon.com/ Last accessed on 2022-04-12.

Vulners (n.d.). Vulners - Vulnerability Data Base.

https://vulners.com/ Last accessed on 2022-04-12.

ZDI (n.d.). Zero Day Initiative. https://www.zeroday initia-

tive.com/, Last accessed on 2022-04-12.

ZSL (n.d.). Zero Science Lab. https://www.zeroscience.mk/

en/index.php, Last accessed on 2022-04-12.

A Repository of Actionable Information on the Internet of Things
