Discovering Vulnerabilities and Patches for Open Source Security

Tamara Gunkel and Thomas Hupperich

Department of Information Systems, University of M

unster, Germany

Keywords:

Web Security, Data Set Generation, Commit Classiﬁcation.

Abstract:

Open source software is used in numerous systems and security vulnerabilities in such software often affect

many targets at once. Hence, it is crucial to ﬁnd security vulnerabilities as soon as possible. A convenient

method to check software for vulnerabilities is executing a static code analysis tool before deployment. How-

ever, for verifying the reliability of such tools, real-world data including labeled non-vulnerable and vulnerable

code is required. This paper introduces an approach to automatically create and enhance a labeled data set of

open source projects. The ground truth of vulnerabilities is extracted from up-to-date CVEs. We identify

repositories related to known vulnerabilities, select vulnerable versions and take patch commits into account.

In this context, we utilize Gradient Boosting based on regression trees as a meta classiﬁer for associating patch

commits to CWE categories. With a high precision of this matching, we give insights about the impact of cer-

tain vulnerabilities and a general overview of open source code security. Our ﬁndings may be used for future

studies, such as the impact of certain code design criteria, e.g. clean code, on the prevalence of vulnerabilities.

1 INTRODUCTION

Open source software is popular and widely used in

many contexts. Therefore, it is crucial to identify

vulnerabilities in open source code as soon as possi-

ble. Using automatic tools such as static code analysis

tools in continuous integration pipelines can prevent

vulnerable code from being deployed. However, test-

ing static code analysis tools and applying machine

learning is challenging as only a few data sets with

real-world vulnerabilities and source code are avail-

able. As this need was already identiﬁed, previous

work contributed by creating manually maintained

data sets which were often limited to speciﬁc projects

or programming languages. Thus, to foster code anal-

ysis of open source software projects and ultimately

contribute to securing them, we seek a solution to au-

tomatically create data sets of vulnerable and patched

software based on the ground truth of Common Vul-

nerabilities and Exposures (CVE).

Not only is identifying vulnerabilities in software

a key to preventing security incidents but also keep-

ing track of when a vulnerability is mitigated. This

allows security experts an assessment of impact and

provides information about the software being secure

to use in the future. Therefore, we determine for vul-

nerabilities classiﬁed by our approach whether or not

these have been ﬁxed.

Our contribution to open source software security is:

• We compose a database to represent current vul-

nerabilities as a ground truth. As vulnerabil-

ity data feed, the popular National Vulnerability

Database (NVD) is used that lists vulnerabilities

following the CVE speciﬁcation (of Standards and

Technology, 2021; Corporation, 2020b).

• We search open source repositories for known

vulnerabilities and patches. In total, we inspect

545 repositories of mainly web-related projects

written in JavaScript, Java, and PHP.

• We create a classiﬁer to determine the vulnerabil-

ity types ﬁxed by speciﬁc commits. In this pro-

cess, we examine commit messages, ﬁle exten-

sions, and names to be most relevant for vulner-

ability classiﬁcation.

• We build a data set containing commits ﬁxing vul-

nerabilities described by CVEs. The data set con-

tains 1000 CVEs and will be published with this

paper.

This work allows developers to create their own data

sets of vulnerable and patched code, which can be

used to conduct further research. By using such data

sets, static code analysis tools may be validated reg-

ularly and analysts may react in a timely manner to

new vulnerabilities that are not yet detected.

Gunkel, T. and Hupperich, T.

Discovering Vulnerabilities and Patches for Open Source Security.

DOI: 10.5220/0011299400003266

In Proceedings of the 17th International Conference on Software Technologies (ICSOFT 2022), pages 641-648

ISBN: 978-989-758-588-3; ISSN: 2184-2833

641

2 RELATED WORK

The need for a data set consisting of vulnerabilities

and patch commits was already identiﬁed by multiple

researchers. Ponta et al. created a data set consisting

of 624 vulnerabilities in 205 Java projects and 1282

commits ﬁxing them (Ponta et al., 2019). Another

data set with 153 projects was created by Gkortzis et

al. (Gkortzis et al., 2018). While promising in their

approaches, both projects are not maintained anymore

and lack actuality. The most recent work, published

in December 2020, is the OpenSSF CVE Benchmark

project. It contains around 200 JavaScript and Type-

Script CVEs (working group, 2021). However, our

approach is not limited to speciﬁc programming lan-

guages and can identify multiple patch commits in-

stead of only the last one.

Furthermore, research was conducted on identi-

fying security-relevant commits. Sabetta and Bezzi

as well as Sawadogo et al. trained machine learn-

ing classiﬁers for commit messages and the changed

code lines to ﬂag security-relevant commits (Sabetta

and Bezzi, 2018; Sawadogo et al., 2020). As part of

their methodology, regular expressions are used, e.g.,

to ﬁlter out obvious non-security patches (Sawadogo

et al., 2020). Another approach by Barish et al. uses

only the source code as input vector (Greg Barish and

Minton, 2017). In our research, we combine the ap-

proaches and use source code, commit messages, and

ﬁle types to classify commits into vulnerability types.

The research closest to this paper is the VulData7

framework from Jimenez et al. (Jimenez et al., 2018).

For a given project, VulData7 can retrieve related

CVEs and commits. Although it is partly automated,

the approach is still limited in terms of usability. The

user has to deﬁne regular expressions to match CVEs

to a project. This requires extensive knowledge of the

project itself and CVEs. Moreover, unknown projects

cannot be included in the data set. Our approach over-

comes these limitations and provides a tool that is

independent of speciﬁc software projects and can be

used without further conﬁguration.

3 APPROACH

Chasing vulnerabilities to measure open source

projects’ security needs to be based on reliable data

about relevant vulnerabilities. Therefore, we utilize

CVEs, ofﬁcially released by The MITRE Corpora-

tion (Corporation, 2020b). Two limitations apply.

First, we focus on GitHub because most repositories

are hosted there. Second, we do not process CVEs

with multiple Common Platform Enumeration (CPE)

conﬁgurations referring to different products as the

identiﬁcation of vulnerabilities cross-repository may

be ambiguous. In the following, we describe the pro-

cess of matching CVEs to repositories and their cor-

responding patch commits.

3.1 Locating Source Code Repositories

After retrieving a CVE, the affected repository has to

be found by utilizing ﬁve different heuristics that in-

clude the following criteria:

The Similarity Criterion is used to check if a

repository is similarly named as speciﬁed in the CPE.

The normalized Levenshtein similarity is calculated

between (1) repository and CPE product name, and

(2) repository owner and CPE vendor name. The av-

erage of both similarities must exceed 0.7 to consider

the repository as a potential match. The Levenshtein

measure is well suited as we allow only minor dif-

ferences between the names. The threshold 0.7 was

chosen because it worked well during manual testing.

The Language Criterion identiﬁes the program-

ming language(s) of repositories belonging to a CVE

by utilizing the target software conﬁguration from the

CPE as well as the ﬁle endings of ﬁles and program-

ming languages mentioned in the CVE description. If

more than one programming language was identiﬁed,

the potential repository must include at least one of

these languages.

The heuristics for ﬁnding potential repositories are

based on two information sources: CVE/CPE refer-

ences and GitHub Search API. GitHub repository ref-

erences are considered as a potential match if

1. CVE References are tagged as Patch or Issue

Tracking.

2. CPE References are tagged as as Product, Ver-

sion, Project, or Change Log.

3. Remaining CVE or CPE References fulﬁll the

similarity criterion. We include references from

CVEs sharing the CPE as other CVEs of the same

product might be more descriptive.

Additionally, up to ﬁve repositories from the follow-

ing GitHub search queries are considered as potential

matches.

4. CPE Product Name as keyword.

5. CPE Product Name as keyword and CPE Ven-

dor as user. The results of this query and the pre-

vious one must fulﬁll the similarity criterion.

6. CPE Product Name as keyword and Program-

ming Language speciﬁed. The product name

must be mentioned in the repository description,

or the similarity between the CPE product and

ICSOFT 2022 - 17th International Conference on Software Technologies

642

repository name must exceed 0.7. The similarity

criterion was weakened because repositories with

high name similarities were already identiﬁed by

previous heuristics.

The last heuristic uses the GitHub links included in

referenced websites. Repositories must include the

product name in the description or readme and fulﬁll

the language criterion. Additionally, only the repos-

itory with the highest name similarity is considered

as a potential match. If no repository is found be-

cause e.g. it is not open source, the CVE cannot be

further processed. After collecting potential reposito-

ries, they are rated by summing up the scores of the

applicable heuristics. The scores are derived during

the evaluation in section 4.1.

3.2 Probing for Vulnerable and Fixed

Versions

Next, the ﬁrst and last vulnerable and ﬁrst ﬁxed ver-

sions are identiﬁed to isolate the relevant range of

commits. The lowest and highest affected versions

are extracted from the CVE applicability statements.

These versions have to be found in the repository

where versions are represented by Git tags. The low-

est tag between the lower and upper boundary ver-

sions is considered as the ﬁrst vulnerable version and

the highest tag as the last vulnerable version. For the

comparison, we extract the version from the tag name.

Furthermore, any version of the repository higher

than the last vulnerable version is assumed to be ﬁxed

because a patch must have been implemented if the

version is not affected anymore. The ﬁrst ﬁxed ver-

sion is deﬁned as the lowest release version among

all repository versions, which are higher than the last

vulnerable version.

3.3 Identifying Patch Commits

After identifying the repository and vulnerable ver-

sions, we seek to ﬁnd patch commits to gain informa-

tion about possible mitigations. A vulnerability may

be ﬁxed with one or multiple commits.

The ﬁrst heuristic instruments the CVE refer-

ences. If references tagged as Patch are commit or

pull request links, they are considered as the patch

commits. For pull requests, the commits are ex-

tracted. If the pull request not merged, the CVE re-

ceives the status No fix because the ﬁx is not in-

cluded in the repository yet. The second heuris-

tic checks if any Issue Tracking reference links to a

GitHub issue. Open issues are considered as not ﬁxed.

If it is closed, associated commits are marked as the

patches. Then, commit hashes are extracted from the

CVE description. If these heuristics do not yield use-

ful information, the individual commits are investi-

gated. The identiﬁed boundary vulnerable versions

are used to limit the commit range. The obvious way

to identify patch commits is to search for the CVE

Identiﬁer (CVE ID) in the commit message. If one or

multiple commits contain the CVE ID, they are con-

sidered as patches. If not, a commit scoring system

is used to rate the commits. We utilize the following

heuristics:

(1) The tool git-vuln-ﬁnder is used to determine if a

commit is security-related by utilizing regular expres-

sions (Dulaunoy, 2021).

(2) The similarity of the CVE description and commit

message is calculated. We tokenize both inputs and

calculate the the Inverse Document Frequency (IDF)

score of every token to respect the different impor-

tance of tokens. As vocabulary, all commit messages

and the description are used. For an individual com-

mit, the similarity is then calculated by summing up

the IDF values of the commit message and descrip-

tion tokens. The similarity is normalized by the sum

of the IDF values of all description tokens to allow the

comparison of the scores across CVEs.

(3) We check if a URL contained in the commit mes-

sage appears in the CVE references.

(4) If ﬁle names were extracted from the description,

all commits modifying the ﬁles receive points.

(5) The Common Weakness Enumeration (CWE)

classiﬁer categorizes commits into CWE-79 (XSS),

CWE-89 (SQLi), CWE-119 (Improper Restriction of

Operations within the Bounds of a Memory Buffer),

and CWE-20 (Path Traversal). These CWEs were se-

lected because they are part of the top 25 CWEs and

performed best during the experiments (Corporation,

2020a). The training data for the classiﬁer was col-

lected automatically. For each CWE, all CVEs with a

Patch reference to a GitHub commit or pull requests

were retrieved. From the commits, the following ﬁve

features are engineered and used as input vectors.

a) Tokens of the commit message

b) File extensions of the modiﬁed ﬁles.

c) Class names occurring in all modiﬁed ﬁles.

d) Method names occurring in all modiﬁed ﬁles.

e) Names (variables, parameters, methods called)

occurring in the modiﬁed lines only as they are es-

pecially relevant for the vulnerability. Names con-

sisting of multiple words e.g. using camel-case

notation are split into single words.

The last three features utilize the modiﬁed source

code of a commit and might be well suited to distin-

guish between CWE categories. For example, names

Discovering Vulnerabilities and Patches for Open Source Security

643

such as database are more likely to occur in com-

mits regarding SQL Injection than buffer overﬂows.

All features are transformed into a numerical repre-

sentation by applying a count vectorizer, meaning that

the frequency of the tokens is used. After that, TF-

IDF transformation is applied so that the importance

of each token is reﬂected. The classiﬁer is only used

as scoring criteria for commits if the CVE is catego-

rized as one of the supported CWEs.

4 EVALUATION

For evaluating how well the introduced approach

works, we created a data set with commits that ﬁx

a vulnerability described by a CVE. The data set

contains 1000 CVEs. The data set was created by

manual selection of the CVEs, crawling the Snyk vul-

nerability database (Ltd., 2021) and extracting CVEs

from the Vulas data set (Ponta et al., 2019)and the

OpenSSF CVE Benchmark (working group, 2021).

Most CVEs are related to injection and resource han-

dling vulnerabilities because the majority of projects

are web-related. Another negative data set with 142

CVEs, where the repository is not publicly available

or not hosted on GitHub, was created to evaluate how

many false positives are found.

4.1 Finding the Source Code Repository

As different heuristics (also called origins) are used,

a scoring system was developed to select the best

match. First, we grouped the CVEs by the target

repository and for the CVEs without a repository by

the CPE vendor and product. Some heuristics such as

the GitHub search always return the same results for

shared CPE. Thus, the success rate rather depends on

the repository than on the CVE. The groups are called

repository groups. There are 572 repository groups

for the normal and 73 groups for the negative data set.

The scoring system is dynamically calculated and

evaluated by using a 10-fold cross validation. First, it

is determined how many points an origin should re-

ceive. For each CVE, every origin referring to the

correct repository receives one point. The points are

added up within a repository group. After that, the

relative success rate of each origin is calculated by di-

viding the points by the total number of found repos-

itories within the repository group. We average the

success rate across all repository groups. The ﬁnal

score for an origin is determined by rounding the suc-

cess rate to either the next 10% or 5%. We map the

score to numbers between 0 to 10 and 0 to 20, respec-

tively.

After calculating the origin scores, the best repos-

itory needs to be selected. Two different approaches

were evaluated. The hard threshold approach accepts

the highest-rated repository if it has a score above or

equal to a certain threshold. The soft threshold ap-

proach also accepts a repository if only the language

criterion and the version criterion are fulﬁlled. The

version criterion requires that at least one of the af-

fected versions must appear as a tag in the repository.

Thus, it is possible that the top-ranked repository is

not selected if it has a score below the threshold and

does not fulﬁll the additional checks.

In total, four approach combinations were eval-

uated. The CVEs were labeled with the result of

the scoring system, allowing the following combina-

tions. For CVEs from the negative data set, either no

repository (NN) or an incorrect repository (NI) can be

found. For CVEs from the general data set, no repos-

itory (RN), an incorrect (RI), or the correct repository

(RC) might be selected.

The metrics used to evaluate the performance of

the approaches should be suitable for the following

two goals: G1: Select as few wrong repositories as

possible, G2: select as many correct repositories as

possible. The ﬁrst goal is considered more important

because wrong repositories reduce the quality of the

ﬁnal data set. However, not detecting some repos-

itories does not affect the data quality but only the

quantity. We select the three following metrics for

evaluation:

1. Precision is used to evaluate goal G1.

RC + RI + NI

(1)

2. Recall reﬂects goal G2.

RC + RI + RN

(2)

3. The F0.5-score is used to combine the previous

metrics into a single evaluation score. We use the

F0.5-score to put more emphasis on precision than

on recall to reﬂect the different importance of the

two goals (Chinchor, 1992).

The evaluation results in Table 1 demonstrate no sig-

niﬁcant difference between the 10% and 5% round-

ing. We select the 10% threshold because the score

Table 1: Scoring Performance Metrics.

10 % 10 % 5 % 5 %

Hard Soft Hard Soft

Precision .9405 .9608 .9497 .9608

Recall .8974 .8942 .8645 .8942

F0.5-Score .9314 .9465 .9310 .9465

All numbers are averages on test fold

ICSOFT 2022 - 17th International Conference on Software Technologies

644

range is smaller and easier to interpret. Furthermore,

the soft threshold performs better showing that the

additional checks are sufﬁcient to select the correct

repository.

To create the ﬁnal scoring system, the approach

is applied to the entire data set. The threshold of 19

has the best F0.5-score of 0.9493 with a precision of

96.43% and a recall of 89.37%. The following origin

scores show that a repository must be supported by at

least two origins to be directly selected as the match

without the additional checks.

The origins Patch and Issue Tracking perform best

and receive 10 points. This supports the assumption

that these references are reliable because they are in-

dividually added to each CVE. The CPE References

also have a high success rate with 9 points because

they are speciﬁc to the project but not to the CVE.

If they fail, the reason is generally the imprecise la-

beling of the CVEs. The origin Third Party Web-

sites receives 9 points as well demonstrating the rel-

evance of CVE references. The scores of the GitHub

search (Owner and Repository Search, and Language

Search) are comparably low with 6 and 3 points be-

cause weaker similarity criteria are applied. This is

intended because these origins rather have the pur-

pose of supporting other origins than to be used as

individual indicators.

4.2 Finding the Vulnerable and Fixed

Versions

To evaluate if the version/tag matching works, we col-

lected statistics about the characteristics. In contrast

to the repository search evaluation, this and the fol-

lowing sections are based on CVE and not repository

level because CVEs of the same repository group have

different versions and patches.

Of 1,000 CVEs in total, only 26 do not deﬁne

vulnerable versions. For the other CVEs, manual

inspection shows that the tags are correctly identi-

ﬁed in most cases. Multiple reasons were identiﬁed

why the version matching might fail: no maintaining

of tags and releases, insufﬁcient support for parsing

some version formats and missing tags due to main-

taining releases on external platforms. This shows

that well maintained repositories following common

coding and naming guidelines allow a more precise

security assessment of possible vulnerabilities.

4.3 Finding the Patch Commits

An essential part of our research is evaluating how

well the heuristics can identify patch commits and

creating a scoring system for selecting patch commits.

As this step is built upon the version matching, it is

assumed that the correct repository was identiﬁed to

evaluate the performance independently of the repos-

itory search.

During the evaluation, four categories are used

to group the commit results. If the found commits

exactly correspond to the true commits, the CVE is

ﬂagged as success. If the found commits are a sub-

set of the true commits, the category not complete

is used, and if it is the other way around, the tag

found more is used. The last category failure is

used if wrong commits were found and not all of the

true commits are included. On the commit level, com-

mits are evaluated like binary classiﬁcation. Positive

commits are patch commits and negative commits are

non-patch commits.

First, the three approaches extraction of commits

from the Patch references, the Issue Tracking refer-

ences and the CVE description are evaluated because

they execute very fast in contrast to the scoring sys-

tem and are more precise. The approaches demon-

strate the following success rates: 97.46% for Patch

references, 92.68% for Issue Tracking references and

91.67% for the CVE Description heuristic. To calcu-

late the success rate not only the success CVEs were

considered as successful but also the found more

CVEs. The latter CVEs were manually inspected,

and the additional commits are either commits with

the same content but on different branches or contain

patch related information such as changelog updates.

These CVEs are considered as successful because the

tool does not intend to narrow down the ﬁx to speciﬁc

code lines.

If none of these approaches ﬁnds a patch commit,

we utilize a high-effort method by further investigat-

ing the commits within the valid version range. This

process required between one minute and eight hours

for one CVE depending on the number of commits as

the commits’ messages are parsed through the Natural

Language Processing (NLP) pipelines. Though this

seems to be a high time effort, this part of the pro-

cedure needs to be run only once on creation of the

data set. However, CVEs from ten repositories were

excluded from the following evaluation because the

process took over eight hours on a standard computer.

When the individual commits are inspected,

CVE IDs are extracted from the commit messages.

This method could be applied to 38 CVEs and was

successful for 94.74%. One CVE failed because

someone suggested including the CVE ID after the

patch was already partially implemented. For another

CVE only the changelog commit was found because

the inspected version range which was incompletely

listed in the CVE speciﬁcation.

Discovering Vulnerabilities and Patches for Open Source Security

645

Overall, 597 CVEs remain where the scoring sys-

tem must be applied. For 179 CVEs, the true patch

commits were not included in the retrieved com-

mits. The main reason was that the version range

was wrongly speciﬁed in the CVE. These CVEs are

skipped because the preceding steps are obligatory to

evaluate the scoring system. The evaluation of the

scoring system is conducted on commit level. In to-

tal, 195,507 commits are included and out of these,

549 patches must be identiﬁed showing that ﬁnding

patch commits is a highly imbalanced problem.

For the scoring system, appropriate scores for the

ﬁve heuristics must be determined. Except for the

CWE Classiﬁer heuristic, each heuristic score is rep-

resented by its F-measure value because it reﬂects the

heuristic’s precision and reliability. By creating three

different scoring systems using the F0.25-, F0.5-, or

F1-Score, the users can decide how much they value

precision and recall.

For the Description Fit heuristic, a commit re-

ceives the points if the ﬁt is above or equal to a certain

threshold. We evaluated different absolute and rela-

tive thresholds and found that the absolute threshold

0.2 with a precision of 86.29% and recall of 12.54%

should be used if precision is highly important. Other-

wise, both the F0.5- and F1-score are best at threshold

0.1 with a precision of 58.41% and recall of 32.35%.

This shows that the heuristic works well in a few cases

but is limited in its applicability because commit mes-

sages are short and often use abbreviations for terms

occurring in the CVE description.

For the heuristics git-vuln-ﬁnder, URLs, and Files,

no thresholds exist. The heuristics either succeed for a

commit or not. Thus precision, recall, and F-measure

are calculated from the results of the entire data set.

The performance values are listed in Table 2.

Table 2: Performance of the Heuristics URLs, Files and git-

vuln-ﬁnder.

Num. Precision Recall

CVEs in % in %

URLs 7 100.00 100.00

Files 50 49.68 93.75

git-vuln-ﬁnder 295 22.70 41.67

The last heuristic is the CWE classiﬁer which

was evaluated in further experiments. Three common

classiﬁcation algorithms suitable for labeled data with

a small data set were evaluated using 10-fold cross

validation. The Gradient Boosting classiﬁer outper-

formed the Random Forest and the Support Vector

Machine (SVM). The average precision of the cross

validation is 0.85 and the recall is 0.73. Further-

more, undersampling techniques applied to the major-

ity class were evaluated because the class CWE-79 in-

cluded approx. 700 CVEs while the other classes in-

cluded between 150 to 300 CVEs. The Tomek Links

method performed best and increased the precision by

2% and the recall by 1%. Thus, the ﬁnal classiﬁer

uses Gradient Boosting with Tomek Links undersam-

pling for CWE-79.

Since the CWE classiﬁer only categorizes vulner-

ability types, it is used for discarding commits unre-

lated to the vulnerability type. As a metric, only per-

formance values from the CWE classiﬁer evaluation

can be used because there are too few CVEs in the

test data set with corresponding CWEs to reevaluate

the classiﬁer. We use recall as score because it reﬂects

how reliable the classiﬁer discards negative commits.

The following recall values apply: 0.97 (CWE-79),

0.90 (CWE-119), 0.61 (CWE-22), 0.46 (CWE-89).

The CVE classiﬁer can be applied to 22% of CVEs

included in the commit scoring system evaluation.

After creating the scores for all heuristics, the ﬁnal

threshold, below which commits are discarded, needs

to be determined by applying the heuristics to all com-

mits. For each CVE, precision and recall are calcu-

lated so that all CVEs are equally weighted. Finally,

the F-measures are calculated to select the best thresh-

olds. To evaluate how well this approach performs

on unseen data, 10-fold cross validation is conducted.

The heuristic scores and the thresholds are selected

based on the training set and the performance is eval-

uated on the test set. The F.025 strategy shows a pre-

cision of 80.17% and a recall of 22.70% whereas the

F1 strategy has a precision of 47.55% and 47.41%.

The metrics of F0.5 lie between these values. Con-

sidering that the data set is highly imbalanced with

549 patches and 195,507 non-patches, a precision of

80% is quite good. Moreover, it is reasonable to of-

fer different precision levels as there are remarkable

differences in the metrics.

The approach was applied to the entire data set to

create the ﬁnal scoring system. Figure 1 shows the

precision-recall curves of the three precision levels.

For the highest precision level with the F0.25-score as

well as the F0.5-score precision level, the ﬁnal thresh-

old is 0.3 and for the F1-score 0.2. The plot illustrates

that a threshold above zero results in a recall decrease

of 40%, meaning that there are many patch commits

where no heuristic succeeds.

In summary, the results show that it is not trivial to

identify the patch commits. The biggest challenge is

that patches are not always described appropriately in

the commit message and might even be included in

a bigger merge commit. Additionally, it is hard to

identify the correct patch if multiple vulnerabilities of

the same type exist in the repository.

ICSOFT 2022 - 17th International Conference on Software Technologies

646

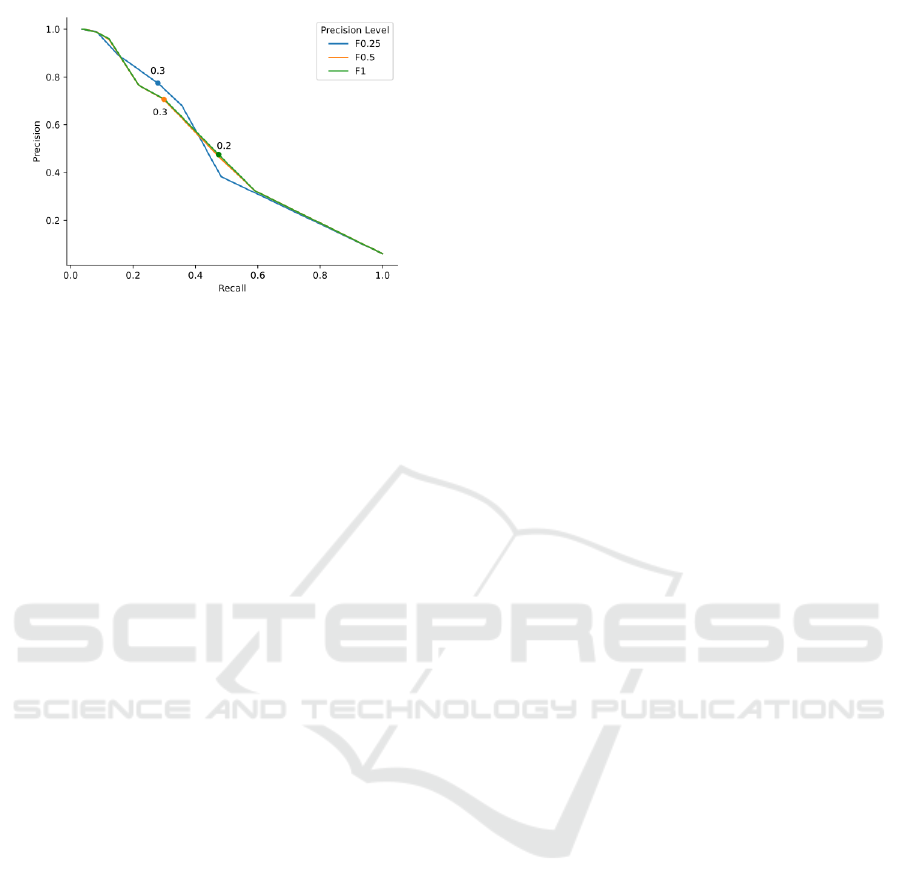

Figure 1: Precision-recall Curve of the Proposed Commit

Scoring System.

4.4 Total Performance

After evaluating the individual steps, this section

gives an overview of the entire approach’s perfor-

mance. Figure 2 shows the previously presented met-

rics and the overall performance. Step 2 presents the

aggregated performance of the Patch, Issue Tracking,

CVE Description and CVE ID heuristics. The blue

numbers presents the number of CVEs that are pro-

cessed or omitted in the paths. As for step 4 and

the overall performance, the metrics of the F0.25 pre-

cision level are illustrated because the scoring sys-

tem outperforms the other levels in the relevant area

around the threshold of 0.3 (see Figure 1). Overall, a

precision of 74.65% and recall of 48.42% is achieved.

Since there are not any similar studies, these met-

rics cannot be directly compared to previous work.

The performance of the simple heuristics can be clas-

siﬁed as really good, while the scoring system may

still be improved. However, the evaluation shows that

the approach is independent of any programming lan-

guage or speciﬁc repositories and does not require any

user interaction. A shortcoming of the prototype is its

slowness if the version range cannot be limited and

many commits need to be investigated. As a mitiga-

tion, the processing of CVEs could be parallelized.

In summary, the following four key takeaways can be

derived from the conducted evaluation:

1. Matching from a CVE to a repository is simple be-

cause the CVE references and applicability state-

ments usually describe the repository well.

2. The CVE description, references, and CVE IDs

mentioned in commits are a reliable source for

identifying patch commits.

3. The NVD information regarding the vulnerable

versions does sometimes not match vulnerable

tags in repositories.

4. Finding the patch commits using the scoring sys-

tem is challenging as documentation of the vul-

nerabilities in issues or explicit commit descrip-

tions is often missing.

5 DISCUSSION

Despite the high performance of our approach, there

are underlying assumptions and certain limitations.

These lead to possible enhancements for future work

to strengthen the overall robustness.

CVE Correctness. The evaluation showed that the

performance depends on the availability and correct-

ness of the CVE applicability statements. We found

in 1.8% that the applicability statements are wrong or

imprecise. As a mitigation, the software name could

be extracted from the CVE description and used for

ﬁnding the repository.

Source Diversity. For further enhancement, addi-

tional information sources such as the GitHub secu-

rity advisories could be incorporated. The API end-

point for the GitHub security advisories did not work

reliably at the time of our experiments but might be a

valuable information source in the future.

Scoring Precision. The developed approach and

ﬁrst four heuristics to ﬁnd patch commits are found

to be highly precise. Nevertheless, there is room for

improvement on the commit scoring system.

As for the Description Fit heuristic, a more so-

phisticated approach could be developed that goes

beyond textual similarity e.g. by incorporate code

semantics. The same applies for the git-vuln-ﬁnder

heuristic. A machine learning model might improve

the precision as it was developed by Sabetta and Bezzi

(Sabetta and Bezzi, 2018). Their model yields a pre-

cision of 80% and a recall of 43%, but their tool is

not published. The CWE classiﬁer might be used as a

stronger indicator if more CWEs are recognized. Cur-

rently, we focus on four vulnerability types to ensure

high performance. When collecting more indepen-

dent training data, additional vulnerability types can

be included allowing to apply the classiﬁer heuris-

tic to more CVEs. Additionally, the CWE classi-

ﬁer could be improved by adding further data sources

such as changelogs or comments in the source code.

While the existing heuristics already demonstrate

good performance, additional heuristics based on new

information sources could enhance it even further.

Such information sources might be mailing lists or

external issue trackers that contain information about

the affected ﬁles or patches. The challenge is that

this information is unstructured and the relevant data

needs to be identiﬁed.

Discovering Vulnerabilities and Patches for Open Source Security

647

End

Select

repository

96.08%

Precision

89.42% Recall

Select patch

commits using

precise

heuristics

98.92% Precision

94.81% Recall

Select patch

commits using

scoring

system

Limit to

vulnerable

version range

- 29.98%

CVEs

77.96% Precision

26.51% Recall

74.65% Precision

48.42% Recall

36.76%

CVEs

63.24%

CVEs

Figure 2: Evaluation of the Entire Approach.

6 CONCLUSION

This work presented a novel approach to ﬁnd vul-

nerable open source repositories and patch commits

matching given CVEs. We retrieved relevant CVE

information directly from the NVD, identiﬁed repos-

itories with a vulnerable code version, and ﬁnally

checked for a patch commit to determine whether or

not the vulnerability has been mitigated. To select

the correct repositories and commits, we developed

sophisticated scoring systems, instrumenting multiple

heuristics, and conducted an evaluation with a data set

containing 1000 CVEs, validating our approach.

We have found that the success of identifying the

correct patch commits greatly depends on the reposi-

tory. Well-maintained repositories provide more qual-

itative information to ﬁnd connections to CVEs. Fur-

thermore, especially patches to CVEs from the CWE-

119 category are successfully identiﬁed. Good suc-

cess rates are also demonstrated in the categories

CWE-706 and CWE-74.

Future studies may be built upon the generated

data set and our methodology to assess the effects of

coding practices, guidelines, and clear documentation

on code security.

REFERENCES

Chinchor, N. (1992). MUC-4 Evaluation Metrics. In Pro-

ceedings of the 4th Conference on Message Under-

standing, MUC4 ’92, page 22–29, USA. Association

for Computational Linguistics.

Corporation, T. M. (2020a). 2020 CWE Top 25 Most Dan-

gerous Software Weaknesses. https://cwe.mitre.org/

top25/archive/2020/2020 cwe top25.html. (Accessed

on 10/07/2020).

Corporation, T. M. (2020b). About CVE. https://cve.mitre.

org/about/index.html. (Accessed on 02/14/2021).

Dulaunoy, A. (2021). git-vuln-ﬁnder. https://github.com/c

ve-search/git-vuln-finder. (Accessed on 01/01/2021).

Gkortzis, A., Mitropoulos, D., and Spinellis, D. (2018).

Vulinoss: A dataset of security vulnerabilities in open-

source systems. In Proceedings of the 15th Interna-

tional Conference on Mining Software Repositories,

MSR ’18, page 18–21, New York, NY, USA. Associ-

ation for Computing Machinery.

Greg Barish, M. M. and Minton, S. (2017). Mining commit

log messages to identify risky code. In Proceedings of

the 2017 International Conference on Artiﬁcial Intel-

ligence, pages 345–349. CSREA Press.

Jimenez, M., Le Traon, Y., and Papadakis, M. (2018). [en-

gineering paper] enabling the continuous analysis of

security vulnerabilities with vuldata7. In 2018 IEEE

18th International Working Conference on Source

Code Analysis and Manipulation (SCAM), pages 56–

61.

Ltd., S. (2021). Vulnerability DB — Snyk. https://snyk.io/

vuln/. (Accessed on 02/09/2021).

of Standards, N. I. and Technology (2021). NVD - Gen-

eral. https://nvd.nist.gov/general. (Accessed on

01/14/2021).

Ponta, S. E., Plate, H., Sabetta, A., Bezzi, M., and Dan-

gremont, C. (2019). A Manually-Curated Dataset

of Fixes to Vulnerabilities of Open-Source Software.

In Proceedings of the 16th International Conference

on Mining Software Repositories, MSR ’19, page

383–387. IEEE Press.

Sabetta, A. and Bezzi, M. (2018). A Practical Approach

to the Automatic Classiﬁcation of Security-Relevant

Commits. In 2018 IEEE International Conference on

Software Maintenance and Evolution (ICSME), pages

579–582.

Sawadogo, A. D., Bissyand

e, T. F., Moha, N., Allix, K.,

Klein, J., Li, L., and Traon, Y. L. (2020). Learning to

Catch Security Patches.

working group, O. S. T. (2021). OpenSSF CVE Benchmark.

https://github.com/ossf-cve-benchmark/ossf-cve-ben

chmark. (Accessed on 01/07/2021).

ICSOFT 2022 - 17th International Conference on Software Technologies

648
