Blockchain Meets Secured Microservice Architecture: A Trustworthy

Consensus Algorithm

Mohiuddin Ahmed

1 a

, A. F. M. Suaib Akhter

2 b

, A. N. M. Bazlur Rashid

1 c

, Mahdi Fahmideh

3 d

Al-Sakib Khan Pathan

4 e

and Adnan Anwar

5 f

School of Science, Edith Cowan University, Perth, Australia

Computer Engineering Department, Sakarya University of Applied Science, Sakarya, Turkey

School of Business, University of Southern Queensland, Queensland, Australia

Department of Computer Science and Engineering, United International University, Dhaka, Bangladesh

School of IT, Deakin University, Geelong, Australia

Keywords:

Blockchain, Microservices, Consensus Algorithm, False Data Injection Attacks, Internet of Everything.

Abstract:

Microservices are becoming an integral component in the architecture design and development of Internet-

based distributed systems, such as the Internet of Things. A critical ongoing challenge in microservice ar-

chitecture design is to ensure the integrity and availability of data. Blockchain technology offers the solution

to these challenges in the distributed microservice architecture. Blockchains use consensus algorithms for

validating their transactions and also providing extra security. Taming the advantages of consensus algorithms

in blockchain-based architecture models, this paper proposes a trustworthy consensus algorithm to tackle data

integrity challenges in microservice architectures. The results of the evaluation highlight the efﬁcacy of the

proposed algorithm in real-world scenarios of microservice architecture endeavour. Lessons learned in apply-

ing the algorithms, and future research directions are also discussed.

1 INTRODUCTION

IoT deployments are not ﬂexible, reliable, efﬁcient,

and easy to build despite these solutions (Lu et al.,

2017). To overcome the limitations for IoT deploy-

ment, many solutions have been proposed in the lit-

erature. One of the interesting solutions is based on

service-oriented approach. In this approach, any IoT

node can be considered a smart object that provides a

number of services over the network. Therefore, the

developers can focus on the level of services and data

instead of the devices and communication network.

Accordingly, the microservice-based approach pro-

posed in the literature to tackle the IoT system deploy-

ment challenges (Lu et al., 2017). A microservice-

based deployment allows the IoT systems to construct

https://orcid.org/0000-0002-4559-4768

https://orcid.org/0000-0002-2675-1684

https://orcid.org/0000-0002-8672-5023

https://orcid.org/0000-0001-7196-7217

https://orcid.org/0000-0001-6572-3451

https://orcid.org/0000-0003-3916-1381

the ﬁne-grained and self-contained independently de-

veloped microservices. Microservice architecture is

composed of microservices connected and deployed

via composition techniques. The microservice archi-

tecture allows the decomposition of larger services

into several small, loosely-coupled, self-contained,

and focused services. Because microservices can be

distributed over the network, there can be the prob-

lem of data sharing between nodes in a trustable

way. Blockchain technology is fundamentally a dis-

tributed database of records, which can be executed

and shared between the associated nodes (Khan et al.,

2020). There are ﬁve basic principles of blockchain.

These include a distributed database, irreversibility

of records, transparency with pseudonymity, compu-

tational logic, and peer-to-peer transmission. These

principles ensure access to the new information when

available over the network. These also ensure not

to update or erase the data (Khan and Byun, 2020).

Blockchain technology can solve microservices’ data

sharing problem by providing a stable and distributed

base. A distributed service that can be trusted by all

Ahmed, M., Akhter, A., Rashid, A., Fahmideh, M., Pathan, A. and Anwar, A.

Blockchain Meets Secured Microservice Architecture: A Trustworthy Consensus Algorithm.

DOI: 10.5220/0011290400003286

In Proceedings of the 19th International Conference on Wireless Networks and Mobile Systems (WINSYS 2022), pages 53-60

ISBN: 978-989-758-592-0; ISSN: 2184-948X

its participating nodes and can guaranty the data im-

mutability may provide trustworthiness in microser-

vice architecture data integrity. Blockchain uses a

consensus algorithm to validate all of its transactions

and ensure the data have not been tampered with since

the ﬁrst deﬁnition (Reyna et al., 2018; Zhang et al.,

2021; Nartey et al., 2021). Therefore, with the com-

bination of microservice and blockchain technology,

the independently developed and deployed microser-

vices can be created as a secured and robust system

(Sousa et al., 2020).

However, because of the Internet-connected de-

vices in the IoT system, the deployed microservice-

based architecture can have cyber security issues. Cy-

ber security is an absolute necessity in today’s Inter-

net connected world, a.k.a. Internet of Everything

(IoE). Cyber criminals have the capability to launch

sophisticated attacks which can have deadly conse-

quences, e.g., shutting down the power gird for a

complete blackout. It is also found that the hack-

ers have the power to tamper with the election re-

sults(Ahmed and Pathan, 2020a). In recent times, due

to cyber attacks in a hospital facility in Germany, a

patient died(Goodin, 2020). Although embracing In-

ternet has impacted the security and privacy aspects in

our daily life, at the same time, it has become impos-

sible to deny the advantages it has introduced, such

as microservices(Eismann et al., 2020). Blockchains

use consensus algorithms to validate their transactions

and add extra security, integrity, trustability, etc. To

attack a blockchain, the attacker has to overcome the

security services provided by the consensus. Follow-

ing the popular consensus algorithms and their weak-

nesses, a trustworthy consensus algorithm (TCA) has

been proposed in this paper. The proposed TCA can

ensure the data integrity and different cyber attacks in

blockchain, such as 51% attack, selﬁsh attack, miner

bribe, and N conﬁrmation. The efﬁciency of TCA

has been evaluated based on different false data in-

jection attacks. Hence, TCA is a more robust and

trusted system for the microservice architecture using

blockchain technology.

Rest of the paper is organized as follows. Sec-

tion 2 presents the microservice architecture. Sec-

tion 3 discusses the false data injection attacks in

the context of blockchain. Section 4 contains the

critical analysis of the consensus algorithms, which

are the key reasons for false data injection attacks in

blockchain-supported microservice architecture. Sec-

tion 5 presents the proposed TCA (Trustworthy Con-

sensus Algorithm) and Section 6 includes the perfor-

mance analysis. The paper is concluded in Section

2 MICROSERVICE

ARCHITECTURE

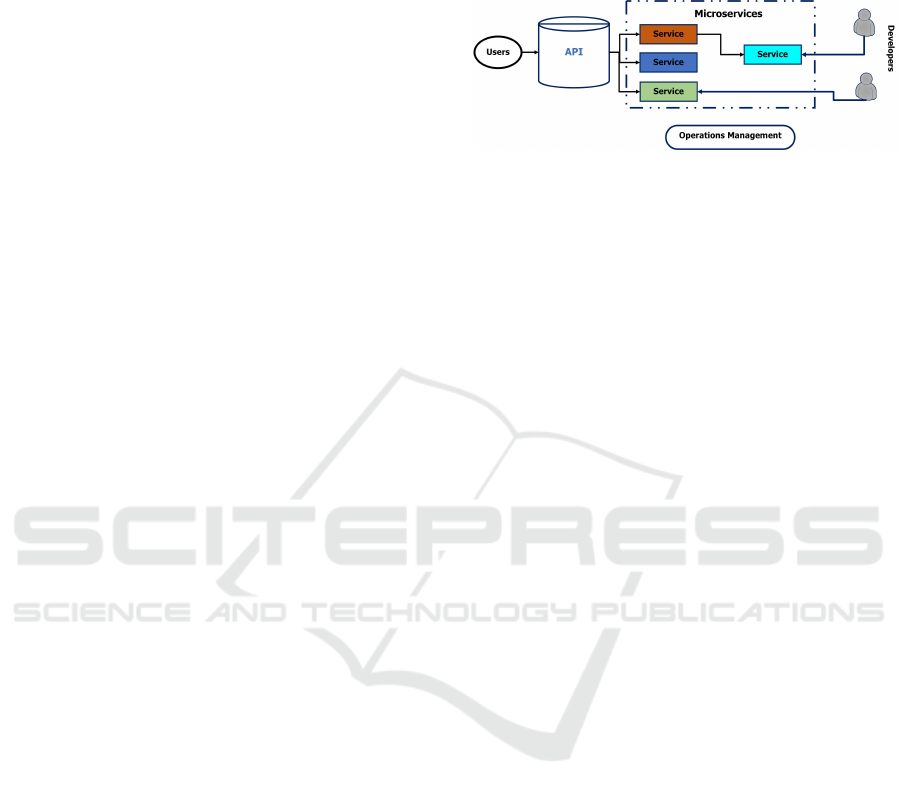

Figure 1: A simple microservices architecture, adapted

from Microsoft.

Microservice architecture is generally used for large

software projects as an architectural style. The funda-

mental objective of microservices is providing short-

release cycles and ﬂexible on-demand scalability to

the target venue. This microservice architecture de-

composes an application into several independent

components, which are called microservices. Each

microservice runs on its individual process (Koschel

et al., 2017). Microservices are used by the devel-

opers who ﬁnd it convenient as function-speciﬁc so-

lution. The corporations such as Amazon, Netﬂix

are taking full advantage of the microservice archi-

tecture. Microservice architecture beneﬁts the com-

plete independence and developers can revise an ex-

isting service without rebuilding and redeploying the

entire application. The microservice architecture has

key advantages, including independent development

and deployment, decentralized data management and

governance, small and focused teams (Jamil et al.,

2020). Because microservices can be independently

scaled, they can also efﬁciently allocate computing

resources and enable ﬂexible horizontal scaling in the

cloud (Khan et al., 2020). Such architecture contains

a collection of small, autonomous services and these

services are self-contained (as shown in Figure 1 - in

the ﬁgure, API stands for Application Programming

Interface). However, the main challenge with mi-

croservices is to coordinate various small parts. This

is deemed as the loophole or vulnerability of the mi-

croservice architecture. Hence, microservices are not

as effective as it seems to be in terms of cyber safety

and its trustworthiness.

3 FALSE DATA INJECTION

ATTACKS on BLOCKCHAIN

The strength and uniqueness of blockchain is its con-

sensus algorithms. Trusted security and integrity are

ensured by blockchains by applying consensus algo-

rithms. However, recent studied have proved that

WINSYS 2022 - 19th International Conference on Wireless Networks and Mobile Systems

popular consensus algorithms, such as PoW (Proof-

of-Work), PoS (Proof-of-Stake), DPoS (Delegated

Proof-of-Stake) are vulnerable to several types of

attacks like DDoS (Distributed Denial-of-Service),

Sybil, and 51% attacks. An overview of the possible

attacks in the blockchain are discussed in this section

as problem statement and potential motivation for this

work.

• 51% Attack: Blockchain technologies are at-

tracting users from different areas for their strong

security services but still the top blockchain based

cryptocurrencies lost huge amount of money be-

cause of 51% attacks. Whenever a single entity or

a group of entities acquires more that 51% of the

hashing power, it is possible to include block or

chain of blocks by winning the consensus every-

time (Ahmed and Pathan, 2020b). In that case, the

miner can perform double spending attack any-

time which is the biggest threat for the cryptocur-

rencies (Zhang and Lee, 2019). However, it is also

possible to perform similar kind of attack while

the the hashing power is less than 51%, but with

less probability to get a success.

• Selﬁsh Mining: When two or more miners

are trying to add their mined blocks into the

blockchain, the chain that consists of maximum

number of blocks will be accepted for the main

chain. This is called the longest chain rule

(Nakamoto, 2019). Thus to win the race, min-

ers mine blocks secretly and submit long chain to

win the race. Miners with relatively higher hash

power can dominate the race and by mining longer

chain, win the race, whereas the miners with com-

paratively lower hash power remain behind and

face losses as their contributions become wasted

because of this rule. This process is called self-

ish mining. It is easy to perform selﬁsh mining

if someone has more than 25% of the network’s

hashing power. It will allow the selﬁsh miners to

mine too many blocks within a short amount of

time to win the chain and earn more proﬁt. In

contrast, others would continuously lose the race

as they are not able to generate that many blocks

within the short time.

• Miner Bribe: Because of consensus, it requires

some time to complete a transaction. Attackers try

to generate a second transaction just after the ﬁrst

one and offer high transaction fees for the second

one to attract miners to perform mining for the

second transaction quickly. Target of this brib-

ing process is to use the same coin to perform the

transactions. If it is possible to complete the sec-

ond transaction before the ﬁrst one is conﬁrmed,

Table 1: Vulnerabilities of the popular consensus algo-

rithms.

Consensus algorithms

Attacks PoW PoS DPoS

51% Attack ✓ × ✓

Selﬁsh mining ✓ ✓ ✓

Miner bribe ✓ × ×

Zero conﬁrmation ✓ × ×

One conﬁrmation ✓ × ×

the success rate of double spending is 100% (Sun

et al., 2020).

• Zero Conﬁrmation: The Zero conﬁrmation is

another attacking technique to perform double

spending. Attackers show a fake output of a real

transaction and convince them (the victims) to

provide the service before the transaction is been

conﬁrmed. If the merchant agrees to provide the

service before the transaction is conﬁrmed, at-

tacker withdraws the transaction and replaces it

by another one (Nicolas et al., 2019).

• One Conﬁrmation: Similar to the zero conﬁrma-

tion, one conﬁrmation is an attack where the at-

tacker’s transaction is conﬁrmed in the block and

shows the output to the merchant so that the mer-

chant can provide the product or service. How-

ever, when the attacker’s block is sent for re-

mining by losing the race to another miner be-

cause of the longest chain rule, the attacker gets

the opportunity to remove the transaction and gets

refunded (Judmayer et al., 2017).

4 CRITICAL ANALYSIS OF THE

CONSENSUS ALGORITHMS

Consensus algorithms are used by blockchains to val-

idate their transactions and to add extra level of secu-

rity, integrity, trustability, etc. To attack a blockchain,

the attacker has to overcome the security services pro-

vided by the consensus. In this section, weaknesses

of the popular consensus algorithms are described in

brief. In Table 1, vulnerabilities of the popular con-

sensus algorithms are summarized.

• Proof-of-Work (PoW): PoW is a consensus al-

gorithm initiated by bitcoin where miners are re-

sponsible to generate transactions requested by

nodes. To generate blocks from one or multiple

transactions, it requires to solve complex equa-

tion to generate hash for the next block. Nodes

of the blockchain verify the blocks before it gets

accepted to be added into the blockchain. PoW

Blockchain Meets Secured Microservice Architecture: A Trustworthy Consensus Algorithm

is vulnerable if any of the miners gets more than

50% of the hashing power because in that case,

it will be easy for the miner to perform most of

the attacks, such as double-spending, 51% attack,

and P+Epsilon attack (Wang, 2017). By generat-

ing large number of fake nodes, it is possible to

perform Sybil attack.

• Proof-of-Stake (PoS): PoS is a consensus algo-

rithm where the transactions are mined and vali-

dated by the nodes selected by a voting system.

Nodes with higher stake will get priority to be se-

lected as miner and rather than calculating com-

plex hash value, a single miner can perform the

mining to minimize the computation cost. As it

is nearly impossible to achieve more than 51%

stake value, PoS is considered as secured com-

pared to 51% attack. However, it is vulnera-

ble to P+Epsilon (Wang, 2017), long-range attack

(Sharma, 2018) and it is possible to minimize the

performance by using DDoS and Sybil attack.

• Delegated Proof-of-Stake (DPoS): To make the

mining process faster and to reduce the wastage

of energy, DPoS proposed where witnesses are

selected to perform mining. A voting process is

used to select the witness where higher stake hold-

ers have the opportunity to cast more than one

vote. A penalization model is used where the min-

ers, i.e., the witnesses win coins for successful

block generation while receive penalties for fail-

ure. Although, DPoS performs better than PoW in

terms of energy consumption and mining speed.

However, the system is not fully decentralized.

In addition, if a single or a group of stakeholders

gains more than 51% of voting power, the system

will become vulnerable to 51% attack. Further-

more, likewise other consensus methods, DPoS

also suffers from balance attack, long-range at-

tack, P+Epsilon attack, Sybil attack and DDoS at-

tack.

4.1 Existing Works and Their

Limitations

A time penalty based system proposed by Horizen

(Garoffolo et al., 2018) where the gap between trans-

action received and block creating was calculated.

When the delay crosses a threshold time, the miner

received a punishment. During the punishment time,

the miner is not be able to perform any sort of ac-

tion in the blockchain. With the amount of delay

and frequency of similar action, the punishment pe-

riod increases. The proposed method can mitigate

the attack up to a certain level. However, a miner

with high hashing capacity does not face any pun-

ishment because it does not require much time for

that miner to generate large number of blocks. To

minimize the double-spending attacks, a consensus

technique called delayed proof of work (dPoW) pro-

posed (ChainZilla, 2019). Firstly, dPoW removes the

longest chain rule from the PoW to minimize the self-

ish mining and 51% attack. Additionally, it elects a

number of nodes to create a checkpoint to monitor

all the transactions of bitcoin targeted to stop dou-

ble spending attacks. dPoW provides comparatively

stronger security but checking every transaction in-

creases the time consumption. Because of monitor-

ing nodes, the system is not fully decentralized and

by attacking the supervisor nodes, it is possible to

perform those attacks. Another centralized algorithm

called PirlGuard proposed by Rado Minchev to mit-

igate the 51% attack (Minchev, 2018). In this pro-

posal, masternode operates notary contracts on mul-

tiple blockchains and monitoring system. If the no-

tary nodes ﬁnd someone who has mined blocks pri-

vately to win the longest chain race, they would assign

penalty that means the miner will be suspended from

mining to a certain number of blocks. The penalty in-

creases with the number of secret mining nodes. Sim-

ilar to (Garoffolo et al., 2018), Pirlguard is able to

mitigate the 51% attack up to a certain level and a

miner with high computational power can (still) avoid

punishment easily. However, presence of masternode

brings the drawbacks of centralization.

A consensus algorithm, ChainLocks, proposed in

2018 to mitigate the 51% attack (Block, 2018). In the

proposed method, it requires positive response from

60% nodes to get acceptance as a block. After the

block generation, P2P messages are generated to in-

form all the nodes about the block generation. Addi-

tionally, the method does not support reverse transac-

tion after the transaction is signed. A master node is

there to manage the algorithm which brings the lim-

itations of centralized system. However, by gaining

much hashing power, it is still possible to perform at-

tacks.

From the literature review of related works on

consensus algorithms for blockchain technology, it

can be observed that the proposed algorithms suffer

from a number of drawbacks, including 51% attack,

selﬁsh mining, miner bribe, and zero or one conﬁrma-

tion attacks. Therefore, there is a need to study a new

or trustworthy consensus algorithm that can be used

by blockchain technology to offer a secured microser-

vice architecture. The proposed trustworthy consen-

sus algorithm has been discussed in the next section.

WINSYS 2022 - 19th International Conference on Wireless Networks and Mobile Systems

Figure 2: TCA: Trustworthy Consensus Algorithm.

5 PROPOSED TRUSTWORTHY

CONSENSUS ALGORITHM

To enhance the efﬁciency of the consensus techniques

used by blockchains, a novel consensus algorithm

(Algorithm 1) is proposed in this paper, named TCA

(Trustworthy Consensus Algorithm). The aim of the

proposed consensus algorithm is to protect the mi-

croservice architecture from the above mentioned at-

tacks. The ﬂow chart in Figure 2 illustrates the pro-

posed technique and it can be summarized as follows.

After every successful mining, there is a min-

ing Entry Period (EP) where miners competes to get

chance and perform the veriﬁcation/validation pro-

cess. Miner continues mining and tries to get chance

in the next time slot. Only one block is allowed per

miner to enter into the Validation Period (VP). This

removes the longest chain rule problem to mitigate

51% attack. During the validation period, no miners

are allowed to submit blocks. Instead, they wait for

the next slot. Multiple blocks can enter into the VP

and after collecting the votes from the nodes, Trust

Value (TV) of each of the miner is calculated and the

block with the highest TV is selected for the chain to

be added. The rate of positive responses from the par-

Algorithm 1: Trustworthy Consensus Algorithm

(TCA).

Begin

Step 1: Entry Period (EP) open to all miners;

Step 2: Check the requested block numbers;

if requested block number > 1 then

Reject;

end

if EP is avialable then

Go to Step 1;

else

Suspend block submission until next EP;

end

Step 3: Enter into Validation Period (VP);

Step 4: Receive validation message;

Step 5: Check VP status;

if VP is not available then

Await validation message;

else

Calculate TV (Eq. 1);

end

Step 6: Add the block with maximum TV;

Step 7: Go to Step 1.

End

ticipating nodes is multiplied by the block size i.e.,

size of the transactions added in the block to get the

TV (Eq. 1). Block Size (BS) is added so that blocks

with more number of transactions gets advantage. In

Eq. 1, PR is Positive Responses and TR is Total Re-

sponse.

TV =

T R

∗ BS (1)

Figure 3: Blocks in the validation period (VP) and their trust

value (TV) calculation.

Blockchain Meets Secured Microservice Architecture: A Trustworthy Consensus Algorithm

Figure 4: Mitigation technique from the 51% attack.

For example, in Figure 3, blocks are illustrated

who get chance in the VP and after validation and

TV calculation, block C is selected to be the next

block. Delay calculation and punishment, negative

reputation value assignment etc. are not required

to perform likewise the previously proposed meth-

ods, which can minimize the additional computa-

tional costs performed by the server. Miner with more

than 51% computational power would not be able to

get beneﬁts by wining the longest chain rule as only

one block is allowed from each miner.

6 PERFORMANCE EVALUATION

OF TCA

Table 2 presents the efﬁciency of TCA under several

false data injection attacks. It is evident that the state-

of-the-art consensus mechanisms are not suitable to

address the false data injection attacks, which are se-

rious threats to the microservice architecture. It is

important to provide trustworthiness to any technol-

ogy; however, due to the vulnerabilities in the con-

sensus algorithms, the blockchain ecosystem is still

in jeopardy. The proposed TCA is a more robust and

trusted system for microservice architecture within

blockchain framework.

A miner with more than 51% hashing power can

generate a long chain to perform 51% attack. How-

ever, in the proposed consensus algorithm (TCA),

only one block is selected to enter in the evaluation

period. Thus, it is not possible to add more than one

block in the blockchain. When any miner comes with

multiple blocks and applies to get a chance in the EP

with a block height, which is more than the expected

height would get rejected before the validation pe-

riod. For instance, a miner comes with a block height

10347, where the EP is expecting a block to be se-

lected for a block of height 10344, the mined block

by the miner will be rejected. In Figure 4, the sce-

nario has been explained graphically. During VP, a

block from miner B is rejected because it is applied

for block number 10348, while the system is pro-

cessed to add block number 10344.

PoW is vulnerable to zero and one conﬁrmation

attacks and other similar type of attack including

miner bribe attacks. All these attacks take the ad-

vantage of the transaction conﬁrmation delay of the

bitcoin as it requires 6 blocks conﬁrmation to vali-

date a single transaction. That means, a transaction

mined in block number 1024 can be conﬁrmed after

block number 1030. When it is required around 10

minutes to generate one block, the waiting time for

conﬁrmation is almost one hour. Within this delay

period, the attackers could ﬁnd opportunities to per-

form any of the above mentioned attacks. To mitigate

this kind of problem, in the proposed method, each

block is being conﬁrmed immediately after the block

veriﬁcation. Thus, the waiting times for the transac-

tions are very little. Because each and every block is

validated separately, it is not possible to perform the

above mentioned attacks, i.e., zero conﬁrmation, one

conﬁrmation, miner bribe, and other attacks.

Referring to the discussion in Section 3, the self-

ish mining is the process where a miner or a group of

miners with higher computational strength can per-

form fast mining to generate longer chain of blocks to

get chance in the main blockchain. Because of faster

mining capacity, they can add more blocks than other

miners, which make the miner with normal computa-

tion power unable to receive award of mining. It has

been found that a group that consists of 6 miners are

able to generate more than 67% of the total blocks

generated by bitcoin in a single day and as a set of

selﬁsh miners, they are able to perform conjugative

block generation (Sayeed and Marco-Gisbert, 2019).

To remove this alarming attack, the proposed method

(TCA) accepts only one block per miner in the EP.

Thus, a miner with high mining capacity cannot get

entry there with multiple blocks. Instead, they have to

wait for the next slot. Additionally, mining power is

not able to affect the proposed algorithm because the

system does not accept multiple blocks from a miner.

To generate longer chain, transactions had to face

delay because miners need a large number of trans-

actions to generate a high number of blocks for win-

ning the longest chain race in the PoW consensus al-

gorithm. However, in the proposed TCA, there is no

beneﬁt in creating longer chain (because a miner can

WINSYS 2022 - 19th International Conference on Wireless Networks and Mobile Systems

Table 2: Efﬁciency of TCA.

Comparison with State-of-the-art

Attacks PoW (Garoffolo

et al., 2018)

(ChainZilla,

2019)

(Minchev,

2018)

(Block,

2018)

TCA

51% Attack × × × × ✓ ✓

Selﬁsh mining × × × × × ✓

Miner bribe × × × × ✓ ✓

Zero conﬁrmation × × × × ✓ ✓

One conﬁrmation × × × × ✓ ✓

Figure 5: Computational cost vs Cryptographic Complex-

ity.

submit only one block in the EP). Thus, miners can

mine single block rather than keeping transactions

waiting. Then, they can try to get chance in the EP.

For bitcoin, average block generation time is 10 min-

utes. It requires generating 6 blocks to get conﬁrma-

tion for a transaction, which is a good amount of time.

In the proposed algorithm, this waiting time can be re-

moved because all transactions will get conﬁrmation

just after the block veriﬁcation and selection process.

6.1 Hashing

Hashing is one of the integral parts of blockchain

technology. There are different types of hashing algo-

rithms available and each algorithm has different out-

puts. It is important to keep in confederation, which

hashing technique is optimal for the proposed con-

sensus algorithm in this paper. It is also important

to note that, the proof of work requires to solve a

predeﬁned mathematical puzzle, which is both com-

putationally and energy intensive task regardless of

hashing process. Therefore, the combination of SHA-

224 with TCA will be an optimal solution for ensur-

ing data integrity and availability. However, there is

a trade-off between the cryptographic complexity or

the length of hash values and the computational cost

or time required. In Figure 5, it can be shown that the

optimal solution is the diagonal line and only SHA-

384 seemed to be very close to that. Meaning, the

SHA-384 hashing is more balanced and can be useful

for integrating with the proposed consensus algorithm

(TCA) in this paper.

7 CONCLUSIONS

Internet of Things (IoT) offers distributed connectiv-

ity of networked items, and microservice architecture

is becoming an essential part of IoT in designing the

system. Furthermore, blockchain can ensure the data

integrity for the microservices architecture by using a

consensus algorithm. However, to tackle the cyber se-

curity issues, a trustworthy consensus algorithm can

help to mitigate the security issues. In this paper, a

robust and trustworthy consensus mechanism, called

TCA has been proposed for use in a blockchain-based

microservice architecture. The key objective of this

algorithm is to address the data integrity and avail-

ability attacks in blockchain, i.e., 51% attack, selﬁsh

mining, miner bribe and N conﬁrmation. Although

data availability is well studied, data integrity attacks,

e.g., false data injection attacks (similar to the man-

in-the-middle), are less explored, which can beneﬁt

from the proposed framework. It is crucial to iden-

tify the need to address availability and integrity at-

tacks in the blockchain ecosystem used for secure

and dependable microservice architecture. Hence,

it is necessary to devise critical components of the

blockchain, i.e., the consensus mechanism, in a trust-

worthy way to enhance the reliability and immutabil-

ity of the blockchain-based microservices. The TCA

will be studied using a real-case scenario as a future

study.

REFERENCES

Ahmed, M. and Pathan, A. (2020a). False data injection

attack (fdia): an overview and new metrics for fair

evaluation of its countermeasure. Complex Adaptive

Systems Modeling, 8:1–14.

Ahmed, M. and Pathan, A.-S. K. (2020b). Blockchain: Can

it be trusted? Computer, 53(4):31–35.

Blockchain Meets Secured Microservice Architecture: A Trustworthy Consensus Algorithm

Block, A. (2018). Mitigating 51% attacks with llmq-based

chainlocks. https://blog.dash.org/mitigating-51-

attacks-with-llmq-based-chainlocks-7266aa648ec9.

Accessed: 2021-04-08.

ChainZilla (2019). Blockchain security and how to

mitigate. https://medium.com/chainzilla/solutions-to-

51-attacks-and-double-spending-71526be4bb86. Ac-

cessed: 2021-04-08.

Eismann, S., Bezemer, C.-P., Shang, W., Okanovi

c, D.,

and van Hoorn, A. (2020). Microservices: A perfor-

mance tester’s dream or nightmare? In Proceedings

of the ACM/SPEC International Conference on Per-

formance Engineering, ICPE ’20, page 138–149, New

York, NY, USA. Association for Computing Machin-

ery.

Garoffolo, A., Stabilini, P., Viglione, R., and Stav, U.

(2018). A penalty system for delayed block sub-

mission. https://www.horizen.global/assets/ﬁles/A-

Penalty-System-for-Delayed-Block-Submission-by-

Horizen.pdf. Accessed: 2021-04-08.

Goodin, D. (2020). A patient dies after a ransomware

attack hits a hospital. https://www.wired.com/story/a-

patient-dies-after-a-ransomware-attack-hits-a-

hospital/. Accessed: 2021-02-22.

Jamil, F., Ahmad, S., Iqbal, N., and Kim, D.-H. (2020). To-

wards a remote monitoring of patient vital signs based

on IoT-based blockchain integrity management plat-

forms in smart hospitals. Sensors, 20(8).

Judmayer, A., Stifter, N., Krombholz, K., and Weippl, E.

(2017). Blocks and chains: introduction to bitcoin,

cryptocurrencies, and their consensus mechanisms.

Synthesis Lectures on Information Security, Privacy,

& Trust, 9(1):1–123.

Khan, P. W. and Byun, Y. (2020). A blockchain-based se-

cure image encryption scheme for the industrial inter-

net of things. Entropy, 22(2).

Khan, P. W., Byun, Y.-C., and Park, N. (2020). A data ver-

iﬁcation system for cctv surveillance cameras using

blockchain technology in smart cities. Electronics,

9(3).

Koschel, A., Astrova, I., and D

otterl, J. (2017). Making the

move to microservice architecture. In 2017 Interna-

tional Conference on Information Society (i-Society),

pages 74–79.

Lu, D., Huang, D., Walenstein, A., and Medhi, D. (2017). A

secure microservice framework for IoT. In 2017 IEEE

Symposium on Service-Oriented System Engineering

(SOSE), pages 9–18.

Minchev, R. (2018). Pirlguard — innovative solution

against 51% attacks. https://medium.com/pirl/

pirlguard-innovative-solution-against-51-attacks-87d

d45aa1109. Accessed: 2021-04-08.

Nakamoto, S. (2019). Bitcoin: A peer-to-peer electronic

cash system. Technical report, Manubot.

Nartey, C., Tchao, E. T., Gadze, J. D., Keelson, E., Kl-

ogo, G. S., Kommey, B., and Diawuo, K. (2021).

On blockchain and IoT integration platforms: Cur-

rent implementation challenges and future perspec-

tives. Wireless Communications and Mobile Comput-

ing, 2021.

Nicolas, K., Wang, Y., and Giakos, G. C. (2019). Com-

prehensive overview of selﬁsh mining and double

spending attack countermeasures. In 2019 IEEE 40th

Sarnoff Symposium, pages 1–6. IEEE.

Reyna, A., Mart

ın, C., Chen, J., Soler, E., and D

ıaz,

M. (2018). On blockchain and its integration with

IoT. challenges and opportunities. Future Generation

Computer Systems, 88:173–190.

Sayeed, S. and Marco-Gisbert, H. (2019). Assess-

ing blockchain consensus and security mechanisms

against the 51Applied Sciences, 9(9).

Sharma, A. (2018). Understanding proof of stake

through it’s ﬂaws. part 3— ‘long range attacks.

https://medium.com/@abhisharm/understanding-

proof-of-stake-through-its-ﬂaws-part-3-long-range-

attacks-672a3d413501. Accessed: 2021-04-08.

Sousa, P. S. d., Nogueira, N. P., Santos, R. C. d., Maia, P.

H. M., and Souza, J. T. d. (2020). Building a prototype

based on microservices and blockchain technologies

for notary’s ofﬁce: An academic experience report. In

2020 IEEE International Conference on Software Ar-

chitecture Companion (ICSA-C), pages 122–129.

Sun, H., Ruan, N., and Su, C. (2020). How to model the

bribery attack: A practical quantiﬁcation method in

blockchain. In European Symposium on Research in

Computer Security, pages 569–589. Springer.

Wang, K. (2017). Cryptoeconomics: Paving

the future of blockchain technology.

https://hackernoon.com/cryptoeconomics-paving-

the-future-of-blockchain-technology-13b04dab971.

Accessed: 2021-04-08.

Zhang, J., Lu, C., Cheng, G., Guo, T., Kang, J., Zhang,

X., Yuan, X., and Yan, X. (2021). A blockchain-based

trusted edge platform in edge computing environment.

Sensors (Basel, Switzerland), 21(6):2126.

Zhang, S. and Lee, J.-H. (2019). Double-spending

with a sybil attack in the bitcoin decentralized net-

work. IEEE transactions on Industrial Informatics,

15(10):5715–5722.

WINSYS 2022 - 19th International Conference on Wireless Networks and Mobile Systems
