Effectiveness of Adversarial Component Recovery in Protected Netlist

Circuit Designs

Jeffrey T. Mcdonald

1 a

, Jennifer Parnell

, Todd R. Andel

and Samuel H. Russ

Department of Computer Science, University of South Alabama, Mobile, AL, U.S.A.

Department of Electrical and Computer Engineering, University of South Alabama, Mobile, AL, U.S.A.

Keywords:

Component Identiﬁcation, Obfuscation, Digital Logic Circuits, Intellectual Property Protection, Subcircuit

Enumeration.

Abstract:

Hardware security has become a concern as the risk of intellectual property (IP) theft, malicious alteration,

and counterfeiting has increased. Malicious reverse engineering is a common tool used to achieve such goals;

thus, the need arises to quantify effectiveness and limits of both circuit protection techniques and adversarial

analysis tools. Aspects of physical reverse engineering are well studied and these techniques result in netlist

extraction that details gate-level information from an integrated circuit (IC) artifact. Speciﬁcation recovery

from the netlist is a harder problem with more open research questions. In this paper, we focus on the more

narrow question of how to recover design-level logic components that were used to build an IC. Such analysis

assumes the library of known component building blocks can be identiﬁed and that an adversary has success-

fully accomplished netlist extraction. Likewise, techniques exist to harden IC’s against reverse engineering

through obfuscating transformations, particularly those that target component hiding. We report results of a

case study analysis that compares effectiveness of component hiding algorithms against adversarial recovery

approaches. As a contribution, we delineate six new approaches for subcircuit enumeration that extend a

known algorithm for enumerating candidate components, seeking to improve number of potential candidates

in obfuscated circuits. Our study examines algorithm performance in terms of ability to correctly identify

original components and analysis time overhead. The study uses four different obfuscation approaches that

target component hiding in a set of four benchmark circuits with well deﬁned building blocks. Results indicate

that all four hiding approaches are effective at increasing analysis run-time when algorithmic component iden-

tiﬁcation is used, and two of the four were able to hide 95% of original components from our seven studied

algorithms.

1 INTRODUCTION

Computers and electronics are complex systems made

up of interconnected subsystems. Printed circuit

boards (PCBs) contain a multitude of integrated cir-

cuit (IC) components with speciﬁc functionality that,

in many cases, embody intellectual property (IP) from

their designers. Studies in the last decade highlight

that semiconductor equipment and materials compa-

nies have had adverse impacts due to IP challenges

speciﬁcally (Design and Reuse, 2012). ICs are sus-

ceptible to reverse engineering by adversaries that

wish to gain knowledge of functions, structure, and

other embedded information in order to recover orig-

inal design information. Designers typically layout

circuits in a hierarchical and top-down approach, us-

https://orcid.org/0000-0001-5266-7470

ing smaller circuit building blocks (components) to

build up larger functionality.

In this work we consider the power of adversar-

ial analyzers that target component identiﬁcation. We

focus on algorithms that utilize a two-step process

of component identiﬁcation: 1) enumerating possi-

ble sub-circuit component candidates from a larger

gate-level netlist and 2) semantically matching those

sub-circuits against known components in a library.

We reduce this adversarial question, and thus analysis

of potential hiding algorithms, to a subgraph partition

problem. Given a graph G(V, E) with vertex set V rep-

resenting digital logic gates and edge set E represent-

ing wiring between gates, we can represent the con-

stituent components used to construct the circuit as a

partition of the gate set V. The constituent component

building blocks, typically smaller elements such as

Mcdonald, J., Parnell, J., Andel, T. and Russ, S.

Effectiveness of Adversarial Component Recovery in Protected Netlist Circuit Designs.

DOI: 10.5220/0011275400003283

In Proceedings of the 19th International Conference on Security and Cryptography (SECRYPT 2022), pages 181-192

ISBN: 978-989-758-590-6; ISSN: 2184-7711

181

adders, multipliers, multiplexers, decoders, etc., can

be represented as a partition M of the of the gate set

V . Given some semantically preserving transforma-

tion O on a circuit C such that O(C) = C

, we can pose

the component recovery problem as whether an ad-

versary can reproduce the original partition (M) given

some semantically equivalent variant (C

). As ﬁgure 1

illustrates, a partition of a circuit M = {c

, c

} rep-

resents the hierarchical composition of three building

block components of the same type from a standard

library or technology map in an overall circuit design.

We ask whether an adversary can recover this parti-

tion (which represents the correct number, type, and

connectivity of original components) given a variant

which has the same functional semantics as C.

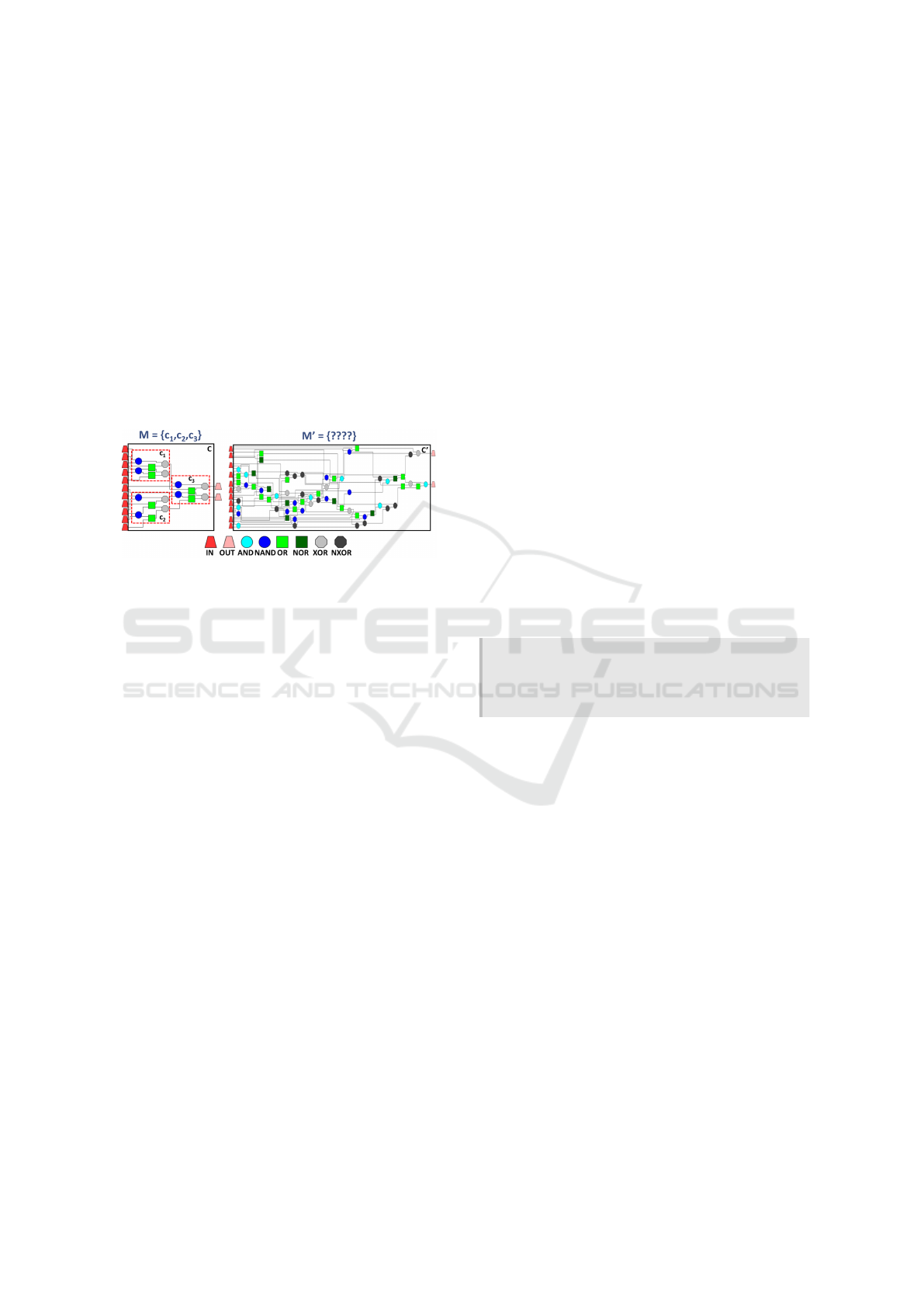

Figure 1: Adversarial Component Recovery.

From a protection viewpoint, obfuscation pro-

vides a technical means to transform circuits into

forms that are harder to analyze and thus reverse en-

gineer (Chakraborty and Bhunia, 2009; Vijayakumar

et al., 2017; Zhang, 2016). An obfuscator O is a trans-

former that produces such semantically equivalent

variants of an original circuit C such that O(C) = C

and ∀x : C(x) = C

(x). Component identiﬁcation al-

gorithms serve as adversarial attack vectors to such

protections. In some cases, candidate enumeration al-

gorithms which are part of the identiﬁcation process

assume orderly or normal connections of gates and

wires that conform to standard CAD design compo-

nents. Obfuscation algorithms can violate these as-

sumptions and thus motivate the need for different

approaches to delineate subcircuit candidates. We re-

port in this paper the development of six derivative

approaches to a polynomial-time algorithm for iden-

tifying subcircuit candidates ﬁrst posed by Doom et

al. (Doom et al., 1998) and White et al. (White et al.,

2000). Our new approaches came out of the desire to

increase the number of potentially viable subcircuits

that might be present in obfuscated netlists, with the

trade-off of increased runtime overhead. We perform

a case study analysis that compares the effectiveness

of these seven different subcircuit enumeration algo-

rithms against circuit variants that are obfuscated by

four different transformation algorithms. Our contri-

butions include:

• We propose six extended approaches for subcir-

cuit enumeration and report their effectiveness in

increased candidate enumeration versus increased

runtime overhead

• We evaluate effectiveness of seven total compo-

nent identiﬁcation approaches versus four differ-

ent component hiding approaches used on gate-

level netlists

• We further the body of knowledge in the area of

algorithmic reverse engineering, a relatively new

ﬁeld of research

The rest of the paper is organized as follows: sec-

tion 2 provides background and related work on hard-

ware reverse engineering and obfuscation. Section 3

covers the transformation algorithms used in our case

study that target hiding of component abstractions.

Section 4 describes component identiﬁcation algo-

rithms, including six extended versions of the White

algorithm (White et al., 2000). Section 5 details our

experimental methodology including benchmark se-

lection and testing environment. Section 6 provides

results of the study with comparison of best compo-

nent identiﬁcation approaches and most effective hid-

ing algorithms. Section 7 provides a summary and

conclusions from the study as well as discussion of

future work.

Benchmark circuits and a front-end inter-

face to the software used in this case study

can be found at http://soc.southalabama.edu/

∼

mcdonald/research.htm.

2 BACKGROUND AND RELATED

WORK

Reverse engineering (RE) is commonly practiced but

there lacks research in quantiﬁcation of its complex-

ity: this stems from its nature as both an art and a skill

with both human and automated techniques which

provide context for its use. It has been used histor-

ically to gain advantage over competitors and as a

means to recover lost designs for undocumented sys-

tems. The study and application of integrated circuit

(IC) reverse engineering is thus a two-edged sword: it

can be used for legitimate purposes such as identify-

ing patent infringement or detecting insertion of ma-

licious logic, and it can be used for illegal purposes

such as probing a system to insert vulnerabilities or to

steal IP technology (Fyrbiak et al., 2017). We take the

position of the reverse engineer as an adversary with

malicious purposes in this study to understand better

how to protect IC against such analysis. In order to

SECRYPT 2022 - 19th International Conference on Security and Cryptography

182

provide reasonable estimation of adversarial power,

more research is needed to understand limits of auto-

mated approaches and their impact on proposed pro-

tection approaches (Azriel et al., 2021). This pa-

per furthers that goal by posing new adversarial tech-

niques and comparing them to known countermea-

sures in the form of obfuscation transformations. For

our case study, we assume an adversary has physically

reverse engineered an artifact (Torrance and James,

2011; Fyrbiak et al., 2017) and recovered a gate-level

netlist of a target circuit under study.

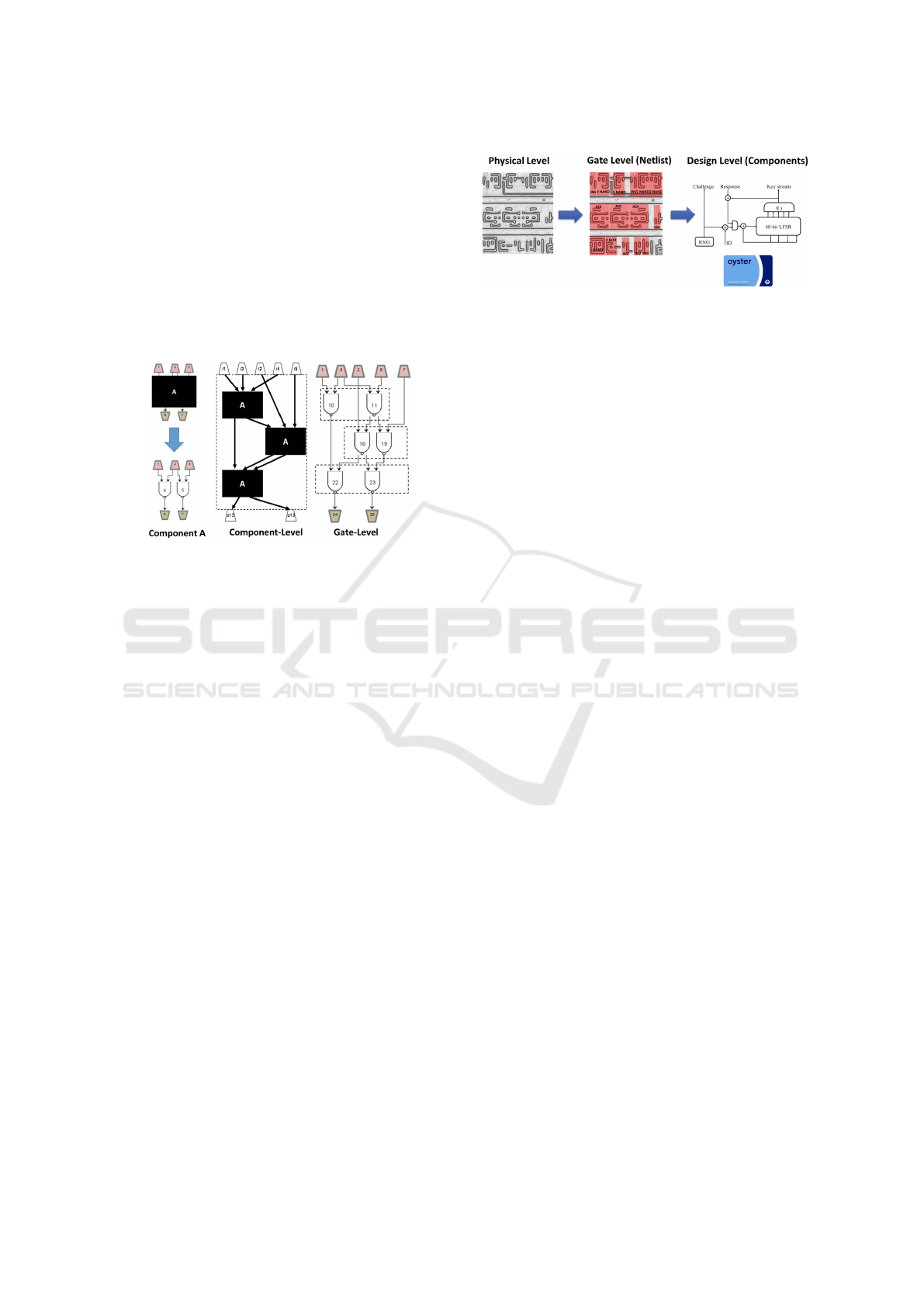

Figure 2: Design from Component Building Blocks.

Figure 2 illustrates a scenario where some com-

ponent A from a circuit library constitutes its own in-

put, output, and intermediate gate speciﬁcation. At

the component abstraction level, they represent black-

boxes with speciﬁc semantics, but at the gate-level ab-

straction level, that information is lost once physical

synthesis is conducted. Design level abstractions such

as type and ordering of components are thus essential

information for further recovery of abstract informa-

tion for malicious reverse engineers.

Figure 3 illustrates an example of a successful ad-

versarial reverse engineering case study by Nohl et al.

(Nohl et al., 2008) on the Mifare Classic RFID tag

by NPX. Their case study illustrated not only phys-

ical reverse engineering with a low budget, but also

demonstrated the recovery of gate-level logic (netlist)

from a silicon implementation and then recovery of

component level information from the netlist. Nohl

and his colleagues showed how recovery of design

level components led to discovery of weaknesses in

the cryptography embedded in the circuit, which led

to further exploitation.

2.1 Speciﬁcation Recovery

Various solutions and algorithms are posed by re-

searchers with the goal of recovering data-paths and

functionality of circuit modules in a data-path given

a gate-level netlist, which builds the original speciﬁ-

cations for a circuit design. Components are smaller

Figure 3: Design Recovery from Physical Artifact.

circuits used to build larger circuits and constitute

one type of design abstraction found in gate-level

netlists. We focus on these speciﬁcally in this pa-

per and our case study. Recovery of high-level struc-

tures has been studied for some time, but has gained

more attention recently because of the security threats

facing the IC market worldwide. In their seminal

work, Hansen et al. (Hansen et al., 1999) illustrated

a human-oriented approach to identifying high-level

structures in logic circuits based on looking for key

patterns: 1) library modules, 2) repeated modules, 3)

expected global structures, 4) computed functions, 5)

control functions, 6) bus structures, and 7) common

names. Gates with unknown function were classiﬁed

as black-boxes. In our study, we focus only on the

identiﬁcation of known library modules using algo-

rithmic methods.

Structural and Functional Analysis. (Subramanyan

et al., 2013) developed a set of algorithms for an-

alyzing unstructured netlists to recover components

such as register ﬁles, counters, adders and subtracters.

Their approach involved both structural and func-

tional analysis and their benchmark set were Verilog

netlists of eight large system-on-chip (SoC) designs

including CPUs, routers, and micro-controllers. They

also used their approach to show successful detection

of trojan circuitry of no more than 50-60 gates in size.

In our study, we evaluate small unobfuscated bench-

mark circuits and variants produced through obfusca-

tion techniques using extended versions of the same

core algorithm (Doom et al., 1998; White et al., 2000)

for component identiﬁcation.

A recent survey of algorithmic methods for IC re-

verse engineering by (Azriel et al., 2021) uses the

term speciﬁcation discovery to describe partial or full

understanding of an IC’s functionality. The survey

summarizes four main approaches for speciﬁcation

discovery: 1) structural, 2) functional (behavioral), 3)

data, and 4) control. In our study, we focus predom-

inantly on behavioral identiﬁcation based on seman-

tics of known component building blocks from a cir-

cuit library or technology map. Azriel et al. also point

out that circuit partitioning is typically a preprocess-

ing steps for netlists, where circuits with millions of

Effectiveness of Adversarial Component Recovery in Protected Netlist Circuit Designs

183

gates for example are separated into smaller subcir-

cuits (modules) to allow for more efﬁcient analysis.

Such modules are then studied further with structural

and functional techniques. The benchmark circuits

and their obfuscated variants in our study are essen-

tially at this level of analysis, where we focus primar-

ily on functional analysis to recover components.

Behavioral Pattern Mining. (Li et al., 2012) pro-

posed an approach to recover functional design blocks

based on simulating traces of the gate-level netlist and

then representing them as pattern graphs. These pat-

tern graphs are then compared to pattern graphs from

components in a known library. Input-output signal

correspondence is cast as a subgraph isomorphism

problem among the potential pattern graphs. Our al-

gorithms of interest are different in that they require

two steps: ﬁrst, enumeration of subgraphs that may

be viable components, and then semantically match-

ing those subcircuits against components in a known

component library. In Li et al.’s approach, they use se-

mantic matching of I/O traces in graph form for their

matching and their case study utilized publicly avail-

able, unobfuscated circuits.

Word-level Structure. (Li et al., 2013) also posed

another approach that automatically derives word-

level structures from gate-level netlists where an an-

alyst can specify sequences of word-level operations

for sub-circuit enumeration. Their framework gener-

ates collection of gates corresponding to world-level

operations and was demonstrated on an SoC design

over 400K cells and open-source components.

Control Logic Recovery. (Meade et al., 2016) pro-

posed a methodology based on recovery of control

logic represented in ﬁnite state-machines (FSM) sim-

ilar to the work of Shi et al. (Shi et al., 2010).

They point out that traditional structural and func-

tional analysis may not fully reveal such control func-

tions. Their approach treated reversing as a friendly

analysis intended to discover added malicious logic;

thus, there benchmark set was medium to large-

scale microprocessors and cryptographic circuits with

hardware trojans inserted. Our work does not ad-

dress high-level control abstractions and also consid-

ers the reversing algorithm as an adversary. In sep-

arate works ((Alcaraz et al., 2013) and (Alcaraz and

Wolthusen, 2014)), the general theory of graph-based

network analysis for derivation of controllability and

observability in the face of malicious attacks is con-

sidered. They study scale-free (random), power-law,

and small-world network controllability and propose

methods to preserve and restore control system func-

tionality when adversaries target them.

Component Matching (Gasc

on et al., 2014) deal

with the second step of our component identiﬁca-

tion algorithm of interest, which is speciﬁcally the

Boolean matching problem (Cong and Minkovich,

2007). In the ﬁrst step of component ID, some al-

gorithm generates candidate structures (subcircuits)

that could be matched to a known functionality.

Gasc

on et al. give an automated approach to the

second step which maps a potential candidate to a

known component in a circuit library using templates.

Their method overcomes many of the limitations

with Permutation-Independent Equivalence Checking

(PIEC) using word-level operations such as concate-

nation, extraction, shifting, and rotation.

2.2 Hardware Obfuscation

Chip to system reverse engineering is a well-studied

area with a multitude of practical techniques pub-

lished in the literature (Quadir et al., 2016). Pop-

ular techniques such as gate camouﬂaging (Cocchi

et al., 2014) and physically unclonable functions

(PUFs) (Bauer and Hamlet, 2014; Wendt and Potkon-

jak, 2014) are both methods that use alteration of

CMOS or speciﬁc electronic properties to achieve

anti-reverse engineering or circuit ﬁngerprinting. In

this paper, we do not address techniques designed to

subvert analysis at the physical level such as those

techniques surveyed by Vijayakumar et al. (Vijayaku-

mar et al., 2017). In terms of techniques designed

to thwart speciﬁcation recovery, logic encryption (or

locking) (Shamsi et al., 2019) has occupied the great-

est amount of research focus with many proposed

techniques (Aksoy et al., 2021) and attacks (Yasin

et al., 2020). In a recent survey, (Shamsi et al.,

2017a) summarized various adversarial models of at-

tack which are categorized as 1) high-level recog-

nition, 2) netlist recovery, 3) and oracle-guided at-

tacks. The predominant research thrust has been in

the use of Boolean satisﬁability (SAT) and Satisﬁa-

bility Modulo Theory (SMT) solvers in oracle-guided

attacks to defeat both logic locking and gate cam-

ouﬂaging techniques, though these attacks are syn-

onymous with learning a function with samples (Li

et al., 2019; Shamsi et al., 2017b). Shamsi et al.

also summarize the major categories of protection

as 1) logic locking, 2) IC camouﬂaging, and 3) cir-

cuit diversiﬁcation. Apart from early obfuscation ap-

proaches by (Chakraborty and Bhunia, 2009) that tar-

geted transformation at the register transfer language

(RTL) level and gate-level integration of ﬁnite state

machine (FSM) in the netlist, little work has focused

on transformation of the gate-level topology outside

of the logic-locking context. We discuss next the ob-

fuscation techniques used in our case study, which are

forms of circuit diversiﬁcation.

SECRYPT 2022 - 19th International Conference on Security and Cryptography

184

3 COMPONENT HIDING

The work presented in this paper centers on the com-

ponent abstraction (subcircuits) within a gate-level

netlist (a parent circuit). For our case study, we used

implementations of algorithms that were developed

by Norman, Parham, and Koranek (McDonald et al.,

2009; McDonald et al., 2012). These algorithms vary

from mostly random variation (with no hiding in-

tent) to mostly deterministic (component information

is targeted). Follow on work by McDonald et al. (Mc-

Donald et al., 2009; McDonald et al., 2011; McDon-

ald et al., 2012) demonstrated that all four algorithms

are effective against component identiﬁcation (White

et al., 2000). We provide explanation of each algo-

rithm next.

3.1 Iterative Selection and Replacement

ISR was posed by (McDonald et al., 2009) as a ran-

dom generator of semantically equivalent replace-

ment logic for a given circuit. It operates by a se-

quence of iterations, where each iteration is composed

of a selection and replacement. The selection algo-

rithm picks (randomly or in guided fashion) a set of

gates (a subcircuit) from the parent circuit. The re-

placement algorithm then generates a replacement set

of gates (a subcircuit) with the same functional se-

mantics (input size, output size, and truth table) as the

selection subcircuit. Figure 4 illustrates the principle

on a small sample circuit. In the example, a selection

subcircuit consists of 2 gates which are replaced by a

randomly generated, semantically equivalent version

of 10 gates.

Figure 4: Example Iteration of ISR Algorithm.

The selection algorithm part of ISR can choose

gates that have not been previously replaced, which

attempts to guarantee that original gates are replaced

at least once, or even more than once (which is re-

ferred to as a round). The number of iterations for ISR

can be: 1) explicitly set (iteration-based), 2) limited

based on a target gate size increase (size-based), or 3)

based on a number of rounds (round-based). ISR can

produce unlimited polymorphic variation, but does

not speciﬁcally target any speciﬁc design-level ab-

straction for hiding–although such hiding may man-

ifest due to the variation process itself (McDonald

et al., 2009).

The replacement algorithm can maximize ran-

domness and we use the more recent proposed

method based on Random Boolean Logic Expansion

(RBLE) (McDonald et al., 2020). With RBLE, the

Boolean logic function of the selection subcircuit is

expanded with random applications of Boolean logic

laws performed in reverse (causing expansion versus

reduction). RBLE has three policies that govern its

expansion each time it is applied to a selected sub-

circuit. In ﬁxed mode, only a ﬁxed number of logic

expansions n are applied. In target and strict size,

the RBLE generator will apply expansions until ei-

ther a strict gate size (= n) or target gate size (>= n)

is reached.

3.2 Boundary Blurring

Boundary blurring was posed by (McDonald et al.,

2012) and provides a deterministic means to hide

component information, targeting the input/output se-

mantics of a given subcircuit component. The prin-

ciple idea is based on selecting gates strategically, at

the input/output boundary of a component, and then

mutating the function of the gate (randomly). After a

gate is mutated, recovery logic is required to recapture

the correct signal at some point lower hierarchically

in the netlist (which is referred to as a recovery gate).

Blur level determines where recovery terminates: one

level down (single-level blur) or multiple levels down

from the mutation (multi-level blur). Figure 5 shows

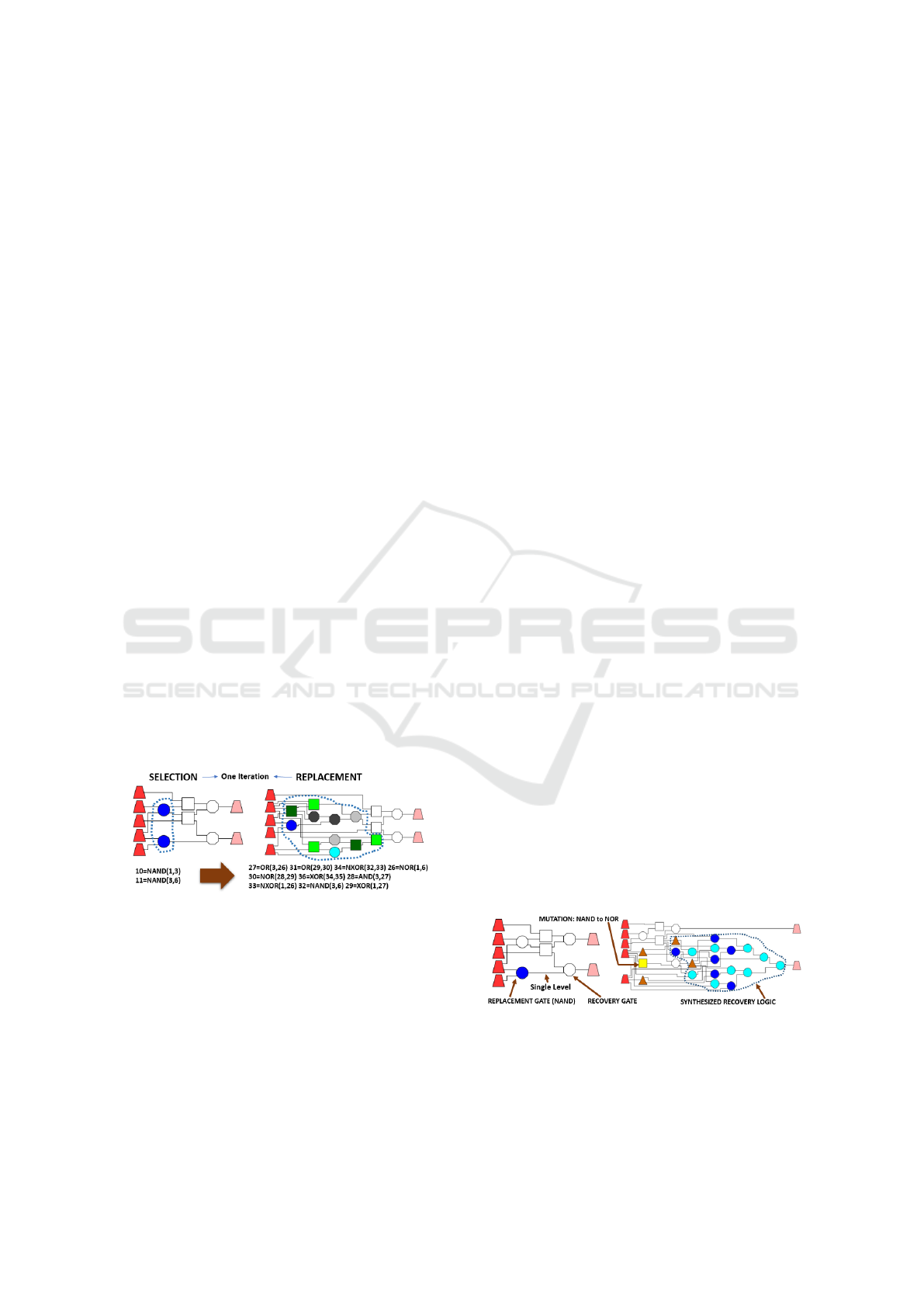

an example of single-level blur and the selection of

a speciﬁc replacement gate. In the example, the re-

placement gate type is mutated from NAND to NOR,

then Boolean algebra is used to formulate the proper

adjustment to the signal to bring it back to its expected

values. This logic is then synthesized using heuristic

options such as Espresso, standard canonical forms,

and misII. The logic is inserted between the replace-

ment gate and the targeted recovery gate, at which

point the signal is no longer mutated.

Figure 5: Example Single-Level Boundary Blur.

Additional signals can also be introduced into a

component which change its overall black-box be-

havior, and this is referred to as a Don’t Care Blur.

While gates can be selected for mutation based on a

Effectiveness of Adversarial Component Recovery in Protected Netlist Circuit Designs

185

number of different features, the most effective hid-

ing occurs when gates are chosen based on speciﬁc

locations at input and output boundaries of original

components (McDonald et al., 2011).

3.3 Component Fusion

(McDonald et al., 2012) proposed an approach for

hiding component information that relies on original

component partitioning. As ﬁgure 6 illustrates, step 1

and 2 of the approach involves identiﬁcation of gates

that belong to speciﬁc subcircuit components, which

come from some standard library. In step 3, the ana-

lyst must selectively pick a new gate partition so that

gates on input and output boundaries of partitions are

re-arranged, thus forming a new partition of the gate

set. Random or predecessor-based partitions can also

be used in the scheme. The algorithm then takes each

component partition (subcircuit) and performs black-

box synthesis using missII, single or randomly chosen

canonical forms (SOPE,POSE,Reed Muller), and sin-

gle or randomly chosen Espresso forms (SOP,POS).

Synthesis and partition choices can introduce ran-

domness to guarantee unique variants of an original

circuit on every run of the algorithm. The synthesized

versions of each component then replace existing gate

logic and original connections are preserved (seen in

step 4 of the example). This approach also target the

input/output behavior of speciﬁc components at de-

sign time to evade behavioral analysis. Component

fusion takes advantage of the fact the synthesis re-

moves internal structural information of constituent

components and also creates new I/O traces and sig-

nals within the circuit, different than those of its orig-

inal components.

Figure 6: Example Component Fusion.

3.4 Component Encryption

Koranek (McDonald et al., 2012) also proposed a

correlary approach known as component encryp-

tion. This algorithm is an adaptation of the classic

white-box cryptography (WBC) approach proposed

by Chow et al. (Chow et al., 2003). WBC was orig-

inally designed to allow key-embedded ciphers that

were implemented as a network of encoded look-up-

tables (LUTs). Component encryption also requires

original component information and is optimal when

it uses the component partition as input to the algo-

rithm. Figure 7 illustrates a small example using the

same starting circuit seen in Figures 1 and 6.

In the example (ﬁgure 7), step 1 and 2 repre-

sent the original gate-level topology and correspond-

ing component partitioning of the circuit (there are

3 component subcircuits that are instances of Com-

ponentX). The algorithm adds logic to encode and

decode signals that are internal to the circuit for ev-

ery potential component whose boundary is not at

the parent circuit I/O boundary. These encodings

use randomly generated Boolean permutation func-

tions to change the I/O of each original component

in unpredictable ways. Component outputs that are

encoded must then be decoded by other components

that use them for input. If c(x) represents the function

of some internal component, the output of the circuit

would become e(c(x)) and a decoding function would

provide d(e(x)) = x, ∀x. Subcircuit components that

receive a signal from an encoded component must

then decode such signals. The collection of circuitry

for encoding outputs, decoding inputs, and the orig-

inal component itself are synthesized into black-box

LUTs: thus the overall circuit is transformed into

a network of encoded LUTs (seen in step 3 and 4

of the example in ﬁgure 7). New components now

have different semantic behavior (changed I/O sizes

and changed function), thus targeting semantic-based

identiﬁers.

Figure 7: Example Component Encryption.

SECRYPT 2022 - 19th International Conference on Security and Cryptography

186

4 COMPONENT

IDENTIFICATION

For our case study, we implemented a base algorithm

posed by (White et al., 2000) and (Doom et al., 1998).

This approach involves two steps:

• Candidate Subcircuit Enumeration: generates

a list of all subgraphs from a target circuit that

might be viable component subcircuits. These

subgraphs once identiﬁed specify (arbitrary) in-

puts, outputs, and intermediate gates.

• Semantic Matching: Each candidate subcircuit

is compared against known components in a pro-

vided circuit library. The matching we employ

uses the ABC tool by Berkeley for semantic iden-

tiﬁcation. Because inputs and outputs are spec-

iﬁed arbitrarily, all possible enumerations of the

I/O space must be considered to fully ensure no

match is made. If done in a brute-force manner, an

n-input, m-output circuit would have n! ∗ m! pos-

sible combinations to consider.

4.1 Basic Algorithm

(White et al., 2000) proposed an O(n

) complexity

algorithm (which we call the Basic Algorithm) for

candidate subgraph enumeration that guarantees each

subgraph is only enumerated once. In the general

case, subgraph enumeration is O(2

) based on con-

nectivity, but the Basic Algorithm takes advantage of

the fact that only some subgraphs are of interest as

real-world building blocks. In particular, only sub-

graphs that exclusively contain vertices that symbol-

ize fully speciﬁed gates are enumerated. These are the

subcircuits known as feasible subgraphs. With edge

set (E(G)) and vertex set (V (G)) of some graph G,

the following deﬁnitions are utilized in the basic al-

gorithm:

• Fully Speciﬁed Vertex: A gate that is joined

within the subgraph by either all the vertices sym-

bolizing its inputs or none of those vertices. In a

subgraph H of a circuit graph G, a vertex v is a

fully speciﬁed vertex if (∀u — uv ∈ E(G) ∧ u ∈

V (H)) ∨ (∀u — uv ∈ E(G) ∧ u 6∈ V (H)). See

ﬁgure 8.

• Subcircuit: A subgraph H of a circuit graph G is

a subcircuit of G if and only if it is connected and

each vertex in H is fully speciﬁed. See ﬁgure 9.

• Contained Vertex: In a subgraph H of a circuit

graph G, a vertex v is a contained vertex if ((∀u

— uv ∈ E(G) ∧ u ∈ V (H)) ∨ (∀u — uv ∈ E(G)

∧ u 6∈ V (H)) ∧ (∀u — uv ∈ E(G) ∧ u ∈ V (H)) ∨

(∀u — uv ∈ E(G) ∧ u 6∈ V (H))). See ﬁgure 8.

• Contained Subcircuit: A subgraph H of a sub-

circuit graph G is a contained subcircuit of G if

and only if each vertex in H is contained. See ﬁg-

ure 9.

• Frontier: Frontier F of a subgraph H is all v such

that v ∈ N(H) and v.index ¡ H.index.

• Reachable Frontier: The reachable frontier of

a subgraph H is denoted by F

(H) and consists

of all of the vertices v that may be added to H.

For a subgraph H

= H

(i−1)

+ v

, F

) consists

of all u such that: u ∈ F(H

) and either 1) u 6∈

F(H

(i−1)

) or 2) u ∈ F(H

(i−1)

) and v ∈ F

(i−1)

)

and u.index < v

.index.

The ﬁrst step in the Basic Algorithm assigns a

unique integer index to the vertices in the graph, start-

ing from the outputs proceeding to the inputs. Indexes

are higher than the vertices that feed into it and the

starting point for the enumeration can be an arbitrar-

ily chosen vertex (typically at the output level). As

the algorithm progresses, all vertices become a start-

ing point for a sequence of unique subgraphs. In each

round of the algorithm, a subgraph H begins with a

single vertex and is then expanded. The neighbor-

ing vertices of subgraph H, N(H), having indices less

than H are considered to be within the frontier (F(H))

of subgraph H. The Basic Algorithm (enumerated as

Algorithm 1) guarantees each subgraph is only enu-

merated once by assigning an index to each vertex

and subgraph. Vertex indices provide a method for

ordering the relation between any two vertices in a

subgraph being emitted.

Algorithm 1: Basic Algorithm (White et al.).

1: procedure ENUMERATE

2: From output: assign unique integer ∀v ∈ V (C)

3: for each v ∈ V (C) do

4: Create a subgraph H containing v

5: Determine F(H) and F

(H)

6: for each vertex u ∈ F

(H) do

7: H

← H +u

8: If !subcircuit(H

): add vertices to H

Else discard

9: If !contained(H

): add vertices to H

Else discard

10: Output H

11: Return H

to Step 4

12: end for

13: end for

14: end procedure

Effectiveness of Adversarial Component Recovery in Protected Netlist Circuit Designs

187

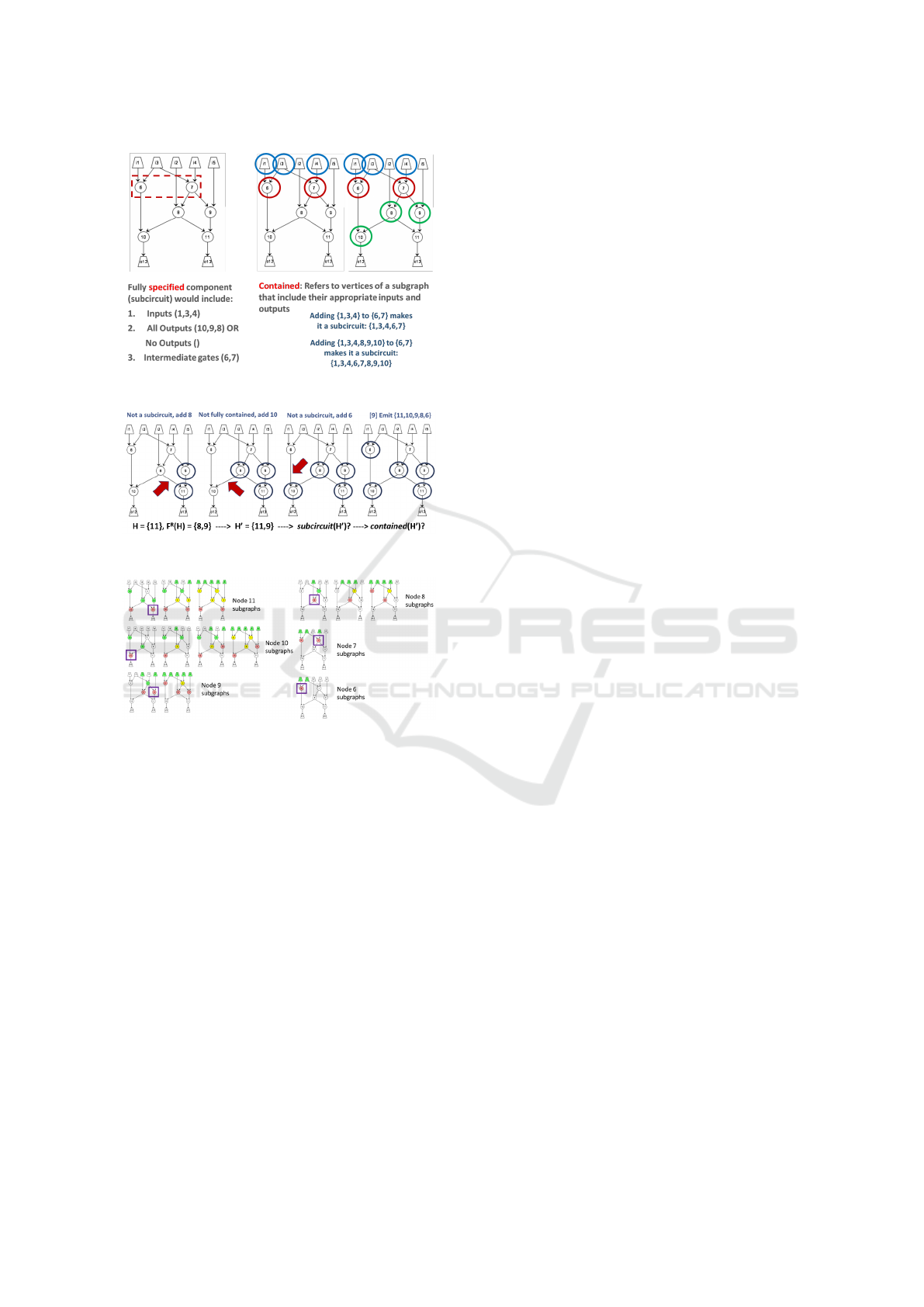

Figure 8: Fully Speciﬁed and Contained Constraint.

Figure 9: Subcircuit Constraint.

Figure 10: Example Subgraph Enumeration.

4.2 Basic Algorithm Variations

In our early experimentation, we observed that the

Basic Algorithm is efﬁcient in enumerating subcircuit

candidates but limited when enumerating correct sub-

circuits that are created by polymorphic variation (ob-

fuscation) algorithms. Essentially such obfuscation

techniques might create circuit subgraphs which no

longer have standard or expected boundaries in terms

of the containment and frontier rules required (see Al-

gorithm 1). Not all possible subgraph expansions are

explored by the Basic Algorithm to start with, because

it does disallow subgraphs without the right proper-

ties. This led us to explore extensions to the Basic

Algorithm so that more subgraphs could be poten-

tially enumerated, and thus potentially more candi-

date components identiﬁed. Our case study was de-

signed to proﬁle the adversarial gain in power (num-

ber of correctly identiﬁed components) versus the re-

sultant overhead (which could potentially return to

O(2

)) if constraints of the algorithm were lifted. We

describe six variations next that we developed next:

• Adaptive Algorithm: In Step 1 of the Basic Al-

gorithm, this version starts with the inputs instead

of the outputs. We wanted to see in this approach

if input versus output oriented subcircuit enumer-

ation would potentially open up different expan-

sion opportunities.

• Containment-Oriented Algorithm: In step 8 of

the Basic Algorithm, containment can be com-

pletely ignored by a provided parameter that is

true or false. If true, this algorithm will imme-

diately output H

(in step 9 of the Basic Algo-

rithm). If false (containment not ignored), then

this algorithm will check containment of H

, and

if not contained, will then allow the subgraph

to be emitted if its intermediate gates are con-

tained or if they can become contained by adding

vertices. This approach was created to address

non-standard connections among gates created

through various obfuscation approaches.

• Extended Algorithm: This algorithm combines

two sets of subgraphs: the ﬁrst set comes from

Basic Algorithm enumeration and then the second

set comes from a modiﬁed form of the Basic Al-

gorithm. In this case, the vertex chosen for inclu-

sion to the subgraph based on the reachable fron-

tier of H (F

(H)) in Step 7 (Algorithm 1) is from

a reverse ordered list of vertices that includes pre-

decessors of vertices u in the reachable frontier.

• Input-Bounded Algorithm: This algorithm fol-

lows the same idea of the Extended Algorithm,

except it computes both successors and predeces-

sors of vertices u in (F

(H)) when choosing the

next vertex to add to the subgraph H

in Step 7 of

the Basic Algorithm (Algorithm 1).

• Combined Algorithm: This algorithm follows

the same steps of the Basic Algorithm 1-7, where

expanded graphs are created by adding vertices

from the reachable frontier of existing subgraphs

that start with each individual vertex. The com-

bined approach however uses four different meth-

ods to grow the subgraph: 1) it requires contain-

ment of H

, but uses predecessor information sim-

ilar to the Extended Algorithm; 2) it requires con-

tainment of

, but uses the Extended Algorithm

to grow each subgraph; 3) it does not require con-

tainment of H

, and 4) it does not require contain-

ment of H

but uses the Extended Algorithm to

grow each subgraph.

• Relaxed Algorithm, Algorithm 7: Takes the Ba-

sic Algorithm but diverges after Step 4 and 5.

The subgraph expansion instead uses a recursive

SECRYPT 2022 - 19th International Conference on Security and Cryptography

188

process that can be limited (called the recursion

depth). Expansion proceeds by iterating through

all elements of the reachable frontier of H, and

outputs each such new subgraph (H

) immediately

with no constraints. The algorithm then adds ver-

tices to the new graph (H

) so that it is a subcir-

cuit. It then computes the reachable frontier of

this new subcircuit and then recursively calls ex-

pansion again on each subgraph.

5 CASE STUDY METHODOLOGY

We structure our case study around the selection of a

set of transformation algorithms and a set of candidate

subcircuit enumeration approaches which precede the

component matching algorithm. We chose four cus-

tom benchmark circuits with small gate size that were

built from a variety of components from a small cir-

cuit component library. An overview of the study is

summarized in ﬁgure 11. All algorithms were imple-

mented using Java and the use of open-source synthe-

sis tools such as ABC and Espresso. All experiments

were ran on a HP Omen laptop with 2.40 GHz i9

processor and 32 GB RAM. The case study involved

taking the original four benchmark circuits and run-

ning all enumeration approaches/component identiﬁ-

cation algorithm on them. The same circuits were

then obfuscated using the eight variations described

below and then running all variants through the same

enumeration/component ID algorithms again. The

runtime overhead and identiﬁcation accuracy was

recorded and compared between the unobfuscated

and obfuscated versions of each benchmark circuit.

Component Library: The component library which

benchmark circuits were constructed from and all

candidates were matched against include the follow-

ing fourteen (with input/output size and acronym in-

dicated). All circuits were speciﬁed in BENCH netlist

format: half-subtractor (HS: 2/2), half-adder (HA:

2/2), 1-bit comparator (2-3COMP: 2/3), 2-bit de-

coder (2-4DEC: 2/4), 2-bit multiplexor (2-1MUX:

3/1), full-adder (FA: 3/2), full-subtractor (FS: 3/2),

2-bit demultiplexor (1-4DEMUX: 3/4), 3-bit decoder

(3-8DEC: 3/8), priority encoder (4-2ENC: 4/2), 2-bit

comparator (2-3COMP: 4/3), c17 - a conceptual com-

ponent (c17: 5/2), 2-bit adder (ADDER2: 5/3), and

4-1 multiplexor/polygate (POLYGATE: 6/1).

Enumeration Algorithms: We studied all seven

subcircuit candidate enumeration algorithms: Basic,

Adaptive, Containment-Oriented, Extended, Input-

Bounded, Combined, and Relaxed. For the Relaxed

Algorithm, we used three different recursion depths

(level 1, 2, and 3). All other algorithms had de-

fault options applied, thus totaling 10 enumeration

types. Component identiﬁcation used a brute-force

approach of mutating all possible input/output com-

binations and using ABC to compare various versions

of candidate components against the known compo-

nents in the circuit library.

Transformation Algorithms: We studied the four

transformation algorithms detailed in Section 3. Each

algorithm could generate a unique variant, even given

the same options, but we chose to only generate one

variant for each approach. We also chose two dif-

ferent option sets for each of the four transformation

algorithms. Details for each algorithm are as follows:

• ISR: We chose for standard options to use a

iteration-based strategy with the algorithm run-

ning 50 iterations total. The selection size was

either 10 gates or 15 gates (seen as RBLE10 and

RBLE15 in ﬁgure 11).

• Boundary Blurring: We exercised this algorithm

in Level One and Don’t Care mode, choosing to

pick randomly half the amount of total gates in the

original circuit for blurring. We used canonical

Quine-McCluskey reduction forms for synthesis.

• Component Fusion: We chose two different

types of synthesis for component fusion: canon-

ical and Espresso. The component conﬁguration

used for the algorithm was manually entered and

involved taking the original conﬁguration based

on the design of each circuit and either eliding or

extending the internal boundaries.

• Component Encryption: We chose two differ-

ent types of synthesis for component encryption:

canonical and Espresso. The component conﬁg-

uration used for the algorithm was manually en-

tered and involved taking the original conﬁgura-

tion based on the design of each circuit and either

eliding or extending the internal boundaries.

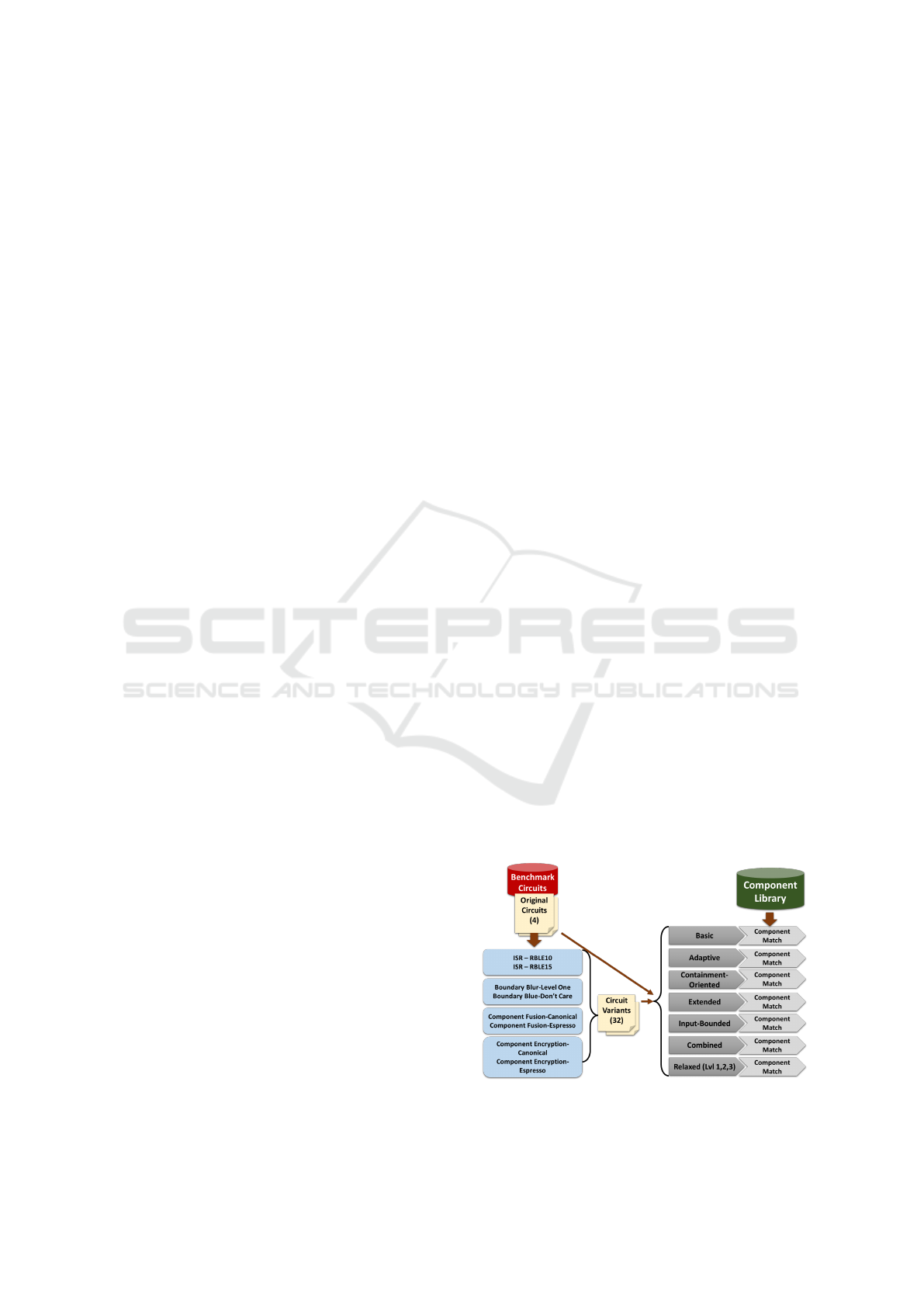

Figure 11: Case Study Overview.

Effectiveness of Adversarial Component Recovery in Protected Netlist Circuit Designs

189

Benchmark Circuits: The four benchmark circuits

are summarized in table 1. In general, we chose

circuits with less than 100 gates to make enumera-

tion times reasonable since these circuits are obfus-

cated further and we wanted to characterize run-time

overhead versus evaluate feasibility on large-scale cir-

cuits. We created the benchmarks based on various

criteria. The 4-bit multiplier uses NAND-only full-

adder components and is a smaller design version of

the large c6288 16-bit multiplier circuit: it represents

a circuit with almost homogeneous design compo-

nents. The multicomp circuit was created from six

unique components in the library to represent poten-

tial diversity. The c17-polygate is the standard c17

circuit with 6 NAND gates, where every gate is re-

place with a polygate component, which are variants

of basic multiplexors. In initial testing, different ver-

sions of the polygate component introduced unique

gate and wiring conﬁgurations that were not enumer-

ated by the Basic Algorithm.

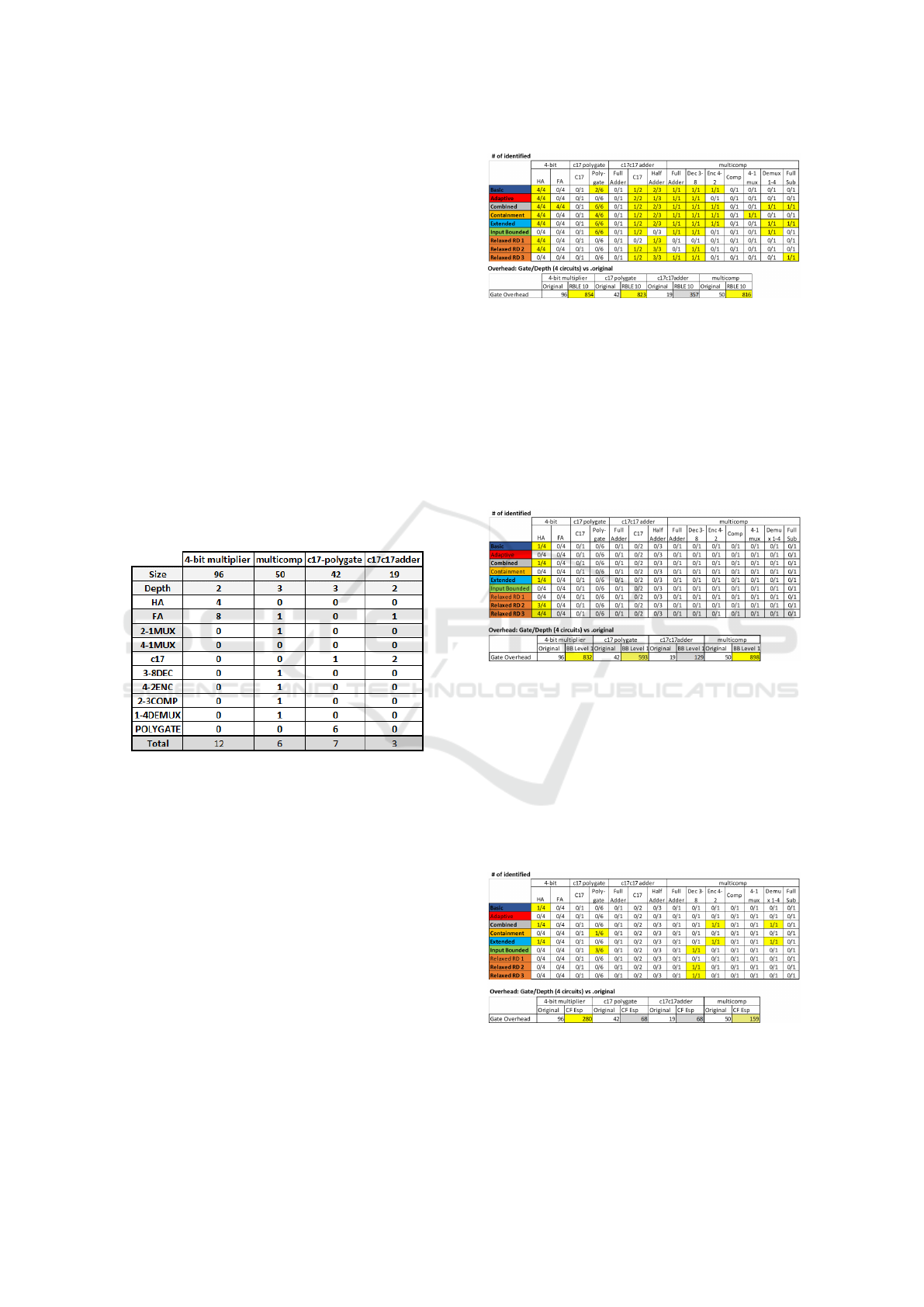

Table 1: Benchmark Summary.

6 RESULTS

We performed our case study and recorded results for

all benchmark circuits before and after the 8 varia-

tions of the 4 transformation algorithms were applied.

We report ﬁrst results of the best of each of the 4 trans-

formation approaches in terms of hiding effectiveness

and overhead.

ISR-RBLE10 results are summarized in ﬁgure 12

and show that it was able to hide 145/252 possible

components across all enumeration algorithms. Our

recorded runtime overhead of the identiﬁcation algo-

rithm variations compared from original vs. obfus-

cated variants was on average 84,463% higher. Over-

head in terms of increased gate size was on average

15.9 times higher over the original. ISR-RBLE15 had

similar effectiveness in hiding, but came at an average

overhead of 22.4 times original gate size.

Figure 12: Summary - ISR-RBLE10.

Boundary Blur-Single Level results are summa-

rized in ﬁgure 13 and show that it was able to

hide 242/252 possible components across all enu-

meration algorithms. Our recorded runtime overhead

of the identiﬁcation algorithm variations compared

from original vs. obfuscated variants was on aver-

age 23,869% higher. Overhead in terms of increased

gate size was on average 11.88 times higher over the

original.

Figure 13: Summary - Boundary Blur-Level One.

Component Fusion-Espresso results are summa-

rized in ﬁgure 14 and show that it was able to

hide 238/252 possible components across all enu-

meration algorithms. Our recorded runtime overhead

of the identiﬁcation algorithm variations compared

from original vs. obfuscated variants was on aver-

age 1,086% higher. Overhead in terms of increased

gate size was on average 16.7 times higher over the

original.

Figure 14: Summary - Component Fusion-Espresso.

Component Encryption-Espresso results are sum-

marized in ﬁgure 15 and show that it was able to

hide 244/252 possible components across all enumer-

SECRYPT 2022 - 19th International Conference on Security and Cryptography

190

ation algorithms. Our recorded runtime overhead of

the identiﬁcation algorithm variations compared from

original vs. obfuscated variants was on average 350%

higher. Overhead in terms of increased gate size was

on average 11.2 times higher over the original.

Figure 15: Summary - Component Encryption-Espresso.

In terms of transformation algorithms, all algo-

rithms hide some number of components and all algo-

rithms induced, on average, increased analyzer run-

times for all enumeration types. These two factors

typically are used to categorize a transformer as ef-

fective against a particular type of analysis in respect

to traditional Man-at-the-End (MATE) attacks. Fig-

ure 16 summarizes effectiveness of all transformation

algorithms and their hiding effectiveness against all

identiﬁcation algorithms.

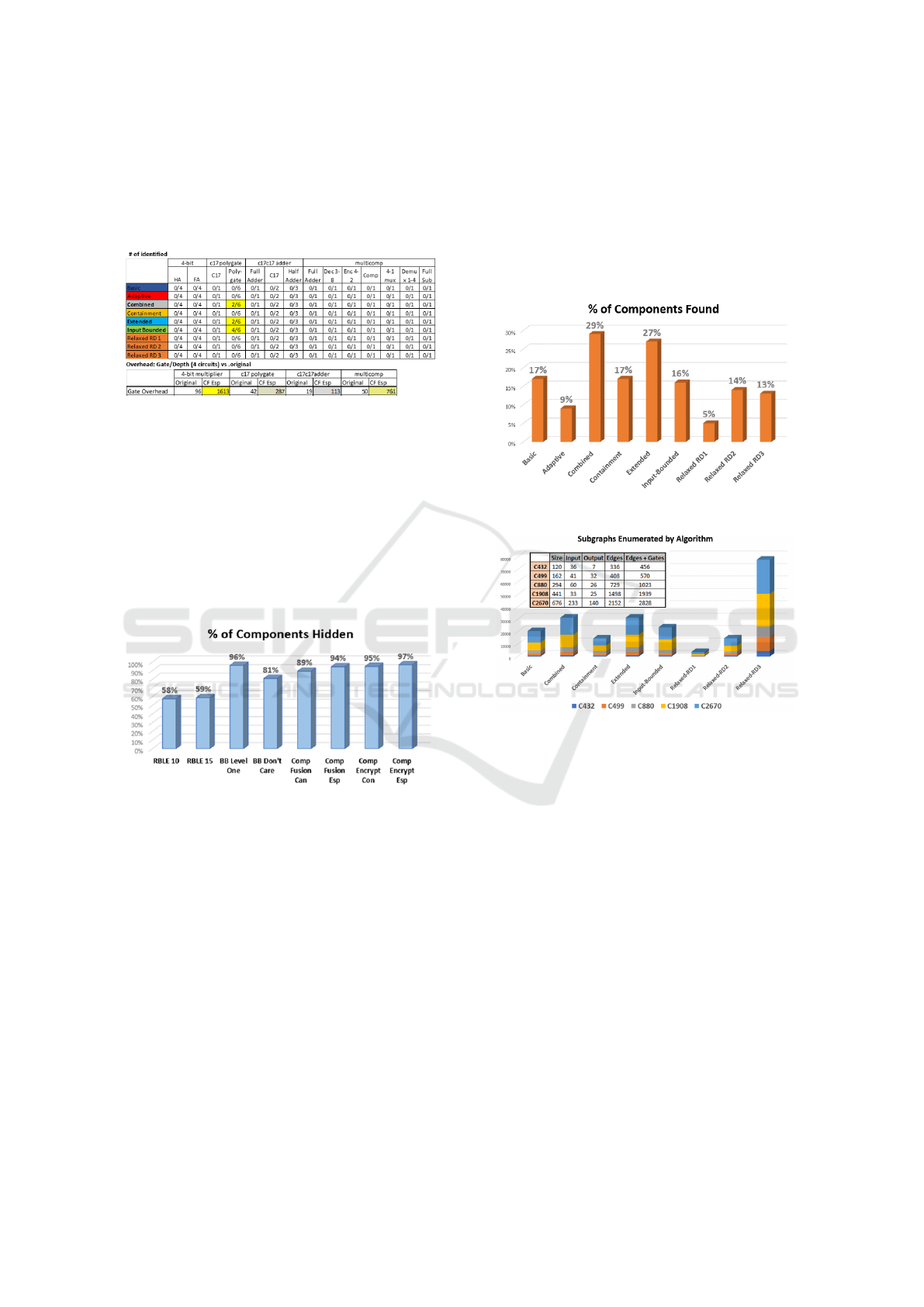

Figure 16: Transformation Algorithm Effectiveness.

In terms of whether the six new extensions to the

Basic Algorithm for candidate subcircuit enumera-

tion resulted in higher detection accuracy, ﬁgure 17

summarizes the overall identiﬁcation accuracy by ap-

proach used. The Combined and Extended algorithm

had the highest overall impact on identiﬁcation in

the end. Compared to the expected increase in num-

ber of subgraphs enumerated, ﬁgure 18 shows results

of a study of 5 circuits that are part of the ISCAS-

85 benchmark set. While the Relaxed algorithm has

the greatest power to incorporate potential subcircuit

components with recursion depth, some algorithms

surprisingly show that they return less subgraphs than

the Basic Algorithm to begin with. Algorithms such

as Combined and Extended for example that return on

average a greater # of subgraphs than the Basic Algo-

rithm, also appear to better identify subcircuits even

after the four transformation algorithms we studied

were used. Based on the component study, some algo-

rithms under-performed the Basic Algorithm: Adap-

tive and Relaxed with recursion depth 1 and 2. Again,

this corresponds roughly to the fact that these algo-

rithms enumerate less subgraphs than expected, as

seen in ﬁgure 18.

Figure 17: Enumeration Algorithm Effectiveness.

Figure 18: Subgraph Enumeration by Algorithm.

7 CONCLUSIONS

All component hiding algorithms we studied were

considered effective: they concealed one or more

components and on average increased time for iden-

tiﬁcation. The most effective of our six new pos-

sible extensions to the Basic Algorithm at identify-

ing components were the Combined and Extended

approach. Our study showed that for the analyz-

ers tested, the Component Encryption-Espresso and

Boundary Blurring-Level One obfuscation algorithm

concealed all components for 3 out 4 circuits and had

the highest overall hiding rate. Our future work will

consider large-scale studies of industry scale circuits

and component libraries with knowledge gained from

this study.

Effectiveness of Adversarial Component Recovery in Protected Netlist Circuit Designs

191

REFERENCES

Aksoy, L., Nguyen, Q., Almeida, F., Raik, J., Flottes, M.,

Dupuis, S., and Pagliarini, S. (2021). High-level In-

tellectual Property Obfuscation via Decoy Constants.

In IOLTS 2021, pages 1–7, Torino, Italy. IEEE.

Alcaraz, C., Miciolino, E. E., and Wolthusen, S.

(2013). Structural controllability of networks for non-

interactive adversarial vertex removal. In Critical

Information Infrastructures Security, pages 120–132.

Springer.

Alcaraz, C. and Wolthusen, S. (2014). Recovery of struc-

tural controllability for control systems. In Critical

Infrastructure Protection VIII, pages 47–63. Springer.

Azriel, L., Speith, J., Albartus, N., Ginosar, R., Mendel-

son, A., and Paar, C. (2021). A survey of algorithmic

methods in ic reverse engineering. Jour. of Crypto.

Eng., 11(3):299–315.

Bauer, T. and Hamlet, J. (2014). Physical unclonable func-

tions: A primer. IEEE Security Privacy, 12(6):97–

101.

Chakraborty, R. and Bhunia, S. (2009). Harpoon: an ob-

fuscation based soc design methodology for hardware

protection. IEEE Trans. CADIC Syst., 28(10):1493–

1502.

Chow, S., Eisen, P. A., Johnson, H., and van Oorschot, P. C.

(2003). White-box cryptography and an aes imple-

mentation. In SAC ’02, pages 250–270. Springer.

Cocchi, R., Baukus, J., Chow, L., and Wang, B. (2014).

Circuit camouﬂage integration for hardware ip protec-

tion. In DAC’14, pages 1–5.

Cong, J. and Minkovich, K. (2007). Improved sat-based

boolean matching using implicants for lut-based fp-

gas. In ISFPGA ’07, page 139–147.

Design and Reuse (2012). Innovation at risk: Ip infringe-

ment challenges the semiconductor equipment indus-

try.

Doom, T. E., White, J. L., Wojcik, A. S., and Chisholm, G.

(1998). Identifying high-level components in combi-

national circuits. In 8th GLS-VLSI, pages 313–318.

Fyrbiak, M., Strauß, S., Kison, C., Wallat, S., Elson, M.,

Rummel, N., and Paar, C. (2017). Hardware re-

verse engineering: Overview and open challenges. In

IVSW’19. IEEE Computer Society.

Gasc

on, A., Subramanyan, P., Dutertre, B., Tiwari, A., Jo-

vanovi

c, D., and Malik, S. (2014). Template-based

circuit understanding. In FMCAD’14, page 83–90.

Hansen, M., Yalcin, H., and Hayes, J. (1999). Unveil-

ing the iscas-85 benchmarks: a case study in reverse

engineering. Design & Test of Computers, IEEE,

16(3):72–80.

Li, M., Shamsi, K., Meade, T., Zhao, Z., Yu, B., Jin, Y.,

and Pan, D. Z. (2019). Provably secure camouﬂag-

ing strategy for ic protection. IEEE Trans. on Comp.-

Aided Des. of Integ. Circ. and Sys., 38(8):1399–1412.

Li, W., Gascon, A., Subramanyan, P., et al. (2013). Wor-

drev: Finding word-level structures in a sea of bit-

level gates. In HOST’13, pages 67–74.

Li, W., Wasson, Z., and Seshia, S. A. (2012). Reverse en-

gineering circuits using behavioral pattern mining. In

HOST’12, pages 83–88. IEEE Computer Society.

McDonald, J., Kim, Y., and Grimaila, M. (2009). Protect-

ing reprogrammable hardware with polymorphic cir-

cuit variation. In CSRW ’09.

McDonald, J., Kim, Y., and Koranek, D. (2011). Determin-

istic circuit variation for anti-tamper applications. In

CSIIRW ’11.

McDonald, J., Kim, Y., Koranek, D., and Parham, J. (2012).

Evaluating component hiding techniques in circuit

topologies. In ICC’12, pages 1138–1143.

McDonald, J., Stroud, T., and Andel, T. (2020). Polymor-

phic circuit generation using random boolean logic ex-

pansion. In SAC’20.

Meade, T., Zhang, S., and Jin, Y. (2016). Netlist reverse en-

gineering for high-level functionality reconstruction.

In ASP-DAC’16, pages 655–660.

Nohl, K., Evans, D., Starbug, S., and Pl

otz, H. (2008).

Reverse-engineering a cryptographic rﬁd tag. In

USENIX’08, page 185–193, USA. USENIX Associ-

ation.

Quadir, S. E., Chen, J., Forte, D., et al. (2016). A survey on

chip to system reverse engineering. J. Emerg. Technol.

Comput. Syst., 13(1).

Shamsi, K., Li, M., Meade, T., et al. (2017a). Circuit obfus-

cation and oracle-guided attacks: Who can prevail? In

Proc. of GLS-VLSI 2017, page 357–362.

Shamsi, K., Li, M., Meade, T., Zhao, Z., Pan, D. Z., and Jin,

Y. (2017b). Appsat: Approximately deobfuscating in-

tegrated circuits. In HOST’17, pages 95–100.

Shamsi, K., Li, M., Plaks, K., et al. (2019). Ip protec-

tion and supply chain security through logic obfusca-

tion: A systematic overview. ACM Trans. Des. Autom.

Electron. Syst., 24(6).

Shi, Y., Ting, C., Gwee, B., and Ren, Y. (2010). A highly ef-

ﬁcient method for extracting fsms from ﬂattened gate-

level netlist. In ISCAS’10, pages 2610–2613.

Subramanyan, P., Tsiskaridze, N., Pasricha, K., Reisman,

D., Susnea, A., and Malik, S. (2013). Reverse engi-

neering digital circuits using functional analysis. In

DATE ’13, page 1277–1280.

Torrance, R. and James, D. (2011). The state-of-the-art in

semiconductor reverse engineering. In DAC’11, pages

333–338.

Vijayakumar, A., Patil, V. C., Holcomb, D. E., Paar, C.,

and Kundu, S. (2017). Physical design obfuscation

of hardware: A comprehensive investigation of device

and logic-level techniques. IEEE Trans. on Info. For.

and Sec., 12(1):64–77.

Wendt, J. B. and Potkonjak, M. (2014). Hardware obfus-

cation using puf-based logic. In ICCAD’14, ICCAD

’14, page 270–277. IEEE Press.

White, J. L., Wojcik, A. S., Chung, M., and Doom, T. E.

(2000). Candidate subcircuits for functional module

identiﬁcation in logic circuits. In Proc. of 10th GLS-

VLSI, page 34–38.

Yasin, M., Mazumdar, B., Sinanoglu, O., and Rajendran, J.

(2020). Removal attacks on logic locking and cam-

ouﬂaging techniques. IEEE Trans. Emerg. Topics

Comp., 8(2):517–532.

Zhang, J. (2016). A practical logic obfuscation technique

for hardware security. IEEE Trans. Very Large Scale

Integr. Syst., 24(3):1193–1197.

SECRYPT 2022 - 19th International Conference on Security and Cryptography

192
