PAMMELA: Policy Administration Methodology using Machine

Learning

Varun Gumma

, Barsha Mitra

, Soumyadeep Dey

, Pratik Shashikantbhai Patel

, Sourabh Suman

Saptarshi Das

and Jaideep Vaidya

Department of Computer Science and Engineering, IIT Madras, Chennai, India

Department of CSIS, BITS Pilani, Hyderabad Campus, Hyderabad, India

Microsoft India Development Center, India

JIS Institute of Advanced Studies and Research, JIS University, Kolkata, India

MSIS Department, Rutgers University, New Brunswick, NJ, U.S.A.

h20201030178}@hyderabad.bits-pilani.ac.in, saptarshi@jisiasr.org, jsvaidya@business.rutgers.edu

Keywords:

ABAC, Policy Administration, Policy Augmentation, Policy Adaptation, Supervised Learning.

Abstract:

In recent years, Attribute-Based Access Control (ABAC) has become quite popular and effective for enforcing

access control in dynamic and collaborative environments. Implementation of ABAC requires the creation of

a set of attribute-based rules which cumulatively form a policy. Designing an ABAC policy ab initio demands

a substantial amount of effort from the system administrator. Moreover, organizational changes may neces-

sitate the inclusion of new rules in an already deployed policy. In such a case, re-mining the entire ABAC

policy requires a considerable amount of time and administrative effort. Instead, it is better to incrementally

augment the policy. In this paper, we propose PAMMELA, a Policy Administration Methodology using Ma-

chine Learning to assist system administrators in creating new ABAC policies as well as augmenting existing

policies. PAMMELA can generate a new policy for an organization by learning the rules of a policy currently

enforced in a similar organization. For policy augmentation, new rules are inferred based on the knowledge

gathered from the existing rules. A detailed experimental evaluation shows that the proposed approach is both

efﬁcient and effective.

1 INTRODUCTION

In any organization, it is of utmost importance to en-

sure that all accesses to resources take place in an au-

thorized manner. This can be facilitated by deploying

an access control model. Over the years, several ac-

cess control models have been proposed among which

the Role-Based Access Control (RBAC) (Sandhu

et al., 1996) model became quite popular as an ef-

fective means of access control. In spite of its

widespread popularity, RBAC suffers from a major

drawback of being unsuitable for dynamic and col-

laborative environments.

The Attribute-Based Access Control (ABAC)

model (Hu et al., 2014) was proposed to overcome

the limitations of RBAC. This model allows users or

subjects to access resources or objects based on the at-

tributes of the subjects, objects and the environment.

Each attribute is assigned a value or multiple values

from a pre-deﬁned set of values for every subject, ob-

ject and environmental condition. In order to deploy

ABAC, a set of rules is required. A rule deﬁnes the

required attributes and the corresponding permissible

values for each attribute for a speciﬁc type of access.

The set of all rules collectively comprise a policy.

While determining whether to allow or deny an ac-

cess request, the attributes of the requesting subject,

requested object as well as those of the environment

in which the access request is made are taken into ac-

count. If each attribute has been assigned a speciﬁc

value as per some rule, then the access request is al-

lowed, otherwise, it is denied. The process of creating

a policy for implementing ABAC is known as policy

engineering. This can be carried out in two ways -

top-down (Narouei et al., 2017) and bottom-up (Mo-

canu et al., 2015), (Xu and Stoller, 2015), (Gautam

et al., 2017). Bottom-up policy engineering is also

termed as policy mining. Combination of top-down

and bottom-up approaches gives hybrid policy engi-

neering (Das et al., 2018).

Gumma, V., Mitra, B., Dey, S., Patel, P., Suman, S., Das, S. and Vaidya, J.

PAMMELA: Policy Administration Methodology using Machine Learning.

DOI: 10.5220/0011272400003283

In Proceedings of the 19th International Conference on Security and Cryptography (SECRYPT 2022), pages 147-157

ISBN: 978-989-758-590-6; ISSN: 2184-7711

147

An organization intending to migrate to ABAC

needs to design and implement an ABAC policy.

Also, when an organization having an already de-

ployed ABAC model, undergoes some changes, like

opening of a new department or introduction of a new

academic course, additional ABAC rules reﬂecting

the changes need to be generated. Creating ABAC

rules ab initio or completely re-mining an ABAC pol-

icy requires a considerable amount of administrative

effort and time. These overheads can be substantially

reduced if an existing policy is used as a reference

for the creation of a new ABAC policy for migration.

Also, instead of re-mining the complete policy in or-

der to account for the organizational changes, it is

more prudent to only create the additional rules. In

both the scenarios, the existing ABAC policy can aid

the process of creation of new ABAC rules, thereby

effectively providing assistance in the task system ad-

ministration.

In this paper, we propose a machine learning

based methodology that will aid ABAC system ad-

ministrators to efﬁciently augment an existing policy

by including additional rules to accommodate various

organizational alterations as well as to generate a new

ABAC policy for an organization by referring to the

existing policy of a similar organization. The key con-

tributions of the paper are:

• We propose the ABAC Policy Inference Problem

(ABAC-PIP) which takes as inputs an existing

ABAC policy, a set of access requests and the

attribute-value assignment information and cre-

ates a new set of ABAC rules that either augments

the existing policy or constitutes a new policy.

The rules thus created are considered as new since

they are different from the existing ones in terms

of certain attribute values.

• We propose a supervised learning based method-

ology for solving ABAC-PIP. We name our ap-

proach as Policy Administration Methodology

using Machine Learning (PAMMELA). PAM-

MELA trains a machine learning classiﬁer using

an existing ABAC policy. The training includes

both positive (rules that grant accesses) and neg-

ative (rules that deny accesses) rules. After train-

ing, PAMMELA creates a new set of access rules

on being supplied with a set of access requests and

attribute-value assignment information.

• We test our proposed policy inferring methodol-

ogy on three manually crafted datasets that are

created keeping in mind real-world scenarios.

Our experiments show that PAMMELA shows

promising results and provides a high degree of

performance. We have experimented with a num-

ber of machine learning classiﬁers and show com-

parative results for all them.

It is to be noted here that the existing ABAC policy

serving as a reference for the creation of the new rules

is assumed to be correct and free from any form of in-

consistency or noise. The reason is that the existing

policy is assumed to have been deployed over a cer-

tain period of time and is considered to be a tried and

tested means of access control enforcement.

The rest of the paper is organized as follows. Sec-

tion 2 explores the different policy mining approaches

present in the existing literature. In Section 3, we re-

view the preliminary concepts related to ABAC. We

formulate ABAC-PIP in Section 4 and present the cor-

responding solution strategy PAMMELA along with

a discussion of the application scenarios in Section

5. Dataset description, evaluation metrics and exper-

imental results are presented in Section 6. Finally,

Section 7 concludes the paper with some insights into

future research directions.

2 RELATED WORK

A considerable number of work has focused on de-

veloping techniques for creation of ABAC policies.

Xu and Stoller proposed a strategy for mining ABAC

policies from access logs (Xu and Stoller, 2014). An-

other work by Xu and Stoller has formulated the

ABAC policy mining problem as an optimization

problem and has presented weighted structural com-

plexity as a policy quality metric (Xu and Stoller,

2015). Talukdar et al. (Talukdar et al., 2017) have

proposed ABAC-SRM, a bottom-up policy mining

method capable of creating generalized ABAC rules.

Cotrini et al., in (Cotrini et al., 2018), have proposed

Rhapsody, a policy mining technique that can handle

sparse inputs and have deﬁned a rule quality metric

called reliability.

A scoring method for determining the quality of

a policy and an attribute-based rule mining algorithm

from the audit logs of an organization have been pre-

sented in (Sanders and Yue, 2019). This approach can

minimize the under and over privileges for enforcing

the principle of least privilege. The authors in (Alo-

haly et al., 2019) designed a methodology that can ex-

tract ABAC constraints in an automated manner from

policies expressed in natural language. A constrained

policy mining technique has been proposed in (Gau-

tam et al., 2017). Lawal and Krishnan have proposed

an approach for policy administration in ABAC via

policy review (Lawal and Krishnan, 2021). Heutel-

beck et al. (Heutelbeck et al., 2021) have designed

a data structure for efﬁciently indexing policy doc-

uments and have proposed a method for ﬁnding the

SECRYPT 2022 - 19th International Conference on Security and Cryptography

148

relevant policy documents for a particular access re-

quest. Some recent works have combined ABAC

with blockchain (Kumar et al., 2021), (Rouhani et al.,

2021) and have explored the application of ABAC in

smart healthcare (Zhong et al., 2021).

Several incremental and adaptive policy genera-

tion techniques are present in the current literature.

Das et al. (Das et al., 2017) have proposed a pol-

icy adaptation strategy between similar organizations.

They have formulated the NP-complete Policy Adap-

tation Problem (PolAP) which aims at determining

the value assignments of the attributes of each subject

for a given ABAC policy and have proposed a heuris-

tic algorithm for solving it. It can be noted that our

proposed ABAC-PIP is different from PolAP both in

terms of the inputs and the output. Das et al. have

further extended their work in (Das et al., 2019) by

considering environmental attributes and hierarchical

relationships among subject attribute values. Batra et

al. (Batra et al., 2021b) have proposed an incremen-

tal policy mining technique that is capable of creating

new ABAC rules when a new permission is added or

deleted or a new attribute value is added or deleted.

In (Batra et al., 2021a), the authors have presented a

strategy for determining policy similarity, have pro-

posed two methods for performing policy reconcilia-

tion and also presented a policy migration technique.

The rapid growth of artiﬁcial intelligence has

spurred the application of machine learning in the

ﬁeld of access control. In (Mocanu et al., 2015), the

authors have presented a policy generation technique

using Restricted Boltzmann Machines. Karimi et al.

in (Karimi et al., 2021b) have proposed an automated

policy learning method from access logs using un-

supervised learning by considering both positive and

negative rules. (Jabal et al., 2020a) presents Polisma,

a framework for learning ABAC policies from access

logs by using a combination of statistical, data mining

and machine learning algorithms. In (Karimi et al.,

2021a), the authors have designed an adaptive policy

learning method for home Internet of Things (IoT)

environment using reinforcement learning. Jabal et

al. have proposed an approach known as FLAP (Jabal

et al., 2020b) for collaborative environments. FLAP

enables one organization to learn policies from an-

other organization and perform policy adaptation via

a policy learning framework by using local log or lo-

cal policies or local learning or hybrid learning.

In this work, we formulate a policy creation prob-

lem variant and name it as the ABAC Policy Inference

Problem (ABAC-PIP). We employ machine learning

algorithms for solving ABAC-PIP in order to generate

ABAC rules. To the best of our knowledge, this kind

of problem formulation and the design of end-to-end

machine learning based solution strategy for aiding

system administrators have not been addressed in the

existing literature.

3 ABAC PRELIMINARIES

The ABAC model consists of the following compo-

nents:

• A set S of subjects. Each subject can be a human

or a non-human entity.

• A set O of objects. Each object corresponds to

a system resource that should be accessed in an

authorized manner.

• A set E of environmental factors or conditions.

Each condition can represent some temporal or

spatial or some other kind of context in which a

subject requests access to an object. For eg. loca-

tion, time, etc.

• A set SA of subject attributes. Each subject at-

tribute represents a property associated with a

subject and can assume a single or multiple val-

ues from a set of values. These values are known

as subject attribute values. If a subject attribute

assumes a single value, it is known as atomic val-

ued. If it is assigned multiple values for a sub-

ject simultaneously, it is known as multi-valued.

An example of a subject attribute is Department.

The attribute value set of Department can include

Computer Science, Electronics, and Mechanical.

• A set OA of object attributes. All concepts men-

tioned for subject attributes are applicable for ob-

ject attributes as well. An example of an object at-

tribute is Type of Document and its possible values

can be Project Plan, Budget, Expenditure Details.

• A set EA of environmental attributes. All con-

cepts discussed for subject attributes also apply

for environmental attributes. Example of an envi-

ronmental attribute is Time of Doctor’s Visit hav-

ing possible values as Day Shift and Night Shift.

• A function F

sub

that assigns values to subject at-

tributes for a subject. Formally, F

sub

: S x SA

→ {v

| v

is a subject attribute value}. For eg.,

sub

(John, Department) = {Computer Science}.

• A function F

ob j

that assigns values to object at-

tributes for an object. Formally, F

ob j

: O x

OA → {v

| v

is an object attribute value}.

For eg., F

ob j

(File1.doc, Type o f Document) =

{Pro ject Plan}.

• A function F

env

that assigns values to environmen-

tal attributes. Formally, F

env

: E x EA → {v

| v

is an environmental attribute value}.

PAMMELA: Policy Administration Methodology using Machine Learning

149

• A set P of permissions (operations). Common

permission types can be read, write, update, ex-

ecute, etc.

• A set R of rules. Each rule speciﬁes whether a

particular type of access is to be granted or de-

nied. A rule that permits an access is a posi-

tive rule and a rule that disallows an access is a

negative rule. All the rules cumulatively consti-

tute an ABAC policy. An example ABAC rule

can be of the following form - <{Department =

Accounts, Designation = Accountant}, {Type =

Payroll Data, Department = Any}, view >. In

natural language, this rule translates to - If a sub-

ject belongs to the Accounts department and has

a Designation of Accountant, then she can view

the payroll data of any employee belonging to any

department.

4 ABAC POLICY INFERENCE

PROBLEM

Designing ABAC policies is not a trivial task and

requires a considerable amount of administrative ef-

fort. The overhead associated with the process of pol-

icy generation can be reduced if some existing pol-

icy serves as a reference point or guideline based on

which new policies can be inferred. This observa-

tion is applicable for augmenting an existing policy

database by incrementally adding new rules as well

as creating a new policy for an organization that has a

similar structure as that of another organization where

ABAC is already deployed. In order to achieve this

goal of aiding the policy administration process, we

propose the ABAC Policy Inference Problem (ABAC-

PIP).

ABAC-PIP takes a deployed ABAC policy, a set of

subjects, a set of objects, a set of subject attributes and

their corresponding values, a set of object attributes

and their corresponding values and a set of access re-

quests as inputs and produces as output, for each ac-

cess request, the set of permissions or operations re-

quired to carry out the designated task in case the ac-

cess request is to be granted or the decision to deny

the request if it is an unauthorized one. The formal

problem deﬁnition is presented below.

ABAC-PIP: Given an ABAC policy P , a set S of sub-

jects, a set O of objects, a set SA of subject attributes,

a set OA of object attributes, a function F

sub

deﬁning

the value assignment of the subject attributes of each

subject, a function F

ob j

deﬁning the value assignment

of object attributes of each object, and a set L of ac-

cess requests as inputs, determine, corresponding to

each access request, the set of permissions Pr, asso-

ciated with the access request if the access request is

to be permitted or else the decision to deny the access

request if it is not to be permitted.

The following underlying assumptions have been

made for ABAC-PIP.

• The existing ABAC policy P is correct and does

not result either in any form of security breach or

over-restrictive access decisions. The veriﬁcation

of the correctness of P is under not the scope of

the current work.

• The access requests present in the set L are new

access requests and the corresponding access de-

cisions cannot be determined by the rules present

in the already deployed ABAC policy P .

• The access requests contained in L are derived

from access logs of an organization and include

both positive and negative access requests. Pos-

itive access requests are the ones which are to

be granted and negative access requests are those

which are to be denied.

• The new access requests are generated when an

organization having a deployed ABAC model un-

dergoes some changes which necessitate the cre-

ation of additional rules corresponding to the new

access requests that will take place. An example

of such a change can be the opening of a new de-

partment or the introduction of a new job designa-

tion.

• The new access requests can also be generated

when an organization wishes to migrate to ABAC.

This organization is similar in structure and work-

ﬂow to another organization where ABAC has al-

ready been deployed.

• For the new access requests, the relevant informa-

tion regarding the value assignment for the subject

and object attributes are available.

In the following section, we discuss the applica-

bility of ABAC-PIP to two policy administration sce-

narios and present the solution strategy that assists the

corresponding policy administration tasks.

5 PROPOSED METHODOLOGY

We propose a machine learning based methodology

for solving ABAC-PIP. Our approach is designed to

help system administrators in creating ABAC poli-

cies and in the process, can reduce the overhead as-

sociated with policy creation. We name our proposed

strategy as Policy Administration Methodology using

Machine Learning (PAMMELA). In this section, we

SECRYPT 2022 - 19th International Conference on Security and Cryptography

150

ﬁrst present a detailed overview of how PAMMELA

solves ABAC-PIP and then elaborate on the scenarios

where PAMMELA is applicable.

5.1 PAMMELA

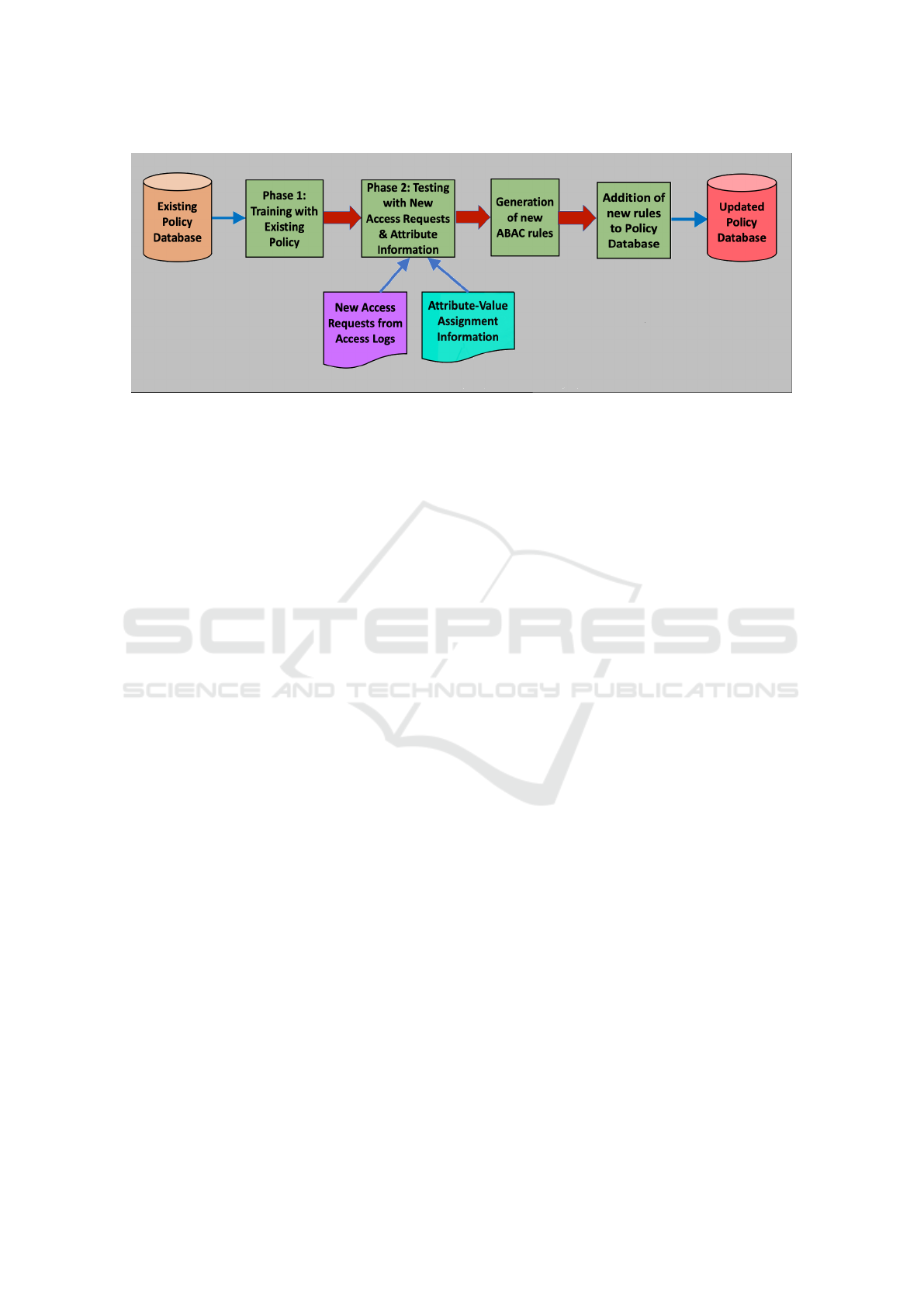

PAMMELA is a supervised learning based method-

ology for solving ABAC-PIP. Our proposed strategy

works in two phases. In the ﬁrst phase, a machine

learning classiﬁer is trained using a set of labeled

data. This labeled data is in the form of an ABAC

policy consisting of several rules. Each rule deﬁnes

the combination of the subject attribute-value pairs

and the object attribute-value pairs for which a subject

will be allowed to access and perform certain opera-

tions or acquire some permissions for an object. We

refer to such rules as positive rules. The attributes are

treated as features by the classiﬁer. The positive rules

help the classiﬁer to learn under which conditions, an

access request is to be granted and what are the corre-

sponding permissions associated with the access.

In addition to this, it is also essential for the clas-

siﬁer to learn when an access request is to be denied.

Such scenarios are covered by the negative rules. A

negative rule speciﬁes the attribute-value pairings for

which an access request is not permissible. For neg-

ative rules, all those attribute-value pairs are consid-

ered which lead to unauthorized accesses, not just the

ones which explicitly deny accesses. Such negative

rules can be derived from the set of positive rules. If

U denotes the set of all possible attribute-value pair-

ings (both subject and object) and PR denotes the set

of positive rules, then the set of negative rules N R

= {U} \ {P R }. Though it is straightforward to de-

rive the elements of N R , the task, however, is not

trivial. The reason behind this is that, generally in

any organization, the set of rules disallowing accesses

is much larger in size than the set of rules allowing

accesses. In PAMMELA, the machine learning clas-

siﬁer is also trained using the negative rules. In this

case, the classiﬁer learns to output denial as a deci-

sion. If the classiﬁer is trained using only the positive

rules, then when a negative access request is given

as input to the classiﬁer, it may not be able to out-

put the correct decision. The reason for this is dur-

ing the training phase, the classiﬁer, in such a case,

never learns to output a deny decision for the speciﬁc

attribute-value combinations.

For supplying the input training data to the ma-

chine learning algorithm, we make use of categori-

cal data. For each attribute value set, the categorical

encoding starts increasing monotonically from 1 such

that each subject or object attribute value is assigned a

numerical value. For eg., If we have a subject attribute

Designation having values Assistant Professor, Asso-

ciate Professor and Professor, then Assistant Profes-

sor can be assigned the value 1, Associate Professor

can be assigned the value 2 and Professor can be as-

signed the value 3. If a particular attribute is not ap-

plicable for a certain subject or object, then a special

value NA (for Not Applicable) is assigned as the at-

tribute value for that subject or object. The reason for

using categorical encoding is a reduced input vector

size in comparison to the vector size that is obtained

using one-hot encoding.

After training, PAMMELA generates new rules in

the second phase which is the testing phase for the

machine learning classiﬁer. Here, a set of access re-

quests is given as input to the classiﬁer. The combina-

tions of the attribute values present in these access re-

quests are different from those present in the existing

policy rules. Such new combinations of values can

occur when either the subject attribute value set(s) or

the object attribute value set(s) or both are augmented

with additional values.

Both positive and negative access requests are

given as input to PAMMELA in the second phase.

Positive access requests are those which are to be

granted and negative access requests are those which

are to be denied. The reason for including both pos-

itive and negative access requests is that when the

already deployed policy cannot account for the or-

ganizational changes, then any type of access re-

quest needs to be appropriately classiﬁed. We assume

that for each of the new access requests, the relevant

attribute-value pair assignment information are avail-

able. Based on the learning achieved in the ﬁrst phase,

the new access requests and the attribute-value infor-

mation, PAMMELA classiﬁes each access request by

determining whether it is to be allowed or disallowed.

If the access request is to be disallowed, PAMMELA

outputs the decision NO. On the other hand, if the

access request is to be granted, PAMMELA outputs

the set of permissions required to successfully exe-

cute the access request in addition to the decision of

Y ES. Once the relevant decisions have been derived,

the newly generated rules are presented to the system

administrator for inclusion into the policy database.

The workﬂow of PAMMELA is depicted in Figure 1.

5.2 Policy Administration via

Augmentative Policy Inference

Undergoing structural and functional changes is not

uncommon for any organization. Examples of such

changes include but are not limited to the following -

(i) an organization can start a new department, (ii) an

organization can introduce a new job designation, (iii)

PAMMELA: Policy Administration Methodology using Machine Learning

151

Figure 1: Block Diagram depicting the workﬂow of PAMMELA.

an educational institute can introduce a new degree

program, (iv) an educational institute can introduce

a new undergraduate or graduate level course, (v) a

hospital can start treating patients in a new specializa-

tion, etc. These types of changes increase the breadth

of the workﬂow of the organization and may not be

too frequent. However, whenever they do occur, there

arises a need to modify or update the existing ABAC

policy in order to prevent any form of unauthorized

access or leakage of rights.

Updating the policy by re-executing the policy

mining process involves a lot of overhead. Moreover,

it increases the overall time required to manage the

update process as well as the corresponding system

downtime. Hence, it is prudent to design only the new

rules and add them to the policy database. The types

of changes considered here are not radical enough to

completely alter the organizational structure. There-

fore, the new rules that need to be designed will have

some similarity with the existing rules and will differ

from the current ones in terms of one or more attribute

values. Also, the permission set associated with a new

rule will be same as that of an equivalent existing rule.

Manually augmenting the policy database is a

very challenging task even for a moderate sized or-

ganization. Our proposed methodology PAMMELA

can perform automated augmentation of a deployed

ABAC policy. We name this application of PAM-

MELA as Augmentative Policy Inference.

PAMMELA can determine the relevant decisions

for both positive and negative accesses, thereby aug-

menting the policy database by inferring new ABAC

rules. Other than providing the categorical encoding

for the new attribute values, our proposed approach

signiﬁcantly reduces the degree human intervention

in the policy augmentation process. We assume that

the subject attribute and the object attribute value sets

are augmented with new values corresponding to the

various organizational changes.

We elaborate the observations made above using

the following examples. Suppose an XY Z univer-

sity has two departments - Computer Science and

Electronics. The university has deployed the ABAC

model for access control. We consider one subject at-

tribute User-Type having values Faculty, Student and

Teaching-Assistant and one object attribute Resource-

Type having values Question-Paper, Answer-Script,

Assignment and Mark-Sheet. The university manage-

ment decides to open a new department, Information

Technology. The rules governing the access of the

different resources by the users belonging Computer

Science and Electronics, will no doubt be applicable

for Information Technology. The new rules will have

the Department attribute value as Information Tech-

nology. Another example can be that, if the Computer

Science department wishes to introduce a new evalu-

ation component, Quiz, then the rules for Quiz will

be similar to those associated with the access of the

existing component Assignment.

5.3 Policy Administration via Adaptive

Policy Inference

When an organization intends to migrate to ABAC, a

policy needs to be designed ab initio using a policy

generation approach. The input to the policy creation

process can be an access log consisting of a set of ac-

cess requests. A considerable amount of administra-

tive overhead associated with this task can be reduced

if some already deployed ABAC policy is available

which can serve as a guideline. Henceforth, we shall

refer to this existing policy as reference policy and

the new policy that is to be designed as target policy.

Note that the structure of the organization where the

reference policy is deployed is assumed to be similar

to the structure of the organization that wishes to im-

plement ABAC. In such a scenario, the rules present

SECRYPT 2022 - 19th International Conference on Security and Cryptography

152

in the reference policy can be adapted to generate the

target policy. The adaptation process will handle the

dissimilarities present between the rules of the refer-

ence policy and the target policy in terms of the sub-

ject and object attribute values.

We explain the adaptive policy inference task us-

ing an example. We take the example of XY Z univer-

sity mentioned in Sub-section 5.2 having two depart-

ments, Computer Science and Electronics. The sub-

ject as well as object attributes and their correspond-

ing values are the same as those mentioned in the pre-

vious sub-section. Suppose, another educational insti-

tute, PQR wishes to adopt the ABAC model. PQR has

two departments, Mechanical Engineering and Civil

Engineering. PQR has the same subject and object at-

tributes as those of XY Z. The subject attribute values

of PQR are also same as those of XY Z. For the object

attribute values, PQR has an additional value Presen-

tation apart from those present for XY Z. The evalu-

ation component Presentation requires the same type

of accesses as that of Assignment. Thus the rules that

need to be implemented for PQR have the same struc-

ture as those of XY Z and hence, can be inferred by

taking the rules of XY Z as reference. In this way, the

reference policy of XY Z can be appropriately adapted

to create the target policy for PQR.

PAMMELA can effectively handle policy adapta-

tion. The reference policy will serve as an input to the

machine learning classiﬁer in the training phase. In

order to generate the target policy, the positive and

negative access requests present in the access logs

of the organization that wishes to implement ABAC

as well as the attribute-value assignment information

will be supplied to the classiﬁer in the testing phase.

Based on the learning accomplished during training,

the classiﬁer will output either a grant decision along

with the set of associated permissions or a deny de-

cision. This output combined with the attribute-value

assignment information will create the rules for the

target policy. One assumption in this context is that

the set of permissions associated with each rule of the

target policy is the same as that of a corresponding

rule of the reference policy.

Several recent works like (Das et al., 2017), (Das

et al., 2019), (Jabal et al., 2020a) and (Jabal et al.,

2020b) have addressed the problem of policy adapta-

tion. The approaches proposed in (Das et al., 2017)

and (Das et al., 2019) do not make use of machine

learning. The techniques in (Jabal et al., 2020a) and

(Jabal et al., 2020b) use machine learning along with

a number of heuristic methods. To the best of our

knowledge, our proposed methodology PAMMELA

is the ﬁrst end-to-end machine learning based strat-

egy for policy adaptation.

5.4 Discussion

PAMMELA offers the advantage of signiﬁcant re-

duction of administrative effort for augmentative and

adaptive policy inferences by taking the ABAC rules

currently present in the existing policy database as

input. Needless to say that if these tasks are car-

ried out manually, it requires a huge amount of ef-

fort to painstakingly scan through the policy database

to determine which existing rules are most similar to

the rules that are to be created and generate the new

rules. This makes the entire process very time con-

suming and quite prone to errors. The tasks can be

accomplished using heuristic methods but at the cost

of designing several functions covering different sce-

narios and running several experiments to determine

the best possible strategy. If each strategy executes for

a considerable amount of time, then selection of the

most suitable approach will involve a lot of time over-

head even before the actual augmentation or adap-

tation process. PAMMELA eliminates all the above

mentioned issues by providing an end-to-end intelli-

gent solution for aiding system administrators. It is to

be noted that the rules present in the existing policy

are considered to be correct and consistent. Thus, the

scenario of any error present in the existing policy mi-

grating to the newly derived rules does not occur and

hence has not been considered in the current work.

6 EXPERIMENTAL EVALUATION

In this section, we discuss the datasets as well as the

metrics used for evaluating the performance of PAM-

MELA and then report the experimental ﬁndings.

6.1 Dataset Description

For the purpose of experimentation, we have manu-

ally created three datasets. Each dataset consists of

two parts - (i) an ABAC policy consisting of a num-

ber of rules, and (ii) a set of access requests along with

attribute-value assignment information. The ABAC

policy is used in the training phase of PAMMELA

and corresponds to the existing or the reference pol-

icy. The set of access requests and the attribute-value

assignment information are used in the testing phase.

We have not used any synthetic dataset generator

or simulator for dataset creation. The datasets have

been created keeping real-world scenarios in mind so

that they are similar to actual physical organizations.

We have generated the set of subjects, objects, atomic

valued subject and object attributes and their corre-

sponding values in such a way that they mimic real-

PAMMELA: Policy Administration Methodology using Machine Learning

153

Table 1: Attribute-value Count for Training Data.

Attribute-Type Attribute-Name Number of Values in

University Dataset 1 University Dataset 2 Company Dataset

Designation 3 5 12

Post X 6 X

Department 4 5 5

Subject Course X 120 X

Degree 2 2 X

Year 4 4 X

Project-Name X X 6

Resource-Type 7 8 8

Department 4 5 4

Course X 120 X

Object Degree 2 2 X

Year 4 4 X

Project-Name X X 6

life organizations. The rules as well as the access

requests of each dataset are similar to actual organi-

zational accesses and hence can be considered to be

semantically meaningful. For each dataset, we have

considered only one permission corresponding to the

ability of a subject to access a given object or the

denial of access. However, PAMMELA is capable

of handling multi-permission scenarios as well. The

datasets are:

University Dataset 1: We have designed this dataset

to mimic the workﬂow of an educational institute.

University Dataset 2: Another dataset has been de-

signed keeping in mind the structure of an educational

institute and has been named as University Dataset 2.

This dataset is much more detailed than University

Dataset 1 both in terms of the attributes, their corre-

sponding values as well as the number of rules present

in the training data.

Company Dataset: This dataset has been created

keeping in mind the structure and workﬂow of a soft-

ware company and incorporates features and access

rules similar to a real-life organization.

Table 1 shows the number of values associated

with each attribute in the training data for a speciﬁc

dataset. A ‘X’ in a table cell indicates that the cor-

responding attribute is not present for the dataset in-

dicated by the column. Table 2 shows the number of

rules present in the training data and the total number

of as well as the number of positive and negative ac-

cess requests present in the test data for each dataset.

If a certain attribute is present in a dataset but is not

applicable for a particular subject or object, then the

value Not Applicable is assigned for that attribute.

Table 3 presents the number of new values intro-

duced for the different attributes in the test data for

the three datasets in the following format - attribute

name: number of new attribute values. In the test data

of each dataset, one new attribute value has been in-

troduced in each access request.

6.2 Evaluation Metrics

The performance of PAMMELA is evaluated using

the metrics of Accuracy, Precision, Recall and F1-

score, as discussed below.

Y ES and NO respectively denote the grant and

deny decisions given as outputs by PAMMELA. The

terminologies and metrics are:

• True Positive Accesses (TPA): These are the pos-

itive access requests corresponding to which PAM-

MELA gives the output Y ES and are instances of

correct classiﬁcations.

• True Negative Accesses (TNA): These are the neg-

ative access requests corresponding to which PAM-

MELA gives the output NO and are instances of

correct classiﬁcations.

• False Positive Accesses (FPA): These are the neg-

ative access requests corresponding to which PAM-

MELA gives the output Y ES, i.e., misclassiﬁcations

resulting in security breach.

• False Negative Accesses (FNA): These are the pos-

itive access requests corresponding to which PAM-

MELA gives the output NO, i.e., misclassiﬁcations

resulting in an over-restrictive system.

• Accuracy: It is the ratio of the correctly classi-

ﬁed access requests to the total number of access

requests. It denotes the capability of the classi-

ﬁer to make correct decisions. Mathematically,

Accuracy =

T PA+T NA

T PA+FPA+T NA+FNA

• Precision: It is the ratio of the correctly classiﬁed

positive access requests to the total number of ac-

cess requests for which the output is Y ES. Preci-

sion is inversely proportional to the degree of se-

curity breach occurring in the system. Mathemati-

cally, Precision =

T PA

T PA+FPA

• Recall: It is the ratio of the correctly classiﬁed pos-

itive access requests to the total number of positive

SECRYPT 2022 - 19th International Conference on Security and Cryptography

154

Table 2: Training Data Rule Count and Test Data Access Request Count.

Dataset Rule Count in Access Request Count in Test Data

Training Data Total Positive Negative

University Dataset 1 53 1010 598 412

University Dataset 2 156808 483 308 175

Company Dataset 1616 287 95 192

Table 3: New Attribute Value Count for Test Data.

Attribute-

Attribute-Name : New Value Count

Type University Dataset 1 University Dataset 2 Company Dataset

Subject Designation : 2, Department : 5,

Degree : 2

Designation : 1, Department : 1,

Post : 1, Course : 21

Designation: 4,

Project-Name: 1

Object Resource-Type: 3, Department : 4,

Degree : 2

Resource-Type : 4, Department : 1,

Course : 21

Resource-Type : 7,

Project-Name : 1

access requests. Recall is inversely proportional to

the degree of over-restrictiveness of the system.

Mathematically, Recall =

T PA

T PA+FNA

• F1-score: It is calculated as the weighted average

of precision and recall. F1-score balances the rel-

ative trade-off between precision and recall. It is

calculated as F1 − score =

2∗Precision∗Recall

Precision+Recall

6.3 Results

In this section, we present the experimental results.

We have used the following machine learning classi-

ﬁers to evaluate the performance of PAMMELA - Ar-

tiﬁcial Neural Network (ANN), Decision Tree (DT),

Random Forest (RF), Extra Trees (ET), Gradient-

Boosting (GB) and XGBoost (XGB). The implemen-

tation was done using scikit-learn library and the ex-

periments were conducted on a MacBook Pro laptop

having 2.3 GHz, 8 cores, intel core i9 processor, 16

GB RAM and macOS 11.4 as the operating system.

We report the performance of PAMMELA in terms

of Accuracy (Acc), Precision (Pre), Recall (Rec) and

F1-score (F1-s) in Table 4 for the three datasets.

The results show that PAMMELA provides the

highest accuracy of 88.4% for University Dataset 1,

89% for University Dataset 2 and 88.2% for Com-

pany Dataset across all classiﬁers. The highest preci-

sion recorded for the University Datasets is more than

97% and is 86.7% for the Company Dataset. This

implies that the number of misclassiﬁcations in terms

of the false positive accesses is quite low. The recall

achieved by our proposed approach is less than 90%

for the University Datasets and less than 80% for the

Company Dataset. This shows that PAMMELA can

have a tendency to make over-restrictive access de-

cisions which though not desirable but will not lead

to security breaches. It should be noted here that

our proposed methodology is designed to help sys-

tem administrators in policy augmentation and policy

adaptation. Instead of performing these administra-

tive tasks either manually or heuristically, the system

administrator can obtain the output from PAMMELA

and manually inspect only a fraction of all the access

requests that are misclassiﬁed. The accuracy, preci-

sion and recall values of Table 4 indicate that the mis-

classiﬁed access requests constitute only a small per-

centage of the entire access request set. Thus, it is

evident that PAMMELA will accurately create ma-

jority of the rules and the administrator will need to

manually create only a few rules, reducing the overall

administrative effort to a great extent.

We next give examples of a few sample aug-

mented rules generated by PAMMELA correspond-

ing to each dataset. An example positive rule and

an example negative rule of each dataset are listed

below. Here, the common subject and object at-

tributes are represented as Sub ject.Attribute − Name

and Ob ject.Attribute − Name respectively.

University Dataset 1:

• {Designation = Student, Sub ject.Department =

In f ormation Technology, Sub ject.Degree =

BTech, Sub ject.Year = First}, {Resource-

Type = Assignment, Ob ject.Department =

In f ormation Technology, Ob ject.Degree =

BTech, Ob ject.Year = First}, {Access = Allow}

• {Designation = O f f icer, Sub ject.Department =

Accounts, Sub ject.Degree = NA, Sub ject.Year =

NA}, {Resource-Type = Question Paper,

Ob ject.Department = In f ormation Technology,

Ob ject.Degree = BTech, Ob ject.Year = First},

{Access = Deny}

University Dataset 2:

• {Designation = Faculty, Post =

Associate Pro f essor, Sub ject.Course =

Parallel Computing, Sub ject.Department =

CSE, Sub ject.Degree = NA, Sub ject.Year = NA},

PAMMELA: Policy Administration Methodology using Machine Learning

155

Table 4: Experimental Results.

Clas- University Dataset 1 University Dataset 2 Company Dataset

siﬁer Acc Pre Rec F1-s Acc Pre Rec F1-s Acc Pre Rec F1-s

ANN 0.730 0.971 0.560 0.710 0.890 0.951 0.873 0.910 0.763 0.667 0.568 0.614

DT 0.864 0.932 0.831 0.879 0.716 0.758 0.815 0.786 0.882 0.867 0.758 0.809

RF 0.880 0.969 0.824 0.891 0.706 0.928 0.584 0.717 0.871 0.815 0.789 0.802

ET 0.884 0.969 0.831 0.895 0.737 0.979 0.601 0.744 0.857 0.793 0.768 0.781

GB 0.881 0.935 0.860 0.895 0.489 0.604 0.575 0.589 0.777 0.696 0.579 0.632

XGB 0.864 0.932 0.831 0.879 0.652 0.893 0.516 0.654 0.836 0.761 0.737 0.749

{Resource-Type = AnswerSheet, Ob ject.Course

= Parallel Computing, Ob ject.Department =

CSE, Ob ject.Degree = BTech, Ob ject.Year =

Fourth}, {Access = Allow}

• {Designation = Teaching Assistant, Post =

PhD, Sub ject.Course = So f tware Engineering,

Sub ject.Department = In f ormation Technology,

Sub ject.Degree = BTech, Sub ject.Year =

T hird}, {Resource-Type = Assignment,

Ob ject.Department = CSE, Ob ject.Course

= Operating Systems, Ob ject.Degree = BTech,

Ob ject.Year = T hird}, {Access = Deny} (The

initial part of the rule refers to a Ph.D. student

acting as a teaching assistant for the third year

BTech course Software Engineering offered by

the Information Technology department.)

Company Dataset:

• {Designation = Programmer, Sub ject.Pro ject-

Name = P3, Sub ject.Department =

Development}, {Resource-Type = Pro ject-

Detail, Ob ject.Pro ject-Name = P3,

Ob ject.Department = Development}, {Access =

Allow}

• {Designation = Database Engineer,

Sub ject.Pro ject-Name = NA,

Sub ject.Department = Technical}, {Resource-

Type = Salary-Detail, Ob ject.Pro ject-Name =

P3, Ob ject.Department = Human Resource},

{Access = Deny} (Here, we have assumed that a

database engineer is not speciﬁc to a particular

project, but rather is associated with all projects

of the company.)

The training time for PAMMELA depends on the

number of rules and the number of attributes present

in the training data. The number of subjects and ob-

jects have no effect on the training time. We ob-

served that for ANN, PAMMELA took approximately

130 seconds to complete the training on University

Dataset 2. This is the highest recorded training time

for our experiments. For the other classiﬁers, PAM-

MELA gave much lower training execution times on

all the datasets. The reason for this is that the Uni-

versity Dataset 2 is the largest dataset in terms of

the number of attributes and rules. The average test-

ing time for PAMMELA was less than 1 second. Of

course, the testing time is dependent upon the number

of access requests considered. The train and test time

indicate that experimenting with multiple classiﬁers

will not be too time consuming. A system adminis-

trator can experiment with a number of classiﬁers for

PAMMELA before selecting the best possible option.

Once training has been done, PAMMELA can keep

on generating new rules without any further training.

However, if the policy used for training needs to be

changed altogether (may happen if the organizational

structure or workﬂow undergoes some radical modiﬁ-

cations), then the classiﬁer will need to be re-trained.

7 CONCLUSION

In this paper, we have proposed the ABAC Policy

Inference Problem (ABAC-PIP) that aims to derive

a new set of attribute based rules from an existing

policy. We have proposed an end-to-end supervised

learning based methodology, PAMMELA for solv-

ing ABAC-PIP. System administrators can use PAM-

MELA for augmentative as well as adaptive pol-

icy inference when an organization undergoes some

changes or an organization migrates to ABAC by

adapting the policy of a similar organization. Exper-

imental results show that PAMMELA can be effec-

tively used for aiding system administrators.

In the future, we intend to apply deep learning,

reinforcement learning and incremental learning for

inferring ABAC policies. Another direction of future

research can be attempting to adapt the ABAC poli-

cies of multiple organizations for a single target or-

ganization. This will be a challenging task as it will

require resolving the conﬂicts among the rules of dif-

ferent organizations.

SECRYPT 2022 - 19th International Conference on Security and Cryptography

156

ACKNOWLEDGMENTS

Research reported in this publication was supported

by the National Institutes of Health under award

R35GM134927, and a research gift received from

Cisco University Research. The content is solely the

responsibility of the authors and does not necessarily

represent the ofﬁcial views of the agencies funding

the research.

REFERENCES

Alohaly, M., Takabi, H., and Blanco, E. (2019). Towards an

automated extraction of ABAC constraints from nat-

ural language policies. In ICT Systems Security and

Privacy Protection, pages 105–119.

Batra, G., Atluri, V., Vaidya, J., and Sural, S. (2021a). In-

memory policy indexing for policy retrieval points in

attribute-based access control. In Int. Conf. on Infor-

mation Systems Security, pages 99–120.

Batra, G., Atluri, V., Vaidya, J., and Sural, S. (2021b). In-

cremental maintenance of ABAC policies. In 11th

ACM Conf. on Data and Application Security and Pri-

vacy, pages 185–196.

Cotrini, C., Weghorn, T., and Basin, D. (2018). Mining

ABAC rules from sparse logs. In 2018 IEEE European

Symposium on Security and Privacy, pages 31–46.

Das, S., Sural, S., Vaidya, J., and Atluri, V. (2017). Policy

adaptation in attribute-based access control for inter-

organizational collaboration. In IEEE 3rd Int. Conf.

on Collaboration and Internet Computing, pages 136–

145.

Das, S., Sural, S., Vaidya, J., and Atluri, V. (2018).

Hype: A hybrid approach toward policy engineering

in attribute-based access control. IEEE Letters of the

Computer Society, pages 25–29.

Das, S., Sural, S., Vaidya, J., and Atluri, V. (2019). Pol-

icy adaptation in hierarchical attribute-based access

control systems. ACM Trans. on Internet Technology,

19(3).

Gautam, M., Jha, S., Sural, S., Vaidya, J., and Atluri, V.

(2017). Poster: Constrained policy mining in attribute

based access control. In ACM Symposium on Access

Control Models and Technologies, pages 121–123.

Heutelbeck, D., Baur, M. L., and Kluba, M. (2021). In-

memory policy indexing for policy retrieval points in

attribute-based access control. In 26th ACM Sym-

posium on Access Control Models and Technologies,

pages 59–70.

Hu, V. C., Ferraiolo, D., Kuhn, D. R., Schnitzer, A., San-

dlin, K., Miller, R., and Scarfone, K. (2014). Guide

to Attribute-Based Access Control (ABAC) deﬁnition

and considerations. Technical report, NIST Special

Publication.

Jabal, A. A., Bertino, E., Lobo, J., Law, M., Russo, A., Calo,

S., and Verma, D. (2020a). Polisma - a framework for

learning attribute-based access control policies. In Eu-

ropean Symposium on Research in Computer Security,

volume 12308, pages 523–544.

Jabal, A. A., Bertino, E., Lobo, J., Verma, D., Calo, S.,

and Russo, A. (2020b). FLAP – a federated learning

framework for attribute-based access control policies.

Karimi, L., Abdelhakim, M., and Joshi, J. (2021a). Adap-

tive ABAC policy learning: A reinforcement learning

approach.

Karimi, L., Aldairi, M., Joshi, J., and Abdelhakim, M.

(2021b). An automatic attribute based access control

policy extraction from access logs. IEEE Trans. on

Dependable and Secure Computing.

Kumar, R., Palanisamy, B., and Sural, S. (2021). BEAAS:

Blockchain enabled attribute-based access control as

a service. In IEEE International Conference on

Blockchain and Cryptocurrency, pages 1–3.

Lawal, S. and Krishnan, R. (2021). Enabling ﬂexible ad-

ministration in ABAC through policy review: A pol-

icy machine case study. In 7th IEEE Int. Conf. on Big

Data Security on Cloud, IEEE Int. Conf. on High Per-

formance and Smart Computing, and IEEE Int. Conf.

on Intelligent Data and Security, pages 69–74.

Mocanu, D. C., Turkmen, F., and A.Liotta (2015). Towards

ABAC policy mining from logs with deep learning.

Intelligent Systems, pages 124–128.

Narouei, M., Khanpour, H., Takabi, H., Parde, N., and

Nielsen, R. (2017). Towards a top-down policy engi-

neering framework for attribute-based access control.

ACM Symposium on Access Control Models and Tech-

nologies, pages 103–114.

Rouhani, S., Belchior, R., Cruz, R. S., and Deters, R.

(2021). Distributed attribute-based access control sys-

tem using permissioned blockchain. Special Issue on

Emerging Blockchain Applications and Technology,

World Wide Web, 24:1617–1644.

Sanders, M. W. and Yue, C. (2019). Mining least privi-

lege attribute based access control policies. In 35th

Annual Computer Security Applications Conf., pages

404–416.

Sandhu, R. S., Coyne, E. J., Feinstein, H. L., and Youman,

C. E. (1996). Role-Based Access Control Models.

IEEE Computer, 29(2):38–47.

Talukdar, T., Batra, G., Vaidya, J., Atluri, V., and Sural, S.

(2017). Efﬁcient bottom-up mining of attribute based

access control policies. IEEE Int. Conf. on Collabo-

ration and Internet Computing, pages 339–348.

Xu, Z. and Stoller, S. (2015). Mining attribute-based ac-

cess control policies. IEEE Trans. on Dependable and

Secure Computing, 12(5):533–545.

Xu, Z. and Stoller, S. D. (2014). Mining attribute-based ac-

cess control policies from logs. In 28th Annual IFIP

WG 11.3 Working Conf. on Data and Applications Se-

curity and Privacy, pages 276–291.

Zhong, H., Zhou, Y., Zhang, Q., Xu, Y., and Cui, J. (2021).

An efﬁcient and outsourcing-supported attribute-

based access control scheme for edge-enabled smart

healthcare. Future Generation Computer Systems,

115:486–496.

PAMMELA: Policy Administration Methodology using Machine Learning

157
