A Real-time Method for CAN Bus Intrusion Detection by Means of
Supervised Machine Learning
Francesco Mercaldo
1,2 a
, Rosangela Casolare
1
, Giovanni Ciaramella
2
,
Giacomo Iadarola
2
, Fabio Martinelli
2
, Francesco Ranieri
1
and Antonella Santone
1
1
University of Molise, Campobasso, Italy
2
Institute for Informatics and Telematics, National Research Council of Italy (CNR), Pisa, Italy
{francesco.mercaldo, fabio.martinelli}@iit.cnr.it, {g.ciaramella1, f.ranieri1}@studenti.unimol.it
Keywords:
Automotive, CAN, Machine Learning, Classification, Security.
Abstract:
Nowadays vehicles are not composed only of mechanical parts, exits a plethora of electronics components in
our cars, able to exchange information. The protection devices such as the airbags are activated electronically.
This happens because the braking or acceleration signal from the pedal to the actuator arrives through a packet.
The latter is an electronic and not a mechanical signal. For packets transmission a bus, i.e., the Controller Area
Network, was designed and implemented in vehicles. This bus was not designed to receive access from the
outside world, which happened when info-entertainment systems were introduced, opening up the possibility
of accessing bus information from devices external to the vehicle. To avoid the possibility of those attacks,
in this research article, we propose a method aimed to detect intrusions targeting the CAN bus. In particular,
we analyze packets transiting through the CAN bus, and we build a set of models by exploiting supervised
machine learning. We experiment with the proposed method on three different attacks (i.e., speedometer
attack, arrows attack, and doors attack), obtaining interesting performances.
1 INTRODUCTION
Currently, cars are no longer just mechanical vehi-
cles: they contain a plethora of electronic collabo-
rating components connected to the network, that al-
lows monitoring and controlling of the status of the
vehicle. Each electronic component can continuously
communicate with other nearby components, produc-
ing a continuous flow of data in real-time for instance,
to monitor the state of several components, the state
of the vehicle in general, and in particular, is used to
increase road safety (Martinelli et al., 2017).
CAN is short for Controller Area Network: it is
an electronic communication bus defined by the ISO
11898 standards designed to permit the packet ex-
change between vehicle electronic components: each
CAN message contains the priority and the content
of the transmitted data. Moreover, this standard de-
fines how communication happens, how the wiring is
configured, and how messages are constructed. Col-
lectively, this system is referred to as a CAN bus.
The introduction of electronic devices into vehi-
a
https://orcid.org/0000-0002-9425-1657
cles turned cars into cyber-attack targets and allowed
a plethora of new kinds of cyber-attacks, increasingly
complex and arduous to mitigate. Most of them have
the purpose of altering the normal functioning of the
car itself, and it represents a fatality for anyone on
board the vehicle or near it.
Attacks targeting the latest generation cars are in-
creasingly frequent and dangerous. An attacker in the
automotive context has a wide choice of attack sur-
faces (Keuper and Alkemade, 2018). Some cyber-
attacks have to be launched in the proximity of the
car, while other attacks can be carried out from any-
where in the world through wireless connections that
the cars have on board.
For this reason, we propose a method for intrusion
detection of malicious packets targeting the CAN bus.
The method can identify an attack in progress in real-
time. This technique uses supervised machine learn-
ing to distinguish between three different forms of at-
tacks (speedometer attack, arrows attack, and doors
attack), obtaining interesting performances.
The paper has been organized as follows: in Sec-
tion 2 we report current state-of-art literature in au-
tomotive cybersecurity in the automotive context; in
534
Mercaldo, F., Casolare, R., Ciaramella, G., Iadarola, G., Martinelli, F., Ranieri, F. and Santone, A.
A Real-time Method for CAN Bus Intrusion Detection by Means of Supervised Machine Learning.
DOI: 10.5220/0011267500003283
In Proceedings of the 19th International Conference on Security and Cryptography (SECRYPT 2022), pages 534-539
ISBN: 978-989-758-590-6; ISSN: 2184-7711
Copyright
c
2022 by SCITEPRESS Science and Technology Publications, Lda. All rights reserved
Section 3 we provide background notions about the
CAN bus; in Section 4 the proposed intrusion detec-
tion method is presented; in Section 5 we show the
experimental analysis results; in the last section con-
clusion and future research directions are drawn.
2 RELATED WORK
Road safety is an ever-present topic, researchers are
constantly working to improve and increase controls
on the traffic of information exchanged by the elec-
tronic components that make up the computer systems
of modern cars. Several works in the literature focus
on this very important issue.
In (Amato et al., 2021) authors propose a method
that uses deep learning techniques to detect attacks
targeting the CAN-bus. This method is based on the
use of Neural Networks and MultiLayer Perceptrons,
and for the analysis is considered a real-world dataset
that has the injection of messages belonging to differ-
ent types of attacks, such as denial of service, attacks
against particular components and other. Differently,
the proposed method is evaluated on three different
kinds of attacks i.e., speedometer, doors, and arrows.
In (Checkoway et al., 2011), authors sought to an-
swer the question ”whether automobiles can also be
susceptible to remote compromise”, and to do so they
analyzed the outer attack surface of a modern auto-
mobile. They found that remote exploitation is possi-
ble through a wide range of attack vectors (i.e., me-
chanical tools, CD players, Bluetooth, and cellular ra-
dios) highlighting that wireless communication chan-
nels allow for long-distance vehicle control, allowing
for detecting the position of the vehicle and also to
carry out a theft. In this paper, the authors propose
a mitigation strategy for each aforementioned attack,
which is different from the attacks considered by us
(i.e., speedometer attack, arrow attack, and doors at-
tack).
By exploiting vulnerabilities in the external inter-
faces of the car, such as Wi-Fi, Bluetooth and physical
connections, it is possible to access the CAN bus of
the automobile and send commands to control the car.
To mitigate this threat, it is necessary to detect ma-
licious behavior on the CAN bus and in this regard,
Taylor et. colleagues (Taylor et al., 2016) propose an
anomaly detector based on a long-term memory neu-
ral network; we have also used the neural network, but
we have not limited ourselves only to the use of this
technique. The operation of the detector is based on
learning to predict the next words of data sent by the
various senders on the bus. The unexpected bits con-
tained in the next word are flagged as anomalous. In
this regard, the authors evaluate the detector by syn-
thesizing anomalies (which are designed to mimic at-
tacks reported in literature) using modified CAN bus
data.
The latter work is always focused on intrusion
detection, but it is a little different from the afore-
mentioned, and in particular from our method, as it
is based on a sort of physical intrusion: car theft.
Here (Kwak et al., 2016) the authors have thought
of detecting car thefts through the behavior of users
while driving the vehicle, then analyzing and recog-
nizing their driving style through some measurements
of specific values, carried out with the vehicle sen-
sors. Specifically, to detect theft, they worked on a
method to which they add mechanical characteristics
of automotive parts usually excluded in other works
in the literature, which can be useful for identifying
the driving behavior of drivers, thanks to the variation
they undergo depending on different driving styles.
This work involves the analysis of CAN packets and
demonstrates that the model adopted is reliable and
discriminates between car owners and impostors.
3 BACKGROUND
In this section preliminary notions about CAN bus
and the attacks targeting this protocol are provided.
3.1 CAN Bus
CAN bus is a protocol based on packets exchanged
between the electronic components of cars. It works
in multimaster - multislave mode, i.e., the units con-
nected to the bus (called nodes) work either as a mas-
ter, sending and receiving information, or as a slave,
receiving only information and providing it on re-
quest. The CAN-bus communication takes place via
sensors or actuators capable of producing data inde-
pendently and then putting them on the BUS i.e., by
generating CAN packets.
The CAN packets are contained in a message and
each message is composed of the following values:
Timestamp: recorded time (s);
CAN ID: identifier of CAN message in HEX (i.e.,
03B1);
DLC: number of data bytes, from 0 to 8;
DATA[0 7]: data value (byte);
To generate CAN packets, in this paper we resort
to the ICSim simulator
1
, a tool for learning the main
1
https://github.com/zombieCraig/ICSim
A Real-time Method for CAN Bus Intrusion Detection by Means of Supervised Machine Learning
535
functions of the CAN bus and simulating CAN traf-
fic. To allow a correct simulation of the activities of
the CAN bus, the CAN-utils
2
package was installed:
this package enables ICSim to imitate the communi-
cations between the CAN network and the vehicle.
CAN-utils provide five sub-modules as explained be-
low:
cangen: it is able to generate CAN frames for test-
ing purposes. To take advantage of its functions,
it is necessary to specify the interface in which the
CAN frame is to be generated (in this case, the in-
terface is vcan0) and then execute the command;
candump: aimed to store CAN frames, which in
turn are saved in a folder chosen by the user. In
addition to the store, candump also has the CAN
packet recording function;
canplayer: it provides the user with the right to re-
produce CAN frames. Since it is a utility unable to
generate data but only reproduce it, its functions
are closely related to the candump utility;
cansniffer: it is a utility used to observe changes
in real-time during CAN frame traffic
cansend: it is used to send CAN frames to a spe-
cific interface.
3.2 The Attacks
In this paper, we experiment with three types of at-

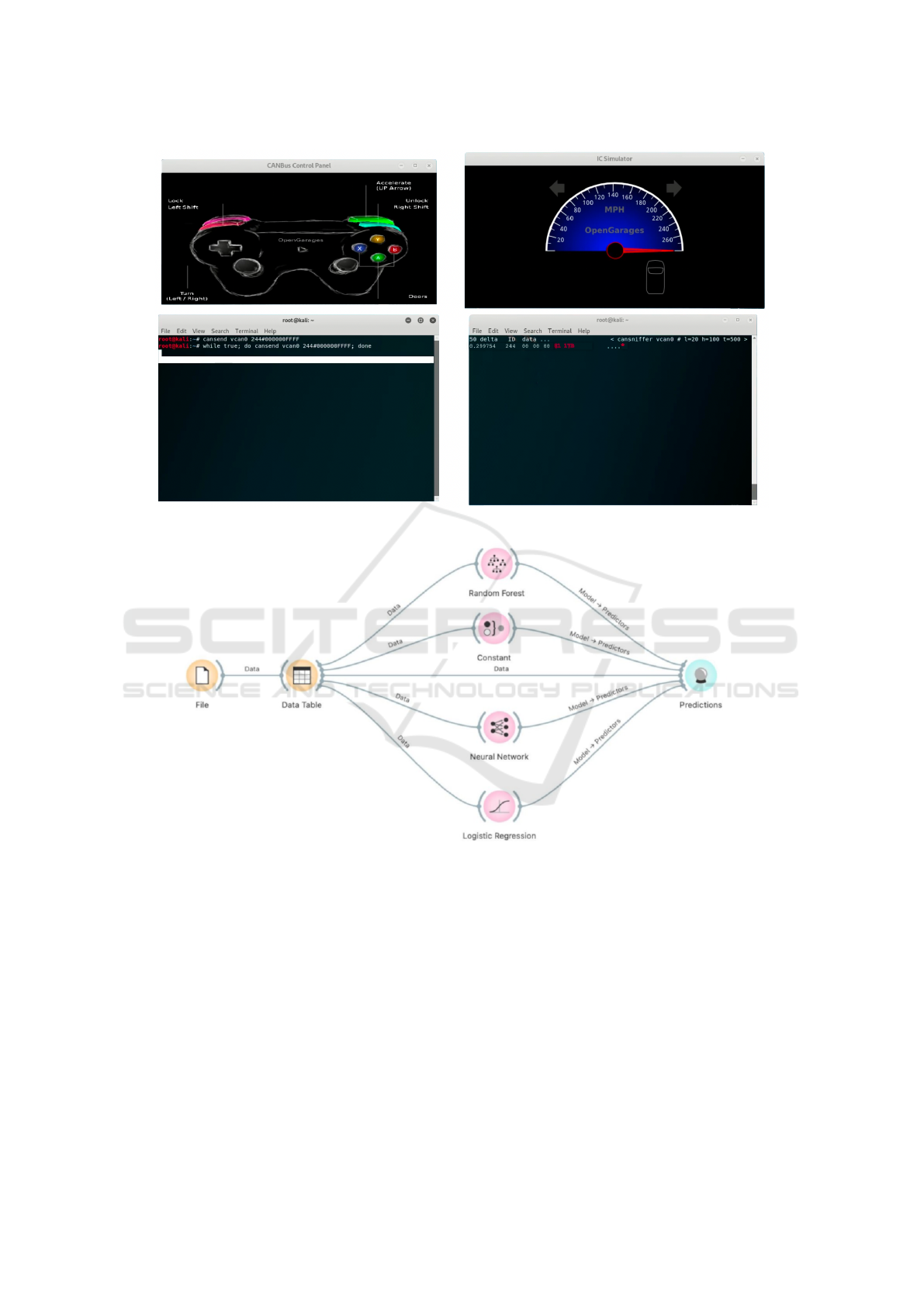

tacks targeting the CAN network. The attacks sim-
ulation is shown in Figure 1, where it is possible to
see the simulation of one of the attacks under analysis
(i.e., the speedometer attack) carried out thanks to IC
Simulator.
To simulate the attacks, after having correctly in-
stalled and set up the ICSim software, it is possible
to generate and read the CAN data traffic through the
use of different windows, as shown in Figure 1; to ac-
tivate the simulated dashboard, it is necessary to start
the CANBus Control Panel (i.e., the window at the
top left in Figure 1), which is the interface that allows
control of the simulator and performs the attacks. The
second window on the top right is the one relating to
IC Simulator which simulates part of the dashboard
of a common car we can observe the presence of the
speedometer and directional arrows. At the bottom
left there is the Terminal window that allows control-
ling the joystick in the Control Panel, while on the
right there is the window that reports CAN traffic in
real-time, showing all its changes.
The considered attacks are described below.
2
https://github.com/linux-can/can-utils
Speedometer Attack: during the simulation phase,
we identified the packet containing the information
relating to the speedometer in the CAN traffic, with
the help of the cansniffer utility: this packet, which
is identified with the ID 244, allows an attacker to al-
ter the normal operation of the speedometer, by mov-
ing the needle indicating the speed, to a level set by
the attacker. This type of attack can be implemented
through the use of the command:
cansend vcan0 244 \# 000000FFFF
The packet containing the attack is sent thanks to
the cansend utility, which is followed by the name of
the virtual interface, the packet ID, and finally a se-
ries of data that allow the attacker to set the speed (for
example, if at the end of the code the attacker writes
50FF, the needle reaches the middle of the speedome-
ter). To repeatedly send this defective packet, making
the attack permanent all the time, we use the com-
mand:
While true;
do cansend vcan0 244 \# 000000FFFF;
done
Arrows Attack: this attack involves tampering with
the packet containing the data relating to the operation
of the position lights. In this case, a possible attacker
violates CAN traffic frame 188 by making the arrows
of a car continuously lit or not, checking the intermit-
tence and duration. In the simulated environment, this
type of attack is implemented with the command:
cansend vcan0 188 \# 01
The position of the arrows can be checked by al-
ternating the values 01 (left), 02 (right), and 03 (both
on) respectively. The following command is used to
carry out the attack:
While true;
do cansend vcan0 188 \# 01;
done
Doors Attack: the latest simulated attack tampered
with the doors of a car, controlling opening and clos-
ing and thus making them completely unusable. The
packet containing the data relating to the operation is
designated with the ID 19B and in the simulation, this
type of attack was implemented with the command:
cansend vcan0 19B \# 00000F
Similarly to the previous cases, the connection al-
lows to tamper with some or all the doors modify-
ing the last character of the code with the values: F -
doors closed; A - left side doors open; 5 - right side
doors open; C - front doors open; 3 - rear doors open.
By typing the characters E, B, D, and S it is possible
to check the status of every single door.
To make the attack we have to use the following
command:
While true;
SECRYPT 2022 - 19th International Conference on Security and Cryptography
536
do cansend vcan0 19B \# 00000F;
done
4 A METHOD FOR CAN BUS
INTRUSION DETECTION
In this section, we describe the proposed method for
the detection of intrusion targeting the CAN bus.
Figure 2 shows the workflow relating to the pro-
posed method. As can be seen in the first step de-
picted in Figure 2, we start from a dataset composed
of (legitimate and malicious CAN packets) stored in
csv files.
In order to discriminate packets injected by an at-
tacker from the normal ones, we consider these bytes
as the feature vector composed in the following way:
1st byte: F1 feature;
2nd byte: F2 feature;
3rd byte: F3 feature;
4th byte: F4 feature;
5th byte: F5 feature;
6th byte: F6 feature;
7th byte: F7 feature;
8th byte: F8 feature.
We resort to supervised machine learning 2, in
particular to enforce the conclusion validity four dif-
ferent algorithms are exploited: Random Forest, Con-
stant, Neural Network and Logistic Regression.
The classification analysis consists of building
classifiers to evaluate the feature vector accuracy to
distinguish between injected and normal messages.
For classifier training, we defined T as a set of la-
beled messages (M, l), where each M is associated to
a label l {IM, NM}. For each M we built a feature
vector F R
y
, where y is the number of the features
used in training phase (y = 8).
For the learning phase, we use a k-fold cross-
validation: the dataset is randomly partitioned into
k subsets. A single subset is retained as the valida-
tion dataset for testing the model, while the remaining
k 1 subsets of the original dataset are used as train-
ing data. We repeated the process for k = 5 times;
each one of the k subsets has been used once as the
validation dataset. To obtain a single estimate, we
computed the average of the k results from the folds.
We evaluated the effectiveness of the classification
method with the following procedure:
1. build a training set TD;
2. build a testing set T
= D÷T;
3. run the training phase on T;
4. apply the learned classifier to each element of T’.
Each classification was performed using 80% of
the dataset as a training dataset and 20% as a testing
dataset employing the full feature set.
5 EVALUATION
For dataset generation we resort to a simulated en-
vironment i.e., we installed on a Linux virtual ma-
chine the ICSim tool, a traffic simulator, and, start-
ing from it, we generated (malicious and legitimate)
CAN packets. The generated packets were stored by
exploiting the Candump CAN utility.
For each attack, we considered five minutes of
CAN traffic.
To build and evaluate the considered supervised
machine learning models, we resort to the Orange
3
tool-suite, an open-source data mining software. Or-
ange allows performing data analysis by building a
visual scheme of them. It also allows an interactive
data exploration for a quick qualitative analysis.
The effectiveness of the four different algorithms
for intrusion detection is evaluated through four dis-
tinct metrics: Accuracy, Precision, Recall, and F-
Measure.
Table 1 shows the results obtained from the exper-
imental analysis.
By analyzing the results reported in Table 1, we
observe that among all the models, the Constant is
the model that gives lower values if compared to the
others.
The best performances are given by the remain-
ing algorithms (i.e., Random Forest, Neural Network,
and Logistic Regression), which reach a value of 1,
indicating that for each prediction made, it is possible
to recognize and distinguish every malicious packet
present in the registered CAN traffic. Only for the
Logistic Regression algorithm applied to the Doors
attack, the values obtained for each metric are equal
to 0.99, still representing a satisfying result.
As for the analysis carried out on all the attacks,
we have the values relating to Random Forest, Neural
Network, and Logistic Regression equal to 1; In the
Constant model, values are all greater than 0.9, except
for the Precision which is equal to 0.89. In general,
we can say that the performances obtained are very
satisfactory.
3
https://orangedatamining.com/
A Real-time Method for CAN Bus Intrusion Detection by Means of Supervised Machine Learning
537
Figure 1: The simulation environment: the speedometer attack traffic is generated in the command prompt window.
Figure 2: Workflow of the proposed method for intrusion detection.
6 CONCLUSIONS AND FUTURE
WORK
In this paper, we propose a method aimed to discrim-
inate between malicious and legitimate CAN packets
with supervised machine learning. As evidenced by
the experimental analysis results, the approach sug-
gested in this paper achieved good results.
For future works, as a first aim, we would like to
introduce new types of attack, for example, we could
conduct detailed experimentation on the replay attack.
This attack permits the attacker to record CAN traffic
related to the driver’s actions and make the vehicle
reproduce the same actions. Furthermore, the replay
attack turns out to be very difficult to identify, as it is
based on sequences of legitimate CAN packets repro-
duced from a previous transmission.
ACKNOWLEDGEMENTS
This work has been partially supported by MIUR -
SecureOpenNets, EU SPARTA, CyberSANE and E-
CORRIDOR projects.
SECRYPT 2022 - 19th International Conference on Security and Cryptography
538
Table 1: Classification result.
Model applied to Speedometer attack Accuracy Precision Recall F-Measure
Random Forest 1.00 1.00 1.00 1.00
Constant 0.96 0.93 0.96 0.95
Neural Network 1.00 1.00 1.00 1.00
Logistic Regression 1.00 1.00 1.00 1.00
Model applied to Doors attack Accuracy Precision Recall F-Measure
Random Forest 1.00 1.00 1.00 1.00
Constant 0.99 0.98 0.99 0.99
Neural Network 1.00 1.00 1.00 1.00
Logistic Regression 0.99 0.99 0.99 0.99
Model applied to Arrows attack Accuracy Precision Recall F-Measure
Random Forest 1.00 1.00 1.00 1.00
Constant 0.98 0.97 0.98 0.98
Neural Network 1.00 1.00 1.00 1.00
Logistic Regression 1.00 1.00 1.00 1.00
Model applied to all attacks Accuracy Precision Recall F-Measure
Random Forest 1.00 1.00 1.00 1.00
Constant 0.94 0.89 0.94 0.91
Neural Network 1.00 1.00 1.00 1.00
Logistic Regression 1.00 1.00 1.00 1.00
REFERENCES
Amato, F., Coppolino, L., Mercaldo, F., Moscato, F., Nar-
done, R., and Santone, A. (2021). Can-bus attack de-
tection with deep learning. IEEE Transactions on In-
telligent Transportation Systems.
Checkoway, S., McCoy, D., Kantor, B., Anderson, D.,
Shacham, H., Savage, S., Koscher, K., Czeskis, A.,
Roesner, F., and Kohno, T. (2011). Comprehensive
experimental analyses of automotive attack surfaces.
In 20th USENIX Security Symposium (USENIX Secu-
rity 11).
Keuper, D. and Alkemade, T. (2018). ‘the connected car
ways to get unauthorized access and potential implica-
tions. Computest, Zoetermeer, The Netherlands, Tech.
Rep.
Kwak, B. I., Woo, J., and Kim, H. K. (2016). Know your
master: Driver profiling-based anti-theft method. In
2016 14th Annual Conference on Privacy, Security
and Trust (PST), pages 211–218. IEEE.
Martinelli, F., Mercaldo, F., Nardone, V., and Santone, A.
(2017). Car hacking identification through fuzzy logic
algorithms. In 2017 IEEE international conference on
fuzzy systems (FUZZ-IEEE), pages 1–7. IEEE.
Taylor, A., Leblanc, S., and Japkowicz, N. (2016). Anomaly
detection in automobile control network data with
long short-term memory networks. In 2016 IEEE
International Conference on Data Science and Ad-
vanced Analytics (DSAA), pages 130–139. IEEE.
A Real-time Method for CAN Bus Intrusion Detection by Means of Supervised Machine Learning
539
