Detecting Bots in Social-networks using Node and Structural

Embeddings

Ashkan Dehghan

, Kinga Siuta

1,2

, Agata Skorupka

1,2

, Akshat Dubey

, Andrei Betlen

, David Miller

Wei Xu

, Bogumił Kami

nski

2 a

and Paweł Prałat

1 b

Ryerson University, Toronto, ON, Canada

SGH Warsaw School of Economics, Warsaw, Poland

Patagona Technologies, Pickering, ON, Canada

Keywords:

Structural and Node Embeddings, Detecting Bots, Social Networks.

Abstract:

Users on social networks such as Twitter interact with and are inﬂuenced by each other without much knowl-

edge of the identity behind each user. This anonymity has created a perfect environment for bot and hostile

accounts to inﬂuence the network by mimicking real-user behaviour. To combat this, research into designing

algorithms and datasets for identifying bot users has gained signiﬁcant attention. In this work, we highlight

various techniques for classifying bots, focusing on the use of node and structural embedding algorithms. We

show that embeddings can be used as unsupervised techniques for building features with predictive power

for identifying bots. By comparing features extracted from embeddings to other techniques such as NLP,

user proﬁle and node-features, we demonstrate that embeddings can be used as unique source of predictive

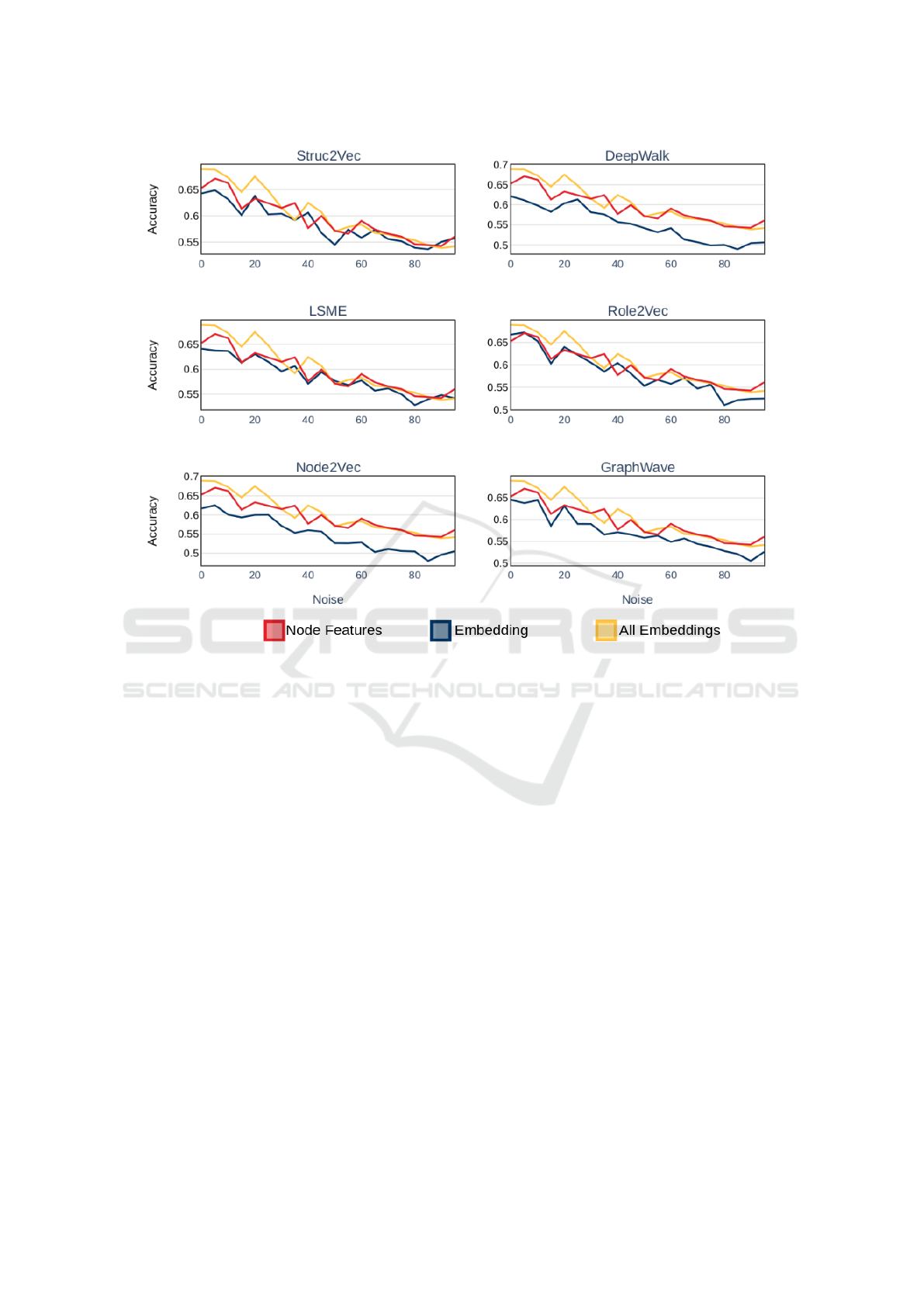

information. Finally, we study the stability of features extracted using embeddings for tasks such as bot classi-

ﬁcation by artiﬁcially introducing noise in the network. Degradation of classiﬁcation accuracy is comparable

to models trained on carefully designed node features, hinting at the stability of embeddings.

1 INTRODUCTION

Internet and social media impact all aspects of our

lives. We use them to read news, connect with friends

and family, share opinions, buy products, and enter-

tain us. It affects our beliefs, behaviour and so it

shapes our political, ﬁnancial, health, and other im-

portant decisions. Unfortunately, as a result, social

networks created an information platform in which

automated accounts (including human-assisted bot

accounts and bot-assisted humans) can try to take ad-

vantage of the system for various opportunistic rea-

sons: trigger collective attention (Lehmann et al.,

2012; De Domenico and Altmann, 2020; Gonz

alez-

Bail

on and De Domenico, 2021), gain status (Cha

et al., 2010; Stella et al., 2019), monetize public atten-

tion (Carter, 2016), diffuse disinformation (Bail et al.,

2020; Freelon et al., 2020; Monti et al., 2019), or seed

discord (Woolley and Howard, 2018). It is known

that a large fraction of active Twitter users are bots

and they are responsible for much disinformation—

https://orcid.org/0000-0002-0678-282X

https://orcid.org/0000-0001-9176-8493

see, (Yang et al., 2019) for many examples of manip-

ulation of public opinion. Having said that, not all bot

accounts are designed to harm or take advantage of

other users. Some of them are legit and useful tools

such as chatbots that respond to common questions of

users, or knowbots that are designed to automatically

retrieve some useful information from the Internet.

On the other hand, human accounts may also spread

disinformation and be responsible for some other ma-

licious behaviour. Detecting bots and understanding

roles they play within the system falls into a common

machine learning task of node classiﬁcation.

The main objective of this paper is to investigate

whether graph embeddings extract information from

the associated network that can be successfully used

for node classiﬁcation task. In our experiments, we

concentrate on Twitter data and the task of identi-

fying bot accounts but our questions (and answers)

are much broader and so potentially more inﬂuential.

They are applicable to all kinds of networks and data

sets that are naturally represented as graphs which, of

course, includes social media platforms such as Twit-

ter. Moreover, they are applicable to a much wider

class of machine learning tasks: node classiﬁcation

Dehghan, A., Siuta, K., Skorupka, A., Dubey, A., Betlen, A., Miller, D., Xu, W., Kami

nski, B. and Prałat, P.

Detecting Bots in Social-networks using Node and Structural Embeddings.

DOI: 10.5220/0011147300003269

In Proceedings of the 11th International Conference on Data Science, Technology and Applications (DATA 2022), pages 50-61

ISBN: 978-989-758-583-8; ISSN: 2184-285X

algorithms train a model to learn in which class a

node of the graph belongs to. Bot detection is a spe-

ciﬁc example of this class of problems in which a

binary classiﬁcation is performed (nodes are catego-

rized into bots and humans) (Antenore et al., 2022).

However, in general, multi-class classiﬁcations is also

often considered and needed. Other important appli-

cations of this nature include, for example, identifying

nodes associated with users that might be interested

in some speciﬁc product, or detecting hostile actors.

For this reason there is an increasing need for effec-

tive methods of analysis data represented as graphs.

For more details we direct the reader to a recent sur-

vey (Matwin et al., 2021) and a book (Kami

nski et al.,

2021).

There are many approaches that can be used to

perform node classiﬁcation in graphs. Most tech-

niques attempt to detect bots at the account level by

processing many social media posts and analyzing

them using various NLP techniques with the goal to

extract some important and distinguishing features.

These features are usually complemented with user

metadata, friend metadata, content and language sen-

timent, as well as temporal features (Dong and Liu,

2018). In this paper, we will refer to these features

as NLP+P (NLP+Proﬁle). These techniques are very

powerful but a supervised machine learning algorithm

is only as good as the data used for training. Unfor-

tunately, good quality datasets with the ground-truth

are rarely available. Additional challenge is that so-

cial bots evolve rapidly and so one needs to constantly

update datasets and evolve the set of features to keep

up with the other side. In particular, hot topics dis-

cussed on social media evolve rapidly; for example,

NLP features that were important for bot detection be-

fore presidential elections in some country might be-

come quickly outdated after the elections. Similarly,

results of NLP analysis cannot be easily transferred

from one language to another or across differ geo-

graphical regions or countries. As a result, a collab-

orated effort of many researchers and data scientists

is needed to maintain bot detection models. One suc-

cessful example is Botometer, bot detection tool de-

veloped at Indiana University using various labelled

datasets and 1,209 features (current, 3rd version of the

model) (Yang et al., 2019); see also (Sayyadiharikan-

deh et al., 2020) for a new supervised learning method

that trains classiﬁers specialized for each class of bots

and combines their decisions through the maximum

rule (ensemble approach). Botometer handles over a

quarter million requests every day! However, since

the bot score is intended to be used with English-

language accounts, what can one do with non-English

accounts? What if the content or metadata is not eas-

ily available? Finally, how about other node classiﬁ-

cation tasks which cannot enjoy such powerful tools

such as Botometer?

An alternative approach is to use some features of

nodes that can be calculated exclusively using graph

data. The main advantage of this approach is that such

information is easier to obtain and is typically less

sensitive as it does not include the analysis of user

messages and metadata associated with them. More

importantly, it can be hypothesised that the signal is

more stable in time and graph space, that is, if some

topological structure of the network indicates that

some nodes are likely to be bots, then such signal is

likely to loose its predictive power slower than, for ex-

ample, discussion topics extracted from NLP features.

Typical features concentrate on local properties of

nodes such as node degree, various node centralities,

local clustering coefﬁcient, etc. We will call features

derived using this approach as GF (Graph Features).

The idea behind is that bots need to use some strate-

gies to form an audience. They employ various algo-

rithms to gather followers and expand their own so-

cial circles such as following popular accounts and

ask to be followed back (Aiello et al., 2012), gener-

ating speciﬁc content around a given topic with the

hope to gain trust and catch attention (Freitas et al.,

2015), or even interacting with other users by engag-

ing in conversation (Hwang et al., 2012). These al-

gorithms create networks around the bots that should

be structurally and topologically distinguishable from

the ones around real human beings which, in turn, af-

fect the extracted graph features. The same rationale

applies to other applications of node classiﬁcation.

The above approach, based on analysis of prede-

ﬁned graph features, was proved to be useful in vari-

ous node classiﬁcations tasks but it has a few issues.

First of all, very often features of one node alone

are not enough to adequately classify this node. In-

deed, bots typically work in a coordinated way and

are not usually suspicious when considered individu-

ally. Hence, bot detection requires combining infor-

mation about multiple bots and analyzing them to-

gether (Chavoshi et al., 2016). This often is very

challenging, both conceptually as well as computa-

tionally, as it requires to consider at least a quadratic

number of pairs of nodes. As mentioned earlier,

graph features capture properties that are rather local

whereas some embedding algorithms aim to extract

more global and structural properties. Moreover, we

often do not have access to a complete network but

rather sample it using some sampling method. Un-

fortunately, the choice of a sampling algorithm may

substantially affect GF. Finally, the features that are

to be analyzed need to be predeﬁned by the analyst.

Detecting Bots in Social-networks using Node and Structural Embeddings

Therefore, the result of this approach depends heavily

on skills, knowledge, or just sheer luck of the user.

In order to solve at least some of these problems,

we propose to utilize node embedding algorithms that

assign nodes of a graph to points in a low dimensional

space of real numbers. The goal of the embedding is

to decrease the dimension but, at the same time, to ex-

tract the most important features of nodes and ignore

noise. We will call features obtained based on this ap-

proach EMB. These algorithms have quickly became

an intensely researched topics in recent years; see, for

example, (Cai et al., 2018) or a recent book (Kami

nski

et al., 2021), and the list of potential applications

constantly increases. After reducing the dimension

via node embeddings, node classiﬁcation can be done

more efﬁciently compared to extracting graph fea-

tures and using the original network to identify syn-

chronized behaviour. On the other hand, synchro-

nized behaviour should create similar network struc-

ture around the involved nodes and so should be cap-

tured by the embedding. Such group of nodes may

be then potentially extracted (even in an unsupervised

way) by some machine learning tools such as DB-

SCAN that are able to identify dense regions of the

embedded space. Some of embedding algorithms not

only capture local properties of graphs but also try to

pay attention to global structure and different roles the

nodes play within the network (Ribeiro et al., 2017;

Donnat et al., 2018) which might carry more predic-

tive power than local GF. Additional beneﬁt of such

approach, in comparison to using GF, is that features

are identiﬁed automatically in an unsupervised way

by the algorithm, as opposed to having to identify

them manually by the analyst. Finally, embeddings

seem to be less sensitive to sampling techniques and

so they might be used as a foundation for more robust

classiﬁcation algorithms.

In this paper we show the following:

• Proﬁle features are predictive for identifying bots,

since they capture core social properties of the

ground-truth network, such as friends and follow-

ers count.

• NLP approaches are powerful but are data speciﬁc

and so cannot be generalized across time, regions

and languages. Predictive features of NLP change

over time and need to be constantly updated.

• EMB approaches provide an unsupervised way

of capturing statistically signiﬁcant predictive fea-

tures.

• Features built using EMB techniques perform

equally well for classifying bots as compared with

carefully designed GF features.

• EMB techniques are as stable as features built us-

ing GF method, as the network is perturbed with

noise.

• EMB features contribute incremental predictive

power to bot classiﬁcation when used in combi-

nation with GF features.

Finally, let us stress that despite the fact that these re-

sults are optimistic and show a potential of algorithms

based on graph embeddings, this is an early stage of

research in this direction. We ﬁnish the paper with a

discussion of future work that will deepen our under-

standing of the power (as well as potential issues) of

embeddings.

2 DATASETS

Developing and evaluating bot detection algorithms

relies on the availability of unbiased labeled datasets.

Although there are numerous datasets used for build-

ing and benchmarking bot detection algorithms, we

mainly focus on using two recently curated Twitter

datasets by Feng et al. (Feng et al., 2021) [TwiBot-

20] and Setlla et al. (Stella et al., 2019) [Italian Elec-

tion]. We recognize that labeled bot-datasets often

contain some level of bias, since the real ground-truth

is not readily available. In general, labels are identi-

ﬁed by careful analysis of humans or by cleverly de-

signed algorithms. Throughout our study, we ensure

to stay aware of this fact and highlight any impact this

may have on our ﬁndings.

In the TwiBot-20 dataset, the authors focus on

building a comprehensive Twitter dataset composed

of semantic, property, and neighbourhood informa-

tion. Here, semantic is the Tweet text generated by

the user; property is the information related to user

proﬁle such as number of followers and following,

and ﬁnally, neighbourhood is the network structure

of the user. We highlight the features used from

this dataset below. To capture a natural representa-

tion of the ground-truth Twittersphere, the authors im-

plemented a breadth-ﬁrst search algorithm, to sample

and build the dataset. In this methodology, a user is

selected as the root of the tree and subsequent lay-

ers are built using the directed follow edges of each

user. This process is repeated up to layer 3, creating a

sample network with a selected user at its root (Feng

et al., 2021). The sampling algorithm used by the au-

thors builds a directed graph, where nodes are users

and edges are follow relationship. As highlighted by

Feng et al., this method of sampling does not focus on

any particular topic or pattern and should be a more

natural representation of the Twittersphere.

Raw features available from the TwiBot-20

dataset are listed and discussed in the journal version

DATA 2022 - 11th International Conference on Data Science, Technology and Applications

of this paper. Note that the values for these features

are a snapshot captured at the time of sampling. We

categorize each feature into three types: Proﬁle, NLP

and Graph. The proﬁle features are datapoints avail-

able through Twitter’s API, and highlight some prop-

erties of each user. As pointed out by Feng et al.,

the followers and following are randomly selected.

We use the raw user Tweets as the input to our NLP

feature engineering—details are provided in the jour-

nal version of this paper. Lastly, graph features are

build using the raw edge list provided in the TwiBot-

20 dataset. As mentioned before, an edge between

two nodes indicated a follow relationship between the

nodes. Although the original network provided by

Feng et al. is a directed graph, we convert it to undi-

rected graph for our analysis. Lastly, we note that the

proﬁle feature veriﬁed is excluded from the bot clas-

siﬁcation process. This is done for two main reasons.

Firstly, most users accounts are not subject Twitter’s

veriﬁcation process, where an account is conﬁrmed to

be owned by the user it claims to be. This process

would inherently exclude bots from being veriﬁed.

Secondly, due to the nature of the veriﬁcation pro-

cess, this feature could introduce bias for any classi-

ﬁer, thus making the discovery other meaningful fea-

tures more difﬁcult.

In the Italian Election dataset, Setlla et al. (Stella

et al., 2019) aim to investigate the online social inter-

actions during a 2018 Italian election and how it helps

to understand the political landscape. In their work,

the authors study relationship between real users and

bots, using the Twitter network. Unlike the TwiBot-

20 dataset, the authors build a sample of the social

network by focusing on tweets containing a list of po-

litical topics; such as ”#ItalyElection2018”, ”#voto”,

etc. The sampling technique used by Setlla et al. re-

sults in a network with a vastly different graph topol-

ogy than that created by Feng et al.. By sampling the

TwitterSphere based on topics, the authors created a

dataset in which nodes are users and edges represent

interactions between users, such as retweets or men-

tions. Although this makes it difﬁcult to compare the

performance of bot detection algorithm between these

two datasets, having diversity in how a social network

is constructed helps us understand how bots manifest

themselves within a network. The Italian Election

dataset also contains labels indicating if a user is iden-

tiﬁed as a bot or not. As described by the authors,

the bot/not-bot labels were generated by using an a

classiﬁer trained using Twitter user’s proﬁle informa-

tion (Stella et al., 2019). Although the original dataset

used by Setlla et al. (Stella et al., 2019) contains user

proﬁle and raw Tweet data, in this work we only have

access to the network data and thus we can only fo-

cus on features extracted from the underlying network

structure. Similar to the TwiBot-20 network, the Ital-

ian Election graph is directed, with edges pointing

from users who interact with other user’s content. We

also convert the Italian Election graph into an undi-

rected graph for the purpose of our study.

High-level statistics of both networks are provided

in the journal version of this paper. It is important

to note that we apply additional data cleansing and

ﬁltering to provided dataset. For example, we run our

analysis on the largest component of each graph, and

convert both graphs into undirected networks.

3 PROFILE AND NLP FEATURES

In the journal version of this paper, we provide a de-

tailed analysis of features extracted from user’s pro-

ﬁle information and their tweets. We perform feature

engineering, specially on the raw tweets using vari-

ous NLP techniques. Since we only have proﬁle and

tweet data from the Twibot-20, our analysis is cen-

tered around this dataset.

To maximize their impact on a social network,

bots aim to mimic real-user behaviour. To this end,

bots aim to create accounts and content that seem nat-

ural, such that it was generated by a real user. An ex-

ample of such actions could include following other

users, tweeting about relevant topics and engaging in

conversations. Despite their effort, bots often leave

behind signs that allow us to distinguish them from

non-bots. Having said that, bots are constantly get-

ting more clever. We provide a strong evidence that

NLP approach cannot be easily generalized and might

require constant re-training.

As one would expect, the way tweets are written

seems to be different linguistically between bots and

non-bots. However, with recent advances in Trans-

former models, computer generated text is becom-

ing evermore human like. The current state-of-the-

art is the OpenAI’s GPT-3 (Brown et al., 2020), a

generative model for NLP tasks with 175 billion pa-

rameters! GPT-3 has been demonstrated to be effec-

tive on a variety of few-shot tasks: due to its exten-

sive pre-training and size, it is able to learn rapidly

from very few training examples. It generates texts

that are nearly indistinguishable from human-written

texts: Humans correctly distinguished GPT-3 gener-

ated texts from real human texts approximately 52%

of the time, which is not signiﬁcantly higher than a

random chance (Brown et al., 2020). For more details

on GPT-3 and other related topics we direct the reader

to, for example, a recent survey (Matwin et al., 2021).

Detecting Bots in Social-networks using Node and Structural Embeddings

4 GRAPH DERIVED FEATURES

Another potentially independent source for extract-

ing features is rooted in the way users/bots interact

with others in the network. One can capture this in-

formation by analyzing various graph properties de-

rived from the underlying social-network. This can

be done in two ways. One, by carefully designing

statistical features of the nodes. Second, using unsu-

pervised methods to learn node and structural repre-

sentations of the nodes. In this section, we provide

a detailed analysis of node feature engineering in ad-

dition to features extracted using various embedding

techniques.

4.1 Node Features

In this section, we build node features derived from

the underlying network structure using both TwiBot-

20 and Italian Election datasets. For extracting fea-

tures we use NetworkX as well as igraph python

packages depending on the efﬁciently of the corre-

sponding algorithms. Here is the list of extracted

node-features that were computed for all nodes. For

detailed deﬁnition we direct the reader to, for exam-

ple, (Kami

nski et al., 2021) or any other textbook on

network science.

• degree centrality - degree (the number of edges

the vertex has)

• strength - minimum ratio of edges re-

moved/components created during graph de-

composition process

• eigen centrality - eigenvector centrality, a mea-

sure of the importance of the vertex (using relative

scores)

• closeness - closeness centrality, a measure of the

importance of the vertex calculated using the sum

of the length of the shortest path between the ver-

tex and other vertices

• harmonic centrality - harmonic centrality (an-

other variant of closeness centrality, calculated

similarly)

• betweenness - betweenness centrality, a measure

of the importance of the vertex calculated using

number of shortest paths that pass through the

node

• authority - authority score, sum of the scaled hub

values that have edge to the given node

• hub score - hub score, sum of the scaled authority

values of the nodes it has edge to

• constraint - Burt’s constraint, an index that mea-

sures the extent to which a person’s contacts are

redundant

• coreness - coreness (unique value of k such that a

node belongs to the k-core but not to the (k + 1)-

core)

• eccentricity - eccentricity (the maximum distance

from a given node to other nodes)

• pagerank - another way of measuring node im-

portance - invented by Google Search to rank web

pages in Google search engine output

In addition to the above list of features, we compute

average, standard deviation, minimum and maximum

of every feature for the neighbouring nodes of each

vertex. A full list of these features is given in the jour-

nal version of the paper.

As we highlighted in section 2, there are major

differences in how the TwiBot-20 and Italian Elec-

tion datasets were constructed. Firstly, the underly-

ing network constructed in the TwiBot-20 captures

follower-following relationship, while the network in

the Italian Election dataset represents interactions

between users. Secondly, the sampling technique

used in the TwiBot-20 dataset results in much more

uniform graph topology since at each sampling layer a

ﬁx number of nodes (followers) were sampled. This is

in contrast to the Italian Election dataset, were nodes

were more randomly sampled. The difference in the

network topology between these two datasets is re-

ﬂected in the values captured using the node-features

(a full analysis of these differences is presented in

journal version of the paper). This is indeed an impor-

tant observation, since one could extract more mean-

ingful node-features by resampling the same underly-

ing graph using different techniques.

The features whose calculation did not involve

neighbours indicate only slight differences between

bots and non-bots, both in terms of feature count and

magnitude of discrepancies.

Discrepancies between bot and non-bots groups

are more visible on the distributions of features in-

volving particular nodes’ neighbours’ during calcula-

tion. Similarly to the previous group of characteris-

tics, differences are more visible on the Italian Elec-

tion data and again, values in this dataset seem to have

lower variance or variance among groups. In particu-

lar, values for bots’ features seem to have even lower

standard deviation, which may be an indicator of the

fact that bots constitute a homogenous group. Nev-

ertheless, as different conclusions may be drawn on

the basis of TwiBot-20 dataset, so this observation

may be attributed to different sampling or annotating

method.

DATA 2022 - 11th International Conference on Data Science, Technology and Applications

The fact that node features constructed on the ba-

sis of data about vertices’ neighbours may help in ex-

plaining being bot versus non-bot (at least more than

pure node features) indicates the purposefulness of

node embeddings usage. However, as this assump-

tion is based solely on graphical analysis, one may be

interested in modelling the relationship of node fea-

tures and “being a bot”. This is done in the following

sections.

4.2 Node and Structural Embedding

There are over 100 algorithms proposed in the liter-

ature for node and structural embeddings which are

based on various approaches such as random walks,

linear algebra, and deep learning (Goyal and Fer-

rara, 2018; Kami

nski et al., 2021). Moreover, many

of these algorithms have various parameters that can

be carefully tuned to generate embeddings in some

multidimensional spaces, possibly in different dimen-

sions. In this paper, we typically set all parameters

but the dimension to the default values recommended

by their authors. Once parameters are ﬁxed, the algo-

rithms learn the embedding in an unsupervised way.

Having said that, some algorithms are randomized

and so the outcome might vary. For our experiments,

we selected 6 popular algorithms that span different

families and includes both node as well as structural

embeddings.

The ﬁrst two algorithms, Deep Walk (Perozzi

et al., 2014) and Node2Vec (Grover and Leskovec,

2016), are based on random walks performed on the

graph. This approach was successfully used in NLP;

for example the Word2Vec algorithm (Mikolov et al.,

2013) is based on the assumption that “words are

known by the company they keep”. For a given word,

embedding is achieved by looking at words appear-

ing close to each other as deﬁned by context win-

dows (groups of consecutive words). For graphs, the

nodes play the role of words and “sentences” are con-

structed via random walks. The exact procedure how

one performs such random walks differs for the two

algorithms we selected.

In the Deep Walk algorithm, the family of walks

is sampled by performing random walks on graph G,

typically between 32 and 64 per node, and for some

ﬁxed length. The walks are then used as sentences.

For each node v

, the algorithm tries to ﬁnd an embed-

ding e

of v

that maximizes the approximated likeli-

hood of observing the nodes in its context windows

obtained from generated walks, assuming indepen-

dence of observations.

In node2vec, biased random walks are deﬁned via

two main parameters. The return parameter (p) con-

trols the likelihood of immediately revisiting a node

in the random walk. Setting it to a high value ensures

that we are less likely to sample an already-visited

node in the following two steps. The in-out parame-

ter (q) allows the search to differentiate between in-

ward and outward nodes so we can smoothly inter-

polate between breadth-ﬁrst-search (BFS) and depth-

ﬁrst search (DFS) exploration.

The above algorithms primarily capture proximity

among the nodes, nodes that are close to one another

in the network are embedded together. But proximity

among the nodes does not always imply similarity, as

in the speciﬁc application we consider in this paper,

bot detection. A role the nodes play within the net-

work depends more on the structure of the network

around them more than the distance between them.

(See (Rossi and Ahmed, 2014) for a survey on roles.)

The next four algorithms aim to create embeddings

that capture structural properties of the network.

The ﬁrst algorithm from this family,

Role2Vec (Ahmed et al., 2019), generalizes the

above techniques based on traditional random walks.

To capture whether two nodes have the same role

within the network, the notion of attributed random

walks is introduced which is not tided to node iden-

tity but is instead using a function that maps a node

attribute vector to a role. As a result, the algorithm

learns associations among subsets of nodes (that is,

roles) instead of properties of individual nodes.

RolX (Henderson et al., 2012) is another approach

to explicitly identify the role of nodes using exclu-

sively the network structure. This algorithm is based

on enumerating various structural features for nodes

in an unsupervised way, and ﬁnding the most suited

basis vector for this joint feature space. Then, the al-

gorithm assigns every node with a distribution over

the identiﬁed roles (basis), allowing for mixed mem-

bership across the roles.

The next algorithm, Struc2Vec (Ribeiro et al.,

2017) uses a hierarchy to measure node similarity at

different scales. As a result, it constructs a multilayer

graph to encode structural similarities and generate

structural context for nodes. This hierarchical view

is useful as it provides a sequence of more restricted

notions of what it means to be structurally similar. At

the bottom of the hierarchy, similarity between nodes

depend exclusively on their degrees whereas at the top

of the hierarchy similarity depends on the entire net-

work.

The last algorithm we tested, GraphWave (Donnat

et al., 2018) uses techniques from graph signal pro-

cessing. It learns structural embeddings by propagat-

ing a unit of energy from a given node and character-

izes its neighbouring topology based on the response

Detecting Bots in Social-networks using Node and Structural Embeddings

of the network to this probe. The runtime of this al-

gorithms scales linearly with the number of edges.

As mentioned earlier, we ﬁx most of the hyper-

paramters of each algorithm to their default value, and

only adjust the embedding dimension. Of course, it is

important to note that it is possible to optimize the

outcome of each algorithm by searching for the ideal

set of parameters for the task at hand, however our

goal is not to optimize for the best metrics, but rather

learn whether embeddings can help us in identifying

bots in a social network.

5 BOT CLASSIFICATION

Thus far, we have focused on engineering and ana-

lyzing features built using user-proﬁle, NLP, node-

features and embeddings. In effort to understand the

predictability of these features in identifying bot ac-

counts, we train and test various classiﬁcation models

using the TiwBot-20 and Italian Election datasets.

Since the underlying data for these datasets are dif-

ferent, we divide our analysis into two section ac-

cordingly, focusing on each dataset separately. In

both cases, datasets are sampled such that bot/non-bot

classes are balanced (50/50). Furthermore, we use a

80/20 split for the train/test datasets. A 5-fold cross-

validation process is then used to arrive the best per-

forming model. All metrics are then computed using

the test-set.

5.1 Bot Detection using TwiBot-20

Dataset

In this section, we use NLP+P, GF and EMB features

to build a bot classiﬁcation model. Our goal is not

to optimize for the best performing model, but rather

understand the predictive power of each feature-set.

We build ﬁve models using various combinations of

feature-sets. A summary of the performance of each

model is highlighted in Table 1. As shown, the best

performing model (based on accuracy) is the one

trained on all features combined, achieving an accu-

racy of 81.76%. Furthermore, we note that models

trained on EMB perform slightly better than those

trained on GF alone. This enforces the fact that unsu-

pervised embedding algorithms have the potential to

learn complex and meaningful node features. More

importantly, a model built on a combined GF+EMB

performs better than GF and EMB separately, hinting

that embedding features capture incremental predic-

tive information about the nodes. Lastly, we note that

models built using features extracted from the under-

lying network (GF and EMB) suffer from the uni-

form topology of the TwiBot-20 dataset, as described

previously. A different sampling technique could po-

tentially result in a boost in the predictive power of

features built using the network structure.

Next, we use feature importance analysis to ex-

plore the contribution of various features in the GF

+ NLP+P feature-sets to the performance of mod-

els. Since the embedding algorithms learn continu-

ous representation of nodes in an unsupervised way,

it is not easy to reverse engineer what each embed-

ding dimension represents. Starting with feature im-

portance using GF feature-set, we ﬁnd that top two

most predictive features for the TwiBot-20 datasets

are degree centrality and pagerank. Given the high

overlap in the performance of models built using GF

and EMB datasets, one could postulate that embed-

ding algorithms learn some form of centrality mea-

sure about the nodes.

Next, we apply similar feature importance analy-

sis to the NLP+P feature-sets. According to top 20

variable importances the set of the top three predic-

tor features are two original Twitter API variables,

f ollowers count, listed count, and the percentage of

English tweets, perc en extracted in the course of this

study. This feature’s importance has manifested in the

basic EDA too. Further behind, we can see three vari-

ables with a similar importance, i.e, f riends count,

links per tweet and av tweet len. Quite noticeable

impact was noted for user mentions per tweet as well

as for sentiment related features.

A complementary feature importance analysis can

be done using Shapley technique. It is conﬁrmed that

the more followers users have, the least chance of

them being a bot. Also, even though bots are not

generally as followed on Twitter as bots are, the re-

lationship is opposite for Twitter friendships—the ex-

treme values for f riends count are generally associ-

ated with bots in the ML classiﬁer as well. Another

signiﬁcant distinction between bots and humans can

be found in listed count. Large number of public lists

that this user is a member of is associated with being

a human. The percentage of tweets written in English

is not as monotonously related to being a bot, but the

highest values are characteristic exclusively for bots.

These users also seem not to be keen on using geo-

graphical tagging when they’re posting (this was an

opt-in feature on Twitter). The links and mentions per

tweet tend to be higher for the identiﬁed bots, even

though the initial basic EDA could not detect this ten-

dency clearly for the links feature.

DATA 2022 - 11th International Conference on Data Science, Technology and Applications

Table 1: Performance measure for models trained using TwiBot-20 dataset.

Procedure Accuracy Precision Recall F1 MCC

NLP+P 0.8036 0.8059 0.8675 0.8356 0.5952

GF 0.6352 0.6357 0.8563 0.7297 0.2274

EMB 0.6481 0.6562 0.8153 0.7271 0.2594

GF+EMB 0.6620 0.6599 0.8507 0.7433 0.2905

NLP+P+GF+EMB 0.8176 0.8256 0.8657 0.8452 0.6246

5.2 Bot Detection using Italian-Election

Dataset

In this section, we build and analyze bot classiﬁcation

models using the Italian Election dataset. As pointed

out earlier, we do not have user proﬁle or tweet data

for the Italian-Election dataset, and thus all mod-

els are built using only the GF and EMB features.

As before, we train our models on balanced datasets

containing 50/50 proportion of bot and non-bot ex-

amples. Test, train split is kept consistent to 80/20

split. Furthermore, we keep the model architecture

and all hyperparameters the same for all runs, to keep

performance comparison consistent across all feature

sets. We measure a number of metrics when com-

paring the performance of each feature set, includ-

ing accuracy, recall, precision and Matthews correla-

tion coefﬁcient (MCC). Since some embeddings such

as Node2Vec and DeepWalk are randomized (rely

on random walks), we run those algorithms multiple

times (sample size 100) and report our ﬁndings on the

sample.

We summarize the result of our classiﬁcation anal-

ysis in Table 2, highlighting the metrics used for com-

paring the performance measures. As a reference, we

plot the model accuracy for each feature set in Fig-

ure 2. We note that the goal for this analysis was

not to optimize the model performance, buy rather

learn about the predictive power of each algorithm.

As highlighted, using carefully designed node fea-

ture (as highlighted in the previous section), one could

achieve accuracy of 66% in detecting bot vs. non-bot

accounts.

Features such as pagerank and coreness show pre-

dictive power as compared with other node features.

One could use this information to design similar fea-

tures related to node centrality and coreness to cap-

ture additional predictive power, however this pro-

cess is time consuming and could miss important fea-

tures. As we have suggested, a different approach

is to leverage unsupervised machine learning tech-

niques to capture various properties on nodes, without

time consuming featuring engineering. As we show in

this section, one could utilize node and structural em-

bedding to learn different types of representations of

node, and combine them to gain even greater predic-

tive power.

We see in Figure 2 that models trained exclu-

sively on features extracted using embeddings per-

form inline with a model trained using engineered

node features. Node embeddings, such as Node2Vec

and DeepWalk, could learn information about the

node’s local community and proximity, while struc-

tural embeddings could learn information about the

local structure of the network around each node. As

we can see, a combination of these features could cap-

ture a broader representation of nodes, and in fact per-

form as well, or even better than a model trained on

node features. In this case, All Embedding is a model

trained on a feature set built by combining all the em-

beddings together. We note that to make our com-

parison fair, we apply Principal Component Analysis

(PCA) to this combined feature set to reduce the di-

mensionality to 64 (same as embedding dimension of

the embedding algorithms). We also highlight the fact

that models trained using Role2Vec embedding out-

performs all other embedding, indicating that for the

Italian Election dataset, the structural property of the

nodes is a better indicator if an account is bot vs. non-

bot. Other metrics in presented in Table 2 tell similar

stories, where models trained on all embedding per-

form best in our study.

Lastly, we perform feature importance analysis on

the GF feature-set. Similar to the TwiBot-20 dataset,

pagerank appear in the top two most predictive fea-

tures. Given the difference in the topology of the two

graphs, TwiBot-20 and Italian Election, it is interest-

ing to observe pagerank appearing as one of the most

important features. However, unlike TwiBot-20, we

observe a number of important features derived from

statistics of node-features from neighbouring nodes of

each vertex. This indicates that identifying bots using

node-features requires more than local properties of

nodes. This further supports the use of embeddings,

since many embedding algorithms can learn global

properties of nodes.

We conclude this section by emphasizing that

the performance of each embedding on this dataset

Detecting Bots in Social-networks using Node and Structural Embeddings

Table 2: Bot classiﬁcation performance summary for the Italian-Election dataset.

Feature-Set Accuracy Precision Recall f1-Score MCC

Node Features 0.66 0.65 0.66 0.66 0.31

All Embeddings 0.69 0.70 0.64 0.67 0.38

Node2Vec 0.61 0.62 0.57 0.59 0.22

DeepWalk 0.62 0.62 0.59 0.60 0.23

LSME 0.64 0.64 0.65 0.64 0.29

Struc2Vec 0.63 0.66 0.55 0.60 0.27

GraphWave 0.64 0.65 0.61 0.63 0.29

Role2Vec 0.67 0.68 0.61 0.65 0.34

Node Features

Node2Vec

DeepWalk

LSME

Struc2Vec

GraphWave

Role2Vec

All Embedding

0.56

0.58

0.6

0.62

0.64

0.66

0.68

0.7

0.72

Node Features

Node2Vec

DeepWalk

LSME

Struc2Vec

GraphWave

Role2Vec

All Embedding

Accuracy

Figure 1: Accuracy for bot classiﬁcation for the Italian-Election dataset. Distributions are over 10 runs of each embedding

algorithm and 10 runs of classiﬁer. Accuracy is measured using sample size 100 runs.

(Italian-Election) is not an indication that they per-

form in similar range if applied to other datasets.

In general, embeddings are very application speciﬁc.

This can also be said about hand-designed node fea-

tures. Given the diversity amongst datasets, one

should aim to use techniques that learn a wide range

of representation of nodes in an unsupervised way.

For this reason, an embedding technique (or a com-

bination of them) could be power tool that could gen-

eralize well across various applications.

6 PREDICTIVE STABILITY

To understand the impact of data-noise on the qual-

ity of features extracted by embedding algorithms,

we performed simulations, where we artiﬁcially in-

troduced noise into the Italian Election dataset while

measuring the accuracy of bot classiﬁer models. As a

benchmark, we compared all results against a model

built using node-features. Based on our simulations,

we found that features learned via embeddings are as

resilient to noise as node-features. These results are

highlighted in Figure 2, where we compared the per-

formance of each embedding algorithm (blue) against

a model built using node-features (red) and a model

built using the combined embedding features (yel-

low).

7 CONCLUSION

In this work, we examined four distinct feature-sets

extracted from the Twitter social network for identi-

fying bot accounts. We divided the features into those

captured directly from the Twitter network, NLP and

DATA 2022 - 11th International Conference on Data Science, Technology and Applications

Figure 2: Stability of accuracy score: accuracy of node features (red), accuracy of speciﬁc embedding (blue), and accuracy of

all embeddings combined (yellow).

user-proﬁle data, and those derived from the underly-

ing network structure, node-features and embeddings.

We showed that NLP and user proﬁle features have

strong predictive power, however they suffer from the

lack of generalizability. For example, language mod-

els trained for identifying bot accounts in a English

speaking region can not be used to other regions. Sim-

ilarly, clever bot accounts can modify their user pro-

ﬁles to appear more natural (non-bot like), and avoid

being detected as bots. A much more difﬁcult task

however is altering the topology of the social network

surrounding an account to appear as if it was created

organically. Building on this intuition, we showed

that the features extracted by mining graph structures

indeed holds predictive power in helping us identify

bots.

We analyzed features extracted from two Twitter

datasets, one (Twibot-20) built using the follower as

well as following relationships between users, and the

other (Italian Election) constructed based on the in-

teractions between users. We saw that in both net-

works, features mined from the underlying graph,

either through node-feature engineering or learned

in an unsupervised way via embedding algorithms,

have predictive power. This hints at the fact that

bot behaviour in a social network is distinguishable

from non-bot users in both how they (bots) build re-

lationships with other users and how they interact

with them. An interesting future research question

would be to study the impact of combining features

from various networks, for example one built on fol-

lower/following and another on user-user interaction,

for identifying bots.

Lastly, we showed that features captured using un-

supervised embedding techniques are as predictive for

bot classiﬁcation as those built using node-feature en-

gineering. One major advantage of using embedding

algorithms is that they can learn a wide spectrum of

properties about the proximity and structural proper-

ties of nodes. We also showed that one could combine

features learned from various node and structural em-

beddings to a hybrid feature set.

Detecting Bots in Social-networks using Node and Structural Embeddings

REFERENCES

Ahmed, N. K., Rossi, R. A., Lee, J. B., Willke, T. L., Zhou,

R., Kong, X., and Eldardiry, H. (2019). role2vec:

Role-based network embeddings. In Proc. DLG KDD,

pages 1–7.

Aiello, L. M., Deplano, M., Schifanella, R., and Ruffo, G.

(2012). People are strange when you’re a stranger:

Impact and inﬂuence of bots on social networks. In

Sixth International AAAI Conference on Weblogs and

Social Media.

Antenore, M., Camacho Rodriguez, J. M., and Panizzi,

E. (2022). A comparative study of bot detection

techniques with an application in twitter covid-19

discourse. Social Science Computer Review, page

08944393211073733.

Bail, C. A., Guay, B., Maloney, E., Combs, A., Hilly-

gus, D. S., Merhout, F., Freelon, D., and Volfovsky,

A. (2020). Assessing the russian internet research

agency’s impact on the political attitudes and behav-

iors of american twitter users in late 2017. Proceed-

ings of the national academy of sciences, 117(1):243–

250.

Brown, T. B., Mann, B., Ryder, N., Subbiah, M., Kaplan,

J., Dhariwal, P., Neelakantan, A., Shyam, P., Sastry,

G., Askell, A., et al. (2020). Language models are

few-shot learners. arXiv preprint arXiv:2005.14165.

Cai, H., Zheng, V. W., and Chang, K. C.-C. (2018). A com-

prehensive survey of graph embedding: Problems,

techniques, and applications. IEEE Transactions on

Knowledge and Data Engineering, 30(9):1616–1637.

Carter, D. (2016). Hustle and brand: The sociotechni-

cal shaping of inﬂuence. Social Media+ Society,

2(3):2056305116666305.

Cha, M., Haddadi, H., Benevenuto, F., and Gummadi, K.

(2010). Measuring user inﬂuence in twitter: The mil-

lion follower fallacy. In Proceedings of the Interna-

tional AAAI Conference on Web and Social Media,

volume 4.

Chavoshi, N., Hamooni, H., and Mueen, A. (2016). Debot:

Twitter bot detection via warped correlation. In Icdm,

pages 817–822.

De Domenico, M. and Altmann, E. G. (2020). Unraveling

the origin of social bursts in collective attention. Sci-

entiﬁc reports, 10(1):1–9.

Dong, G. and Liu, H. (2018). Feature engineering for ma-

chine learning and data analytics. CRC Press.

Donnat, C., Zitnik, M., Hallac, D., and Leskovec, J. (2018).

Learning structural node embeddings via diffusion

wavelets. In Proceedings of the 24th ACM SIGKDD

International Conference on Knowledge Discovery &

Data Mining, pages 1320–1329.

Feng, S., Wan, H., Wang, N., Li, J., and Luo, M. (2021).

Twibot-20: A comprehensive twitter bot detection

benchmark. In Proceedings of the 30th ACM Interna-

tional Conference on Information & Knowledge Man-

agement, pages 4485–4494.

Freelon, D., Bossetta, M., Wells, C., Lukito, J., Xia, Y.,

and Adams, K. (2020). Black trolls matter: Racial

and ideological asymmetries in social media disin-

formation. Social Science Computer Review, page

0894439320914853.

Freitas, C., Benevenuto, F., Ghosh, S., and Veloso, A.

(2015). Reverse engineering socialbot inﬁltration

strategies in twitter. In 2015 IEEE/ACM International

Conference on Advances in Social Networks Analysis

and Mining (ASONAM), pages 25–32. IEEE.

Gonz

alez-Bail

on, S. and De Domenico, M. (2021). Bots are

less central than veriﬁed accounts during contentious

political events. Proceedings of the National Academy

of Sciences, 118(11).

Goyal, P. and Ferrara, E. (2018). Graph embedding tech-

niques, applications, and performance: A survey.

Knowledge-Based Systems, 151:78–94.

Grover, A. and Leskovec, J. (2016). node2vec: Scal-

able feature learning for networks. In Proceedings

of the 22nd ACM SIGKDD international conference

on Knowledge discovery and data mining, pages 855–

864.

Henderson, K., Gallagher, B., Eliassi-Rad, T., Tong, H.,

Basu, S., Akoglu, L., Koutra, D., Faloutsos, C., and

Li, L. (2012). Rolx: structural role extraction & min-

ing in large graphs. In Proceedings of the 18th ACM

SIGKDD international conference on Knowledge dis-

covery and data mining, pages 1231–1239.

Hwang, T., Pearce, I., and Nanis, M. (2012). Socialbots:

Voices from the fronts. interactions, 19(2):38–45.

Kami

nski, B., Prałat, P., and Th

eberge, F. (2021). Mining

Complex Networks. CRC Press.

Lehmann, J., Gonc¸alves, B., Ramasco, J. J., and Cattuto,

C. (2012). Dynamical classes of collective attention

in twitter. In Proceedings of the 21st international

conference on World Wide Web, pages 251–260.

Matwin, S., Milios, A., Prałat, P., Soares, A., and Th

eberge,

F. (2021). Survey of generative methods for social

media analysis. arXiv preprint arXiv:2112.07041.

Mikolov, T., Sutskever, I., Chen, K., Corrado, G. S., and

Dean, J. (2013). Distributed representations of words

and phrases and their compositionality. In Advances in

neural information processing systems, pages 3111–

3119.

Monti, F., Frasca, F., Eynard, D., Mannion, D., and Bron-

stein, M. M. (2019). Fake news detection on social

media using geometric deep learning. arXiv preprint

arXiv:1902.06673.

Perozzi, B., Al-Rfou, R., and Skiena, S. (2014). Deepwalk:

Online learning of social representations. In Proceed-

ings of the 20th ACM SIGKDD international confer-

ence on Knowledge discovery and data mining, pages

701–710.

Ribeiro, L. F., Saverese, P. H., and Figueiredo, D. R.

(2017). struc2vec: Learning node representations

from structural identity. In Proceedings of the 23rd

ACM SIGKDD international conference on knowl-

edge discovery and data mining, pages 385–394.

Rossi, R. A. and Ahmed, N. K. (2014). Role discovery in

networks. IEEE Transactions on Knowledge and Data

Engineering, 27(4):1112–1131.

DATA 2022 - 11th International Conference on Data Science, Technology and Applications

Sayyadiharikandeh, M., Varol, O., Yang, K.-C., Flammini,

A., and Menczer, F. (2020). Detection of novel social

bots by ensembles of specialized classiﬁers. In Pro-

ceedings of the 29th ACM International Conference

on Information & Knowledge Management, pages

2725–2732.

Stella, M., Cristoforetti, M., and De Domenico, M. (2019).

Inﬂuence of augmented humans in online interactions

during voting events. PloS one, 14(5):e0214210.

Woolley, S. C. and Howard, P. N. (2018). Computational

propaganda: political parties, politicians, and politi-

cal manipulation on social media. Oxford University

Press.

Yang, K.-C., Varol, O., Davis, C. A., Ferrara, E., Flammini,

A., and Menczer, F. (2019). Arming the public with

artiﬁcial intelligence to counter social bots. Human

Behavior and Emerging Technologies, 1(1):48–61.

Detecting Bots in Social-networks using Node and Structural Embeddings
