CRGC: A Practical Framework for Constructing Reusable Garbled
Circuits
Christopher Harth-Kitzerow
1
, Georg Carle
1
, Fan Fei
2
, Andre Luckow
3
and Johannes Klepsch
3
1
Department of Informatics, Technical University of Munich, Garching, Germany
2
Faculty of Electrical Engineering and Computer Science, Leibniz University Hannover, Hannover, Germany
3
Group IT, The BMW Group, Munich, Germany
Keywords:
Secure Multiparty Computation, Garbled Circuits, Privacy Enhancing Technologies.
Abstract:
In this work, we introduce two schemes to construct reusable garbled circuits (RGCs) in the semi-honest
setting. Our completely reusable garbled circuit (CRGC) scheme allows the generator (party A) to construct
and send an obfuscated boolean circuit along with an encoded input to the evaluator (party B). In contrast to
Yao’s Garbled Circuit protocol, B can securely evaluate the same CRGC with an arbitrary number of inputs.
As a tradeoff, CRGCs predictably leak some input bits of A to B. We also propose a partially reusable garbled
circuit (PRGC) scheme that divides a circuit into reusable and non-reusable sections. PRGCs do not leak
input bits of A. We benchmark our CRGC implementation against the state-of-the-art garbled circuit libraries
EMP SH2PC and TinyGarble2. Using our framework, evaluating a CRGC is up to twenty times faster, albeit
with weaker privacy guarantees, than evaluating an equivalent garbled circuit constructed by the two existing
libraries. Our open-source library can convert any C++ function to a CRGC at approx. 80 million gates per
second and repeatedly evaluate a CRGC at approx. 350 million gates per second. Additionally, a compressed
CRGC is approx. 75% smaller in file size than the unobfuscated boolean circuit.
1 INTRODUCTION
Secure Multiparty Computation enables parties to ex-
ecute functions on obliviously shared inputs without
revealing them (Lindell, 2020). Yao’s Garbled Cir-
cuits protocol (Yao, 1982; Yao, 1986) is a popular
Secure Multiparty Computation protocol for realiz-
ing semi-honest two-party computation. Following
the protocol, a circuit generator A sends its encoded
inputs and the encrypted and permuted gate output ta-
bles of a boolean circuit to a circuit evaluator B. B
can obtain only one encoded input per circuit through
Oblivious Transfer. Thus, each time B wants to obtain
an output from a different input, it needs to request an-
other garbled circuit. Garbled circuits get large in file
size. Our Reusable Garbled Circuit (RGC) schemes
allow B to re-use a garbled circuit for multiple eval-
uations with different evaluator inputs. They signifi-
cantly reduce communication overhead compared to
sending a new garbled circuit for each evaluation.
RGCs enable party A to send obfuscated data to an un-
trusted party B while ensuring that sent data remains
secret and can only be used for its intended purpose
implemented by the circuit. B can evaluate an RGC
with an arbitrary number of inputs without revealing
As input.
Existing RGC schemes usually rely on crypto-
graphic primitives that are too complex for real-
world use cases. Our key idea instead is to uti-
lize information-theoretic techniques to obfuscate the
wire labels that A sends to B in a way that hinders B
from learning As secret inputs. With this approach,
B can repeatedly evaluate the same obfuscated circuit
with arbitrary inputs. Only when A
s input changes
it needs to construct a new RGC. While constructing
an RGC can take longer than constructing a garbled
circuit, it pays off over time due to faster evaluation
speed. Not all gates in a circuit can be obfuscated
without leaking input bits. Thus, A has two options:
1. It obfuscates only those gates with our techniques
that do not leak information. It then groups the
remaining unobfuscated gates into n non-reusable
sub-circuits and prepares n Yao’s Garbled Circuit
protocols. With this approach, we obtain reusable
and non-reusable sections in a circuit. We call the
resulting circuit a partially reusable garbled cir-
cuit (PRGC).
2. It obfuscates all gates with our techniques and
tolerates a certain number of leaked input bits.
We call the resulting circuit a completely reusable
garbled circuit (CRGC).
Harth-Kitzerow, C., Carle, G., Fei, F., Luckow, A. and Klepsch, J.
CRGC: A Practical Framework for Constructing Reusable Garbled Circuits.
DOI: 10.5220/0011145300003283
In Proceedings of the 19th International Conference on Security and Cryptography (SECRYPT 2022), pages 83-95
ISBN: 978-989-758-590-6; ISSN: 2184-7711
Copyright
c
2022 by SCITEPRESS Science and Technology Publications, Lda. All rights reserved
83
Our CRGC scheme essentially transforms a
boolean circuit C that computes a functionality f (a,b)
into a boolean circuit C
and obfuscated input a
such
that C
(a
,b) = C(a,b) for a specific input a and any
arbitrary input b. Evaluating C
is as efficient as evalu-
ating C. Given C
, C, and a
it is difficult to infer input
bits of a even with repeated evaluations. Our PRGC
scheme divides a CRGC C
into reusable sub-circuits
(sections) and non-reusable sections. Reusable sec-
tions do not leak inputs of a. Non-reusable sections
contain gates that may leak input bits of a. Thus,
A and B engage in a Yao’s Garbled Circuit protocol
for each non-reusable section in C
for each repeated
evaluation. As a result, our PRGC scheme guaran-
tees the same level of input privacy as Yao’s Garbled
Circuit protocol.
Our framework compiles any user-defined C++
program and a set of inputs into a CRGC and a set of
encoded inputs. A can send these compressed over the
network to B. B can use our implementation to eval-
uate the CRGC with an arbitrary number of inputs.
We tested several programs such as linear search, set
intersection, and data analysis but also elementary
operations such as addition and multiplication. Our

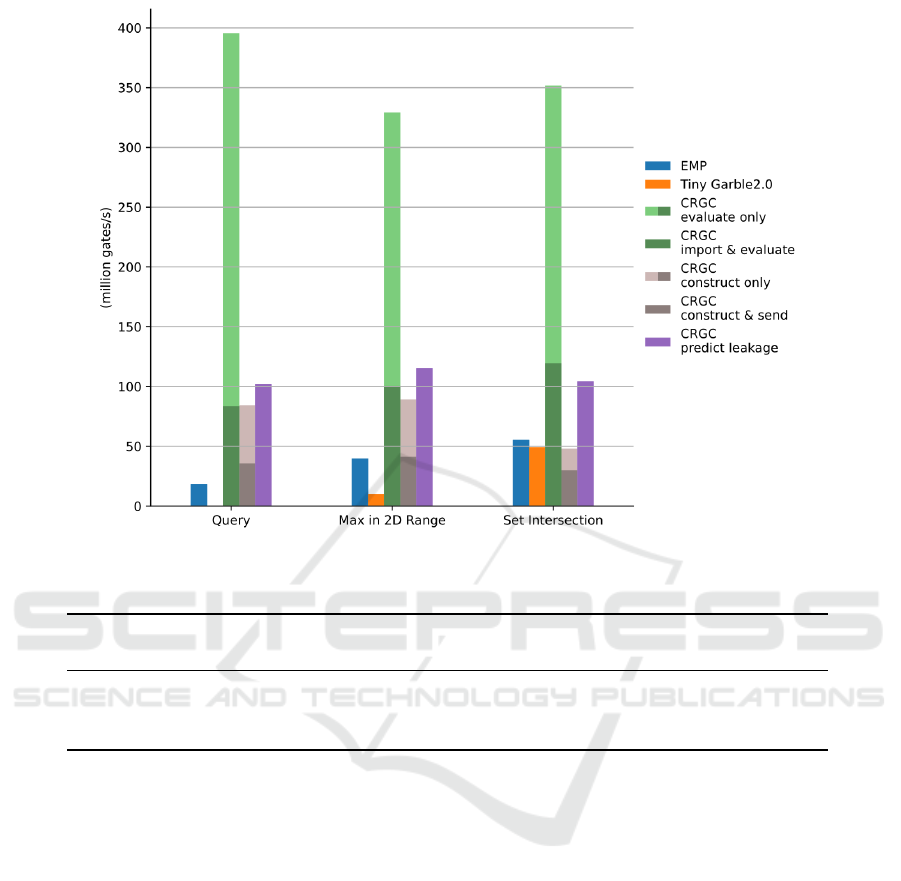

benchmarks show that an Amazon M5ZN instance
can construct CRGCs at approx. 80 million gates per
second and evaluate them at approx. 350 million gates
per second. The construction is only necessary once
per input of party A. EMP SH2PC (Wang et al., 2016)
and TinyGarble2 (Hussain et al., 2020) can evaluate
the same programs at up to 55 million gates per sec-
ond but without leaking any input bits to B.
2 OUR APPROACH
In this section, we show how A can construct a CRGC
and a PRGC. Any boolean circuit C and generator in-
put a can be converted into an RGC C
and an obfus-
cated input a
using three different kinds of obfusca-
tion techniques: Bit Flipping, obfuscating fixed gates,
and obfuscating intermediary gates. After applying
our obfuscation techniques, C
is tied to a single a
,
meaning that ab : C
(a
,b) = C(a, b) but for inputs
not equal to a
the output equality of C and C
is not
ensured.
We call XNOR and XOR gates balanced gates,
and all other gates imbalanced gates. We refer to a
gate as a passive gate if modifying its truth table does
not alter the circuit’s output. A gate provides indis-
tinguishability obfuscation if B has an advantage of
0 to distinguish between a gate’s truth table entry re-
sulting from a generator’s input of 0 and 1. In our
PRGC protocol, only truth tables of gates that provide
indistinguishability obfuscation and final output gates
are contained in the reusable section. A uses Yao’s
Garbled Circuit protocol to ensure that the remain-
ing gates also do not leak any input bits of a. In our
CRGC protocol, A instead also sends these remaining
gates to B without additional obfuscation, thus toler-
ating a predictable number of leaked input bits.
2.1 Bit Flipping
Bit Flipping refers to applying a one-time pad r over
the input bits of a and all wires in the circuit C to
obtain C
and a
. Only inputs from B and final output
wires do not get flipped. Whenever, a wire w is flipped
by r, A needs to modify the truth table of ws child
gates to recover the integrity of C
. For instance, if the
left input wire of a gate g with functionality f (u,v) is
flipped, A can modify g
s truth table to f (¬u,v) to
ensure that C
(a
,b) = C(a, b).
Since an RGC should be dependent on one fixed a
with a bitlength l, truth table entries that contain ¬a
i
(i < l) can be modified arbitrarily while maintaining
the integrity of C
. Algorithm 1 realizes Bit Flipping.
Since a one-time pad is only secure for a single input,
A has to construct a new RGC if a changes. However,
B can use C
and a
for multiple of its own inputs b.
With Bit Flipping, all balanced gates (XOR, XNOR)
in C
achieve indistinguishability obfuscation.
Algorithm 1: Bit Flipping.
1: for each generator input a[i] do
2: a
[i] generateRandomBit()
3: f lipped[i] a
[i] == a[i]
4: for each gate g do
5: recoverIntegrity(g)
6: f lipped[g] generateRandomBit()
7: if f lipped[g] == true & g ̸∈ Output then
8: f lipTruthTable(g)
2.1.1 Examples
Figure 1 illustrates the achieved indistinguishability
of randomly flipping balanced gates. Note that truth
tables shown in Figure 1a and 1b are identical, even
though their generator inputs u differ. Figure 1c, 1d
show the other two identical truth tables constructed
from different inputs and flips. Since B can obtain two
identical truth tables from a generator’s value of 0 and
1, it cannot infer u from inspecting the truth table of a
potentially flipped balanced gate.
Bit Flipping does not lead to an indistinguishabil-
ity obfuscation for imbalanced gates. All four com-
binations of randomly flipping the generator’s input
u and the output wire w yield distinct truth tables.
SECRYPT 2022 - 19th International Conference on Security and Cryptography
84
u v
w
XOR
u v w
0 0 1
0 1 0
1 0 0
1 1 1
(a) XOR gate, left parent flipped.
u v
w
XOR
u v w
0 0 1
0 1 0
1 0 0
1 1 1
(b) XOR gate, output flipped.
u v
w
XOR
u v w
0 0 0
0 1 1
1 0 1
1 1 0
(c) XOR gate, not flipped.
u v
w
XOR
u v w
0 0 0
0 1 1
1 0 1
1 1 0
(d) XOR gate, left parent & output flipped.
Figure 1: Flipping balanced gates yields indistinguishable truth tables.
Thus, even though a
i
is obfuscated by r
i
, B can in-
fer a
i
by inspecting any imbalanced gate with func-
tionality f (a
i
,b
j
). Our following two techniques also
obfuscate imbalanced gates.
2.2 Obfuscating Fixed Gates
We define fixed gates as gates that always return the
same value given the generator input a. For instance,
an AND gate that takes a generator input of 0 is a fixed
gate. The problem with an imbalanced gate on level 1
is that B can immediately infer A
s input by observing
if its output changes when changing B
s input bit. A
can effectively obfuscate those gates by flipping one
of the output values in the truth table and adjusting
child gates accordingly. This way, a fixed imbalanced
gate at level 1 is indistinguishable from an unfixed
one. When obfuscating a fixed gate, we break the
gate’s integrity, i.e., we might return a value of 1 even
though its correct value is 0. The integrity of C
has
to be recovered to yield the correct output. Algorithm
2 identifies all fixed gates and ensures that modifying
fixed gates maintains the correctness of C
.
2.2.1 Examples: Obfuscating Fixed Gates
Figure 2 illustrates the following examples. Consider
an AND gate g at level 1 in C that depends on one
input u of A and one input v of B. Suppose As input is
1 (Figure 2a). In this case, the relevant output entries
for g are 1|0|0 and 1|1|1 (left input|right input|output).
A can modify the other two entries arbitrarily as they
depend on a different generator input. Thus, A can
obfuscate g to an XNOR gate by assigning the unused
truth table entries to 0|0|1 and 0|1|0.
Suppose As input is 0 (Figure 2b). In this case,
g is a fixed gate since the two relevant entries in its
Algorithm 2: Identify fixed gates.
1: for each generator input a[i] do
2: f ixedValue[i] a[i]
3: isFixed[i] true
4: for each gate g do
5: l g.le f tParent
6: r g.rightParent
7: T g.truthTable
8: v
l
f ixedValue[l]
9: v
r
f ixedValue[r]
10: if isFixed[l] & isFixed[r] then
11: f ixedValue[g] T [v
l
][v
r
]
12: isFixed[g] true
13: else
14: if isFixed[l] & T [v
l
][0] == T [v
l
][1] then
15: f ixedValue[g] T [v
l
][0]
16: isFixed[g] true
17: if isFixed[r] & T [0][v
r
] == T [1][v
r
] then
18: f ixedValue[g] T [0][v
r
]
19: isFixed[g] true
20: if !isFixed[g] then
21: recoverIntegrity(g)
truth table 0|0|0 and 0|1|0 both return a 0 independent
of Bs input. The fixed output immediately reveals u
to B if it knows the gate type. A obfuscates a fixed
gate by choosing one of these entries at random and
flipping its output wire. For instance, A can change
the entry 0|0|0 to 0|0|1. This way, we again created a
truth table indistinguishable from XNOR. We showed
before that A can apply Bit Flipping to a balanced
gate like X NOR to achieve indistinguishability obfus-
cation. Again, truth tables shown in Figure 2a and
2b are identical, even though their generator inputs u
differ.
CRGC: A Practical Framework for Constructing Reusable Garbled Circuits
85
u = 1 v
w
AND
u v w
0 0 1
0 1 0
1 0 0
1 1 1
(a) Unfixed AND gate, obfuscated.
u = 0 v
w
AND
u v w
0 0 1
0 1 0
1 0 0
1 1 1
(b) Fixed AND gate, obfuscated.
These entries do not depend on the generator’s input and can be re-assigned arbitrarily.
One relevant entry in a fixed gate gets flipped.
Figure 2: Obfuscated imbalanced gates on level 1.
w (0) x
y
AND
w x y
0 0 0
0 1 0
1 0 0
1 1 0
(a) Child AND gate.
.
w (0) x
y
XOR
w x y
0 0 0
0 1 1
1 0 0
1 1 1
(b) Child XOR gate.
Left parent’s true value is 0. Truth table gets recovered accordingly.
Adjusting the truth table transformed the child gate into a fixed gate. This gate gets obfuscated in the next iteration of algorithm 2.
Figure 3: Gates with a fixed left parent.
2.2.2 Examples: Modifying Child Gates
Figure 3a shows an AND gate g with a fixed obfus-
cated AND gate as its left parent. A can recover gs
integrity by changing the entry 1|1|1 to 1|1|0. A just
transformed g into a fixed gate that always returns 0.
Thus, A can apply our obfuscation technique to this
gate as well. Figure 3b shows an XOR gate with a
fixed obfuscated AND gate as its left parent. A can
recover its integrity by changing the entries 1|0|1 and
1|1|0 to 1|0|0 and 1|1|1. Notice that the resulting truth
table is not a balanced gate. Thus, it does not provide
indistinguishability obfuscation.
2.3 Obfuscating Intermediary Gates
Some gates g
i
do not affect the circuit’s output as all
paths from g
i
to a final output gate g
o
include at least
one fixed gate g
f
. We call these gates between the
first level of the circuit and the dependant fixed gates
intermediary gates.
If A modifies an intermediary gate g
i
, each fixed
gate’s output wire may change its value due to chang-
ing the truth table of a gate it depends on. However,
we know that changing an obfuscated fixed gate’s
value does not change the final output of C
. By def-
inition we also know that no final output gate g
o
di-
rectly depends on g
i
without a fixed gate g
f
between
g
i
and g
o
. Thus, arbitrary modifications of interme-
diary gates do not break the integrity of C
. Due to
this property, fixed and intermediary gates are passive
gates. A can modify each passive gate’s truth table
to be indistinguishable from its active version. At the
end of Algorithm 3, all gates where ob f uscatable[g]
has not been set to f alse are passive gates. Our proto-
col re-generates each gate on level 1 to a random bal-
anced gate and all other passive and balanced gates to
provide indistinguishability obfuscation.
Algorithm 3: Identify passive gates.
1: for each final output gate g
o
do
2: queue.push(g
o
) output gates are
non-intermediary
3: while ! queue.empty() do
4: g queue.pop()
5: ob f uscatable[g] f alse
6: for each parent p of g do
7: if !isFixed[p] & !pushed[p] then
8: pushed[p] true
9: queue.push(p)
non-intermediary gates get pushed
2.3.1 Example

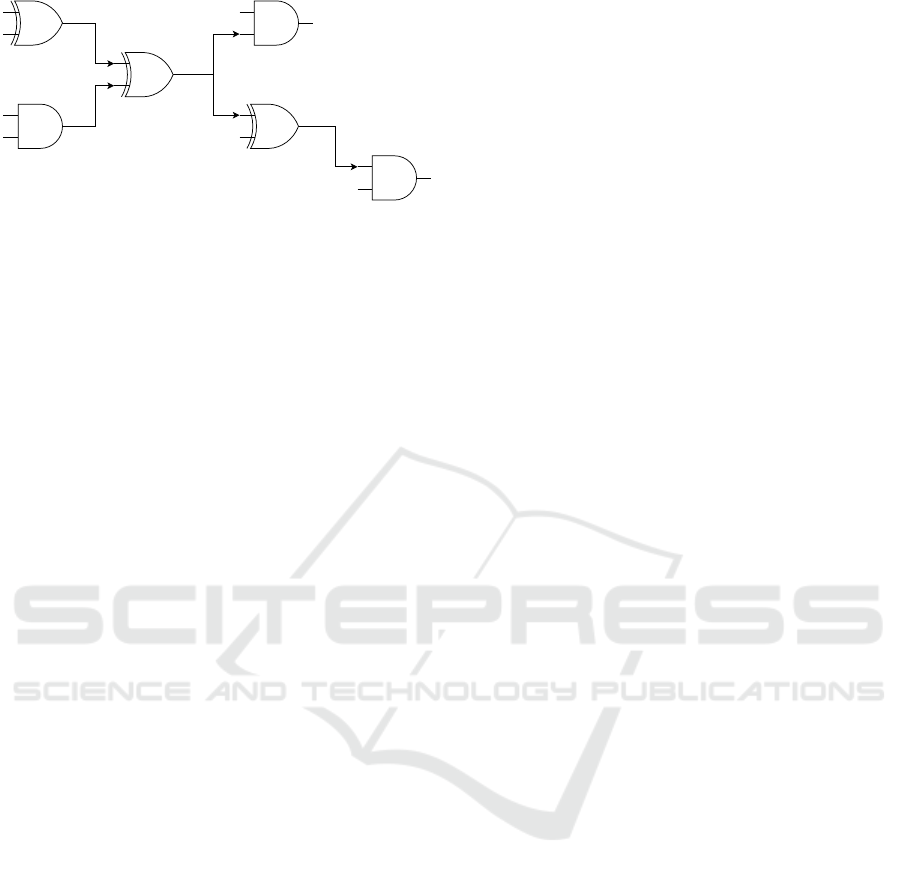

Figure 4 illustrates a section of a circuit with two fixed
gates. Note that all paths from the unfixed gates in the
section end up as an input wire of a fixed gate. Thus,
all four unfixed gates in this section are intermediary
gates. Modifying their truth tables may change the
output of one of the fixed gates. However, this modi-
fication will not affect the output of the circuit.
SECRYPT 2022 - 19th International Conference on Security and Cryptography
86
fixed
fixed
Properties hold for every gate type.
Figure 4: Section of a circuit containing four intermediary
gates
.
2.4 Constructing a CRGC
The whole process of constructing a CRGC can be
summarized as follows:
1. Obtain C
and a
by applying Bit Flipping to a and
all gates in C using algorithm 1.
2. Identify all fixed gates and modify all children of
fixed gates in C
using algorithm 2.
3. Identify all intermediary gates in C
using algo-
rithm 3.
4. Obfuscate all imbalanced, fixed, and intermediary
gates on level 1 randomly to XOR/XNOR. Ob-
fuscate all passive gates in C
beyond level 1 to
achieve indistinguishability obfuscation.
After these steps, an evaluator that receives C
and
a
can evaluate C
any number of times with varying
inputs b. For all gates g
n
that do not provide indistin-
guishability obfuscation, B has an advantage > 0 to
infer the true wire labels of g
n
s parents. Thus, some
of these gates may leak input bits of A. A can predict
the leakage of a CRGC before constructing it and de-
cide whether to send the CRGC that leaks some input
bits or to construct a PRGC instead. PRGCs do not
leak generator inputs. In the appendix, we show how
A can predict input leakage of a constructed CRGC
and achieve n-party computations from our CRGC
scheme. We also give a step-by-step example of ap-
plying our obfuscation techniques to a circuit.
2.5 Constructing a PRGC
After applying the three described obfuscation tech-
niques, there is a subset of gates left in C
that do
not provide indistinguishability obfuscation, i.e. B
might be able to infer input bits of a when inspect-
ing those gates. Our PRGC scheme prevents B from
inferring inputs when inspecting these gates by intro-
ducing non-reusable sections.
2.5.1 Non-reusable Sections
Each gate that does not provide indistinguishability
obfuscation has to be contained in a non-reusable sec-
tion. At the start of a non-reusable section s of C
, A
and B engage in Oblivious Transfer (OT) for each in-
put wire on the first level of s to let B obtain keys to
be used in a Yao’s Garbled Circuit protocol. A non-
reusable section ends if each final output gate of the
non-reusable section provides indistinguishability ob-
fuscation. A needs to apply a new Bit Flipping to each
of these output gates to hinder B from inferring inputs
by evaluating the circuit multiple times. With this ap-
proach, A and B have to engage in a Yao’s Garbled
Circuit protocol for each non-reusable section. With
the output bits obtained from Yao’s Garbled Circuit
protocol, B continues evaluating the circuit.
By ”refreshing” Bit Flipping at the end of a non-
reusable section, all balanced gates again provide in-
distinguishability obfuscation. To ensure correctness,
both parties need to engage in OT for each final out-
put gate of C
to let A reverse Bit Flipping applied
in the non-reusable sections. Note that a simpler
protocol could consist of evaluating each gate that
does not provide indistinguishability obfuscation by
an OT with a bit flipped result. However, if a non-
reusable section spans multiple levels in the circuit,
using Yao’s Garbled Circuit protocol is more efficient.

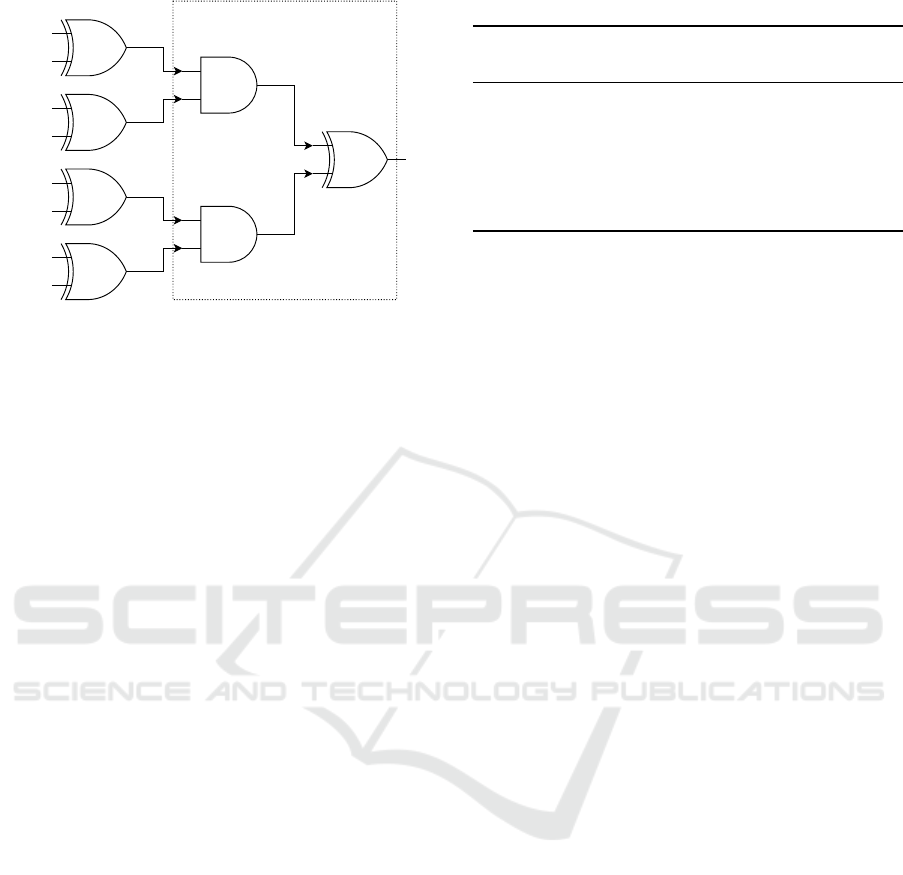

Figure 5 illustrates a circuit with a non-reusable
section. Inputs a
i
mark As inputs, inputs b
i
mark Bs
inputs. Observe that both AND gates cannot be fixed
gates and reveal As input even if obfuscated by our
techniques. The final XOR gate marks the end of the
non-reusable section by providing indistinguishabil-
ity obfuscation. A only sends the gates in the reusable
section (first level) to B. By assigning the two AND
gates and the final XOR gate to a non-reusable sec-
tion, B has to stop evaluating the PRGC after the first
level. For each input wire of each AND gate, it has to
receive an input key via OT and obtain a Yao’s Gar-
bled Circuit from A containing the remaining three
gates. For each repeated evaluation of the circuit with
different inputs b, it can reuse the gates on the first
level of the circuit.
PRGCs provide input privacy without leakage. A
security proof of PRGCs can be found in the ap-
pendix. There, we also cover how to achieve indis-
tinguishability obfuscation for passive gates in the
reusable section. In high latency environments, it
might be favorable to split C
into only one reusable
and one non-reusable section. This way, a PRGC
can be evaluated in constant communication rounds
where one batch of OTs is processed in parallel.
CRGC: A Practical Framework for Constructing Reusable Garbled Circuits
87
a
0
a
1
b
0
b
1
AND
XOR
XOR
XOR
AND
XOR
XOR
a
2
a
3
b
2
b
3
Non-reusable Section
Figure 5: A circuit containing a non-reusable section.
3 BENCHMARKS
Our open-source library is available on GitHub. With
our library, A can construct a CRGC from any user-
defined C++ function, compress it, predict leaked in-
put bits, and send it over the network to B. B can
evaluate the CRGC and store it on its hard drive for
future use. For compiling a C++ function to a boolean
circuit, we mainly rely on modules provided by EMP.
We tested our implementation on two AWS
M5ZN metal instances with 24 cores, 48 threads, and
192GB of RAM connected via 100 Gbit/s network
connections to the internet in a WAN setting. A can
construct a CRGC at a speed of up to 85 million gates
per second, perform leakage prediction with up to
115 million gates per second and evaluate a circuit
with up to 395 million gates per second. For com-
parison, we also implemented our test programs with
EMP SH2PC and TinyGarble2. Since EMP SH2PC
and TinyGarble2 implement a regular garbled circuit
protocol, an evaluation must always be performed to-
gether with circuit construction. In all tests, EMP per-
forms better than TinyGarble2 and achieves a speed of
up to 55 million gates per second. Thus, after only a
few evaluations, our CRGC library outperforms both
libraries. All CRGCs we constructed leak at most two
input bits to B. We use the Turbo Pfor integer com-
pression algorithm (Lemire et al., 2014) before send-
ing a CRGC over a network or storing it locally. As
a result, a CRGC is approx. 75% smaller in file size
than the original uncompressed boolean circuit.
3.1 Basic Circuits
Table 1 shows the results of applying our protocol to
elementary circuits. |C| shows the number of gates in
a circuit. Inputs leaked refers to the number of gen-
Table 1: Evaluation time for basic circuits.
Circuit |C| Inputs Evaluation
leaked time (µs)
64-bit Adder 376 1/64 2
64-bit Subtract 439 1/64 2
64-bit Multiplier 13675 2/64 36
AES-256(k,m) 50666 0/256 94
SHA256 135073 0/512 205
SHA512 349617 0/1024 551
erator inputs a CRGC leaks. All tested basic circuits
can be evaluated in under 1ms by our library.
3.2 Large Circuits
We also tested more complex circuits that implement
three real-world use cases: Finding an element in an
unsorted list (query), identifying the maximum ele-
ment in a specific coordinate range of a 2D array, and
finding the intersect of two datasets. The resulting cir-
cuits have up to 1.9 billion gates and leak at most one
input bit to B. These larger circuits demonstrate that
our library is practical for real problems.
Our programs may serve as references for other
functionalities. Table 2 shows that our library can
process a dataset containing millions of entries in just
a few seconds for simple functionalities. For com-
plex functions such as the demonstrated set intersec-
tion, it can process a few thousand elements per sec-
ond. These results may serve as a rough estimation
of whether CRGCs can cope with a certain problem
size.
Figure 6 shows the results of benchmarking our
framework against EMP SH2PC and TinyGarble2.
Recall that A has to perform leakage prediction only
once per circuit, independent of its inputs. It has to
generate a CRGC once per unique generator input a.
B has to evaluate a CRGC once per changing evalu-
ator input b. Thus, we measured all three tasks inde-
pendently.
The bars with different shades of colors show ad-
ditional costs that might occur along with a CRGC
component: After A constructs a CRGC, it needs
to send it to B over the network (brown bar). If B
does not store the circuit in memory after evaluat-
ing it, it needs to import the circuit from the hard
drive again before performing an additional evalua-
tion (green bar).
Our benchmark shows that our library can con-
sistently evaluate different circuits at approx. 350
million gates per second. Constructing a CRGC and
sending it to B is sometimes slower than perform-
ing a regular garbled circuit protocol with EMP once.
SECRYPT 2022 - 19th International Conference on Security and Cryptography
88
400
350
300
Mmm
=EMP
Mm
Tiny
Garble2.0
—~
250
CRGC
g
mm
evaluate
only
g
CRGC
a
ME
import
&
evaluate
S
200
CRGC
s
=m
construct
only
=
CRGC
a
construct
&
send
150
wes
CRGC
predict
leakage
100
50
Query
Max
in
2D
Range
Set
Intersection
Figure 6: Performance Comparison of EMP SH2PC, TinyGarble2, and CRGC Components.
Table 2: Evaluation time for large circuits.
Functionality |C| Elements
Evaluation time (Elements/s)
CRGC EMP SH2PC TinyGarble2
Query 9,100,000 140,000 6,086,956 281,690 1,924
Max in 2D Range 123,815,518 148,996 396,265 48,094 11,860
Set Intersection 1,910,780,159 40,000 7,362 1,163 1,027
However, evaluating a CRGC is 5-20 times faster than
performing a garbled circuit protocol using EMP. In
all tests, using our library compared to EMP and Tiny-
Garble2 pays off after less than three evaluations.
Note that beyond our implementation, a generator
can always construct a PRGC with only one reusable
and non-reusable section. Since evaluating a CRGC
is faster than evaluating a regular garbled circuit, it
follows that for most circuits C, we can construct a
PRGC that can be evaluated faster than performing
Yao’s Garbled Circuit protocol with C.
4 RELATED WORK
Reusable garbled circuits have been gaining popular-
ity in the Secure Multiparty Computation community
during the last decade. (Saleem et al., 2018) sum-
marizes and discusses recent advancements in gar-
bled circuits. The authors state that one important
future step is constructing a reusable garbled circuit
scheme with low computational complexity. In con-
trast to our approach, existing proposals tried to build
CRGCs without leakage that do not scale well. To
achieve practicability, we propose a trade-off between
the extent of reusability and performance (PRGC), or
between security and performance (CRGC).
(Goldwasser et al., 2013) proposed the first
reusable garbled circuit scheme that is based on func-
tional encryption. Functional encryption allows a user
to generate secret keys that enable a key holder to
learn a specific function output of encrypted data but
learn nothing about the data (Boneh et al., 2011).
However, their scheme relies on fully homomorphic
encryption and other computationally expensive tech-
niques to achieve functional encryption. Since then,
there have been optimizations to the computational
complexity of reusable garbled circuits that also rely
on fully homomorphic- or attribute-based encryption
(Boneh et al., 2014).
As both prior mentioned schemes for reusable
garbled circuits combine multiple complex crypto-
CRGC: A Practical Framework for Constructing Reusable Garbled Circuits
89
graphic primitives, it is difficult to assess their effi-
ciency. According to (Wang et al., 2017) both so-
lutions are not practical. Thus, (Wang et al., 2017)
constructed a reusable garbled circuit scheme with a
trade-off between security and privacy. Their solu-
tion does not contain any benchmarks or implementa-
tions. (Gorbunov et al., 2015) proposed a step towards
reusable garbled circuits by encrypting each garbled
value with a seed. For each wire and each gate, a dif-
ferent encryption key is used. The evaluator obtains
an encoded seed in the beginning to evaluate the cir-
cuit. However, their scheme does not achieve input
privacy.
Due to the lack of an existing reusable garbled cir-
cuit implementation, we compare our library with the
alternative of constructing a new Yao’s Garbled Cir-
cuit for each evaluation with a state-of-the-art frame-
work. Multiple libraries have been proposed that
implement Yao’s Garbled Circuit protocol with var-
ious optimizations such as Free XOR (Kolesnikov
and Schneider, 2008). Libraries that offer state-of-
the-art performance and rich functionalities are Tiny-
Garble2 (Hussain et al., 2020), Obliv-C (Zahur and
Evans, 2015), ABY (Demmler et al., 2015), and
EMP SH2PC (Wang et al., 2016). Since (Hussain
et al., 2020) demonstrated that TinyGarble2 outper-
forms Obliv-C and ABY, we chose EMP and Tiny-
Garble2 as our benchmark.
5 CONCLUSION
In this work, we proposed obfuscation-based tech-
niques for constructing completely reusable garbled
circuits (CRGCs) and partially reusable garbled cir-
cuits (PRGCs). We showed that our CRGC library
can evaluate constructed circuits up to 20 times faster
than current state-of-the-art garbled circuit libraries.
CRGCs come with predictable input leakage.
While we were not able to not infer multiple input
bits from our test circuits, certain functionalities or
more sophisticated analyses may do so. In this case,
the generator and evaluator can engage in our hybrid
PRGC protocol to only use a CRGC for evaluating the
sections of the underlying circuit that do not pose in-
put leakage. The remaining sub-circuits can be evalu-
ated by Yao’s Garbled Circuit protocol. Future work
may introduce techniques to increase the number of
gates in the reusable section or find more efficient
ways to construct RGCs for n-party computation.
REFERENCES
Boneh, D., Gentry, C., Gorbunov, S., Halevi, S., Niko-
laenko, V., Segev, G., Vaikuntanathan, V., and
Vinayagamurthy, D. (2014). Fully key-homomorphic
encryption, arithmetic circuit abe and compact gar-
bled circuits. In Annual International Conference on
the Theory and Applications of Cryptographic Tech-
niques, pages 533–556. Springer.
Boneh, D., Sahai, A., and Waters, B. (2011). Functional
encryption: Definitions and challenges. In Theory of
Cryptography Conference, pages 253–273. Springer.
Demmler, D., Schneider, T., and Zohner, M. (2015). Aby-
a framework for efficient mixed-protocol secure two-
party computation. In NDSS.
Goldwasser, S., Kalai, Y., Popa, R. A., Vaikuntanathan, V.,
and Zeldovich, N. (2013). Reusable garbled circuits
and succinct functional encryption. In Proceedings of
the forty-fifth annual ACM symposium on Theory of
computing, pages 555–564.
Gorbunov, S., Vaikuntanathan, V., and Wee, H. (2015).
Attribute-based encryption for circuits. Journal of the
ACM (JACM), 62(6):1–33.
Hussain, S., Li, B., Koushanfar, F., and Cammarota, R.
(2020). Tinygarble2: Smart, efficient, and scalable
yao’s garble circuit. In Proceedings of the 2020
Workshop on Privacy-Preserving Machine Learning
in Practice, pages 65–67.
Kolesnikov, V. and Schneider, T. (2008). Improved garbled
circuit: Free xor gates and applications. In Interna-
tional Colloquium on Automata, Languages, and Pro-
gramming, pages 486–498. Springer.
Lemire, D., Boytsov, L., and Kurz, N. (2014). Simd com-
pression and the intersection of sorted integers. Soft-
ware: Practice and Experience, 46.
Lindell, Y. (2017). How to simulate it–a tutorial on the sim-
ulation proof technique. Tutorials on the Foundations
of Cryptography, pages 277–346.
Lindell, Y. (2020). Secure multiparty computation (mpc).
IACR Cryptol. ePrint Arch., 2020:300.
Lindell, Y. and Pinkas, B. (2009). A proof of security of
yao’s protocol for two-party computation. Journal of
cryptology, 22(2):161–188.
Saleem, A., Khan, A., Shahid, F., Alam, M. M., and Khan,
M. K. (2018). Recent advancements in garbled com-
puting: how far have we come towards achieving se-
cure, efficient and reusable garbled circuits. Journal
of Network and Computer Applications, 108:1–19.
Wang, X., Malozemoff, A. J., and Katz, J. (2016). Emp-
toolkit: Efficient multiparty computation toolkit.
Wang, X. A., Xhafa, F., Ma, J., Cao, Y., and Tang, D.
(2017). Reusable garbled gates for new fully homo-
morphic encryption service. International journal of
web and grid services, 13(1):25–48.
Yao, A. C. (1982). Protocols for secure computations. In
23rd annual symposium on foundations of computer
science (sfcs 1982), pages 160–164. IEEE.
Yao, A. C. (1986). How to generate and exchange secrets. In
27th Annual Symposium on Foundations of Computer
Science (sfcs 1986), pages 162–167.
SECRYPT 2022 - 19th International Conference on Security and Cryptography
90
Zahur, S. and Evans, D. (2015). Obliv-c: A language for
extensible data-oblivious computation. IACR Cryptol.
ePrint Arch., 2015:1153.
APPENDIX
Security Proof of PRGCs
To prove input privacy of a one-time protocol π
against semi-honest adversaries one can use the fol-
lowing two simulation proofs (Lindell, 2017):
{S
1
(1
n
,x, f
1
(x,y))}
x,y∈{0,1}
;nN
c
{view
π
1
(x,y,n)}
x,y∈{0,1}
;nN
(1)
{S
2
(1
n
,y, f
2
(x,y))}
x,y∈{0,1}
;nN
c
{view
π
2
(x,y,n)}
x,y∈{0,1}
;nN
(2)
Simulating As view is trivial as it does not interact
with B when constructing reusable sections. Simu-
lating Bs view is possible by constructing a PRGC
with a random generator input. Using the knowledge
of f
2
(x,y), the simulator can modify the Oblivious
Transfers required to obtain the final output bits by
always returning the correct output, independent of
B
s choice bit. Thus, we only need to show if, in Bs
view, a PRGC based on a random generator input is
indistinguishable from a PRGC based on the actual
generator input.
Claim. A PRGC computing an arbitrary functionality
f (a,b) expressed by a circuit C for a fixed input a and
an unfixed input b provides input privacy.
Without loss of generality, assume C only consists of
balanced gates (XOR, XNOR) and the following im-
balanced gates: AND, NAND, OR, NOR. Assume G
is a PRG that can sample a uniformly random b from
U = {0, 1}. Assume that B knows every gate g in C.
For each value v
w
at wire w in C, A samples a b
w
from U and sets v
w
= v
w
b
w
. Each wire label v
w
is now obfuscated by a one time pad. B receives b
w
only for its own input bit wires. Let g be a gate in
C with functionality f (v
i
,v
j
) = v
k
,i, j, k < |w|. Let B
receive only the last column of the truth table T
g
from
A that contains all four combinations for f (v
i
,v
j
) =
v
k
. Table 3 shows a truth table after Bit Flipping. p
refers to the position in the of the last column’s entry
in the truth table. B knows up to one input wire v
c
,b
c
(c {i, j}) of g in advance (let c = j).
If all wires satisfy the following equation, then any
two PRGCs based on different generator inputs fol-
low the same distribution of wire labels and are thus
indistinguishable from Bs perspective.
PR[v
i
= 0]
c
= PR[v
i
= 1]
c
=
1
2
. (3)
Thus, we reduce the proof that a PRGC provides input
privacy against a semi-honest evaluator to equation 3
holding for all wires under said conditions. We split
up the proof into four Lemmas. Proofing Lemma 1-3
shows that the reusable sections of a PRGC provide
input privacy. Proofing Lemma 4 shows that non-
reusable sections of a PRGC provide input privacy.
In combination, we prove that PRGCs provide input
privacy for any circuit C.
Lemma 1. The position p of an entry v
k
in the truth
table T
g
does not leak v
i
under the security assump-
tions of G.
Proof: In the unmodified truth table of g, B can infer
the following from p:
p {0,1} = v
i
= 0 (4)
p {2,3} = v
i
= 1 (5)
After Bit Flipping B can infer the following from p:
p {0,1} = v
i
b
i
= 0 (6)
p {2,3} = v
i
b
i
= 1 (7)
Since B does not hold b
i
, it cannot infer v
i
from its
position p in the truth table without breaking the se-
curity assumptions of G.
Lemma 2. A balanced gate g in the reusable section
does not leak v
i
under the security assumptions of G.
Proof: The following equation holds if g is an X OR
gate:
v
k
= v
i
v
j
= v
k
b
k
= v
i
b
i
v
j
b
j
(8)
The following equation holds if g is an XNOR gate:
v
k
b
k
= ¬(v
i
b
i
v
j
b
j
) (9)
Since B does not hold any values of {v
i
b
i
,v
k
b
k
},
B cannot distinguish between the entries in T
g
where
v
i
= 1, v
i
= 0, v
k
= 0, v
k
= 1. Thus, B cannot infer v
k
and v
i
when inspecting the truth table T
g
of balanced
gate g without breaking the security assumption of G.
Lemma 3. An imbalanced gates g in the reusable sec-
tion does not leak v
i
under the security assumptions of
G.
Proof: The following equation holds if g is an AND
gate:
v
k
b
k
= v
i
b
i
v
j
b
j
(10)
With a certain probability q, A replaces g by a NOR
gate:
v
k
b
k
= ¬(v
i
b
i
v
j
b
j
) (11)
CRGC: A Practical Framework for Constructing Reusable Garbled Circuits
91
Table 3: Flipped gate with arbitrary functionality, denoted by .
p v
i
v
j
v
k
2b
i
+ b
j
0 b
i
0 b
j
[(0 b
i
) (0 b
j
)] b
k
2b
i
+ 1 b
j
0 b
i
1 b
j
[(0 b
i
) (1 b
j
)] b
k
2 2b
i
+ b
j
1 b
i
0 b
j
[(1 b
i
) (0 b
j
)] b
k
2 2b
i
+ 1 b
j
1 b
i
1 b
j
[(1 b
i
) (1 b
j
)] b
k
Only v
i
= 1 can lead to the unique output of an AND
gate (v
k
= 1). Only v
i
= 0 can lead to the unique out-
put of a NOR gate (v
k
= 1). By inspecting the truth
table of this term B finds identical values of v
k
for
three cases. In the other case it can infer that v
i
pro-
duces the unique output of g. However, if it cannot
distinguish if A replaced g before Bit Flipping it can-
not infer the value of v
i
. Thus A
s goal is to replace
g with a probability q such that from B
s perspective
Pr[g NOR] = Pr[g AND].
Replacing g does not maintain the integrity of C
.
Thus, A can only replace g if it is a passive gate.
Let s be the set of possible input combinations for
a where g is a passive gate. A and B can calculate
p = Pr[g {passive gates}] =
|s|
2
|a|
. A sets the proba-
bility to replace g to:
pq = (1 p) + (1 q)p
2q =
1 p
p
+ 1
q =
1
2p
(12)
If q 1, A replaces g with probability q to achieve:
Pr[g NOR]
c
= Pr[g AND]
c
=
1
2
. (13)
If q > 1, A must not add g to the reusable section of C
.
With the same procedure, A can securely obfuscate
NOR gates (AND gates as replacement), NAND gates
(OR gates as replacement), and OR gates (NAND
gates as replacement). After replacing (or not replac-
ing) g, A applies Bit Flipping to g.
By proofing Lemma 1-3, we showed that a
reusable section containing only the balanced gates
of C and imbalanced gates that meet the conditions
above satisfies equation 3. All other gates of C
are
contained in a non-reusable section.
Lemma 4. A gate g in the non-reusable section does
not leak v
i
under the security assumptions of Yao’s
Garbled Circuit protocol.
Proof: For each gate g in the first level of a non-
reusable section s, B holds both input wires v
i
, v
j
.
By engaging in two Oblivious Transfers per gate with
A, B obtains two input keys per gate. A garbles the
circuit s according to Yao’s Garbled Circuit protocol.
Yao’s Garbled Circuit protocol was proven to be se-
cure before (Lindell and Pinkas, 2009). Each final
output gate of s is either also a final output gate of
C or meets the conditions of a gate contained in the
reusable section. In the former case, there is no dif-
ference to Yao’s Garbled Circuit protocol. In the latter
case, equation 3 holds as proven in lemma 1-3 .
If A does not need to learn the output of the com-
putation, a PRGC is secure against a malicious B
when utilizing a compatible OT protocol.
Enabling n-Party Computation with
CRGCs
Our CRGC protocol can be easily extended to enable
n-party computation. The following steps are necces-
sary for 3-PC:
1. A sends C
and a
to party B.
2. Party B further obfuscates C
and its inputs b and
sends C
′′
, a
, and b
to party C.
3. Party C can evaluate C
′′
with a
, b
, and arbitrary
inputs c.
If party C wants to evaluate C
′′
with different in-
puts of B, the parties have to repeat steps 2-3. For dif-
ferent inputs of party A, they have to repeat all steps.
Thus, the order of parties receiving and further obfus-
cating a CRGC is relevant. We can generalize this ob-
servation for n-party computation. If any party wants
to evaluate the circuit with a different input of a party
at position i in the receiving order, all parties at posi-
tion p with i p n 1 need to repeat obfuscation.
Predicting Leakage of a CRGC
To predict leaked input bits of a CRGC, we have to
take the evaluator’s perspective when it receives C
and a
from A. By default, B does not know whether
a gate in C
is obfuscated or flipped except for a fi-
nal output gate (that is never obfuscated nor flipped).
However, if it knows Cs exact construction, it can
identify gates that are not passive or balanced with
certainty. These gates do not provide indistinguisha-
bility obfuscation and may reveal input bits of A.
SECRYPT 2022 - 19th International Conference on Security and Cryptography
92
Potentially Fixed Gates
First, we introduce the concept of potentially fixed
gates. From Bs perspective, any imbalanced gate on
level 1 is a potentially fixed gate. As we showed be-
fore, we achieved indistinguishability obfuscation for
all gates on level 1. However, in deeper levels of C, B
may identify gates that A could not have obfuscated.
To identify potentially fixed gates, B can use the
following ruleset. It can consider all generator inputs
as potentially fixed and all evaluator inputs as not po-
tentially fixed. A balanced gate that has at least one
not potentially fixed parent is not potentially fixed it-
self. This property holds because evaluating a bal-
anced gate such as XOR with one fixed and one un-
fixed bit always returns two different output bits. An
imbalanced gate instead is only not potentially fixed
if both parents are not potentially fixed. This property
holds because evaluating an imbalanced gate such as
AND with at least one fixed bit may always return
the same output bit. B can iterate through the whole
circuit with this ruleset to identify all not potentially
fixed gates. Algorithm 4 applies this ruleset to a
CRGC.
Algorithm 4: Identify potentially fixed gates.
1: for each generator input a
i
do
2: p f [a
i
] true p f b= potentially fixed
3: for each evaluator input b
i
do
4: p f [b
i
] f alse
5: for each gate g do
6: switch type(g) do
7: case type(g) imbalancedGates
8: p f [g] = p f [l] p f [r]
9: case type(g) {XOR,XNOR}
10: p f [g] = p f [l] p f [r]
11: case type(g) {{0,0,1,1},{1,1,0,0}}
12: p f [g] = p f [l]
13: case type(g) {{0,1,0,1},{1,0,1,0}}
14: p f [g] = p f [r]
15: case De f ault {0,0,0,0} or {1,1, 1, 1}
16: p f [g] = true
Potentially Intermediary Gates
Recall that intermediary gates and fixed gates provide
indistinguishability obfuscation. Thus, B also needs
to identify all potentially intermediary gates. If it as-
sumes all potentially fixed gates to be fixed gates, it
can identify intermediary gates by algorithm 3. As
the set of fixed gates is a subset of all potentially fixed
gates, B can identify all potentially intermediary gates
this way.
Potentially Revealing Gates
Recall that Bit Flipping provides indistinguishability
obfuscation only for balanced gates. Thus, B can
identify the true values of both parents of a gate with
certainty if the gate is not balanced and not poten-
tially passive. However, identifying such a gate does
not yield input leakage yet. Thus, we call those gates
potentially revealing gates.
Suppose there is a potentially revealing gate on
level 1. Since a potentially revealing gate, g
pr
always
reveals the true value of its parents to B (if it knows
C), a potentially revealing gate on level 1 would leak
its input bits. However, each revealing gate is located
at a deeper level of C
. Therefore, its leakage does not
always reveal an input bit of A.
Consider a potentially revealing gate g
pr
. B can
only infer a generator input bit a
i
if there is at most
one balanced gate on the path of g
pr
to a
i
since it does
not know whether a balanced gate’s input wires are
flipped. This approach is utilized by our library to
predict the number of inputs leaked in a CRGC.
However, B could combine the knowledge of mul-
tiple potentially revealing gates by setting up a system
of boolean equations from each input bit to each re-
vealed value. Calculating solutions to this system of
equations may require an exhaustive search and is in-
feasible for large circuits. Thus, we do not provide an
implementation for this approach. This means, how-
ever, that our implemented leakage prediction only
serves as a lower bound. We also do not exclude
the possibility that there are more ways to infer input
bits from potentially revealing gates. In case a CRGC
leaks multiple input bits, A can construct a PRGC in-
stead.
Alternative threat models than discussed here may
assume that B does not know Cs construction. In this
case, passive gates can be re-generated completely at
random instead of providing indistinguishably obfus-
cation. This is the default setting of our library.
Example - Constructing a CRGC
Figure 7 illustrates an exemplary section s of a circuit
and shows the key modifications when using our three
obfuscation techniques. Figure 7a shows the plain cir-
cuit and its inputs. For simplicity, we use only AND
and XOR gates to cover one type of balanced and one
type of imbalanced gates. In the example, the left par-
ent of each gate on level 1 is always As input, and
the right parent is always Bs input. Since useful real-
world circuits are too large to illustrate in an example,
we assume that the shown sequence of gates is only a
section of a bigger circuit.
CRGC: A Practical Framework for Constructing Reusable Garbled Circuits
93
Bit Flipping
Figure 7b illustrates how each gate and input bit is
modified when Bit Flipping is applied. At first, A gen-
erates obfuscated inputs. The suffix (!) next to a wire
value indicates that the obfuscated input is the flipped
version of the original input. Bit Flipping first recov-
ers the integrity of each gate if one of its parents got
flipped. Afterward, with a probability of
1
2
, the output
wire of each gate gets flipped as well. In the figure,
the four values inside each gate show the output en-
tries of the sorted truth table after the recovery step.
Two columns inside a gate indicate that the gate also
got flipped afterward. In this case, the values on the
left show the truth table after recovering the gate’s in-
tegrity, while the values on the right show the truth
table after the output wire got flipped. Notice that the
XOR gate with evaluator input bit b (X OR
1
) provides
indistinguishability obfuscation since B cannot distin-
guish XOR
1
s truth table from the one where A
s input
is 0 and XOR
1
is flipped.
Obfuscating Fixed Gates
Figure 7c illustrates how fixed gates and their parents
get modified after Bit Flipping is applied. The four
most left values inside each gate show the truth ta-
ble of each gate after Bit Flipping. obf/o indicates
that a gate is fixed and shows the truth table after ob-
fuscating it. Recall that all gates on level 1 of the
circuit get obfuscated to a gate indistinguishable from
XOR/XNOR. L1 indicates that an unfixed imbalanced
gate gets obfuscated into a balanced gate. rec/r indi-
cates that the child g
c
of a fixed gate gets modified
to recover the circuit’s integrity. If this modification
leads to g
c
being fixed, it gets obfuscated afterward
(indicated by o).
Notice that after applying this obfuscation tech-
nique to all gates on level 1, each gate’s truth table
is indistinguishable from either XOR or X NOR. Ob-
serve that after recovering a gate’s integrity, each truth
table gets modified to be independent of its obfus-
cated parent. After recovery, any modification to the
obfuscated gate does not change the output of its chil-
dren. All fixed gates get modified to provide indistin-
guishability obfuscation.
Obfuscating Intermediary Gates
Figure 7d illustrates how intermediary gates get mod-
ified after obfuscating fixed gates. Recall that each
gate g where each path from g to a final output gate
g
o
contains a fixed gate g
f
is an intermediary gate.
A can modify these gates to achieve indistinguisha-
bility obfuscation without breaking the circuit’s in-
tegrity. The four most left values inside each gate
show the truth table of each gate after obfuscating
fixed gates.obf indicates that this intermediary gate
gets obfuscated. Since the final gate of s in this ex-
ample is an obfuscated fixed gate, all other gates are
intermediary gates. Thus, A can obfuscate all gates to
provide indistinguishability obfuscation. After apply-
ing our obfuscation techniques to the whole circuit, A
can send C
and a
to B.
SECRYPT 2022 - 19th International Conference on Security and Cryptography
94
0
1
0
0
1
0
a
b
c
d
e
f
AND
AND
AND
AND
AND
AND
AND
XOR
XOR
XOR
XOR
(a) Section of a circuit.
1(!)
a
0
1
0
0
0
1
1
0
0
0
0
1
0
1
0
0
0
1
0
0
1
0
1
1
!
1
0
0
1
0
1
1
0
0
0
1
0
1
1
0
1
0
1
1
0
1
0
0
1
0
0
1
0
1
1
0
1
0
1
0
0
1
0
0
1
0
1
1
0
!
!
!
!
!
1
b
1(!)
c
1(!)
d
1
e
0
f
(b) Bit Flipping.
1
a
1
0
1
1
0
1
1
0
0
1
1
0
0
1
1
0
1
1
0
1
1
0
0
1
0
1
1
0
1
0
1
0
rec
1
b
1
c
1
d
1
e
0
f
obf
1
0
0
1
obf
0
1
0
0
1
0
0
1
L1
0
0
0
1
0
1
0
0
0
0
0
0
r o
0
0
1
0
0
1
0
0
0
0
0
0
r o
1
0
1
1
1
1
0
1
1
1
1
1
r o
0
1
1
1
(c) Obfuscating fixed gates.
(d) Obfuscating intermediary gates.
Figure 7: Constructing a CRGC.
Codebase: https://github.com/chart21/CRGC
CRGC: A Practical Framework for Constructing Reusable Garbled Circuits
95
