Is There Any Correlation between Refactoring and Design Smell

Occurrence?

Lerina Aversano

1 a

, Mario Luca Bernardi

1 b

, Marta Cimitile

2 c

, Martina Iammarino

1 d

and Debora Montano

University of Sannio, Department of Engineering, Benevento, Italy

Unitelma Sapienza University, Rome, Italy

Keywords:

Software Evolution, Software Quality, Refactoring, Design Smells.

Abstract:

Software systems are constantly evolving making their architecture vulnerable to decay and the emergence of

numerous design problems. This paper focuses on the occurrence of design smells in software systems and

their elimination through the use of refactoring activities. To do this, the data relating to the presence of Design

Smell, the use of refactoring, and the result of this use are analyzed in detail. In particular, the history of ﬁve

open-source Java software systems and of 17 different types of design smells is studied. Overall, the results

show that the removal of Design Smells is not correlated with the use of refactoring techniques. The analysis

also provides useful insights about the developers’ use of refactoring activities, the likelihood of refactoring

on affected commits and clean commits, and removing and/or adding Design Smells both during refactoring

and manual code cleaning operations.

1 INTRODUCTION

A problem widely discussed by the software engi-

neering communities is software changes, which if

done in a very short time often lead to design er-

rors. Indeed, software systems’ continuous evolu-

tion makes their architecture vulnerable to decay and

introduces numerous design problems. In literature,

several research articles deal with design issues and

their impact on the evolution of the software system.

Not managing the design smells can lead to tech-

nical issues that increase the maintenance effort.

Often design smells are introduced as the result

of inefﬁcient decisions in terms of design and archi-

tecture (Hochstein and Lindvall, 2005; Garcia et al.,

2009) that harm system internal qualities, such as

maintainability, understandability, testability, exten-

sibility, and reusability (Le and Medvidovic, 2016a;

Aversano et al., 2007).

Of all the design smells deﬁned in the literature

(Fowler, 2002), our analysis focuses on 17 different

types of design smells classiﬁed into four main cat-

https://orcid.org/0000-0003-2436-6835

https://orcid.org/0000-0002-3223-7032

https://orcid.org/0000-0003-2403-8313

https://orcid.org/0000-0001-8025-733X

egories: abstraction, encapsulation, modularization,

and hierarchy. Furthermore, the study investigates the

possible impact that refactorings have on source code

components for both removal and internal quality im-

provement. The results conﬁrm that source code el-

ements affected by design smells are more prone to

change, but developers seldom perform these changes

through refactoring activities. This suggests that the

removal of the design smell is not related to the pres-

ence of refactoring.

The remaining of the work is structured as fol-

lows: Section 2 reports studies related to our study, in

Section 3 we detail the data extraction process (sub-

section 3.2), the features set (subsection 3.3) and the

research questions (subsection 3.1). Section 4 de-

scribes the results of the empirical study we have con-

ducted, while the threats that could affect the results

obtained are reported in Section 5. Finally, Section 6

reports the conclusions and future work.

2 RELATED WORKS

Fowler (Fowler, 2018) deﬁnes refactoring as ”A disci-

plined technique for restructuring an existing body of

code, altering its internal structure without changing

Aversano, L., Bernardi, M., Cimitile, M., Iammarino, M. and Montano, D.

Is There Any Correlation between Refactoring and Design Smell Occurrence?.

DOI: 10.5220/0011139400003266

In Proceedings of the 17th International Conference on Software Technologies (ICSOFT 2022), pages 129-136

ISBN: 978-989-758-588-3; ISSN: 2184-2833

129

its external behavior”. The purpose of this technique

is therefore to improve the errors present in the source

code by modifying only the lines of code and not its

ﬁnal result.

Some empirical studies show that refactoring can

only remove code smells included in the Fowler list

(Chaparro et al., 2014; Aversano et al., 2008). For

this reason, in recent years more and more researchers

have investigated the role that refactoring plays in the

removal of code smells and in the changes in qual-

ity metrics after its use (Cedrim et al., 2016; Ch

avez

et al., 2017; Mkaouer et al., 2017; AlOmar et al.,

2019; Fernandes et al., 2020). In particular, Bib-

iano et. al (Bibiano et al., 2019) surprisingly show

that batch refactoring in 51% of cases introduces new

smells and in 38% of cases does not remove all smells

from the code.

Like our results, these studies show that refactor-

ing is useful only in very few and rare cases.

Sahraoui et all (Sahraoui et al., 2000) report that

the process between design improvement and its au-

tomation required developer validation and manual

use of the control. So, it is important to understand

when a code is smelly, how programmers recognize

it, and when they care. A work of Yamashita et al.

(Yamashita and Moonen, 2013) studies developers’

knowledge of code smells through the use of a sur-

vey. Results show that a large number of program-

mers were unaware of the smells of the wrong code.

They also show that, unfortunately, the knowledge of

smells is entirely theoretical, and the name and deﬁni-

tion are known, but this is so far from practice because

most errors do not occur as described by the theory.

Furthermore, another study (Tufano et al., 2015)

shows that every time a change is introduced in the

source code it is more likely to induce new smells.

They testify that the number of smells is greater when

developers use the refactoring technique and for this

reason, the refactoring technique is used only for

source code that has at least one critical attribute

(Fernandes et al., 2020). A lot of attention is paid

to design smells because they are frequently indica-

tors of architectural problems of the code and often a

symptom of the harmful maintainability of the soft-

ware (Aversano et al., 2020a; Le and Medvidovic,

2016b; Fowler, 2002; Alkharabsheh et al., 2019). For

this reason, the study (Tsantalis and Chatzigeorgiou,

2009) emphasizes the need for tools capable of rec-

ognizing the presence of design smells in code be-

fore their introduction into it. The authors have pre-

dicted design smells through a new version of Tem-

poral Convolutional Networks (TCN) that provides

better estimates than traditional TCN. Some empiri-

cal studies (Ardimento et al., 2021; Aversano et al.,

2020b; Sharma et al., 2020; Aversano et al., 2020a)

show that refactoring cannot remove any kind of de-

sign smells from the source code. Furthermore, in

(Aversano et al., 2020b) it is shown that refactoring

most of the time introduces new smells into the code.

These studies also found that code smells removal is

more likely when refactoring is not done. Driven by

these results, our work aims to analyze the impact of

refactoring on design smells and try to overturn or

conﬁrm what others have found to date.

3 APPROACH

The execution of the empirical study entails the fol-

lowing steps:

• identiﬁcation of the research questions;

• extraction and gathering of the required data;

• identiﬁcation of the feature set.

Each step is described in more detail in the following

subsections.

3.1 Research Questions

Below are the research questions on which this study

is based.

• RQ1: Design Smells VS Refactoring: Do Pro-

grammers Use Refactoring When Design Smells

Occur? We aim to link developers’ use of refac-

toring to design smells occurrences.

• RQ2: Is refactoring Correlated to the Type of De-

sign Smell? Our purpose is to analyze the proba-

bility, given a design smell presence, of refactor-

ing activities. Furthermore, we want to investigate

if there are any relationships between the type of

design smell involved and such refactoring proba-

bility.

• RQ3: How Often Are Refactoring and Elimina-

tion of Design Smells Co-occur? Our goal is to

test to which extent refactoring activities and de-

sign smells removal occur together during the his-

tory of commits.

3.2 Data Extraction

The data used for this study comes from 5 open-

source Java software systems. Table 1 presents in the

ﬁrst column the names of the system considered, in

the second column the tags created to brieﬂy name

each of them, in the third column the number of com-

mits analyzed, and in the last column the dates of the

ICSOFT 2022 - 17th International Conference on Software Technologies

130

Table 1: Software systems involved into the analysis.

System Tag #commit First - Last Commit Date

Atlas AT 13667 08/12/2014 - 05/07/2019

Guice GU 8567 16/11/2006 - 06/06/2019

jUnite4 JU 5442 03/12/2000 - 20/06/2019

Log4j LO 9117 14/12/2000 - 11/02/2014

Zookeeper ZO 6216 06/11/2007 - 17/07/2019

Total TOT 43009 03/12/2000 - 17/07/2019

ﬁrst and last commit taken into consideration. These

systems are selected considering that their reposito-

ries are available on Github

, have different sizes,

and belong to different domains. The data collection

follows a process made of several steps. The ﬁrst step

is consisted of extracting the source code elements

to analyze all the commits of each system. On the

extracted data, we execute the tool for detecting the

presence of smells, and for the refactoring detection.

Finally, we compare each commit with its previous

one to identify a possible addition or removal of the

design smell and collect refactoring activities by com-

mit. More speciﬁcally, we use two tools: Designite

and RefactoringMiner

. Respectively, the ﬁrst for the

detection of smells, capable of evaluating the quality

of the design and therefore identifying the presence

of design smells.Therefore, for the sake of complete-

ness, in Table 2 we report the design smells detected

by this tool, indicating in the ﬁrst column the macro-

categories of design smells, and in the second the list

of smells. The second tool identiﬁes the possible pres-

ence of refactoring activities carried out on the source

code. More speciﬁcally, this is capable

of detecting

40 kinds of refactorings, for operations carried out on

packages, classes, methods, features, parameters, and

attributes. Finally, the dataset includes the history of

all software systems composed of 43009 commits and

35 features related to each type of design smell occur-

rence, the respective removal, and the presence of the

refactoring on the commit and the speciﬁc class.

3.3 Feature Set

To examine the correlations between refactoring, de-

sign smells, and the removal of the latter, we use the

following features:

• Refactoring: a dichotomous feature that assumes

the value ”true” when the refactoring techniques

are applied to its reference commit, ”false” other-

wise

• Design Smells: we analyze 17 different types of

smell. These smells are represented as dichoto-

https://github.com

https://www.designite-tools.com

https://github.com/tsantalis/RefactoringMiner

At the time of extraction, in its version 2.1

Table 2: Type of design smells analyzed.

Design smell Category Type of smells

ABSTRACTION

Imperative Abstraction

Multifaceted Abstraction

Unnecessary Abstraction

Unutilized Abstraction

ENCAPSULATION

Deﬁcient Encapsulation

Unexploited Encapsulation

MODULARIZATION

Broken Modularization

Cyclically Dependent Modularization

Insufﬁcient Modularization

Hub-Like Modularization

HIERARCHY

Broke Hierarchy

Cyclic Hierarchy

Deep Hierarchy

Missing Hierarchy

Multipath Hierarchy

Rebellious Hierarchy

Wide Hierarchy

mous features with a value of ’0’ if the particular

type of smell does not appear in the commit under

consideration, a value of ’1’ otherwise.

• Removal of the Design Smells: 17 nominal fea-

tures, one for each design smells, which take into

account the removal of the smell they refer to.

In particular, these features can assume three val-

ues: no change if the smell is not been eliminated,

smell eliminated if the smell is been eliminated

and added smell if the smell is been added.

• Year: the year in which the current commit is

made.

4 EMPIRICAL STUDY RESULTS

This section reports all the results obtained through

the data to approach previously explained.

4.1 Do Programmers Use Refactoring

When Design Smells Occur?

To understand if there is a connection between design

smells and the use of refactoring on them, we analyze

the use of refactoring on commits affected and non

by the presence of a design smells. We analyze the

contingency tables, double-entry frequency tables in

which two qualitative features cross, in our case, the

number of the commit where a particular type of de-

sign smell occurs, and the Refactoring feature. In Ta-

bles 3 and 4, we report respectively the contingency

analysis carried out on smelly commits and the one

carried out on clean commits, therefore unaffected by

the presence of design smells. Tables show in the ﬁrst

column the type of the smell, in the second the num-

ber of commits with at least one smell present, which

have not been refactored, in the third the number of

commits in which there is at least one smell and it has

Is There Any Correlation between Refactoring and Design Smell Occurrence?

131

been carried out a refactoring activity, in the fourth

the sum of the two previous columns, and in the last

two columns the calculation of the respective ratios,

without refactoring and with refactoring. In partic-

ular, from the fourth column of Table 3 we can see

that some design smells appear more frequently, such

as Unutilized Abstraction, Deﬁcient Encapsulation,

Cycle-Dependent Modularization, Insufﬁcient Mod-

ularization, and Broken Modularization. To better

understand if the refactoring technique is used on af-

fected smells, we study the proportion between com-

mits where refactoring is used compared to the total

of commits by design type smells, and between the

commits where refactoring is not used compared to

the total of the affected commits.The results on the

smelly commits, reported in Table 3, highlight that in

most commits affected by design smells, no refactor-

ing is used on them. Looking at the Table, the number

of commits affected by design smells where refactor-

ing is not used varies between 61% in the case of the

Hub-like Modularization and 100% for the Deep Hi-

erarchy. Therefore, on average, for all types of smells

considered, 78% of smelly commits are not refac-

tored. The design smells types handled by refactoring

techniques are in the order: Deep Hierarchy (100%),

Unnecessary Abstraction (97%), Imperative Abstrac-

tion (90%), Cyclic Hierarchy (86%), and Rebellious

Hierarchy (82%). These types of design smells are

also the ones that occur less frequently. Therefore,

we can say that refactoring is seldom applied to rare

smells. On the other hand, on average 22% of com-

mits affected by design smells undergo refactoring

operations. In very few cases, in particular, for Un-

exploited Encapsulation, Cyclic Dependent Modular-

ization, Insufﬁcient Modularization, Hub-like Mod-

ularization, and Multipath Hierarchy, the percentage

of commits affected by design smells and affected

by refactoring is greater than or equal to 30%. The

results reported in Table 4 show that the number of

refactored commits is much greater than those af-

fected by design smells and refactored. However, if

we consider the totality of commits not affected by

design smell, from the Table it is clear that most of

the clean commits are not refactored, in fact, on aver-

age, the refactoring techniques are used on about 25%

of the commits without the presence of smells design.

Therefore, refactoring is done more on commits with

no design smells than on commits with design smells.

Summary: The use of refactoring is not

as common on commits affected by design

smells and, in particular, it is almost not

used in the case of rare smells.

Table 3: Contigency Table & Table of Ratio - Refactoring

VS Commits affected by Design smells.

Type of design smell - ALL DATA Ref false Ref true Ref false Ref true

Imperative Abstraction 62 7 69 0.90 0.10

Multifaced Abstraction 218 68 286 0.76 0.24

Unnecessary Abstraction 153 4 157 0.97 0.03

Unutilized Abstraction 10517 2765 13282 0.79 0.21

Deﬁcient Encapsulation 5661 2173 7834 0.72 0.28

Unexploited Encapsulation 154 66 220 0.70 0.30

Broken Modularization 52 15 67 0.78 0.22

Cyclic Dependent Modularization 4499 2136 6635 0.68 0.32

Insufﬁcient Modularization 5757 2525 8282 0.70 0.30

Hub like Modularizaton 359 234 593 0.61 0.39

Broken Hierarchy 1930 634 2564 0.75 0.25

Cyclic Hierarchy 6 1 7 0.86 0.14

Deep Hierarchy 5 0 5 1.00 0.00

Missing Hierarchy 309 135 444 0.70 0.30

Multipath Hierarchy 9 4 13 0.69 0.31

Rebellious Hierarchy 58 13 71 0.82 0.18

Wide Hierarchy 147 47 194 0.76 0.24

Table 4: Contigency Table & Table of Ratio - Refactoring

VS Commits not affected by Design smells.

Type of design smell - ALL DATA Ref false Ref true Ref false Ref true

Imperative Abstraction 29097 9563 38660 0.75 0.25

Multifaced Abstraction 29041 9502 38543 0.75 0.25

Unnecessary Abstraction 29006 9566 38572 0.75 0.25

Unutilized Abstraction 18642 6805 25447 0.73 0.27

Deﬁcient Encapsulation 23498 7397 30895 0.76 0.24

Unexploited Encapsulation 29005 9504 38509 0.75 0.25

Broken Modularization 29107 9555 38662 0.75 0.25

Cyclic Dependent Modularization 24660 7434 32094 0.77 0.23

Insufﬁcient Modularization 23402 7045 30447 0.77 0.23

Hub like Modularizaton 28800 9336 38136 0.76 0.24

Broken Hierarchy 27229 8637 35866 0.76 0.24

Cyclic Hierarchy 29153 9569 38722 0.75 0.25

Deep Hierarchy 29154 9570 38724 0.75 0.25

Missing Hierarchy 28850 9435 38285 0.75 0.25

Multipath Hierarchy 29147 9566 38713 0.75 0.25

Rebellious Hierarchy 29098 9557 38655 0.75 0.25

Wide Hierarchy 29009 9523 38532 0.75 0.25

4.2 Is Refactoring Correlated to the

Type of Design Smell?

To understand the relationships between the design

smell and the use of refactoring on it, we use the lo-

gistic regression model.

In Table 5 we report the results of the logistic

model on the entire dataset. In particular, the ﬁrst col-

umn shows the type of predictor, the second the values

of the BETA coefﬁcients, a measure of the relation-

ships between the dependent feature and the predic-

tive features, the third column the values of the Stan-

dard Error associated with BETA coefﬁcients, fourth

and ﬁfth column the values of z-value and of the rel-

ative p-value, which respectively indicate the number

of standard deviations of each data value with respect

to the mean, and how much the BETA coefﬁcient is

signiﬁcantly correlated to the dependent feature (The

BETA coefﬁcient is signiﬁcant when the p-value is

less than 0.05) and ﬁnally in the last column the val-

ues of the Odds Ratio (OR) which represents the prob-

ability ratios between design smells and Refactoring.

The results highlight that when certain types of

smells are present such as Unnecessary Abstraction,

Unutilized Abstraction, Cycle Dependent Modular-

ization, and Rebellious Hierarchy the probability of

refactoring decreases because the OR is < 1. Oth-

erwise, when the design smell is Deﬁcient Encapsu-

ICSOFT 2022 - 17th International Conference on Software Technologies

132

Table 5: Logistic Model Estimates (all data).

Coefﬁcients, Estimates and Odds Ratio - all data

Beta St. Err z value Pr(>—z—) OR

(Intercept) -0.83 0.02 -51.48 <2e-16 0.44

Imperative Abstraction -0.43 0.29 -1.48 0.14

Unnecessary Abstraction -2.10 0.39 -5.43 0.00 0.12

Unutilized Abstraction -0.23 0.02 -9.84 <2e-16 0.79

Deﬁcient Encapsulation 0.08 0.03 2.97 0.00 1.08

Unexploited Encapsulation -0.31 0.18 -1.77 0.08

Broken Modularization -0.41 0.29 -1.42 0.15

Cyclic Dependent Modularization 0.14 0.03 4.66 0.00 1.15

Insufﬁcient Modularization 0.47 0.03 18.36 <2e-16 1.60

Broken Hierarchy 0.11 0.04 2.62 0.01 1.12

Cyclic Hierarchy 3.14 1.05 2.98 0.00 23.10

Deep Hierarchy -12.87 53.44 -0.24 0.81

Missing Hierarchy 0.20 0.11 1.78 0.07

Rebellious Hierarchy -0.72 0.29 -2.46 0.01 0.49

Wide Hierarchy 0.40 0.13 3.22 0.00 1.50

Table 6: Table of Added smells when Refactoring is used.

ADDED SMELL vs REFACTORING

Type of design smells ALL ATLAS GUICE JUNITE LOG4J ZOOKEEPER

Imperative Abstraction 0% 0% 0% 0% 0% 0%

Multifaced Abstraction 2% 3% 3% 3% 0% 0%

Unnecessary Abstraction 0% 0% 0% 0% 0% 0%

Unutilized Abstraction 13% 13% 11% 24% 16% 5%

Deﬁcient Encapsulation 15% 11% 10% 23% 25% 18%

Unexploited Encapsulation 0% 0% 2% 0% 0% 2%

Broken Modularization 0% 0% 0% 0% 1% 0%

Cyclic Dependent Modularization 23% 26% 39% 15% 17% 13%

Insufﬁcient Modularization 37% 38% 28% 26% 39% 37%

Hub-like Modularizaton 4% 5% 2% 0% 0% 6%

Broken Hierarchy 4% 4% 3% 9% 2% 2%

Cyclic Hierarchy 0% 0% 0% 0% 0% 0%

Deep Hierarchy 0% 0% 0% 0% 0% 0%

Missing Hierarchy 0% 0% 2% 0% 0% 2%

Multipath Hierarchy 0% 0% 0% 0% 0% 0%

Rebellious Hierarchy 1% 0% 0% 0% 0% 15%

Wide Hierarchy 0% 0% 0% 0% 0% 0%

100% 100% 100% 100% 100% 100%

lation, Cycle-Dependent Modularization, Insufﬁcient

Modularization, Broken Hierarchy, Cyclic hierarchy,

and Wide Hierarchy, the probability of refactoring in-

creases because the 0R is > 1. More speciﬁcally,

when the smell Cyclic Hierarchy is present, the prob-

ability of refactoring increases 23 times more.

Summary: The probability to use refactor-

ing is connected with the type of the design

smells.

4.3 How Often Are Refactoring and

Elimination of Design Smells

Co-occur?

To address this research question, we try to under-

stand the effects of refactoring operations on source

code in terms of management and removal of design

smells.

We ﬁrst analyze the distribution frequencies of the

added or removed design smells in those commits in

which the presence of refactoring activities is also

detected. To conduct this analysis we only consider

commits where refactoring activity is detected. In Ta-

ble 6 we report the distribution of the added design

smells, while in Table 7 the distribution of the re-

moved design smells in concomitance with the refac-

Table 7: Table of Removed smells when Refactoring is

used.

REMOVED SMELL vs REFACTORING

Type of smells ALL ATLAS GUICE JUNITE LOG4J ZOOKEEPER

Imperative Abstraction 0% 0% 0% 0% 0% 1%

Multifaced Abstraction 3% 6% 2% 0% 0% 0%

Unnecessary Abstraction 0% 0% 0% 0% 1% 0%

Unutilized Abstraction 22% 18% 31% 16% 20% 53%

Deﬁcient Encapsulation 13% 9% 6% 18% 25% 15%

Unexploited Encapsulation 0% 0% 1% 0% 0% 0%

Broken Modularization 0% 0% 0% 0% 0% 0%

Cyclic-Dependent Modularization 23% 28% 39% 21% 11% 1%

Insufﬁcient Modularization 23% 35% 16% 13% 2% 19%

Hub-like Modularizaton 1% 0% 1% 0% 0% 8%

Broken Hierarchy 10% 4% 3% 32% 26% 3%

Cyclic Hierarchy 1% 1% 0% 0% 0% 0%

Deep Hierarchy 0% 0% 0% 0% 0% 0%

Missing Hierarchy 0% 0% 2% 0% 0% 0%

Multipath Hierarchy 0% 0% 0% 0% 0% 0%

Rebellious Hierarchy 0% 0% 0% 0% 0% 0%

Wide Hierarchy 4% 0% 0% 0% 17% 0%

100% 100% 100% 100% 100% 100%

toring operations. More speciﬁcally, tables show in

the ﬁrst column the type of smell, and in the follow-

ing columns the percentages of their addition in all

systems and then in the single systems considered for

the study (Table 6), and the percentages of their re-

moval (Table 7) in the commits in which refactoring

is present. The results of the distribution of the added

design smell show that not all types of design smells

are added after refactoring but the most added design

smells are Insufﬁcient Modularization (37%), Cyclic

Dependent Modularization (23%), Deﬁcient Encap-

sulation (15%), and Unutilized Abstraction (13%).

Considering the individual systems, for all systems,

except Guice, the most added design smell is In-

sufﬁcient Modularization. Similarly, the results of

the distribution of removed smells show that not all

types of design smells are removed with the same fre-

quency where refactoring is also been done. The most

removed design smells are Insufﬁcient Modulariza-

tion (23%), Cycle Dependent Modularization (23%),

Unutilized Abstraction (22 %), Deﬁcient Encapsula-

tion (13%), and Broken Hierarchy (10%). The results

are almost the same for the single system analysis.

Moreover, to understand if the number of design

smells introduced is greater or less than those elim-

inated and vice versa, we analyze the relationship

between design smells added and design smells re-

moved (i) and the relationship between design smells

removed and smells added (ii). The ratio is calcu-

lated by dividing the number of design smells for a

particular type over the total of all smells counted in

the reference dataset. In Table 8 we report in the ﬁrst

columns the type of design smell, from the second to

the seventh column the ratios of added/removed and

from the eighth column at the end of the Table, the

ratios of removed/added are reported. Focusing on

the relationships between added design smells and re-

moved design smells we have found that in most cases

smells are added rather than removed where refactor-

ing has also been done. In particular, Unexploited

Is There Any Correlation between Refactoring and Design Smell Occurrence?

133

Table 8: Table of ratios ’Added vs Removed’ & Table of ratios ’Removed vs Added’.

RATIO ADDED vs REMOVED RATIO REMOVED VS ADDED

Type of smells ALL ATLAS GUICE JUNITE LOG4J ZOOKEEPER ALL ATLAS GUICE JUNITE LOG4J ZOOKEEPER

Imperative Abstraction - - - - - - - - - - - -

Multifaced Abstraction 0.82 0.72 2.00 - - - 1.22 1.39 0.50 - - -

Unnecessary Abstraction - - - - - - - - - - - -

Unutilized Abstraction 0.96 1.19 0.49 1.80 1.07 0.27 1.04 0.84 2.04 0.56 0.94 3.77

Deﬁcient Encapsulation 1.83 2.24 2.40 1.55 1.31 3.43 0.55 0.45 0.42 0.65 0.76 0.29

Unexploited Encapsulation 12.00 - 5.00 - - - 0.08 - 0.20 - - -

Broken Modularization - - - - - - - - - - - -

Cyclic-Dependent Modularization 1.66 1.57 1.41 0.85 2.08 33.00 0.60 0.64 0.71 1.18 0.48 0.03

Insufﬁcient Modularization 2.61 1.84 2.46 2.38 25.89 5.39 0.38 0.54 0.41 0.42 0.04 0.19

Hub-like Modularizaton 9.00 39.00 2.00 - - 2.43 0.11 0.03 0.50 - - 0.41

Broken Hierarchy 0.55 2.12 1.20 0.35 0.08 1.33 1.83 0.47 0.83 2.86 13.00 0.75

Cyclic Hierarchy - - - - - - - - - - - -

Deep Hierarchy - - - - - - - - - - - -

Missing Hierarchy 4.00 - 1.67 - - - 0.25 - 0.6 - - -

Multipath Hierarchy - - - - - - - - - - - -

Rebellious Hierarchy - - - - - - - - - - - -

Wide Hierarchy 0.03 - - - - - 38.00 - - - - -

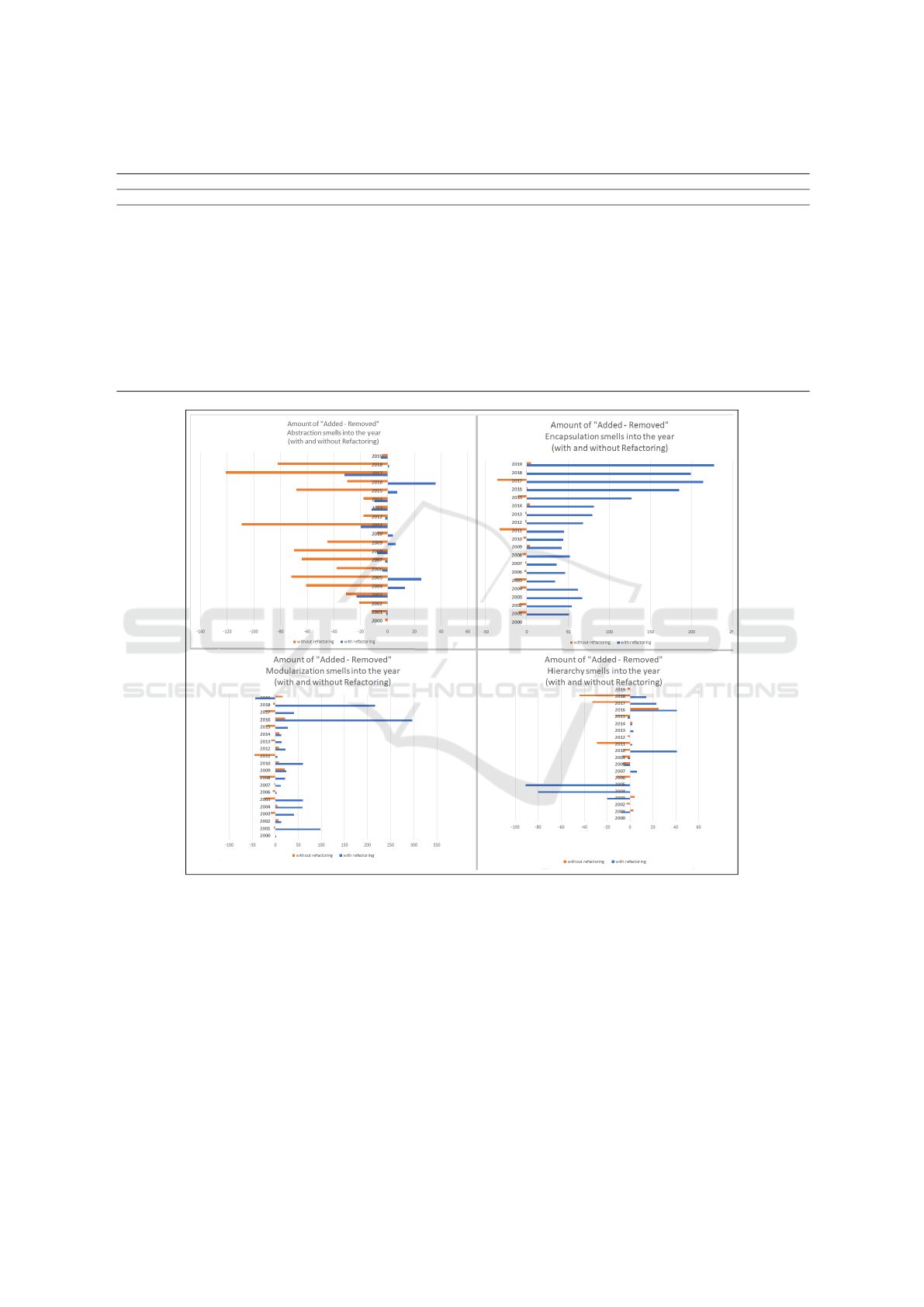

Figure 1: Differences between ’Added’ and ’Removed’ design smells - temporal analysis.

Encapsulation, Hub-like modularization, and Missing

Hierarchy are the design smells with the highest ra-

tio as well as the smells with the highest percentage

of introductions in the code. The analysis by system

shows the same results.

These results are also conﬁrmed by the analysis

of the relationship between design smells removed

and design smells added. We ﬁnd that all ratios are

less than 1, so the removed design smells are inferior

to the design smells introduced into the code where

refactoring is done. The only type of design smell on

wich the practice of refactoring is useful is Wide Hi-

erarchy.

We have also analyzed the distribution of added

and removed design smells as a function of the ’Year’

feature, to eliminate the redundancy of information

due to time. The data collection goes 2000 and 2019.

To understand if more design smells are added or

removed, we calculate the differences between the

design smells added and removed year by year. So

when the difference is negative it means that the de-

sign smells added in a year are more than the removed

ICSOFT 2022 - 17th International Conference on Software Technologies

134

ones, otherwise when the difference is positive. In

Figure 1 we show the results for the four categories

of smell, Abstraction, Encapsulation, Modularization,

and Hierarchy, reporting with the blue bars the dif-

ferences on which the refactoring is performed, and

with the orange bars the differences on which is not

refactored. It can be seen that the only category of

design smells that has more negative differences be-

tween added and removed design smells is the Ab-

straction Category, but this happens, most of the time,

when there is no refactoring. In all other categories,

the number of design smells added is greater than the

number of design smells removed. This is especially

true when also refactoring tasks are present (most of

the blue bars are on the positive side of the graphs).

Summary: Refactoring is very often more

related to the introduction of new design

smells rather than to the removal. When

refactoring is used, the added design smells

are 1.60 times greater than the number of

removed design smells.

5 THREATS TO VALIDITY

The threats to the validity concern the relationship be-

tween the theoretical world and what we observe.

Concerning the removal of Design Smells, the

dataset is built and validated through a few studies and

could be considered reliable. To mitigate the same

threat, in the case of the Refactoring detection, we

use the Refactoring Miner tool, for which the (Tsan-

talis et al., 2018) study showed that this tool has a

high precision (98%) and recall (87%).

Threats to internal validity relate to factors inter-

nal to our research that could affect the results ob-

tained. In general, we cannot pretend that the cause-

effect relationship between the refactoring and re-

moval actions of Design Smells is always the same

as that obtained from our analyzes. To mitigate

this threat, we investigate refactoring on both smells-

affected commits and clean commits where possible.

The threats to the validity of the conclusions are

due to the lack of generalization of the results ob-

tained. To mitigate this threat, we consider ﬁve dif-

ferent systems, carrying out the analyses both on the

individual systems, taking into account their particu-

larities, and on the union of these, to obtain results for

both single sample and overall population.

The generalizability of our results is also an ex-

ternal threat, but being this a preliminary work, we

analyze only ﬁve software systems. The results can

be consolidated or denied during the study phases of

future work.

6 CONCLUSIONS AND FUTURE

WORK

This study proposes a novel approach to analyzing

the relationship between design smells and refactor-

ing activities.

We show that refactoring techniques are still very

little used in the world of software development. We

found that the likelihood of using refactoring in com-

mits where smells are present is closely related to the

type of design smell present in the code. In particular,

refactoring is more linked to the presence of Encap-

sulation and Modularization design smells. and less

to the presence of Abstraction and Hierarchy design

smells. This is an interesting aspect worth investi-

gating on a larger number of systems in a dedicated

study. We also found that the refactoring activity is

not correlated with the removal of some particular de-

sign smells. More speciﬁcally, for the Wide Hierarchy

smell, and in most commits where there is refactoring

there is the addition of other design smells, rather than

the removal of those already existing.

Future work could be a predictive model that can

forecast the behavior of refactoring in terms of adding

or removing design smells. It would be interesting

to understand how the use of refactoring changes as

the number of types of design smells increases and to

examine multiple software systems even with differ-

ent programming languages to validate the techniques

and results obtained in this study.

REFERENCES

Alkharabsheh, K., Crespo, Y., Manso, E., and Taboada,

J. A. (2019). Software design smell detection: a sys-

tematic mapping study. Software Quality Journal,

27(3):1069–1148.

AlOmar, E. A., Mkaouer, M. W., Ouni, A., and Kessentini,

M. (2019). On the impact of refactoring on the re-

lationship between quality attributes and design met-

rics. In 2019 ACM/IEEE International Symposium

on Empirical Software Engineering and Measurement

(ESEM), pages 1–11. IEEE.

Ardimento, P., Aversano, L., Bernardi, M. L., Cimitile, M.,

and Iammarino, M. (2021). Temporal convolutional

networks for just-in-time design smells prediction us-

ing ﬁne-grained software metrics. Neurocomputing,

463:454–471.

Aversano, L., Bernardi, M. L., Cimitile, M., Iammarino, M.,

and Romanyuk, K. (2020a). Investigating on the rela-

Is There Any Correlation between Refactoring and Design Smell Occurrence?

135

tionships between design smells removals and refac-

torings. In ICSOFT, pages 212–219.

Aversano, L., Carpenito, U., and Iammarino, M. (2020b).

An empirical study on the evolution of design smells.

Information, 11(7):348.

Aversano, L., Cerulo, L., and Del Grosso, C. (2007). Learn-

ing from bug-introducing changes to prevent fault

prone code. pages 19–26.

Aversano, L., Cerulo, L., and Palumbo, C. (2008). Mining

candidate web services from legacy code. pages 37–

40.

Bibiano, A. C., Fernandes, E., Oliveira, D., Garcia, A.,

Kalinowski, M., Fonseca, B., Oliveira, R., Oliveira,

A., and Cedrim, D. (2019). A quantitative study on

characteristics and effect of batch refactoring on code

smells. In 2019 ACM/IEEE International Symposium

on Empirical Software Engineering and Measurement

(ESEM), pages 1–11. IEEE.

Cedrim, D., Sousa, L., Garcia, A., and Gheyi, R. (2016).

Does refactoring improve software structural quality?

a longitudinal study of 25 projects. In Proceedings of

the 30th Brazilian Symposium on Software Engineer-

ing, pages 73–82.

Chaparro, O., Bavota, G., Marcus, A., and Di Penta, M.

(2014). On the impact of refactoring operations on

code quality metrics. In 2014 IEEE International

Conference on Software Maintenance and Evolution,

pages 456–460. IEEE.

avez, A., Ferreira, I., Fernandes, E., Cedrim, D., and Gar-

cia, A. (2017). How does refactoring affect internal

quality attributes? a multi-project study. In Proceed-

ings of the 31st Brazilian symposium on software en-

gineering, pages 74–83.

Fernandes, E., Ch

avez, A., Garcia, A., Ferreira, I., Cedrim,

D., Sousa, L., and Oizumi, W. (2020). Refactoring

effect on internal quality attributes: What haven’t they

told you yet? Information and Software Technology,

126:106347.

Fowler, M. (2002). Tutorials-refactoring: Improving the

design of existing code. Lecture Notes in Computer

Science, 2418:256–256.

Fowler, M. (2018). Refactoring: improving the design of

existing code. Addison-Wesley Professional.

Garcia, J., Popescu, D., Edwards, G., and Medvidovic,

N. (2009). Toward a catalogue of architectural bad

smells. In Proceedings of the 5th International Con-

ference on the Quality of Software Architectures: Ar-

chitectures for Adaptive Software Systems, QoSA ’09,

page 146–162, Berlin, Heidelberg. Springer-Verlag.

Hochstein, L. and Lindvall, M. (2005). Combating archi-

tectural degeneration: A survey. Inf. Softw. Technol.,

47(10):643–656.

Le, D. and Medvidovic, N. (2016a). Architectural-based

speculative analysis to predict bugs in a software sys-

tem. In Proceedings of the 38th International Confer-

ence on Software Engineering Companion, ICSE ’16,

page 807–810, New York, NY, USA. Association for

Computing Machinery.

Le, D. and Medvidovic, N. (2016b). Architectural-based

speculative analysis to predict bugs in a software sys-

tem. In Proceedings of the 38th International Con-

ference on Software Engineering Companion, pages

807–810.

Mkaouer, M. W., Kessentini, M., Cinn

eide, M.

O., Hayashi,

S., and Deb, K. (2017). A robust multi-objective ap-

proach to balance severity and importance of refactor-

ing opportunities. Empirical Software Engineering,

22(2):894–927.

Sahraoui, H. A., Godin, R., and Miceli, T. (2000). Can

metrics help bridging the gap between the improve-

ment of oo design quality and its automation. In Proc.

of the International Conference on Software Mainte-

nance (ICSM’00), pages 154–162.

Sharma, T., Singh, P., and Spinellis, D. (2020). An empir-

ical investigation on the relationship between design

and architecture smells. Empirical Software Engineer-

ing, 25(5):4020–4068.

Tsantalis, N. and Chatzigeorgiou, A. (2009). Identiﬁca-

tion of move method refactoring opportunities. IEEE

Transactions on Software Engineering, 35(3):347–

367.

Tsantalis, N., Mansouri, M., Eshkevari, L., Mazinanian, D.,

and Dig, D. (2018). Accurate and efﬁcient refactor-

ing detection in commit history. In 2018 IEEE/ACM

40th International Conference on Software Engineer-

ing (ICSE), pages 483–494. IEEE.

Tufano, M., Palomba, F., Bavota, G., Oliveto, R., Di Penta,

M., De Lucia, A., and Poshyvanyk, D. (2015). When

and why your code starts to smell bad. In 2015

IEEE/ACM 37th IEEE International Conference on

Software Engineering, volume 1, pages 403–414.

IEEE.

Yamashita, A. and Moonen, L. (2013). Do developers

care about code smells? an exploratory survey. In

2013 20th working conference on reverse engineering

(WCRE), pages 242–251. IEEE.

ICSOFT 2022 - 17th International Conference on Software Technologies

136
