Path Planning Incorporating Semantic Information

for Autonomous Robot Navigation

Silya Achat, Julien Marzat and Julien Moras

DTIS, ONERA, Universit

e Paris Saclay, F-91123 Palaiseau, France

Keywords:

Autonomous Robot Navigation, Path Planning, Semantic Scene Understanding.

Abstract:

This paper presents an approach to take into account semantic information for autonomous robot tasks requir-

ing path planning capabilities. A semantic pointcloud or map serves as input for generating a multi-layered

map structure, which can then be exploited to address various navigation goals and constraints. Semantic-

aware adaptations of A

∗

, Transition-based RRT and a shortcut algorithm are derived in this framework, and

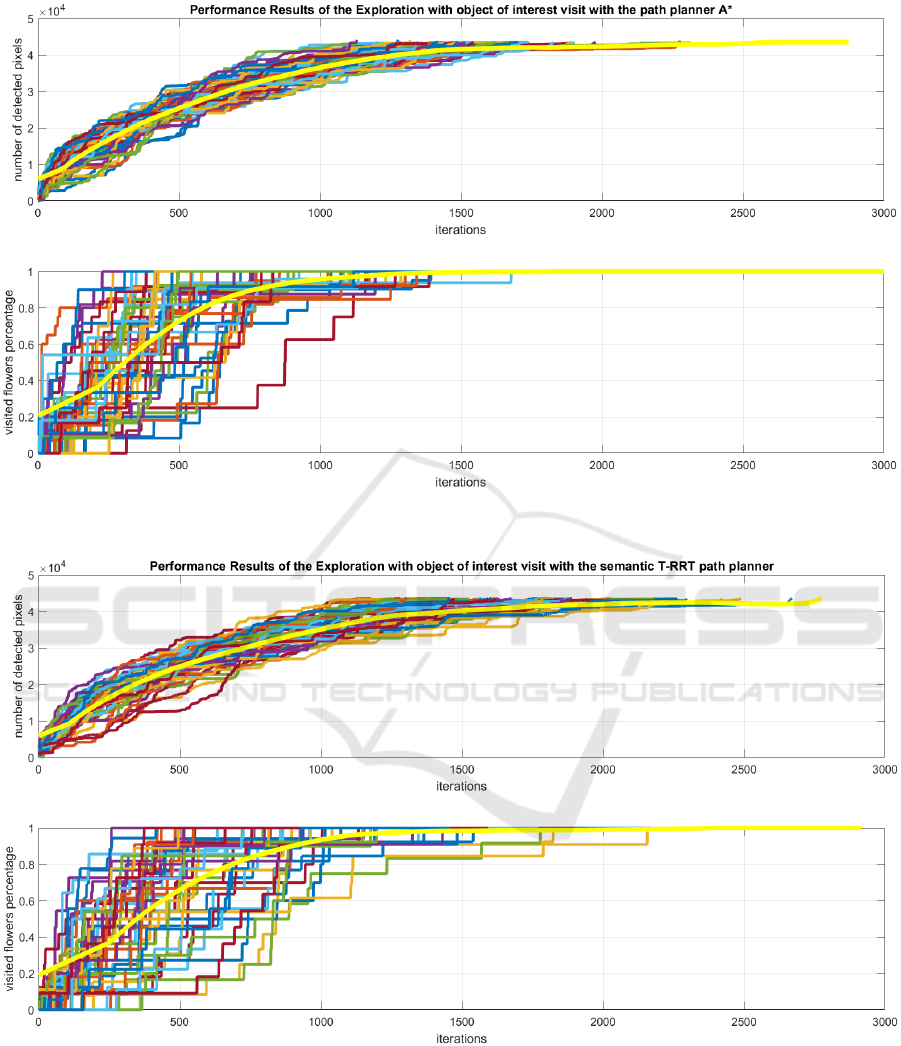

evaluated numerically on an exploration and observation task using a reference dataset with multiple semantic

classes as an illustrative test environment.

1 INTRODUCTION

The combined recent progress in learning algorithms

and computational power have led to the develop-

ment of efﬁcient semantic segmentation capabilities

based on data from embedded LiDAR and/or RGB-D

sensors, processed by (deep) neural networks to pro-

duce 2D annotated images (He et al., 2020) or 3D

pointclouds (Qi et al., 2017; Qi et al., 2020; Car-

valho et al., 2019; Mascaro et al., 2021). The fully-

embedded processing of this key perception asset is

now being reported for Unmanned Aerial Vehicles

(UAV) (Nguyen et al., 2019; Bultmann et al., 2021).

This has paved the way for the development of seman-

tic mapping algorithms, where the 3D representation

of a surrounding environment also includes the cate-

gorization of the perceived 3D points or even 3D ob-

ject segmentation at a higher level (Jadidi et al., 2017;

McCormac et al., 2018; Rosinol et al., 2020; Grin-

vald et al., 2021). Compared to classical mapping

structures which provide binary occupancy informa-

tion, e.g. Octomap (Hornung et al., 2013) or TSDF-

based mapping (Millane et al., 2018), this opens new

possibilities for autonomous robot navigation to di-

rectly take into account multiple mission objectives

and constraints in interaction with the environment.

In this context, we propose a systematic approach to

incorporate semantic mapping information into path

planning algorithms, with the derivation of seman-

tized versions of the A

∗

and Transition-based Rapidly

exploring Random Tree (T-RRT) algorithms as well

as a post-processing shortcut procedure. The seman-

tic map is linked with the planning algorithms within

a multi-layered structure: the classes are ranked by

a user-deﬁned cost representing traversability or ob-

servability constraints, and some classes are also

identiﬁed as of particular interest for observation.

The proposed algorithms are evaluated and compared

on typical autonomous robot navigation missions,

namely waypoint rallying in the presence of obsta-

cles and different types of terrain, and the exploration

of an uncharted environment with observation of de-

tected points of interest

2 RELATED WORK

A limited number of previous works have studied the

exploitation of these newly available semantic clouds

or maps for path planning of autonomous robots. As

described in the recent survey paper (Crespo et al.,

2020), a lot of effort has been put on deﬁning sev-

eral semantic map representations for various tasks

but there are still few complete semantic navigators

linking the proposed maps with planning algorithms,

and more extensive simulation and real-world experi-

ments should be conducted.

In the early work by (Sofman et al., 2006), a 2D cost

map associated with the traversability of an off-road

terrain was obtained by an aerial vehicle to allow the

navigation of a ground robot in a natural environment.

This map was combined with a local map obtained

Video at https://tinyurl.com/SemanticPlanning

Achat, S., Marzat, J. and Moras, J.

Path Planning Incorporating Semantic Information for Autonomous Robot Navigation.

DOI: 10.5220/0011134300003271

In Proceedings of the 19th International Conference on Informatics in Control, Automation and Robotics (ICINCO 2022), pages 285-295

ISBN: 978-989-758-585-2; ISSN: 2184-2809

285

from the on-board sensors of the ground robot, and a

path was then computed with a D

∗

algorithm exploit-

ing the local and global traversability data. However,

the top view can bias the real traversability of the ter-

rain, for example in the case of dense foliage trees on

a ﬂat and passable terrain.

In the context of inspection tasks carried out by an

autonomous ground vehicle in a nuclear storage en-

vironment, (Wang et al., 2018) proposed to exploit a

2D binary custom map of obstacles, which includes

locations and orientations of objects of interest so as

to build an enriched map that can be exploited for

inspection-oriented path planning.

In (Deeken et al., 2014), a Geographic Information

System (GIS) with geometrical and semantic layers is

used to build costmaps that are exploited by the ROS

move base package to carry out a simpliﬁed fetch-

and-deliver task with a ground platform. This was a

ﬁrst successful attempt demonstrating that a semantic

map can be used within navigation modules and not

only for data visualization. In (Suriani et al., 2021),

an active-vision approach has been proposed for an

indoor exploration mission by a mobile robot so as to

generate successive next best views based on the de-

tected segmented objects and associated geometrical

priors on their respective sizes.

The navigation of a rover in the framework of a Mar-

tian mission has been addressed in (Ono et al., 2015).

The onboard sensors provide raw images and a Digi-

tal Elevation Map to plan the rover’s path over rocky

terrain, where each recognized rock is classiﬁed. An

RRG algorithm derived from RRT allows to deﬁne

waypoints through the rock types to be avoided by

taking into account the positioning of the wheels, and

these waypoints are included in a graph to obtain opti-

mal paths with an A

∗

algorithm. These considerations

on the rover model and the associated path planning

architecture remain however very speciﬁc and present

a high computational cost for real-time exploration-

and-observation tasks.

In (Jeffrey Delmerico and Scaramuzza, 2017), a se-

mantic 2D grid has also been exploited for traversabil-

ity evaluation, along with a D

∗

path planning algo-

rithm to reach a destination which is designated by a

human operator in the context of a rescue mission.

An active perception approach has been derived

in (Bartolomei et al., 2020) for the autonomous navi-

gation of a UAV using on-board visual odometry. The

idea is to use semantic classes available in a 3D voxel

map to evaluate perceptually-informative scenes and

therefore maintain a reliable localization. A hierar-

chical structure is proposed, combining an A

∗

path

planner including a penalization related to the infor-

mation content of the voxels, followed by a B-Spline

trajectory optimization which aims at keeping in view

the most informative landmarks. The complementary

development of a reinforcement learning approach to

dynamically identify the most reliable regions for lo-

calization from semantic information was further pre-

sented in (Bartolomei et al., 2021), where this ar-

chitecture has been evaluated in photorealistic sim-

ulations. Another related topic addressed in (Stache

et al., 2021) is to generate relevant trajectories for col-

lecting data so as to obtain a better semantic segmen-

tation in post-processing (e.g., for agricultural appli-

cations), based on an accuracy model linking the UAV

altitude and the current acquired images.

A semantic planner for a UAV equipped with a RGB

camera navigating in an unknown urban environ-

ment has been proposed and evaluated experimentally

in (Ryll et al., 2020). The acquired images are pro-

cessed by a convolutional network to obtain a 2D seg-

mentation and then a projected probabilistic map giv-

ing preference to roads, which are assumed to be safer

to ﬂy over. A high-level long-distance traversability

graph is ﬁnally inferred by a deep neural network as

a combination of pre-deﬁned geometrical primitives

and the UAV path is extracted by direct graph search.

In (Sadat et al., 2020), a neural network architecture

aims at providing probabilistic semantic occupancy

layers including current and predicted locations of ve-

hicles and obstacles for a self-driving vehicle in an

urban environment, using voxelized LiDAR data and

a prior mapping. The vehicle trajectory is then se-

lected among a set of motion primitives by optimiz-

ing a cost function including penalty terms related to

safety (computed using the predicted semantic seg-

mentation), and other terms related to driving com-

fort and trafﬁc rules which are independent from the

semantic information.

In (Wolf et al., 2019), semantic information is ex-

ploited for motion planning of an autonomous robot

in an off-road environment, using an ontology-based

behavioural network. This method exploits semantics

for safe navigation, avoiding obstacles and potential

hazards, and slowing down when approaching them,

but does not generate semantically optimised paths.

In (Mozart et al., 2021), a hybrid version of A

∗

re-

lying on a distance map (instead of occupancy) and

a vehicle collision model has been proposed for path

planning in an urban environment. This allows safe

navigation for this speciﬁc self-driving car applica-

tion but it is not generalizable to the navigation of any

robotic system in any environment that seeks to opti-

mize the nature of the areas to be traversed.

These previous works mainly focused on a single spe-

ciﬁc objective or constraint related to the exploita-

tion or data acquisition of semantic information. In

ICINCO 2022 - 19th International Conference on Informatics in Control, Automation and Robotics

286

this paper, we propose to incorporate data from the

semantic map into a multi-layered structure that can

be readily adapted to many autonomous navigation

tasks requiring path planning from multi-class seman-

tic segmentation. This makes it possible to derive

variations of standard planning algorithms in a more

systematic way than in the above-referenced related

work, so as to efﬁciently carry out missions with mul-

tiple objectives and constraints.

3 PROPOSED APPROACH

3.1 Problem Formulation

A large majority of robotic tasks carried out by au-

tonomous robots can be split into the deﬁnition of a

high-level goal, followed by the generation of a path

that the robot should follow to reach this goal while

respecting a set of constraints. Examples of such tasks

are the rallying of an arbitrary waypoint with obsta-

cle avoidance or taking into account perception con-

straints, next-best-view exploration where successive

goals are generated on the currently known frontier,

fetch-and-deliver tasks where detected objects are de-

ﬁned as targets. The information used in this kind

of process is classically included in discretized 2D or

3D maps, such as binary occupancy grids encoding

the presence of obstacles, exploration grids storing

the explored locations, or more generally costmaps

that can encode arbitrary potential functions depend-

ing on the state of the vehicle (Jaillet et al., 2010).

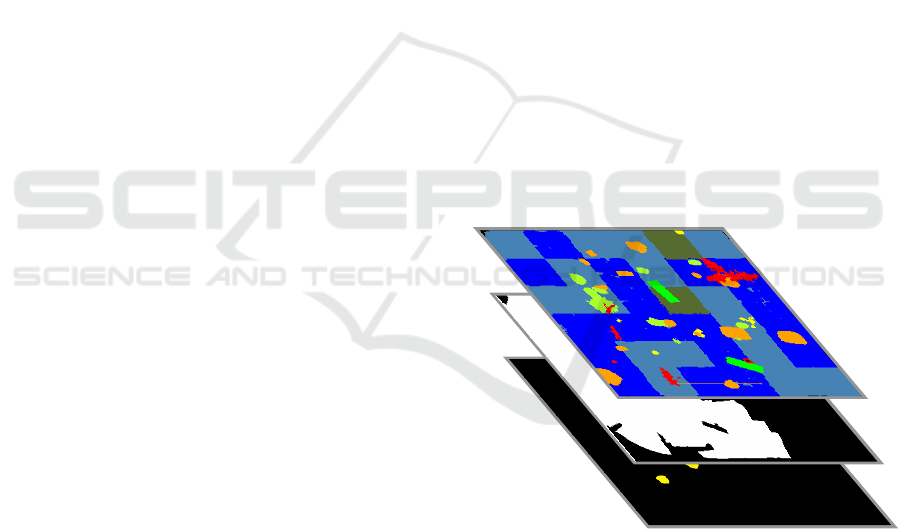

Multi-layered structures (Lu et al., 2014) can be then

be deﬁned to combine different types of data that can

be accessed simultaneously to evaluate the quality of

the high-level goals or the generated paths.

We deﬁne a conﬁguration q in an associated bounded

space S where the task is executed, and the position

state components of q are denoted by ξ ∈ R

, with

n = 2 for mobile robots and n = 3 for UAVs. The

other components of q, left unspeciﬁed, could rep-

resent orientation and additional multi-body coordi-

nates depending on the task.

A multi-layer map structure M is deﬁned as a set of

layers M

, which can be used to evaluate an ar-

bitrary cost function c

(q, M

) at any conﬁguration q.

A high-level task goal, deﬁned here as a conﬁgura-

tion target q

goal

for the sake of simplicity, can then

be optimally selected by evaluating a utility function

u(C (q

goal

, M )), where C (q, M ) = [c

(q, M

)]

con-

tains all the relevant cost evaluations c

( j = 1, ..., n

)

from appropriate layers M

for this given task.

An associated path P is deﬁned as the ordered list of

m successive conﬁgurations q

∈ S from the start q

the goal q

m−1

= q

goal

. The problem can then be for-

mulated as ﬁnding an optimal path against some cri-

teria (shortest path, no-collision, granting a sufﬁcient

safety level, ...) which can also be evaluated from the

appropriate set of n

functions C (q, M ). A standard

formulation to evaluate the quality of the path can be

derived as the weighted sum:

J(P, M ) =

m−2

∑

k=0

∑

j=1

k+1

, M ) · kξ

k+1

− ξ

k (1)

where each segment of the path is weighted by the

sum of appropriate costs extracted from the multi-

layered map structure. We study here how the infor-

mation stored in a semantic pointcloud or map can be

further included into this process and how the deﬁ-

nition of goals and paths can be adapted from clas-

sical algorithms. It is assumed that the semantic in-

formation on the environment can be represented by

a closed frame of discernment Ω = {l

, l

, ..., l

} con-

taining all the labels considered l

. This allow us to

create a semantic grid S of the environment (in 2D

or 3D, as detailed in Section 3.2), where each cell

of index j of the map contains a label value S

∈ Ω.

This semantic grid will be used as a proxy to deﬁne

semantic-aware map layers. The following example

of application with a map structure containing 3 lay-

ers is addressed in Figure 1.

Figure 1: Example of a 3-layer semantized map structure:

• a costmap M

derived from the semantic pointcloud to

incorporate traversability or observation constraints;

• a classical exploration grid M

with bi-

nary states {unknown ; explored}, in-

dependent from semantic information;

• a binary grid M

to monitor the observation of

speciﬁc semantic classes during navigation or exploration.

The semantic grid S is used to generate the ﬁrst

layer M

, where each cell j is assigned a cost value

c(q

, M

) as a function of the corresponding seman-

tic label l

in S at the location q

corresponding to

the cell j of M

. As an application example, we con-

Path Planning Incorporating Semantic Information for Autonomous Robot Navigation

287

sider traversability constraints deﬁned in the follow-

ing way:

c(q

, M

) = c(ξ

, M

) =







re f

max

if l

traversable

+∞ if l

not traversable

(2)

where v

max

is the maximum velocity reachable in safe

conditions for a robot located at position ξ

with la-

bel l

, and v

re f

= max

max

). This can translate, e.g.,

constraints related to the motion of a ground robot

on a speciﬁc soil type or the presence of sufﬁcient

textures in the scene for vision-based localization, as

in (Bartolomei et al., 2020) for the latter. For a simple

navigation task to an arbitrary waypoint considering

only the information from this map layer M

, the pro-

posed cost function (1) simpliﬁes with a single cost

c(ξ

, M

) as deﬁned in (2). Thus, for a path section

within a label area i such that v

re f

= v

max

, the cost

associated to this label would be equal to 1, so the

cost for this path section would be equivalent to its

Euclidean distance. It should then be minimized by

a candidate planning algorithm to incorporate this se-

mantic information in relation with the mission car-

ried out. As a byproduct, it can be directly used

to evaluate the paths obtained and thus compare the

efﬁciency of different planners for such a task (see

Section 4). Note that the infeasibility character of a

path is directly obtained from the deﬁnition of non-

traversable inﬁnite costs in (2).

The second layer M

is used to monitor a standard ex-

ploration mission, where the next best view (NBV) is

evaluated by considering the current frontier between

explored and known cells (see Section 3.4). Then,

the path to this NBV is generated using the process

deﬁned above, which takes into account traversabil-

ity via layer M

. Finally, we consider an independent

subset V ⊂ Ω containing a list of labels that should

be observed during exploration, with a binary visit

status updated in the corresponding layer M

. Note

that other types of map layers could be considered for

alternative tasks.

3.2 Semantic Data Representation

The construction of a discretized metric-semantic

map is a mandatory requirement for the presented

planning approach. Although the real-time construc-

tion of such a map is outside the scope of this work,

since the focus here is on the comparison of planning

strategies, it is reasonable to consider the availabil-

ity of such a map in the near future. Indeed, several

recent works in this area have given promising re-

sults. The mapping approaches proposed by (Rosinol

et al., 2020; Grinvald et al., 2019) fuse directly im-

age semantic segmentation produced by deep learn-

ing algorithms such as (Ronneberger et al., 2015; He

et al., 2020) to build 3D TSDF semantic maps. Oth-

ers works as (Thomas et al., 2019; Landrieu and Si-

monovsky, 2018) on pointcloud semantic segmenta-

tion reach a high level of accuracy and could also be

used to produce such a map.

For the purpose of this work, we have used a seman-

tic pointcloud taken from the Garden outdoor dataset

of the 3DRMS reference challenge (Tylecek et al.,

2018), as a basis for the numerical experiments re-

ported in Section 4. To obtain a discrete semantic

map structure, the labeled pointcloud is voxelized fol-

lowing a transformation similar to the one proposed

in (Guiotte et al., 2019). For each voxel, its label l ∈ Ω

is assigned following a majority vote including all the

points belonging to this voxel. If no point belongs to

a voxel then its label is assigned to free. Let h be the

resolution of a voxel, a point {x, y, z} is part of a voxel

{i, j, k} if it satisﬁes:











x s.t. ih ≤ x < (i + 1)h

y s.t. jh ≤ y < ( j + 1)h

z s.t. kh ≤ z < (k + 1)h

(3)

In the case of a ground robot, a 2D grid is usually suf-

ﬁcient and also more suitable for traversability rep-

resentation since it implicitly models the ground sur-

face. This grid is computed by projecting along the

z axis taking the label of the higher non-free voxel

as the label of the 2D cell that does not exceeds a

threshold z

. This threshold, above which the vox-

els are not taken into account, should be set to be of

the order of magnitude of the height of the robot. Tak-

ing the z

threshold into account makes it possible to

avoid, for example, the robot bypassing the projec-

tion of the branches of a tree if this class is consid-

ered non-traversable. Figure 2 illustrates the result of

this pre-processing, where the left view shows the 3D

voxelized map and the right view shows the 2D pro-

jected grid exploited in the remainder of the paper,

each color representing a distinct label (see Table 1).

3.3 Planning Algorithms

Modiﬁed versions of A

∗

, T-RRT and a shortcut pro-

cedure taking into account the mapping structure de-

scribed above are provided. Note that other graph-

based or sampling-based path planning algorithms

can be adapted in a similar fashion.

1) A weighted A

∗

algorithm (Ebendt and Drechsler,

2009) is used to take into account the semantic-aware

traversability layer M

deﬁned in Section 3.1 to com-

pute a path P from a starting node q

to a destina-

ICINCO 2022 - 19th International Conference on Informatics in Control, Automation and Robotics

288

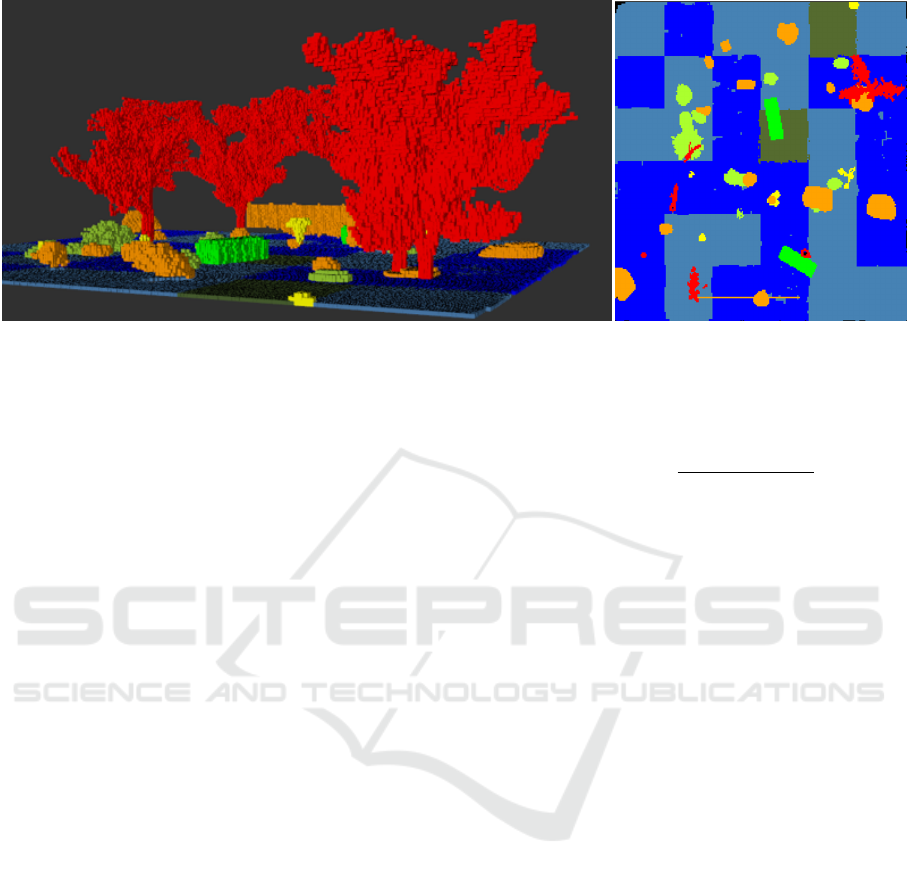

Figure 2: Voxelized 3D semantic grid (left) and 2D projection for mobile robot path planning (right) based on the 3DRMS

dataset (Tylecek et al., 2018).

tion q

goal

, with an initially unknown path length (i.e.,

the number of intermediate points m), minimizing the

cost function (1). The navigation graph is generated

with the same discretization as the map cells.

In the A

∗

process, the transition function g from the

current node q

cur

(deﬁned at the start as q

with value

g(q

, M

) = 0) to a candidate node q

nei

among the

eight neighbours is taken as the sum of the cumulated

cost at q

cur

and the distance between the correspond-

ing positions ξ

nei

and ξ

cur

weighted by the cost corre-

sponding to the semantic label of the node q

nei

, as

g(q

nei

, M

) = g(q

cur

, M

) + c(q

nei

, M

) · kξ

nei

− ξ

cur

(4)

The classical Euclidean distance heuristic for attrac-

tion to the goal q

goal

is then applied without weight,

f (q

nei

, q

goal

, M

) = g(q

nei

, M

) + kξ

goal

− ξ

nei

k (5)

Note that the cost c(q

nei

, M

) as deﬁned in (2) is never

less than 1, so the Euclidean distance kξ

goal

− ξ

nei

k is

always lower than or equal to the actual optimal path

cost, which guarantees the admissibility of the chosen

heuristic.

2) Transition-based RRT (T-RRT) (Jaillet et al., 2010)

is an extension of the Rapidly-Exploring Random

Tree path ﬁnding algorithm which probabilizes the

conservation of the new nodes of a tree, and thus the

transitions of this tree, according to a costmap so as

to favor the valleys and saddle points. The proposed

semantic-aware version of this algorithm probabilizes

the tree transitions depending on the costmap M

de-

rived from the semantic data. The transition proba-

bility p from a new sampled node q

new

to the near-

est node included in the tree q

near

of respective costs

new

= c(q

new

, M

) and c

near

= c(q

near

, M

) is then

taken as

p(q

new

, q

near

) =







1 if c

new

< c

near

exp



near

− c

new

T · kξ

near

− ξ

new



else

(6)

where T is a temperature parameter. It can be noted

that if q

new

is not a traversable node (i.e. c

new

= +∞),

then the transition probability p from q

near

to q

new

equal to 0. In the implemented version, the minEx-

pandControl introduced in the classical formulation

of the algorithm to maintain a minimal rate of expan-

sion toward unexplored regions has been deactivated

and replaced by a bias towards the target with uni-

form probability 5%, in which case the tree is not ex-

panded towards a random node q

rand

of the conﬁgura-

tion space, but towards the target node q

goal

3) Paths generated by sampling-based algorithms usu-

ally require to be post-processed by a shortcut strat-

egy (Campana et al., 2016) to remove intermediate

nodes that were useful to explore the space but re-

sult in an increase of the overall length, which usually

does not take into account the terrain traversability or

any other related characteristic that could be obtained

from semantic information. In the present context,

nodes can be removed from a generated path P ob-

tained either with the A

∗

or the T-RRT strategy if two

successive nodes of the path correspond to the same

class label in the semantic grid (which also contains

obstacle classes in our case). The paths are stored

such that each node points to the next in the path

(a node thus corresponds to a waypoint, and the last

node of the path q

m−1

points to NULL). The proposed

semantic-aware shortcut algorithm iterates on the path

with three node pointers i, j

and j which initially

point respectively to q

, q

and q

. Then, as long as

there is no obstacle or label change between the nodes

and q

(which is veriﬁed by a line iterator travers-

Path Planning Incorporating Semantic Information for Autonomous Robot Navigation

289

ing [q

, q

] in the semantic grid S ), then the pointers j

and j

are moved forward to the next nodes of the

path. When a label change is detected between i and

j, then a shortcut is made between the nodes pointed

by i and j

such that q

points to q

in the short-

cutted path P

. The procedure is then iterated until j

points to the target node q

m−1

3.4 Next-Best-View Exploration

An exploration task consisting in the observation of

the full bounded space by an autonomous robot us-

ing a sensor with a ﬁeld of view (FOV) limited in de-

tection angle and range (90 deg and 3 m in our ex-

periments) has been studied as a case study including

the computation of high-level goals and path planning

from semantic information. The multi-layered map

M deﬁned in Section 3.1 is initially unknown and

discovered during exploration. A standard Next-Best-

View (NBV) strategy (Gonz

alez-Banos and Latombe,

2002; Darmanin and Bugeja, 2016) has been deﬁned,

where the map layer M

monitors the binary status

(observed or not) of the cells of the environment. This

layer is eroded with a circular structuring element

larger than the radius of the robot to take into ac-

count its dimensions for obstacle avoidance. A com-

plementary sub-task has been considered to observe

objects belonging to a class of interest when they

are detected during exploration (similar to the explo-

ration and observation problem addressed in (Okada

and Miura, 2015)), whose observation is monitored

using the map layer M

to store the binary observa-

tion status of this speciﬁc class (positions of the ob-

jects are updated from the semantic grid S when the

corresponding cell has been observed). The NBV is

primarily selected to observe the closest points of in-

terest of the latter layer at a close distance in the robot

FOV. When there is no remaining point of interest in

at a given instant, a random number of NBV can-

didates are sampled such that their position is on the

border cells of the exploration layer M

with a yaw

reference given by the normal to the border (com-

puted using a Sobel ﬁlter). The NBV is then cho-

sen as the candidate with the maximum number of

unobserved cells that could be seen in the FOV. Af-

ter the NBV has been calculated, a path P between

the current robot position and this NBV is computed

using either the previously presented semantic-aware

∗

or the T-RRT algorithms followed by the seman-

tic shortcut post-processing strategy, all relying on the

map layer M

containing the traversability costs and

with the additional constraint that unobserved areas

(in map layer M

) are not traversable either.

4 NUMERICAL EXPERIMENTS

Repeated simulations have been carried out to eval-

uate the strategies proposed in the previous section,

based on the 2D projection of the semantic grid de-

ﬁned in Section 3.2 from the 3DRMS reference se-

mantized pointcloud, which contains 243×256 cells

with a 5×5 cm

resolution. Table 1 summarizes the

semantic classes, with the user-deﬁned cost they have

been assigned in the map layer M

corresponding to

traversability (3 classes with different allowed speeds,

the other ones being non-traversable) and the obser-

vation interest which is used to ﬁll the map layer M

here on the single ﬂower class. It could be noted that

this class is non-traversable but is of interest for ob-

servation, which further motivates the use of the pro-

posed multi-layered structure. Table 1 also lists the

colors associated to the classes, which are used in all

the ﬁgures displaying 2D or 3D views. The developed

algorithms have been implemented in C++ and run

within a Ubuntu 18.04 Virtual Machine with 4096MB

RAM on a Intel Core i5 8th generation CPU.

4.1 Path Planning Unitary Tests

A ﬁrst evaluation campaign was carried out to eval-

uate path planning performance with respect to the

semantic-weighted cost function (1) and computa-

tion time. The weighted A

∗

and T-RRT algorithms

with shortcutting have been compared, along with

a standard A

∗

procedure (which does not use the

costmap M

) as a baseline. For this purpose, 100 pairs

of sufﬁciently distant start and goal positions have

been sampled in the free space of the map. As the

distances between each pair of start and goal positions

vary, the weighted path length have been normalized

by the distance between the two positions of each

pair (see Table 2). A ﬁrst result is that the semantic-

aware weighted A

∗

always obtains shorter weighted

path lengths compared to the standard A

∗

algorithm

computed with an Euclidean distance heuristic.

Table 1: Semantic labels and related costs.

Label

Name

Color

Cost

)

Visit

interest

)

grass dark blue 1.0 0

ground pale blue 2.0 0

paving dark green 3.0 0

hedge bright green ∞ 0

topiary light green ∞ 0

ﬂower yellow ∞ 1

stone orange ∞ 0

tree red ∞ 0

ICINCO 2022 - 19th International Conference on Informatics in Control, Automation and Robotics

290

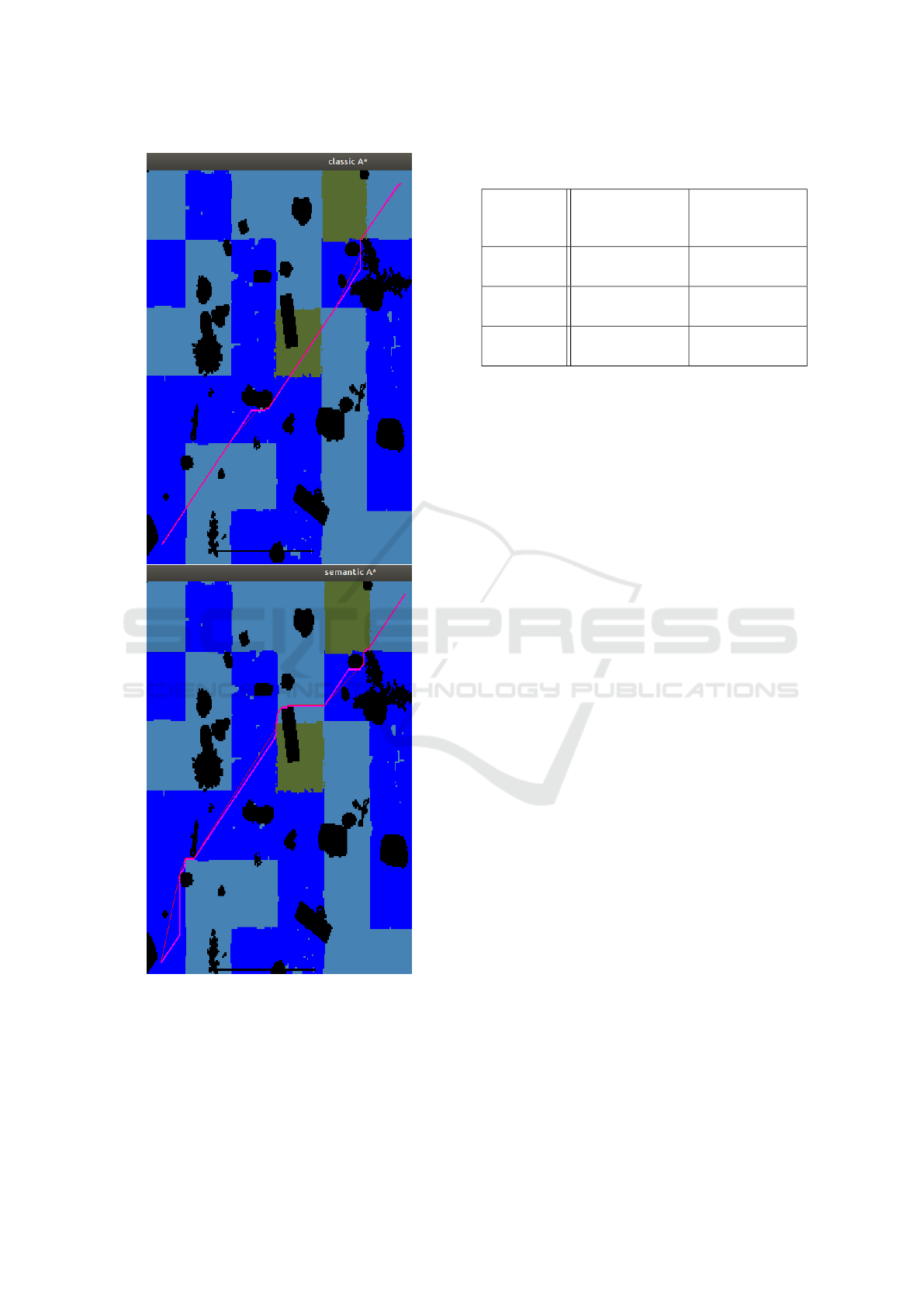

Figure 3: Paths generated with classical (up) and semantic-

aware (down) A

∗

. Initial paths are displayed in pink and

semantic-based shortcuts in red.

On the other hand, the weighted version takes on av-

erage more than twice as long to execute, and is faster

in only 5% of cases. This is due to the fact that the

paths obtained with a classical A

∗

are shorter in terms

Table 2: Comparison of path planners with semantic infor-

mation. 100 runs, averaged results (± std.)

Planning

method

Path weighted

length

(normalized)

Computation

Time (ms/pix)

Standard

∗

1.70 (± 0.259)

0.0687

(± 3.31e-02)

Weighted

∗

1.40 (± 0.140)

0.153

(± 5.91e-02)

T-RRT 2.02 (± 0.407)

0.0968

(± 0.191)

of Euclidean distance, and thus fewer nodes of the

semantic grid M need to be evaluated before the al-

gorithm reaches the target. Two respective paths gen-

erated by both algorithms are displayed in Figure 3.

It can be seen that the less costly semantic class (dark

blue) is favored by the weighted version. The T-RRT

algorithm is on average faster to execute than the A

∗

ones (in 82% of the runs), however the A

∗

procedures

provide shorter paths. This is a well-known trade-off

when graph-based and sampling-based algorithms are

compared on the same task, and this is also related to

the relative simplicity of the test environment which

presents many traversable areas. In 3D more complex

environments, the complexity of the graph-based A

∗

strategies would pose more computational challenges

and the T-RRT algorithm will probably be more ro-

bust to dimension increase.

4.2 Exploration-and-Observation Task

The NBV exploration and observation scheme has

then been evaluated using the above weighted A

∗

and

T-RRT procedures (Figure 4). Note that in the sim-

ulation, the robot speed depends on the traversabil-

ity class label at its current position, according to the

cost values listed in Table 1 and the inversely propor-

tional rule deﬁned by (2). The following two mis-

sions have been investigated: the case of a simple ex-

ploration of the map (pure exploration) and the case

of an exploration with observation of objects of in-

terest (layer M

), in this case those labeled l

. 100

simulations with random initialization have been per-

formed with each path planning algorithm, half of

which aimed at visiting the ﬂowers in the semantic

map as soon as they were detected. The exploration

performance indicators corresponds to the number of

observed cells as a function of the number of algo-

rithm iterations for both missions, and the additional

number of iterations to visit all objects of interest for

the observation task. Table 3 summarizes the perfor-

mance indices obtained, while the cumulated perfor-

mance indices during the missions are displayed in

Path Planning Incorporating Semantic Information for Autonomous Robot Navigation

291

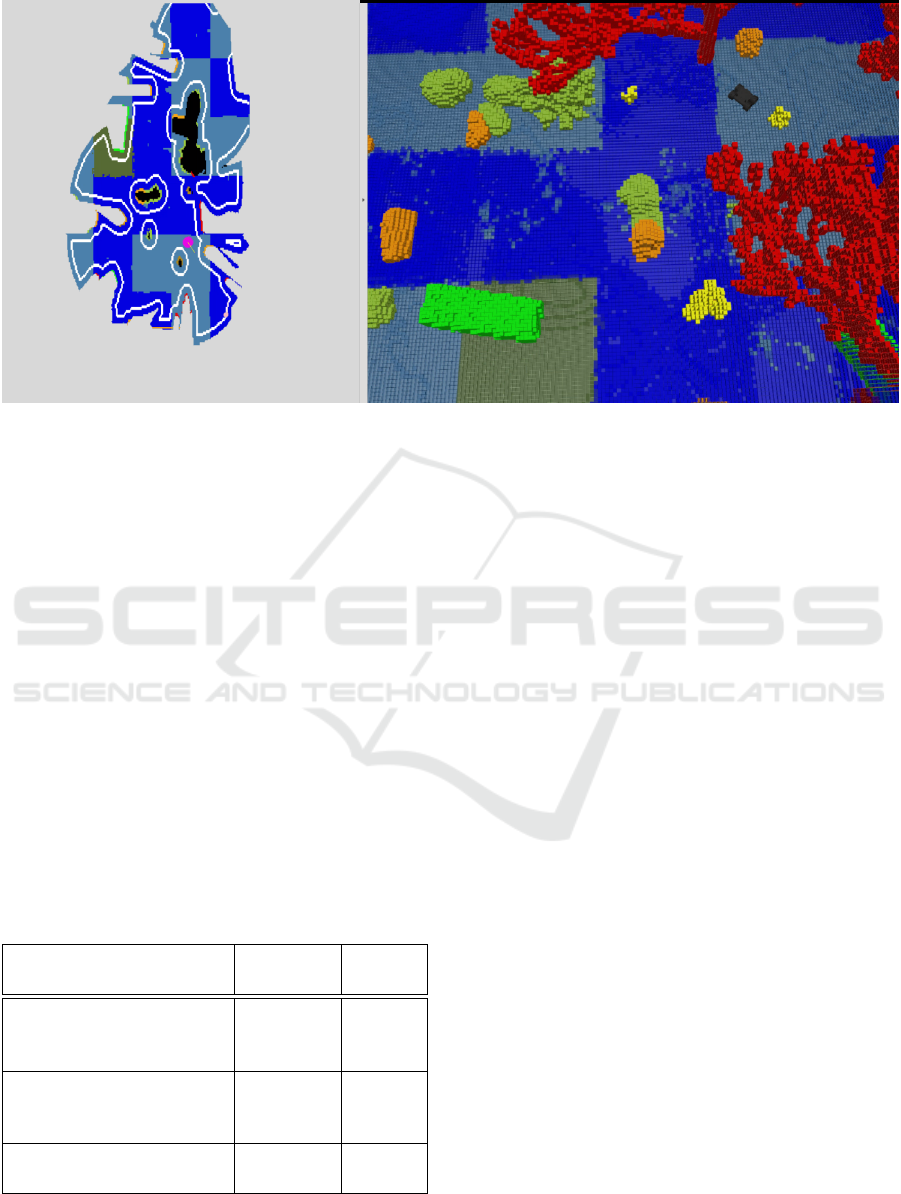

Figure 4: Example of semantic-aware exploration and observation. Left: Real-time update of coverage layer (robot position

in pink, frontier nodes in white). Right: Ground truth visualization of the semantic 3D voxel grid from which information is

extracted. Colors of semantic classes according to Table 1. Video available at https://tinyurl.com/SemanticPlanning.

Figures 5 and 6. All the tasks have been success-

fully completed (with a stopping coverage criterion at

90% of the free space, which corresponds to 70% of

the full space) and the convergence curves are glob-

ally consistent. As a consequence of the unitary path

planning tests, it follows that although the T-RRT

planner is faster in calculating paths, exploration is

more efﬁcient in terms of number of iterations with

the weighted A

∗

algorithm because computation time

is compensated by the optimality of the path lengths.

Indeed, the robot takes less time to reach the targets

and this largely compensates for the slight additional

path calculation time in this 2D evaluation case. The

same trend is observed in the convergence rates to the

maximum number of visited objects of interest.

Table 3: Performance indices for Exploration/Observation

tasks. 50 runs, averaged results (± std.)

Path planner for NBV

rallying

Weighted

∗

T-RRT

Nb of iterations for 90%

coverage, without visiting

a class of interest

1381

(± 223)

1520

(± 438)

Nb of iterations for 90%

coverage, while visiting a

class of interest

1581

(± 321)

1682

(± 357)

Nb of iterations to visit

all objects of interest

854

(± 361)

944

(± 401)

5 CONCLUSIONS

An approach has been proposed in this paper to in-

corporate information available from semantic point-

clouds or maps into autonomous robot navigation

tasks that can be decomposed into high-level goals

followed by path planning. An example of con-

struction of a multi-layered map incorporating seman-

tic information to deﬁne costs or observation targets

has been proposed, and it has been shown how the

classical A

∗

and T-RRT planning algorithms can be

adapted. This has been evaluated numerically for

waypoint rallying and exploration-and-observation

tasks, with promising results.

The design and testing of a fully embedded process

for mobile or aerial robots including semantic learn-

ing, map building and autonomous navigation will be

the focus of future work. This includes the analysis of

the on-line construction of semantic maps and the best

way to represent this information and associated un-

certainty for autonomous navigation. The extension

to multiple robots or heterogeneous teams, with the

fusion of viewpoints to integrate semantic data into

distributed 3D maps and use them in such planning

algorithms will also be challenging problems.

ACKNOWLEDGMENTS

This research was partially supported by the French

Grant ANR DELICIO (ANR-19-CE23-0006).

ICINCO 2022 - 19th International Conference on Informatics in Control, Automation and Robotics

292

Figure 5: Cumulated coverage and visit of classes of interest during Exploration task with semantic-aware A

∗

planner to reach

NBVs (50 runs). The yellow curves correspond to the mean values.

Figure 6: Cumulated coverage and visit of classes of interest during Exploration task with semantic-aware T-RRT planner to

reach NBVs (50 runs). The yellow curves correspond to the mean values.

Path Planning Incorporating Semantic Information for Autonomous Robot Navigation

293

REFERENCES

Bartolomei, L., Pinto Teixeira, L., and Chli, M. (2021).

Semantic-aware active perception for UAVs using

deep reinforcement learning. In IEEE/RSJ Interna-

tional Conference on Intelligent Robots and Systems

(IROS).

Bartolomei, L., Teixeira, L., and Chli, M. (2020).

Perception-aware path planning for UAVs using se-

mantic segmentation. In 2020 IEEE/RSJ International

Conference on Intelligent Robots and Systems (IROS),

pages 5808–5815.

Bultmann, S., Quenzel, J., and Behnke, S. (2021). Real-

time multi-modal semantic fusion on unmanned aerial

vehicles. In European Conference on Mobile Robots

(ECMR).

Campana, M., Lamiraux, F., and Laumond, J.-P. (2016). A

gradient-based path optimization method for motion

planning. Advanced Robotics, 30(17-18):1126–1144.

Carvalho, M., Ferrera, M., Boulch, A., Moras, J., Le Saux,

B., and Trouv

e-Peloux, P. (2019). Technical Report:

Co-learning of geometry and semantics for online 3D

mapping. arXiv:1911.01082.

Crespo, J., Castillo, J. C., Mozos, O. M., and Barber, R.

(2020). Semantic information for robot navigation: A

survey. Applied Sciences, 10(2):497.

Darmanin, R. and Bugeja, M. (2016). Autonomous ex-

ploration and mapping using a mobile robot running

ROS. In International Conference on Informatics in

Control, Automation and Robotics (ICINCO), pages

208–215.

Deeken, H., Puetz, S., Wiemann, T., Lingemann, K., and

Hertzberg, J. (2014). Integrating semantic informa-

tion in navigational planning. In 41st International

Symposium on Robotics, pages 1–8.

Ebendt, R. and Drechsler, R. (2009). Weighted A

∗

search–

unifying view and application. Artiﬁcial Intelligence,

173(14):1310–1342.

Gonz

alez-Banos, H. H. and Latombe, J.-C. (2002). Naviga-

tion strategies for exploring indoor environments. The

International Journal of Robotics Research, 21(10-

11):829–848.

Grinvald, M., Furrer, F., Novkovic, T., Chung, J. J., Ca-

dena, C., Siegwart, R., and Nieto, J. (2019). Volumet-

ric Instance-Aware Semantic Mapping and 3D Object

Discovery. IEEE Robotics and Automation Letters,

4(3):3037–3044.

Grinvald, M., Tombari, F., Siegwart, R., and Nieto, J.

(2021). TSDF++: A multi-object formulation for

dynamic object tracking and reconstruction. In In-

ternational Conference on Robotics and Automation

(ICRA).

Guiotte, F., Lef

evre, S., and Corpetti, T. (2019). Attribute

ﬁltering of urban point clouds using max-tree on voxel

data. In International Symposium on Mathematical

Morphology and Its Applications to Signal and Image

Processing, pages 391–402.

He, K., Gkioxari, G., Dollar, P., and Girshick, R. (2020).

Mask R-CNN. IEEE Transactions on Pattern Analysis

and Machine Intelligence, 42(2):386–397.

Hornung, A., Wurm, K. M., Bennewitz, M., Stachniss, C.,

and Burgard, W. (2013). OctoMap: An efﬁcient prob-

abilistic 3D mapping framework based on octrees. Au-

tonomous Robots, 34(3):189–206.

Jadidi, M. G., Gan, L., Parkison, S. A., Li, J., and Eustice,

R. M. (2017). Gaussian processes semantic map rep-

resentation. arXiv preprint arXiv:1707.01532.

Jaillet, L., Cort

es, J., and Sim

eon, T. (2010). Sampling-

based path planning on conﬁguration-space costmaps.

IEEE Transactions on Robotics, 26(4):635–646.

Jeffrey Delmerico, Elias Mueggler, J. N. and Scaramuzza,

D. (2017). Active autonomous aerial exploration for

ground robot path planning. In IEEE Robotics and

Automation Letters, volume 2, pages 664–671.

Landrieu, L. and Simonovsky, M. (2018). Large-scale point

cloud semantic segmentation with superpoint graphs.

IEEE/CVF Conference on Computer Vision and Pat-

tern Recognition, pages 4558–4567.

Lu, D. V., Hershberger, D., and Smart, W. D. (2014).

Layered costmaps for context-sensitive navigation.

In IEEE/RSJ International Conference on Intelligent

Robots and Systems (IROS), pages 709–715.

Mascaro, R., Teixeira, L., and Chli, M. (2021). Dif-

fuser: Multi-view 2D-to-3D label diffusion for seman-

tic scene segmentation. In IEEE International Confer-

ence on Robotics and Automation (ICRA).

McCormac, J., Clark, R., Bloesch, M., Davison, A., and

Leutenegger, S. (2018). Fusion++: Volumetric object-

level SLAM. In International Conference on 3D Vi-

sion (3DV), pages 32–41.

Millane, A., Taylor, Z., Oleynikova, H., Nieto, J., Sieg-

wart, R., and Cadena, C. (2018). C-blox: A scalable

and consistent TSDF-based dense mapping approach.

In IEEE/RSJ International Conference on Intelligent

Robots and Systems, Madrid, Spain, pages 995–1002.

Mozart, A., Moraes, G., Guidolini, R., Cardoso, V. B.,

Oliveira-Santos, T., de Souza, A. F., and Badue, C. S.

(2021). Path planning in unstructured urban environ-

ments for self-driving cars. In International Con-

ference on Informatics in Control, Automation and

Robotics (ICINCO).

Nguyen, T., Shivakumar, S. S., Miller, I. D., Keller, J., Lee,

E. S., Zhou, A.,

Ozaslan, T., Loianno, G., Harwood,

J. H., Wozencraft, J., Taylor, C. J., and Kumar, V.

(2019). Mavnet: An effective semantic segmentation

micro-network for MAV-based tasks. IEEE Robotics

and Automation Letters, 4(4):3908–3915.

Okada, Y. and Miura, J. (2015). Exploration and observa-

tion planning for 3D indoor mapping. In IEEE/SICE

International Symposium on System Integration (SII),

pages 599–604.

Ono, M., Fuchs, T. J., Steffy, A., Maimone, M., and Yen,

J. (2015). Risk-aware planetary rover operation: Au-

tonomous terrain classiﬁcation and path planning. In

IEEE Aerospace Conference, Big Sky, MT, USA, pages

1–10.

Qi, C. R., Su, H., Mo, K., and Guibas, L. J. (2017). Pointnet:

Deep learning on point sets for 3d classiﬁcation and

segmentation. In Proceedings of the IEEE Conference

ICINCO 2022 - 19th International Conference on Informatics in Control, Automation and Robotics

294

on Computer Vision and Pattern Recognition, pages

652–660.

Qi, X., Wang, W., Liao, Z., Zhang, X., Yang, D., and Wei,

R. (2020). Object semantic grid mapping with 2D Li-

DAR and RGB-D camera for domestic robot naviga-

tion. Applied Sciences, 10(17):5782.

Ronneberger, O., Fischer, P., and Brox, T. (2015). U-Net:

Convolutional networks for biomedical image seg-

mentation. Medical Image Computing and Computer-

Assisted Intervention (MICCAI).

Rosinol, A., Abate, M., Chang, Y., and Carlone, L. (2020).

Kimera: an open-source library for real-time metric-

semantic localization and mapping. In IEEE In-

ternational Conference on Robotics and Automation

(ICRA), pages 1689–1696.

Ryll, M., Ware, J., Carter, J., and Roy, N. (2020). Se-

mantic trajectory planning for long-distant unmanned

aerial vehicle navigation in urban environments. In

IEEE/RSJ International Conference on Intelligent

Robots and Systems (IROS), pages 1551–1558.

Sadat, A., Casas, S., Ren, M., Wu, X., Dhawan, P., and Ur-

tasun, R. (2020). Perceive, predict, and plan: Safe

motion planning through interpretable semantic rep-

resentations. In European Conference on Computer

Vision (ECMR), pages 414–430.

Sofman, B., Lin, E., Bagnell, J. A., Cole, J., Vandapel, N.,

and Stentz, A. (2006). Improving robot navigation

through self-supervised online learning. Journal of

Field Robotics, 23(11-12):1059–1075.

Stache, F., Westheider, J., Magistri, F., Popovi

c, M., and

Stachniss, C. (2021). Adaptive path planning for

UAV-based multi-resolution semantic segmentation.

In European Conference on Mobile Robots (ECMR).

Suriani, V., Kaszuba, S., Sabbella, S. R., Riccio, F., and

Nardi, D. (2021). S-AVE: Semantic active vision

exploration and mapping of indoor environments for

mobile robots. In European Conference on Mobile

Robots (ECMR).

Thomas, H., Qi, C. R., Deschaud, J.-E., Marcotegui, B.,

Goulette, F., and Guibas, L. J. (2019). Kpconv: Flexi-

ble and deformable convolution for point clouds. Pro-

ceedings of the IEEE International Conference on

Computer Vision (ICCV).

Tylecek, R., Sattler, T., Le, H.-A., Brox, T., Pollefeys, M.,

Fisher, R. B., and Gevers, T. (2018). The second work-

shop on 3D reconstruction meets semantics: Chal-

lenge results discussion. In Proceedings of the Euro-

pean Conference on Computer Vision (ECCV) Work-

shops.

Wang, M., Long, X., Chang, P., and Padlr, T. (2018).

Autonomous robot navigation with rich information

mapping in nuclear storage environments. In IEEE

International Symposium on Safety, Security, and Res-

cue Robotics (SSRR).

Wolf, P., Ropertz, T., Feldmann, P., and Berns, K. (2019).

Combining onthologies and behavior-based control

for aware navigation in challenging off-road environ-

ments. In International Conference on Informatics in

Control, Automation and Robotics (ICINCO), pages

135–146.

Path Planning Incorporating Semantic Information for Autonomous Robot Navigation

295
