Comparison of FaaS Platform Performance in Private Clouds

Marcelo Augusto Da Cruz Motta

, Leonardo Reboucas De Carvalho

Michel Junio Ferreira Rosa

and Aleteia Patricia Favacho De Araujo

Department of Computing Science, University of Brasilia, Brasilia, Brazil

Keywords:

FaaS, Function-as-a-Service, Private Cloud, OpenWhisk, Fission, OpenFaaS.

Abstract:

Since its appearance in mid-2014, there has been notable growth in the adoption of cloud services via the

Function-as-a-Service (FaaS) model, with several public cloud providers offering this model in their catalog.

Various papers have mostly evaluated the performance of these models in public cloud environments. How-

ever, the implementation of this model in a private cloud environment has not been explored enough by the

academic community. This article presents a two-level factorial design-based assessment of the main open-

source operating platforms (Such as OpenWhisk, Fission, and OpenFaaS) currently available to serve as a

comparative tool that can be used in decision-making processes. Results showed that regarding the stress test

the OpenWhisk platform has greater reliability. On the other hand, regarding the processing of the Matrix,

Factors, and Filesystem functions, Fission remains at similar behavior at all concurrency levels.

1 INTRODUCTION

Since the launch of the Function-as-a-service (FaaS)

(Schleier-Smith et al., 2021) cloud service model

in 2014 by AWS (Amazon Web Services) as AWS

Lambda (Amazon Web Services, 2021), several

providers have also added FaaS products to their cat-

alogs. Initially used in tasks of low complexity, the

model is quite lenient and soon came to expand its

range of applicability. From this point on, the growth

of this cloud service model has been quite represen-

tative, and it has been appointed as a candidate to be-

come the predominant model adopted by users.

In this context, some academic papers such as

(Carvalho and Ara

ujo, 2019), (Garc

ıa L

opez et al.,

2018), (Malawski et al., 2020), have evaluated the

performance and behavior of this model, using dif-

ferent types of metrics. However, a greater interest

in the literature for the implementation of this ser-

vice model in public clouds have been noticed, even

considering the possibility of using FaaS technolo-

gies in private clouds. Given this scenario, this paper

presents a performance analysis based on a factorial

design considering the main open-source FaaS plat-

forms currently available, which are: Fission (Fission,

https://orcid.org/0000-0002-4114-4735

https://orcid.org/0000-0001-7459-281X

https://orcid.org/0000-0002-0860-1834

https://orcid.org/0000-0003-4645-6700

2021), OpenFaaS (OpenFaaS, 2021) and OpenWhisk

(Apache OpenWhisk, 2021) in order to identify the

best performing and lowest cost tool, aiming its use

in real world operations in private clouds.

An equivalent environment containing these tools

were provisioned in Dataprev’s

private cloud in-

frastructure to allow a comprehensive analysis on the

quality and on the efﬁciency. To achieve this goal,

corresponding workloads were planned and executed

on each platform using the Apache JMeter (Halili,

2008) tool and some metrics were collected from

them, allowing comparative analysis under different

conditions. Results showed that the OpenFaaS plat-

form obtained a more consistent response level in

several tests regarding the network-bound function.

When processing the Matrix function, The Open-

Whisk platform reached a more consistent level at the

beginning, being outperformed by Fission in large ac-

tivations.

This paper is divided into six sections, this being

an introductory section. Section 2 presents the con-

cepts regarding Function-as-a-Service and the main

platforms of this model. In Section 3, related papers

are presented. Section 4 presents the methodology

used in this paper, while Section 5 presents the re-

sults. Finally, Section 6 presents a conclusion and fu-

ture work.

Social Security Data Processing Company, a Brazilian

state-owned company. https://www.dataprev.gov.br/

Motta, M., Reboucas De Carvalho, L., Rosa, M. and Favacho De Araujo, A.

Comparison of FaaS Platform Performance in Private Clouds.

DOI: 10.5220/0011116700003200

In Proceedings of the 12th International Conference on Cloud Computing and Services Science (CLOSER 2022), pages 109-120

ISBN: 978-989-758-570-8; ISSN: 2184-5042

109

2 FUNCTION-AS-A-SERVICE

Also called Serverless (Chapin and Roberts, 2017),

or Backend-as-a-Service, (BaaS) (Castro et al., 2019)

when used speciﬁcally to act as APIs, the Function-

as-a-Service (FaaS) model suppliers give the users in-

terfaces (graphical or command line) to allow the in-

put and the manipulation of source code written in any

of the supported programming languages, supervis-

ing the application processing using pre-conﬁgured

triggers. These triggers can originate eighter from

the provider’s services, or through an API (Schleier-

Smith et al., 2021).

Even if the ﬂuctuation in the load exerted on the

service is considered, it is expected that the provider

guarantees that it can respond to the triggers de-

mands, eventually making available more computa-

tional resources to contemplate the effective process-

ing promptly, even in overload situations. Likewise,

in situations of a low load, the provider must deallo-

cate additional resources to minimize the operational

cost of the platform transparently for its users.

Normally, the charging part in this service model

is carried out through a policy based on the number

of resources that the function has allocated, consider-

ing its execution time, thus making it possible to not

charge for inactivity as occurs in traditional models of

cloud services. Additionally, given its elastic charac-

teristic, FaaS deals with the application’s operational

overloads without the need for user intervention. Be-

cause they do not share resources at runtime, FaaS

services usually have limitations related to allocable

resources per function (RAM, CPU, etc.) and maxi-

mum execution time. In scenarios where maintaining

state is needed, it will also be necessary to use other

resources from the provider for storage purposes.

Today’s largest public cloud providers offer ser-

vice options oriented to the FaaS model. AWS, a pio-

neer in this segment, offers the AWS Lambda (Ama-

zon Web Services, 2021). The Google Cloud Plat-

form also offers a FaaS service, Google Cloud Func-

tion (Google, 2021). Microsoft has Azure Functions

(Microsoft, 2021) as its product and other providers

like Oracle, IBM and Alibaba also have their FaaS

model solutions. Each provider has its own strategy

to operationally sustain these FaaS-based services.

Google uses the Borg (Verma et al., 2015) container

orchestrator to render its cloud services, including

Cloud Functions. Borg was the basis for the develop-

ment of Kubernetes

(Burns et al., 2016). AWS uses

the Firecracker platform (Amazon, 2021) to orches-

Kubernetes is an open-source container orchestrator

used to automate the deployment, sizing and management

of applications

trate the microVms consumed by AWS Lambda. Mi-

crosoft Azure has adopted their own solution to man-

age the virtual machines that process the executions

of its FaaS solution in Azure Functions.

However, there are cases when it is not possible to

use public cloud solutions, such as the case of several

agencies of the Brazilian government, which, for se-

curity reasons, need to house all the data and services

they manage within their own infrastructure. There-

fore, this study used open-source FaaS platforms in

Dataprev’s private cloud infrastructure, a Brazilian

state-owned technology company that has Datacen-

ters located in three large urban centers in Brazil

(Bras

ılia, Rio de Janeiro, and S

ao Paulo).

2.1 Open-source FaaS Platforms

There are currently several open-source tools for

FaaS. To describe the FaaS tools studied in this paper,

we consider some fundamental criteria in a FaaS envi-

ronment to analyze the degree of maturity of each one

of the criteria such as scalability, language support,

large-scale operation, community support and docu-

mentation.

In some cases, public providers choose to use

open-source FaaS tools. An example would be

IBM, which uses OpenWhisk (Djemame et al., 2020).

Apache OpenWhisk is an open-source distributed

serverless platform that executes functions in re-

sponse to events, at any scale. OpenWhisk man-

ages infrastructure, servers, and scaling using Docker

containers. This platform supports the processing of

several programming languages, which can be dy-

namically scheduled and executed in response to as-

sociated events (via triggers) from external sources

(Feeds) or HTTP requests. The project also includes

a REST API-based command-line interface (CLI)

along with other tools to support packages, catalog

services, and many popular container deployment op-

tions.

Oracle uses the Fn (Fn Project, 2021) for oper-

ational support of the Oracle Cloud Functions ser-

vice. The Fn (Fn Project, 2021) project is an open-

source container-native serverless platform that runs

on public and private clouds. It supports all program-

ming languages, it is extensible and has a high per-

formance. Considering that Fn and OpenWhisk can

operate in a large public provider, both currently have

a considerable degree of maturity.

The Texas Advanced Computing Center - TACC

uses Abaco (Stubbs et al., 2017) as its FaaS solution.

TACC is a niche provider, focused on academic re-

search. Abaco uses the Docker-compose orchestra-

tor, which is not cluster-aware and therefore operates

CLOSER 2022 - 12th International Conference on Cloud Computing and Services Science

110

Table 1: Open-source FaaS Tools.

Tool Environments Private provider

Supported

Languages

Support -

GitHub/Slack

Documen-

tation

Maturity

Fission (Fission,

2021)

Kubernetes

NodeJS, Python, Go,

Java, Ruby, Binary,

PHP, .NET, .NET 2.0

and Perl

N/A Yes High High

Fn (Fn Project,

2021)

Kubernetes

Numerous (Docker

images)

Oracle Yes High High

Knative (Knative,

2021)

Kubernetes

Numerous (Docker

images)

N/A Yes High High

OpenFaaS

(Kaewkasi, 2018)

Kubernetes

Numerous (Docker

images)

N/A Yes High High

OpenWhisk (Dje-

mame et al., 2020)

Kubernetes,

OpenShift

and Docker-

compose

Go, Java, NodeJS,

.NET, PHP, Python,

Ruby, Rust,

Scala,Swift, Bal-

lerina and Deno

IBM Yes High High

Kubeless (Kube-

less, 2019)

Kubernetes

Java, NodeJS and

VertX

N/A No Medium Medium

Knix (Knix, 2021) Kubernetes Python and Java N/A Yes Low Medium

Abaco (Stubbs

et al., 2017)

Docker-

compose

Numerous (Docker

images)

TACC Yes Low Low

FuncX (Chard

et al., 2019)

Speciﬁc Appli-

cation

Python N/A Yes Low Low

TinyFaaS

(Pfandzelter and

Bermbach, 2020)

Docker NodeJS N/A Yes Low Low

with scale constraints. Considering the characteristics

of Abaco, especially its limited scale, it is possible to

determine its maturity level as low for a scenario like

FaaS.

In addition to the solutions used by public

providers, there are other open-source tools avail-

able for the FaaS. KNIX MicroFunctions (formerly

SAND) (Knix, 2021) is a high-performance open

source serverless computing platform designed to

minimize startup delays for function execution. This

tool aims to provide support for persistent functions

and optimize the use of resources. It has limited sup-

port for languages (Python and Java) and therefore its

maturity level was considered medium.

Kubeless (Kubeless, 2019) is a tool that uses Ku-

bernetes features to provide automatic scaling, API

routing, monitoring, troubleshooting and more. It

also has limited language support (Java, NodeJS and

VertX) and therefore its maturity level will be consid-

ered medium in this paper.

FuncX (Chard et al., 2019) is a distributed FaaS

platform that enables the execution of ﬂexible, scal-

able, and high-performance remote functions. Un-

like centralized FaaS platforms, FuncX allows users

to perform functions on remote heterogeneous com-

puters, from laptops to campus clusters, clouds, and

supercomputers (Chard et al., 2019). The heterogene-

ity characteristic of FuncX is its great advantage over

other tools. However, it only supports Python, mak-

ing it limited in the general context of FaaS, and its

maturity level was considered low.

Fission (Fission, 2021) is an open-source frame-

work that runs on Kubernetes and is extensible to any

programming language. In Fission, the core is writ-

ten in the Go language and the speciﬁc parts of the

languages are isolated in something called the lower

environment. This platform maintains a pool of “hot”

containers, each one with a small dynamic loader.

When a function is called for the ﬁrst time, that is,

cold-initialized, a running container is chosen, and the

function is loaded. This pool is what makes Fission

fast, achieving cold start latencies of around 100 mil-

liseconds. Thus, we can consider that Fission has a

high degree of maturity.

Knative (Knative, 2021) allows developers to use

an event-driven architecture. An event-driven archi-

tecture is based on the concept of decoupled rela-

tionships between event producers - that create events

- and event consumers, or collectors, - that receive

events. Knative’s support platform is Kubernetes, on

which container image deployments are made. Due to

its characteristics, Knative can be classiﬁed as having

a high degree of maturity.

OpenFaaS (Kaewkasi, 2018) is an open-source

tool that runs on Kubernetes and aims to make it eas-

ier for developers to implement event-driven func-

tions and microservices. It provides a highly scalable

endpoint with elasticity and automatic metrics. Con-

Comparison of FaaS Platform Performance in Private Clouds

111

sidering that it works with container images, it can po-

tentially work with all programming languages. This

along with the support in Kubernetes, which is highly

scalable, gives OpenFaaS a high degree of maturity.

TinyFaaS (Pfandzelter and Bermbach, 2020) is a

lightweight FaaS platform for the edge environment

with a focus on performance in constrained environ-

ments. Once a role is deployed to TinyFaaS, role han-

dlers are created automatically. Additionally, Tiny-

FaaS works on Docker containers. Considering that

TinyFaaS only works with functions written in the

NodeJS language and given its speciﬁc applicability,

in this paper its maturity level was considered low.

Table 1 presents the main characteristics of open-

source FaaS tools that can be considered for deploy-

ment in private cloud environments. Considering Ta-

ble 1, ﬁve of them presented a high degree of maturity

according to the established criteria, which are: Fis-

sion, Fn, Knative, OpenFaaS and OpenWhisk. How-

ever, other criteria such as dimensioning strategies,

resource consumption, conﬁgurability, among others,

can impact on the performance of solutions operated

on this type of platform.

Therefore, this paper carried out an experiment to

allow an evaluation of these characteristics in a real

operational situation. The adopted methodology will

be presented in Section 4.

3 RELATED WORKS

Going through the literature, the majority of papers

are predominantly focused on the evaluation of FaaS

platforms used in Public clouds. In (Copik et al.,

2021) the authors propose the Serverless Benchmark

Suite - SEBS, which consists of specifying represen-

tative workloads, monitoring the implementation, and

evaluating the infrastructure. The abstract model of a

FaaS implementation ensures the benchmark’s appli-

cability to various commercial vendors such as AWS,

Azure, and Google Cloud. This paper evaluates as-

pects such as time, CPU, memory, I/O, code size, and

cost based on the performed test cases. However, it

does not support testing on open-source platforms that

can be deployed in a private cloud environment.

The paper (Grambow et al., 2021) presents an

application-centric benchmark framework for FaaS

environments with a focus on evaluatiing realistic and

typical use cases for FaaS applications. It has two

built-in benchmarks (e-commerce and IoT), which are

extensible for new workload proﬁles and new plat-

forms. In addition, it supports federated benchmark

testing, in which the benchmark application is dis-

tributed across multiple vendors and supports ﬁne-

grained analytics. The authors compare three public

providers and analyze the characteristics of a feder-

ated fog conﬁguration, and this is their main contribu-

tion. However, the extension of the sample spectrum

of tests carried out between public providers and the

cutting-edge approach used by the authors is limited,

given the use of only one of the supported platforms

(TinyFaaS) as an example of a federation, rather than

the other two platforms (OpenFaaS and OpenWhisk),

which are considerably more robust.

In the paper (Jindal et al., 2021), an extension

of the concept of FaaS as a programming interface

for heterogeneous clusters and to support heteroge-

neous functions with diverse computational and data

requirements is presented. This extension is a net-

work of distributed heterogeneous destination plat-

forms equivalent to content delivery networks, widely

used in other computational cloud models. In this pro-

posal, a target platform is a combination of a cluster

of homogeneous nodes and a FaaS platform on top of

it. In this context, metrics such as requests, CPU, acti-

vations, and response times are evaluated from func-

tions adapted from the FaaSproﬁler (Shahrad et al.,

2019) benchmark. Despite using an open-source plat-

form suitable for deployment in a private cloud envi-

ronment, the study was limited to just two represen-

tatives of these tools, although there are others whose

level of maturity would allow them to be part of the

list of FaaS operating platforms adopted by the tool.

In (Wen et al., 2021), the authors perform a de-

tailed evaluation of FaaS services: AWS, Azure, GCP,

and Alibaba, running a test ﬂow using microbench-

marks (CPU, memory, I/O, and network) and macro

benchmarks (multimedia, map- Reduce and machine

learning). The tests used speciﬁc functions written in

Python, NojeJS, and Java that explored the properties

involved in the benchmark to assess startup latency

and resource usage efﬁciency. However, all platforms

evaluated are deployed in public clouds and as the un-

derlying infrastructure in these services remains un-

clear to the customer, the evaluation is restricted to

the overall approach taken by the provider. Thus, the

assessment of the architectural strategy does not con-

sider the platform in isolation.

vHive (Ustiugov et al., 2021) aims to enable FaaS

researchers to innovate in the deeply distributed soft-

ware stacks of a modern FaaS platform. vHive is

designed to support leading FaaS vendors by inte-

grating the same production-grade components used

by vendors, including the AWS Firecracker hyper-

visor, Cloud Native Computing Foundation Contain-

erd, and Kubernetes. vHive adopts the Knative plat-

form, allowing researchers to quickly deploy and test

any serverless application that can include many func-

CLOSER 2022 - 12th International Conference on Cloud Computing and Services Science

112

Table 2: Related Works.

Study Year

Private

provider

Maturity

analysis

Approach Metrics Languages

(Maissen et al., 2020) 2020 No No

Speciﬁc func-

tions with

multilingual

Time and latency

Python,

NodeJS, Go

and .NET

(Copik et al., 2021) 2020 No No

Speciﬁc func-

tions with

multilingual

Time, CPU,

memory, I/O,

code size and

cost

Python and

NodeJS

(Wen et al., 2021) 2020 No No

Speciﬁc func-

tions with

multilingual

Startup latency

and resource

efﬁciency

Python, NojeJS

and Java

(Grambow et al.,

2021)

2021

OpenFaaS,

OpenWhisk

and TinyFaaS

Realistic func-

tions

Network trafﬁc JavaScript

(Ustiugov et al., 2021) 2021 Firecracker No

Speciﬁc func-

tions and use of

snapshots

Delay on cold

start

Python

(Jindal et al., 2021) 2021

OpenWhisk

and Open-

FaaS

FaaSproﬁler

adapted func-

tions and

heterogeneous

multicenter

platforms

Requests, CPU,

activations and

time

Python

This paper 2022

OpenWhisk,

OpenFaaS

and Fission

Yes

Speciﬁc func-

tions

Time, CPU, I/O

and Latency

Python

tions, running on secure Firecracker microVMs, as

well as full server services. Both stateful functions

and services can be deployed using OCI / Docker im-

ages. vHive empowers system researchers to innovate

on key serverless features, including automatic role

sizing and cold boot delay optimization with multiple

snapshot engines.

The article (Maissen et al., 2020), introduces

FaaS-dom, a modular and extensible set of bench-

marks for evaluating serverless computing that in-

cludes a range of workloads and natively supports the

leading FaaS providers (AWS, Azure, Google, and

IBM). The great contribution of FaaS-dom consists of

the functions developed for execution during the tests,

serving as a basis for conducting this paper. Although

it allows the evaluation of the IBM solution, which in-

ternally uses an open-source platform, the evaluation

in FaaS-dom suppresses equity aspects between the

environments and, ends up focusing only on the eval-

uation of the provider, and not on the strategies used

by the platform.

Table 2 presents the main characteristics identiﬁed

in each related work described above. This paper, on

the other hand, explores tools that currently have a

high degree of maturity as FaaS solutions which are

available to deploy in private clouds, analyzing their

behavior by applying workloads from the benchmark

FaaSDom (Maissen et al., 2020), to identify the best

performing platform for the following cases: the sce-

nario of CPU-bound, I/O-bound and Network-bound

functions.

4 METHODOLOGY

The open-source FaaS platforms which were previ-

ously classiﬁed as having a high degree of maturity

were implemented in a private cloud environment.

Although Fn and Knative were classiﬁed in this list,

due to difﬁculties arising from the on-premise envi-

ronment, it was not possible to reach their ideal con-

ﬁguration for a fair comparison with other platforms,

leaving only OpenFaaS, Fission, and OpenWhisk as

the focus of this paper. In OpenWhisk’s case, all it

took was a subtle increase in the pre-conﬁgured de-

fault limits on the platform.

The Kubernetes platform was chosen to deﬁne all

the tools to be compared. This allows the experi-

ment to focus on the strategies adopted by the tool,

preventing platform differences from interfering with

the results. Platform installations followed the man-

uals offered by the vendors and it was necessary to

increase the timeout of functions in the OpenFaaS

and OpenWhisk’s cases. Their activation limits per

minute were increased in order to equalize the three

analyzed platforms. No changes were made in default

Comparison of FaaS Platform Performance in Private Clouds

113

conﬁguration of Fission.

The infrastructure used in this experiment was de-

ployed on Dataprev’s private cloud solution. In this

cloud it is possible to provide customized conﬁgura-

tions of memory, CPU, disk, among others. Table 3

shows the values for each resource that was used to

provision the Kubernetes clusters which support each

platform applied in this experiment. After the plat-

forms were implemented, four functions were pub-

lished in each of them, that have already been refer-

enced in the literature as source codes that perform

operations that allow evaluating the behavior of the

environments.

Table 3: Clusters Parameters.

Number of servers 3

Operational system RHEL 8.3

Storage 30GB

RAM memory 4GB

CPU 4 (2.5Ghz)

Physical machine

Power Egde R900 - Intel

Xeon E7 4870

Hypervisor VMware ESXi 6

Docker v20.10.7

Kubernetes v1.21.3

Apache JMeter v5.4.1

For this paper, the Python functions proposed by

FaaS-dom (Maissen et al., 2020) selected were: La-

tency (Network-bound), Matrix (CPU-bound), Fac-

tors (CPU-bound) and Filesystem (I/O-bound). Ac-

cording to its documentation, the Latency function

measures the latency of a simple function, while the

Factors function calculates the factors of a number

iteratively to assess CPU performance. The Matrix

function multiplies two NxN matrices iteratively also

to assess CPU performance and the Filesystem func-

tion writes and reads n times a x kB ﬁle to the ﬁlesys-

tem.

In order to avoid any confusion with the nomen-

clature of tests with the Latency function adapted

from (Maissen et al., 2020), in this paper we will re-

fer to it as the Delay function. After each function

is published on each platform, URLs are made avail-

able and used to activate them. It was used ﬁve com-

mon concurrencies: 1, 2, 4, 8 and 16 simultaneous

requests. The tests were performed using the JMeter

(Halili, 2008) tool, which runs test batteries, collects

the metrics, and generates the results for analysis.

Figure 1 shows the architecture used in the experi-

ment. It is possible to see the individualization of each

platform with its Kubernetes cluster using the same

number of computational resources and the same con-

ﬁguration for all FaaS tools. Each test was repeated

10 times. However, due to the cold start effect inher-

ent in the FaaS platforms, the three platforms were

previously triggered in each of the functions.

Figure 1: Experiment architecture.

A full factorial design utilizes every possible com-

bination at all levels of all factors. A performance

study with k factors, with the i

factor having n

lev-

els, requires n experiments (Jain, 1991). The advan-

tage of a full factorial design is that every possible

combination of conﬁguration and workload is exam-

ined. It is possible to ﬁnd the effect of every factor

including the secondary factors and their interactions.

The main problem is the cost of the study. It would

take too much time and money to conduct these many

experiments, especially when considering the possi-

bility that each of these experiments may have to be

repeated several times (Jain, 1991). Through the exe-

cution of a factorial design, it is possible to obtain the

percentage portions of the effects of each factor in the

result of the experiment, allowing the identiﬁcation of

the effects with a greater degree of interference in the

results and thus helping decision-making processes.

In factorial designs with several repetitions, it is pos-

sible to obtain the sampling error effect. High sam-

pling error rates indicate the existence of factors not

mapped in the factorial design and this is a major as-

pect that helps in the decision-making process.

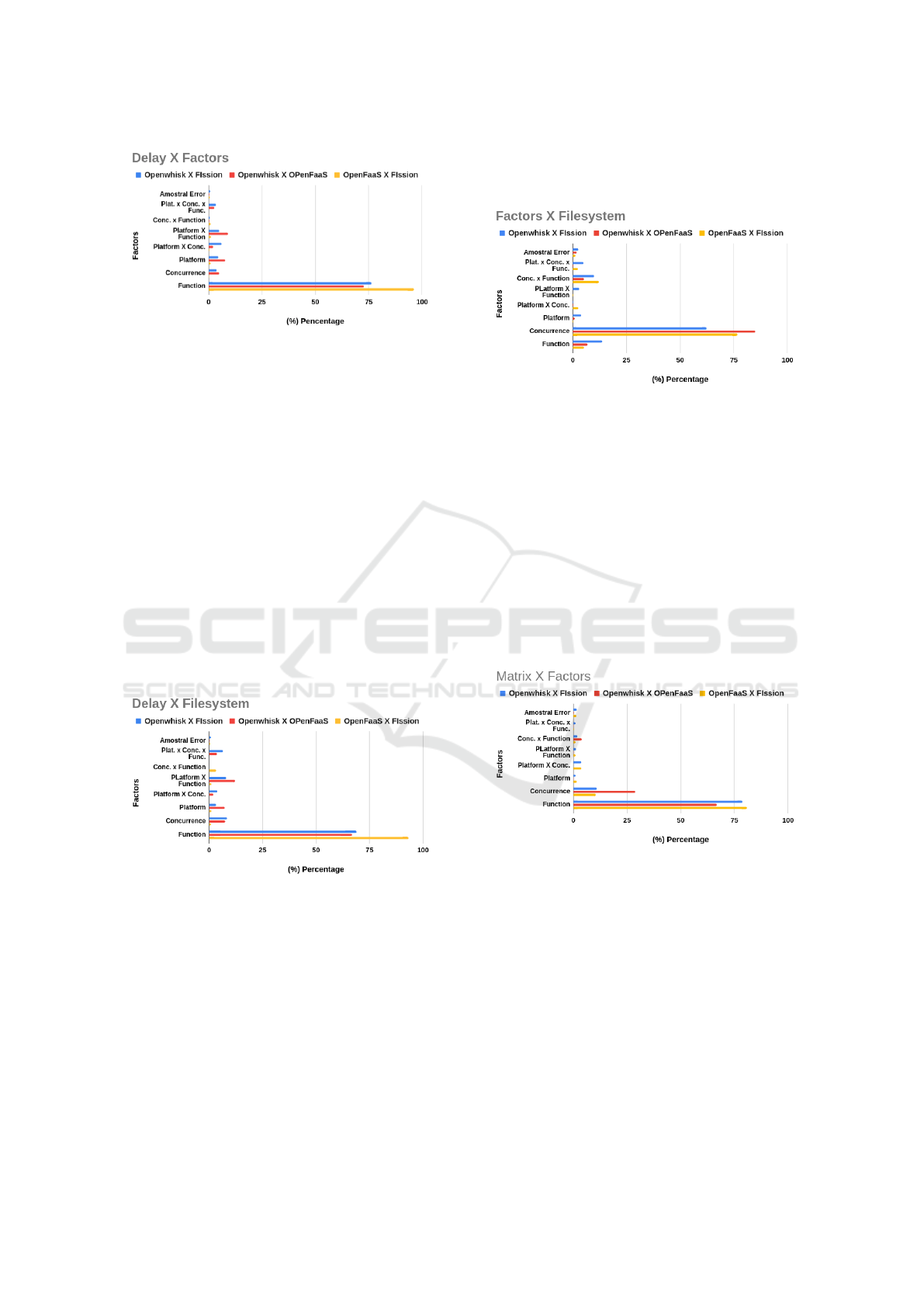

In order to identify which of the factors exerted

the greatest inﬂuence on the results after perform-

ing the tests, the factorial design 2

was used to start

the analysis of each comparison scenario between the

platforms used. In each factorial design, the factors

analyzed were: provider, concurrency, and function.

Factorial design factors and their levels are shown in

Table 4.

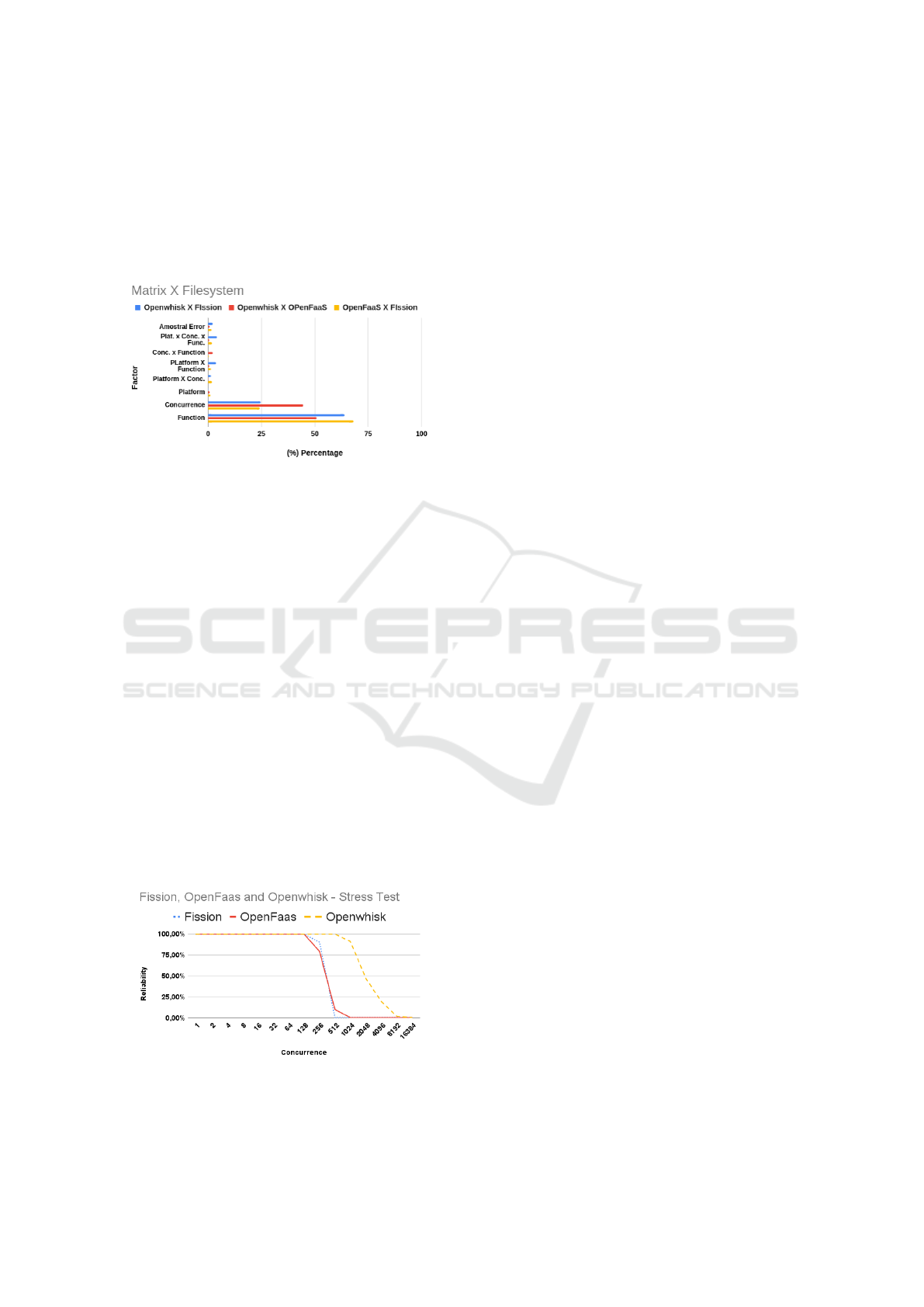

In order to observe the behavior of platforms in

extreme situations, a stress test was designed using

the Matrix function. In this test, platforms are sub-

jected to exponential levels of Matrix function con-

currency until they are unable to respond. The results

of factorial designs 2

, as well as the other results of

the experiment, are discussed in detail in Section 5.

CLOSER 2022 - 12th International Conference on Cloud Computing and Services Science

114

Table 4: Factorial Design Factors. Openwhisk (1),

OpenFaaS (2) and Fission (3).

Factor

(concurrence)

Function Platforms

Lower (1) Matrix 1 1 2

Upper (16) Delay 3 2 3

Lower (1) Delay 1 1 2

Upper (16) Factors 3 2 3

Lower (1) Delay 1 1 2

Upper (16) Filesystem 3 2 3

Lower (1) Factors 1 1 2

Upper (16) Filesystem 3 2 3

Lower (1) Matrix 1 1 2

Upper (16) Factors 3 2 3

Lower (1) Matrix 1 1 2

Upper (16) Filesystem 3 2 3

5 RESULTS

This section was structured according to the analyzes

carried out in the tests performed on each platform.

5.1 Latency Analysis

Through the records obtained by the JMeter tool dur-

ing the tests, latency values were generated for all

levels of concurrence. In the execution without con-

currency (with the request only), ten result values

were generated for each function on each platform,

for concurrency level two, 20 result values, for con-

currency level four, 40, for concurrency level eigth,

80, and concurrency sixteen, 160 latency values for

each function.

Figure 2: Quantil-quantil plot for Fission under 16 of con-

currence.

In order to adequately represent the samples in

each execution block and allow a consolidated anal-

ysis of the data, it was necessary, using the analysis

of quantile-quantile graphs, to deﬁne a value for this

representation. Figure 2 represents all executions of

one of the Fission functions in 16 simultaneities (160

latency values), as well as Figure 3 for OpenFaaS, and

Figure 4 for OpenWhisk.

Figure 3: Quantil-quantil plot for OpenFaaS under 16 of

concurrence.

Figure 4: Quantil-quantil plot for OpenWhisk under 16 of

concurrence.

In all cases, it is found that the latency values do

not completely follow a normal distribution, as the

shape of the graphs does not look like a straight line

following a trendline. Thus, the average was adopted

as a representative metric of the samples in each con-

current run, better representing the data with disper-

sion characteristics.

After determining the best representative metric

for the latency records, we calculated the average

of all simultaneous executions according to Table 5,

where it is also possible to verify the Log

values

calculated by the average obtained in every run. Thus,

the metric chosen to represent the runs was once again

the average, as shown in Table 5, and they were used

to build the graphs with the evolution of the execution

of each function on each platform.

Figure 5 shows the evolution of Matrix function

execution at each level of competition on both plat-

forms. It is noteworthy that Figure 5 shows the aver-

ages after undergoing a logarithmic transformation to

provide a better view of the information. It is possi-

ble to observe that, without concurrency, all platforms

present equivalent results for latency. However, as the

concurrency level increases, while Fission maintains

the latency results stable, OpenFaaS make a notice-

able upscale with concurrency of two and OpenWhisk

Comparison of FaaS Platform Performance in Private Clouds

115

Table 5: Consolidated Delay X Matrix X Factors X Filesystem results.

Platform Concur.

Function

Delay Matrix Factors Filesystem

Run Avg. Log

Run Avg. Log10 Run Avg. Log

Run Avg. Log

Fission

16 30,68 1,49 889,91 2,95 17589,30 4,25 27677,16 4,44

8 26,39 1,42 547,56 2,74 14820,28 4,17 9001,76 3,95

4 23,80 1,38 443,53 2,65 13414,83 4,13 5332,23 3,73

2 34,65 1,54 423,50 2,63 12781,80 4,11 4785,10 3,68

1 80,50 1,91 1,00 446,30 12762,50 4,11 4788,40 3,68

OpenFaaS

16 10,63 1,03 3518,90 3,55 30479,75 4,48 27124,71 4,43

8 11,84 1,07 1907,26 3,28 33404,96 4,52 24423,61 4,39

4 10,85 1,04 896,65 2,95 38854,73 4,59 26730,43 4,43

2 11,50 1,06 371,55 2,57 18433,90 4,27 9373,70 3,97

1 14,10 1,15 393,00 2,59 9084,00 3,96 4617,00 3,66

OpenWhisk

16 2951,51 3,47 3974,74 3,60 23349,06 4,37 12842,34 4,11

8 128,29 2,11 448,53 2,65 13465,26 4,13 10784,60 4,03

4 34,90 1,54 391,60 2,59 9582,50 3,98 4573,18 3,66

2 52,80 1,72 500,90 2,70 8890,80 3,95 5074,35 3,71

1 71,10 1,85 332,70 2,52 8963,00 3,95 3950,80 3,60

with concurrency of eight. This demonstrates that Fis-

sion was able to process the Matrix function more ef-

ﬁciently than OpenWhisk and OpenFaaS.

Figure 5: Matrix function results.

With the averages also logarithmically trans-

formed, Figure 6 demonstrates the evolution of la-

tency in the execution of the Delay function on each

platform over each level of concurrency.

Figure 6: Delay function results.

Here we can see that when running without con-

currency, OpenFaaS obtained a much lower latency

result than the value obtained by Fission, followed

slightly by OpenWhisk, and, as the concurrency

level increases, OpenWhisk increase the distance for

Fission and OpenFaaS. After superior levels, how-

ever, Fission experiences a slight decrease in latency,

whereas OpenWhisk has a considerable growth. It is

possible to infer that OpenFaaS was more efﬁcient

than the other platforms in processing the Latency

function at all concurrency levels.

The results have shown that regarding Delay func-

tion, OpenFaaS stands out in efﬁciency, followed by

Fission and then by OpenWhisk, whereas as to Ma-

trix function (which requires more processing), Open-

Whisk in executions with concurrency up to eight

shows lower efﬁciency concerning latency, being sur-

passed by Fission after executions with concurrence

ten. OpenFaaS, on the other hand, decreases its efﬁ-

ciency under concurrence of four.

Figure 7 demonstrates the evolution of latency in

the execution of the Factors function on each platform

over each level of concurrency.

Figure 7: Factors function results.

CLOSER 2022 - 12th International Conference on Cloud Computing and Services Science

116

OpenWhisk has the lowest latency record with-

out concurrency, followed by OpenFaaS and Fission.

However, as the number of concurrencies increase,

OpenWhisk and Fission demonstrate consistency in

their latency levels. On the other hand, OpenFaaS

demonstrates an increase from tests with concurrency

of two.

Also logarithmically transformed, Figure 8

demonstrates the evolution of latency in the execu-

tion of the Filesystem function on each platform at all

concurrency levels.

Figure 8: Filesystem function results.

When disk-related resources are used, we can see

that OpenWhisk has the lowest latency record in the

ﬁrst test (no concurrency), followed by OpenFaaS and

Fission with slightly higher latency and showing ex-

treme similarity in the initial tests. Given the increase

in concurrency, OpenFaaS experiences greater growth

than other platforms already with two and four con-

currency, remaining constant at eight and 16. Fis-

sion and OpenWhisk maintain their latency levels up

to the competition of four concurrencies, achieving

slight growth in both cases. With concurrency level

16, Openwhisk demonstrated the best records among

the analyzed platforms.

However, to identify which factor has the great-

est inﬂuence on the results, a factor analysis was per-

formed using six factorial designs 2

5.2 Factorial Designs

Table 6 presents the factorial planning used in both

cases, and it is possible to observe the eight tests per-

formed, as well as the effects and their interrelation-

ships. Lower levels are denoted by -1, while upper

levels are denoted by 1. All data used for average ex-

tractions according to the effects of each experiment

performed in each of the ten repetitions considered in

this experiment, as well as the sum of the difference

between each average and the mean square and the

partial calculating the sum of squared errors in this

experiment for every test (on every row) are available

Table 6: Factorial Design Planning.

Test P C F PxC PxF CxF PxFxC

1 -1 -1 -1 1 1 1 -1

2 1 -1 -1 -1 -1 1 1

3 -1 1 -1 -1 1 -1 1

4 1 1 -1 1 -1 -1 -1

5 -1 -1 1 1 -1 -1 1

6 1 -1 1 -1 1 -1 -1

7 -1 1 1 -1 -1 1 -1

8 1 1 1 1 1 1 1

on GitHub.

In each case, platforms, functions and concur-

rency were classiﬁed according to Tables 6 and 4, thus

calculating the effects, variations, the RSS - Residual

Sum of Squares, SSY - Sum of the square of Y and

SST - Sum of the Total Square, allowing to obtain the

value of the fractions of each factor and their relations

in each result.

5.3 Factorial Design Delay-matrix

Figure 9 shows that, in the comparison between

OpenFaaS and Fission platforms, the effect of the

function factor is 26.35% on the results of the exper-

iments, in relation to the concurrency factor, in the

case of OpenWhisk and OpenFaaS it reaches 20% and

in the case of OpenWhisk and Fission the Function

factors 81.35%. Considering the scenario of the De-

lay and Matrix functions, it is possible to conclude

that, in this case, the Function factor has the greatest

effect on the results of the tests performed.

Figure 9: Factorial design results - Delay X Matrix.

5.4 Factorial Design Delay-factors

Analyzing Figure 10, regarding the Delay and Fac-

tors functions, all three comparisons between the plat-

forms analyzed present high levels of fraction for the

Function factor. OpenWhisk and Fission 76.14%,

OpenWhisk and OpenFaaS 72.73% and OpenWhisk

and Fission 96.25%.

https://github.com/unb-faas/private-platform-bench

mark

Comparison of FaaS Platform Performance in Private Clouds

117

Figure 10: Factorial design results - Delay X Factors.

Like previous analysis, when we correlate the De-

lay and Matrix functions, the function factor has the

largest representation in the results, with some dis-

tance to the second larger.

5.5 Factorial Design Delay-ﬁlesystem

The correlation between the Delay and Matrix func-

tions calculated via the factorial plane again shows

that the Function factor was predominant in this phase

of the analysis, with correlation of OpenFaaS and Fis-

sion obtaining the fraction of 68.90%, OpenWhisk

and OpenFaaS with 68.84% followed by OpenWhisk

and Fission with 93.18%. In the competition factor,

the three platforms also show similar behavior, with

fractions under 10%. Again, like the two previous

analyses, the function factor has a greater representa-

tion in the results in all three Platforms.

Figure 11: Factorial design results - Delay X Filesystem.

5.6 Factorial Design Factors-ﬁlesystem

At this stage, representative results were found us-

ing other functions. When analyzing the correlation

between the Matrix and Factors functions in Figure

12, the Factor function is no longer as representative

as seen before, reaching only the fraction of 5.21%

in OpenFaaS and Fission, in OpenWhisk and Open-

FaaS 6.84%, and in OpenWhisk and Fission 13.5%.

In this new scenario, it is possible to see the predom-

inance of the concurrence factor on the three plat-

forms, with OpenFaaS and Fission 62.37%, Open-

Whisk and OpenFaaS 84.95% and OpenWhisk and

Fission 76.58%.

Figure 12: Factorial design results - Factors X Filesystem.

Considering the use that functions related to CPU

consumption and I/O, we realized that concurrence

has the predominant fraction in the results of the three

correlated platforms.

5.7 Factorial Design Matrix-factors

In the analysis of the correlation between the Matrix

and Factors functions, the most representative factor

was again the Function. In the Figure 13 it is possible

to see the fractions of 78.89% between OpenWhisk

with Fission, 66.66% between OpenFaaS and Fission,

and 80.77% between OpenWhisk with OpenFaaS.

Figure 13: Factorial design results - Matrix X Factors.

Regarding concurrency, in all three scenarios an-

alyzed for the two functions on the three platforms,

its factor fraction values average from 10% to 28.8%.

Considering the correlation of the functions analyzed

in this case, the results again allow to infer that the

function factor predominates in the of the results.

5.8 Factorial Design Matrix-ﬁlesystem

As to the correlation of the Matrix and Filesystem

functions, they obtained two factors with consider-

able representativeness. The Function and Concur-

rency factors, in this case, have representative values.

CLOSER 2022 - 12th International Conference on Cloud Computing and Services Science

118

In the function factor for the OpenFaaS and Fission

correlation the fraction of 63.95% inﬂuences the re-

sults, whereas for the concurrency factor is 24.49%.

In the case of OpenWhisk and OpenFaaS correla-

tion, 50.71% for Function and 44.49% for concur-

rency. Considering OpenWhisk and Fission, 68.09%

for function and 24.18% for concurrency.

Figure 14: Factorial design results - Matrix X Filesystem.

Considering the average sampling error of only

1.19% in the 18 scenarios calculated in the experi-

ment, it is possible to have a more detailed view of

the factors that inﬂuence the results.

5.9 Factorial Design Results

In the studied cases, the inﬂuence of the Function and

Concurrency factors was predominantly representa-

tive of the latency results obtained through the tests

performed in the functions on each platform.

5.10 Reliability

In the stress test performed with the Matrix function,

only Openwhisk was able to reach the limit of 16,384

simultaneous requests before starting to fail, followed

by OpenFaas with approximately 1024 requests and

Fission, with 512 requests. Figure 15 shows the de-

gree of reliability of each platform calculated based

on the percentage of satisﬁed requests.

Figure 15: Reliability.

It is possible to observe that up to 128 simultane-

ous requests, the three platforms maintain the maxi-

mum level of reliability, fulﬁlling 100% of requests.

At near 512 simultaneous requests, OpenFaaS starts

to suffer a gradual drop in its reliability rate and, at

this concurrency, Fission also shows a drop in the suc-

cess percentage. Although OpenFaaS registers some

level of reliability between 512 and 1024 concurrent

requests, its reliability is very low and can be con-

sidered irrelevant. OpenWhisk, on the other hand,

demonstrates greater reliability among the three plat-

forms, showing an error in aproximately 10% of the

requests only after a load greater than 1024 simulta-

neous requests.

6 CONCLUSIONS AND FUTURE

WORK

In this paper, an experiment carried out in a pri-

vate cloud environment to evaluate the FaaS Fission,

OpenFaaS and OpenWhisk platforms under different

concurrency conditions.

In case of the Delay function with a concurrency

of 16, the results showed that the OpenFaaS platform

performed better in comparison to latency during the

tests, managing to keep its latency results at simi-

lar levels even under the ﬁrst ﬁve concurrency levels,

while Fission and OpenWhisk experienced linear la-

tency variation in the tests. However, when the Ma-

trix function was also analyzed under simultaneity of

16, the Fission platform kept its latency levels con-

stant, while OpenFaaS and OpenWhisk showed slight

growth in latency due to increased concurrency.

In the best factorial design applied to the results

of the experiment, it was veriﬁed that the results ob-

tained were inﬂuenced by 96.25% by the function fac-

tor, while the other factors were around 0.85%, and

the relationships between the factors inﬂuenced be-

tween 0.01% and 1.13% each.

In future papers, considering the relevance of this

factor in the results presented, other functions should

be included in this experiment to provide a more re-

alistic analysis, using real case examples in systems

with micro-services architecture eligible for Dataprev.

This experiment can also be carried out on Kubernetes

platforms that have a greater number of resources. It

would also be possible to add other solutions such as

Fn (Fn Project, 2021) and KNative (Knative, 2021),

establishing a customized conﬁguration in each plat-

form that offers equal conditions between the tools

that allow an adequate comparison.

Comparison of FaaS Platform Performance in Private Clouds

119

REFERENCES

Amazon (2021). Firecracker. https://ﬁrecracker-microvm

.github.io/. [Online; accessed 10-August-2021].

Amazon Web Services (2021). AWS lambda.

Apache OpenWhisk (2021). Open source serverless cloud

platform.

Burns, B., Grant, B., Oppenheimer, D., Brewer, E., and

Wilkes, J. (2016). Borg, omega, and kubernetes. Com-

munications of the ACM, 59(5):50–57.

Carvalho, L. and Ara

ujo, A. P. F. (2019). Framework

node2faas: Automatic nodejs application converter

for function as a service. In Proceedings of the 9th In-

ternational Conference on Cloud Computing and Ser-

vices Science - Volume 1: CLOSER,, pages 271–278.

INSTICC, SciTePress.

Castro, P., Ishakian, V., Muthusamy, V., and Slominski, A.

(2019). The rise of serverless computing. Commun.

ACM, 62(12):44–54.

Chapin, J. and Roberts, M. (2017). What is Serverless. Or-

eilly.

Chard, R., Skluzacek, T. J., Li, Z., Babuji, Y., Woodard,

A., Blaiszik, B., Tuecke, S., Foster, I., and Chard,

K. (2019). Serverless supercomputing: High perfor-

mance function as a service for science.

Copik, M., Kwasniewski, G., Besta, M., Podstawski, M.,

and Hoeﬂer, T. (2021). Sebs: A serverless benchmark

suite for function-as-a-service computing.

Djemame, K., Parker, M., and Datsev, D. (2020). Open-

source serverless architectures: an evaluation of

apache openwhisk. In 2020 IEEE/ACM 13th Inter-

national Conference on Utility and Cloud Computing

(UCC), pages 329–335.

Fission (2021). Open source, kubernetes-native serverless

framework.

Fn Project (2021). Open source. container-native. serverless

platform.

Garc

ıa L

opez, P., S

anchez-Artigas, M., Par

ıs, G.,

Barcelona Pons, D., Ruiz Ollobarren, A., and Ar-

royo Pinto, D. (2018). Comparison of faas orchestra-

tion systems. In 2018 IEEE/ACM International Con-

ference on Utility and Cloud Computing Companion

(UCC Companion), pages 148–153.

Google (2021). Cloud functions. https://cloud.google.com

/functions/. [Online; accessed 10-August-2021].

Grambow, M., Pfandzelter, T., Burchard, L., Schubert, C.,

Zhao, M., and Bermbach, D. (2021). Befaas: An

application-centric benchmarking framework for faas

platforms.

Halili, E. H. (2008). Apache JMeter. Packt Publishing

Birmingham.

Jain, R. (1991). The art of computer systems: Tech-

niques for experimental design, measurement, simu-

lation, and modeling. John Wiley & Sons,.

Jindal, A., Gerndt, M., Chadha, M., Podolskiy, V., and

Chen, P. (2021). Function delivery network: Extend-

ing serverless computing for heterogeneous platforms.

Software: Practice and Experience.

Kaewkasi, C. (2018). Docker for Serverless Applications:

Containerize and Orchestrate Functions Using Open-

Faas, OpenWhisk, and Fn. Packt Publishing.

Knative (2021). Knative - enterprise-grade serverless on

your own terms.

Knix (2021). Knix: A high-performance, open-source

serverless computing platform.

Kubeless (2019). Kubeless - the kubernetes native server-

less framework: Build advanced applications with

faas on top of kubernetes.

Maissen, P., Felber, P., Kropf, P., and Schiavoni, V. (2020).

Faasdom. Proceedings of the 14th ACM International

Conference on Distributed and Event-based Systems.

Malawski, M., Gajek, A., Zima, A., Balis, B., and Figiela,

K. (2020). Serverless execution of scientiﬁc work-

ﬂows: Experiments with hyperﬂow, aws lambda and

google cloud functions. Future Generation Computer

Systems, 110:502–514.

Microsoft (2021). Azure functions.

OpenFaaS (2021). Serverless functions, made simple.

Pfandzelter, T. and Bermbach, D. (2020). tinyfaas: A

lightweight faas platform for edge environments. In

2020 IEEE International Conference on Fog Comput-

ing (ICFC), pages 17–24.

Schleier-Smith, J., Sreekanti, V., Khandelwal, A., Carreira,

J., Yadwadkar, N. J., Popa, R. A., Gonzalez, J. E., Sto-

ica, I., and Patterson, D. A. (2021). What serverless

computing is and should become: The next phase of

cloud computing. Commun. ACM, 64(5):76–84.

Shahrad, M., Balkind, J., and Wentzlaff, D. (2019). Archi-

tectural implications of function-as-a-service comput-

ing. In Proceedings of the 52nd Annual IEEE/ACM In-

ternational Symposium on Microarchitecture, MICRO

’52, page 1063–1075, New York, NY, USA. Associa-

tion for Computing Machinery.

Stubbs, J., Dooley, R., and Vaughn, M. (2017). Containers-

as-a-service via the Actor Model. In Gateways 2016

proceedings.

Ustiugov, D., Petrov, P., Kogias, M., Bugnion, E., and Grot,

B. (2021). Benchmarking, analysis, and optimization

of serverless function snapshots. Proceedings of the

26th ACM International Conference on Architectural

Support for Programming Languages and Operating

Systems.

Verma, A., Pedrosa, L., Korupolu, M., Oppenheimer, D.,

Tune, E., and Wilkes, J. (2015). Large-scale cluster

management at google with borg. In Proceedings of

the Tenth European Conference on Computer Systems,

EuroSys ’15, New York, NY, USA. Association for

Computing Machinery.

Wen, J., Liu, Y., Chen, Z., Ma, Y., Wang, H., and Liu, X.

(2021). Understanding characteristics of commodity

serverless computing platforms.

CLOSER 2022 - 12th International Conference on Cloud Computing and Services Science

120
