On the Use of Regular Expressions and Exact-text Matching in

Computer-based Test Scoring Algorithms

Wojciech Malec

Institute of Linguistics, John Paul II Catholic University of Lublin, Al. Racławickie, Lublin, Poland

Keywords: Regular Expressions, Exact-text Matching, Scoring Algorithms, Computer-based Language Testing.

Abstract: This paper addresses the issue of implementing two alternative approaches to developing automated scoring

algorithms in computer-based language testing. One of the approaches discussed is based on the application

of regular expressions and the other is based on exact-text matching. Although scoring algorithms that make

use of regular expressions are technologically very attractive, there is evidence to indicate that they are not

able to guarantee perfect scoring accuracy. Accordingly, in testing situations where decisions about the test

takers need to be made on the basis of test scores, as in school settings, exact-text matching may actually be

the preferred option. Moreover, whichever approach is adopted, it seems reasonably clear that automated

scoring should ideally be subject to some human verification. The paper includes a brief description of a

testing system where automated scoring employing exact-text matching is supplemented by human

verification of the results.

1 INTRODUCTION

Computer-based language tests can be automatically

scored using several approaches, which principally

depend on the type of expected response. First,

selected-response items, such as multiple choice or

true/false, are commonly scored either by means of a

rule known as ‘number right’ or through the use of

‘formula scoring’. The latter functions as a correction

for random guessing (see Budescu & Bar-Hillel,

1993, for more on formula-scoring rules). Second,

limited-production items, which include gap-filling

and short answer, can be automatically scored by

comparing the responses submitted by the test takers

with the keyed answers. The comparisons may be

made using either exact-text or regular-expression

matching (Carr & Xi, 2010; Carr, 2014). Finally,

automated scoring of extended-production tasks, such

as essays, can be performed with the aid of artificial

intelligence and machine learning techniques (e.g.

Kumar & Boulanger, 2020). However, although

automated essay scoring is generally faster, cheaper,

and fairer than human scoring, and frequently

claimed to be equally as reliable (Shermis, 2010, and

references therein), the appropriateness of using it

https://orcid.org/0000-0002-6944-8044

alone in high-stakes situations has been called into

question (see Weigle, 2013, for a review).

This paper focuses on the scoring of limited-

production items, where the expected response ranges

approximately from one word to one sentence. The

paper discusses the use of regular-expression

matching as an alternative to exact-text matching and

points to the imitations of the former method. Finally,

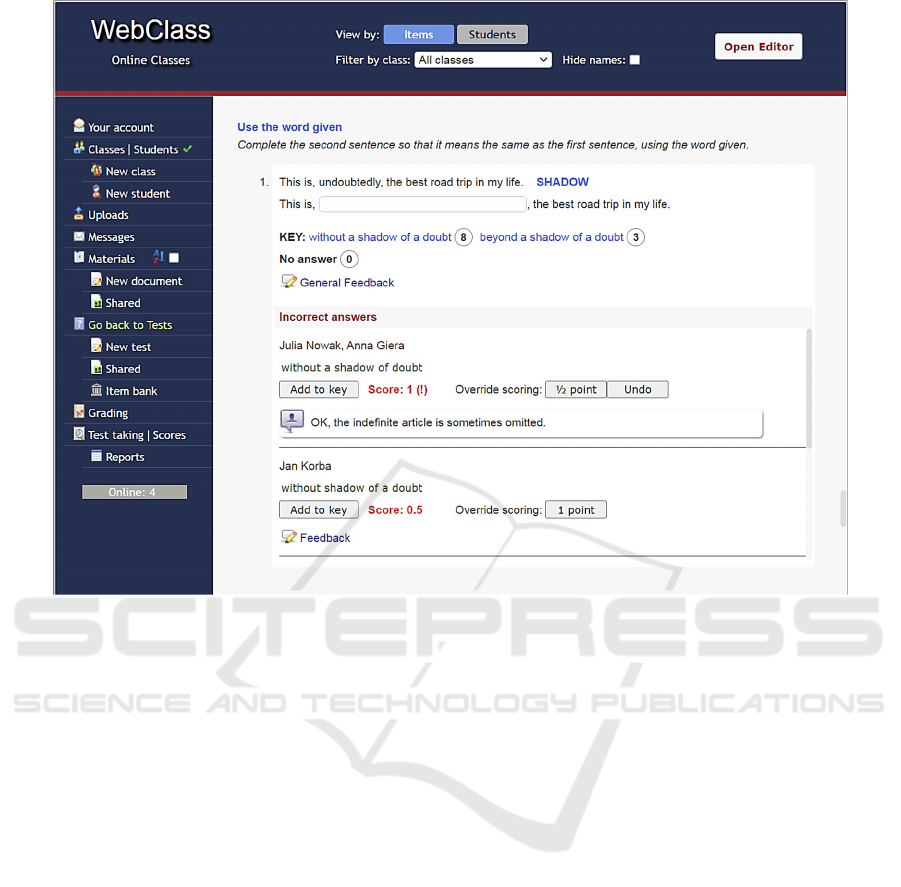

the article briefly presents a web-based testing system

(WebClass) which combines automated scoring

algorithms with human verification of their output.

2 REGULAR-EXPRESSION

MATCHING

Regular expressions are sometimes utilized in

computerized testing systems to score the test takers’

limited-production responses. For example, Moodle

offers a 3rd-party plugin, which allows test

developers to create the so-called Regular Expression

Short-Answer questions (Rézeau, 2022). The key for

a question of this type can be single regular

expression, such as the one in (1a) or (1b) rather than

a number of alternative (acceptable) responses (i.e.

Malec, W.

On the Use of Regular Expressions and Exact-text Matching in Computer-based Test Scoring Algorithms.

DOI: 10.5220/0011115700003182

In Proceedings of the 14th International Conference on Computer Supported Education (CSEDU 2022) - Volume 2, pages 555-561

ISBN: 978-989-758-562-3; ISSN: 2184-5026

555

bat, cat, and rat). This example clearly demonstrates

that the use of regular expressions is simply a more

economical solution compared to exact-text

matching.

(1a) [bcr]at

(1b) (b|c|r)at

Admittedly, manual generation of regular

expressions may be quite time consuming and error-

prone. However, as a further step in the development

of computerized short-answer scoring systems,

Ramachandran, Cheng, and Foltz (2015) offer a

method for automating the generation of regular

expressions. For many developers of computer-based

tests, including school teachers, solutions of this kind

seem to be an absolute necessity.

It is also worthy of note that in the case of limited-

production test items the usefulness of regular

expressions for the development of scoring

algorithms may depend on how precise the responses

are expected to be. Specifically, in certain tests of

language ability, a high degree of precision may be

necessary: this is often the case with vocabulary and

grammar tests. For example, although the phrase the

girl ride a bike may be understandable, it violates the

basic rule of subject-verb agreement in English.

Similarly, although the phrases sign on the dotted line

and sign on a dotted line are almost identical, the

former one is a more native-like expression. In such

situations, the number of acceptable responses may

be fairly limited, which means that a complete scoring

key can be based solely on exact-text matching, and

it may not be necessary to resort to using regular

expressions.

By contrast, in tests of reading or listening

comprehension, where grammatical accuracy is not a

priority, responses are typically accepted as correct as

long as they contain certain key terms, or keywords,

specified in the expected answer (the key). Therefore,

in constructing a scoring key the test item writer may

define a suitable regular expression that the scoring

algorithm will use to check whether all of the

necessary keywords are included in the responses

provided by the test takers. Nevertheless, developing

a perfectly reliable algorithm based on regular

expressions is not without its problems. This issue is

addressed in the next section.

2.1 Illustrative Example

Limited-production items may require test takers to

provide short statements or simple definitions. For

illustrative purposes, consider an item which elicits a

short sentence expressing the idea that bikes are

vehicles with two wheels. The prototypical expected

response might be as follows:

(2) A bike is a vehicle with two wheels.

In exact-text matching approaches, the statement

given in (2) would be the keyed answer for this test

item. However, the same idea can be expressed in

many other ways, including sentences containing

some grammatical errors (but perfectly

understandable). Examples of such sentences are

given below:

(3a) Bikes are vehicles which have two wheels.

A bike is a vehicle with two wheels.

The bike is vehicle with two wheels.

A bike is a vehicle that has two wheels.

Bike vehicles have two wheels.

Bike is vehicle on two wheels.

While all of the sentences in (3a) share a similar

structure (e.g., they begin with a noun phrase

containing the word bike, in either singular or plural

form), this is by no means the only possibility, as

evidenced by the following examples (again, not

necessarily correct in terms of grammar), the last of

which does not even contain a verb:

(3b) Vehicles called bikes have two wheels.

Two wheels are typical of vehicles like bikes.

Two wheels define vehicles such as bikes.

Number of wheel on a bike vehicle is two.

Vehicle with two wheels is called bike.

Bike – a two-wheel vehicle.

As an alternative to exact-text matching approaches,

all of the sentences in (3a) and (3b) could be

considered acceptable on the grounds that each of

them contains the following keywords (three of which

might be either singular or plural):

(4) bike(s), vehicle(s), two, wheel(s)

The keywords may appear in actual statements in the

order given (as in 3a) or in a completely different one

(as in 3b). Moreover, they may be optionally followed

or preceded by other words.

In a computer-based testing system, the scoring

algorithm could be designed to conduct a keyword

matching operation, for example using the

preg_match() function in PHP. For this to be

possible, the pattern required by the function in

question has to be a regular expression (or regex for

short). The regex for the keywords given in (4) may

be specified in the following way:

CSEDU 2022 - 14th International Conference on Computer Supported Education

556

(5) /^(?=.*\bbikes?\b)(?=.*\b

vehicles?\b)(?=.*\btwo\b)

(?=.*\bwheels?\b).+/i

The regular expression provided in (5) is within

slashes, followed by the i flag at the end, which

indicates that the search should be case-insensitive.

The caret (^) at the beginning is an anchor that

denotes the start of the string (although it may be

optional). The main part of the regex consists of four

capturing groups (inside parentheses), each

corresponding to one of the keywords in (4). Every

keyword requires a positive lookahead (denoted by

?=) and is also preceded by the dot (.) metacharacter

and the asterisk (*) quantifier (which together match

any character between zero and unlimited times, thus

making it possible for the response to optionally

include some other words, in addition to the

keywords). Moreover, each keyword is between word

boundaries (indicated by \b). Three of the keywords

have additionally a question mark at the end (which

means that the preceding s is optional in each case).

Finally, the last capturing group is followed by a dot

and a plus sign (+). These two symbols match any

character at least once (between one and unlimited

times). In effect, the dot and plus match the entire

expression on condition that all of the positive

lookahead assertions are true.

The regex in (5) is capable of matching each of

the sentences given in (3a) and (3b). In view of the

fact that, using exact-text matching approaches, these

sentences would all have to be included in the key (i.e.

in an array of alternative answers that deserve full

credit), the keyword approach based on regular

expressions is a neat solution. Despite this, however,

it is far from perfect as the regex in (5) would also

match sentences which are too vague to be accepted

as correct, for example:

(6) Vehicles including bikes have two wheels.

Bikes denoting vehicles have two wheels.

To make matters worse, it would match sentences

which are definitely incorrect, for example:

(7) Bikes are not vehicles with two wheels.

Bikes are vehicles with two or five wheels.

Bikes are vehicles with more than two wheels.

Bikes are vehicles with twenty two wheels.

Every vehicle with two wheels is a bike.

The opposite situation is also possible: some

sentences which correctly define bikes would not be

matched by the regex. Examples are given below:

(8) Bikes have a pair of wheels.

A bike is a vehicle with a pair of wheels.

A bike has one front and one rear wheel.

Bike – a two-wheeled vehicle.

It should be clear that the regex in (5) requires

modifications as it is not capable of matching every

possible correct response. Amongst other necessary

changes, the keyword vehicle would need to be made

optional. More importantly, however, even if the

regex is successfully adjusted to match all of the

examples presented above, it may be difficult to rule

out the possibility of someone producing yet another

alternative (and acceptable) response. One situation

in which the use of regular expressions may be

particularly challenging is when the keywords

include a word for which the number of acceptable

synonyms can be very large. The adjective good is a

case in point.

2.2 Regular Expressions Versus

Exact-text Matching

The question that arises in this context is whether the

use of keywords and regular expressions is a better

solution than exact-text matching. On the one hand, it

must be admitted that keyword matching is very

likely to result in fewer errors compared to exact-text

matching. On the other hand, even if the keyword

method results in only one mismatch (and the exact-

match method generates dozens of mismatches), there

remains the problem of identifying that single

mismatch in a set of responses submitted by the test

takers. And even if there are actually no mismatches,

there should be a way of making sure that this is

indeed the case. In all probability, the only solution is

some kind of human verification of the automated

scoring. Otherwise, some students may end up with

inaccurate scores (and we might not even be aware of

this).

However, if we accept that human verification is

a necessity, then exact-text matching is actually

superior to the keyword technique. The reason for this

is that the keyword approach can potentially make

two kinds of errors. As shown above, it can give full

credit to incorrect responses, which might be called

false positive mismatches, as in (7), or it can give no

credit to correct responses, which could be termed

false negative mismatches, as in (8) above. The exact-

match approach, by contrast, can only make one type

of error, namely false negative mismatches. This is

because, in the exact-match approach, it is impossible

for an answer to be included in the key and actually

deserve no credit (unless the answer is there by

mistake).

Suppose, for instance, that in the exact-match

approach we have an item with four different keyed

answers. Now, if test takers provide ten different

On the Use of Regular Expressions and Exact-text Matching in Computer-based Test Scoring Algorithms

557

responses, four of which match the key, then only the

remaining six will need to be taken care of in the

process of verification to determine whether or not

they are false negative mismatches. In the keyword

approach, by contrast, all of the ten responses will

need to be verified because, potentially, each of them

can be either a false positive or a false negative

mismatch.

In a sense, scoring systems that require human

verification could be regarded as detracting from the

attractiveness and utility of computer-based testing.

Unfortunately, it does not seem to be possible for

automated scoring to be one hundred percent

accurate, at least in the case of certain constructed-

response test items, and some kind of verification is

usually indispensable. This should not be taken to

suggest that humans make fewer errors than

computers. In fact, the opposite may well be true as

computer-based tests are generally more reliable in

that they make the scoring more consistent over time

and across test forms (e.g. Brown, 2016). However,

the point is that computers may not be able to make

the final decisions as to the lexical and grammatical

correctness of constructed responses. Indeed, at least

in school settings, it is teachers rather than computers

who are ultimately responsible for the scoring.

Accordingly, when teachers mark a response as

incorrect, it is their task to explain to the students why

it has not been accepted. If computerised testing

systems were to completely replace humans, they

would need to be perfectly accurate, and this may be

hard to achieve in cases where responses have to be

produced rather than selected.

3 WebClass

WebClass is a homegrown online platform that

combines a MySQL database with PHP scripts

running on a LiteSpeed web server (Malec, 2018). It

can be classified as an academic learning

management system (cf. Foreman, 2018) integrating

features such as learner management,

communication, content authoring, and assessment. It

has recently been used primarily as a web-based

assessment tool to develop online language tests for

university and secondary school students (Malec &

Malec, 2021). The testing component of the platform

can be utilised to create tests and quizzes of several

different types (including selected- and constructed-

response items as well as extended-response tasks),

administer them to students, monitor the test-taking

process, mark the responses automatically (but with a

possibility of verifying and overriding the scoring),

provide general and answer-specific feedback to the

test takers, analyse tests and items statistically, store

items in the item bank and then reuse them with the

aid of a test generator or by importing them into

existing tests (see also, e.g., Malec, 2015; Marczak,

Krajka, & Malec, 2016).

3.1 Scoring Algorithm

Limited-production items are scored on WebClass by

comparing each response submitted by the test takers

with the keyed answers. For reasons discussed above,

the comparison is made using exact-text matching

rather than keyword or regular-expression

approaches. An example is provided below of how

scoring works in practice, followed by a discussion of

human verification of automated scoring.

The operation of the scoring algorithm as applied

to limited-production items is illustrated using this

example from a language test:

(9) Use the Word Given

Complete the second sentence so that it means

the same as the first sentence, using the word

given.

This is, undoubtedly, the best road trip in my

life. SHADOW

This is, _______________________, the best

road trip in my life.

KEY

(1) without a shadow of a doubt

(2) beyond a shadow of a doubt

Additional Settings

Spelling errors permitted for partial credit: 2

Ignore: capitals, spaces, punctuation

Two keyed answers are provided for the item in (9),

but in theory there is no limit to the number of

acceptable alternatives. Additional settings, which

are relevant to the scoring algorithm, include the

number of spelling mistakes permitted for partial

credit (half a point) as well as instructions to disregard

capitalisation, spacing, and punctuation. The number

of spelling errors allowed for half a point depends on

the length and type of the expected answer. In some

cases, even one spelling mistake is undesirable. For

example, when the expected answer is a short word,

such as the preposition on, changing it to, for

example, in, would not be a minor error that deserves

partial credit. It is thus important to make sure that the

partial-credit error level specified for a given item

does not result in unacceptable responses being

awarded half points.

From a programming point of view, the scoring

algorithm determines the number of spelling mistakes

CSEDU 2022 - 14th International Conference on Computer Supported Education

558

using the levenshtein() function in PHP (more

on this function can be found in, e.g., Quigley &

Gargenta, 2007; see also Lisbach & Meyer, 2013, on

its use in linguistics). The function returns the so-

called Levenshtein distance, also known as the edit

distance, between two strings, i.e. the minimum

number of edit operations (insertions, deletions, or

replacements) required to convert one string into the

other. Partial credit is awarded on condition that the

Levenshtein distance between the response and any

of the keyed answers does not exceed the level

specified by the item constructor.

Some examples of responses to the item in (9) are

given in (10) below (the errors are underlined):

(10) Without a shadow of a doubt [1]

without a shadow o fa doubt [1]

beyond a shadow, of a doubt [1]

beyond a shaddow of a doubt [0.5]

without a shaddow of a doutb [0.5]

witout any shadow of doubt [0]

Each response above is followed by a score

automatically computed by the algorithm. In the first

three cases, the responses are awarded full credit

thanks to the fact that the algorithm is set to ignore

capitals, spaces, and punctuation, respectively. The

next two responses are awarded partial credit because

the number of spelling errors is not greater than the

number allowed. Finally, the last response receives

zero points because it contains three spelling mistakes

and is thus not similar enough to the key. Looking at

the responses scored by partial credit in (10), it might

be argued that the spelling errors are mere typos and

that these answers actually deserve full credit.

Moreover, the last response is not necessarily

completely wrong, and it might be given partial (or

even full) credit. These examples strongly suggest

that automated scoring can be significantly enhanced

by some kind of human verification.

3.1.1 Verification of Automated Scoring

In the testing system discussed here, score

verification follows test administration. The relevant

tool (illustrated in Figure 1) is a scrollable web page

presenting the teacher or test administrator with the

entire test, one item after another. Each item is

followed by incorrect responses (i.e. those for which

no matches have been found in the key) as well as the

names of the test takers who submitted the responses

(these names can optionally be hidden). For each such

response, the automated scoring can be changed into

partial or full credit. When the computer’s decision is

overridden, the response is saved in an array of

answers which deserve either full credit or partial

credit. The scoring algorithm first attempts to find a

match in these two arrays prior to determining the

number of spelling mistakes. If a match is found, the

computation of the Levenshtein distance is skipped.

Taking the above into account, the steps in the

operation of the scoring algorithm can be defined as

in Table 1. It should be added that each step is

executed only if none of the previous conditions is

met.

Table 1: The scoring algorithm on WebClass.

Step Condition Score

1 Res

onse is em

2 Response matches the key (optionally

disregarding capitalisation, spacing,

unctuation

)

3 Res

onse matches full-credit answers 1

4 Response matches

artial-credit answers 0.5

5 Levenshtein distance does not exceed the

level allowed for

artial credit

0.5

6 None of the above is true 0

Several comments are worth adding about the

score verification tool. First, responses which are

entirely correct (and do not contain any typos) can be

added to the key. Second, the arrays of full-credit and

partial-credit answers can be created earlier, i.e. at the

stage of test construction. However, during score

verification, the decisions are based on real responses

actually submitted rather than those which may

potentially be given by the test takers. Third, changes

made to the scoring of any given response have an

effect on every test submitted by all the test takers –

it is not necessary to repeat the procedure for each test

taker. Fourth, score verification can only be applied

to limited-production items – the scoring of selected-

response items is fully automated and cannot be

changed, whereas extended responses (such as

essays) are manually marked using an HTML editor.

Fifth, the verification tool can also be used to give

feedback to the test takers in the form of general and

answer-specific comments. Finally, the content of the

verification tool can be viewed ‘by students’ (not ‘by

items’), in which case a list is displayed of all the

students (grouped by classes) who have attempted the

test. For each individual, the test can then be opened

in a popup window where the scoring of her or his

responses can be verified and validated.

In classroom settings, some further uses for the

score verification tool are possible. For example,

teachers may use the web page (displayed on a screen

or wall by means of a projector) to discuss the results

with the whole class. When students do not see the

tool, the names provided for each incorrect response

On the Use of Regular Expressions and Exact-text Matching in Computer-based Test Scoring Algorithms

559

Figure 1: Verification of automated scoring on WebClass.

allow the teacher to easily address individual

students.

4 CONCLUSION

One of the oft-quoted benefits of the use of

technology for testing is that computer-based tests, as

opposed to their paper-based counterparts, can be

scored automatically. However, technology alone is

not capable of guaranteeing high precision of scoring

because automated scoring “can only be as accurate

as the human-produced answer keys” (Brown, 2016).

This article has discussed two approaches to

producing answer keys to limited-production test

items, namely exact-text matching and keyword

matching (based on regular expressions). The main

advantage of scoring algorithms implementing

keyword matching is that a single regular expression

can replace a whole array of keyed responses required

for exact-text matching. On the other hand, it is easy

to find examples of responses which ‘fall through the

cracks’ inherent in solutions employing regular-

expression matching. One possible conclusion to be

drawn from this is that natural language is too

complicated for regular expressions to handle it

impeccably.

However, if this conclusion is valid, the outcome

of machine scoring evidently requires some human

verification. Furthermore, as has been argued above,

another reasonable conclusion is that exact-text

matching (which can result in one type of errors)

allows for more time-efficient score verification than

does keyword matching (which can potentially result

in two types of errors).

The second part of the article has presented the

score verification tool available on WebClass, an

online learning management system. This tool

presents the teacher or test developer with incorrect

responses only. It does not show correct responses

because these are given full credit and do not need

any further verification. As explained above, this

solution is in accord with the exact-match approach.

An alternative solution based on the keyword method

would require the score verification tool to display all

of the responses submitted by the test takers simply

because every single response could potentially be

inappropriately scored (no matter how unlikely this

might be).

It is worth adding that the amount of time required

for score verification on WebClass partly depends on

CSEDU 2022 - 14th International Conference on Computer Supported Education

560

the level of difficulty of the test. If most of the test

takers know the correct answers, there are relatively

few incorrect responses that need any verification. By

contrast, if most of the students produce incorrect

responses, deciding which of them are appropriately

identified by the scoring algorithm as wrong may

require a considerable amount of time. The number of

responses that may need verification also depends on

the length of the expected answer. If the expected

answer is a single word or a short phrase, the

possibilities for alternative responses may be very

limited. It is then also much easier to create a

complete scoring key.

REFERENCES

Brown, J. D. (2016). Language testing and technology. In

F. Farr & L. Murray (Eds.), The Routledge Handbook

of Language Learning and Technology (pp. 141–159).

London: Routledge.

Budescu, D., & Bar-Hillel, M. (1993). To guess or not to

guess: A decision-theoretic view of formula scoring.

Journal of Educational Measurement, 30(4), 277–291.

Carr, N. T. (2014). Computer-automated scoring of written

responses. In A. J. Kunnan (Ed.), The Companion to

Language Assessment (Vol. 2, Chap. 64, pp. 1063–

1078). London: John Wiley & Sons.

Carr, N. T., & Xi, X. (2010). Automated scoring of short-

answer reading items: Implications for constructs.

Language Assessment Quarterly, 7(3), 205–218.

doi:10.1080/15434300903443958

Foreman, S. D. (2018). The LMS Guidebook: Learning

Management Systems Demystified. Alexandria, VA:

ATD Press.

Kumar, V., & Boulanger, D. (2020). Explainable automated

essay scoring: Deep learning really has pedagogical

value. Frontiers in Education, 5. doi:10.3389/

feduc.2020.572367

Lisbach, B., & Meyer, V. (2013). Linguistic Identity

Matching. Wiesbaden: Springer Vieweg.

Malec, W. (2015). The development of an online course in

Irish: Adapting academic materials to the needs of

secondary-school students. In A. Turula & M.

Chojnacka (Eds.), CALL for Bridges between School

and Academia (pp. 111–127). Frankfurt am Main: Peter

Lang.

Malec, W. (2018). Developing Web-Based Language Tests.

Lublin: Wydawnictwo KUL.

Malec, W., & Malec, M. (2021). WebClass jako narzędzie

do kontroli i oceny postępów w nauce. Języki Obce w

Szkole, 3/2021, 37–42.

Marczak, M., Krajka, J., & Malec, W. (2016). Web-based

assessment and language teachers – from Moodle to

WebClass. International Journal of Continuing

Engineering Education and Life-Long Learning, 26(1),

44–59.

Quigley, E., & Gargenta, M. (2007). PHP and MySQL by

Example. Upper Saddle River, NJ: Pearson Education,

Inc.

Ramachandran, L., Cheng, J., & Foltz, P. (2015, June 4).

Identifying patterns for short answer scoring using

graph-based lexico-semantic text matching. Paper

presented at the Tenth Workshop on Innovative Use of

NLP for Building Educational Applications, Denver,

Colorado.

Rézeau, J. (2022). Regular Expression Short-Answer

question type. Retrieved from https://docs.moodle.org/

311/en/Regular_Expression_Short-Answer_question_ty

Shermis, M. D. (2010). Automated essay scoring in a high

stakes testing environment. In V. J. Shute & B. J.

Becker (Eds.), Innovative Assessment for the 21st

Century (pp. 167–185). New York: Springer.

Weigle, S. C. (2013). English language learners and

automated scoring of essays: Critical considerations.

Assessing Writing, 18(1), 85–99. doi:10.1016/j.asw.

2012.10.006

On the Use of Regular Expressions and Exact-text Matching in Computer-based Test Scoring Algorithms

561
