Orama: A Benchmark Framework for Function-as-a-Service

Leonardo Reboucas De Carvalho

and Aleteia Patricia Favacho Araujo

Department of Computing Science, University of Bras

ılia, Brasilia, Brazil

Keywords:

Cloud, FaaS, Benchmark, AWS, GCP, Factorial Design, T-test, Orama Framework.

Abstract:

The prominent Function-as-a-Service (FaaS) cloud service model has positioned itself as an alternative for

solving several problems, and, interest in cloud-oriented architectural solutions that use FaaS has therefore

grown rapidly. Consequently, the importance of knowing the behavior of FaaS-based architectures under

different concurrency scenarios has also become signiﬁcant, especially in implementation decision-making

processes. In this work, the Orama framework is proposed, which helps in the execution of benchmarks in

FaaS-based environments, orchestrating the deployment of pre-built architectures, as well as the execution

of tests and statistical analysis. Experiments were carried out with architectures containing multiple cloud

services in conjunction with FaaS in two public cloud providers (AWS and GCP). The results were analyzed

using factorial design and t-test and showed that the use cases running on AWS obtained better results in

runtime compared to their counterparts on GCP, but showed considerable error rates in competition situations.

It is worth mentioning that the Orama framework was used from in the automated provisioning of use cases,

execution of benchmarks, analysis of results and deprovisioning of the environment, supporting the entire

process.

1 INTRODUCTION

Studies indicate that Function-as-a-Service (FaaS)

(Malawski et al., 2020), also called Serverless (Nup-

ponen and Taibi, 2020) or Backend-as-a-Service

(Schleier-Smith et al., 2021), will become the main

computing paradigm of the Cloud Era (Schleier-

Smith et al., 2021). All this success can be explained,

in part, by the great ease in using this service model,

as well as in the automatic and transparent elasticity

of delivery.

The growing adoption of FaaS-based architectures

has increased concern about performance aspects re-

lated to environments deployed by this type of ser-

vice. Some works such as FaaSdom (Maissen et al.,

2020) and Sebs (Copik et al., 2021) for example, have

investigated the behavior of FaaS services, mainly ex-

ploring the characteristics of programming languages

and providers’ strategies.

However, productive applications often involve

more than one cloud service. In this context, it is im-

portant to know the behavior of this type of applica-

tion when faced with different levels of concurrency.

For this reason, this work proposes the Orama Frame-

https://orcid.org/0000-0001-7459-281X

https://orcid.org/0000-0003-4645-6700

work to provide assistance in the execution of bench-

marks in FaaS-oriented solutions, from automated de-

ployment, to test execution and statistical analysis.

The Orama framework has built-in FaaS archi-

tectures ready to be deployed in cloud environments

and then submitted to user-customized test batteries.

When the tests are ﬁnished, depending on the conﬁg-

uration, the user will be able to access a 2

factorial

design (Jain, 1991), where k is the number of factors

analyzed.

Experiments were performed to validate the

framework on two public cloud providers (AWS and

GCP). For the tests, six Orama built-in use cases were

applied, which enabled explorationat various levels

from simple activation of FaaS functions to integra-

tion with database services and object storage.

This article is divided into seven parts, the ﬁrst

being an introduction. Section 2 presents the theoret-

ical foundation that supports the work, while Section

3 describes the proposal, that is, the Orama Frame-

work. Section 4 presents the related works, while

Section 5 describes the methodology used in the ex-

periments carried out to validate the framework. Sec-

tion 6 shows the results obtained and ﬁnally, Section

7 presents the conclusions and future work.

Carvalho, L. and Araujo, A.

Orama: A Benchmark Framework for Function-as-a-Service.

DOI: 10.5220/0011113900003200

In Proceedings of the 12th International Conference on Cloud Computing and Services Science (CLOSER 2022), pages 313-322

ISBN: 978-989-758-570-8; ISSN: 2184-5042

313

2 BACKGROUND

Since NIST (MELL and Grance, 2011) deﬁned cloud

service models in 2011 as Infrastructure-as-a-Service

(IaaS), Platform-as-a-Service (PaaS) and Software-

as-a-Service (SaaS) several public cloud providers

have named their services using “as-a-service” suf-

ﬁxes quite differently from the initial NIST deﬁnition.

Although these services differ from the NIST

naming deﬁnition, their features generally ﬁt with one

of the traditional models. This profusion of services

gave rise to the term “XaaS” (DUAN et al., 2015) to

generalize “everything-as-a-Service”. In this scenario

Function-as-a-Service emerged.

2.1 Function-as-a-Service

Function-as-a-Service (FaaS) (Schleier-Smith et al.,

2021) consists of a cloud computing service model in

which the client submits a snippet of source code to

the provider and conﬁgures a trigger, which can either

be from other services within the provider’s platform

or through a REST API. This type of service is also

known as Serverless (Nupponen and Taibi, 2020) and

Backend-as-a-Service (Schleier-Smith et al., 2021).

Once the service is activated through the trigger,

the provider must guarantee its processing, automat-

ically and transparently providing instances to meet

new requests that exceed the service capacity of the

provisioned environment (auto scaling). The billing

model is based on requests and takes into account the

execution time and the amount of resources allocated

to each request. Providers often impose limits on run-

time, amount of RAM and vCPUs, etc.

This service model has grown signiﬁcantly thanks

to its ease of adoption and its usage-adjusted charg-

ing model. In this it differs from the IaaS model, in

which charging is based on how long the machines

are in operation, even if they are not in use. In FaaS

the customer is only charged when their application is

effectively used.

Leading public cloud providers offer FaaS options

such as AWS with Lambda (AWS, 2021), Google

Cloud Platform (GCP) with Google Cloud Function

(GCF) (Google, 2021), Microsoft Azure with Azure

Function (Microsoft, 2021), IBM with IBM Cloud

functions (IBM, 2021), Oracle with Oracle Cloud

Function (Oracle, 2021), and Alibaba with Alibaba

Cloud Function (Cloud, 2021).

Performance metrics, especially related to latency,

are excellent tools in the decision-making process for

deploying environments, especially in a cloud com-

puting context. In this context, knowing the perfor-

mance of the solutions is highly desirable and for this

it is possible to use benchmarks to measure perfor-

mance in a systematic way. Some works have devel-

oped benchmarks for performing performance tests in

FaaS environments, such as FaaSdom (Maissen et al.,

2020) and Serverless Benchmark Suite (Sebs) (Copik

et al., 2021). It is important to know the behavior of

FaaS-based architectures in collaboration with other

service models (IaaS and PaaS, for example) offered

by providers, as these scenarios in turn reﬂect the op-

erational reality of production environments.

In a benchmark process it is important to have an-

alytical tools that allow the identiﬁcation of insights

from the data obtained from the benchmarks. A tool

that can accomplish this task is the 2

factorial design

(Jain, 1991). By deﬁning two levels (lower and upper)

for factors concerning variables supposed to have in-

ﬂuence on a particular phenomenon, it is possible to

estimate the percentage of the effects of each factor

on the calculated result, as well as the effects of the

combined factors.

Another statistical analysis tool is the paired t-test.

In this test, two samples have their result difference

analyzed in order to determine if the difference found

is statistically signiﬁcant. This determination occurs

through the calculation of the difference conﬁdence

interval. If this interval contains the number zero,

then the difference is not signiﬁcant (within a cer-

tain conﬁdence level), otherwise the difference can be

considered as signiﬁcant and its semantics can be an-

alyzed, in relation to the problem in question. It is

noteworthy that a t-test should only be performed on

populations with up to 30 samples, since the t-student

distribution is used for its calculations and it has such

a restriction. The next section will present the Orama

framework proposal in detail.

The framework proposed in this work has a fac-

torial design module that is capable of performing

analysis with two factors (k = 2) (provider and con-

currence), having latency as the objective variable. In

addition, it also has the execution of the t-test, if appli-

cable. The next section will present the Orama frame-

work proposal in detail.

3 ORAMA FRAMEWORK

With the purpose of facilitating the execution of

benchmarks on FaaS-oriented environments, espe-

cially when the use cases involve other cloud ser-

vice models, in this work the Orama framework was

proposed. “Orama” is a word of Greek origin that

means “Sight”. The name chosen for the framework

demonstrates the intention to shed light on the behav-

ior of FaaS environments. The main features of the

CLOSER 2022 - 12th International Conference on Cloud Computing and Services Science

314

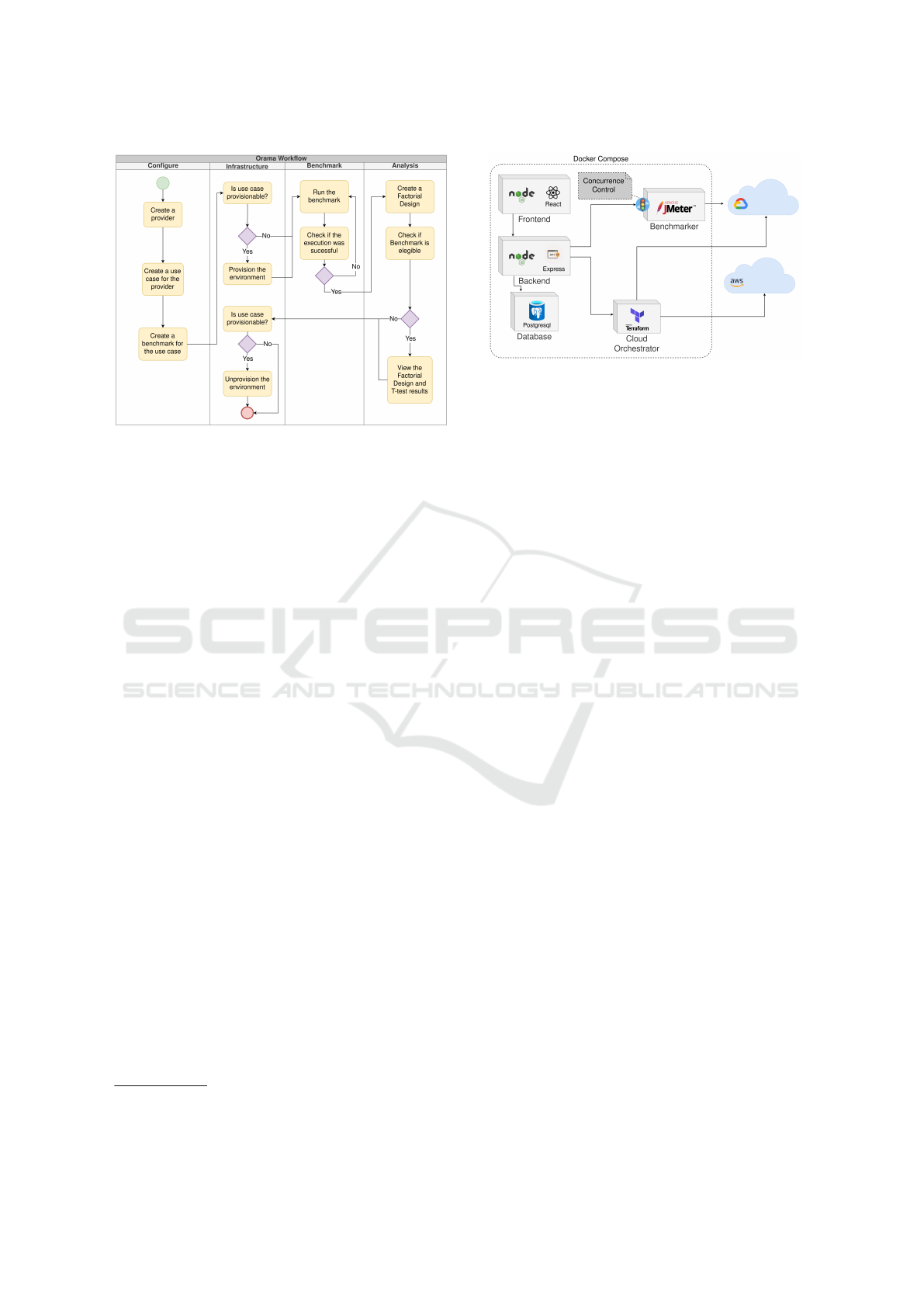

Figure 1: Orama workﬂow.

framework are: open-source; built-in use cases; auto-

matic provisioning of built-in use cases; custom use

cases (without provisioning); semaphore controlled

simultaneous benchmark execution; detailed results

of benchmark executions; possibility of re-running

benchmarks; control of the number of requests made

by benchmarks; additional request option to bypass

cold-start; 2

(k = 2) factorial design module for sta-

tistical analysis between two benchmarks; and t-test

to analyze the difference between two benchmarks.

3.1 Orama Workﬂow

Figure 1 presents the Orama framework workﬂow. In

the diagram shown, it is possible to observe four lanes

that represent the main phases of the framework: con-

ﬁguration, infrastructure preparation, benchmark ex-

ecution and analysis. In the conﬁguration phase, it is

necessary to create, at least, a provider, a use case and

a benchmark to start the operation of the framework.

When installing the framework, it is possible to

run a command to automatically create built-in use

cases and some benchmark scenarios. Use cases con-

sist of architectural deﬁnitions that have automation

artifacts that allow them to be provisioned and depro-

visioned in an automated way. It is also possible, at

the time of framework installation, to conﬁgure the

AWS and GCP credentials that will enable the deploy-

ment of use cases related to these providers. Frame-

work installation instructions are available in Orama’s

public repository

. In addition, it is also possible to

install it using pre-built and published Docker images

from the Docker-Hub

Once properly installed and conﬁgured, the next

https://github.com/unb-faas/orama

https://hub.docker.com/u/oramaframework

Figure 2: Orama architechture.

step is to deploy the environment in which the tests

will run. The Orama framework allows the conﬁg-

uration of custom use cases that do not need to be

deployed, in this case the user conﬁgures directly in

the framework the URLs that are part of the use case,

whether they are GET, POST, PUT or DELETE.

If the environment needs deployment, the user can

command this through the framework’s frontend in-

terface and monitor its deployment. The built-in use

cases have all the automation artifacts needed to be

deployed to the respective providers and these arti-

facts are applied in this phase.

After being deployed, environments are ready to

be tested. In this phase the user can run the bench-

marks as many times as necessary. A benchmark con-

sists of running bursts of requests over a use case

URL. It is possible to conﬁgure a list of bursts in a

benchmark, as well as the number of repetitions of

that scenario, in order to obtain samples for statistical

analysis.

It is also possible to conﬁgure in a benchmark the

execution of an additional request, before the begin-

ning of the tests, as a service warm-up, in order to

avoid a cold-start. Furthermore, they may be conﬁg-

ured in such a way that they intervene between the

executions of the bursts, if the intention is to analyze

the cold start, or any other requirement that demands

an interval between requests.

Once the benchmarks are run, it is possible to

carry out comparative analyzes between them, as long

as certain conditions are respected. For this version of

the framework, it is only possible to compare bench-

marks containing different providers, two equal levels

of concurrency and the same number of repetitions.

Once these criteria are met, it will be possible to visu-

alize the 2

factorial design and paired t-test results.

The factorial design will show, among other met-

rics, the percentage of the effect of the provider, con-

currence and both combined for the results obtained

in the benchmark. The t-test will present the signif-

Orama: A Benchmark Framework for Function-as-a-Service

315

icance of the difference found between the latency

means of the results at various conﬁdence levels from

60% to 99.95%.

At the end of the analysis, the user can de-

provision the deployed environment to carry out the

tests (if applicable), thus ending the workﬂow of the

framework.

3.2 Orama Architecture

In order to achieve the intended objective of the

Orama framework an architecture was deﬁned and

an application was developed consisting of ﬁve main

components as shown in Figure 2. All components of

the framework are designed to be built on top of con-

tainer runtime and cooperate with each other via the

HTTP protocol, as well as with external entities such

as cloud providers, or other target testing platforms.

The ﬁve main components of the Orama Framework

are:

• Frontend: application developed in Node.js us-

ing React and Material UI frameworks whose ob-

jective is to provide a friendly interface between

the user and the framework, allowing the manage-

ment of application assets such as providers, use

cases, benchmarks and factorial designs. It is also

possible to execute the provisioning and deprovi-

sioning processes, as well as the benchmarks and

the visualization of the results;

• Backend: application developed in Node.js us-

ing the express.js framework whose objective is to

provide a centralized API for the frontend so that

requests from the frontend are always directed

to this component for treatment and eventual

redirection to another service within the Orama

ecosystem framework. It is also the component

responsible for interacting with the application’s

database;

• Database: consists of the framework’s data stor-

age layer, composed of the Postgresql database;

• Cloud Orchestrator: application developed in

Node.js using the express.js framework whose

objective is to provide an API for provisioning

and deprovisioning the environment through Ter-

raform (HashiCorp, 2021). This component waits

for infrastructure deﬁnition artifacts to exist for

a use case in order to apply it to the selected

provider. The use cases can be easily extended

just by creating new directory structures with

the respective Terraform deﬁnition ﬁles and the

proper framework conﬁguration to trigger it;

• Benchmarker: application developed in Node.js

using the express.js framework whose objective

is to provide an API for executing benchmarks

through the JMeter tool (Halili, 2008). The frame-

work has a generic JMeter benchmark execution

artifact that takes several parameters that are ex-

pected by the Benchmarker component. This

component also generates a web page with test

metrics from a CSV ﬁle that is accessed from the

frontend after running the benchmark when view-

ing the results. This component allows simulta-

neous executions of benchmarks, but does not ef-

fect them at the same time, there is a semaphore

control that guarantees that only one benchmark

is running at a time.

The backend, cloud orchestrator and benchmark

components have an API documentation view using

Swagger

in order to facilitate an eventual direct con-

sumption of data from these components.

3.3 FaaS Built-in Use Cases

The Orama framework has some built-in FaaS-

oriented use cases that can be deployed in AWS and

GCP in order to pass through batteries of tests, or

even serve as bases for productive applications, since

the framework makes available the artifacts, deﬁni-

tion of the infrastructure, and source codes of the

functions. In this version Orama provides six built-

in use cases with the purpose of representing a sim-

ple use of the FaaS paradigm in both providers and

two other more complex uses involving integrations

between FaaS and other providers services, these use

cases are described below.

1. Lambda Calculator: Figure 3a shows the ar-

chitecture of the Lambda Calculator use case in

which one simple Node.js math calculator func-

tion in AWS is deployed in a Lambda service, as

well as an API Gateway that makes it accessible

via REST API.

2. GCF Calculator: Figure 3d shows the architec-

ture of the GCF Calculator use case in which one

simple Node.js math calculator function in GCP

is deployed in a GCF service. The GCF service

makes available a REST API.

3. Lambda to DynamoDB: Figure 3b shows the ar-

chitecture of use case Lambda to DynamoDB in

which three Lambda functions are deployed (ac-

cessible via REST API through the API Gateway)

to meet requests to include, obtain and exclude

data in json format in a database. For data stor-

age, a DynamoDB service is provided with which

Swagger is an Interface Description Language for de-

scribing RESTful APIs expressed using JSON.

CLOSER 2022 - 12th International Conference on Cloud Computing and Services Science

316

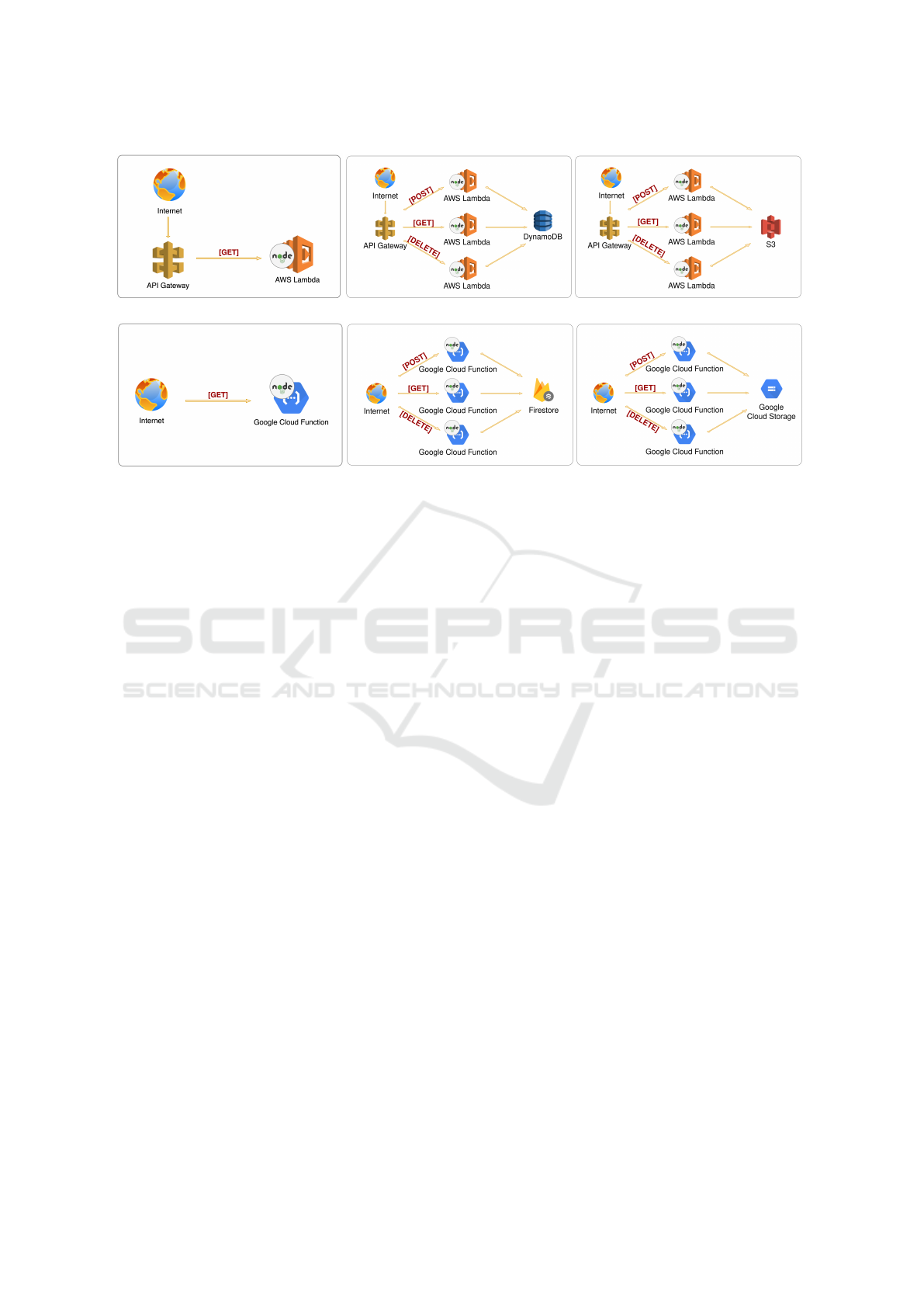

(a) Lambda Calculator.

(b) Lambda to DynamoDB. (c) Lambda to S3.

(d) GCF Calculator.

(e) GCF to Firestore. (f) GCF to Cloud Storage.

Figure 3: Orama built-in use cases.

integrations between Lambda functions are imple-

mented.

4. GCF to Firestore: Figure 3e shows the architec-

ture of use case GCF to Firestore in which three

GCF functions are deployed to meet requests to

include, obtain and exclude data in json format in

a database. For data storage, a Firestore service

is provided with which integrations between GCF

functions are implemented.

5. Lambda to S3: Figure 3c shows the architecture

of use case Lambda to S3 in which three Lambda

functions are deployed (accessible via REST API

through the API Gateway) to meet requests to in-

clude, obtain and exclude data in json format in a

S3 bucket.

6. GCF to Cloud Storage: Figure 3f shows the ar-

chitecture of use case GCF to Cloud Storage in

which three GCF functions are deployed to meet

requests to include, obtain and exclude data in

json format in a Cloud Storage bucket.

The use cases offered by Orama can be easily de-

ployed to providers from the frontend of the frame-

work. When deploying a use case, the architectural

deﬁnition artifacts will be offered to Terraform, which

will communicate with the provider and carry out the

deployment, including the deployment of functions,

whose source code is also part of the use case’s direc-

tory structure.

Conversely, for environment de-provisioning, it is

enough for the user to command it from the fron-

tend and the aforementioned artifacts will be offered

to Terraform, now for environment demobilization.

It is noteworthy that unlike other tools aimed at

performing FaaS benchmarks with a focus on ex-

ploring the implementations of runtimes offered by

providers for some programming languages, Orama

is intended to serve as a basis for the orchestration of

FaaS benchmarks whose integration between services

is present.

With high extensibility, the proposed framework

can be easily adjusted to run tests in other scenarios,

shortening the distance between not knowing the be-

havior of a solution in certain situations and the pos-

sibility of a detailed analysis using robust statistical

tools.

4 RELATED WORKS

FaaS-dom (Maissen et al., 2020) is a modular set of

benchmarks for evaluating serverless computing that

includes FaaS workloads and supports the main FaaS

providers (AWS, Azure, Google, and IBM). The func-

tions implemented to carry out the tests by FaaS-dom

are a strong point, as they are written in several lan-

guages and for several providers. However, they do

not have an integration approach with other cloud ser-

vices as Orama has, and the tasks that the FaaS-dom

functions perform can be considered trivial.

Serverless Benchmark Suite (Sebs) (Copik et al.,

2021) consists of specifying representative work-

loads, monitoring the implementation, and evaluating

the infrastructure. The abstract model of a FaaS im-

plementation ensures the applicability of the bench-

mark to various commercial vendors such as AWS,

Orama: A Benchmark Framework for Function-as-a-Service

317

Azure and Google Cloud. This work evaluates as-

pects such as: time, CPU, memory, I/O, code size and

cost based on the performed test cases. Despite this,

their test cases do not involve integration with other

cloud services as in the framework proposed in this

work, Orama.

In (Wen et al., 2021) the authors perform a de-

tailed evaluation of FaaS services: AWS, Azure,

GCP and Alibaba, by running a test ﬂow using mi-

crobenchmarks (CPU, memory, I/O and network) and

macrobenchmarks (multimedia, map-Reduce and ma-

chine learning). The tests used speciﬁc functions

written in Python, Node.js and Java that explored the

properties involved in benchmarking to assess the ini-

tialization latency and efﬁciency of resource use. The

benchmarks used in the analysed work also do not in-

tegrate with other cloud services as Orama does, mak-

ing their scope limited.

BeFaaS (Grambow et al., 2021) presents an

application-centric benchmark framework for FaaS

environments with a focus on evaluation with realis-

tic and typical use cases for FaaS applications. It sup-

ports federated benchmark testing where the bench-

mark application is distributed across multiple ven-

dors and supports reﬁned result analysis. However, it

does not offer an improved method of statistical anal-

ysis such as factorial design or t-test, as proposed in

this paper.

5 METHODOLOGY

With the purpose to assess the behavior of the

Orama framework, three test scenarios were deﬁned

as shown in Figure 4. In Scenario 1, the framework

was installed on a local physical machine with Docker

engine available and its six use cases were deployed in

the respective clouds, that is, three in AWS and three

in GCP.

Figure 4: Test architecture.

In Scenario 2, a virtual machine was instantiated

in the GCP provider that received the installation of

the Docker engine and then the installation of Orama

framework. As in Scenario 1, the six use cases were

deployed in the respective clouds, but in Scenario 2

the distance between the framework and the GCP use

cases is much smaller, as both the framework and the

use cases are running inside from the same provider.

In Scenario 3, a virtual machine was instantiated

in the AWS provider that had received the installation

of the Docker engine and then the installation of the

Orama framework. As in Scenario 2, in Scenario 3

there is greater proximity between the framework and

the use cases related to AWS, since both are on the

same provider.

It is noteworthy that the orchestration component

of Orama uses random names to name the resources

in the cloud and because of that there is no name con-

ﬂict, even if the three scenarios are active at the same

time.

Table 1 presents the conﬁguration of the physical

machine used in testing Scenario 1, as well as the con-

ﬁgurations of the instances created for testing Scenar-

ios 2 and 3.

Table 1: Experiment scenarios parameters.

Place RAM CPU Region OS Flavor

1 Local 16GB 8 Brasilia/Br Ubuntu 20.04 N/A

2 AWS 16GB 8 us-east-1 Ubuntu 20.04 c5.2xlarge

3 GCP 16GB 8 us-central1 Ubuntu 20.04 Custom

Once the framework was installed and the use

cases implemented in each provider, identical batter-

ies of tests were run for all use cases in all scenar-

ios. The test battery consists of subjecting the envi-

ronment to two levels of concurrent load. A ﬁrst level

with 10 simultaneous requests and another level with

100 simultaneous requests and each test was repeated

25 times. From these test batteries it was possible to

visualize the results of the factorial design and the t-

test, as will be presented and discussed in Section 6.

6 RESULTS

Once the environment for each scenario was pro-

visioned, the six built-in test cases were executed.

At the end of the execution of the test cases, fac-

torial designs were created comparing the equiva-

lent use cases. A factorial design was created be-

tween Lambda Calc and GCF Calc, as both are sim-

ple use cases aimed at creating a mathematical cal-

culator service. A factorial design was created be-

tween Lambda to DynamoDB and GCF to Firestore,

as they are use cases that relate FaaS to Database-

as-a-Service (DBaaS). A factorial design was created

CLOSER 2022 - 12th International Conference on Cloud Computing and Services Science

318

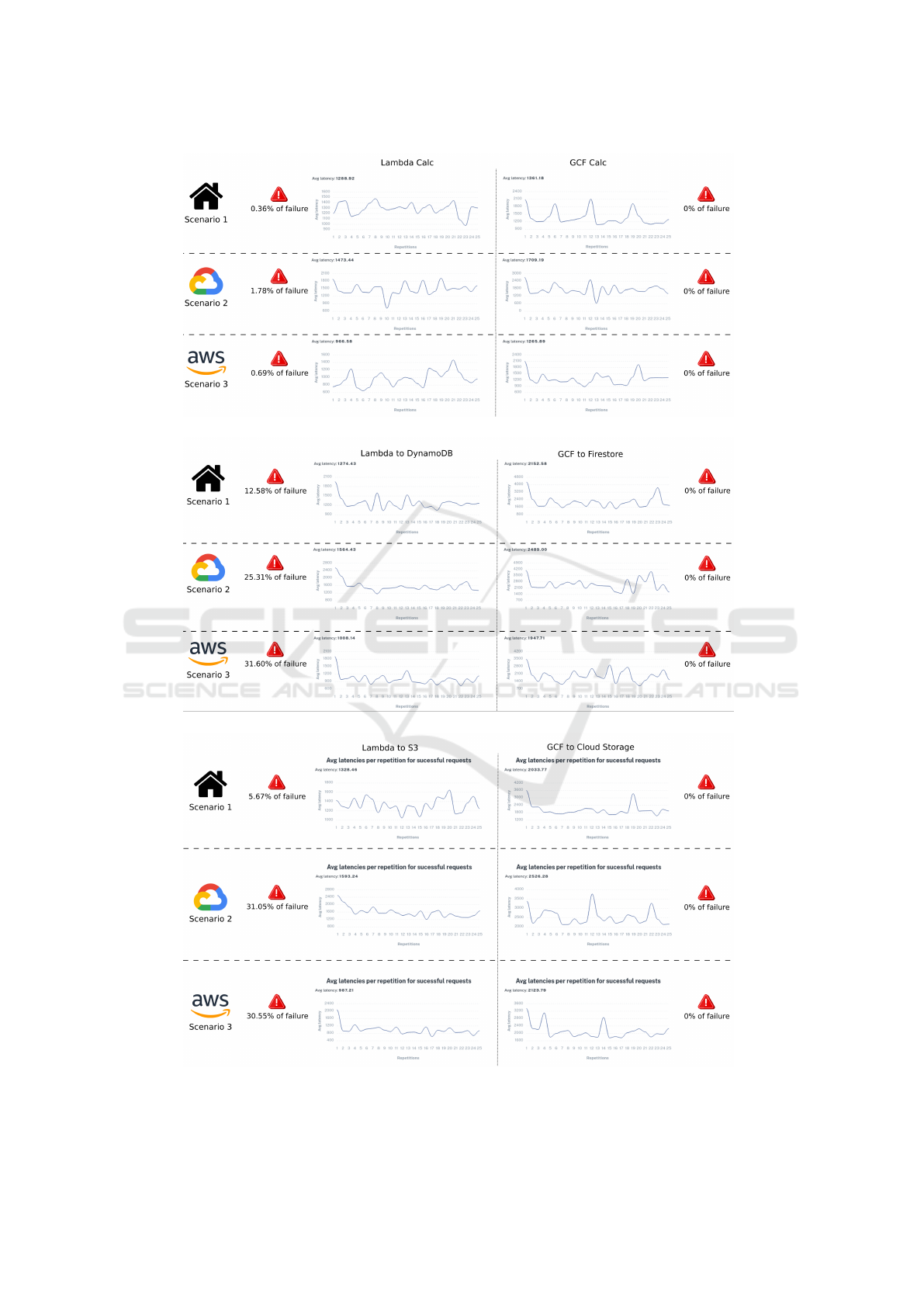

(a) Calculators use cases.

(b) Database-relateds use cases.

Figure 5: Paired experiment results.

Orama: A Benchmark Framework for Function-as-a-Service

319

between Lambda to S3 and GCF to Cloud Storage,

which are the use cases that relate FaaS with object

storage services.

In Figure 5a it is possible to observe that the

graphs show the alternation of average latency times

between repetitions. This is due to the unpredictable

characteristic of the data network, however some

peaks and troughs are noticeable and these indicate

the provider’s performance in order to adjust the elas-

ticity of the environment during the execution of the

test batteries.

The difference in the mean latency time plateau

that exists between the results in the two providers is

evident. For example, in Scenario 1 the range calcu-

lated for the Lambda Calc graph was ﬁxed between

900 and 1600 milliseconds, that is, the average la-

tency times in the repetitions varied within this range.

On the other hand, the graph referring to GCF Calc in

Scenario 1 had its range established between 900 and

2400, that is, the average latency of the GCF Calc var-

ied in a greater range than the average latency of the

Lambda Calc. This difference in level was reﬂected

in the overall average, in which Lambda Calc scored

1288.92 while GCF Calc scored 1361.18. This differ-

ence was also evidenced in Scenarios 2 and 3 and this

indicates that the use case Lambda Calc on average is

able to execute requests faster than the GCF Calc.

However, when analyzing the failure rates, that is,

the percentage of unsuccessful requests, it is possible

to see that in the three scenarios the use case Lambda

Calc presented percentages above 0%, while the use

case GCF Calc remained continuously at 0% in all

scenarios, giving it a higher degree of reliability.

Figure 5b presents the latency averages calculated

in each repetition of the use cases Lambda to Dy-

namoDB and GCF to Firestore in the three scenarios,

since both use cases refer to solutions that relate FaaS

to DBaaS. In Figure 5b the role of providers in in-

creasing the scale of environments is clearly visible,

both in the AWS use case and in the GCP use case,

since the average calculated in the ﬁrst repetition is

the highest in the series, while from the second repe-

tition onwards the averages drop drastically and from

the third repetition onwards the oscillations reﬂect the

variations in the transmission rate of the data network.

Analyzing Figure 5b it is possible to notice that

the fastest execution of the use case Lambda to Dy-

namoDB occurred in Scenario 3 where the frame-

work was running inside the provider in which the use

case is deployed (AWS), although this is also the case

in Scenario 3, the use case Lambda to DynamoDB

has the highest failure rate at 31.60%, while in Sce-

narios 1 and 2 the failure rates were at 12.58% and

25.31%, respectively. These high error rates demon-

strate that the AWS provider, in these scenarios, ex-

perienced difﬁculties in handling concurrent requests.

These problems may be related to temporary instabili-

ties faced by the network during the testing period, to

improper conﬁgurations of the use cases, or even to

a problem in the provider’s platform. The tests were

repeated several times in order to compose the mass

of data, but an instability could have covered the en-

tire period of the tests. Regarding the use cases, they

were created using the ”default” conﬁgurations indi-

cated by the manufacturer, and can be easily adjusted

to generate new use cases with different conﬁgura-

tions in order to evaluate the same scenarios against

different conﬁgurations. All this is thanks to the ﬂex-

ibility provided by the Orama framework.

The CGF to Firestore use case had the lowest av-

erage latency in Scenario 3, although in this scenario

the Orama framework was deployed on the AWS

provider. This indicates that the network layer of the

AWS IaaS service managed to be more efﬁcient in

transmitting data than the respective layer in GCP,

while in Scenario 2, where the framework was de-

ployed in a GCP IaaS service, the average latency was

even higher than in Scenario 1, in which the frame-

work was running outside the clouds, in a local en-

vironment, which reinforces the perception that the

network layer of the GCP IaaS service contributed to

these results.

It is noteworthy that the use of the Orama Frame-

work allowed these ﬁndings with a much reduced ef-

fort, since the implementation of test cases, as well as

the conduct of benchmarks occurred in an automated

manner.

Figure 5c shows the results of the use case related

to object storage in the three scenarios. In this ﬁgure,

it is possible to observe a large variation in latency av-

erages between repetitions in Scenario 1 for both use

cases and this is due to the intrinsic variations of the

data network, since in Scenario 1 the Orama frame-

work is deployed outside the clouds.

The peaks that occur in all scenarios for the CGF

to Cloud Storage use case are noteworthy, these peaks

may represent the actuation of the providers when re-

duce the scale of the environment after the test exe-

cution immediately before. Another fact that stands

out is the presence of the same behavior perceived in

Figure 5b. Once again the GCP-related use cases ran

faster in scenarios where the Orama Framework was

deployed outside of it. As previously mentioned, this

fact may be related to the characteristics of the GCP’s

internal network that supports the IaaS environment

where the Orama framework was installed. It is pos-

sible to view the average times of all repetitions in

each use case for each scenario separately in Table 3.

CLOSER 2022 - 12th International Conference on Cloud Computing and Services Science

320

Table 2: T-test results.

Use case type

Scenario

1 - Local 2 - GCP 3 - AWS

Difference T-test Conﬁdence Difference T-test Conﬁdence Difference T-test Conﬁdence

Calculator 72.26 Passed 80% 235.75 Passed 97.50% 299.32 Passed 99.95%

Database 878.15 Passed 99.95% 924.57 Passed 99.95% 939.57 Passed 99.95%

Object Storage 705.31 Passed 99.95% 933.04 Passed 99.95% 1136.58 Passed 99.95%

Figure 5c also shows that although AWS-related

use cases process requests faster than GCP use cases,

their error rates are not much higher, especially in

those scenarios where the framework was deployed

in the cloud, where error rates reached about 31%.

An important feature offered by the Orama Frame-

work is factorial design analysis. Figure 6 shows the

results of the confrontation between the use cases in

each scenario. This ﬁgure shows, in a pie format,

the percentages of the effects calculated by the Fac-

torial Design for the factors: provider (in green), con-

currence (in blue), the relationship between provider

and concurrence (in yellow) and the sampling error

(in red).

The effect of sampling error within a factorial de-

sign indicates the existence of some factor interfering

with the results beyond those mapped (provider and

concurrence), since this effect is calculated from the

difference between the values calculated in the sam-

ples and the mean of these samples. As the bench-

marks use an approach that massively executes re-

quests over the data network, especially over the inter-

net, this factor interferes with the results and this can

be corroborated by analyzing that the portions of the

sampling error effects in Scenario 1 are higher than

those portions determined in Scenarios 2 and 3 where,

one of the use cases was tested from an installation of

the framework within its own provider, promoting a

reduction in data trafﬁc.

Table 3: Average latencies in each use case (milliseconds).

Use case type

Scenario

1 - Local 2 - GCP 3 - AWS

Calculator

AWS 1288.92 1473.44 966.58

GCP 1361.18 1709.19 1265.89

Database

AWS 1274.43 1564.43 1008.14

GCP 2152.58 2489.00 1947.71

Object Storage

AWS 1328.46 1593.24 987.21

GCP 2033.77 2526.28 2123.79

In Figure 6 it is possible to verify that in the com-

parison between Lambda Calc and GCF Calc in the

factorial design results there is a predominance of the

concurrence effect (blue slices) to the detriment of the

other factors. In the comparison between Lambda to

DynamoDB and GCF to Firestore there is a greater in-

Figure 6: Factorial designs results.

ﬂuence of the provider effect, but in Scenarios 2 and

3, where the sampling error has less inﬂuence, it is

possible to see that the provider inﬂuence loses impact

and once again the factor concurrence exerts greater

inﬂuence on the results obtained. When analyzing

the confrontation between S3 Lambda use cases such

as GCF to Cloud Storage, the effects shift their in-

ﬂuence between scenarios. While in Scenario 1 the

provider and concurrence effects have practically the

same inﬂuence, in Scenario 2 the concurrence effect

outweighs the provider effect. In Scenario 3, it is the

provider that exerts the greatest inﬂuence.

The results of factorial designs show that for the

use cases tested, in general, the results are mostly im-

pacted by the concurrence effect. Table 2 shows the

results of the t-tests between pairs of use cases of the

same type, where it is possible to ﬁnd a difference be-

tween the average latencies. It is possible to notice

that in all tests the difference was considered signif-

icant, once the test was passed. Most of the differ-

ences managed to pass the test with 99.95% conﬁ-

dence level, only in the use cases related to the cal-

culator for Scenarios 1 and 2 the degree of conﬁdence

with which the difference passed the t-test was 80%

and 99.75%, respectively. The results of the experi-

ment shown in this section are available in detail on

GitbHub

https://github.com/unb-faas/orama-results

Orama: A Benchmark Framework for Function-as-a-Service

321

7 CONCLUSION

Considering the results shown, it is possible to con-

clude that the Orama framework proposed in this

work is capable of running benchmarks in several

FaaS scenarios, allowing comparative analyzes be-

tween benchmarks both in terms of absolute perfor-

mance and through statistical analyzes such as facto-

rial design and t-test.

The pre-conﬁgured use cases that are part of the

Orama Framework are tools that can help the com-

munity beyond what they propose. They can serve

as a basis for building other similar benchmarks with

different conﬁgurations or even for different bench-

marks, with services that have already been addressed

by the original use case. In addition, Orama use cases

can also serve as a starting point for a solution in a

productive environment, since it has a deﬁned and ro-

bust orchestration process.

In the experiment, the framework was installed in

different positions in relation to the target clouds of

the use cases. Installation, provisioning and test exe-

cution are automated, allowing quick and easy analy-

sis from different points of view. Overall, the results

of experiments on AWS and GCP providers showed

that use cases running on AWS managed to be faster

than equivalent use cases running on GCP. However,

there was a high occurrence of errors in the executions

in AWS, while in GCP the use cases did not present

errors.

In future work, use cases may be incorporated to

increase the scope of testable solutions. Thanks to

the decoupled structure of the Orama Framework, in-

corporating new use cases is a relatively simple pro-

cess. Thus, it is possible, any out further work, for ex-

ample, in the investigation of performance problems

commonly found in FaaS architectures, varying dif-

ferent conﬁguration possibilities in order to ﬁnd those

parameters that exert the greatest inﬂuence on the re-

sults.

REFERENCES

AWS (2021). AWS lambda. https://aws.amazon.com/en/

lambda. [online; 11-Aug-2021].

Cloud, A. (2021). Alibaba cloud function. https://www.

alibabacloud.com/product/function-compute. [online;

11-Aug-2021].

Copik, M., Kwasniewski, G., Besta, M., Podstawski, M.,

and Hoeﬂer, T. (2021). Sebs: A serverless benchmark

suite for function-as-a-service computing.

DUAN, Y., Fu, G., Zhou, N., Sun, X., Narendra, N. C., and

Hu, B. (2015). Everything as a Service (XaaS) on

the Cloud: Origins, Current and Future Trends. vol-

ume 00, pages 621–628.

Google (2021). Cloud functions. https://cloud.google.com/

functions/. [Online; 10-Aug-2021].

Grambow, M., Pfandzelter, T., Burchard, L., Schubert, C.,

Zhao, M., and Bermbach, D. (2021). Befaas: An

application-centric benchmarking framework for faas

platforms.

Halili, E. H. (2008). Apache JMeter. Packt Publishing

Birmingham.

HashiCorp (2021). Terraform: Write, plan, apply. https:

//www.terraform.io. [online; 11-Aug-2021].

IBM (2021). IBM cloud functions. https://cloud.ibm.com/

functions/. [online; 11-Aug-2021].

Jain, R. (1991). The art of computer systems: Tech-

niques for experimental design, measurement, simu-

lation, and modeling. John Wiley & Sons,.

Maissen, P., Felber, P., Kropf, P., and Schiavoni, V. (2020).

Faasdom. Proceedings of the 14th ACM International

Conference on Distributed and Event-based Systems.

Malawski, M., Gajek, A., Zima, A., Balis, B., and Figiela,

K. (2020). Serverless execution of scientiﬁc work-

ﬂows: Experiments with hyperﬂow, AWS lambda and

Google Cloud Functions. Future Generation Com-

puter Systems, 110:502–514.

MELL, P. and Grance, T. (2011). The NIST deﬁnition of

cloud computing. National Institute of Standards and

Tecnology.

Microsoft (2021). Azure functions. https://azure.

microsoft.com/pt-br/services/functions/. [online; 11-

Aug-2021].

Nupponen, J. and Taibi, D. (2020). Serverless: What it is,

what to do and what not to do. In 2020 IEEE ICSA-C,

pages 49–50.

Oracle (2021). Oracle cloud function. https://www.oracle.

com/cloud-native/functions/. [online; 11-Aug-2021].

Schleier-Smith, J., Sreekanti, V., Khandelwal, A., Carreira,

J., Yadwadkar, N. J., Popa, R. A., Gonzalez, J. E., Sto-

ica, I., and Patterson, D. A. (2021). What serverless

computing is and should become: The next phase of

cloud computing. Commun. ACM, 64(5):76–84.

Wen, J., Liu, Y., Chen, Z., Ma, Y., Wang, H., and Liu, X.

(2021). Understanding characteristics of commodity

serverless computing platforms.

CLOSER 2022 - 12th International Conference on Cloud Computing and Services Science

322
