Architecture Requirements for Open Inference Networks

Priscilla Naa Dedei Hammond

, Fritz Solms

and Bruce W. Watson

Department of Information Science, Stellenbosch University, Stellenbosch WC, South Africa

Keywords:

Open Systems, Internet of Things, Complex Event Processing, Pattern Detection, Distributed Architecture

Systems.

Abstract:

Real-time distributed Internet of Things (IoT) systems are increasingly using complex event processing to

make inferences about the environment. This mode of operation is able to reduce communication require-

ments, improve robustness and scalability, and avoid the need for big data storage and processing. With

systems making many inferences about the environment, there is no provision for general access to these in-

ferences as well as the ability to make further inferences. Most IoT systems are closed or very limited in

their openness and discoverability because they are exist for commercial purposes in which they control all

the elements of the system. To this end, we propose the concept of an Open Inference Network (OIN): a novel

open architecture for detecting and publishing complex events at various abstraction levels in an event cloud,

i.e. the set of events consumed and produced by this system. Such systems contain three types of nodes: basic

event source, inference, and activity nodes. Inference nodes detect event patterns that may encode some mean-

ing and inject corresponding higher-level events into the event cloud. Activity nodes respond to an event by

prompting an external system to perform some action; such an action may result in outputs that appear as new

events. We consider the architecture requirements for OIN by assessing the required architectural elements

against current IoT standards. These requirements mainly consist of event description and discoverability, and

security, which together enable developers to collaboratively grow and evolve OINs. This is an intermediate

study which does not include an empirical study.

1 INTRODUCTION

In order to improve scalability, robustness, privacy,

performance and environmental impact within Inter-

net of Things (IoT) based systems computing load

is increasingly moved from server-based cloud com-

puting to distributed computing done near the event

sources. In the case of Edge Computing, the process-

ing is pushed onto the devices which communicate

events to the network (Choochotkaew et al., 2017). In

the case of fog computing, the processing is done at

various levels around the event sources including the

devices which feed base events into the event cloud,

the Local Area Network (LAN) to which the devices

whose information is being processed are connected,

on mobile devices, and anywhere on the Internet (e.g.

on cloud servers) (Perera et al., 2017).

In addition to single events conveying informa-

tion, one commonly ﬁnds that meaningful informa-

https://orcid.org/0000-0002-7353-1844

https://orcid.org/0000-0003-2845-1623

https://orcid.org/0000-0003-0511-1837

tion can be inferred from correlations of events (Luck-

ham, 2002). Identiﬁcation of event patterns produced

by event correlations is commonly done via Complex

Event Processing (CEP) (Luckham and Frasca, 1998).

These event correlations commonly involve correla-

tions across event streams and time (Choochotkaew

et al., 2017; Cugola and Margara, 2012).

Event-driven Architectures (EDAs) where deci-

sions and actions are triggered by events are used in-

creasingly to facilitate loosely-coupled asynchronous

processing within a sensory world (Dunkel, 2009;

Chandy, 2016).

The vision of ambient computing in IoT net-

works is to primarily populate environments with self-

organizing devices which use information they re-

ceive from sensors to make inferences which form the

basis for control decisions (Ali et al., 2022). Such sys-

tems would beneﬁt from an open reference architec-

ture based on a set of public standards. Even though a

lot of research has gone into platforms and standards

supporting pervasive computing, a complete and open

reference architecture enabling different parties to in-

tegrate their self-organizing devices within an envi-

510

Hammond, P., Solms, F. and Watson, B.

Architecture Requirements for Open Inference Networks.

DOI: 10.5220/0011088800003176

In Proceedings of the 17th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2022), pages 510-518

ISBN: 978-989-758-568-5; ISSN: 2184-4895

ronment of ubiquitous and ambient intelligence does

not currently exist.

In this paper, we present an intermediate study

which does not include an empirical study where we

consider the architectural requirements for an OIN

which is an open EDA facilitating incremental, co-

operative construction of a system composed of three

types of sensor, inference and activity nodes which

can be integrated external systems executing business

processes.

The system of loosely-coupled nodes is envisaged

to continuously evolve and be grown by independent

entities. The construction of such a system could

be viewed as society continuously and cooperatively

evolving an open nervous system for itself. We will

call such a system an Open Inference Network (OIN).

For an OIN to be feasible, there are a number of

critical architectural requirements covering the ability

to (a) describe the data communicated with events in-

cluding structure and relationships to its environment,

(b) discover event sources which produce events one

requires for to trigger activities or make higher-level

inferences, and (c) assess the trust level of event

sources and event source registries (d) whether an

event consumer is entitled to the information provided

by an event source.

The contributions of this paper are to:

• propose the concept of a fog-based software ar-

chitecture enabling the collaborative development

an OIN,

• to identify the standards required to facilitate an

OIN and

• to assess which standards requirements can be met

by standards speciﬁcations currently available and

which standards need to still be speciﬁed in order

to facilitate an OIN.

2 BACKGROUND

The proposed OIN would be integrated into the IoT,

would have to be able to discover the meaning and

structure of events, and would have to be able to iden-

tify event patterns resulting from meaningful event

correlations. To this end we provide an overview

of some of the concepts around IoT, ontologies, fog

computing and CEP.

IoT is a fast growing technology providing an inte-

gration infrastructure between heterogeneous objects

(such as smart devices, smart objects, sensors, actu-

ators, Radio-frequency identiﬁcation (RFID), embed-

ded computers, etc.) as well as bi-directional inter-

action between the objects and people. Objects and

environments (such as smart homes, smart cities, etc.)

have become smarter via IoT, meaning they have been

enhanced for interactions with systems and/or peo-

ple and have been computerized and equipped with

network interfaces (Rajguru et al., 2015). Physical

devices embedded with sensors and actuators inter-

connected over a network continuously gather and ex-

change data, make decisions and initiate actions in or-

der to enrich and improve the environment. These de-

cisions are based on both real-time data and historical

data (Augusto and McCullagh, 2007).

CEP is a technique used for real-time process-

ing of event streams in order to reduce event load

and to detect event patterns from which meaning-

ful higher level events are inferred. Event patterns

are speciﬁed declaratively using an Event Processing

Language (EPL) and queries are continuously exe-

cuted by an event processing or rules engine against

event streams. Event patterns may specify correla-

tions across event streams and time. This generally

requires that CEP rules engines trigger state machines

and that they make use of event caching. There exist,

a variety of EPLs as well as a number of proprietary

and open source implementations of CEP rules en-

gines.

Fog computing is deﬁned as a highly virtual-

ized platform providing computing, storage, and net-

working services between end devices and traditional

Cloud Computing Data Centers (Bonomi et al., 2012).

It bridges between cloud servers and data devices.

The key aspects of fog computing is that intelligence

and computing power is placed on the Local Area

Network (LAN). Data is transmitted from data de-

vices to a fog gateway and then to cloud servers. Fog

computing addresses the needs of IoT environments

with the high volumes of data emitted from sensors

and devices improving the overall responsiveness and

reduce network latency. Fog computing also acts as

an agent for lightweight IoT devices by keeping the

security credentials of these devices updated.

An ontology deﬁnes objects, properties, abstrac-

tions (classes) and relationships between these. On-

tologies are formally speciﬁed to standardize domain

terminology and facilitate the use of automated rea-

soners to compute inferences.

Ontologies can be speciﬁed using either the Re-

source Description Framework (RDF) or the richer

but potentially more restrictive Web Ontology Lan-

guage (OWL). RDF is widely used to describe and

exchange information on the Web. Information is pro-

vided in the form of subject-predicate-object state-

ments called triplets (e.g. “My tea is hot”). These

are commonly stored either relational databases or

triple-stores which are optimized for the task of stor-

Architecture Requirements for Open Inference Networks

511

ing triples. Each of the concepts (“my tea”, “is”,

and “hot”) would be identiﬁed through a Uniform re-

source Identiﬁer (URI) and the database entry for a

statement would have 3 columns each containing a

URI.

RDF Schema (RDF-S) is an RDF ontology intro-

ducing the concepts of literals, data types, classes and

properties as well as specialization relationships in the

form of sub-classes and sub-properties. In addition

to RDF-S, one can use the Web Ontology Language

(OWL) to specify an ontology. OWL is a richer lan-

guage which restricts the statements one can make in

order to facilitate more rigorous and more efﬁcient au-

tomated reasoning. It comes in ﬂavours (OWL-Lite,

OWL-DL and OWL-Full) of increasing expressive-

ness but reduced limitations. A valid RDF document

is not necessarily valid in OWL-Lite or OWL-DL but

is valid in OWL-Full. On the other hand, OWL-DL

guarantees computability.

3 RELATED WORK

Various studies have shown that partitioning CEP

queries and distributing complex event processing

across IoT edge devices and cloud virtual machines

reduced communication volumes and improved scal-

ability, performance, robustness, ﬂexibility and cost

(Choochotkaew et al., 2017; Ghosh and Simmhan,

2018). (Lan et al., 2019) proposed improving ef-

ﬁciency by decomposing CEP queries into subtasks

distributed across fog devices. This reduces com-

plexity the complexity of individual event processing

nodes.

Both (Ren et al., 2019) and (Li et al., 2018)

conducted comprehensive surveys architecture de-

sign of on emerging distributed fog/edge computing

paradigms in IoT networks. The studies did not the

event processing aspect.

(Cugola and Margara, 2012) introduced an appli-

cation domain that demands real-time processing into

data ﬂows based on the data content and the relation-

ship between the data in a distributed manner. They

also touched on possibly creating a rule language with

both data processing and event detection capabilities

to enhance high expressiveness in catering for uncer-

tain data and rules.

Since events are the primary concept of EDA,

they need to be described by a formal structural event

model based on a precise formalism/ontology (Schaaf

et al., 2012). The key issue of a Structural Event Mod-

els is the layered hierarchy of all event types covering

the incremental enrichment of raw sensor events into

more abstract and sophisticated domain events.

(Yemson et al., 2019; Schaaf et al., 2012; Tey-

mourian and Paschke, 2009) aimed to improve in-

ferability through semantic complex event process-

ing. However, inference based on rule deﬁnitions

with rigid expressiveness limits CEP across overlap-

ping ontologies deﬁned for different domains.

(Shaw et al., 2009) studied an architecture where

event records are analyzed as linked data from which

event characteristics and links are inferred which are

published in RDFS+OWL descriptions.

(Valle et al., 2021) identiﬁed common issues sur-

rounding the lack of understanding in the integration

of independent, heterogeneous and distributed sys-

tems but focused a high-level topological and archi-

tectural strategies for multi-system integration.

Cognitive Event Processing (CoEP) uses artiﬁcial

neural networks to learn event patterns (Yang et al.,

2015). The authors incorporated a natural language

event constructor to increase expressiveness in event

pattern deﬁnition.

4 OIN

OIN is an open network of event publishing nodes

conveying either very ﬁne grained information or

higher-level inferred information to the network for

consumption and higher level inference by other

nodes. Both, concrete (root) events as well as inferred

abstract (higher-level) events are thus available for

higher-level event detection. To this end three types

of nodes are published to an OIN:

• Sensor Nodes feed new information about the en-

vironment into the OIN. Examples include sen-

sory or device nodes which provide event streams

of sensed information and nodes which provide

information about activities in external systems.

• Inference Nodes use complex event process-

ing (CEP) to infer higher-level events from ﬁner

grained events. Complex events produced by in-

ference nodes can be used in higher level pattern

matching rules of yet higher-level nodes.

• Action Nodes are special types of inference nodes

which use detected events to trigger some action

in some external system. They may optionally

publish either the results of the action as events

or incorporate information received from external

systems within generated events which may be

consumed by other nodes to either make higher-

level inferences or trigger subsequent actions (as

in a sequential process).

For an OIN to be able to evolve within an open and

dynamic world, an OIN node must be able to conﬁg-

ENASE 2022 - 17th International Conference on Evaluation of Novel Approaches to Software Engineering

512

ure and publish itself within an OIN. To this end in-

ference and activity nodes deployed in OIN discover

event sources which they require for their rule based

inference. This requires the availability of semantic

descriptions of produced events as well as the discov-

erability of event sources producing events commu-

nicating information a node requires for its decision

making. To this end they must be able to describe

the events they need for their inference as well as the

events they produce. A semantic event description

must include:

• the semantic meaning of the (possibly inferred)

event itself (e.g. a wildﬁre),

• the meaning of complex (structured) components

of the event,

• the meaning and value of each leaf element of the

event,

• the relation of the event to other events (e.g. in

the context of CEP pattern matching - there was

an eruption), and

• for complex events, the pattern matching rule on

a semantic level.

Being an open network where different, unknown par-

ties may produce and consume events requires that

nodes to assess whether they can trust a node which

either produces or consumes events, i.e. neither will a

node generally be willing to blindly trust an unknown

event source that the events it produces are correct,

nor is the information communicated with produced

events meant to be consumable by any node owned

by some unknown party. Event sources thus need to

publish:

• their location on the internet,

• the semantics and structure of the information

contained in the events they produce,

• the technology used to encode the event (e.g.

JSON or XML),

• the physical communication channels over which

the events are made available,

• information which enables nodes to assess

whether they are willing to trust the event source

and

• optionally restrictions on who may consume the

events it produces.

4.1 OIN Application

Different entities can publish new event sources, in-

ference and action nodes to the network producing

events which may be consumed by any interested par-

ties for their purposes. A software application, on the

other hand, is meant to address some speciﬁc task. An

OIN is expected to facilitate many applications and

nodes can be shared across these. A software appli-

cation leveraging OIN would contain elements which

are not part of the OIN itself like external services,

databases, user interfaces and so on.

Consider, for example, the view onto a subset of

a potential OIN depicted in Figure 1. Part of the de-

picted OIN is used within a wildﬁre management ap-

plication. Wildﬁres are common, particularly in the

Western Cape, South Africa, where huge areas are

regularly destroyed by ﬁre leading to massive envi-

ronmental, health and safety as well as cost impli-

cations. Early detection of ﬁres is critical to reduce

damage and cost.

In areas which have high wild-ﬁre risk it is com-

mon to have a network of sensors measuring temper-

ature, air and soil humidity, carbon monoxide, wind

speed and wind-direction and light intensity (Natara-

jan and Manu, 2017).

The base layer is a sensor (diamonds) layer which

includes from left to right light-intensity, temperature,

soil-humidity, carbon monoxide, sound, rain, wind

(speed and direction), and industrial emission sensors.

The ovals represent inference nodes which use CEP

to infer higher level events from event streams rep-

resented by dashed lines with arrows indicating the

direction of event ﬂow. For example, high-ﬁre-risk

events are inferred from the ﬁre-danger CEP node

(ﬁre in a warning triangle) from light intensity, air

temperature and soil humidity events. On the other

hand the presence, intensity and area of a ﬁre are in-

ferred by ﬁre detection nodes from event streams orig-

inating from the same temperature sensors as well

as from carbon-monoxide and sound sensors. The

inferred ﬁre description events together with wind,

soil humidity and rain events are used in conjunction

with an external ﬁre-spread prediction service (which

has access to maps reporting combustible materials

such as vegetation, buildings, among others) to gen-

erate ﬁre-spread prediction events. Various warning

systems could subscribe to this inferred event stream

to issue ﬁre warnings to parties which are at health,

safety or damage risk. Furthermore, the ﬁre-spread

prediction event stream together with the ﬁre risk and

ﬁre description event streams are used by an external

ﬁre combating service to initiate and optimize the ef-

fectiveness of ﬁre combating activities.

The concept of an application is a little arbitrary

within such an architecture. It typically involves

grouping of nodes and external services based on joint

purpose and ownership. For example the ﬁre-related

Architecture Requirements for Open Inference Networks

513

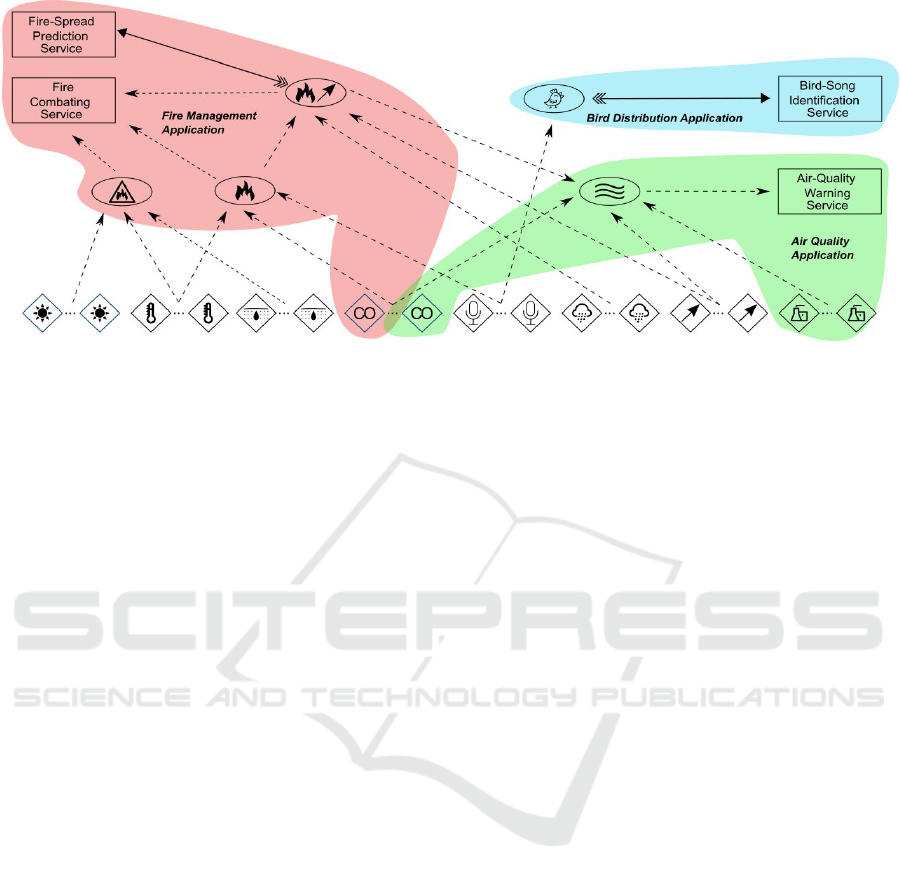

Figure 1: A view onto part of an OIN showing sensor nodes, CEP inference nodes, activity nodes, external services and

grouping into applications.

services and nodes as well as some of the carbon-

monoxide sensors are here grouped into a ﬁre man-

agement application. The application does, however,

feed off areas of the OIN which are not part of the ap-

plication itself (light-intensity, temperature, soil hu-

midity, sound, rain and wind sensors) and generates

event streams which can be consumed by other appli-

cations built around the OIN by potentially other par-

ties. For example, the inferred ﬁre-spread prediction

events from the ﬁre management application are used

in conjunction with event streams from CO, wind

and industrial emission sensors to generate air qual-

ity prediction events which can be consumed by an

air-quality warning service. The sound event streams

are not only used to detect the sounds of a ﬁre, but

also by bird song inference nodes which use an ex-

ternal bird song identiﬁcation service to generate bird

spotting events.

4.2 Limitations

Since OIN is an open community-driven network

where different parties independently deploy and re-

move different types of nodes, nodes cannot be hard-

wired to other nodes. Instead, nodes auto-conﬁgure

and auto-evolve their connectivity based on the avail-

ability of nodes which can provide streams of required

events.

IoT systems are naturally event-based systems.

EDAs have been shown to be well-suited for complex

and continuously evolving systems (Chandy, 2016).

Yet the software architectures of IoT systems are not

commonly modeled using only a subset of concepts

from EDAs.

There are a number of aspects which can be ac-

commodated within the proposed software architec-

ture but for which the architecture does not make ex-

plicit provision - i.e. it is left to either the infrastruc-

ture which deploys components into the open CEP

IoT architecture or to the logic of the nodes them-

selves. Examples include:

• the deployment of nodes may be automated and

optimized by client software feeding nodes into

the architecture (Cugola and Margara, 2012)

• Nodes may use learning algorithms to identify

meaningful event patterns and publish themselves

as event sources for such meaningful events

(Mehdiyev et al., 2015; Janjua et al., 2019)

5 APPROACH

In view of supporting the open, community-based as-

pect of an OIN, the core architectural concerns are

1. the ability to discover event sources which are in

a position to provide the information required for

certain inferences or activities and

2. the ability to assess the trustworthiness of a dis-

covered event source.

The assessment of standards support for an OIN will

hence focus on the discoverabilty and security with.

In this section, we discuss the methods used to

identify the architectural and standards requirements

around these quality attributes and to assess the re-

quirements coverage of currently available public

standards. This was done using the following ap-

proach.

1. Reﬁning the architectural requirements for the

two quality requirements.

This was done by explicitly deﬁning the objec-

tives and sub-objectives of an OIN architecture in

ENASE 2022 - 17th International Conference on Evaluation of Novel Approaches to Software Engineering

514

relation to its key quality attributes. With each

objective, its purpose, the motivation for its exis-

tence, its high-level scope of its functionality, and

its beneﬁts, opportunities and limitations were

also deﬁned.

2. Identifying aspects of these architectural require-

ments which need to be supported by public stan-

dards.

The aspects were identiﬁed by breaking the OIN

architecture into domain areas for which stan-

dards are required: Ontology speciﬁcation, rules,

data encoding, trust assessment, access control,

conceptual data structure speciﬁcation and event

source registry service (ESRS).

3. Identifying sources from which standards candi-

dates which may meet aspects of the the standards

requirements can be discovered.

This was done by investigating public standards

documentations published by standard organisa-

tions and conducting literature search on aca-

demic papers for the identiﬁed standard domains

as summarized in Table 1.

4. Associate with each standard requirement poten-

tial standard candidates which may meet the stan-

dard requirement either fully or partially.

This was done by identifying for each standard re-

quirement its domain and identifying those stan-

dards which target that domain.

5. Assessing the extend to which these standards

candidates meet the requirements.

By spanning and mapping the capabilities of ex-

isting tools that use these standards against the re-

quirements scope for each standard domain and

indicate what they can cater for the corresponding

requirement. This also includes identifying the re-

quirements for which standards still need to be de-

veloped.

6 STANDARDS REQUIREMENTS

FOR AN OIN ARCHITECTURE

The architecture of an OIN is based on the IoT and

will thus rely on the standards developed for the In-

ternet itself (TCP/IP, DNS, among others) as well

as standards used and being developed for the IoT.

These include a range of established and emerging

standards for light-weight and secure communication,

event/message publication and streaming (MQTT,

AMQP, among others), request-response messaging

as well as developing (COAP), deploying or manag-

ing nodes (TR-069 and OMA-DM) and distributing

tasks across node. For an OIN to function across tool

suites and across nodes developed and maintained by

different organizations, a set of additional standards

particularly to facilitate discoverability. This includes

standards for (a) describing primitive and complex

events, (b) encoding events, (c) assessing whether

an entity (event producer or event consumer) can be

trusted, and (d) publishing and discovering trusted

event producers (event sources or inference nodes)

which produce required events encoded in.

This section only considers standards require-

ments for an OIN. In section 7, we assess the stan-

dards availability, i.e. which standards requirements

can be met with available standards and standards

which still need to be developed.

6.1 Event Description

An event may contain event metadata common to all

events (e.g. address of the source node, the time

stamp of the event), data which is speciﬁc to the type

of event and (e.g. sensed temperature) as well as in-

ferred meaning generated by inference nodes (e.g. the

presence and attributes of a ﬁre inferred from sensed

events). Since event types are to be published by very

different entities, event consumers must be able to dis-

cover event data structures including the meaning and

relationships between data items.

Note that schema speciﬁcation standards like eX-

tensible Markup Language (XML) Schema are not

suited for an open world where the common seman-

tics could be encoded by different entities within dif-

ferent data structures. On the other hand, ontolo-

gies are speciﬁcally designed for an open world sce-

nario. They are used to share and communicate a

common understanding for different domains. OIN

require standards for specifying and querying and re-

lating ontologies. The latter includes related concepts

across ontologies including the ability to specify that

two concepts in two ontologies are equivalent. The

latter is required as different entities may work within

their own ontologies which may have semantic over-

laps with ontologies used by other, independent enti-

ties.

Additionally, an OIN will require the ability to

ing sensed or inferred events to the OIN as well as ef-

ﬁcient querying of a distributed set of related ontolo-

gies. The latter will most certainly require distributed

processing of queries (Sakr et al., 2018).

Architecture Requirements for Open Inference Networks

515

Table 1: The standard domains for OIN with corresponding public standard documentations.

Standard domain Resources

Ontology speciﬁcation

– Resource Description Format (RDF) (Gibbins and Shadbolt, 2009)

– Web Ontology Language (OWL) (Bechhofer et al., 2004a)

Rules

– Rule Interchange Format (W3C RIF) (Kifer, 2008)

– Reaction RuleML (Paschke, 2014; Paschke, 2006)

Conceptual data structure spec

– Web Ontology Language (OWL) (Bechhofer et al., 2004a)

Data encoding

– Concise Binary Object Representation (CBOR)

(Bormann and Hoffman, 2013)

– Javascript Object Notation (JSON) (Crockford and Morningstar, 2017)

– eXtended Markup Language (XML) (Bechhofer et al., 2004b)

Trust assessment &

access control

– Internet X.509 Certiﬁcate(RFC5280) (Boeyen et al., 2008)

– ISO std for information security (ISO27001) (Watkins and Safari, 2013)

Event source registry

– Standard will need to be developed

6.2 Discoverability

Since an OIN is an open inference network with nodes

being added, removed and modiﬁed continuously, a

node must be able to query event producers (sensor,

inference or activity nodes) which are both trusted and

generate events containing the information required

to either make some higher level inference or trigger

some activity. To this end, nodes must be able to pub-

lish (a) its location on the Internet, (b) the physical

event stream(s) it makes available, (c) either an em-

bedded description or a link to a description of the

events published on these event streams including –

the variable data (e.g. sensed or inferred values), and

– (c) ﬁxed data which does not change from event to

event (e.g. the physical location of a stationary node

or the units within which a measured quantity is pub-

lished), (d) the encoding used for the events, and (e)

credentials which can be used to assess whether the

producer is trusted by the consumer.

A query for suitable event producers would need

to specify a description of the information required

with the event and a set of constraints for the events

the consumer intends to receive. Event constraints

may be (a) constraints around the required data ﬁelds,

(b) constraints on ﬁxed data for an event stream (e.g.

want to only receive temperature reading from nodes

located within a speciﬁc physical region), and (d) con-

straints on the entity vouching for the data (trustabil-

ity).

Furthermore, since an OIN is an open and poten-

tially global infrastructure within which a new form

of applications is being developed, the lookup service

needs to be a hierarchical and decentralized event pro-

ducer lookup service propagating information around

event sources in a way similar to what Domain Name

Systems (DNS) currently propagate domain name in-

formation across a network of hierarchical domain

name servers. An OIN thus requires a set of stan-

dards facilitating the interoperability of such an Event

Source Registry System (ESRS).

Furthermore, as event sources are modiﬁed, re-

moved and added nodes requiring events may have

to regularly update the event channels they observe

making further queries to the ESRS.

6.3 Security

Even though an OIN is an open network, aspects of

security are very important. In particular, an OIN

faces threats of (a) access to event source registry,

(b) access to event streams, (c) encryption of event

data, and (d) certiﬁcate-chain based vouching of info

(events).

7 ASSESSMENT OF AVAILABLE

STANDARDS

In this section we consider the standards requirements

from the previous section and identify currently avail-

able standards which meet aspects of these require-

ments as well aspects of the standards requirements

which no standards could be identiﬁed. Table 2 pro-

vides a summary of the domains for which an OIN

requires standards and, when available, standard can-

didates which address these requirements.

The RDF provides a basic set of elements to de-

scribe ontologies, whilst the OWL provides a much

more extensive set of elements which also enable

one to relate ontologies and to specify equivalence

relationships between concepts within different on-

tologies. Furthermore, certain constrained OWL ver-

sions (e.g. OWL-DL) enforce computational com-

pleteness and decidability facilitating practical rea-

soning algorithms including the ability to reason in

the context of ontologies containing contradictions ei-

ENASE 2022 - 17th International Conference on Evaluation of Novel Approaches to Software Engineering

516

Table 2: The domains for which OIN requires standards and available standards meeting these standards requirements.

Standard domain Standard candidates

Ontology speciﬁcation

– Resource Description Format (RDF)

– Web Ontology Language (OWL)

Rules

– Rule Interchange Format (W3C RIF)

– Reaction RuleML

Conceptual data structure spec

– OWL, OWL-DL

– Web Ontology Language (OWL)

Data encoding

– Concise Binary Object Representation (CBOR)

– Javascript Object Notation (JSON)

– eXtended Markup Language (XML)

Mapping to physical

CBOR/RDF-JSON/XML serialization

Event messaging

MQTT, AMQP

Event streaming

Only tool-speciﬁc: Apache Kafka, IBM Event Stream, . . .

Standards facilitating ESRS

Currently no candidates available

Trust assessment

SSL/TLS with X.509 certiﬁcates

Access control

SSL/TLS with X.509 certiﬁcates

ther within an ontology or across ontologies. Reason-

ing algorithms facilitating distributed processing do

exist. Both OWL and RDF are standards maintained

by the World Wide Web Consortium (W3C).

Furthermore, both OWL and RDFS provide the fa-

cility to specify classes representing data structures.

These need to be encoded in reasonably efﬁcient

forms for the OIN. The Concise Binary Object Rep-

resentation (CBOR) provides a standard for efﬁcient

encoding of data structures. Other, less efﬁcient alter-

natives are JSON and XML schema.

The standards required for a Event Source Reg-

istry System (ESRS) as described in section 6.2 are

currently not available and will need to be speciﬁed.

Finally, trust assessment can be done using SSL/TLS

with X.509 standards around maintaining, storing and

querying certiﬁcate chains.

8 CONCLUSION

We proposed a novel fog-based software architec-

ture and development paradigm for collaboratively

developing systems within an open inference net-

work using sensor, inference and activity nodes. Lev-

els of inference nodes incrementally make infer-

ences at different levels of abstraction and make this

higher-level intelligence available to be used for fur-

ther inference or to trigger activities within systems.

An OIN requires standards for describing ontologies

and data structures, reasoning, discovering suitable

event sources through a network of hierarchical event

source registries (an event source registry system,

ESRS), publishing and streaming events and assess-

ing trustability of event sources and consumers. We

have identiﬁed standards addressing most of these re-

quirements. Areas which do not have current stan-

dards support are the standards required around the

ESRS and event streaming.

The future work will focus on including the speci-

ﬁcation of standards required for event streaming and

ESRS, and the development of a reference implemen-

tation of an OIN which will represent the proof of

concept implementation for empirical studies.

ACKNOWLEDGEMENTS

This work is based on research supported in part by

the National Research Foundation of South Africa

(NRF) (Grant number: 106028)

REFERENCES

Ali, O., Ishak, M. K., Bhatti, M. K. L., Khan, I., and Kim,

K.-I. (2022). A comprehensive review of internet of

things: Technology stack, middlewares, and fog/edge

computing interface. Sensors, 22(3).

Augusto, J. C. and McCullagh, P. (2007). Ambient intelli-

gence: Concepts and applications. Computer Science

and Information Systems, 4(1):1–27.

Bechhofer, S., Harmelen, F., Hendler, J., Horrocks, I.,

Mcguinness, D., Patel-Schneider, P., and Stein, L.

(2004a). Owl web ontology language reference.

Bechhofer, S., Harmelen, F., Hendler, J., Horrocks, I.,

Mcguinness, D., Patel-Schneider, P., and Stein, L.

(2004b). Owl web ontology language reference.

Boeyen, S., Santesson, S., Polk, T., Housley, R., Farrell, S.,

and Cooper, D. (2008). Internet X.509 Public Key In-

frastructure Certiﬁcate and Certiﬁcate Revocation List

(CRL) Proﬁle. RFC 5280.

Architecture Requirements for Open Inference Networks

517

Bonomi, F., Milito, R., Zhu, J., and Addepalli, S. (2012).

Fog computing and its role in the internet of things. In

Proceedings of the First Edition of the MCC Workshop

on Mobile Cloud Computing, MCC ’12, page 13–16,

New York, NY, USA. Association for Computing Ma-

chinery.

Bormann, C. and Hoffman, P. E. (2013). Concise Binary

Object Representation (CBOR). RFC 7049.

Chandy, K. M. (2016). Event Driven Architecture, page

1–5. Springer New York, New York, NY.

Choochotkaew, S., Yamaguchi, H., Higashino, T., Shibuya,

M., and Hasegawa, T. (2017). Edgecep: Fully-

distributed complex event processing on iot edges.

page 121–129.

Crockford, D. and Morningstar, C. (2017). Standard ecma-

404 the json data interchange syntax.

Cugola, G. and Margara, A. (2012). Low latency complex

event processing on parallel hardware. Journal of Par-

allel and Distributed Computing, 72(2):205–218.

Dunkel, J. (2009). On complex event processing for sensor

networks. In 2009 International Symposium on Au-

tonomous Decentralized Systems, pages 1–6.

Ghosh, R. and Simmhan, Y. (2018). Distributed scheduling

of event analytics across edge and cloud. ACM Trans.

Cyber-Phys. Syst., 2(4).

Gibbins, N. and Shadbolt, N. (2009). Resource description

framework (rdf).

Janjua, Z. H., Vecchio, M., Antonini, M., and Antonelli,

F. (2019). Irese: An intelligent rare-event detec-

tion system using unsupervised learning on the iot

edge. Engineering Applications of Artiﬁcial Intelli-

gence, 84:41–50.

Kifer, M. (2008). Rule interchange format: The framework.

volume 5341, pages 1–2.

Lan, L., Shi, R., Wang, B., Zhang, L., and Jiang, N. (2019).

A universal complex event processing mechanism

based on edge computing for internet of things real-

time monitoring. IEEE Access, 7:101865–101878.

Li, C., Xue, Y., Wang, J., Zhang, W., and Li, T. (2018).

Edge-oriented computing paradigms: A survey on

architecture design and system management. ACM

Comput. Surv., 51(2).

Luckham, D. (2002). The Power of Events: An Introduc-

tion to Complex Event Processing in Distributed En-

terprise Systems. Addison-Wesley.

Luckham, D. C. and Frasca, B. (1998). Complex event pro-

cessing in distributed systems. Technical report, Stan-

ford University.

Mehdiyev, N., Krumeich, J., Enke, D., Werth, D., and Loos,

P. (2015). Determination of rule patterns in com-

plex event processing using machine learning tech-

niques. Procedia Computer Science, 61(Supplement

C):395–401. Complex Adaptive Systems San Jose,

CA November 2-4, 2015.

Natarajan, T. and Manu, V. (2017). Integrated forest ﬁre and

wildlife monitoring system using wireless sensor net-

work. Journal of Embedded Systems and Processing,

2:1–7.

Paschke, A. (2006). The reaction ruleml classiﬁcation of the

event / action / state processing and reasoning space.

CoRR, abs/cs/0611047.

Paschke, A. (2014). Reaction ruleml 1.0 for rules, events

and actions in semantic complex event processing.

Perera, C., Qin, Y., Estrella, J. C., Reiff-Marganiec, S., and

Vasilakos, A. V. (2017). Fog computing for sustain-

able smart cities: A survey. ACM Computing Surveys

(CSUR), 50(3):1–43.

Rajguru, S., Kinhekar, S., and Pati, S. (2015). Analysis of

internet of things in a smart environment. Analysis,

4(4).

Ren, J., Zhang, D., He, S., Zhang, Y., and Li, T. (2019). A

survey on end-edge-cloud orchestrated network com-

puting paradigms: Transparent computing, mobile

edge computing, fog computing, and cloudlet. ACM

Comput. Surv., 52(6).

Sakr, S., Wylot, M., Mutharaju, R., and Danh Le Phuoc

(Author), I. F. (2018). Linked Data: Storing, Query-

ing, and Reasoning. Springer.

Schaaf, M., Grivas, S. G., Ackermann, D., Diekmann, A.,

Koschel, A., and Astrova, I. (2012). Semantic com-

plex event processing. Recent Researches in Applied

Information Science, pages 38–43.

Shaw, R., Troncy, R., and Hardman, L. (2009). Lode: Link-

ing open descriptions of events. In G

omez-P

erez, A.,

Yu, Y., and Ding, Y., editors, The Semantic Web, pages

153–167, Berlin, Heidelberg. Springer Berlin Heidel-

berg.

Teymourian, K. and Paschke, A. (2009). Towards semantic

event processing. In Proceedings of the Third ACM

International Conference on Distributed Event-Based

Systems, DEBS ’09, New York, NY, USA. Associa-

tion for Computing Machinery.

Valle, P. H. D., Garc

es, L., and Nakagawa, E. Y. (2021). Ar-

chitectural strategies for interoperability of software-

intensive systems: practitioners’ perspective. In Pro-

ceedings of the 36th Annual ACM Symposium on Ap-

plied Computing, pages 1399–1408.

Watkins, S. and Safari, a. O. M. C. (2013). An Introduction

to Information Security and ISO27001:2013, A Pocket

Guide, Second Edition. IT Governance Publishing.

Yang, J., Ma, M., Wang, P., and Liu, L. (2015). From

complex event processing to cognitive event process-

ing: Approaches, challenges, and opportunities. In

2015 IEEE 12th Intl Conf on Ubiquitous Intelligence

and Computing and 2015 IEEE 12th Intl Conf on

Autonomic and Trusted Computing and 2015 IEEE

15th Intl Conf on Scalable Computing and Commu-

nications and Its Associated Workshops (UIC-ATC-

ScalCom), pages 1432–1438. IEEE.

Yemson, R., Konur, S., and Thakker, D. (2019). A novel

semantic complex event processing framework for

streaming processing. In Proceedings of the 9th In-

ternational Conference on the Internet of Things, IoT

2019, New York, NY, USA. Association for Comput-

ing Machinery.

ENASE 2022 - 17th International Conference on Evaluation of Novel Approaches to Software Engineering

518
