Integrity: An Object-relational Framework for Data Security

Elder Costa, Jo

ao Pedro Lorenzo De Siqueira, Carlos Eduardo Pantoja

and Nilson Mori Lazarin

Centro Federal de Educac¸

ao Tecnol

ogica Celso Suckow da Fonseca (Cefet/RJ), Rio de Janeiro, RJ, Brazil

Keywords:

Software Engineering, Cryptography, Database.

Abstract:

Considering the recent laws that discuss how user data must be collected, treated, stored, and protected, design-

ing and developing projects considering the information security in application systems is necessary. Given

that cryptographic functions available in database management systems are limited to some data types, this

work proposes an object-relational framework to add data security using a process to mask data in the persis-

tence layer of a layered application.

1 INTRODUCTION

Recent scandals involving cyberattacks, such as data

leaks of more than 540 million Facebook users and

Twitch streamers’ billing, have become increasingly

recurrent and show that information security plays

a signiﬁcant role in protecting sensitive information

from your users.

The growing number of internet users, the services

digitization, and the need to ensure the security of

users’ sensitive data have led governments worldwide

to reformulate, approve and enact new laws that ad-

dress these issues. The General Data Protection Reg-

ulation (GDPR), the California Consumer Privacy Act

of 2018 (CCPA), and the Personal Information Pro-

tection and Electronic Documents Act (PIPEDA) are

some examples of current laws in Europe and North

America. These legislations pressure companies to

develop security and protection solutions for the data

that travels through their systems and are susceptible

to the most varied types of attacks.

Regarding data storage, some Database Manage-

ment Systems (DBMS) such as MariaDB/MySQL,

PostgreSQL, Oracle or SQLServer, provide native en-

cryption functions, such as AES ENCRYPT, pgcrypto,

DBMS CRYPTO or ENCRYPTBYKEY. However, all

these DBMS have some limiting factor in providing

the information security of the stored data due to the

cryptography functions that are restricted to certain

types of data, not covering types such as date, int or

decimal. Thus, these systems do not provide secu-

https://orcid.org/0000-0002-7099-4974

https://orcid.org/0000-0002-4240-3997

rity for data that may contain sensitive information

about a user or company, such as date of birth or a

customer’s cash balance, for example. There are also

limitations in services that do not work on data that

are in production like (Zhang et al., 2018), which of-

fers the data masking.

This work aims to present Integrity, an object-

relational mapping framework for information sys-

tems development that presents a model based on

combinations of existing cryptographic algorithms to

mask the data. Integrity gets application data and per-

forms data masking on selected columns using a pre-

deﬁned application-level and design-time key deﬁned

by the developer team. In this way, the data is stored

masked in the relational database. The data will only

make sense when the inverse process is carried out at

the application level by Integrity. With this other data

types like date can be encrypted.

The Integrity framework was developed using the

C# programming language and tested through a proof

of concept to demonstrate the assertiveness of its main

features. The main contribution of this work is an

object-relational framework to encrypt varchar data

and mask date data in relational databases.

This work is structured as follows: Section 2 ex-

plains the basic concepts and algorithms needed to

understand how Integrity works. In Section 3, some

related works are discussed. In Section 4, the frame-

work and its implementation are presented. In Section

5, a case study is presented, showing how the frame-

work works, and, ﬁnally, in Section 6, the conclusions

are presented.

Costa, E., Lorenzo de Siqueira, J., Pantoja, C. and Lazarin, N.

Integrity: An Object-relational Framework for Data Security.

DOI: 10.5220/0011088100003179

In Proceedings of the 24th International Conference on Enterprise Information Systems (ICEIS 2022) - Volume 1, pages 259-266

ISBN: 978-989-758-569-2; ISSN: 2184-4992

259

2 THEORECTICAL REFERENCE

Information Systems Security is the set of actions

that protect information systems and their stored data

meeting three fundamental principles: Conﬁdential-

ity, where only authorized users can access the stored

information; Integrity, in which only authorized users

can change the information stored; Availability, in

which the information must be available whenever

necessary (Kim and Solomon, 2014).

Encryption is one of the most used methods to

provide Conﬁdentiality to data in information sys-

tems. This technique consists of processing unen-

crypted data, operating at the bit level, combined with

a key, producing an output called ciphertext without

linguistic cohesion. This ciphertext can be transmit-

ted or stored in insecure channels or media because

if this information is stolen, it cannot be viewed by

an unauthorized user (Tanenbaum, 2003)(Kim and

Solomon, 2014).

2.1 AES Key Expansion

Advanced Encryption Standard (AES) is a symmetric

iterated block cipher in which the processed plaintext

block size is 128bits, and the cryptographic key can

vary from 128, 192, or 256 bits. The algorithm’s in-

ternal operations are performed on a byte array called

state that has four rows and four columns. The given

key deﬁnes the number of iterations to be performed

on the state array. A subkey, generated through an

expansion process, is used at each iteration of AES

(Dworkin et al., 2001).

During the expansion process, the received key is

copied to the ﬁrst four words as shown in the gen-

eral algorithm of Figure 1, and the expanded keys are

ﬁlled with four words of each turn. Each word in-

cluded W

depends on the previous word, W

i−1

, and

the word four positions behind, W

i−4

. For each word

in the array where the position is not a multiple of 4,

only one XOR operation is performed, otherwise it is

submitted to a function. The function illustrated in

Figure 1, has three processes, according to (Stallings,

2015):

• RotWord: Byte-by-byte circular shift to the left.

• SubWord: A byte-by-byte substitution of the word

is performed using the AES substitution table,

available in (Dworkin et al., 2001).

• RCon: The result of steps 1 and 2 goes through

a logical operation XOR with the round con-

stant, represented in hexadecimal, where: RC

[01]; RC

= [02] ; RC

= [04] ; RC

= [08] ; RC

[10]; RC

= [20] ; RC

= [40] ; RC

= [80] ; RC

[1b]; RC

= [36].

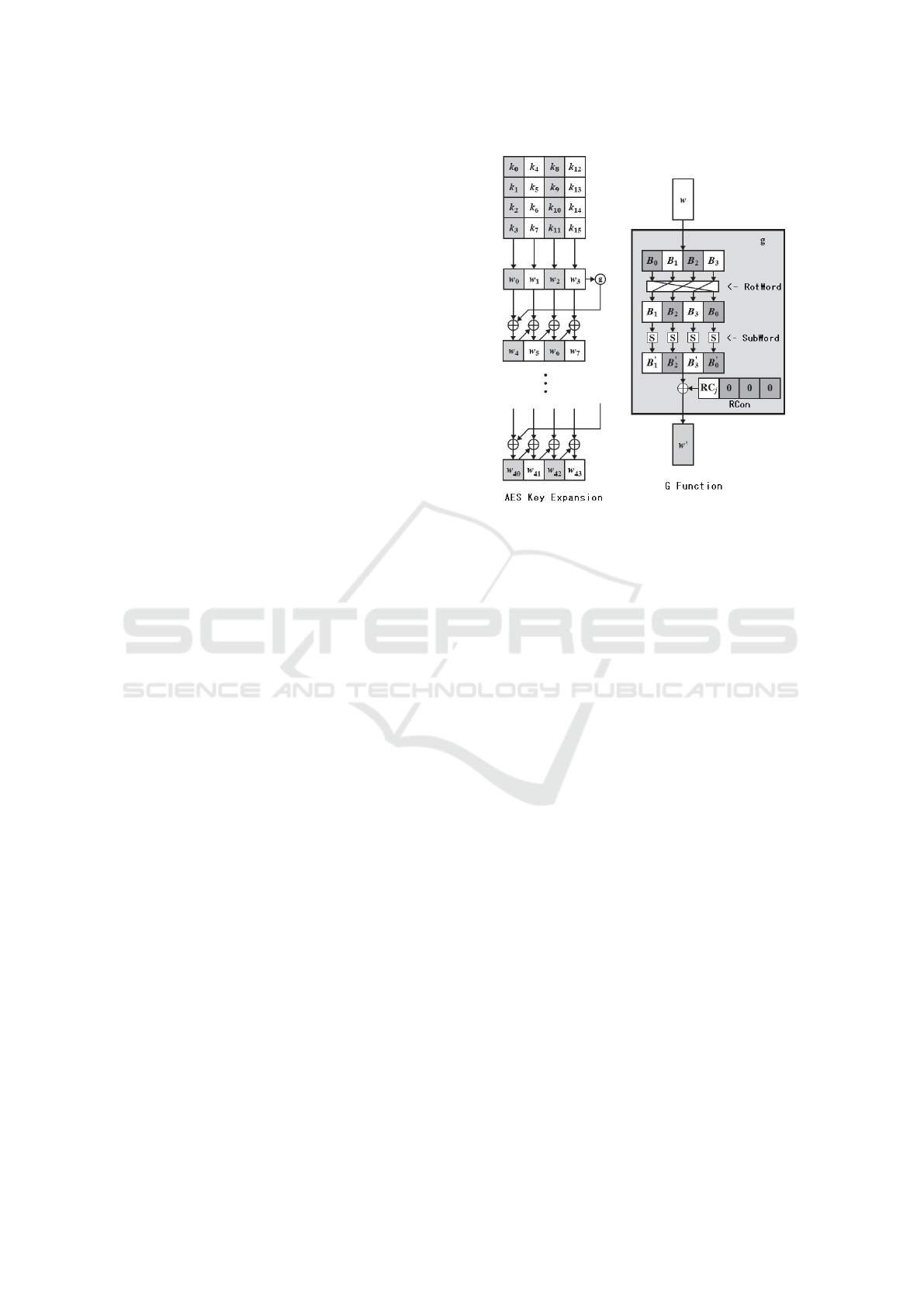

Figure 1: AES Key Expansion, adapted of (Stallings, 2015).

2.2 Feistel Networks

According to (Stallings, 2015), the Feistel Cipher is

an encryption/decryption algorithm, which takes as

input a key and a block of bits called plaintext. This

block is divided into two halves, L

and R

. These

halves go through rounds of processing and then com-

bine to produce the ciphertext. The blocks produced

in the previous round and a subkey derived from the

initial key are used as input for each processing round.

All rounds follow the same pattern, where a re-

placement is performed on the left half using an XOR

operation with the right half of the operation associ-

ated with a predeﬁned function using the round key.

After all the described operations, a permutation is

made between the blocks where the right side be-

comes the left side and vice versa, thus forming a

substitution-permutation network.

2.3 Secure Hash Standard

Hash functions are iterative, one-way algorithms that

can process a variable-length input message to pro-

duce a ﬁxed-size, condensed representation called di-

gest. These algorithms work on the Integrity pillar

since they determine the integrity of a message. Any

change in the input message will, with high proba-

bility, result in a different digest. The SHA-256 al-

gorithm deals with messages of up to 2

input bits,

providing a ﬁxed output of 256bits (Dang, 2015).

ICEIS 2022 - 24th International Conference on Enterprise Information Systems

260

3 RELATED WORK

Transparent Encryption for the database Abstraction

Layer (TEAL) (Lorey et al., 2016) says that data se-

curity is guaranteed as there is no need for the storage

service provider to obtain data encryption keys. The

Database abstraction layer is a way of translating dif-

ferent speciﬁc commands of the existing DBMS on

the market.

Likewise, DBCrypto (Deshpande et al., 2012) en-

crypts data by rewriting queries using the Vigen

ere

cipher, a form of simple sum-of-numbers encryption.

The keys are stored in the application, and, therefore,

whoever has access to the data in the database will not

be able to know their real values. There is a different

operation for each type of query. At each call, the

query changes to adapt to the encrypted database.

In LGPD Compliance (Pitta et al., 2020), the au-

thors’ main objective was legacy systems using a

technique to perform a dump of the original base and

change the structure of the tables, changing the types

of stored data and later applying AES for disk per-

sistence. This technique also employed data tables in

primary memory with data obfuscation to speed up

queries. They use query modiﬁer codes to store data

inside the database. However, DBCrypto searches the

encrypted database only for speciﬁc data types.

In this work, we use obfuscation for date data

type. Different from TEAL, our proposed approach

allows comparisons with an obfuscated date without

the need to decipher, consequently speeding up query

processing in this case. Because it is not necessary

to decipher all table data to perform the comparison

with the date in plain text, like (Lorey et al., 2016).

In this work, we use Advanced Encryption Stan-

dard to cipher data type varchar different from

DBCrypto our proposed approach uses a modern

cryptographic algorithm. Furthermore, (Deshpande

et al., 2012) uses a cryptographic method that has al-

ready been broken and has fallen into disuse for a long

time, compromising the effectiveness of the security

applied.

Finally, this work presents a data obfuscation pro-

cess for disk persistence keeping the column’s origi-

nal data type, unlike LGPD Compliance. (Pitta et al.,

2020) transforms all tables in the database on blob

data type to storage on the hard disk, and part of

the unencrypted database is mirrored in a temporary

database in primary memory.

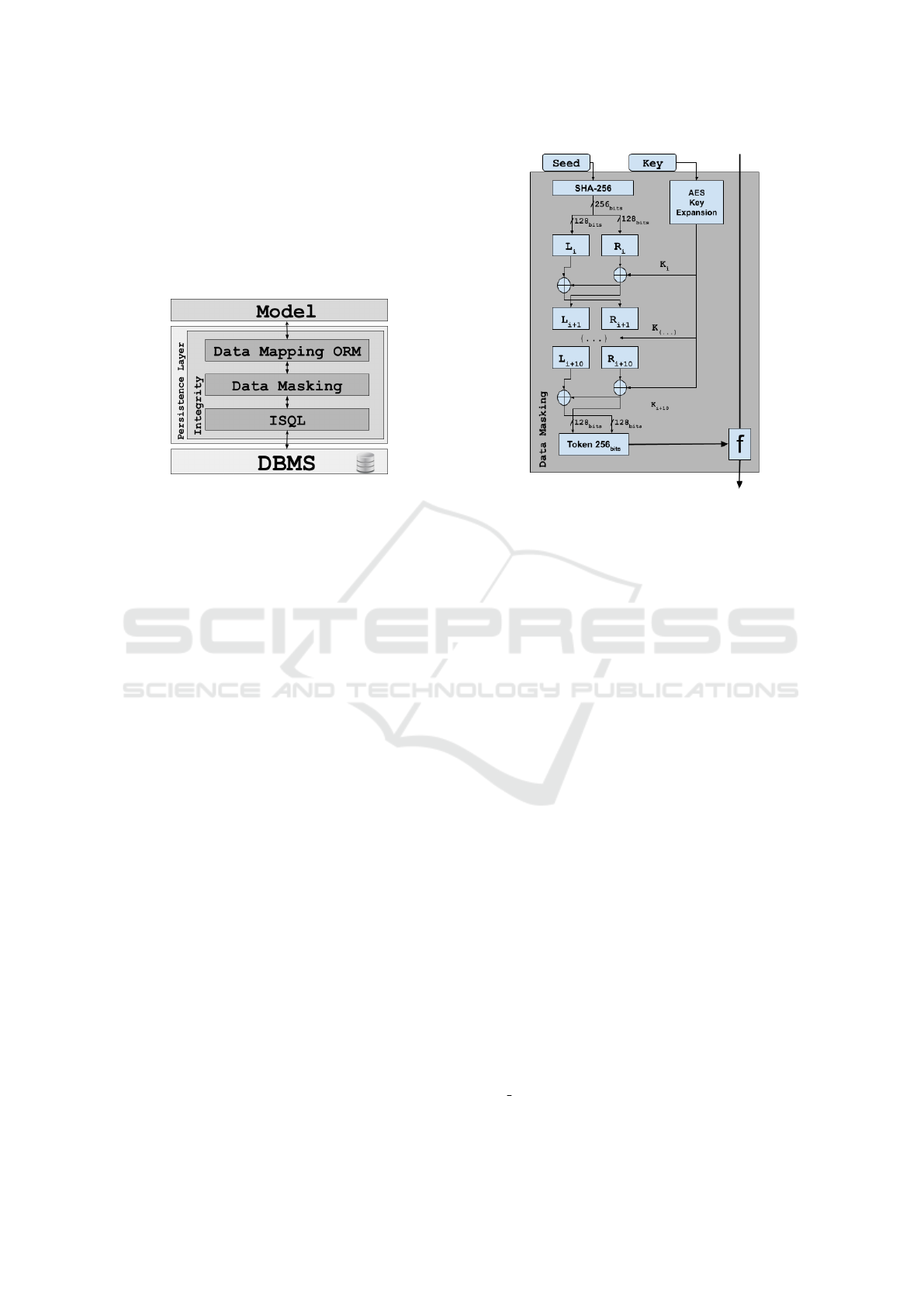

4 INTEGRITY FRAMEWORK

This work presents an alternative for protecting data

types that are not supported by the native crypto-

graphic functions of the main DBMS. Situated in the

data persistence layer, at the application level, the

proposed model acts on a pillar of information secu-

rity not conventionally explored, Integrity. According

to (Hintzbergen et al., 2018), Integrity refers to the

consistency and accuracy of the intended state or in-

formation, and any unauthorized modiﬁcation of data

is a violation of data integrity. In this way, the pro-

posed model acts by deliberately manipulating the in-

tegrity of the data to be stored.

A scenario where a buyer interacts by entering

some personal and sensitive data on a large retailer’s

purchase site is proposed to illustrate the functioning

of the Integrity framework. Bob accessed a large re-

tailer’s site to purchase a product he had been look-

ing for in a while. Bob was redirected to the pay-

ment page upon selecting his product and placing it

in the shopping cart. Bob then enters his personal and

credit card details for payment. The system asks if

Bob wants to keep his card details registered in the

system. As Bob wants to make future purchases eas-

ily and quickly, he conﬁrms his credit card details into

the system. The system then stores the name printed

on the card, the expiration date, and Bob’s secret card

number. However, after a while, due to an internal se-

curity breach, the database with the card information

of several users was leaked, exposing Bob’s data.

The Integrity framework can be used at the ap-

plication level as an object-relational mapping frame-

work where data is already encrypted in the database

to avoid data exposure in these situations. In this

way, once the data is sent from the model layer to the

data persistence layer, Integrity performs an object-

relational mapping, transforming the object model

into a relational model preparing it for storage in a

database. After this, the Data Masking process ob-

fuscates the data using Feistel and AES Key Expan-

sion ciphers in the case of Date ﬁelds. If the data is of

String type, the data is encrypted. Next, Integrity SQL

(ISQL) automatically assembles the SQL query for

the data store. In case of a query to retrieve encrypted

or masked information from the database, ISQL does

the opposite process, taking the encrypted String data

and leaving the text unencrypted.

However, in the case of the Date type, as there

is a maximum representation limitation, masking can

leap. Then, ISQL builds the query considering the ﬁ-

nite body size. Therefore, when using Integrity, even

if the data were exposed, it would not make any sense

to whoever obtained it. Figure 2 shows the architec-

Integrity: An Object-relational Framework for Data Security

261

ture of the Integrity framework. For example, if the

retail company system adopts Integrity when register-

ing the name Bob and the credit card expiration date

of 2022-01-01 the framework would encrypt the name

and obfuscate the expiration date by taking a leap in

the ﬁnite body, storing the information in the database

with the values X5rMlOVrdE0BqjXKii3VvA== and

8806-12-14.

Figure 2: Schema of Integrity.

In Date types, the value is limited to the size of

the ﬁnite ﬁeld, so it is possible to jump with the date

beyond the pre-established limit in the DBMS. For

example, the Date type in MySql only supports dates

with limits between 0001-01-01 to 9999-12-31, or a

range of 3652060 days. With the proposed cipher and

algorithm, a date 2022-01-01 could exceed this limit,

causing an error when inserted into the database. In-

tegrity uses the MOD operation to overcome this is-

sue, limiting the ﬁeld’s size and creating a new date

with its integrity broken, but within the range limits,

without generating an overﬂow error when saving it.

Integrity does not intend to prevent data from be-

ing leaked but rather, if attacked, to be exposed in a

non-integral manner, so the data do not make sense to

the attacker and prevent its use in any way.

4.1 Data Masking

The Data Masking process, represented in Figure 3,

receives the data to be manipulated, a 128-bit key de-

ﬁned by the developer in the system’s source code and

an automatically generated seed. This seed is derived

from the initial seed, the table structure, and the col-

umn chosen to be encrypted. Consequently, the aim

is to increase entropy and make difﬁcult an attack by

frequency analysis since each table column will use a

different seed in the masking process.

The Data Masking process follows the following

steps:

• The encryption key [K] is submitted to the AES

Key Expansion routine (Dworkin et al., 2001),

generating 10 128-bit subkeys [K

], [K

]...[K

Figure 3: Data Masking.

• The seed is submitted to SHA-256 (Dang, 2015),

generating a ﬁxed-length 256-bit output that is

later split into two 128-bit parts, [R

] and [L

] .

• The two parts of the SHA-256 digest and the 10

subkeys are subjected to a 10-round Feistel Net-

work.

• Each round, a logical operation X OR is performed

between the round subkey [K

] with the 128bits

] right side.

• The output of this operation becomes the left side

of the next round [L

i+1

], besides it is operated

again (XOR) with the left side of the [L

] round,

generating the right side of the next round [R

i+1

The output of the Feistel Network generates a 256bit

Token that is submitted to a function.

For data masking of the date the token into an In-

teger, representing the amount of ”leaps” that will be

added to the data to be obfuscated unsing the follow-

ing: Data

Masked

= Data

Clear

+ (Token mod N).

• N is the ﬁeld limit according to the data type in

the chosen DBMS, being responsible for the leap

assigned to the overﬂow of the ﬁeld limit.

The same output will be when the same input (key

and seed) enters the algorithm’s tokenization process.

In this way, the data restoration process takes place

by reducing the Data Obfuscated by the Token, as fol-

lows: Data

Clear

= Data

Ob f uscated

− (Token mod N).

For data encryption of the varchar type, the AES

algorithm is used because native functions such as

AES ENCRYPT() require varbinary or blob. In this

case, the 256bit token is used as the encryption pass-

ICEIS 2022 - 24th International Conference on Enterprise Information Systems

262

word (128bit MSB) and initialization vector (128bit

LSB).

4.2 Implementation

Integrity can be used to extend an application’s per-

sistence layer, implemented as a library. It is based

on three main features:

• Object-relational Mapping: represents database

tables in the application as objects so that entropy

generation is possible using the attributes deﬁned

in the class combined with the key also conﬁgured

at the application.

• Data Persistence: must be able, through object-

relational mapping, to create commands and

queries for persistence in the database.

• Security and Obfuscation: it obfuscates and re-

stores the data integrity using the algorithm pre-

sented in section 4.1, considering commands cre-

ated for data persistence and the entropy gener-

ated by the object-relational mapping.

This version

was built in the C# language using

the .NET Core 5.0 development platform and the Vi-

sual Studio IDE. The development considered only

the MySql DBMS and only dealt with the Datetime

and varchar data types. The Integrity class diagram

can be seen in Figure 4. Integrity is structured in three

class libraries:

• Core, which contains the main classes for the li-

brary functioning.

• Attributes, which contain everything related to

the classes’ attributes for the library’s object-

relational mapping.

• Lib, which contains useful classes for implement-

ing data persistence and security.

The Core class library is the core of the package. It

contains the main classes for conﬁguration, relational

mapping, base repository, and security, namely:

• IntegrityConﬁguration is responsible for the ini-

tial conﬁguration of the application by invok-

ing the ConﬁgureIntegrity method. It invokes

the other major libraries’ methods to store the

database Connection String, the Cipher Key, and

the Entropy Key.

• IntegrityBaseRepository is the abstract class that

must be extended by the application’s persistence

layer classes and provides the methods developed

for integrity functioning for persistence and data

reading.

https://gitlab.com/eldercosta/integrity-csharp

• IntegrityMapperRepository is the class responsi-

ble for the object-relational mapping of the li-

brary. It is responsible for creating the insert,

delete, update, and select commands. In addition,

when using the methods of the IntegritySecurity-

QueryLanguage class, it deﬁnes the parameters to

be saved in the database.

• IntegritySecurityQueryLanguage is the class that

has the deﬁnitions and encryption algorithm of the

library and this approach. It provides the methods

for obfuscating the data and recovering the origi-

nal data.

The Attributes class library has everything related

to object attributes for implementing the library’s

object-relational mapping and contains the following

classes:

• AttributesUtils is the class that contains utilities

for manipulating the attributes deﬁned in the en-

tities, such as creating a parameter dictionary re-

turning a list of attributes from the object’s prop-

erties.

• Column is the column attribute that captures and

relates the column name in the database to the ob-

ject’s properties.

• Key is the attribute that deﬁnes a speciﬁc property

as a table key.

• Table is the attribute that deﬁnes the table’s name

that refers to the object in use in the application.

All attributes listed are mandatory for the library

to function. It is possible to create the database’s

queries and commands from them. They are deﬁned

in the application’s Entity classes. The Lib class li-

brary contains useful classes for implementing data

persistence and library security, as following:

• IntegrityDatabaseUtils has utilities for saving the

database connection string used by the application

to create a connection to the DBMS.

• MysqlConstants has constants deﬁned by the

DBMS to be considered in the data leap accord-

ing to the ﬁeld limit of the employed ﬁeld, as is

the Date case.

• AesService is the class that implements the 128-

bit AES algorithm, which provides the key expan-

sion methods used for token generation. We chose

to use AES-128 CBC because the token output is

256bits divided into two parts, one for the initial-

ization vector and one for the encryption key.

The sequence diagram interconnecting all the

messages exchanges by objects in the Integrity frame-

work can be seen in Figure 5.

Integrity: An Object-relational Framework for Data Security

263

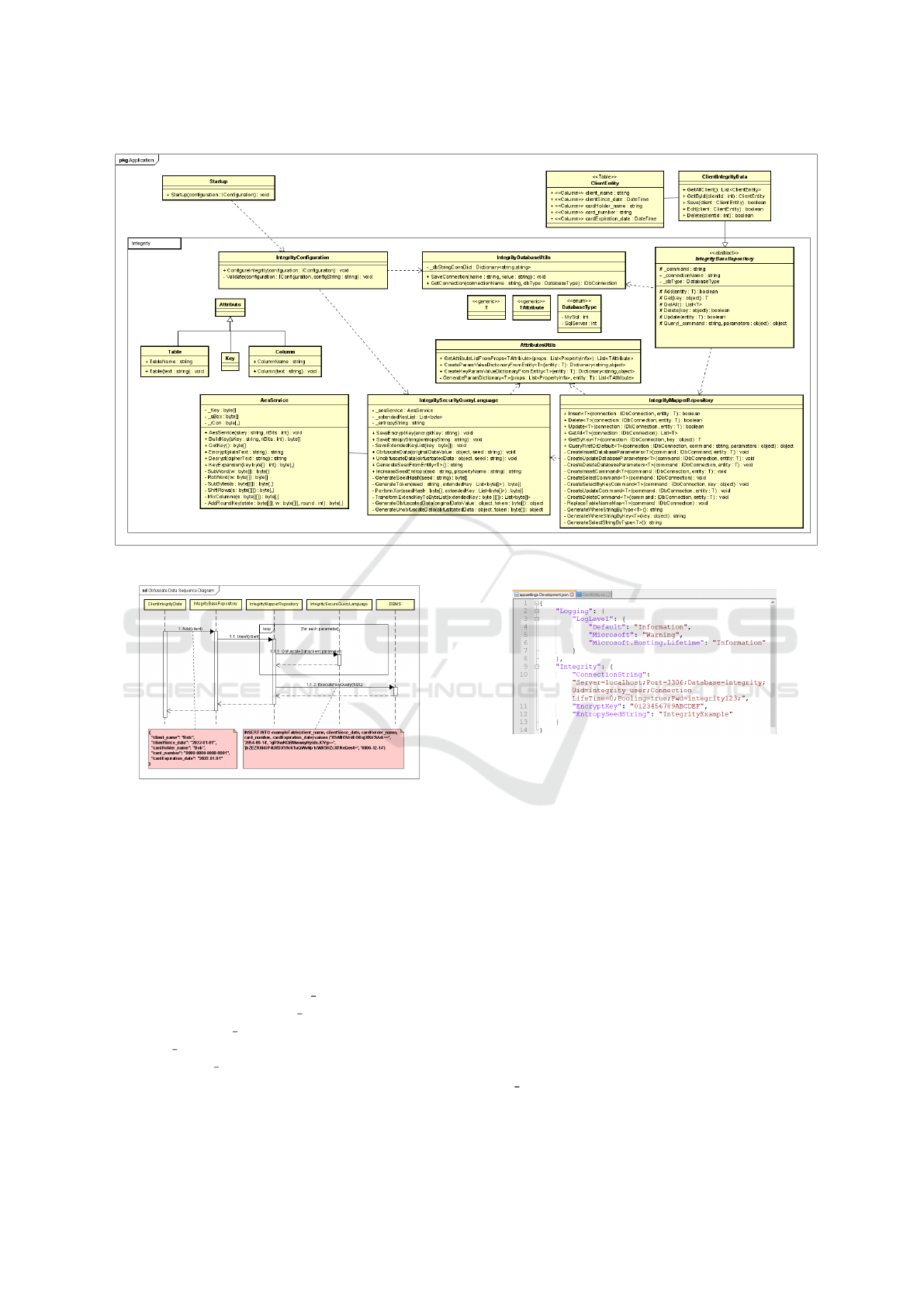

Figure 4: Class diagram of the Integrity framework.

Figure 5: Sequence diagram of Integrity.

5 CASE STUDY

A case study is presented based on the scenario

proposed in Section 4, where Bob and Alice reg-

ister their data on a retailer’s platform to show

how Integrity works. The case study will be con-

ducted from the developer’s perspective on how In-

tegrity works on the backend. The case study will

store the customer name (client name varchar(256)),

registration date (clientSince date date), cardholder

name (cardHolder name varchar(256)), card num-

ber (card number varchar(256)), and expiration date

(cardExpiration date date) in a database. The ﬁelds

using varchar and date will be encrypted and obfus-

cated.

Figure 6: Integrity’s conﬁguration ﬁle.

From the developer’s point of view, an initial pass-

word (EncryptKey=0123456789ABCDEF) and an

initial seed (EntropySeedString=IntegrityExample)

are deﬁned, which will be used in the obfuscation and

encryption of the application data, as shown in the

Figure 6.

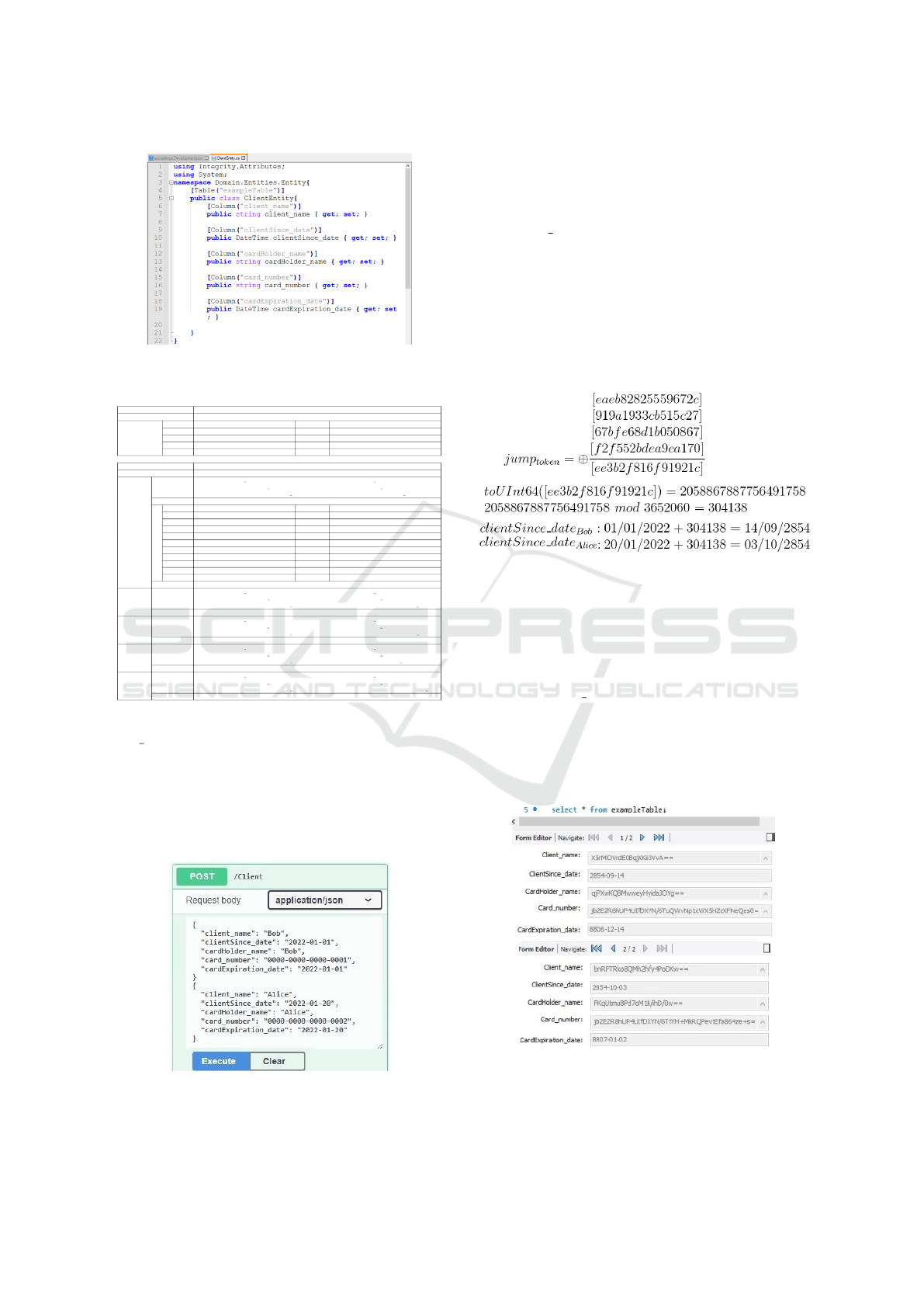

Afterward, it is created a class in the business

model layer named ClientEntity with ﬁve columns, as

shown in Figure 7.

Each column of the table receives a different to-

ken, generated from the EncryptKey and Entropy-

SeedString deﬁned in the conﬁguration ﬁle. Then,

when the data is persisted in the database, the names

and dates will be different. It makes difﬁcult fre-

quency attacks. The token generation process is pre-

sented in Table 1.

When the system is in production, the

client name Bob and Alice will be persisted

as X5rMlOVrdE0BqjXKii3VvA== and bnRP-

ICEIS 2022 - 24th International Conference on Enterprise Information Systems

264

Figure 7: The ClientEntity class.

Table 1: The Token Generator.

EncryptKey: 0123456789ABCDEF

EncryptKey (HEX): 30313233343536373839414243444546

AES Key

Expansion

SubKey1: 2a5f68291e6a5e1e26531f5c65175a1a SubKey2: d8e1ca64c68b947ae0d88b2685cfd13c

SubKey3: 56df21f39054b589708c3eaff543ef93 SubKey4: 4400fd15d454489ca4d87633519b99a0

SubKey5: 40ee1dc494ba55583062236b61f9bacb SubKey6: f91a022b6da057735dc274183c3bced3

SubKey7: 5b9164c0363133b36bf347ab57c88978 SubKey8: 3336d89b0507eb286ef4ac83393c25fb

SubKey9: c309d789c60e3ca1a8fa902291c6b5d9 SubKey10: 41dce20887d2dea92f284e8bbeeefb52

EntropySeedString: IntegrityExample

Seed (base64): SW50ZWdyaXR5RXhhbXBsZQ==

client

name

Seed:

exampleTableclient nameSW50ZWdyaXR5RXhhbXBsZQ==clientSince dateSW50ZWdyaXR5

RXhhbXBsZQ==cardHolder nameSW50ZWdyaXR5RXhhbXBsZQ==card numberSW50ZWdy

aXR5RXhhbXBsZQ==cardExpiration dateSW50ZWdyaXR5RXhhbXBsZQ==client name

Digest: 5f6bc40b98ece33944b50a8475660b2334642867c59b03755456e9e47c095d4f

L1: 5f6bc40b98ece33944b50a8475660b23 R1: 34642867c59b03755456e9e47c095d4f

L2: 1e3b404edbf15d6b7205f6b8191e0755 R2: 41508445431dbe5236b0fc3c6c780c76

L3: 99b14e2185962a28d668771ae9b7dd4a R3: 878a0e6f5e677743a46d81a2f0a9da1f

L4: d1552f9cce33c2cad4e1bf0d05ea358c R4: 48e461bd4ba5e8e20289c817ec5de8c6

L5: 0ce49ca89ff1a07ea651be24bdc67166 R5: ddb1b33451c262b472b00129b82c44ea

L6: 9d5faef0c57837ec42d22242d9d5fe21 R6: 91bb32585a899792e4839c6664138f47

L7: 68a130733729c0e1b941e87e58284194 R7: f5fe9e83f251f70dfb93ca3c81fdbfb5

L8: ae6ffa43c460c4be90608d97d63536cd R8: c6ceca30f349045f292165e98e1d7759

L9: f5f812abf64eef7747d5c96ab72152a2 R9: 5b97e8e8322e2bc9d7b544fd6114646f

L10: 989e3f61f42017687f4fd4dff0d2d1b6 R10: 6d662dca026ef81f389a1db547f38314

MSB: 2cbacfc285bc26b617b2533ef91d7846 LSB: b424f0a3719c31de68fd87e109cfa9f0

Token: 2cbacfc285bc26b617b2533ef91d7846b424f0a3719c31de68fd87e109cfa9f0

clientSince

date

Seed:

exampleTableclient nameSW50ZWdyaXR5RXhhbXBsZQ==clientSince dateSW50ZWdyaXR5

RXhhbXBsZQ==cardHolder nameSW50ZWdyaXR5RXhhbXBsZQ==card numberSW50ZWdy

aXR5RXhhbXBsZQ==cardExpiration dateSW50ZWdyaXR5RXhhbXBsZQ==clientSince date

Token: eaeb82825559672c919a1933cb515c2767bfe68d1b050867f2f552bdea9ca170

cardHolder

name

Seed:

exampleTableclient nameSW50ZWdyaXR5RXhhbXBsZQ==clientSince dateSW50ZWdyaXR5

RXhhbXBsZQ==cardHolder nameSW50ZWdyaXR5RXhhbXBsZQ==card numberSW50ZWdy

aXR5RXhhbXBsZQ==cardExpiration dateSW50ZWdyaXR5RXhhbXBsZQ==cardHolder name

Token: df0518fe3f471230a27d3de9b4c2dbf3978a451fa9c92b1f812366521a4b18da

card

number

Seed:

exampleTableclient nameSW50ZWdyaXR5RXhhbXBsZQ==clientSince dateSW50ZWdyaXR5

RXhhbXBsZQ==cardHolder nameSW50ZWdyaXR5RXhhbXBsZQ==card numberSW50ZWdy

aXR5RXhhbXBsZQ==cardExpiration dateSW50ZWdyaXR5RXhhbXBsZQ==card number

Token: a5ff1f0a01551de922e44bd90673441a9455673307976c00cf8d4adbd12602c1

card

Expiration

date

Seed:

exampleTableclient nameSW50ZWdyaXR5RXhhbXBsZQ==clientSince dateSW50ZWdyaXR5

RXhhbXBsZQ==cardHolder nameSW50ZWdyaXR5RXhhbXBsZQ==card numberSW50ZWdy

aXR5RXhhbXBsZQ==cardExpiration dateSW50ZWdyaXR5RXhhbXBsZQ==cardExpiration date

Token: e281e063a1a79bb936566e85fb7e0d4553c7bd4ae1d3541873f5009997148c53

TRko8QMh2hfy4PoDKw==, the cardExpira-

tion date will be persisted as 12/14/8806 and

01/02/8807, as shown in Figure 10. Identical dates

will be stored to exemplify the behavior of Integrity

since the jump of each column of the table is dif-

ferent. Thus frequency attack in the masked data is

harder to perform. Figure 8 shows the submitted data

in clear.

Figure 8: Sending data to storage.

To calculate the leap used in the

obfuscation of Date ﬁelds, the token

(eaeb82825559672c919a1933cb515c2767bfe68d1b0

50867f2f552bdea9ca170) generated for the ﬁeld

clientSince date was used. The Token is divided

into 64bit words. A jumptoken is obtained through

the exclusive-or operation between each word of

the token. The jumptoken is converted to a 64-bit

unsigned Integer. The mod is calculated with N, in

this case, 3652060, which is the day limit of the date

ﬁeld in MySQL. The result (304138) is the number

of days to be added to the date. The process is shown

in Figure 9.

Figure 9: Date leap calculation.

For varchar ﬁelds, the AES-128 algorithm is

used in CBC operating mode. The most sig-

niﬁcant bits of the generated token are used as

the key and the least signiﬁcant bits are used

as the initialization vector. In the case of

the ﬁeld client name, which received the token

(2cbacfc285bc26b617b2533ef91d7846b424f0a3719c

31de68fd87e109cfa9f0), it uses:

• key = [2cbacfc285bc26b617b2533ef91d7846]

• iv = [b424f0a3719c31de68fd87e109cfa9f0]

Figure 10: Bob’s and Alice’s stored data.

When the system retrieves information from the

database, the Integrity framework does the inverse

Integrity: An Object-relational Framework for Data Security

265

process, considering the columns’ annotations and

seeds deﬁned in the source code. Then, the data is

retrieved unencrypted or unobfuscated. Integrity was

designed to make all the encryption and data obfus-

cation processing transparent to the system developer

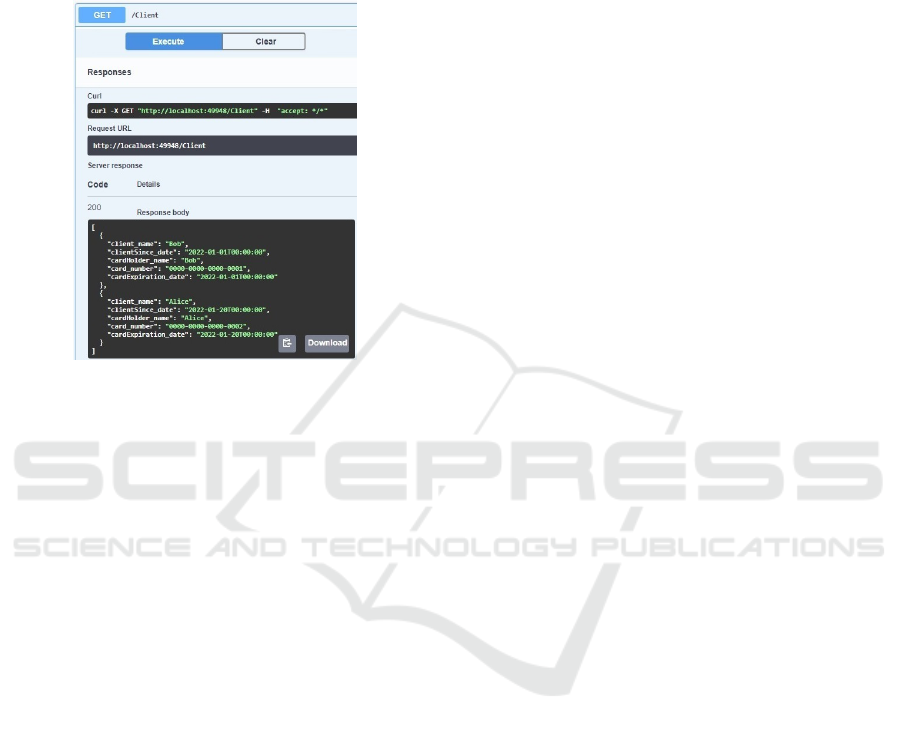

and user. Figure 11 shows the recovered data.

Figure 11: Return data.

When a query with date comparison is performed,

the informed date also goes through the leap process

before the query is performed, so there is no need to

deobfuscate all dates in the column to perform the

comparison.

6 CONCLUSIONS

This work presented a framework for object-relational

mapping that aims to obfuscate the information in

the database, leaving the responsibility of the cryp-

tographic process to the application layer instead of

delegating this process to the database management

system. Likewise, the framework aims to make the

entire process transparent for the developer, who only

needs to interfere in the solution’s source code to de-

ﬁne passwords and which columns will suffer data ob-

fuscation. In this way, developing software consider-

ing the new data protection laws is facilitated.

The data will be stored in the database in an obfus-

cated way. The data that Integrity has persisted will

be meaningless to those who illicitly obtain it if there

is an information leak. Not even the Database Admin-

istrator will have access to such information since the

system development team deﬁnes the password and

the name of the attributes used in the cyphering pro-

cess.

As future works, Integrity will be part of the

Spring framework in Java to take advantage of all the

infrastructure already available and for its wide use

in the market. Other types of ﬁelds will also be used

in Integrity, such as the Integer since only String and

Date data are currently being used in this version. We

opted for working ﬁrstly in two data types to reduce

the scope of this work. Though, as future works, we

intend to integrate data types with a ﬁnite body well-

deﬁned, as the IEEE 754 standard data types.

The framework provides the search for exact data

in the database or by date range. However, searching

for data using a String snippet in an obfuscated ﬁeld

is an open challenge. Thus, solutions to these limita-

tions will be studied and proposed.

REFERENCES

Dang, Q. (2015). Secure Hash Standard. Federal Inf. Pro-

cess. Stds. (NIST FIPS), National Institute of Stan-

dards and Technology, Gaithersburg, MD.

Deshpande, A., Patil, A., Joshi, S., and Bothara, S. (2012).

Article: Dbcrypto: A database encryption system us-

ing query level approach. International Journal of

Computer Applications, 45(8):27–32.

Dworkin, M., Barker, E., Nechvatal, J., Foti, J., Bassham,

L., Roback, E., and Dray, J. (2001). Advanced

Encryption Standard (AES). Federal Inf. Process.

Stds. (NIST FIPS), National Institute of Standards and

Technology, Gaithersburg, MD.

Hintzbergen, J., Hintzbergen, K., Smulders, A., and

Baars, H. (2018). Fundamentos de Seguranc¸a da

Informac¸

ao: com base na ISO 27001 e na ISO 27002.

Brasport.

Kim, D. and Solomon, M. G. (2014). Fundamentos de

seguranc¸a de sistemas de informac¸

ao. LTC, Rio de

Janeiro, 1a edition.

Lorey, K., Buchmann, E., and B

ohm, K. (2016). TEAL:

Transparent Encryption for the Database Abstraction

Layer. In Proceedings of the CAiSE’16 Forum at

the 28th International Conference on Advanced Infor-

mation Systems Engineering, pages 13–17, Ljubljana,

Slovenia.

Pitta, P. E. B., Costa, E., de Siqueira, J. P. L., and Lazarin,

N. M. (2020). LGPD Compliance: A security persis-

tence data layer. In Anais da XVIII Escola Regional de

Redes de Computadores, pages 123–127, Porto Ale-

gre, RS, Brasil. SBC.

Stallings, W. (2015). Criptograﬁa e seguranc¸a de redes:

princ

ıpios e pr

aticas. Pearson Education do Brasil,

ao Paulo, 6 edition.

Tanenbaum, A. (2003). Redes de computadores. Elsevier.

Zhang, M., Xie, G., Wei, S., Song, P., Guo, Z., Liu, Z.,

and Cheng, Z. (2018). Dmsd-fpe: Data masking sys-

tem for database based on format-preserving encryp-

tion. In Wan, J., Lin, K., Zeng, D., Li, J., Xiang, Y.,

Liao, X., Huang, J., and Liu, Z., editors, Cloud Com-

puting, Security, Privacy in New Computing Environ-

ments, pages 216–226, Cham. Springer International

Publishing.

ICEIS 2022 - 24th International Conference on Enterprise Information Systems

266
