Implementing Test Driven Development in the Big Data Domain:

A Movie Recommendation System as an Exemplary Case

Daniel Staegemann

, Matthias Volk

, Priyanka Byahatti, Nikhilkumar Italiya, Suhas Shantharam,

Apoorva Byaladakere Chandrashekar and Klaus Turowski

Magdeburg Research and Competence Cluster VLBA, Otto-von-Guericke University Magdeburg, Magdeburg, Germany

{daniel.staegemann, matthias.volk, priyanka.byahatti, nikhil.italiya, suhas.shantharam, apoorva.bc,

Keywords: Big Data, Test Driven Development, TDD, Microservice, Software Engineering, Quality Assurance.

Abstract: As a consequence of the ongoing digitalization in today’s society, the amount of data that is being produced

is rapidly increasing. Moreover, not only the volume of the data is growing, but there are also more complex

types of data and, depending on the use case, it is also necessary to integrate heterogenous data into one

analysis. Since traditional ways of dealing with data are oftentimes overstrained by those new challenges,

novel approaches and technologies have been developed. In its entirety, this phenomenon is summarized

under the term big data. However, quality assurance in the big data realm is still not mature and this even

more applies to the actual testing. Therefore, it is necessary to explore new approaches. One rather recent

proposition was the application of the test driven development methodology to the big data domain. To further

evaluate its feasibility and go beyond a purely theoretical point of view, the publication at hand discusses the

test driven implementation of a movie recommendation system as an exemplary case. In doing so, it facilitates

the general understanding of the topic, helps in judging the approach’s feasibility and provides some practical

insights concerning its actual application.

1 INTRODUCTION

As a consequence of the ongoing digitalization in

today’s society (Musik and Bogner, 2019), the

amount of data that is being produced is rapidly

increasing (Herschel and Miori, 2017). Moreover,

those data are not only produced, but oftentimes also

captured, stored and/or analyzed. However, not only

the volume of the data is increasing, but there are also

more complex types of data (e.g. image, audio or

video) and, depending on the use case, it is also

necessary to integrate heterogenous data into one

analysis (Volk et al., 2020b). Since traditional ways

of dealing with data are oftentimes overstrained by

those new challenges (Zhu et al., 2019), novel

approaches and technologies have been developed,

which are subsumed under the terms big data (BD),

respectively big data analytics (BDA).

When implemented and applied correctly, BDA

promises noticeable benefits (Müller et al., 2018). Yet,

its utilization is a highly complex endeavour that is

https://orcid.org/0000-0001-9957-1003

https://orcid.org/0000-0002-4835-919X

based on several dimensions (Staegemann et al.,

2019).

On the one hand, the data utilized as input have to

be of high quality to allow for good results (Hazen et

al., 2014), while on the other hand, those who operate

and steer the systems have to be qualified (Lee, 2017).

Further, if BDA is supposed to support human

decision making, those that are in charge also need to

be willing to incorporate the findings instead of

ignoring them or only using them when it is to support

their own pre-determined opinion (Günther et al.,

2017). In addition, even if the aforementioned factors

are sufficiently covered, the actual implementation of

a BDA application is also a highly challenging task

(Volk et al., 2019; Volk et al., 2020a). Subsequently,

a very important part of that process is the testing of

the developed solution. However, quality assurance

in the big data realm is still not mature and this even

more applies to the actual testing (Davoudian and Liu,

2020; Ji et al., 2020). Therefore, it is necessary to

explore new approaches (Staegemann et al., 2021b).

Staegemann, D., Volk, M., Byahatti, P., Italiya, N., Shantharam, S., Chandrashekar, A. and Turowski, K.

Implementing Test Driven Development in the Big Data Domain: A Movie Recommendation System as an Exemplary Case.

DOI: 10.5220/0011085600003194

In Proceedings of the 7th International Conference on Internet of Things, Big Data and Security (IoTBDS 2022), pages 239-248

ISBN: 978-989-758-564-7; ISSN: 2184-4976

239

One rather recent proposition was the application of

the test driven development methodology to the big

data domain (Staegemann et al. 2020b). To further

evaluate its feasibility and go beyond a purely

theoretical point of view, the publication at hand is

committed to answering the following research

questions:

RQ1: Is the test driven development methodology a

feasible approach for implementing big data

applications and how can it be applied?

RQ2: What are the implications and findings of

applying the test driven development methodology in

a big data context?

While only one single exemplary case is regarded and,

therefore, a general statement cannot be deducted

solely based on this contribution, it will facilitate the

general understanding of the topic, help in judging the

approach’s feasibility and provide some practical

insights concerning its actual implementation.

For this purpose, the remainder of this work is

structured as follows. After this introduction,

necessary background information concerning the

concepts of big data and test driven development are

given. Afterwards, the exemplary task is introduced

and some of its challenges highlighted. Subsequently,

in the fourth section, the actual implementation is

described. This is followed by a discussion of the

corresponding findings. Finally, a conclusion is

provided and potential directions for future research

are highlighted.

2 BACKGROUND

To provide a foundation that the ensuing parts of the

publication at hand can build upon, in the following,

the concepts of big data and test driven development

are briefly discussed.

2.1 Big Data

With the amount of data being produced, captured

and analysed rapidly increasing as well as its

complexity and the demands for its processing

growing, traditional applications that were previously

used for its harnessing are oftentimes no longer

sufficient (Chang and Grady 2019). Subsequently,

new tools and techniques had to be developed, which

are able to satisfy the challenges posed by this new

trend that is referred to as big data.

While there is no unified definition for the term

(Al-Mekhlal and Ali Khwaja 2019; Volk et al. 2020c),

the understanding in the majority of the pertinent

literature is quite similar. The arguably most popular

description (Chang and Grady 2019) is based on the

4 Vs of big data, namely volume (number of data

entries and size of data sets), velocity (speed of

incoming data and speed requirements for the

processing), variety (diversity of data in structure and

content) and variability (changes in data over time).

Since improved decision making can benefit

organizations across various fields of activity, BDA

is being applied to a plethora of domains, such as

agriculture (Bronson and Knezevic 2016), education

(Häusler et al. 2020), healthcare (Bahri et al. 2019),

manufacturing (Nagorny et al. 2017) and sports (Goes

et al. 2020) to name just a few.

2.2 Microservices

The microservice concept generally bases on

decomposing an envisioned application into a number

of smaller services that interact with each other

(Nadareishvili et al. 2016). Usually, those are based

on business functionality, which allows for a high

degree of specialization. They all run in their own

processes and the communication between those

services is realized only over lightweight mechanisms.

Furthermore, they can be heterogeneous regarding the

programming languages and technology stacks used

for their implementation (Freymann et al. 2020).

Those properties allow for them to be deployed

independently of each other by utilizing continuous

deployment tools and pipelines.

While componentization is generally considered a

good software engineering practice, it is often seen as

challenging to achieve a high degree of modularity

(Faitelson et al. 2018). However, with microservices,

this is achieved by design. This also translates to a

reduced effort for maintenance and modifications,

because for changes it is often sufficient to only

redeploy the affected service. Consequently, an

evolutionary design is promoted, which is driven by

frequent and controlled changes (Krylovskiy et al.

2015).

2.3 Test Driven Development

In the literature (Staegemann et al. 2021a), test driven

development (TDD) is highlighted as a promising

approach to improve an implementation’s quality.

This is mainly achieved by influencing two aspects.

Following this strategy, the test coverage is increased,

which helps to find errors and, further, the system’s

IoTBDS 2022 - 7th International Conference on Internet of Things, Big Data and Security

240

design is changed, since emphasis is given to

breaking it down into the smallest sensible pieces.

This helps to avoid issues and mistakes that are

caused by high complexity and increases

maintainability (Crispin, 2006; Shull et al., 2010).

Besides software development, applications of TDD

can also be found in other domains such as ontology

development (Davies et al., 2019; Keet and

Ławrynowicz, 2016) and process modelling (Slaats et

al., 2018). Yet, in the context of the publication at

hand, those are not as relevant.

Usually, in software development, after a desired

feature has been determined, it is implemented and

then tested. When applying TDD, instead, the order

of those activities is changed. Therefore, after it is

decided which change is to be realized, it is broken

down into the smallest reasonable parts (Fucci et al.,

2017). Subsequently, one or more tests are written for

those, to assure that they are working as intended.

Then, those tests are run with the expectation of them

failing, since the new functionality still needs to be

implemented (Beck, 2015). Consequently, if the test

succeeds nevertheless, this means that it is not

sufficiently designed and needs to be reworked. After

the test failed, the actual productive code is created to

implement the desired functionality. However, there

is no need for it to already be perfectly and elegantly

designed, since the goal is to provide the simplest

solution that passes the previously written tests

(Crispin, 2006). Only after this is achieved, the code’s

refactoring ensues to improve factors like the

readability or its compliance with best practices and

standards (Beck, 2015). At the same time, the tests are

constantly executed to assure the functionality is not

negatively affected by the refactoring.

As stated previously, due to the emphasis on small

tasks and incremental modifications (Williams et al.,

2003), instead of comprehensive implementations,

following TDD has not only implications on the test

coverage, but also the software’s design. Furthermore,

the short test cycles (Janzen and Saiedian, 2005)

resulting from the frequent succession of testing and

productive coding gives the developer more timely

feedback. Unit tests make up the majority of tests in

TDD, however, also other types of tests, such as

acceptance, integration or system tests can be utilized

(Sangwan and Laplante, 2006).

To facilitate the intended frequent execution of

tests without requiring too much of the developer’s

valuable time and attention, as it would be the case

with manual performance, TDD is often used together

with test automation in a continuous integration (CI)

pipeline (Karlesky et al., 2007; Shahin et al., 2017).

Whenever a new commit happens, a CI server runs all

applicable tests, therefore assuring that the change did

not induce new errors into the already existing code.

2.4 Test Driven Development in Big

Data

As indicated in the introduction, the application of

TDD to the BD domain is a promising approach to

assure the quality when developing BD applications,

with the use of microservices being proposed as the

technical foundation (Staegemann et al., 2020b). This

appears sensible, since TDD is, inter alia, based on

breaking down the desired application into the

smallest reasonable parts. Therefore, a rather

monolithic approach would be against the philosophy.

Microservices, however, facilitate such a modular

design (Shakir et al., 2021). Harnessing microservices

allows to create a separate service for each business

functionality, which, in turn, now only allows for

independent scaling, but also enables the developers

to distribute the implementation across teams and

always use the most effective technology stack for

each situation, instead of using a homogeneous

toolset.

Especially in highly demanding settings, such as

in the BD domain, this can be a substantial advantage.

Further, by applying TDD, it is rather easy to make

changes to the application, e.g., by swapping,

modifying, or adding components. Since there are

pre-existing tests for all the functions, it is possible to

directly check if the change caused any issues to the

system or if it is still working as intended. This

increases flexibility and quality, but also trust, which

is important to avoid incorrect use of the BDA

solution (e.g. only using it to try to justify their own

preferential decisions instead of actually building

them on the data), especially in highly dynamic

business environments that require more frequent

adaptations and are consequently also more prone to

corresponding errors (Günther et al., 2017;

Staegemann et al., 2020a).

All in all, when considering the quality assurance

of BD applications, there should be a synergy

between TDD and the use of microservices, giving

the approach proposed in (Staegemann et al., 2020b)

merit. Yet, right now there appear to be only

theoretical considerations, which are still to be

subjected to a feasibility check. Although this is

beyond the scope of a singular, exemplary project, the

publication at hand aims to provide initial insights

into the topic that can be built upon in the future.

Implementing Test Driven Development in the Big Data Domain: A Movie Recommendation System as an Exemplary Case

241

2.5 Docker

Docker is a platform used to build, deploy, and

manage containerized applications. Docker provides

an isolated environment for applications with the

operating system and dependencies required to run

that application, which makes it easier to deploy the

application in any environment (Cito et al., 2017).

Building separate containers for each microservice

will allow for the independent development and

scaling for any particular microservice. Usually, each

microservice contains predefined API paths, which

enable it to perform actions such as a status check of

other microservices or running unit tests. Most of the

data transfer and connection between microservices is

done using API endpoints. Therefore, any container

can be replaced by modifying the source code in that

particular container while keeping the API endpoints

the same.

3 THE EXEMPLARY TASK

To explore the practical application of TDD in the BD

domain, it is necessary to find a suitable and realistic

task whose findings can be generalized at least to

some extent. Therefore, for the publication at hand,

the development of a movie recommendation system

was chosen. Since the provisioning of

recommendations is a typical big data use case

(Bansal and Baliyan, 2019), this application can be

seen as a rather dynamic scenario (Staegemann et al.,

2020a), and the implementation of such a system can

be easily broken down into small parts, it seems

perfectly suitable for the expressed purpose. However,

it has to be emphasized, that the developed system is

not intended for productive use and the scientific

interest is the primary motivator. Therefore, the

application of the TDD methodology is also more

important than specific choices as for specific

programming languages or certain data sources.

To assure a certain degree of complexity, there are

several functionalities that shall be implemented. The

primary function is the visualization of information

regarding movie data for a time frame chosen by the

user, namely the best and worst movies by rating, the

number of movies produced and the movie

distribution by genre. Further, the user can have a

synopsis of a chosen movie displayed. The synopsis

is also used as input for a generator that provides the

user with a number of tags that characterize the movie.

Moreover, a recommender engine informs the user

which movies might be of interest for them.

Corresponding to the topic of the publication at hand,

the development was to be conducted in a test driven

manner, allowing for a continuous monitoring of the

application’s quality by applying CI. Since for TDD

in a BD setting the use of microservices appears to be

the most sensible choice (Staegemann et al., 2020b),

the design and the opportunities provided by the

system and its architecture are also influenced by the

decision for TDD.

While, through the visualizer, the different

capabilities are combined to provide the user with all

the relevant information, the tag predictor and the

recommendation engine shall also be able to be used

as independent applications. This highlights the

modularity of the microservice approach, allowing to

utilize individual functionalities as building blocks in

different contexts, adding a great degree of flexibility

for the developers.

4 THE IMPLEMENTATION

For building the microservices, Python and Javascript

were used, while the PostgresSQL database was

chosen for data storing. The frontend user interface

was designed with HTML and CSS. However, it was

kept rather simple since a productive use was not the

focus of the project. To containerize the application,

Docker was used. For testing, the Pytest framework

from Python’s libraries was used and the entire

project workflow is set up using Github Actions. As

indicated in the previous section, the application as a

whole is divided in three services that are each built

from several microservices. Those main services are

the Visualizer, the Movie Tags Predictor and the

Recommendation Service. Further, there is a

Dashboard service that allows to monitor the status

of all the other microservices. The overall

architecture is shown in Figure 1.

To obtain the data and assure data heterogeneity,

several sources were used, namely the Internet Movie

Database (IMDb - https://www.imdb.com/), Kaggle

(https://www.kaggle.com/) and MovieLens

(https://movielens.org/).

4.1 Visualizer

The visualizer is built from three microservices, Data

Collector, Database and Webpage. The Data

Collector gathers the data from the IMDb homepage

and then sends it to the database after cleaning the

data. Apart from the IMDb movie dataset, this service

also uses the MovieLens dataset containing ratings

given by users to the movie. In order to avoid

downloading data every time a user opens a webpage,

IoTBDS 2022 - 7th International Conference on Internet of Things, Big Data and Security

242

the Database service is used to store the cleaned

movie data that can be accessed by the Webpage

service when needed. The latter contains a web page

that users can interact with. Its landing page shows

four different charts. Data shown in the charts can be

modified based on different parameters given to the

charts. For example, in the "Highest rated movies

chart”, users can change year and number of movies

using a slider to display the top-rated movies

according to their settings. Apart from this, users can

also get more details about any particular movie

shown in the chart by clicking on the bar related to

that particular movie. Upon clicking, a new webpage

opens with additional details of that movie such as

synopsis, tags (from the tags predictor service), and

recommendations (from the movie recommender

service). In order to get the synopsis, the IMDb

website is scraped.

Upon starting the Visualizer service, it runs

integration tests. First of all, it checks whether all the

required microservices are online. If this test passes,

it checks the Database for a copy of older data. If old

data is found, the Webpage microservice opens the

port for users showing visualizations from old data

and sends an API request in the background to the

Data Collector microservice to download new data

and updates the visualizations as soon as the new data

is stored in the Database. If old data is not found in

the Database, it sends an API request to the Data

Collector and waits until the data is stored to the

Database before opening a port for users.

4.2 Movie Tags Predictor

Since the actual movie tag prediction is not the main

content of the project, but only a means for exploring

the application of TDD, the implementation is not a

new development and instead aligned with an already

preexisting endeavor (Panda 2020). The data used in

the Movie Tags Predictor service is obtained from the

Kaggle website. Kaggle is an online community with

a focus on data science and machine learning, where,

inter alia, relevant datasets can be downloaded. The

used dataset comprises approximately 14.000 movies

and different attributes explaining the movies. An

attribute containing the plot synopsis

(plot_synopsis) is the primary independent

attribute, and Tags is the dependent target variable.

The plot synopsis data is used for training a Naive

Bayes Classifier (Ting et al. 2011).

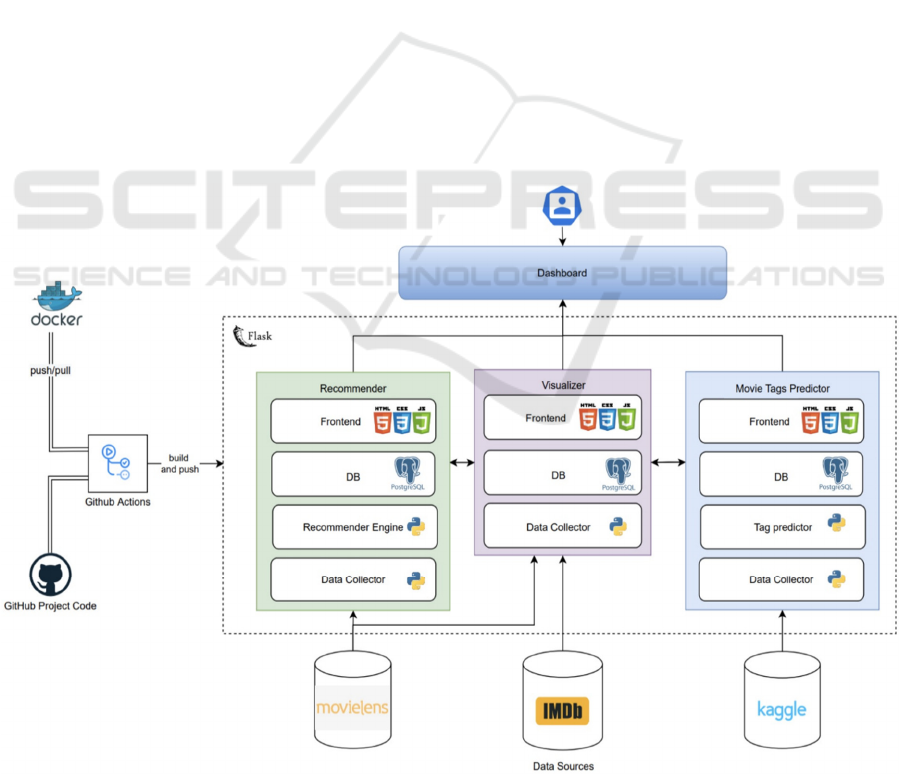

Figure 1: The implemented application's architecture.

Implementing Test Driven Development in the Big Data Domain: A Movie Recommendation System as an Exemplary Case

243

The idea behind this service is to collect the plot

synopsis of any movie and return hash tags that

summarize the overall theme of the movie. When

using the service not in the context of the

comprehensive application but as a standalone

solution, the user can input any text (in this case the

plot of any movie) into a text field and hit the submit

button to receive hash tags representing the movie,

which are subsequently displayed below the text field.

The movie tags predictor service is divided into

several other microservices such as Processor,

Predictor and Webpage. Those microservices

communicate with each other using REST APIs.

When the movie tags predictor service is started, all

three containers (processor, predictor, and web page)

go live. During this process, the Processor downloads

the labelled data (containing several movie variables

with ‘tags’ as a target variable) from Kaggle and then

performs some data preprocessing. Subsequently, the

Predictor gets the processed data from the Processor

using the API and builds a Machine Learning model

on this data.

The Webpage service contains UI files such as

HTML and CSS files but also the core Flask app logic.

The Preprocessor service is programmed to source the

labelled data from Kaggle and then perform text

processing techniques on this main input variable that

is plot_synopsis such as lemmatization, stop

word removal and stemming. Once the synopsis is

clean and ready, it is loaded into Postgres tables for

storage purposes. At the first instance when an

application is live, the Predictor service builds a

machine learning model (Naive Bayes) on top of the

processed data received from the Preprocessor and

saves the model. When it receives test data i.e., every

time a user inputs a new synopsis, it gets this data

from the Preprocessor and gives it as an input to the

model and outputs the generated prediction.

4.3 Recommendation Service

The movie recommender application suggests the

user the next movie to watch after being provided the

name of a movie they enjoyed as an input. While this

is a huge simplification when regarding a productive

use context, for the purpose of the conducted project

it is sufficient, since the quality of the algorithms isn’t

the focus. The movie Recommendation Service

consists of four microservices: Data Collector,

Database, Recommender, and Webpage. The Data

Collector downloads the data from MovieLens and

sends it to the database after performing basic data

cleaning tasks. The Database microservice uses

PostgresSQL and stores the data from the Data

Collector. For the Recommender microservice, the

purpose is to give recommendations based on the

input title of any movie the user liked. The

recommendations are provided using collaborative

filtering methods. The MovieLens dataset contains

information about movies and ratings given by each

user. With help of this information, a matrix is created,

and the recommendations are provided using the k

nearest neighbor method. Finally, the Webpage

microservice provides an interface for users to get the

recommendations for any movie. This microservice

takes all the movies stored in the Database into

account. Those are then used for auto-completion.

When the user presses the recommend button, it sends

an API request to the Recommender microservice and

returns all the received recommendations. The results

can be removed using the reset button.

4.4 Dashboard

The Dashboard is independent of all the other

services. Its webpage shows all the microservices

along with their status, whether they are online or

offline. Each microservices can also be manually

checked, using the check button. The dashboard is

also designed to automatically re-check the status of

every microservices after a specific time interval.

Currently it is set to 5 Minutes. Apart from this, every

24 hours, the microservice will also update the data in

the database by sending a request to the respective

microservice. All the Webpage microservices that can

be accessed by the user are hyperlinked and can be

accessed from the dashboard.

4.5 The Testing

In the given project, unit testing and integration

testing are applied, which corresponds to the basic

testing techniques in TDD (Kum and Law 2006).

4.5.1 Unit Testing

Each of the developed microservices contains testing

scripts to validate each container’s results before it is

executed. To illustrate, Figure 2 shows a simple test

function that tests the functionality of the function

decontracted(phrase). It converts each contraction of

an input phrase to its expanded, original form, thereby

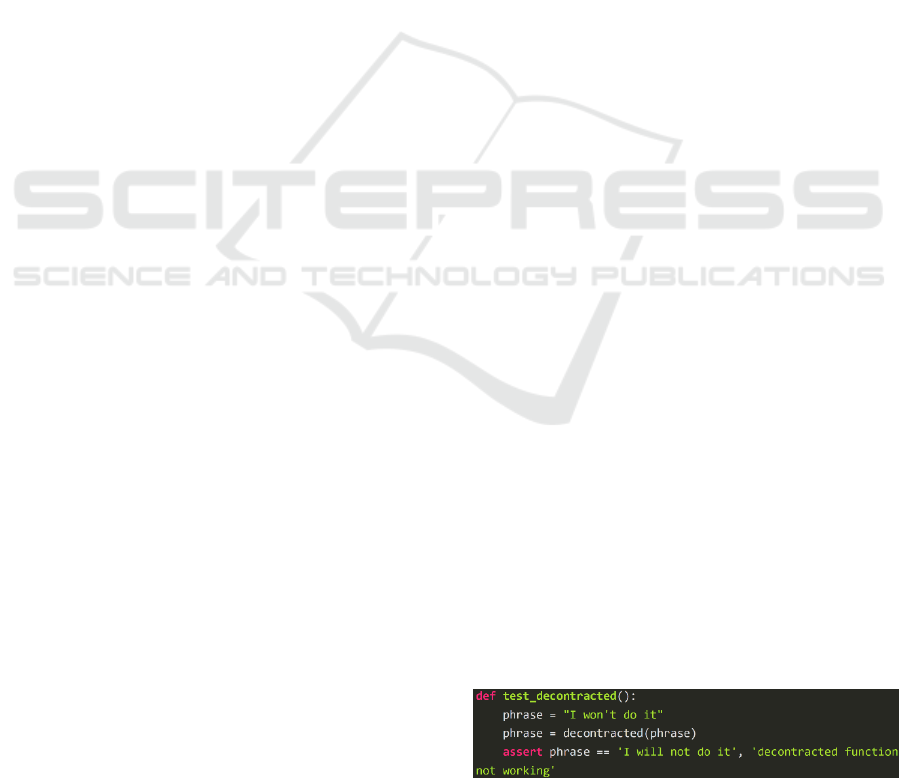

Figure 2: Example of a unit test for text processing.

IoTBDS 2022 - 7th International Conference on Internet of Things, Big Data and Security

244

helping with text standardization. Accordingly,

test_decontracted() is a test function that validates

decontracted(phrase).

A non-exhaustive list of further tests used in the

course of the project comprises:

 checking whether the correct data is

downloaded from a provided link

 checking whether the link is up and running and

has no issues from the server on which it is

hosted

 checking whether the connection to the database

is established

 checking whether all the tables are created in the

database to store the downloaded data

 checking whether the correct data is present in

the tables created

4.5.2 Integration Testing

Integration tests are implemented in in all the

Webpage microservices. In each of the three main

services, the Webpage service will start after all the

other microservices related to that main service have

started. Therefore, it is important to have integration

tests for the Webpage microservice. They will check

if all the microservice required for the Webpage

microservice to work properly are running. Then,

using dummy data, the functionality is tested. If the

results from these tests match the expectations, then

the port for that main service is opened for the users.

For example, the Webpage microservice in the

Recommender service requires the Database,

Collector, and Recommender microservices to be up

and running. So first the Webpage microservice will

check the status for these microservices. If all of them

are running, then it will send a dummy movie name

and try to get movie recommendations as a response.

If such recommendations are received, the service is

ready for users and the port for users will be opened.

5 DISCUSSION

While the application itself was scaled down in terms

of aspects like usability and design, it is still adequate

for the publication at hand’s purpose since the

underlying architecture is of sufficient complexity.

Consequently, it can be considered to constitute a

representative use case and, therefore, allows to

answer the research questions.

As the preceding illustrations have shown, the

first part of RQ1 can be positively answered, since the

test driven methodology has proven to be feasible.

The second part of RQ1 as well as RQ2 are discussed

in the following. However, the corresponding

answers are not sharply separated from each other

since they oftentimes build upon each other.

The whole application has been developed in a

highly modularized form, using microservices, with

the corresponding tests being created before the

actual implementation. Through this modularity it is

also possible to scale and deploy the services

independently of each other, which allows to react on

volatile and imbalanced demands with a great degree

of flexibility.

In the given example, there were two types of

tests applied. Unit tests are used to assure that the

separate functions are properly working, which is the

pillar of a high-quality system. One of the findings

was that for this purpose multiple assert statements

should be avoided as they could lead to confusion

where the test failed. The unit tests are complemented

by integration tests to verify that the interplay

between related services is playing out as it is

expected. During the project, especially the latter

have proven to be extremely helpful, since they led to

the discovery of many errors that pertained to the

interplay between the distinct services. Therefore,

based on the project’s findings, integration testing

should not be neglected, and sufficient resources need

to be devoted to it. The actual implementations were

kept as simple as possible, making it easier to keep an

overview. Further, adhering to naming conventions,

using a consistent terminology for items with the

same functionality, and choosing informative names

have proven to be crucial for clarity. Additionally,

during the project, no function dependencies were

introduced between the tests, keeping each of them

standalone. One issue that arose was that sometimes,

small test cases may contain the actual code of the

functionality that needs to be implemented and it is

therefore somewhat being checked against itself. This,

however, defeats the purpose of the TDD approach.

For prospective researchers, exploring this topic

further might therefore be a promising avenue.

According to the TDD methodology, whenever

there were modifications in the development, all

relevant tests were re-run (regression testing) to

assure that no new errors were introduced. However,

those tests only pertained to the pure operability. This

means that it was only assured that everything

generally works, e.g., the recommendation service is

actually giving recommendations when being fed

with a movie title. Yet, it was not regarded how good

the quality of those movie recommendations actually

was. For the future, putting emphasis on the quality

assurance beyond the pure operability might be

another promising research area.

Implementing Test Driven Development in the Big Data Domain: A Movie Recommendation System as an Exemplary Case

245

6 CONCLUSION

Even though BD is applied in many areas of today’s

society, the testing of the corresponding systems is

still rather immature. Since their quality is, however,

one of the determining factors for the success of BDA,

this is a huge issue, which is consequently addressed

by numerous researchers, who explore new methods,

tools and techniques to facilitate the quality assurance

of BD systems. One rather recent proposition was the

application of the TDD methodology to the big data

domain. To assess its feasibility and gain practical

insights concerning its actual application, as an

exemplary case, a movie recommendation system

was implemented in a test driven manner. The

obtained insights and findings of this endeavour were

discussed and, besides showing the approach’s

feasibility, recommendations for its actual application

have been given. However, since this study is only

based on a single case, its validity still needs to be

strengthened by ancillary experiments. Additional

avenues for future research have been identified in the

investigation of the overlapping of test cases and

productive code as well as in the facilitation of a

stronger focus on the utilized algorithms’ contentual

quality instead of a pure operability perspective.

REFERENCES

Al-Mekhlal, M., and Ali Khwaja, A. (2019). “A Synthesis

of Big Data Definition and Characteristics,” in 2019

IEEE International Conference on Computational

Science and Engineering (CSE) and IEEE International

Conference on Embedded and Ubiquitous Computing

(EUC), New York, NY, USA. 01.08.2019 - 03.08.2019,

IEEE, pp. 314-322 (doi: 10.1109/CSE/EUC.2019.00

067).

Bahri, S., Zoghlami, N., Abed, M., and Tavares, J. M. R. S.

(2019). “BIG DATA for Healthcare: A Survey,” IEEE

Access (7), pp. 7397-7408 (doi:

10.1109/ACCESS.2018.2889180).

Bansal, S., and Baliyan, N. (2019). “A Study of Recent

Recommender System Techniques,” International

Journal of Knowledge and Systems Science (10:2), pp.

13-41 (doi: 10.4018/IJKSS.2019040102).

Beck, K. (2015). Test-Driven Development: By Example,

Boston: Addison-Wesley.

Bronson, K., and Knezevic, I. (2016). “Big Data in food and

agriculture,” Big Data & Society (3:1) (doi:

10.1177/2053951716648174).

Chang, W. L., and Grady, N. (2019). “NIST Big Data

Interoperability Framework: Volume 1, Definitions,”

Special Publication (NIST SP), Gaithersburg, MD:

National Institute of Standards and Technology.

Cito, J., Schermann, G., Wittern, J. E., Leitner, P., Zumberi,

S., and Gall, H. C. (2017). “An Empirical Analysis of

the Docker Container Ecosystem on GitHub,” in

Proceedings of the 2017 IEEE/ACM 14th International

Conference on Mining Software Repositories (MSR),

Buenos Aires, Argentina. 20.05.2017 - 21.05.2017,

IEEE, pp. 323-333 (doi: 10.1109/MSR.2017.67).

Crispin, L. (2006). “Driving Software Quality: How Test-

Driven Development Impacts Software Quality,” IEEE

Software (23:6), pp. 70-71 (doi: 10.1109/MS.2006.157).

Davies, K., Keet, C. M., and Lawrynowicz, A. (2019).

“More Effective Ontology Authoring with Test-Driven

Development and the TDDonto2 Tool,” International

Journal on Artificial Intelligence Tools (28:7) (doi:

10.1142/S0218213019500234).

Davoudian, A., and Liu, M. (2020). “Big Data Systems: A

Software Engineering Perspective,” ACM Computing

Surveys (53:5), pp. 1-39 (doi: 10.1145/3408314).

Faitelson, D., Heinrich, R., and Tyszberowicz, S. (2018).

“Functional Decomposition for Software Architecture

Evolution,” in Model-Driven Engineering and Software

Development, L. F. Pires, S. Hammoudi and B. Selic

(eds.), Cham: Springer International Publishing, pp.

377-400 (doi: 10.1007/978-3-319-94764-8_16).

Freymann, A., Maier, F., Schaefer, K., and Böhnel, T.

(2020). “Tackling the Six Fundamental Challenges of

Big Data in Research Projects by Utilizing a Scalable

and Modular Architecture,” in Proceedings of the 5th

International Conference on Internet of Things, Big

Data and Security, Prague, Czech Republic. 07.05.2020

- 09.05.2020, SCITEPRESS - Science and Technology

Publications, pp. 249-256 (doi: 10.5220/0009388602

490256).

Fucci, D., Erdogmus, H., Turhan, B., Oivo, M., and Juristo,

N. (2017). “A Dissection of the Test-Driven

Development Process: Does It Really Matter to Test-

First or to Test-Last?” IEEE Transactions on Software

Engineering (43:7), pp. 597-614 (doi:

10.1109/tse.2016.2616877).

Goes, F. R., Meerhoff, L. A., Bueno, M. J. O., Rodrigues,

D. M., Moura, F. A., Brink, M. S., Elferink-Gemser, M.

T., Knobbe, A. J., Cunha, S. A., Torres, R. S., and

Lemmink, K. A. P. M. (2020). “Unlocking the potential

of big data to support tactical performance analysis in

professional soccer: A systematic review,” European

journal of sport science, pp. 1-16 (doi:

10.1080/17461391.2020.1747552).

Günther, W. A., Rezazade Mehrizi, M. H., Huysman, M.,

and Feldberg, F. (2017). “Debating big data: A

literature review on realizing value from big data,” The

Journal of Strategic Information Systems (26:3), pp.

191-209 (doi: 10.1016/j.jsis.2017.07.003).

Häusler, R., Staegemann, D., Volk, M., Bosse, S., Bekel, C.,

and Turowski, K. (2020). “Generating Content-

Compliant Training Data in Big Data Education,” in

Proceedings of the 12th CSEdu, Prague, Czech

Republic. 02.05.2020 - 04.05.2020, SCITEPRESS -

Science and Technology Publications, pp. 104-110

(doi: 10.5220/0009513801040110).

IoTBDS 2022 - 7th International Conference on Internet of Things, Big Data and Security

246

Hazen, B. T., Boone, C. A., Ezell, J. D., and Jones-Farmer,

L. A. (2014). “Data quality for data science, predictive

analytics, and big data in supply chain management: An

introduction to the problem and suggestions for

research and applications,” International Journal of

Production Economics (154), pp. 72-80 (doi:

10.1016/j.ijpe.2014.04.018).

Herschel, R., and Miori, V. M. (2017). “Ethics & Big Data,”

Technology in Society (49), pp. 31-36 (doi:

10.1016/j.techsoc.2017.03.003).

Janzen, D., and Saiedian, H. (2005). “Test-driven

development concepts, taxonomy, and future direction,”

Computer (38:9), pp. 43-50 (doi: 10.1109/MC.20

05.314).

Ji, S., Li, Q., Cao, W., Zhang, P., and Muccini, H. (2020).

“Quality Assurance Technologies of Big Data

Applications: A Systematic Literature Review,”

Applied Sciences (10:22), p. 8052 (doi:

10.3390/app10228052).

Karlesky, M., Williams, G., Bereza, W., and Fletcher, M.

(2007). “Mocking the Embedded World: Test-Driven

Development, Continuous Integration, and Design

Patterns,” in Embedded Systems Conference, San Jose,

California, USA. 01.04.2007 - 05.04.2007, UBM

Electronics.

Keet, C. M., and Ławrynowicz, A. (2016). “Test-Driven

Development of Ontologies,” in The Semantic Web.

Latest Advances and New Domains, H. Sack, E.

Blomqvist, M. d'Aquin, C. Ghidini, S. P. Ponzetto and

C. Lange (eds.), Cham: Springer International

Publishing, pp. 642-657 (doi: 10.1007/978-3-319-

34129-3_39).

Krylovskiy, A., Jahn, M., and Patti, E. (2015). “Designing

a Smart City Internet of Things Platform with

Microservice Architecture,” in 2015 3rd International

Conference on Future Internet of Things and Cloud

(FiCloud 2015), I. Awan (ed.), Rome, Italy. 24.08.2015

- 26.08.2015, Piscataway, NJ: IEEE, pp. 25-30 (doi:

10.1109/FiCloud.2015.55).

Kum, W., and Law, A. (2006). “Learning Effective Test

Driven Development - Software Development Projects

in an Energy Company,” in Proceedings of the First

International Conference on Software and Data

Technologies, Setúbal, Portugal. 11.09.2006 -

14.09.2006, SciTePress - Science and and Technology

Publications, pp. 159-164 (doi: 10.5220/000131610159

0164).

Lee, I. (2017). “Big data: Dimensions, evolution, impacts,

and challenges,” Business Horizons (60:3), pp. 293-303

(doi: 10.1016/j.bushor.2017.01.004).

Müller, O., Fay, M., and Vom Brocke, J. (2018). “The

Effect of Big Data and Analytics on Firm Performance:

An Econometric Analysis Considering Industry

Characteristics,” Journal of Management Information

Systems (35:2), pp. 488-509 (doi: 10.1080/074212

22.2018.1451955).

Musik, C., and Bogner, A. (2019). “Book title:

Digitalization & society: A sociology of technology

perspective on current trends in data, digital security

and the internet,” Österreichische Zeitschrift für

Soziologie (44:S1), pp. 1-14 (doi: 10.1007/s11614-019-

00344-5).

Nadareishvili, I., Mitra, R., McLarty, M., and Amundsen,

M. (2016). Microservice architecture: Aligning

principles, practices, and culture, Beijing, Boston,

Farnham, Sebastopol, Tokyo: O´Reilly.

Nagorny, K., Lima-Monteiro, P., Barata, J., and Colombo,

A. W. (2017). “Big Data Analysis in Smart

Manufacturing: A Review,” International Journal of

Communications, Network and System Sciences (10:03),

pp. 31-58 (doi: 10.4236/ijcns.2017.103003).

Panda, S. K. (2020). “Movie Tags Prediction Using

Machine Learning Models.,” available at

https://medium.com/analytics-vidhya/movie-tag-s-pre

diction-using-machine-learningmodels-d5fde119db6d,

accessed on Jan 24 2022.

Sangwan, R. S., and Laplante, P. A. (2006). “Test-Driven

Development in Large Projects,” IT Professional (8:5),

pp. 25-29 (doi: 10.1109/MITP.2006.122).

Shahin, M., Ali Babar, M., and Zhu, L. (2017). “Continuous

Integration, Delivery and Deployment: A Systematic

Review on Approaches, Tools, Challenges and

Practices,” IEEE Access (5), pp. 3909-3943 (doi:

10.1109/ACCESS.2017.2685629).

Shakir, A., Staegemann, D., Volk, M., Jamous, N., and

Turowski, K. (2021). “Towards a Concept for Building

a Big Data Architecture with Microservices,” in

Proceedings of the 24th International Conference on

Business Information Systems, Hannover,

Germany/virtual. 14.06.2021 - 17.06.2021, pp. 83-94

(doi: 10.52825/bis.v1i.67).

Shull, F., Melnik, G., Turhan, B., Layman, L., Diep, M.,

and Erdogmus, H. (2010). “What Do We Know about

Test-Driven Development?” IEEE Software (27:6), pp.

16-19 (doi: 10.1109/MS.2010.152).

Slaats, T., Debois, S., and Hildebrandt, T. (2018). “Open to

Change: A Theory for Iterative Test-Driven Modelling,”

in Business Process Management, M. Weske, M.

Montali, I. Weber and J. Vom Brocke (eds.), Cham:

Springer International Publishing, pp. 31-47 (doi:

10.1007/978-3-319-98648-7_3).

Staegemann, D., Volk, M., Daase, C., and Turowski, K.

(2020a). “Discussing Relations Between Dynamic

Business Environments and Big Data Analytics,”

Complex Systems Informatics and Modeling Quarterly

(23), pp. 58-82 (doi: 10.7250/csimq.2020-23.05).

Staegemann, D., Volk, M., Jamous, N., and Turowski, K.

(2019). “Understanding Issues in Big Data Applications

- A Multidimensional Endeavor,” in Proceedings of the

Twenty-fifth Americas Conference on Information

Systems, Cancun, Mexico. 15.08.2019 - 17.08.2019.

Staegemann, D., Volk, M., Jamous, N., and Turowski, K.

(2020b). “Exploring the Applicability of Test Driven

Development in the Big Data Domain,” in Proceedings

of the ACIS 2020, Wellington, New Zealand.

01.12.2020 - 04.12.2020.

Staegemann, D., Volk, M., Lautenschlager, E., Pohl, M.,

Abdallah, M., and Turowski, K. (2021a). “Applying

Test Driven Development in the Big Data Domain –

Lessons From the Literature,” in 2021 International

Implementing Test Driven Development in the Big Data Domain: A Movie Recommendation System as an Exemplary Case

247

Conference on Information Technology (ICIT), Amman,

Jordan. 14.07.2021 - 15.07.2021, IEEE, pp. 511-516

(doi: 10.1109/ICIT52682.2021.9491728).

Staegemann, D., Volk, M., and Turowski, K. (2021b).

“Quality Assurance in Big Data Engineering - A

Metareview,” Complex Systems Informatics and

Modeling Quarterly (28), pp. 1-14 (doi:

10.7250/csimq.2021-28.01).

Ting, S. L., Ip, W. H., and Tsang, A. H. C. (2011). “Is Naïve

Bayes a Good Classifier for Document Classification?”

International Journal of Software Engineering and Its

Applications (5:3).

Volk, M., Staegemann, D., Bosse, S., Häusler, R., and

Turowski, K. (2020a). “Approaching the (Big) Data

Science Engineering Process,” in Proceedings of the

5th International Conference on Internet of Things, Big

Data and Security, Prague, Czech Republic. 07.05.2020

- 09.05.2020, SCITEPRESS - Science and Technology

Publications, pp. 428-435 (doi: 10.5220/000956980

4280435).

Volk, M., Staegemann, D., Pohl, M., and Turowski, K.

(2019). “Challenging Big Data Engineering:

Positioning of Current and Future Development,” in

Proceedings of the 4th International Conference on

Internet of Things, Big Data and Security, Heraklion,

Crete, Greece. 02.05.2019 - 04.05.2019, SCITEPRESS

- Science and Technology Publications, pp. 351-358

(doi: 10.5220/0007748803510358).

Volk, M., Staegemann, D., Trifonova, I., Bosse, S., and

Turowski, K. (2020b). “Identifying Similarities of Big

Data Projects–A Use Case Driven Approach,” IEEE

Access (8), pp. 186599-186619 (doi:

10.1109/ACCESS.2020.3028127).

Volk, M., Staegemann, D., and Turowski, K. (2020c). “Big

Data,” in Handbuch Digitale Wirtschaft, T. Kollmann

(ed.), Wiesbaden: Springer Fachmedien Wiesbaden, pp.

1-18 (doi: 10.1007/978-3-658-17345-6_71-1).

Williams, L., Maximilien, E. M., and Vouk, M. (2003).

“Test-driven development as a defect-reduction

practice,” in Proceedings of the 14th ISSRE, Denver,

Colorado, USA. 17.11.2003 - 20.11.2003, IEEE, pp.

34-45 (doi: 10.1109/ISSRE.2003.1251029).

Zhu, L., Yu, F. R., Wang, Y., Ning, B., and Tang, T. (2019).

“Big Data Analytics in Intelligent Transportation

Systems: A Survey,” IEEE Transactions on Intelligent

Transportation Systems (20:1), pp. 383-398 (doi:

10.1109/TITS.2018.2815678).

IoTBDS 2022 - 7th International Conference on Internet of Things, Big Data and Security

248
