Concepts for Conceptual Modelling of an IoT Application

Naveen Prakash

and Deepika Prakash

Institute of Computer Learning and Consultancy, 21/4 S.B.S. Marg, New Delhi 110001, India

Department of Computer Science, NIIT University, Neemrana, 301705, India

Keywords: IoT-Application Design, Information System of Things, Agent, Communication, Aspects.

Abstract: The design of IoT applications has been considered as a specification of devices and their inter-connection.

In terms of the Systems Development Life Cycle, this addresses the stage of implementation design. Without

explicitly modelling the application problem, this could lead to ill-fitting devices, missing processing of data

and inappropriate communication choices. To obviate this, the upstream stage of conceptual modelling is

explored in this paper. By, analogy with Information Systems, IoT applications are looked upon as

Information Systems of Things, ISoT and the conceptual model for an ISoT is referred to as the Conceptual

Model of Things, CMoT. It is shown that agent-orientation is more appropriate to ISoT than object-orientation.

Agents have aspects that are its measurable properties. The proposals are illustrated with an example.

1 INTRODUCTION

The internet of things, IoT, is a collection of objects

like sensors, cameras etc. that communicate over the

internet (Keoh et al., 2014). Thus, the IoT is largely

about interaction (Yanwei et al., 2011) between

things (by sending messages, signals to each other)

and has an interface to human beings. According to

Oracle (https://www.oracle.com/in/internet-of-

things/what-is-iot/), “The internet of things describes

the network of physical objects …. for the purpose of

connecting and exchanging data with other devices

and systems over the internet”. The internet of things

has been looked upon as organized in layers, for

example,

• Device Layer: To enable co-operation and

integration, ontologies for the objects comprising

the IoT have been developed. Thus, we have

sensor ontologies like SSN (www.w3.org/2005/

Incubator/ssn/) of W3C, and actuator ontologies

like SAN (www.irit.fr/recherches/MELODI/

ontologies/SAN). Additionally, in (Hachem et al.,

2011), there are three levels of ontologies, device,

domain, and estimation levels. Wang et al (Wang

et al., 2012) propose a single level ontology for

IoT services having seven concepts.

• Sensor Network Layer: Each sensor network

consists of a large number of sensing nodes. There

is a special node called sink that is used to collect

sensing results reported by other nodes in the

network. Sensor networks cooperate, for example,

with RFID systems to enable object tracking.

A five-layer architecture can be found in (Zhong et

al., 2015) and a three-layer architecture in (Mahmoud

et al., 2015).

The term IoT system has been used in two senses.

In the first sense, it refers to a collection of IoT things

together with the middleware that manages thing

interaction. Approaches for IoT middleware can be

found in (Guinard et al., 2011; Kindberg et al., 2002;

Mrissa et al., 2015; Spiess et al., 2009) and a

programming approach for an IoT system can be

found in (Latronico et al., 2015). The IFTTT

(https://ifttt.com) approach, is extended to IoT by

using a sensor as a trigger, for example, for sending a

message. IFTTT is then a way of defining IoT flows.

Another programming possibility is the use of Node-

RED (https://nodered.org), an event driven, non-

blocking model that can be used both at the edge or

in the cloud. It enables construction of flows from the

wide range of nodes available as a palette.

The Web of Things (https://www.w3.org, W3C

WoT-Working Group) has been proposed to improve

the interoperability and usability of the Internet of

Things (IoT) and has been implemented, for example,

as Mozilla WebThings. It gives URLs to connected

devices thereby linking them and enabling their

discovery. The result is a layer for the IoT that is

494

Prakash, N. and Prakash, D.

Concepts for Conceptual Modelling of an IoT Application.

DOI: 10.5220/0011082800003176

In Proceedings of the 17th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2022), pages 494-501

ISBN: 978-989-758-568-5; ISSN: 2184-4895

 2022 by SCITEPRESS – Science and Technology Publications, Lda. All rights reser ved

independent of underlying IoT protocols like Zigbee,

DECT ULE, and KNX.

In the second sense (Eterovic et al., 2015), the

term, IoT system is used to express an application that

uses things. Thus, here an IoT system describes the

application for use of both, non-expert users as well

as IoT developers. Our interest here is in

development activities for building IoT applications

and therefore in this second sense.

An IoT application is itself variously described.

Huang and Li (Huang et al., 2010) define an IoT

application in terms of the “information of thing”. An

IoT application is one whose “information of thing”

is expressed in UID/EPC, is embedded in an RFID

electronic tag, and is uploaded by non-machine

contact. Clearly, this definition is very low level.

Costa (Costa et al., 2016) defines an IoT application

as “a collection of automated procedures and data,

integrated with heterogeneous entities (hardware,

software, and personnel) that interact with each other

and with their environment to reach common goals.”

They also define an ‘IoT application system’ as a

‘composition of Devices and Services interacting

with other Devices, Physical Entities, and Users’.

Thus, an IoT application system is a prescription for,

or a specification of, the IoT to be implemented.

There are two broad approaches to this

specification, UML based (Eterovic et al., 2015;

Thramboulidis et al., 2016) and SySML based (Costa

et al., 2016, Kotronis et al., 2018) respectively. The

former follows the software engineering approach

and exploits notions of components, ports etc. of

component diagrams of UML. The latter adopts the

system engineering approach and uses notions of

blocks and block interaction through connectors and

ports of SySML.

A domain specific UML based language for

describing an IoT in terms of things and their

interaction was proposed in (Eterovic et al., 2015). In

this language, a thing is considered to be the core

element of an IoT system. It can be a device, software

or a subsystem. A thing contains zero or more items

that may be inputs (e.g. temperature), outputs (e.g.

light switch} and components (e,g, log service).

Things are loosely connected and a change in one of

them does not affect the other. Interaction among

things is via ports.

In (Costa et al., 2016) device experts convert

device properties like types of devices, device

features as well as data formats and protocols into

components, that is, devices, services and resources

of the IoT application system. Further, device experts

model the structure and internal configurations of

devices in accordance with the IoT Domain Model.

Kotrinis (Kotronis et al., 2018) postulate that there

are a number of critical factors, for example, energy

consumption and time, that must be taken into

account during IoT application system design. The

approach adopted is to decompose the application

system into sub-systems and associate critical aspects

with sub-systems. Devices of subsystems then must

satisfy these criticalities. They assume that devices

are known upfront (ECG and fall detector in their

application) and the BDD and IBD of SysML are used

to show interaction.

The commonality in the foregoing is the

assumption that devices and their interaction is a

given and the problem is to arrive at a suitable

representation that forms the implementation design

of the IoT. This has a number of drawbacks

• The properties of devices like units, ranges, types

of devices etc., are not problem-driven. This may

lead to ill-fitting devices to be selected.

• Properties of communication like distance, data

quantity and data rates are again decided at

implementation time and are not obtained from

the problem being addressed.

• There is no explicit link between the device and

the real-world entity that it senses/actuates. Thus,

even though we know that there is a temperature

sensor, there is no explicit expression that the

temperature of a boiler is to be measured.

• The nature of the processing to be performed is

left unspecified. Thus, if measurements are to be

cleaned (Jeffery et al., 2006) before transmission,

then this is unspecified. Similarly, system

reliability may require multiple measurements of

the same property, say pressure. A single value is

then obtained from the multiple measurements.

However, reliability is an implementation issue

rather than being problem-driven.

Our position in this paper is that a problem-driven

specification of an IoT application system would

overcome these problems. Such a specification

performs the same role as done by conceptual

modelling in information systems, IS, engineering.

By analogy with an IS, we refer to an IoT application

system as an Information System of Things, ISoT and

a conceptual model as CMoT, Conceptual Model of

Things. Following the notion of a conceptual model

(Genero et al., 2005), a CMoT provides

implementation-independent concepts for a complete

expression of the system to be built. Thus, it provides

high-level concepts for representing real-world

entities, the phenomena to be sensed and its

properties, communication and its properties, as well

as any processing to be carried out. By analogy with

Concepts for Conceptual Modelling of an IoT Application

495

the term, conceptual schema in conceptual modelling,

we refer to an instantiation of the CMoT, as a

Conceptual Schema of Thing, CSoT. Whereas the

implementation design for the former is, for example,

the logical schema of a relational data base, the

implementation design for a CSoT is for building a

collection of devices and their interaction.

The CSoT acts as a shared document among

problem/domain experts for discussion and

eventually, when accepted, represents an agreement

about the system to be developed. Further, it acts as a

prescription of the system to be implemented, and

thus, is a meeting point between system designers and

system implementors. The latter must implement

exactly that which is specified in the CSoT.

The notion of a conceptual schema has been used

to conceptualize bespoke information systems as well

as for integrating schemas of existing information

systems. By analogy, we expect the CSoT to also be

a conceptualization of a bespoke ISoT and allow

CSoT integration.

In this paper, we compare and contrast an ISoT

with an IS and propose a set of concepts for a CMoT.

The similarities and differences of these concepts

with those of IS conceptual modelling are considered.

We also illustrate the use of these in conceptualizing

a bespoke ISoT with a view to showing the feasibility

of our position. We postpone dealing with CSoT

integration till after a fully fleshed-in CMoT is

developed. Lastly, we do not address the issue of

converting a CSoT into implementation design and

leave it as future work.

The layout of the paper is as follows. In section 2

we consider the notion of an ISoT and introduce the

concepts required for its conceptual modelling.

Section 3 deals with modelling issues like

aggregation and ISA hierarchies, associations and

dependencies. In section 4, we apply our notions to

modelling the lighting of a home.

2 CONCEPTUAL MODELLING

CONCEPTS

We draw an analogy between an Information System,

IS, and an IoT application. As is well known, an IS is

embedded in an organization and it is a teleological

system that keeps a record of business transactions

through a well-defined functionality. For example, an

IS for a hotel is for the purpose of room reservation;

it keeps a record of reservation transactions

(bookings, cancellations); and provides functionality

for hotel reservation transactions. It is embedded in

the hotel business and receives transaction invocation

stimuli from actors in its environment to which it

responds. This makes the notion of an object as in

object-orientation central to IS conceptual modelling.

An IS object sends a message to invoke a method of

a receiver object. The receiver responds and the

sender proceeds after the response has arrived. The

receiver, in turn, awaits further invocation.

Analogous to an IS, for an IoT application system,

we define an Information System of Things, ISoT to

be a teleological collection of interacting real world

entities embedded in an organization. It is

teleological because it has a defined purpose. This

purpose may be

• Providing data for analytics and decision making.

For example, data about cycling rates of an air

conditioner can be provided for analysis for

improved cooling efficiency

• Monitoring and regulating. For example, a

temperature sensor may send data to the cooling

unit to switch it off/on.

An ISoT is embedded in an environment and the

principal interaction with the environment in which it

is embedded is to periodically deliver data to it. It

does so autonomously, i.e., the data and the rate at

which data is sent are determined by the ISoT. There

is no “request for data” or “request for function

invocation” issued by the environment.

Consequently, the question of responding to any

request does not arise. This implies that the real-world

entities comprising the ISoT are autonomous and (a)

may take a decision based on the sensed data, or (b)

communicate the sensed data or, perhaps, after

processing it. Consider a simple ISoT consisting of a

steam boiler. Based on the temperature it senses, the

boiler may decide to switch off/on the gas supply and

also, send the on/off action taken and the time of the

action to its environment.

The absence of a “request” makes the notion of an

object ill-fitting for an ISoT. We propose to use the

notion of an agent instead of an object to model

real-world entities of an ISoT. An agent

(Wooldridgey et al., 2000) is “situated within or part

of an environment that senses that environment and

acts on it, over time, in pursuit of its own agenda and

so as to effect what it senses in the future.” Applying

this, let us define an agent, boiler. This agent is

situated in the environment of steam and gas supply

and has its own agenda, namely, to regulate the

temperature of steam. It senses the temperature of

steam and acts to switch on/off the gas supply that in

turn, changes the temperature that the boiler senses in

ENASE 2022 - 17th International Conference on Evaluation of Novel Approaches to Software Engineering

496

the future. The agent boiler operates over time and

runs continuously.

Now, we define real world entities as individuals

having one or more aspects that are sensed/measured.

There are two major differences between aspects and

attributes as follows:

• Aspects are sensed and, unlike attributes, are not

‘describing properties’ of entities. Consider a

person P. P is of interest in an ISoT for its aspect,

blood pressure that is sensed for monitoring. The

history of the blood pressure as well as the most

recent blood pressure measurement may be

required. On the other hand, P is of interest in an

IS for its attribute, address that describes it and

whose last updated value is required.

• Values of aspects may be false positive or false

negative due to sensor errors, or unreliable

because sensors may have “failed dirty”.

Therefore, obtaining the right value requires

cleaning (Jeffery et al., 2006; Gonzalez et al.,

2007) of the sensed data. However, attribute

values do not display this phenomenon.

Aspects and attributes are similar in that

• Both may be constrained. For example, the aspect,

blood pressure cannot be more than 280 mm of

Hg. Though in both cases a constraint specifies

the allowed values, in the case of an ISoT, they

may also help in the selection of the appropriate

device to be used. Thus, in out example, a blood

pressure meter that measures up to 28-mm Hg is

required.

• Both attributes and aspects may contain missing

data. For the former this may be because of

unknown data but for the later, again, this is on

account of missed values during sensing (Jeffery

et al., 2006).

From the foregoing, we can say that agents have

aspects. This is consistent with belief-desire-

intention approach in agent orientation where, an

agent is associated with (Abushark et al., 2017),

beliefs or what it knows about itself and its

surrounding environment; its desire or what it wants

to achieve; and intentions or the ways in which it

achieves this. We represent the first of these through

the notion of an aspect of an agent. Evidently, an

aspect corresponds to the notion of a belief. The

desires of an ISoT agent are varied and may be, for

example, to clean the sensed data, process the sensed

data, communicate with other agents and so on. We

model intentions as functions/procedures of agents.

The agent, Boiler is illustrated in Fig. 1. It has two

aspects, Raw_temp and Raw_pres, for temperature

and pressure measurements, respectively. There are

two functions, Clean_temp and Clean_pres to

smoothen the incoming stream of temperature and

pressure measurements respectively. This results in

two additional aspects, Proc_temp and Proc_pres for

processed temperature and pressure respectively.

Figure 1: The Agent, Boiler.

As mentioned earlier, we are dealing with

interacting real world entities. In an IS, this takes the

form of functional interaction. On the other hand, in

an ISoT, interaction takes the form of communication

of messages and who communicates with whom is of

interest. From the perspective of agents, it is possible

to classify (Shehory et al., 2014; Wooldridgey et al.,

2000) agents based on five properties, namely, being

communicative, learning ability, mobility (ability to

transport itself from one machine to another),

flexibility and having a character. Evidently, ISoT

interaction requires the property of being

communicative. Consequently, we propose using the

notion of a COMMunicative AGent or COMMAG.

Now, we model a communication as a 4-tuple,

<mode, sender, letter, receiver>. Senders and

receivers are COMMAGs; a sender/receiver may be

an individual or a group. Additionally, we postulate a

special type of COMMAG called a Gateway that

receives/sends messages from/to the external world.

There are five possible modes as follows: This gives

us four additional modes of communication as

follows:

1. Broadcast: a message to all COMMAGs.

2. One-to-One: a boiler sending its temperature to

the gas supply unit

3. One-to-Group, the boiler sending its message to

both, the gas supply unit and the steam receiving

unit

4. Group-to-One, the several sections of a boiler

comprise a group, Boiler, and the Boiler sends the

average temperature of the group to the gas supply

unit.

5. Group-to-Group, the several regions of the

boiler send their temperatures to both the gas

supply unit and the steam receiving unit

Boiler

<<aspects>>

Raw_temp

Raw_pres

Proc_temp

Proc_pres

<<functions>>

Clean_temp()

Clean_pres()

Concepts for Conceptual Modelling of an IoT Application

497

A letter is a specification of the communication

between COMMAGs and is in two parts. The first

part tells us the properties of the communication.

These include the Mode of communication, Distance

that contains the distance between the sender and the

receiver, and Data Rate. This acts as a selection

criterion for the communication standard (Zigbee,

Bluetooth etc.) that shall be deployed when the CSoT

is implemented. The second, the message part,

contains the message itself. This may be data sensed

by the sender COMMAG or a processed form of data.

Since both parts are describing properties of the

communication, we represent these as attributes

(NOT aspects) of the communication.

The letter and the communication mode taken

together show the number of COMMAGs that shall

receive the message. As shown in the examples of the

communication modes (1) to (5) above, the CSoT

designer needs to provide this information so that

appropriate messaging is implemented in the IoT

system to be built.

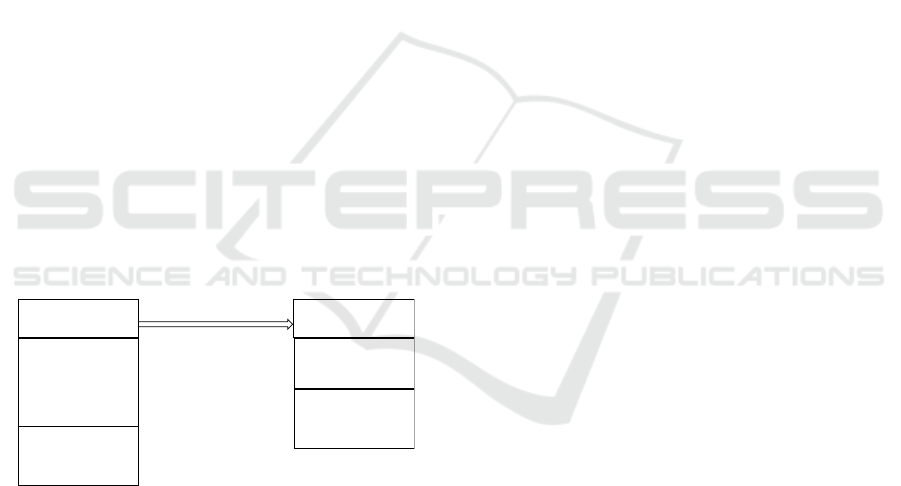

Fig. 2 shows the one-to-one communication

between the Boiler and the Gas Supply Unit. The Gas

Supply Unit has an aspect, Status to show if it is

switched on or off. This is toggled by the function

Switch_status. The block arrow shows

communication between the Boiler and the Gas

Supply Unit. The former sends a letter to the latter and

this letter consists of the Mode, Distance and Data

Rate, as well as Proc_temp and Proc-pres as the

message.

Figure 2: The Communication of the Boiler.

To sum up. we see that an ISoT rests on three

principles, autonomy, sensing, and communication.

There are five basic concepts for conceptual

modelling that takes these into account, namely,

Communicative Agents that have Aspects and

Functions together with Constraints that are defined

on aspects. Agents autonomously decide when and

what to communicate to other agents. This decision is

based on their internal state, as captured in aspects, as

well as on their sensory input. Communication

between these agents is captured in the notion of

Letters that contain the message to be sent as well as

communication properties.

3 THE MODEL

Let us now consider using the concepts of section 2

to build a model of an ISoT. Again, we do this by

analogy with concepts that go into modelling an IS.

As is well known, the UML notation is used to

represent an IS in three models, namely, the structure

model, behaviour or dynamic model, and the function

model. In this section we consider the applicability of

these to an ISoT.

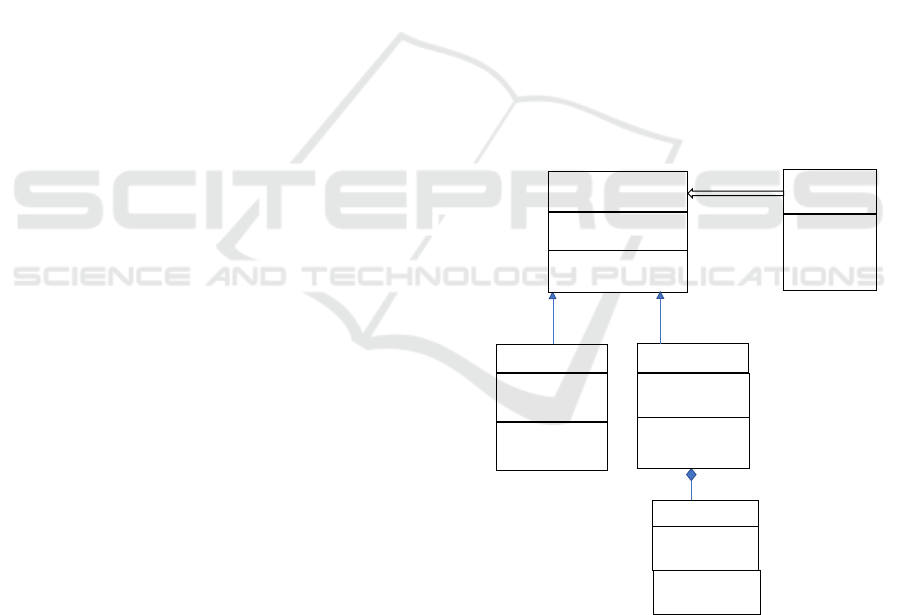

As already seen, the basic structural unit in an

ISoT is the COMMAG. Structurally, a COMMAG of

an ISoT may be simple or aggregations just as

happens in an IS. For example, the COMMAG, Milk

Van is an aggregate of the COMMAGs, Storage

section (having aspect, temperature) and a Cooling

Unit (with aspect, working status). Similarly, a

COMMAG may show generalization/specialization

hierarchies. For example, a hypertensive person

(aspect, blood pressure) may be specialized into a

hypertensive, diabetic person (inherited aspect, blood

pressure and specialized aspect, sugar level).

Whereas associations and dependencies are of

interest in an IS, this is not the case in an ISoT. First

consider associations. An association captures an

object-object relationship. This is interesting in an IS

because transactions change this relationship and a

record of the current relationships is required. For

example, the association, Owns between Persons and

Houses is of interest in an IS to know ownership.

However, associations between COMMAGs are

uninteresting because there are no transactions, an

association, while giving information on which

device is associated with which one, fails to specify

either device information or interaction information.

For the same reason, a “dependency” is uninteresting

from the ISoT perspective.

Now consider behaviour modelling and

interaction diagrams. In an IS, functional interaction

between objects. as in sequence diagrams, specifies

system behaviour. Which object sends a message to

which object and the response it receives before

proceeding further, gives full details of message

passing. In an ISoT, COMMAGs are autonomous. A

COMMAG, in fulfilment of its desire to keep other

COMMAGs informed, sends out a communication.

Having sent out the communication, the COMMAG

continues and does not wait for any response.

Therefore, there is no need for sequence diagrams. On

the other hand, we need a way to express that a

message is sent by a COMMAG to another if the

Boiler

<<aspects>>

Raw_temp

Raw_pres

Proc_temp

Proc_pres

<<functions>>

Clean_temp()

Clean_pres()

Gas Supply Unit

<<aspects>>

Status

<<functions>>

Switch_status()

Mode, Distance, Data

Rate, Proc_temp,

Proc_pres

ENASE 2022 - 17th International Conference on Evaluation of Novel Approaches to Software Engineering

498

former decides to do so. This decision is the trigger

for the messaging action (in the IFTTT sense) and

such decisions constitute the autonomous capacity of

the COMMAG. The arrow between COMMAGs

together with the letter suffices to model this.

An IS has a third model for capturing processes

through process diagrams. These diagrams carry the

logic of the business process of the IS. In an ISoT,

process diagrams are useful to show the

progression/flow of data through the IoT, from one

COMMAG to another. In our boiler example, the

reliability of pressure/temperature measurements is

crucial for maintaining safety. The designer of the

boiler CSoT defines a COMMAG, Boiler_Section

that measures pressure and temperature of a section

of the boiler. Thus, multiple measurements for

multiple boiler sections are made and their average

computed before deciding to activate the gas supply

unit. This flow of data from sensing through possibly

several layers of processing before the data is

consumed constitutes the process diagram for an

ISoT. Such a diagram is needed for each kind of

sensed data (pressure and temperature in our

example). When the CSoT is taken into

implementation, then an identification of edge/fog

and cloud computing would be possible.

The remaining question is as to how

communication is represented. We propose to show

this as a directed edge from the sender to the receiver

with communication attributes attached to it. This

implies that there is only one diagram that shows:

• A COMMAG with its aspects and functions

• The aggregate and specialization/generalization

hierarchies of COMMAGs

• The communication edge between COMMAGs

and its attributes.

Simple, aggregate entities together with

generalization/specialization specify the nature of

devices that must be associated with real-world

entities.

4 AN EXAMPLE

In this section, we illustrate conceptual modelling of

an ISoT through a small example to illustrate the

viability of our position.

The aim is to control the lighting, of a house. The

house consists of a bedroom and a large living room

that is divided into sections, each having its own

lighting arrangement. There are several residents who

interact with the house. The lighting requirement is as

follows:

1 Light in the bedroom and living room is based on

the ambient luminosity and set to the value desired

by the residents.

2 Bedroom light is time controlled. It is switched off

at a preset clock time.

3 Each section of the living room is occupancy

controlled. If occupied, then it is lighted else the

light is switched off.

The conceptual schema of the house is shown in Fig.

3. ISA hierarchy and aggregation are shown using

UML notation. As shown in the figure, we define a

COMMAG, Room that has an aspect, Light_intensity

and a function, Light control to set Light_intensity to

the desired value. The desired value is communicated

by the COMMAG, Resident. Room is specialized

into two COMMAGs, namely, (a) Bedroom and (b)

Living Room. The sections of the living room are

represented by the COMMAG, LRsection. The living

room is an aggregate of its sections as shown by the

aggregate COMMAG, Livingroom. It has a function

to determine the average luminosity of the room from

the luminosity of its several sections.

LRsection has an aspect, occupancy. This is used

by the function Occ-L-Control to control light of the

section based on occupancy.

Figure 3: Lighting Control.

The COMMAG bedroom has an as aspect clock time.

It is communicated by Resident as bedroom time,

BR_time. There is a corresponding function to

control the bedroom light based on this. Lastly,

Resident has two aspects, one for the desired light

Room

<<aspects>>

Light_intensity

Livingroom

<<aspects>>

Av_LIght

Resident

<<aspects>>

Des_light

BR_time

<<functions>>

Light Control

LRsection

<<aspects>>

occupancy

<<functions>>

Occ_L-Control

M, D, DR,

Des_light,

BR_time

<<functions>>

Ave r age

Bedroom

<<aspects>>

Clock_time

<<functions>>

Time_Control

Concepts for Conceptual Modelling of an IoT Application

499

value, Des_light and the other for bedroom clock

time, BR_time as discussed above.

The letter for communication between Resident

and Room consists of communication properties as

follows

(a) Mode of communication, M that is the broadcast

mode

(b) Distance, D of communication. For house bound

residents this distance may be 10 metres whereas

for office-going residents it may be in the

kilometre range, say 15 kilometres.

about 8 bytes of information, and clearly, data

rates are very low and set to 8Bps.

Further, message itself consists of Des_light and

BR_time.

This example shows that as in traditional

conceptual modelling, specification of constraints

must be done by annotation. Notice that there is no

message passing to invoke a method. The letter sent,

besides specifying communication attributes sends

data that are not function arguments. The receiver

agent can decide what action is to be taken, if any.

Thus, LRsection decides autonomously to switch

off/on a light or to continue leaving it off or on,

despite having Des-light communicated to it by the

Resident.

5 CONCLUSIONS

Our position is that in order to make device and

communication decisions that fit well with the desired

IoT application, we should develop a conceptual

schema of the application. The conceptual schema is

a specification of the implementation to be carried out

in the subsequent stage. By analogy with Information

Systems, we propose an ISoT as a collection of

communicating agents that is embedded in an

environment. The ISoT communicates with the

environment through the agent, Gateway.

The ISoT is substantially different from an IS

because of its emphasis on data exchange as different

from function invocation in an IS. It behaves

autonomously based on what is senses and is

therefore, naturally amenable to being modelled in

agent-orientation. The Belief-Desire-Intention triad

of agent orientation can be extended to an ISoT.

The set of concepts for IoT conceptual modelling

are again somewhat different from those of IS

conceptual modelling. Our communicating agents

have aspects that are measurable properties and not

describing properties that IS objects have. There is no

need for associations and dependencies but only for

aggregates and ISA hierarchies. Further, sequence

diagrams are not interesting since there is no method

invocation. Process diagrams do not carry business

logic but show the transformation of data as it moves

from measurement to final consumption. However,

attributes are needed for specifying communication.

When looked at from the point of view of an IoT

system as interacting things, the CSoT defines the

needed devices, processing and communication to be

built. Devices are identified from aspects of

COMMAGs, and the measurement ranges of these

devices is identified from constraints on aspects.

Processing is identified from functions of

COMMAGs and, when building thing interaction, a

decision needs to be taken about its location, whether

at the edge, fog or cloud. Finally, a letter consists of

the properties of communication that help in

decisions about the underlying communication

standards/protocols to be used. The consequence is

that the implemented system is better aligned to the

application at hand.

In future we expect to fully flesh out the CMoT,

and look into converting it into an implementation

design. Further, we expect to look into aspects of

CSoT integration and use it as a basis for agile

development of an ISoT.

REFERENCES

Abushark, Y., Thangarajah, J., Harland, J., & Miller, T.

(2017). A framework for automatically ensuring the

conformance of agent designs. Journal of Systems and

Software, 131, 266-310.

Costa, B., Pires, P. F., & Delicato, F. C. (2016, August).

Modeling IoT applications with sysml4iot. In 2016 42th

Euromicro Conference on Software Engineering and

Advanced Applications (SEAA) (pp. 157-164). IEEE.

Eterovic, T., Kaljic, E., Donko, D., Salihbegovic, A., &

Ribic, S. (2015, October). An Internet of Things visual

domain specific modeling language based on UML. In

2015 XXV International Conference on Information,

Communication and Automation Technologies (ICAT)

(pp. 1-5). IEEE.

Genero, M., Piattini, M., & Calero, C. (Eds.). (2005).

Metrics for software conceptual models. World

Scientific.

Gonzalez, H., Han, J., & Shen, X. (2007, April). Cost-

conscious cleaning of massive RFID data sets. In 2007

IEEE 23rd International Conference on Data

Engineering (pp. 1268-1272). IEEE.

Guinard, D., Trifa, V., Mattern, F., & Wilde, E. (2011).

From the internet of things to the web of things:

Resource-oriented architecture and best practices. In

ENASE 2022 - 17th International Conference on Evaluation of Novel Approaches to Software Engineering

500

Architecting the Internet of things (pp. 97-129).

Springer, Berlin, Heidelberg.

Hachem, S., Teixeira, T., & Issarny, V. (2011, December).

Ontologies for the internet of things. In Proceedings of

the 8th middleware doctoral symposium (pp. 1-6).

Huang, Y., & Li, G. (2010, August). Descriptive models for

Internet of Things. In 2010 International Conference on

Intelligent Control and Information Processing (pp.

483-486). IEEE.

Jeffery, S. R., Alonso, G., Franklin, M. J., Hong, W., &

Widom, J. (2006, May). Declarative support for

sensor data cleaning. In International Conference on

Pervasive Computing (pp. 83-100). Springer, Berlin,

Heidelberg.

Keoh, S. L., Kumar, S. S., & Tschofenig, H. (2014).

Securing the internet of things: A standardization

perspective. IEEE Internet of things Journal, 1(3), 265-

275.

Kindberg, T., Barton, J., Morgan, J., Becker, G.,

Caswell, D., Debaty, P., ... & Spasojevic, M. (2002).

People, places, things: Web presence for the real

world. Mobile Networks and Applications, 7(5),

365-376.

Kotronis, C., Nikolaidou, M., Dimitrakopoulos, G.,

Anagnostopoulos, D., Amira, A., & Bensaali, F. (2018,

June). A model-based approach for managing criticality

requirements in e-health iot systems. In 2018 13th

annual conference on system of systems engineering

(SoSE) (pp. 60-67). IEEE.

Latronico, E., Lee, E. A., Lohstroh, M., Shaver, C.,

Wasicek, A., & Weber, M. (2015). A vision of

swarmlets. IEEE Internet Computing, 19(2), 20-28.

Mahmoud, R., Yousuf, T., Aloul, F., & Zualkernan, I.

(2015, December). Internet of things (IoT) security:

Current status, challenges and prospective measures. In

2015 10th international conference for internet

technology and secured transactions (ICITST) (pp. 336-

341). IEEE.

Mrissa, M., Médini, L., Jamont, J. P., Le Sommer, N., &

Laplace, J. (2015). An avatar architecture for the web

of things. IEEE Internet Computing, 19(2), 30-38.

Shehory, O., & Sturm, A. (2014). A brief introduction to

agents. In Agent-Oriented Software Engineering (pp. 3-

11). Springer, Berlin, Heidelberg.

Spiess, P., Karnouskos, S., Guinard, D., Savio, D., Baecker,

O., De Souza, L. M. S., & Trifa, V. (2009, July). SOA-

based integration of the internet of things in enterprise

services. In 2009 IEEE international conference on web

services (pp. 968-975). IEEE.

Thramboulidis, K., & Christoulakis, F. (2016).

UML4IoT—A UML-based approach to exploit IoT in

cyber-physical manufacturing systems. Computers in

Industry, 82, 259-272.

Wang, W., De, S., Toenjes, R., Reetz, E., & Moessner, K.

(2012, June). A comprehensive ontology for knowledge

representation in the internet of things. In 2012 IEEE

11th International Conference on Trust, Security and

Privacy in Computing and Communications (pp. 1793-

1798). IEEE.

Wooldridgey, M., & Ciancarini, P. (2000, June). Agent-

oriented software engineering: The state of the art. In

International workshop on agent-oriented software

engineering (pp. 1-28). Springer, Berlin, Heidelberg..

Yanwei, S., Guangzhou, Z., & Haitao, P. (2011,

December). Research on the context model of

intelligent interaction system in the internet of things.

In 2011 IEEE International Symposium on IT in

Medicine and Education (Vol. 2, pp. 379-382). IEEE.

Zhong, C. L., Zhu, Z., & Huang, R. G. (2015, August).

Study on the IOT architecture and gateway technology.

In 2015 14th International Symposium on Distributed

Computing and Applications for Business Engineering

and Science (DCABES) (pp. 196-199). IEEE.

Concepts for Conceptual Modelling of an IoT Application

501
