On Deep Learning Approaches to Automated Assessment: Strategies

for Short Answer Grading

Abbirah Ahmed

, Arash Joorabchi

and Martin J. Hayes

Department of Electronic and Computer Engineering, University of Limerick, Limerick, Ireland

Keywords: Automatic Short Answer Grading, Deep Learning, Natural Language Processing, Blended Learning,

Automated Assessment

Abstract: The recent increase in the number of courses that are delivered in a blended fashion, before the effect of the

pandemic has even been considered, has led to a concurrent interest in the question of how appropriate or

useful automated assessment can be in such a setting. In this paper, we consider the case of automated short

answer grading (ASAG), i.e., the evaluation of student answers that are strictly limited in terms of length

using machine learning and in particular deep learning methods. Although ASAG has been studied for over

50 years, it is still one of the most active areas of NLP research as it represents a starting point for the possible

consideration of more open ended or conversational answering. The availability of good training data,

including inter alia, labelled and domain-specific information is a key challenge for ASAG. This paper

reviews deep learning approaches to this question. In particular, deep learning models, dataset curation, and

evaluation metrics for ASAG tasks are considered in some detail. Finally, this study considers the

development of guidelines for educators to improve the applicability of ASAG research.

1 INTRODUCTION

In blended learning environments the combination of

large student cohorts, the demand for more detailed

and timely feedback coupled with constraints on

teaching resources, means that the effort required to

accurately grade student assessments is becoming

increasingly challenging. In this paper we consider

how the workload associated with the grading process

and the provision of meaningful feedback to students

can be assisted using Natural Language Processing

(NLP). The focus of the work is the automated

interpretation of student answers so as to reduce

inconsistencies in the allocation of marks and to

ensure fairness in the overall result that is awarded.

Notwithstanding these challenges, free text response-

based assessments are considered to be one of the

preferred grading tools due to their effectiveness in

terms of verifying skills and tacit knowledge

demonstration.

One of the tests for automated grading of

assessments is that it must ease the burden on

https://orcid.org/0000-0001-5541-7290

https://orcid.org/0000-0002-0767-4302

https://orcid.org/0000-0001-6821-5436

instructors. In Science and Engineering particularly,

different types of assessment will require specific

grading methods to be applied that follow a strict

rubric or grading criteria wherein NLP can be posited

as a useful analysis tool. The success of any

automation effort relies on the application of a

grading technique that is well defined, repeatable and

where the availability of training data is such that it

will take less time for an Educator to employ an

automated technique than to assess student effort

manually.

Automated grading of natural human responses

by computers was first discussed by Page (Page,

1966). His proposed Project Essay Grade (PEG)

system used a variety of different natural language

processing methods. The system evaluated essays

using various features, including the length of the

response, number of words, and parts of speech tags

and applied multiple linear regression to predict the

score. The PEG system performed surface feature

analysis using syntactical similarity measures (Page,

1966).Since then, machine grading of natural

Ahmed, A., Joorabchi, A. and Hayes, M.

On Deep Learning Approaches to Automated Assessment: Strategies for Short Answer Grading.

DOI: 10.5220/0011082100003182

In Proceedings of the 14th International Conference on Computer Supported Education (CSEDU 2022) - Volume 2, pages 85-94

ISBN: 978-989-758-562-3; ISSN: 2184-5026

responses has attracted a large cadre of NLP

researchers. Thus far, it is fair to say that most

progress has been observed on the automatic scoring

of short human responses.

As essays and short answers fall under the

category of descriptive and free text answers, it is

necessary to differentiate between the two, so that

efficient and accurate solutions can be found.

A Short answer can be defined as a piece of text

fulfilling the following criteria (Burrows et al.,

2015):

• A student response for a given question must

be in natural language.

• A response length must be limited to between

one sentence to one paragraph.

• A student response must demonstrate the

external knowledge which they gained from

their understanding and is not identified within

the question.

• A response grade should be based on objective

content quality criteria and not on subjective

writing quality considerations.

• Natural language responses should be capable

of being clearly restricted based on the syntax

of the assigned question.

In Automatic Short Answer Grading (ASAG), for

a given question, student answers are compared with

a reference answer(s) and a mark is assigned using

ML to ease the workload of instructors and TAs

(Mohler, Bunescu, & Mihalcea, 2011; Mohler &

Mihalcea, 2009). Although automatic short answer

grading is by no means new, a relatively clear state of

the art has now emerged for effective grading of

solutions that use natural language answers. In many

initial studies, ASAG has been considered as a

classification or regression task. in which an answer

is either labelled as correct or wrong (classification)

and/or assigned a mark (regression). In addition,

those studies are largely based on manually created

patterns and text similarity algorithms (Mohler et al.,

2011; Mohler & Mihalcea, 2009; Sultan et al.,

2016). Over the past few years, researchers have

started to employ deep learning methods for ASAG

due to their proven efficacy in many NLP domains

and tasks.

In this paper, we compare a range of deep learning

methods used for ASAG, using publicly available

datasets that have been widely cited and have

compared a variety of ASAG evaluation metrics. In

addition to providing a benchmark comparison of

existing approaches, we suggest a framework for

educators who wish to determine a reliable ASAG

assessment strategy for their students in this domain.

2 DATASETS

Most NLP tasks (e.g., text classification, named

entity recognition, sentiment analysis) have a number

of de-facto standard datasets which are used to

benchmark the performance of new methods and

techniques for these tasks. However, for the task of

ASAG, one of the biggest challenges is the lack of

appropriate datasets. In literature, there are some

publicly available benchmark datasets which have

been used to evaluate the performance of different

ASAG systems. In this study we only discussed those

datasets which are used to benchmark deep learning-

based systems. These datasets are diverse in terms of

topics, size, and grading scale. It is observed that

some well-known datasets were launched through

competitions including the ASAP and SemEval-2013

datasets

2.1 Mohler’s Dataset

This dataset is based on the assignments of an

undergraduate course on data structures at University

of Texas and it was released in 2009 (Mohler &

Mihalcea, 2009). There are three assignments, seven

questions each for the class size of 30 students. Thus,

the size of dataset is 630 student answers. These

answers are graded by two human instructors

independently on the scale of 0-5; 0 indicates the

completely wrong answer and 5 indicates correct

answer. Fig.1 shows an example from Mohler’s

dataset

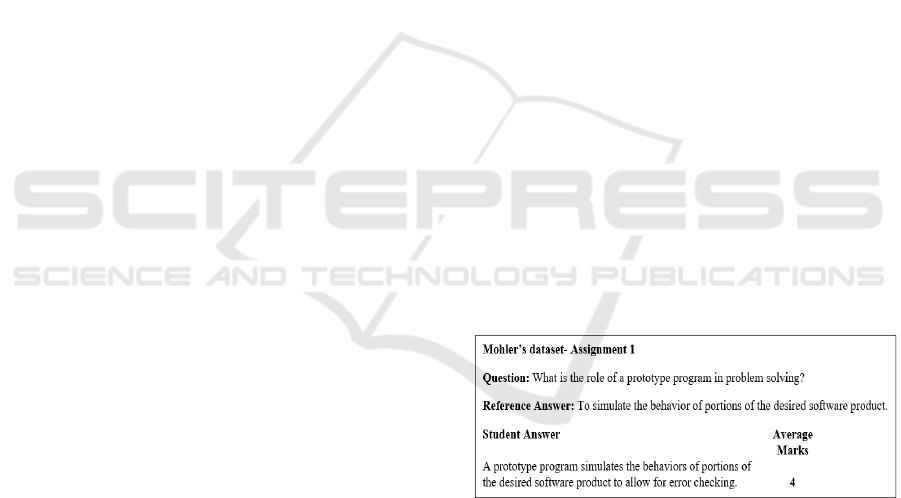

Figure 1: Example from Mohler’s dataset.

In 2011, authors released and extended dataset

for ASAG task (Mohler et al., 2011). This extended

version contains student answers to 10 assignments

and two exam papers. Each assignment consists of

four to seven questions and each exam paper consists

of 10 questions. There are 81 questions and 20

answers per question which sums up to 1620

question-answer pairs in total. Each answer is graded

by two independent markers and average of their

CSEDU 2022 - 14th International Conference on Computer Supported Education

score is considered as final score. This dataset is

publicly available

2.2 ASAP-SAS Dataset

Automated Student Assessment Prize- Short Answer

Scoring corpus was launched by The Hawlett

Foundation on Kaggle

. It contains responses from

8th grade to 10th grade students and length of

responses are less than 50 words. The dataset consists

of 10 prompts, one for each question. There are

combined 17204 responses which are marked over

two scales 0-2 and 0-3. This dataset also contains the

marking rubric for each prompt. Fig.2 represents an

example form the ASAP dataset.

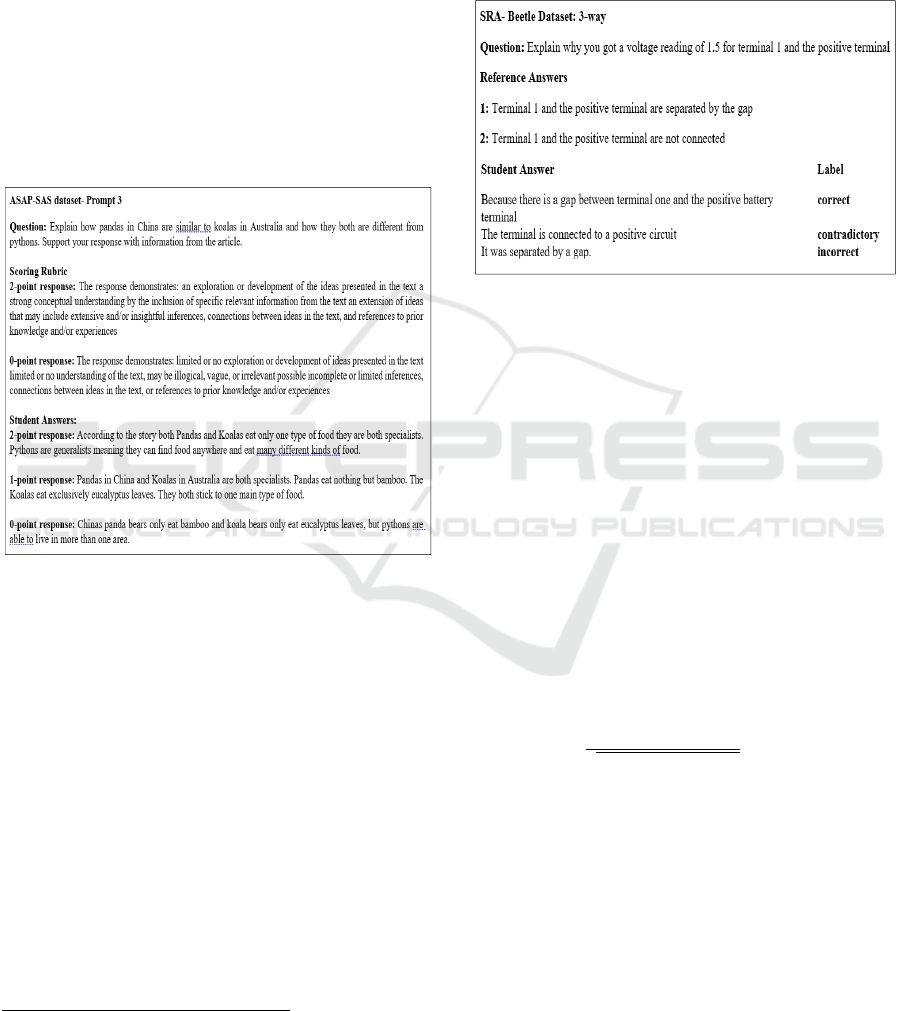

Figure 2: Example from ASAP dataset.

2.3 SRA Dataset

This dataset was introduced in 2013 by SemEval

(Semantic Evaluation) workshop and contains two

subsets: SciEntBank (SEB) and Beetle (Dzikovska et

al., 2013). The Beetle dataset consists of almost 3000

student responses to 56 questions recorded during

interactions with a dialogue system. The SciEntBank

dataset comprises of 10,000 student answers to 192

questions covering 16 science subjects of 3rd to 6th

grades. The datasets are labelled in 2-way: Correct,

Incorrect, 3-way (See Fig.3): Correct, Contradictory,

Incorrect and in 5-way: Correct, Partially Correct, or

Incomplete, Contradictory, Irrelevant or Not-In-

Domain. The SciEntBank test set consists of three

subsets: Unseen Questions (UQ), Unseen Answers

http://web.eecs.umich.edu/~mihalcea/downloads/Shor

tAnswerGrading_v1.0.tar.gz

https://www.kaggle.com/c/asapsas/leaderboard/public

(UA) and Unseen Domain (UD). UQ dataset consists

of in-domain but unseen questions, UA dataset

contains answers to questions which are present in

training dataset, UD consists of questions and answer

which are out of domain. Whereas Beetle test set

consists of two subsets: Unseen Questions (UQ) and

Unseen Answers (UA).

Figure 3: Example from SRA dataset.

3 EVALUATION METRICS

Based on the design of an ASAG system as a

classification or regression model, different

evaluation metrics are used. This section provides an

overview of commonly used performance metrics

used for evaluating ASAG models.

3.1 Pearson’s r Correlation

This is used to measure the correlation between two

numerical variables. The values assigned through this

method range from -1 to 1, where 1 indicates positive

correlation, 0 indicates no correlation and -1 is for

negative correlation. It is calculated by eq.1:

r =

∑

(







)(













)



∑

(







)



(







)







(1)

Where for two distributions

and

are the

value of distributions and 



and 



are the mean

values for both distributions respectively.

For the task of ASAG, Pearson’s correlation is

one of the most popular correlation measures which

is used to compare the marks assigned by instructors

with predicted marks.

On Deep Learning Approaches to Automated Assessment: Strategies for Short Answer Grading

3.2 Root Mean Square Error

It is another measure to calculate the error value

between predicted and observed values. RMSE score

is calculated by eq.2:

RMSE =









∑



−







)

 (2)

Where 



is predicted value and 



is observed

value.

For RMSE, lower value indicates better results.

3.3 F1 Score

It is an evaluation metric for classification which

combines precision and recall. It is the weighted

average of precision and recall and ranges between

1(best) and 0(poor).

F1 =

∗(∗)

()

(3)

Precision: It is the ratio of the correct predictions

made by model to the total predictions:

Precision =





(4)

Recall: it is the ration of correct predictions made by

the model to the actual labels.

Recall =





(5)

Macro-average F1: It calculates average of F1 score

per class by eq.6.

Macro-F1 =





∑(

1

)







(6)

Micro-average F1: It is the harmonic mean of the

precision and recall for each individual class.

Micro-F1=

∗(∗)

()

(7)

Micro Precision =

∑





∑







∑





(8)

Micro Recall =

∑





∑







∑





(9)

3.4 Quadratic Weighted Kappa

This is a measure to find the inter-rater agreement for

expected and predicted scores and can be calculate

by:

k =













=1−









(10)

Where, p

is the observed agreement and p

is the

expected agreement. Its value is 1 for complete

agreement when the expected and predicted scores

are same and 0 for the complete disagreement.

4 DEEP LEARNING

APPROACHES FOR ASAG

For a long time, traditional machine learning

approaches were widely used for measuring text

similarity and provided promising results in various

NLP tasks including Machine translation, text

summarization and automatic scoring. Earlier ASAG

models used traditional text similarity methods such

as corpus-based and string-based similarity measures

combined with feature engineering and simple text

vectorization methods. Nevertheless, manual

generation of features using regular expressions is a

time-consuming process and requires domain

expertise. Besides, these systems are trained on high

dimensional sparse vectors which makes them

computationally expensive. Since 2016, Deep

learning architectures gained popularity over

traditional machine learning approaches for text

similarity-based tasks, in particular Automatic Essay

Scoring and Automatic Short Answer Grading

(Camus & Filighera, 2020; Ghavidel et al., 2020;

Gomaa & Fahmy, 2020; Hassan et al., 2018; Kumar

et al., 2017; Prabhudesai & Duong, 2019; Saha et al.,

2018; Sasi et al., 2020; Sung et al., 2019; Surya et

al., 2019; Tulu et al., 2021). Multiple authors also

studied word embedding models with deep learning

approaches. In this paper, we have categorized the

work in this domain into three categories: Early

Neural Network-based, Attention based, and

Transformer-based ASAG architectures.

4.1 Early Neural Network Approaches

Earlier ASAG systems were based on features

engineering while many recent ASAG systems are

neural network-based eliminating the need of feature

engineering. In 2017, a novel framework was

proposed which combined Siamese bi-LSTM for

student and model answers, Earth-Mover distance-

based pooling layer for all hidden states, and a support

vector output layer for scoring. Additionally, they

used task-specific data augmentation for the training

process. This model was tested on Mohler’s and

SemEval’s dataset and outperformed various

baselines (Kumar et al., 2017). In 2017, researchers

experimented with neural architectures for ASAG

CSEDU 2022 - 14th International Conference on Computer Supported Education

task, which were previously used for Automatic

Essay Scoring (AES) (Riordan et al., 2017). The

experiments were performed on three publicly

available datasets: ASAP-SAS, Powergrading (Basu

et al., 2013), and SemEval. They investigated

multiple research questions through their work: (a)

how pretrained embeddings with fine-tuning perform;

(b) whether the convolution layer will be able to

generate minimum features for ASAG task; (c) is it

possible to use smaller hidden layers; (d) the role of

bi-directional LSTM and attention mechanism.

According to their findings, a basic neural

architecture with tuned pre-trained embeddings and

LSTMs is a relatively effective architecture for

ASAG. In 2018, a bi-LSTM based deep learning

model was proposed utilizing paragraph embeddings

for the vector representation of answers (Hassan et al.,

2018). In their work, authors investigated multiple

word embeddings including Word2Vec, GLoVe,

fastText and paragraph embeddings such as

Doc2Vec, Infersent and Skip-thought. With word

embedding models, they used sum of word vectors to

generate paragraph embedding models for student

and model answers. However, among all the

embedding models, highest Pearson’s correlation

score of 0.569 was achieved by the Doc2Vec

paragraph embedding model. In 2019, another neural

model was developed using Siamese bidirectional

LSTM (bi-LSTM) and hand-crafted features

(Prabhudesai & Duong, 2019). These features

included the length of student response, length ratio

of student and model answers, total number of words

and unique words in student response. Researchers

used GloVe embeddings at the embedding layer and

used data augmentation of reference answers in

training as novel features of their work. To evaluate

the performance, they used Mohler’s dataset. In

another study, Saha et al. proposed a joint multi

domain neural architecture (JMD-ASAG) for ASAG

(Saha et al., 2019) . This architecture is based on bi-

LSTMs, generic scorer, and domain specific scorers.

The domain adaptation is performed by learning

generic and domain specific characteristics using

limited task and domain-specific training data. In

2020, another deep learning-based method for

automatic short answer grading called Ans2Vec has

also been proposed (Gomaa & Fahmy, 2020). This

approach has based on Skip-thought vectorization

method to convert model and student answers into

semantic vectors. The model was tested for Mohler’s

dataset, SciEntBank dataset, and Cairo university

https://drive.google.com/file/d/0B7XkCwpI5KDYNlN

UTTlSS21pQmM/edit?usp=sharing

dataset (Gomaa & Fahmy, 2014). Recently in 2021,

one more deep neural network architecture approach

was proposed by combining Manhattan LSTMs and

SemSpace vectors (Tulu et al., 2021). These vectors

were derived from the WordNet database to predict

student grades from the ASAG datasets. The system

consists of two identical LSTM networks, where each

sentence pair of student and model answer is fed to

the system as sense vectors and vectorial similarity is

calculated by Manhattan distance at output. To

evaluate the system performance, they used two

datasets: Mohler’s dataset and Cukurova University-

NLP (CU-NLP) dataset which was specifically

prepared for this study. For experimentation, they

prepared separate CSV file for each question

containing corresponding student and reference

answers. They achieved 0.95 Pearson’s correlation

for the majority files.

4.2 Attention-based Approaches

In the Deep Learning domain, greatest achievements

in the last decade have been the advent of the

attention mechanism. Since its inception, many NLP

advances have been made including Transformers

such as Google’s BERT (Bidirectional Encoder

Representations from Transformers). Attention's

main objective is to construct the context vectors

required by the decoders by considering all the states

of intermediate encoders. In 2019, an attention-

based framework was presented which extracts

semantic information from student and model

answer without the need of feature engineering (Liu

et al., 2019). Based on transformer layers and

multiway attention mechanism, this model provides

enhanced semantic relationship between words in a

sentence. This framework was evaluated on K-12

dataset. In their paper, published in 2019, authors

(Gong & Yao, 2019) presented another attention-

based deep model for ASAG. To learn sentence

vector representation of student and model answers,

this model utilizes pre-trained word embeddings and

BiRNN with LSTM and attention-mechanism. This

system is tested on K-12 dataset and achieved 10%

increased performance compared to baseline

models. Similarly, another attention-based neural

architecture was designed for ASAG and evaluated

on ASAP-SAS dataset (Xia et al., 2020). In this

architecture, researchers combined Google Word

Vector (GWV)

and attention mechanisms using a

BiLSTM neural network. In contrast to several

On Deep Learning Approaches to Automated Assessment: Strategies for Short Answer Grading

baseline models, this model provides achieved

average QWK value of 0.70 for short answer

scoring.

4.3 Transformer-based Approaches

In 2017, a novel architecture called Transformers

was presented in the paper “Attention Is All You

Need” (Vaswani et al., 2017) which also leverages

the attention mechanism. Later, in 2018, a new

transformer-based language representation model

called BERT (Devlin et al., 2018) was introduced.

By conditioning on both left and right context

simultaneously in all layers, it aims to learn deep

bidirectional representations from unlabelled text.

Since then, NLP researchers began to investigate its

effectiveness in different downstream NLP tasks

including ASAG. In 2019, BERT was used to

improve the automatic short answer scoring task

(Sung et al., 2019). The performance of BERT for

ASAG was evaluated using the SciEntBank and

Psychology domain datasets from SemEval-2013

and found that pretrained transfer learning models

performed 10% better than the classical methods. It

was further observed that a model fine-tuned on

single domain data was not suitable for other

domains, however, a single model can be fine-tuned

on multiple domains. In 2020, the above work was

extended by analysing different transformer-based

architectures such as BERT and its variants on

SemEval dataset (Camus & Filighera, 2020). It was

observed that models trained on different datasets

can be used for ASAG task using the transfer

learning approach. In addition, it was discovered

that training models using multiple languages can

improve their performance. Moreover, transformer-

based models demonstrate better performance and

generalization capabilities. In another study

presented in 2020, multiple data augmentation

strategies were combined with BERT for ASAG

(Lun et al., 2020). By employing three data

augmentation strategies including back translation,

correct answer as reference answer and swap

content, authors enhanced the sentence

representation and further improved the

performance of the model with fine-tuned BERT.

For the system evaluation they used SemEval

dataset. An autoregressive pre-training architecture

that uses BERT and XLNET (Extra Long-Network)

was proposed in 2020 as another reference answer-

based model (Ghavidel et al., 2020). Unlike

previously described works, this approach does not

utilize any manually crafted features neither use

questions for training or as input to the system. The

system’s performance was evaluated on SciEntBank

dataset provided by SemEval-2013.According to the

observations, both models performed similarly by

providing semantic relationship between student

answer and model answer yet outperformed

previous state of the art approaches.

5 DISCUSSION

Most ASAG systems require a ‘deep’ learning

model that consists of a number of training layers

and incorporating a training phase on a corpus that

is sufficiently representative of a broad cross section

of good and bad sample answers. There are a variety

of factors that will determine a system's ASAG

effectiveness including, inter alia, the efficiency of

the system training stage, processing time allowed

to infer the final scores, the incorporation of deep

layer fine-tuning on specific questions in the

training phase, scalability, and the ability to

regenerate the results on similar, yet different,

datasets (Bonthu et al., 2021). In contrast to

conventional feature engineering based ASAG

systems, deep learning models have been shown to

provide better results in terms of accuracy, semantic

similarity, computational cost, and generalizability.

From the models reviewed in this study, it is

observed that Attention-based and BERT based

models outperform alternatives for the ASAG task

on Mohler, ASAP-SAS and SRA datasets.

Furthermore, recent advancements within the

transformer and pre trained language model

literature can provide excellent performance in

terms of efficacy. For instance, Transfer learning

mechanism have been shown to reduce the

requirement for broad, yet still domain specific

training data and excellent adaptations in relation to

generalization have been reported. Based on the

results presented in Table 1, it is clear that

rudimentary LSTM-based models provided good

results using Mohler's dataset and are

computationally efficient. Using a separate training

file for each question, it was shown to achieve the

highest Pearson score (with this corpus) of 0.94

(Tulu et al., 2021). Conversely, when the system was

trained with a single training file that includes all

questions, answers, and reference answers, the

Pearson correlation reduces markedly to 0.15.

Evidently, an extension to a large dataset, with an

attendant growth in context training set, causes an

ASAG system to train far more slowly and also

exhibits a much lower success rate when a large

amount of Out-Of-Vocabulary (OOV) words appear

CSEDU 2022 - 14th International Conference on Computer Supported Education

in the dataset. This has clear negative ramifications

for the consideration of LSTM methods in this use

case. Other models that employ word or sentence

embeddings e.g., Gomaa et. al (Gomaa & Fahmy,

2020) have been shown to perform well in this use

case. Such approaches, that utilize embeddings of

student and reference answers preserve the semantic

and syntactic relation among words. In Table 2 it can

be seen that an attention-based model outperforms

an LSTM using the ASAP-SAS dataset. Moreover,

most of the attention-based models that have been

evaluated on the K-12 dataset have demonstrated

even better results. This provides significant

actionable feedback in relation to the curation of

data for future blended learning trials. In general,

further improvements in performance for the ASAG

use case has been achieved using transformer-based

models that have been trained and tested on the

SemEval dataset and as shown in Table 3. Most of

these models have used the finetuning of BERT and

its variants. The system presented by Lun et. al (Lun

et al., 2020)outperformed other state-of-the-art

models using a combination of the classical BERT

multi-layer deep contextualized language model

introduced in 2018, combined with (multiple)

training data augmentation strategies. It is pretrained

on Wikipedia and a large Book Corpus that learns

the contextual relationship between sentences which

plays a significant role in text similarity-based task

such as ASAG. While most of these systems are

capable of producing good results, the generalized

performance of these systems is still questionable

for the case of completely new student cohorts who

may provide answers on new question banks that are

significantly different to the (limited) datasets that

have been considered in this work.

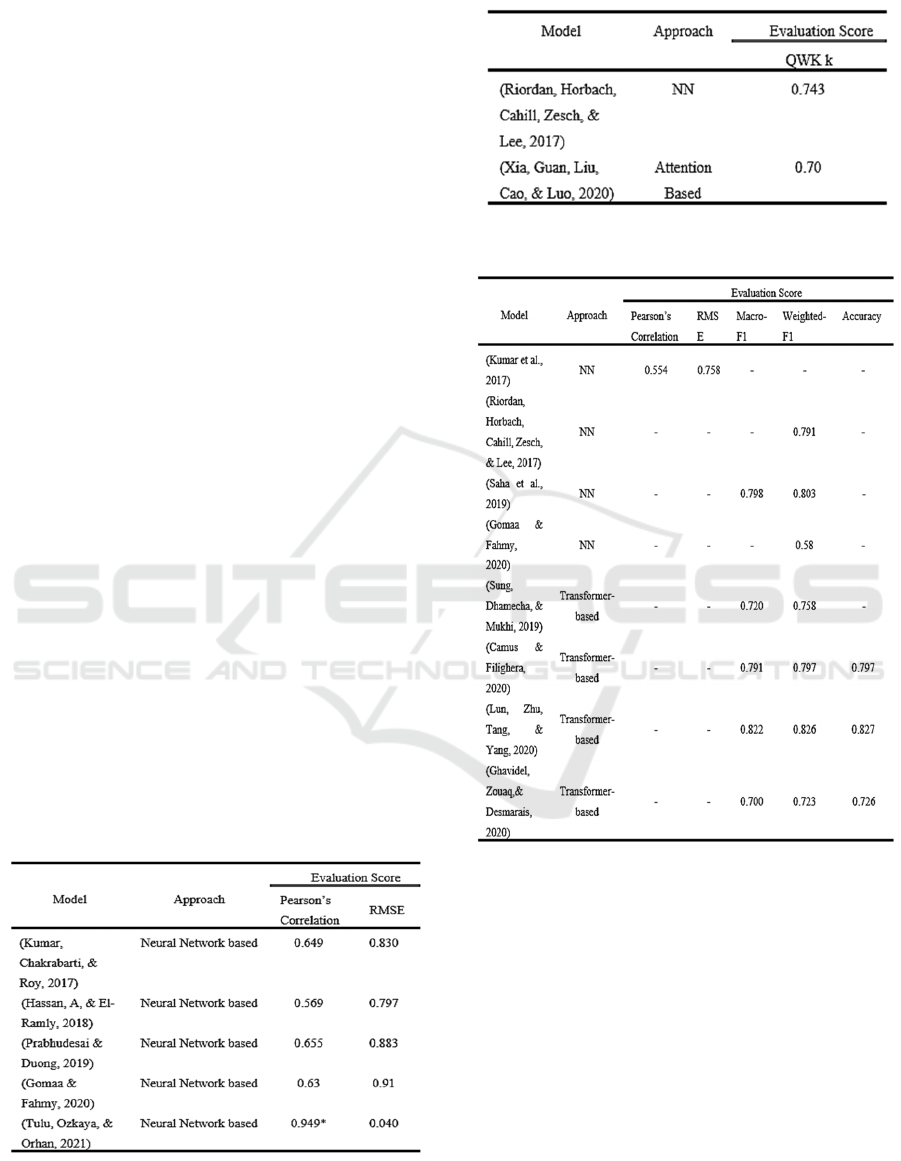

Table 1: Performance scores for Mohler’s Dataset.

Table 2: Performance scores for ASAP-SAS Dataset.

Table 3: Performance scores for SemEval’s Dataset.

6 FUTURE DIRECTIONS

Through this study, several conclusions have been

drawn for the ASAG use case. These observations not

only concern the main features of system evaluation,

but also consider future research directions which go

beyond the ‘nuts and bolts’ issues of datasets, models,

and evaluation metrics.

6.1 Datasets

It is observed that currently few and limited datasets

are available for the task of ASAG, and those

On Deep Learning Approaches to Automated Assessment: Strategies for Short Answer Grading

available datasets cover very a handful of domains

such as, science (SemEval) and computer science

(Mohler). Also, these datasets are collected from

different education levels which limits their

generalization potential. Furthermore, depending on

the number of times that a course is offered and the

number of enrolled students per offering, amount of

available data can be limited which could create

further problems in training a model. Moreover, most

of the online education and distance learning

programs are based on university level courses which

involve programming and numerical solutions.

Therefore, it is important to develop new, domain

specific datasets for various levels which cover

programming and numerical type data.

6.2 Model Building

In recent years, various state of the art models has

been introduced following the introduction of

transformer architecture, such as Reformer (Kitaev,

Kaiser, & Levskaya, 2020), pre-trained language

models such as GPT (Radford et al., 2018) and its

variants, BERT (Devlin et al., 2018), XLNET (Yang

et al., 2019), T5 (Raffel et al., 2019) and ELECTRA

(Clark et al., 2020). The potential of using these

models for the task of ASAG should be investigated.

6.3 Perspective of Stakeholders

In an educational environment, multiple entities are

affected by the implementation and deployment of

ASAG systems. The performance of an ASAG

system must meet the expectation of these entities

also called stakeholders (Madnani & Cahill, 2018),

which involves Students/Test-takers,

Teachers/Examiners, Subject-experts, NLP

Researchers, and Educational Technology (EdTech)

Companies. Assessments and grades significantly

impact the future of the students. For instance, when

considering matriculation to the next grade level or

the achievement of base levels of performance for the

completion of a particular learning outcome a floor

level or ‘pass’ mark needs to be established. All

stakeholders demand reliable and accurate scoring

systems. Further, instant student feedback on scores

as well as deeper feedback identifying the reasons for

the award of marks are now required. For ASAG

systems to be adopted they must be trusted by

teachers, particularly in the case of formative

assessment. Subject experts must assume

responsibility for the careful design of possibly fewer

rich assessments and scoring rubrics that tightly

describe the marking criteria so that automated

grading can be deployed successfully. There is a clear

trade-off between the rubrics that are necessary for

complex open-ended responses, the design time for a

(potentially) more limited form of assignment to be

graded automatically and the manual assessment of

student material. Therefore, clear guidelines need to

develop for teachers so that automated methods can

be deployed successfully. Additionally, for longer

form answers existing benchmark datasets will need

to be labelled i.e., graded, typically by two human

graders marking the responses and taking the average

of both scores as a ‘golden’ score. Hence when

considering extensions to ASAG use cases, it is

essential 12 to quantify the level of human

intervention and accuracy measurements required to

deliver acceptable system performance. For NLP

engineers, it is important to build tools that will be

adopted widely with a minimum of local

configuration. The development of a clear roadmap

for adopters is critical in this regard.

6.4 Integration of ASAG System with

Learning Management Systems

(LMS)

Most LMS offered by educational institutions now

provide various features such as online discussion

forums, study progress tracking, creation of online

assessments, and user feedback. Integrating

automated grading support integrated within

commercial LMSs poses multiple challenges. The

integrate of new tools into such systems may impose

significant extra costs. Moreover, although some of

these systems already provide automated assessments

these are generally limited to MCQs and filling in

tightly constrained blank spaces. Grading of free-text

responses is still a significant open challenge in these

applications. To address these problems, an open-

source LMS such as Moodle, modified to include an

ASAG component, is the obvious starting point. How

limiting is such a starting point in terms of reducing

the available marker of adopters? The consideration

of common ethical issues regarding fairness, validity

and plagiarism when developing an ASAG system

that can be integrated within a standalone LMS also

raises liability questions when any mistakes are made.

6.5 Creating a Roadmap for ASAG

Tool Deployment

It is necessary for NLP researchers and subject

experts to work together to develop custom ASAG

systems that incorporate the appropriate features for

widescale deployment. An ASAG system should be

CSEDU 2022 - 14th International Conference on Computer Supported Education

user-friendly enough so that instructors from a wide

range of technical disciplines feel confident that they

can adopt it without the aid of developers. It must be

capable of being deployed as a web application or as

a tool without an explicit programming support

environment. Thirdly, it must be a fast, cost-effective,

trustworthy, scalable, and generalizable so that the

system keeps pace with technological advances.

7 CONCLUSIONS

In this paper we provide an overview of the recent

deep learning-based solutions for the task of

Automatic Short Answer Grading and its relevance in

the educational setting. We also reviewed available

benchmark datasets and evaluation metrics and

discussed their major shortcomings. We showed that

recently adopted transfer learning and transformer-

based models outperform earlier neural network-

based models used for ASAG. Nonetheless, the

application of the latest transformer-based models

such as GPT-2, GPT-3, T5, and XLNET still remain

to be explored in this context. In this paper, several

possible future directions that can present a barrier to

widescale deployment have been identified. The

interests of various stakeholders, the need for new

dataset curation guidelines and the pressing need for

more user-friendly interfaces to enable the adoption

of ASAG systems have been highlighted.

REFERENCES

Basu, S., Jacobs, C., & Vanderwende, L. (2013).

Powergrading: a clustering approach to amplify human

effort for short answer grading. Transactions of the

Association for Computational Linguistics, 1, 391-402.

Bonthu, S., Rama Sree, S., & Krishna Prasad, M. (2021).

Automated Short Answer Grading Using Deep

Learning: A Survey. Paper presented at the International

Cross-Domain Conference for Machine Learning and

Knowledge Extraction.

Burrows, S., Gurevych, I., & Stein, B. (2015). The Eras and

Trends of Automatic Short Answer Grading.

International Journal of Artificial Intelligence in

Education, 25(1), 60-117.

Camus, L., & Filighera, A. (2020). Investigating

transformers for automatic short answer grading.

Paper presented at the International Conference on

Artificial Intelligence in Education.

Clark, K., Luong, M.-T., Le, Q. V., & Manning, C. D.

(2020). Electra: Pre-training text encoders as

discriminators rather than generators. arXiv preprint

arXiv:2003.10555.

Devlin, J., Chang, M.-W., Lee, K., & Toutanova, K. (2018).

Bert: Pre-training of deep bidirectional transformers for

language understanding. arXiv preprint

arXiv:1810.04805.

Dzikovska, M. O., Nielsen, R. D., Brew, C., Leacock, C.,

Giampiccolo, D., Bentivogli, L., et al. (2013). Semeval-

2013 task 7: The joint student response analysis and 8th

recognizing textual entailment challenge: NORTH

TEXAS STATE UNIV DENTON.

Ghavidel, H. A., Zouaq, A., & Desmarais, M. C. (2020).

Using BERT and XLNET for the Automatic Short

Answer Grading Task. Paper presented at the CSEDU

(1).

Gomaa, W. H., & Fahmy, A. A. (2014). Arabic short

answer scoring with effective feedback for students.

International Journal of Computer Applications, 86(2),

35-41.

Gomaa, W. H., & Fahmy, A. A. (2020). Ans2vec: A

Scoring System for Short Answers (pp. 586-595):

Springer International Publishing.

Gong, T., & Yao, X. (2019). An attention-based deep model

for automatic short answer score. International Journal

of Computer Science and Software Engineering, 8(6),

127-132.

Hassan, S., A, A., & El-Ramly, M. (2018). Automatic Short

Answer Scoring based on Paragraph Embeddings.

International Journal of Advanced Computer Science

and Applications, 9(10).

Kitaev, N., Kaiser, Ł., & Levskaya, A. (2020). Reformer:

The efficient transformer. arXiv preprint

arXiv:2001.04451.

Kumar, S., Chakrabarti, S., & Roy, S. (2017). Earth

Mover's Distance Pooling over Siamese LSTMs for

Automatic Short Answer Grading. Paper presented at

the IJCAI.

Liu, T., Ding, W., Wang, Z., Tang, J., Huang, G. Y., & Liu,

Z. (2019). Automatic short answer grading via

multiway attention networks. Paper presented at the

International conference on artificial intelligence in

education.

Lun, J., Zhu, J., Tang, Y., & Yang, M. (2020).

Multiple data

augmentation strategies for improving performance on

automatic short answer scoring. Paper presented at the

Proceedings of the AAAI Conference on Artificial

Intelligence.

Madnani, N., & Cahill, A. (2018). Automated scoring:

Beyond natural language processing. Paper presented

at the Proceedings of the 27th International Conference

on Computational Linguistics.

Mohler, M., Bunescu, R., & Mihalcea, R. (2011). Learning

to grade short answer questions using semantic

similarity measures and dependency graph alignments.

Paper presented at the Proceedings of the 49th annual

meeting of the association for computational

linguistics: Human language technologies.

Mohler, M., & Mihalcea, R. (2009). Text-to-text semantic

similarity for automatic short answer grading. Paper

presented at the Proceedings of the 12th Conference of

the European Chapter of the ACL (EACL 2009).

On Deep Learning Approaches to Automated Assessment: Strategies for Short Answer Grading

Page, E. B. (1966). The Imminence of... Grading Essays by

Computer. The Phi Delta Kappan, 47(5), 238-243.

Prabhudesai, A., & Duong, T. N. B. (2019, 10-13 Dec.

2019). Automatic Short Answer Grading using Siamese

Bidirectional LSTM Based Regression. Paper presented

at the 2019 IEEE International Conference on

Engineering, Technology and Education (TALE).

Radford, A., Narasimhan, K., Salimans, T., & Sutskever, I.

(2018). Improving language understanding by

generative pre-training.

Raffel, C., Shazeer, N., Roberts, A., Lee, K., Narang, S.,

Matena, M., et al. (2019). Exploring the limits of

transfer learning with a unified text-to-text transformer.

arXiv preprint arXiv:1910.10683.

Riordan, B., Horbach, A., Cahill, A., Zesch, T., & Lee, C.

(2017). Investigating neural architectures for short

answer scoring. Paper presented at the Proceedings of

the 12th Workshop on Innovative Use of NLP for

Building Educational Applications.

Saha, S., Dhamecha, T. I., Marvaniya, S., Foltz, P.,

Sindhgatta, R., & Sengupta, B. (2019). Joint multi-

domain learning for automatic short answer grading.

arXiv preprint arXiv:1902.09183.

Saha, S., Dhamecha, T. I., Marvaniya, S., Sindhgatta, R., &

Sengupta, B. (2018). Sentence level or token level

features for automatic short answer grading?: Use

both. Paper presented at the International conference on

artificial intelligence in education.

Sasi, Nair, D., & Paul. (2020). Comparative Evaluation of

Pretrained Transfer Learning Models on Automatic

Short Answer Grading. arXiv pre-print server.

Sultan, M. A., Salazar, C., & Sumner, T. (2016). Fast and

easy short answer grading with high accuracy. Paper

presented at the Proceedings of the 2016 Conference of

the North American Chapter of the Association for

Computational Linguistics: Human Language

Technologies.

Sung, C., Dhamecha, T. I., & Mukhi, N. (2019). Improving

short answer grading using transformer-based pre-

training. Paper presented at the International

Conference on Artificial Intelligence in Education.

Surya, K., Gayakwad, E., & Nallakaruppan, M. (2019).

Deep learning for short answer scoring. Int. J. Recent.

Technol. Eng.(IJRTE), 7(6).

Tulu, C. N., Ozkaya, O., & Orhan, U. (2021). Automatic

Short Answer Grading With SemSpace Sense Vectors

and MaLSTM. IEEE Access, 9, 19270-19280.

Vaswani, A., Shazeer, N., Parmar, N., Uszkoreit, J., Jones,

L., Gomez, A. N., et al. (2017). Attention is all you

need. arXiv preprint arXiv:1706.03762.

Xia, L., Guan, M., Liu, J., Cao, X., & Luo, D. (2020).

Attention-Based Bidirectional Long Short-Term

Memory Neural Network for Short Answer Scoring.

Paper presented at the International Conference on

Machine Learning and Intelligent Communications.

Yang, Z., Dai, Z., Yang, Y., Carbonell, J., Salakhutdinov,

R., & Le, Q. V. (2019). Xlnet: Generalized

autoregressive pretraining for language understanding.

arXiv preprint arXiv:1906.08237.

CSEDU 2022 - 14th International Conference on Computer Supported Education
