A Data Lake Metadata Enrichment Mechanism via Semantic
Blueprints
Michalis Pingos and Andreas S. Andreou
Department of Computer Engineering and Informatics, Cyprus University of Technology, Limassol, Cyprus
Keywords: Smart Data Processing, Deep Insight, Data Lakes, Heterogeneous Data Sources, Metadata Mechanism, 5Vs
Big Data Characteristics, Data Blueprints.
Abstract: One of the greatest challenges in Smart Big Data Processing nowadays revolves around handling multiple
heterogeneous data sources that produce massive amounts of structured, semi-structured and unstructured
data through Data Lakes. The latter requires a disciplined approach to collect, store and retrieve/ analyse data
to enable efficient predictive and prescriptive modelling, as well as the development of other advanced
analytics applications on top of it. The present paper addresses this highly complex problem and proposes a
novel standardization framework that combines mainly the 5Vs Big Data characteristics, blueprint ontologies
and Data Lakes with ponds architecture, to offer a metadata semantic enrichment mechanism that enables fast
storing to and efficient retrieval from a Data Lake. The proposed mechanism is compared qualitatively against
existing metadata systems using a set of functional characteristics or properties, with the results indicating
that it is indeed a promising approach.
1 INTRODUCTION
Big Data is an umbrella term referring to the large
amounts of digital data continually generated by tools
and machines, and the global population (Chen et al.,
2014). The speed and frequency by which digital data
is produced and collected by an increasing number of
different kinds of sources are projected to increase
exponentially. This increasing volume of data, along
with its immense social and economic value (Bertino,
2013; Günther et al., 2017), is driving a global data
revolution. Big Data has been called “the new oil”, as
it is recognized as a valuable human asset, which,
with the proper collation and analysis, can deliver
information that will give birth to deep insights into
many aspects of our everyday life and, moreover, to
let us predict what might happen in the future.
While Big Data is available and easily accessible,
it is evident that its great majority comes from
heterogeneous sources with irregular structures
(Blazquez & Domenech, 2018). The process of
transforming Big Data into Smart Data in terms of
making them valuable and transforming it into
meaningful information is called Smart Data
Processing (SDP) and includes a series of diverse
actions and techniques. These actions and techniques
support the processing and integration of data into a
unified view from disparate Big Data sources.
Furthermore, this field includes adaptive frameworks
and tool-suites to support smart data processing by
allowing the best use of streaming or static data, and
may rely on advanced techniques for efficient
resource management.
SDP supports the process and integration of data
into a unified view from disparate Big Data sources
including Hadoop and NoSQL, Data Lakes, data
warehouses, sensors and devices on the Internet of
Things, social platforms, and databases, whether on-
premises or on the Cloud, structured or unstructured
and software as a service application to support Big
Data analytics (Fang, 2015).
The analytics solutions, which rely on smart data
processing and integration techniques, are called
Systems of Deep Insight (SDI). These solutions
enable optimization of asset performance in SDP
systems and are geared towards systems of insight. In
addition, they sift through the data to discover new
relationships and patterns by analysing historical
data, assessing the current situation, applying
business rules, predicting outcomes, and proposing
the next best action. Despite the great and drastic
solutions proposed in recent years in the area of Big
Data Processing and SDP, treating Big Data produced
186
Pingos, M. and Andreou, A.
A Data Lake Metadata Enrichment Mechanism via Semantic Blueprints.
DOI: 10.5220/0011080400003176
In Proceedings of the 17th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2022), pages 186-196
ISBN: 978-989-758-568-5; ISSN: 2184-4895
Copyright
c
 2022 by SCITEPRESS – Science and Technology Publications, Lda. All rights reserved

by multiple heterogeneous data sources remains a
challenging and unsolved problem.
The main research contributions of this paper
include the utilization of Data Lakes as a means to
achieve the desired level of Big Data Processing and
ultimately lead to developing SDP. Along these lines,
we propose a standardization framework for storing
data (and data sources) in a Data Lake and a metadata
semantic enrichment mechanism that is able to handle
effectively and efficiently Big Data coming from
disparate and heterogeneous data sources. These
sources produce different types of data at various
frequencies and the mechanism is applied both when
this data is ingested in a Data Lake and at the
extraction of knowledge and information from the
Data Lake.
The remainder of the paper is structured as
follows: Section 2 discusses related work and the
technical background in the areas of SDP and Data
Lakes. Section 3 presents the Data Lake source
description framework and discusses its main
components. This is followed by presenting the
details of the expected features of a Data Lake’s
metadata system and compares them with several
existing works in section 4. Finally, section 5
concludes the paper and highlights future work
directions.
2 TECHNICAL BACKGROUND
Big Data Processing includes the processing of
multiple and various types of data, structured, semi-
structured, and unstructured. A Data Lake is a storage
repository that could store a vast amount of raw data
of these various types in its native format until it is
needed. In addition, a Data Lake is a centralized
repository that stores structured, semi-structured, and
unstructured data at any scale, and data is selected and
organized when needed. Data can be stored as-is,
without the need to first structure it before executing
different types of analytics, from dashboards and
visualizations to Big Data processing, real-time
analytics, and machine learning to guide better
decisions. Furthermore, Data Lakes architecture is
also used to store large amounts of relational and non-
relational data combining them with traditional data
warehouses.
Khine and Wang (2018) state that a Data Lake is
one of the arguable concepts that appeared in the era
of Big Data. A Data Lake is a place to store practically
every type of data in its native format with no fixed
limits on account size or file, offering at the same time
high data quantity to increase analytic performance
and native integration.
The idea behind Data Lakes is simple: Instead of
placing data in a purpose-built data store, move it into
a Data Lake in its original format. This eliminates the
upfront costs of data ingestion, like transformation
and indexing. Once data is placed into the lake, it is
available for analysis by everyone in the organization
(Miloslavskaya & Tolstoy, 2016). Unlike a
hierarchical Data Warehouse where data is stored in
files and folders, a Data Lake has a flat architecture.
Every data element in a Data Lake is given a unique
identifier and is tagged with a set of metadata
information. Data Lakes can provide the following
benefits:
 With the onset of storage engines like Hadoop,
storing disparate information has become easy.
 There is no need to model data into an
enterprise-wide schema with a Data Lake.
 With the increase in data volume, data quality,
and metadata, the quality of analyses also
increases.
 Data Lake offers business Agility.
 Machine Learning and Artificial Intelligence
can be used to make profitable predictions.
 It offers a competitive advantage to the
implementing organization.
The 5Vs are the five main and innate
characteristics of Big Data. As one-dimension
changes, the likelihood increases that another
dimension will also change as a result. Knowing the
5Vs allows data scientists to derive more value from
their data, while also allowing them to become more
customer-centric (Bell et al., 2021). As far back as
2001, Doug Laney articulated the now mainstream
definition of Big Data as the 3Vs of Big Data
(Kościelniak & Putto, 2015):
 Volume - the volumes of data produced
 Velocity - the rate transfer which data produced
 Variety - heterogeneous and multiple data
In addition to the 3Vs, other dimensions of Big
Data have also recently been reported (Gandomi &
Haider, 2015). These include:
 Veracity: IBM coined Veracity as the 4
th
V,
which represents the unreliability inherent in
some sources of data (Luckow et al., 2015).
 Variability: SAS introduced Variability and
Complexity as two additional dimensions of Big
Data (Herschel & Miori, 2017). Variability
refers to the variation in the data flow rates.
A Data Lake Metadata Enrichment Mechanism via Semantic Blueprints
187

Complexity refers to the fact that Big Data are
generated through a myriad of sources.
 Value: Oracle introduced Value as a defining
attribute of Big Data (Kim et al., 2012). Based
on Oracle’s definition, Big Data are often
characterized by relatively “low value density”.
Big Data originate mostly from one of five primary
sources: Social media, Cloud, Web, traditional
business systems (e.g., ERPs), and Internet of Things
(IoT) (Sethi & Sarangi, 2017). These primary sources
produce an enormous variety of structured,
unstructured, and semi-structured data (see figure 1).
The term structured data refers to data that resides in
a fixed field within a file or record. Structured data is
typically stored in a relational database (RDBMS). It
depends on the creation of a data model that defines
what types of data are present. Unstructured data is
more or less all the data that is not structured. Even
though unstructured data may have a native, internal
structure, it is not structured in a predefined way.
There is no data model; the data is stored in its native
format. Typical examples of unstructured data are
rich media, text, social media activity, surveillance
imagery, etc. It is essentially a type of structured data
that does not fit into the formal structure of a
relational database. But while not matching the
description of structured data entirely, it still employs
tagging systems or other markers, separating different
elements and enabling search. Sometimes, this is
referred to as data with a self-describing structure.
Media includes social networks and interactive
platforms, like Google, Facebook, Twitter, YouTube,
Instagram, as well as generic media, like videos,
audios, and images that provide qualitative and
quantitative data on every aspect of user interaction.
Private or public cloud storages include information
from real-time or on-demand business data. Web or
Internet constitutes any type of data that are publicly
available and can be used for any commercial or
individual activity. Traditional business systems
produce and store business data in conventional
relational databases or modern NoSQL databases.
Finally, IoT includes data generated from sensors that
are connected to any electronic devices that can emit
data.
Manufacturing blueprints create a basic
knowledge environment that provides manufacturers
with more granular, fine-grained and composable
knowledge structures and approaches to correlate and
systematize vast amounts of dispersed manufacturing
data, associate the “normalized” data with operations,
and orchestrate processes in a more closed-loop
performance system that delivers continuous
innovation and insight. Such knowledge is crucial for
creating manufacturing smartness in a smart
manufacturing network (Papazoglou & Elgammal,
2018).
Figure 1: Different types of data produced by Big Data sources.
ENASE 2022 - 17th International Conference on Evaluation of Novel Approaches to Software Engineering
188

Figure 2: Data sources selection metadata enrichment mechanism using 5Vs.
Manufacturing blueprints provide a complete
summary of a product by juxtaposing its features with
its operational and performance characteristics, as
well as how it is manufactured, which processes are
used, and which manufacturing assets (people, plant
machinery and facilities, production line equipment)
are used to make it, as well as the suppliers who
provide/produce parts and materials. Manufacturing
blueprints also include a summary of suppliers,
including their capabilities and competencies.
Finally, manufacturing blueprints detail how
manufacturers and suppliers coordinate, arrange
manufacturing processes, expedite hand-offs, and
create the final product (Papazoglou & Elgammal,
2018).
This paper adopts the basic principles of
manufacturing blueprints and modifies their purpose
and meaning to reflect the description and
characterization of data sources and the data they
produce. Along these lines, a framework is proposed
that builds upon the utilization of the five
aforementioned Big Data characteristics (5Vs) to
describe Big Data sources. These characteristics will
guide the characterization of data sources by means
of specific types of blueprints through an ontology-
based description. Big Data sources will thus be
accompanied by this blueprint description before they
become part of a Data Lake.
3 METHODOLOGY
As mentioned above, a new standardization
framework will be introduced combining the 5Vs Big
Data characteristics and blueprint ontologies to assist
data processing (storing and retrieval) in Data Lakes
organized with pond architecture. According to the
pond architecture, a Data Lake consists of a set of data
ponds and each pond hosts / refers to a specific data
type. Each pond contains a specialized storage system
and data processing depending on the data type
(Sawadogo & Darmont, 2021).
A Data Lake with pond architecture is assumed to
use a dedicated pond to store each data source with
the same type of data, structured, unstructured, and
semi-structured as shown in figure 2. This innate
pond architecture is particularly helpful when
extracting information from the Data Lake as will be
demonstrated later on.
Big Data sources are filtered before they become
part of the Data Lake as shown in figure 2. Every data
source, which is a candidate to be part of the Data
Lake, will be characterized according to the blueprint
values shown in figure 3. Therefore, the selection of
data sources is performed according to the blueprint
of each different data source.
As previously mentioned, a dedicated blueprint is
developed to describe each data source storing data in
the Data Lake. Specifically, the blueprint of a source
consists of two interconnected blueprints as shown in
figure 3:
A Data Lake Metadata Enrichment Mechanism via Semantic Blueprints
189

Figure 3: Data source blueprints description using 5Vs Big Data characteristics.
The first one is static and records the name and type
of the source, the type of data it produces, as well as
the value, velocity, variety, and veracity of the data
source. The second is dynamic as it changes values in
the course of time and essentially characterizes the
volume of data, the last source update, and the
keywords of the source. The dynamic blueprint is
updated every time data sources produce new data.
Figure 5 presents the ontology graph of the data
source created via Protégé, a free open-source
ontology editor and framework for building
knowledge-based solutions (http://protege.stanford.
edu). This graphical representation tool produces an
RDF ontology for the data sources.
RDF stands for Resource Description Framework
and is a framework for describing resources usually
on the Web. RDF is designed to be read and
understood by computers, is not designed for being
displayed to people, and is written in XML. RDF is a
part of the W3C’s Semantic Web Activity and is a
standard for data interchange that is used for
representing highly interconnected data. Each RDF
statement is a three-part structure consisting of
resources where every resource is identified by a URI.
Representing data in RDF allows information to be
easily identified, disambiguated and interconnected
by AI systems.
We use the Resource Description Framework to
describe a source’s stable and dynamic blueprint with
the combination of the theory of triples (subject,
predicate, object) (see figure 4). For example, let us
assume that we wish to store values in a Data Lake
produced by three candidate sources and that these
sources bear the following characteristics – attributes
according to the data source blueprints (see figure 3):
 Source 1
Stable Blueprint Attributes:
Name: Source 1
Variety-Type: Sensor
Variety-Type of data: Unstructured
Value: High
Velocity: 1sec
Veracity: Medium
Dynamic Blueprint Attributes:
Volume: KB
Last Update: 24/01/2022; 08:34
Keywords: # Products delivery
Figure 4: The basic semantic RDF triple model.
ENASE 2022 - 17th International Conference on Evaluation of Novel Approaches to Software Engineering
190

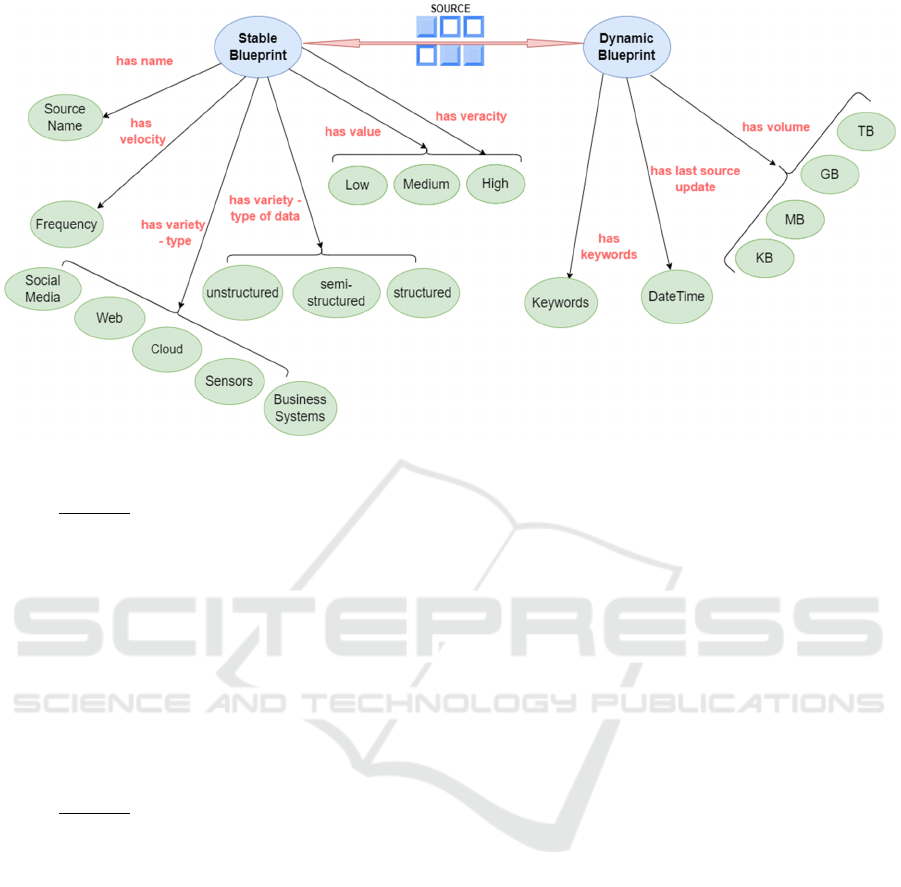

Figure 5: Stable and Dynamic data source blueprint ontology graph.
 Source 2
Stable Blueprint attributes:
Name: Source 2
Variety-Type: Business Systems
Variety-Type of data: structured
Value: High
Velocity: 1sec
Veracity: Medium
Dynamic Blueprint attributes:
Volume: KB
Last Update: 24/01/2022 08:34
Keywords: # Products delivery
 Source 3
Stable Blueprint attributes:
Name: Source 3
Variety-Type: Web
Variety-Type of data: unstructured
Value: High
Velocity: 12Hours
Veracity: High
Dynamic Blueprint attributes:
Volume: KB
Last Update: 24/01/2022 06:50
By using SPARQL (Protocol and Query Language),
or other methods, we may query all RDF resources
before being ingested into the Data Lake or after their
ingestion. This requires that each data source has its
description in RDF form as mentioned before, which
can be retrieved by a public API (RDF API) for the
sources to be queried. Figure 6 shows the RDF files
written in XML for Source 1 of the given example
based on the blueprint ontology description created.
The XML follows the same structure for every source
according to its characteristics.
Let us now assume that all three sources described
above will become members of our Data Lake.
Therefore, we must first build a specific part of the
Data Lake that consists of data sources with Value -
High, Veracity – Medium OR High, AND Keywords
- # Products delivery. A source selection middleware
is fed with these preferred rules (see figure 1) and
executes the following SPARQL query:
SELECT ? sources
WHERE {
? source <has value> High &&
<has veracity> Medium &&
<has keyword> #Products delivery
}
Once this selection process is completed, the RDF
created earlier becomes now part of the Data Lake
and contributes to the Data Lake’s metadata semantic
enrichment which is the cornerstone for addressing
the challenge of easy storing and efficient retrieval of
data. The result of the query consists of the stable and
dynamic blueprints of Source 1 and Source 2, which
satisfy the query parameters and thus will be added to
the Data Lake’s RDF schema.
A Data Lake Metadata Enrichment Mechanism via Semantic Blueprints
191

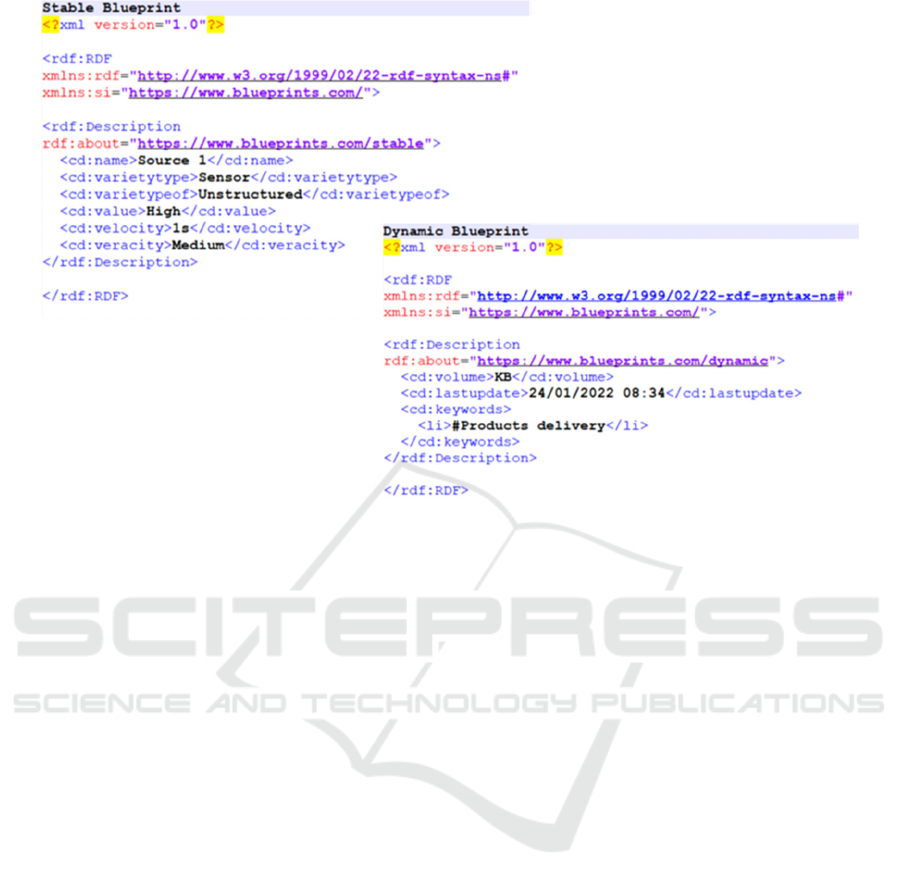

Figure 6: Stable and Dynamic Blueprint for Source 1.
The selected data sources are then distributed to
the specific Data Lake Pond for further processing
according to the corresponding attribute values.
Essentially, this process and the associated
characterization help to handle and manage multiple
and diverse types of data sources and to contribute to
the Data Lake’s metadata enrichment before and after
these sources become members.
When a data source becomes part of the Data
Lake, from that point forward the metadata schema is
utilized for filtering and retrieving data based on the
blueprints and their metadata. The latter involves
attributes such as the type of data produced by the
sources, the size of the data they produce, the speed
of production, the accuracy of the data, and the
importance of the source data, etc. Therefore, each
action for retrieving data from the Data Lake is
effectively guided by the information provided in the
metadata mechanism, that is, in the blueprints.
Especially in the case of the dynamic blueprint,
this portion of the metadata will dynamically be
updated each time new data is produced by the
sources, or when deemed necessary (e.g., when
changing the location of the associated pond).
To further demonstrate the applicability and the
value that the proposed metadata mechanism brings
to supporting the data actions in a Data Lake, and in
particular the retrieval of data, let us use once again
the example of the sources given earlier. As
previously mentioned, the selected data sources are
distributed to the specific Data Lake pond for further
processing according to the corresponding attribute
values. After the completion of the selection process,
the retrieval process is based on the metadata
semantic enrichment – RDF schema of the Data Lake
encoded in the blueprints. Let us now assume Source
1 is a member of the pond with structured data and
that Source 2 is also a member of the pond with
unstructured data. If we wish to retrieve all the
product delivery data from our Data Lake by a
middleware residing between the Data Lake and the
application layer of a system that uses the Data Lake,
then in the simplest case all that needs to be done is
to execute the following SPARQL query:
SELECT ? Dlsources
WHERE {
? source <has keyword> #Products
delivery
}
Essentially, this performs a classic retrieval action
from the Data Lake and the result is to push all the
data sources with the Product Delivery keyword to
the application layer. Therefore, the data retrieved are
larger in volume and the complexity to filter them
after retrieval is higher. If we utilize the metadata
information offered by the semantic enrichment
mechanism, then we can refine the type of
information sought in the Data Lake and get the
ENASE 2022 - 17th International Conference on Evaluation of Novel Approaches to Software Engineering
192

results we need focusing on specific values or
attributes. For example, using the attributes shown in
figure 5 it is feasible to execute more guided queries
such as:
SELECT ? DLsources
WHERE {
? source <has value> High &&
<has Variety-Type of data> Unstructured &&
<has keyword> #Product delivery
}
These guided queries can range from simple to
more sophisticated by utilizing the full spectrum of
the 5Vs data characteristics mentioned in figure 3.
Thus, they allow data scientists to derive more value
from their data and to define custom levels of
granularity and refined information in the data sought
as required. Essentially, this SPARQL query process
and the associated characterization support the
handling and management of multiple and diverse
types of data sources residing in a Data Lake in a
simple yet efficient way.
4 PRELIMINARY VALIDATION
Sawadogo et al. (2019) identified six main functional
characteristics that should ideally be provided by a
Data Lake metadata system:
 Semantic Enrichment (SE)
 Data Indexing (DI)
 Link generation and conservation (LG)
 Data Polymorphism (DP)
 Data Versioning (DV)
 Usage Tracking (UT)
Semantic Enrichment consists in generating a
description of the context of data (e.g., tags) using
knowledge bases such as ontologies. Semantic
Enrichment summarizes the datasets contained in the
lake to make it understandable and to identify data
links. For instance, data associated with the same tags
can be considered linked. Our mechanism meets this
characteristic since it utilizes both the dynamic and
the stable blueprint based on the basic RDF triple
model presented in figures 4 and 5. The second main
functionality identified by Sawadogo et al. (2019) is
Data Indexing which includes setting up a data
structure to retrieve datasets based on specific
keywords or patterns. This functionality provides
optimization of data querying in the Data Lake
through keywords filtering. This characteristic is
offered in our metadata semantic enrichment
mechanism via the attribute Variety - type of data,
which is used to distribute data sources and data
ponds according to their structure and the keyword
attribute in the stable blueprint as presented in figure
3. Link generation and conservation is the process of
detecting similarity relationships or integrating pre-
existing links between datasets to identify data
clusters, data groups where data are strongly linked to
each other and significantly different from other data.
Our mechanism provides this functionality via the
keyword attributes in the dynamic blueprint which is
updated every time a new data source or new data that
is produced by a registered source are pushed to the
Data Lake. Data Polymorphism is defined as storing
multiple representations of the same data and Data
Versioning refers to the ability of the metadata system
to support data changes during the processing in the
Data Lake. These functional characteristics are
provided by our metadata semantic enrichment
mechanism via the process of storing the metadata
description - blueprint every time sources in the Data
Lake change or produce new data. When new data is
pushed into the Data Lake a new timestamped
representation of this data is created and stored in the
Data Lake along with the existing representations-
blueprints. During the data processing in the Data
Lake, the proposed mechanism updates the Dynamic
Blueprint, especially the keywords if deemed
necessary. Finally, the mechanism provides also the
last referred functionality Usage Tracking which is
the process of recording the interactions between
users and the Data Lake. Essentially, when data is
queried a timestamp accompanied by the user details
that executed the last query are recorded in the
Dynamic Blueprint.
Additionally, Sawadogo et al. (2019) provide a
synthetic comparison of 15 metadata systems. We
selected the two most completed systems examined in
that paper in terms of functionality, that is, CoreKG
(Beheshti et al., 2018) and MEDAL (Sawadogo et al.,
2019), with the aim to compare them with our
metadata data mechanism using a set of new
functional characteristics introduced in this paper.
These characteristics can add value to the synthetic
examination of the quality and efficiency of metadata
enrichment mechanisms for Data Lakes. The new
characteristics are:
 Granularity
 Ease of storing/retrieval
 Size and type of metadata

Expandability
A Data Lake Metadata Enrichment Mechanism via Semantic Blueprints
193

We define Granularity as the ability to refine the
type of information that needs to be retrieved using
for example keywords. This ability is expressed by
the number of fine-grained levels the metadata
mechanism supports for defining the information
sought. Ease of storing/retrieval refers to the ability
of the metadata mechanism to store or retrieve data in
the Data Lake in a simple and easy way. It is assumed
here that the retrieval action is efficient enough to
return the desired parts of the information sought.
This characteristic is reflected on the number of steps
that need to be executed for the process of storing and
retrieving data items to be completed. The Size and
type of metadata refers to the volume and the kind of
metadata that are produced by the mechanism and
which are necessary for the efficient and accurate
retrieval of data. The larger the size and/or the higher
the complexity of the type of data needed the lower
the performance and suitability of the metadata
mechanism. Finally, we define Expandability as the
ability to expand the metadata mechanism with
further functional characteristics or other supporting
techniques and approaches, such as visual querying.
Obviously, the more open the mechanism for
expansion the better. These characteristics are
evaluated using a Likert Linguistic scale, including
the values Low, Medium, and High. Table 1 provides
a definition of Low, Medium and High for each
characteristic introduced.
Table 1: Definition of Low, Medium, and High of each
characteristic.
Characteristic Low Medium High
Granularity 1 level 2 levels
3 or more
levels
Ease of
storing/retrieval
5 or more
actions
3-4
actions
2 actions
maximum
Size of metadata KB MB GB
Expandability
No or
limited
Normal Unlimited
As previously mentioned, we used the suggested
characteristics to provide a short comparison between
our metadata enrichment mechanism and the two top
existing metadata mechanisms suggested by
Sawadogo et al. (2019), that is, MEDAL and
CoreKG.
MEDAL adopts a graph-based organization
based on the notion of object and a typology of
metadata in three categories: intra-object, inter-
object, and global metadata. A hypernode represents
an object containing nodes that correspond to the
versions and representations of an object. MEDAL is
modeled also by oriented edges which link the nodes
providing transformation and update operations.
Hypernodes of the mechanism can be linked in
several ways, such as edges to model similarity links
and hyperarcs to translate parenthood relationships
and object groupings. Finally, global resources are
present in the form of knowledge bases, indexes, or
event logs. This concept and operation of the
framework provide SE, DI, LG, DP, DV, and UT. As
a result, MEDAL can be characterized with High
Granularity, Medium Ease of storing/retrieval using
indexes and event logs, Medium Size and type of
metadata, and an undefined Expandability since no
reference is made on how it can be evolved in the
future.
CoreKG is an open-source complete Data and
Knowledge Lake Service which offers researchers
and developers a single REST API to organize,
curate, index and query their data and metadata over
time. At the Data Lake layer, CoreKG powers
multiple relational and NoSQL database-as-a-service
for developing data-driven Web applications. This
enables the creation of relational and/or NoSQL
datasets within the Data Lake, create, read, update,
and delete entities in those datasets, and apply
federated search on top of various islands of data. It
also provides a built-in design to enable top database
security threats (Authentication, Access Control and
Data Encryption), along with Tracing and Provenance
support. On top of the Data Lake layer, CoreKG
curates the raw data in the Data Lake and prepares
them for analytics. This layer includes functions such
as extraction, summarization, enrichment, linking and
classification. Another part of the mechanism is the
Notion of Knowledge Lake, a centralized repository
containing virtually inexhaustible amounts of both
raw data and contextualized data as a result to
providing the foundation for Big Data analytics by
automatically curating the raw data in data islands so
as to provide insights from the vastly growing
amounts of local, external and open data. This open-
source service provides SE, DI, LG, DP, and UT.
Based on the proposed properties scheme, CoreKG
can be evaluated to have High Granularity, Medium
Ease of storing/retrieval using the single API, with
Medium Size and type of metadata, and High
Expandability due to the use of the Hadoop
ecosystem.
As described in section 4, the proposed metadata
enrichment mechanism provides DI, LG, DP, DV and
UT. Furthermore, our mechanism presents High
Granularity, High Ease of storing/retrieval using the
ENASE 2022 - 17th International Conference on Evaluation of Novel Approaches to Software Engineering
194

stable and dynamic data source blueprint
descriptions, with a Medium Size and type of
metadata, and High Expandability. These values are
attributed as follows:
High Granularity is achieved by the use of keywords
that describe the sources and the blueprint values.
This enables the user to define details at the level of
the properties offered by these keywords and the type
of blueprint characteristics for which values are kept.
This list of features may be considered quite rich to
enable the retrieval of data based on fine-grained
query-like information. The High Ease of
storing/retrieval is achieved by the blueprint
description of the Data Lake as each time data sources
are pushed to the Data Lake a variety of types of data
attributes is produced, which helps the mechanism
place the sources to a specific pond according to the
structure of the data involved (structured, semi-
structured and unstructured). This source distribution
in the Data Lake facilitates simple and easy storing
and retrieval of the information stored. Our
framework is characterized by a low number of
actions to: (1) Select and query data sources
according to their stable and dynamic blueprint; (2)
Push data in specific Data Lake Ponds. The Size and
type of metadata produced by the mechanism has the
maximum value of High due to the creation of the
metadata description of the Data Lake every time new
sources or data are pushed to the Data Lake and the
DV characteristic that our blueprint provides by using
the 5Vs Big Data characteristics. This may be
considered a small overhead as it introduces a
considerable number of metadata features, but their
complexity is very low and their interpretation
according to the 5Vs quite straightforward. Finally,
our Data Lake implementation is based on the
Hadoop ecosystem and hence this provides High
Expandability. It should be noted here that
expandability of the proposed mechanism can be
traced in two aspects: (i) By using this simple
semantic enrichment and blueprint ontologies we can
easily apply visual querying during the source
selection or data extraction; (ii) We may improve
Data Lakes’ privacy, security, and data governance,
and, therefore, address some of the main challenges
met with Data Lakes, by storing the descriptive
metadata information to the blockchain. This enables
storing of encrypted metadata information and may
guarantee immutability of the metadata. Both aspects
are currently under development as proof of concept,
with very encouraging preliminary results thus far.
Table 2 sums up all the information of the short
comparison between the three mechanisms made in
this section. It is clear that the proposed mechanism
seems to perform at least equally well, while in some
characteristics it seems to prevail, such as Ease of
storing/retrieval and Expandability.
Table 2: Evaluation and comparison of the mechanisms.
Characteristic MEDAL CoreKG
Proposed
approach
Granularity High High High
Ease of
storing/retrieval
Medium Medium High
Size of metadata Medium Medium Medium
Expandability Undefined High High
5 CONCLUSIONS AND FUTURE
WORK
This paper proposed a novel framework for
standardizing the processes of storing/retrieving data
generated by heterogeneous sources to/from a Data
Lake organized with ponds architecture. The
framework is based on a metadata semantic
enrichment mechanism which uses the notion of
blueprints to produce and organize meta-information
related to each source that produces data to be hosted
in a Data Lake. In this context, each data source is
described via two types of blueprints which
essentially utilize the 5Vs Big Data characteristics
Volume, Velocity, Variety, Veracity and Value: The
first includes information that is stable over time,
such as, the name of the source and its velocity of data
production. The second involves descriptors that vary
as data is produced by the source in the course of time,
such as the volume and date/time of production.
Every time data sources or data are pushed in
and out of the Data Lake, the stable and dynamic
blueprints are updated thus keeping a sort of history
of these transactions. Essentially the description of
the sources helps to treat and manage many, multiple,
and different types of data sources and to contribute
to Data Lakes’ metadata enrichment before and after
these sources become members of a Data Lake. When
a data source becomes part of the Data Lake the
metadata schema is utilized, describing the whole
Data Lake ontology. The filtering and retrieval of data
is based on this metadata mechanism which involves
attributes from the 5Vs, attributes such as last source
updates and keywords.
A Data Lake Metadata Enrichment Mechanism via Semantic Blueprints
195

A short comparison to other existing metadata
systems revealed the high potential of our approach
as it offers a more complete characterization of the
data sources and covers a set of key features reported
in literature and expanded in this work. Furthermore,
it provides the means to perform efficient and fast
retrieval of the required information.
Future research steps will include the full
implementation of the proposed mechanism using our
metadata model in the context of structured, semi-
structured and unstructured data. This will allow us to
evaluate our framework in more detail, and in
particular to compare it further against other existing
systems via the use of certain performance metrics.
This, in turn, will allow us to focus on and improve
privacy, security, and data governance in Data Lakes
by using the blockchain technology and smart
contracts.
ACKNOWLEDGEMENTS
This paper is part of the outcomes of the CSA
Twinning project DESTINI. This project has received
funding from the European Union’s Horizon 2020
research and innovation programme under grant
agreement No 945357.
REFERENCES
Chen, Min, Shiwen Mao, & Yunhao Liu. (2014). “Big Data:
A Survey.” Mobile Networks and Applications 19(2):
171–209.
Bertino, Elisa. (2013). “Big Data - Opportunities and
Challenges: Panel Position Paper.” Proceedings –
International Computer Software and Applications
Conference: 479–80.
Günther, Wendy Arianne, Mohammad H. Rezazade
Mehrizi, Marleen Huysman, & Frans Feldberg. (2017).
“Debating Big Data: A Literature Review on Realizing
Value from Big Data.” Journal of Strategic Information
Systems 26(3): 191–209.
Blazquez, Desamparados, & Josep Domenech. (2018). “Big
Data Sources and Methods for Social and Economic
Analyses.” Technological Forecasting and Social
Change 130 (March 2017): 99–113.
https://doi.org/10.1016/j.techfore.2017.07.027.
Fang, Huang. (2015). “Managing Data Lakes in Big Data
Era: What’s a Data Lake and Why Has It Became
Popular in Data Management Ecosystem.” 2015 IEEE
International Conference on Cyber Technology in
Automation, Control and Intelligent Systems, IEEE-
CYBER 2015: 820–24.
Khine, Pwint Phyu, & Zhao Shun Wang. (2018). “Data
Lake: A New Ideology in Big Data Era.” ITM Web of
Conferences 17: 03025.
Miloslavskaya, Natalia, & Alexander Tolstoy. (2016). “Big
Data, Fast Data and Data Lake Concepts.” Procedia
Computer Science 88: 300–305.
http://dx.doi.org/10.1016/j.procs.2016.07.439.
Bell, David, Mark Lycett, Alaa Marshan, & Asmat
Monaghan. (2021). “Exploring Future Challenges for
Big Data in the Humanitarian Domain.” Journal of
Business Research 131(August 2019): 453–68.
https://doi.org/10.1016/j.jbusres.2020.09.035.
Kościelniak, H. & Puto, A. (2015). BIG DATA in decision
making processes of enterprises. Procedia Computer
Science, 65, pp.1052-1058.
Gandomi, Amir, & Murtaza Haider. (2015). “Beyond the
Hype: Big Data Concepts, Methods, and Analytics.”
International Journal of Information Management
35(2): 137–44. http://dx.doi.org/10.1016/j.ijinfomgt.
2014.10.007.
Luckow, Andre et al. (2015). “Automotive Big Data:
Applications, Workloads and Infrastructures.”
Proceedings - 2015 IEEE International Conference on
Big Data, IEEE Big Data 2015: 1201–10.
Herschel, R. & Miori, V.M., (2017). Ethics & big data.
Technology in Society, 49, pp.31-36.
Kim, Y., You, E., Kang, M. & Choi, J., (2012). Does Big
Data Matter to Value Creation?: Based on Oracle
Solution Case. Journal of Information Technology
Services, 11(3), pp.39-48.
Sethi, Pallavi, & Smruti R. Sarangi. (2017). “Internet of
Things: Architectures, Protocols, and Applications.”
Journal of Electrical and Computer Engineering 2017.
Papazoglou, Michael P., & Amal Elgammal. (2018). “The
Manufacturing Blueprint Environment: Bringing
Intelligence into Manufacturing.” 2017 International
Conference on Engineering, Technology and
Innovation: Engineering, Technology and Innovation
Management Beyond 2020: New Challenges, New
Approaches, ICE/ITMC 2017 - Proceedings 2018-
Janua: 750–59.
Sawadogo, Pegdwendé, & Jérôme Darmont.. (2021). “On
Data Lake Architectures and Metadata Management.”
Journal of Intelligent Information Systems 56(1): 97–
120.
Sawadogo, P. N., Scholly, É., Favre, C., Ferey, É.,
Loudcher, S., & Darmont, J. (2019). Metadata Systems
for Data Lakes: Models and Features. Communications
in Computer and Information Science, 1064, 440–451.
https://doi.org/10.1007/978-3-030-30278-8_43
Beheshti, A., Benatallah, B., Nouri, R. & Tabebordbar, A.,
(2018). CoreKG: a knowledge lake service.
Proceedings of the VLDB Endowment, 11(12),
pp.1942-1945.
ENASE 2022 - 17th International Conference on Evaluation of Novel Approaches to Software Engineering
196
