Towards Image Captioning for the Portuguese Language: Evaluation on

a Translated Dataset

ao Gondim

, Daniela Barreiro Claro

and Marlo Souza

FORMAS Research Group, Institute of Computing, Federal University of Bahia,

Av. Milton Santos, s/n, PAF2., Campus de Ondina, Salvador, Bahia, Brazil

Keywords:

Image Captioning, Natural Language Processing, Machine Translation.

Abstract:

Automatic describing an image comprehends the representation from the scene elements to generate a con-

cise natural language description. Few resources, particularly annotated datasets for the Portuguese language,

discourage the development of new methods in languages other than English. Thus, we propose a new image

captioning method for the Portuguese language. We provide an analysis empowered by an encoder-decoder

model with an attention mechanism when employing a multimodal dataset translated into Portuguese. Our

ﬁndings suggest that: 1) the original and translated datasets are pretty similar considering the measure achieve-

ments; 2) the translation approach includes some dirty sentence formulations that disturb our model for the

Portuguese language.

1 INTRODUCTION

Image captioning is the task of, given an image, an-

alyzing its visual contents and generating a textual

description to it (Bernardi et al., 2017). It is a chal-

lenging task as the model not only has to predict the

objects present on the scene but also express their re-

lationships in natural language (Xu et al., 2016).

Automatic captioning can bring advances in in-

formation systems, as they can make predictions

based on the scene description and help the visually

impaired with more accessible interfaces (Bernardi

et al., 2017). Nevertheless, despite its importance

and potential incorporation into systems, this problem

has not received much attention for languages other

than English. Although there are many Natural Lan-

guage Processing methods for the English language,

few resources can be applied to languages other than

English. Furthermore, it is increasingly recognized

in the literature that the focus on the English lan-

guage may introduce some biases into the research

area (Bender, 2009; Bender, 2019). As far as we

know, no previous work has explored image caption-

ing for the Portuguese language.

Common datasets for training image captioning

https://orcid.org/0000-0001-7225-1165

https://orcid.org/0000-0001-8586-1042

https://orcid.org/0000-0002-5373-7271

models, such as Flickr8k (Hodosh et al., 2013),

Flickr30k (Young et al., 2014) and COCO (Common

Objects in Context) (Lin et al., 2015) are all annotated

using English captions. To our knowledge, there are

no corpora for image captioning for the Portuguese

language

. This work analyzes image captioning for

the Portuguese language based on automated machine

translation. We constructed a multimodal corpus for

image captioning in Portuguese from an English cor-

pus, and we evaluate its quality by training an im-

age captioning neural architecture based on Encoder-

Decoder adapted from (Xu et al., 2016) for the Por-

tuguese language.

The quality of our neural architecture was eval-

uated two-fold: (a) an automatic evaluation of the

predicted captions based on standard metrics in the

literature, namely the Bilingual Evaluation Under-

study (BLEU) (Papineni et al., 2002) and the Metric

for Evaluation of Translation with Explicit ORdering

(METEOR); and (b) a qualitative human evaluation

of our model. The contributions of this work are (1)

the multimodal dataset for image captioning for the

Portuguese language created through machine trans-

lation, (2) a model capable of captioning images in the

Portuguese language, (3) an analysis of the outcomes

While we are aware of the existence of the PraCe-

goVer (dos Santos et al., 2021) multimodal corpus construc-

tion project for the Portuguese language, the corpus is cur-

rently not publicly available.

384

Gondim, J., Claro, D. and Souza, M.

Towards Image Captioning for the Portuguese Language: Evaluation on a Translated Dataset.

DOI: 10.5220/0011080000003179

In Proceedings of the 24th International Conference on Enterprise Information Systems (ICEIS 2022) - Volume 1, pages 384-393

ISBN: 978-989-758-569-2; ISSN: 2184-4992

of our model and which types of errors such method

is susceptible and (4) a comparison of obtained met-

rics between English and Portuguese captions gener-

ated by the same model trained with, respectively, the

original and the translated dataset.

The following sections are organized as follows:

Section 2 presents the related literature on image cap-

tioning based on neural networks; Section 3 presents

the proposed architecture of our model, adapted from

(Cho et al., 2014), (Xu et al., 2016) and (Tan and Le,

2020); Section 4 describes our experimental method-

ology, discussing the dataset creation and empirical

setup. We present the results of our evaluations in

Section 5 and our discussions in Section 6, analyzing

possible threats to the validity of our results. Finally,

we present our ﬁnal considerations discuss possible

future work in Section 7.

2 RELATED WORK

Early image caption systems relied on rule-based

techniques to ﬁll template captions with detected data

obtained from object detectors and scene recognition

systems (Yao et al., 2010; Socher and Fei-Fei, 2010).

Recent work on image captioning are neural-

based being inspired by techniques from automatic

machine translation encoder-decoder models, posing

the problem of generating captioning as “translating”

images into text.

Authors from (Vinyals et al., 2015), to our knowl-

edge, are the ﬁrst inspiration from machine translation

encoder-decoder models to image captioning. In this

work, the authors employ an encoder-decoder model

to maximize the likelihood of generating a caption

given an input image, similar to neural machine trans-

lation models that aim to maximize the likelihood of

generating a translation given an input sentence. This

is achieved by replacing the encoder neural network,

a Recurrent Neural Network (RNN), with a Convo-

lutional Neural Network (CNN), which is responsi-

ble for generating feature vectors describing semantic

characteristics of the image. The generation of the

image description is, thus, performed by a decoder

network, composed by an RNN that generates words

by receiving, at every time step, the image vector, the

previous hidden state, and words generated before.

Such work (Vinyals et al., 2015) has inspired

other neural architecture models for image caption-

ing, combining computer vision and natural language

processing. Authors in (Xu et al., 2016) expanded the

CNN-RNN model with the attention mechanism in-

troduced in (Bahdanau et al., 2016). This mechanism

helps the model learn better interpretations from im-

ages and adds the ability to visualize what the model

”sees”. In (Lu et al., 2017), a novel adaptive model

with a visual sentinel is proposed to help the caption-

ing model decide when to ”look” at the image to gen-

erate the next word.

More recently, authors in (Huang et al., 2019) ex-

tend the use of attention by applying it on both the

decoder and the encoder of their image captioning

model, extending the conventional attention mecha-

nism to determine the relevance between its results

and queries. Authors in (Li et al., 2020) (the state

of the art model for MS COCO Captions

) uses pre-

training and objects tags in images as anchor to facil-

itate the learning of alignments.

While, to our knowledge, no work on Image Cap-

tioning has been conducted for the Portuguese lan-

guage, recently, the work of (dos Santos et al., 2021)

proposes the creation of multimodal corpus, which

may be used for image captioning. The authors ex-

ploit voluntary image captioning performed by users

of Instagram

social network using the tag #prace-

gover. The tag is commonly used for increasing the

accessibility of the image-based network by providing

image descriptions for the screen readers. While this

corpus is of great value to studies on multimodal pro-

cessing and image captioning for the Portuguese lan-

guage, it is not yet available to the community. Thus,

we could not evaluate it.

Therefore, to the best of our knowledge, this is

the ﬁrst work to attempt image captioning for the Por-

tuguese language employing an attention method and

a translated dataset.

3 MODEL

This section describes the architecture we employ in

this work. We adapted the model from (Xu et al.,

2016) which, to our knowledge, is the ﬁrst model to

use the attention mechanism on the task of image cap-

tioning. This is important since we want to evaluate

how image captioning early models perform on a lan-

guage with a different complexity other than English.

We chose this model to train with Portuguese captions

to observe how a simpler architecture behaves when

trained with a much more different language.

The architecture takes advantage of the sequence-

to-sequence training approach from (Cho et al., 2014)

replacing the ﬁrst RNN as an encoder with a CNN

model for image classiﬁcation. The CNN creates fea-

ture vectors to a second RNN as a decoder that out-

https://paperswithcode.com/sota/image-captioning-

on-coco-captions

http://www.instagram.com

Towards Image Captioning for the Portuguese Language: Evaluation on a Translated Dataset

385

puts each word of the ﬁnal caption. However, dif-

ferently from (Vinyals et al., 2015), by employing a

mechanism of attention (Bahdanau et al., 2016), our

decoder can select different aspects from the image

at each time while generating the caption, as seen in

Figure 1.

Figure 1: Pipeline of caption generation using CNN and

RNN with attention. Source: created by authors.

While (Xu et al., 2016) employ the CNNs from

GoogleNet (Szegedy et al., 2014) and VGG16 (Si-

monyan and Zisserman, 2015) in their models, in our

architecture, we make use of EfﬁcientNet (Tan and

Le, 2020) due to its outstanding performance for im-

age classiﬁcation

. EfﬁcientNet is a family of neural

network models (going from B0 to B7) that takes ad-

vantage of scaling on all model dimensions to achieve

better accuracy at image classiﬁcation tasks. In our

approach, we employed the EfﬁcientNetB7 because

of its higher accuracy.

In the next sections, we describe some experi-

ments to validate our approach for the Portuguese lan-

guage.

4 EXPERIMENTAL SETUP

In this section, we describe our experimental setup.

We provide the methodology employed for generat-

ing the data, splitting the dataset, and training the net-

work. We also describe our dataset and the hyperpa-

rameters used in our empirical evaluation of the pro-

posed architecture.

4.1 Methodology

The ﬁrst aspect of our empirical validation of our ar-

chitecture is the construction of a dataset to train and

evaluate the model. Since, as discussed before, there

is no publicly available image captioning dataset for

the Portuguese language, we created one by automat-

ically translating the image descriptions in an image

captioning corpus for the English language, namely

the Flickr8k corpus (Hodosh et al., 2013).

For the translation of the captions, we employed

the LibreTranslate

machine translation system. Li-

breTranslate employs OpenNMT (Klein et al., 2017)

https://paperswithcode.com/sota/image-classiﬁcation-

on-imagenet

https://github.com/LibreTranslate/LibreTranslate

for neural machine translation. We discarded the use

of proprietary software due to the cost or the restric-

tion of requisitions when using online tools such as

Google Translate. The use of open-source software

also facilitates the replicability of the experiments.

We trained our architecture within the new Por-

tuguese corpus and conducted two evaluations: auto-

matic evaluation and human evaluation.

In the ﬁrst step, we employ an automatic evalua-

tion of the system, according to different hyperparam-

eters of the model. For this evaluation, we employ

BLEU (Papineni et al., 2002) and METEOR (Lavie

and Agarwal, 2007) scores between the generated

caption and a set of possible captions for an image

in the corpus, as commonly done in the language

generation literature. We used the scores obtained

from training with both the translated and the origi-

nal dataset to compare metrics of generated captions

(English and Portuguese) for the same images. We

analyze this comparison to evaluate how two equal

models behave when the descriptions’ languages dif-

fer and if the Portuguese model would produce simi-

lar metrics compared with the already tested English

one.

In the second step, we perform a qualitative evalu-

ation of the generated captions and the analysis of er-

rors made by the model. In this analysis, we selected

100 images and the captions generated by the best

model in the automatic evaluation, which were ana-

lyzed by 34 human annotators. Each annotator was

asked to check: (1) if caption contain errors in the de-

scription of the subject on the image (gender, quantity,

age, or action done by subject), (2) if the caption con-

tain errors regarding color descriptions of an object,

(3) if caption contained errors in the description of

the scenario where the action occurred, (4) if the cap-

tion contained errors in the descriptions of the objects

on the scene, (5) if the generated caption was poorly

structured (verb not agreeing with the subject, word

repetition), (6) if the generated caption described the

image correctly, or (7) if the generated caption was

wrong or improperly described the image. With the

annotation results, we performed qualitative analysis

of the errors in our model.

4.2 Datasets

The data used to generate our corpus was obtained

from the Flickr8k (Hodosh et al., 2013) dataset, which

was created for the task of image description and re-

trieval. It is composed of 8091 images that capture a

wide range of common activities, each of them con-

taining ﬁve descriptions. These original captions are

independently produced, and they have 8488 unique

ICEIS 2022 - 24th International Conference on Enterprise Information Systems

386

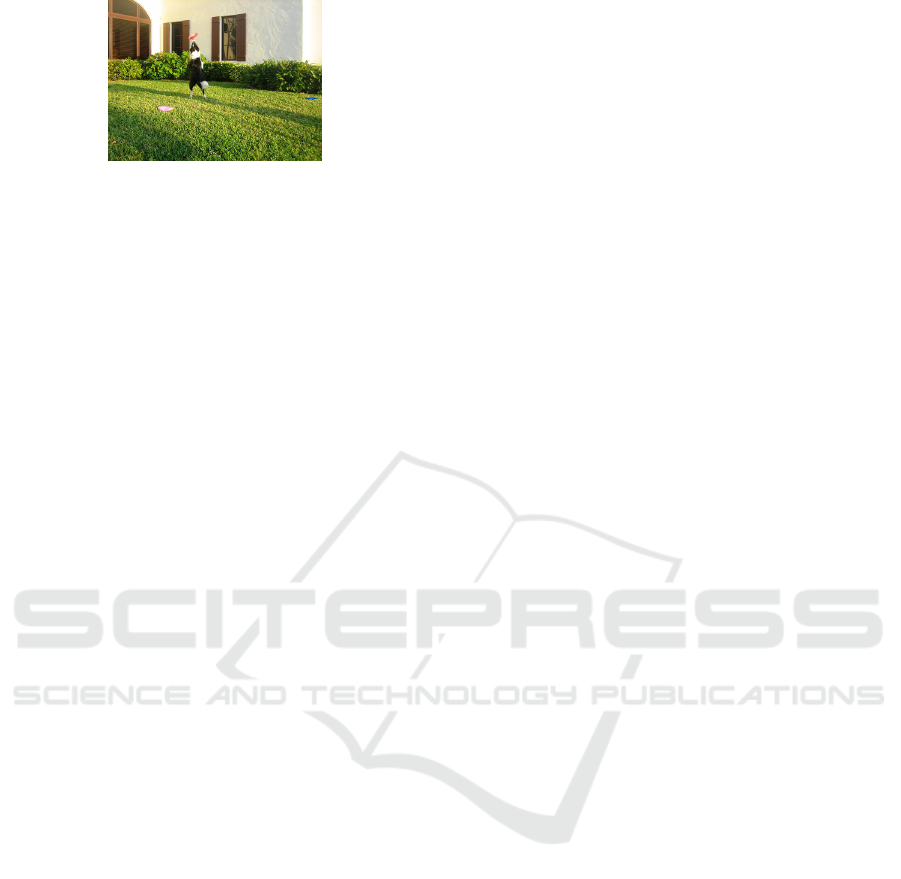

Figure 2: Example of image from Flickr8k. Source (Ho-

dosh et al., 2013).

words among their captions, and the average size of

each caption is 10.82 words with a standard deviation

of 3.77. The Flickr8k dataset has a default split of

training, dev, and testing images and captions. We

followed these default splits to select the images for

training (7091 images) and testing (1000 images).

Figure 2 shows an example of image with the follow-

ing captions annotated:

• A black and white dog is catching a Frisbee in the

yard.

• A black and white dog is trying to catch a Frisbee

in the air.

• A dog jumps to catch a red Frisbee in the yard.

• Dog is jumping up on a very green lawn to catch

a Frisbee.

• The black and white dog tries to catch a red Fris-

bee on green grass.

We translated each caption in the Flickr8k dataset

with LibreTranslate and ﬁt them into the same format

for the model training. After translating, the above

example gets the following Portuguese captions:

• Um c

ao preto e branco est

a pegando um Frisbee

no p

atio.

• Um c

ao preto e branco est

a tentando pegar um

Frisbee no ar.

• Um c

ao salta para pegar um Frisbee vermelho no

atio.

• O c

ao est

a pulando em um gramado muito verde

para pegar um Frisbee.

• O c

ao preto e branco tenta pegar um Frisbee ver-

melho na grama verde.

After translating each caption, we obtained a cor-

pus of 9780 unique words, an average caption length

of 11.16, and 4.00 as a standard deviation.

Since we employed a dataset with translated sen-

tences, we analyzed some errors inherited from the

translation approach. For example the sentence “A

black dog is jumping over a log along a beach.” was

translated to “Um c

ao preto est

a saltando sobre um

log ao longo de uma praia.” and the word “log” was

not translated; another example is “A dirt bike racer

jumps over a slope.” that was translated into “Um

motociclista de sujeira salta sobre uma inclinac¸

ao.”.

Although the automatic translation from English

into Portuguese may introduce some errors in the cor-

pus, this is a ﬁrst attempt to build a Portuguese anno-

tated dataset for image captioning. Undoubtedly, in

our pipeline of image captioning, we inherited these

errors into our model, and thus, they can induce errors

in the generation of our captions.

4.3 Experimental Framework

We implemented our architecture in Section 3 with

Python and the Tensorﬂow library. As hyperparame-

ters, we set a ﬁxed learning rate of 0.001, with a batch

size of 128 and 50 epochs. We evaluated 300 and 600

dimensions for the Embedding layer of our RNN de-

coder, depending on the word embedding pre-trained

weights. Each image was resized to have 299 pixels

of width and height.

Different from the authors in (Xu et al., 2016),

we adopted a pre-trained word embedding model to

test different representations of the Portuguese words

on our training corpus among with starting training

from random weights. We employed GloVe (Pen-

nington et al., 2014) with different dimensions (300

and 600). GloVe is a vectorized word representation

suited for capturing semantic and syntactic regulari-

ties using vector arithmetic.

5 RESULTS

In this section, we analyze the results from our im-

age captioning model for the Portuguese language.

First we present the results of our automatic evalua-

tion process among with the comparison of metrics

with a model trained on the original Flickr8k captions

(English language), we analyze positive and negative

outliers from this comparison and than we present the

agreement scores obtained from the human evalua-

tions on the errors enumerated in Section 4.1.

5.1 System Evaluation

The model’s scores can be seen on Table 1. The differ-

ences in the BLEU scores between the models trained

were not signiﬁcantly high. Although the model with

embedding layer initiated with random weights pre-

sented the best results, we decided to go further within

our human evaluations with the model trained with

GloVe 300 (the second in BLEU score metrics). We

state that a known generalized representation of the

Towards Image Captioning for the Portuguese Language: Evaluation on a Translated Dataset

387

Figure 3: Difference of METEOR scores for each caption

on the test set.

words can decrease the risk of overﬁtting a model

with captions in the training set.

Table 1: Metrics from the model trained with Portuguese

captions.

BLEU-1 BLEU-2 BLEU-3 BLEU-4 METEOR

300d Em-

bedding

40.31 29.67 23.06 19.82 26.93

600d Em-

bedding

41.92 30.45 23.96 20.46 28.11

GloVe

300

40.84 29.61 23.34 19.77 27.94

GloVe

600

39.92 29.36 23.15 19.79 27.34

We trained another model with the original (En-

glish captions) dataset to compare the metrics ob-

tained when an English and a Portuguese caption are

generated for the same image. This model was trained

with the same hyperparameters as the one chosen be-

fore, with a 300 dimensions GloVe embedding appro-

priate for English language, this embedding is avail-

able online

. The results are shown in Table 2.

Table 2: Metrics from the model trained with English cap-

tions.

BLEU-1 BLEU-2 BLEU-3 BLEU-4 METEOR

GloVe

300

43.38 31.39 24.68 21.00 29.56

We calculate the difference between BLEU and

METEOR scores for each image in the test set. We

show these differences in Figure 3 and Figure 4.

Figure 3 shows a boxplot of Eq. 1 for each of

the 1000 images on the test set. The mean difference

is 0.016, and the boxplot shows a slight asymmetry

toward positive values, indicating that English metrics

are a little higher.

https://github.com/stanfordnlp/GloVe

di f f erence = EN MET EOR − PT MET EOR (1)

Figure 4 shows the same results but with BLEU

scores. The mean differences from BLEU 1, 2, 3, and

4 scores are, respectively, 0.025, 0.017, 0.013, and

0.012, the same slight asymmetry from the METEOR

score. The different approaches to calculating BLEU

scores (with 1, 2, 3, or 4 n-grams counting) show a

decreasing inter quantile range, indicating that the dif-

ference of scores gets more concentrated as the num-

ber n-grams counted increases. Similar metrics might

lead to this, or BLEU-4 metrics are generally smaller.

Figure 4: Difference of BLEU scores for each caption on

test set.

It is relevant to point out that the Portuguese

dataset contains errors introduced by the automatic

translation employed, which might inﬂuence the per-

formance of the model. This is an important point af-

ter observing slight asymmetries toward positive dif-

ferences (indicating higher metrics with the English

dataset).

5.2 Human Comparison

Figure 3 presented some outliers on the captions’ met-

rics differences. We selected these outliers in Por-

tuguese and English to compare the mistakes that oc-

cur and analyze if there are common aspects among

outliers. For this task, we chose 3 images whose dif-

ferences in the METEOR metrics were either 1) a pos-

itive outlier (better metric for the English caption) or

2) a negative outlier (better metric for the Portuguese

caption).

First, we present images where the METEOR

score of the Portuguese sentences was high. In Fig-

ure 5, the main subject of the image - namely the

golden/brown dog - is not described in the English

ICEIS 2022 - 24th International Conference on Enterprise Information Systems

388

generated caption. As for Figure 6, there is a refer-

ence to the main character in the image, but with the

wrong action being performed. It is important to note

the use of common Portuguese words that, when em-

ployed together, can add ambiguity to the sentence,

with a vulgar sense that probably would not be used

by a native speaker of such language. Such words

probably would not happen if we were not using au-

tomatic translation to generate the dataset. Figure

7 presents a different mistake where the men shown

playing rugby are depicted as dogs; this is quite curi-

ous since we used the same image classiﬁer to extract

features from the images.

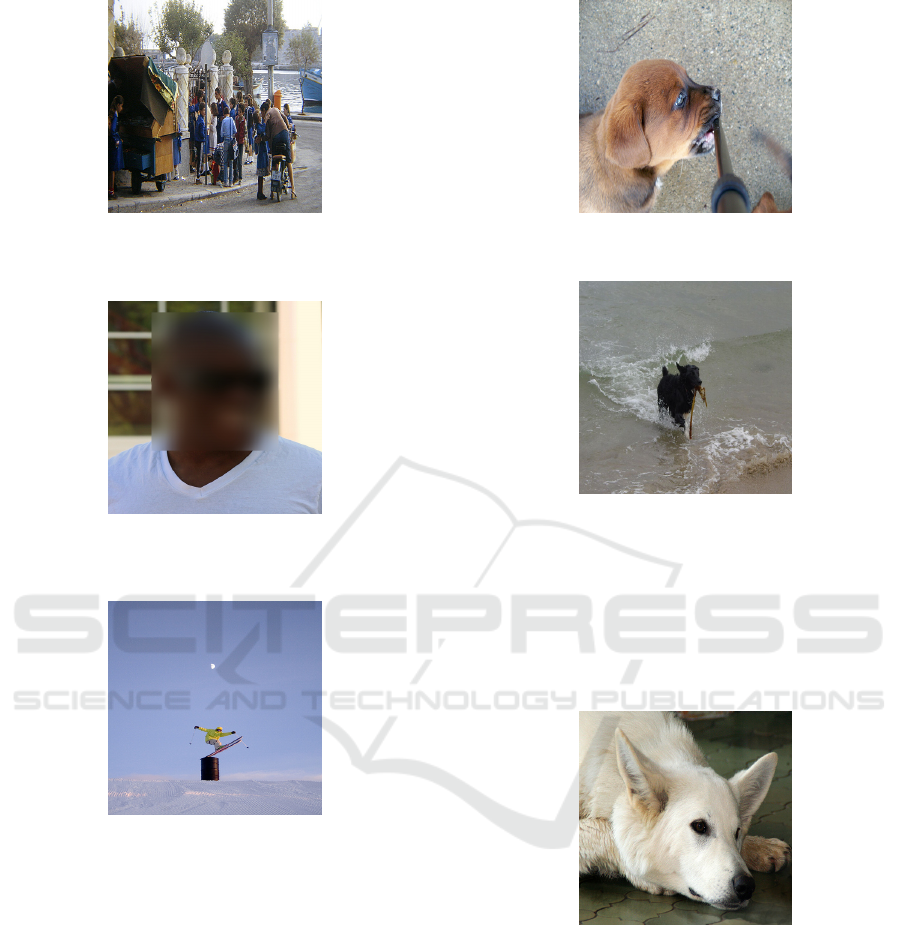

Figure 5: Generated caption PT: “um c

ao marrom est

a pu-

lando em uma bola de t

enis em sua boca”. Generated cap-

tion EN: “a brown and white ball”. Source (Hodosh et al.,

2013).

Figure 6: Generated caption PT: “um cachorro preto e

branco com um pau grande”. Generated caption EN: “a dog

jumping from the grass”. Source (Hodosh et al., 2013).

Figure 7: Generated caption PT: “um jogador de futebol

entram na linha de rugby”. Generated caption EN: “dogs

stand in a game of rugby”. Source (Hodosh et al., 2013).

The following images show examples where the

EN caption had better METEOR scores than the PT

one. Figure 8 shows that the Portuguese caption fails

to adequately describe the scene - without mentioning

the sea - and the number of characters. In Figure 9,

the Portuguese caption fails to describe the ﬁshing ac-

tion from the young man. Looking at Figure 10, the

object used by the person is misdescribed in the Por-

tuguese sentence. A bad translation can cause this in

the training dataset as both the words “bicicleta” and

“motocicleta” can be translated to the informal word

“bike” in English.

Figure 8: Generated caption EN: “two people in a boat

is walking in water”. Generated caption PT: “uma pessoa

com uma membro da cidade no horizonte”. Source (Ho-

dosh et al., 2013).

Figure 9: Generated caption EN: “a young man holding a

ﬁshing pole”. Generated caption PT: “um jovem leva uma

pai pontap

e”. Source (Hodosh et al., 2013).

Figure 10: Generated caption EN: “a person on a bike”.

Generated caption PT: “um motociclista est

a realizando um

truque em sua bicicleta”. Source (Hodosh et al., 2013).

Towards Image Captioning for the Portuguese Language: Evaluation on a Translated Dataset

389

5.3 Human Evaluation

We performed a qualitative evaluation of 100 ran-

domly selected dataset images with 34 human anno-

tators. We separated common errors found into ﬁve

clusters: 1) Wrongly described the subject on the im-

age (gender, quantity, age, or action done by subject)

(Error 1); 2) Wrong color of an object (Error 2); 3)

Wrong scenario (beach, lagoon, mountain) (Error 3);

4) Wrong objects in the scene (Error 4) and 5) Gen-

erated sentence poorly structured (verb not agreeing

with the subject, word repetition) (Error 5).

We presented these errors within an online form

added with two other options to indicate if the caption

is correct or not: 1) Generated sentence describes the

image correctly and 2) Generated sentence is wrong

and does not reﬂect the presented image. After asking

annotators to signalize which errors they could detect

on given captions, we obtained 34 complete answers

and calculated the agreement between observations

using Krippendorff’s alpha inter-rater reliability. The

overall agreement score was 0.4052, and the agree-

ment for each type of error is described in Table 3.

Table 3: Krippendorff’s agreement scores for each error.

Errors Score

Wrongly described the subject on the image (gender,

quantity, age or action done by subject) - (1)

21.01%

Wrong color of an object - (2) 42.96%

Wrong scenario (beach, lagoon, mountain) - (3) 23.31%

Wrong objects in the scene - (4) 75.58%

Generated sentence poorly structured (verb not agree-

ing with subject, word repetition) - (5)

27.81%

Generated sentence describes the image correctly - (6) 36.74

Generated sentence is wrong and does not reﬂect the

presented image - (7)

19.52%

Overall Agreement 40.52%

It is noticeable that a higher agreement rate occurs

when there are object-related errors.

6 DISCUSSIONS

In this section, we discuss the errors we mentioned in

5.3. Figure 11 shows the number of times each er-

ror appeared on the evaluations. Although the error

with the highest frequency was Error 1 followed by

Error 5, both errors have low agreement among anno-

tators. This may indicate a divergence concerning the

wrong subject description or a poorly structured sen-

tence generation. The error with fewer appearances

(Error 4) also has the highest agreement value, sug-

gesting that object errors do not show up much in cap-

tions or are well described.

Figure 11: Counts of each annotations.

In the following subsections, we present examples

input into the model that had the higher count of votes

on each of the ﬁve errors and one case of error (7) (a

wrong sentence and does not reﬂect the image).

6.1 Wrongly Described the Subject on

the Image

Figure 12: Generated caption: “duas crianc¸as com dois

caras” — meaning “two children with two guys”.

The generated description for Figure 12 was “duas

crianc¸as com dois caras”, in this caption, the model

describes four subjects, instead of three, and the de-

scription of one of the subjects is erroneous - a woman

described as a man.

In Figure 13 we shown the second image with

most votes on error 1, and it can be seen how the rep-

resentation of person had some lacks as the generated

sentence is “tr

es pessoas em frente da parede de uma

cidade perto do edif

ıcio” describing less people than

the reality.

6.2 Wrong Color of an Object

In Figure 14 the description was “um jovem que usa

uma camisa verde” with a clear wrong color detection

on the person’s shirt.

ICEIS 2022 - 24th International Conference on Enterprise Information Systems

390

Figure 13: Generated caption: “tr

es pessoas em frente da

parede de uma cidade perto do edif

ıcio” — meaning “three

people in front of the wall of a city near the buiding”.

Figure 14: Generated caption: “um jovem que usa uma

camisa verde” — meaning “a young that wears a green

shirt”.

Figure 15: Generated caption: “pessoa em uma camisa ver-

melha a fazer um handstand em um bluff com um c

eu dando

o p

or do sol na montanha” — meaning “person on a red shirt

doing a handstand on a bluff with a sky doing a sunset on

the mountain”.

As for Figure 15, once again a shirt color is the

mistake detected by the annotators. Here we notice

the same word “camisa” before a color mistake hap-

pens.

6.3 Wrong Scenario

A wrong scenario description was the mistake ap-

pointed on Figure 16 as the caption is “um c

ao mar-

rom est

a na grama”

Figure 17 shows how a lack of information about

the whole scene can lead to a mistake in the caption

as the model’s output was “dois pequenos c

aes jogam

Figure 16: Generated caption: “um c

ao marrom est

a na

grama” — meaning “a brown dog is on tha grass”.

Figure 17: Generated caption: “dois pequenos c

aes jogam

em um lago” — meaning “two small dogs play on a lake”.

em um lago”, the water and waves from the beach are

not enough for correctly depicting where the dog is

playing.

6.4 Wrong Objects in the Scene

Figure 18: Generated caption: “um c

ao branco grande

branco com p

assaro est

a de pl

astico branco” — meaning

“a white big dog with bird is on white plastic”.

The caption of Figure 18 added what the annotators

considered to be a wrong object in “um c

ao branco

grande branco com p

assaro est

a de pl

astico branco”,

since there are no birds on the image. The second

and third images with more votes on this error are,

respectively, 14 and 20.

Towards Image Captioning for the Portuguese Language: Evaluation on a Translated Dataset

391

Figure 19: Generated caption: “um homem com um com

um homem com um homem em roupa por um homem com

um homem est

a usando um homem em roupa por homens

em um tem um tem um pau” — meaning “a man with a with

a man with a man on cloth by a man with a man is using a

man on cloth by men on a has a has a stick”.

6.5 Generated Sentence Poorly

Structured

A caption with Error 5 is shown on Figure 19, “um

homem com um com um homem com um homem em

roupa por um homem com um homem est

a usando um

homem em roupa por homens em um tem um tem um

pau”, where most of the words are repeated over the

generated sentence.

Figure 20: Generated caption: “um homem com um casaco

de compras e casaco preto e casaco de peles e casaco de

compras e casaco preto e casaco de couro e casaco preto e

casaco de compras e casaco preto e casaco de compras est

a”

— meaning “a man with a shopping coat and black coat

and a fur coat and shopping coat and black coat and leather

coat and black coat and shopping coat and black coat and

shopping coat is”.

For Figure 20 we have the second image in votes

for Error 5 with the following caption “um homem

com um casaco de compras e casaco preto e casaco

de peles e casaco de compras e casaco preto e casaco

de couro e casaco preto e casaco de compras e casaco

preto e casaco de compras est

a”, here the RNN de-

coder seems to be giving too much attention on the

coat worn by the man as the word “casaco” is con-

stantly repeated.

6.6 Generated Sentence Is Wrong and

Does Not Reﬂect the Presented


Figure 21: Generated caption: “um homem vestido com

uma mulher est

a tirando uma com um homem em frente

a uma rua” — meaning “a man dressed with a woman is

taking off a with a man in front of the a stree”.

Figure 21 had a wrong generated sentence with the

following caption: “um homem vestido com uma

mulher est

a tirando uma com um homem em frente

a uma rua” in which other subjects, a wrong verb and

a reference to street appears at the same time.

It is worth noticing that some mistakes, subsec-

tions 6.1, 6.2, 6.3 and 6.4, lead to understanding that

a wrong image description was sent to our RNN de-

coder: a missing person added, wrong color, erro-

neous ground description, or a bird that is not on the

image being referenced. These might indicate that

better image representations are still needed for a bet-

ter “translation” of the image into a sentence.

7 CONCLUSIONS AND FUTURE

WORK

We presented a qualitative evaluation of the types of

errors made by a Portuguese image captioning sys-

tem based on a neural translation model. For that,

we performed a human evaluation of the generated

sentences. Though the agreement scores obtained in

this qualitative process were low for some of the er-

rors analyzed, we were able to see how poor image

representations might negatively inﬂuence when giv-

ing an automated description of an image. We com-

pared scores of differently trained models (both with

the same images, but one with Portuguese an the other

with English captions) and obtained results indicating

that the mean difference between these scores is close

to zero: same images having similar scores with either

Portuguese or English captions. For future works, we

intend to explore how to enhance the way an encoded

image representation is presented to the decoder re-

ICEIS 2022 - 24th International Conference on Enterprise Information Systems

392

sponsible for generating a sentence and keep improv-

ing our dataset with better translations. We hope that

this work will encourage future works on image cap-

tioning for the Portuguese language.

ACKNOWLEDGEMENTS

Authors would like to thank FAPESB TIC PROJECT

Number TIC0002/2015, CAPES Finantial Code 001

and CNPQ for ﬁnancial support.

REFERENCES

Bahdanau, D., Cho, K., and Bengio, Y. (2016). Neural ma-

chine translation by jointly learning to align and trans-

late.

Bender, E. (2019). English isn’t generic for language, de-

spite what nlp papers might lead you to believe. In

Symposium and Data Science and Statistics. [Online;

accessed 15-may-2020].

Bender, E. M. (2009). Linguistically na

ıve != language in-

dependent: Why NLP needs linguistic typology. In

Proceedings of the EACL 2009 Workshop on the In-

teraction between Linguistics and Computational Lin-

guistics: Virtuous, Vicious or Vacuous?, pages 26–32,

Athens, Greece. Association for Computational Lin-

guistics.

Bernardi, R., Cakici, R., Elliott, D., Erdem, A., Erdem, E.,

Ikizler-Cinbis, N., Keller, F., Muscat, A., and Plank,

B. (2017). Automatic description generation from im-

ages: A survey of models, datasets, and evaluation

measures.

Cho, K., van Merrienboer, B., Gulcehre, C., Bahdanau, D.,

Bougares, F., Schwenk, H., and Bengio, Y. (2014).

Learning phrase representations using rnn encoder-

decoder for statistical machine translation.

dos Santos, G. O., Colombini, E. L., and Avila, S. (2021).

#pracegover: A large dataset for image captioning in

portuguese.

Hodosh, M., Young, P., and Hockenmaier, J. (2013). Fram-

ing image description as a ranking task: Data, models

and evaluation metrics. Journal of Artiﬁcial Intelli-

gence Research, 47:853–899.

Huang, L., Wang, W., Chen, J., and Wei, X.-Y. (2019). At-

tention on attention for image captioning.

Klein, G., Kim, Y., Deng, Y., Senellart, J., and Rush,

A. (2017). OpenNMT: Open-source toolkit for neu-

ral machine translation. In Proceedings of ACL

2017, System Demonstrations, pages 67–72, Vancou-

ver, Canada. Association for Computational Linguis-

tics.

Lavie, A. and Agarwal, A. (2007). Meteor: An automatic

metric for mt evaluation with high levels of correlation

with human judgments. In Proceedings of the Second

Workshop on Statistical Machine Translation, StatMT

’07, page 228–231, USA. Association for Computa-

tional Linguistics.

Li, X., Yin, X., Li, C., Zhang, P., Hu, X., Zhang, L., Wang,

L., Hu, H., Dong, L., Wei, F., Choi, Y., and Gao, J.

(2020). Oscar: Object-semantics aligned pre-training

for vision-language tasks.

Lin, T.-Y., Maire, M., Belongie, S., Bourdev, L., Girshick,

R., Hays, J., Perona, P., Ramanan, D., Zitnick, C. L.,

and Doll

ar, P. (2015). Microsoft coco: Common ob-

jects in context.

Lu, J., Xiong, C., Parikh, D., and Socher, R. (2017). Know-

ing when to look: Adaptive attention via a visual sen-

tinel for image captioning.

Papineni, K., Roukos, S., Ward, T., and Zhu, W.-J. (2002).

Bleu: A method for automatic evaluation of ma-

chine translation. In Proceedings of the 40th Annual

Meeting on Association for Computational Linguis-

tics, ACL ’02, page 311–318, USA. Association for

Computational Linguistics.

Pennington, J., Socher, R., and Manning, C. D. (2014).

Glove: Global vectors for word representation. In

Empirical Methods in Natural Language Processing

(EMNLP), pages 1532–1543.

Simonyan, K. and Zisserman, A. (2015). Very deep convo-

lutional networks for large-scale image recognition.

Socher, R. and Fei-Fei, L. (2010). Connecting modalities:

Semi-supervised segmentation and annotation of im-

ages using unaligned text corpora. In 2010 IEEE Com-

puter Society Conference on Computer Vision and

Pattern Recognition, pages 966–973.

Szegedy, C., Liu, W., Jia, Y., Sermanet, P., Reed, S.,

Anguelov, D., Erhan, D., Vanhoucke, V., and Rabi-

novich, A. (2014). Going deeper with convolutions.

Tan, M. and Le, Q. V. (2020). Efﬁcientnet: Rethinking

model scaling for convolutional neural networks.

Vinyals, O., Toshev, A., Bengio, S., and Erhan, D. (2015).

Show and tell: A neural image caption generator.

Xu, K., Ba, J., Kiros, R., Cho, K., Courville, A., Salakhut-

dinov, R., Zemel, R., and Bengio, Y. (2016). Show,

attend and tell: Neural image caption generation with

visual attention.

Yao, B. Z., Yang, X., Lin, L., Lee, M. W., and Zhu, S.-C.

(2010). I2t: Image parsing to text description. Pro-

ceedings of the IEEE, 98(8):1485–1508.

Young, P., Lai, A., Hodosh, M., and Hockenmaier, J.

(2014). From image descriptions to visual denota-

tions: New similarity metrics for semantic inference

over event descriptions. TACL, 2:67–78.

Towards Image Captioning for the Portuguese Language: Evaluation on a Translated Dataset

393
