Using Software Reasoning to Determine Domain-law Violations and

Provide Explanatory Feedback: Expressions Tutor Example

Oleg Sychev

, Nikita Penskoy

and Grigory Terekhov

Software Engineering Department, Volgograd State Technical University, Lenin Ave, 28, Volgograd, Russian Federation

Keywords:

Constraint-based Intelligent Tutor, Software Reasoning, Introductory Programming Course, Expressions.

Abstract:

Introducing students to a new subject domain involves getting them acquainted with many new concepts. Some

of these students need a trial-and-error process to learn these concepts, but it is time-consuming for teachers.

An intelligent tutor capable of detecting domain-law violations and providing explanatory feedback can allow

training until learning without supervision. This is especially important when teaching software engineering

because it requires learning a lot of new concepts and has well-deﬁned laws. Our goal was to develop a tutor

capable to explain to the student the cause of their errors: the subject-domain laws that they violated. We

present an approach to modeling subject-domain concepts and laws that allows ﬁnding correct answers and

determining law violations in students’ answers. A web-based tool for learning the order of evaluation for

programming-language expressions was developed to assess the viability of this approach. The experiments

show that Apache Jena and Clingo inference engines work quickly enough to ﬁnd domain-law violations after

each error in middle-sized tasks. The developed tool was evaluated by volunteer undergraduate students and

received positive feedback. After the initial evaluation, the tool was used in the learning process; the students’

learning gains after using the system were statistically signiﬁcant.

1 INTRODUCTION

Programming is a rapidly growing segment of the la-

bor market, and introductory programming courses

are one of the crucial points in programming educa-

tion because they require learning a signiﬁcant num-

ber of new abstract concepts before the learners start

to demonstrate skills. This leads to a high dropout

rate and poor satisfaction among the students. A lot

of various attempts and strategies are used to support

learning in introductory programming courses, rang-

ing from traditional tests (Lajis et al., 2018) to mobile

game-based tools (Daungcharone et al., 2019).

For some students, simply explaining new con-

cepts and providing examples is enough to compre-

hend them; these students, typically, can start prac-

ticing applying these concepts in higher-level cogni-

tive tasks according to Bloom’s taxonomy of educa-

tional objectives (Bloom et al., 1956), like analyzing

and synthesizing program code. However, some stu-

dents do not grasp new concepts well, and even a sin-

https://orcid.org/0000-0002-7296-2538

https://orcid.org/0000-0002-4443-3399

https://orcid.org/0000-0002-0289-1834

gle poorly understood or misunderstood concept may

pose a signiﬁcant obstacle for further progress. Some

of these misunderstandings can be corrected during

discussions with teaching staff and performing simple

exercises (e.g. quizzes), but limited class time mostly

does not allow the teachers to ﬁnd and correct all mis-

conceptions for each student. This often results in stu-

dents trying to solve higher-level tasks using guesses

and analogy instead of understanding how their code

is supposed to work.

If explaining a concept during a lecture (or text-

book reading) failed, the student can learn the con-

cept during assignments, but the ability of the teach-

ing staff to provide feedback is limited so the feed-

back should be automated. This requires creating

learning environments where students can perform

simple tasks, exposing the concepts’ features and

subject-domain laws (or rules), while receiving im-

mediate explanatory feedback if they make a wrong

move. Only an automatic tutor can give the poorly-

performing students enough experience to learn while

experimenting with the subject-domain objects. An-

other important consideration is limiting the number

of new concepts learned at once. Most program vi-

sualization educational software shows the program

116

Sychev, O., Penskoy, N. and Terekhov, G.

Using Software Reasoning to Determine Domain-law Violations and Provide Explanatory Feedback: Expressions Tutor Example.

DOI: 10.5220/0011070100003182

In Proceedings of the 14th International Conference on Computer Supported Education (CSEDU 2022) - Volume 1 , pages 116-123

ISBN: 978-989-758-562-3; ISSN: 2184-5026

execution with all its complexity, including call stack,

local variables, objects and references, and statement

and/or operator order of execution. While this is use-

ful for high-performing students, it can mentally over-

load the weaker students with a lot of new informa-

tion at once and prevent learning. Ben-Bassat Levy

et al. report that complex program animations over-

whelm the weakest students (Levy et al., 2003); Sorva

et al. conclude that the success of visual programming

simulation exercises is likely to depend on the align-

ment of GUI interactions with the speciﬁc learning

goals (Sorva et al., 2013) which is easier to do with

several smaller tools, suited for teaching particular

topics. According to Kollmansberger, some students

found the exercise using his Online Tutoring System

too repetitive (Kollmansberger, 2010) - this problem

can be solved by using adaptive testing.

The kind of feedback provided to the students dur-

ing this kind of learning is also important. Simple

feedback about the correctness of the answer is not

enough to learn without a teacher: students often get

stuck during an exercise. A signiﬁcant number of vi-

sual program simulators can provide feedback about

the next correct action if the student is wrong. While

this always allows completing the exercise, this sort of

feedback does not explain why the student was wrong

and so is of limited use to foster comprehension: the

student can simply perform the hinted correct step

without understanding why it is correct. To develop

an understanding of the subject-domain concepts, stu-

dents who gave wrong answers should receive feed-

back about the subject-domain laws they broke and,

possibly, feedback about the next correct move with

the explanation of the subject-domain laws that make

this step possible. The lack of explanatory feedback

is one of the most severe problems in modern ques-

tion generation as shown in (Kurdi et al., 2020). This

problem can be solved by using the constraint-based

paradigm where each mistake is tied with breaking a

speciﬁc constraint. For example, in (Sychev et al.,

2020) a similar approach is used to verify a program

trace for the given algorithm using Pellet SWRL rea-

soner.

We hypothesized that an intelligent tutor based on

a formal subject subject-domain model, containing an

axiomatic deﬁnition of subject-domain concepts and

laws, will be able to generate both correct answers

for simple problems about the studied properties of

subject-domain concepts and explanatory feedback

about errors the student made, providing a way to

train and develop an understanding of subject-domain

concepts without teacher’s intervention. To provide

explanatory feedback, it is necessary to use declara-

tive models, expressing the logic of making decisions

without describing the algorithm to achieve it as im-

perative models do. This allows the tool to acknowl-

edge all possible correct solutions, but the most im-

portant fact is that in a declarative model, wrong so-

lutions will trigger errors in conditions determining if

the answer is correct, and the particular failed condi-

tion lets the tool determine the kind of error.

However, developing such tools poses a series of

problems. Our goals were:

1. building an example formal declarative model of

the subject subject-domain, capable of determin-

ing semantic mistakes;

2. assessing if modern software reasoners are capa-

ble of judging the solutions quickly enough to cre-

ate a real-time tutor with per-step grading;

3. evaluate if this kind of exercise is of interest for

the novice programmers.

We chose determining an evaluation order of the

given expression as the experimental task to ﬁnd the

viability of developing intelligent tutors based on

declarative formal models of subject-domain laws.

This task is well-suited for experimental tutoring ap-

plications because many its problems have several

correct solutions, so the feedback cannot just say “you

are wrong because the correct move in this moment

is X” but must explain the reasons why the operator,

chosen by the student, cannot be evaluated yet.

Learning programming includes many different

topics, each of them containing a lot of concepts,

theories, methods, and algorithms (Papadakis et al.,

2016). One of these topics is expressions and their

evaluation.

While the concepts of expression evaluation or-

der and operator precedence are mostly known to

the computer-science students from basic mathemat-

ics courses, modern programming languages are more

demanding: they have more levels of precedence

and introduce new concepts like associativity and se-

quence points. The correct order of teaching con-

cepts and tasks, while checking single concepts and

their mixtures is necessary for good education (Hos-

seini and Brusilovsky, 2013) that makes developing

skills of expression analysis and synthesis an impor-

tant topic. However, during introductory program-

ming courses, it may not get enough attention in

class because of more complex problems like learning

to use control-ﬂow statements and debugging tech-

niques.

While understanding the order of expression eval-

uation seems fairly trivial, when modeled, it proves

to be a complex intellectual skill. To answer the ba-

sic question “Can the operator X be evaluated at this

step?” the student must analyze (at most) 4 branches,

Using Software Reasoning to Determine Domain-law Violations and Provide Explanatory Feedback: Expressions Tutor Example

117

ﬁnding whether X’s left, central, and right operands

are evaluated fully and are there any operators with

the strict order of evaluating their operands blocking

X’s evaluation. All of these branches require answer-

ing from 4 to 7 questions, and the last branch includes

two “recursive” questions, implying the ability to

solve the same task ahead to identify the operands of

the operators with the strict order of evaluation. This

makes the order of evaluation of expression an inter-

esting task for developing an intelligent tutor based

on the subject-domain model.

2 RELATED WORK

Intelligent tutoring systems are widely used nowa-

days in many subject domains and proved to be help-

ful and decrease overall time to study course mate-

rial (Nesbit et al., 2015). There is a lot of intelli-

gent tutoring systems for software engineering educa-

tion, especially for introductory programming courses

as they are often challenging for the students (Crow

et al., 2018). They can be categorized by features like

the supported programming languages, using open- or

closed-answer questions, the kind of tutor (constraint-

based or cognitive), the level of questions according

to Bloom’s taxonomy’s, using hand-crafted or auto-

matically generated learning problems, static or dy-

namic code analysis, the method and language of

modeling knowledge, etc.

Cognitive tutors usually give more detailed feed-

back but have a lot of handwritten rules for checking

all possible situations, while constraint-based tutors

have more clear rules that can be used in tasks with

several correct solutions (Aleven, 2010). According

to a constraint-based tools survey (Mitrovic, 2012),

expression evaluation order is an ill-deﬁned task in

a well-deﬁned subject-domain that is the best choice

for the constraint-based approach. In well-known

tasks, all errors are generally predictable as students

have constrained knowledge about ﬁeld (Singh et al.,

2013). More closed tasks like expression evaluation

order can be described without data learning using

logical rules for all possible mistakes.

Solving most of the tasks regarding expres-

sions starts from determining the evaluation or-

der. Some pedagogical program visualizers (Virta-

nen et al., 2005; Bruce-Lockhart and Norvell, 2000)

show evaluation of expressions step by step, attract-

ing attention to the evaluation order without dis-

closing the underlying laws. Interactive visualizers

WADEIn (Brusilovsky and Su, 2002), Online Tutor-

ing System (Kollmansberger, 2010), UUhistle (Sorva

and Sirki

a, 2010), and others (Donmez and Inceoglu,

2008) ask students for expression evaluation order

as a part of more complex exercises. While these

tools are useful for integrating everything the students

know about program execution, the amount of dif-

ferent tasks the students should do while solving an

exercise prevents the students from concentrating on

learning a particular topic.

Kumar developed and evaluated tutoring applica-

tions called Problets helping teaching programming

basics, using a separate tool for each topic (Kumar,

2003). The expression tool iteratively checks the eval-

uation order of the given expression, checks chang-

ing variables values, shows wrong answers, and ex-

plains the correct steps. Systems have template-based

problems generation and automatic problem solving,

but the feedback about evaluation mistakes is scarce,

showing only the fact of error. The feedback in the ex-

pression Problet tool mostly consists of demonstrat-

ing the correct solution of the entire exercise. This re-

quires the student to compare the correct solution with

theirs and make a conclusion about why they were

wrong. The same approach to feedback is used by

Sean Russel (Russell, 2021) in his tool for generating

program-tracing questions (including the expression

evaluation).

We are attempting to advance the ﬁeld by devel-

oping a tool that provides explanatory feedback not

only about the correct way of solving the task but

telling the reasons why the student’s answer is wrong

right after a wrong step is made. This creates a larger

search space than simply ﬁnding a correct solution, so

measuring the program performance and choosing an

efﬁcient reasoner is needed.

3 DEVELOPED APPLICATION

3.1 Architecture

The developed application uses client-server architec-

ture with laws database as shown in Fig. 1. Interac-

tion between its components is processed by HTTP

Json REST API. The server component contains API

to access positive and negative laws with formulations

for backends (software reasoners), decorators for the

reasoners, domains that encapsulate exercise business

logic, and helper classes for prepare and cache data.

The client component provides the user interface.

Interaction processing starts with a client con-

troller that updates a model and speciﬁes the request

to the server through a service, the service generates

JSON and sends the request. Server helper classes re-

ceive and parse the request, call a domain to get laws,

statement facts, and solution verb list; call a backend

CSEDU 2022 - 14th International Conference on Computer Supported Education

118

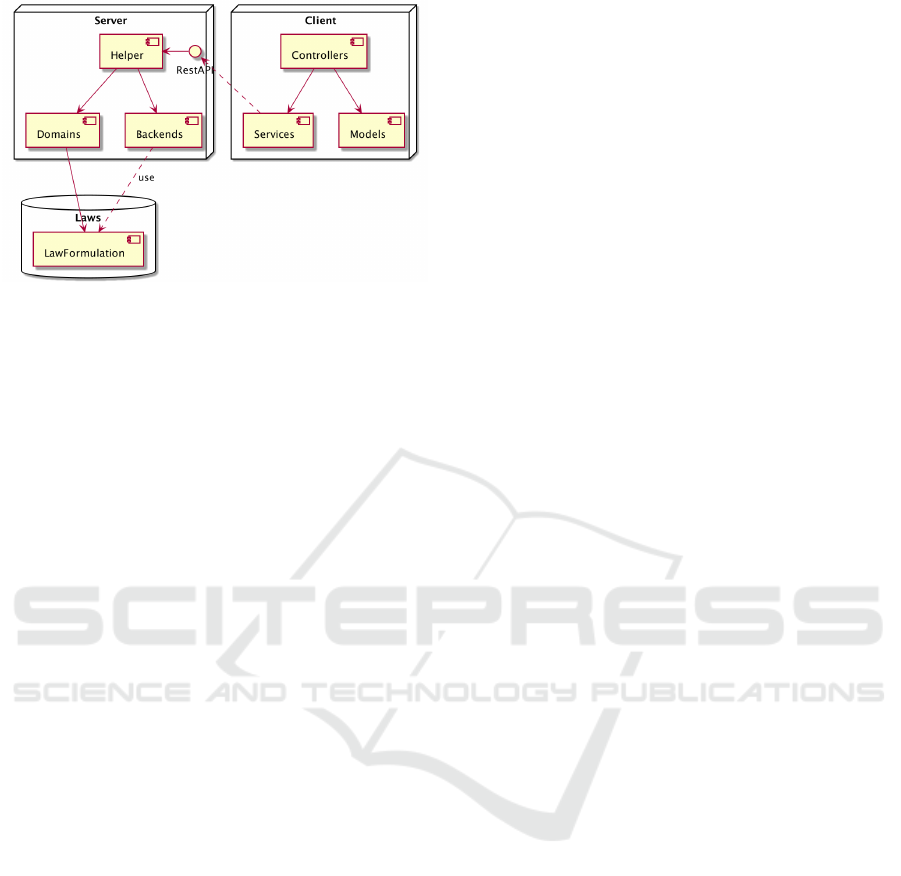

Figure 1: Component diagram.

to solve the task if not found in the cache, and judge

the answer. Then the domain is called to produce text

descriptions of law violations, and the helper forms

a response by extending the request with additional

information.

To solve the learning problem, the backend uses

a formal model of the subject domain as a set of

rules. The problem and the student’s answer are rep-

resented as an RDF graph. Jena reasoner (McBride,

2002) is used to perform logical inference. After to-

kenizing the given expression, the backend builds an

Abstract Syntax Tree (AST) of expression. Then ex-

pression evaluation order graph is built based on AST

by adding the information from the operators creat-

ing sequence points like binary logical operators or

commas. It is represented as a directed acyclic graph

(DAG), describing every correct order of evaluation

and the reasons for all dependencies that can be used

for generating explanatory feedback. The graph is

cached and used for grading students’ answers step

by step, correcting mistakes as they are made.

3.2 Usage

The tool accepts programming language expressions

in different programming languages (Python and

C++). A teacher, after ﬁlling a small survey, can cre-

ate exercises and receive permanent URLs for them

to send to the students. The teachers can see sim-

ple statistics about the performance of the students on

their exercises. The students can also use the tool on

their own to solve the expressions of particular inter-

est to them.

The tool asks a student to press operators in the

order they are evaluated. If the operator is chosen

correctly, it is marked with green and its evaluation

order is shown next to it. If a mistake is made (i.e. an

operator that cannot be evaluated yet is chosen prema-

turely), it is marked with red color, and feedback mes-

sages are shown beneath, explaining why the student

was wrong (see Fig. 2). The button for each operator

shows its position in the expression that makes them

identiﬁable even if there are a few instances of one

operator. In many cases, expressions can have several

correct orders of evaluation; the tool recognizes all of

them as correct.

The tool determines six kinds of mistakes:

1. evaluating an operator with lower precedence

ﬁrst,

2. evaluating two operators with the same prece-

dence and left associativity from right to left,

3. evaluating two operators with same precedence

and right associativity from left to right,

4. evaluating a two-token operator (i.e. an operator

with two tokens enclosing its operand, like square

brackets for array access, function call, or ternary

operator) before evaluating the operators inside it,

5. evaluating an operator whose operand is parenthe-

sized before the operator in these parentheses,

6. evaluating an operator belonging to the right

operand of an operator with strict operands eval-

uation order (e.g. logical or, logical and, and

comma operators in the C++ programming lan-

guage) before all of the operators belonging to its

left operand. For each mistake, the tool generates

a template-based message with the positions of all

relevant operators (see Fig. 2).

Consider the situation in Fig. 2 for the C++ pro-

gramming language. The student started by correctly

determining square brackets as the ﬁrst evaluated op-

erator, but then made a mistake by choosing the “+”

operator at position 7 as the second evaluated opera-

tor. Two operators block its evaluation for different

reasons: “+” at position 5 must be evaluated ﬁrst be-

cause operator “+” is left-associative while operator

“*” at position 9 must be evaluated ﬁrst because its

precedence is higher. The system shows both reasons

so that the student can learn from their mistake.

The tool also can show a possible next correct step

and explain why it is correct if the student asks for

help by clicking a button. A teacher can control the

availability of hints for their exercises. The explana-

tion takes into account the two closest unevaluated op-

erators (to the left and the right of the evaluated oper-

ator) and describes why the shown operator should be

evaluated ﬁrst. So if the student is stuck, they should

not resort to trying all the buttons in order but can see

the explanation of the next move.

Fig. 3 shows an example of a hint for the situation

where the operator “&” to the left should not be eval-

uated yet because of its lower precedence while the

Using Software Reasoning to Determine Domain-law Violations and Provide Explanatory Feedback: Expressions Tutor Example

119

Figure 2: Explanatory feedback after a mistake.

Figure 3: Demonstration of the next correct step with an explanation.

Table 1: Inference wall time for different engines, seconds.

Operands count Clingo Apache Jena Pellet Prolog Apache Jena ARQ

4 1.48 2.75 3.98 0.92 3.77

9 1.70 3.67 9.57 1.73 7.92

13 2.35 9.19 21.49 4.64 23.63

17 9.92 9.58 17.08 10.30 13.71

23 23.54 57.25 78.86 30.92 46.71

30 43.37 45.21 344.1 60.03 116.5

operator “+” to the right should not be evaluated yet

because the “+” operator is left-associative. Note that

the situation before the hint button is pressed has two

correct next step variants: the operator “+” at posi-

tion 4 and the operator “*” at position 10, because the

operands of binary operator ”==” can be evaluated at

any order.

4 EVALUATION AND RESULTS

4.1 Reasoners’ Performance

As the developed tool is supposed to judge answers

step by step as they are given, it is crucial to use an

efﬁcient software reasoner as a backend. We mea-

sured the performance of 5 inference engines: Pel-

let SWRL reasoner, Apache Jena inference engine,

CSEDU 2022 - 14th International Conference on Computer Supported Education

120

Apache Jena ARQ (scripts using SPARQL Update

can “reason” by modifying the knowledge graph),

SWI-Prolog (with semweb library), and Answer Set

Programming solver Clingo. Most of the time, the

reasoning time rose with the task size, but sometimes

it decreased instead; so the kind of expression and the

reasoner can affect the reasoning time. The experi-

ments (see Table 1) showed that some engines (es-

pecially Pellet) are too slow for real-time grading of

expressions longer than 4 operators, but the best rea-

soners - Apache Jena and Clingo - can solve medium-

sized tasks quickly enough. We choose Apache Jena

inference engine as our backend because it is written

in Java and supports multithreading; it also supports

RDF natively.

4.2 Evaluation by Students

We asked the ﬁrst-year Computer Science students of

Volgograd State Technical University in the middle

of the CS1 course to try and evaluate the developed

tool; 14 students volunteered. To avoid the preva-

lence of the best-performing students among the vol-

unteers, the worst-performing student group was se-

lected. They used the tool to determine the order of

evaluation of 5 expressions for the C++ programming

language:

• ( a + b ) * c + d (requires only knowledge

of operator precedence),

• ( a + b ) * c * d (requires knowledge of op-

erator precedence and associativity),

• a = b = 0 (introduces right-associative opera-

tor),

• a < 0 && b > 0 (logical AND operator has the

strict operand evaluation order),

• a < 0 ? b = 0 : c = 0 (ternary conditional

operator).

The students were able to complete all the exer-

cises without asking teachers for support. After that,

the students ﬁlled a short survey. Tab. 2 shows mean

and standard deviation for the three ﬁve-point Likert

scale questions with 1 meaning “Strongly disagree”

and 5 meaning “Strongly agree”. Most of the students

rated the developed tool as very useful and wanted to

use similar tools for the other topics. Most of the stu-

dents (10 out of 14) made from 1 to 3 errors; only 2

avoided errors entirely. So even the students who al-

ready studied this topic in their course learned more

about it using the provided explanatory feedback and

only 5 simple questions. It shows that even Computer

Science students in the middle of the CS1 course have

things to learn and practice about the evaluation order

of expressions. Using our tool, it can be done without

spending more class time.

Table 2: Students survey.

Question Mean Std.dev

Were the explanations pro-

vided by the program helpful?

4.28 1.03

Are similar programs useful

for learning the basics of pro-

gramming?

4.71 0.79

Would you like to have sim-

ilar training programs for

more complex subject topics?

4.71 0.79

none

1–3 4–8 more than 8

Number of mistakes

Number of students

Figure 4: Distribution of students by the number of mis-

takes they made.

Answering free-text questions, most participants

noted that the advantages of the developed system are

detailed feedback about mistakes and the overall idea

of narrowly focused tools for the speciﬁc concepts.

Most of the problems were caused by the slow work

of the SWRL reasoner (Sirin et al., 2007) used in the

ﬁrst version of the tool and the lack of supplementary

materials about studied concepts.

The improved tool was used in the CS0 course of

Volgograd State Technical University the next year

with 23 expressions combining the studied laws in

different ways. The students had the average pre-

test score of 56% and learning gains 16% which is

statistically signiﬁcant (p < 10

−11

, paired 2-tailed T-

test). The students with lower pre-test scores (less

than 60%) had better learning gains than the students

with high pre-test scores (p = 0.001).

5 CONCLUSIONS

We developed a tool whose key difference from the

previous works (Kumar, 2003; Russell, 2021) is

providing explanatory feedback about the violated

subject-domain laws after each wrong step. We

Using Software Reasoning to Determine Domain-law Violations and Provide Explanatory Feedback: Expressions Tutor Example

121

showed that developing a formal declarative model of

subject-domain laws is possible using different mod-

ern rule languages like SWRL, Jena Rules, SPARQL,

and Prolog. However, determining the cause of an er-

ror requires narrowing the task to closed-answer ques-

tions: it is not possible to determine the error cause

when an answer can be any number or string. But the

closed-answer questions are not necessarily simple;

some of them may have a lot of possible answers like

determining the order of evaluation of the given ex-

pression or building a program trace, so the chances

of giving a correct answer by pure guessing can be

made negligible.

Another important consideration is that some of

the found errors are not atomic. For example, if the

student evaluates a multiplication operator before an

addition operator, it can be caused by considering op-

erators’ associativity before their precedence or by

not knowing the relative precedence of these two par-

ticular operators. This can be addressed by a teacher

by asking the student a set of follow-up questions

which can be imitated in the tool as a ﬁnite automaton.

It may be possible to devise a technique of generating

follow-up questions from a formal description of the

subject-domain laws, but this requires future research

after building more similar models.

One more advantage of the developed formal

model is its ability to not just solve the tasks on its

own (like many other ITS do), but to determine the

set of possible errors for the given task - i.e., the nec-

essary knowledge to solve it. This opens the way to

building exercises using a large base of expressions

mined from open-source code with automatic classi-

ﬁcation.

We found that some modern software reasoners

(like Apache Jena and Clingo) allow performing in-

ference quickly enough to judge students’ answers

step-by-step in real-time for middle-size tasks. The

time of reasoning grows quickly with the expression

growth and may require better strategies like caching

the reasoning results after each correct step, advanc-

ing the solution, to lower the number of facts that

should be reasoned each time. However, the pedagog-

ical effect of solving the tasks with really big expres-

sions (more than 20 operators in a single expression)

is questionable: avoiding large, poorly understand-

able expressions is often preferable. The developed

approach can be used for different subject domains if

the domain model and domain-speciﬁc user interface

are provided (Sychev et al., 2021).

The evaluation results show that constraint-based

learning tools with explanatory feedback generation

are a viable way to learn new concepts during home-

work without a teacher’s intervention. They visualize

the processes that are normally left to students’ imag-

ination and explain the rules that were broken by a

particular student. The students mostly perceived the

tool positively, and the majority of them were able to

improve their understanding of expression evaluation.

Even the poorest-performing students, making more

than 4 errors in 5 expressions, were able to complete

the exercises without support from the teachers. How-

ever, some of the explanatory messages were complex

and may need to be broken down into simpler state-

ments by generating a series of follow-up questions,

especially when aiming at younger learners like K-12

students. Further research may include a more rig-

orous studying of the learning gains using the devel-

oped tool (including using the tool as the only means

to practice on the topic).

The further development of the developed for-

mal model of expression domain will include enhanc-

ing studying expressions to teach determining data

types for subexpressions (using different models for

statically and dynamically typed languages) and con-

structing expressions to access modiﬁable data loca-

tions. It can be done by adding more rules on the

top of the Abstract Syntax Tree that the developed

subject-domain model builds. We are also going to

target more programming languages. The tool can

be improved by adding the possibility to demonstrate

and explain correct steps if the student got stuck and

ask a series of follow-up questions.

The tool can be used to teach evaluating expres-

sions during introductory programming courses on

different levels of education either as a supporting

tool for a classroom activity or on its own during

homework. The students can also use it to explore

the topic by creating and solving their own exercises.

The tool is freely accessible at https://howitworks.

app/expressions. It supports English and Russian as

interface languages and C++ and Python as program-

ming languages. Please contact the development team

if you are interested in adding support for your lan-

guage.

ACKNOWLEDGEMENTS

The reported study was funded by RFBR, project

number 20-07-00764.

REFERENCES

Aleven, V. (2010). Rule-based cognitive modeling for in-

telligent tutoring systems. In Advances in intelligent

tutoring systems, pages 33–62. Springer.

CSEDU 2022 - 14th International Conference on Computer Supported Education

122

Bloom, B. S., Engelhart, M. B., Furst, E. J., Hill, W. H.,

and Krathwohl, D. R. (1956). Taxonomy of edu-

cational objectives. The classiﬁcation of educational

goals. Handbook 1: Cognitive domain. Longmans

Green, New York.

Bruce-Lockhart, M. and Norvell, T. (2000). Lifting the

hood of the computer: program animation with the

teaching machine. In 2000 Canadian Conference

on Electrical and Computer Engineering. Conference

Proceedings. Navigating to a New Era, volume 2,

pages 831–835 vol.2. IEEE.

Brusilovsky, P. and Su, H.-D. (2002). Adaptive visual-

ization component of a distributed web-based adap-

tive educational system. In International Confer-

ence on Intelligent Tutoring Systems, pages 229–238.

Springer.

Crow, T., Luxton-Reilly, A., and Wuensche, B. (2018). In-

telligent Tutoring Systems for Programming Educa-

tion: A Systematic Review, page 53–62. Association

for Computing Machinery, New York, NY, USA.

Daungcharone, K., Panjaburee, P., and Thongkoo, K.

(2019). A mobile game-based c programming

language learning: results of university students’

achievement and motivations. International Journal

of Mobile Learning and Organisation, 13(2):171–192.

Donmez, O. and Inceoglu, M. M. (2008). A web based tool

for novice programmers: Interaction in use. In Ger-

vasi, O., Murgante, B., Lagan

a, A., Taniar, D., Mun,

Y., and Gavrilova, M. L., editors, Computational Sci-

ence and Its Applications – ICCSA 2008, pages 530–

540, Berlin, Heidelberg. Springer Berlin Heidelberg.

Hosseini, R. and Brusilovsky, P. (2013). Javaparser: A

ﬁne-grain concept indexing tool for java problems. In

Workshops Proceedings of AIED 2013, volume 1009,

pages 60–63. University of Pittsburgh, CEUR work-

shop proceedings.

Kollmansberger, S. (2010). Helping students build a men-

tal model of computation. In Proceedings of the Fif-

teenth Annual Conference on Innovation and Technol-

ogy in Computer Science Education, ITiCSE ’10, page

128–131, New York, NY, USA. Association for Com-

puting Machinery.

Kumar, A. N. (2003). Learning programming by solv-

ing problems. In Informatics curricula and teaching

methods, pages 29–39. Springer.

Kurdi, G., Leo, J., Parsia, B., Sattler, U., and Al-Emari,

S. (2020). A systematic review of automatic ques-

tion generation for educational purposes. Interna-

tional Journal of Artiﬁcial Intelligence in Education,

30(1):121–204.

Lajis, A., Baharudin, S. A., Ab Kadir, D., Ralim, N. M.,

Nasir, H. M., and Aziz, N. A. (2018). A review of

techniques in automatic programming assessment for

practical skill test. Journal of Telecommunication,

Electronic and Computer Engineering (JTEC), 10(2-

5):109–113.

Levy, R. B.-B., Ben-Ari, M., and Uronen, P. A. (2003).

The jeliot 2000 program animation system. Comput.

Educ., 40(1):1–15.

McBride, B. (2002). Jena: a semantic web toolkit. IEEE

Internet Computing, 6(6):55–59.

Mitrovic, A. (2012). Fifteen years of constraint-based tu-

tors: what we have achieved and where we are going.

User modeling and user-adapted interaction, 22(1-

2):39–72.

Nesbit, J. C., Liu, Q. L. A., Liu, Q., and Adesope, O. O.

(2015). Work in progress: Intelligent tutoring systems

in computer science and software engineering educa-

tion. Proceeding 122nd Am. Soc. Eng. Education Ann.

Papadakis, S., Kalogiannakis, M., and Zaranis, N. (2016).

Developing fundamental programming concepts and

computational thinking with scratchjr in preschool ed-

ucation: a case study. International Journal of Mobile

Learning and Organisation, 10(3):187–202.

Russell, S. (2021). Automatically generated and graded

program tracing quizzes with feedback. In Pro-

ceedings of the 26th ACM Conference on Innovation

and Technology in Computer Science Education V. 2,

ITiCSE ’21, page 652, New York, NY, USA. Associ-

ation for Computing Machinery.

Singh, R., Gulwani, S., and Solar-Lezama, A. (2013).

Automated feedback generation for introductory pro-

gramming assignments. In Proceedings of the 34th

ACM SIGPLAN Conference on Programming Lan-

guage Design and Implementation, PLDI ’13, pages

15—-26, New York, NY, USA. Association for Com-

puting Machinery.

Sirin, E., Parsia, B., Grau, B. C., Kalyanpur, A., and Katz,

Y. (2007). Pellet: A practical owl-dl reasoner. Web

Semant., 5(2):51—-53.

Sorva, J., L

onnberg, J., and Malmi, L. (2013). Stu-

dents’ ways of experiencing visual program simula-

tion. Computer Science Education, 23(3):207–238.

Sorva, J. and Sirki

a, T. (2010). Uuhistle: A software tool for

visual program simulation. In Proceedings of the 10th

Koli Calling International Conference on Computing

Education Research, Koli Calling ’10, page 49–54,

New York, NY, USA. Association for Computing Ma-

chinery.

Sychev, O., Denisov, M., and Anikin, A. (2020). Verify-

ing algorithm traces and fault reason determining us-

ing ontology reasoning. In Taylor, K. L., Gonc¸alves,

R., L

ecu

e, F., and Yan, J., editors, Proceedings of

the ISWC 2020 Demos and Industry Tracks, Globally

online, November 1-6, 2020 (UTC), volume 2721 of

CEUR Workshop Proceedings, pages 49–54. CEUR-

WS.org.

Sychev, O., Denisov, M., and Terekhov, G. (2021). How

it works: Algorithms - a tool for developing an un-

derstanding of control structures. In Proceedings of

the 26th ACM Conference on Innovation and Technol-

ogy in Computer Science Education V. 2, ITiCSE ’21,

page 621–622, New York, NY, USA. Association for

Computing Machinery.

Virtanen, A., Lahtinen, E., and J

arvinen, H.-M. (2005). Vip,

a visual interpreter for learning introductory program-

ming with c++. In Kolin Kolistelut - Koli Calling 2005

Conference on Computer Science Education, pages

125–130.

Using Software Reasoning to Determine Domain-law Violations and Provide Explanatory Feedback: Expressions Tutor Example

123
